Quick Guide
Introduction
The ZTE USB modem is a multi-mode USB modem, working in
HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM networks. With USB interface connecting to a laptop or a
desktop PC, it integrates the functionality of a modem and a mobile phone (SMS), and combines mobile
communication with Internet perfectly. It supports data and SMS services through the mobile phone
network, enabling you to communicate anytime and anywhere.
Specification
The following table shows the specification of your device.
Interface Type
USB 2.0 high speed
Systems supported
Supports most types of laptop and desktop PC.
Operating systems supported
Windows XP, Vista, Windows 7
MAC 10.4 or above
Functions
SMS service, Data service, Applications management,
support microSD card, etc.
Network Standards
HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM
Transmission speed (Max)
HSUPA: 5.76Mbps UL
HSDPA: 7.2Mbps DL
Temperature
Storage: -40℃ ~ +80℃
Operation:-10℃ ~ +55℃
Dimension
76mm×24.5mm×10mm
Weight
About 25g
microSD capability
Support up to 32GB microSD card
Notes:
microSD is a trademark of SD Card Association.
Getting to know your device

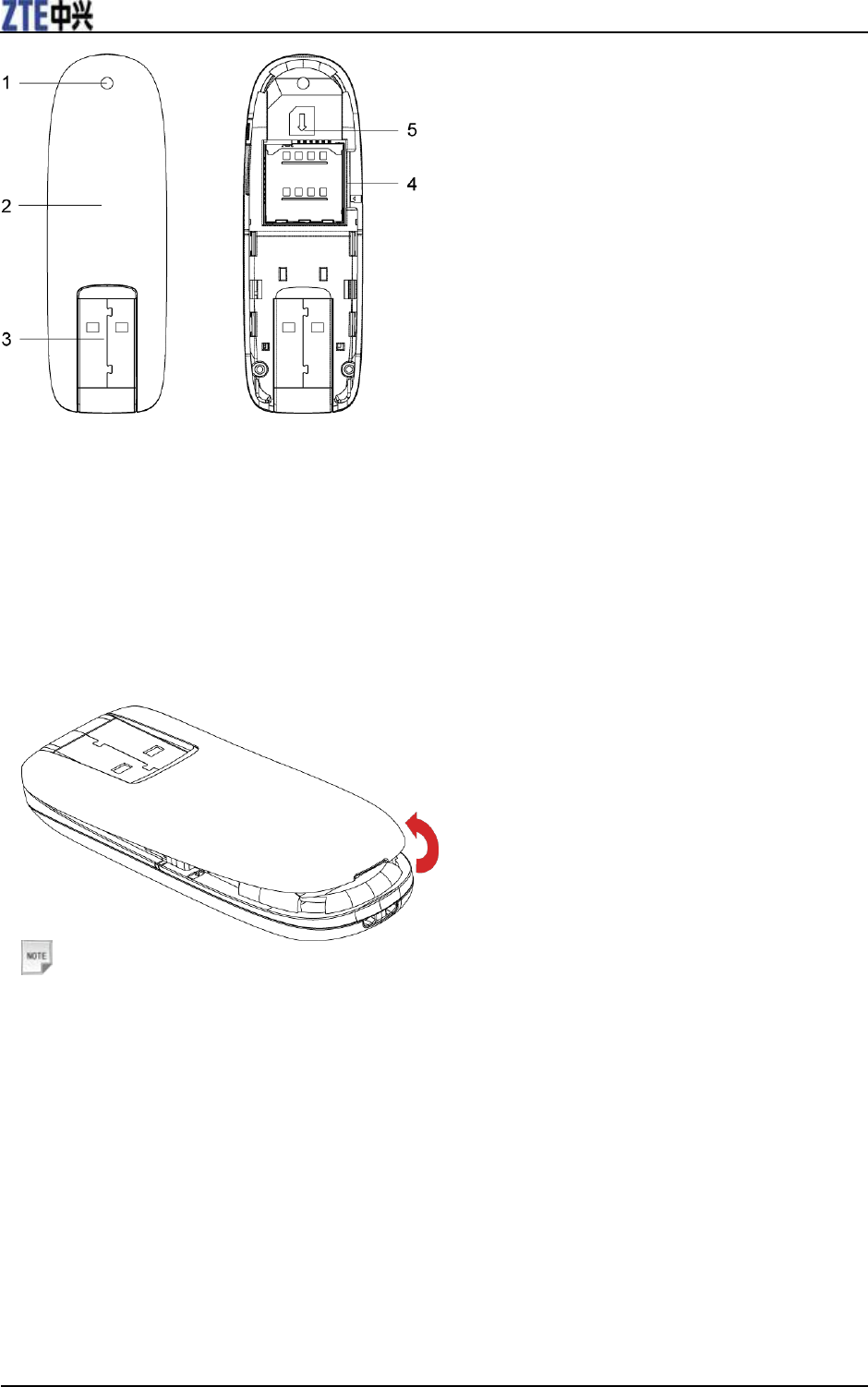

The following figure shows the appearance of the MF631. It is only for your reference. The actual product
may be different.
MF631 Quick Guide
2 Confidential and Proprietary Information of ZTE CORPORATION
1. Indicator
2. Front Cover
3. USB Connector
4. microSD card slot
5. SIM/USIM card slot
Hardware Installation
1. Put finger on the bottom finger grip, and then lift the cover of the modem to release and remove.
Notes:
Do not open the cover rudely so as to avoid the damage of the cover.

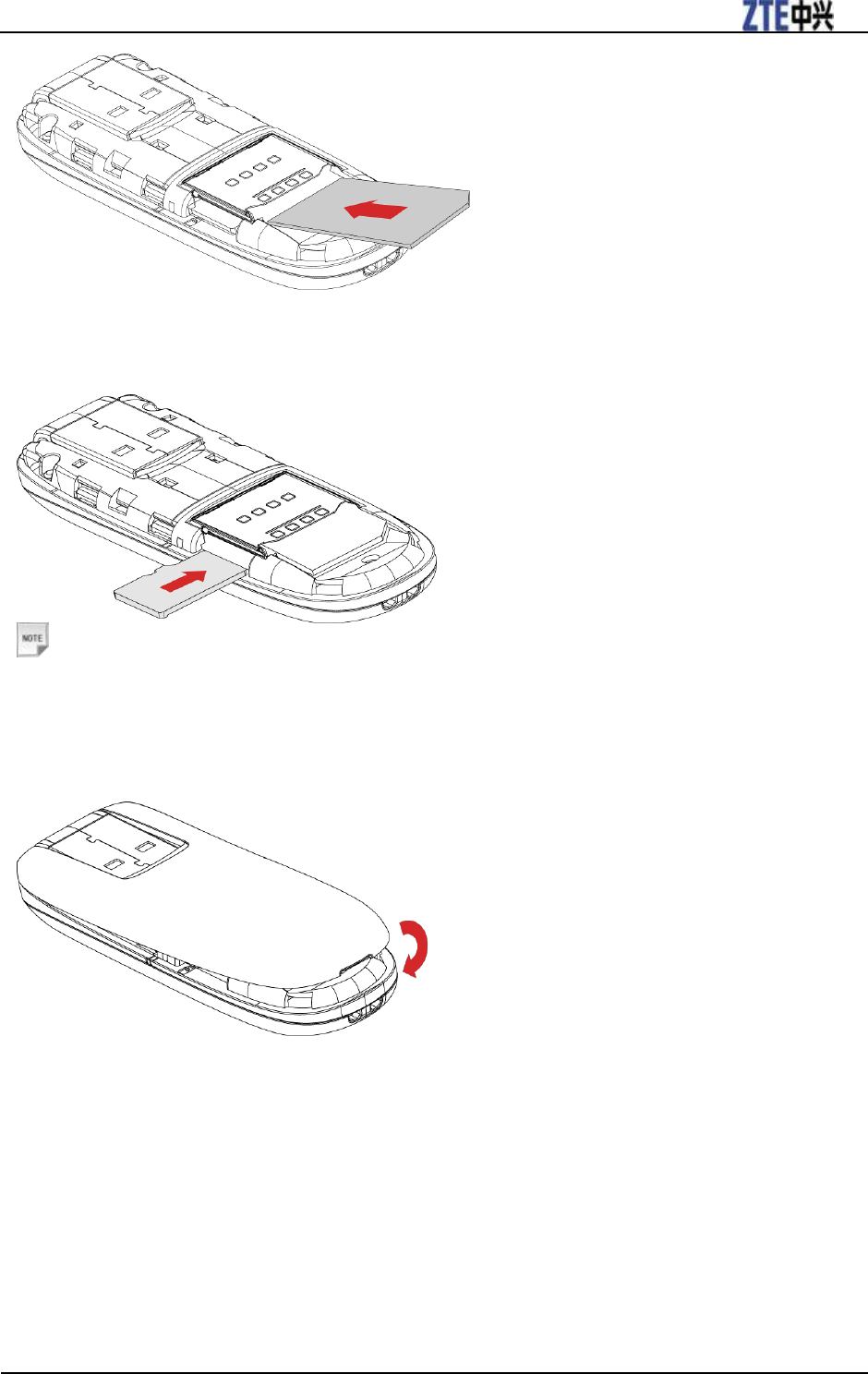

2. Insert the SIM/USIM card into the SIM/USIM card slot.
Insert the SIM/USIM card with the metal contact area facing downwards into the slot, shown as the
following picture.
MF631 Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 3
3. Insert the microSD card into the microSD card slot.
Insert your microSD card into the microSD card slot, shown as the following picture.
Notes:
This modem only supports microSD card.
4. Put the cover of the modem flatly upon the body of modem. Direct the cover towards the locking
catches on the sides of the modem and push the cover of the modem to lock the cover into its place.

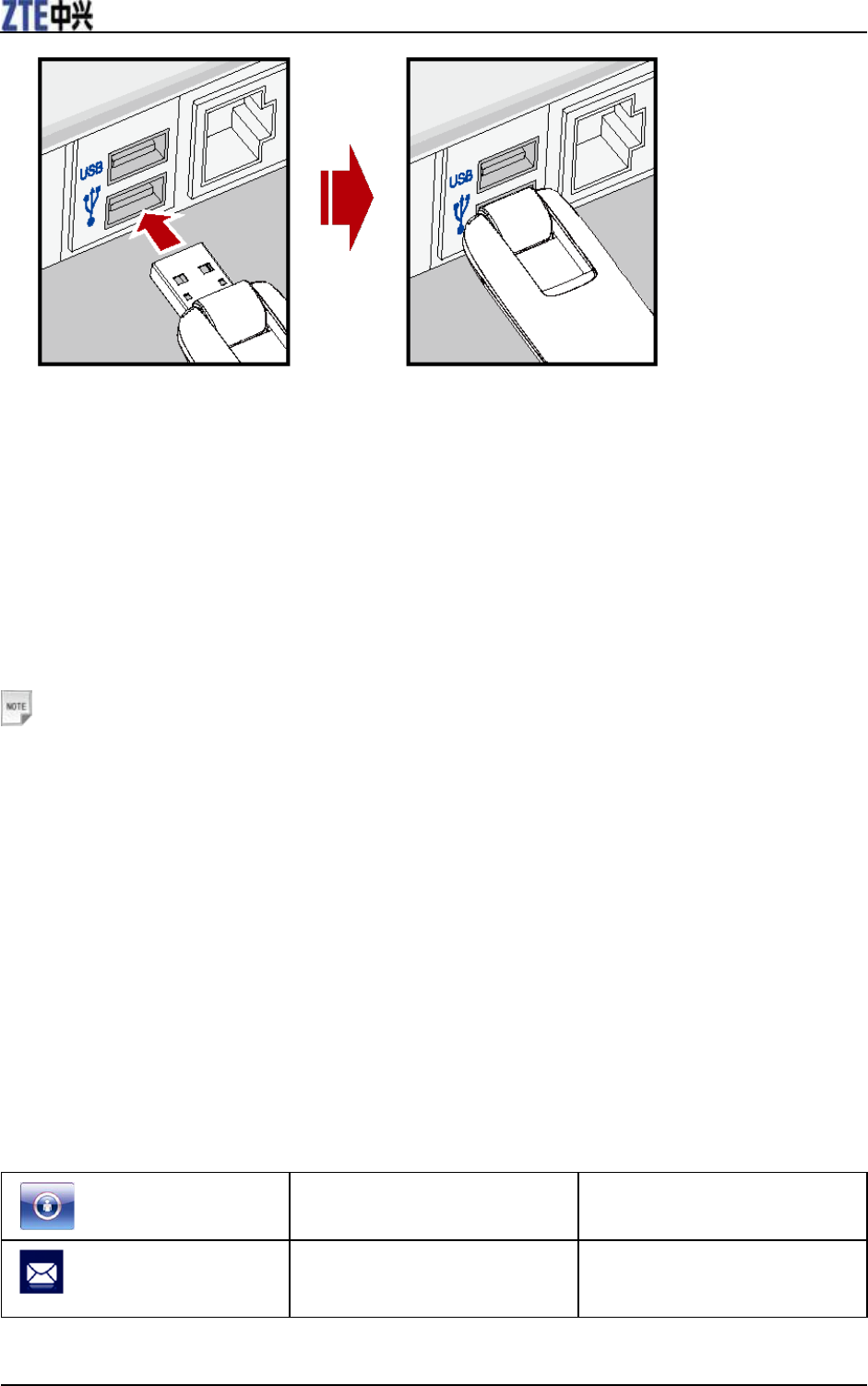

5. Connect the Modem to your laptop or desktop PC.
Rotate the USB connector and plug the USB connector into your computer’s USB port. Make sure
that it is tightly inserted.
MF631 Quick Guide
4 Confidential and Proprietary Information of ZTE CORPORATION
The OS automatically detects and recognizes new hardware and starts the installation wizard.
Software Installation Guide
On different operating systems, the installation procedures may be difference. Follow the system prompts
during operation.
For Windows OS
Your system will start the software setup process automatically when you connect the modem to your
computer correctly. Follow the system prompts to complete the software installation.
Notes:
If the system does not launch installation automatically, you can run the installation program in path of
My Computer > ZTEMODEM.
For Mac OS
The system will automatically display a ZTEMODEM CD-ROM icon on the desktop, when you connect
the modem to your computer correctly. Double click the installation software package in the
ZTEMODEM, and follow the system prompts to complete the software installation.
Safe removal from your system
Please close the application software, and then you can pull out the USB Modem safely.
How to use your modem
Various icons are presented to enable quick operation of the following functions:
Connect
Connect to the Internet.
SMS
Click New button, enter recipient’s
number and content, and then click
Send to send new message.
MF631 Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 5
Phonebook
Click New to fill in a new contact
person and contact details.
Settings
Set the configuration for the USB
modem.
Data records
Show the connection information.
Warning and Notice
To the owner
• Some electronic devices are susceptible to electromagnetic interference sent by modem if inadequately
shielded, such as the electronic system of vehicles. Please consult the manufacturer of the device before
using the modem if necessary.
• Operating of laptop and desktop PCs and the modem may interfere with medical devices like hearing
aids and pacemakers. Please always keep them more than 20 centimeters away from such medical
devices when they are turned on. Turn the modem off if necessary. Consult a physician or the
manufacturer of the medical device before using the modem.
• Be aware of the usage limitation when using a modem at places such as oil warehouses or chemical
factories, where there are explosive gases or explosive products being processed. Turn off your modem
if required.
• The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in hospitals.
Please observe and obey all warning signs and switch off your modem in these conditions.
• Do not touch the inner antenna area if not necessary. Otherwise it will affect your modem’s performance.
• Store the modem out of the reach of little children. The modem may cause injury if used as a toy.
• Do not touch the metallic parts of the modem so as to avoid a burn, when the modem is working.
Using your USB Modem
• Please use original accessories or accessories that are authorized. Using any unauthorized accessories
may affect your modem’s performance, and violate related national regulations about telecom terminals.
• Avoid using the modem near or inside metallic structures or establishments that can emit
electromagnetic waves. Otherwise it may influence signal reception.
• The modem is not waterproof. Please keep it dry and store in a shady and cool place.
• Do not use the modem immediately after a sudden temperature change. In such case, it will produce dew
inside and outside the modem, so don’t use it until it becomes dry.
• Handle the modem carefully. Do not drop, bend or strike it. Otherwise the modem will be damaged.
• No dismantling by non-professionals and only qualified technicians can undertake repair work.
• Operating temperature range of -10℃ ~ +55℃ and humidity range of 5% ~ 95% are recommended.
Frequency (RF) Energy
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted
MF631 Quick Guide
6 Confidential and Proprietary Information of ZTE CORPORATION
using standard operating positions accepted by the FCC with the device transmitting at its highest
certified power level in all tested frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the phone while operating can be well below the
maximum value. This is because the device is designed to operate at multiple power levels so as to use
only the poser required to reach the network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
The highest SAR value is 1.170W/kg .While there may be differences between the SAR levels of various
devices and at various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated
as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with
the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after
searching on FCC ID: Q78-ZTEMF631.
For body operation, this device has been tested and meets the FCC RF exposure guidelines for use the
positions the device a minimum of 5mm from the body. Use of other enhancements may not ensure
compliance with FCC RF exposure guidelines.
Declaration
We, ZTE Corporation, declared that:
The user is cautioned that changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable abrasion.
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
MF631 Quick Guide
Confidential and Proprietary Information of ZTE CORPORATION 7
v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside ZTE’s
reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party products provided that such
defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the Product.
End User shall have no right to reject or return the Product, or receive a refund for the Product from
ZTE under the above-mentioned situations.
• This warranty is End User’s sole remedy and ZTE’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required
under the mandatory provisions of the law.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using of this product, whether or not ZTE had been
advised, knew or should have known of the possibility of such damages, including, but not limited to lost
profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime
cost.
How to get help
You can get Help by:
• Clicking Help on the software.
• Sending E-mail to mobile@zte.com.cn
• Visiting http://www.zte.com.cn
• Calling Service Hotline: +86–755–26779999
