MF668 User Manual_FCC
1
Content
Content
1 USB Modem Introduction............................................................... 3
1.1 Introduction .................................................................................. 3
1.2 Safety Warning and Notice ......................................................... 3
1.3 RF Safety Information ................................................................. 5
1.4 System Requirements ................................................................. 7
1.5 Technical Specifications ............................................................ 8
2 Installation......................................................................................... 9
2.1 Unpacking .................................................................................... 9
2.2 Software Installation ................................................................... 9

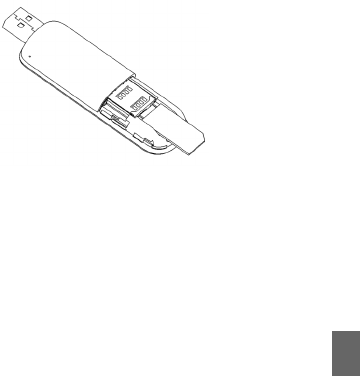

2.2.1 Insert the SIM Card into the Modem .................................... 9
2.2.2 Connecting the Modem and computer ................................ 9
2.2.3 First Time Software Installation ........................................ 10
2.3 Using your Modem .................................................................... 10
2.4 LED Indicator ............................................................................. 11
2.5 Removing the Modem Safely .................................................... 11
2.6 Uninstalling the Software ......................................................... 11
3 Functions & Operation ................................................................. 12
3.1 Main Interface............................................................................ 12

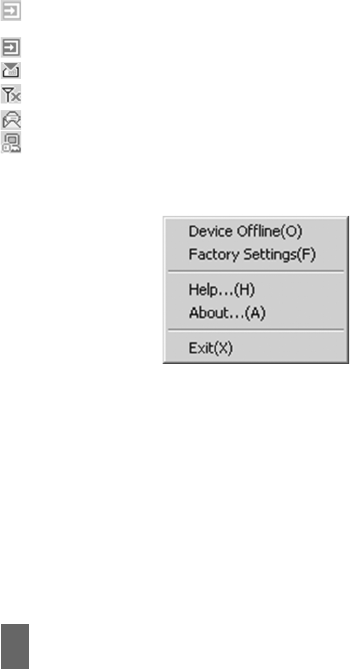

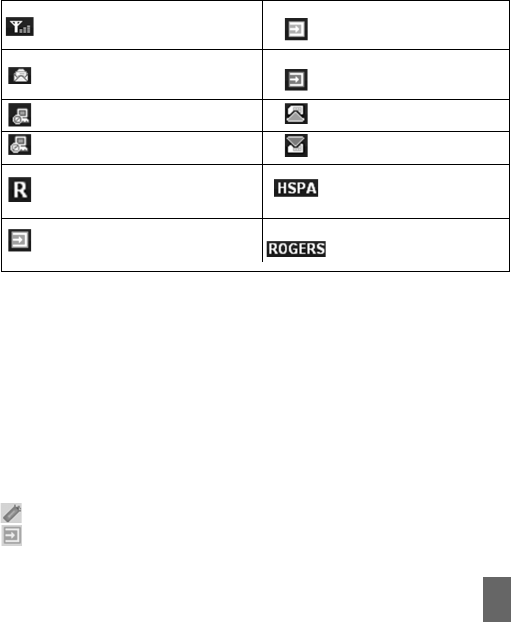

3.2 Task Bar Icons........................................................................... 13

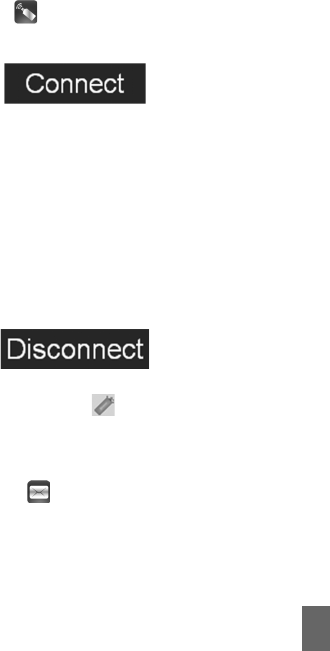

3.3 Connecting to the Internet ......................................................... 14
3.4 Text Messages .......................................................................... 15
3.4.1 Read Text Messages ........................................................ 16
3.4.2 Create New Message ....................................................... 16
3.4.3 Text Message Interface Guide ......................................... 17
2Content
3.5 Contacts .................................................................................... 17
3.6 Home Page ................................................................................ 18
3.7 Settings ..................................................................................... 18
3.7.1 Connection Settings .......................................................... 18
3.7.2 Security Settings............................................................... 19
3.7.3 Network Settings .............................................................. 19
3.7.4 Message Settings ............................................................. 19
3.7.5 Alert Settings ..................................................................... 20
3.7.6 Check for Updates ............................................................ 20
3.8 Help............................................................................................ 20
4 FAQ & Answers .............................................................................. 21
5 Declaration of RoHS Compliance ............................................... 24
3
1 USB Modem Introduction
1.1 Introduction
Thank you for choosing the ZTE MF668 USB modem. Please read this
manual carefully and keep it for future reference.
The pictures, symbols and contents in this manual are for reference
only. They are correct at the time of publication but might not be completely
identical with your modem. We operate a policy of continuous
development. We reserve the right to update the technical specifications
in this document at any time without prior notice.
The HSPA+ modem is a multi-mode 3G high speed modem suitable for
GSM/GPRS/WCDMA/EDGE/HSDPA/HSPA+ networks. It uses the USB 2.
0 standard interface for easy connection to any laptop or desktop
computer. It is compatible with 2G and 3G mobile networks, allowing
connection with wireless data and SMS services to give you high speed
data access wherever you are.
1.2 Safety Warning and Notice
To the owner
•Some electronic devices are susceptible to electromagnetic
interference. The modem is a transmitting device and may cause
interference to sensitive electronic equipment such as audio systems,
vehicle systems and medical equipment. Please consult the
manufacturer of the other device before using the modem.
•Operating of a laptop or desktop computer with the modem may
interfere with medical devices like hearing aids and pacemakers.
Please keep the modem more than 20 centimetres away from such
medical devices. Turn the modem off if necessary. Consult a physician
USB Modem Introduction
4 USB Modem Introduction
or the manufacturer of the medical device before using the modem
near such devices.
•Be aware of the regulations when using the modem at places such
as oil warehouses or chemical factories, where there are explosive
gases or explosive products being processed. Turn off your modem
as instructed.
•Don’t touch the antenna area unnecessarily while connected. This
can affect your modem performance and reduce the signal quality.
•Store the modem out of the reach of children. The modem may cause
injury or get damaged.
•The modem contains sensitive electronic circuitry. Do not expose the
modem to any liquids, high temperatures or shock.
•Only use original accessories or accessories that are authorized by
the manufacturer. Using unauthorized accessories may affect your
modem’s performance, damage your modem and violate related national
regulations.
•Avoid using the modem in areas that emit electromagnetic waves, or
in enclosed metallic structures (eg. elevators).
•The modem is not waterproof. Please keep it dry and store it in a cool,
dry place.
•Don’t use the modem immediately after a sudden temperature change
(eg. from an air conditioned environment to high temperature and
humidity outside). In such cases there could be condensing moisture
inside the modem which can cause internal damage. Unplug the modem
and leave it for 30 minutes before use.
•Always handle the modem with care. Be careful not to drop or bend
the modem.
•There are no user serviceable parts inside the modem. Unauthorised
5
dismantling or repair of the modem will void the warranty.
1.3 RF Safety Information
The USB Wireless modem is a transmitting device with similar output
power to a mobile phone. It uses an internal antenna to connect to the
mobile network. To get the best performance from your device, do not
cover or shield the device in any way as this will lead to increased
output power. Always leave a clear space around the device to allow
the transmit and receive signals to propagate. It is not intended to be
used as a handheld or body worn device but the SAR tests have been
completed and exceed Canadian and US regulatory requirements.
Radio Frequency Energy
Your handset is a low-power radio transmitter and receiver. When
switched on it intermittently transmits radio frequency (RF) energy (radio
waves). The transmit power level is optimized for best performance and
automatically reduces when there is good quality reception. Maximum
power is only used at the edge of network coverage so under most
circumstances the power output is very low. Under poor network con-
ditions the phone will transmit at a higher power, may get hot and will
have a significantly shorter battery life.
Declaration of Conformity
THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR
EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed
and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission
of the U.S Government. These limits are part of comprehensive guide-
lines and establish permitted levels of RF energy for the general
USB Modem Introduction
6
population. The guidelines are based on standards that were developed
by independent scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons, regardless
of age and health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using
standard operating positions accepted by the FCC with the phone trans-
mitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the
actual SAR level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required to reach the
network. In general, the closer you are to wireless base station antenna,
the lower the power output.
Before a phone model is available for sale to the public in the public, it
must be tested and certified to the FCC that it does not exceed the limit
established by the government-adopted requirement for safe exposure.
The tests are performed in positions and locations as required by the
FCC for each model.
The highest SAR values, as reported to the FCC for this model phone
when worn on the body, are 0.959W/kg for Cellular 850MHz and 1.02W/
kg for PCS 1900MHz. (Body-worn measurements differ among phone
models, depending upon available accessories and FCC requirements.)
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government requirement.
For body-worn operation, this model has been tested and meets the FCC
USB Modem Introduction
7
RF exposure guidelines when used with the ZTE accessories supplied or
designated for this product. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines. While there may be differ-
ences between the SAR levels of various phones and at various positions.
In all cases, products are designed to be within the guidelines.
FCC has granted an Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the FCC RF expo-
sure guidelines. Additional information on Specific Absorption Rates (SAR)
can be found on the Cellular Telecommunications & Internet Association
(CTIA) web site: http://www.phonefacts.net or the Canadian Wireless
Telecommunications Association (CWTA) web site: http://www.cwta.ca.
In the United States and Canada, the SAR limit for mobile phones used by
the public is 1.6watts/kg (w/kg) average over one gram of tissue. The
standard incorporates a substantial margin of safety to give additional
protection for the public and to account for any variations in
measurements.
1.4 System Requirements
The USB Modem supports any PC or MAC system using the USB 2.0
interface and operating systems listed below:
Operating System:Windows 2000 / XP / Vista / 7, and MAC OS X 10.
4 and above
Recommended Configuration:
CPU 1GHz Pentium or above
Hard Disk 20MB or above available
RAM 512M or above
The performance of the modem may be reduced if the configuration is
below the recommended requirement.
USB Modem Introduction
8
Functions
MicroSD Capacity
Operating Range
HSPA+/HSUPA/HSDPA/UMTS/GSM/GPRS/EDGE
HSPA+/HSUPA/HSDPA/UMTS 850/1900/2100 MHz
GSM/GPRS/EDGE 850/900/1800/1900 MHz
77mm x 28mm x 12mm
Approx. 30g
HSPA+ Mode up to 21.6Mbps
HSUPA Mode up to 5.76Mbps
HSDPA Mode up to 7.2Mbps
UMTS Mode up to 384 Kbps
EDGE Mode up to 236.8Kbps
GPRS Mode up to 57.6Kbps
5V
Resting 100mA rms
Max: 450mA rms
3G Mode: 250mW
2G Mode: 2W
USB Standard (2.0)
Compatible with PC and MacOS as listed
SMS service, data service, internet, applied
management, supports MicroSD
Up to 8GB
-10ºC to +60ºC
Networks
Frequency
Bands
Dimensions
Weight
Working Voltage
Current Consumption
Maximum Emitted
Power
Interface Type
Supported Systems
1.5 Technical Specifications
USB Modem Introduction
Data Rate
9
2 Installation
2.1 Unpacking
Check the following articles are in the package: Modem, USB Extension
cable, Quick Start Guide and User Manual.
2.2 Software Installation
2.2.1 Insert the SIM Card into the Modem
The SIM card is the Subscriber Interface Module provided by your Ser-
vice Provider. Before using the modem make sure the SIM card supports
data services. Insert the SIM card as shown with the gold contacts
facing down and the beveled edge facing outwards of the device. Push
the SIM card in as far as it will go.
2.2.2 Connecting the Modem and computer
Before connecting the modem for the first time, uninstall all previous
versions of the software.
Insert the modem into an available port on your computer. Alternatively,
you may use the supplied USB cable to connect the modem to the computer.
Installation
10 Installation
In most cases the single cable should suffice. However, to increase the
power delivered to the modem, use the double USB cable if required
2.2.3 First Time Software Installation
After the modem is connected, your computer will launch the installation
application software automatically.
1. Select your language and press Next.
2. Click Next to continue.
3. Read the license agreement, select I accept the terms of the
license agreement and press Next.
4. Click Next to accept the default installation location or press Change
to specify your preferred path.
5. The wizard will take a few minutes to install software. Click Finish
to complete.
Notes
•If your security settings prevent Autorun from starting automatically,
you will have to start the process manually. Navigate to the CDROM
and double click the Autorun.exe file to start the software installation
•The application software only needs to be installed the first time the
modem is connected to your computer. After the software is installed
you will operate the modem as described in section 2.3.
2.3 Using your Modem
Insert your modem into an available USB port on your computer. Your
computer will launch the Connection Manager application automatically.
The modem will initialize and the main user interface will appear. When
the Standby icon appears in the System Tray, the modem is ready to
work normally.
11
LED Indicator USB Modem Working Status
Green Solid Registered on the 2G network.
Green blinking Active data transfer on the 2G network
Blue solid Registered on the 3G network.
Blue blinking Active data transfer on the 3G network.
Red Power on. Not registered on the 2G or 3G network
If your computer does not launch the software automatically click Start
> Programs > Rogers Connection Manager > Rogers Connec-
tion Manager to run the application software, or double click the short-
cut icon on the desktop.
Note: The modem can take up to 30 seconds to launch the user interface.
If you click the icon during the auto-run sequence you may see an error
message on your computer. Please ignore the message and close the
window.
2.4 LED Indicator
Installation
2.5 Removing the Modem Safely
Please close the application software first and then pull out the modem
or USB cable.
2.6 Uninstalling the Software
If you need to uninstall the software, close the application first and then
click Start > Programs > Rogers Connection Manager > Uninstall
and follow the prompts to uninstall.
12
Messages Interface
Opens the Rogers Home Page
View the Help file
Connects to the internet
View your Contacts
Change system settings
3 Functions & Operation
3.1 Main Interface
The computer interface comprises three parts: Function Buttons, Sys-
tem Information Bar, and User Information area.
Function Buttons
Use the Function buttons to carry out the corresponding operations:
Functions & Operation
13
Shows network signal
strength Modem offline
Modem Connected
SIM card is roaming
Connected to the internet
Disconnected from the internet
New SMS message in your
Inbox
Name of your service
provider
Current network type:ED-
GE, GPRS, HSPA or HSPA+
SIM card not inserted
SIM card inserted
Modem disconnected
System Information Bar
Use the System Information Bar to monitor your network and modem status:
User Area
This section shows user information such as the time connected
and data usage.
3.2 Task Bar Icons
When you minimize the software the window will close to an icon
on the system tray. The program is still active in the background but
disappears to free your normal Windows space. Double click the
System Tray icon to resize the display.
Icon Description
Modem is in normal standby status
Green indicates the modem is connected to the computer
Functions & Operation
14
Orange indicates the computer and modem are connected but the
modem is offline
Red indicates the modem is disconnected from the computer
Red indicates no SIM card is inserted
No network signal is detected
New messages
Green indicates successful connection to the Internet
System Tray Menu
Right Click the System Tray icon to access the following menu:
Off-line/ On-line: Disconnect the modem from the network.
Factory Settings: Restore the modem settings to their original values.
Help: Enter the Help interface.
About: View software and hardware versions.
Exit: Close the software and switch off the modem.
3.3 Connecting to the Internet
Once you are connected you can browse web pages and access the
Internet through the modem. You can also receive Text Messages while
surfing the Internet.
Functions & Operation
15
Connect to the Internet
Click the Internet button and then click Connect to establish a
connection to the internet.
The card requires a few seconds to verify your connection and then
shows State: Connected at the bottom of the interface. The data
amount, time connected, etc. are displayed in the main window. You can
access the Internet and receive email by launching your usual applications
(Browser or Mail software).
Disconnect from the Internet
When you are connected to the internet the Connect button changes to
Disconnect. Click Disconnect to end your session.
After disconnecting the standby icon is displayed in the Windows
system tray.
3.4 Text Messages
Click the Text Message icon to use access the messaging interface.
Inbox: Stores the received text messages.
Sent Items: Stores the successfully sent text messages.
Drafts: Saves any text messages not sent. The drafts can only be
Functions & Operation
16
saved on the computer.
New Message: Compose a new message.
Notes: Different SIM cards have different capacities. For more
information, please consult your service provider.
3.4.1 Read Text Messages
Click the Inbox button or the Text Messages icon on the Windows
system tray to read the messages saved in the box. You can use the
buttons under the menu to Read, Reply, Forward, Move, Delete and Save.
3.4.2 Create New Message
•Click New Message and enter the recipient’s number.
•The recipient’s number can be entered directly or by selecting entries
from your Contacts.
•Use a semicolon (;) to separate multiple recipients.
•Click into the text field to enter your message.
•The Text Message content can be up to 160 characters long, including
symbols. Messages longer than the maximum length will be divided
into 160 character messages and sent separately to the recipient.
•Click Send to send the message.
•Select Yes to confirm sending.
•After the message has been sent successfully, the Text Message will
be saved in Sent Items. If it fails to send it will be saved in the Draft box
Send Text Messages while browsing the web
You can send Text Messages when surfing on the Internet if your net-
work operator supports this functionality.
Functions & Operation
17
3.4.3 Text Message Interface Guide
Enter Inbox, Sent Items, or Drafts to use the tabs at the bottom of the
window:
Read: Read the selected Text Message
Reply: Reply to the selected Text Message
Forward: Forward the Text Message to other recipients.
Move: Save the Text Message on the computer or SIM card.
Delete: Delete the selected Text Message
Save: Save the phone number from the message to your Contacts.
Cancel: Return to the Text Message interface.
Notes
•If you want to select several messages, you can hold the Ctrl or
Shift keys while clicking on the messages.
•New messages cannot be received when the SIM card is full (Different
SIM cards have different capacities).
•The system will indicate if the SIM inbox is full. Messages cannot be
saved until some are deleted by the user.
3.5 Contacts
Click the Contacts icon to switch to the Contacts interface. Con-
tact information can be saved in the computer or SIM card. Each record
includes Name, Number 1, Number 2, Number 3 Email and Group name.
•Create a new contact: Click New > New Contact, enter the details
and select OK to finish.
•Create a new group: Click New > New Group and enter the group name.
•You can select contacts from the list on the right and drag them to the
Functions & Operation
18
group location. Groups can only be stored on the computer.
•If a contact is selected, you can carry out the following additional
steps using the tabs on the bottom of the screen:
View: View the selected contact’s information.
Delete: Delete the contact.
Text MSG: Send a Text Message to the mobile phone number selected.
Save as: Save the contact information to a TXT file on your computer.
Edit: Edit the contact information.
3.6 Home Page
The Home Page icon launches your default internet browser and
directs you to the Rogers Home Page.
3.7 Settings
Click the Settings icon to switch to the settings interface.
Note: Normally there is no need to change any of these settings as they
are pre-configured for your network. If you change networks or are
roaming you may need to modify some settings. Consult your service
provider for more information.
3.7.1 Connection Settings
The connection settings menu allows you to select, edit and add differ-
ent Access Points for accessing the internet.
Add: Create a new Access Point Name (APN)
View: View the selected Access Point settings
Delete: Delete the selected Access Point. Rogers and Fido Access
Points cannot be deleted.
Functions & Operation
19
Set as Default: Set the selected Access Point as the default for con-
necting to the internet.
Note: Ensure that Rogers Internet is selected as the default when
using the Rogers network. Your internet feature will not work if this
setting is changed.
You may enable the feature Automatically Connect to the Internet
at the bottom of the Connection page. This will establish an internet
connection automatically when your USB modem is inserted into your
computer.
3.7.2 Security Settings
Enable the PIN Code
You can enable a PIN code using the PIN enable feature. When enabled
you need to enter your PIN to start the modem. The PIN code is stored on
the SIM card. Consult your service provider for more information or if you
forget your PIN. Click Change PIN to modify the number.
Backup Contacts and Text Messages:
You can create a local backup of your Contacts and Text Message data.
3.7.3 Network Settings
Automatic: The modem selects the network automatically according to
predefined configuration rules and network status (set by your service
provider).
Manual: User selects network settings.
3.7.4 Message Settings
Normally there is no need to change any of these settings as they are
pre-configured for your network. If you change networks or are roaming
Functions & Operation
20
you may need to modify some settings. Consult your service provider for
more information.
Message Center: Set the corresponding Message Centre number
according to your service provider. You must input the correct Message
Centre number to use the Text Message feature. The number is provided
by your Service Provider. Please enter the country code before the number.
Validity Period: Set the time limit for saving Text Messages on the
network side. (12 hours / A day / A week / Maximum). The default setting
is the longest period permitted by the network.
Delivery Report: Enable or disable the Delivery Report. This feature
will have a Message sent to your computer when your Text Message
has been delivered successfully.
Default Storage: You can set your preferred location to save your
received Text Messages to be on the computer or on the SIM card.
3.7.5 Alert Settings
You can change your connect, disconnect and text message tone
settings by choosing different audio files. The supported formats are
MP3, WAV and MIDI. If you select Mute the tone is disabled.
3.7.6 Check for Updates
The Check for Updates button will direct you to a Rogers webpage
where you can check the status of your software version and upgrade
if necessary.
3.8 Help
Click the Help icon to switch to help interface.
Functions & Operation
21
4 FAQ & Answers
If you have any problems with your connection or modem please consult
the manual and check this section. If the problem still exists contact your
service provider or check our website for more details at www.zte.
com.cn.
The user interface
doesn't start after
the modem is
plugged in.
System configuration
may not allow Autorun.
The antenna is at the
wrong angle or position.
You have no network
coverage.
You have not entered
your PIN number at
start up.
Your SIM card is not
inserted correctly
Start the program manually by
going Start > Program Files or
use the shortcut on the desktop.
Adjust the angle and position of
the USB-modem.
Try moving location until you get
good reception.
Restart the application and en-
ter your PIN number. If the PIN
is invalid you cannot connect to
the network.
Ensure that the SIM card icon is
green. If it is red, remove the
card and reinsert the SIM card.
Problem
Description Possible Causes Suggested Solution
The modem has
no signal.
FAQ & Answers
22
Message sent
failed.
The Message Center
number is not correct.
You have no network
coverage.
The APN configuration is
wrong.
The manual network se-
lection is wrong.
You are using the wrong
Access Point name
(APN).
You don't have roaming
enabled on your plan.
Check with your with service
provider and enter the correct
number in Message settings.
Try moving location until you get
good reception.
Check with your service provider
and set the APN in the configu-
ration settings.
Select the correct network for
your service provider or use
Automatic network selection.
Ensure that the correct Access
Point is selected in the Connec-
tion settings menu. Consult your
service provider if the problem
persists.
Consult you're your service pro-
vider before you go overseas
to enable roaming.
Data connection
failed.
The Modem
cannot connect to
the Internet when
abroad.
FAQ & Answers
Problem
Description Possible Causes Suggested Solution
23
The Modem
cannot connect to
the Internet when
abroad.
You don't have roaming
enabled on your plan.
The computer
soundcard is disabled
or on low volume.
The alerts are muted.
Consult you're your service pro-
vider before you go overseas
to enable roaming.
Check the audio card and adjust
the volume.
Navigate to Settings > Alert and
unmute the alerts.
No warning tone.
FAQ & Answers
Problem
Description Possible Causes Suggested Solution
24
5 Declaration of RoHS Compliance
To minimize the impact of our electronic devices in the global environment
and take more responsibility and accountability in the growth of the
mobile industry, this document shall serve as formal declaration that
the manufactured by ZTE CORPORATION is in compliance with the Di-
rective 2002/95/EC of the European Parliament - RoHS (Restriction of
Hazardous Substances) with respect to the following substances:
(1) Lead (Pb)
(2) Mercury (Hg)
(3) Cadmium (Cd)
(4) Hexavalent Chromium (Cr (VI))
(5) Polybrominated biphenyls (PBB’s)
(6) Polybrominated diphenyl ethers (PBDE’s)
This declaration is issued based on our current level of knowledge.
Since conditions of use are outside our control, ZTE CORPORATION
makes no warranties, expressed or implied, and assumes no liability in
connection with the use of this information.
Declaration of RoHS Compliance
