1.Getting Started
ZTE MF91 is a 4G mobile hotspot device, working in GSM/GPRS/EDGE/WCDMA/HSPA/HSPA+ /LTE
network. The client devices can connect to the device via USB or Wi-Fi interface; the device supports
data services, enabling you to communicate anytime and anywhere.
1.1 Device Appearance

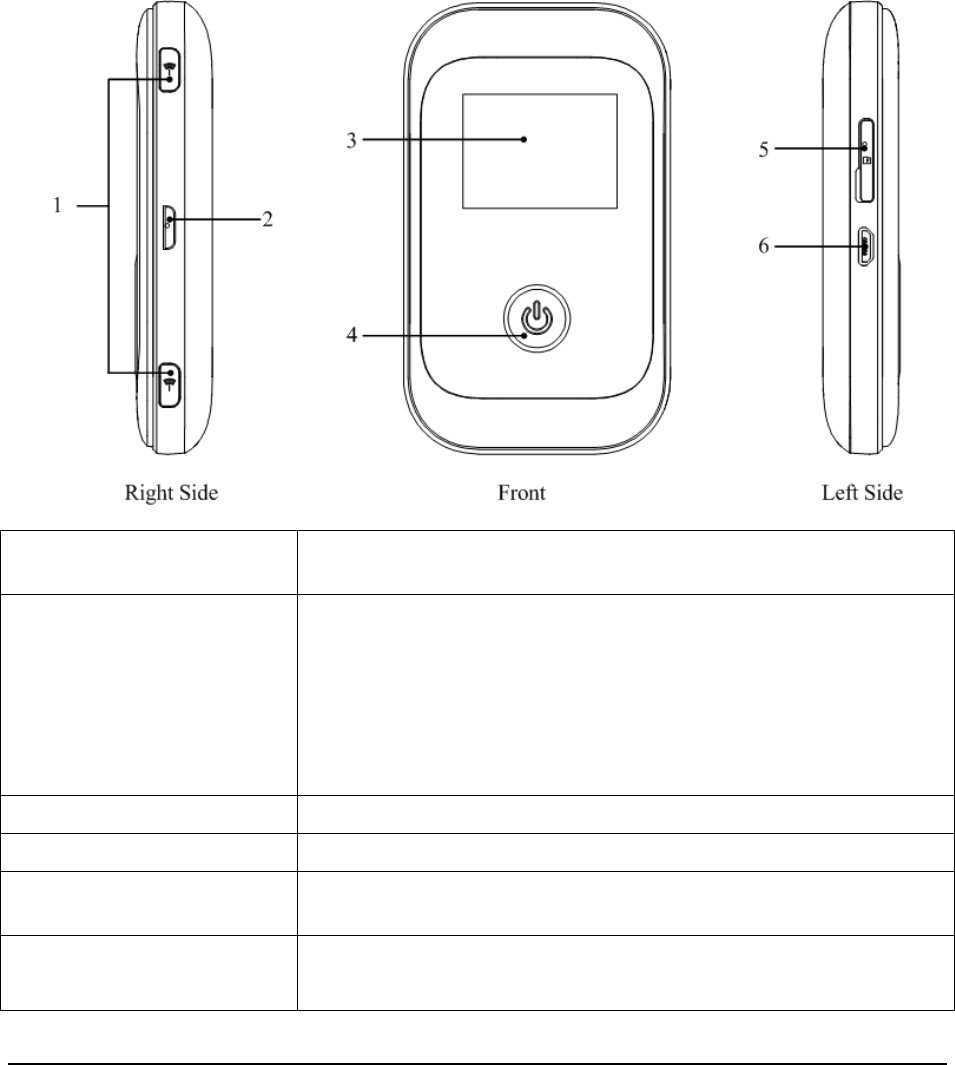

The following figure shows the appearance of the device. It is only for your reference. The actual device
may be different.
1. External Antenna Connector It is used to connect an external antenna to enhance the
signal strength.
2.WPS This button is used to start/end Wi-Fi Protected Setup
authentication process and enable/disable the Wi-Fi function.
Hold it for 3 seconds to activate the WPS function.
When the WPS function is available, press it to deactivate the
WPS function.
Press it to enable/disable Wi-Fi function.
3. OLED Screen It indicates the network type, signal strength, battery, Wi-Fi, etc.
4.Power Hold the Power button to switch on/off the device.
5.Memory card slot (microSD
card)
It is where you insert the memory card (microSD card).
6.Charger/USB port Charge your device.
Connect the client to your device via USB cable.
6 Confidential and Proprietary Information of ZTE CORPORATION
Notes:
• is a trademark of SD Card Association.
• Please use the original external antenna if necessary.
1.2 Indicators
When the device is powered on, the following icons will appear on the OLED screen, with the
corresponding indications listed in the table below:

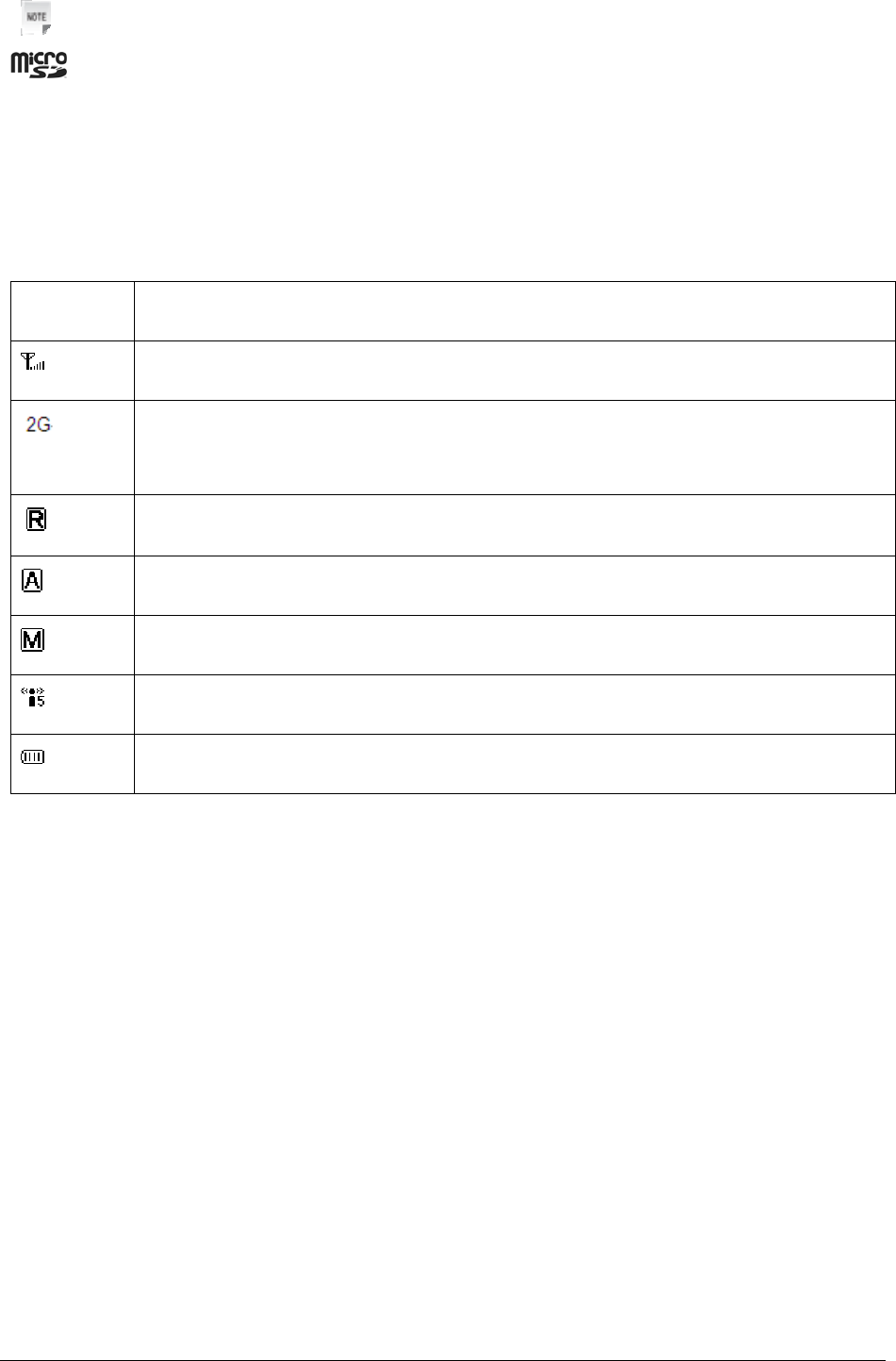

Icon Indication
Network signal strength.
Network type. 2G, 3G or 4G icon will appear on the OLED screen according to the
connected network.
Roaming network indication.
Connect to the Internet automatically.
Connect to the Internet manually.
Wi-Fi status and number of the connected users.
Battery power indication.
Confidential and Proprietary Information of ZTE CORPORATION 7
1.3 Hardware Installation
3.2.1 Inserting SIM Card and Battery

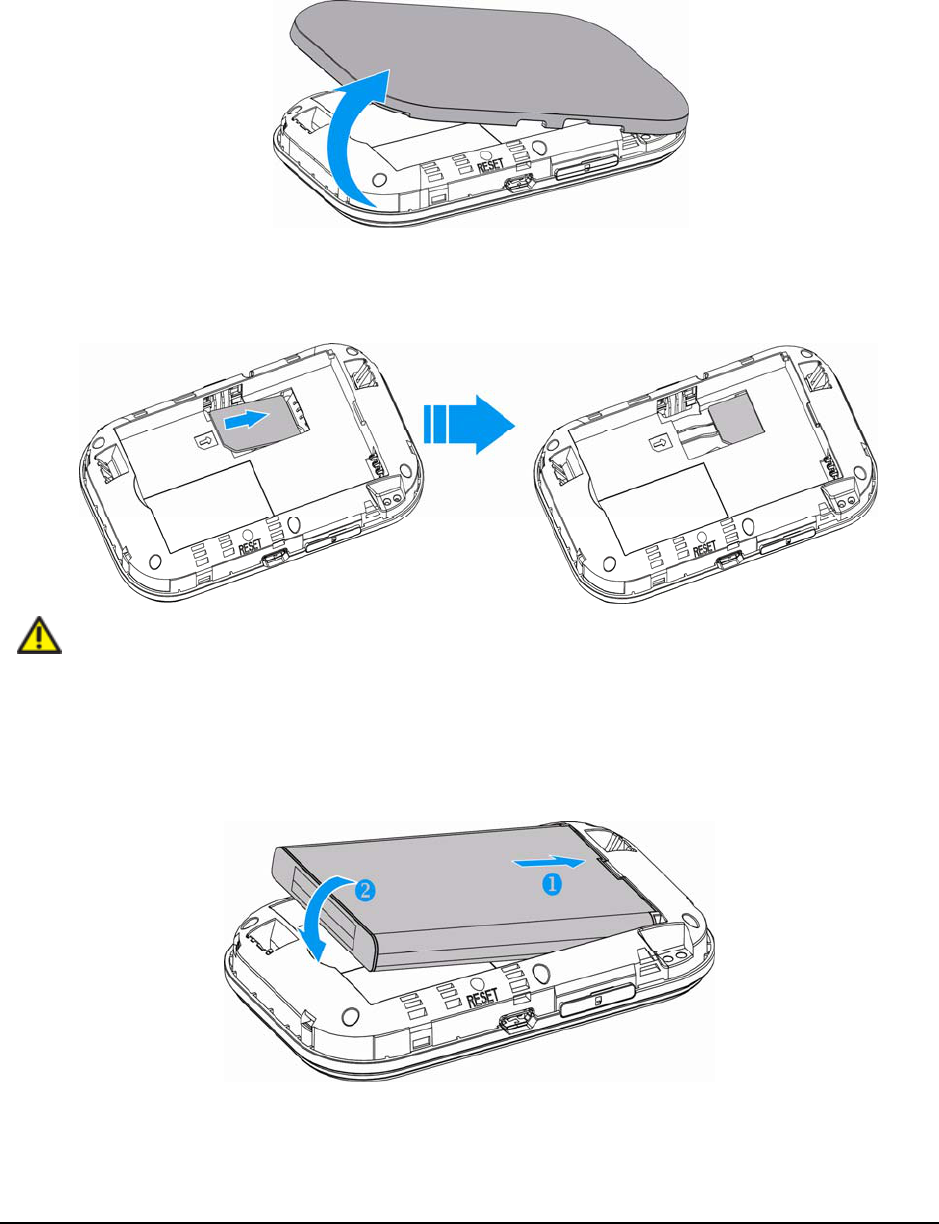

1. Use the thumb catch at the bottom of the device to open the battery cover.
2. Insert SIM Card into the slot.
Warning:
Please power off the device and remove the external power adapter before removing or inserting the
SIM card, if not, the device or SIM card may be damaged.

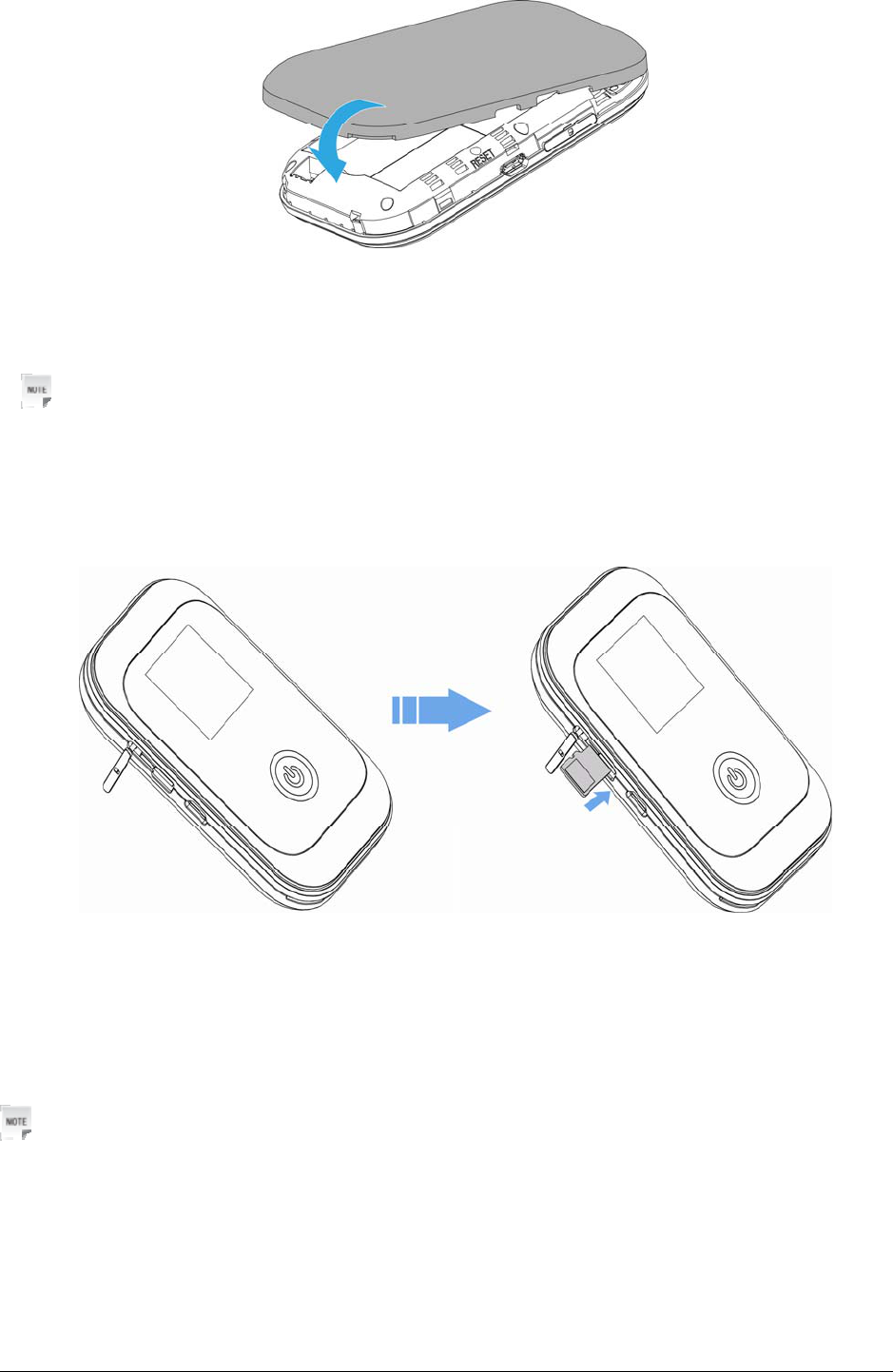

3. Insert the battery as shown with the contacts located against the gold springs.
4. Line the battery cover up correctly and press gently to close the cover.
8 Confidential and Proprietary Information of ZTE CORPORATION
3.2.2 Inserting microSD Card
1. Pull the microSD cover out of the card slot.
Notes:
Do not pull the cover rudely, as it is connected with the device.
2. Insert the microSD card into the microSD slot. The following picture shows the correct inserting
direction. You will hear a click when the microSD card locks in place.
3. Close the microSD cover.
3.2.3 Switching On/Off Your Device
Press and hold the Power button to switch on/off the device.
Notes:
• Please install battery before power on.
• The device is powered on when the OLED Screen lights up.
Confidential and Proprietary Information of ZTE CORPORATION 9
3.2.4 Charging Your Device
Notes:
• Charge at least 4 hours to ensure a full initial charge.
• Charging is only possible within a temperature range of 0℃ to 45℃.
• You can charge your device by using USB cable or adapter.

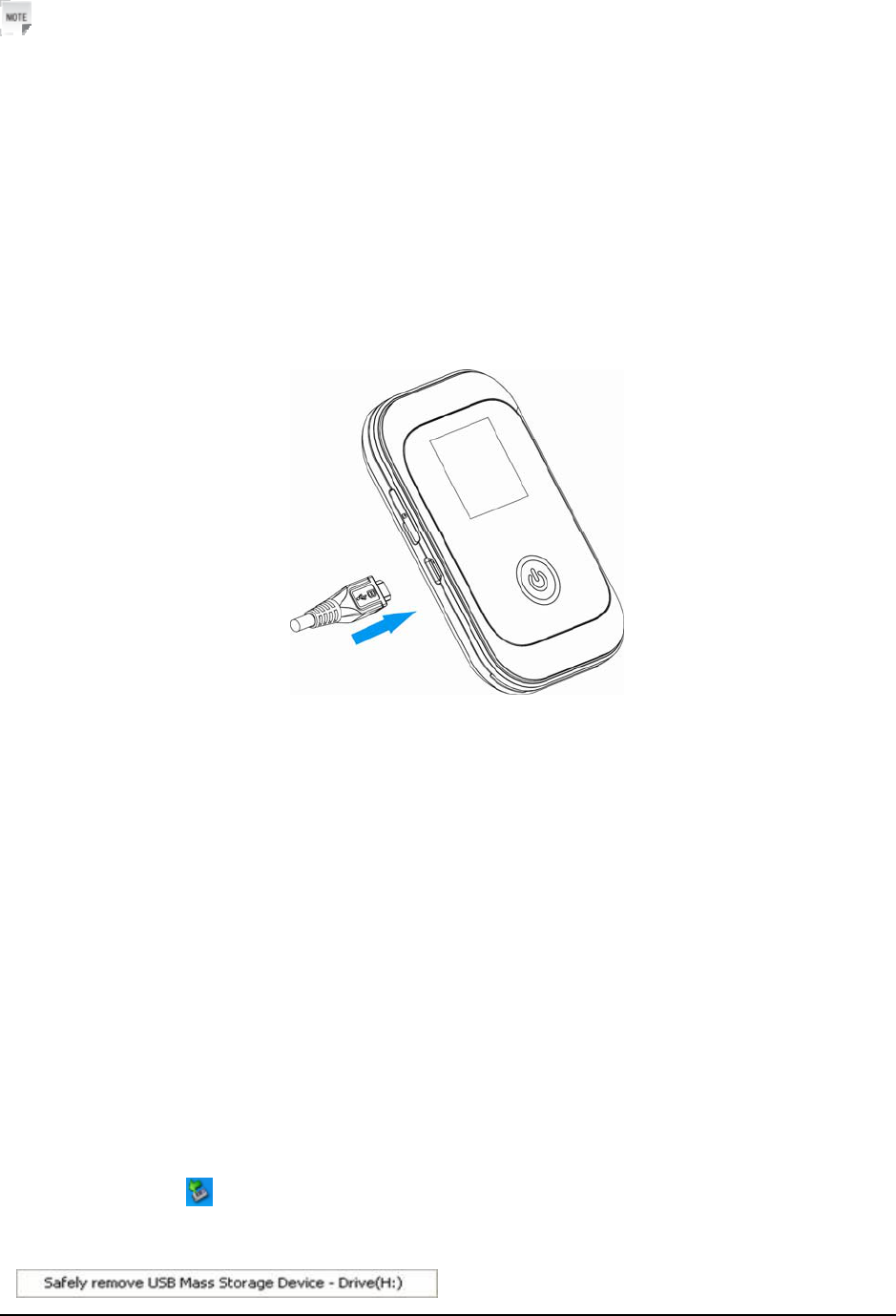

1. Insert the charger lead carefully with the plug arrow facing the left side of the device.
2. The plug only fits one way. Do not use excessive force to insert the plug.
3. Check the plug is the right way round and lined up correctly then insert it gently.
1.4 microSD Card
Using microSD Card
1. Insert the microSD card into the device.
2. Connect the device with PC or laptop via provided USB cable, and the system will display it as a
removable disk.
3. Use it freely.
Uninstall microSD Card
1. Left click the icon in the Windows system tray bar. Then a menu will popup and indicate the USB
devices list as below:
10 Confidential and Proprietary Information of ZTE CORPORATION
2. Select Safely remove the USB disk which is relevant to the device.
3. Remove the device directly.
1.5 About SIM Card
Avoid handling the SIM card unnecessarily. Hold the card by the edges to prevent static damage. Keep
the SIM card away from electrical and magnetic appliances.
If you cannot get service, make sure that：
• You are in an area which has network coverage.
• You are using the correct SIM card.
Confidential and Proprietary Information of ZTE CORPORATION 11
2.Working Mode
Use the USB cable to connect your PC or laptop which cannot provide wireless network function,
and connect other laptops with device via Wi-Fi, so all of them can surf on the Internet at the
same time.
Your device supports three working modes: USB mode, Wi-Fi mode, and Mixed mode. For the client, we
only use PC or laptop as the example in this document.
2.1 USB Mode

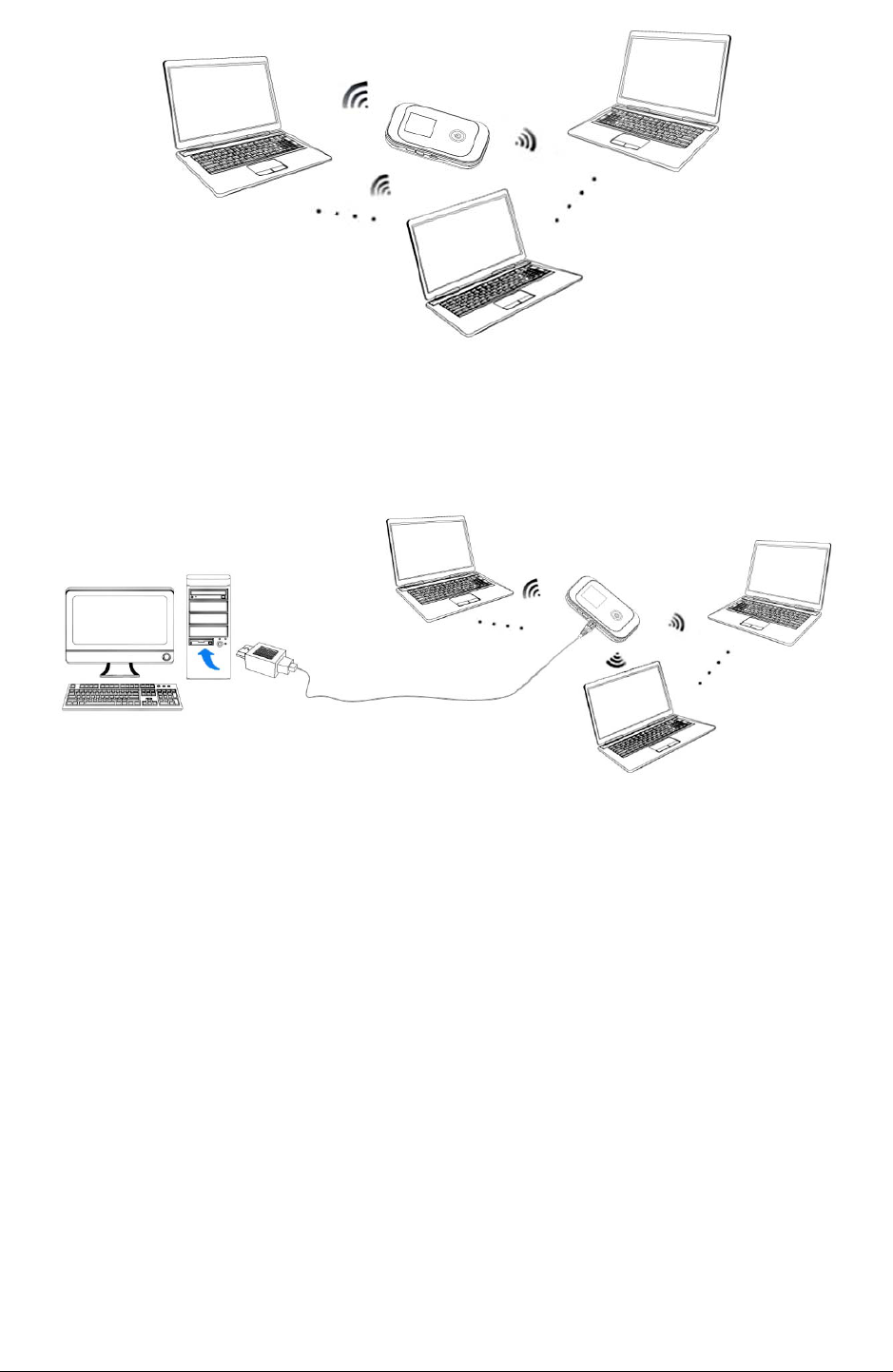

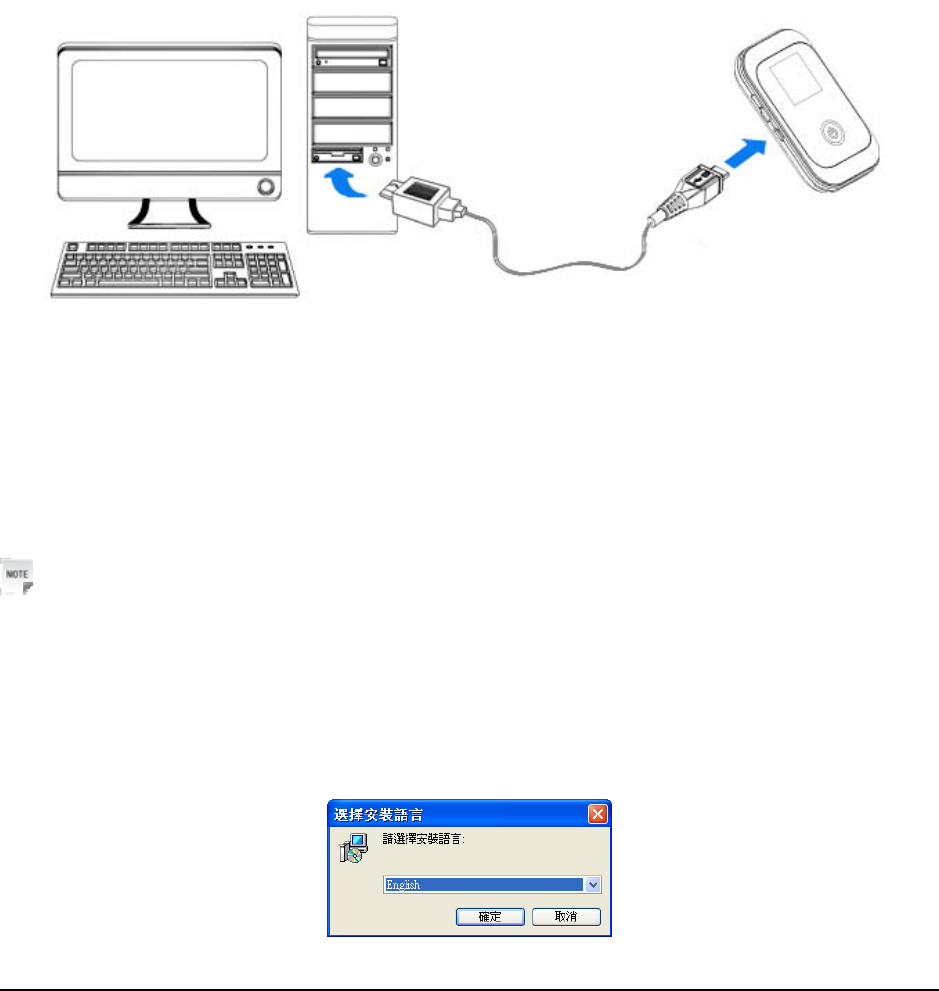

Connect the device to your PC or laptop via the included USB cable, then power on your device. And the
following picture is one application example:
Installing Software
When you connect your device to PC or laptop for the first time, the system will automatically detect and
recognize the new hardware and display the new icon in the desktop status bar, indicating that the PC or
laptop and the USB device have been connected properly. After a few seconds, there will show the
following installation interface if the laptop and desktop PC supports automatic installation.
Notes:
If the system does not launch installation automatically, you can run the installation program in path of
My Computer > 4G Pocket Wi-Fi > Autorun.exe.
The following installation interface will show how to start installation. And the first screen you see as
following:
12 Confidential and Proprietary Information of ZTE CORPORATION

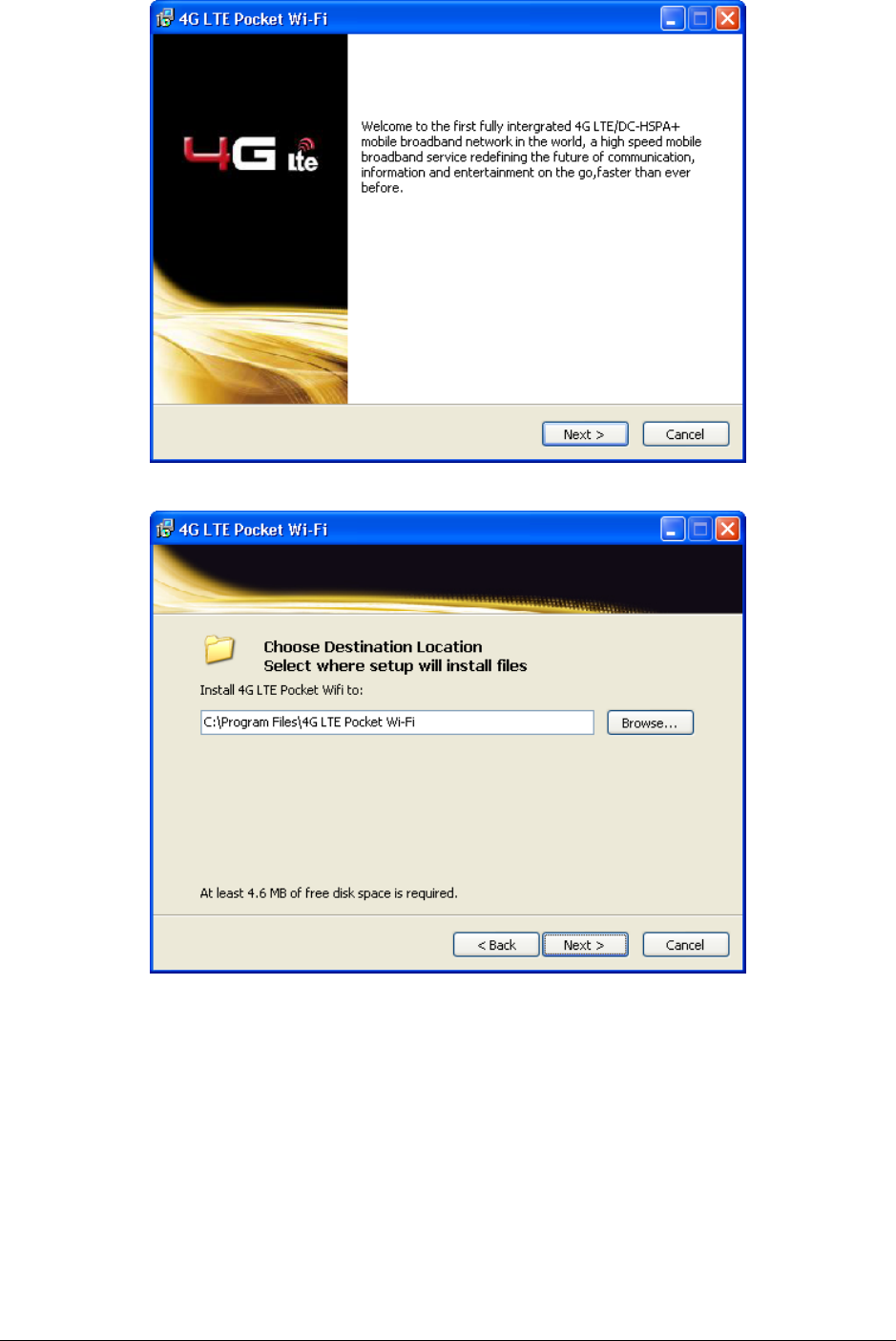

Select Language for the software, and then click OK.
Strongly recommend you to exit other Windows programs, and click Next.
Select the folder that you want to install the software, and you can select a different path by pressing
Browse, and then click Next.
Confidential and Proprietary Information of ZTE CORPORATION 13

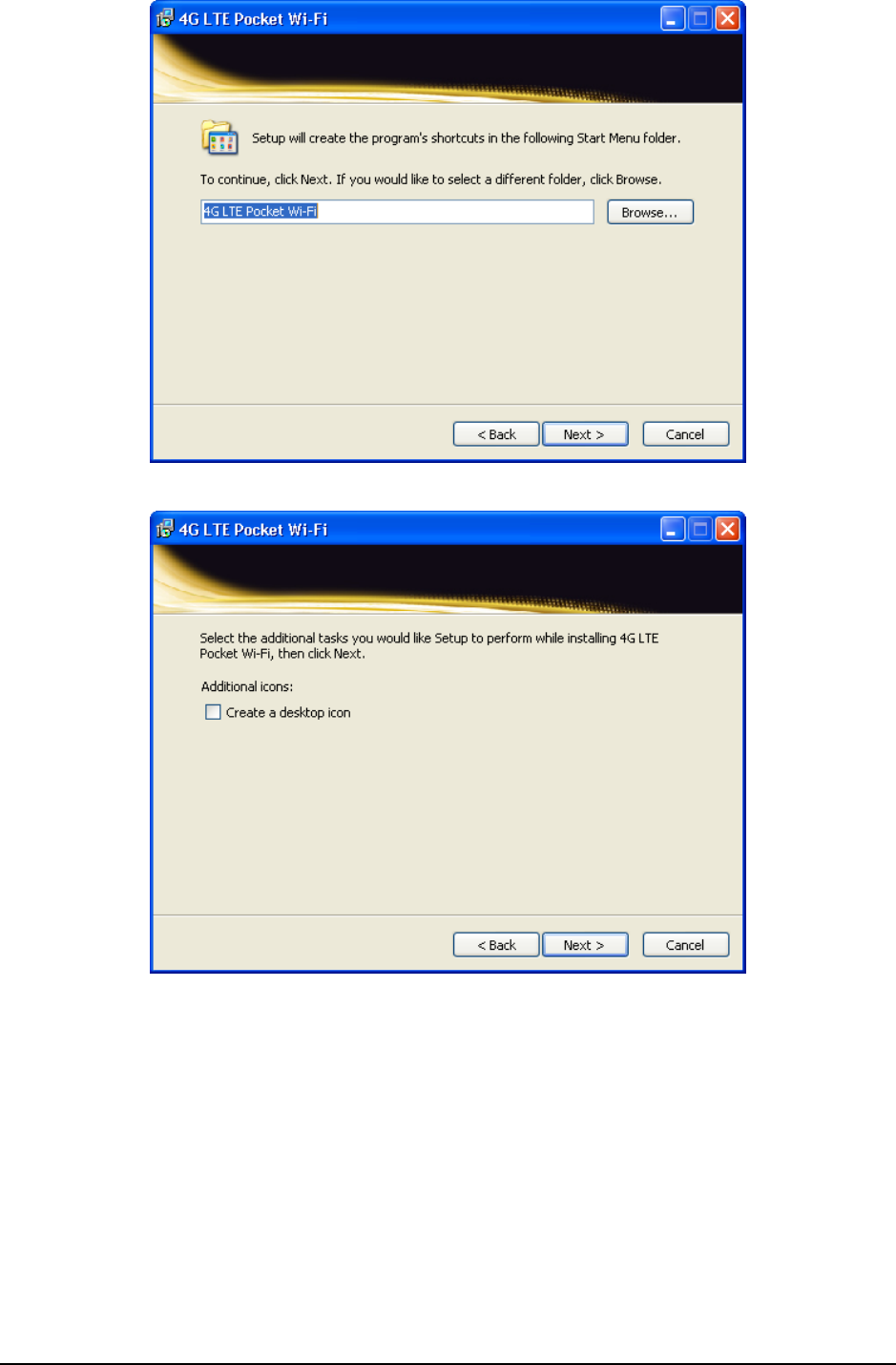

Select a different folder or the default folder to place the program’s shortcuts, and then click Next.
Select any other tasks then click Next.
14 Confidential and Proprietary Information of ZTE CORPORATION

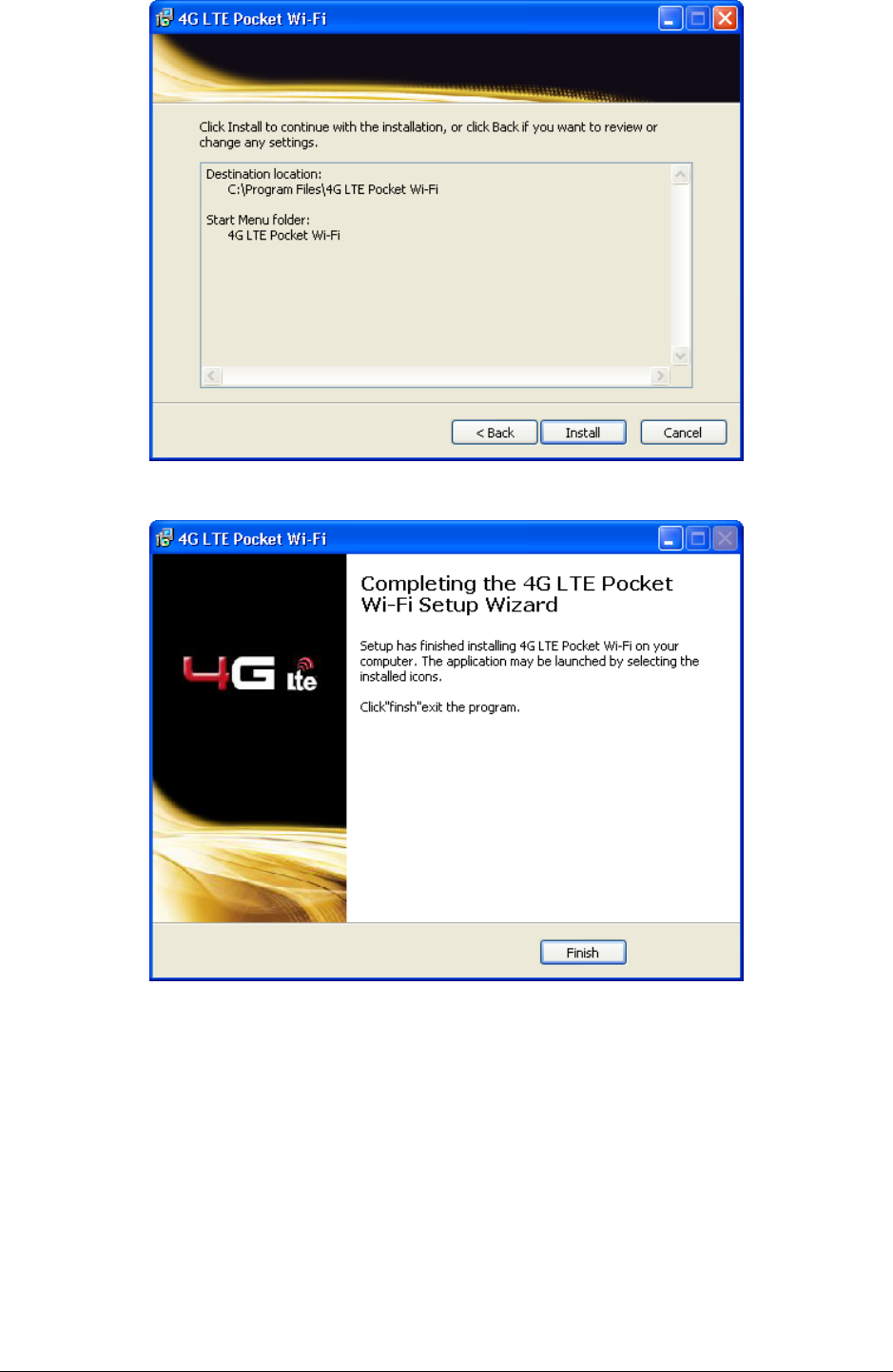

Click Install.
Click Finish to complete the installation.
After the installation, select Start > Programs and there will be a 4G LTE Pocket Wi-Fi program
group，which includes MF91 Web UI and Uninstall 4G LTE Pocket Wi-Fi.
Uninstalling Software
Select Start > Programs > 4G LTE Pocket Wi-Fi > Uninstall 4G LTE Pocket Wi-Fi menu on the
laptop or desktop PC.
Confidential and Proprietary Information of ZTE CORPORATION 15

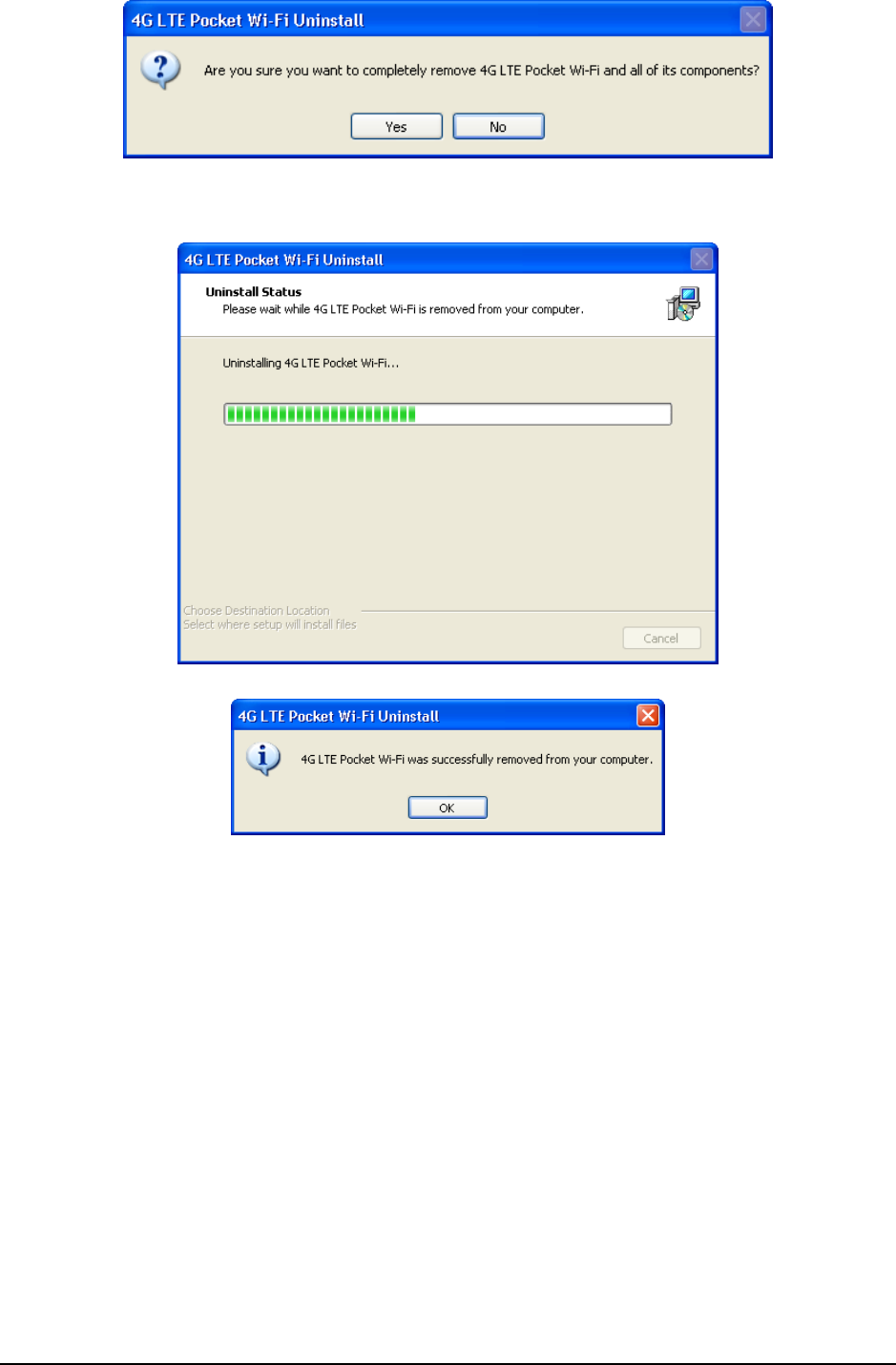

Click Yes to confirm uninstalling the software. Then the system begins to uninstall programs, and this
interface will indicate the progress of uninstall.
Click OK to complete the application software uninstall.
2.2 Wi-Fi Mode
Power on directly, and then connect the device to your PC or laptop via Wi-Fi. And the following picture
is one application example:
16 Confidential and Proprietary Information of ZTE CORPORATION
2.3 Mixed Mode
Use the both connection methods to connect your PC or laptop. And the following picture is one
application example:
Confidential and Proprietary Information of ZTE CORPORATION 17
3.Operation and Function
3.1 Preparation
Before using the data service, make sure:
• SIM card is inserted.
• All OLED indicators are working normally.
3.2 Establish a connection between your device and the client
3.2.1 Via USB Cable
1. Connect your device and the client with the USB cable.
2. Power on your device.
3. Install software.
After the installation, the connection between your device and the client will be established successfully a
moment later.
3.2.2 Via Wi-Fi
1. Power on your device directly. It will take 1~2 minutes to initialize, and then Wi-Fi OLED icon will be
indicated on the LED screen of your device.
2. Use your normal Wi-Fi application on the client to search the available wireless network.
Notes:
You need to check your Wireless Network Connection. Set the client to obtain an IP address
automatically in the Internet protocol (TCP/IP) properties, and the client will get an IP address
like”192.168.0.101”.

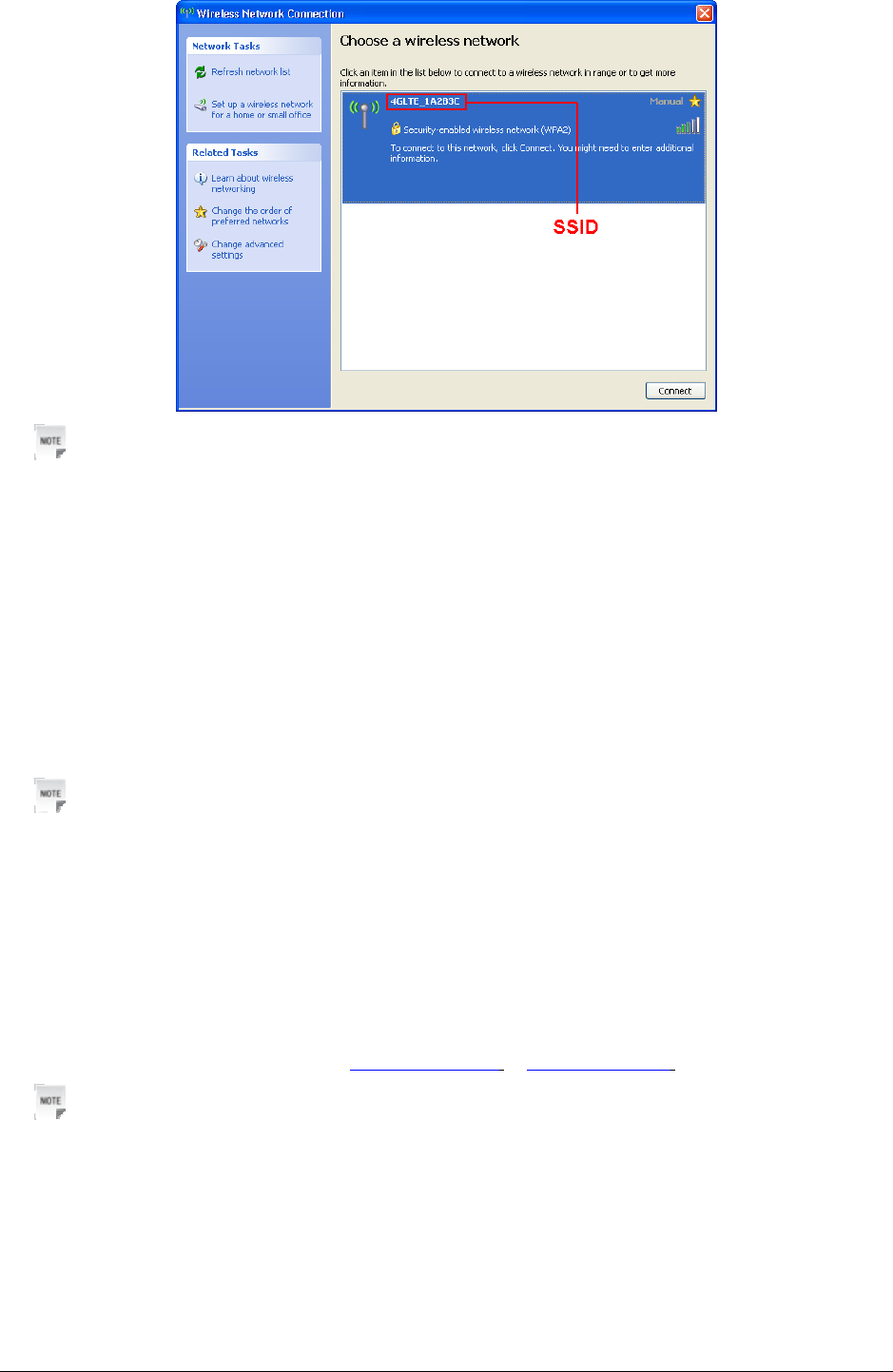

3. Select the SSID of your device, and then click Connect. The following figure is only for your
reference.
18 Confidential and Proprietary Information of ZTE CORPORATION
Notes:
There will be a pop-up window to require the password. Please check the label on the battery
compartment of your device to gain the SSID and preset password information.
4. Wait a moment, the connection between your device and the client will be established successfully.
3.3 Access the Internet
1. Switch on the device.
2. Establish a connection between your device and the client.
3. After successfully establishing the connection, access the Internet in the Always On mode.
Notes:
You can browse the WebGUI Configuration page and click Dial Settings to set the WAN connection
mode.
3.4 Access the WebGUI Configuration Page
1. Make sure the connection between your device and the client is correct.
2. Launch the internet browser and enter http://192.168.0.1 or http://4glte.home in the address bar.
Notes:
It is recommended that you use IE (7.0 or later), Firefox (1.0 or later), Opera (6.0 or later), Safari (3.0
or later), Chrome (6.0 or later).

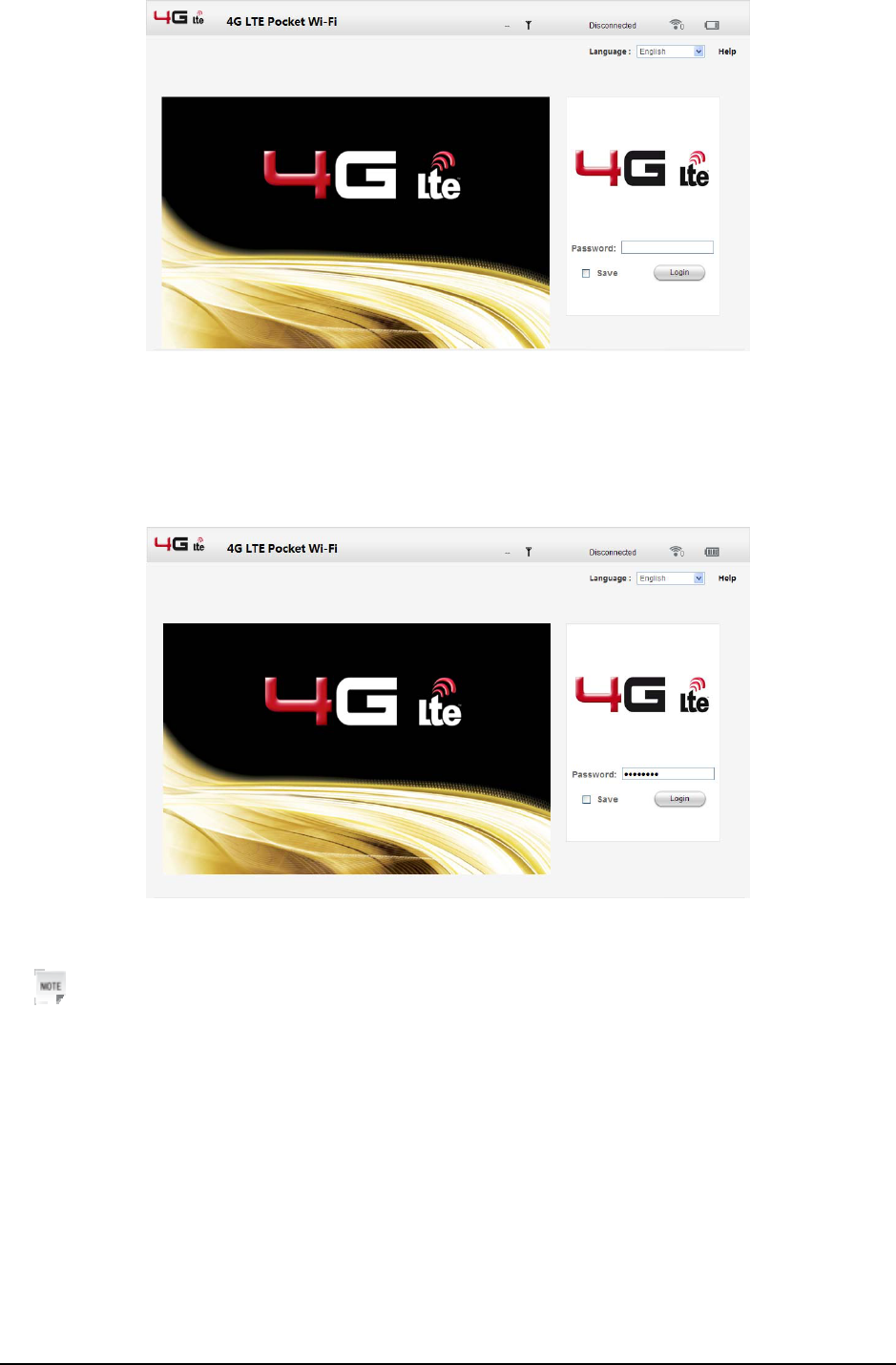

3. The login page appears as follows.
Confidential and Proprietary Information of ZTE CORPORATION 19
3.5 Login
In the WebGUI Configuration page, select the desired language and input the password (the default
Password is password).
Click Login to log in the WebGUI.
Notes:
If you check Save after type in password, the device will save it. Next time when you want to login
the WebGUI with the same password, what you need to do is to click Login.

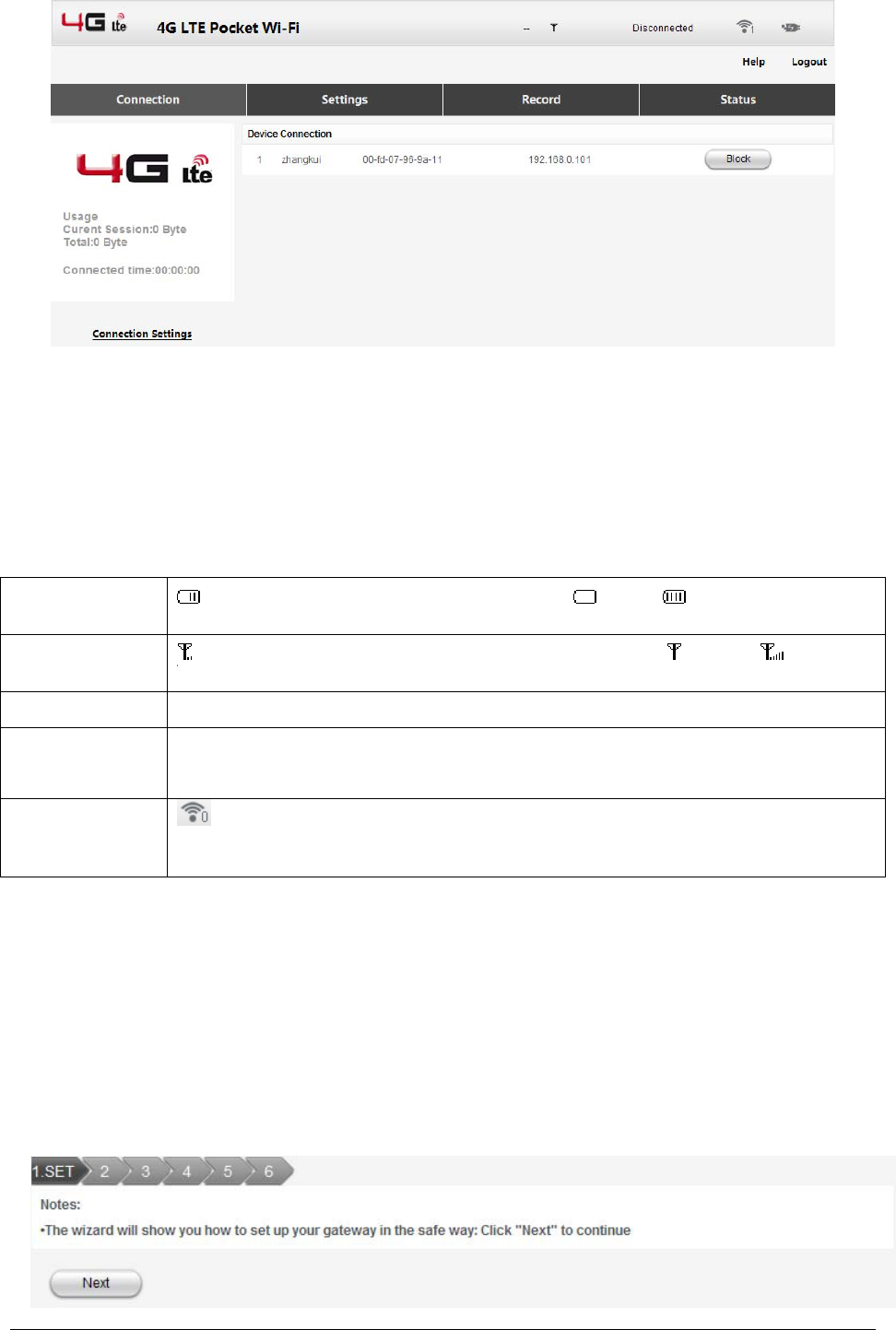

When you login, the following interface appears.
20 Confidential and Proprietary Information of ZTE CORPORATION
The whole interface is divided into three parts. Related functions can be executed by operation in the
related areas.
• Index area: Show the configuration list for your device.
• Data connection status area: Show the usage and the connected time.
• Device Connection Area: Show the information which connected to the device..
Battery indicator : Shows the battery level, 4 stages from none to high .
Signal strength : Shows the network signal intensity, 5 stages from none to strong .
Internet Status Connected or Disconnected
Network
Operator Shows your network operator.
Wi-Fi Status : Wi-Fi status and number of the connected users. And the maximum number is
10.
3.6 Settings
Do not modify any settings unless instructed by your service provider.
3.6.1 Quick Setup
1. In the main interface click Settings > Quick Setup.
2. Read the guide carefully, and then click Next.
Confidential and Proprietary Information of ZTE CORPORATION 21

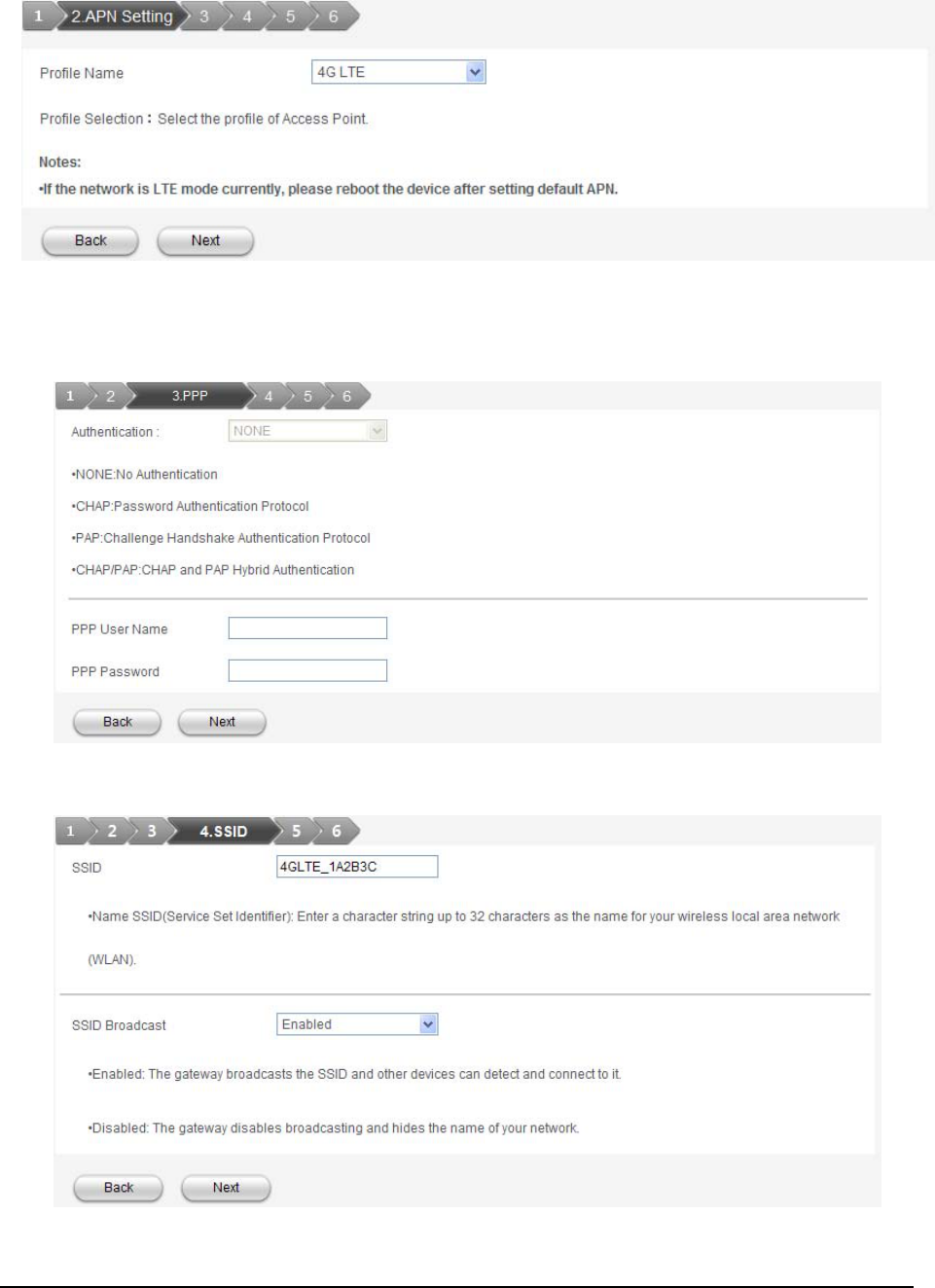

3. Set APN in the following figure:
Select an APN string.
4. Set PPP Authentication in the following figure:
5. Set SSID Configuration in the following figure:
Service Set Identifier (SSID) is used to uniquely identify your WLAN. If you enable SSID Broadcast,
22 Confidential and Proprietary Information of ZTE CORPORATION
the gateway will broadcast the SSID, and other devices can detect and connect to it.

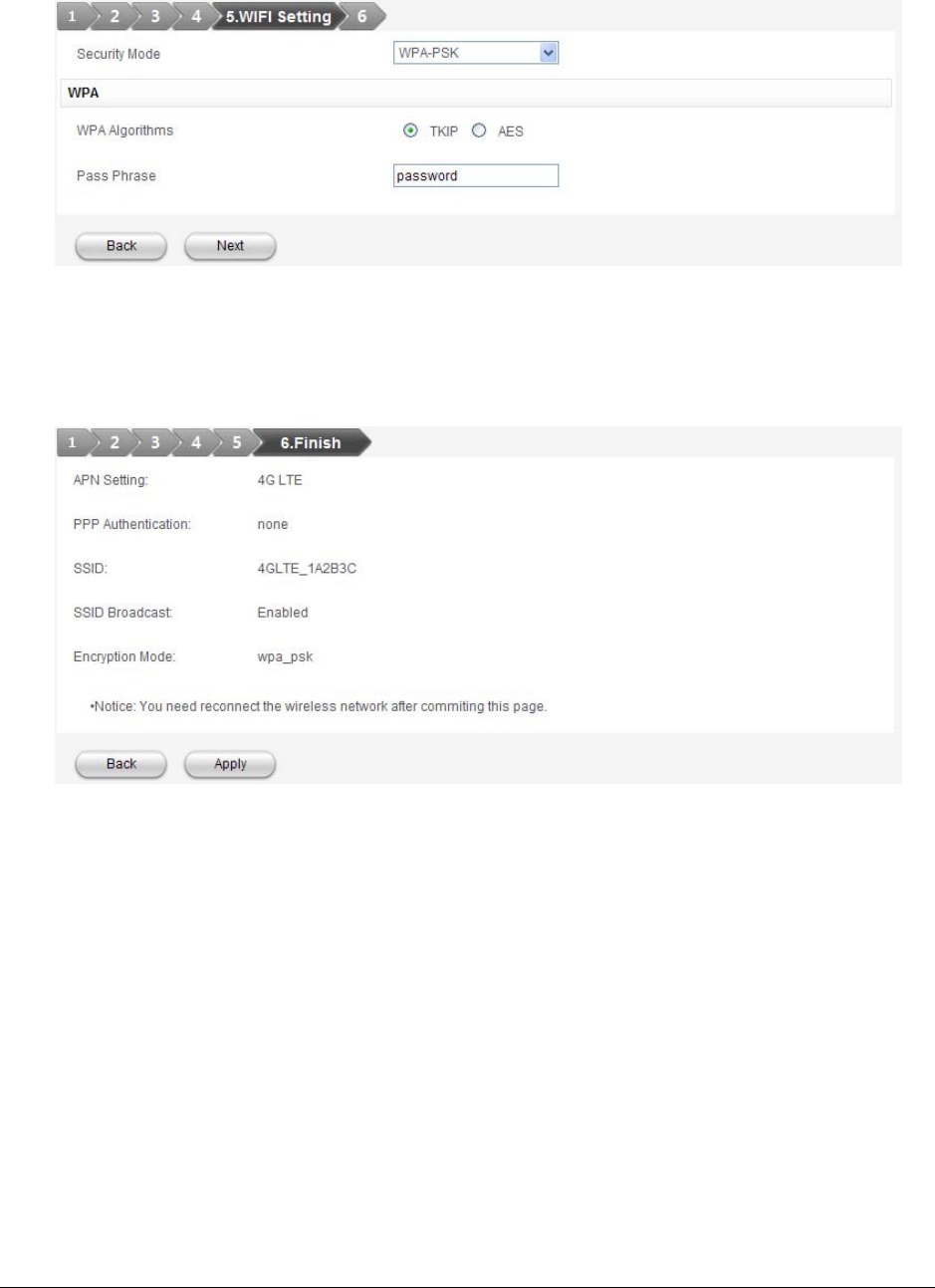

5. Set Wi-Fi Setting in the following figure:
Security Mode will keep your traffic from being unauthorized monitored and accessed, select one
Security Mode from the list, and then set key or algorithm for it.
6. Show the Configuration in the following figure:
Make sure that all the parameters shown in the figure are correct, and then click Apply.
3.6.2 DHCP Settings

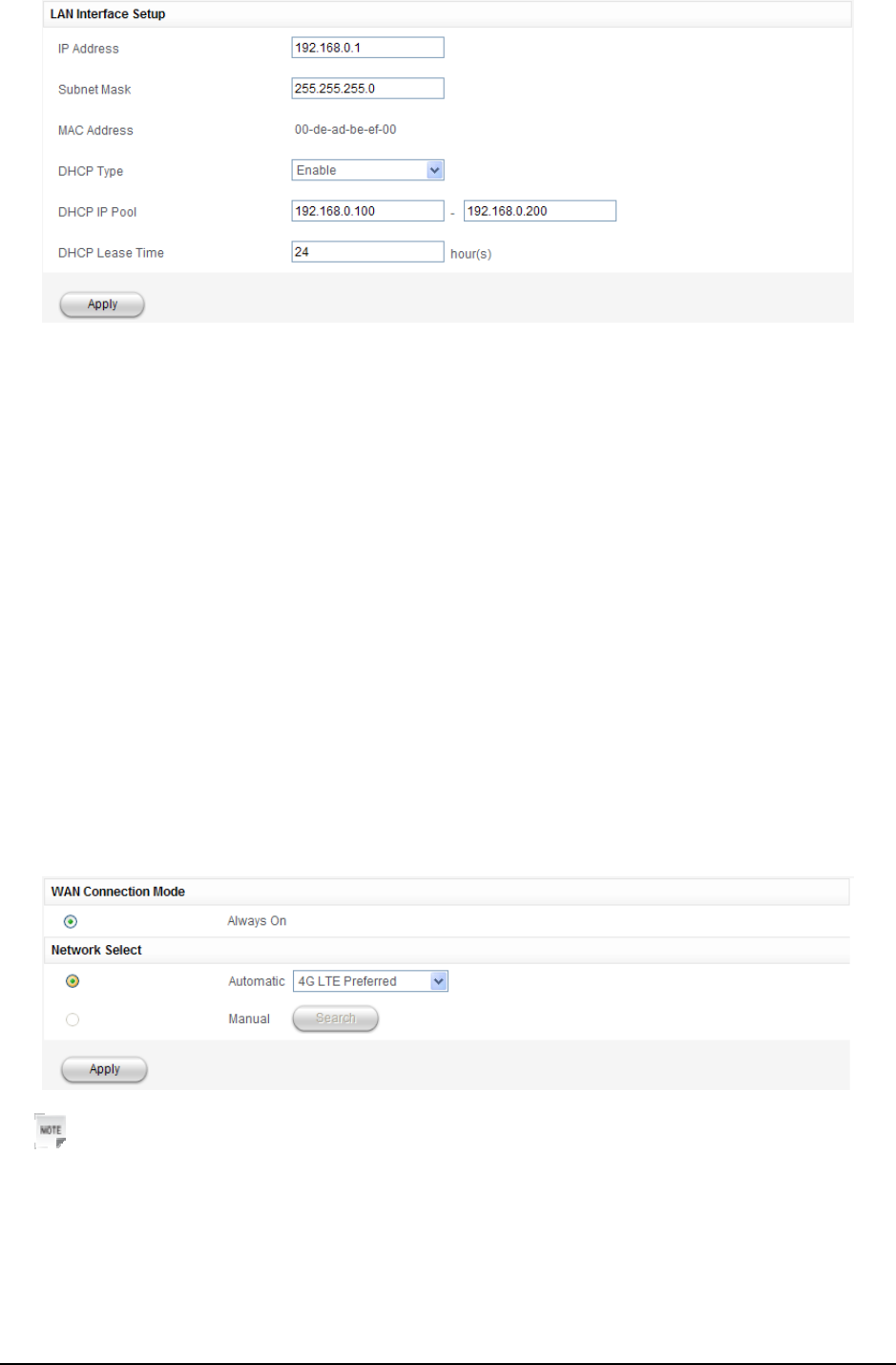

Select Settings > DHCP Settings, the DHCP information is shown in the following figure:
Confidential and Proprietary Information of ZTE CORPORATION 23
The following items are displayed on this page:
• IP Address: IP address for LAN interface.
• Subnet Mask: Subnet mask for the IP address.
• MAC Address: MAC address for the LAN interface.
• DHCP Type: Enable or disable DHCP Server function.
• DHCP IP Pool: Allocate begin and end IP address for IP pool.
• DHCP Lease Time: Define how long the leased IP address will be expired, and will relocate new IP
address.
Click Apply to confirm your configuration.
3.6.3 Dial Settings
Select Settings > Dial Settings to View the WAN connection mode or select the network.
Notes:
If you select 3G Only or 2G Only, you can change the WAN Connection Mode.
3.6.4 APN Settings

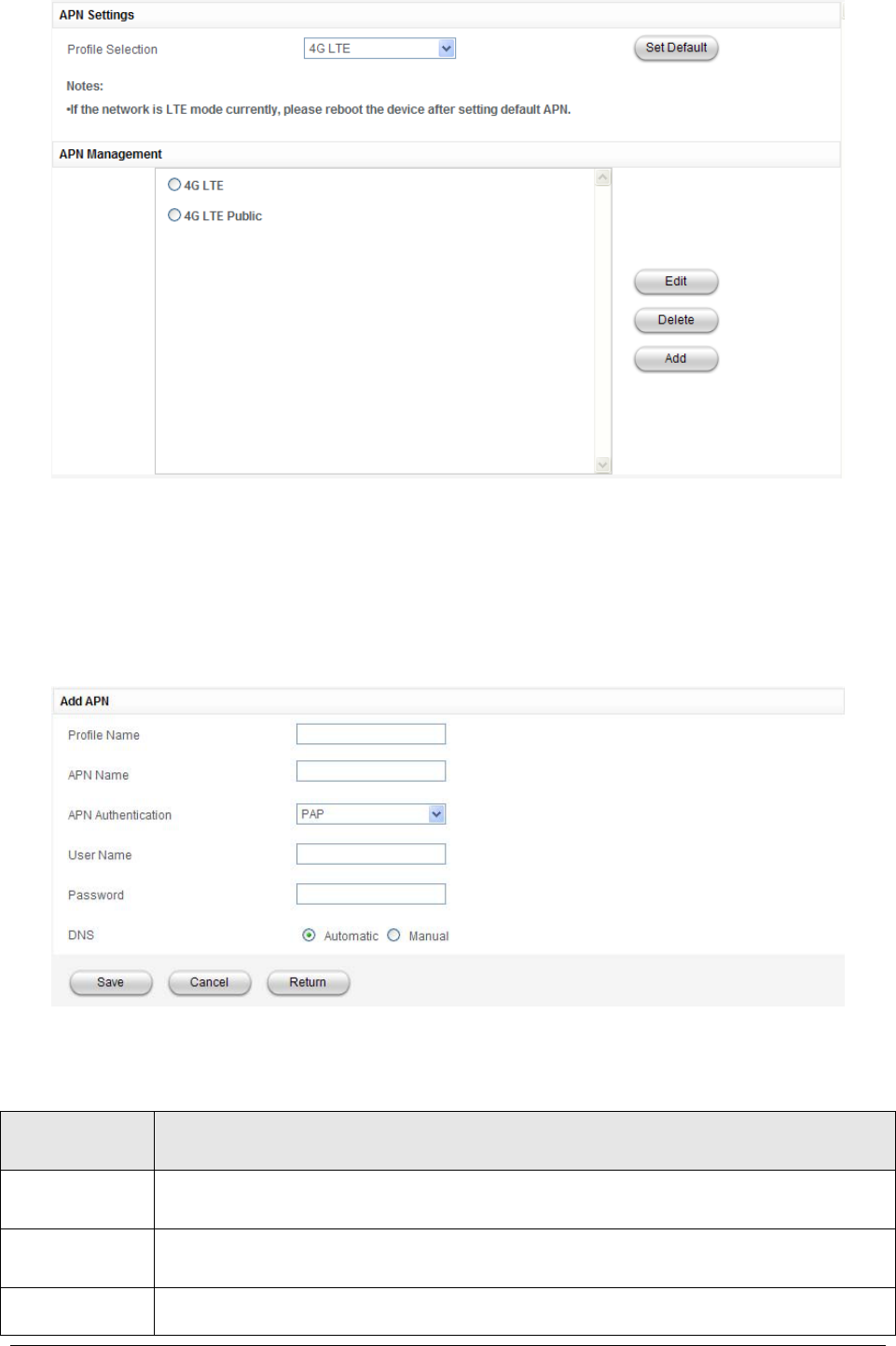

Select Settings > APN Settings, the APN parameters are shown in the following figure:
24 Confidential and Proprietary Information of ZTE CORPORATION
• Click Set default to set current profile as the default profile.
• Click Edit to edit some parameters of the exist profile.
• Click Delete to delete the selected profile.
• Click Add to access the following figure:
Enter the related parameters (details please see following table), and then click Save to add one new
profile.
Parameter Function
Profile Name Type the profile name.
APN Name Type the APN string.
APN Password Authentication Protocol (PAP) provides a simple method without encryption
Confidential and Proprietary Information of ZTE CORPORATION 25
Authentication for the peer to establish its identity using a 2-way handshake. Challenge-Handshake
Authentication Protocol (CHAP) is used to periodically verify the identity of the peer
using a 3-way handshake.
User Name User name is used to obtain authentication from the ISP when the connection is
established
Password Password is used to obtain authentication from the ISP when the connection is
established.
DNS Set DNS mode.
3.6.5 WiFi Settings
Basic

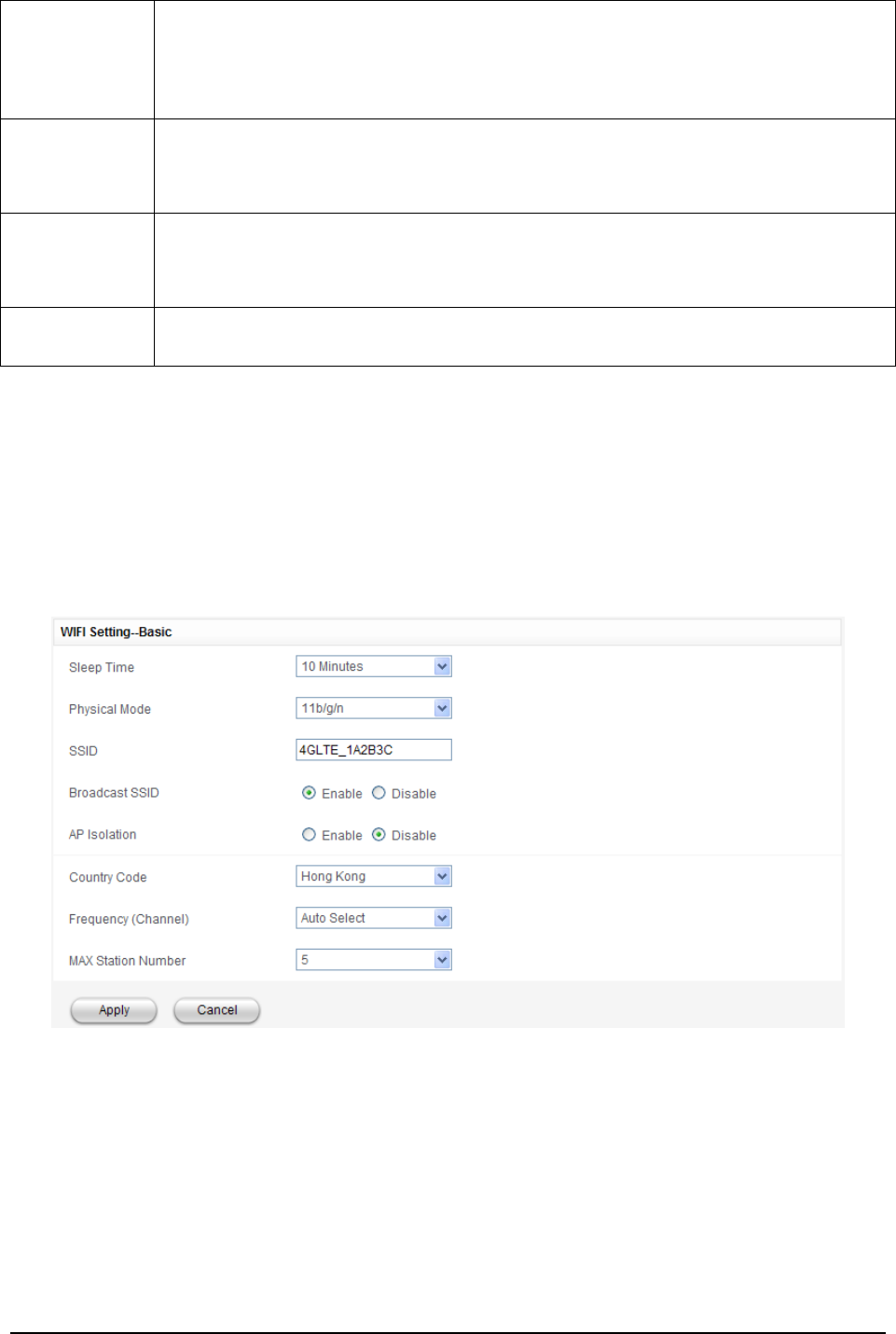

Select Settings > Wi-Fi Settings > Basic, the wireless network basic parameters are shown in the
following figure:
The following items are displayed on this page:
• Sleep Time: Set a time limit (in seconds) for the device to enter sleep mode in case of client inactivity.
• Physical Mode: If all of the wireless devices connect with this device in the same transmission mode,
performance will be improved by choosing the appropriate wireless mode.
• Network Name (SSID): Service Set Identifier (SSID). Enter a string less than 32 characters as the name
for your Wireless Local Area Network (WLAN).
• Broadcast Network Name (SSID): Disable or Enable (Default) this function. If Enable is selected, the
26 Confidential and Proprietary Information of ZTE CORPORATION
device broadcasts the SSID, and other devices can search and connect to it. When you select Disable,
other devices can not search out the SSID. If you want someone to connect, you need to tell them the
SSID, and let them setup manually.
• AP Isolation: When Enabled is selected, each of your wireless clients will not be able to communicate
with each other.
• Country Code: Choose the right country code.
Limited by local law regulations, version for North America does not have region selection option.
• Frequency (Channel): Choose the appropriate channel to optimize the performance of your wireless
network.
• Max Station Number: Choose the maximum number of the stations which connect the AP
simultaneously.
Click Apply to confirm your configuration.
Security

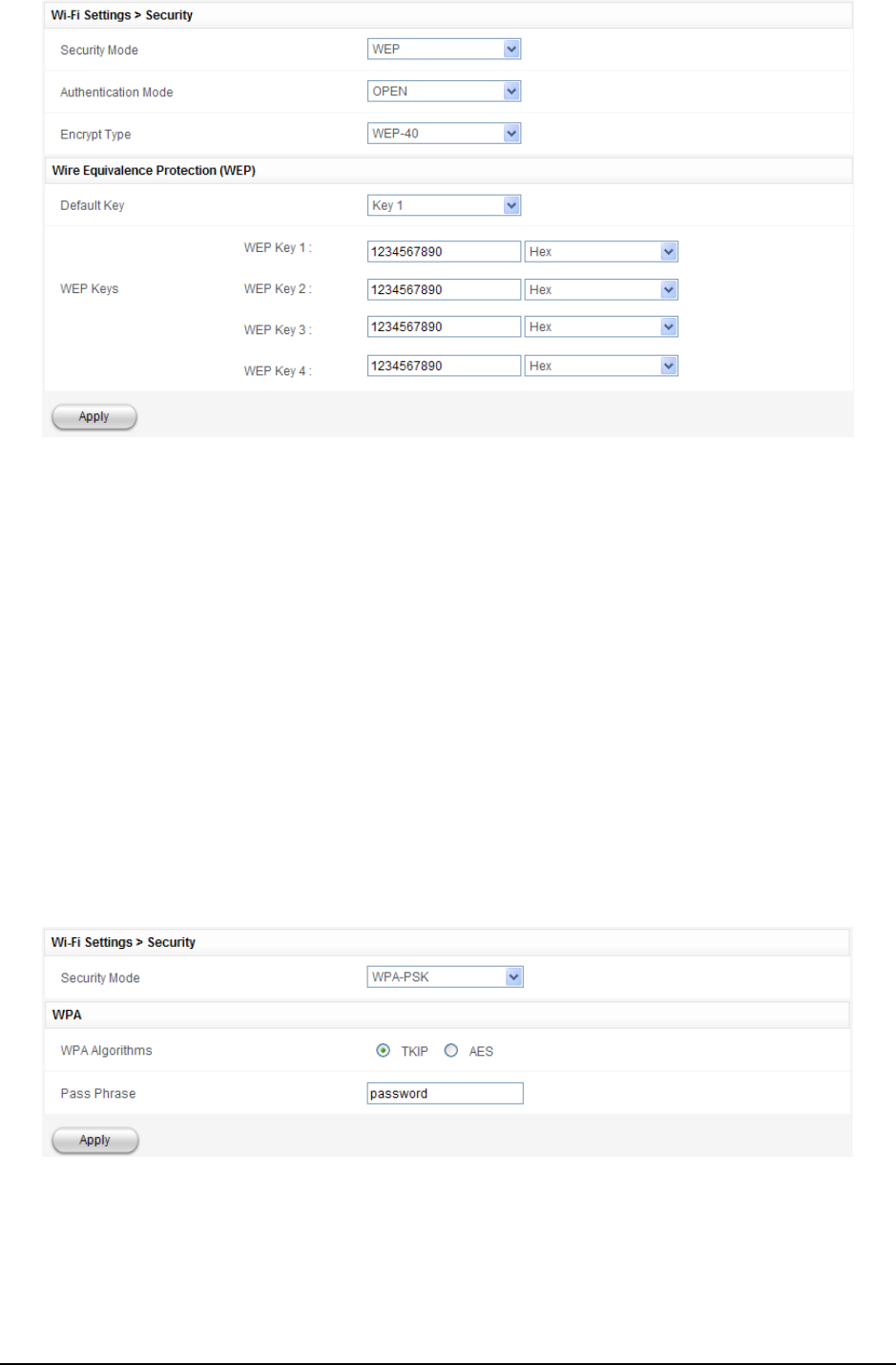

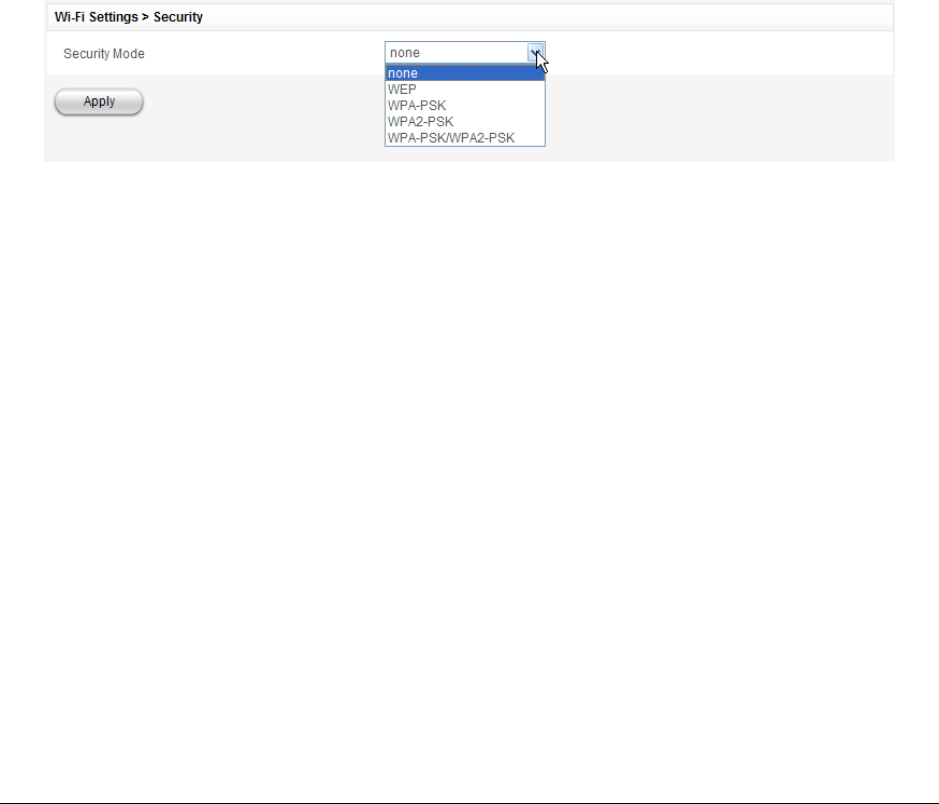

Select Settings > Wi-Fi Settings > Security, the Security parameters are shown in the following figure:
• Security Mode: Select the security method and then configure the required parameters.
none: Open-system authentication accepts any client attempting to connect the device without
verifying its identity.
Security mode-WEP
Confidential and Proprietary Information of ZTE CORPORATION 27
The following items are displayed in this section on this page:
• Authentication Mode: Select authentication mode: OPEN or Shared.
¾ OPEN: Open-system authentication accepts any client attempting to connect the device without
verifying its identity.
¾ SHARED: The shared-key security uses a WEP key to authenticate clients connecting to the network
and for data encryption
• Encrypt Type: Selects the data encryption type to use.
• Default Key: Selects the WEP key number to use for authentication or data encryption.
• WEP Keys 1~4: Sets WEP key values. The user must first select ASCII or hexadecimal keys. Each
WEP key has an index number. Enter key values that match the key type and length settings.

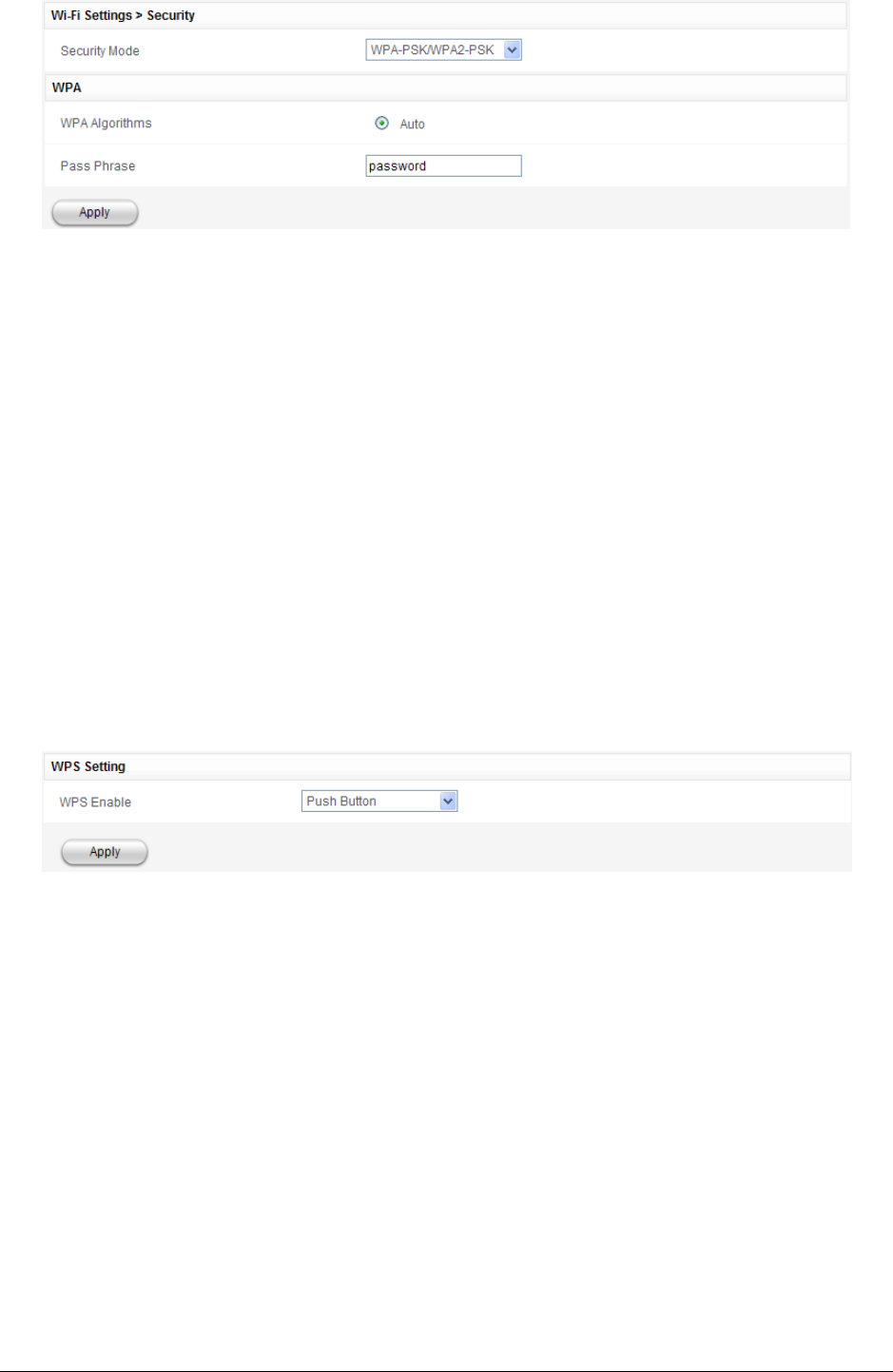

Security Mode – WPA-PSK, WPA2-PSK and WPA-PSK/WPA2-PSK
28 Confidential and Proprietary Information of ZTE CORPORATION
The following items are displayed in this section on this page:
• WPA Algorithms: Selects the data encryption type to use.
¾
TKIP: Uses Temporal Key Integrity Protocol (TKIP) keys for encryption.
¾ AES: Uses Advanced Encryption Standard (AES) keys for encryption.
¾ Auto: Use the TKIP or AES keys for encryption automatically.
• Phrase: Enter the password manually.
WPS
Select Settings > Wi-Fi Settings > WPS, the WPS configuration is shown in the following figure:
• WPS Enable: Choose the desired mode.
• WPS PIN：If this option is enabled, you need to enter a wireless client’s PIN code in the field and keep
the same code in the client.
Enter the client PIN.
• WPS PBC：Push-Button Configuration
1. Select the PBC mode in the client WPS UI;
2. Select PBC mode in the WPS page of the device and submit;
3. Once the WPS active… is displayed on the screen, please press the "next" button on the Client
WPS UI. After a few seconds the client can access the WLAN, and the result will be shown in the
Client WPS UI.
Click Apply to confirm your configuration.
Confidential and Proprietary Information of ZTE CORPORATION 29
3.6.6 Firewall
You may setup firewall rules to protect your network from virus, worm and malicious activity on the
Internet.
Notes:
You can set the maximum 5 filtering items for IP Port/MAC filtering.
IP Port filtering

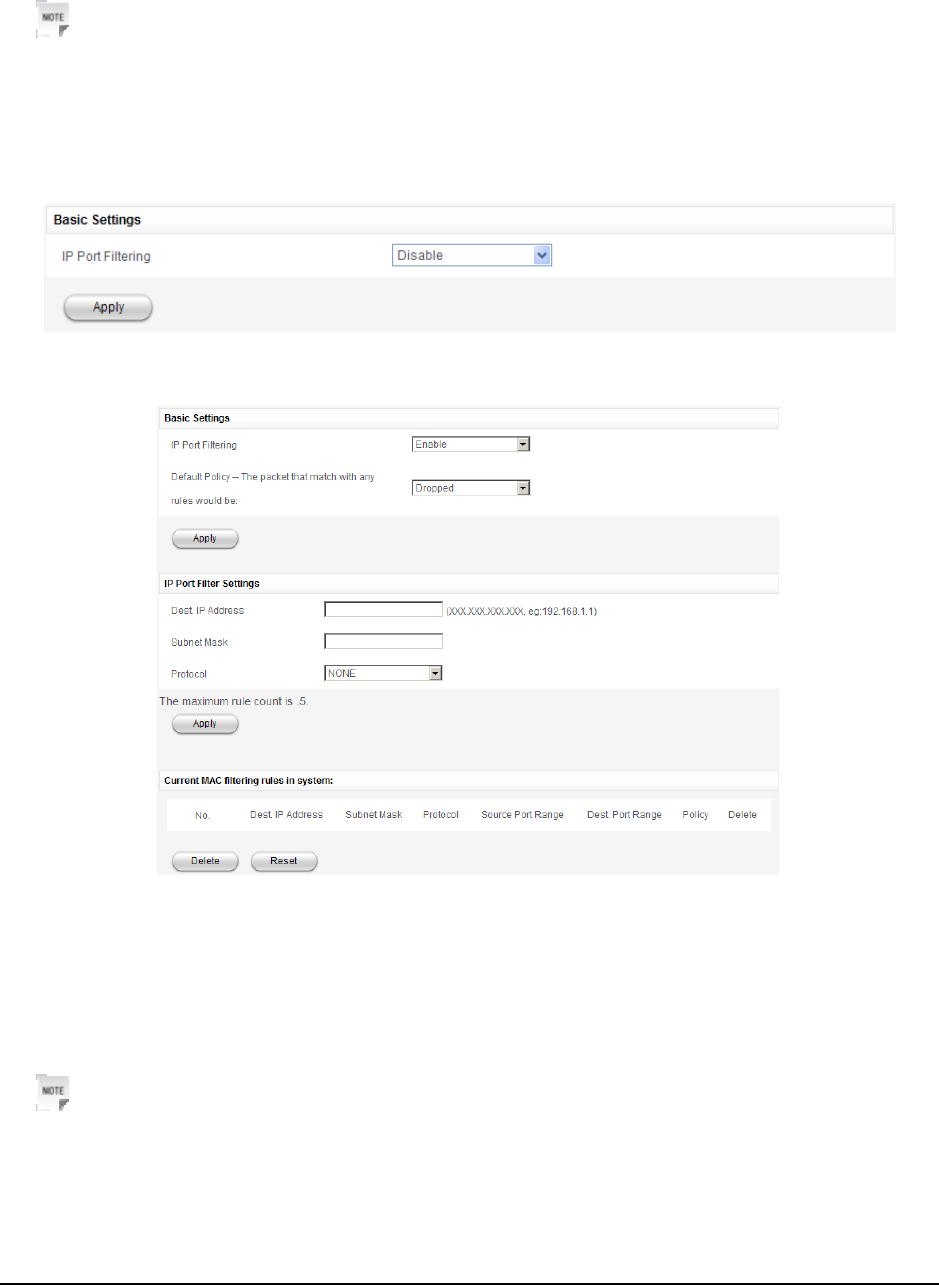

Select Settings > Firewall > IP Port filtering, the IP Port filtering is shown in the following figure:
If you select Enable, the filter settings will appear:
• Default Policy: Set how to handle the packet if any of the rules matches.
• Dest. IP Address: Set the destination IP address that will be filtered.
• Subnet mask: The mask identifies the host address.
• Protocol: Specifies the destination port type.
Notes:
Filtering rules are matched one by one, if met this provision, it will not continue to match the rules
listed below.
Click Apply to confirm your configuration.
30 Confidential and Proprietary Information of ZTE CORPORATION
Click Delete to delete the rule which you selected.
Click Reset to clear what you select or input.
MAC filtering

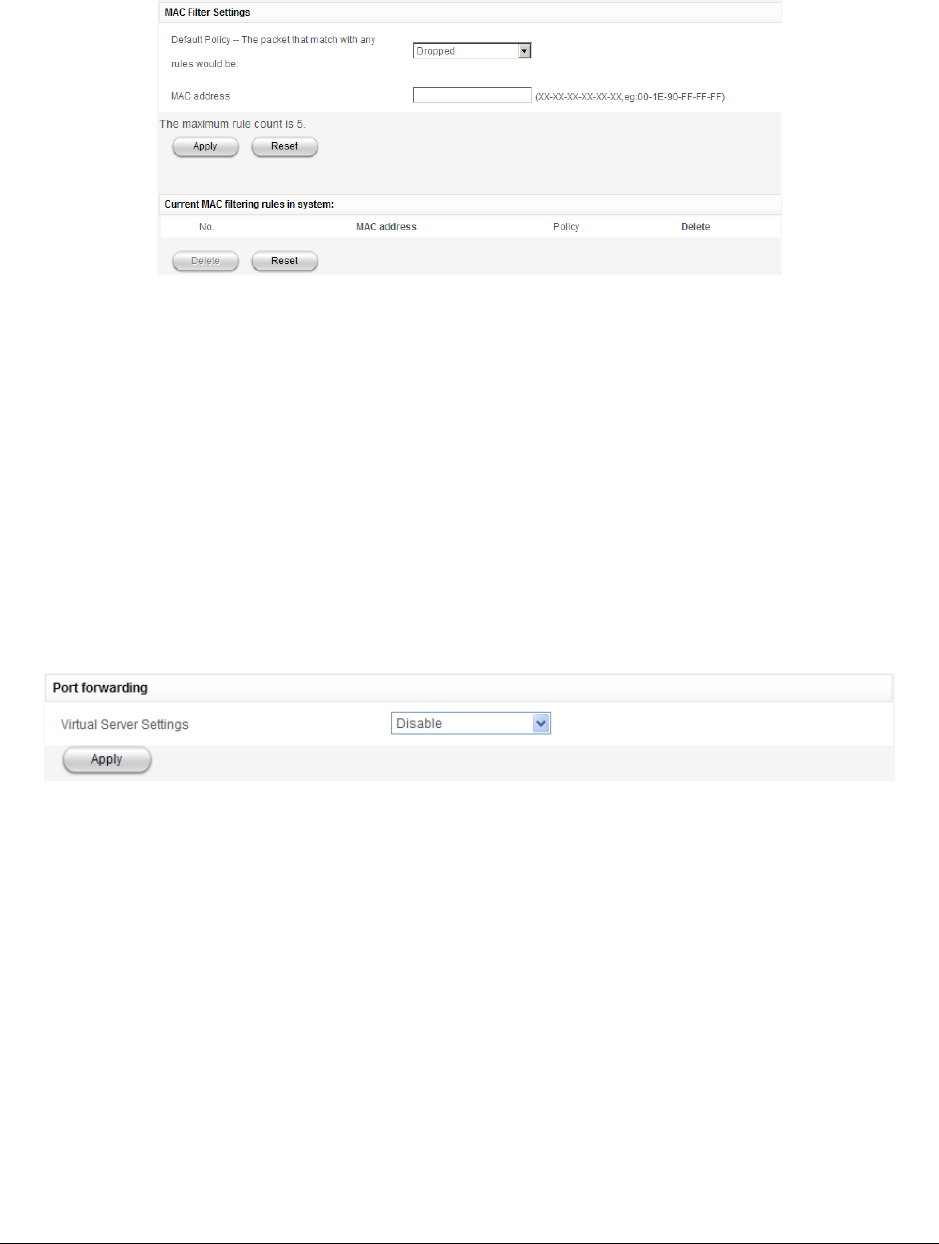

Select Settings > Firewall > MAC filtering, the MAC filtering is shown in the following figure:
• Default Policy: Set how to handle the packet if any of the rules matches.
• MAC address: Specifies the MAC address to block or allow traffic from.
Click Apply to confirm your configuration.
Click Delete to delete the rule which you selected.
Click Reset to clear what you select or input.
firewall forwarding

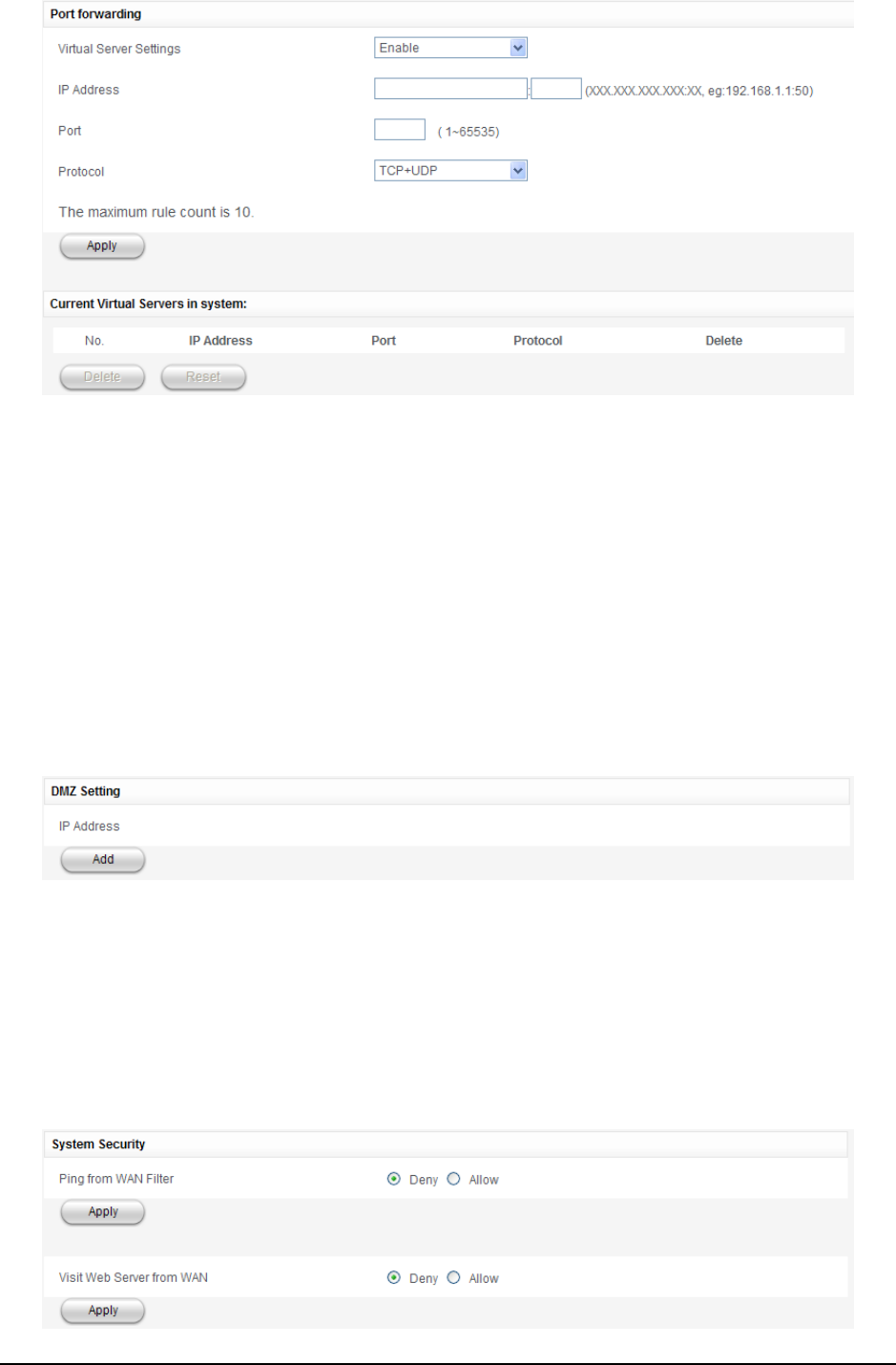

You can setup virtual servers to provide services on the Internet. Select Settings > Firewall > firewall
Forwarding, the virtual server settings are shown in the following figure:
If you select Enable, the Virtual Server Settings will appear:
Confidential and Proprietary Information of ZTE CORPORATION 31
• IP Address: Set IP address for the virtual server.
• Port: Set port numbers for the virtual server.
• Protocol: Set protocol for the virtual server.
Click Delete Selected to delete the rule which you selected.
Click Reset to clear what you select or input.
DMZ Settings
Select Settings > Firewall > DMZ Settings to enable a specified host PC on the local network to access
the Internet without any firewall protection.
Click Add to select the DMZ IP address which connects to the device.
System Security
You can configure system firewall to protect the device from being attacked. Select Settings > Firewall >
System Security, the system security setting is shown in the following figure:
32 Confidential and Proprietary Information of ZTE CORPORATION
Allow or Deny ping from WAN filter function and visit Web Server from WAN on requirement, and then
click Apply.
3.6.7 System Security
PIN Setting

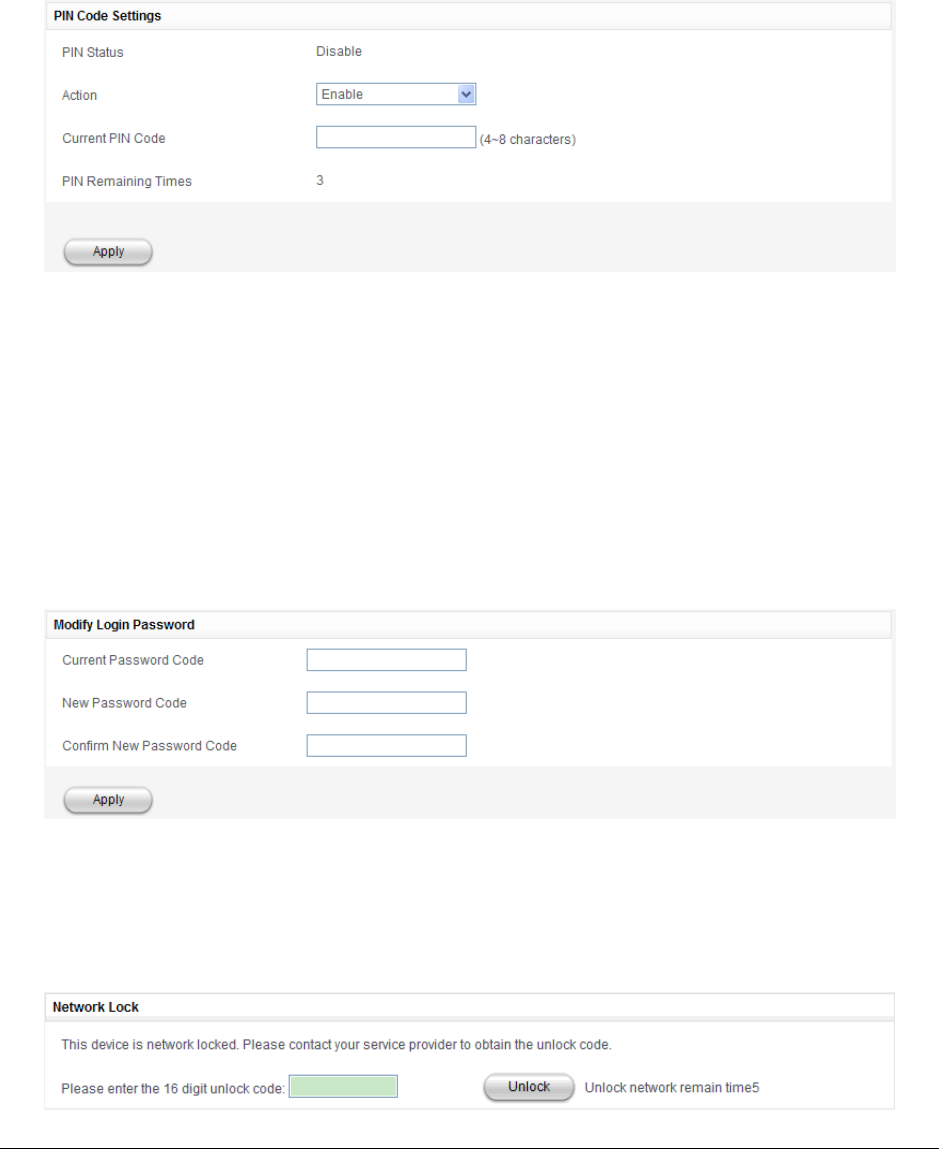

Select Settings > System Security > PIN Settings, the PIN Settings parameters are shown in the
following figure:
• PIN Status: Show the current PIN status.
• Action: Select an operation: Enable, Disable or Modify.
• Current PIN Code: Type the PIN code.
Click Apply to confirm your configuration.
Password
Select Settings > System Security > Password, the Modify Login Password information is shown in the
following figure:
You can change the login password. Click Apply to confirm your configuration.
Network Lock
Select Settings > System Security > Network Lock to unlock the network.
Confidential and Proprietary Information of ZTE CORPORATION 33
Notes:
Please contact your service provider to obtain the network unlock code.

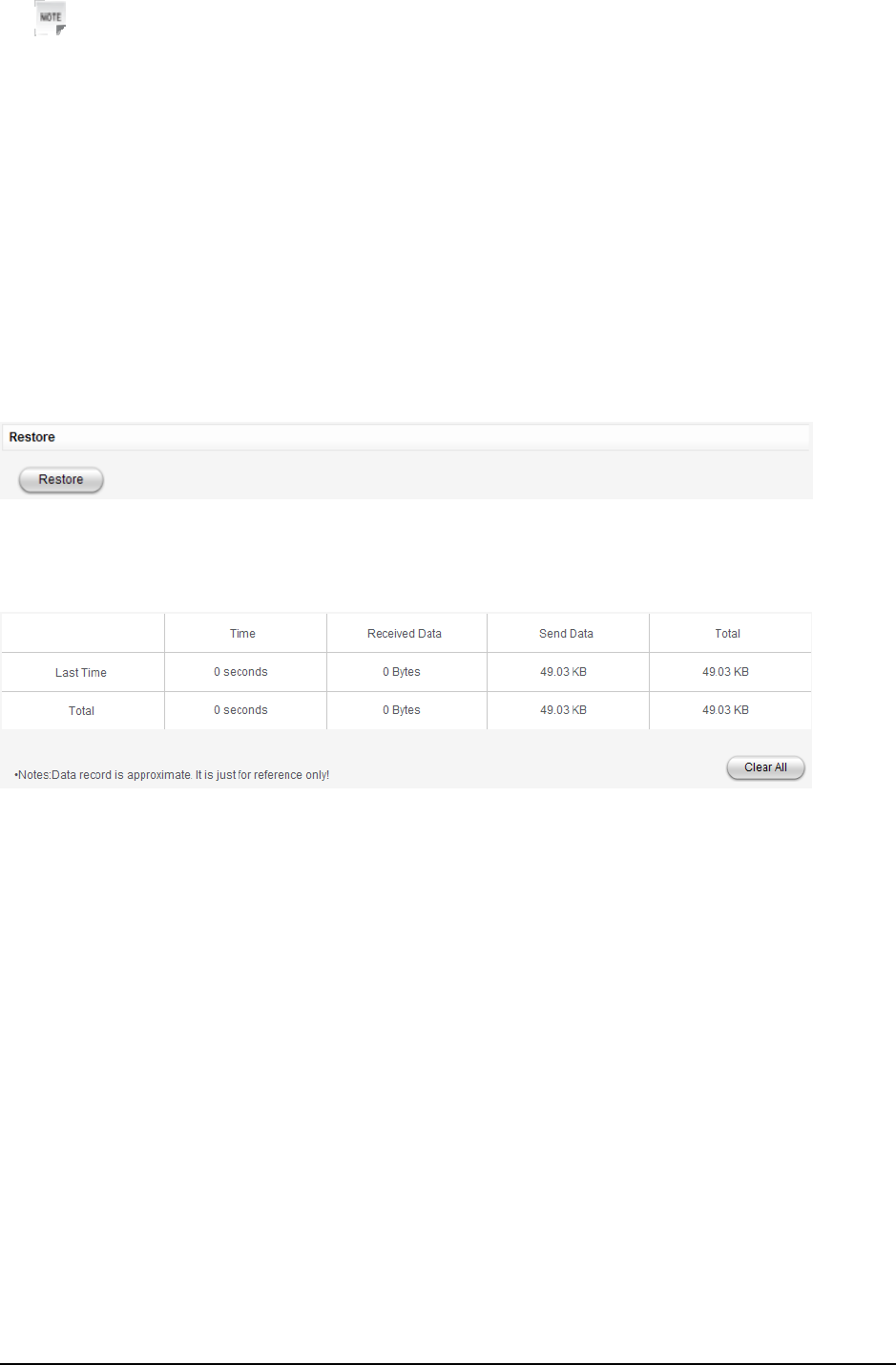

Restore
Select Settings > System Security > Restore, click Restore to set all the settings to their factory default
values, and then the device will restart automatically.
3.7 Record
Select Record to view the device received and sent data statistics.
Click Clear All to clear data connection records.
3.8 Status
Basic Status
Select Status > Basic Status to view the basic status, the basic status information is shown in the
following figure:
34 Confidential and Proprietary Information of ZTE CORPORATION
Net Status

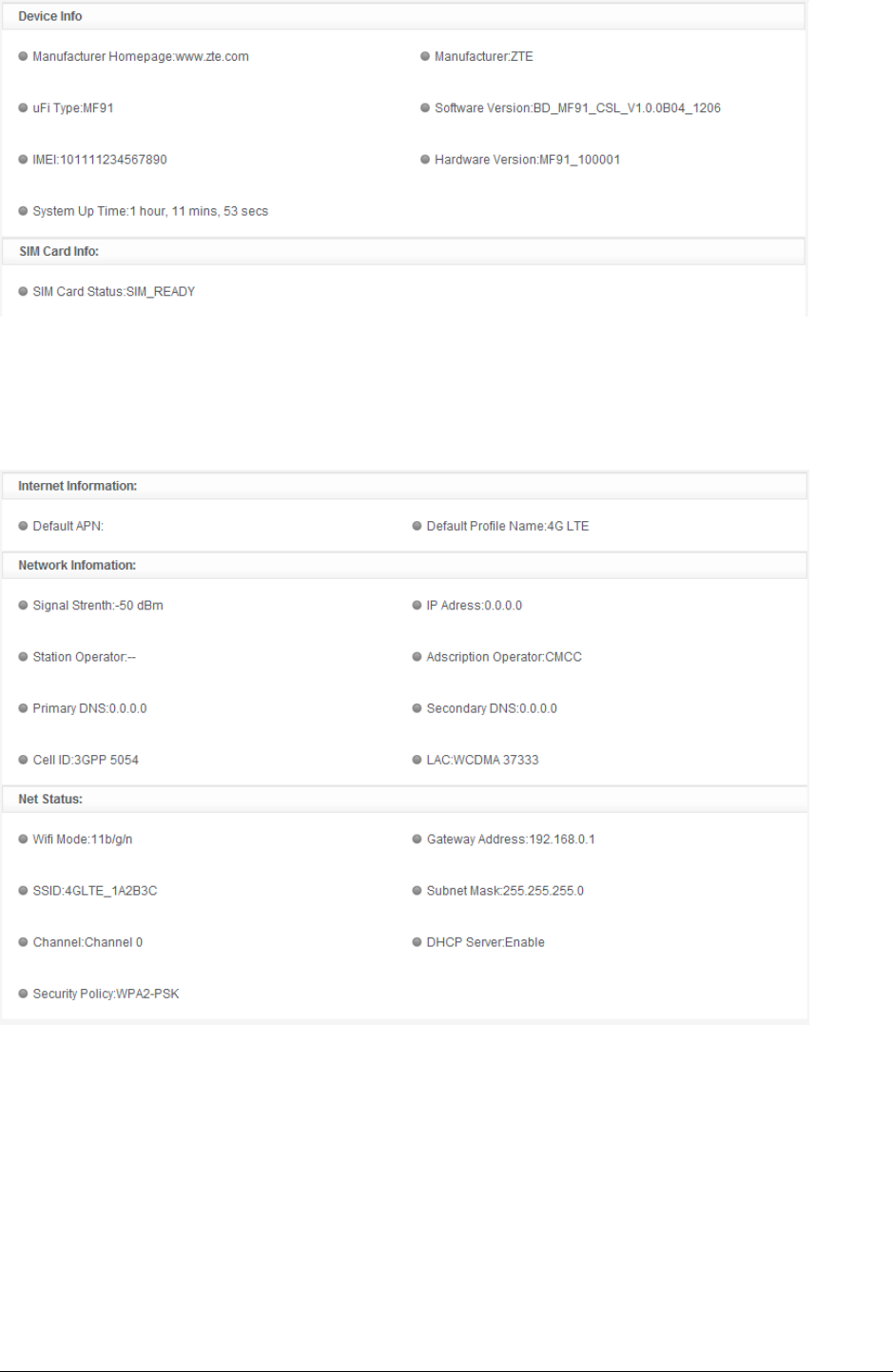

Select Status > Net Status to view the net status, the net status information is shown in the following
figure:
Confidential and Proprietary Information of ZTE CORPORATION 35
4.Usage of WPS
If your client device supports WPS, you need not to input the password manually after WPS has
been available. Please refer to the following steps:
1. Start up your device.
2. Launch the client device connected to your device.
3. Enable the WPS function of your device.
4. Enable the WPS function of the client.
Notes:
For the detailed operations about the client, please refer to the client’s instruction.
36 Confidential and Proprietary Information of ZTE CORPORATION
5.Logout
Select Logout to logout the web page.
6.Disconnecting from the Internet
Turn off the device can terminate Internet connection.
7.Sleep Mode
After powering your device on without USB connection, once no user connects to the device within a
certain time you have set in the Wi-Fi Settings (default 10minutes) and no action is performed to the
device, or the WPS button is pressed manually, the device will enter the sleeping mode with all the
OLEDs off. In the sleeping mode, the Wi-Fi function will be disabled.
Confidential and Proprietary Information of ZTE CORPORATION 37
8.Warning and Notice
8.1 To the Owner
• Some electronic devices are susceptible to electromagnetic interference sent by device if inadequately
shielded, such as the electronic system of vehicles. Please consult the manufacturer of the device before
using the device if necessary.
• Operating of laptop and desktop PCs and the device may interfere with medical devices like hearing aids
and pacemakers. Please always keep them more than 20 centimeters away from such medical devices
when they are turned on. Turn the device off if necessary. Consult a physician or the manufacturer of
the medical device before using the device.
• Be aware of the usage limitation when using a device at places such as oil warehouses or chemical
factories, where there are explosive gases or explosive products being processed. Turn off your device if
required.
• The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in hospitals.
Please observe and obey all warning signs and switch off your device in these conditions.
• Do not touch the inner antenna area if not necessary. Otherwise it will affect your device’s performance.
• Store the device out of the reach of little children. The device may cause injury if used as a toy.
• Do not touch the metallic parts of the device so as to avoid a burn, when the device is working.
8.2 Using Your Device
• Please use original accessories or accessories that are authorized. Using any unauthorized accessories
may affect your device’s performance, and violate related national regulations about telecom terminals.
• Avoid using the device near or inside metallic structures or establishments that can emit electromagnetic
waves. Otherwise it may influence signal reception.
• The device is not waterproof. Please keep it dry and store in a shady and cool place.
• Do not use the device immediately after a sudden temperature change. In such case, it will produce dew
inside and outside the device, so don’t use it until it becomes dry.
• Handle the device carefully. Do not drop, bend or strike it. Otherwise the device will be damaged.
• No dismantling by non-professionals and only qualified technicians can undertake repair work.
• Operating temperature range of 0℃ ~ +35℃ and humidity range of 5% ~ 95% are recommended.
• Please always keep them more than 10mm away from body when there are turned on.
38 Confidential and Proprietary Information of ZTE CORPORATION
8.3 Using Battery
• Do not short-circuit the battery, as this can cause excessive heat and fire.
• Do not store battery in hot areas or dispose of it in a fire to avoid explosion.
• Do not disassemble or modify the battery.
• When not using the battery for a long period, remove it from the device and store it in a cool dry place.
• Never use any charger or battery damaged or worn out.
• Return the wear-out battery to the provider or put it in the appointed recycle place. Do not put it in
familial rubbish.
Warning:
If the battery is broken, keep away from content. If it taints your skin, wash your skin with abundant
fresh water and ask doctor for help if necessary.
8.4 Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable abrasion.
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside ZTE’s
reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party products provided that such
defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the Product.
End User shall have no right to reject or return the Product, or receive a refund for the Product from
ZTE under the above-mentioned situations.
• This warranty is End User’s sole remedy and ZTE’s sole liability for defective or nonconforming items,
and is in lieu of all other warranties, expressed, implied or statutory, including but not limited to the
implied warranties of merchantability and fitness for a particular purpose, unless otherwise required
under the mandatory provisions of the law.
Confidential and Proprietary Information of ZTE CORPORATION 39
8.5 Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using of this product, whether or not ZTE had been
advised, knew or should have known of the possibility of such damages, including, but not limited to lost
profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime
cost.
8.6 FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
NONE PART 15B/PART 15C is as below
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device
does not cause harmful interference.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
40 Confidential and Proprietary Information of ZTE CORPORATION
8.7 Radio Frequency (RF) Energy
This model phone meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government:
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Tests for SAR are conducted
using standard operating positions accepted by the FCC with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the phone while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to use only the poser required to
reach the network. In general, the closer you are to a wireless base station antenna, the lower the power
output.
The highest SAR value for the model phone as reported to the FCC when worn on the body, as described
in this user guide, is 1.04 W/kg (Body-worn measurements differ among phone models, depending upon
available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various phones and at various positions, they
all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid/ after searching on.
FCC ID: Q78-ZTEMF91
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use
with an accessory that contains no metal and the positions the handset a minimum of 1 cm from the body.
Use of other enhancements may not ensure compliance with FCC RF exposure guidelines. If you do no t
use a body-worn accessory and are not holding the phone at the ear, position the handset a minimum of 1
cm from your body when the phone is switched on.
8.8 Disposal of Your Old Appliance
When this crossed-out wheeled bin symbol is attached to a product, it means the product is
covered by the European Directive 2002/96/EC.
All electrical and electronic products should be disposed of separately from the municipal
waste stream via designated collection facilities appointed by the government or the local
Confidential and Proprietary Information of ZTE CORPORATION 41
authorities.
The correct disposal of your old appliance will help prevent potential negative consequences
for the environment and human health.
For this product’s recycling information based on WEEE directive, please send an e-mail to
weee@zte.com.cn
Confidential and Proprietary Information of ZTE CORPORATION 42
9.Troubleshooting
Problem Suggested Solution
Can not establish the USB
connection between your
device and PC
1. You need install the software. Run the installation program in path
of My Computer > 4G Pocket Wi-Fi.
2. If the driver of your device is abnormal, please uninstall the software
on your PC first and reinstall it again.
Can not establish the Wi-Fi
connection between your
device and client
1. Make sure Wi-Fi function is active. Press the WPS button to
enable or disable Wi-Fi function.
2. Refresh Wi-Fi network list and select the correct SSID.
3. Check the IP address to make sure your client can obtain an IP
address automatically in the Internet protocol (TCP/IP) properties.
4 Type the correct network key (Wi-Fi password) when you connect to
the device.
The client connected to the
device can not access the
Internet
1 Make sure your SIM card is available.
2 Change the location to find a place with good signal.
3 Check WAN Connection mode setting.
4 Contact with your service provider and confirm your APN settings.
Can not visit the webGUI
configuration page
1. Enter the correct address. The default address is http://192.168.0.1
or http://4glte.home
2. Only use one network adapter in your PC.
3. Do not use any proxy server.
About the password
1. For the Wi-Fi connection password, please check the label on the
battery compartment of your device.
2. For the webGUI configuration page password, the default password
is password.
3. If you changed the password, and forgot the new password. You
need to restore the device to the factory default settings.
For more assistance, please:
• Sending E-mail to mobile@zte.com.cn
• Visiting http://www.zte.com.cn
• Calling Service Hotline: +86–755–26779999
Confidential and Proprietary Information of ZTE CORPORATION 43
10.Technical Parameters
Data Service LTE FDD:
DL 100 Mb/s
UL 50 Mb/s
HSPA+:
DL 42 Mbps,
UL 5.76 Mbps
WCDMA CS: 64 kbps UL/DL
WCDMA PS: 384 kbps UL/DL
Interface USB and Wi-Fi
Wi-Fi Standard 802.11 b/g/n(1*1 11n features)
Wi-Fi Security WEP/WPA/WPA2
USB Version USB 2.0 HIGH SPEED
USB Interface Type Micro USB
Weight 105 g
Dimensions (W×H×D): 100 mm x 58 mm x 16 mm
microSD card Support up to 32 GB microSD card
Battery 2300 mAh
*Standby time 150 hours
*Working time 4 hours
Operate system Windows 7, Windows Vista(32bit or 64bit), Windows XP (SP2 or later), MAC (10.4 or
later)
Web Browser IE (7.0 or later), Firefox (3.0 or later), Opera (10.0 or later), Safari (4.0 or later), Chrome
(10.0 or later)
Operating temperature 0℃ ~ +40℃
Storage temperature -20℃ ~ +50℃
Charging temperature 0℃ ~ +45℃
Humidity 5%~ 95%
Notes:
The device’s standby and working time are based on ideal working environment.
Confidential and Proprietary Information of ZTE CORPORATION 44
11.Glossary
• AC: Alternating Current
• APN: Access Point Name
• DC: Direct Current
• DHCP: Dynamic Host Control Protocol
• DNS: Domain Name System (or Service or Server)
• EDGE: Enhanced Data GSM Evolution
• Ethernet: A frame-based computer networking technology for local area networks (LANs)
• GSM: Global System for Mobile Communications
• GPRS: General Packet Radio Service
• HSDPA: High Speed Downlink Packet Access
• HSUPA: High Speed Uplink Packet Access
• IP: Internet Protocol
• LAN: Local Area Network
• LED: Light - Emitting Diode
• MHz: Megahertz
• PDP: Packet Data Protocol
• PIN: Personal Identification Number
• PPP: Point to Point Protocol
• PUK: PIN Unlocking Key
• UPNP: Universal Plug and Play
• SIM: (UMTS) Subscriber Identification Module
• WCDMA: Wideband CDMA (Code-Division Multiple Access)
• WEP: Wired Equivalent Privacy
• Wi-Fi：Wireless Fidelity
• WLAN: Wireless LAN
• WPA-PSK: Wi-Fi Protected Access–PreShared Key
