User Manual
1
ZTE N9120
CDMA/LTE Mobile Phone
User Guide
2
LEGAL INFORMATION
Copyright © 2012 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced, translated or used
in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without the prior written permission of ZTE
Corporation.
ZTE Corporation reserves the right to make modifications on print errors
or update specifications in this guide without prior notice.
The Bluetooth® trademark and logos are owned by the Bluetooth SIG, Inc.
and any use of such trademarks by ZTE Corporation is under license.
Other trademarks and trade names are the property of their respective
owners.
We offer self-service for our smart terminal device users. Please visit ZTE
official website (at www.zte.com.cn) for more information on self-service
and supported product models. Information subject to the website.
3
Version No. : R1.0
Edition Time : 20120808
Manual No. :
is a trademark of SRS Labs, Inc.
SRS TruMediaTM technology is incorporated under license from SRS
Labs, Inc.
SRS TruMediaTM, a feature-rich audio solutions tuned specifically for
mobile devices, provides a cinema-like surround headphone
performance with deep, rich bass.
4
Getting to Know Your Device
5
Power Key
Hold to select phone modes, restart, or power off.
Press to switch your phone to Sleep mode.
Press to wake up your phone.
6
Home Key
Touch to return to the Home Screen from any application or screen.
Hold to see recently used applications.
Menu Key
Touch to get the options for the current screen.
Back Key
Touch to go to the previous screen.
Volume Keys
Press or hold either end of the key to turn the volume up or down.
Starting Up

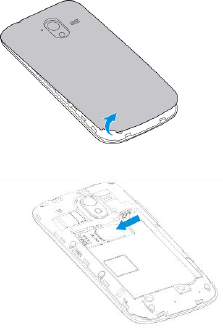

1. Remove the back cover.
7
2. To use the 4G LTE network, insert the SIM card.
3. Install the battery.
8
4. Install the microSD card.
9
NOTE:
microSD logo is a trademark of the SD Card Association.
Powering On/Off Your Phone
Make sure the SIM is in your device and the battery is charged.
Hold the Power Key to switch on your phone.
To switch it off, hold the Power Key and touch Power off > OK.
Getting to Know Your Device Status
The status bar at the top of the home screen displays device and service
status with various icons on the right side. Below are some of the icons
and their meanings.
3G connected
No signal
1
2
10
4G connected
Signal strength
Mobile data in use
Flight mode
Speaker on
Phone microphone off
Ringer off
Vibrate mode
Connected to a Wi-Fi
network
Wired headset connected
Wi-Fi in use
No SIM card installed
Alarm set
Bluetooth on
Battery flat
Battery partially drained
Battery very low
Battery full
/
Battery charging
11
Managing Notifications
The status bar at the top of the home screen provides notification alerts
with different icons on the left side. Below are some of the icons and their
meanings.
The notifications depend on the apps installed and you can touch and
drag the status bar down to see more information.
New SMS
microSD card unmounted
New MMS
microSD card removed
New Email
Upcoming event
New Gmail
message
Call on hold
New Google Talk
instant message
New Wi-Fi network detected
12
Problem with
SMS/MMS delivery
Downloading data
Missed call
Sending data
Call in progress
USB tethering is on
USB connected
Portable Wi-Fi hotspot or
Wi-Fi direct is on
/
Song is playing
GPS on
Updates available
Making the First Call
1. Touch the Home Key and then at the bottom.
13
2. Enter the phone number and touch .
Sending a Message
1. Touch in the Home Screen and select Messaging.
2. Touch at the bottom.
3. Touch the To field, and enter the recipient’s number or, if the recipient
is stored in People as a contact, the first letters of the recipient’s name.
As matching contacts appear, you can touch a suggested recipient.
4. Touch the Type message field, and enter the contents of your text
14
message.
5. To send a multimedia message, Touch the Menu Key > Add subject
to add a message subject. Touch the paper clip icon beside the
message text box to open a menu where you can select the kind of media
file to attach to the message.
6. Touch .
Importing Contacts From the microSD
Card
If you’ve got an old phone with contacts on it, you may import them to the
new phone.
1. Export the contacts on the old phone to a vCard file. See the phone’s
user guide for details.
2. Copy to vCard file to the microSD card and install it on this phone.
3. Touch the Home Key > .
4. Touch the Menu Key > Import/export > Import from SD card. If the
15
phone has no contacts on it, touch Import/export contacts > Import
from SD card.
5. Select the vCard file(s) in the microSD card and touch OK.
Taking Photos
1. Touch the Home Key > > Camera.
2. Aim the camera at the subject and make any necessary adjustment.
16
Number
Function
1
Touch and slide to adjust zoom level.
2
Select camera settings.
3
Switch between the camera and camcorder.
17
Number
Function
4
Capture a photo.
5
View photos and videos captured.
6
Switch between the front camera and the back camera.
7
Slide to adjust brightness.
3. Lightly touch .
Shooting Videos
1. Touch the Home Key > > Camcorder to launch the camcorder.
2. Aim the camera at the subject and make any necessary adjustment.
18
Number
Function
1
Hold the circle and slide to zoom in or out.
2
Change the camcorder settings, such as white balance
and video quality.
3
Switch between the camera and camcorder.
19
Number
Function
4
Record a video.
5
View photos and videos captured.
6
Switch between the front camera and the back camera.
3. Touch the red button to start recording.
4. Touch to stop recording.
Playing Music
Before starting the music player, insert the microSD card with audio files
into your device.
1. Touch the Home Key > > or .
2. Touch a category, such as Artists or Albums, to find the song you want
to play.
3. Touch the song to play it back.
20

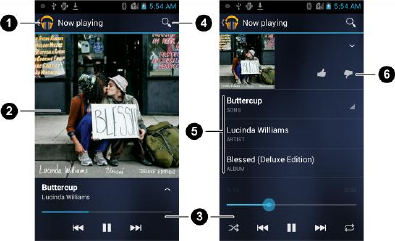

Below are the playback screen in Music and Play Music.
Using Music
21
Number
Function
1
Album artwork.
2
Song and artist information.
3
Playback control. Skip songs or pause and resume playback.
Drag the slider to jump to any part of the song.
4
Touch to toggle repeat mode: no repeat, repeat the current
song, or repeat the current playlist.
5
Touch to play the current playlist in shuffle mode, where
tracks are played in random order.
6
Touch to open the current playlist.
22
Using Play Music
23
Number
Function
1
Touch to see the current playlist.
2
Album artwork.
3
Playback control. Skip songs, pause and resume playback, use
shuffle or repeat. Drag the slider to jump to any part of the song.
4
Search for music.
Touch the album artwork, the song information or below the
artwork to show more options.
Number
Function
5
Song, artist and album names. Touch and hold to search for
related information.
6
Give the song a thumbs-up or thumbs-down.
24
Watching Videos
Touch the Home Key > > . Touch a video file to watch it.
Tap the screen to show or hide the video control, with which you can
pause the video or jump to any part of it.
Adding Accounts
You can add multiple Google accounts and Microsoft Exchange
ActiveSync accounts. You may also add other kinds of accounts,
depending on the apps installed on your device. These accounts may
allow you to sync emails, calendar schedules, contacts, or other
information between your device and the web.
1. Touch the Home Key > Menu Key > System settings > Accounts &
sync.
2. Touch ADD ACCOUNT.
3. Touch the type of account you want to add.
4. Follow the onscreen steps to enter the information about the account.
25
Most accounts require a username and password, but the details may
vary. You may also need to obtain some information from IT support or
system administrator.
When the account is successfully added, it is displayed in the Accounts
& sync list.
Setting a Screen Lock
You can protect your phone by creating a screen lock. When enabled,
you need to draw a pattern or enter a numeric PIN or password to unlock
the phone’s screen and keys.
1. Tap the Home Key > Menu Key > System settings > Security >
Screen lock.
2. Touch Pattern, PIN or Password.
Pattern
You must draw a pattern to unlock the screen. The first
time you set this, a short tutorial about creating an
unlock pattern appears. Then you’re prompted to draw
and redraw your own pattern.
26
PIN or Password
Set a numeric PIN or a password that you must enter
to unlock your screen.
Connecting to your PC
You can connect your device to a computer with a USB cable and
transfer music, pictures, and other files in both directions. Your device
stores these files in internal storage or on a removable microSD card.
If you are using USB tethering, you must turn that off before you can use
USB to transfer files between the device and the computer.
1. Touch and hold the status bar across the top of the screen and flick
down.
27
2. Touch Connected as an installer.
3. Choose one of the following options:
Charge only: Use the connection to charge the phone.
Media Transfer: Transfer media files on Windows, or using
28
Android File Transfer on Mac.
Phone as Modem: Enable USB tethering to share your mobile
data with the computer.
PC Software: A portable USB drive appears on the computer for
you to install USB driver.
To disconnect the device from the computer, simply unplug the USB
cable when you’re finished.
Connecting to the Internet via Wi-Fi
1. Touch the Home Key > Menu Key > System settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position to turn on Wi-Fi.
The Wi-Fi networks that your phone has detected are displayed with
their names and security settings. If your phone finds a network that
you connected to previously, it connects to it.
3. Touch a network name to connect to it.
If the network is secured, you're prompted to enter a password or
29
other credentials. (Ask your network administrator for details.)
Installing New Apps From the Play Store
There are tens of thousands of games and applications in the Play Store.
You can download and install them in a few easy steps. You can send
feedback or comments on an application.
Before you begin, make sure that you have signed in to your Google
account.
1. Touch the Home Key > > .
2. The first time you launch Play Store, accept the Google Play Terms of
Service.
3. Find the apps you need either by category or by touching .
30
4. Tap the app to see more information about it.
5. Touch Download (free apps) or the price (paid apps). If the app is not
free, you need to sign in to your Google Wallet account and select a
payment method.
31
Caution: Once installed, some apps can access many functions or a
significant amount of your personal data. The Android Market will tell
you what the app can access. If you still want to proceed, touch
Accept & download (free apps) or Accept & buy (paid apps).
6. Wait for the app to be downloaded and installed automatically.
The app is successfully installed when the icon appears in the status
bar. You can find the new app after touching the Home Key > .
32
For Your Safety
General Safety
Do not use hand-held
while driving
Do not use while re-fuelling
For body-worn
operation maintain a
separation of 15 mm
This device may produce a
bright or flashing light
Small parts may
cause a choking
hazard
Do not dispose of it in a fire
33
This device may
produce a loud sound
Avoid contact with magnetic
media
Keep away from
pacemakers and
other personal
medical devices
Avoid Extreme Temperatures
Switch off when
instructed in hospitals
and medical facilities
Avoid any contact with liquid,
keep it dry
Switch off when
instructed in aircrafts
and airports
Do not attempt to disassemble
34
Switch off in explosive
environments
Only use approved
accessories
Do not rely on this device for emergency communications
Radio Frequency (RF) Energy
This model phone meets the government’s requirements for exposure to
radio waves.
This phone is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government:
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR.
35
The SAR limit set by the FCC is 1.6 W/kg.
Tests for SAR are conducted using standard operating positions
accepted by the FCC with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of
the phone while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as
to use only the power required to reach the network. In general, the
closer you are to a wireless base station, the lower the power output.
The highest SAR values for this model phone as reported to the FCC
when tested for use at the ear and on the body are:
Head: 1.277 W/kg, Body: 1.464 W/kg
(Body-worn measurements differ among phone models, depending upon
available enhancements and FCC requirements.)
While there may be differences between the SAR levels of individual
T-Mobile® Concord™ phones and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this model phone
36
with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid after searching on
FCC ID: Q78-ZTEN9120
For body worn operation, this phone has been tested and meets the FCC
RF exposure guidelines for use with an accessory that contains no metal
and that positions the handset a minimum of 1.5 cm from the body. Use
of other enhancements may not ensure compliance with FCC RF
exposure guidelines. If you do not use a body-worn accessory and are
not holding the phone at the ear, position the handset a minimum of 1.5
cm from your body when the phone is switched on.
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
37
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
38
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Using Your Phone With a Hearing Aid Device
Your phone is compliant with the FCC Hearing Aid Compatibility (HAC)
requirements. For additional HAC information, including the HAC rating
of this product, please refer to www.zteusa-support.com.
When some wireless phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzzing,
humming, or whining noise. Some hearing devices are more immune
than others to this interference noise, and phones also vary in the amount
of interference they generate. The wireless telephone industry has
developed ratings for some of their mobile phones to assist hearing
39
device users in finding phones that may be compatible with their hearing
devices. Not all phones have been rated. Phones that have been rated
have a label on the box.
Your phone has been tested for hearing aid device compatibility and
has an M4/T3.
These ratings are not guaranteed. Results will vary, depending on the
level of immunity of your hearing device and the degree of your hearing
loss. If your hearing device happens to be vulnerable to interference, you
may not be able to use a rated phone successfully. Trying out the phone
with your hearing device is the best way to evaluate it for your personal
needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are
likely to generate less interference with hearing devices than phones that
are not labeled. M4 is the better/higher of the two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely
to be more usable with a hearing device’s telecoil (“T Switch” or
“Telephone Switch”) than unrated phones. T4 is the better/higher of the
40
two ratings. (Note that not all hearing devices contain telecoils.) The
more immune your hearing aid device is, the less likely you are to
experience interference noise from your wireless phone.
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device.
For additional information about the FCC's actions with regard to hearing
aid compatible wireless devices and other steps the FCC has taken to
ensure that individuals with disabilities have access to
telecommunications services, please go to www.fcc.gov/cgb/dro.
Turning on the HAC Setting
To turn on the HAC function, touch the Home Key > Menu Key >
System settings > Call and tick the Hearing aids check box.
This section applies to T-Rating only and hearing aids that contain
telecoils. When the HAC setting is on, your phone sends the audio from
your phone calls to the telecoil rather than to the microphone of your
41
hearing aid. You are likely to hear calls much better because volume is
increased and background noise and feedback are diminished. The HAC
setting improves only the calls you listen to through the earpiece. It does
not affect calls heard on the speaker or with a headset. HAC requires
extra battery power, so watch your battery consumption when it's turned
on.
CAUTION: Do not turn on the HAC setting unless you use a hearing aid
with a telecoil. Using this setting without a hearing aid or with a hearing
aid without a telecoil may be harmful to your hearing.
Distraction
Driving
Full attention must be given to driving at all times in order to reduce the
risk of an accident. Using a phone while driving (even with a hands free
kit) can cause distraction and lead to an accident. You must comply
with local laws and regulations restricting the use of wireless devices
42
while driving.
Operating Machinery
Full attention must be given to operating the machinery in order to
reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of its use.
You must always switch off your phone wherever the use of a phone is
prohibited. Use of your phone is subject to safety measures designed to
protect users and their environment.
Always treat your phone and its accessories with care and keep it in a
clean and dust-free place.
43
Do not expose your phone or its accessories to open flames or lit
tobacco products.
Do not expose your phone or its accessories to liquid, moisture or
high humidity.
Do not drop, throw or try to bend your phone or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to clean
the device or its accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories, only
authorized personnel can do so.
Do not expose your phone or its accessories to extreme temperatures,
minimum - [5] and maximum + [50] degrees Celsius.
Please check local regulations for disposal of electronic products.
Do not carry your phone in your back pocket as it could break when
you sit down.
44
Battery
Do not disassemble or open crush, bend or deform, puncture or
shred.
Do not modify or remanufacture, attempt to insert foreign objects into
the battery, immerse or expose to water or other liquids, expose to fire,
explosion or other hazard.
Only use the battery for the system for which it is specified.
Only use the battery with a charging system that has been qualified
with the system per CTIA Certification Requirements for Battery
System Compliance to IEEE 1725. Use of an unqualified battery or
charger may present a risk of fire, explosion, leakage, or other
hazard.
Do not short circuit a battery or allow metallic conductive objects to
contact battery terminals.
Replace the battery only with another battery that has been qualified
with the system per this standard, IEEE-Std-1725. Use of an
45
unqualified battery may present a risk of fire, explosion, leakage or
other hazard.
Promptly dispose of used batteries in accordance with local
regulations.
Battery usage by children should be supervised.
Avoid dropping the phone or battery. If the phone or battery is dropped,
especially on a hard surface, and the user suspects damage, take it to
a service center for inspection.
Improper battery use may result in a fire, explosion or other hazard.
The phone shall only be connected to products that bear the USB-IF
logo or have completed the USB-IF compliance program.
Small Children
Do not leave your phone and its accessories within the reach of small
children or allow them to play with it.
They could hurt themselves or others, or could accidentally damage the
46
phone.
Your phone contains small parts with sharp edges that may cause an
injury or may become detached and create a choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic devices or
magnetic media close to your phone for a long time.
Electrostatic Discharge (ESD)
Do not touch the SIM card’s metal connectors.
Antenna
GPS antenna
Bluetooth® &
47
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to your ear, with
the bottom towards your mouth.
48
Antenna
Antenna
49
Air Bags
Do not place a phone in the area over an air bag or in the air bag
deployment area as an airbag inflates with great force and serious injury
could result.
Store the phone safely before driving your vehicle.
Seizures/Blackouts
The phone can produce a bright or flashing light. A small percentage of
people may be susceptible to blackouts or seizures (even if they have
never had one before) when exposed to flashing lights or light patterns
such as when playing games or watching video. If you have experienced
seizures or blackouts or have a family history of such occurrences,
please consult a physician.
50
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting or
playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the times of
pressing buttons, such as Message Templates and Predictive Text.
Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio signals, which
cannot guarantee connection in all conditions. Therefore, you must never
rely solely on any wireless phone for emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may damage your
51
hearing. Turn down the volume before using headphones, Bluetooth
stereo headsets or other audio devices.
Phone Heating
Your phone may become warm during charging and during normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or key rings,
to contact or short-circuit in the battery terminals.
Connection to a Car
Seek professional advice when connecting a phone interface to the
52
vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessory.
Only qualified personnel can service or repair the phone or its accessory.
If your phone or its accessory has been submerged in water, punctured,
or subjected to a severe fall, do not use it until you have taken it to be
checked at an authorized service centre.
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the phone in close proximity to
personal medical devices, such as pacemakers and hearing aids.
53
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of
15 cm be maintained between a mobile phone and a pacemaker to avoid
potential interference with the pacemaker. To achieve this, use the phone
on the opposite ear to your pacemaker and do not carry it in a breast
pocket.
Hearing Aids
People with hearing aids or other cochlear implants may experience
interfering noises when using wireless devices or when one is nearby.
The level of interference will depend on the type of hearing device and
the distance from the interference source, increasing the separation
between them may reduce the interference. You may also consult your
hearing aid manufacturer to discuss alternatives.
Medical Devices
Please consult your doctor and the device manufacturer to determine
54
if operation of your phone may interfere with the operation of your
medical device.
Hospitals
Switch off your wireless device when requested to do so in hospitals,
clinics or health care facilities. These requests are designed to prevent
possible interference with sensitive medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to do so by
airport or airline staff.
Consult the airline staff about the use of wireless devices on board the
aircraft. If your device offers a ‘flight mode’, this must be enabled prior to
boarding an aircraft.
Interference in Vehicles
Please note that because of possible interference to electronic
55
equipment, some vehicle manufacturers forbid the use of mobile
phones in their vehicles unless a hands-free kit with an external
antenna is included in the installation.
Explosive Environments
Gas Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all posted signs
to turn off wireless devices such as your phone or other radio equipment.
Areas with potentially explosive atmospheres include fuelling areas,
below decks on boats, fuel or chemical transfer or storage facilities, areas
where the air contains chemicals or particles, such as grain, dust, or
metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a blasting area
or in areas posted power off “two-way radios” or “electronic devices” to
56
avoid interfering with blasting operations.
