ZTE ZTER28 GSM(GPRS) Dual-Mode Digital Mobile Phone User Manual
ZTE Corporation GSM(GPRS) Dual-Mode Digital Mobile Phone
ZTE >
User manual
ZTE R28 User Guide
Thank you for purchasing the ZTE R28 mobile phone. This mobile
phone is specially designed to be shockproof, waterproof and
dustproof (IP67). This instruction manual can be used to guide
you to understand the functions and features of ZTE R28.
LEGAL INFORMATION
Copyright © 2014 ZTE CORPORATION.
All Rights Reserved
Your ZTE R28 is made by ZTE CORPORATION.
No part of this manual may be reproduced or transmitted in any form or by any means without prior
written consent of ZTE CORPORATION.
Limitation of Liability
ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages
resulting from or arising out of or in connection with using this product, whether or not ZTE had been
advised, knew or should have known the possibility of such damages.
Trademarks
ZTE is a trademark of ZTE
The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc.
microSD™ is a trade mark of SD Card Association.
: microSD Logo is a trademark.
: The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such
marks by ZTE and its affiliates is under license. Other trademarks and trade names are those of their
respective owners.
Notice
The information in this manual is subject to change without notice. Every effort has been made in the
preparation of this manual to ensure accuracy of the contents, but all statements, information, and
recommendations in this manual do not constitute a warranty of any kind, expressed or implied.
Please read the Product Safety Information carefully to ensure the correct and safe use of your mobile
phone.
ZTE CORPORATION Address:
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Website: http://www.zte.com.cn
Version No. : R1.0
Edition Time: 24.06.2014
Table of Contents
Product Safety Information ....................................................................................................... 4
High level specifications............................................................................................................ 7

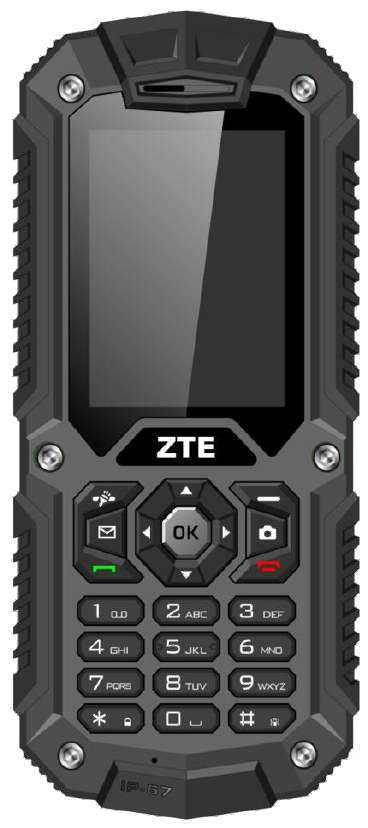

Your ZTE R28 Phone ................................................................................................................ 8
Inserting the SIM card .............................................................................................................. 9
Installing Additional Memory (Optional) ................................................................................... 10
How to switch the phone On or Off ......................................................................................... 10
If your handset displays: ........................................................................................................ 10
How do I connect the charger? ............................................................................................... 10
Tips about charging and battery life ........................................................................................ 10
How to navigate the Menu ...................................................................................................... 11
How do I set the time and date? ............................................................................................. 11
How do I lock or unlock the keypad? ....................................................................................... 11
How to make a voice call ........................................................................................................ 11
How to answer an incoming call .............................................................................................. 11
How to send a Text Message (SMS)......................................................................................... 11
How to send a Text Message (MMS) ........................................................................................ 12
How to view a received Text Message (SMS) ............................................................................ 12
How to receive a Multimedia Message (MMS) .......................................................................... 12
Add new contact .................................................................................................................... 12
Save the number of a received message.................................................................................. 12
Save the number in the call history ......................................................................................... 13
Quick search for the contacts .................................................................................................. 13
Delete a contact ..................................................................................................................... 13
Copy or move records ............................................................................................................ 13
Send business card ................................................................................................................ 13
View memory status ............................................................................................................... 13
Declaration of RoHS Compliance ............................................................................................. 15
EC DECLARATION OF CONFORMITY ........................................................................................ 16
Product Safety Information
The clauses set out below are a collation of terms that may apply to various products. Working with the
product manufacturer, using the process set out above, the appropriate set of clauses should be selected.
Please ensure that references to "wireless device", "device" or "phone" below are tailored to the product in
question.
Read the Safety Information
section of this user guide on page
7
Do not use while re-fuelling
Do not use hand-held while driving
This device may produce a bright or
flashing light
For body-worn operation maintain
a separation of 1.5 cm
Do not dispose of in a fire
Small parts may cause a choking
hazard
Avoid contact with magnetic media
This device may produce a loud
sound
Avoid Extreme Temperatures
Keep away from pacemakers and
other personal medical devices
Avoid contact with liquid, keep dry
Switch off when instructed in
hospitals and medical facilities
Do not try and disassemble
Switch off when instructed in
aircrafts and airports
Do not rely on this device for
emergency communications
Switch off in explosive
environments
Only use approved accessories
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Using a headset at high volumes may damage your hearing.
To reduce this risk, lower the headset volume to a safe and comfortable level.
Exposure to high volumes while driving may cause distraction and increase your risk of an
accident.
Do not use the device in environments where flammables or explosives are stored, such
as a petrol station, because the electronics in the device may trigger an explosion or
fire.
Always adhere to any warning signs or information that may be present in these
environments.
Do not store or transport the device in containers with flammable liquids, gases, or
explosives.
RF Exposure
Your phone contains a transmitter and a receiver. When it is ON, it receives and transmits RF energy. When you
communicate with your phone, the system handling your call controls the power level at which your phone transmits.
Specific Absorption Rate (SAR)
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio
waves recommended by international guidelines. These guidelines were developed by the independent scientific
organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age
and health.
The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile
devices is 2.0 W/kg and the highest SAR value for this device when tested at the ear was 0.747 W/kg * and when
tested near the body (at a distance of 15mm) the highest SAR value was 0.467W/kg.
As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in
this user guide. As SAR is measured utilizing the device's highest transmitting power, the actual SAR of this device
while operating is typically below that indicated above. This is to ensure it only uses the minimum power required to
communicate with the network.
* The tests are carried out in accordance with [CENELEC EN50360] [IEC standard PT62209-1].
Body worn operation
Important safety information regarding radiofrequency radiation (RF) exposure. To ensure compliance with RF
exposure guidelines the phone must be used with a minimum of 1.5 cm separation from the body. Failure to observe
these instructions could result in your RF exposure exceeding the relevant guideline limits.
Limiting exposure to radio frequency (RF) fields
For individuals concerned about limiting their exposure to RF fields, the World Health Organization (WHO) provides
the following advice: Precautionary measures: Present scientific information does not indicate the need for any special
precautions for the use of mobile phones. If individuals are concerned, they might choose to limit their own or their
children's RF exposure by limiting the length of calls, or using 'hands-free' devices to keep mobile phones away from
the head and body. Further information on this subject can be obtained from the WHO home page
http://www.who.int/peh-emf WHO Fact sheet 193: June 2000.
Driving
Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while
driving, even using a hands free car kit, can cause a distraction which may lead to an accident. You must comply with
the local laws and regulations regarding the use of wireless devices while driving.
Operating machinery
Full attention must be given to operating the machinery in order to reduce the risk of an accident.
Product Handling
You alone are responsible for how you use your phone and any consequences of its use. You must always switch off
your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to
protect users and their environment.
Always treat your phone and its accessories with care and keep it in a clean and dust-free place.
Do not expose your phone or its accessories to open flames or lit tobacco products.
Do not expose your phone or its accessories to liquid, moisture or high humidity.
Do not drop, throw or try to bend your phone or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories, only authorized personnel must do so.
Do not expose your phone or its accessories to extreme temperatures.
Please check local regulations for disposal of electronic products. Do not carry your phone in your back
pocket as it could break when you sit down.
This device is intended to be operated below 40 degrees Celsius.
Small Children
Do not leave your phone and its accessories within the reach of small children or allow them to play with it. They
could hurt themselves or others, or could accidentally damage the phone. Your phone contains small parts with sharp
edges that may cause an injury or which could become detached and create a choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic devices or magnetic media close to your phone for a long
time.
Electrostatic discharge (ESD)
Do not touch the SIM card's metal connectors.
Power supply
Do not connect your device to the power supply or switch it on until instructed to do so in the installation
instructions.
Antenna
Do not touch the antenna unnecessarily.

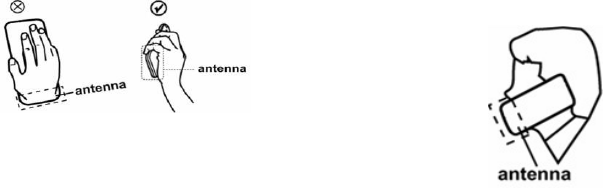

Normal use position
When placing or receiving a phone call, hold your phone to your ear, with the bottom towards
your mouth or as you would a fixed line phone.
Air Bags
Do not place a phone in the area over an air bag or in the air bag deployment area. Store the phone safely before
driving your vehicle.
Seizures/Blackouts
This phone is capable of producing bright flashing lights.
Repetitive Strain Injury (RSI)
To minimize the risk of RSI, when Texting or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Make use of the special features in the handset which minimize the number of buttons which have to be
pressed, such as message templates and predictive text.
Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone for emergency communications.
Loud Noise
This phone is capable of producing loud noises which may damage your hearing.
MP3 and video player function
When listening to pre-recorded music or watching videos on your device, with headphones or earphones at high
volumes, you run the risk of permanent damage to your hearing. Even if you are used to listening to music at a high
volume and it seems acceptable to you, you still risk damaging your hearing. Reduce the sound volume to a
reasonable level and avoid using headphones for an excessive period of time to avoid hearing damage. Different
headphones, earphones or ear buds may deliver a higher or lower volume, at the same volume setting on your device.
Always start at a low volume setting. Do not listen to music or video with headphones while driving.
Bright Light
This phone is capable of producing flash of light or use as a torch, do not use it too close to the eyes.
Phone Heating
Your phone may become warm during charging and during normal use.
Accessories
Use only approved accessories. Do not connect with incompatible products or accessories. Take care not to touch or
allow metal objects, such as coins or key rings, to contact or short-circuit the battery terminals.
Connection to a Car
Seek professional advice when connecting a phone interface to the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessory. Only qualified personnel must service or repair the phone
or its accessory. If your phone or its accessory has been submerged in water, punctured, or subjected to a severe fall,
do not use it until you have taken it to be checked at an authorized service centre.
Battery Handling & Safety
Always switch the device off and disconnect the charger before removing the battery. Only use the battery and
charger supplied, or manufacturer approved replacements intended for use with your phone. Using other batteries
and chargers could be dangerous. Do not disassemble or short-circuit the battery. Accidental short-circuiting can occur
if a metallic object such as a key, paper clip, or pen touches the terminals of the battery. Improper battery use may
result in a fire, explosion, or other hazard. If you believe the battery has been damaged, do not use it, take it to a
service centre for testing.
Interference
Care must be taken when using the phone in close proximity to personal medical devices, such as pacemakers and
hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 15 cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the pacemaker. To achieve this, use the phone on the opposite
ear to your pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may experience interfering noises when using wireless devices or
when one is nearby. The level of interference will depend on the type of hearing device and the distance from the
interference source, increasing the separation between them may reduce the interference. You may also consult your
hearing aid manufacturer to discuss alternatives.
Medical devices
Please consult your doctor and the device manufacturer to determine if operation of your phone may interfere with
the operation of your medical device.
Hospitals
Switch off your wireless device when requested to do so in hospitals, clinics or health care facilities. These requests
are designed to prevent possible interference with sensitive medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to do so by airport or airline staff. Consult the airline staff
about the use of wireless devices on board the aircraft, if your device offers a 'flight mode' this must be enabled prior
to boarding an aircraft.
Interference in cars
Please note that because of possible interference to electronic equipment, some vehicle manufacturers forbid the use
of mobile phones in their vehicles unless a hands free kit with an external antenna is included in the installation.
Petrol stations and explosive atmospheres
In locations with potentially explosive atmospheres, obey all posted signs to turn off wireless devices such as your
phone or other radio equipment. Areas with potentially explosive atmospheres include fuelling areas, below decks on
boats, fuel or chemical transfer or storage facilities, areas where the air contains chemicals or particles, such as grain,
dust, or metal powders.
Blasting Caps and Areas
Turn off your mobile phone or wireless device when in a blasting area or in areas posted turn off "two-way radios" or
"electronic devices" to avoid interfering with blasting operations.
High level specifications
Network
GSM/GPRS Quad Band 850/900/1800/1900 MHz
Display
5,59 cm (2.2”) - TFT LCD QCIF
Memory
64 MB RAM, 64MB ROM
Camera
1.3 mega pixels
Connectivity
Bluetooth V3.0 - OPP, A2DP, AVRCP
3.5 mm audio jack
Micro-USB
Battery
1350 mAh Lithium Ion, rechargeable
Number of supported SMS
200
Number of supported contacts
1000
Dimensions (LxWxT)
130 mm x 59 mm x 20 mm
Weight (with battery)
151 g
Expansion slot
microSD™ memory card, supported SD cards up to 32 GB
Audio supported formats
MP3, AAC, MID, AMR
Video supported formats
3GP, AVI
Processor
MTK
General
IP67
Note: -Specifications are subject to change without prior notice.
Your ZTE R28 Phone
No.
Key Note
Function Description
1
Left Key
• Press to enter to main menu in standby mode, items operating functions or confirming functions.
• Long press Left Key to turn on/off the flashlight.
2
Inbox Shortcuts
• Press to quickly enter the message inbox.
3
Dial Key
• Press to enter the call records. Input the number in standby mode, and press this key to dial.
4
Right Key
• Enter to phonebook in standby mode. Press this key in menu to return to previous page and cancel.
5
Camera Shortcuts
• Press to quickly enter the Camera.
6
End Key
• Long press to power on or off the phone.
• Terminate a call or refused a call.
• Return to standby state.
7
OK Key
• Confirm Key
8
Number Key
• Input numbers or characters
9
USB port
• USB port
10
LED Flashlight
• LED Flashlight
11/12
Volume key
• Press to adjust the volume of your phone.
13
Loudspeaker
• Loudspeaker
14
Viewfinder
• Viewfinder
15
Earphone jack
• Earphone jack
Liquid Damage - Important Note
Your ruggedized handset is compliant with the IP67 Standard which gives protection from dust
and liquid ingress up to 1m depth. To ensure continued protection against liquid damage the
battery cover, antenna port and USB port cover must be properly closed.
Note: In this User Manual, "press a key" means to press the key and release it, while "hold a key" means to press the key.
Status bar icons
Indicator
What it means
Indicator
What it means
Signal strength
New SMS
Battery status
New MMS
Missed call
Message memory full
General mode or My style
activated
Phone locked
Silent mode activated
Head set mode
Meeting profile activated
Alarm clock is set
Outdoor profile activated
Roaming
Call divert
Bluetooth
Inserting the SIM card
You want a mobile phone that is sophisticated yet easy to use and here it is in your hands! Naturally you
are eager to start using it, but first you need to insert the SIM card.
Insert the SIM card as follows:
Make sure that the phone is switched off and the charger is disconnected from the phone.
Use a screw driver or a right size coin to rotate the screw of the battery cover counter clockwise
and open the unfold battery cover.
Remove the battery if it is already installed.
Hold your SIM card with the cut corner oriented as shown and then slide it into the card holder
with the gold-coloured contacts facing downward.
Install an additional microSD™ card (Optional).
Insert the battery by aligning the gold-coloured contacts with the contacts in the battery slot.
Push down the upper section of the battery until it clicks into place.
Place the battery cover back and use a screw driver or a right size coin
to rotate the screw clockwise.
It is important to keep the battery cover, antenna port and
USB port cover properly closed to maintain IP67 protection
from liquid and dust.
Installing Additional Memory (Optional)
You can use a microSD™ card up to 32 GB to expand the storage of the phone. You can store or copy files
such as videos, photos, music, and so on.
microSD™ cards up to 2 GB are FAT 16 format. microSDHC™ (high capacity) cards up to 32 GB are
FAT 32 format. Class 4 or above memory cards are required.
Open the back cover. The Memory card slot is under the battery above the side of the SIM card
holder.
Slide the metal holder to the right and open it carefully. Insert the memory card as shown with the
gold contacts facing down. Slide the metal holder to the left until it clicks.
With the microSD™ card inserted the default storage location (for photos etc) is the External
Memory.
Go to Menu > File manager > Memory card to access the stored files.
Do not take out the card or switch off or disconnect the phone while transmitting or storing data,
which may cause data loss or damage to the phone or the card.
How to switch the phone On or Off
Press and hold the red key for two seconds to switch the phone ON or OFF.
In case asked by the phone, enter the SIM PIN code supplied with your SIM card.
If your handset displays:
Input PIN Enter the PIN supplied with your SIM card and press OK.
Insert SIM Insert a SIM or check the SIM is inserted correctly.
Enter PUK code Enter the PUK supplied with your SIM card
or contact your Service Provider.
Input old password The default code is 0000.
(under Menu > Settings > Security settings > Phone security)
How do I connect the charger?
Charge before the initial use. The plug and socket are keyed so they will only fit together
one way. Do NOT use excessive force which may damage the USB port.
Physical damage to the USB port is NOT covered by warranty.
The phone can also be charged by connecting it to a computer using the USB lead
supplied.
If the phone is off after charging long press the red key to switch it back on.
Tips about charging and battery life
Your phone is powered by a rechargeable lithium ion battery. For maximum battery performance,
it is recommended that you first use up the battery power and then charge it completely.
Only use the AC charger and USB lead supplied.
Insert the charger lead carefully with the plug and socket aligned correctly. Normal charge time is
3-4 hours. When not using the phone for long periods remove the battery.
Charge the battery between 0°C ~ 40°C. Charge the battery promptly when flat. With poor network
conditions (less than 2 bars) battery life is reduced.
To maximize battery life, turn off Bluetooth when not in use and limit multimedia functions. Battery
life is improved after a few charge / discharge cycles.
The phone can be charged in the ON or OFF state: When OFF or ON an animated battery symbol is
displayed until fully charged. If charging while the phone is switched OFF, turn the phone ON by
long pressing the red key .
How to navigate the Menu
How do I set the time and date?
To set the time go to Main Menu > Settings > Phone settings > Time and date > Set time/date.
Set the time and date manually. Select 12 or 24 hr format in the Main Menu > Settings > Phone
settings > Time and date > Set format menu.
How do I lock or unlock the keypad?
From the Idle Screen press the OK key and then the * key to lock the handset. Press the left key
Unlock and then the * key to unlock the handset. Set Auto key lock at Main Menu > Settings >
Phone settings > Display > Screen auto lock. There you can switch OFF the key lock function or ON
by pressing OK on one of the time out values you want to have.
How to make a voice call
Enter the number on the keypad and press the green key to make the call.
After dialling the number press the left key Options > H-Free > OK, or while being in a call press
OK, to activate Speaker (Handsfree) mode.
Press the red key to end the call.
How to answer an incoming call
Press the green key or OK > Answer > OK to answer the call.
After answering the call, press OK to activate Speaker (Handsfree) mode.
Press the red key to end the call.
If Voicemail is active pressing left key Options and Reject forwards the call to the Voicemail.
How to send a Text Message (SMS)
From the idle screen press the Up Arrow for Messaging or go to the Main Menu >
Messaging > Write message > Text message to create a message.
Enter the phone number directly or press OK to add a recipient from the phonebook.
Scroll through the phonebook list in case chosen to add a recipient from the phonebook and press
OK to mark up to 2O contacts.
Press the Left key Add when ready, the contact(s) chosen are added to the Recipients field.
Press the Down Arrow once to move the cursor into the text field.
Enter text by pressing the corresponding multi tap keys for each letter. Press the key once for the
1st letter shown on the keys, twice for the 2nd letter etc.
Press the # key to switch between 123, ABC, abc, Abc, and the other text modes like PT, pt, Pt in
case of Portuguese, DE, de, De in case of German etc.
When completed press the OK key or the left key Options > Send to send the message.
Idle Screen (Main) Menu
The Main Menu is a grid of icons that are used to
access key features on the phone.
From the Idle Screen press OK to access the Main
Menu. Use the Arrow Keys to move the cursor and
press OK on the icon you want to access.
How to send a Text Message (MMS)
From the idle screen press the Up Arrow for Messaging or go to the Main Menu > Messaging >
Write message > MMS (Multimedia message) to create an MMS.
Enter the phone number directly or press OK to add a recipient from the phonebook.
Scroll through the phonebook list in case chosen to add a recipient from the phonebook and press
OK to mark up to 2O contacts.
Press the Left key Add when ready, the contact(s) chosen are added to the Recipients field.
Press the Down Arrow once to move the cursor into the text field.
Enter text by pressing the corresponding multi tap keys for each letter. Press the key once for the
1st letter shown on the keys, twice for the 2nd letter etc.
Press the # key to switch between 123, ABC, abc, Abc, and the other text modes like PT, pt, Pt in
case of Portuguese, DE, de, De in case of German etc.
Press the left key Options > Add picture > OK to add a picture.
Press the left key Options > Add sound > OK to add a sound.
Press the left key Options > Add video > OK to add a video.
When completed press the left key Options > Send to send the MMS.
How to view a received Text Message (SMS)
The envelope icon on the information bar indicates a new SMS message.
The message alert tone and vibrate are activated depending on the current profile setting.
From the new message pop up in the idle screen, press OK to view, or go to Menu > Messaging >
Inbox to view all received messages.
Scroll to the desired message and press OK to View.
The envelope icon will clear once all unread messages have been viewed.
Press the left key Option
for the following functions:
Reply by SMS
Reply by MMS
Call sender
Forward
Delete
Advanced
How to receive a Multimedia Message (MMS)
When receiving an MMS you get a standard message alert. Press OK to View.
When the attachment has downloaded press the left key Options.
Choose Save objects to save the text or pictures into the internal phone or SD card memory.
Add new contact
From the Idle Screen press OK > Phonebook > Add new contact or press from the Idle
Screen the Down Arrow > Add new contact.
Select to save the number To SIM or To phone.
Edit the information and then press the OK key or the left key Options > Save to save the
new contact.
You can also save a number right after you've made or received a phone call or a text message from
someone who is not yet in your contacts list.
Save the number of a received message
Go to the text message, press left key Options > Save to Phonebook.
Press Advanced for
the following
functions:
Use number
Use URL
Use USSD
Copy to phone
Move to phone
Save the number in the call history
Go to Menu > Call center > Call history.
Choose in the call history the phone number you would like to add to your contacts.
Press left key Options > Save to Phonebook.
Quick search for the contacts
To quickly search for the contacts press the Down Arrow and enter the first letter of your desired
contact on the screen.
Delete a contact
To delete someone from your contacts list, press the Down Arrow , select the name first and then
press left key Options > Delete.
Copy or move records
You can copy or move the records to SIM or to phone. You can also copy the records to file. Select
Options > Copy to copy a single contact. Select Options > Phonebook settings > Copy contacts or
Options > Phonebook settings > Move contacts to copy or move all contacts to SIM or to Phone.
Send business card
From the Idle Screen press OK > Phonebook.
Press the left key Options > Send business card.
You can choose how to send your business card, As text message, As multimedia message
or Via Bluetooth.
View memory status
From the Idle Screen press OK > Phonebook > Options > Phonebook settings >
Memory status. There you can check the memory status of both phone and SIM.
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency bands,
and placed in positions that simulate RF exposure in usage against the head with no separation, and near the body
with the separation of 15 mm. Although the SAR is determined at the highest certified power level, the actual SAR
level of the device while operating can be well below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of measurement is known as the Specific Absorption
Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and
had been tested in accordance with the measurement methods and procedures specified in IEEE1528. This device has
been tested and meets the FCC RF exposure guidelines when tested with the device directly contacted to the body.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines.
SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: SRQ-ZTER28.
For this device, the highest reported SAR value for usage against the head is 0.60 W/kg, for usage near the body is
1.11 W/kg.
While there may be differences between the SAR levels of various phones and at various positions, they all meet the
government requirements.
SAR compliance for body-worn operation is based on a separation distance of 15 mm between the unit and the
human body. Carry this device at least 15 mm away from your body to ensure RF exposure level compliant or lower to
the reported level. To support body-worn operation, choose the belt clips or holsters, which do not contain metallic
components, to maintain a separation of 15 mm between this device and your body.
RF exposure compliance with any body-worn accessory, which contains metal, was not tested and certified, and use
such body-worn accessory should be avoided.
Declaration of RoHS Compliance
To minimize the environmental impact and take more responsibility for the earth we live in, this
document shall serve as formal declaration that the R28 manufactured by ZTE CORPORATION
is in compliance with the Directive 2011/65/EC of the European Parliament - RoHS (Restriction
of Hazardous Substances) with respect to the following substances:
(1) Lead (Pb)
(2) Mercury (Hg) (3) Cadmium (Cd)
(4) Hexavalent Chromium (Cr (VI))
(5) Polybrominated biphenyls (PBB's)
(6) Polybrominated diphenyl ethers (PBDE's)
(Compliance is evidenced by written declaration from our suppliers, assuring that any potential
trace contamination levels of the substances listed above are below the maximum level set by
EU 2011/65/EC, or are exempt due to their application.)
The ZTE R28 manufactured by ZTE CORPORATION, meets the requirements of EU 2011/65/EC.
Disposal of Your Old Appliance
1. When this crossed-out wheeled bin symbol
is attached to a product, it means the product is
covered by the European Directive 2012/19/EC.
2. All electrical and electronic products should
be disposed of separately from the municipal
waste stream via designated collection facilities
appointed by the government or the local
authorities.
3. The correct disposal of your old appliance
will help prevent potential negative
consequences for the environment and human
health.
For this product's recycling information based on WEEE directive, please send an e-mail to
weee@zte.com.cn
EC DECLARATION OF CONFORMITY
It is hereby declared that following designated product
Product Type: GSM (GPRS) Dual-Mode Digital Mobile Phone
Model No.: ZTE R28
of Directives on Radio and Telecommunication Terminal Equipment (Directive 1999/5/EC), Restriction of the
Certain Hazardous Substances in electrical and electronic equipment (Directive 2011/65/EU), Eco-design
Requirements for Energy-Related Products (Directive 2009/125/EC) and their amendments.This declaration
applies to all specimens manufactured identical to the samples submitted for testing/evaluation.
Assessment of compliance of the product with the requirements relating to Directive 1999/5/EC was
performed by PHOENIX (Notified Body No.0700) and assessment of compliance of the product with the
requirements relating to Directive 2011/65/EU and Directive 2009/125/EC was performed by ZTE
Corporation Reliability Testing Centre. The assessments were based on the following regulations and
standards:
Requirement
Standard
Report No.
Safety &Health
EN60950-1:2006+A11:2009+A1:2010+A12:2011
EN 62311 :2008/EN62209-2 :2010
EN 50360 :2001 + A1: 2012/EN 62209-1 :2006
EN 62479 :2010
EN 50566 :2013
L481902KS088
EA481902
EMC
EN 301 489-1 V1.9.2 (2011-09)
EN 301 489-7 V1.3.1 (2005-11)
EN 301489-17 V2.2.1 (2012-09)
EW481902
Radio Spectrum
EN 301 511 V9.0.2 : 2003
EN 300 328 V1.8.1 (2012-06)
EG481902
ER481902
RoHS
IEC 62321:2013
140801122SHA-001
ErP
EN62301
TRS11010058
This declaration is the responsibility of the manufacturer:
ZTE Corporation
ZTE Plaza, Keji Road South, Hi-Tech, Industrial Park
Nanshan District, Shenzhen, Guangdong, 518057,
P.R.China
Authorised person signing for the company:
Feng Xu ______Quality Director of ZTE Corporation
Name in block letters & Position in the company
Shenzhen, 17th September 2014_______________ __ __
Place & Date Legally valid signature
