User manual
1
ZTE-U V960
WCDMA/GSM Mobile Phone
User Manual
2
LEGAL INFORMATION
Copyright © 2011 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced, translated or used
in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without the prior written permission of ZTE
Corporation.
The manual is published by ZTE Corporation. We reserve the right to make
modifications on print errors or update specifications without prior notice.
Every effort has been made in the preparation of this manual to ensure
accuracy of the contents, but all statements, information, and recommendations
in this manual do not constitute a warranty of any kind, expressed or
implied.
The Bluetooth® trademark and logos are owned by the Bluetooth SIG, Inc.
and any use of such trademarks by ZTE Corporation is under license. Other
trademarks and trade names are the property of their respective owners.
Version No.: R1.0
Edition Time : 201107
Manual No.:
3
Contents
For Your Safety ............................................................................ 10
General Safety ........................................................................................ 10
Distraction ............................................................................................... 11
Driving ............................................................................................... 11
Operating Machinery ......................................................................... 11
Product Handling .................................................................................... 11
General Statement on Handling and Use .......................................... 11
Small Children ................................................................................... 12
Demagnetization ............................................................................... 13
Electrostatic Discharge (ESD) ........................................................... 13
Antenna ............................................................................................. 13

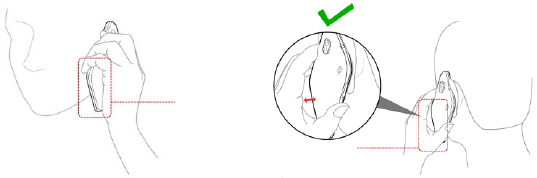

Normal Use Position .......................................................................... 13
Air Bags ............................................................................................. 14
Seizures/ Blackouts ........................................................................... 14
Repetitive Motion Injuries .................................................................. 14
Emergency Calls ............................................................................... 15
Loud Noise ........................................................................................ 15
Phone Heating ................................................................................... 15
Electrical Safety ...................................................................................... 15
Accessories ....................................................................................... 15
Connection to a Car .......................................................................... 15
Faulty and Damaged Products .......................................................... 16
Interference ............................................................................................. 16
General Statement on Interface ........................................................ 16
Pacemakers ...................................................................................... 16
4
Hearing Aids ......................................................................................16
Medical Devices .................................................................................17
Hospitals ............................................................................................17
Aircraft ................................................................................................17
Interference in Cars ...........................................................................17
Explosive Environments ..........................................................................18
Petrol Stations and Explosive Atmospheres ......................................18
Blasting Caps and Areas ...................................................................18
Getting Started ............................................................................. 22
Overview .................................................................................................22
Keys Explained ........................................................................................23
Starting up ...............................................................................................24

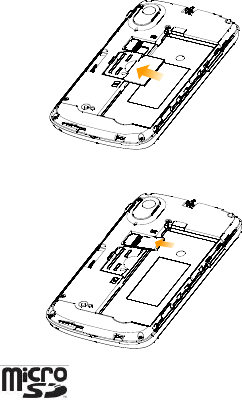

Installing the SIM/microSD Card and Battery ....................................24
Removing the Battery and SIM/microSD Card ..................................26
Charging the Battery ..........................................................................26
Switching Your Phone On/Off .................................................................27
Setting Up Your Phone for the First Time ..........................................27
Switching to Sleep Mode ...................................................................28
Waking up Your Phone ......................................................................28
Getting Around ........................................................................................28
Touch Control ....................................................................................28
Home Screen .....................................................................................29
Status and Notification Icons .............................................................32
Using the Notification Panel ...............................................................34
Applications and Settings Preview .....................................................35
5
Phone Calls .................................................................................. 41
How to Make Calls .................................................................................. 41
Calling from the Dialer ....................................................................... 41
Calling from Your Phonebook ........................................................... 41
Calling from Your Call History ........................................................... 41
Calling from a Text Message ............................................................. 42
Using Speed Dial ............................................................................... 42
How to Receive Calls .............................................................................. 42
Answering a Call ............................................................................... 42
Rejecting a Call ................................................................................. 43
Muting a Call ..................................................................................... 43
Putting a Call on Hold ........................................................................ 43
Turning the Speakerphone On/Off .................................................... 43
Ending a Call ..................................................................................... 44
Adjusting Your Call Settings ................................................................... 44
Phonebook ................................................................................... 46
Importing and Exporting Contacts .......................................................... 46
Import Contacts from the SIM Card or Export to the Card ................ 46
Import Contacts from the microSD Card or Export to the Card ......... 46
Sharing Contacts Information ................................................................. 47
Creating a Contact .................................................................................. 47
Adding a Contact to Favorites ................................................................ 47
Searching for a Contact .......................................................................... 48
Creating a New Group ............................................................................ 48
Entering Text ................................................................................ 49
6

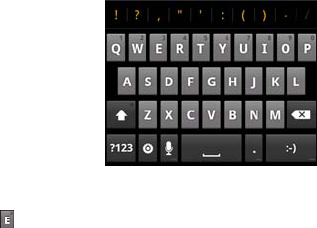

Android Keyboard ....................................................................................49
TouchPal Keyboard .................................................................................50
Choosing Touch Input Settings ...............................................................52
Messaging .................................................................................... 53
The Message Box ...................................................................................53
Sending an Message ...............................................................................53
Changing Message Settings ...................................................................54
Email ............................................................................................. 56
Creating an Email account ......................................................................56
Receiving Emails .....................................................................................57
Composing and sending an Email ...........................................................57
Replying to or Forwarding an Email ........................................................57
Deleting an Account ................................................................................58
Email Settings .........................................................................................58
Getting Connected to the Internet .............................................. 59
Adding a New GPRS/EDGE/3G Connection ...........................................59
Turning on Wi-Fi ......................................................................................59
Connecting to a Wi-Fi Network ................................................................60
Checking the Wi-Fi Network Status .........................................................60
Using the Phone as a Modem .................................................................60
Enabling the Phone as a Modem .......................................................60
Disabling the Modem Function ..........................................................61
Using the Phone as a Wi-Fi Hotspot .......................................................62
Enabling the Wi-Fi Hotspot ................................................................62
Disabling the Wi-Fi Hotspot ...............................................................62
7
Browsing the Internet .................................................................. 64
Browsing Options .................................................................................... 64
Using Bookmarks .................................................................................... 65
Editing a Bookmark ........................................................................... 65
Deleting a Bookmark ......................................................................... 65
Changing Browser Settings .................................................................... 65
Bluetooth® .................................................................................... 66
Making the Most of Multimedia................................................... 67
Taking Pictures with Your Camera ......................................................... 67
Adjusting Camera Settings ................................................................ 67
Shooting Video with Your Camcorder ..................................................... 67
Adjusting Your Video Settings ........................................................... 68

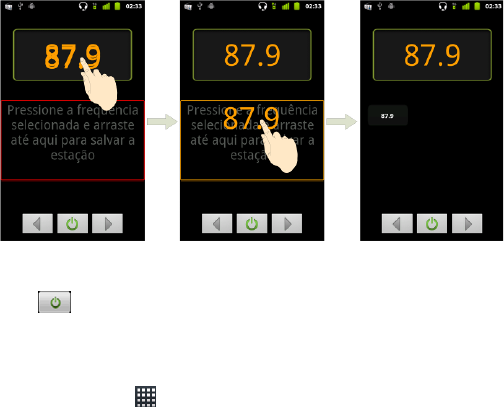

Listening to Your FM Radio .................................................................... 68
Playing Your Music ................................................................................. 69
Creating Playlists ............................................................................... 70
Managing Playlists ............................................................................ 70
Setting a Song as Ringtone ............................................................... 71
Playing Your Videos ............................................................................... 71

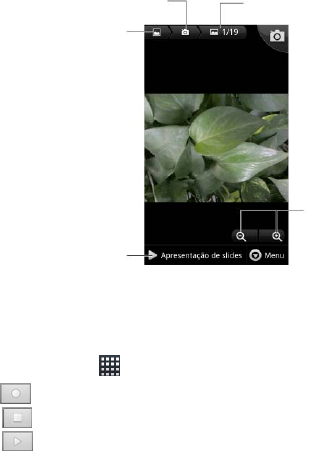

Opening Your Gallery ............................................................................. 71
Making Memorable Memos .................................................................... 72
Using Your Google™ Applications ............................................ 74
Gmail ....................................................................................................... 74
Using Google Calendar .......................................................................... 75
Using Google Talk .................................................................................. 75
Opening Google Talk ........................................................................ 75
8
Adding a New Friend .........................................................................75
Changing Your Online Status ............................................................76
Starting a Chat ...................................................................................76
Places ......................................................................................................76
Latitude ....................................................................................................77
Sorting out Your Phone Settings ................................................ 78
Setting Time and Date .............................................................................78
Changing Display Settings ......................................................................78
Sound Settings ........................................................................................78
Language Settings ..................................................................................79
Mobile Network Services .........................................................................80
Getting Data Services while Abroad ..................................................80
Disabling Data Services .....................................................................80
Enabling Always-on Data Services ....................................................80
Switching Network Modes ..................................................................81
Switching Networks ............................................................................81
Setting Access Point Names ..............................................................81
Security Settings .....................................................................................82
Protecting Your Phone with a Screen Unlock Pattern .......................82
Protecting Your Phone with a PIN or Password ................................83
Disabling Screen Unlock Security ......................................................83
Protecting Your SIM with a PIN .........................................................84
Setting up Credential Storage ............................................................85
Managing Your Device Memory ..............................................................85
Privacy: Reset to Factory Settings ..........................................................85
Managing Applications ............................................................................86
9
Installing an Application .......................................................................... 86
Managing Other Settings ........................................................................ 87
Search Settings ................................................................................. 87
Voice Interaction ................................................................................ 87
Accessibility ....................................................................................... 87
Other Applications ....................................................................... 88
Alarms ..................................................................................................... 88
Docs To Go ............................................................................................. 88
Note Pad ................................................................................................. 88
Calculator ................................................................................................ 88
Task Manager ......................................................................................... 89
Stopwatch ............................................................................................... 89
Specifications .............................................................................. 90
10
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. And never text
while driving.
Don’t use at petrol
stations.
Keep your phone at
least 15mm away from
your ear or body while
making calls.
Your phone may produce
a bright or flashing light.
Small parts may cause
a choking.
Don’t dispose of your
phone in fire.
Your phone can
produce a loud sound.
Avoid contact with
anything magnetic.
Keep away from
pacemakers and other
electronic medical
devices.
Avoid extreme
temperatures.
Switch off when asked
to in hospitals and
medical facilities.
Avoid contact with
liquids. Keep your phone
dry.
Switch off when told to
in aircrafts and airports.
Don’t take your phone
apart.
11
Switch off when near
explosive materials or
liquids.
Only use approved
accessories.
Don’t rely on your phone for emergency communications.
Distraction
Driving
Full attention must be given to driving at all times in order to reduce the risk
of an accident. Using a phone while driving (even with a hands free kit) can
cause distraction and lead to an accident. You must comply with local laws
and regulations restricting the use of wireless devices while driving.
Operating Machinery
Full attention must be given to operating the machinery in order to reduce
the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and any
consequences of its use.
You must always switch off your phone wherever the use of a phone is
prohibited. Use of your phone is subject to safety measures designed to
12
protect users and their environment.
Always treat your phone and its accessories with care and keep it in a
clean and dust-free place.
Do not expose your phone or its accessories to open flames or lit tobacco
products.
Do not expose your phone or its accessories to liquid, moisture or high
humidity.
Do not drop, throw or try to bend your phone or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to clean the
device or its accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its accessories, only
authorized personnel can do so.
Do not expose your phone or its accessories to extreme temperatures,
minimum - [10] and maximum + [50] degrees Celsius.
Please check local regulations for disposal of electronic products.
Do not carry your phone in your back pocket as it could break when you
sit down.
Small Children
Do not leave your phone and its accessories within the reach of small
children or allow them to play with it.
They could hurt themselves or others, or could accidentally damage the
phone.
13
Your phone contains small parts with sharp edges that may cause an injury
or may become detached and create a choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic devices or
magnetic media close to your phone for a long time.
Electrostatic Discharge (ESD)
Do not touch the SIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to your ear, with the
bottom towards your mouth.
GPS antenna
Bluetooth &
Wi-Fi
Antenna
14
Air Bags
Do not place a phone in the area over an air bag or in the air bag deployment
area.
Store the phone safely before driving your vehicle.
Seizures/ Blackouts
The phone can produce a bright or flashing light.
Repetitive Motion Injuries
To minimize the risk of RSI when texting or playing games with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the times of
pressing buttons, such as Message Templates and Predictive Text.
Take lots of breaks to stretch and relax.
Antenna
Antenna
15
Emergency Calls
This phone, like any wireless phone, operates using radio signals, which
cannot guarantee connection in all conditions. Therefore, you must never rely
solely on any wireless phone for emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may damage your
hearing. Turn down the volume before using headphones, Bluetooth stereo
headsets or other audio devices.
Phone Heating
Your phone may become warm during charging and during normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins or key rings,
to contact or short-circuit in the battery terminals.
Connection to a Car
Seek professional advice when connecting a phone interface to the vehicle
electrical system.
16
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessory.
Only qualified personnel can service or repair the phone or its accessory.
If your phone or its accessory has been submerged in water, punctured, or
subjected to a severe fall, do not use it until you have taken it to be checked
at an authorized service centre.
Interference
General Statement on Interface
Care must be taken when using the phone in close proximity to personal
medical devices, such as pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 15 cm
be maintained between a mobile phone and a pacemaker to avoid potential
interference with the pacemaker. To achieve this, use the phone on the
opposite ear to your pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may experience
interfering noises when using wireless devices or when one is nearby.
The level of interference will depend on the type of hearing device and the
distance from the interference source, increasing the separation between
them may reduce the interference. You may also consult your hearing aid
17
manufacturer to discuss alternatives.
Medical Devices
Please consult your doctor and the device manufacturer to determine if
operation of your phone may interfere with the operation of your medical
device.
Hospitals
Switch off your wireless device when requested to do so in hospitals, clinics
or health care facilities. These requests are designed to prevent possible
interference with sensitive medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to do so by
airport or airline staff.
Consult the airline staff about the use of wireless devices on board the
aircraft. If your device offers a ‘flight mode’, this must be enabled prior to
boarding an aircraft.
Interference in Cars
Please note that because of possible interference to electronic equipment,
some vehicle manufacturers forbid the use of mobile phones in their
vehicles unless a hands-free kit with an external antenna is included in the
installation.
18
Explosive Environments
Petrol Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all posted signs to
turn off wireless devices such as your phone or other radio equipment.
Areas with potentially explosive atmospheres include fuelling areas, below
decks on boats, fuel or chemical transfer or storage facilities, areas where the
air contains chemicals or particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a blasting area or
in areas posted power off “two-way radios” or “electronic devices” to avoid
interfering with blasting operations.
Health and safety information
Radio Frequency (RF) Energy
This model phone meets the government’s requirements for exposure to radio
waves.
This phone is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government:
The exposure standard for wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is
1.6W/kg. *Tests for SAR are conducted using standard operating positions
accepted by the FCC with the phone transmitting at its highest certified power level
19
in all tested frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the poser required to reach the network. In
general, the closer you are to a wireless base station antenna, the lower the power
output.
The highest SAR value for the model phone as reported to the FCC when tested for
use at the ear is 1.08 W/kg and when worn on the body, as described in this user
guide, is 0.693 W/kg (Body-worn measurements differ among phone models,
depending upon available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various phones and at
various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this model phone is on file with the FCC and can
be found under the Display Grant section of http://www.fcc.gov/oet/fccid after
searching on
FCC ID: Q78-ZTEUV960
For body worn operation, this phone has been tested and meets the FCC RF
exposure guidelines for use with an accessory that contains no metal and the
positions the handset a minimum of 1.5 cm from the body. Use of other
enhancements may not ensure compliance with FCC RF exposure guidelines. If
you do no t use a body-worn accessory and are not holding the phone at the ear,
position the handset a minimum of 1.5 cm from your body when the phone is
switched on.
FCC Compliance
20
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Caution: Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
21
—Consult the dealer or an experienced radio/ TV technician for help.
22
Getting Started
Overview
Headset Jack
Earpiece
Touch Screen
Menu Key
Back Key
Home Key
Volume Up
Volume Down
23
Keys Explained
Key Function
Power Key Hold to turn on or off Silent or Airplane
mode, or to power off.
Press to switch your phone to Sleep
mode.
Press to wake up your phone.
Charger/
USB Jack
Power Key
Battery
Cove
r
Loudspeaker
Camera with
LED flash
24
Key Function
Home Key Press to return to the Home Screen from
any application or screen.
Hold to see recently used applications.
Menu Key Press to get the options for the current
screen.
Back Key Press to go to the previous screen.
Volume Keys Press or hold to turn the volume up or down.
Starting up
Installing the SIM/microSD Card and Battery
Switch off your phone before installing or replacing the battery, SIM, or memory
card.
1. Remove the back cover.
2. Hold the SIM with the cut corner oriented as shown and slip it into the card
25
holder.
3. Hold your microSD card and slide it in.
microSD logo is a trade mark of the SD Card Association.
4. Insert the battery by aligning the gold contacts on the battery with the
gold contacts in the battery compartment. Gently push down on the
battery until it clicks into place.
26
5. Press the cover gently back into place until you hear a click.
Removing the Battery and SIM/microSD Card
1. Make sure that your mobile phone is off.
2. Remove the back cover.
3. Lift the battery up and out.
4. Slide the SIM out.
5. Slide the microSD card out.
Charging the Battery
When you first get your new phone you’ll need to charge the battery.
1. Connect the adapter to the charger jack. Ensure that the adapter is
inserted with the correct orientation. Do not force the connector into the
charger jack.
27
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.
Switching Your Phone On/Off
Make sure the SIM is in your device and the battery is charged.
Hold Power Key to switch on your phone.
To switch it off, hold Power Key to get the phone options. Select Power
off, and then tap OK.
Setting Up Your Phone for the First Time
When you first power on your phone after you purchase it or reset it to factory
settings (see Sorting out Your Phone Settings – Privacy: Reset to Factory
Settings), you need to do some settings before using it.
1. Tap Change language to change the language you want to use, if
needed.
2. Tap the Android robot on the screen.
28
3. Create a Google Account or Sign in your account.
You can also tap Skip to set up an account later.
4. Configure the Google location options and tap Next.
5. Configure the date and time options, and tap Next.
Switching to Sleep Mode
To save battery power, Sleep Mode suspends your device to a
low-power-consumption state while the display is off. Your device also goes
into Sleep Mode by itself when the display is automatically turned off after a
certain period of time, which you can set in Settings > Display > Screen
timeout.
Press Power Key to switch to Sleep Mode.
Waking up Your Phone
1. Press Power Key to activate your screen display.
2. Drag the icon to the right.
NOTE: If you have set an unlock pattern, PIN or password for your phone
(see Sorting out Your Phone Settings – Security Settings) you’ll need to draw
the pattern or enter the PIN/password to unlock your screen.
Getting Around
Touch Control
You can use finger gestures to control your phone. The controls on your
touch screen change dynamically depending on the tasks you’re performing.
29
1. Tap the buttons, icons, or applications to select items or to open
applications.
2. Keep your finger on an item to see the available options.
3. Flick the screen to scroll up, down, left or right.
4. Point, drag and drop to move particular items across the screen.
5. Pinch with two fingers, or double-tap the screen, to zoom in/out on a web
page or an image.
NOTE: You can view the phone screen in portrait or landscape orientation
simply by holding it upright or turning it on its side.
Home Screen
You choose what is shown on your Home Screen. Set your own wallpaper,
add the widgets or application shortcuts you need, or remove them as you
like.
30
Extended Home Screen
The Home Screen extends beyond the screen width, giving you loads more
space to add more stuff. Simply slide your finger to the left or right, or tap the
dots on the bottom corners of the screen, to see the extended Home Screen.
Choosing Your Wallpaper
1. Tap Home Key to return to the Home Screen.
2. Tap Menu Key and select Wallpaper.
3. Tap Gallery, Live wallpapers, or Wallpapers and choose the image
Status &
Notifications
Widgets
Tap to open
the dialer. Tap to open the
main menu.
Tap to open the
web browser.
Wallpaper
Shortcuts
31
or animation you want to use as the wallpaper. Some cropping may be
needed for Gallery images.
4. Tap Save or Set wallpaper.
Adding Things to Your Home Screen
1. Tap Home Key to return to the Home Screen.
2. Slide left or right to find a part of the Home Screen with free space.
3. Tap Menu Key and select Add.
You can also tap and hold the blank area of the Home Screen to get the
Add to Home screen menu.
4. Select a category, either shortcuts, widgets, or folders.
5. Choose the item you want to add to the Home Screen.
Removing Things from Your Home Screen
1. Tap Home Key to return to the Home Screen.
2. Tap and hold the item you want to delete until the icon appears on
the screen.
3. Drag the item to and release your finger when the item turns red.
32
Status and Notification Icons
Your phone will tell you exactly what’s going on by showing you simple icons.
Here’s what they mean.
GPRS connected No signal
GPRS in use Signal strength
EDGE connected Phone speaker off
EDGE in use Phone microphone off
3G connected No SIM installed
33
3G in use GPS on
HSDPA connected New voice mail /
Recording phone call
HSDPA in use microSD card removed
USB connected Preparing microSD card
Battery flat Connected to a Wi-Fi network
Battery very low Alarm set
Battery low Wired microphone headset
Battery partially
drained Bluetooth on
Battery full Speaker on
Battery charging Problem with SMS/MMS delivery
Syncing New instant message
Vibrate mode Upcoming event
Airplane mode Song is playing
New mail Downloading data
34
New SMS/MMS Content downloaded and
installed successfully
New Gmail message Sending data
Missed call USB tethering is on
Call in progress Portable Wi-Fi hotspot is on
Call on hold New Wi-Fi network detected
Call forwarding Error or warning
More (not displayed)
notifications
Using the Notification Panel
Flick the status bar downwards from across the top of the screen to open
the Notification Panel, where you can see your calendar events, new
messages, and current settings – such as call forwarding or call status.
From here you can also open new messages, reminders, etc.
TIPS: You can also open the Notification Panel by tapping Menu Key >
Notifications from the Home Screen.
35
Applications and Settings Preview
Programs Preview
Your device has lots of functions. Tap to see the following. Note they
may not be identical to your phone.
Applications Benefit
Alarm Set alarms.
Calculator Do basic calculation.
Calendar Schedule appointments and events.
Calls View the calls you made, received, and missed.
Camcorder Shoot video clips.
Camera Take some great pictures.
Dialer Dial a number.
Docs To Go View your documents.
Downloads Access your downloaded files.
Email Send and receive Emails.
Filer Manage files on your microSD card.
FMRadio Search, listen to and save radio channels.
Gallery Manage multimedia files.
Global Time Check the local time around the world.
Gmail Access your Gmail account and check your Gmail
on your mobile phone.
36
Applications Benefit
Google Search Search for information online or on your phone.
Internet Browse the Internet.
Latitude See your friends’ locations and share yours with
them via Google Maps Latitude.
Loja Vivo
Maps Track your current location, view real-time traffic,
and receive detailed directions to your destination.
Market Access useful applications and fun games to
download.
Messages Open the Messages screen, where you can send
and receive SMS and MMS messages.
Music Browse your audio files and listen to them.
Navigation Find your way with Google Maps Navigation.
News &
Weather
Check the weather forecast and the latest news of
your interest.
Note pad Create text notes.
Phonebook Keep contact details of friends and colleagues.
Places Find restaurants, ATMs, and other businesses or
attractions near you.
Settings Adjust phone settings.
Sound Recorder Capture audio clips.
37
Applications Benefit
Stopwatch Measure exactly how long it takes to do
something.
Talk Use Google Talk.
Task Manager Manage all the programs running on your phone.
Videos Browse and watch video files.
Vivo Busca
Vivo Chip
Only appears on the screen if your SIM provides
this function. Please contact Vivo for more
information.
Vivo Co-Piloto
Voice Search Use your voice to search, control, and
communicate.
Windows Live Access your Live Messenger friends, your hotmail,
and your documents on SkyDrive.
YouTube Watch YouTube videos and upload your own.
Check Your Settings
To change or view your phone’s settings, tap Home Key > > Settings.
Or from the Home Screen tap Menu Key > Settings.
38
Wireless & networks
Configure and manage wireless
connections, such as Wi-Fi, Bluetooth®,
mobile networks, mobile data
connection sharing, and Virtual Private
Networks. You can also select
A
irplane
mode from here.
Call settings
Set up fixed dialing numbers, voicemail,
speed dial, call barring, call forwarding,
call waiting, caller ID, cell broadcast,
and Internet call settings.
Sound Set sound settings, such as ringtones
and notifications.
Display Set display settings, such as screen
brightness.
Location & security
Create you screen locks, set the SIM
lock, or manage the phone’s credential
storage. You can also select the
sources to use when determining
locations from My Location.
Applications Manage your apps and install of new
ones.
Accounts & sync Manage your accounts and configure
synchronization settings.
39
Privacy Configure privacy settings, such as
back-up and restoration, and personal
data.
Storage Check available memory on the
external card and the internal phone
storage.
Language &
keyboard Set operating system language and
region, plus text input options.
Voice input & output Set up voice recognition and
text-to-speech options.
Accessibility Choose accessibility options after you
have installed accessibility-related
applications.
Date & time Set the date, time, time zone, and
date/time format.
About phone View phone status, battery use, and
legal information. You can also check
for system updates.
Re-open Recently-used Applications
1. Hold Home Key from any screen. The phone will display icons of
applications you used recently.
40
2. Tap the application you want to open.
41
Phone Calls
How to Make Calls
There are many ways to make a call with your phone. And they’re all easy to
do.
Calling from the Dialer
1. Tap Home Key > > Dialer or on the Home Screen.
2. Enter the phone number with the on-screen keypad.
Tap to delete wrong digits.
3. Tap .
TIPS: To make international calls, hold to enter the “+”.
Calling from Your Phonebook
1. Tap Home Key > > Phonebook.
2. Slide your finger to scroll the contacts list and tap the contact you want to
call.
You can search for a contact by tapping at the bottom of the contact
list.
3. Tap .
Calling from Your Call History
1. Tap Home Key > > Calls.
2. Tap next to the number you want to call.
42
Calling from a Text Message
If a text message contains a phone number that you want to call, you can
make the call while viewing the text message.
1. Tap Home Key > > Messages.
2. Tap the conversation and then the message that contains the phone
number you need.
3. Tap the number.
4. Tap .
Using Speed Dial
Press and hold 1 ~ 9 key from the dialer to call the corresponding speed dial
number.
The number key 1 is reserved to speed dial your voicemail.
Assigning a speed dial key:
1. Tap Menu Key > Settings > Call settings > Speed dial from the Home
Screen.
2. Tap a speed dial key.
3. Enter a phone number or tap to select one from the contact list.
4. Tap OK.
How to Receive Calls
Answering a Call
Drag to the right to answer the call.
43
Rejecting a Call
Drag to the left to reject the call.
Muting a Call
During a call, you can mute your microphone so that the person you are
speaking to cannot hear you, but you can still hear them:
Tap Mute to turn your microphone off. The mute icon will appear on the
status bar. To turn your microphone back on, tap Mute again.
Putting a Call on Hold
During a call, you can put it on hold by tapping Menu Key > Hold. The
icon will appear on the screen.
TIPS: If you accept an incoming call while you’re on another call, the first call
automatically goes on hold. Just tap Menu Key > Swap calls to switch
between the two callers.
Turning the Speakerphone On/Off
Tap Speaker during a call to turn the speakerphone on. This icon will
appear in the status bar. Tap Speaker again to turn off the speakerphone.
44
Ending a Call
Tap to finish a call.
Adjusting Your Call Settings
From the Home Screen, you can open the call settings menu by going from
Menu Key > Settings > Call settings.
Fixed dialing
numbers
Restrict outgoing calls to a fixed set of numbers.
To do this you must know your SIM’s PIN2 code.
Voicemail service Select a voicemail service provider.
Voicemail settings Specify a voicemail number.
Speed dial Set speed dialing keys and numbers.
Call barring
settings Forbid certain types of calls.
Cell broadcast
settings Set cell broadcast channel and language.
Call forwarding
Forward your incoming calls to a different
number. And choose when to forward: Always
forward; Forward when busy; Forward when
unanswered, or Forward when unreachable.
Additional settings Caller ID Choose whether people you call
can see your number.
45
Call waiting See new incoming calls while
you’re on another call.
Accounts Set up Internet calling (SIP) accounts.
Use Internet
calling Choose when to use the Internet calling function.
46
Phonebook
You can add contacts on your phone and synchronize them with the contacts in
your Google account or other accounts that support contact syncing.
To see your contacts, tap Home Key > > Phonebook. From there, you
can tap the tabs on the top to quickly switch to dialer, call log, favorite
contacts, or contact groups.
Importing and Exporting Contacts
You can import or export contacts from/to your SIM card or microSD card.
This is especially useful when you need to transfer contacts between different
devices.
Import Contacts from the SIM Card or Export to the Card
1. Tap Menu Key > Import/Export from the Contacts Screen.
2. Choose to import or export contacts. Your phone will automatically
display the contacts.
3. Tap the contacts you want to import or export. Or, just tap Menu Key >
Select all.
4. Tap OK.
Import Contacts from the microSD Card or Export to the
Card
1. Tap Menu Key > Import/Export from the Contacts Screen.
2. Choose to import or export contacts.
47
For export, the phone will prompt you with the name of the vCard file.
Tap OK to create the file in the microSD card.
For import, you should have vCard files saved in the microSD card. If
there’s more than one vCard file, you need to select the vCard file and
tap OK.
Sharing Contacts Information
1. Tap Menu Key > Import/Export > Share visible contacts from the
Contacts Screen. Your phone will export all information of the contacts in
the Contact Screen to a temporary vCard file.
2. Choose how you want to send the vCard file. You can either send it via
Bluetooth to another device, or as an attachment in a mail.
Creating a Contact
1. Tap or Menu Key > New contact from the Contacts Screen.
2. Tap Contact type to choose where to save the contact.
3. Enter the contact name, phone numbers, and other information.
4. Tap Done to save the contact.
Adding a Contact to Favorites
1. In the Contact Screen, tap and hold the contact you want to add to Favorites.
2. Tap Add to favorites from the pop-up menu.
TIPS: You can also tap a contact and then tap next to the contact’s name
to add it to Favorites.
48
Searching for a Contact
1. Tap at the bottom of the Contacts Screen.
2. Input the contact name you want to search for.
The contacts matched will be listed.
Creating a New Group
1. Tap the Groups tab from the Contacts Screen.
2. Tap the icon at the bottom of the screen.
3. Enter the group name and tap Done.
4. Tap the new group and tap to add group members.
5. Tick the check boxes next to the contacts you want. Then tap OK.
To send messages to the group members, you can tap next to the group
and select message recipients from the listed group members.
49
Entering Text
When you enter a field that needs text or numbers, a keyboard automatically
appears on the screen. Hold the input box and select Input method from the
pop-up menu to change input method.
Android Keyboard
The Android Keyboard provides a layout similar to a desktop computer
keyboard. Turn the phone sideways and the keyboard will change from
portrait to landscape.
To use the landscape keyboard, just tick the Auto-rotate screen check box
in Settings > Display. (The landscape QWERTY keyboard is not
supported in all applications.)
Tap the alphabetic keys to enter letters. Tap and hold the keys to enter
associated accented letters or numbers. For example, to enter È, tap and
hold and the available accented letters and number 3 appear. Then
slide to choose È.
50
Tap to use uppercase or lowercase. This key also changes to
indicate the current case you are using: for lowercase, for
uppercase, and when locked in uppercase.
Tap to delete any text you have entered.
Tap to select numbers and symbols. You can then tap to find
more. Also, often used symbols are displayed on top of the keyboard.
Flick left or right to find the one you need and tap to enter.
Tap to enter a smiley face; hold the key and swipe to choose more
emoticons.
Tap to change input method or set up Android keyboard.
Tap to use Google’s networked voice input.
TouchPal Keyboard
Flick left or right to select one of the three TouchPal keyboard layouts.
Full QWERTY
CooTek T+: Tap to enter the left letter on the key; tap and flick right to enter
the right letter/symbol on the key. If word prediction is enabled ( ), just tap
and choose the right word.
51
12–Key PhonePad: Tap a key repeatedly until the desired letter appears. If
word prediction is enabled ( ), just tap the keys once and choose the right
word.
Tap to delete text before the cursor.
Tap to switch between uppercase and lowercase. Tap twice to lock
uppercase.
Tap to use word prediction.
Tap to change language. Hold it to open the TouchPal input settings,
the same as pressing Home Key > Menu Key > Settings > Language &
keyboard > TouchPal.
Tap to enter digits, symbols, emoticons and other pre-defined texts.
Tap to start a new line.
52
Tap to enter a period; hold to open text editing options. You can select,
cut, copy, paste, and delete text, or move the cursor.
Choosing Touch Input Settings
Choose the touch input settings by tapping Menu Key > Settings >
Language & keyboard from Home Screen.
In the Keyboard settings section, you can choose the settings for Android
keyboard and TouchPal.
53
Messaging
Your SMS (text message) and MMS (multimedia messaging service) are
combined into one menu in Home Key > > Messages.
The Message Box
Instead of an inbox and outbox, your phone organizes all messages you sent
and received into one box, where messages exchanged with the same
number are grouped into one message thread in the Messages Screen. You
can tap a thread to see the conversation you have had with someone.
Message threads are sorted in chronological order with the latest one on top.
Sending an Message
1. Tap Home Key > > Messages.
2. Tap New message.
3. Enter the recipient’s number or name. As you type, matching contacts will
appear. Tap a suggested contact to add as a recipient.
4. Tap Type to compose and type your message.
Tap Menu Key to insert Quick Text, signature, smiley, or contact.
If you are sending an MMS, tap Menu Key to add a subject, or attach
pictures, videos, audio, or slideshows.
5. Tap Send to send your text.
NOTE: Add an attachment to text message and it will be converted into an
MMS automatically. Likewise if you remove all attachments and the subject
54
from an MMS, it’ll automatically become a text message.
Changing Message Settings
The phone’s message settings are pre-configured for you to use immediately.
To change them, tap Menu Key > Settings from the Messages Screen.
Storage settings:
Delete old messages: Select to delete old messages when your storage
limits are reached.
Text message limit: Set the maximum number of text messages allowed
in a single thread.
Multimedia message limit: Set the maximum number of multimedia
messages allowed in a single thread.
Text message (SMS) settings:
Delivery reports: request a delivery report for every text message you
send.
Manage SIM card messages: Manage the messages saved in your SIM
card.
SMS validity: set the validity time limit for outgoing text messages.
SMS priority: set the priority of outgoing messages.
Service Center: Enables you to view and edit the service center number.
Multimedia message (MMS) settings:
Delivery reports: request a delivery report for every MMS message you
send.
Read reports: request a read report for each MMS message you send.
55
Auto-retrieve: automatically retrieve MMS messages.
Roaming auto-retrieve: automatically retrieve MMS messages when
you’re roaming.
MMS validity: set the validity time limit for outgoing multimedia
messages.
MMS creation mode: select MMS creation restrictions. An MMS created
under restricted mode is more likely to be displayed properly on other
devices than those created under free mode.
Notification settings:
Notifications: Show message notifications in the status bar.
Select ringtone: Choose a ringtone for your incoming messages.
Vibrate: Make your phone vibrate when a new message arrives.
Signature settings:
Edit signature: Edit your signature, which can be added automatically to
outgoing messages.
Add signature: Add the signature to all outgoing messages.
NOTE: Tap Menu Key > Restore default settings to change all the
message settings back to the original.
56
Email
Tap Home Key > > Email. You can setup Email account and exchange
Emails.
NOTE: The Email service you use must support POP, IMAP, or Microsoft
Exchange protocols.
Creating an Email account
1. When you open Email for the first time, enter your Email address and
password. Then tap Next.
NOTE: Some Email service providers only offer POP access to paid
accounts and as a result you may not be able to sign in. Tap OK if you
see such a warning.
2. Select the type of your account and tap Next.
3. Edit the settings for incoming server and outgoing server. Then tap Next
or Next [Check].
Press Next [Check], and your phone will connect to the Internet and verify
the settings before proceeding to the next step. Please contact your mobile
service provider and Email service provider for more help.
NOTE: Your phone knows the client settings for lots of Email service
providers. If the Email you use is from those providers, the phone will
automatically configure the incoming and outgoing settings after you enter
your Email address and password.
4. Set the Email checking frequency, download options, account name and
other settings. Tap Done when you finish.
57
Your phone will show the inbox of the Email account and start to download
Email messages.
TIPS: To add more Email accounts, open Email to get the Inbox screen.
Then tap Menu Key > More > Accounts > Menu Key > Add account.
Receiving Emails
Press Menu Key > Refresh to download recent Emails. You can select Load
more messages at the bottom of the Email list to download earlier
messages.
Composing and sending an Email
After creating an Email account, you can compose and send Email messages.
1. Tap Menu Key > Compose from the Inbox Screen.
2. Tap To field if needed, and enter the recipient’s address.
When you enter the address, matching contacts on the phone will be
displayed. Separate each recipient with a comma.
TIPS: You can also tap Menu Key > Add Cc/Bcc to add more recipients.
3. Enter the subject and the content of your Email. If necessary, change the
email priority.
Tap Menu Key > Add attachment to add files to the Email.
4. Tap Send.
Replying to or Forwarding an Email
1. Open the Email you want to reply to or forward from Inbox Screen.
58
2. Tap Reply or Menu Key > Forward to reply to/forward the Email.
You can also tap Reply all to reply to all recipients of the Email.
3. Enter the contents/recipients of your Email.
4. Tap Send.
Deleting an Account
1. Open the Email application. If there is only one account, tap Menu Key >
More > Accounts to get the Accounts list.
2. Tap and hold the account you want to delete and select Remove account
from the pop-up menu.
3. Tap OK to confirm. All Email messages in the account will be deleted.
Email Settings
Tap the account you want to set from the Accounts Screen and tap Menu
Key > More > Account settings. You can get the settings for the Email
account. You can also tap Menu Key > More > System settings to set up
storage, exchange and other settings.
59
Getting Connected to the Internet
Your phone’s impressive networking capabilities allow you to access the
Internet or your corporate network with ease.
You can use default connection settings to connect to the web via your
mobile network (GPRS/EDGE/3G), or Wi-Fi.
The GPRS/EDGE/3G connection can be enabled/disabled manually. Just
select > Settings > Wireless & networks > Mobile networks from
the Home Screen and tick or clear the Data enabled check box.
Adding a New GPRS/EDGE/3G Connection
To get connected via GPRS/EDGE/3G you need a data plan with your
service provider. Also if the GPRS/EDGE/3G settings are not pre-configured
on your phone, please contact your provider to get the necessary information.
1. Tap Home Key > > Settings > Wireless & networks > Mobile
networks > Access Point Names.
2. Tap Menu Key > New APN.
3. Tap each item to enter the information you get from your provider.
4. Tap Menu Key > Save to complete.
TIPS: To set the APN to default settings, tap Menu Key > Reset to default.
Turning on Wi-Fi
Wi-Fi provides wireless Internet access over distances of up to 300 feet (100
meters).
60
1. Tap Home Key > > Settings > Wireless & networks.
2. Tick the Wi-Fi box to turn it on.
Connecting to a Wi-Fi Network
1. Tap Home Key > > Settings > Wireless & networks > Wi-Fi
settings.
The Wi-Fi access points, or “hotspots”, that your phone has detected
are displayed with their names and security settings.
2. Tap an access point to connect to it.
If security features are implemented, you’ll need to enter a password.
Checking the Wi-Fi Network Status
You can check the Wi-Fi network by looking at the icon in the status bar.
Or tap the access point that the phone is currently connected to in Wi-Fi
settings. You can then check the network status from the pop-up window.
Using the Phone as a Modem
You can access the Internet on your PC via your phone as a modem. Note
the function may result in data charges from your mobile phone carrier.
Please contact them for detail.
Enabling the Phone as a Modem
TIPS:
Make sure that USB storage is turned off before enabling the modem
61
function. If the USB storage is already turned on, flick down the status bar
and tap Turn off USB storage > Turn off USB storage.
The PC accesses the Internet via the phone’s mobile network. Therefore,
set up the GPRS/EDGE/3G connection correctly before you try to use the
phone as a modem.
1. When you connect your phone to your PC with the provided USB cable for
the first time, a window will pop up and prompt you to install the driver.
2. Double click the executable file (.exe) in the window and follow the prompt
to finish the driver installation.
NOTES: If the window doesn’t pop up automatically for some reason,
please open the new CD-ROM drive on your PC manually and find the
executable file to run it.
3. Tap on the phone Home Key > Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and tick the USB tethering
check box. A new network connection will be created on your PC.
4. Go to Control Panel > Network on your PC to enable the new network
connection.
Now you can launch the Internet browser on your PC and start surfing.
Disabling the Modem Function
Tap Home Key > Menu Key > Settings > Wireless & networks >
Tethering & portable hotspot and clear the USB tethering check box.
You can also just pull out the USB cable.
62
Using the Phone as a Wi-Fi Hotspot
You can use the phone as a portable WLAN router, providing Wi-Fi
connection for one or multiple PC or other devices. The function need data
connection on a mobile network and may result in data charges.
TIPS:
The PC accesses the Internet via the phone’s mobile network. Therefore,
set up the GPRS/EDGE/3G connection correctly before you try to use the
phone as a Wi-Fi hotspot.
When the portable Wi-Fi hotspot function is enabled, you cannot access
the internet with any application on your phone via its Wi-Fi connection.
Enabling the Wi-Fi Hotspot
1. Tap Home Key > Menu Key > Settings > Wireless & networks >
Tethering & portable hotspot and tick the Portable Wi-Fi hotspot
check box.
2. Tap Portable Wi-Fi hotspot settings > Configure Wi-Fi hotspot.
3. Change the name of the hotspot and its security setting, if necessary.
The default hotspot is set as an open one. You can tap Open and choose
WPA2 PSK to set up a password. The password must have at least 8
characters.
4. Tap Save. Now you can find the hotspot on other devices and connect to
it.
Disabling the Wi-Fi Hotspot
Tap Home Key > Menu Key > Settings > Wireless & networks >
63
Tethering & portable hotspot and clear the Portable Wi-Fi hotspot check
box.
64
Browsing the Internet
You can use your phone to get on the Internet via a GPRS, EDGE, 3G, or
Wi-Fi connection.
Tap Home Key > > Internet.
There are different ways to open web pages:
Tap the address bar to enter the website you want to browse. Then tap Go.
Tap beside the address bar or tap Menu Key > Bookmarks. Select a
bookmark to open.
Tap beside the address bar or tap Menu Key > Bookmarks. Choose
an item from the Most visited tab or History tab.
Browsing Options
Press Menu Key to access the following options when browsing web pages.
Open a New window for web browsing.
Exit the Browser application.
Access Bookmarks, most visited web sites, and browsing history.
Switch browsing Windows.
Refresh the current web page, or Stop loading the page.
Tap More to forward to the next web page, add bookmarks, search for
and select text, share page URL, check page info or download history, or
configure browser settings.
Tap a URL link in a web page to open, bookmark, save, share the link, or to
copy the link URL.
65
Using Bookmarks
To bookmark a web page, open it and tap or Menu Key > Bookmarks.
Then tap Add or Add bookmark. Give the bookmark a name and tap OK.
TIPS: You can press Menu Key > List view/Thumbnail view to change how
you view bookmarks on your phone screen.
Editing a Bookmark
1. Open a Browser window.
2. Tap or Menu Key > Bookmarks.
3. Select an item you want to edit and hold on it until the shortcut menu pops
up.
4. Select Edit bookmark.
5. Edit the name or location, and then tap OK to save it.
Deleting a Bookmark
1. Open a Browser window.
2. Tap or Menu Key > Bookmarks.
3. Select an item you want to delete and hold on it until the shortcut menu
pops up.
4. Select Delete bookmark and tap OK to confirm.
Changing Browser Settings
Tap Menu Key > More > Settings from a browser window to change
browser settings.
66
Bluetooth®
Bluetooth® is a short-range wireless communication technology. Phones or
other devices with Bluetooth capabilities can exchange information wirelessly
within a distance of about 10 meters. The Bluetooth devices must be paired
before the communication is performed.
1. Tap Home Key > > Settings > Wireless & networks and tap the
check box by Bluetooth to turn on Bluetooth.
When Bluetooth is on, the icon will appear in the status bar.
2. Tap Bluetooth settings > Scan for devices. Your phone will show all
visible Bluetooth devices in range.
3. Tap the device you want to pair with and, if required, enter your PIN and
tap OK.
If a PIN is required, the same PIN should be entered on the other device.
Refer to the document for the other Bluetooth device for information on
pairing mode and PIN.
Tick the Discoverable check box if the other device tries to pair with your
phone.
Tap Device name to change the name displayed on other Bluetooth devices
when they try to find your phone via Bluetooth.
67
Making the Most of Multimedia
Taking Pictures with Your Camera
Your phone has a multi-megapixel camera. Open it by tapping Home Key >
> Camera.
Tap to take a shot. To view it, just tap the picture in the right corner of the
screen. Or select Menu Key > Gallery to view all your pictures.
Adjusting Camera Settings
From the Camera Screen tap to set up focus mode, exposure, picture
size/quality, color effect, ISO, anti-banding, saturation, contrast, sharpness, and
restore default camera settings.
Tap or to choose whether to save photo’s geographic location.
Tap to change white balance.
Tap or to turn on or off flash.
Tap 1x to zoom in or out.
TIP: To change quickly from camera to camcorder or vice versa, use the
switch icon. Use the bar to adjust the brightness.
Shooting Video with Your Camcorder
Open the camcorder by tapping Home Key > > Camcorder. Then select
to start shooting, and to stop. Select the picture in the right corner of
the screen to view the video you’ve just shot. Or tap Menu Key > Gallery to
see all your video clips.
68
Adjusting Your Video Settings
From the Camcorder Screen, tap to adjust color effect, video quality,
video/audio encoder, video duration, and restore default camera settings.
Tap to change white balance setting.
Tap High/Low/MMS/YouTube/ to select preset video shooting mode, or
customize your own.
NOTES: Under the preset High, Low, MMS, or YouTube mode, the settings for
video quality, video encoder, audio encoder, and video duration cannot be
changed.
Listening to Your FM Radio
With the FM Radio, you can search for radio channels, listen to them, and
save them on your phone. Note that the quality of the radio broadcast
depends on the coverage of the radio station in your area. The wired headset
that comes with your phone works as an antenna, so always connect the
headset when using the radio. When you receive an incoming call while
listening to the radio, the radio will be turned off.
To tune in, plug your headset into your phone. Tap Home Key > >
FMRadio. This icon will pop up in the status bar.
Tap or to scan for available FM channels. If you need to fine tune
the radio’s reception, tap Menu Key > Adjust. Tap / change the
frequency by +/–0.1 MHz.
Once you get the best reception of a channel, hold the frequency shown until
a red box appears on the screen, and then drag it into the box to save, as
shown in the next diagram.
69
Press Volume Keys to adjust the volume.
Tap Menu Key > Sleep to set the FM radio sleep timer.
Tap to switch off the radio.
Playing Your Music
You can play digital audio files from your phone’s memory card in Music.
1. Tap Home Key > > Music to open the Music Screen.
2. Select Artists/Albums/Songs/Playlists to find the songs you want to
play.
3. Tap an item from the list to start playing.
4. Adjust the volume with Volume Keys.
70
Creating Playlists
Playlists help you organize your music files:
1. Select a music file you want to add to a new playlist.
2. Tap and hold on the file until a shortcut menu pops up.
3. Tap Add to playlist.
4. Tap New.
5. Type the playlist name and tap Save.
Managing Playlists
1. From the Music Screen tap Playlists to see them all.
2. Hold on the playlist you want to play or edit until a shortcut menu pops up.
Tap to view the Now
playing list
Shuffle
Repeat (repeat
current track, repeat
all)
Tap to skip; hold to
fast forward
Play/Pause
Drag or tap to jump
within the track
Tap for back;
hold to rewind
Track information; tap
and hold to search
71
3. Tap Play, Delete or Rename.
Adding a Song to a Playlist
1. Open Music and find the song you need under Artists, Albums, Songs,
or Playlists.
2. Hold on the song until a shortcut menu pops up.
3. Select Add to playlist.
4. Select a playlist.
Setting a Song as Ringtone
1. Find the music file under Artists, Albums, Songs, or Playlists.
2. Hold on the song until a shortcut menu pops up.
3. Select Use as phone ringtone.
Playing Your Videos
To play a video file, tap Home Key > > Videos. This will open the Videos
Screen and show the video files saved in your memory card. Tap a video file
to start playing.
Opening Your Gallery
Gallery helps you view pictures and play videos. You can also do some
basic editing of your pictures – such as setting them as wallpaper or contact
icons, and sharing with friends.
72
Making Memorable Memos
Sound Recorder enables you to record your voice memos. You need a
microSD card to use it.
1. Tap Home Key > > Sound Recorder.
2. Tap to start recording.
3. Tap to stop recording.
4. Tap to play back the voice recording.
5. Tap OK to save the voice recording, or tap Discard to delete the
recording.
Tap to return to the
previous folder.
Show the number of
pictures in the folder.
Tap to return
to Gallery.
Tap to zoom
in or out.
Tap to view
pictures in the
folder in a
slideshow.
73
TIPS: You can find your recordings in Home Key > > Music >
Playlists > My recordings.
74
Using Your Google™ Applications
Signing in to your Google Account lets you synchronize Gmail, Calendar,
and Contacts between your phone and the web. And if you don’t have an
account, you can easily create one.
1. Tap a Google application that need a Google account, such as Market.
2. Read the instructions and select Next.
3. If you’ve got a Google account, tap Sign in. Enter your user name and
password. Then tap Sign in. (Or tap Create if you don’t have a Google
account.)
4. Set the backup and restore option, and tap Next > Finish setup.
Gmail
Gmail is a web-based email service that’s configured when you sign in to
your Google account. Depending on your synchronization settings, the
Gmail on your phone can be automatically synchronized with your Gmail
account on the web.
This is how you create and send a Gmail:
1. Open Gmail by tapping Home Key > > Gmail.
2. Press Menu Key > Compose.
3. Enter the email address of the person you’re contacting in the ‘To’ field. If
you’re sending the email to several people, separate the email addresses with
commas. You can add as many recipients as you want.
4. Enter the email subject, and then write your email.
75
5. Tap Menu Key > Send.
Using Google Calendar
Tap Home Key > > Calendar to use Google Calendar, Google’s time
management application. You can use the calendar to schedule
appointments, including meetings and other events. Your appointments will
be displayed on the screen as are scheduled. You can also synchronize
appointments to your Google account, which enables you to manage your
schedule online on your PC.
Using Google Talk
Google Talk is Google’s instant messaging program, which enables you to
communicate with other people who also use it.
Opening Google Talk
Tap Home Key > > Talk.
Adding a New Friend
You can only add people who have a Google Account.
1. In the Friends list, press Menu Key > Add friend.
2. Enter the Google account of the friend you want to add.
Your friend will receive an invitation from Google. Press Menu Key > More >
Invites to see pending invitation.
76
Changing Your Online Status
1. Tap the Talk status bar above the Friends list.
2. Tap to change status and then enter your status message in the
text box.
Starting a Chat
1. Tap a friend in the Friends list.
2. Chat with your friend by entering text in the message box.
3. Tap Send.
Places
Google Places helps you find all kinds of businesses near you.
1. Tap Home Key > > Settings > Location & security and tick the Use
GPS satellites or Use wireless networks check box.
2. Tap Home Key > > Places. Wait while you are being located. Your
location, when found, is shown at the bottom of the screen.
3. Select a business category and the information of that type of business
near you will be displayed.
You can also use the Find places search box on the top to find the
business you need.
NOTES: Tap Add to add new business categories.
4. Tap a result you are interested in and check out the details and reviews
about that place. You can also see the place on Google Maps, find out
how to get there, or give that business a call.
77
Latitude
Google’s Latitude service is a social tool for sharing your location information
with selected friends.
Tap Home Key > > Latitude to enable Latitude service.
Each time you launch Maps application, your location will be determined
using GPS or the phone network, and your Latitude status will be updated.
You can tap Menu Key > Latitude in Maps or Home Key > > Latitude
to see your status as well as that of your selected friends.
In Latitude, tap Menu Key to refresh friends status, see them on Maps, add
new friends, or change Latitude settings.
You can also turn off Latitude service by tapping Sign out of Latitude in
Latitude settings.
78
Sorting out Your Phone Settings
Setting Time and Date
1. Tap Home Key > Menu Key > Settings > Date & time.
2. Clear the Automatic check box if you want to set the time and date by
yourself.
3. Set date, time, time zone, and date/time format.
Changing Display Settings
By tapping Home Key > Menu Key > Settings > Display, you can adjust the
display settings as you like:
Brightness: Adjust brightness of the screen.
Auto-rotate screen: Rotate the screen display as you rotate the phone.
Animation: Choose window animation.
Screen timeout: Set the delay for the screen to automatically turn off.
Sound Settings
By tapping Home Key > Menu Key > Settings > Sound, you can adjust
the sound settings, such as ringtones and alerts.
Silent mode: tick the check box to mute all sounds except media and
alarms.
Silence Ringer When Face Down: once you enable this function, you
can mute the incoming call ringtone by flipping the phone over.
79
Vibrate: select the condition for vibration.
Volume: tap to adjust volume levels for ringtone, media, alarm, and
notification.
Phone ringtone: select the default ringtone for incoming calls.
Notification ringtone: select the default ringtone for notifications.
Audible touch tones: tick the check box and the phone will play tones
when you tap the dial pad.
Audible selection: tick the check box and the phone will play a sound
when you touch the screen to make a selection.
Screen lock sounds: tick the check box and the phone will play a sound
when you lock or unlock the screen.
Haptic feedback: tick the check box and the phone will vibrate when you
press soft keys or on certain user interface interactions.
To quickly switch to silent mode, press Volume Key - or, if the screen is
locked, drag to the left.
Language Settings
You can change the language of your phone system in two simple steps.
1. Tap Home Key > > Settings > Language & keyboard > Select
language.
80
2. Select a language from the list given.
Mobile Network Services
Tap Home Key > > Settings > Wireless & networks > Mobile
networks to enable or disable data service, allow data services when
roaming, or set access point names for data access.
Getting Data Services while Abroad
1. Tap Home Key > Menu Key > Settings > Wireless & networks >
Mobile networks.
2. Tick the Data roaming box.
IMPORTANT: Data roaming may incur significant roaming charges.
Disabling Data Services
1. Tap Home Key > Menu Key > Settings > Wireless & networks >
Mobile networks.
2. Clear the Data enabled check box.
Enabling Always-on Data Services
1. Tap Home Key > Menu Key > Settings > Wireless & networks >
Mobile networks.
2. Tick the Enable always-on mobile data box to allow applications to
update data automatically.
IMPORTANT: When you enable this option, more data traffic will be
generated for automatic updates of applications data. And your phone
81
will consume more power.
Switching Network Modes
1. Tap Home Key > Menu Key > Settings > Wireless & networks >
Mobile networks > Network Mode.
2. Select one of the following: GSM/WCDMA auto, WCDMA only, or GSM
only.
Switching Networks
1. Tap Home Key > Menu Key > Settings > Wireless & networks >
Mobile Networks > Network operators. The phone automatically
searches for all available networks.
2. Tap a network to register manually, or tap Select automatically.
Setting Access Point Names
To connect to the Internet you can use the default Access Point Names
(APN). And if you want to add a new APN, please contact Vivo to find out
more.
1. Tap Home Key > Menu Key > Settings > Wireless & networks >
Mobile networks > Access Point Names.
2. Tap Menu Key > New APN.
3. Set the necessary parameters. (See how to add a GPRS/EDGE/3G
connection in Getting Connected to the Internet in this guide.)
4. Tap Menu Key > Save.
82
Security Settings
Here’s how to protect your phone and SIM from unauthorized use.
Protecting Your Phone with a Screen Unlock Pattern
Creating Your Screen Unlock Pattern
1. Tap Home Key > > Settings > Location & security > Set up
screen lock > Pattern.
2. Read the instructions and tap Next.
3. Watch the example pattern and tap Next.
4. With a finger, draw your own pattern and tap Continue.
5. Draw the pattern again and tap Confirm.
6. Press Power Key to lock the screen.
TIPS: Clear the Use visible pattern box if you want to hide the pattern as
you draw it on the screen.
Unlocking the Screen with Your Pattern
1. Press Power Key to wake up the screen.
2. Draw the pattern you set to unlock the screen.
If you make a mistake, your phone will ask you to try again.
Cannot recall your screen unlock pattern?
You have up to five attempts to unlock your phone. If you still cannot recall
the screen unlock pattern, you can tap Forgot pattern? and enter your
Google account user name and password to reset the screen unlock pattern.
IMPORTANT: You must sign in or create a Google account on your
83
phone before using the above method to reset the pattern.
Protecting Your Phone with a PIN or Password
Creating a PIN or Password
1. Tap Home Key > > Settings > Location & security > Set up
screen lock.
2. Tap PIN or Password.
3. Enter the numeric PIN or any password you like, and tap Continue.
4. Enter it again and tap OK to confirm.
Unlocking the Screen with Your PIN or Password
1. Press Power Key to wake up the phone.
2. Drag the icon to the right.
3. Enter the PIN or password you set.
4. Tap OK.
Disabling Screen Unlock Security
If you have created an unlock pattern, PIN or password, you can disable it.
1. Tap Home Key > > Settings > Location & security > Change
screen lock.
2. Draw the screen unlock pattern or enter your PIN/ password you have
created.
3. Tap None.
84
Protecting Your SIM with a PIN
Every SIM card comes with a PIN. The initial PIN is provided by your mobile
phone carrier. It’s best to lock your SIM as soon as you can.
1. Tap Home Key > > Settings > Location & security > Set up SIM
card lock.
2. Tick the Lock SIM card check box.
3. Enter the PIN you’ve been given and tap OK.
Changing Your SIM PIN
You can change the PIN you’ve been given to one easier for you to
remember and harder for others to guess.
1. Tap Home Key > > Settings > Location & security > Set up SIM
card lock.
2. Make sure you already tick the Lock SIM card check box.
3. Tap Change SIM PIN.
4. Enter the old PIN and tap OK.
5. Enter your new PIN and tap OK.
6. Enter the new PIN again and tap OK.
Restoring a Locked SIM Card
Put all your confidential passwords in a safe place for future use. If you enter
the wrong SIM PIN more times than allowed, your SIM card will be locked
and you cannot access the mobile phone network. Contact your operator for
a PIN Unlock Key (PUK) to restore the SIM card.
85
Setting up Credential Storage
This lets you select applications to access secure certificates and other
credentials.
Enabling Secure Credentials
1. Tap Home Key > > Settings > Location & security.
2. Tap Set password and create a password for the credential storage.
3. Tick the Use secure credentials box.
TIPS: You can also install encrypted certificates from your microSD card by
tapping Install from SD card.
Deleting Secure Credentials
1. Tap Home Key > > Settings > Location & security.
2. Tap Clear storage to clear credentials.
Managing Your Device Memory
Tap Home Key > > Settings > Storage.
You can view the space information of the microSD card as well as the phone
storage.
Unmount SD card: You can unmount the card to safely remove it without
switching the phone off.
Erase SD card: Erase all data on the memory card.
Privacy: Reset to Factory Settings
Tap Home Key > > Settings > Privacy > Factory data reset > Reset
86
phone > Erase everything.
WARNING: All your personal information and downloaded applications
on your phone will be erased after the resetting.
Managing Applications
Tap Home Key > > Settings > Applications.
Manage applications: Manage or remove installed applications.
Running services: Check currently running services and stop them if
needed.
Storage use: View storage used by applications.
Battery use: See what has been using the battery.
Development: Set options for application development.
Tick the Unknown sources check box if you want to installed applications
from sources other than the Android Market. Note that you may risk your
phone and personal data by installing such applications.
Installing an Application
You can install an application from the Android Market (Home Key > >
Market) by selecting the item you want to download and tapping Install.
You can also install a non-Marketing application if you have allowed the
installation of it. Make sure that you select an application developed for your
device and processor type before installing it.
1. Copy the application file to the microSD memory card and install the card
on your phone.
87
2. Tap Home Key > > Filer, and open the folder where the application
file is.
3. Tap the file to start installation.
4. Read the installation instructions that come with the application and follow
it to complete the setup.
Managing Other Settings
Search Settings
You can manage search settings and search history by opening the
Google Search application and tapping Menu Key > Search settings.
Google search: Adjust Google search settings.
Searchable items: Adjust searching
You can also clear shortcuts to recently chosen search suggestions.
Voice Interaction
You can set the text-to-speech and voice recognition options by tapping Home
Key > > Settings > Voice input & output.
NOTE: You need to download voice data in order to use the text-to-speech
function. Just tap Install voice data in Text-to-speech settings.
Accessibility
Configure accessibility options for accessibility-related applications.
88
Other Applications
Alarms
1. Tap Home Key > > Alarm.
2. Tap the default alarm to configure it. Or, to create a new alarm, tap Menu
Key > Add alarm.
3. Tick the Turn on alarm box and set up Name, Time, Repeat, Snooze,
Duration, Vibrate, Ringtone, Volume, Volume crescendo, and Delay.
Docs To Go
A handy application suite that’ll open Word, Excel, Powerpoint, or PDF files.
Read the on-screen instructions for detailed information.
Note Pad
Note pad is for your memos. Tap Menu Key to add or delete them, or to
export the text to a txt file in the microSD memory card. Hold an existing
note to edit, delete, share or export, or to change its title.
Calculator
Tap Home Key > > Calculator.
TIPS: Tap Menu Key > Advanced panel to use scientific calculation.
89
Task Manager
Tap Home Key > and select Task Manager to view or stop applications.
Tap a task in the Task tab to switch to its screen, abort it, or see its detail.
Tap Resource to view real-time allocation of system resources.
Stopwatch
1. Tap Home Key > > Stopwatch.
2. Tap Start to start timing, Pause to pause time, and Resume to continue.
3. Reset will take the stopwatch back to 00:00.0.
90
Specifications
Dimensions Approx. 126 mm ×68 mm ×
11.3mm
Weight Approx. 140g (with battery)
Bearer GSM/WCDMA support
Main display dimension,
resolution 4.3 inches 800*480
Back
Camera
Sensor type CMOS
Still image
capture
resolution 5M Pixels with auto focus
Removable memory card Support microSD card, max.
capacity 32GB
Battery
Capacity 1400mAh
Standby time Approx. 200 hours (subject to
network status)
Voice talk time Approx. 240 min (subject to
network status)
91
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
92
The antenna(s) used for this transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
93
4RF Exposure Information (SAR)
This mobile phone meets the government’s requirements for exposure to
radio waves.
This phone is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6W/kg. Tests for SAR are conducted using
standard operating positions accepted by the FCC with the phone
transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the
actual SAR level of the phone while operating can be well below the
maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the poser required to reach the
network. In general, the closer you are to a wireless base station antenna,
the lower the power output.
The highest SAR value for the model phone as reported to the FCC when
tested for use at the ear is 0.482 W/kg and when worn on the body, as
described in this user guide, is 1.03 W/kg (Body-worn measurements differ
among phone models, depending upon available accessories and FCC
requirements.)
94
While there may be differences between the SAR levels of various phones
and at various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with
all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: Q78-ZTEUV960.
For body worn operation, this phone has been tested and meets the FCC RF
exposure guidelines for use with an accessory that contains no metal and the
positions the handset a minimum of 1.0 cm from the body. Use of other
accessories may not ensure compliance with FCC RF exposure guidelines.
If you do not use a body-worn accessory and are not holding the phone at the
ear, position the handset a minimum of 1.0 cm from your body when the
phone is switched on.
