Users Manual
1
ZTE V72
User Manual
2
LEGAL INFORMATION
Copyright © 2013 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced,
translated or used in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without the
prior written permission of ZTE Corporation.
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this guide without prior notice.
The Bluetooth® trademark and logos are owned by the Bluetooth
SIG, Inc. and any use of such trademarks by ZTE Corporation is
under license. Other trademarks and trade names are the
property of their respective owners.
Version No.: R1.0
Edition Time: 2013.01
Manual No.:
We offer self-service for our smart terminal device users. Please
visit ZTE official website www.zte.com.cn for more information on
self-service and supported product models. Information subjects
to the website.
3
Contents
Getting Started ....................................................... 10
Glancing Your Device ....................................................... 10
Knowing the Keys ............................................................ 12

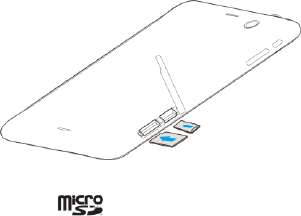

Installing the SIM Card, microSD Card, and Battery .......... 12

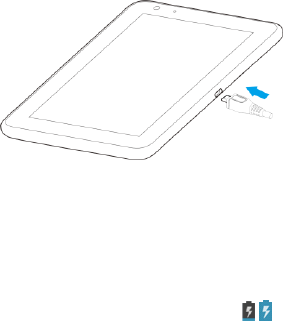

Charging the Battery ........................................................ 13
Powering On/Off .............................................................. 14
Setting Up for the First Time ............................................. 15
Locking/Unlocking the Screen and Keys ........................... 15
Using the Touch Screen ................................................... 16
Getting to Know the Home Screen ................................... 17
Personalizing ......................................................... 19
Changing the System Language ...................................... 19
Setting the Date and Time ................................................ 19
Changing Ringtone and Notification Sound ...................... 19
Adjusting Volumes............................................................ 20
Applying New Wallpapers ................................................. 20
Changing Screen Brightness ............................................ 21
Protecting Your Device With Screen Locks ....................... 21
Protecting Your Device With Encryption ............................ 22
Knowing the Basics ............................................... 25
Monitoring the Device Status ............................................ 25
Managing Notifications ..................................................... 26
Managing Shortcuts and Widgets ..................................... 28
4
Organizing With Folders .................................................. 29
Rearranging the Favorites Tray ........................................ 30
Entering Text ................................................................... 30
Editing Text ...................................................................... 33
Opening and Switching Apps ........................................... 34
Connecting to Networks and Devices .................. 35
Connecting to Mobile Networks ........................................ 35
Connecting to Wi-Fi ......................................................... 36
Using Wi-Fi Direct ............................................................ 38
Connecting to Bluetooth Devices ..................................... 39
Connecting to Your Computer via USB ............................. 42
Sharing Your Mobile Data Connection .............................. 43
Connecting to Virtual Private Networks ............................ 46
Device Calls ............................................................ 48
Placing and Ending Calls ................................................. 48
Answering or Rejecting Calls ........................................... 49
Working With the Call Log ................................................ 49
Calling Your Contacts ....................................................... 51
Checking Voicemail ......................................................... 52
Using Options During a Call ............................................. 52
Managing Multi-party Calls ............................................... 53
Adjusting Your Call Settings ............................................. 54
People ..................................................................... 58
Opening Your Contact List ............................................... 58
Adding a New Contact ..................................................... 58
5
Setting up Your Own Profile .............................................. 59
Importing, Exporting, and Sharing Contacts ...................... 59
Working With Favorite Contacts ....................................... 61
Working With Groups ....................................................... 62
Searching for a Contact .................................................... 63
Editing Contacts ............................................................... 64
Email ....................................................................... 65
Setting up the First Email Account .................................... 65
Checking Your Emails ...................................................... 66
Responding to an Email ................................................... 66
Writing and Sending an Email .......................................... 67
Adding Signature to Your Emails ...................................... 68
Adding and Editing Email Accounts .................................. 68
Changing General Email Settings ..................................... 69
GmailTM ................................................................... 70
Opening Your Gmail Inbox................................................ 70
Switching Accounts .......................................................... 70
Writing and Sending a Message ....................................... 71
Adding Signature to Your Gmail Messages ....................... 71
Replying to or Forwarding a Message .............................. 72
Working With Received Attachments ................................ 72
Searching for Messages ................................................... 73
Working With Labels ........................................................ 73
Changing Gmail Settings .................................................. 74
Messages ............................................................... 75
6
Opening the Messages Screen ........................................ 75
Sending a Text Message .................................................. 75
Replying to a Message .................................................... 76
Forwarding a Message .................................................... 76
Viewing Details about a Message .................................... 76
Deleting Messages or Threads ........................................ 77
Changing Message Settings ............................................ 77
Calendar ................................................................. 78
Viewing Your Calendars and Events ................................. 78
Creating an Event ............................................................ 79
Editing or Deleting an Event ............................................. 80
Changing Calendar Settings ............................................ 80
Google Talk ............................................................. 81
Signing Into See Your Friends .......................................... 81
Adding a Friend ............................................................... 81
Changing Your Online Status ........................................... 82
Chatting With Friends ...................................................... 82
Changing Google Talk Settings ........................................ 83
Google+ .................................................................. 83
Organizing Your Contacts ................................................ 84
Getting Updates ............................................................... 84
Chatting With Contacts .................................................... 85
Checking Photos ............................................................. 85
Checking and Managing Your Profile................................ 85
7
Browser .................................................................. 87
Opening the Browser ....................................................... 87
Working With an Opened Page ........................................ 89
Using Multiple Browser Windows...................................... 90
Downloading Files ............................................................ 91
Using Bookmarks ............................................................. 91
Changing Browser Settings .............................................. 92
Maps, Navigation, Places, and Latitude ............... 93
Activating Location Services ............................................. 93
Getting Your Location ....................................................... 93
Searching for a Location .................................................. 94
Getting Directions to Your Destination .............................. 94
Searching for Local Places ............................................... 95
Sharing Location .............................................................. 96
Google Search, Voice Search, and Voice Actions
................................................................................. 97
Searching With Text ......................................................... 97
Searching by Speaking..................................................... 97
Using Voice Actions .......................................................... 98
Changing Search and Voice Search Settings.................... 98
Camera ................................................................... 99
Capturing a Photo ............................................................ 99
Customizing Camera Settings ........................................ 100
Capturing a Panorama ................................................... 101
8
Recording a Video ......................................................... 101
Customizing Camcorder Settings ................................... 102
Gallery ................................................................... 103
Opening Gallery ............................................................. 103
Working With Albums ..................................................... 104
Working With Pictures .................................................... 104
Working With Videos ...................................................... 106
Music ..................................................................... 107
Copying Music Files to Your Device ............................... 107
Playing Your Music ........................................................ 107
Video Player ......................................................... 110
Opening the Video Library ............................................. 110
Playing and Control Videos ............................................ 110
Managing Video Files .................................................... 110
Sound Recorder ................................................... 111
Recording a Voice Memo ................................................ 111
Playing a Voice Memo ................................................... 112
More Apps............................................................. 112
Alarm ............................................................................. 112
Calculator ...................................................................... 113
File Manager ................................................................. 113
YouTube ........................................................................ 113
Play Store ............................................................. 113
9
Browsing and Searching for Apps ................................... 114
Downloading and Installing Apps .................................... 114
Managing Your Downloads ............................................. 114
Settings ................................................................ 115
Wireless and Networks ................................................... 116
Device ........................................................................... 117
Personal ........................................................................ 119
System........................................................................... 123
Troubleshooting ................................................... 124
For Your Safety .................................................... 130
General Safety ............................................................... 130
FCC Regulations: ........................................................... 131
RF Exposure Information (SAR) ..................................... 132
Distraction ...................................................................... 134
Product Handling ........................................................... 135
Electrical Safety ............................................................. 138
Radio Frequency Interference ........................................ 139
Explosive Environments ................................................. 141
10
Getting Started
Glancing Your Device
Front
Camera
Touchscreen
Charger/
USB Jack
11
Headset
Jack
Power Key
Volume
Keys
SD/SIM
Card Slot
Back
Camera
12
Knowing the Keys
Key
Function
Power Key
Press and hold to turn on or off silent,
vibration or Airplane mode, Power off or
Reset.
Press to switch your device to Sleep mode.
Press to wake up your device.
Volume Keys
Press or hold to turn the volume up or down.
Installing the SIM Card, microSD Card,
and Battery
First, install the SIM card, microSD memory card as described
below.
Switch off your device before installing or replacing the SIM card.
1. Remove the jack rubber cover.
2. Insert your SIM card into the SIM slot.
NOTE:
Do not remove or install the SIM card while the power
cable is plugged. Removing the SIM card while switch
on leads to a reboot.
3. Insert your memory card into the memory card slot.
13
NOTE:
microSD logo is a trademark of the SD Card
Association.
4. Press the cover gently back into place.
Charging the Battery
The new battery is not fully charged. For the first time usage, you
should charge the battery.
WARNING! Use only ZTE-approved chargers and cables. The
use of unapproved accessories could damage your device or
cause the battery to explode.
1. Connect the adapter to the charger jack. Ensure that the
adapter is inserted with the correct orientation. Do not force
the connector into the charger jack.
14
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.
How much charge have you got?
If the battery is low, there will be a pop-up message on the
screen. As you charge your device, the screen will tell you the
exact battery level each time you wake up your device.
If the device is on, you’ll see this charging icon / appear on
the status bar.
Powering On/Off
Make sure the SIM card is in your device and the battery is
charged.
Press and hold the Power Key to turn on your device.
To turn it off, press and hold the Power Key to open the
options menu. Touch Power off and then touch OK.
15
Setting Up for the First Time
When you first power on your device after you purchase it or
reset it to factory settings (see Settings – Personal – Backup and
Reset), you need to do some settings before using it.
1. Touch the language field to select the language you want to
use and then touch Start.
2. Configure the date and time options, and touch Next.
3. Touch Add account to create a Google Account or touch
Sign in to your account.
You can also touch Not now to set up an account later.
4. Configure the Google location options and touch Next.
5. Enter your name which the device uses to personalize some
apps and touch Next.
6. You will be prompted to accept the terms of Google service.
Touch Next to continue.
7. Touch Finish to complete the setup.
Locking/Unlocking the Screen and
Keys
Your device allows you to quickly lock the screen and keys when
not in use and to turn the screen back on and unlock it when you
need it.
16
To lock the screen and keys:
To quickly turn the screen off and lock the keys, press the Power
Key.
NOTE: To save battery power, the device automatically turns off
the screen after a certain period of time when you leave it idle.
You will still be able to receive messages and calls while the
device screen is off.
To unlock the screen and keys:
1. Press the Power Key to turn the screen on.
2. Drag to to unlock the screen and keys. You can also
drag to to open the camera and start taking photos
immediately.
NOTE: If you have set an unlock pattern, PIN or password for
your device (see chapter Settings – Personal – Security), you’ll
need to draw the pattern or enter the PIN/password to unlock
your screen.
Using the Touch Screen
Your device’s touch screen lets you control actions through a
variety of touch gestures.
Touch
When you want to type using the onscreen keyboard, select
items onscreen such as application and settings icons, or
press onscreen buttons, simply touch them with your finger.
17
Touch and Hold
To open the available options for an item (for example, a
message or link in a Web page), touch and hold the item.
Swipe or Slide
To swipe or slide means to quickly drag your finger vertically
or horizontally across the screen.
Drag
To drag, press and hold your finger with some pressure
before you start to move your finger. While dragging, do not
release your finger until you have reached the target position.
Pinch
In some apps (such as Maps, Browser, and Gallery), you can
zoom in and out by placing two fingers on the screen at once
and pinching them together (to zoom out) or spreading them
apart (to zoom in).
Rotate the screen
For most screens, you can automatically change the screen
orientation from portrait to landscape by turning the device
sideways.
Getting to Know the Home Screen
The home screen is the starting point for your device’s
applications, functions, and menus. You can customize your
home screen by adding application icons, shortcuts, folders,
widgets, and more. Your home screen extends beyond the initial
screen. Swipe the screen left or right to display additional
screens.
18
Home Key: Touch to return to the Home Screen from any
application or screen.
Recent apps: Touch to view the recent apps.
Back Key: Touch to go to the previous screen.
Extended Home Screens
Your home screen extends beyond the initial screen, providing
more space to add icons, widgets, and more. Simply swipe left or
right on the screen to see the extended Home Screens.
Google
Search
Widgets
Status &
Notification
s
Shortcut
Back Key
Home Key
Recent apps
19
Personalizing
Changing the System Language
1. Touch the Home Key > > Settings > Language &
input > Language.
2. Select the language you need.
Setting the Date and Time
1. Touch the Home Key > > Settings > Date & time.
2. Clear the Automatic date & time and Automatic time zone
check boxes if you want to set the date, time and time zone
by yourself.
3. Set the date, time, time zone, and date/time format.
Changing Ringtone and Notification
Sound
You can customize the ringtone for incoming calls and default
notification sound quickly.
1. Touch the Home Key > > Settings > Audio profiles >
General/Outdoor.
2. Touch Voice/Video call ringtone or Default notification.
3. Scroll through the ringtone list and select the ringtone you
20
want to use.
4. Touch OK.
Adjusting Volumes
1. Touch the Home Key > > Settings > Audio profiles >
General/Outdoor > Volumes.
2. Adjust the volume for the ringtone and notification volume,
and the alarm volume.
3. Touch OK to save.
TIP: You can adjust the media volume when a media
application is in use by pressing the Volume Keys. If no
media application is active, press the Volume Keys to adjust
ringtone volume (or the earpiece volume during a call).
To enable the silent or vibration mode:
You can set the device to the silent or vibration mode by using
one of the following methods.
Press and hold the Power Key and then touch to enable
the silent mode, touch to enable the vibration mode, or
touch to disable the silent mode.
Press the Volume Keys up and down to adjust the volume
and set up silent or vibrate mode.
Applying New Wallpapers
You can set the wallpaper for the Home Screen or Lock
21
Screen.
1. Touch the Home Key > > Settings > Display >
Wallpaper.
2. Select a wallpaper source from Gallery, Live
Wallpapers, Video Wallpapers or Wallpapers and
choose the image or animation you want to use as the
wallpaper. Some cropping may be needed for Gallery
images.
Changing Screen Brightness
1. Touch the Home Key > > Settings > Display >
Brightness.
2. Hold and move the bar to adjust the screen brightness
manually.
3. Touch OK.
Protecting Your Device With Screen
Locks
You can protect your device by creating a screen lock. When
enabled, you need to draw a pattern or enter a numeric PIN or
password to unlock the device’s screen and keys.
1. Touch the Home Key > > Settings > Security.
2. Touch Screen lock.
3. Touch None, Slide, Face Unlock, Pattern, PIN or
Password.
22
If you touch Pattern, you’re guided to create a pattern you
must draw to unlock the screen. The first time you do this,
a short tutorial about creating an unlock pattern appears.
Then you’re prompted to draw and redraw your own
pattern.
If you touch PIN or Password, you’re prompted to set a
numeric PIN or a password you must enter to unlock your
screen.
The next time you turn on your device or wake up the screen, you
must draw your unlock pattern or enter your PIN or password to
unlock it.
IMPORTANT: Screen lock options are listed in the approximate
order of the strength of their security, starting with None and
Slide, which provide no security. Pattern provides minimal
security, although it can be more convenient than the stronger
options.
Protecting Your Device With
Encryption
You can encrypt all the data on your device: Google Accounts,
application data, music and other media, downloaded information,
and so on. If you do, you must enter a numeric PIN or password
each time you power on your device.
WARNING! Encryption is irreversible. The only way to revert to
an unencrypted device is to perform a factory data reset, which
erases all your data.
23
Encryption provides additional protection in case your device is
stolen, and may be required or recommended in some
organizations. Consult your system administrator before turning it
on. In many cases the PIN or password you set for encryption is
controlled by the system administrator.
Before turning on encryption, prepare as follows:
1. Set a lock screen PIN or password.
2. Charge the battery.
3. Plug in your device.
4. Schedule an hour or more for the encryption process: you
must not interrupt it or you will lose some or all of your data.
When you're ready to turn on encryption:
1. Touch the Home Key > > Settings > Security >
Encrypt tablet.
2. Read the information about encryption carefully.
The Encrypt tablet button is dimmed if your battery's not
charged or your device's not plugged in.
If you change your mind about encrypting your device, touch
the Back Key.
WARNING! If you interrupt the encryption process, you will
lose data.
3. Touch Encrypt tablet.
4. Enter your lock screen PIN or password and touch Next.
5. Touch Encrypt tablet again.
The encryption process starts and displays its progress.
24
Encryption can take an hour or more, during which time your
device may restart several times.
When encryption is completed, you're prompted to enter your
PIN or password.
Subsequently, you must enter your PIN or password each time
you power on your device, to decrypt it.
25
Knowing the Basics
Monitoring the Device Status
The status bar at the top of the home screen provides device and
service status information on the right side. You can monitor the
device status by checking the following status icons.
GPRS connected
No signal
EDGE connected
Signal strength
3G connected
Mobile data in use
Airplane mode
Ringer off
Device microdevice off
Vibrate mode
Battery flat
Bluetooth on
Battery low
Connected to a Wi-Fi
network
Battery partially drained
Wi-Fi in use
Battery full
Alarm set
/
Battery charging
No SIM card installed
26
Managing Notifications
Notification Icons
The status bar at the top of the home screen provides notification
alerts on the left. You can view the following notification icons.
New SMS
microSD card unmounted
New MMS
microSD card removed
New Email
Upcoming event
New Gmail
message
New Wi-Fi network detected
New Google Talk
instant message
Downloading data
Problem with
SMS/MMS delivery
Sending data
Missed call
Portable Wi-Fi hotspot or
Wi-Fi direct is on
USB connected
GPS on
Song is playing
Updates available
27
Opening/Closing the Notification Panel
Notifications report the arrival of new messages, calendar
events, and alarms, as well as ongoing events, such as when
you've configured your device as a Wi-Fi hotspot. You can
open the notification panel to view the details of notifications.
To open the notification panel, swipe your finger up from the
bottom of the screen.
To close the notification panel, swipe your finger down the
screen or touch the Back Key.
Responding to or Remove a Notification
In the notification panel, you can respond to a notification or
remove the notifications.
To respond to a notification, just touch it.
To remove a notification, swipe it sideways.
To remove all notifications, touch in the top right corner.
Most apps that send notifications, such as Gmail and Google
Talk, have notification settings that you can adjust.
TIP: In the notification panel, touch at the top of notifications
list to get to the Settings menu quickly.
28
Managing Shortcuts and Widgets
Adding Shortcuts and Widgets
1. Touch the Home Key > .
2. Touch WIDGETS or APPS to view the available widgets and
shortcuts.
3. Touch and hold a widget or shortcut and drag it to the Home
Screen.
Moving Shortcuts or Widgets
1. Touch and hold a widget or shortcut on the Home Screen.
2. Drag it to the place you need.
Removing Shortcuts or Widgets
1. Touch and hold a widget or shortcut on the Home Screen.
2. Drag it to to remove it.
Adjusting Widget Size
1. Touch and hold a widget on the Home Screen and then
release it.
2. An outline appears on the widget. Drag the outline to resize
the widget.
NOTE: Not all widgets can be resized.
29
Organizing With Folders
You can create folders on the Home Screen and add several
shortcuts in a folder.
Creating a Folder
1. Touch and hold the shortcut on the Home Screen, drag it to
the shortcut you want to add into a folder until a circle around
appears.
2. Drag the shortcut into the circle and release it. A new folder
will be created and the shortcut is added into the folder.
Renaming a Folder
1. Touch a folder to open it.
2. Touch the folder name field (Unnamed Folder) and enter a
new name.
Adding Shortcuts to a Folder
1. Touch and hold a shortcut and then drag it into a folder icon.
2. Release the shortcut and it will be added into the folder.
Removing Shortcuts From a Folder
1. Touch a folder to open it.
2. Touch and hold the shortcut you want to remove and then
drag it to the Home Screen.
3. Release the shortcut and it will be removed from the folder.
30
Rearranging the Favorites Tray
The Home Screen includes a customizable favorites tray
visible from all extended Home Screens. You can drag apps,
shortcuts, folders, and other priority items beside the in
or out of the favorites tray for instant access from any Home
Screen.
To remove items from the favorites tray:
Touch and hold an item in the favorites tray and drag it out of
the tray.
To add items to the favorites tray:
Touch and hold an item and drag it onto the favorites tray.
If the favorites tray is full, you need to remove an item in the tray.
Entering Text
You can enter text using the onscreen keyboard. Some apps
open it automatically. In others, you open it by touching where
you want to type. You can touch the Back Key to hide the
onscreen keyboard.
Changing Input Methods
1. When you use the onscreen keyboard to enter text, the icon
31
appears on the notification bar.
2. Touch the icon to open the notification panel and touch
Choose input method.
3. Select an input method you need.
Android Keyboard
The Android Keyboard provides a layout similar to a desktop
computer keyboard. Turn the device sideways and the keyboard
will change from portrait to landscape. The landscape keyboard
is not supported in all applications.
Touch the alphabetic keys to enter letters. Touch and hold
some specific keys to enter associated accented letters or
numbers. For example, to enter È, touch and hold and the
available accented letters and number 3 appear. Then slide
to choose È.
Touch to use uppercase. Double-tap to lock
uppercase. This key also changes to indicate the current
32
case you are using: for lowercase, for uppercase,
and when locked in uppercase.
Touch to delete the text before the cursor.
Touch to select numbers and symbols. You can then
touch to find more. Also, often used symbols are
displayed on top of the keyboard.
Touch and hold and then swipe to choose the emoticons.
Touch to use Google’s networked voice input.
Touch and hold to change the input languages or set up
the Android keyboard.
TouchPal Keyboard
TouchPal Keyboard offers three layouts: Full QWERTY, 12-Key
DevicePad and CooTek T+. You can swipe left or right on the
TouchPal keyboard to switch the layout.
You can also use TouchPal CurveTM to speed up text input by
replacing the key tapping motion of input with a tracing gesture
where you move your finger from letter to letter without lifting the
finger until you reach the end of the word.
To Switch the Keyboard Layout:
1. Touch the Home Key > > Settings > Language &
input > TouchPal Keyboard (Pad) > Keyboard
layout.
2. Touch the Swipe layout check box.
33
3. In the TouchPal keyboard screen, touch and clear the
Curve box, and then touch Close.
4. Swipe left or right on the TouchPal keyboard to select the
Full QWERTY, 12-Key DevicePad or CooTek T+ layout.
Touching Input Settings
Choose the touch input settings by touching the Home Key >
> Settings > Language & input from the Home Screen.
In the KEYBOARD & INPUT METHODS section, you can set
the default input method and choose the settings for input
methods.
Editing Text
Move the insertion point: Touch where you want to type.
The cursor blinks in the new position, and a tab appears
below it. Drag the tab to move the cursor.
Select text: Touch and hold or double-tap within the text.
The nearest word highlights, with a tab at each end of the
selection. Drag the tabs to change the selection.
Cut/copy/paste: Select the text you want to manipulate. Then
touch the Cut , Copy , or Paste button.
34
Opening and Switching Apps
Opening an App
1. Touch the Home Key > .
2. Slide left or right on the screen and touch an app to open it.
Opening Recent Apps
1. Touch Home Key > .
A list of the names and thumbnails of apps you’ve used
recently opens. If you’ve been using more apps recently than
can fit on the screen, you can scroll the list up and down.
2. Touch a thumbnail to open that app.
You can swipe a thumbnail sideways to remove it from the
list.
35
Connecting to Networks and
Devices
Connecting to Mobile Networks
Selecting Network Operator
1. Touch the Home Key > > Settings > More > Mobile
networks > Network operators.
2. Touch Select manually to search for all available networks.
3. Touch a network in the network list to register manually.
You can also touch Choose automatically to select
preferred network automatically.
Controlling Mobile Data Use
To Enable or Disable Data Access:
1. Touch the Home Key > > Settings > More > Mobile
networks.
2. Tick the Data enabled check box to enable data access
over the mobile network. Clear the check box to disable
data access.
To Get Data Services when Roaming:
1. Touch the Home Key > > Settings > More > Mobile
networks.
2. Tick the Data roaming check box.
36
IMPORTANT: Data roaming may incur significant roaming
charges.
Setting Access Point Names
To connect to the Internet you can use the default Access Point
Names (APN). And if you want to add a new APN, please contact
the service provider to get the necessary information.
1. Touch the Home Key > > Settings > More > Mobile
networks > Access Point Names.
2. Touch > New APN.
3. Touch each item to enter the information you get from your
service provider.
4. Touch Save to complete.
TIP: To set the APN to default settings, touch > Reset to
default.
Connecting to Wi-Fi
Wi-Fi is a wireless networking technology that can provide
Internet access at distances of up to 100 meters, depending on
the Wi-Fi router and your surroundings.
Turning Wi-Fi On and Connect to a Wi-Fi
Network
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position to turn on Wi-Fi.
37
The Wi-Fi networks that your device has detected are
displayed with their names and security settings. If your
device finds a network that you connected to previously, it
connects to it.
3. Touch a network name to connect to it.
NOTE: If the network is secured, you're prompted to enter a
password or other credentials. (Ask your network administrator
for details.)
Getting Notified of Open Networks
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch > Advanced.
4. Tick the Network notification check box.
When Wi-Fi is on, you receive notifications in the Status bar
when your device detects an open Wi-Fi network. Clear the
check box to turn off notifications.
Adding a Wi-Fi Network
You can add a Wi-Fi network if the network does not broadcast
its name (SSID), or to add a Wi-Fi network when you are out of
range.
To connect to a secured network, you first need to get the
security details from the network's administrator.
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
38
3. Touch .
4. Enter the network SSID (name). If necessary, enter security
or other network configuration details.
5. Touch Save.
Forgettinga Wi-Fi Network
You can make your device forget about the details of a Wi-Fi
network that you added - for example, if you don’t want the
device to connect to it automatically or if it is a network that you
no longer use.
1. Touch the Home Key > > Settings > Wi-Fi.
2. Slide the Wi-Fi switch to the ON position.
3. Touch the Wi-Fi network name and then touch Forget.
Using Wi-Fi Direct
Wi-Fi Direct allows Wi-Fi devices to connect to each other
without the need for wireless access points (hotspots).
NOTE: Activating this feature will disconnect your current Wi-Fi
network connection.
Connectting to a Wi-Fi Direct Device
1. Touch the Home Key > > Settings > More > Tethering
& portable hotspot.
2. Tick the Portable Wi-Fi hotspot check box to turn on Wi-Fi
direct.
39
3. Your device will search for other devices enabled with Wi-Fi
direct connections.
4. Touch a device name to begin the connection process.
NOTE: The target device must also have Wi-Fi Direct service
activated and running before it can be detected by your
device.
5. Touch Connect.
The other device will receive a Wi-Fi Direct connection
prompt and need to accept the request for connection.
6. Once connected the device is displayed as “Connected” in
the Wi-Fi Direct devices list.
Connecting to Bluetooth Devices
Bluetooth® is a short-range wireless communication technology.
Devices with Bluetooth capabilities can exchange information
wirelessly within a distance of about 10 meters. The Bluetooth
devices must be paired before the communication is performed.
Turning Bluetooth On/Off
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON or OFF position.
When Bluetooth is on, the icon will appear in the Status bar.
Making Your Device Visible
In order to work with other devices or devices that have Bluetooth,
40
you need to make your device ‘visible’ to them.
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON position.
3. Touch your device name on the top of the screen to make
your device visible or invisible.
NOTE: Touch > Visibility timeout to set the Bluetooth
visibility timeout of your device.
Changing the Device Name
When your device is visible to other Bluetooth devices it will be
seen by its name and you can make that anything you want – like
‘Ben’s Device’.
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON position.
3. Touch > Rename tablet.
4. Edit the name and touch Rename.
Pairing with a Bluetooth Device
1. Touch the Home Key > > Settings > Bluetooth.
2. Slide the Bluetooth switch to the ON position.
3. Touch SEARCH FOR DEVICES. Your device scans for
and displays the IDs of all available Bluetooth devices in
range.
4. Touch the device you want to pair with.
41
Follow the instructions to complete the pairing. If you're prompted
to enter a pass code, try entering 0000 or 1234 (the most
common pass codes), or consult the documentation that came
with the device.
Connecting to a Bluetooth Device
Once you've paired with a Bluetooth device, you can connect to it
manually; for example, to switch devices or to reconnect after it is
back in range.
1. Touch the Home Key > > Settings > Bluetooth and
make sure Bluetooth is turned on.
2. In the list of paired devices, touch a paired but unconnected
device.
Disconnecting a Bluetooth Device
1. Touch the Home Key > > Settings > Bluetooth and
make sure Bluetooth is turned on.
2. In the list of paired devices, touch a paired and connected
device.
3. Touch OK to disconnect it.
Unpairing From a Bluetooth Device
You can make your device forget its pairing connection with
another Bluetooth device. To connect to the device again, you
may need to enter or confirm a passcode again.
1. Touch the Home Key > > Settings > Bluetooth and
make sure Bluetooth is turned on.
42
2. In the list of paired devices, touch the icon beside the
Bluetooth device you want to unpair from.
3. Touch Unpair.
Connecting to Your Computer via USB
You can connect your device to a computer with a USB cable
and transfer music, pictures, and other files in both directions.
Your device stores these files in internal storage or on a
removable microSD card.
Connecting Your Device to a Computer via
USB
1. Connect your device to the PC with a USB cable.
2. Open the Notification panel and touch the icon.
3. Touch Default connect type, choose one of the following
options:
Charge only: The USB cable only used for charging.
Connect to PC software: Sync the tablet with PC the
computer.
MTP mode (Media device): Transfer media files on
Windows.
PTP mode (Camera): Transfer photos using camera
software, and transfer any files on the computers that
don’t support MTP.
Use mobile network: Use the tablet as a USB modem.
43
Install driver: Install the driver of the tablet in computer.
Disconnecting Your Device From the
Computer
To disconnect the device from the computer, simply unplug the
USB cable when you’re finished.
Removing the microSD Card From Your
Device
If you need to remove the microSD card while the device is on,
you must unmount it first.
1. Touch the Home Key > > Settings > Storage.
2. Slide down the screen and touch Unmout SD card.
3. You can now safely remove the microSD card from the
device.
Sharing Your Mobile Data Connection
You can share your device’s data capabilities through tethering
or by activating the mobile hotspot feature to create a portable
Wi-Fi hotspot.
Sharing Your Mobile Data Connection via
USB
1. Connect your device to your computer with a USB cable.
2. Open the Notification panel and touch the icon.
44
3. Select Use mobile network in USB options. A new network
connection will be created on your computer.
4. To stop sharing your data connection, select the other
connection type or disconnect the USB cable.
Sharing Your Mobile Data Connection via
Bluetooth
If your computer can obtain an Internet connection via Bluetooth,
you can configure your device to share its mobile data
connection with your computer.
1. Pair your device with your computer via Bluetooth.
2. Configure your computer to obtain its network connection
via Bluetooth. For more information, please see your
computer's documentation.
3. Touch the Home Key > > Settings > More >
Tethering & portable hotspot.
4. Tick the Bluetooth tethering check box. Your computer is
now sharing your device's data connection.
5. To stop sharing your data connection, uncheck Bluetooth
tethering.
Sharing Your Mobile Data Connection as a
Wi-Fi Hotspot
You can share your device’s data connection with other devices
by turning your device into a portable Wi-Fi hotspot. The feature
needs data connection on a mobile network and may result in
45
data charges.
NOTE: When the portable Wi-Fi hotspot feature is enabled, you
cannot use your device’s applications to access the Internet via
its Wi-Fi connection. You still remain connected to the Internet
via your mobile data network.
1. Touch the Home Key > > Settings > More >
Tethering & portable hotspot.
2. Tick the Portable Wi-Fi hotspot check box.
After a moment, the device starts broadcasting its Wi-Fi
network name (SSID).
3. To stop sharing your data connection, uncheck Portable
Wi-Fi hotspot.
Renaming or Securing Your Wi-Fi Hotspot
You can change the name of your device's Wi-Fi network name
(SSID) and secure your portable Wi-Fi hotspot.
1. Touch the Home Key > > Settings > More >
Tethering & portable hotspot > Set up Wi-Fi hotspot.
2. Set your name and security options as follows:
Network SSID: Enter or edit a network SSID (name) that
other devices see when scanning for Wi-Fi networks.
Security: Choose a security option: Open (not
recommended), WPA PSK or WPA2 PSK (other users
can access your mobile hotspot only if they enter the
correct password). When you select WPA PSK or WPA2
PSK, touch the Password field to edit the security
46
password.
Password: Edit the security password
3. Touch Save to save your settings.
Connecting to Virtual Private Networks
Virtual private networks (VPNs) allow you to connect to the
resources inside a secured local network. VPNs are commonly
deployed by corporations, schools, and other institutions to let
people access local network resources when not on campus, or
when connected to a wireless network.
Depending on the type of VPN you are using, you may be
required to enter your login credentials or install security
certificates before you can connect to your VPN. You can get this
information from your network administrator.
Adding a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch Add VPN network and fill in the information
provided by your network administrator.
3. Touch Save.
The VPN is added to the list on the VPN screen.
Connecting to a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch the VPN that you want to connect to.
47
3. When prompted, enter any requested credentials, and then
touch Connect.
When you are connected, the VPN connected icon appears in
the Status bar.
Modifying a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch and hold the VPN that you want to modify.
3. Touch Edit network and edit the VPN settings you want.
4. Touch Save.
Deleting a VPN
1. Touch the Home Key > > Settings > More > VPN.
2. Touch and hold the VPN that you want to delete.
3. Touch Delete network.
48
Device Calls
You can place calls from the Device app, the People app, or
other apps or widgets that display contact information. Wherever
you see a device number, you can usually touch it to dial.
Placing and Ending Calls
Placing a Call by Dialing
1. Touch the Home Key > .
2. In the dialler tab , enter the device number with the
on-screen keypad. Touch to delete wrong digits.
NOTE: As you enter digits, your device searches for contacts
that match. If you see the number you want to dial, touch it to
place the call immediately without entering the rest of the
number.
3. Touch the Device icon below the keypad to dial.
TIP: To make an international call, touch and hold the 0 key to
enter the plus (+) symbol. Then enter the international prefix for
the country, followed by the full device number.
Ending a Call
During a call, touch on the screen.
49
Answering or Rejecting Calls
When you receive a device call, the Incoming Call screen opens,
displaying the caller ID and any additional information about the
caller that you've entered in People. You can answer or reject the
call, or reject it with a text message.
Answering a Call
When you receive a device call, drag over to answer
the call.
NOTE: To silence the ringer before answering the call, press the
Volume Keys up or down.
Rejecting a Call
When you receive a device call, drag over to reject
the call.
You can also drag over to reject the call and send a
preset text message to the caller.
TIP: To edit the text response from within the Device app, touch
> Settings > Other Settings > Quick responses.
Working With the Call Log
The Call log is a list of all the calls you've placed, received, or
missed. It provides a convenient way to redial a number, return a
call, or add a number to your Contacts.
50
To open the call log, you can touch the Home Key > and
touch the tab.
Placing a Call From the Call Log
1. Open the call log.
2. Touch a number for more information about the call, or
touch beside it to call back.
Adding a Call Log Number as a Contact
1. Open the call log.
2. Touch a number to view more call information.
3. Touch .
4. To add the number to an existing contact, touch a contact in
the list. To add a new contact, touch CREATE NEW
CONTACT.
Taking Other Actions on a Call Log Entry
1. Open the call log.
2. Touch a number to view more call information. While
viewing the call details, you can:
Touch the number to call it.
Touch > Edit number before call to edit the number
in the dialer before calling it.
Touch to send a message.
51
Touch to add the number as a contact.
Deleting the Call Log
1. Open the call log.
2. Touch > Delete.
3. Select one call log or touch .
4. Touch
NOTE: You can also touch a number in the call log screen, and
touch > Remove from call log to delete the call log of the
number.
Calling Your Contacts
Calling a Contact
1. Touch the Home Key > and then touch the Contact tab
.
2. Flick the screen up or down to view all your contacts with
device numbers.
TIP: You can search for a contact by touching on the
screen.
3. Touch a contact or number to call it.
52
Calling a Favorite Contact
1. Touch the Home Key > and then touch the Contact
tab .
2. Your favorite contacts and frequently called contacts or
numbers are listed on the top of the screen. Touch a
contact or number to call it.
Checking Voicemail
1. Touch the Home Key > .
2. Enter your voicemail number and dial.
3. Follow the voice prompts to listen to and manage your
voicemail messages.
NOTE: To set your voicemail service, touch > Settings in the
dialer and touch the voicemail settings you want to change. For
detailed information, please contact the service provider.
Using Options During a Call
During a call, you will see a number of onscreen options. Touch
an option to select it.
Touch to turn on/off the speaker.
Touch to mute /unmute your microdevice.
Touch to make another call separately from the first call,
which is put on hold.
53
Touch to switch to the dialer, for example to enter a
code.
Touch to hold or unhold the current call.
Touch to switch to another call in progress.
Touch to merge separate calls as a single conference
call.
Touch to record the call.
Touch to end the current call.
WARNING! Because of higher volume levels, do not place the
device near your ear during speakerdevice use.
Managing Multi-party Calls
When the call waiting and three-way call features are available,
you can switch between two calls or set up a conference call.
NOTE: The call waiting and three-way call features need network
supports and may result in additional charges. Please contact
your service provider for more information.
Switching Between Current Calls
When you’re on a call, your device screen informs you that
another call is coming in and displays the caller ID.
To respond to an incoming call while you’re on a call:
Drag over to answer the call. (This puts the first caller
on hold and answers the second call.)
54
To switch between two calls:
Touch on the screen.
Setting up a Conference Call
With this feature, you can talk to two people at the same time.
1. On the dialer screen, enter a number and touch .
2. Once you have established the connection, touch and
dial the second number. (This puts the first caller on hold
and dials the second number.)
3. When you’re connected to the second party, touch .
If one of the people you called hangs up during your call, you and
the remaining caller stay connected. If you initiated the call and
are the first to hang up, all callers are disconnected.
To end the conference call, touch .
Adjusting Your Call Settings
Using Fixed Dialing Numbers
Fixed Dialing Numbers (FDN) allows you to restrict outgoing calls
to a limited set of device numbers.
1. Touch the Home Key > > > Settings > Other
Settings > Fixed Dialing Numbers.
2. The following options are available:
Enable FDN: Input the PIN2 code to enable the FDN
55
feature.
Change PIN2: Change the PIN2 code for FDN access.
FDN list: Manage the FDN list.
NOTE: The PIN2 code is provided by your carrier. Entering an
incorrect PIN2 code more times than allowed can cause the
device to lock. Contact the service provider for assistance.
Editing Quick Response to Rejected Callers
1. Touch the Home Key > > > Settings > Other
Settings > Quick responses.
2. Touch the text message to edit it.
Setting Speed Dials
You can touch and hold the 1 ~ 9 key from the dialer to call the
corresponding speed dial number.
The number key 1 is reserved to speed dial your voicemail.
To assign a speed dial key:
1. Touch the Home Key > > > Speed dial.
2. Touch a speed dial key.
3. Enter a device number or select one from the contact list.
4. Touch OK.
Barring Certain Calls
Call barring feature allows you to forbid certain types of calls from
your device.
56
1. Touch the Home Key > > > Settings > Video Call >
Call Barring.
2. Set the restriction of specific types of calls from your device.
Forwarding Incoming Calls
Call forwarding feature allows you to forward your incoming calls
to another device number.
1. Touch the Home Key > > > Settings > Video Call >
Call forwarding.
2. Touch an available option ( Always forward, Forward when
busy, Forward when unanswered, or Forward when
unreachable) to enable it.
Other Options
1. Touch the Home Key > > > Settings > Voice Call >
Additional settings.
2. Touch Caller ID to choose whether your number is displayed
when someone receives your outgoing call. Or check Call
waiting to get notified of incoming calls during a call.
NOTE: Please contact the service provider to check whether the
caller ID and call waiting features are available.
Internet Call Settings
To Add an Internet Calling Account:
1. Touch the Home Key > > > Settings > Internet
Call > Accounts.
57
2. Touch Add account.
3. Follow the instructions from your Internet calling service
provider to configure the settings for your account.
4. Touch SAVE.
To Configure which Calls Use Internet Calling:
You can configure your device to place all calls using Internet
calling (when you’re connected to a Wi-Fi network), just calls to
Internet calling addresses, or to ask each time you place a call.
1. Touch the Home Key > > > Settings > Internet Call.
2. Touch Use Internet calling.
3. Touch the Internet calling option you want.
To Configure Your Device to Receive Internet Calls:
By default, your device is configured to make Internet calls, but
not to ensure that you will receive them. But you can configure
your device to listen for Internet calls made to an Internet calling
account you added to your device.
1. Touch the Home Key > > > Settings > Internet
Call > Accounts.
2. Tick the Receive incoming calls check box. Checking this
setting will reduce your battery life between charges.
58
People
You can add contacts on your device and synchronize them with
the contacts in your Google account or other accounts that
support contact syncing.
To see your contacts, touch the Home Key > > . From
there, you can touch the tabs on the top of the screen to quickly
switch to the contact GROUPS or FAVORITES contacts.
Opening Your Contact List
1. Touch the Home Key > > and touch the All
contacts tab to access your contact list.
2. Scroll through the list to view all your contacts.
3. Touch a contact to view its details.
TIP: If you have a lot of contacts stored, you'll see a slider when
you touch the right side of the screen. To go directly to a letter,
touch and hold the slider and drag it to a letter.
Adding a New Contact
1. Touch the Home Key > > and touch the All
contacts tab.
2. Touch to add a new contact.
3. Touch the account field on the top of the screen to choose
where to save the contact. If a sync account is selected, the
59
contacts will be synced automatically with your account
online.
4. Enter the contact name, device numbers, email addresses,
and other information.
5. Touch DONE to save the contact.
Setting up Your Own Profile
You can create your own name card in your device.
1. Touch the Home Key > > and touch the All
contacts tab.
2. Scroll to the top of the screen and touch > Edit.
3. Edit your profile information and touch DONE .
Importing, Exporting, and Sharing
Contacts
You can import/export contacts from/to your SIM or microSD card.
This is especially useful when you need to transfer contacts
between different devices. You can also quickly share your
contacts using Bluetooth, Email or Messages, etc.
Importing Contacts From the SIM Card
1. Touch the Home Key > > .
2. Touch > Import/export > Import from SIM card.
60
3. Select an account to save the contacts.
4. Touch to select the contacts you need and then touch .
Importing Contacts From the microSD Card
1. Touch the Home Key > > .
2. Touch Import/export > Import from storage.
3. Select an account to save the contacts.
4. Select the vCard file(s) in the microSD card and touch OK.
Exporting Contacts to the SIM Card
1. Touch the Home Key > > .
2. Touch Import/export > Export to SIM card.
3. Touch to select the contacts you need and then touch .
Exporting Contacts to the microSD Card
1. Touch the Home Key > > .
2. Touch Import/export > Export to storage.
3. The device will prompt you with the name of the vCard file.
Touch OK to create the file in the microSD card.
Sharing Contacts
1. Touch the Home Key > > and touch the All
contacts tab.
2. Touch > Share.
61
3. Touch to select the contacts you want to share and then
touch .
4. Choose to share the contacts via Bluetooth, Email, Gmail,
MMS, SD Card or SMS, etc.
Working With Favorite Contacts
In the FAVORITES contacts tab, you can find your favorite
contacts and frequently contacted contacts.
Adding a Contact to Favorites
You can add the contacts used frequently to FAVORITES, so
you can find them quickly.
1. Touch the Home Key > > and touch the All
contacts tab.
2. Touch a contact and then touch next to the contact
name.
Removing a Contact From Favorites
1. Touch the Home Key > > and touch the All
contacts tab.
2. Touch a favorite contact and then touch next to the
contact name.
62
Working With Groups
Viewing Your Contact Groups
1. Touch the Home Key > > and touch the contact
GROUPS tab.
2. Scroll through the list to view the preset groups and the
groups you create.
3. Touch a group to view its members.
NOTE: To send messages to the group members, you can select
message recipients from the listed and touch next to the
group members.
Adding a New Group
1. Touch the Home Key > > and touch the contact
GROUPS tab.
2. Touch to create a new group.
3. Touch the account field on the top of the screen to choose
an account for the group.
4. Enter the group name and touch DONE .
Adding Members to a Group
1. Touch the Home Key > > and touch the contact
GROUPS tab.
63
2. Touch a group and then touch .
3. Touch to select the contacts you need as the group
members.
4. Touch DONE .
Deleting a Group
1. Touch the Home Key > > and touch the contact
GROUPS tab.
2. Touch a group and then touch > Delete.
3. Touch OK to disband the group. The contacts in the group
will not be deleted.
Editing a Group
1. Touch the Home Key > > and touch the contact
GROUPS tab.
2. Touch a group and then touch .
3. Touch Rename group to edit the group name. Or touch
Select item(s) to select the members you don’t need and
remove them.
Searching for a Contact
1. Touch the Home Key > > .
2. Touch at the top of the screen.
64
3. Input the contact name you want to search for. The contacts
matched will be listed.
Editing Contacts
Editing Contact Details
1. Touch the Home Key > > .
2. Touch a contact you need to edit and then touch .
3. Edit the contact and touch DONE.
Deleting a Contact
1. Touch the Home Key > > .
2. Touch a contact you want to delete and touch > Delete.
3. Touch OK to confirm.
To delete several contacts, you can:
1. Touch > Select item(s) in the ALL contacts screen.
2. Touch to select the contacts you want to remove.
3. Touch to delete.
65
Email
Touch in the Home Screen and select Email. Use it to read
and send emails from services other than Gmail.
Setting up the First Email Account
1. When you open Email for the first time, enter your email
address and password and then touch Next.
NOTE: Your device will connect to the Internet and verify
incoming and outgoing server settings before proceeding to
the next step. If the email service provider is not a popular
one, you need to select the type of your account and edit
the settings for incoming and outgoing servers. Please
contact your mobile service provider and email service
provider for more information.
2. Set the email checking frequency, download options, account
name and other settings. Touch Next when you finish.
Your device will show the inbox of the email account and start to
download email messages.
TIP: To add more email accounts, open Email to get the Inbox
screen. Then touch > Account settings and touch ADD
ACCOUNT at the top right of the screen.
66
Checking Your Emails
Your device can automatically check for new emails at the interval
you set when setting up the account.
You can also check new emails manually by touching in any
of the email account’s boxes.
Responding to an Email
You can reply to or forward a message that you receive. You
can also delete messages and manage them in other ways.
Relying to or Forwarding an Email
1. Open the email you want to reply to or forward from Inbox.
2. Touch > Action and do the following as you need:
To…
do…
Reply to the sender,
Touch Reply.
Reply to the sender and all
recipients of the original
message,
Touch Reply all.
Forward the message,
Touch Forward.
3. Edit your message and touch .
67
Marking an Email as Unread
You can return a read email to the unread state, for example, to
remind yourself to read it again later. You can also mark a batch
of emails as unread.
While reading a message, touch > Mark as unread.
While in a message list (for instance, the inbox), touch the
checkboxes before the messages and then touch .
Deleting an Email
You can delete an email from its folder. You can also delete a
batch of emails.
While reading a message, touch > OK.
While in a message list (for instance, the inbox), touch the
checkboxes before the messages and then touch >
OK.
Writing and Sending an Email
1. Open your email Inbox.
2. Touch to open the compose screen.
3. If you have more than one email accounts added on the
device, touch the sender line to select the account you want
to use for sending the message.
4. Enter a contact name or email address in the ‘To’ field.
68
Separate each recipient with a comma. You can also touch
to select recipients from your contacts.
5. Enter the email subject and compose the email text.
6. Touch to add audio files, images, videos and other
types of files as attachment.
7. Touch at the top right of the screen to send the
message.
Adding Signature to Your Emails
You can set a few lines of plain text as signature for every
outgoing email message from an account, such as your name
and contact information.
1. Open the Email app.
2. Touch > Account settings and select the account you
want to add signature to.
3. Touch Signature and enter the text.
4. Touch OK.
Adding and Editing Email Accounts
Adding an Email Account
After setting up your first email account (see Email – Set Up the
First Email Account), you can add more email accounts and
manage them separately.
69
1. Open Email to get the Inbox screen.
2. Touch > Account settings and touch ADD ACCOUNT at
the top right of the screen.
3. Set up the account as you would with the first one.
Editing an Email Account
You can change a number of settings for an account, including
how often you check for email, how you’re notified of new mails,
and details about the servers the account uses to send and
receive mails.
1. Open Email to get the Inbox screen.
2. Touch > Account settings and touch the account whose
settings you want to change.
3. Make the changes you want and touch the Back Key when
you’re finished.
Removing an Email Account
1. Open Email to get the Inbox screen.
2. Touch > Account settings and touch the account you
want to remove.
3. Touch Remove account > OK.
Changing General Email Settings
General settings apply to all email accounts you add.
70
1. Open Email to get the Inbox screen.
2. Touch > Account settings > General.
3. Make the changes you want and touch the Back Key when
you’re finished.
GmailTM
After you sign in to your Google account on the device, you can
send and retrieve Gmail messages with the Gmail app.
NOTE: This feature may not be available in certain region or
with certain service provider.
Opening Your Gmail Inbox
Touch in the Home Screen and select Gmail. The Inbox
screen appears.
If you haven’t signed in, you will be prompted to do so or create
a new account.
Touch on the screen to refresh your Inbox and download
new messages.
Switching Accounts
Gmail displays conversations, messages, and settings from
one Google account at a time. If you have signed in to more
than one Google account on your device, you can switch
accounts and view information in each account.
71
1. From your Inbox, touch the current account at the top of the
screen.
2. From the drop-down menu, touch the account you want to
see. The account’s Inbox will open.
Writing and Sending a Message
1. Open your Gmail Inbox and switch to the account you want
to use for sending the message.
2. Touch .
3. Enter a contact name or email address in the ‘To’ field.
Separate each recipient with a comma.
4. Enter the email subject and compose the email text.
5. To attach an image, touch and select a file from the
image gallery.
6. Touch at the top right of the screen to send the
message.
Adding Signature to Your Gmail
Messages
You can set a few lines of plain text as signature for every
outgoing Gmail message. The signature you set on the device
is independent of the signature you use for Gmail on the web.
1. Open the Gmail app.
72
2. Touch > Account settings and select the account you
want to add signature to.
3. Touch Signature and enter the text.
4. Touch OK.
Replying to or Forwarding a Message
1. Open the Gmail message you want to reply to or forward to
another person.
2. Touch > Action and do the following as you need:
To…
do…
Reply to the sender,
Touch Reply.
Reply to the sender and all
recipients of the original
message,
Touch Reply all.
Forward the message,
Touch Forward.
3. Edit your message and touch the send icon .
Working With Received Attachments
When a message has an attachment, Gmail displays
information about that attachment on the message screen.
Depending on the attachment type, the applications installed on
your device as well as your settings, you may preview, view,
73
play, save the attachment, or check information about the
attachment.
Searching for Messages
You can search for messages using words that appear in
addresses, subjects, labels, or contents.
NOTE: If you search while the device doesn’t have an active
Internet connection, only messages synchronized onto your
device can be searched.
1. Open the Gmail app and touch .
2. Enter the words to search for and touch Search or the
search icon on the screen keyboard.
As you type, suggestions may appear below the search field.
You can touch a suggestion to search for it right away, or
touch the arrow next to it to add its text to the search field.
3. In the search results, touch the message you need and
work with it just as you would with any Gmail message.
Working With Labels
Message labels named as Sent, Starred, and Outbox, etc. You
can organize your emails by labeling them or adding stars to
them. Labels also help you sort your messages to folders.
To label or change labels:
1. Open the Gmail app and touch the checkboxes in the
74
message list before the messages you want to label.
2. Touch the folder icon at the top of the screen.
3. Select label to move the message to the folder label.
To add stars to messages:
1. Open the Gmail app and touch the checkboxes in the
message list before the messages you want to star.
2. Touch the star icon at the top of the screen.
To view messages by label:
1. Open the Gmail app and view the label list.
2. Touch the label to view messages with that label.
TIP: You can also touch the name of your account at the top of
the screen. Then touch one of the labels listed in sections
below account names.
Changing Gmail Settings
Touch > Account settings in any Gmail screen to change
General settings, which apply to all Gmail accounts, or other
settings that only apply to specific accounts.
75
Messages
You can use Messaging to exchange text messages (SMS).
Opening the Messages Screen
Touch in the Home Screen and select Messaging.
The Messaging screen opens, where you can create a new
message, search for messages, or open an ongoing message
thread.
Touch to write a new text or multimedia message.
Touch to search for message with keywords.
Touch an existing message thread to open the conversation
you’ve had with a certain number.
Sending a Text Message
1. On the Messaging screen, touch at the top.
2. Touch the To field, and enter the recipient’s number or, if the
recipient is stored in People as a contact, the first letters of
the recipient’s name. As matching contacts appear, you can
touch a suggested recipient.
3. Touch the Type message field, and enter the contents of
your text message.
4. Touch .
76
Replying to a Message
Messages you receive are appended to existing threads of the
same number. If the new message comes from a new number,
a new thread is created.
1. On the Messaging screen, touch the thread that has the
message you want to reply to.
2. Type your reply in the text box at the bottom.
3. Touch .
Forwarding a Message
1. On the Messaging screen, touch the thread that has the
message you want to forward.
2. Touch and hold the message.
3. Touch Forward in the menu that opens.
4. Enter a recipient for the message and edit the content if you
want.
5. Touch .
Viewing Details about a Message
1. On the Messaging screen, touch the thread that has the
message you want to read.
2. You can view the details of information about the message,
such as message sender, recipient, or date.
77
Deleting Messages or Threads
To delete messages in a thread:
1. On the Messaging screen, touch a thread.
2. Touch > Delete messages.
3. Select the messages you want to delete.
4. Touch at the top.
5. Touch Delete.
To delete message threads:
1. On the Messaging screen, touch and hold one thread you
want to delete.
2. If there are more threads you want to delete, touch them
one by one.
3. Touch at the top.
4. Touch Delete.
Changing Message Settings
Touch the > Settings in the Messages screen to change
Messages settings.
78
Calendar
Calendar on the device works with the web-based Google
Calendar service for creating and managing events, meetings,
and appointments. It also works with the Microsoft Exchange
ActiveSync calendar once you sign into your Exchange account
on the device.
To open Calendar, touch in the Home Screen and select
Calendar.
Viewing Your Calendars and Events
Changing Calendars
1. Open the Calendar app.
2. Touch > Hide/Show controls to hide/unhide the
calendar panel.
3. In the new screen, touch the calendars to check the
calendars you want to see or uncheck the calendars you’d
like to hide.
Events from hidden calendars are not shown in the Calendar
app.
Changing Calendar Views
You can view your calendars in different forms. The app offers
view types: DAY, WEEK, MONTH, and AGENDA.
79
To change calendar views, touch the view type tab shown at the
top left you prefer.
You can also change to Day view from Month view by touching
any day in the grid.
TIPS:
In Month view, swipe vertically to see earlier months and
later months.
In Week or Day view, swipe horizontally to see earlier
weeks/days and later weeks/days.
When you are viewing earlier or later days, weeks, or
months, touch at the top to quickly switch to today.
Viewing Event Details
In Agenda, Day, or Week view, touch an event to view its
details.
In Month view, touch a day to switch to Day view. Then touch an
event to view its details.
Creating an Event
1. In any Calendar view, touch to open an event details
screen for a new event.
You can also touch a spot in Day or Week view to add an
event to that time spot.
2. Add details about the event.
80
Enter a name, location, time span, and other additional
details about the event.
NOTE: If you have more than one calendar, you can choose
the calendar to which to add the event by touching the
current calendar above the Event name box.
3. Touch DONE at the top of the screen to save the new event.
Editing or Deleting an Event
1. Find the event you want to edit or delete.
2. Open its details screen (see Viewing Your Calendars and
Events – View Event Details in this chapter).
3. Do one of the following as you need.
To…
do…
Edit the event,
touch on the screen. Touch DONE
to save your changes.
Delete the event,
touch on the screen and then touch
OK.
Changing Calendar Settings
To change Calendar settings, open a Calendar view (Day,
Week, Month, or Agenda). Then touch > Settings.
You can change General settings, which apply to all accounts,
81
or other settings that only apply to specific accounts.
Google Talk
Google Talk is Google’s instant messaging service. You can
use it to communicate in real time with other people who also
use Google Talk, on a device, on the web, or with a desktop
application.
Signing Into See Your Friends
You must sign in to your Google account before you can use
Google Talk.
Touch in the Home Screen and select Talk. The first time
you launch Talk, touch the account you want to sign in with.
Your friends list is displayed then.
NOTE: You remain signed in to Google Talk after launching the
Talk app even if you switch to other apps, until you explicitly
sign out. To sign out, go back to your friends list and touch >
Sign out.
Adding a Friend
1. In the friends list, touch at the top right of the screen.
2. Enter your friend’s address and touch DONE.
Your friend’s address in Google Talk is a Gmail or other email
address that is configured to connect to Google Talk.
82
NOTE: If other people try to add you as a friend, you will
receive a notification in the status bar and the invitation appears
in your friends list. You can touch the invitation to Accept,
Decline, or Block.
Changing Your Online Status
1. Touch your own entry at the top of your friends list.
2. In the screen that opens, touch your current status to
change it (or to sign out of Talk).
3. Enter a status message or if you already have one, edit it.
In addition to the standard status settings, you can also
touch Change to a recently-used status to select a
message that you’ve entered previously.
4. Touch the Back Key to return to your friends list.
Chatting With Friends
1. Touch a friend in your friends list. The chat screen for that
friend opens.
2. Enter your message and touch . You can also touch
to initiate a voice chat if the friend is online.
Switching between Active Chats
If you have more than one chat going, you can switch between
these chats in the following ways.
83
Touch the Back Key to return from one chat to the friends list.
And then touch the other friend you want to chat with.
Using Group Chat
When you’re chatting, you can invite additional friends to join a
group chat.
1. On a chat screen, touch > Add to chat.
2. Touch the name of the friend to invite.
The friend you invited and the current participants receive an
invitation to a group chat. Each one who accepts the invitation
joins the group chat. In a group chat, everyone can see
everyone else’s messages. Group chats appear at the top of
your friends list, with a group chat icon.
Ending the Chat
While on a chat screen, touch > End chat.
You can also touch > End all chats while in the friends list to
end all active chats.
Changing Google Talk Settings
On any chat screen or the friends list, touch > Settings to
change Google Talk settings for your account.
Google+
Google+ is a social networking service offered by Google. The
84
Google+ application on your device enables you to manage your
data, chat with online contacts, organize them in different circles,
and share your selected information.
Touch in the Home Screen and select Google+. The first
time you open the Google+ app, select the instant upload and
contact sync options.
Organizing Your Contacts
1. Open the Google+ app.
2. Touch Circles.
3. Touch People > Find & invite people.
4. Touch next to a suggested person.
5. Touch an existing circle or select Create a new circle.
Getting Updates
1. Open the Google+ app.
2. Touch Stream.
3. Swipe left or right to see different information shared with you
by other users. Touch > Choose circles to choose what
groups of information are shown.
NEARBY shows posts shared with you by users near
your current location.
ALL CIRCLES, ACQUATANCES, FAMILY,
85
FOLLOWING and FRIENDS show updates from people
you’ve added to your circles.
WHAT’S HOT shows popular posts on Google+.
Chatting With Contacts
You can chat with your Google+ contacts through instant
messaging, similar to sending a text with the Messages app.
1. Touch Messenger in the Google+ app or touch from the
Home Screen > Messenger.
2. Touch to create a new message.
3. Touch to add recipients, they can be contacts or circles.
4. Enter the message.
5. Touch to send the message.
Checking Photos
You can see your own photo albums and those shared by other
users.
Touch Photos in the Google+ app to see all available albums.
Checking and Managing Your Profile
1. Touch Profile in the Google+ app.
2. Swipe left or right to see your posts, personal info, and
86
photos.
Touch the ABOUT tab and you can change your profile
photo.
Touch the PHOTOS tab and open a photo. You can add
comments to it, delete it, or set it as your profile photo.
87
Browser
Use Browser to view web pages and search for information.
Opening the Browser
Touch in the Home Screen and select Browser to start this
function.
Browser also opens when you touch a web link - for example, in
an email or a text message.
Opening a Web Page or Search the Web
When you open Browser, the last web page you were viewing
is displayed. If you have not used Browser recently, your home
page opens. You can switch to another web page by doing the
following.
1. Touch the address box at the top of the web page. If the
address box isn’t visible, swipe down a little to show it.
2. Enter the address (URL) of a web page. Or enter terms you
want to search for. As you enter text, your web search
engine makes suggestions of web pages and queries. You
can also touch the microdevice icon to search by voice.
3. Touch a suggestion or touch on the screen.
If you touch a suggested page or enter an address and
touch , that web page opens. If you touch a suggested
88
query, your web search engine opens with the results.
TIP: Touch the X to the right of the address box if you want to
stop opening the page.
Setting the Homepage
Your home page opens when you open a new browser window,
and when you start Browser after restarting your device or after
not using it for a while.
1. Open the page you want to set as your home page.
2. Touch > Settings > General > Set homepage.
3. Touch Current page or one of the following options.
Blank page
Open browser windows without opening a
web page by default. This can make new
Browser windows open more quickly.
Default page
Set the factory default URL as the
homepage.
Most visited
sites
Every new browser window displays a list of
your most visited sites for you to choose from.
Other
Type a URL as the homepage.
Getting Information about the Current Page
Touch the page icon, to the left of the address box.
89
Working With an Opened Page
While viewing most web pages, you can do the following
operation.
Scroll
Swipe the screen in any direction.
Zoom out
Touch the screen with two fingers and pinch
them together.
Zoom in
Touch the screen with two fingers and spread
them apart.
Go back
Touch the Back Key to return to the page
you’ve viewed previously in the same
window.
Go forward
Touch > Forward.
Refresh the page
Touch > Refresh. Or touch the address
box and then touch .
Find text on the
page
Touch > Find on page and type the terms
you search for.
Send the page
URL to friends
Touch > Share page and select how you
want to send the URL.
Follow a link
Touch a link on the web page to open it.
Save the page for
offline reading
Touch > Save for offline reading >
SAVED PAGES to read them.
90
TIPS:
Some web sites may redirect you to the mobile version of
their web pages, which mostly do not support scrolling or
zooming. If you want to view the desktop version, touch
and check Request desktop site.
Besides links, Browser also recognizes some device
numbers, addresses, and similar information for you to act
on. Try touching them and see what happens.
Using Multiple Browser Windows
You can open several browser windows at once and switch
between multiple web pages.
To open a new browser window:
Touch at the top of the screen. A new browser window
opens and the homepage is loaded.
To switch between windows:
Touch the thumbnail of the window you want to open.
TIP: Touch to close the window.
To use incognito window for privacy browsing:
Pages you view in incognito windows won’t appear in your
browsing history or search history. No trace will be left on your
device once you close the window.
Touch > New incognito tab.
91
Downloading Files
Touch a link to a file or to another webpage or touch the
thumbnail of the window you want to open.
The downloaded files are saved to your memory card. You can
view or open them in the Downloads app ( > Downloads).
Using Bookmarks
Save web URLs as bookmarks to open them easily in the
future.
To open a bookmark, touch in a browser window and then
touch the bookmark.
Bookmarking a Web Page
1. Open the web page.
2. Touch at the right of address box to save the web page
to bookmarks.
3. Edit the bookmark label and address if necessary, or
choose a different account.
Touch the name beside Add to change the place where the
bookmark will be stored.
4. Touch OK.
92
Editing a Bookmark
1. Touch Bookmarks .
2. Touch and hold the bookmark to edit.
3. Touch Edit bookmark.
4. Edit the label, address, account, or location of the bookmark
in the dialog that opens.
5. Touch OK.
Deleting a Bookmark
1. Touch Bookmarks .
2. Touch and hold the bookmark to delete.
3. Touch Delete bookmark.
4. Touch OK.
Changing Browser Settings
You can configure a number of Browser settings to customize
the way you browse the web, including several that you can use
to control your privacy.
To open the Browser settings screen, touch > Settings.
93
Maps, Navigation, Places, and
Latitude
Activating Location Services
To use Navigation, Places, Latitude, and find your location on
Google Maps, you must have location services turned on on
your device.
1. Touch the Home Key > > Settings > Location
services.
2. Select the location options you want to use.
Check Google’s location service to use Wi-Fi and mobile
networks to determine your approximate location; check
GPS satellites to use GPS satellites to determine your
location.
Getting Your Location
1. Touch in the Home Screen and select Maps.
2. Touch at the top right.
The map centers on a blue blinking dot that indicates your
location.
94
Searching for a Location
1. Touch in the Home Screen and select Maps.
2. Touch on the screen.
3. Enter the place you’re looking for in the search box at the
top. You can enter an address, a city, or a type of business
or establishment, for example, “museums in Shanghai.” As
you enter information, suggestions from your previous
searches and from popular searches appear in a list below
the search box. You can touch a suggestion to search for it.
TIP: You can also touch beside the search box to use
voice search.
4. Touch the search icon on the screen. Markers with letter
labels indicating search results appear on the map.
5. Touch a marker to open a balloon that contains a label with
summary information about the location.
6. Touch the balloon to open a screen with more information,
as well as options for obtaining directions and more.
Getting Directions to Your Destination
Maps can provide directions for travel by foot, public
transportation, or car.
1. Touch in the Home Screen and select Maps.
2. Touch at the top.
3. Enter a start and end point and select the mode of
95
transportation (car, public transit, or walking). If you have
enabled My Location, this will appear in the start point field
by default.
4. Touch Go or Directions. The directions to your destination
are marked on the map. Touch the left or right arrow to see
the direction step by step. You can also touch Directions
list to see your route displayed in a list.
NOTE: Touch > from the Home Screen to use Google
Maps Navigation (beta) and get turn-by-turn voice directions.
Searching for Local Places
Google Places helps you find all kinds of businesses and
establishments around you. You can rate these places and get
recommendations
1. Touch in the Home Screen and select Places. Or from
the Maps app, touch the top of the screen and select My
Places.
2. Wait while you are being located. Your location, when found,
is shown at the top.
3. Select a place category and the information of that type of
place near you will be displayed.
You can also use the button at the top to find the place
you need.
NOTE: Touch > Add a search to add new place
categories.
96
4. Touch a result you are interested in and check out the
details and reviews about that place. You can also see the
place on Maps, find out how to get there, give that place a
call, add your rating and review, and more.
Sharing Location
Google Latitude lets you and your friends view each others’
locations on maps and share status messages with each other.
While using Maps, touch the top left of the screen and select
> Join Latitude.
After you join in, you can always touch the top left of the screen
in Maps and select Latitude or touch > Latitude from the
Home Screen to see your status as well as that of your selected
friends.
In Latitude > , you can do the following operations.
Touch Refresh friends to refresh friends’ status.
Touch Map view to see friends on Maps.
Touch Add friends to add new friends to Latitude from
contacts, via email address, or from suggested friends.
Touch Show/Hide stale friends to show or hide stale
friends, who haven’t updated their location with you for a
while.
Touch Location Settings to change Latitude settings or
97
sign out of Latitude service.
Google Search, Voice Search, and
Voice Actions
You can search for information on the web or on your device
using Google Search. You can also search the web or perform
certain tasks by speaking.
Searching With Text
1. Start the Search app in one of the following ways.
Touch in the Home Screen and select Search.
Touch the Google Search box at the top of the Home
Screen.
Touch the search icon in certain apps to search for
related information.
2. Enter the terms you want to search for or touch a search
suggestion.
Searching by Speaking
1. Touch the microdevice icon to the right of the search box.
2. Speak the terms you want to search for. When you’re
finished speaking, your speech is analyzed and the search
is initiated.
98
If Google Search didn’t quite understand what you said, you
are presented with a list of similar-sounding terms. Touch
the correct term to start the search.
Using Voice Actions
1. Touch the microdevice icon to the right of the search box.
2. Speak the voice action you want to use. For example, say
‘send a text’.
Your speech is analyzed before the action is initiated.
3. Some voice actions need you to complete by speaking or
typing more information. For example, a send text window
appears after you say ‘send a text’. You need to enter the
recipient and message text by typing or speaking.
Changing Search and Voice Search
Settings
Open the Search app and touch > Search settings to set
Searchable items, or clear shortcuts.
To set Voice Search settings, touch in the Home Screen >
Settings > Language & input > Voice Search.
99
Camera
You can take photos and record videos. Photos and videos are
stored to the device’s memory card or the device’s internal
storage. You can copy them to your computer or access them in
the Gallery app.
Capturing a Photo
1. Open the Camera app in one of the following ways.
Touch in the Home Screen and select Camera.
From the lock screen, if the screen lock is set to Slide
(see Personalizing – Protecting Your Device With
Screen Locks), slide the icon to the left over the
icon.
2. Aim the camera at the subject and make any necessary
adjustment.
100
3. Lightly touch the blue button , to take a photo.
Customizing Camera Settings
Before taking a photo, you can touch to open the following
camera setting options.
101
White balance
Select how the camera adjusts colors in
different kinds of light, to achieve the most
natural-looking colors for your shots. Or
allow the camera to adjust the white
balance automatically.
Color effect
Set color effect.
Scene mode
Select Auto or Night.
Camera settings
Set the store location, Continuous shot,
Exposure, Self timer, picture size,
Anti-flicker or restore default settings.
Capturing a Panorama
1. Touch in the Home Screen and select Camera, and
touch to switch to the panorama from the camera
screen.
2. Aim the camera at the subject.
3. Lightly touch the green button and move or turn slowly
to take a panorama photo.
4. Touch to stop capturing.
Recording a Video
5. Touch in the Home Screen and select Camera, and
102
touch to switch to the camcorder from the camera
screen.
6. Aim the camera at the subject and make any necessary
adjustment.
7. Touch the red button to start recording.
8. Touch to stop recording.
Customizing Camcorder Settings
Before recording a video, you can touch to open the
103
following camcorder setting options.
White balance
Select how the camera adjusts colors in
different kinds of light, to achieve the most
natural-looking colors for your videos. Or allow
the camera to adjust the white balance
automatically.
Color effect
Set color effect.
Effects
Set SILLY TACES and BACKGROUND.
Time lapse
interval
Set the time lapse interval.
Camera
settings
Set the Video quality, Store location, Exposure,
Scene mode, Video duration, Microdevice,
Anti-flicker, Audio mode or restore default
settings.
Gallery
Opening Gallery
Touch in the Home Screen and select Gallery to view
albums of your pictures and videos.
104
Working With Albums
When you open Gallery, all pictures and videos on your device
are displayed in a number of albums.
To view album contents:
Touch an album to view the pictures and videos it contains.
To share albums:
1. Touch and hold an album until it is selected.
2. Touch more albums that you want to share.
3. Touch at the top of the screen and select how you want
to share the albums.
To view details of an album:
1. Touch and hold an album until it is selected.
2. Touch > Details.
To delete albums:
1. Touch and hold an album until it is selected.
2. Touch more albums that you want to delete.
3. Touch > Delete.
Working With Pictures
Touch a picture in an album to view the picture in full screen.
Double-touch the picture, or pinch two fingers together or
105
spread them apart to zoom out or in. Slide left or right to view
other pictures in the album.
Touch to delete the picture, browse the album contents in a
slideshow, rotate the picture, view picture file detail, set it as
contact icon or wallpaper, or edit it.
NOTE: All the options may not be available for certain albums
or pictures.
Retouching Your Pictures
You can edit any photos you took and some other pictures in
Gallery. The changed picture is saved in the Edited album,
while the original image is never affected.
1. Touch > Edit while viewing a picture in full screen to open
the Edit interface.
2. Touch the icons along the bottom of the screen to edit the
picture.
Add fill light, high light or shadows, or set to auto-fix.
Apply effects such as cross-process, posterize, lomo,
documentary, vignette, film grain and fisheye, etc.
Apply color effects such as warmth, saturation, B&W,
sepia, negative, tint, duo-tone and doodle, etc.
Crop, fix red eye, face glow, face tan, straighten, rotate,
flip, or sharpen the picture.
3. To undo or redo the changes you’ve made to the picture,
touch or at the top of the screen.
106
4. Touch SAVE to save the new picture to the Edited album.
Sharing Your Pictures
1. Touch an album in the gallery and then touch a picture.
2. Touch at the top of the screen. If the icon is invisible,
touch the screen first.
3. Select how you want to share the picture.
Working With Videos
Playing Videos
1. Touch an album in the gallery and then touch the thumbnail
of a video.
2. Touch at the center to start playing.
Touch the video to view the playback controls.
Sharing Videos
1. Touch an album in the gallery and then touch the thumbnail
of a video.
2. Touch at the top of the screen. If the icon is invisible,
touch the screen first.
3. Select how you want to share the video.
107
Music
Touch in the Home Screen and select Music to play audio
files stored on your device. Music supports a wide variety of
audio formats, so it can play music you purchase from online
stores, music you copy from your CD collection, and so on.
Copying Music Files to Your Device
Before using Music, you need to copy audio files from your
computer to your device’s memory card. See Connecting to
Networks and Devices – Connecting to Your Computer via USB
for details on establishing the connection.
Use the computer to copy music and other audio files into the
memory card. You can use folders to organize your music files.
TIP: If an album has accompanying artwork in JPEG format,
rename the artwork file albumart.jpg and include it and the
album’s songs in the same folder, separated from other files. In
this way, the device will recognize the image as the album
artwork and you can see it on the device in the Music app.
Playing Your Music
Touch in the Home Screen and select Music to play your
digital audio files.
1. Select Artists/Albums/Songs/Playlists to find the songs
108
you want to play.
2. Touch an item from the list to start playing.
NOTE: You can adjust the volume with the Volume Keys.
Creating Playlists
Playlists help you organize your music files:
1. Select a song in Music you want to add to a new playlist.
2. Touch and hold the song until a shortcut menu pops up.
3. Touch Add to playlist.
4. Touch New.
5. Type the playlist name and touch Save.
Managing Playlists
1. From the Music Screen touch Playlists to see them all.
2. Touch and hold the playlist you want to play or edit until a
shortcut menu pops up.
3. Touch Play, Delete or Rename.
Adding a Song to a Playlist
1. Open Music and find the song you need under Artists,
Albums, Songs or Playlists.
2. Touch and hold the song until a shortcut menu pops up.
3. Touch Add to playlist.
109
4. Select a playlist.
Setting a Song as Ringtone
1. Open Music and find the song you need under Artists,
Albums, Songs or Playlists.
2. Touch and hold the song until a shortcut menu pops up.
3. Touch Use as device ringtone.
110
Video Player
Use the video player to play various kinds of videos.
Opening the Video Library
Touch in the Home Screen and select Video Player to
view your video library.
Playing and Control Videos
Touch a video in the video library to play it. Rotate the device on
its side to watch the video in landscape view.
Touch the video to show the playback controls. You can pause
and resume the playback, or jump to any part of the video. You
can also exit the video by touching at the top left of the
screen.
Managing Video Files
To delete videos:
1. Touch and hold a video in the video library. The video is
highlighted.
2. To remove more videos, touch them.
111
3. Touch > Delete at the bottom left of the screen.
To share videos:
1. Touch and hold a video in the video library. The video is
highlighted.
2. To share more videos, touch them.
3. Touch on the screen and select how you want to share
them.
To rename a video:
1. Touch next to the video you want to rename.
2. Touch Rename.
3. Type the new video name and touch OK.
To view details of a video:
1. Touch next to the video you want to view the details of.
2. Touch Details.
Sound Recorder
Sound Recorder enables you to record voice memos and
listen to them whenever you like.
Recording a Voice Memo
1. Touch in the Home Screen and select Sound
Recorder.
112
2. Touch to start recording.
3. Touch to stop recording. The memo is automatically
saved.
If you don’t want to save the memo after recording it, touch
Discard to delete it.
Playing a Voice Memo
To play a memo you just recorded:
Touch on the screen.
To play any saved memo:
1. Touch > File Manager to see the Voice.
2. Touch the title of a memo to play it.
3. Touch > Selected Files to copy, move, delete.
More Apps
Alarm
Set alarms or turn the device into a bedside clock.
Setting a New Alarm
1. Touch in the Home Screen and select Clock.
2. Touch Set alarm on the screen to set the alarm and
113
touch Add alarm to create a new alarm.
3. Touch Turn alarm on and set up the alarm options, such as
time, repeat, ringtone and vibrate.
4. Press OK to save.
Calculator
Touch in the Home Screen and select Calculator.
File Manager
Quickly access all of your images, videos, audio clips, and other
types of files on your device and the memory card.
Touch in the Home Screen and select File Manager.
Touch the folder name at the top of the screen to switch
between the memory card storage and the device storage.
YouTube
Touch in the Home Screen and select YouTube.
You can watch YouTube videos or upload your own.
Play Store
Touch in the Home Screen and select Play Store. You can
buy or rent music, books, movies, apps, and download them to
your device.
114
Browsing and Searching for Apps
You can browse apps by category and sort them in different
ways. Touch a top-level category, such as Music and touch the
app from any subcategory.
You can also search for apps using an app’s name or
description, or the developer’s name. Just touch Google search
and enter the search terms.
Downloading and Installing Apps
When you find the app you are interested in through browsing
or searching, touch it to open its details screen, where more
information about the app is displayed.
1. Touch Downloads (free apps) or the price (paid apps) in the
app details screen.
2. If the app is not free, you need to sign in to your Google
Wallet account and select a payment method.
3. Touch Accept & download (free apps) or Accept & buy
(paid apps) to accept the permissions for the app. Your app
will start downloading immediately or once payment is
successfully authorized.
Managing Your Downloads
After you’ve downloaded and installed an app, you can rate it,
view it in a list with your other downloaded apps, configure it to
115
update itself automatically, and so on.
Viewing Your Downloaded Apps
1. On the Apps screen of Play Store, touch > (My
Apps).
2. Your list of installed apps opens, you can touch one to rate it,
uninstall it, request a refund, and so on.
TIP: Swipe left from the INSTALLED list to the ALL list, where
you can view all the apps you downloaded previously on the
device as well as other Android devices using the same Google
account.
Uninstalling an App
1. Touch Home Key > > Settings > Apps.
2. In the DOWNLOADED list, touch an app to open its details
screen.
3. Touch Uninstall updates.
Settings
Touch in the Home Screen and select Settings. The
Settings app contains most of the tools for customizing and
configuring your device.
116
Wireless and Networks
Wi-Fi
Turn on or off Wi-Fi and configure your Wi-Fi connections. See
Connecting to Networks and Devices – Connecting to Wi-Fi.
Bluetooth
Turn on or off Bluetooth and configure your Bluetooth
connections. See Connecting to Networks and Devices –
Connecting to Bluetooth Devices.
Data Usage
Touch the ON/OFF switch to turn on or off mobile data.
You can check how much data has been used during the time
circle you set, set mobile data limit and warning, see what app
has been using mobile data, or restrict background data for
individual apps.
Call
Customize the settings for device calls. See Device Calls –
Adjusting Your Call Settings.
Airplane Mode
In the Settings app, touch More under Wireless & networks
and check the box next to Airplane mode. All the device’s
117
radios that transmit voice or data are turned off.
VPN
Set up and connect to virtual private networks. See Connecting
to Networks and Devices – Connecting to Virtual Private
Networks.
Tethering and Portable Hotspot
Share your device’s mobile data connection with PCs or other
devices via USB or Wi-Fi. See Connecting to Networks and
Devices – Sharing Your Mobile Data Connection.
Wi-Fi Direct and Settings
Use Wi-Fi direct to share data between two devices via Wi-Fi
directly. See Connecting to Networks and Devices – Using
Wi-Fi Direct.
Mobile Networks
Control mobile data use, select mobile network and set access
point names. See Connecting to Networks and Devices –
Connecting to Mobile Networks.
Device
Sound
Adjust volumes (see Personalizing – Adjusting Volumes), set
118
up ringtone and notification sound (see Personalizing –
Changing Ringtone and Notification Sound), and select system
sounds.
Touch Silent mode to turn off all sounds except media and
alarm, or enable silent mode with vibration.
Display
Brightness: Set the brightness of the display.
Wallpaper: Select a background image for the Home
Screen.
Auto-rotate screen: Rotate the screen display as you
rotate the device.
Sleep: Set the length of time of inactivity before the screen
turns off.
Font size: Set the font size of the text on the screen.
Pulse notification light: Flash the LED light to notify you of
missed calls, new messages, and other events.
Storage
Check memory information for your memory card and internal
storage.
Unmount SD card: Unmount the memory card from your
device so that you can safely remove the card while the
device is on.
Erase SD card: Erase all data on your memory card and
119
prepare it for use with your device.
Battery
Check how much power remains for the battery and what has
been using the battery.
Apps
See apps installed on your device and manage them.
Touch an app in the DOWNLOADED, RUNNING, or ALL tab to
see its information. You can stop the app, uninstall the app,
clear data and cache, or move the app.
NOTE: Not all applications can be moved or uninstalled.
Connecting to PC
Set the USB computer connection type for your device
whenever you connect the device to PC.
Personal
Accounts and Sync
Manage your accounts and synchronization settings.
Touch the ON/OFF switch to turn on or off auto-sync.
Touch ADD ACCOUNT to sign in or create accounts on
your device.
120
Touch an account to set the sync settings for that account.
You can then touch > Sync now to sync all checked
items.
Touch an account and then touch > Remove account to
remove the account and all information related to it from
your device.
Location Services
Activate location services to determine your location. See Maps,
Navigation, Places and Latitude – Activating Location Services.
Select Location & Google search to improve Google search
results and other services using your location information.
Security
Screen lock: Lock the screen with slide, pattern, PIN, or
password. See Personalizing – Protecting Your Device With
Screen Locks.
Owner info: Set the text that you may display on the lock
screen.
Encrypt tablet: Encrypt your data on the device to protect
your privacy. See Personalizing – Protecting Your Device
With Encryption.
Set up SIM/RUIM card lock:
Lock SIM card: Activate or deactivate the PIN lock to
require PIN before accessing the SIM card.
121
Change SIM PIN: Change the PIN used to access the
SIM card.
Make passwords visible: Display passwords as you enter
them.
Device administrators: View or deactivate apps you have
authorized to be device administrators.
Unknown sources: Tick the checkbox to permit installation
of apps from sources other than the Play Store.
Trusted credentials: Display trusted CA certificates.
Install from SD card: Install certificates from the memory
card.
Clear credentials: Delete all certificates.
Language and Input
Language: Select a language and region for your system.
Spelling correction: Check spelling of the text you enter.
Personal dictionary: Add new words to the device’s
dictionary or remove words from the dictionary. The words
you add are used for spelling check and word suggestion.
KEYBOARD & INPUT METHODS: Configure text input
settings. See Knowing the Basics – Entering Text – Touch
Input Settings.
Voice Search:
Language: Select the language you use when entering
text by speaking or searching by speaking.
122
SafeSearch: You can use Google SafeSearch filtering
to block some results when you use Google search by
voice.
Block offensive words: Replace offensive words with
asterisk (*) when you use Google voice recognition to
transcribe your voice into text.
Text-to-speech output:
PREFERRED ENGINE: Select the speech synthesis
engine you want to use or change its settings.
Speech rate: Select how quick you want the synthesizer
to speak.
Listen to an example: Play a brief sample of the
speech synthesizer, using your current settings.
Pointer speed: Select how fast the screen should scroll as
you flick the screen.
Backup and Reset
Back up my data: Back up app data, Wi-Fi passwords, and
other settings to Google servers after you sign in to your
Google account.
Backup account: Set the backup account.
Automatic restore: Restore previously backed up settings
and data when you reinstall an app.
Factory data reset: Reset your device to factory status. All
your personal data from the device’s internal storage will be
123
erased. You can also erase the data on the memory card
during the process.
System
Date and Time
Set date, time, time zone, and how date and time are displayed.
You can also use network-provided data.
Accessibility
Configure accessibility plug-ins on your device, such as using
Large text or Touch & hold delay for the visually-impared.
Developer Options
Developer options contains settings that are useful for
developing Android applications.
About Tablet
View device status and legal information. You can also check
for system updates.
124
Troubleshooting
If you encounter problems while using the device, or if it
performs abnormally, you can refer to the chart below. If your
particular problem cannot be resolved using the information in
the chart, contact the dealer where you purchased the device.
Problem
Possible causes
Possible solution
Poor
reception
The network signal is
too weak at your
current location, for
example, in a
basement or near a
tall building, because
wireless
transmissions can not
effectively reach it.
Move to a location
where the network
signal can be properly
received.
The network is busy
at the current time (for
example, during peak
times, there may be
too much network
traffic to handle
additional calls).
Avoid using the device
at such times, or try
again after waiting a
short time.
125
Problem
Possible causes
Possible solution
You are too far away
from a base station for
your service provider.
You can request a
service area map from
your service provider.
Echo or
noise
Poor network trunk
quality on the part of
your service provider.
To end the call and dial
again. You may be
switched to a
better-quality network
trunk or device line.
Unable to
select certain
features
Your service provider
does not support
these features, or you
have not applied for
services that provide
these features.
Contact your service
provider.
Battery not
charge
The battery or battery
charger is damaged.
Contact the dealer.
The device’s
temperature is below
0°C or higher than
45 °C.
Adjust the battery
charging environment
to avoid extremes of
temperature.
Poor contact between
the battery and
Check all connectors
to make sure all
126
Problem
Possible causes
Possible solution
charger.
connections have
been properly made.
Shortened
standby time
The standby time is
related to your service
provider system
configuration. The
same device used
with different service
providers’ systems
will not provide
exactly the same
length of standby
time.
If you are located in an
area where signaling is
weak, temporarily
power off the device.
The battery is depleted.
In high-temperature
environments, battery
life will be shortened.
Use a new battery.
If you are not able to
connect to the
network, the device
will continue to send
out signals as it
attempts to locate a
Change your location
to one where the
network is accessible,
or temporarily turn off
your device.
127
Problem
Possible causes
Possible solution
base station. Doing so
consumes battery
power and will
consequently shorten
standby time.
Cannot
switch your
device on
Battery power has
been depleted.
Recharge the device’s
battery.
SIM card
error
SIM card malfunction
or damage.
Take the SIM card to
your service provider
for testing.
SIM card inserted
improperly.
Insert the SIM card
properly.
Debris on the SIM
card contacts.
Use a soft, dry cloth to
clean the SIM card
contacts.
Unable to
connect to
the network
SIM card invalid.
Contact your service
provider.
You are not within the
network’s service
area.
Check the service area
with your service
provider.
128
Problem
Possible causes
Possible solution
Poor signal.
Move to an open
space, or if you are
inside a building, move
closer to a window.
Cannot
answer
incoming
calls
You have activated
the Call barring
feature.
Go to Settings > Call
settings > Call
Barring Settings, and
then select Deactive
All.
You cannot
make
outgoing
calls.
You have activated
the Call barring
feature.
Go to Settings > Call
settings > Call
Barring Settings, and
then select Deactive
All.
You have activated
the Fixed Dialing
Numbers feature.
Go to Settings >
Security > Fixed
Dialing Numbers and
disable the feature.
PIN Code
blocked
You have entered an
incorrect PIN code
three consecutive
times.
Contact your service
provider. If the service
provider provides the
SIM card’s PUK code,
use the PUK code to
129
Problem
Possible causes
Possible solution
unlock the SIM card.
Unable to
enter
information
into the
people
contacts
The device people
contacts’ memory is
already full.
Delete unnecessary
data from the contacts.
130
For Your Safety
General Safety
Don’t make or receive
handheld calls while
driving. And never text
while driving.
Don’t use at petrol
stations.
Keep your device at
least 15 mm away from
your ear or body while
making calls.
Your device may produce
a bright or flashing light.
Small parts may cause a
choking.
Don’t dispose of your
device in fire.
Your device can
produce a loud sound.
Avoid contact with
anything magnetic.
Keep away from
pacemakers and other
electronic medical
devices.
Avoid extreme
temperatures.
Switch off when asked
to in hospitals and
medical facilities.
Avoid contact with
liquids. Keep your device
dry.
131
Switch off when told to
in aircrafts and airports.
Don’t take your device
apart.
Switch off when near
explosive materials or
liquids.
Only use approved
accessories.
Don’t rely on your device for emergency communications.
To prevent possible hearing damage, do not listen at high
volume levels for long periods.
FCC Regulations:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
This device has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
132
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
Caution: Changes or modifications not expressly approved by
the party responsible for compliance could void the user‘s
authority to operate the equipment.
RF Exposure Information (SAR)
This device is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the United
States, Industry Canada of Canada.
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed
in positions that simulate RF exposure in usage against the
133
head with no separation, and near the body with the separation
of 0 mm. Although the SAR is determined at the highest
certified power level, the actual SAR level of the device while
operating can be well below the maximum value. This is
because the device is designed to operate at multiple power
levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6W/kg, and 1.6W/kg
by Industry Canada.
This device is complied with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and
Canada RSS 102, and had been tested in accordance with the
measurement methods and procedures specified in OET
Bulletin 65 Supplement C, and Canada RSS 102. This device
has been tested, and meets the FCC, IC RF exposure
guidelines when tested with the device directly contacted to the
body.
The FCC has granted an Equipment Authorization for this
model device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model device is on file with the FCC and can
134
be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
Q78-ZTEV72
For this device, the highest reported SAR value for usage near
the body is 1.44 W/kg.
While there may be differences between the SAR levels of
various devices and at various positions, they all meet the
government requirements.
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a device while driving
135
(even with a hands free kit) can cause distraction and lead to an
accident. You must comply with local laws and regulations
restricting the use of wireless devices while driving.
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your device and any
consequences of its use.
You must always switch off your device wherever the use of a
device is prohibited. Use of your device is subject to safety
measures designed to protect users and their environment.
Always treat your device and its accessories with care
and keep it in a clean and dust-free place.
Do not expose your device or its accessories to open
flames or lit tobacco products.
Do not expose your device or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your device or its
accessories.
Do not use harsh chemicals, cleaning solvents, or
136
aerosols to clean the device or its accessories.
Do not paint your device or its accessories.
Do not attempt to disassemble your device or its
accessories, only authorized personnel can do so.
Do not expose your device or its accessories to extreme
temperatures, minimum - [5] and maximum + [50]
degrees Celsius.
Please check local regulations for disposal of electronic
products.
Do not carry your device in your back pocket as it could
break when you sit down.
Small Children
Do not leave your device and its accessories within the reach of
small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the device.
Your device contains small parts with sharp edges that may
cause an injury or may become detached and create a choking
hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your device for a long time.
137
Electrostatic Discharge (ESD)
Do not touch the SIM card’s metal connectors.
Air Bags
Do not place a device in the area over an air bag or in the air bag
deployment area as an airbag inflates with great force and
serious injury could result.
Store the device safely before driving your vehicle.
Seizures/Blackouts
The device can produce a bright or flashing light. A small
percentage of people may be susceptible to blackouts or
seizures (even if they have never had one before) when exposed
to flashing lights or light patterns such as when playing games or
watching video. If you have experienced seizures or blackouts or
have a family history of such occurrences, please consult a
physician.
Repetitive Strain Injuries
To minimize the risk of Repetitive Strain Injury (RSI) when texting
or playing games with your device:
Do not grip the device too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize the
times of pressing buttons, such as Message Templates and
138
Predictive Text.
Take lots of breaks to stretch and relax.
Emergency Calls
This device, like any wireless device, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless device for
emergency communications.
Loud Noise
This device is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headdevices, Bluetooth stereo headsets or other audio devices.
Device Heating
Your device may become warm during charging and during
normal use.
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as coins
or key rings, to contact or short-circuit in the battery terminals.
139
Connection to a Car
Seek professional advice when connecting a device interface to
the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the device or its accessory.
Only qualified personnel can service or repair the device or its
accessory.
If your device or its accessory has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you
have taken it to be checked at an authorized service centre.
Radio Frequency Interference
General Statement on Interference
Care must be taken when using the device in close proximity to
personal medical devices, such as pacemakers and hearing
aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile device and
a pacemaker to avoid potential interference with the pacemaker.
To achieve this, use the device on the opposite ear to your
pacemaker and do not carry it in a breast pocket.
140
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source, increasing
the separation between them may reduce the interference. You
may also consult your hearing aid manufacturer to discuss
alternatives.
Medical Devices
Please consult your doctor and the device manufacturer to
determine if operation of your device may interfere with the
operation of your medical device.
Hospitals
Switch off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive medical
equipment.
Aircraft
Switch off your wireless device whenever you are instructed to do
so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft. If your device offers a ‘flight mode’, this must
141
be enabled prior to boarding an aircraft.
Interference in Cars
Please note that because of possible interference to
electronic equipment, some vehicle manufacturers forbid the
use of mobile devices in their vehicles unless a hands-free kit
with an external antenna is included in the installation.
Explosive Environments
Petrol Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your device or
other radio equipment.
Areas with potentially explosive atmospheres include fuelling areas,
below decks on boats, fuel or chemical transfer or storage
facilities, areas where the air contains chemicals or particles,
such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile device or wireless device when in a
blasting area or in areas posted power off “two-way radios” or
“electronic devices” to avoid interfering with blasting operations.
