ZXV10ET501
ProductDescription
Version:V2.0.1
ZTECORPORATION
No.55,Hi-techRoadSouth,ShenZhen,P .R.China
Postcode:518057
Tel:+86-755-26771900
Fax:+86-755-26770801
URL:http://support.zte.com.cn
E-mail:800@zte.com.cn
LEGALINFORMATION
Copyright©2017ZTECORPORATION.
Thecontentsofthisdocumentareprotectedbycopyrightlawsandinternationaltreaties.Anyreproductionor
distributionofthisdocumentoranyportionofthisdocument,inanyformbyanymeans,withoutthepriorwritten
consentofZTECORPORATIONisprohibited.Additionally,thecontentsofthisdocumentareprotectedby
contractualcondentialityobligations.
Allcompany,brandandproductnamesaretradeorservicemarks,orregisteredtradeorservicemarks,ofZTE
CORPORATIONoroftheirrespectiveowners.
Thisdocumentisprovided“asis”,andallexpress,implied,orstatutorywarranties,representationsorconditions
aredisclaimed,includingwithoutlimitationanyimpliedwarrantyofmerchantability,tnessforaparticularpurpose,
titleornon-infringement.ZTECORPORATIONanditslicensorsshallnotbeliablefordamagesresultingfromthe
useoforrelianceontheinformationcontainedherein.
ZTECORPORATIONoritslicensorsmayhavecurrentorpendingintellectualpropertyrightsorapplications
coveringthesubjectmatterofthisdocument.ExceptasexpresslyprovidedinanywrittenlicensebetweenZTE
CORPORATIONanditslicensee,theuserofthisdocumentshallnotacquireanylicensetothesubjectmatter
herein.
ZTECORPORATIONreservestherighttoupgradeormaketechnicalchangetothisproductwithoutfurthernotice.
UsersmayvisittheZTEtechnicalsupportwebsitehttp://support.zte.com.cntoinquireforrelatedinformation.
TheultimaterighttointerpretthisproductresidesinZTECORPORATION.
RevisionHistory
RevisionNo.RevisionDateRevisionReason
R1.02017-04-10Firstedition
SerialNumber:SJ-20161028111501-001
PublishingDate:2017-04-10(R1.0)
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Contents
AboutThisManual.........................................................................................I
Chapter1SafetyPrecautions....................................................................1-1
Chapter2ProductPositioningandFeatures..........................................2-1
Chapter3ProductStructure.....................................................................3-1
3.1SystemComponents..........................................................................................3-1
3.2ProduceOverview..............................................................................................3-2
Chapter4ProductFunctions....................................................................4-1
Chapter5NetworkDeployment................................................................5-1
5.1NetworkingModes..............................................................................................5-1
5.2DefaultPorts.....................................................................................................5-2
Chapter6InterfacesandProtocols..........................................................6-1
Chapter7TechnicalSpecications..........................................................7-1
Glossary..........................................................................................................I
I
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Thispageintentionallyleftblank.
II
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
AboutThisManual
Purpose
Asanew-generationET-seriesvideoconferenceterminalproductlaunchedbyZTEbased
ontheandroidplatform,theZXV10ET501provideshigh-denitionvideoconference
services.
ThismanualisapplicabletotheZXV10ET501high-denitionvideocallterminal.
Itdescribestheproductpositioningandfeatures,structure,functions,networking
application,interfacesandprotocols,andtechnicalspecicationsoftheZXV10ET501
terminal.Ithelpsusersquicklyunderstandtheproductpositioningandfeatures.
TheMultipointControlUnit(MCU)inthismanualreferstotheZTEself-developed
multimediavideoconferenceserver,forexample,ZXV10M900orZXV10M9000.
IntendedAudience
Thisdocumentisintendedfor:
lSystemadministrators
lHardwareengineers
lInstallationengineers
WhatIsinThisManual
Thismanualcontainsthefollowingchapters.
ChapterSummary
Chapter1,SafetyPrecautionsDescribestheprecautionsthatyouneedtofollowduringthe
installationanduseoftheZXV10ET501terminal.
Chapter2,ProductPositioning
andFeatures
DescribesthemarketpositioningandfeaturesoftheZXV10ET501.
Chapter3,ProductStructureDescribesthesystemcomponents,overview,frontpanel,andback
paneloftheZXV10ET501.
Chapter4,ProductFunctionsDescribesthemajorfunctionsoftheZXV10ET501.
Chapter5,Network
Deployment
Describesthetypicalnetworkingmodeandapplicationscenariosof
theZXV10ET501andtheopeningsolutionsofthedefaultports.
Chapter6,Interfacesand
Protocols
DescribestherolesofthephysicalinterfacesontheZXV10ET501
terminalandthematchingprotocols.
Chapter7,T echnical
Specications
Describesthestandards,environmentrequirements,andmajor
technicalspecicationsfortheZXV10ET501terminal.
RelatedDocumentation
Thefollowingdocumentationisrelatedtothismanual:
I
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ManualDescription
ZXV10ET501QuickStartGuideDescribeshowtoperformquickconnectionbetweenterminals
andtheotherequipment,andcreateaconference.
ZXV10ET501OperationGuide
(ThroughtheRemoteControl&
Touchscreen)
Describeshowtoconguretheterminal,createaconference,
controlaconference,performsystemdiagnosisand
maintenancebyusingtheremotecontrol&touchscreen.
ZXV10ET501OperationGuide
(OvertheWebPage)
DescribeshowtocontrolaterminalovertheWebpage.
Conventions
Thismanualusesthefollowingconventions.
Caution:indicatesapotentiallyhazardoussituation.Failuretocomplycanresultin
moderateorminorpersonalinjury.
Notice:indicatesequipmentorenvironmentsafetyinformation.Failuretocomply
canresultinequipmentdamage,dataloss,equipmentperformancedegradation,
environmentalcontamination,orotherunpredictableresults.
Note:providesadditionalinformationaboutatopic.
II
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter1
SafetyPrecautions
BasicRequirements
lWhentransporting,storing,orusingdevice,keepitdryandavoidhardcollision.
lDonotdisassemblethedeviceoropentheenclosure.Incaseofanydevicefailure,
contactZTEtechnicalsupport.
lWithoutauthorization,nounitorindividualisallowedtomodifythedevicestructure,
security,orperformancedesign.
lTheinstallation,operationandmaintenancepersonnelmustbewelltrained,follow
correctoperatingprocedures,andcomplywithsafetyprecautionsduringdevice
installation,operation,maintenance,disassembly,andinspection.
lWhenusingthisdevice,followtherelevantlawsandregulationsandrespectthe
legitimaterightsofothers.
UnpackingandInspection
lThesurfaceofthedeviceshouldbesmoothwithoutobviousdefect,scratch,foreign
object,waterstain,oroilstain.
lAllinterfacesaresecuredwell.
lAlllabelsareclearandthecoatingisnotdamaged.
lAllcablesarenotdamaged,stained,orbroken.
EnvironmentRequirements
lEnsurethatthedeviceisinstalledinanenvironmentwithgoodventilationandwithout
directlight.
lEnsurethatthedeviceisawayfromaheatsourceorahightemperaturearea,and
thedeviceisnotexposedtodirectsunlight.Fordetails,refertoTable7-1.
lDonotinstallthedeviceinanenvironmentwithseverevibration.
lEnsurethatthedeviceisawayfromammablematerials,forexample,foammaterial.
lEnsurethatthedeviceisclean.
lEnsurethatdeviceisawayfromelectricapplianceswithastrongmagneticeldor
electriceld,suchasamicrowaveovenandrefrigerator.
InstallationInstructions
lTakeproperprotectivemeasuresforelectrostaticdischarge.Forexample,wear
antistaticglovesoranantistaticwriststrapbeforeinstallingthedevice.
lPlacethedeviceonaplatformthatchildrencannottouch.Donotplaceheavyobjects
ontopofthedevice.
1-1
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
lEnsurethatthereisnohigh-powerdevicewithintherangeof5metersaroundthe
device.Neverusethesamepower-supplycableforthedeviceandahigh-power
devicenorconnectthedevicetothesameACpowerstripwithahigh-powerdevice.
lEnsurethatthereisnofacilitythataffectsheatdissipationwithintherangeofone
meteraroundthedevice.Ensurethatthedeviceventsarenotblockedtoavoid
overheating.
Power-onandpower-off
lCheckbeforepower-on:
1.CheckwhethertheZXV10ET501terminalisstable.Iftheproductshakesduring
operation,conferencesareaffected.
2.EnsurethatpowerandvoltageareintherangesrequiredbytheZXV10ET501.
Fortheoperatingvoltagerange,refertoT able7-1.
3.Ensurethatallcablesareconnectedcorrectlyandrmly.
lPower-onsteps:
1.Turnonthemainpowerswitchofthevideoconferencingsystem.
2.Poweronthemonitor,PA,andotherperipheraldevices,andensurethatthey
operateproperly.
3.ConnectpowertotheZXV10ET501,andpressthepowerswitchonthefront
panellightly.
àPowersurgeoccurswhenanexternaldeviceispoweredonoroff,
transmittinginterferencesignalstotheZXV10ET501andprobablycausing
astartupfailureorfaultontheZXV10ET501.Externaldevicesmustbe
poweredonbeforetheZXV10ET501isstarted.
àAftertheZXV10ET501isstarted,checkthestatusindicator.Theindicator
islitbluewhentheZXV10ET501operatesproperly.
Note:
àTheperipheralssufferaninrushcurrentwhentheyarepoweredupandshut
down,andasaresulttheysendinterferencesignalstotheterminal.Thismay
causeastartupfailure.Thus,youshouldpoweruptheperipheralsbeforestarting
upthesystem.
àAftertheZXV10ET501terminalstartsup,youshouldchecktheindicatorsonthe
frontpanel.TheRUNindicatorashesyellowgreenwhenthesystemoperates
properly.
lSleepmode:
Pressthepowerswitchonthefrontpanellightly.
lPower-offsteps(oppositetothepower-onprocedure):
1.PowerofftheZXV10ET501terminal.
1-2
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter1SafetyPrecautions
2.Poweroffthemonitor,PA,andotherperipheraldevices.
3.Turnoffthemainpowerswitchofthevideoconferencingsystem.
UsageInstructions
lDonotfrequentlypulloutandplugtheinputandoutputconnectors.
lDonotpulloutandplugtheHDMIcablebeforetheswitchisturnedoff.
lAfteryoupoweroffthedevice,waitforatleast15secondsbeforeyoupoweriton.
lBeforecleaningtheproduct,poweritoffanddisconnectthepowercable.Useasoft
anddryclothtocleanthedevicecase.
lIftheproductisnotusedorbeforecleaningtheproduct,ensurethattheproductis
poweredoffandthepowercableisdisconnected.
BatteryUsageInstructions
lUsecorrectbatterymodelsandinstallthebatteriescorrectly.Improperbattery
replacementmaycauseanexplosion.
Note:
TheterminalusestheCR20323Vlithiumbatteries,andtheterminalcontrolusestwo
AAAbatteries.
lIfthebatteriescannotbeinstalledinthedevicecorrectly,donotsqueezethebatteries
hard.Otherwise,thebatteriesmayleakliquidorexplode.
lReplacethebatteriesimmediatelyiftheyleadliquid,smoke,oremitasmell.
lDonotuseoldandnewbatteriestogether.Replaceallbatteriesatthesametime.
lIfbatteryliquidstickstoyourskinorclothes,washitwithplentyofwaterandgotothe
hospitalformedicaltreatment.
lIfbatteryliquidsplashesintoyoureyes,donotrubyoureyes.Washthemwithplenty
ofwaterandgotothehospitalformedicaltreatment.
lTakebatteriesoutifyoudonotusethesystemforalongtime.
lHandletheexhaustedbatteriesinaccordancewiththebatteryusageinstructions.
EnvironmentalProtection
Donotthrowabandoneddevicesintoatrashcan.Youshouldcomplywiththelocal
regulationsonequipmentpackagingmaterials,exhaustedbatteries,andreplaceddevices
andsupportmaterialcollection.
RouterUsageInstructions
Youshouldcomplywiththefollowingregulations:
lUseenterprise-classswitchesandrouters.
lNeverusehubs.
1-3
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
lTheroutersoftwaremustsupporttheQoSprotocolandalgorithm.Otherwise,you
shouldupgradetheroutersoftware.
lCongureQoSforvideoandordinaryservicesonrouterstoensurethatvideopackets
arenotdiscardedincaseofnetworkcongestion.
lCongureWorkModeoftheconnecteddeviceinaccordancewiththefollowing
requirements:
àWhenyouconnectaterminal,setthenetworkinterfacetoAuto,andsetthe
networkdeviceonthepeerendtoAutoaswell.Insomecases,bothendscan
be(butnotrecommendedto)setto100M/Full-duplex.Neversetoneendto
Autoandsettheotherendto100M/Full-duplex.
àBecausethenetworkinterfaceoftheMCUZXV10M9xxxissettoAutoandit
cannotbemodied,thenetworkinterfaceconnectedtotheZXV10M9xxxcanbe
setonlytoAuto.
Notice!
Iftheterminal,MCU,andnetworkdevicearesettodifferentworkmodes,network
packetsmaybelostinonedirection,andthevideoservicesareaffected.
Thesupplementaryrecommendationsareasfollows:
lThenumberofroutehopsshouldbeasfewaspossible.Thenumberofroute
hopsshouldbereduced,becausetoomanytransmissionhopsmayaffectthevideo
transmission.Thevideodeviceshouldbeconnectedtothemasterswitchingdevice.
lDifferentVLANsshouldbeusedtoisolatevideoconferenceservicesandother
services.
lIncaseofnetworkcongestion,thebuffersequenceshouldbeusedrst.Thelargerthe
buffer,thebetter,andthebuffershouldbeallocatedindependentlyforeachinterface.
FCCStatement
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigital
device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide
reasonableprotectionagainstharmfulinterferencewhentheequipmentisoperatedin
acommercialenvironment.Thisequipmentgenerates,uses,andcanradiateradio
frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,
maycauseharmfulinterferencetoradiocommunications.Operationofthisequipment
inaresidentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwillbe
requiredtocorrecttheinterferenceathisownexpense.
FCCRadiationExposureStatement
ThisdevicecomplieswithFCCradiationexposurelimitssetforthforanuncontrolled
environment.
1-4
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter1SafetyPrecautions
ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowing
twoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevice
mustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired
operation.
Caution!
Anychangesormodicationsnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
1-5
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
Thispageintentionallyleftblank.
1-6
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter2
ProductPositioningand
Features
ProductPositioning
TheZXV10ET501isacompactanddelicatevideoconferenceterminalbasedonthe
newgenerationETsmartplatform.ItprovidesanHDcamera,twoomnimicrophones,
awirelessWi-Fimodule,andhigh-speedinterfacestoprovideuserswith1080pHD
videoandbroadbandaudioexperience.TheZXV10ET501operatesreliablyandcanbe
installedeasilysoitisapplicabletosmall-scalevideoconferencesandhouseholds.
ProductFeatures
lInstallationanddeployment
àUsesahighlydensedesignthatsimpliesinstallationanddeployment
tothemost.Theterminalhasoneintegratedcameraandtwobuilt-in
omni-microphones.Theinterfacesaresimpliedbutextremelyeffective.
àSupportsmultiplemountingmodesthatareapplicabletovariousroomstructures.
Supportingbracketsareprovidedwiththeterminal.Besidesbeingplacedona
platform,theterminalcanbemountedonthewall,ontheceiling,oraboveaTV.
àProvidesawirelessWi-Fimodulethatenablestheterminaltoaccessanetwork
immediately.NoNetworkcablesneedtoberoutedfortheterminal.
àProvidesanaccesspointandtwowirelessmicrophonesthatcansharethe
desktopremotely.
lAudio/Videofeatures
àSupportsH.264andH.264HP .Comparedwithtraditionalvideoconference
terminals,theZXV10ET501useshalfofthebandwidthonly.
àSupports1080p30fpsHDvideos.
àSupportsAAC-LDandotherbroadbandvoicesignals,makingthevoiceclearand
pleasing.
àSupportsAcousticEchoCancellation(AEC),AutomaticNoiseSuppression
(ANS),AutomaticGainControl(AGC),andlipsynchronizationthatguarantee
Hi-Fiaudioperformance.
lEasyoperation
2-1
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
àVariouscontrolmodes:TheZXV10ET501canbecontrolledthroughthe
touchscreenTV,remotecontrol,andWebpage.UsingthetouchscreenTVto
controltheZXV10ET501makesthecongurationsandvideoconferenceseasy.
àTheoperationmenusandvideosareseparatelydisplayed,andthevideoscan
bedisplayedonotherdevicesthroughoutputinterfaces.
àVariousvideolayouts:localfullscreen,remotefullscreen,fullscreenofauxiliary
videos,Picture-In-Picture(PIP),andPicturebyPicture(PBP).
lNetworkadaptability
àSupportsQualityofService(QoS)andForwardErrorCorrection(FEC)settings.
àSupportsaudioandvideopacketlosscompensation.
àSupportsautomaticInternetProtocol(IP)speedadjustment.
àSupportstheNetworkAddressTranslation(NAT)/rewalltraversaltechnologies.
lInterconnectioncapabilities
àInterconnectswithmainstreamvideoterminalsorservers.
àInterconnectswiththeIMSnetworkseamlessly.
àProvidesHDandSDterminalsatthesametime.
àProvidestheintelligentaccesstoterminalsusingdifferentaudioandvideo
protocols.
àProvidestheintelligentaccesstoterminalsusingdifferentbandwidths.
àProvidestheaccessofH.323andSIPterminals.
2-2
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter3
ProductStructure
TableofContents
SystemComponents..................................................................................................3-1
ProduceOverview......................................................................................................3-2
3.1SystemComponents
Thesystemiscomposedoftheterminalandinfraredremotecontrol.Foradescriptionof
theZXV10ET501systemcomponents,refertoTable3-1.
Table3-1ComponentsoftheZXV10ET501System
Compo-
nent
FigureFunctionDescription
TerminalItisthecorepartofthesystem.Itsendsthelocal
imageandvoicetothetransmissionnetworkafter
encoding.Meanwhile,itoutputsthereceivedremote
imageandvoiceafterdecodingtothelocalvideo
device.
Infrared
remote
control
Itisthemainoperationandcontroldevice.
Youcancontrolthevideoconferencewithinashort
distanceviatheinfraredremotecontrol.
Fordetailedoperations,refertoRemoteControlUser
Guide.
(Op-
tional)
Wireless
micro-
phones
andaux-
iliary
video
transmit-
ter
TheZXV10A200providesthewirelessmicrophones
andauxiliaryvideotransmissionfunctionstothe
ZXV10ET501.
3-1
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
3.2ProduceOverview
FrontPanel
ForthefrontpaneloftheZXV10ET501,seeFigure3-1.

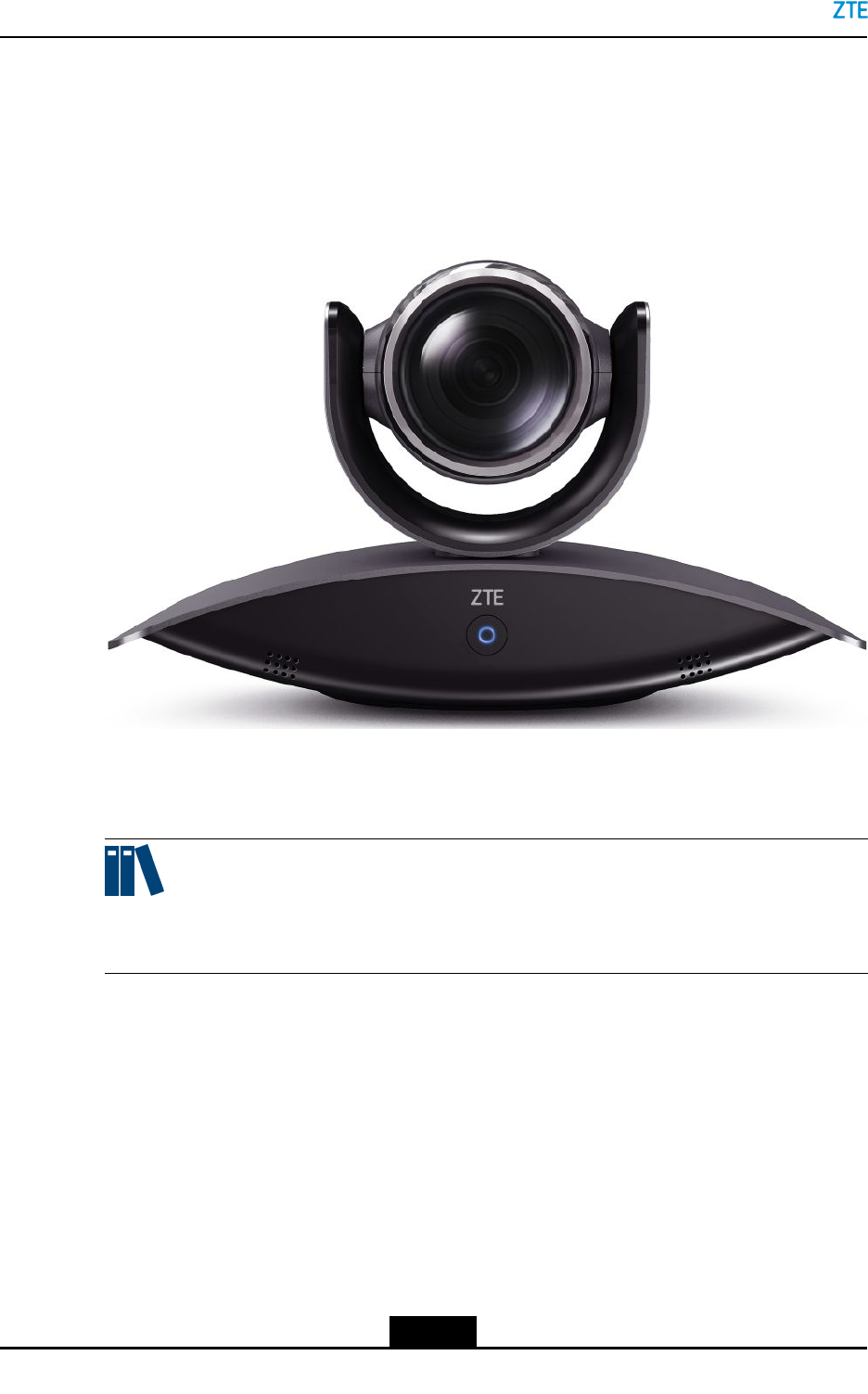

Figure3-1FrontPaneloftheZXV10ET501
ThereisastatusindicatoronthefrontpaneloftheZXV10ET501.IftheZXV10ET501is
operatingproperly,theindicatorissolidblue.
Note:
lInshut-downstatus,pressthepowerswitchtoturntheterminalon.
lInrunningstate,Cutoffthepowersupplytotoshuttheterminaldown.
RearPanel
ForadescriptionoftheinterfacesontherearpaneloftheZXV10ET501,refertoChapter
6InterfacesandProtocols.
3-2
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter4
ProductFunctions
ThefunctionsoftheZXV10ET501aredescribedasfollows:
Conferencecall
lCallsaterminaltoinitiateanaudioconferenceorvideoconference:Youcaninputthe
H.323number,SIPnumber,orIPaddressofthepeerdevicetoinitiateaconference.
Youcanalsoinitiateaconferencethroughtheaddressbookorlatestcallrecords.
lCallstheMCUservertocreateamulti-pointconference:Youcaninputthespecial
servicenumber(196or198)orIPaddressoftheMCUtocreateamulti-point
conference.
lCallstheMCUservertoparticipateinamulti-pointconference:Youcaninputthe
specialservicenumber(196or198),conferencenumber,orIPaddressoftheMCU
toparticipateinamulti-pointconference.
lAcceptsacallandparticipateinaconference.
lSupportsautomaticcallswhentheZXV10ET501ispoweredon.
lSupportsthecustomizedcallingandansweringmode:manualmode,automatic
mode,orautomaticrefusalmode.
lTheZXV10ET501canbeinterconnectedtotheclientsofMicrosoftLync2010and
MicrosoftLync2013.
lTheZXV10ET501canbeinterconnectedtoVT100seriesvideoconferencesoftware
terminalsdevelopedbyZTE.
Conferencecontrol
lSupportsthecomplicatedchairmancontrolfunctions,includingbroadcastingsites,
browsingsites,callingtheroll,addingterminalsduringaconference,disconnecting
terminals,deletingterminals,forcedlyrefusingterminals,controllingthemicrophones
andstereoequipmentofeachsite,andextendingconferenceduration.
lSupportsthebulksendingorpoint-to-pointtransmissionofshortmessagestorelease
conferenceinformationinatimelymanner.
lSupportstheexiblecaptionsettinganddisplay,sothattheconferencenoticationis
displayedclearly.
lSupportsthebannerdisplayofconferencesites,sothattheconferencetopicisclear
anddistinct.
lControlstheexternaldevicesofconferencesites,includingcameras,microphones,
andstereoequipment.
Userinterface
lTheZXV10ET501canbecontrolledthroughthetouchscreenTV,remotecontrol,and
Webpage.
lSupportsvideopicturesinvariouslayouts,includinglocalfull-screen,remote
full-screen,secondaryvideofull-screen,pictureinpicture,andpicturebypicture.
4-1
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
lSupportsthecustomizedsettingsofthedisplaycontentanddisplaymodeofthe
screen,includingtheterminalstatusicon,terminalname,systemalertbox,logo,
volumeindicationicon,andtransparencyofthemenuinterface.
lSupportsthetimesynchronizationfunctionofSimpleNetworkTimeProtocol(SNTP).
Standarddualstreams
lSupportsH.323dual-streamITU-TH.239andSIPdual-streamBFCP .
lSendstwo-channelindependent720pHDvideosignalstoremoteterminals.
lSupportsthecustomizedsecondaryvideobandwidthallocation.
Networkadaptability
lSupportstheQualityofService(QoS)andForwardErrorCorrection(FEC)functions.
lSupportsthevideoandaudiopacketlosscompensationfunction.
lSupportstheInternetProtocol(IP)automaticacceleration/decelerationfunction.
lSupportsNetworkAddressTranslation(NAT)/Firewalltraversaltechnology.
Securitymechanism
lUsesabuilt-inoperatingsystemwithacarrier-classreliabledesigntogreatlyimprove
theprocessingrateandanti-attackcapabilityoftheZXV10ET501andrealize24x7
hoursofreliableandstableoperation.
lSupportsvarioussecuritymechanisms,includingITU-TH.235encryption,terminal
registration,andpasswordauthentication.
4-2
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter5
NetworkDeployment
TableofContents
NetworkingModes......................................................................................................5-1
DefaultPorts.............................................................................................................5-2
5.1NetworkingModes
WhenaZXV10ET501terminalisconnectedtotheIPnetwork,itcanholdpoint-to-point
conferenceswithotherterminalsinthenetwork.Differentnetworkingmodesareusedfor
differentmultipointconferencetypes.
Figure5-1showsthenetworkingmodeinwhichaZXV10ET501holdsaconference
throughanexternalMCU(suchasthevideoconferenceserverZXV10M900).
lInareaA,theZXV10ET501terminalandtheMCUserverareinthesame
publicnetwork,whichisapplicabletoaconferenceamongdifferentcompaniesor
organizationsinthesamepublicnetwork.
lInareaB,theZXV10ET501terminalandtheMCUserverareinthesameprivate
network,whichisapplicabletoaninterdepartmentalconferenceinacompany.
lInareaA,theMCUservercongurestwosegments,oneforthepublicnetwork
andtheotherfortheprivatenetwork.Thisnetworkingisapplicabletobothan
interdepartmentalconferenceinacompanyandaconferencebetweendifferent
companiesororganizationsinthepublicandprivatenetworks.
lIfA,B,andCformaMCUservercascadingnetwork,thisnetworkisapplicableto
aconferenceamongcompaniesororganizationsthatareinthepublicandprivate
networks.Inthiscase,multipleMCUsareused.
5-1
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
Figure5-1NetworkingModeforHoldingaConferenceThroughanExternalMCU
5.2DefaultPorts
ForthedefaultportsoftheZXV10ET501,refertoT able5-1.
Table5-1DefaultPorts
DefaultPortConnection
Type
FunctionOpenSuggestion
1718UDPGKautomatic
searchport
(Optional)Thisportdoesnotneedtobe
openiftheGKautomaticsearchfunctionis
disabled.
1719UDPH.323GKRASport(MandatoryforH.323)Thisportmustbe
openwhentheGKfunctionisenabled.
1720TCPH.225callportThisfunctionmustbeopenifcallsare
connectedthroughH.323.
3230–3280TCPDynamicH.245portl(MandatoryforH.323)Atleasteight
portsneedtobeopenifcallsare
connectedthroughH.323.
l(MandatoryforSIP)Atleastoneport
needstobeopenifcallsareconnected
throughSIP .
5-2
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter5NetworkDeployment
DefaultPortConnection
Type
FunctionOpenSuggestion
3230–3280UDPMediastreamport:
RTCPandRTP
ports
(Mandatory)Atleasteightportsneedtobe
openforanaudioorvideocall.
5060UDPSIPport(MandatoryforSIP)Thisportmustbeopen
forSIPcalls.
5061TCPSIPport(MandatoryforSIP)Thisportmustbeopen
forSIPTLScalls.
5070TCPBFCPdualstream
port
(MandatoryforSIP)Thisportmustbeopen
forSIPstandarddualstream.
80TCPZXV10ET501Web
port
(Mandatory)Thisportmustbeopenfor
ZXV10ET501webpages.
123UDPClock
synchronization
serverport
(Optional)Thisportmustbeopenwhenthe
ZXV10ET501needstobeconnectedtoan
externalNTPserver.
514UDPLogserverportThisportmustbeopenwhenthelogserver
needstobeenabled.
5-3
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
Thispageintentionallyleftblank.
5-4
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter6
InterfacesandProtocols
PhysicalInterfaces
TherearpaneloftheZXV10ET501providesvariousphysicalinterfaces,includingthe
videointerfaces,networkinterface,powersupplyinterface,andUSBinterface.Forthe
physicalinterfacesoftheZXV10ET501,seeFigure6-1.
Figure6-1ZXV10ET501Interfaces
Foradescriptionoftheinterfaces,refertoTable6-1.
Table6-1InterfaceDescriptions
No.Description
1Powerinputinterface.
Connectstoa12VDCpowersupply.
2HDvideoandaudiooutputinterface(HDMIOUT).
ConnectstoanHDdisplaydevice(suchasanHDTV)thatisusedasthemaindisplay
devicetodisplaythemenu(GUI),mainvideo,auxiliaryvideo,anduseroperations.
3Networkinterface(LAN).
ConnectstotheEthernet.
Note:TheZXV10ET501providesbuilt-inWi-Fi(includingAccessPoint)thatenablesthe
terminaltoaccessthewirelessnetwork.
6-1
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
No.Description
4USBinterface(USB).
lConnectedtoastandardtouchscreenTVsotheZXV10ET501canbecontrolled
throughthetouchscreenTV.
lConnectedtoaUSBdrivesoyoucanbrowseandoperatethelesintheUSBdrive
throughtheZXV10ET501.
Note:IfusetheswitchhubofUSBinterfaces,theZXV10ET501canconnectto8USB
devicesatmost.
•Interfaces1,2,and3arebasicinterfaces.USBinterfaceisoptionalinterface.
InterfaceProtocols
FortheprotocolsthattheinterfacesoftheZXV10ET501mustcomplywith,refertoT able
6-2.
Table6-2InterfaceTechnicalSpecications
Interface
Type
DescriptionProtocolSupported
Network
Architecture
Remark
1×LAN(IP:10/100
Base-T,RJ-45)
IEEE802.3,IP:
10/100Base-T
IPnetwork- Network
interface
built-inWi-Fi
(IncludingAccess
Point)
IEEE
802.11a/b/g/n
WirelessIPnetwork-
1×built-incameraVideoand
controlcables
1080p@30HD
camerainput
- Videoinput
interface
1×A200-Auxiliaryvideo
wirelessaccess
Externalauxiliary
videocannotbe
connectedifno
A200iscongured.
Video
output
interface
1×HDMIHDMI1.4Connectedtothe
TV.
-
Audioinput
interface
2×built-inMIC--Twobuilt-inomni
microphones,one
ontheleftofthe
frontpanel,theother
ontheright.
Audio
output
interface
1×HDMIaudiooutHDMI1.4Outputsvoice.-
6-2
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter6InterfacesandProtocols
Interface
Type
DescriptionProtocolSupported
Network
Architecture
Remark
USB
interface
2×USBUSB2.0--
Power
interface
1-Connectedtothe
poweradapter.
-
Power
switch
1Tactswitchwith
anindicator
Two-colorindicator
thatcanspecifythe
standbystatus.
Theindicatoris
locatedonthefront
panel.
6-3
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
Thispageintentionallyleftblank.
6-4
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Chapter7
TechnicalSpecications
ForthetechnicalspecicationsoftheZXV10ET501,refertoTable7-1.
Table7-1TechnicalSpecicationsoftheZXV10ET501
ItemSub-itemDetailedSpecications
MultimediaFrameworkProtocolITU-TH.323,IETFSIP
VideoEncoding/Decoding
Protocol
H.264HP ,H.264BP
AudioEncoding/Decoding
Protocol
G.711A,G.711U,G.722,G.722.1licensed
fromPolycom,G.722.1Clicensedfrom
Polycom
DualVideoStandardITU-TH.239/IEFTBFCP
OtherCommunication
Protocols
H.224,H.225,H.241,H.243,H.245,H.281,
H.283
NetworkTransmissionProtocolTCP/IP ,DHCP ,SNMP ,T elnet,HTTP ,
HTTPS,TR069
RemoteCameraControlH.281,H.224
CallBandwidth64kbit/sto8Mbit/s
ActivePictureResolution1080p@25/30fps,720p@25/30/50/60fps,
4CIF@25fps,CIF@25fps
DataContentResolution640×480(VGA),800×600(SVGA),
1024×768(XGA),720p
MediaEncryptionProtocolAES
CompliantStandards
EncryptionStandardH.235,SRTP
WorkingVoltage100VACto240VAC,50Hzto60Hz Electric
CharacteristicPowerConsumptionMaximumconsumption:<20W
7-1
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
ZXV10ET501ProductDescription
ItemSub-itemDetailedSpecications
WorkingStatus
Altitude<5000m
Temperature0°Cto40°C(32°Fto104°F)
RelativeHumidity10%to90%
Noise<46dBASPL
MinimumIlluminance15lux
RecommendedIlluminance>300lux
Non-WorkingStatus
Temperature-40°Cto70°C(40°Fto158°F)
Environment
Requirements
Humidity10%to90%
DimensionsPackagedimensions:395mm×270
mm×385mm(Height×Width×Depth)
Terminalsize:298mm×133mm×180mm
(Height×Width×Depth)
PhysicalParameters
Weight<3kg
PowerInterface-DC12V/5A
InfraredRemote
ControlInterface
InfraredRemoteControl
Receiving
NECCodeStandard
ImageSensor1/3inchHDCMOS,2.1millioneffectivepix-
els
Resolution1080p@30fps
Lens
10xopticalzoom,f=5.13mm-46.3mm,
F1.8-F4.0
Automaticfocus
AngleofViewH:51.8°(T ele)-5.9°(Wide)
V:39.1°(Tele)-4.4°(Wide)
WhiteBalanceAutomatic
RotationAngleHorizontal:-170°-170°
Pitchangle:-30°-30°
Built-inCamera
Signal-NoiseRatio≥55dB
StandardMandatoryCerticateStandardGB4943.1-2011,GB9254-2008,
YD/T993-1998
AuthenticationCCC
7-2
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential
Glossary
FEC
-ForwardErrorCorrection
IP
-InternetProtocol
MCU
-MultipointControlUnit
NAT
-NetworkAddressTranslation
QoS
-QualityofService
SNTP
-SimpleNetworkTimeProtocol
I
SJ-20161028111501-001|2017-04-10(R1.0)ZTEProprietaryandCondential

Navigation menu
