ZTE ZXW3614B Outdoor Wireless AP User Manual ZXV10 W615 V3 20150402

ZTE Corporation Outdoor Wireless AP ZXV10 W615 V3 20150402

User manual

ZXV10 W615
Outdoor Wireless Access Point
User Manual
Verson: V3.0
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: (86) 755 26770801
URL: http:/ / ensupport.zte.com.cn
E-mail: support@zte.com.cn
LEGAL INFORMATION
Copyright © 2010 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : RVerson: V3.0
Edition Time : 2012-08-20(R1.0)
Manual No. : SJ-20120820095015-001
Con fidentia l and Proprieta r y I nform a t ion of ZTE CORPORATI ON 1
C h a p t e r 1
Product Introduction
ProductOverview
The ZTE ZXV10 W615 broadband wireless access product operates at 2.4
GHz, 5.2 GHz and 5.8 GHz frequency bands and complies with IEEE 802.11a,
802.11b, 802.11g, and 802.11n protocols. The device adopts the Orthogonal
Frequency Division Multiplexing (OFDM) technology. Featuring a
transmission speed of up to 300 Mbps, high receiving sensitivity, and long
transmission distance, it provides a powerful wireless access solution for
telecommunication operators, Internet Service Provider (ISP) and other
enterprises.
By supporting multiple encryption mechanisms and authority management
functions, the ZXV10 W615 provides a highly secure system for Wireless
Local Area Network (WLAN).
By supporting Power over Ethernet (PoE), ZXV10 W615 acquires convenient
power supply.
TypicalApplication
The device is typically used in the following scenarios:
• Small and medium-sized enterprises
To realize wireless coverage and meet mobile office requirements.
• Remote access to the company network.
To receive and send E-mails, transmit files, emulate terminals, and others.
The device supports various wireless network connection modes, such as
point-to-point connection, single access point connection, multiple access
point connection, and roaming. It can apply to various application
environments, such as connection within an Intranet and between different
networks.
• An environment where it is difficult to establish a connection through
network cables
To be used in places where cabling is difficult, such as an old building and
ZX V1 0 W 6 1 5 User Manua l
2 Confident ia l and Pr opr iet ary I nform at ion of ZTE CORPORATI ON
an asbestos building structure.
• Mobile office system
To be used by retailers, manufacturers and in the working site which needs
to be changed frequently.
• Temporary LAN establishment for a special project
To be used when a LAN needs to be established temporarily in places such
as commercial exhibitions, exhibition halls and construction sites; when the
capacity needs to be expanded during peak hours in places such as retailing
shops, airports and airlines; or when the financial auditor needs to establish
a client work group.
• Access to the database by mobile workers
To enable doctors, nurses and retailers to share information through mobile
access to the database.
• Family office users
To meet the requirement for installing a small computer network easily and
quickly.
InterfaceandButtonDescription
For a description of the interfaces and buttons of the ZXV10 W615, refer to
the following table:
Name Description
Ethernet LAN interface/PoE (supports 10/100/1000 Mbps), connected by an
RJ-45 network cable.
2.4G-A 2.4G antenna interface, used to connect an antenna.
2.4G-B 2.4G antenna interface, used to connect an antenna.
5G-A 5G antenna interface, used to connect an antenna.
5G-B 5G antenna interface, used to connect an antenna.
WAN/PoE RJ-45 interface, used for uplink connection and supplying power.
GND Grounding terminal.
TechnicalSpecifications
Physical Specification
• Size: 210 mm×210 mm×69 mm (Length × Width × Height)
• Weight: 4 kg
Electric Parameters
• Power supply: 802.3at PoE+
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Proprieta r y I nform a t ion of ZTE CORPORATI ON 3
• Voltage: -48 VDC
• Maximum power consumption: 18 W
Environment Requirement
• Working temperature: -40 ℃ to 65 ℃
• Working humidity: 5 %RH to 100 %RH
IP Protection Class
IP protection class: IP66
Passed Certifications
CCCiWi-FiRoHS
ZTE Corporation reserves the right to modify technical parameters with this
manual without notice.
Antenna Requirement
Antenna Type: N-type Dipole Antenna
Frequency (MHz) Gain(dBi)
2400 1.0
2410 1.2
2420 1.1
2430 1.2
2440 0.9
2450 1.0
2460 1.1
2470 1.0
2480 1.2
2490 1.4
2500 1.1
5220 2.98
5765 3.43
Con fidentia l and Proprieta r y I nform a t ion of ZTE CORPORATI ON 4
C h a p t e r 2
Configuration Preparation
Login
The ZXV10 W615 supports configuration based on Web pages. You can
configure and manage the ZXV10 W615 through a Web browser.

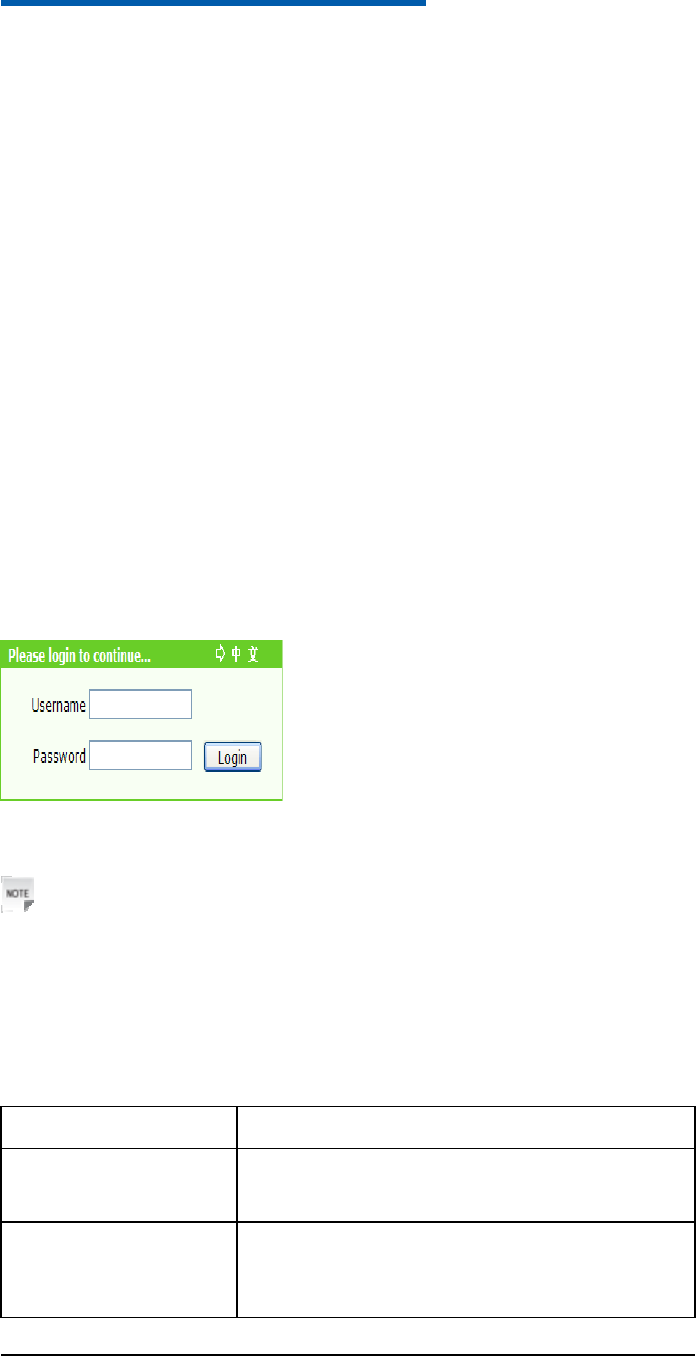

Open the Internet Explorer, type http://192.168.0.228 on the address
bar, and then press Enter. The login dialog box is displayed, see the following
figure.
Enter a valid user name and a password, and then click Login. The Web
configuration page of the ZXV10 W615 device is displayed.
Notes:
The initial user name and password of a common user are both user. This
user has only the authority to view the related Status information of this
device. The initial user name and password of the administrator are both
admin. This user has the authority to configure and manage the device
through the Web browser.
For the factory defaults of ZXV10 W615, refer to the following table:
Item Default Value
IP Address/Mask of
Ethernet interface
IP address: 192.168.0.228
Subnet mask: 255.255.255.0
User name/Password Initial user name/password for common user: user/user
Initial user name/password for administrator:
admin/admin
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Proprieta r y I nform a t ion of ZTE CORPORATI ON 5
Item Default Value
AP mode Fit AP
AP name APxxxxxxxxxxxx, where xxxxxxxxxxxx means the
Medium Access Control (MAC) address of the device
AC discovery mode Dynamic Host Configuration Protocol (DHCP),
applicable for fit AP only.
WAN mode DHCP
Wireless mode
• Network card 1: Mixed (802.11b+802.11g)
• Network card 2: Mixed (802.11a+802.11n)
SSID SSID1 is enabled.

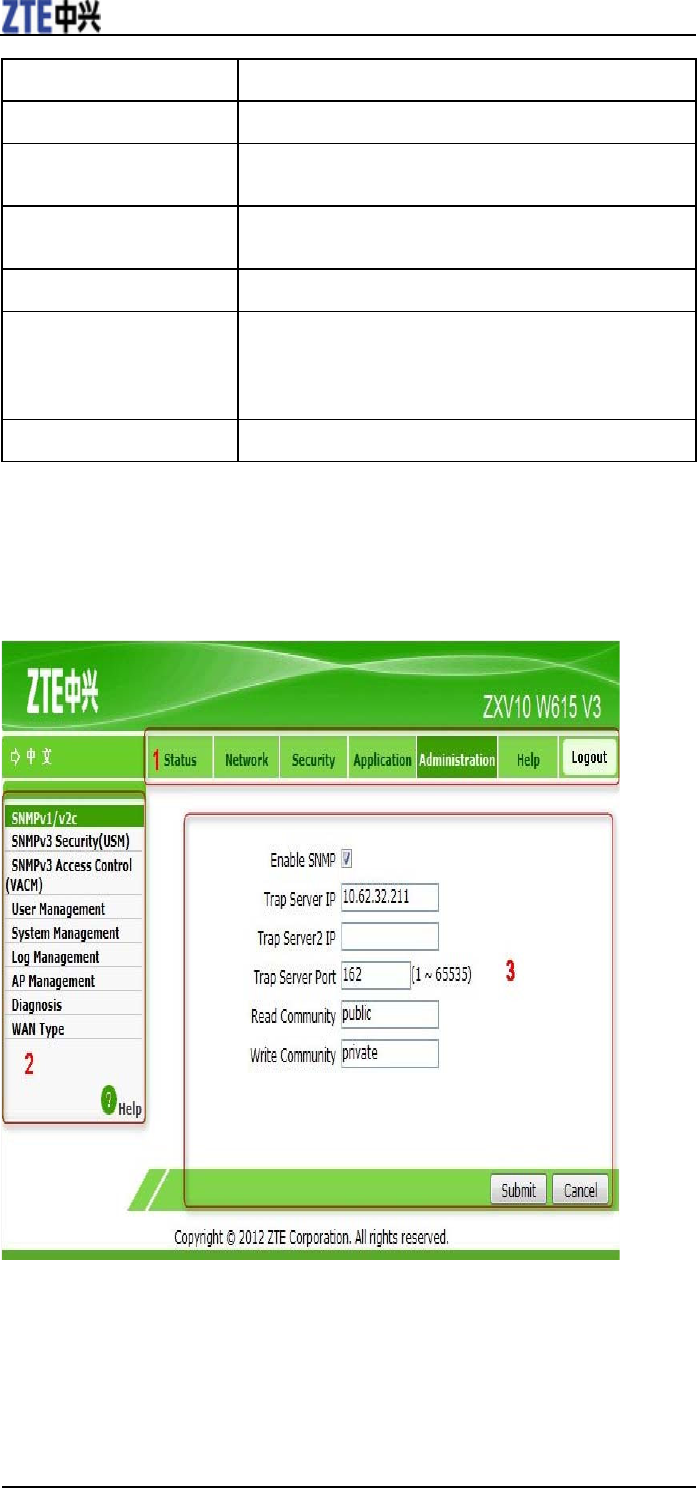

IntroductiontotheGUIforSoftwareSetup
After log in, the software interface is displayed as Figure 1.
Figure 1 Soft w are I nt er face
1. Main menu
2. Submenu
3. Parameter
Select items on the main menu for software setup.
Select sub-items to set parameters on the left submenu.
ZX V1 0 W 6 1 5 User Manua l
6 Confident ia l and Pr opr iet ary I nform at ion of ZTE CORPORATI ON
Notes:
• Click Logout at the upper-right corner of the current Web page. Then,
the system log outs and returns to the Login page.
• Click at the bottom of the navigation pane to view the related
help information on the current page.
• Click the Help tab to open the Help page to view the related help
information.
• Click at the top of the current web page to change the language
to chinese.
Con fidentia l and Proprieta r y I nform a t ion of ZTE CORPORATI ON 7
C h a p t e r 3
Device Status
CheckingDeviceInformation
This section describes how to check the device information.
Steps

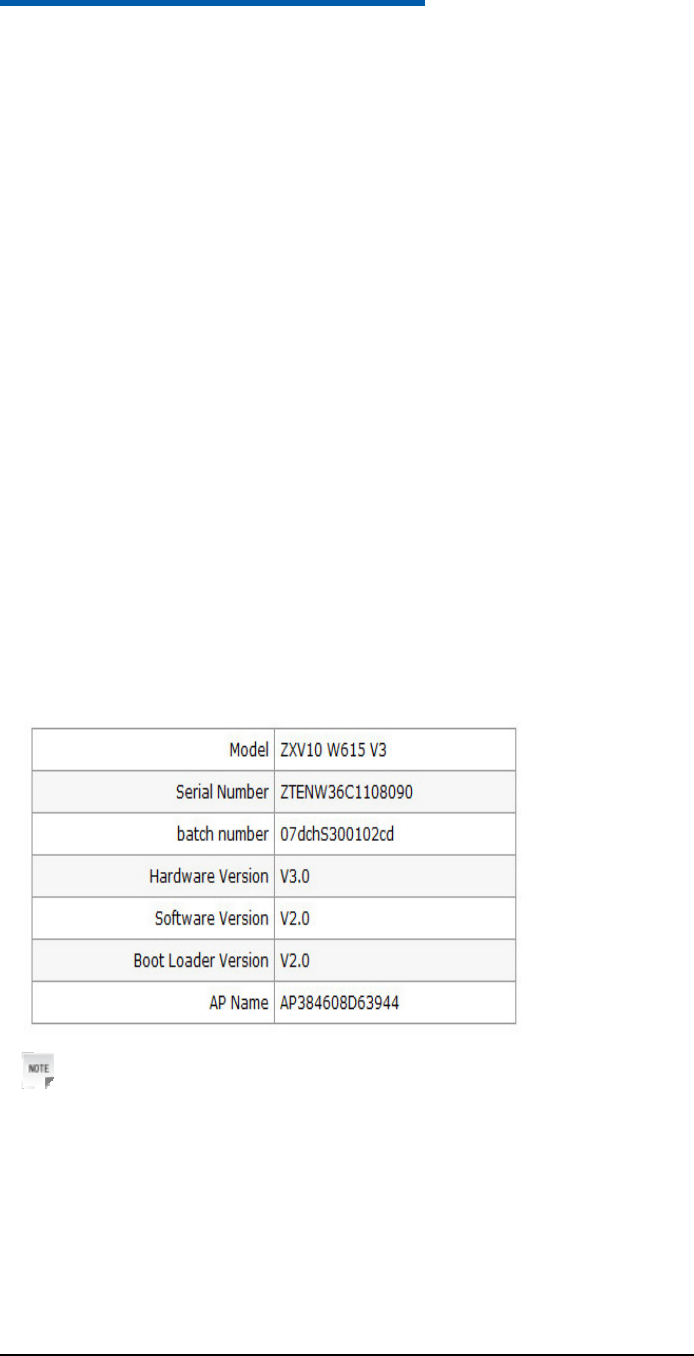

Select Status > Device Information to open the Device Information page.
Device information is displayed on the Device Information page as Figure
2.
Figure 2 Device I nfor m at ion
Notes:
This page includes the information of model, serial no, batch number,
hardware version, software version, boot loader version and AP name.
—END OF STEPS—
ZX V1 0 W 6 1 5 User Manua l
8 Confident ia l and Pr opr iet ary I nform at ion of ZTE CORPORATI ON
CheckingInformationofNetworkInterfaces
Checking Ethernet Interface Information
This section describes how to check Ethernet interface information.
Steps

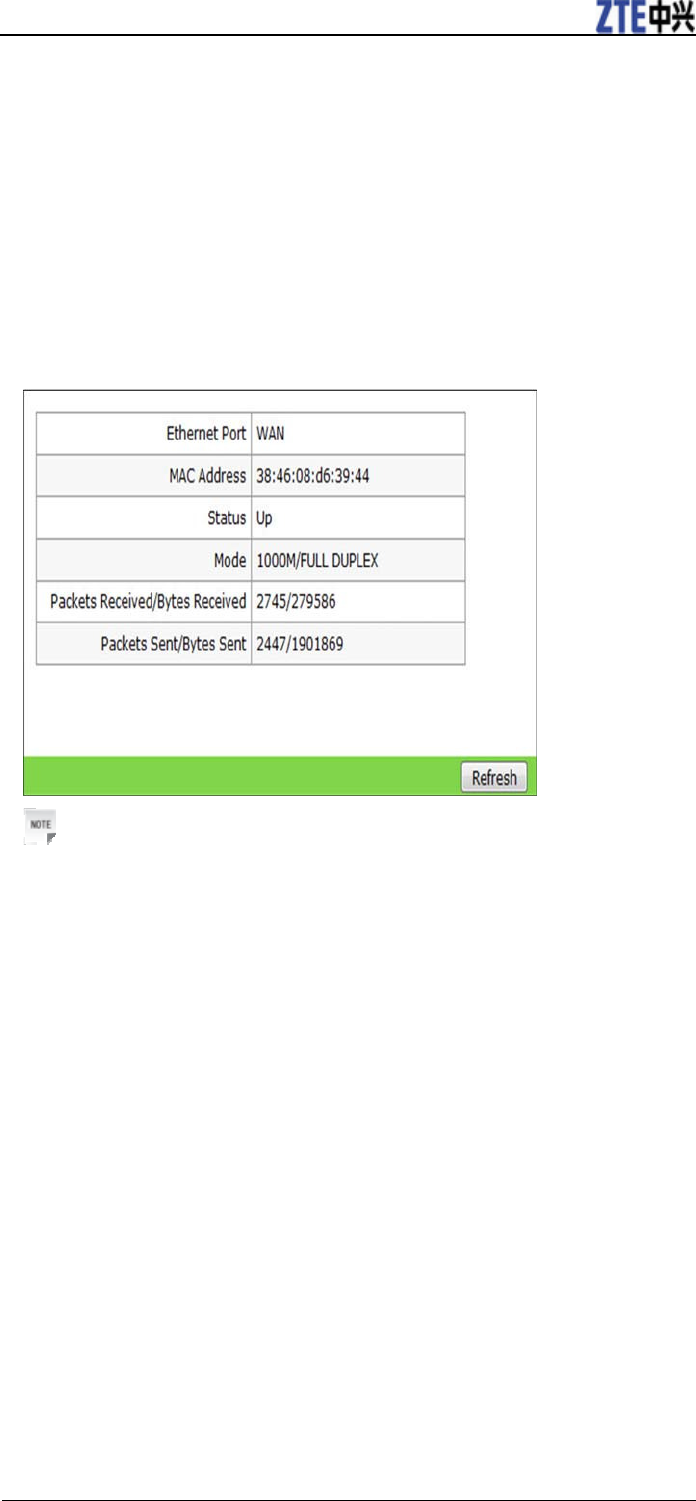

Select Status > Network Interface > Ethernet, the following page with
Ethernet interface information is displayed.
Figure 3 Et hernet I nt erfa ce I nform at ion
Notes:
This page includes Ethernet port, MAC address, status, mode,
packets received/bytes received, and packets sent/bytes sent
information.
You can click Refresh to view the latest Ethernet interface
information.
—END OF STEPS—
Checking WAN Connection
This section describes how to check the network connection information.
Steps
Select Status > Network Interface > WAN Connection., the following page
with the established connection information is displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Proprieta r y I nform a t ion of ZTE CORPORATI ON 9
Figure 4 W AN Connect ion I nform a t ion
Notes:
This page includes DHCP, WAN MAC, NAT(Network Address
Translation), IP, DNS（Domain Name Server), Gateway, Connection
status, remaining lease time.
You can click Refresh to view the latest WAN connection
information.
—END OF STEPS—
CheckingWLANInterfaceInformation
This section describes how to check the WLAN interface information.
Steps
Select Status > User Interface > WLAN, the following page is displayed. In
the right pane, view the WLAN interface information.
ZX V1 0 W 6 1 5 User Manua l
1 0 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON

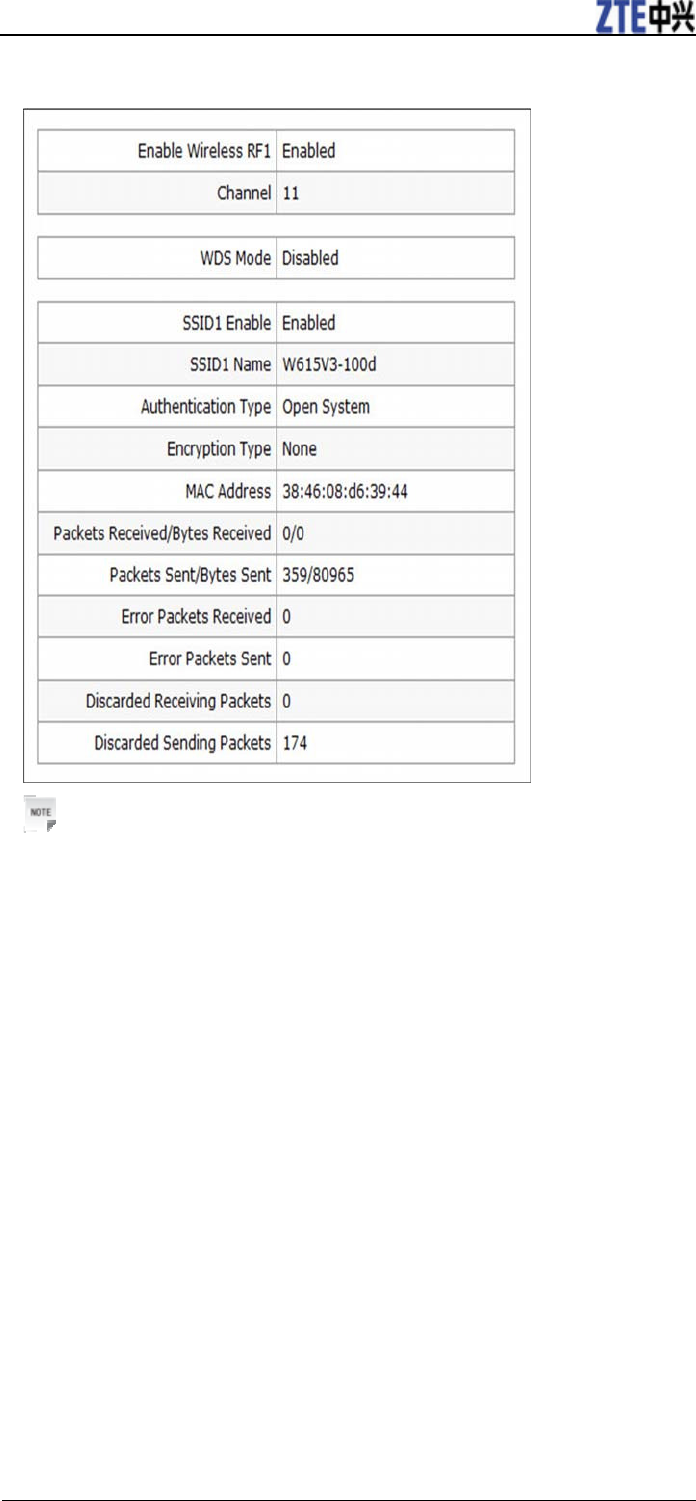

Figure 5 W LAN I nt er face I nform a t ion
Notes:
This page includes the wireless switch state, the channel, the WDS
mode (if the WDS is enabled, the MAC address of the WDS interface,
the MAC address of the relay/the root AP and the connection state is
displayed) and the SSID enabled state.
You can click Refresh below the drop-down scroll bar (It isn’t
displayed in the above figure for the limitation on the figure size) to
view the latest device information.
—END OF STEPS—
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 1 1
C h a p t e r 4
Network Configuration
BroadbandConnectionConfiguration
Configuring a Broadband Connection (Fit AP)
The ZXV10 W615 has two operational modes: fat AP and fit AP. The default
operational mode is fit AP.
Context
For instructions on how to change the AP mode for the ZXV10 W615, refer to
“Setting the AP Mode”.
Notes:
After the AP mode is changed, the device restarts automatically.
Steps

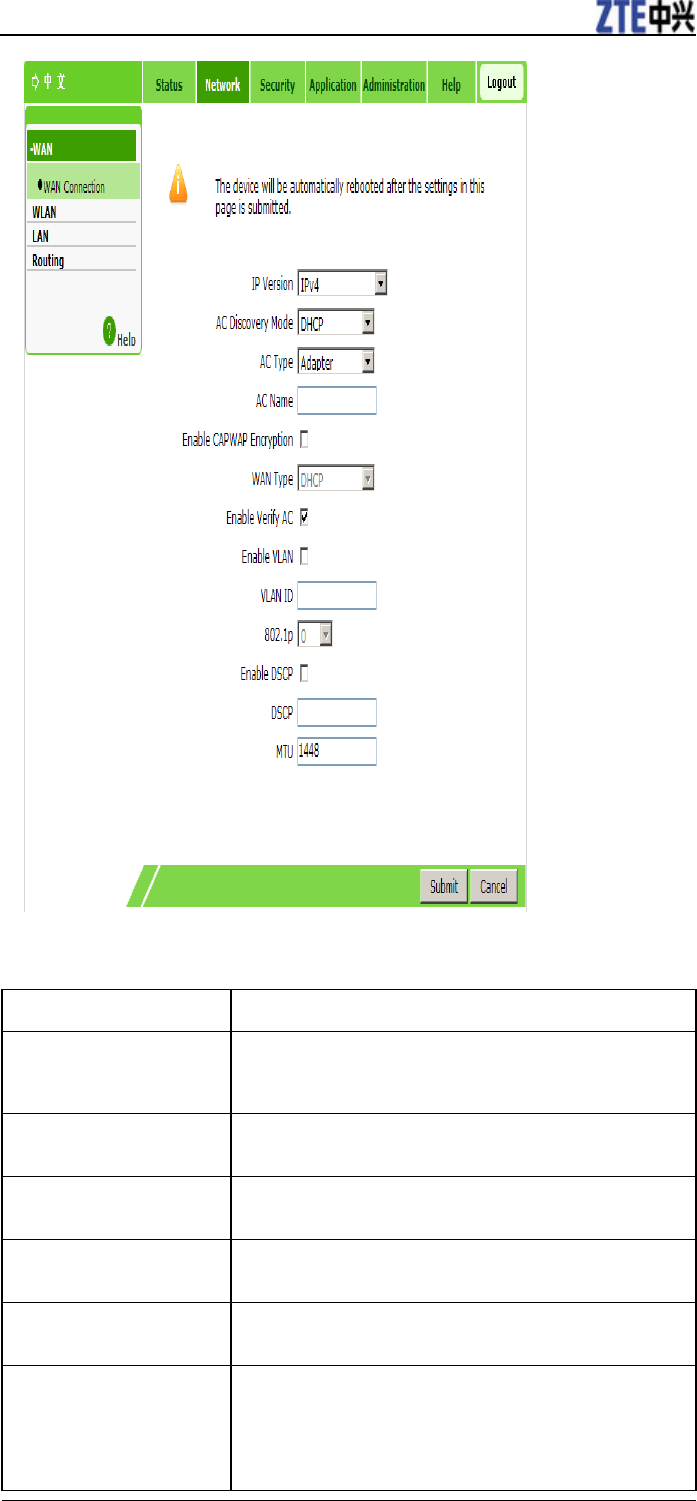

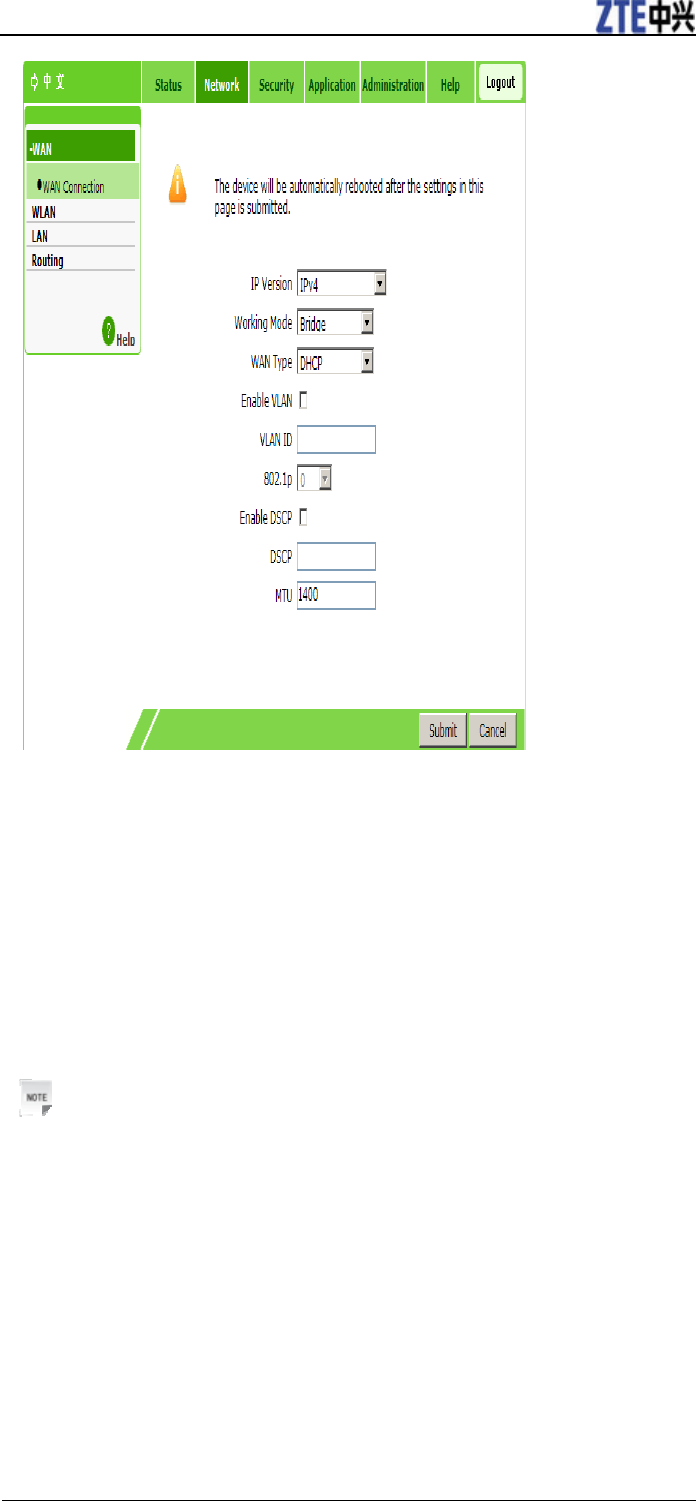

1. Select Network > WAN > WAN Connection. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
1 2 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. Configure the parameters. Refer to the following table.
Parameter Description
IP Version Supported protocol versions include Internet Protocol
version 4 (IPv4), Internet Protocol version 6 (IPv6), and
IPv4/v6. The default setting is IPv4.
AC Discovery Mode Includes DHCP, Static, DNS, and Broadcast. The default
setting is DHCP.
AC Type Set AC Type. When AC Type is set to Adapter, the AP
selects the uplink AC automatically.
AC Name This parameter is configurable when AC Discovery Mode
is DHCP or DNS.
Enable CAPWAP
Encryption
Enables or disables CAPWAP encryption.
WAN Type When IP Version is IPv4, the supported modes are
DHCP, Static, and PPPoE. When IP version is IPv6 or
IPv4/v6, the supported modes are DHCP and PPPoE. The
default mode is DHCP. When AC Discovery Mode is
DHCP, the WAN mode is set to DHCP.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 1 3
Parameter Description
Enable Verify AC Enables or disables the AC verification function when
WAN Type is DHCP.
Enable VLAN Enables or disables the VLAN configuration function.
Virtual Local Area Network (VLAN)
Identification/Identity/Identifier (ID) and 802.1p are used
to set the VLAN and priority for the selected device.
VLAN ID Indicates the VLAN ID of packets through the WAN
interface. The value range is 0-4094.
802.1p Specifies the processing priority. It only applies to
multiple WAN connections. The range is 0-7 and the
default value is 0, which means no priority. A greater
value indicates a higher priority.
Enable DSCP Enables or disables the Differential Services Code Point
(DSCP) function for data flow.
DSCP Specifies the DSCP value. The value range is 0-63.
MTU Specifies the Maximum Transmission Unit (MTU) value.
The default value is 1448.
3. Click Submit.
Notes:
The configuration on this page takes effect after the device is restarted.
—END OF STEPS—
Configuring a Broadband Connection (Fat AP)
This section describes how to configure a broadband connection for fat AP.
Steps
The AP mode of the device is Fat.
1. Select Network > WAN > WAN Connection. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
1 4 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. Configure the parameters. For details, refer to “Configuring a Broadband
Connection (Fit AP)”.
Working Mode: supports Bridge mode and Route mode. The default is
Bridge mode.
WAN Type: When IP Version is IPv4, the supported modes are DHCP,
Static, and PPPoE. When IP version is IPv6 or IPv4/v6, the supported
modes are DHCP and PPPoE. The default mode is DHCP.
3. Click Submit.
Notes:
The configuration on this page takes effect after the device is restarted.
—END OF STEPS—
WLANConfiguration
Setting Basic Information
This section describes how to set WLAN information for the ZXV10 W615.
Context
Two network cards are available. You can set the cards respectively.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 1 5
• Network card 1: works at 2.4 GHz, and supports 802.11b, 802.11g, and
802.11n.
• Network card 2: works at 5.8 GHz, and supports 802.11a and 802.11n.
Steps
1. Select Network > WLAN > Basic. The following page is displayed.
2. Confiture the basic parameters of WLAN.
If Network Card 1 is selected, see the previous figure for the configuration
page. For a description of the parameters, refer to the following table.
Parameter Description
Network Card Select network card 1.
Enable Wireless RF Enables or disables the wireless RF function
Enable Isolation Enables or disables the SSID isolation function.
Mode Supports IEEE 802.11b Only, IEEE 802.11g Only, IEEE
802.11n Only, Mixed(802.11b+802.11g),
Mixed(802 .11g+802.11n),and
Mixed(802.11b+802.11g+802.11n).
ZX V1 0 W 6 1 5 User Manua l
1 6 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Parameter Description
Country/Region United States of America.
Band 2.4 G
Band Width The options are 20 MHz, 40 MHz, and automatic.
MIMO The options are 1*1, 1*2, 2*1, and 2*2.
11N Rate Specifies the transmission rate of 802.11n. 17 rates are
available and the default is Auto.
Transmit Rate Supports various kinds of transmitting rates including1
Mbps 2 Mbps 5.5 Mbps 11 Mbps 6 Mbps 9
Mbps 12 Mbps 18 Mbps 24 Mbps 36 Mbps 48
Mbpsand 54 Mbps
Channel Proper channel can be selected according to country code.
It can be selected as Auto or any value in the range of
1-11. The default is Auto. The channel used to accomplish
communication between AP and wireless station is
determined by local policy. All wireless stations which
communicate with the ZXV10 W615 must use the same
channel.
Only Select Channel
1/6/11
Determines whether to select channel 1/6/11 or select all
channels.
Total Maximum Clients Specifies the maximum number of connected users. The
range is 1-512.
SGI Enable Enables or disables the SGI function.
A-MPDU Enable Enables or disables the A-MPDU function.
Beacon Interval Specifies the beacon interval.
Power Type Supports configuration by percent, configuration based on
actual power value (unit: dBm), and configuration based
on actual power value (unit: mW)
Transmitting Power Supports automatic, 100%, 90%, 80%, 70%, 60%, 50%,
40%, 30%, 20%, 12.5%, and 10%. The default is 100%.
The power class refers to the percentage of output power
to maximum power. A higher power indicates a farther
transmission distance.
QoS Type The options are disabled, WMM, and SSID.
RTS Threshold Specifies the upper limit of transmission request.
DTIM Interval Specifies the DTIM time patch.
WIDS Mode The options are Access, Monitor, and Mixed.
WIDS Scan Period Specifies the value of WIDS scan interval.
WIDS Scan Mode The options are Current Channel and All Channel.
Protection Mode The options are None, CTS Only, and RTS/CTS.
Application Scenarios Support three kinds of application scenarios: low density,
high density, user configuration.
5G Access First Enables or disables 5G access in precedence.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 1 7
Parameter Description
TxBF Enable Enables or disables beam forming technology.
If Network card 2 is selected, see the figure below for the configuration
page. For a description of the parameters, refer to the following table.
Parameter Description
Network Card Select network card 2.
Enable Wireless RF Enables or disables the WLAN RF function.
Enable Isolation Enables or disables the SSID isolation function.
Mode Supports IEEE 802.11a Only, IEEE 802.11n Only, and
Mixed(802.11a+802.11n). The default is
Mixed(802.11a+802.11n).
Country/Region United States of America.
Band 5G
Band Width The options are 20 MHz, 40 MHz, and automatic.
ZX V1 0 W 6 1 5 User Manua l
1 8 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Parameter Description
MIMO The options are 1×1, 1×2, 2×1, and 2×2.
11N Rate Specifies the transmission rate of 802.11n, supporting
seven rate types.
Channel Proper channel can be selected according to country code.
It can be selected as Auto, 149, 153, 157, 161, or 165. The
default is Auto. The channel used to accomplish
communication between AP and wireless station is
determined by local policy. All wireless stations which
communicate with the ZXV10 W615 must use the same
channel.
Total Maximum Clients Specifies the maximum number of connected users. The
range is 1-512.
SGI Enable Enables or disables the SGI function.
A-MPDU Enable Enables or disables the A-MPDU function.
Beacon Interval Specifies the beacon interval.
Power Type Supports configuration by percent, configuration based on
actual power value (unit: dBm), and configuration based
on actual power value (unit: mW)
Transmitting Power Supports automatic, 100%, 90%, 80%, 70%, 60%, 50%,
40%, 30%, 20%, 12.5%, and 10%. The default is 100%.
The power class refers to the percentage of output power
to maximum power. A higher power indicates a farther
transmission distance.
QoS Type The options are Disabled, WMM, and SSID.
RTS Threshold Specifies the upper limit of transmission request.
DTIM Interval Specifies the DTIM time patch.
WIDS Mode The options are Access, Monitor, and Mixed. The default
is Access.
WIDS Scan Period Specifies the value of WIDS scan interval.
WIDS Scan Mode The options are Current Channel and All Channel.
Protection Mode The options are None, CTS Only, and RTS/CTS.
Application Scenarios Support three kinds of application scenarios: Low density,
High density, User configuration.
5G Access First Enables or disables 5 G access in precedence.
TxBF Enable Enables or disables beam forming technology.
3. Click Submit.
—END OF STEPS—
Setting SSID
This section describes how to set SSID.
Steps
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 1 9

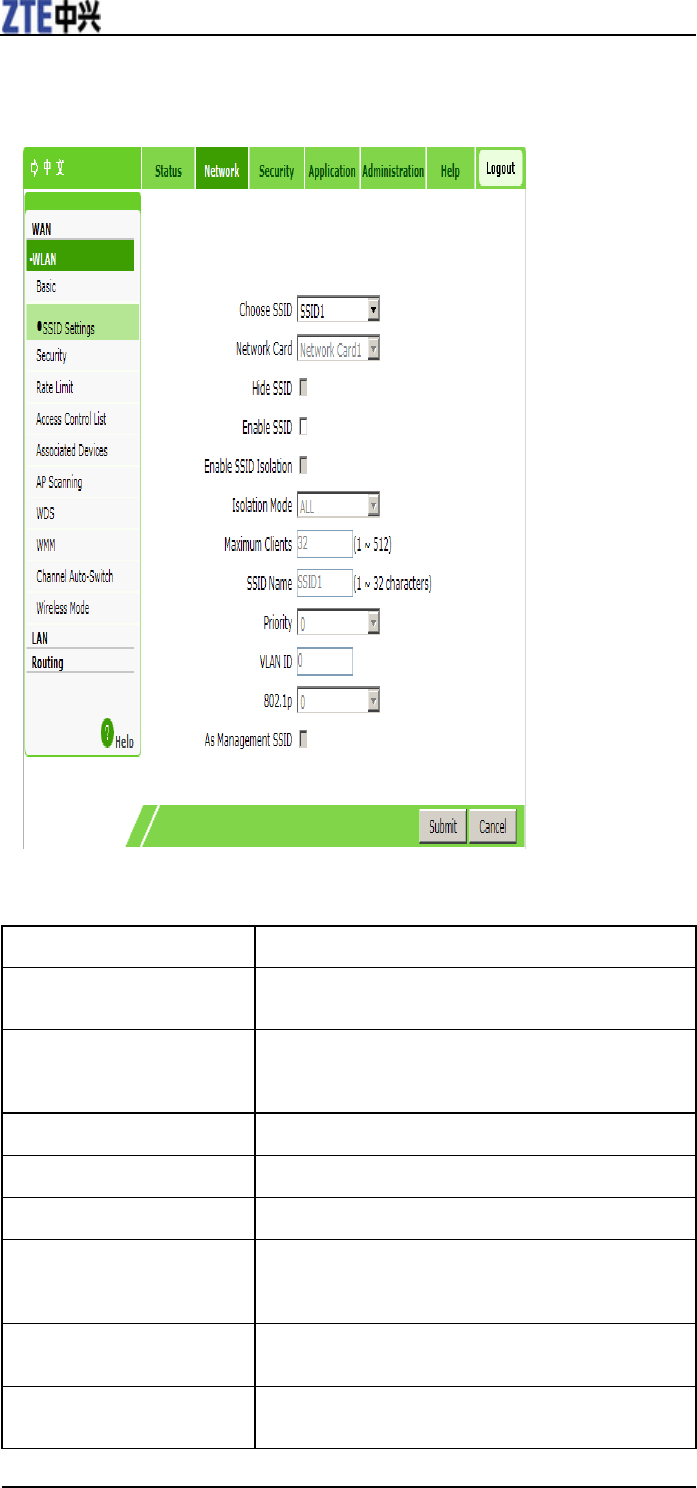

1. Select Network > WLAN > SSID Settings. The following page is
displayed.
2. Configure the parameters. Refer to the following table.
Parameter Description
Choose SSID Specifies the SSID to be configured. The range is from
SSID1 to SSID32.
Network Card Displays the wireless network card of the current
SSID. SSID1–SSID16 correspond to network card 1.
SSID17–SSID32 correspond to network card 2.
Hide SSID Determines whether to hide this SSID.
Enable SSID Enables or disables this SSID.
Enable SSID Isolation Enables or disables the isolation within this SSID.
Isolation Mode Specifies an appropriate isolation mode from four
modes, which are Unicast, Broadcast, Multicast, and
ALL. The default setting is ALL.
Maximum Clients Specifies the maximum number of clients allowed for
this SSID. The value range is 1–512. The default is 32.
SSID Name Specifies the name of this SSID. The number of
characters is in a range of 1–32.
ZX V1 0 W 6 1 5 User Manua l
2 0 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Parameter Description
Priority Specifies the SSID priority. The range is 0–7. The
default value is 0, which means no priority. A greater
value indicates a higher priority.
VLAN ID VLAN tag of data packets. VLAN ID can be set in a
range of 0-4094.
802.1p Specifies the processing priority. The range is 0–7. The
default value is 0, which means no priority. A greater
value indicates a higher priority.
As Management SSID Disabled by default. When this function is enabled, the
user associated with the SSID can manage the device.
3. Click Submit.
—END OF STEPS—
Setting Security Information
This section describes how to set WLAN security information.
Steps

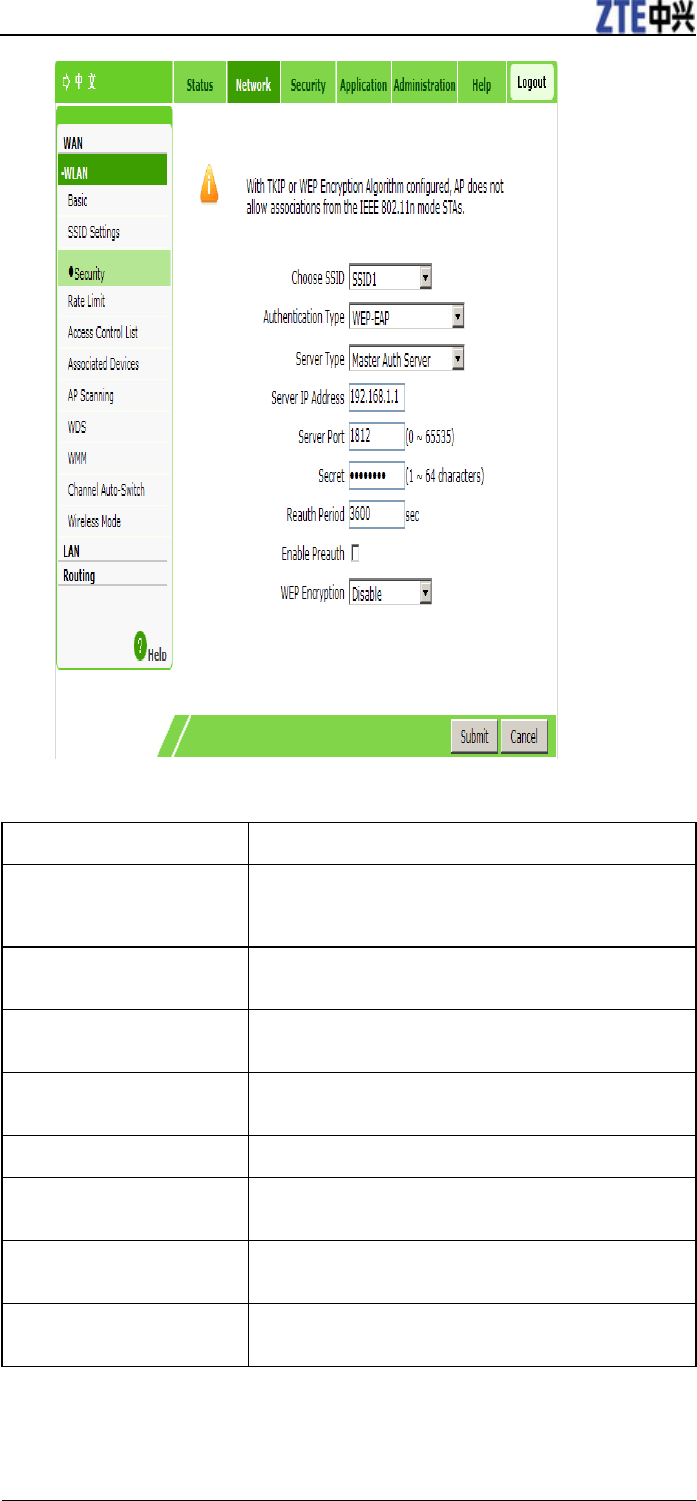

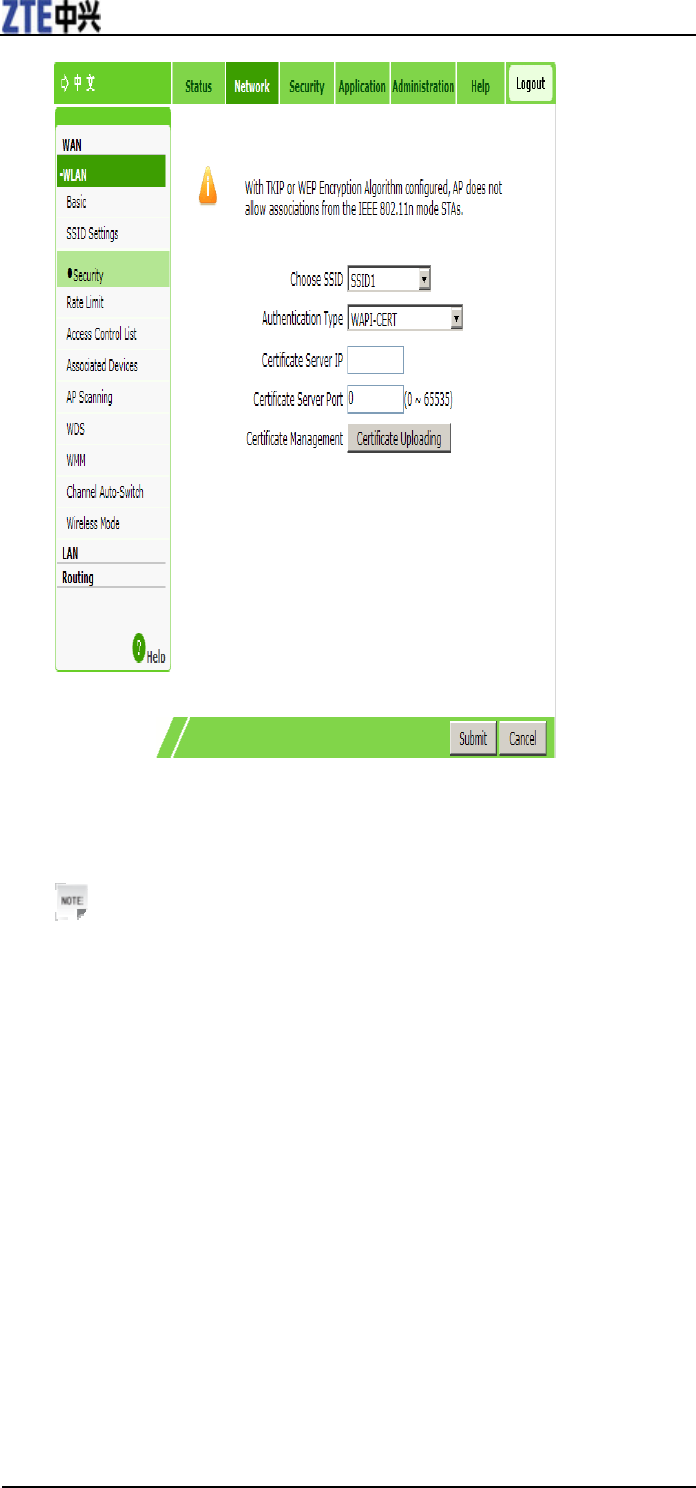

1. Select Network > WLAN > Security. The following page is displayed.
2. Configure the parameters. Refer to the following table.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 2 1
Parameter Description
Choose SSID Specifies the SSID to be configured. The range is
SSID1-SSID15.
Authentication Type Supports Open System, Shared Key, Open System &
Shared Key, WPA-PSK, WPA2-PSK,
WPA/WPA2-PSK, WPA-EAP, WPA2-EAP,
WPA/WPA2-EAP, WAPI-PSK, WAPI-CERT, and
WEP-EAP.
WPA Passphrase Specifies the WPA encryption key. The range is 8-63
characters.
Enable WPA Group Key
Update
Enables or disables WPA group key updating function.
It is enabled by default.
WPA Group Key Update
Interval
Specifies the key updating interval. The default is 600
seconds.
WPA Encryption Algorithm Supports TKIP, AES, and TKIP+AES.
Authentication Type is divided into non-encryption, WPA-PSK encryption,
WPA-EAP encryption, WEP encryption, WAPI-PSK encryption and
WAPI-CERT encryption.
non-encryption
Authentication Type selects Open System, meaning non-encryption.
WPA-PSK encryption
WPA encryption means Wi-Fi protected access. It has three modes:
WPA-PSK, WPA2-PSK, and WPA/WPA2-PSK.
i. In the Authentication Type drop-down list, select WPA-PSK,
WPA2-PSK, or WPA/WPA2-PSK to enable WPA-PSK encryption.
ii. Set the parameters as required by referring to the parameter description
in the previous table.
WPA-EAP encryption
i. In the Authentication Type drop-down list, select WPA-EAP,
WPA2-EAP, or WPA/WPA2-EAP to enable WPA-EAP encryption.
ZX V1 0 W 6 1 5 User Manua l
2 2 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
ii. Configure the parameters. Refer to the following table.
Parameter Description
Server Type Specifies the server type. The options are Master Auth
Server, Master Acct Server, Backup Auth Server, and
Backup Acct Server. The default is Master Auth Server.
Server IP Address Specifies the IP address of the authentication server, for
example, 192.168.1.1.
Server Port Specifies the port of the authentication server, for
example, 1812. The range is 0 to 65535.
Secret Specifies the WPA-EAP encryption key. The range is
1-64 characters.
Reauth Period The default is 3600 seconds.
Enable Preauth Enables or disables the pre-authentication function. The
function is disabled by default.
Enable WPA Group Key
Update
Enables or disables WPA group key updating function.
The function is enabled by default.
WPA Group Key Update
Interval
Specifies the interval of WPA group key update. The
default is 600 seconds.
WPA Encryption Algorithm Specifies the WPA encryption algorithm. Three options
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 2 3
Parameter Description
are available: AES, TKIP, and TKIP+AES. The default
is TKIP.
WEP encryption
Wired Equivalent Privacy (WEP) is a commonly used WLAN security
protocol.
i. Select Shared Key or Open System & Shared Key for Authentication
Type. The following page is displayed.
ii. Configure the parameters. Refer to the following table.
Parameter Description
WEP Encryption Enables or disables WEP encryption function. The
function is enabled by default.
WEP Encryption Level There are two types of WEP key, namely 64bit and
128bit.
WEP Key Index Specifies corresponding key value.
ZX V1 0 W 6 1 5 User Manua l
2 4 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Parameter Description
WEP Key 1–4 Specifies WEP encryption key value. 64-bit WEP key
corresponds to five ASCII characters or ten
hexadecimal characters. 128-bit WEP key corresponds
to 13 ASCII characters or 26 hexadecimal characters.

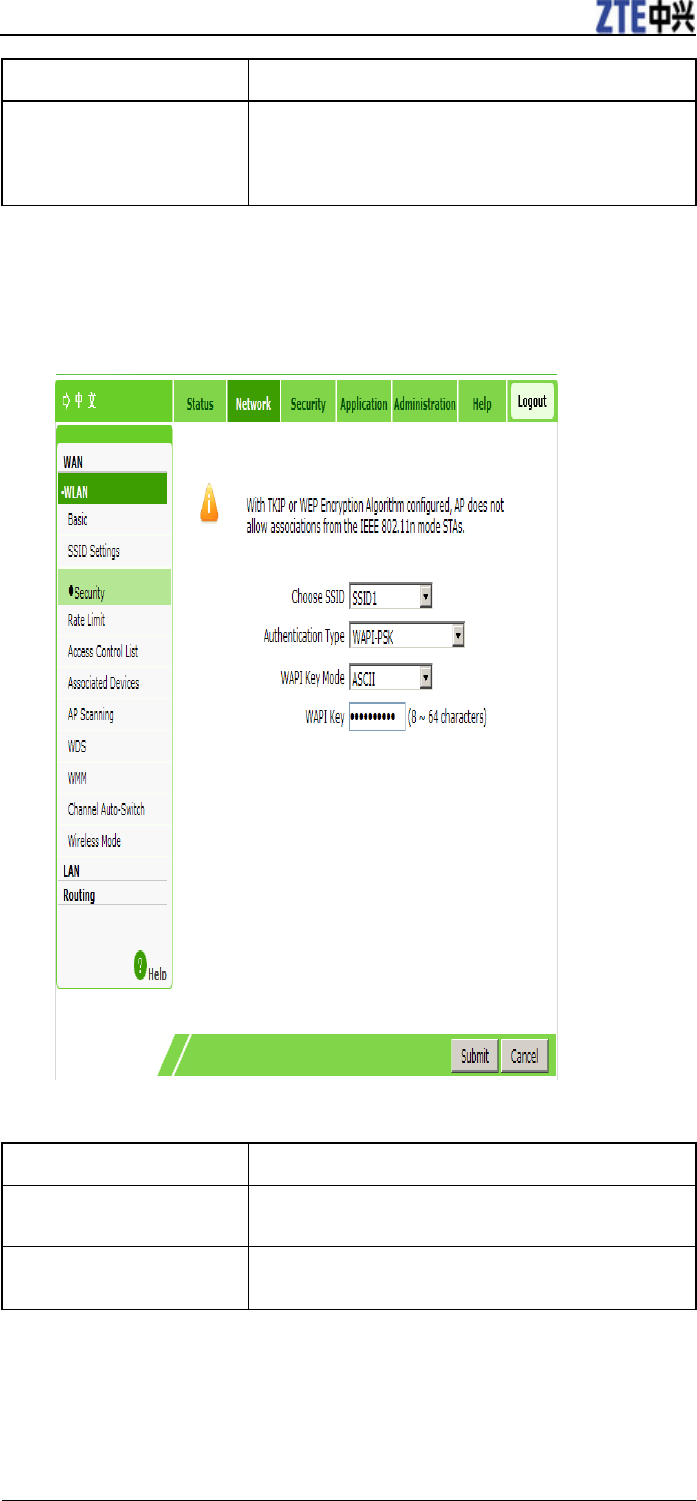

WAPI-PSK encryption
i. Select WAPI-PSK as the Authentication Type. The following page is
displayed.
ii. Configure the parameters. Refer to the following table.
Parameter Description
WAPI Key Mode Supports two modes: ASCII and HEX. The default is
ASCII.
WAPI Key Specifies WAPI key value. The range is 8-64
characters.
WAPI-CERT encryption
i. Select WAPI-CERT as the Authentication Type. The following page
is displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 2 5
ii. Enter the certificate server IP address and certificate server port.
iii. Click the Certificate Uploading button, select the proper type of
certificate file in the displayed dialog box, and then click Upload.
Notes:
Certificate files include AS certificate, AP certificate, and CA
certificate. If only AP and CA certificates are necessary, upload the
AP certificate first. Otherwise, upload the AS certificate first.
WEP-EAP encryption
i. Select WEP-EAP as the Authentication Type. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
2 6 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
ii. Configure the parameters. Refer to the following table.
Parameter Description
Server Type Specifies the server type. The options are Master Auth
Server, Master Acct Server, Backup Auth Server, and
Backup Acct Server. The default is Master Auth Server.
Server IP Address Specifies the IP address of the authentication server, for
example, 192.168.1.1.
Server Port Specifies the port of the authentication server, for
example, 1812. The range is 0 to 65535.
Secret Specifies the WPA-EAP encryption key. The range is
1-64 characters.
Reauth Period The default is 3600 s.
Enable Preauth Enables or disables the pre-authentication function. The
function is disabled by default.
WEP Encryption Enables or disables WEP encryption. It is disabled by
default.
WEP Encryption Level Specifies the WEP key length. The options are 128bit
and 64bit. The default is 128 bit.
3. Click Submit.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 2 7
—END OF STEPS—
Setting Rate Limit
This section describes how to set rate limit for WLAN services.
Steps

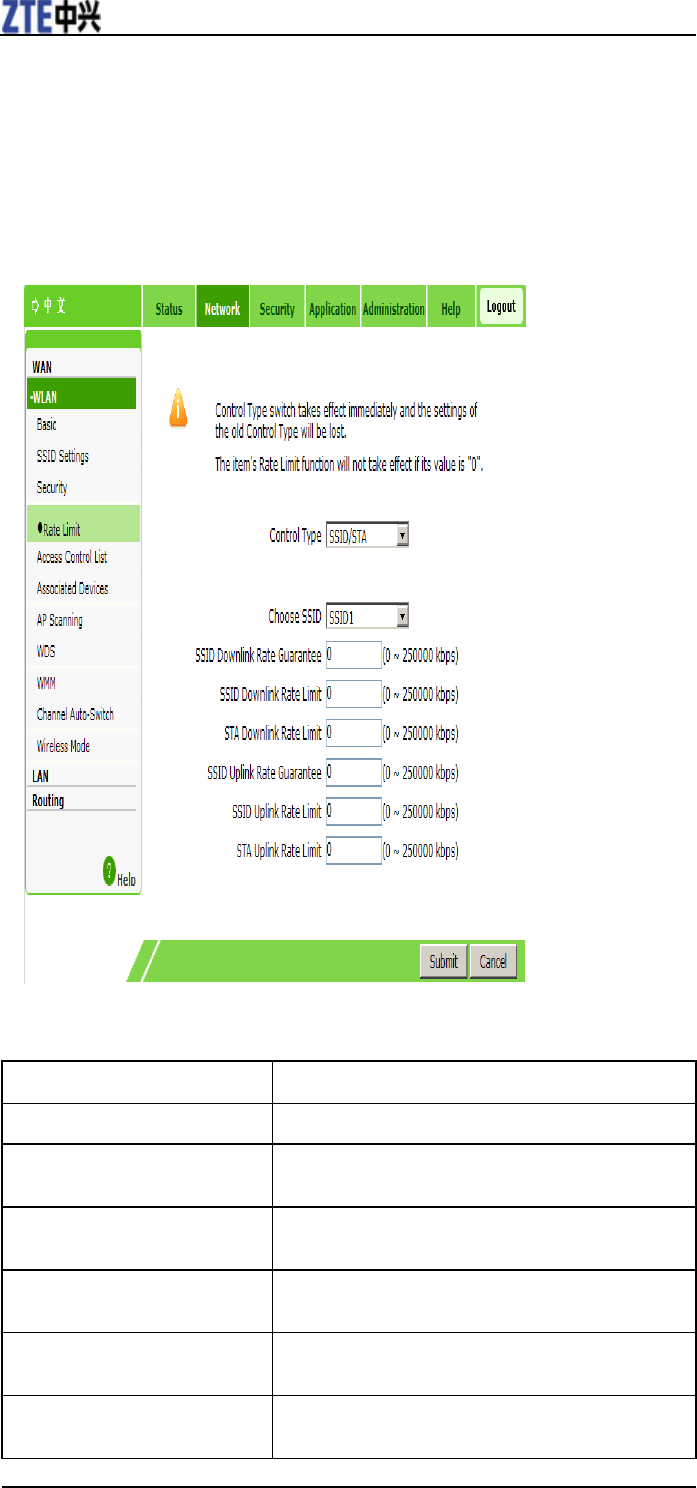

1. Select Network > WLAN > Rate Limit. The following page is displayed.
2. Configure the parameters. Refer to the following table.
Parameter Description
Control Type Supports SSID/STA and MAC.
Choose SSID Specifies the SSID to be configured. The range is
SSID1-SSID16.
SSID Downlink Rate
Guarantee
The configuration range is 0-250000 kbps. The
default is 0, which means no rate guarantee.
SSID Downlink Rate Limit The configuration range is 0-250000 kbps. The
default is 0, which means no rate limit.
STA Downlink Rate Limit The configuration range is 0-250000 kbps. The
default is 0, which means no rate limit.
SSID Uplink Rate Guarantee The configuration range is 0-250000 kbps. The
default is 0, which means no rate guarantee.
ZX V1 0 W 6 1 5 User Manua l
2 8 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Parameter Description
SSID Uplink Rate Limit The configuration range is 0-250000 kbps. The
default is 0, which means no rate limit.
STA Uplink Rate Limite The configuration range is 0-250000 kbps. The
default is 0, which means no rate limit.
3. Click Submit.
—END OF STEPS—
Setting Access Control List
The access control list is used to guarantee the device security in networks.
Steps

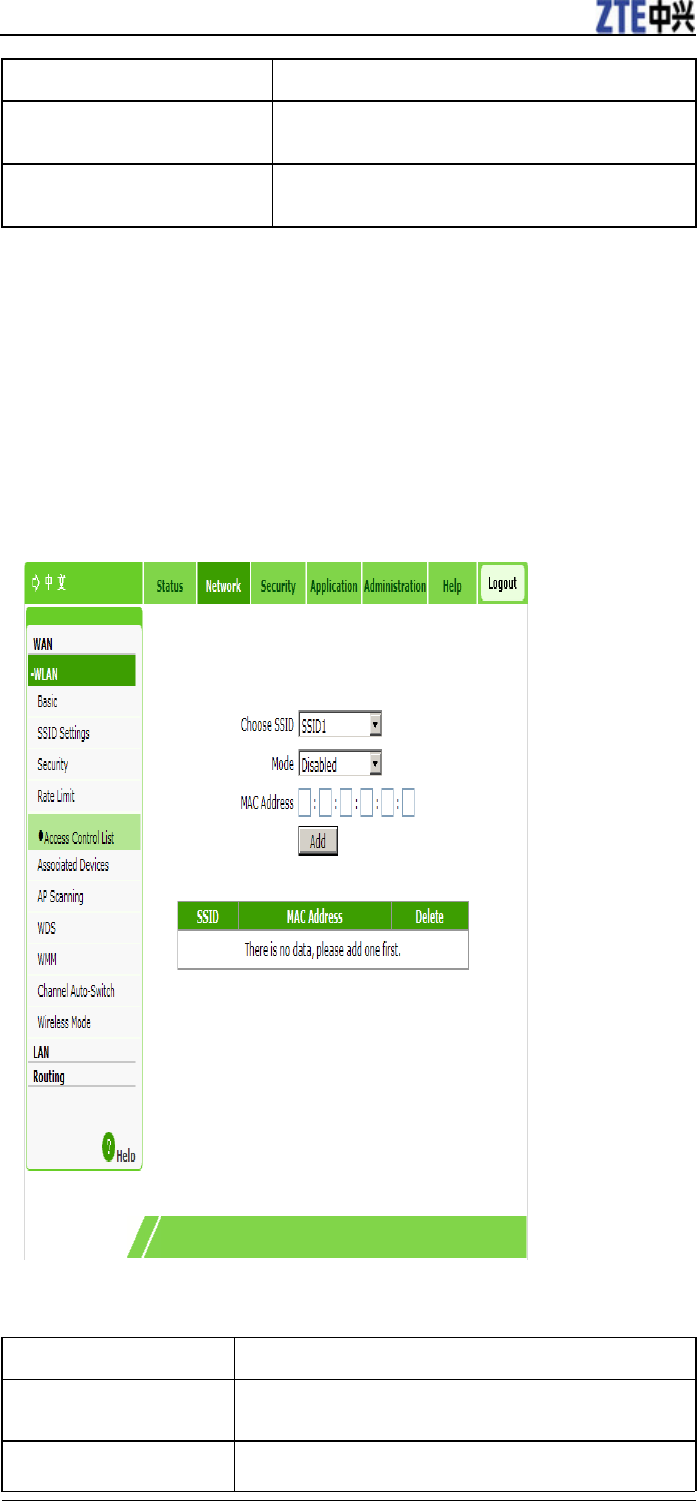

1. Select Network > WLAN > Access Control List. The following page is
displayed.
2. Configure the parameters. Refer to the following table.
Parameter Description
Choose SSID Specifies the SSID to be configured. The range is
SSID1-SSID32.
Mode The supported modes are:
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 2 9
Parameter Description
Disabled: no SSID access is controlled. It is the default
setting.
Block: prohibits the access of devices with specified
MAC addresses.
Permit: permits the access of devices with specified
MAC addresses.
MAC Address Specifies the MAC address of the equipment to be
controlled.
Delete Click to delete the corresponding item of control
channel.
3. Click Add.
—END OF STEPS—
Checking Associated Devices
This section describes how to check the detailed information of the devices
associated with the SSID.
Steps

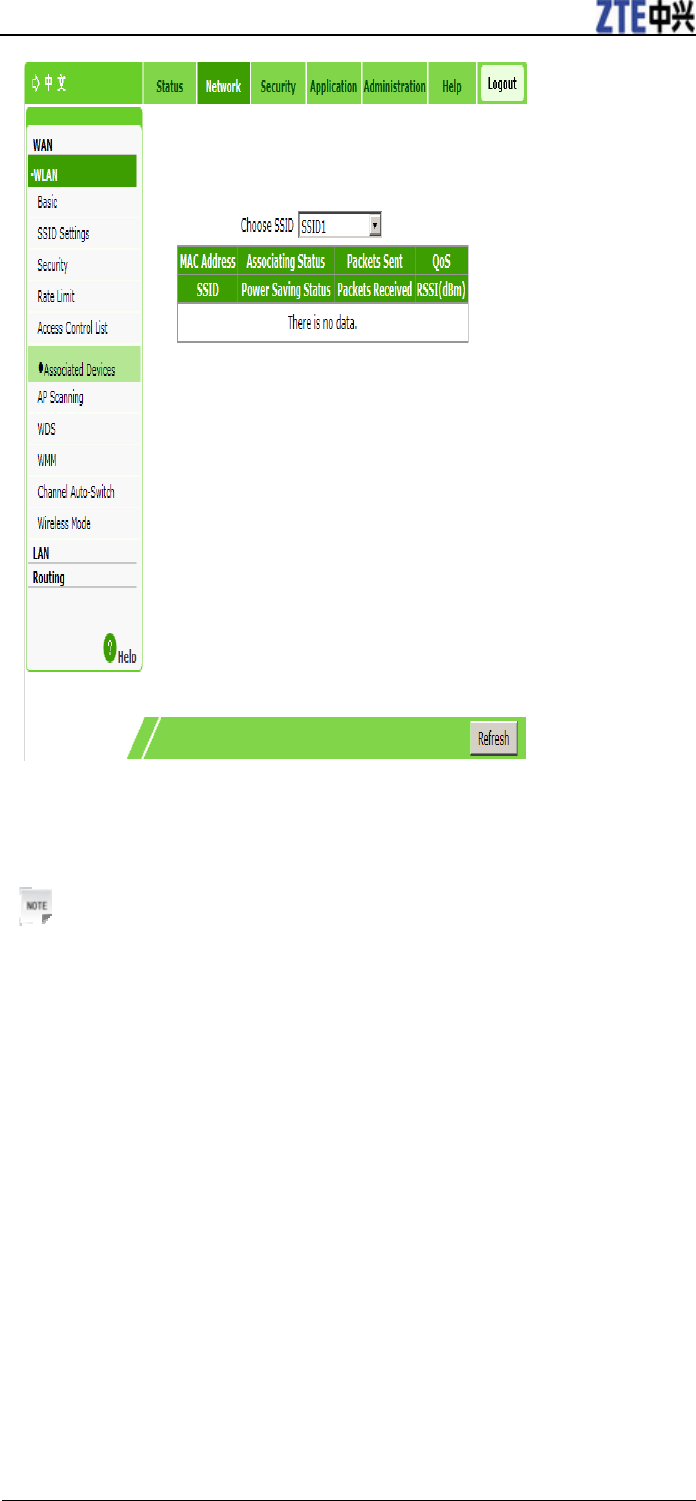

1. Select Network > WLAN > Associated Devices. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
3 0 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. In the Choose SSID drop-down list, select the required SSID. View the
detailed information of the associated device corresponding to the SSID. By
default, the system displays the device information associated with SSID1.
Notes:
You can click Refresh to view the latest information.
—END OF STEPS—
Scanning an AP
This section describes how to scan an AP.
Steps

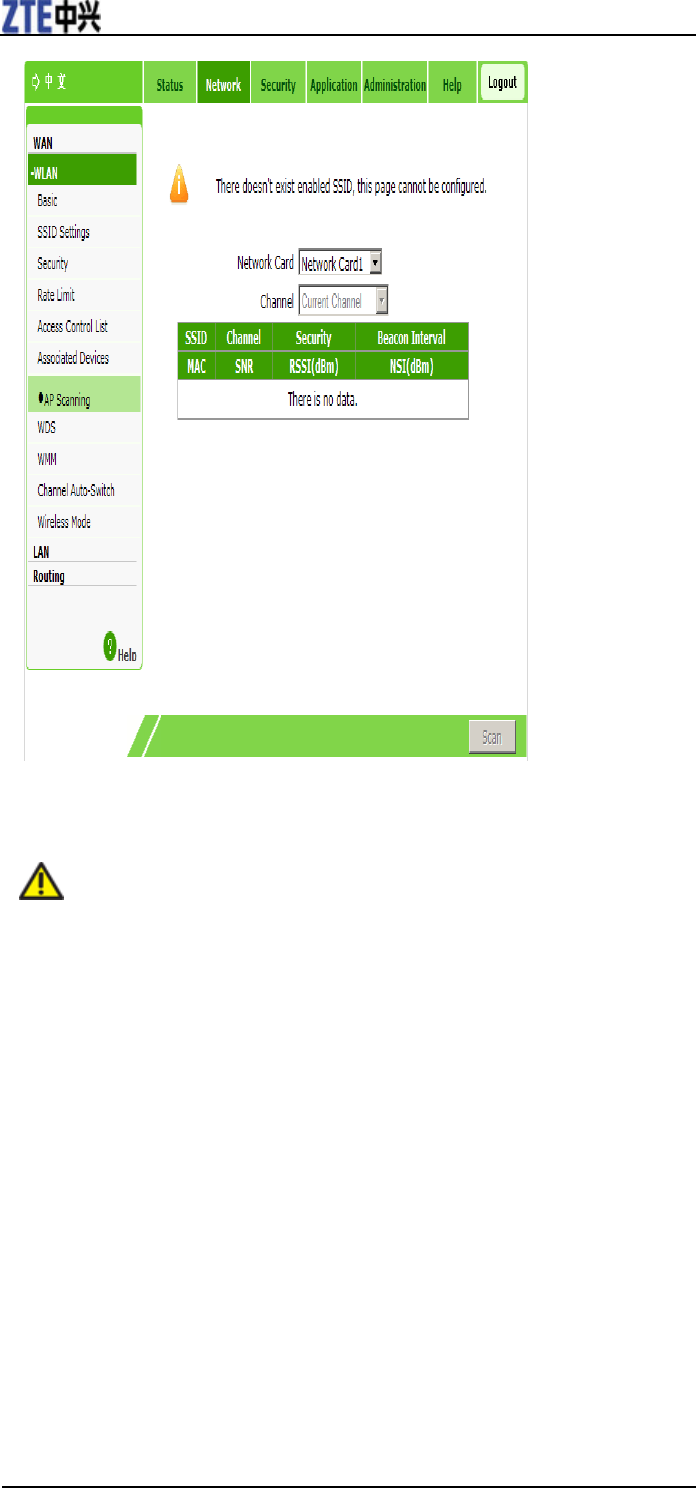

1. Select Network > WLAN > AP Scanning. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 3 1
2. In the Network Card and Channel drop-down lists, select the network card
and channel to be scanned respectively.
Caution:
When the SSID is disabled or the WIDS mode is Access, this page
cannot be configured.
3. Click Scan. The scan result is displayed on the refreshed page.
—END OF STEPS—
Setting WDS
This section describes how to set WDS.
Steps

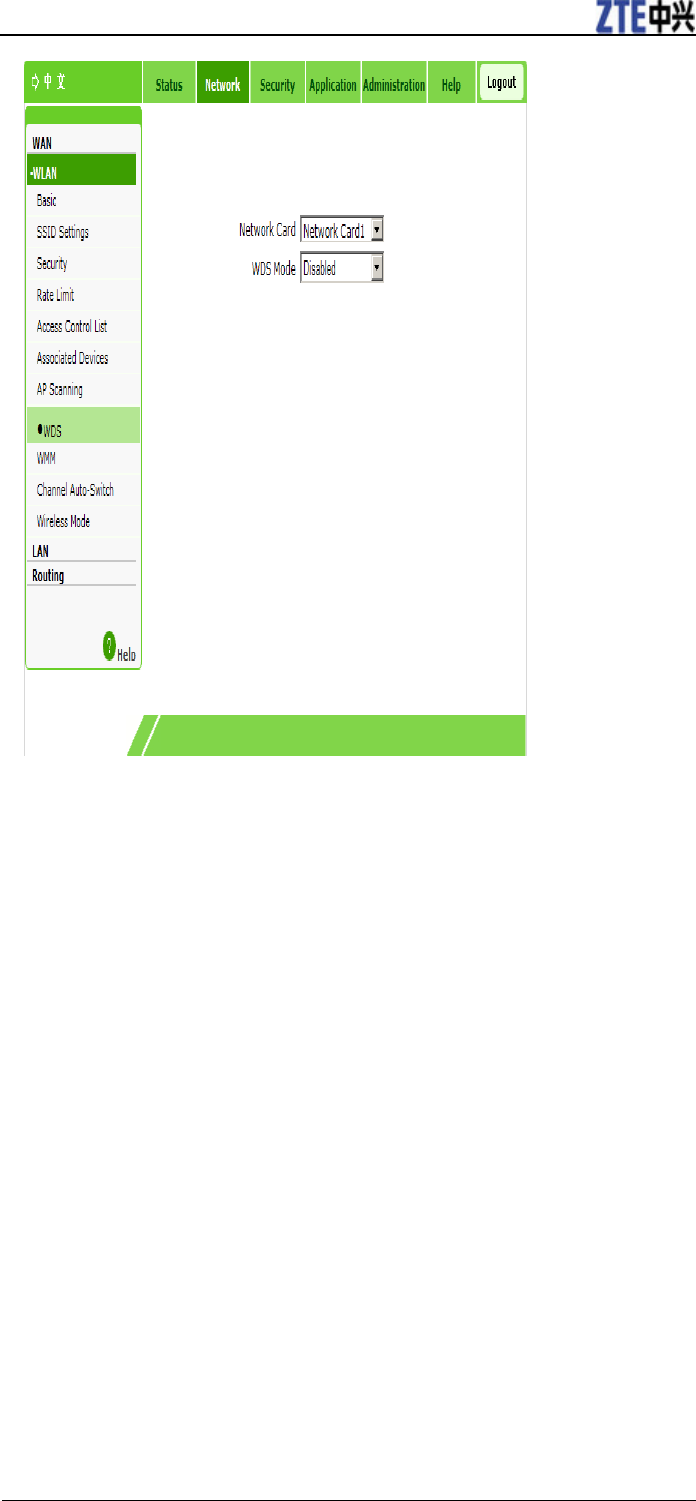

1. Select Network > WLAN > WDS. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
3 2 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. Select the network card. Configure the parameters based on the selected
WDS mode.
If WDS Mode is set to Disabled, no parameter needs to be configured.

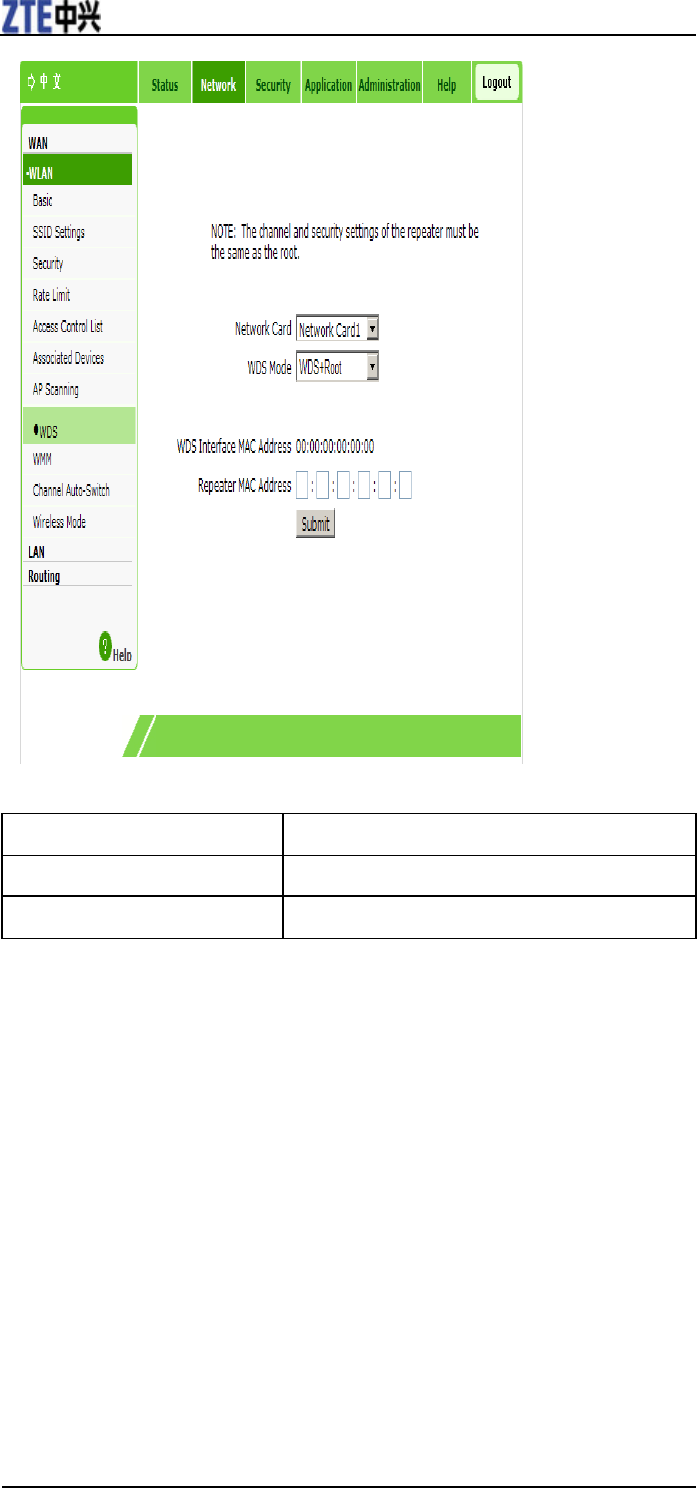

If WDS Mode is set to WDS+Root, the configuration page changes to:
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 3 3
Configure the parameters. Refer to the following table.
Parameter Description
WDS Interface MAC Address Displays the MAC address of the WDS interface.
Repeater MAC Address Specifies the MAC address of the repeater.

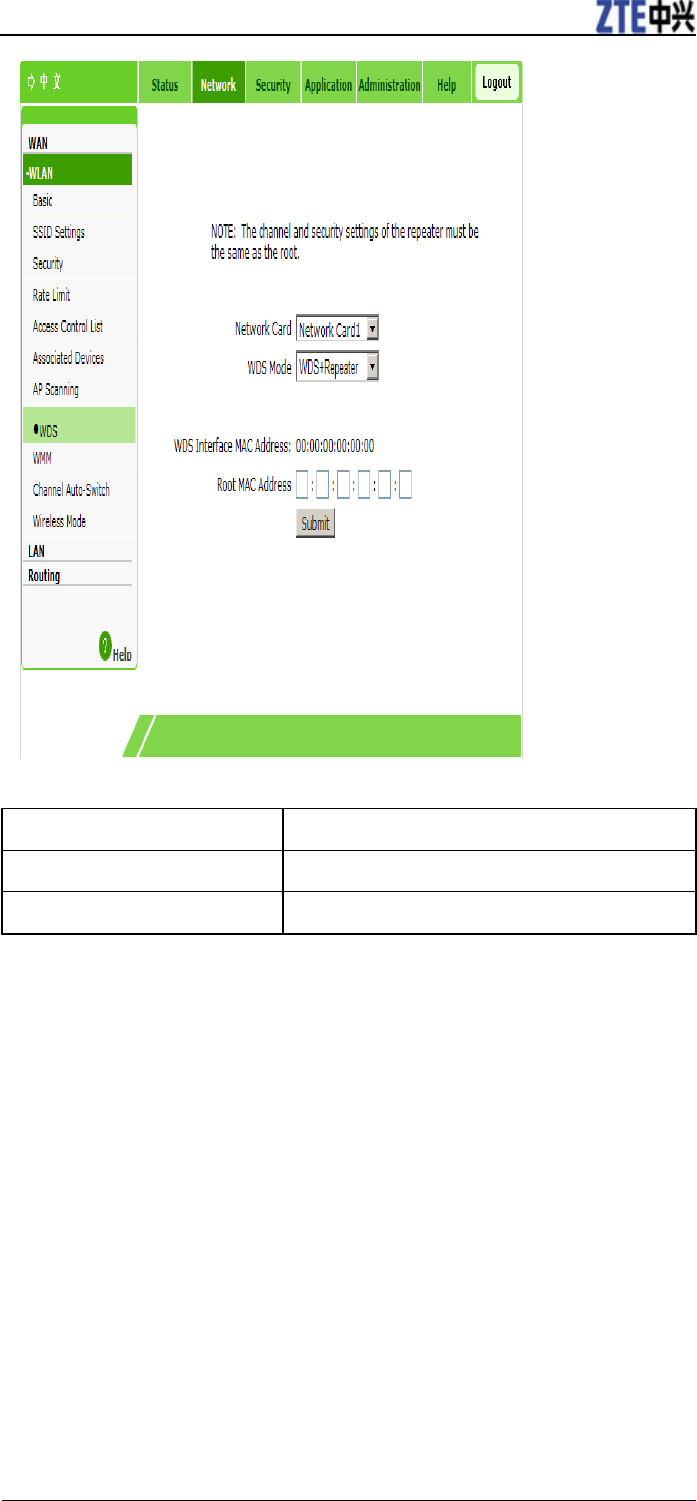

If WDS Mode is set to WDS+Repeater, the configuration page changes to:
ZX V1 0 W 6 1 5 User Manua l
3 4 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Configure the parameters. Refer to the following table.
Parameter Description
WDS Interface MAC Address Displays the MAC address of the WDS interface.
Root MAC Address Specifies the MAC address of the root AP.
3. Click Submit.
—END OF STEPS—
Setting STA WMM
This section describes how to set STA WMM.
Steps
1. Select Network > WLAN > STA WMM. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 3 5
2. Configure the parameters. Refer to the following table.
Parameter Description
Network Card Select the network card for which WMM is to be
configured.
Choose AC The available options are VO, VI, BE, and BK.
AIFSN The available range is 0–15.
ECWMin The available range is 0–15.
ECWMax The available range is 0–15.
TXOP The available range is 0–255.
Qlength The available range is 0–1000.
SRL The available range is 0–255.
ZX V1 0 W 6 1 5 User Manua l
3 6 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Parameter Description
LRL The available range is 0–255.
3. Click Submit.
—END OF STEPS—
Setting AP WMM
This section describes how to set AP WMM.
Steps

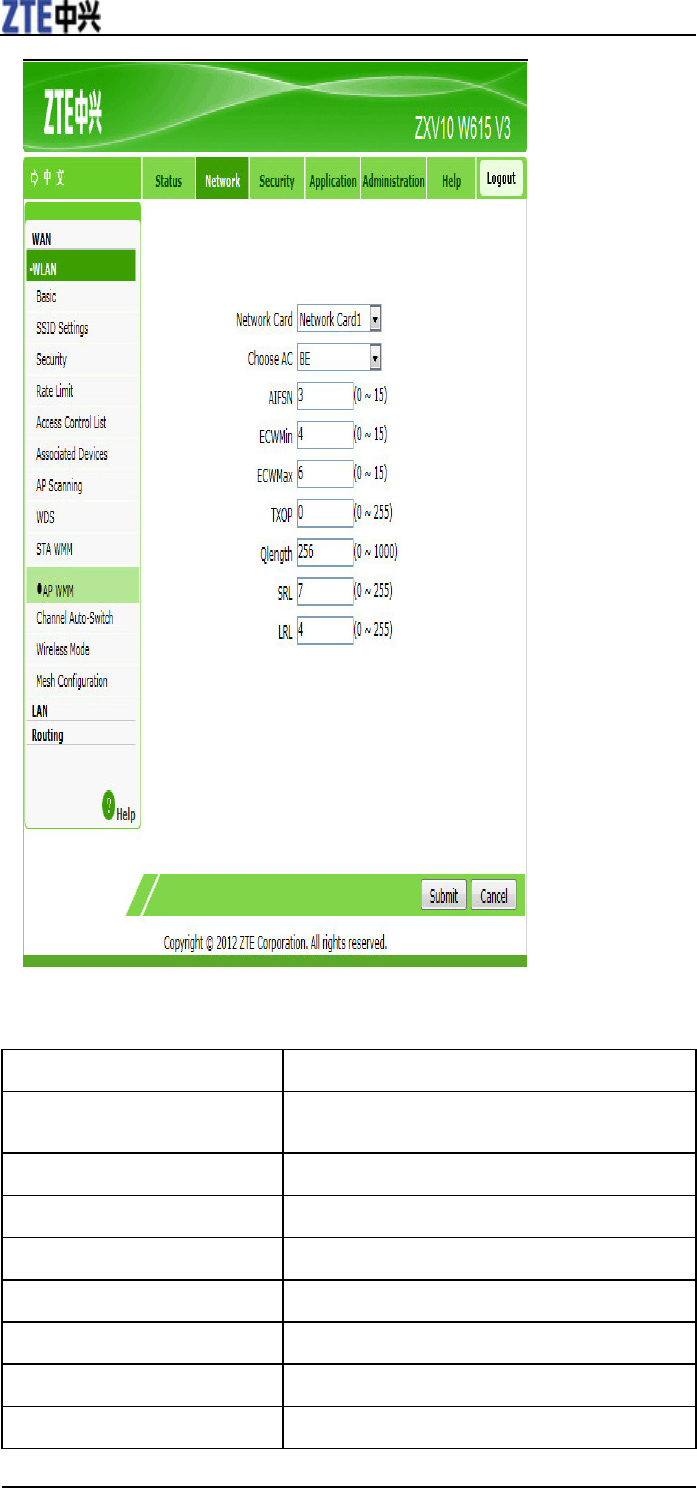

1. Select Network > WLAN > AP WMM. The following page is displayed.

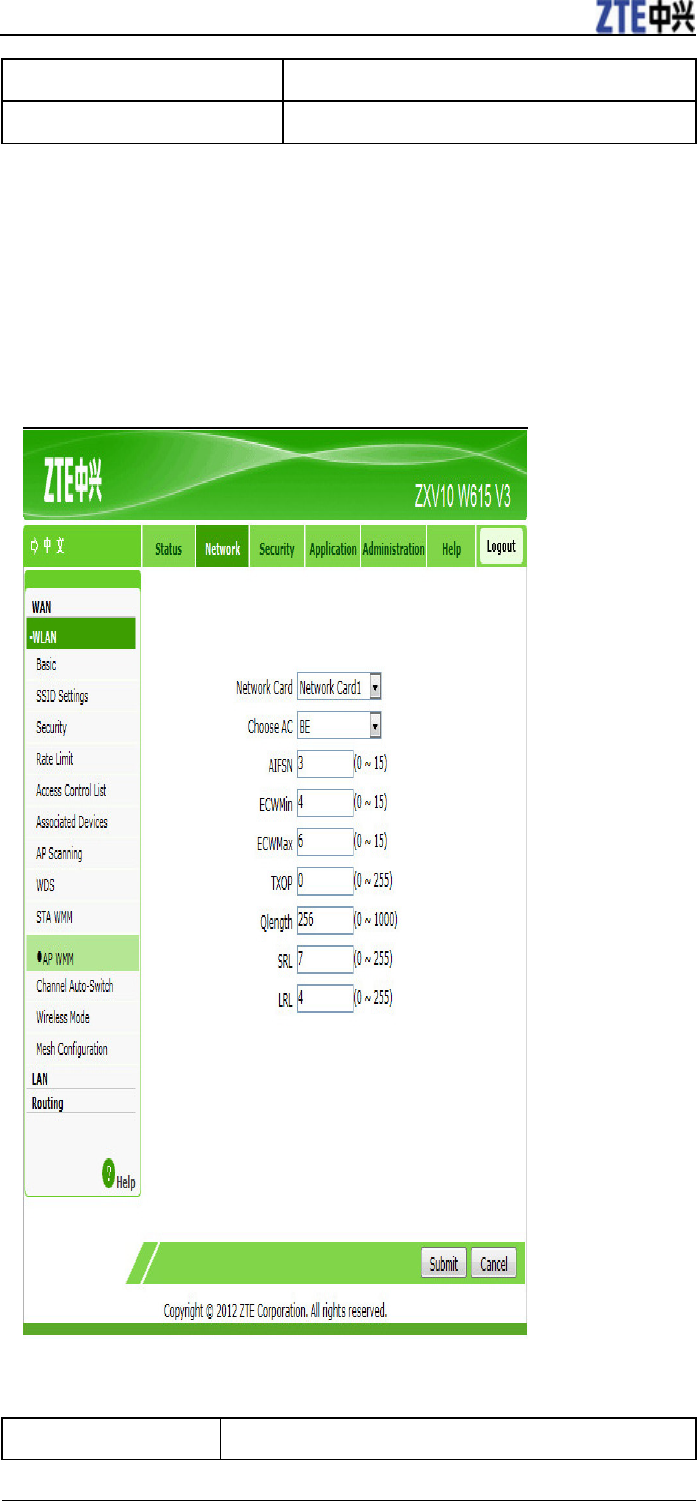

2. Configure the parameters. Refer to the following table.
Parameter Description
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 3 7
Parameter Description
Network Card Select the network card for which WMM is to be
configured.
Choose AC The available options are VO, VI, BE, and BK.
AIFSN The available range is 0–15.
ECWMin The available range is 0–15.
ECWMax The available range is 0–15.
TXOP The available range is 0–255.
Qlength The available range is 0–1000.
SRL The available range is 0–255.
LRL The available range is 0–255.
3. Click Submit.
—END OF STEPS—
Setting Automatic Channel Switching
This section describes how to set automatic channel switching.
Steps
1. Select Network > WLAN > Channel Auto-Switch. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
3 8 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. Configure the parameters. Refer to the following table.
Parameter Description
Network Card Select the network card for which automatic channel
adjustment is to be configured.
Enable Channel
Auto-Switch
Enables or disables the automatic frequency adjustment
function.
Adjustment Type Supports two types: Adjust On Startup and Adjust
Periodically.
RSSI Threshold Specifies the signal strength threshold. The value range
is -90 dBm to 10 dBm. The default value is -30 dBm.
Cycle Period Specifies the interval of channel adjustment. The value
range is 1 to 1440 minutes. The default value is 30
minutes.
Duration Specifies the duration of channel adjustment. The value
range is 0 to 3600 seconds.
3. Click Submit.
—END OF STEPS—

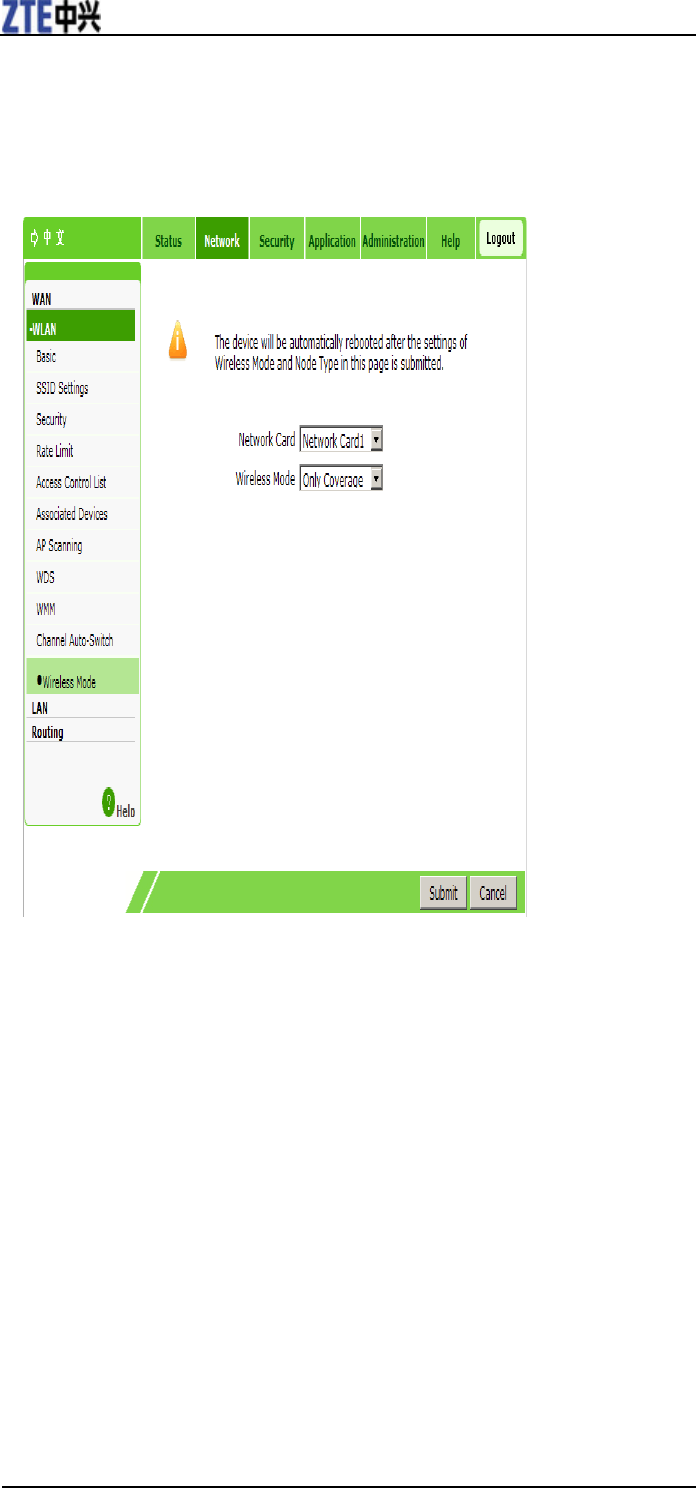

Setting Wireless Mode
This section describes how to set wireless modes for the two network cards of
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 3 9
the ZXV10 W615.
Steps
1. Select Network > WLAN > Wireless Mode. The following page is
displayed.
2. Select the network card to be configured. Select Wireless Mode to be Only
Coverage or Only Backhaul
3. Click Submit.
—END OF STEPS—
Setting the Network Configuration
This section describes how to configure the network.
Steps
1. Select Network > WLAN > Mesh Configuration. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
4 0 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Figure 6 N e t w ork Configur a t ion
2. Configure the parameters.. Refer to the following table.
Parameter Description
Network Card Select the network card 1 or the network card 2 as
mesh returning network card.
Enable Wireless Mesh Enables or disables the mesh function.
Mesh ID Set the mesh identity.
Mesh Node Type Supports two types: normal node, gateway
node.The default value is normal node.
3. Click Submit.
—END OF STEPS—
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 4 1
AddressesManagement
Managing Addresses
The DHCP start IP address and the DHCP end IP address should be within the
subnet of LAN IP.
Steps
1. Select Nework > LAN > Address Management. The following page is
displayed.
2. Configure the parameters. Refer to the following table.
Parameter Description
LAN IP Address IP address of LAN group (interface subnet). The default
IP address is 192.168.1.1.
ZX V1 0 W 6 1 5 User Manua l
4 2 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Parameter Description
Subnet Mask Subnet mask of LAN group.
Enable STP Enables or disables the STP function.
DHCP Service
When the AP mode is Fit, the supported states are
DHCP Server and OFF. The default state is DHCP
Server.
When the AP mode is Fat, the supported states are
DHCP Server, DHCP Relay, and OFF. The default state is
DHCP Server.
DHCP Start IP Address The start IP address allocated by the DHCP Server.
Before modifying the start or end IP address, ensure that
this IP address is in the same network segment with that
of ZXV10 W615.
DHCP End IP Address The end IP address allocated by the DHCP Server. Before
modifying the start or end IP address, ensure that this IP
address is in the same network segment with that of
ZXV10 W615.
DNS Server 1–3 IP
Address
IP address of the DNS server. There are three available
addresses.
Default Gateway The value is 192.168.1.1 by default.
Lease Time Lease time stands for the duration when an IP address can
be leased from the IP pool by the client dynamically. The
default value is 86400 seconds. When the lease time
expires, the DHCP server can lease this IP address to this
client again or assign a new IP address for this client.
Allocated Address Refers to the allocated IP address. The page displays the
allocated IP address and the basic information of devices
that use the IP addresses.
3. Click Submit.
—END OF STEPS—
Setting DHCP Conditional Serving Pool
This section describes how to set the DHCP conditional serving pool in the
fat AP mode.
Steps

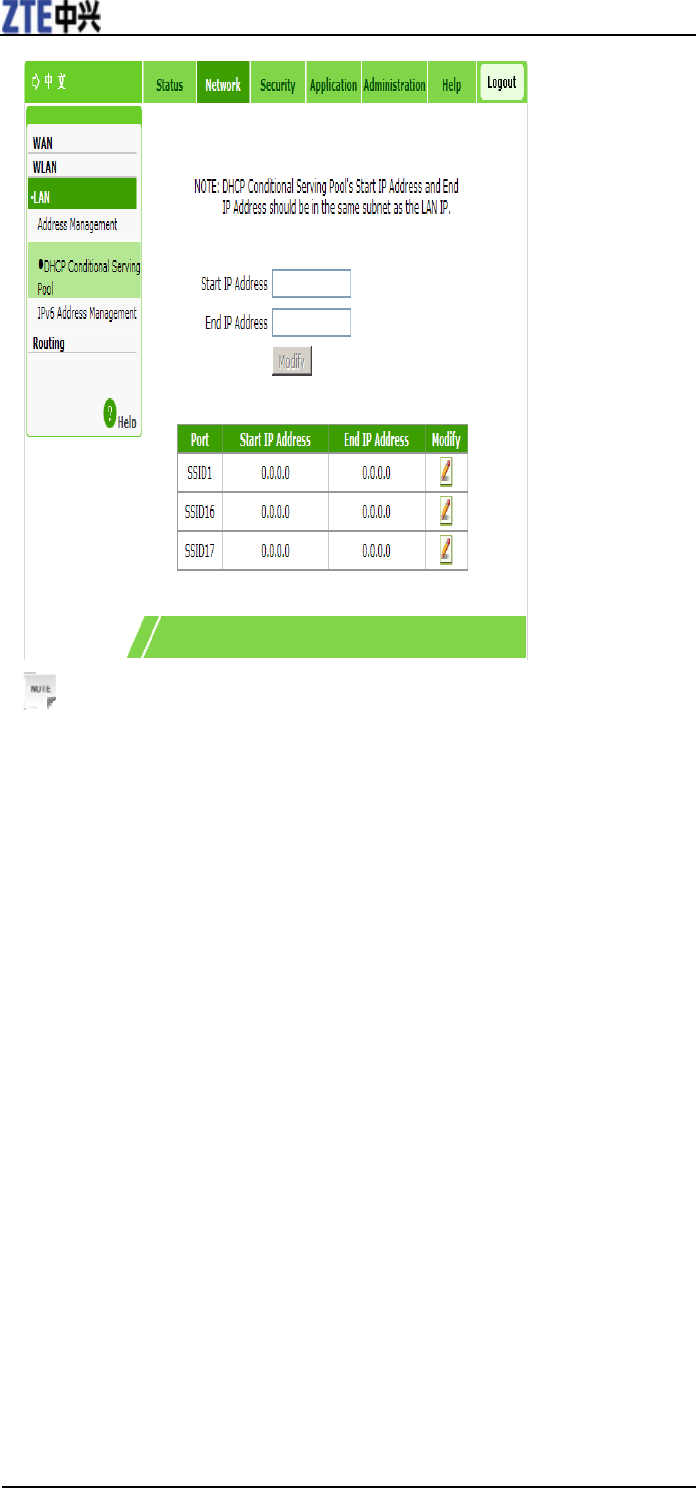

1. Select Network > LAN > DHCP Conditional Serving Pool. The
following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 4 3
Notes:
The DHCP Conditional Serving Pool page is unavailable in the fit AP
mode..
2. Enter the start IP address and end IP address.
3. Click Modify.
—END OF STEPS—
Managing an IPv6 Address
This section describes how to manage an IPv6 address.
Steps

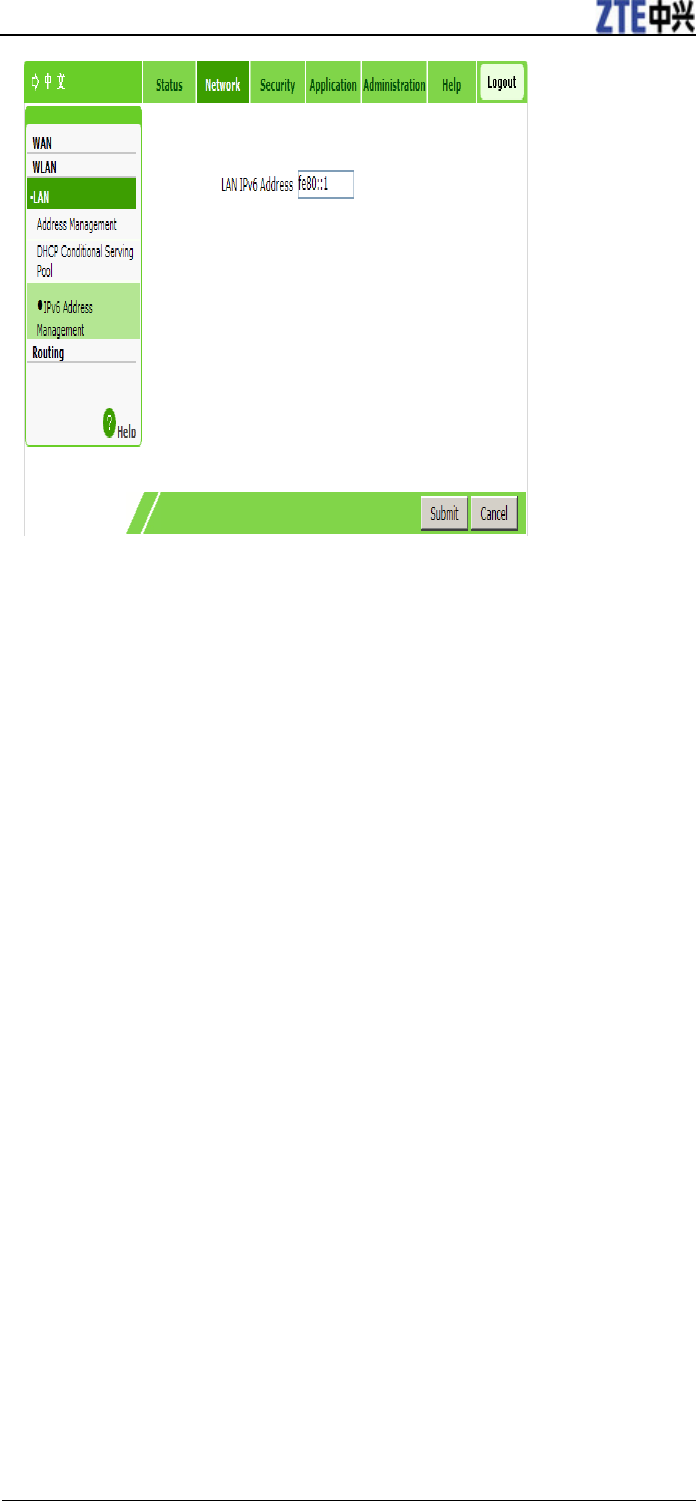

1. Select Network > LAN > IPv6 Address. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
4 4 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. On this page, re-configure the IPv6 address of this terminal.
3. Click Submit.
—END OF STEPS—
RoutingManagement
Setting an IPv4 Static Route
This section describes how to set an IPv4 static route.
Steps
1. Select Network > Routing > Static Routing (IPv4). The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 4 5
2. Configure the parameters. Refer to the following table.
Parameter Description
WAN Connection Specifies the required interface.
Network Address Refers to the address of the destination network.
Subnet Mask Refers to the subnet mask of the destination network.
Gateway Refers to the IP address of the gateway (next hop).
Modify Click to edit the corresponding static route rule.
Delete Click to delete the corresponding static route rule.
3. Click Add.
—END OF STEPS—
Setting an IPv6 Static Route
This section describes how to configure an IPv6 static route.
Steps

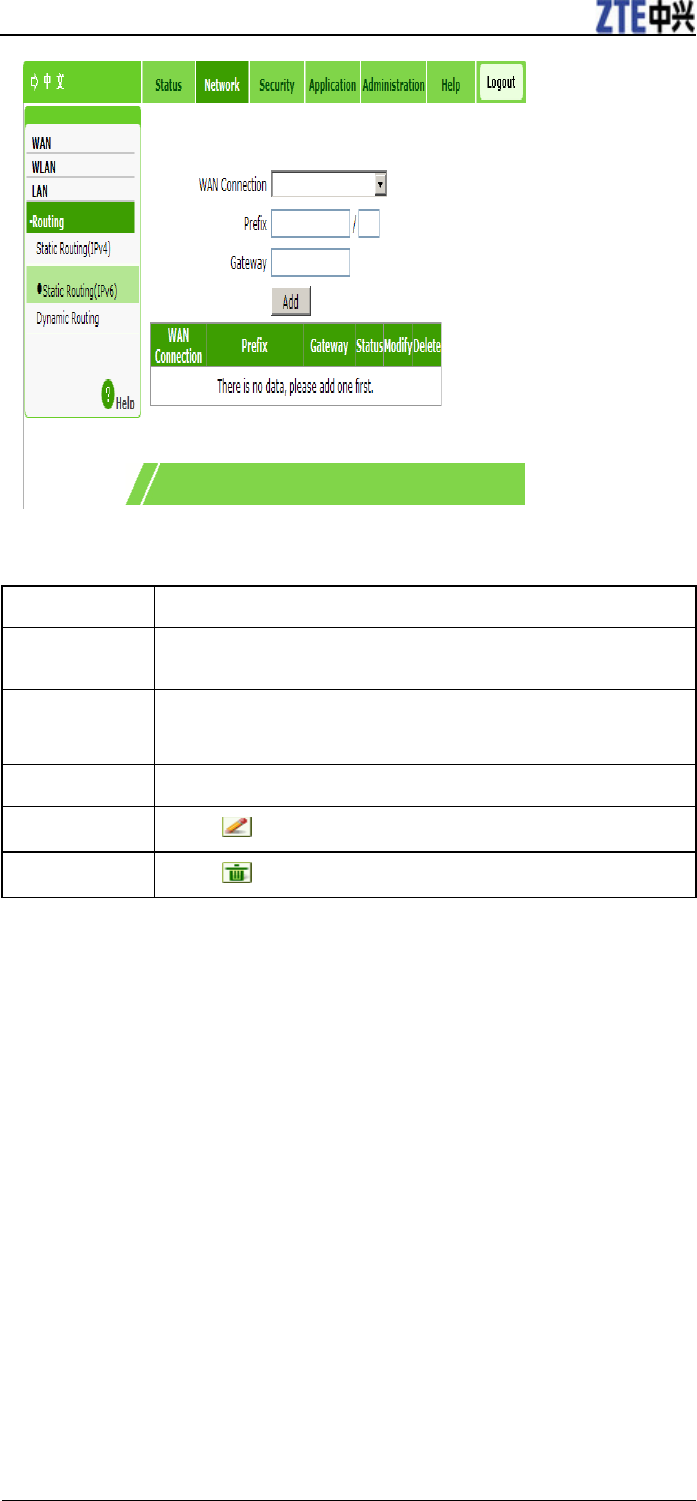

1. Select Network > Routing > Static Routing (IPv6). The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
4 6 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. Configure the parameters. Refer to the following table.
Parameter Description
WAN
Connection
Select the related interface as needed.
Prefix Fill in the front blank with the IPv6 address.
Fill in the back blank with the length of the subnetwork prefix.
Gateway The Gateway IP address (Next hop)
Modify Click to edit the corresponding static route rule.
Delete Click to delete the corresponding static route rule.
—END OF STEPS—
Setting a Dynamic Route
This section describes how to set a dynamic route.
Steps

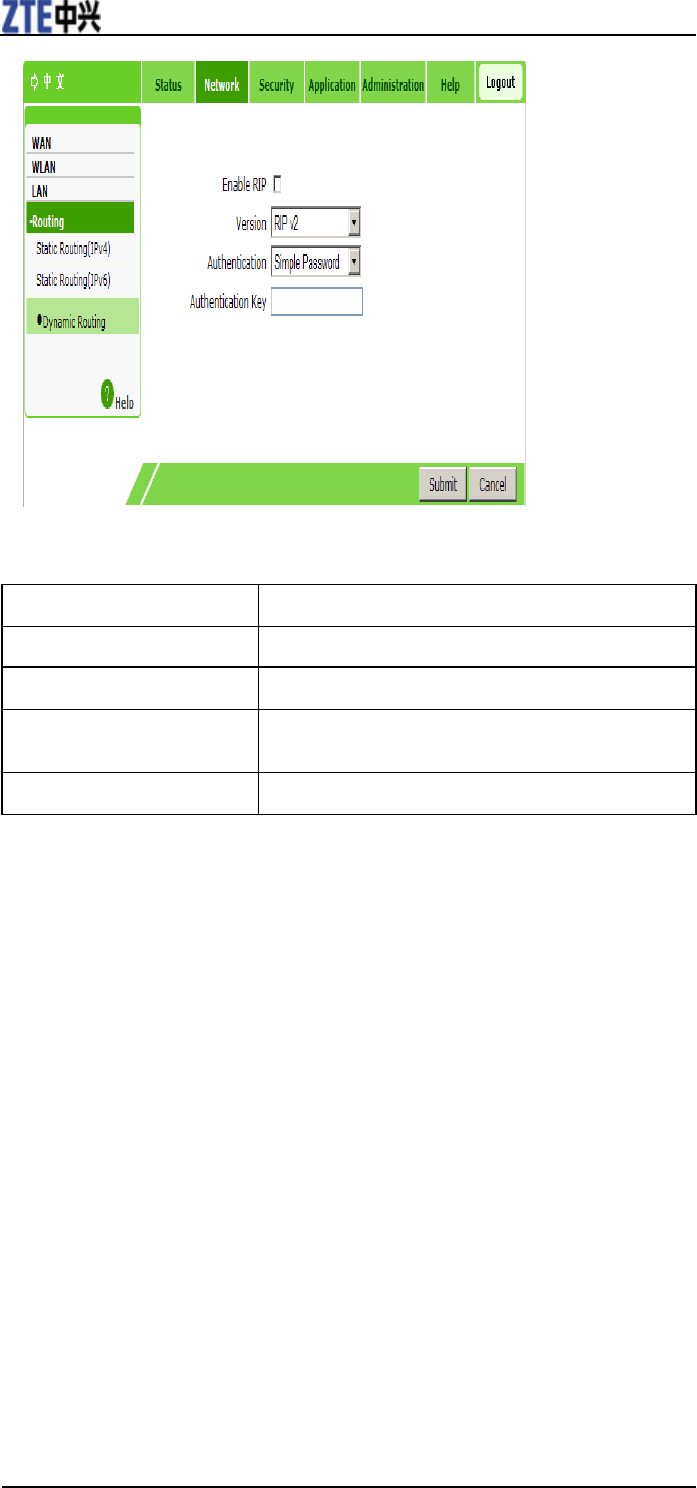

1. Select Network > Routing > Dynamic Routing. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 4 7
2. Configure the parameters. Refer to the following table.
Parameter Description
Enable RIP Enables or disables RIP.
Version Supports RIP v1, RIP v2, and RIP v1 Compatible.
Authentication Supports No Authentication, Simple Password, and
MD5 Authentication.
Authentication Key Refers to the authentication key.
3. Click Submit.
—END OF STEPS—
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 4 8
C h a p t e r 5
Security Configuration
SettingaFirewall
This section describes how to set a firewall.
Steps

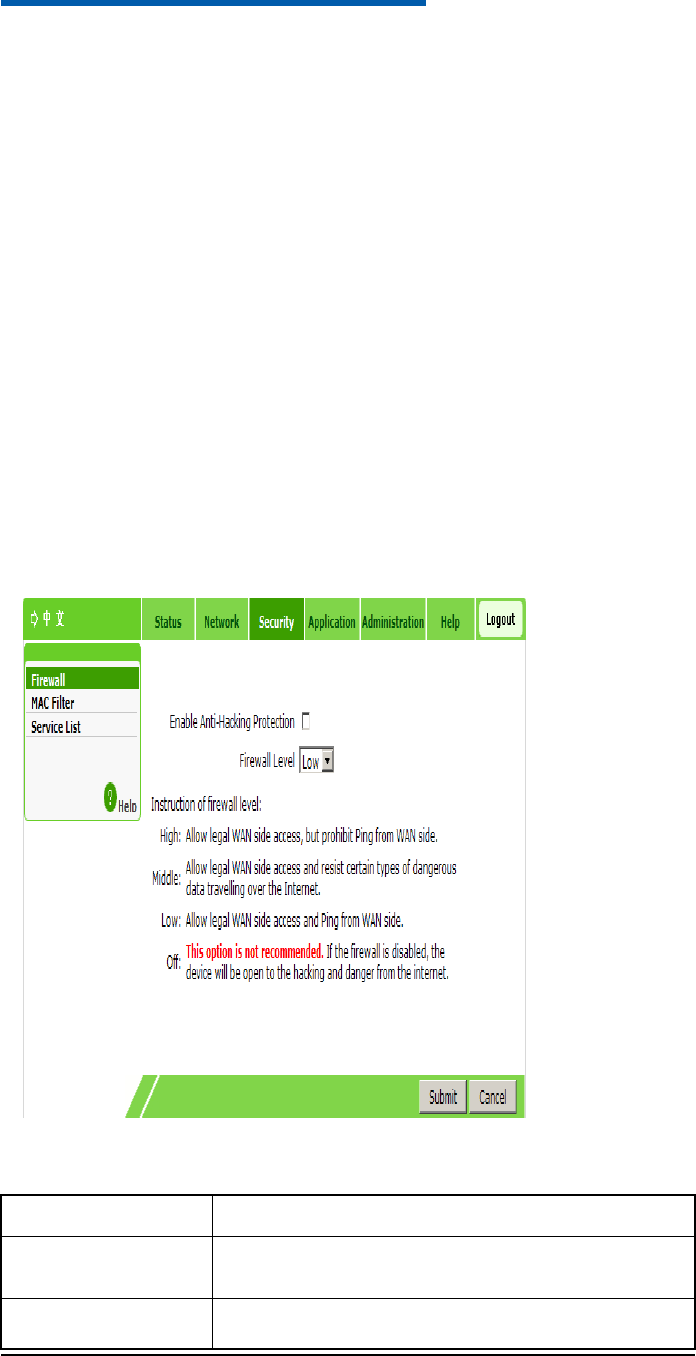

1. Select Security > Firewall. The following page is displayed.
2. Configure the parameters. Refer to the following table.
Parameter Description
Enable Anti-Hacking
Protection
Enables or disables the anti-hacking protection function.
Firewall Level The firewall levels are as follows:
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 4 9
Parameter Description
High: allows legal WAN side access, but prohibits PING
from the WAN side.
Middle: allows legal WAN side access, but resists certain
types of dangerous data flow traveling over Internet.
Low: allows legal WAN side access and PING from the
WAN side.
Off: Not recommended to use this configuration. When
the firewall is closed, the network is vulnerable to attacks
and normal Internet access may be affected.
3. Click Submit.
—END OF STEPS—
SettingIPFilter(FatAP)
This section describes how to filter the addresses in a certain range or used by
a specified port.
Steps
The AP mode of the device is Fat.

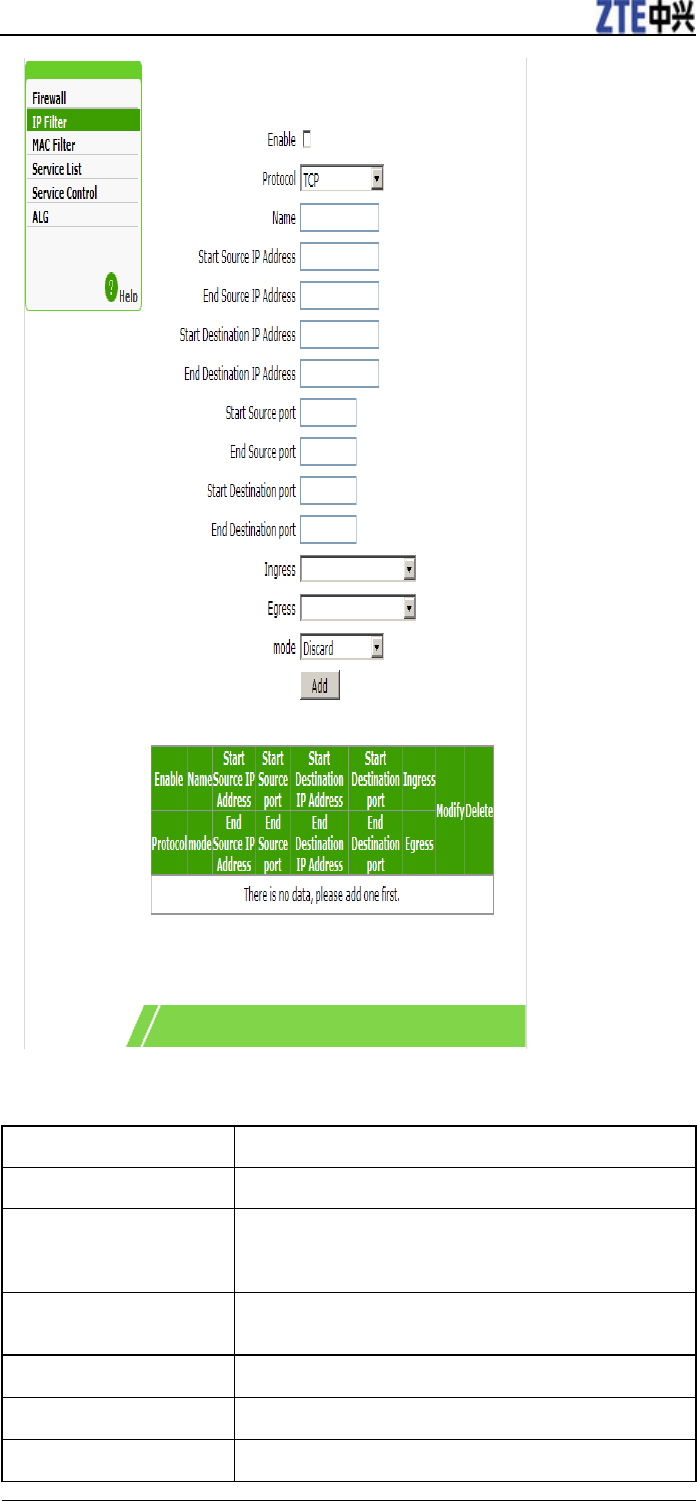

1. Select Security > IP Filter. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
5 0 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. Configure the parameters. Refer to the following table.
Parameter Description
Enable Enables or disables the IP filter function.
Protocol The available options are ANY, TCP, User Datagram
Protocol (UDP), TCP AND UDP, and Internet Control
Message Protocol (ICMP). ANY refers to any protocol.
Name Refers to the IP filter name. The length is 1 to 256
characters.
Source IP Address Start IP address of the source (LAN side).
End Source IP Address End IP address of the source (LAN side).
Start Destination IP Start IP address of the destination.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 5 1
Parameter Description
Address
End Destination IP
Address
End IP address of the destination.
Start source port Port number of the start source (LAN side) address.
End source port Port number of the end source (LAN side) address.
Start Destination port Port number of the start destination source (LAN side)
address.
End Destination port Port number of the end destination source (LAN side)
address.
Ingress The availbable options are LAN,
IGD.WD1.WCD1.WCIP1, or blank. It is blank by default,
which refers to any mode.
Egress The availbable options are LAN,
IGD.WD1.WCD1.WCIP1 or blank. It is blank by default,
which refers to any mode.
Mode Select a filtering mode: Discard or Permit.
Modify Click to modify the corresponding IP filter rule.
Delete Click to delete the corresponding IP filter rule.
3. Click Add.
—END OF STEPS—
SettingMACFilter
This section describes how to filter the prohibited MAC addresses.
Steps

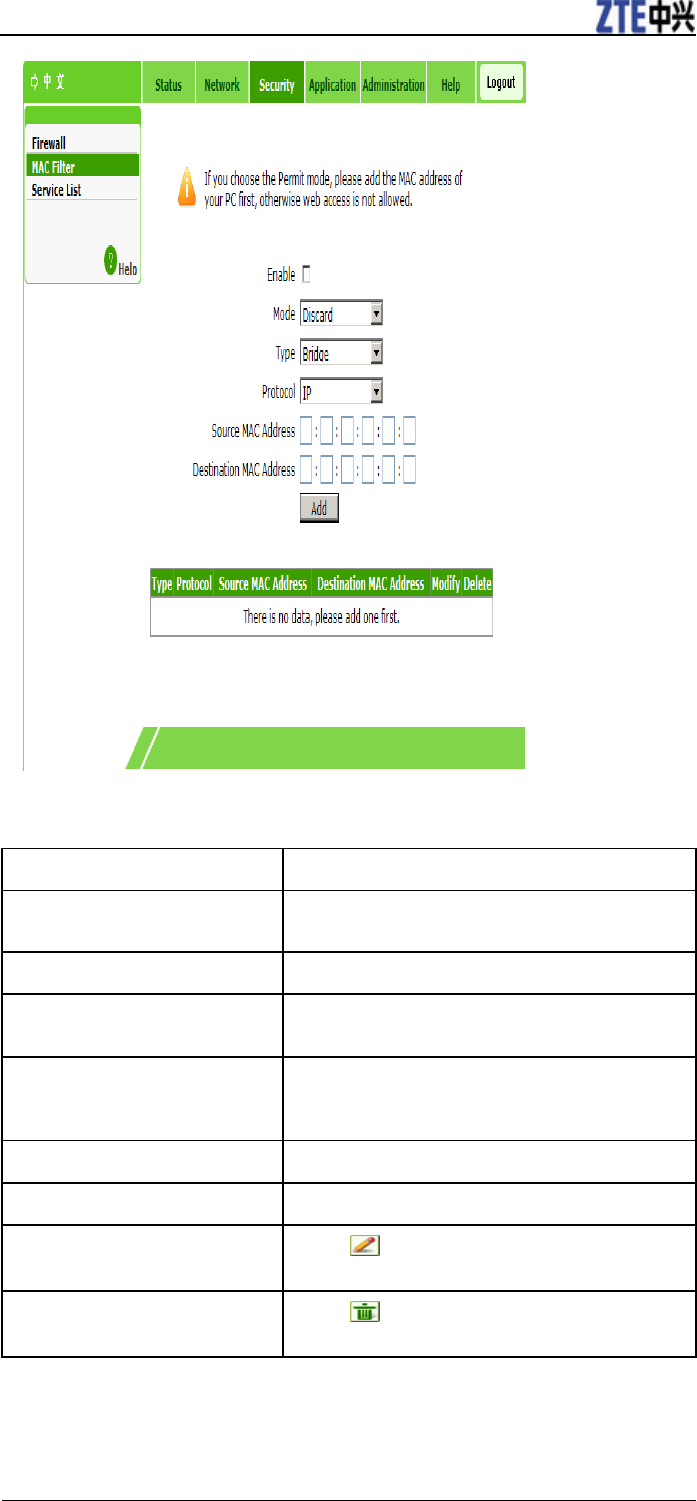

1. Select Security > MAC Filter. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
5 2 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. Configure the parameters. Refer to the following table.
Parameter Description
Enable Enables or disables the MAC filter function. This
function is disabled by default.
Mode Select a filtering mode: Discard or Permit.
Type Specifies the type: Bridge, Route, or
Bridge+Route.
Protocol Specifies the protocol: IP, Address Resolution
Protocol (ARP), Reverse Address Resolution
Protocol (RARP), PPPoE, or ALL.
Source MAC Address MAC address of the device on the LAN side.
Destination MAC Address MAC address of the device on the WAN side.
Modify Click to modify the corresponding MAC
filter rule.
Delete Click to delete the corresponding MAC filter
rule.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 5 3
Notes:
If the Permit mode is selected, the MAC address of the local computer
must be entered to ensure network connection.
3. Click Add.
—END OF STEPS—
CheckingtheServiceList
The service list shows the enabled service ports.
Steps

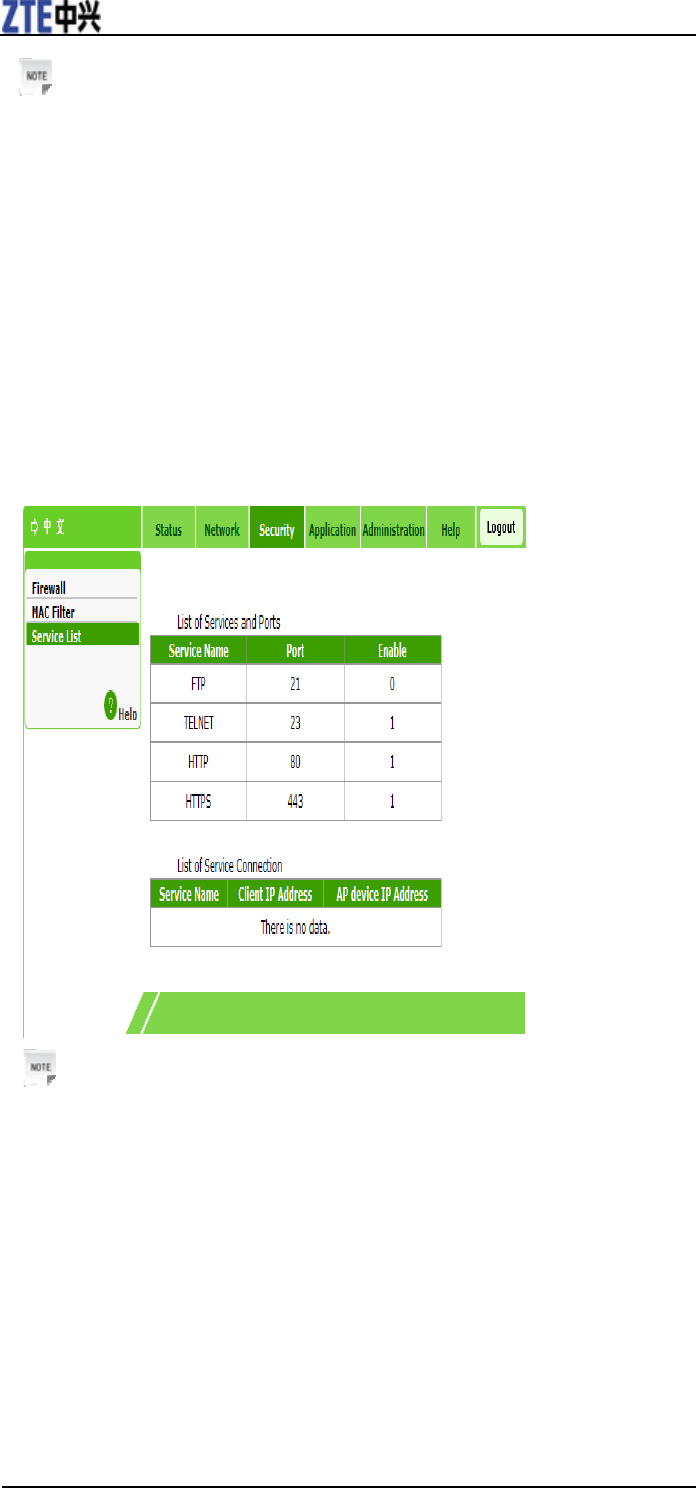

1. Select Security > Service List. The following page is displayed.
Notes:
In the lists of services and ports, Enable is 0: indicates Stop;Enable
is 1: indicates St a r t .
Under normal condition, List of Service Connection recorded Client
IP Address and AP device IP Address after log on HTTP.
2. Check the detailed information about the service ports and connections.
—END OF STEPS—

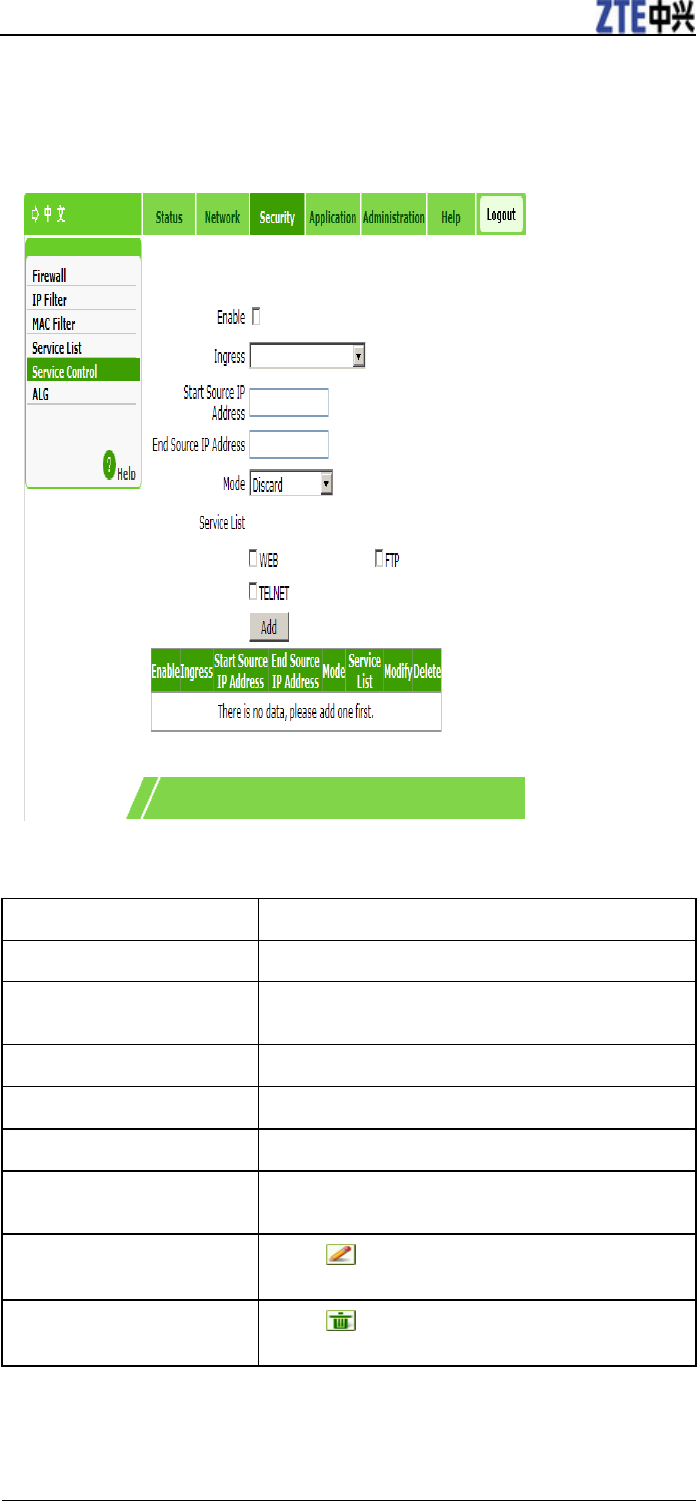

SettingServiceControl(FatAP)
This section describes how to prevent specified IP addresses from accessing
the network.
ZX V1 0 W 6 1 5 User Manua l
5 4 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Steps
The AP mode of the device is Fat.
1. Select Security > Service Control. The following page is displayed.
2. Configure the parameters. Refer to the following table.
Parameter Description
Enable Enables or disables the service control function.
Ingress Supports LAN, WAN or empty.. The default value is
empty, meaning any values.
Start Source IP Address Start IP address of the source.
End Source IP Address End IP address of the source.
Mode The options are Permit and Discard.
Service List The available options are Web, File Transfer Protocol
(FTP), and TELNET. Select one or more options.
Modify Click to edit the corresponding access control
rule.
Delete Click to delete the corresponding access control
rule.
3. Click Add.
—END OF STEPS—
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 5 5
SettingtheALGSwitch(FatAP)
This section describes how to configure the ALG switch.
Steps
The AP mode of the device is Fat.
1. Select Security > ALG. The following page is displayed.

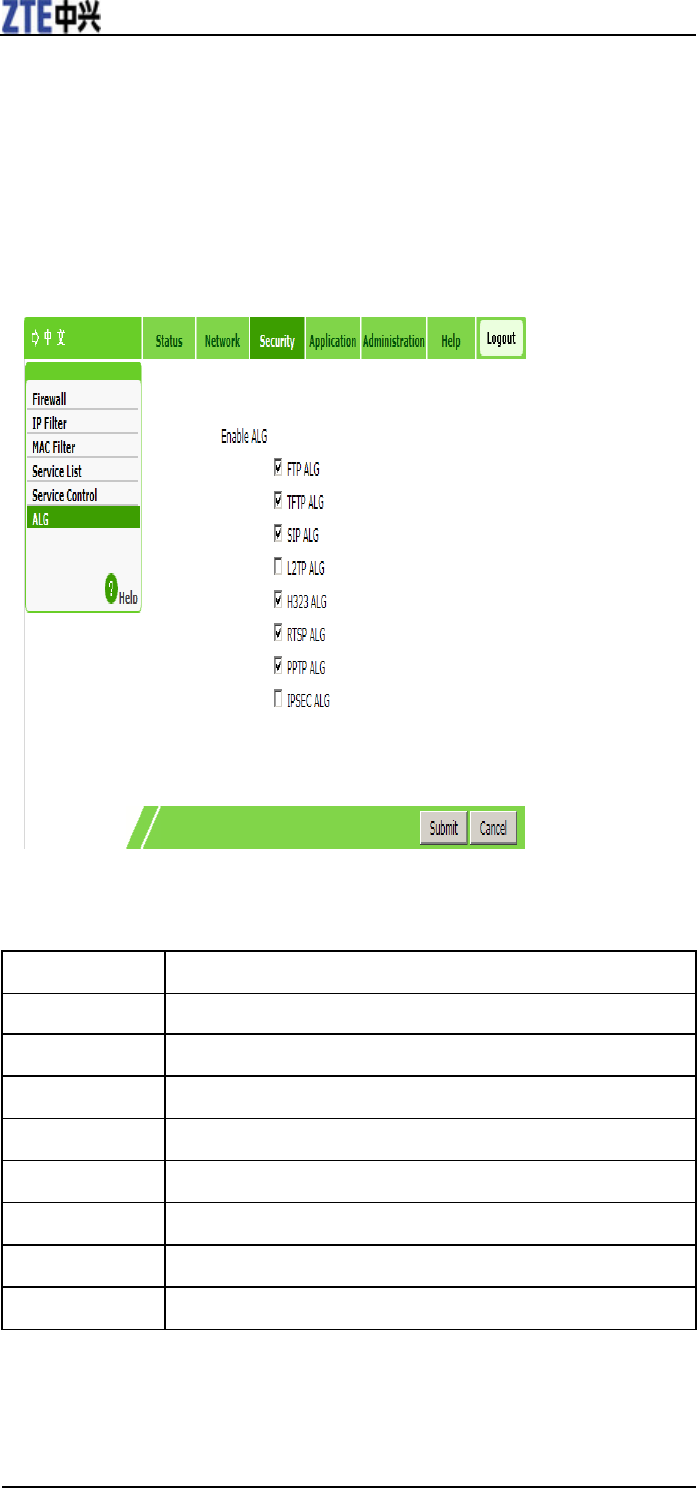

2. Refer to the following table to confirm the protocol name for NAT
conversion. Open/close the related ALG switches.
Parameter Description
FTP ALG Open/close the NAT conversion switch for the FTP protocol.
TFTP ALG Open/close the NAT conversion switch for the TFTP protocol.
SIP ALG Open/close the NAT conversion switch for the SIP protocol.
L2TP ALG Open/close the NAT conversion switch for the L2TP protocol.
H323 ALG Open/close the NAT conversion switch for the H323 protocol.
RTSP ALG Open/close the NAT conversion switch for the RTSP protocol.
PPTP ALG Open/close the NAT conversion switch for the PPTP protocol.
IPSEC ALG Open/close the NAT conversion switch for the PSEC protocol.
3. Click Submit.
—END OF STEPS—
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 5 6
C h a p t e r 6
Application Configuration
ConfiguringUPnP(FatAP)
This section describes how to configure UPnP.
Context
The AP mode of the device is Fat.
Universal Plug and Play (UPnP) supports zero-configuration connection. This
function helps to discover various network devices automatically.
A devices supporting UPnP can access the network dynamically, obtain the IP
address, and send its performance information. If there are DHCP and DNS
servers, the device can obtain the DHCP and DNS services automatically.
A devices supporting UPnP can be disconnected from the network
automatically without affecting the device itself or other devices in the
network.
Steps
1. Select Application > UPnP. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 5 7

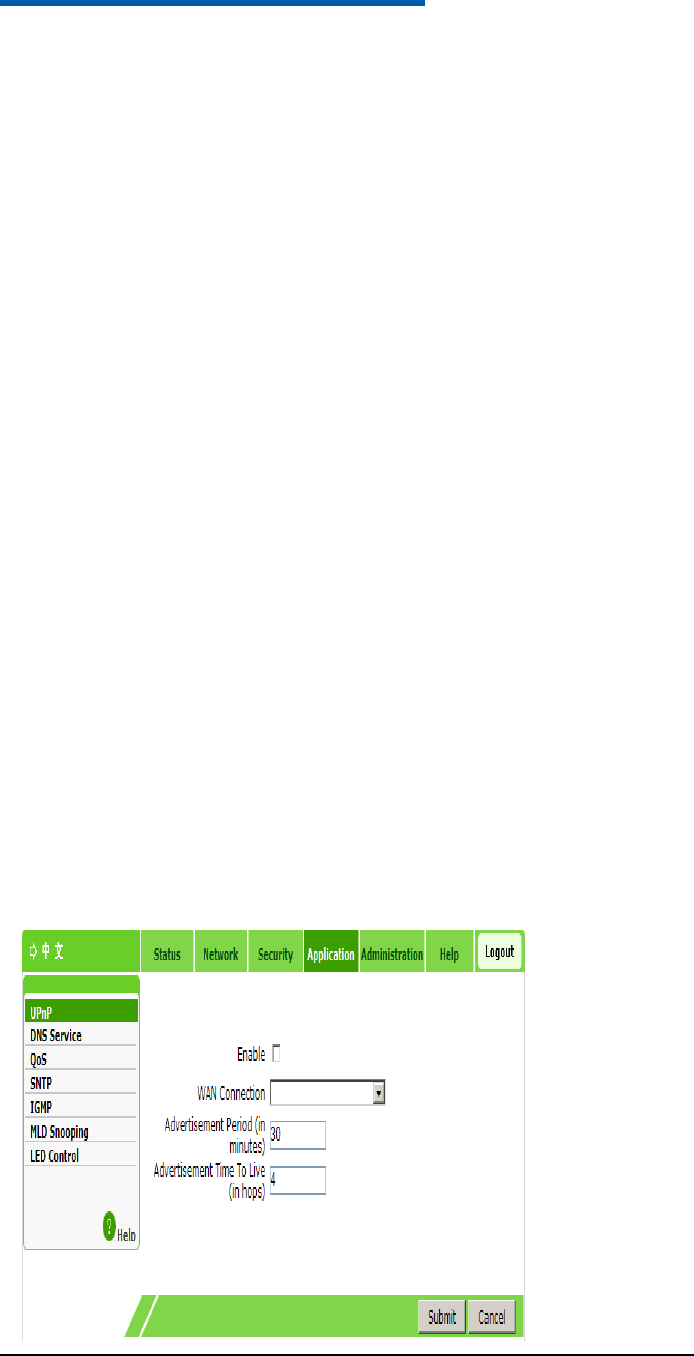

2. Configure the parameters. Refer to the following table.
Parameter Description
Enable Enable or disable the UPnP function. It is disabled by
default.
WAN Connection Select IGD.WD1.WCD1.WCIP1 or empty. The
default value is empty, meaning any values.
Advertisement Period (in
minutes)
Set the corresponding advertisement time as
required. The unit is minute.
Advertisement Time to Live
(in hops)
Set the corresponding time to live (hop count) as
required.
3. Click Submit.
—END OF STEPS—
SettingaDeviceName(FatAP)
This section describes how to set a device name.
Steps
The AP mode of the device is Fat.
1. Set the domain name.
i. Select Application > DNS Service > Domain Name. The following page
is displayed.

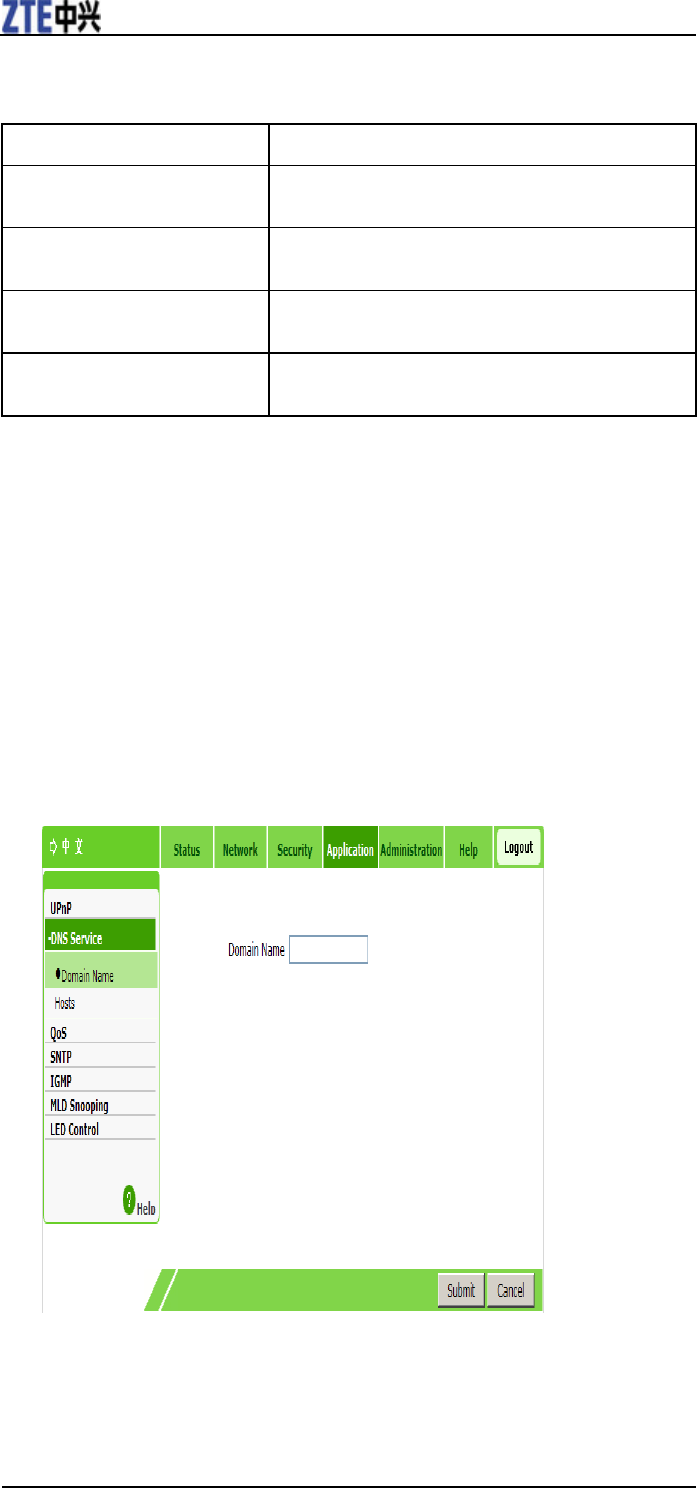

ii. In the Domain Name text box, enter the corresponding domain name,
such as ZTE.
iii. Click Submit.
ZX V1 0 W 6 1 5 User Manua l
5 8 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. Set the host name.
i. Select Application > DNS Service > Hosts. The following page is
displayed.
ii. In the Host Name and IP Address text boxes, enter the host name and
corresponding IP address respectively.
iii. Click Add.
Notes:
The items with dimmed buttons are allocated from a DHCP server
and cannot be operated.
– Click to edit the corresponding host information.
– Click to delete the corresponding host information.
—END OF STEPS—
QoSConfiguration
Quality of Service (QoS) defines the quality agreement on the information
transmission and sharing between network users. For example, the allowed
transmission delay time, the degree of distortion, and the synchronization of
audio and video.
The concept of Class of Service is introduced to QoS frame. By using QoS,
ZXV10 W615 can completely control the incoming and outgoing data packets
of this device. For the incoming data packet, it is required to convert its field
mapping (such as ToS and priority) to queue. For the outgoing data packet, it
is required to convert its queue to field mapping.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 5 9
Configuring Basic QoS Parameters
This section describes how to set basic QoS parameters.
Steps
1. Select Application > QoS > Basic. The following page is displayed.
2. Configure the parameters. Refer to the following table.
Parameter Description
Enable QoS Enables or disables the QoS function.
Total Upstream
Bandwidth
Specifies the total upstream bandwidth.
Enable Queue
Management
Enables or disables the function of congestion
management. It is disabled by default.
Scheduler Algorithm The available algorithms are SP, DWRR and SP_DWRR.
SP: Sends the group in a queue with higher priority in
descending order of priorities. When the queue with
higher priority is empty, the device will send the group in
a queue with lower priority.
DWRR: the priority cycle by weighting. Each queue is
served in turn.
SP_DWRR：Adopts SP and DWRR. The queue 0 adopts
the SP algorithm. The queue 1 to the queue 7 adopt the
DWRR algorithm. That is, using the DWRR scheduler
algorithm in priority on the queue 1 to queue 7, and then
using the SP scheduler algorithm on the queue 0.
Enable DSCP Re-marking Enables or disables DSCP re-marking. It is disabled by
default.
Enable 802.1p
Re-marking
Enables or disables 802.1p processing priorities
re-marking. It is disabled by default.
ZX V1 0 W 6 1 5 User Manua l
6 0 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
3. Click Submit.
—END OF STEPS—
Setting a Classification Rule
This section describes how to set a classification rule.
Steps
1. Select Application > QoS > Classification. The following page is
displayed.
2. Configure the parameters. Refer to the following table.
Parameter Description
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 6 1
Parameter Description
Enable Enables or disables the function of QoS classification
configuration.
DevIn The ingress of packets. Select a LAN interface or the
configured SSID. Only one interface type can be selected
at a time.
L2Protocol Specifies the layer-2 protocol for packets. The options are
IPv4, IPv6, ARP, and PPPoE.
L3Protocol Specifies the layer-3 protocol for packets. The options are
TCP, UDP, and ICMP.
Source MAC Address Source MAC address of packets.
802.1p The flag value of VLAN packets used for setting user
priority that ranges between 0 and 7 (0 means that the
priority is not set). A greater value indicates a higher
priority.
Destination Port
MIN/MAX
Specifies the destination port number (minimum value
and maximum value) of packets. The range is 0 to 65535.
Modify Click to modify the corresponding rule.
Delete Click to delete the corresponding rule.
Modify Click to modify the corresponding rule.
Delete Click to delete the corresponding rule.
Modify Click to modify the corresponding rule.
Delete Click to delete the corresponding rule.
DSCP Specifies the DSCP value of packets. The value range is 0
to 63.
Modify Click to modify the corresponding rule.
Delete Click to delete the corresponding rule.
Proprietary configuration for IPv4
Source IP Address
MIN/MAX
Specifies the minimum and maximum values of packet
source IP address.
Destination IP Address
MIN/MAX
Specifies the minimum and maximum values of packet
destination IP address.
TOS Specifies the service type field of data packets. The range
is 0 to 255.
IP Precedence IP priority that ranges from 0 to 7 (0 indicates priority
unavailable). A greater value indicates a higher priority.
Proprietary configuration for IPv6
Source IPv6 Address
MIN/MAX
Specifies the minimum and maximum values of packet
source IPv6 address.
Destination IPv6 Address
MIN/MAX
Specifies the minimum and maximum values of packet
destination IPv6 address.
ZX V1 0 W 6 1 5 User Manua l
6 2 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Parameter Description
Traffic Class Specifies the traffic type ranging from 0 to 255.
Flow Label Specifies the flow flag ranging from 0 to 1048575.
802.1p Re-marking The re-marking value of 802.1p processing priority. The
value range is 0 to 7 (0 means that the priority is not set).
A greater value indicates a higher priority.
DSCP Re-marking Specifies the re-marking value of DSCP. The value range
is 0 to 63.
Queue Index Specifies the corresponding management queue number
that ranges from 1 to 8.
3. Click Submit.
—END OF STEPS—
Configuring Congestion Management
This section describes how to configure congestion management.
Context
The default congestion management algorithm is SP. The default queue is
Queue 8. Congestion management is enabled by default.
Steps
1. Select Application > QoS > Queue Management. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 6 3

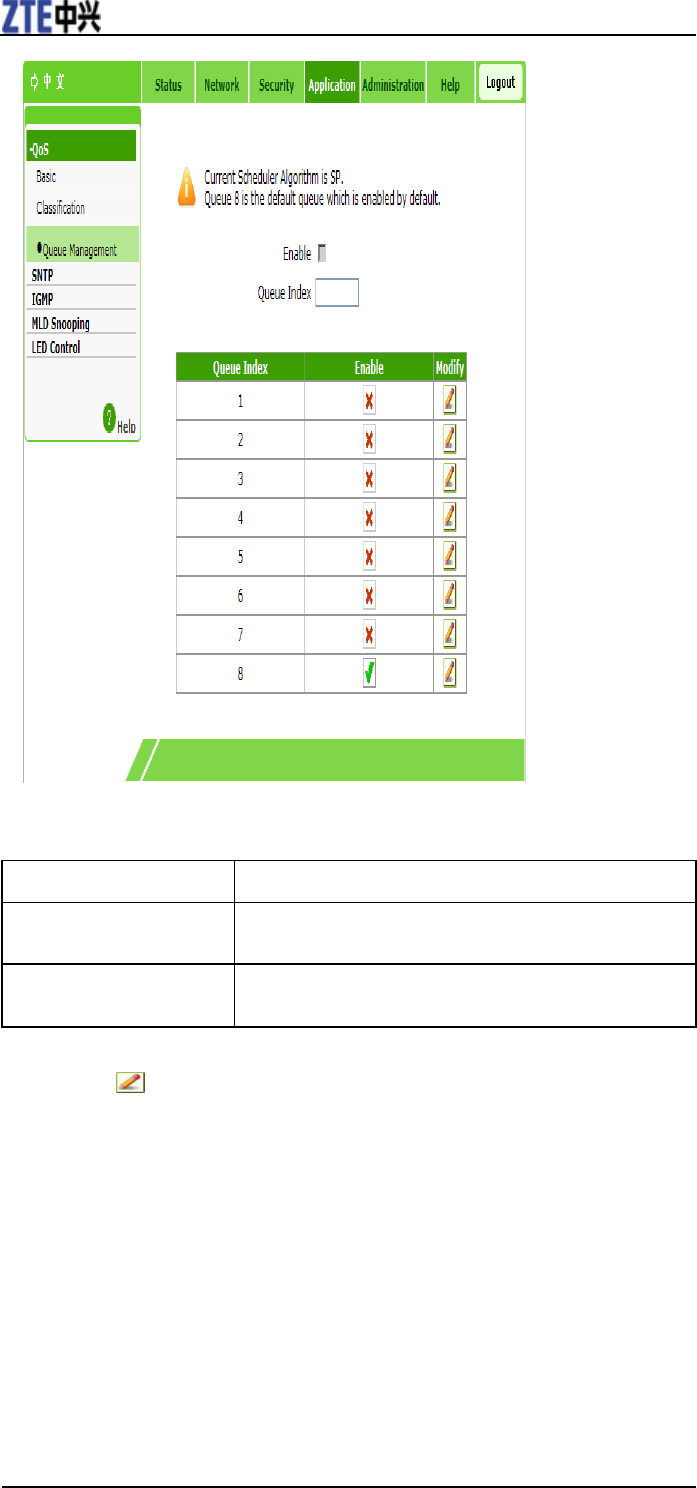

2. Configure the parameters. Refer to the following table.
Parameter Description
Enable Enables or disables the configuration function of QoS
queues.
Queue Index Includes Queue 1- Queue 8. Queue 8 is enabled by
default.
3. Click the icon of the queue to be modified. Select or clear the Enable
check box.
4. Click Modify.
—END OF STEPS—
ConfiguringSNTP
This section describes how to configure time management to achieve time
synchronization with the time server.
Steps
1. Select Application > SNTP. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
6 4 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON

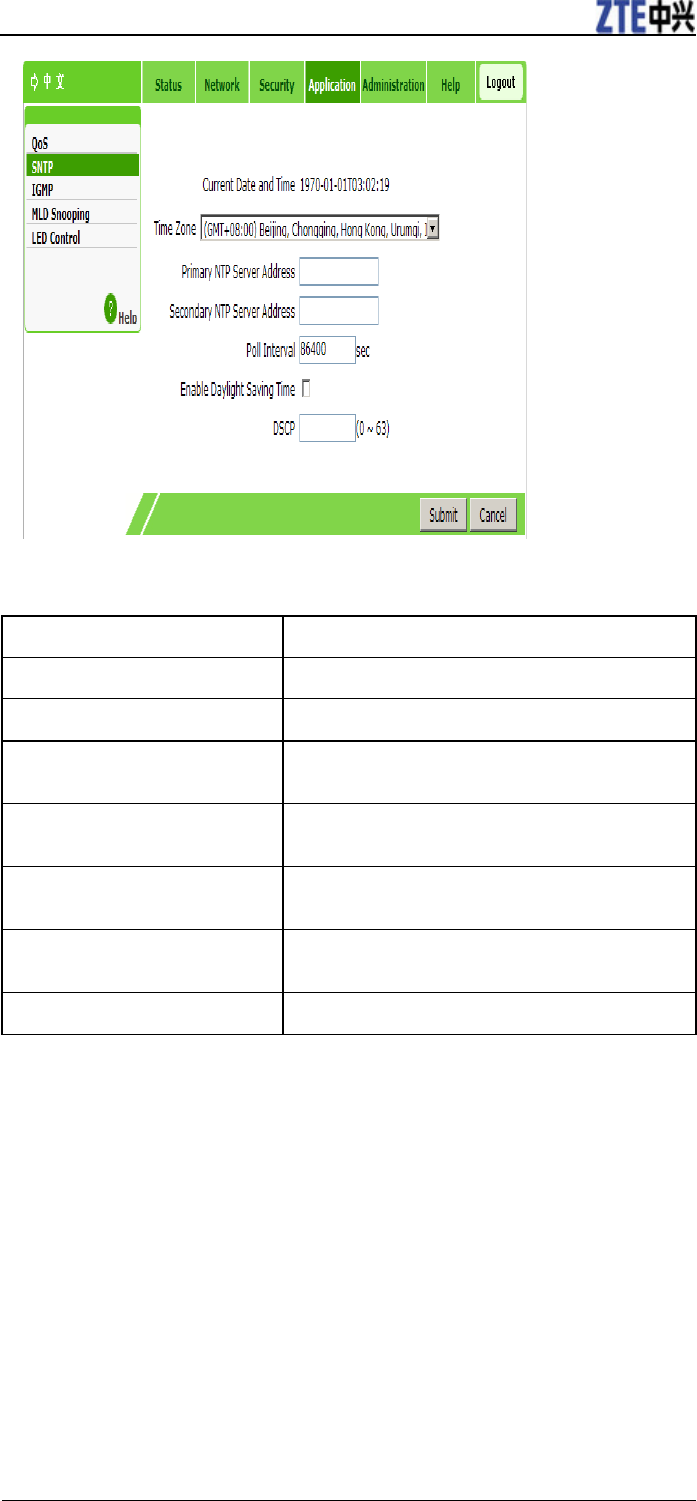

2. Configure the parameters. Refer to the following table.
Parameter Description
Current Date and Time Displays the current date and time of the device.
Time Zone Specifies the time zone where the device is located.
Primary NTP Server Address Specifies the address or domain name of the
primary Network Time Protocol (NTP) server.
Secondary NTP Server Address Specifies the address or domain name of the
secondary NTP server.
Poll Interval The interval of server time synchronization. It is
86400 seconds by default.
Enable Daylight Saving Time Enables or disables the daylight saving time
function. It is disabled by default.
DSCP Specifies the DSCP value. The value range is 0-63.
3. Click Submit.
—END OF STEPS—
IGMPConfiguration
The multicast function allows sending the same data to several devices.
The IP host uses the Internet Group Management Protocol (IGMP) to report
the qualifications of multicast group members to the neighboring router by
sending data. At the same time, the multicast router uses the IGMP to find
which hosts belong to the same multicast group.
The device supports processing IGMP packets through the IGMP proxy.
When the IGMP proxy is enabled, the LAN host can request to join in or leave
the multicast group. The multicast router can send multicast packets to the
multicast group at the WAN side and serve as the proxy.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 6 5
Configuring WAN Connection (Fat AP)
This section describes how to configure WAN connection.
Steps
The AP mode of the device is Fat.
1. Select Application > IGMP > WAN Proxy. The following page is
displayed.

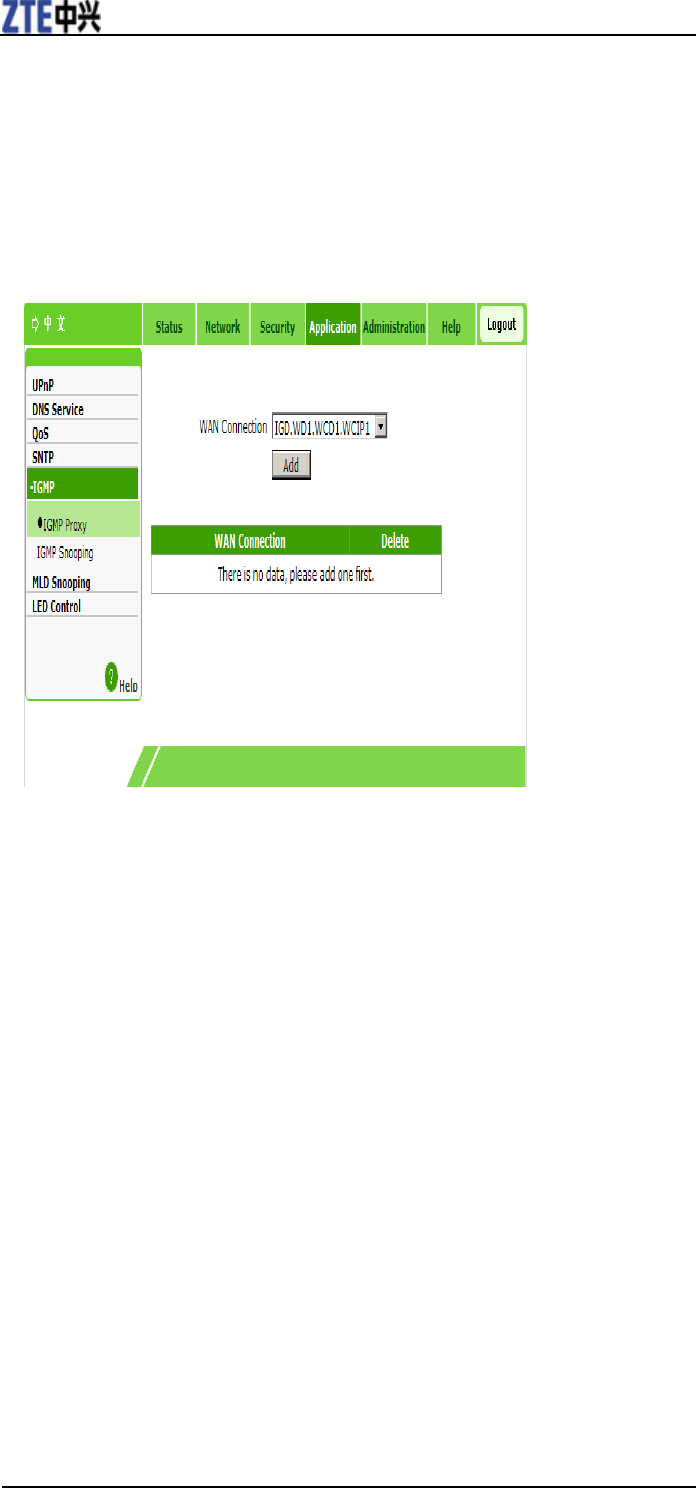

2. Select IGD.WD1.WCD1.WCIP1 or WANBRIDGE1 as the WAN
connection.
3. Click Add.
—END OF STEPS—
Configuring IGMP Snooping
This section describes how to configure IGMP snooping.
Steps
1. Select Application > IGMP > IGMP Snooping. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
6 6 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON

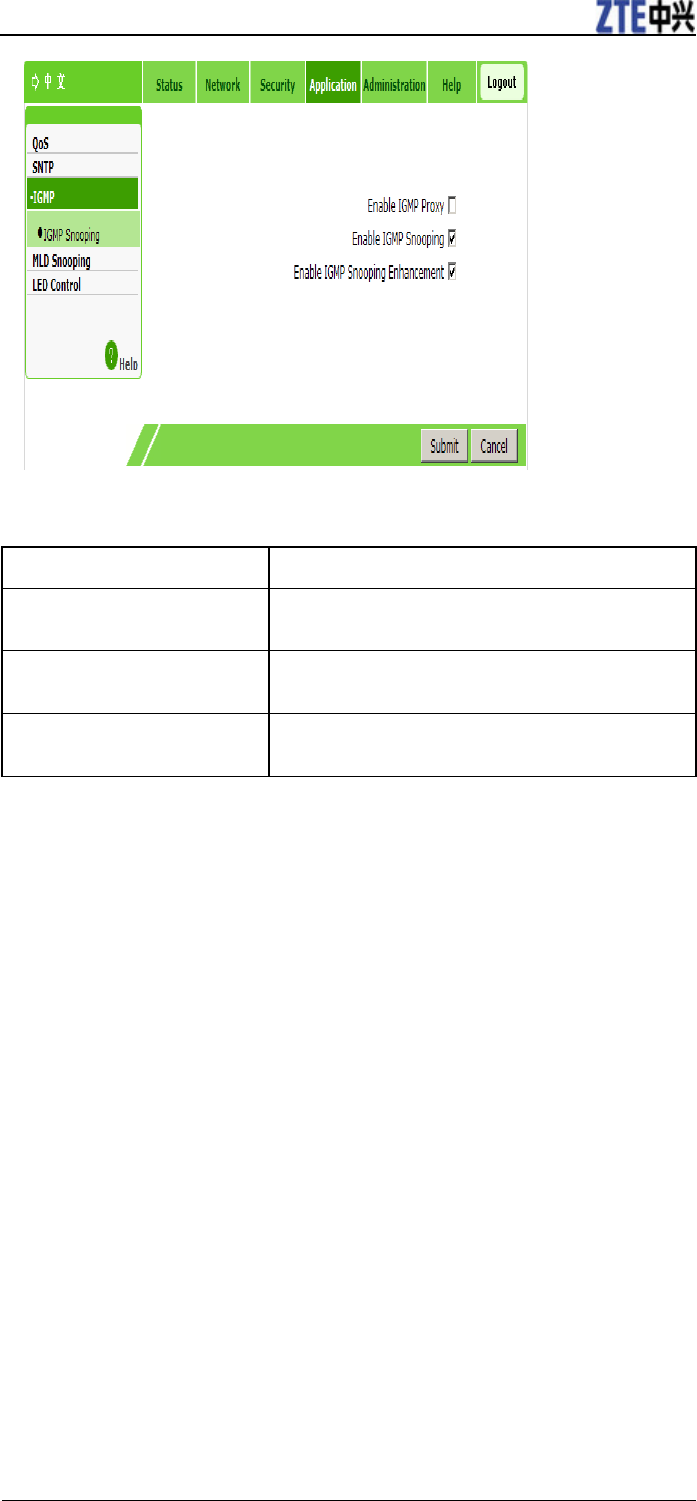

2. Configure the parameters. Refer to the following table.
Parameter Description
Enable IGMP Proxy Enables or disables the IGMP proxy function. It is
disabled by default.
Enable IGMP Snooping Enables or disables the IGMP snooping function. It is
enabled by default.
Enable IGMP Snooping
Enhancement
Enables or disables the IGMP snooping enhancement
function. It is enabled by default.
3. Click Submit.
—END OF STEPS—
ConfiguringMLDSnooping
This section describes how to configure Multicast Listener Discovery (MLD)
snooping.
Steps
1. Select Application > MLD Snooping. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 6 7

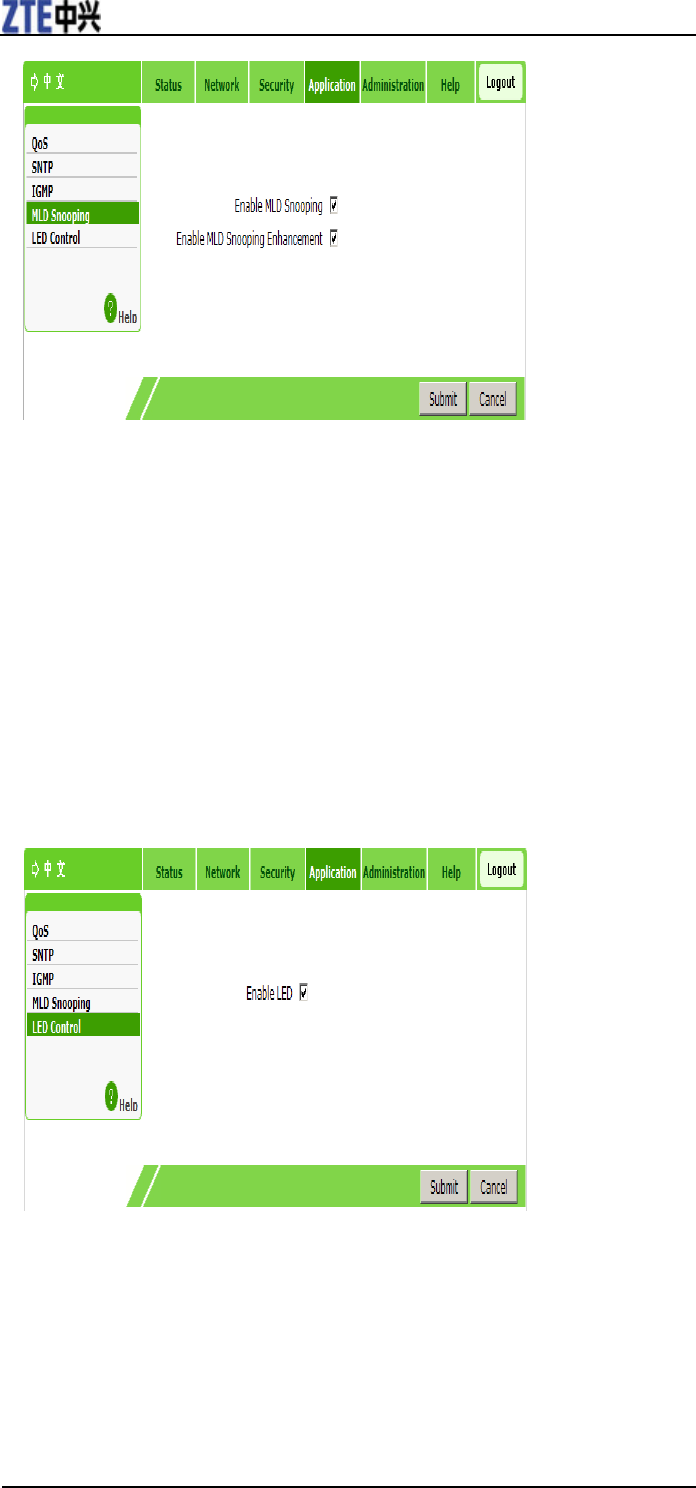

2. Based on the actual requirement, select or clear Enable MLD Snooping
and Enable MLD Snooping Enhancement. Two parameters are all enabled
by default.
3. Click Submit.
—END OF STEPS—
ConfiguringLEDControl
This section describes how to configure LED control.
Steps
1. Select Application > LED Control. The following page is displayed.
2. Enable or disable the LED function.
3. Click Submit.
—END OF STEPS—
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 6 8
C h a p t e r 7
Management Configuration
ManagingSNMPv1/v2c
This section describes how to configure SNMPv1/v2c management.
Steps
1. Select Administration > SNMPv1/v2c. The following page is displayed.

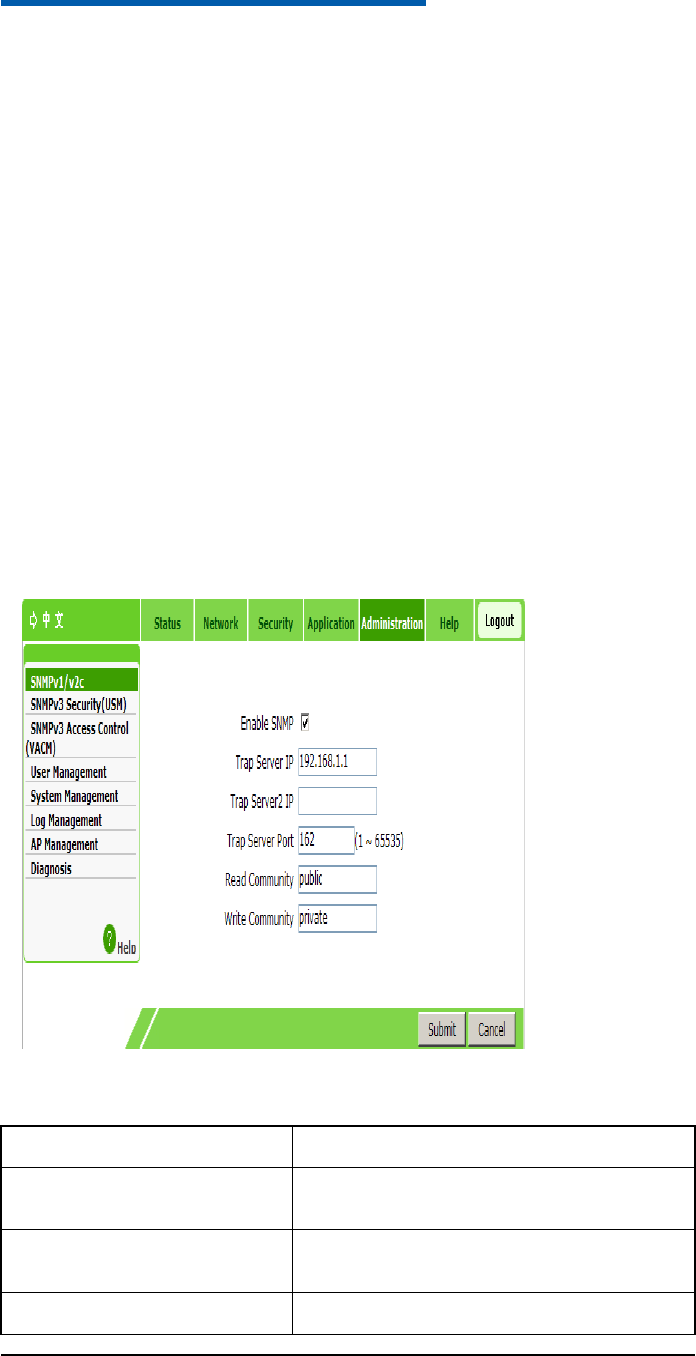

2. Configure the parameters. Refer to the following table.
Parameter Description
Enable SNMP Enables or disables the SNMP function. The
default value is enabled.
Trap Server IP Enter the IP address of the Trap server, for
example, 192.168.1.1.
Trap Server2 IP Enter the IP address of the standby Trap server.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 6 9
Parameter Description
Trap Server Port Enter the port number of the Trap server within
the range 1–65535. The default value is 162.
Read Community The default password is public.
Write Community The default password is private.
3. Click Submit.
—END OF STEPS—
SNMPv3SecurityManagement(USM)
Managing SNMPv3 Users
This section describes how to manage SNMPv3 users.
Steps
1. Select Administration > SNMPv3 Security (USM) > SNMPv3 Users.
The following page is displayed.
2. Configure the parameters. Refer to the following table.
Parameter Description
Security Name User name.
Authentication Protocol The options are None, MD5, and SHA.
ZX V1 0 W 6 1 5 User Manua l
7 0 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Parameter Description
Authentication Password Authentication password.
Privacy Protocol The options are None and DES.
Privacy Password Encryption password.
Modify Click to modify the corresponding SNMPv3
user information.
Delete Click to delete the corresponding SNMPv3
user information.
3. Click Add.
—END OF STEPS—
Managing SNMPv1/v2c Users
This section describes how to manage SNMPv1/v2c users.
Steps
1. Select Administration > SNMPv3 Security (USM) > SNMPv1/v2c Users.
The following page is displayed.

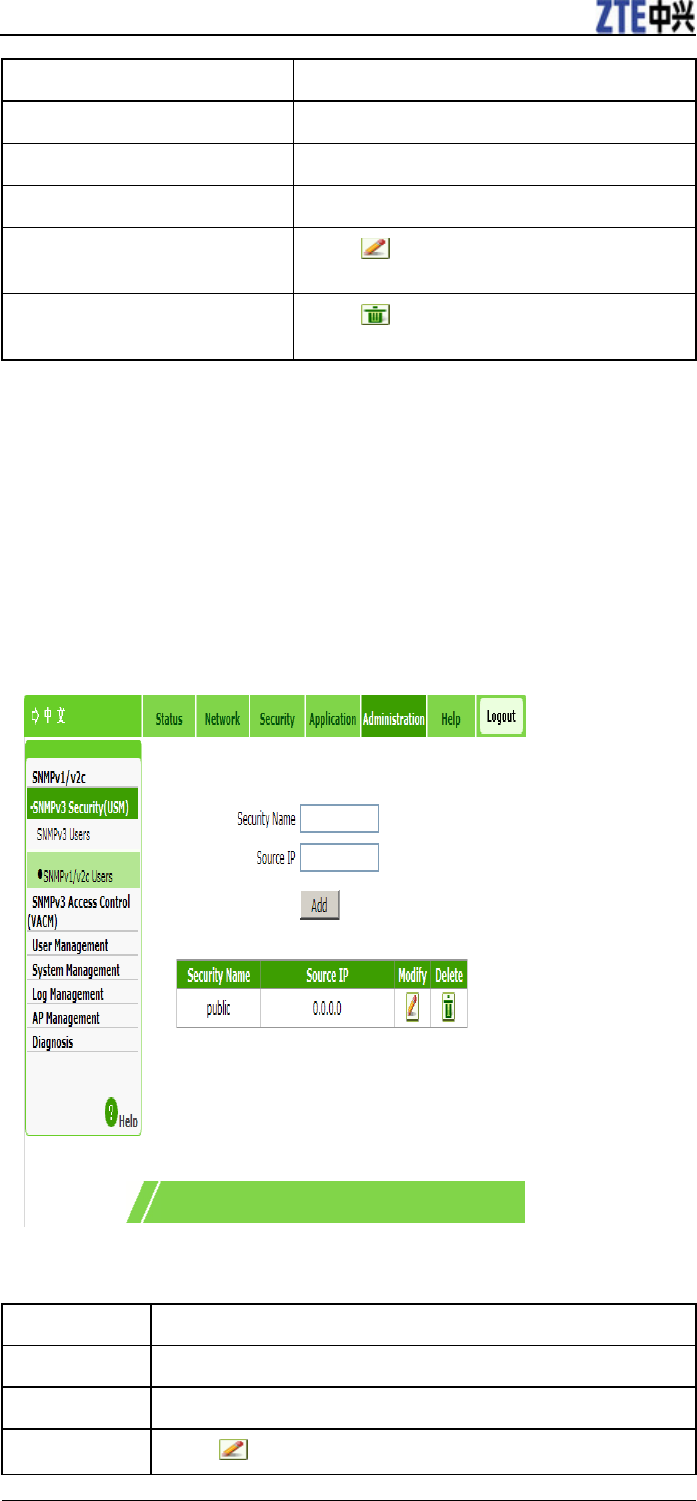

2. Configure the parameters. Refer to the following table.
Parameter Description
Security Name User name.
Source IP Start IP address of the source.
Modify Click to modify the corresponding SNMPv1/v2c user
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 7 1
Parameter Description
information.
Delete Click to delete the corresponding SNMPv1/v2c user
information.
3. Click Add.
—END OF STEPS—
SNMPv3AccessControlManagement(VACM)
Managing Context
This section describes how to manage the context.
Steps
1. Select Administration > SNMPv3 Access Control (VACM) > Context.
The following page is displayed.
2. Enter the context information. The default is "".
3. Click Submit.
—END OF STEPS—
Managing Security Groups
This section describes how to manage security groups.
ZX V1 0 W 6 1 5 User Manua l
7 2 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Steps
1. Select Administration > SNMPv3 Access Control (VACM) > Security
To Group. The following page is displayed.
2. Configure the parameters. Refer to the following table.
Parameter Description
Security
Model
Supports USM, SNMPv1, and SNMPv2c.
Security Name Supports nanpuser,anpuser,apuser.
Group Name Specifies the group name.
Modify Click to modify the corresponding security group information.
Delete Click to delete the corresponding security group information.
3. Click Add.
—END OF STEPS—
Managing View Subtree
This section describes how to configure the view subtree.
Steps
1. Select Adminsitration > SNMPv3 Access Control (VACM) > View Tree
Family. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 7 3
2. Configure the parameters. Refer to the following table.
Parameter Description
View Name View name.
SubTree Subtree name.
Mask (Optional) Subnet mask.
Type The options are included and excluded.
Modify Click to modify the corresponding view information.
Delete Click to delete the corresponding view information.
3. Click Add.
—END OF STEPS—
Managing the Access Table
This section describes how to manage the access table.
Steps
1. Select Adminstration > SNMPv3 Access Control (VACM) > Access
Table. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
7 4 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON

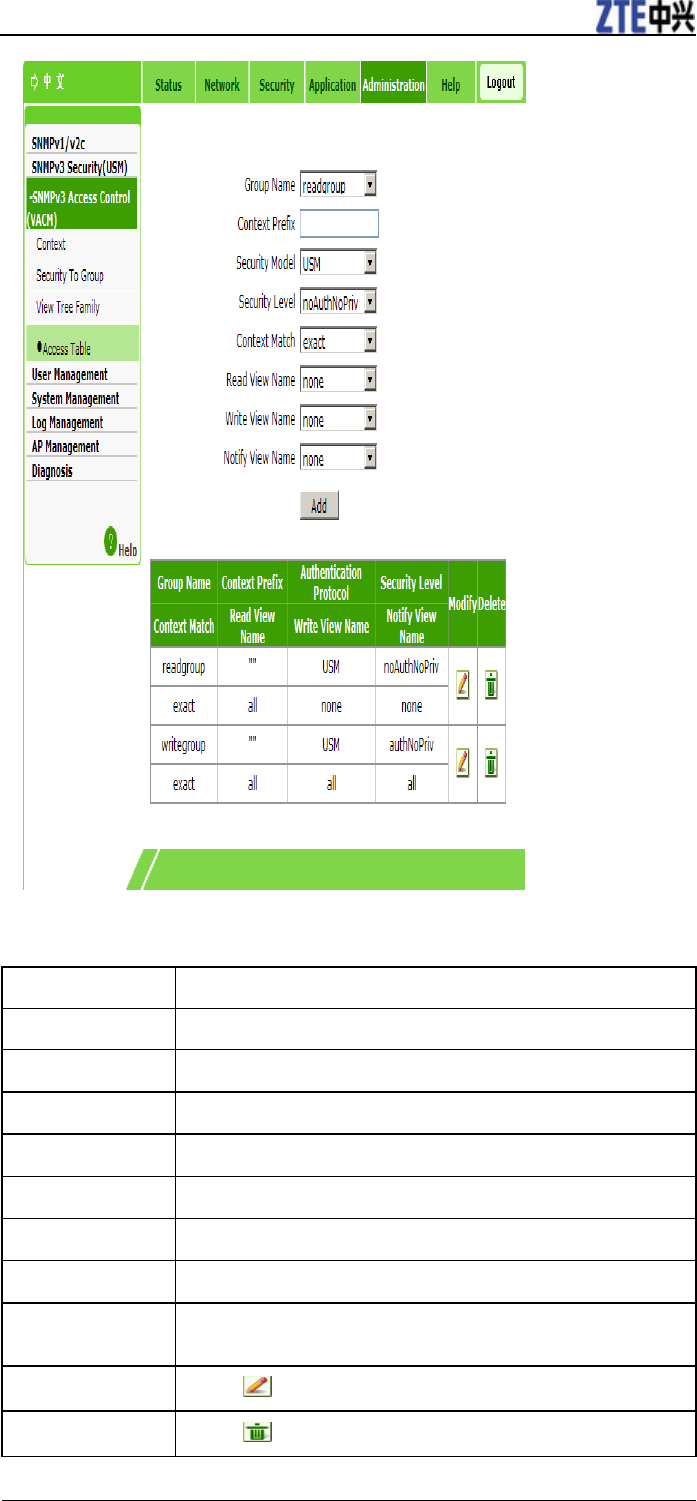

2. Configure the parameters. Refer to the following table.
Parameter Description
Group Name Group name.
Context Prefix Information on the context prefix.
Security Model Supports USM, SNMPv1, SNMPv2c, and any.
Security Level Supports noAuthNoPriv, authNoPriv, and authPriv.
Context Match The options are exact and prefix.
Read View Name The options are none and all.
Write View Name The options are none and all.
Notify View
Name
The options are none and all.
Modify Click to modify the corresponding access table information.
Delete Click to delete the corresponding access table information.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 7 5
3. Click Add.
—END OF STEPS—
UserManagement
Managing Users
This section describes how to manage users. You can modify the admin
password and create a common account.
Steps
1. Select Administration > User Management > User Management. The
following page is displayed.

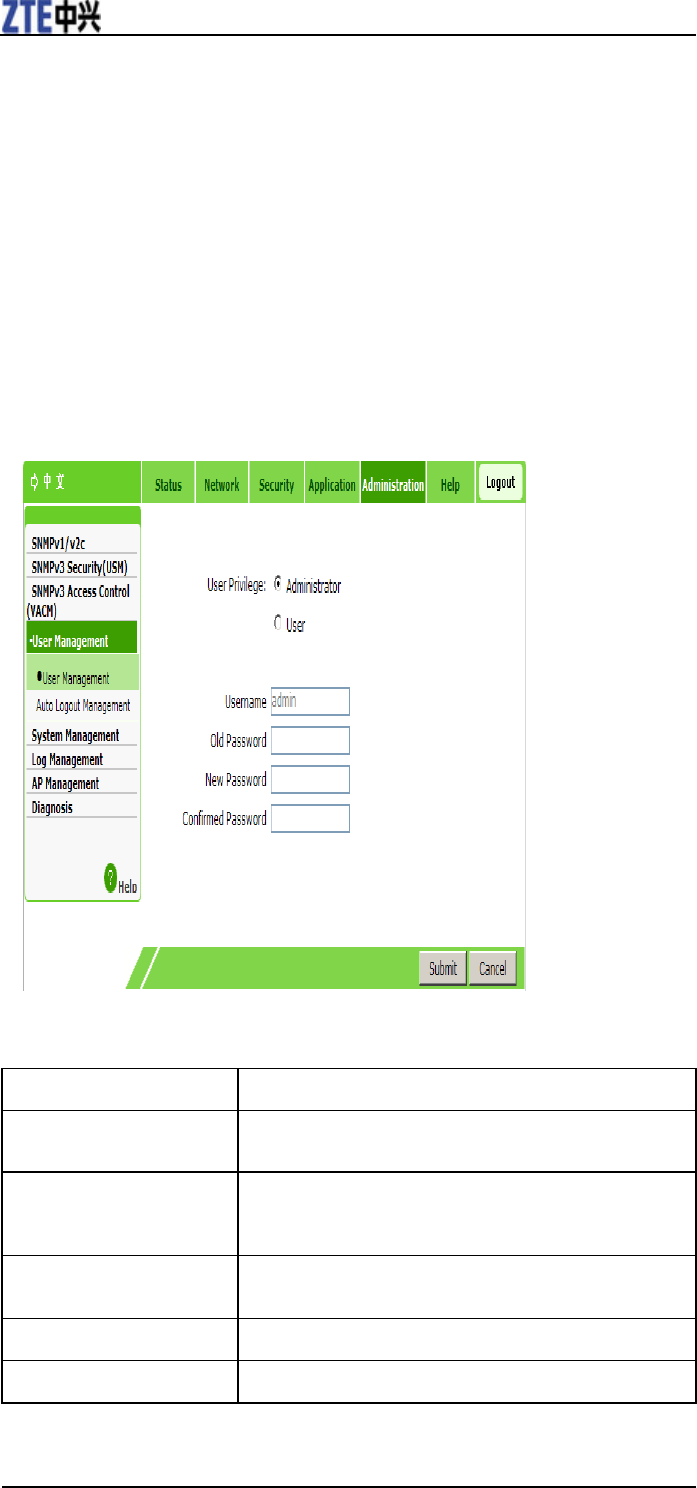

2. Configure the parameters. Refer to the following table.
Parameter Description
User Privilege Determines whether to modify the management
maintenance account or common account.
Username The management maintenance account is admin and it
cannot be modified. The common account is user and it
can be modified.
Old Password To modify the password of the management maintenance
account, enter the original login password.
New Password New password of the corresponding user.
Confirmed Password To make a confirmation, enter the new password again.
3. Click Submit.
ZX V1 0 W 6 1 5 User Manua l
7 6 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
—END OF STEPS—
Managing Automatic Logout
This section describes how to configure automatic logout.
Steps
1. Select Administration > User Management > Auto Logout Management.
The following page is displayed.
2. Set the timeout period within the range of 5 to 60 minutes. The default is 5
minutes.
3. Click Submit.
—END OF STEPS—
DeviceManagement
Configuring System Management
This section describes how to configure system management.
Steps
1. Select Administration > System Management > System Management.
The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 7 7

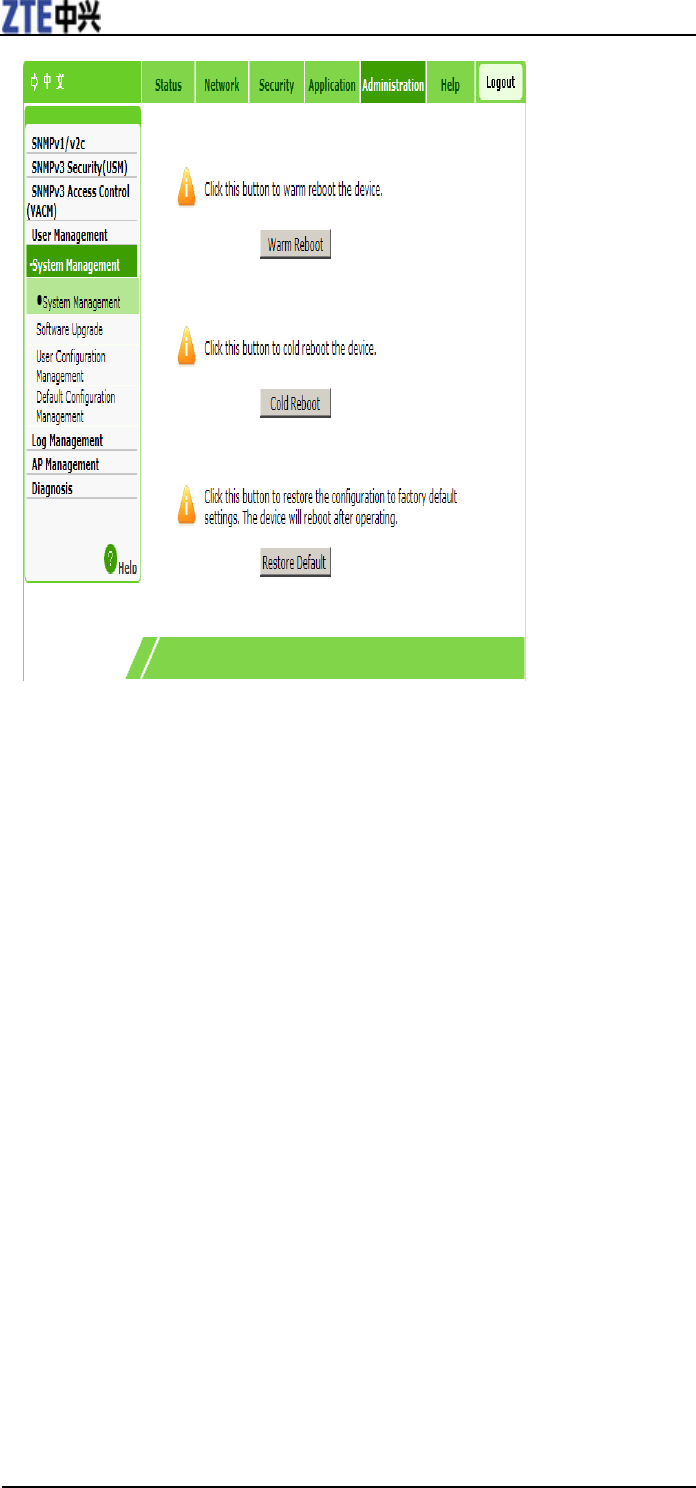

2. You can restart the device or restore default settings.
Click Warm Reboot for a warm restart of the device.
Click Cold Reboot for a cold restart of the device.
Click Restore Default to restore the factory settings.
—END OF STEPS—
Setting Version Upgrade
This section describes how to upgrade the ZXV10 W615 system through a
Web page.
Steps
1. Select Administration > User Management > Software Upgrade. The
following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
7 8 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
Notes:
You need to wait patiently when the software of the device is being
upgraded, and pay attention to the prompt in the page. To prevent the
device from being damaged, do not turn off the power or restart the
device.
2. Click Browse to select the desired software version file.
3. Click Upgrade to upgrade the software version.
—END OF STEPS—
Managing User Configuration
This section describes how to manage user configuration.
Steps
1. Select Administration > System Management > User Configuration
Management. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 7 9

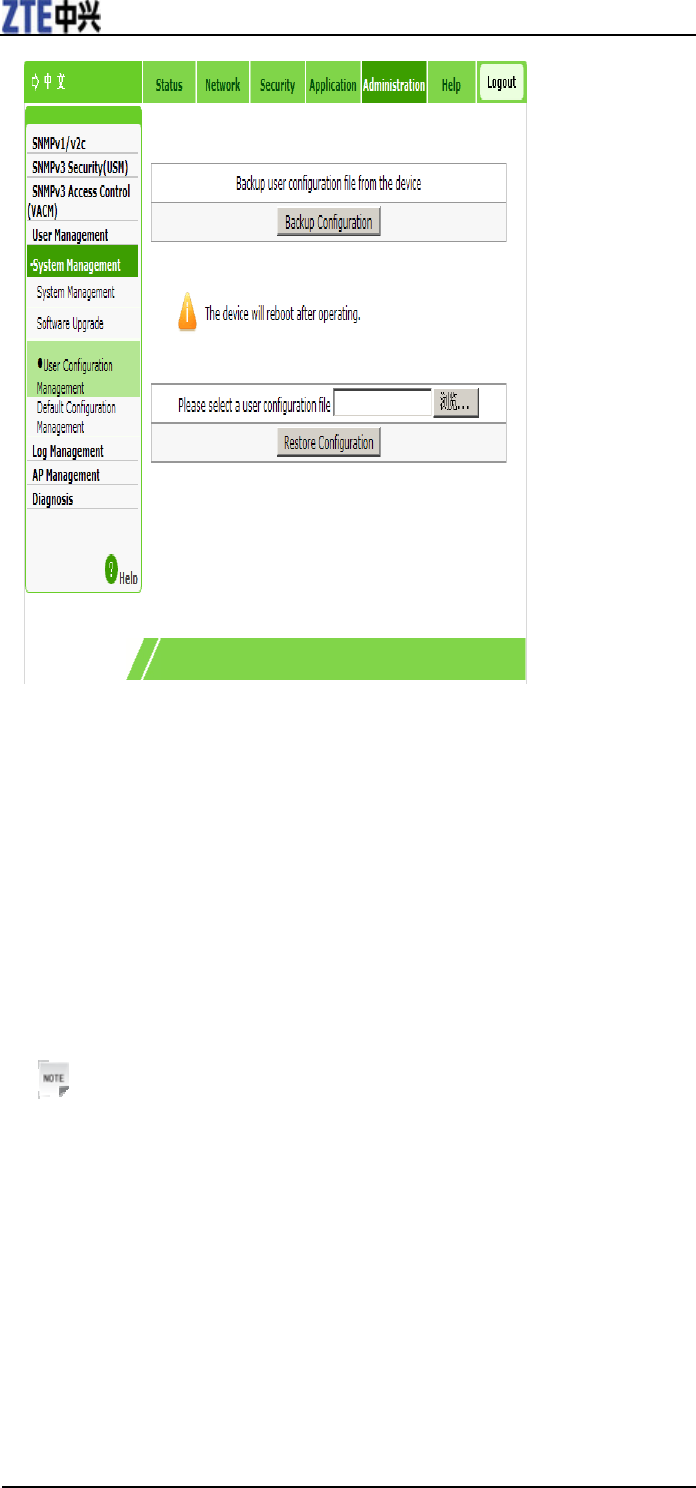

2. Choose backup operation or configuration import based on the actual
requirement.
To export a configuration file, do as follow:
Click Backup Configuration. Then, the system backs up the current
configuration file of the device.
To import a configuration file, do as follow:
i. Click Browse and select the configuration file to be imported.
ii. Click Restore Configuration. Then, the specified configuration file is
imported.
Notes:
The device automatically restarts after the operation is completed.
—END OF STEPS—
Managing the Default Configuration
This section describes how to manage the default configuration.
Steps
1. Select Administration > System Management > Default Configuration
Management. The following page is displayed.
ZX V1 0 W 6 1 5 User Manua l
8 0 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. Choose backup operation or configuration import based on the actual
requirement.
To export a configuration file, do as follow:
Click Backup Configuration. Then, the system backs up the default
configuration file of the device.
To import the default configuration file, do as follows:
i. Click Browse and select the default configuration file to be imported.
ii. Click Restore Configuration. Then, the specified default configuration
file is imported.
Notes:
The device automatically restarts after the operation is completed.
—END OF STEPS—
ConfiguringLogManagement
This section describes how to configure log management.
Steps
1. Select Administration > Log Management. The following page is
displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 8 1

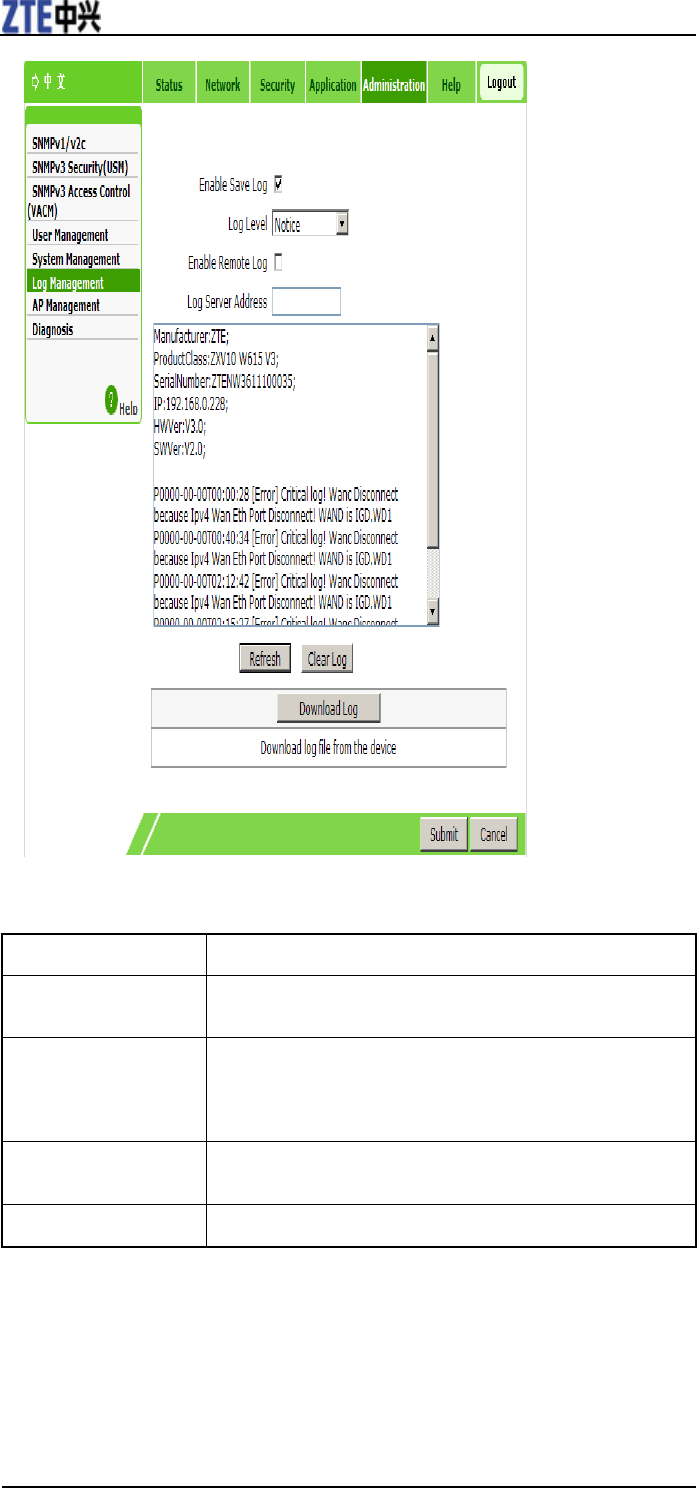

2. Configure the parameters. Refer to the following table.
Parameter Description
Enable Save Log Enables or disables the function of log server management. It
is enabled by default.
Log Level Log levels are Debug, Informational, Notice, Warning, Error,
Critical, Alert, and Emergency with the priority in ascending
order. After a log level is selected, only logs of the selected
level and with higher levels will be recorded.
Enable Remote Log Enables or disables the function of the remote login to the log
server. It is disabled by default.
Log Server Address Specifies the IP address of remote log server.
3. Click the corresponding button as needed.
Click Refresh to view the latest log records.
Click Clear Log to clear the current log records.
Click Download Log to save the log information to a local disk.
Click Submit to display the log information of the corresponding log level
ZX V1 0 W 6 1 5 User Manua l
8 2 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
in the square box on the page.
—END OF STEPS—
AccessPointManagement
Setting the AP Mode
This section describes to set the AP mode.
Steps
1. Select Administration > AP Management > AP Mode. The following
page is displayed.
2. Set the AP mode, Fat or Fit, based on the actual requirement.
Notes:
After the AP mode is changed, the device restarts automatically.
3. Click Submit.
—END OF STEPS—
Setting an AP Name
This section describes how to set an AP name.
Steps
1. Select Administration > AP Management > AP Name. The following
page is displayed.
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 8 3

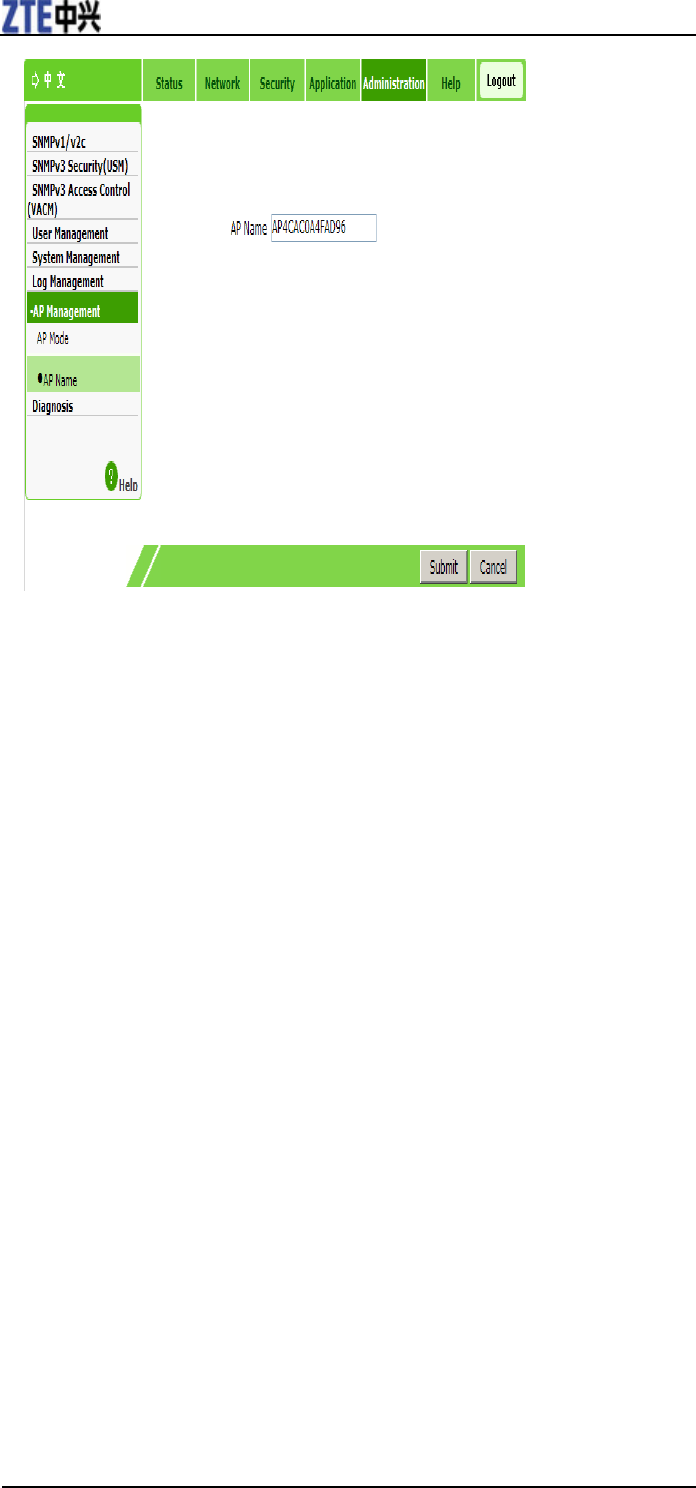

2. In the AP Name text box, set the corresponding name.
3. Click Submit.
—END OF STEPS—
DiagnosisConfiguration
Performing Ping Diagnosis
This section describes how to configure Ping diagnosis to detect device faults.
Steps
1. Select Administration > Diagnosis > Ping Diagnosis. The following page
is displayed.
ZX V1 0 W 6 1 5 User Manua l
8 4 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
2. In the IP Address or Host Name text box, type the host IP address or host
name.
3. In the Ping num text box, type the Ping times.
4. In the Ping packet size text box, type the suitable Ping packet size. The
value range is 1–4096.
5. In Engress drop-down box, select the egress to be diagnosed.
Notes:
Engress supports LAN, WAN and empty.The default value is empty,
meaning any values.
6. Click Submit. The Ping result is displayed in the text box below.
—END OF STEPS—
Configuring Trace Route Diagnosis
Disconnected network nodes can be determined through Trace Route, which
helps locate faults.
Steps
ZX V1 0 W 6 1 5 User Manua l
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 8 5
1. Select Administration > Diagnosis > Trace Route Diagnosis. The
following page is displayed.

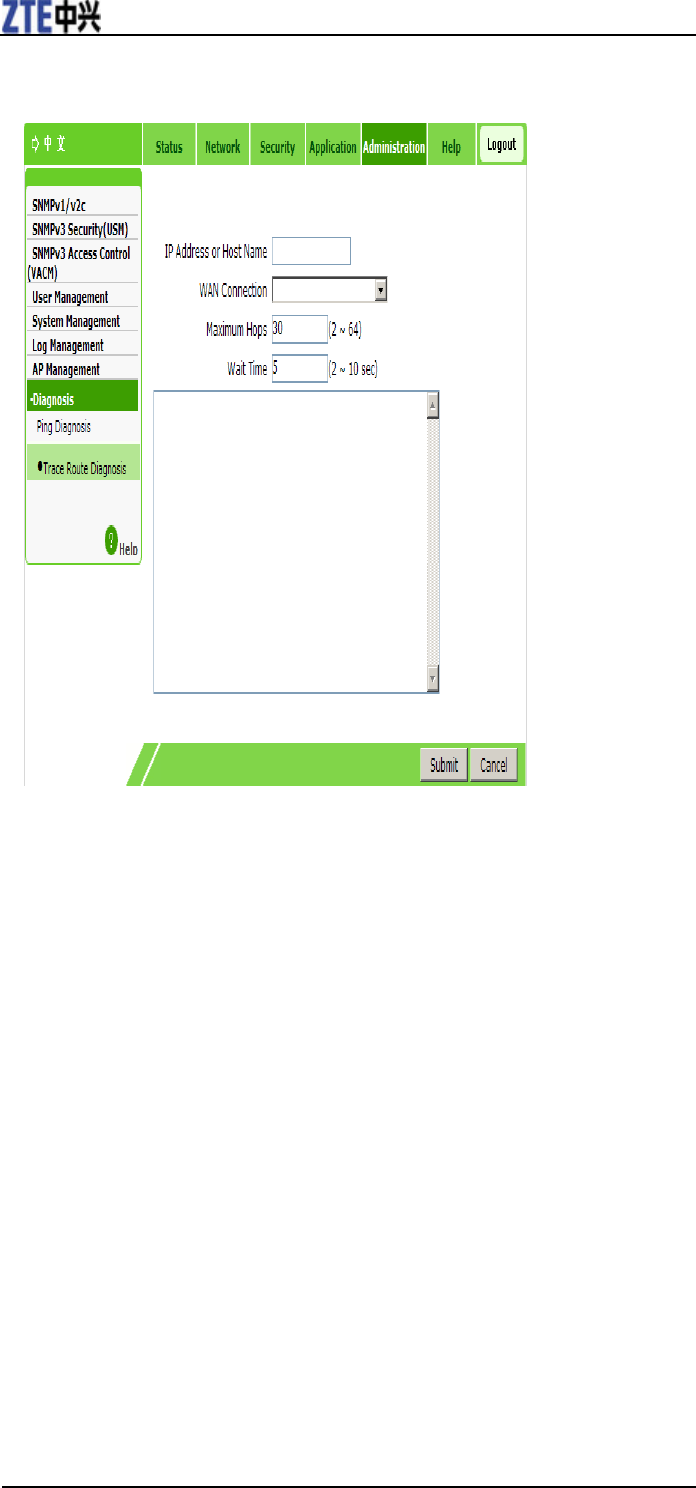

2. In the IP Address or Host Name text box, type the host IP address or host
name.
3. In the WAN Connection text box, select the WAN connection to be
diagnosed
4. In the Maximum Hops text box, select the maximum number of hops to be
diagnosed.
5. In the Wait Time text box, select the timeout period.
6. Click Submit. The Trace Route result is displayed in the area in the lower
part.
—END OF STEPS—
ZX V1 0 W 6 1 5 User Manua l
8 6 Con fidential and Pr opr ietary I nform a t ion of ZTE CORPORATI ON
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B
digital device , pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to operate the
equipment.
RF Exposure Information
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment. In order to avoid the possibility of exceeding the
FCC radio frequency exposure limits, human proximity to the antenna shall
not be less than 20cm (8 inches) during normal operation. The antenna of this
device must be fixed-mounted on outdoor permanent structures to satisfy RF
exposure requirements.
Con fidentia l and Propriet a ry I nform a t ion of ZTE CORPORATI ON 8 7
Glossary
ARP - Address Resolution Protocol，Allocation Retension priority
DHCP - Dynamic Host Configuration Protocol
DNS - Domain Name System，Domain Name Server
DSCP - Differentiated Services Code Point
FTP - File Transfer Protocol，Foiled Twisted Pair，Floating Termination
Point
ICMP - Internet Control Message Protocol
ID - Identification，Identity，Identifier
IGMP - Internet Group Management Protocol
IPv4 - Internet Protocol version 4
IPv6 - Internet Protocol Version 6
ISP - Internet Service Provider
MAC - Medium Access Control，Message Authentication Code
MTU - Maximum Transfer Unit ，Multi-Tenant Unit ，Maximum
Transmission Unit
NAT - Network Address Translation
NTP - Network Time Protocol
PoE - Power over Ethernet
QoS - Quality of Service
RARP - Reverse Address Resolution Protocol
SNMP - Simple Network Management Protocol
STP - Signaling Trace Part，Signaling Transfer Point，Spanning Tree
Protocol，Shielded Twisted Pair，SATA Tunneling Protocol
UDP - User Datagram Protocol
VLAN - Virtual Local Area Network
WEP - Wired Equivalent Privacy
WLAN - Wireless Local Area Network
WPA - Wi-Fi Protected Access

Navigation menu
