User Manual
Wireless 11n Router
Wireless IEEE802.11b/g/n 300Mbps
Tiny Router
R4020A
User Manual
Version 1.0
Date: Aug. 22, 2011
Wireless 11n Router
ii
FCC Certifications
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Wireless 11n Router
iii
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compatibility, EN
55022 class B for ITE, the essential protection requirement of Council Directive 2004/108/EC on
the approximation of the laws of the Member States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it may be possible that information
in this document is not up-to-date. Please check with your local distributors for the latest
information. No part of this document can be copied or reproduced in any form without written
consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2009, All Rights Reserved.
Note: The country code selection is for non-US model only and is not available to all US model.
Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.
以下警語適用台灣地區
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Wireless 11n Router
iv
Contents
Unpacking Information······················································································································6
Chapter 1 Introduction to Wireless Router ·················································································7
1.1 General Description···································································································7
1.2 Key Features ·············································································································7
Chapter 2 Installing and Using Wireless Router·········································································8
2.1 Connecting this Router to your network ····································································8
2.2 Configuring the IP address of your computer····························································8
Chapter 3 Management ···········································································································12
3.1 Starting the WEB-Based Management Interface·····················································12
3.2 The Graphic User Interface ·····················································································12

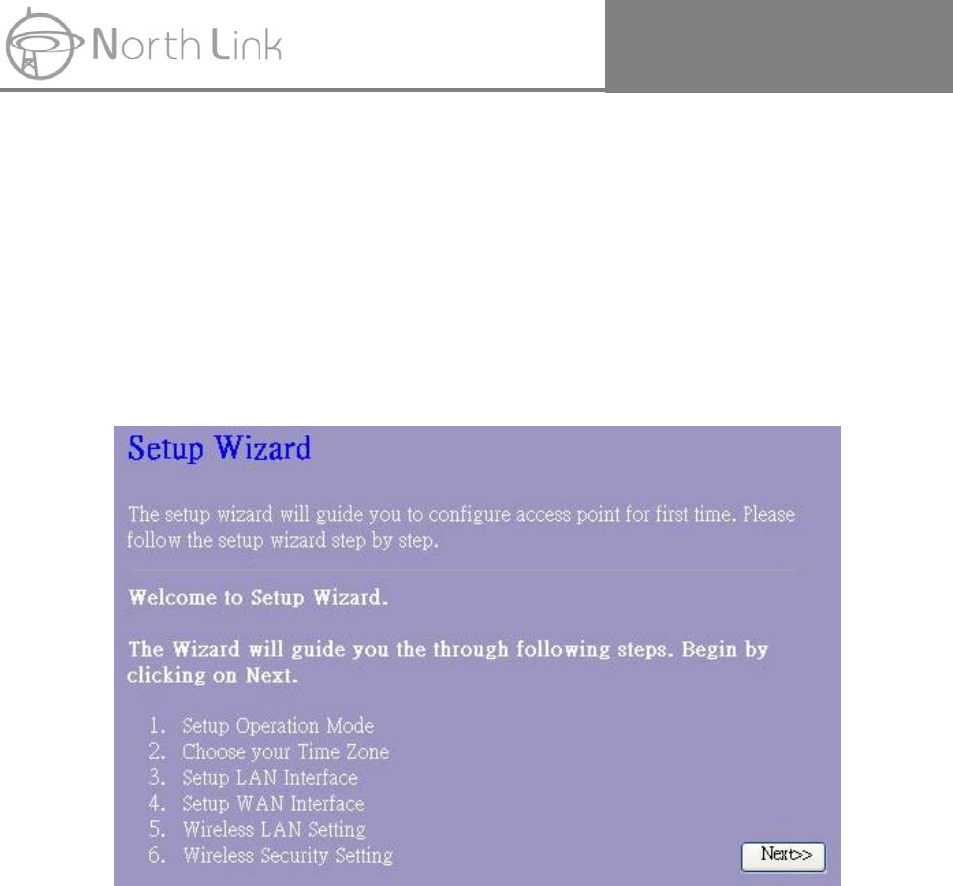

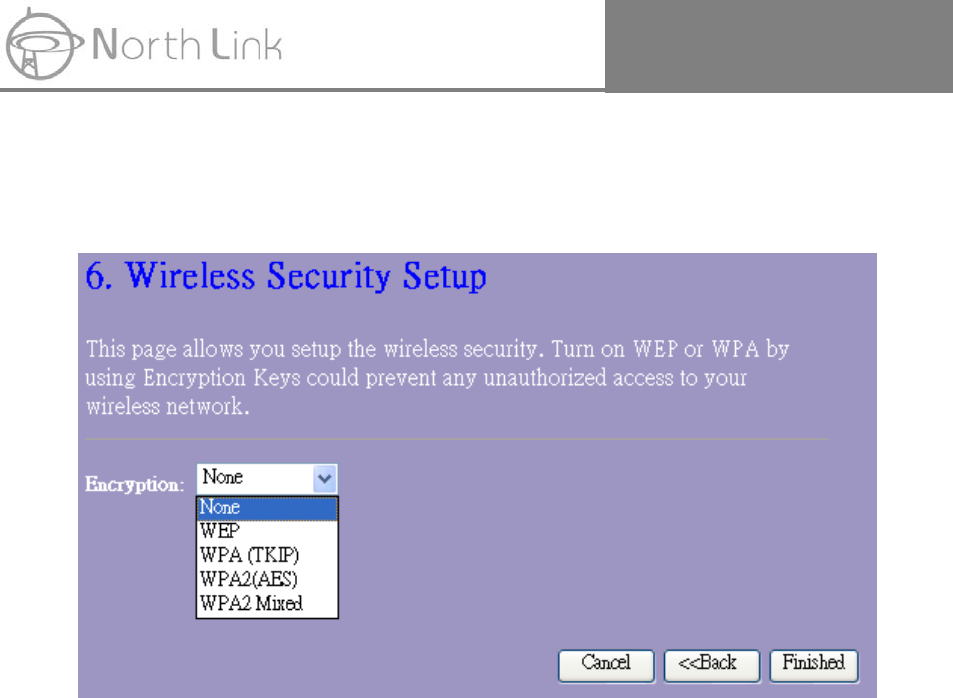

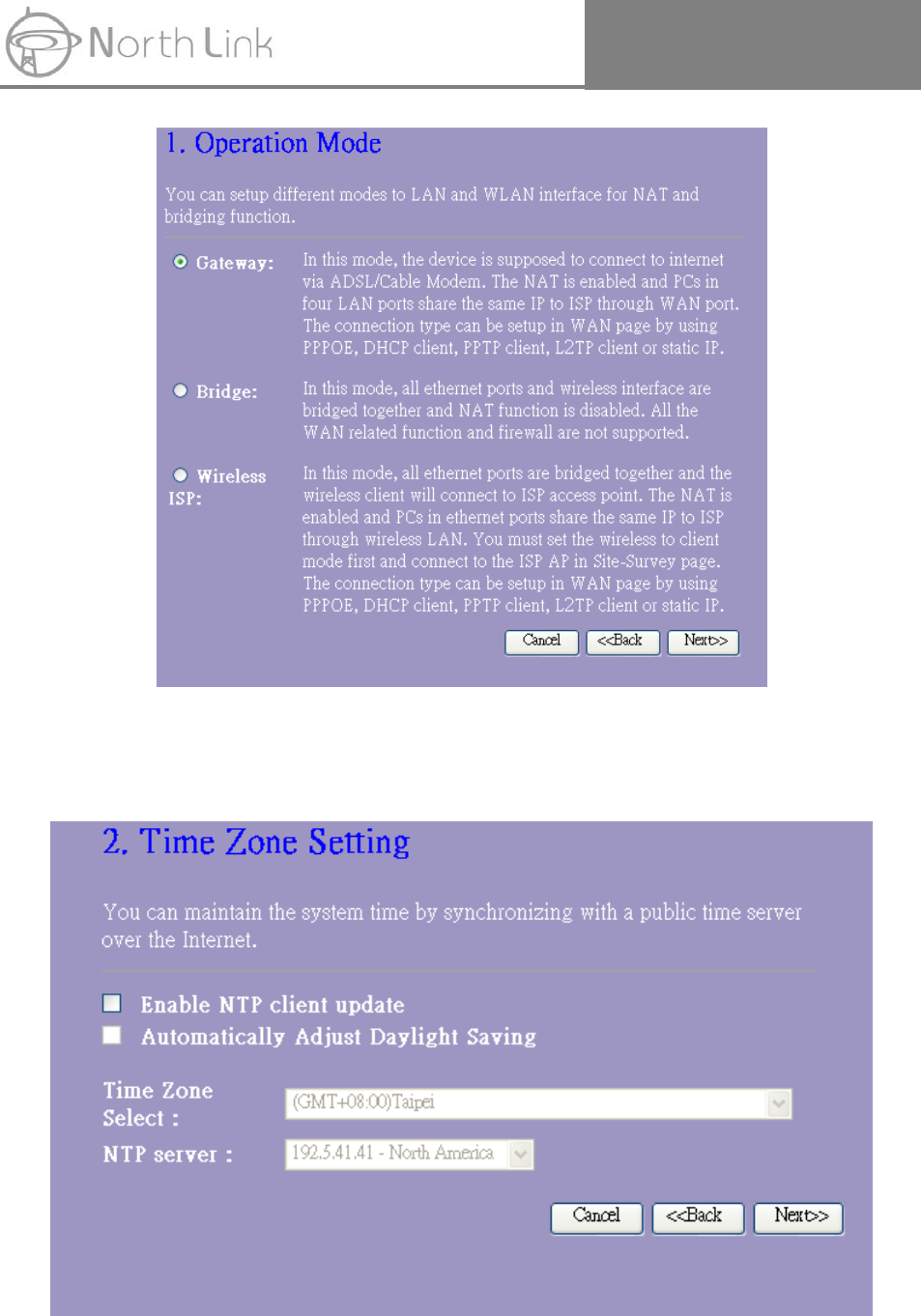

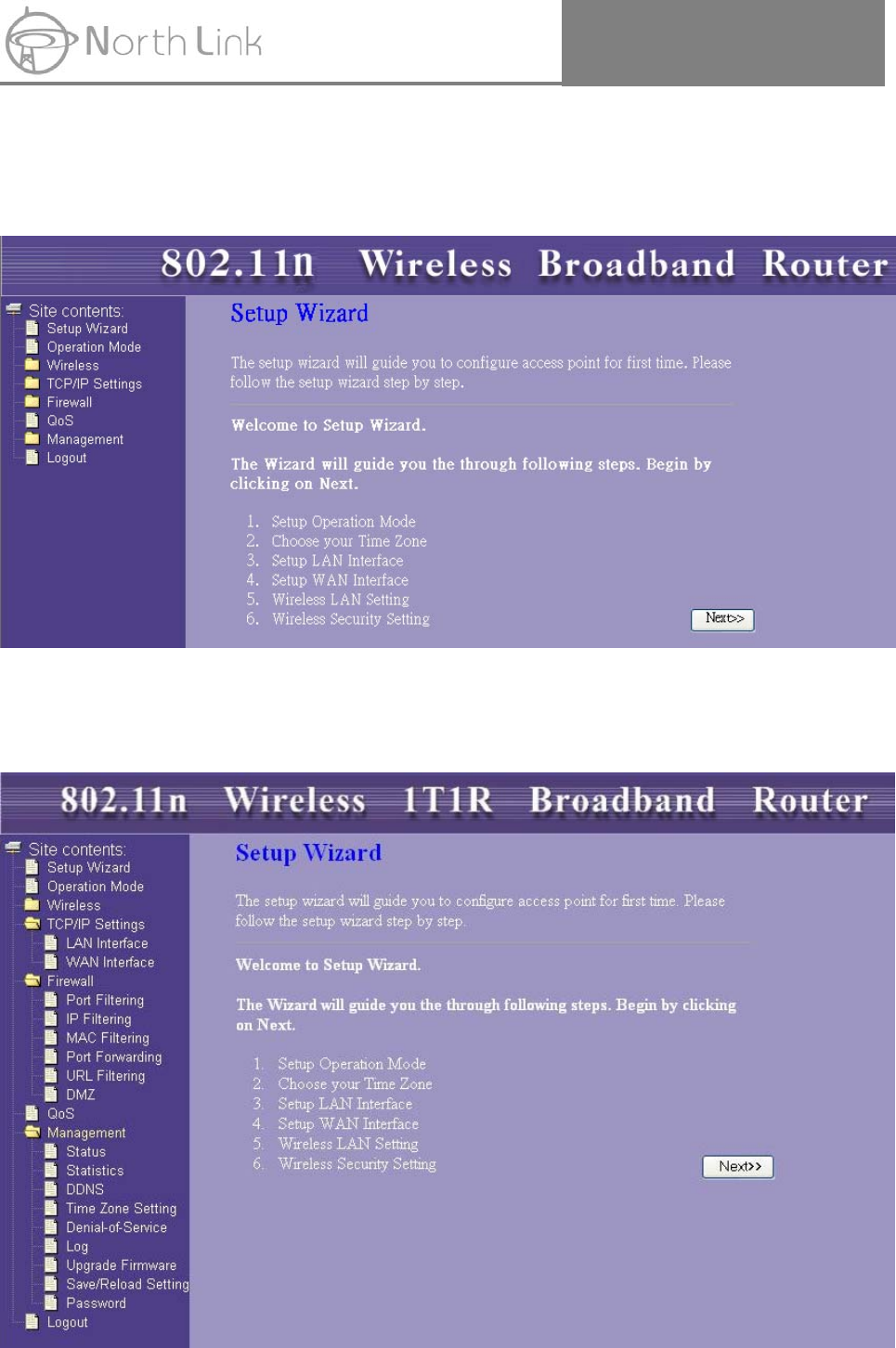

3.3 Setup Wizard···········································································································14
3.4 Operation Mode·······································································································19
3.5 Wireless···················································································································20

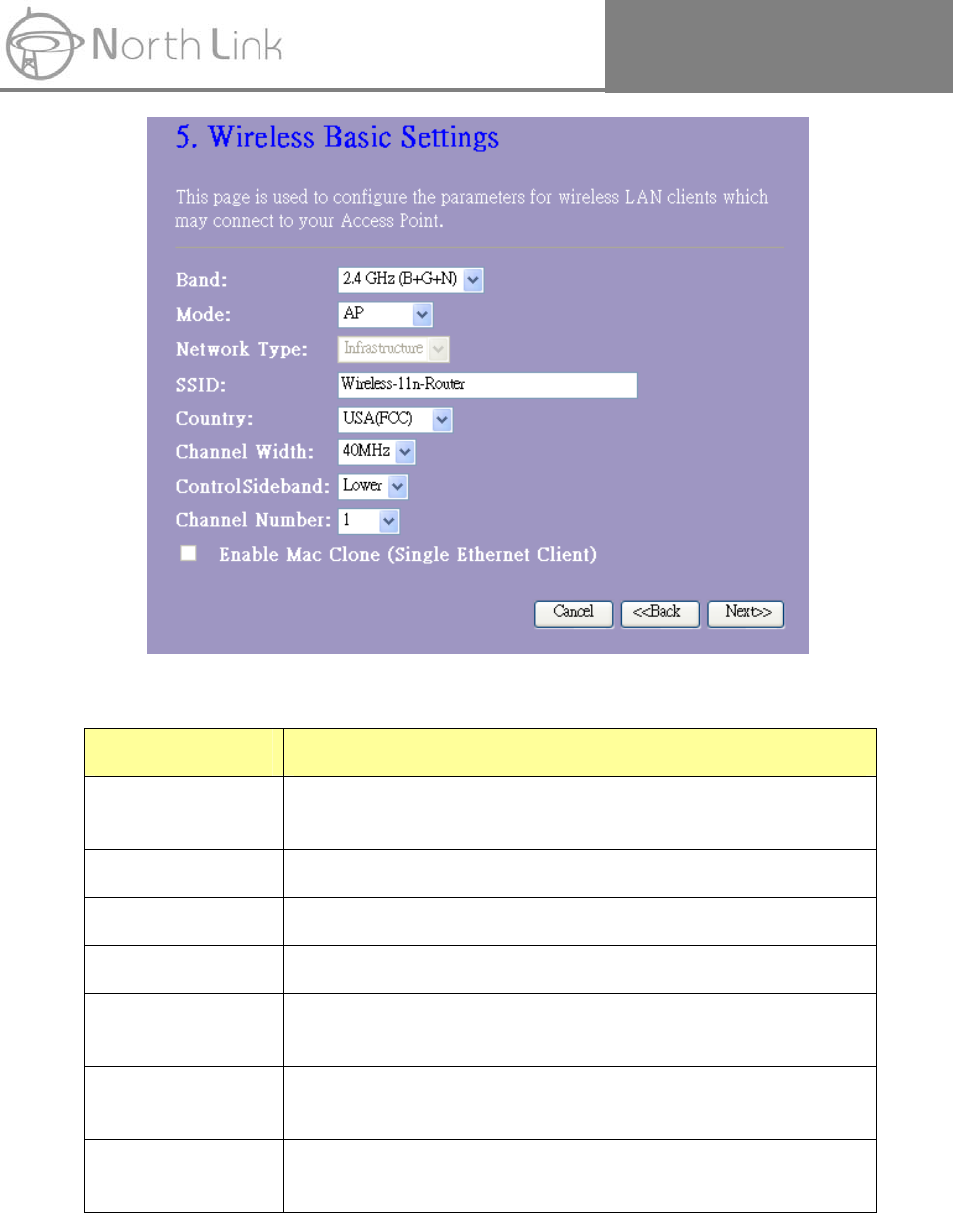

3.5.1 Basic Settings··································································································20
3.5.2 Advanced Settings···························································································23

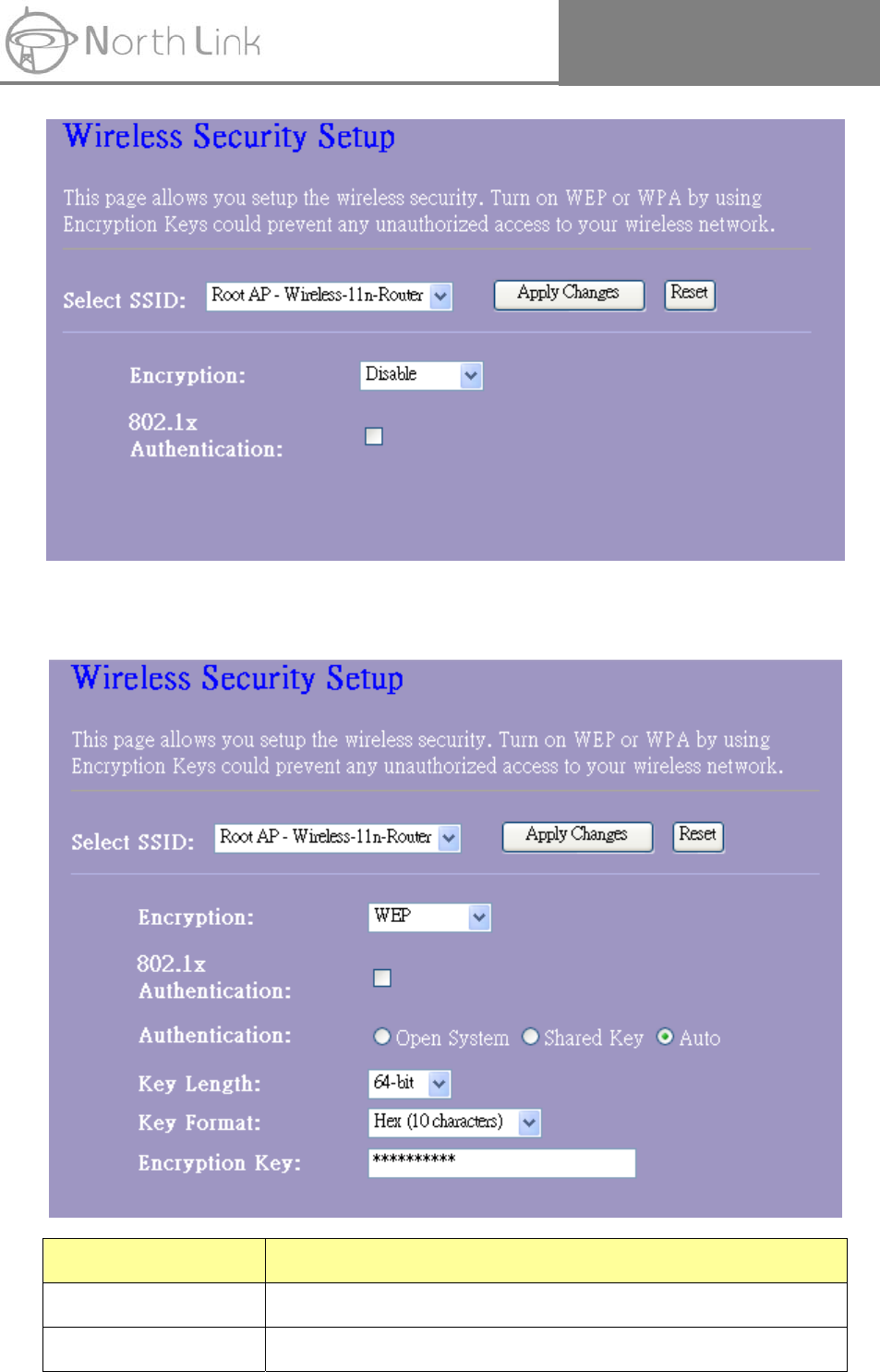

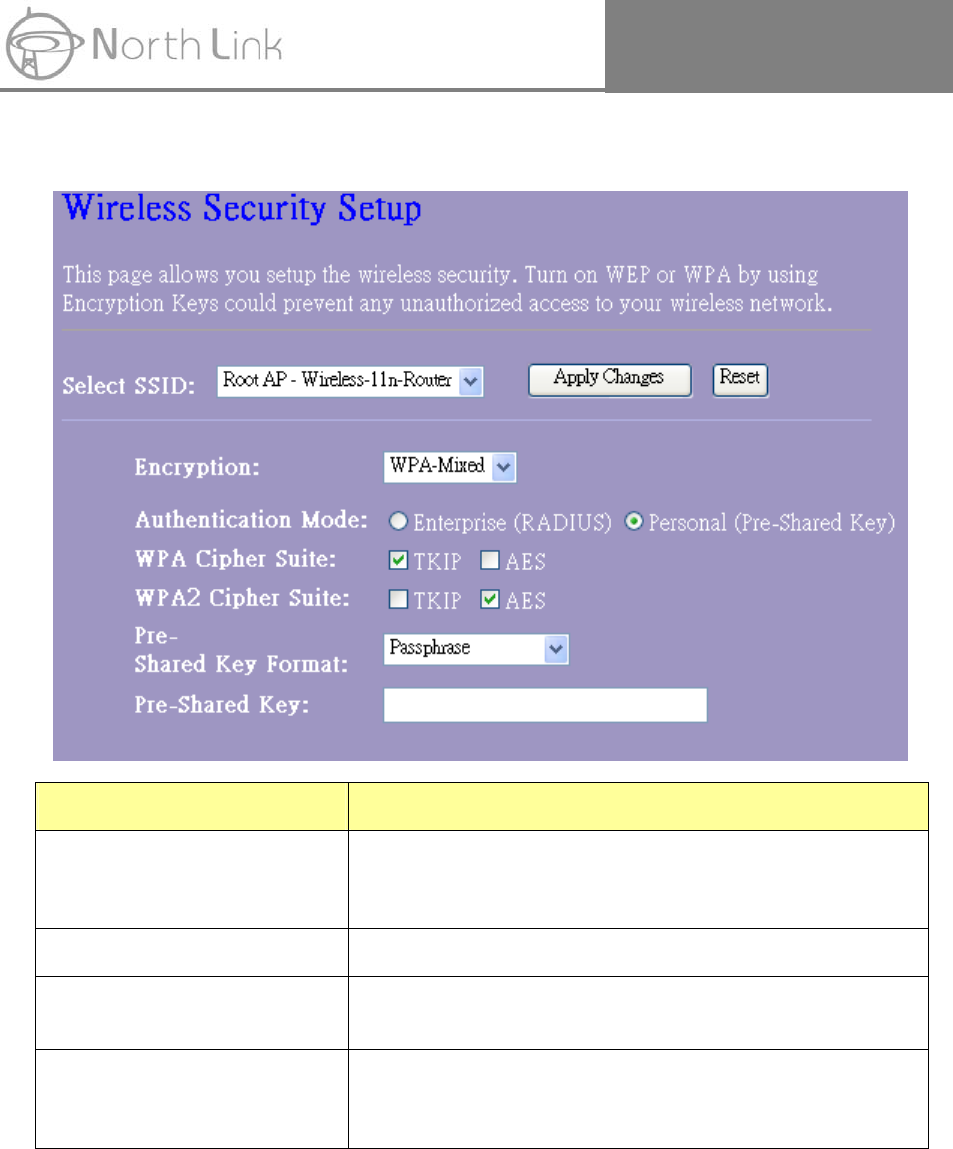

3.5.3 Security············································································································25
3.5.4 Access Control ································································································29
3.5.5 WDS Settings ··································································································30

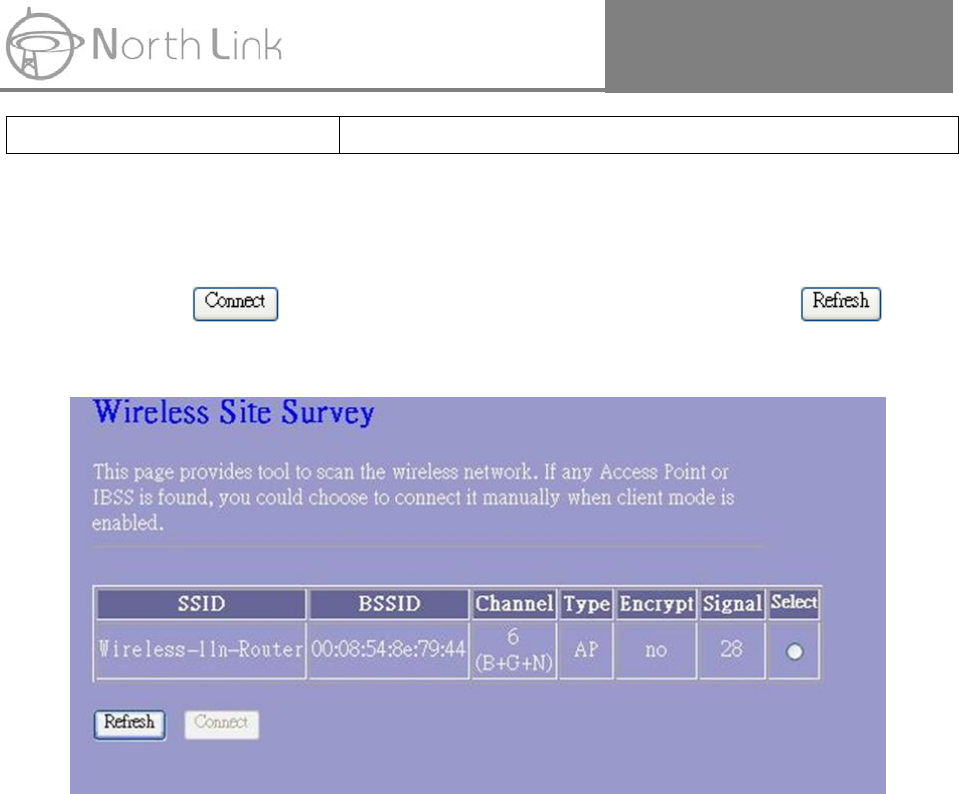

3.5.6 Site Survey ······································································································31

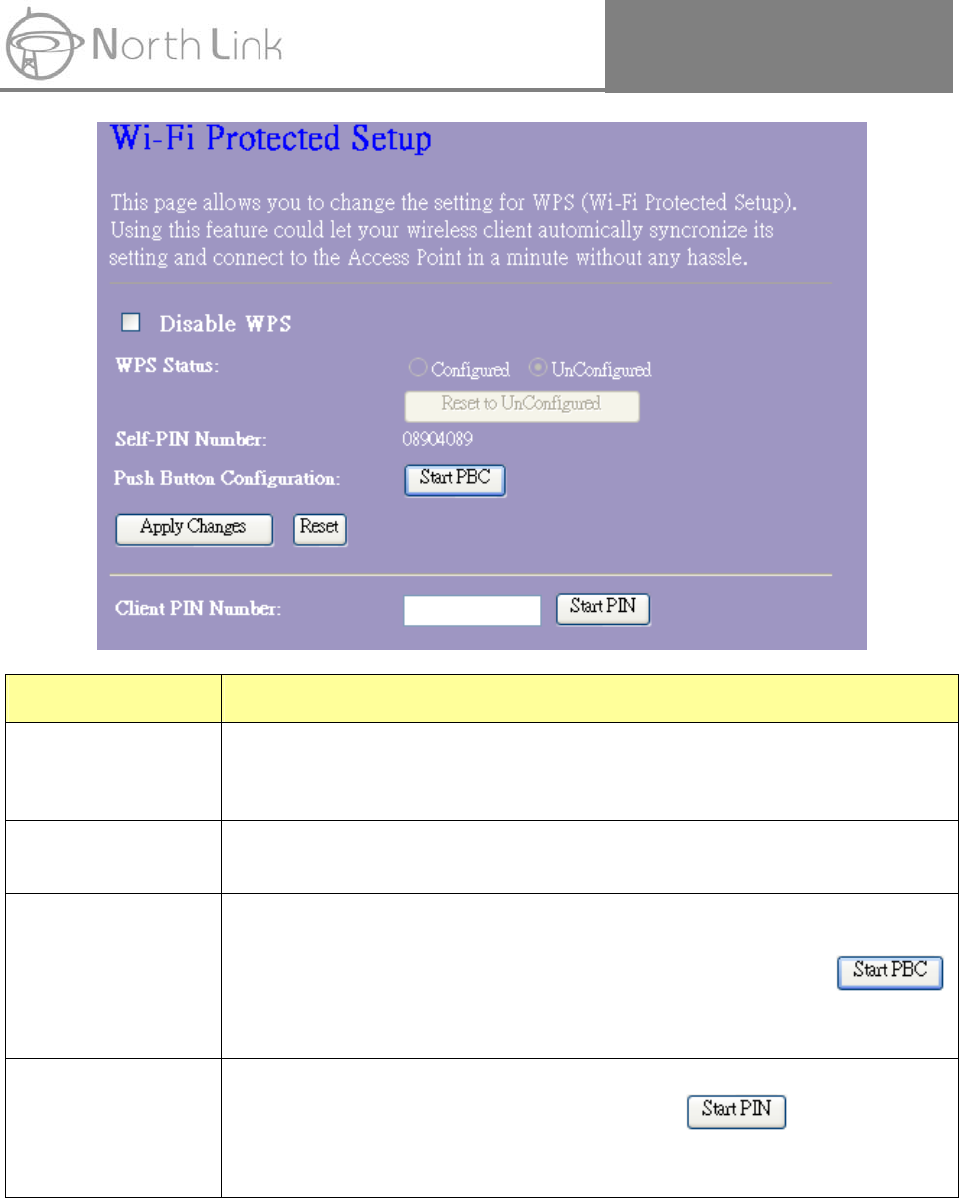

3.5.7 WPS Settings ··································································································31

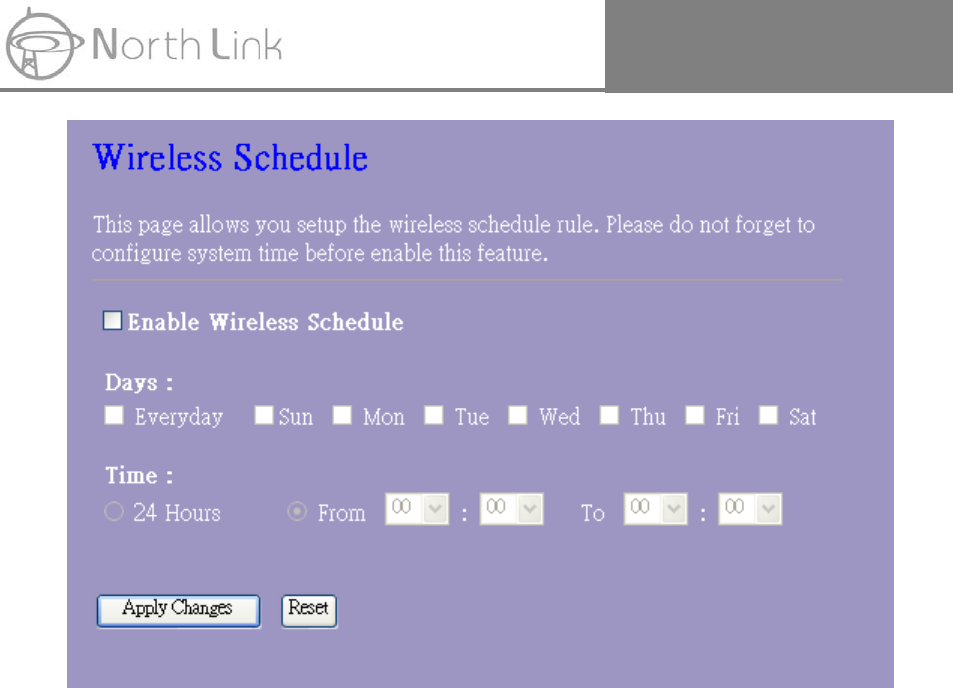

3.5.8 Schedule··········································································································32
3.6 TCP/IP Settings·······································································································34
3.6.1 LAN Interface Setup ························································································34

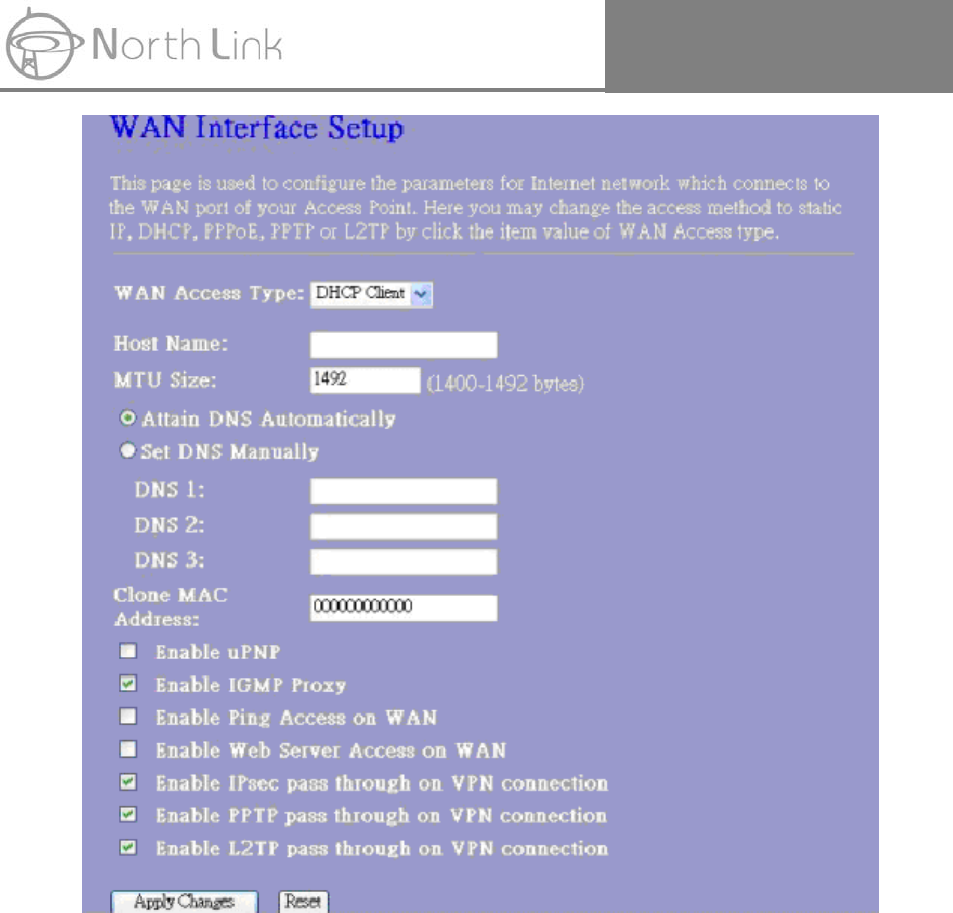

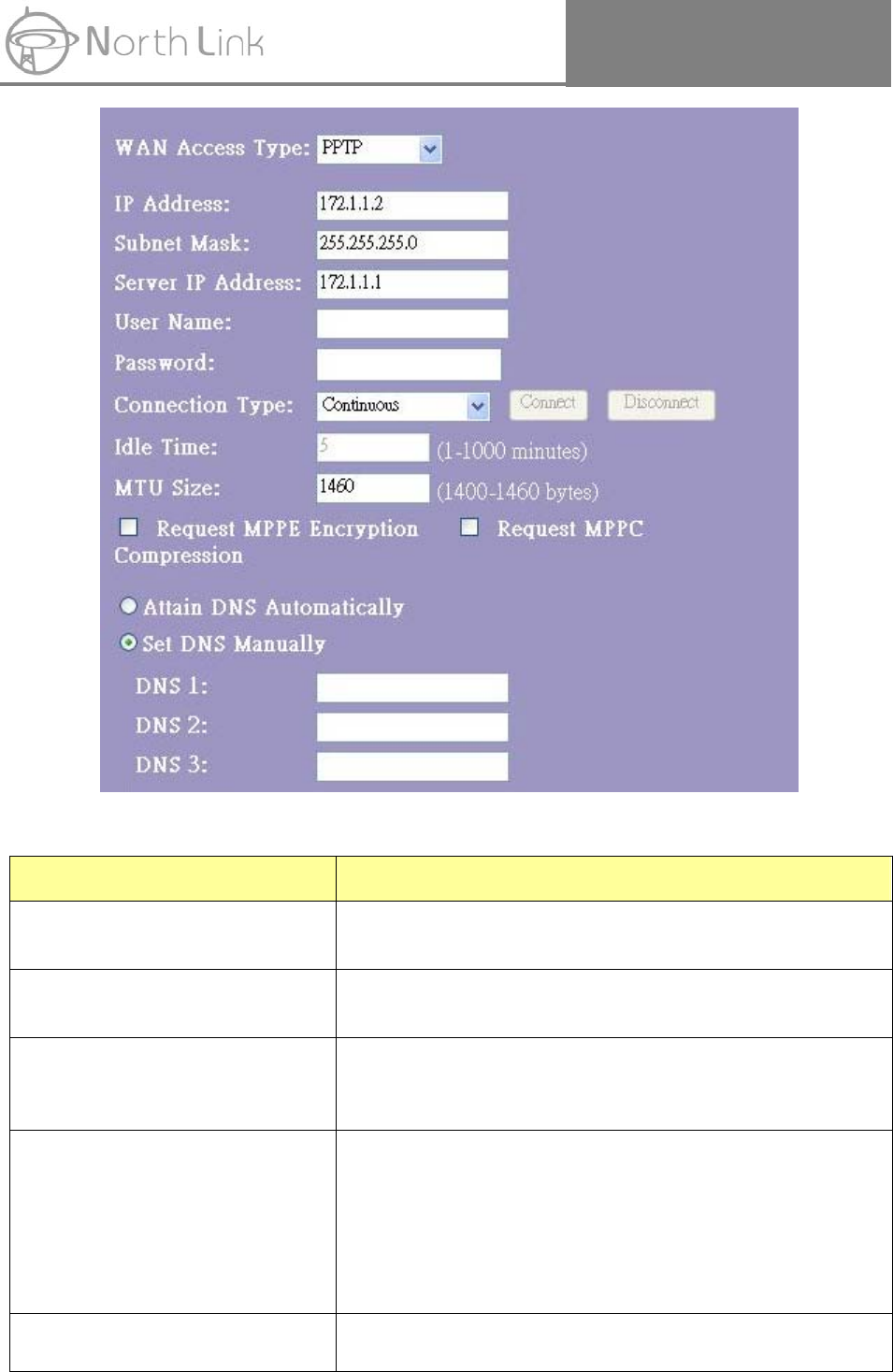

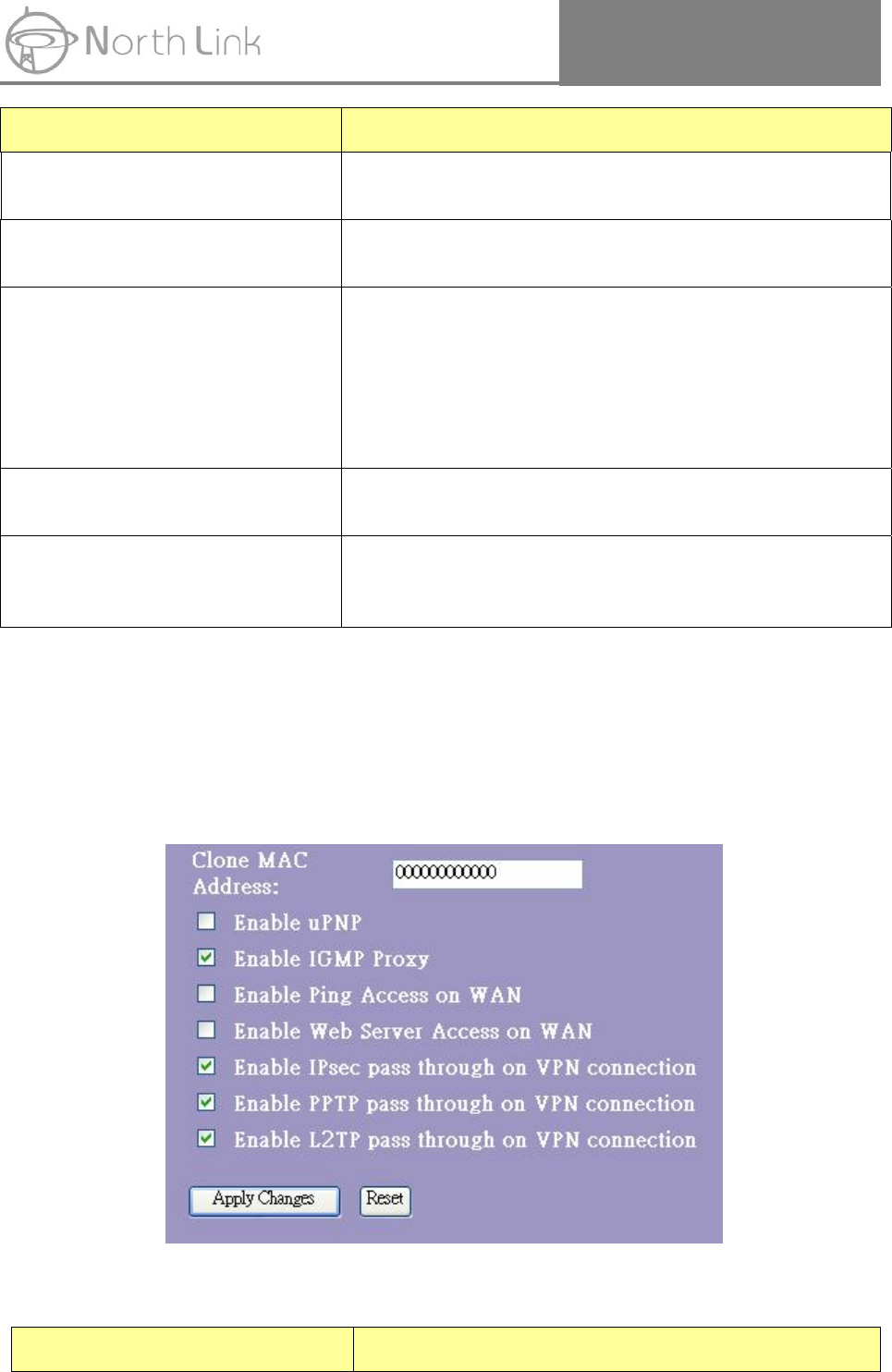

3.6.2 WAN Interface Setup·······················································································36
3.7 Firewall Settings ······································································································44

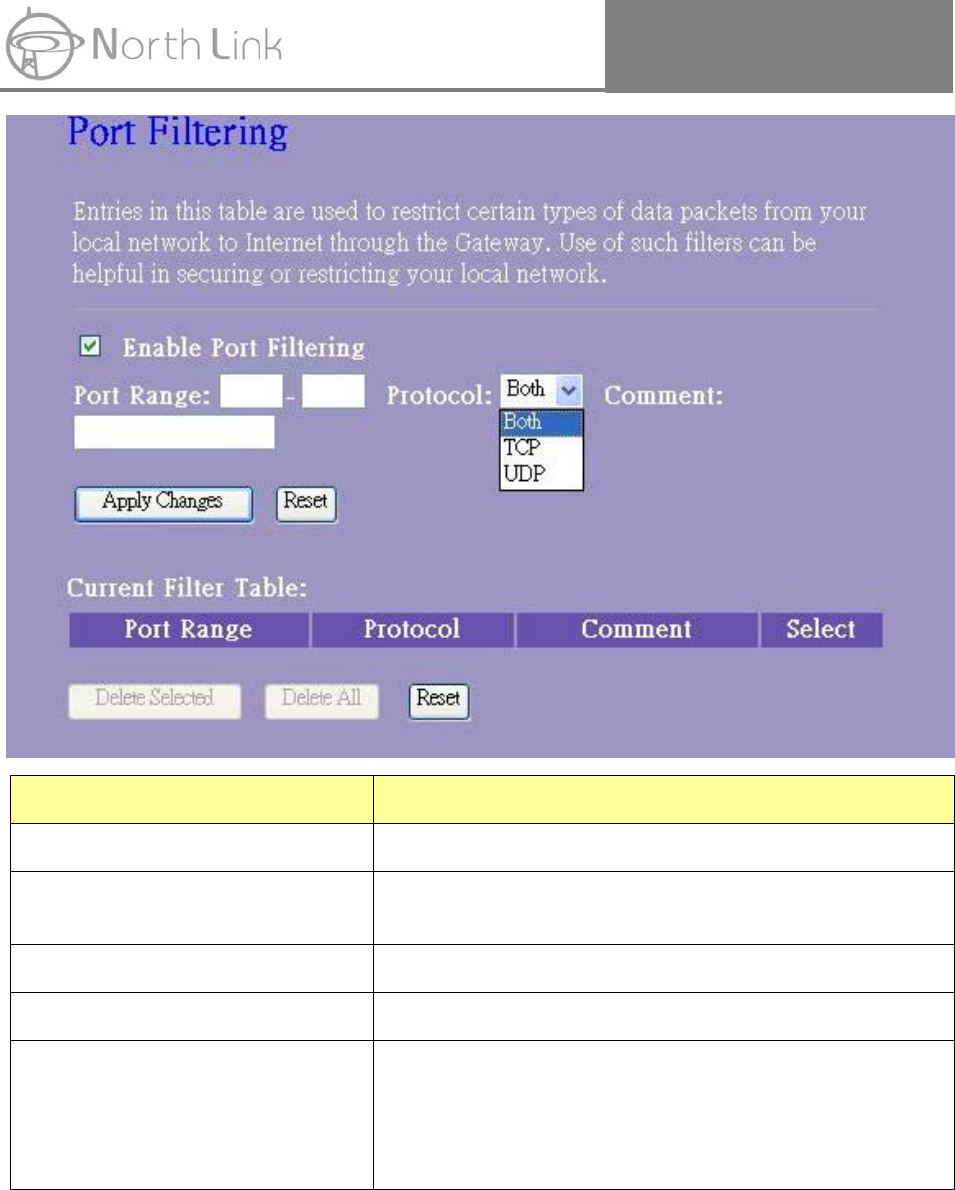

3.7.1 Port Filter·········································································································44

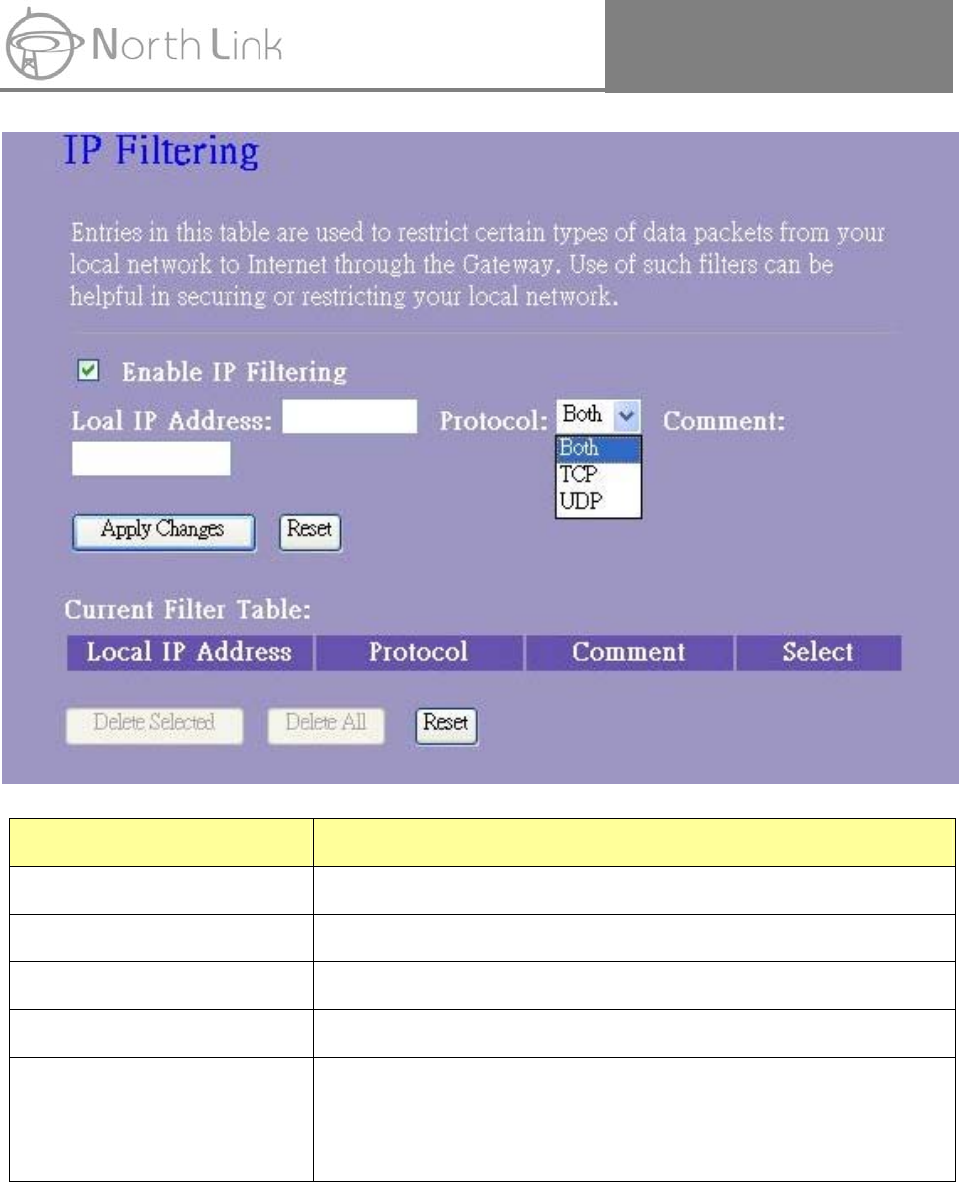

3.7.2 IP Filter ············································································································45
3.7.3 MAC Filter········································································································47

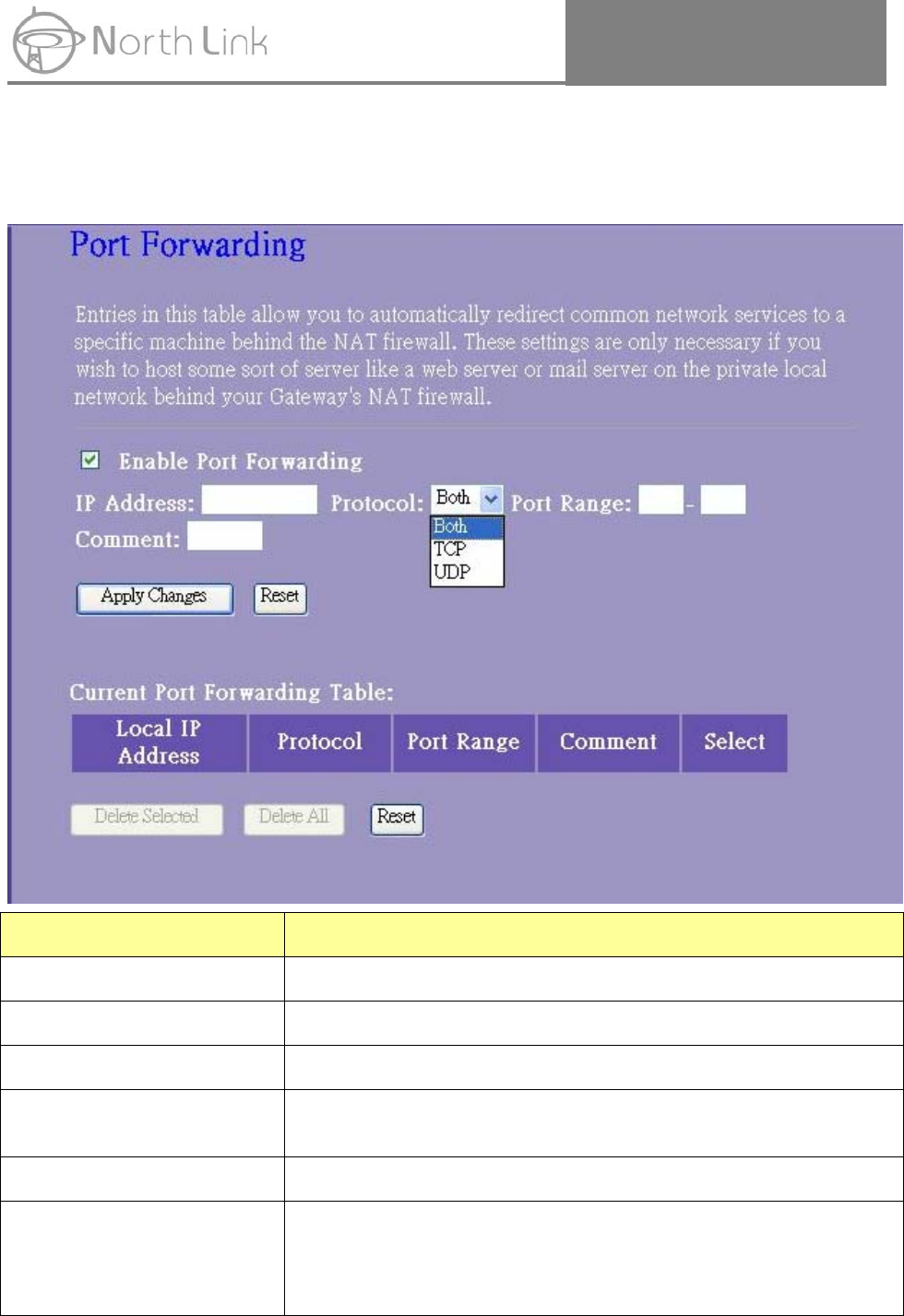

3.7.4 Port Forwarding·······························································································48
3.7.5 URL Filter·········································································································49
3.7.6 DMZ·················································································································50
3.8 QoS ·························································································································50
3.9 Management ···········································································································51

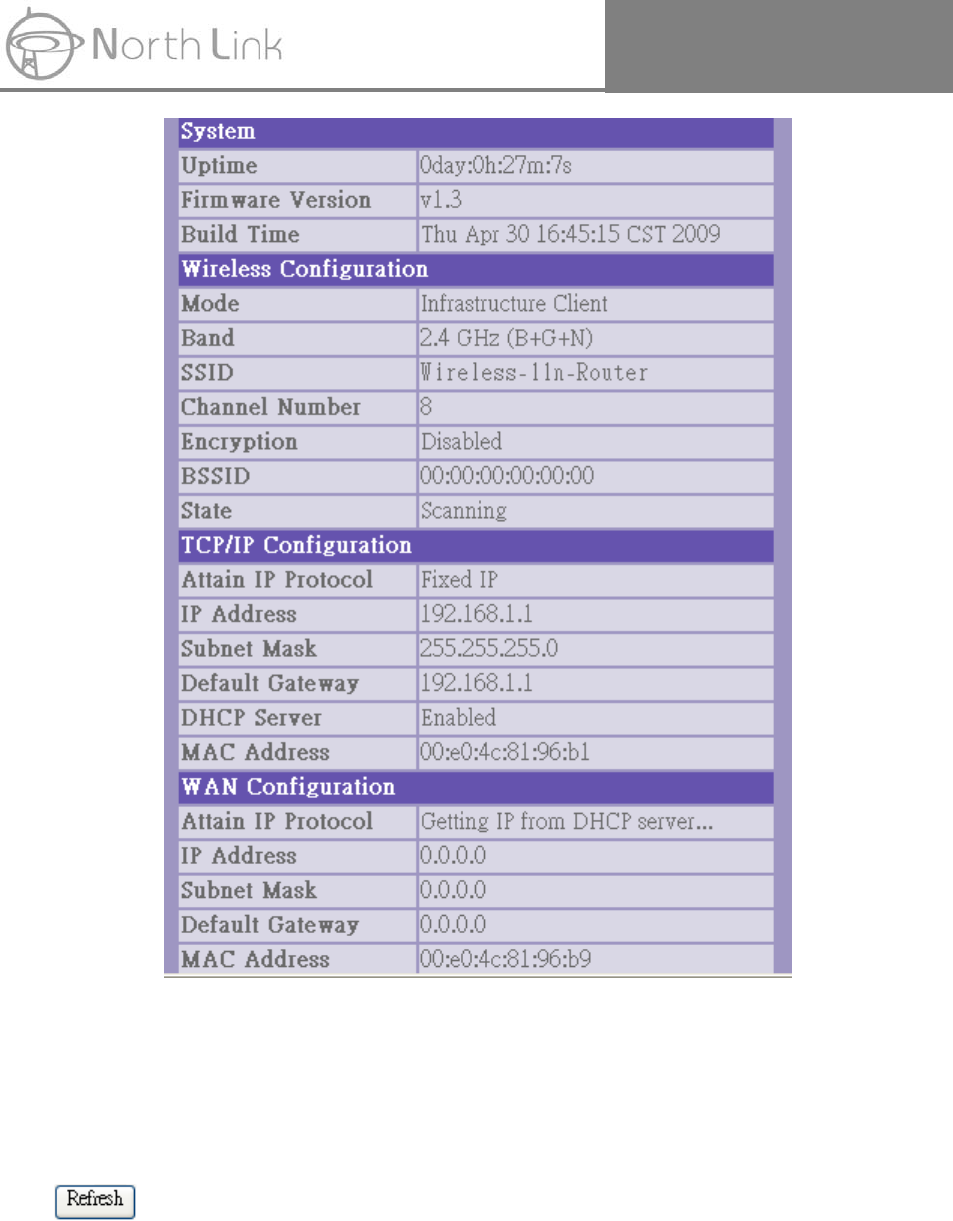

3.9.1 Status···············································································································51

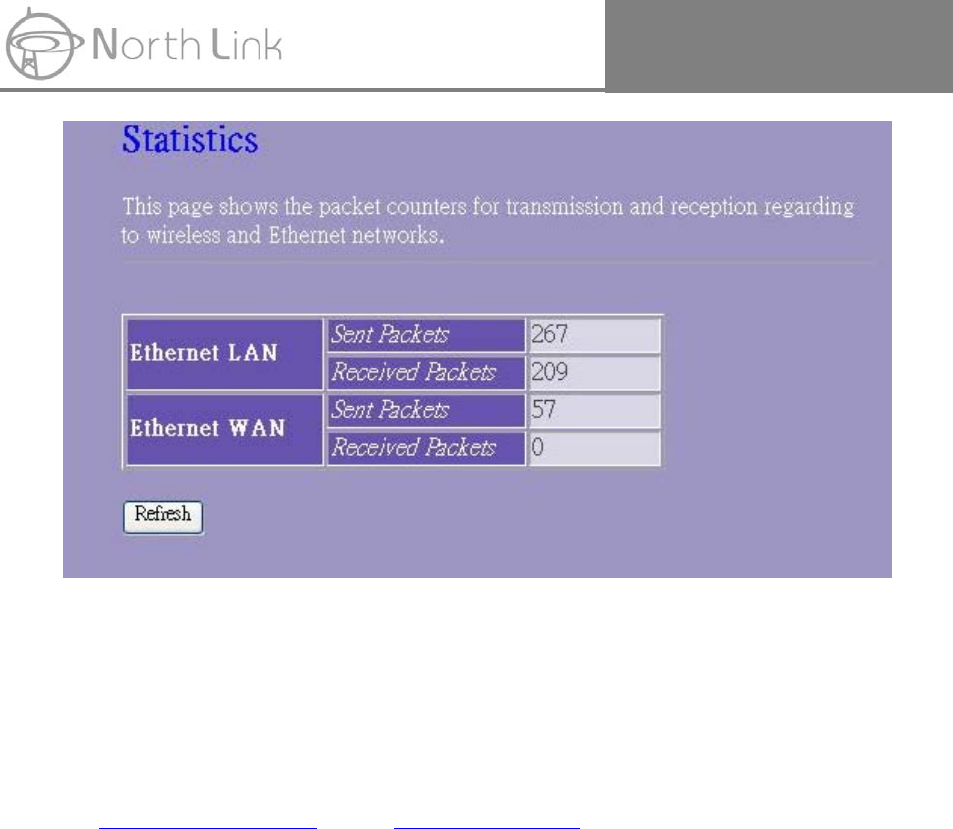

3.9.2 Statistics ··········································································································52

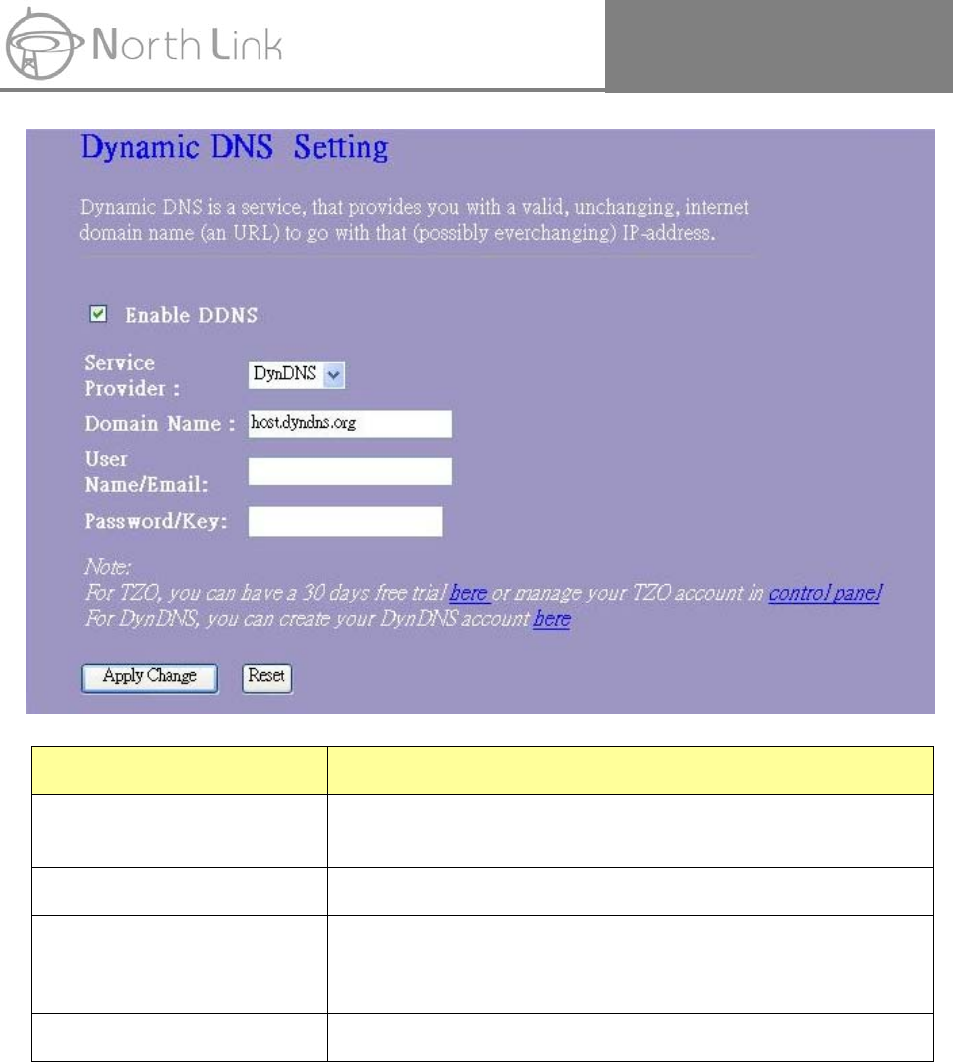

3.9.3 DDNS Settings ································································································53
Wireless 11n Router
v

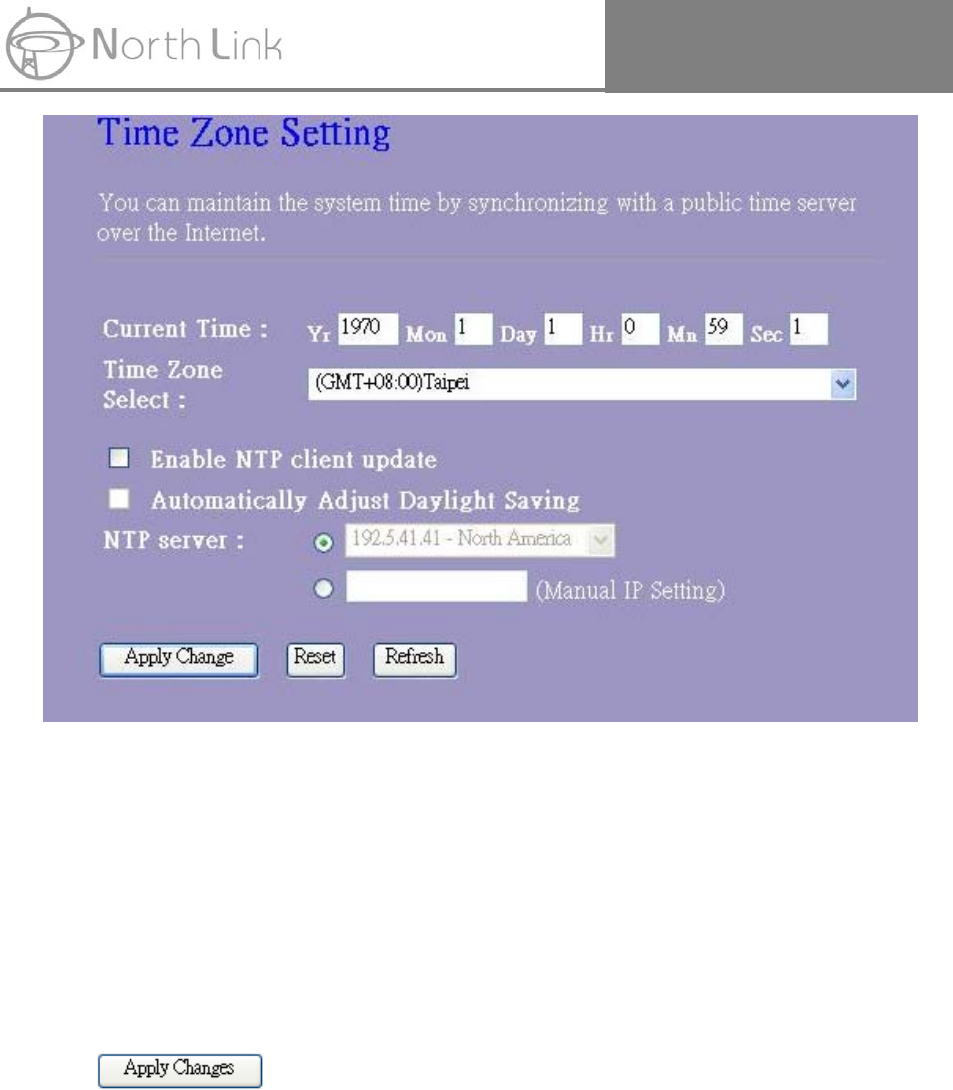

3.9.4 Time Zone Setting ···························································································54

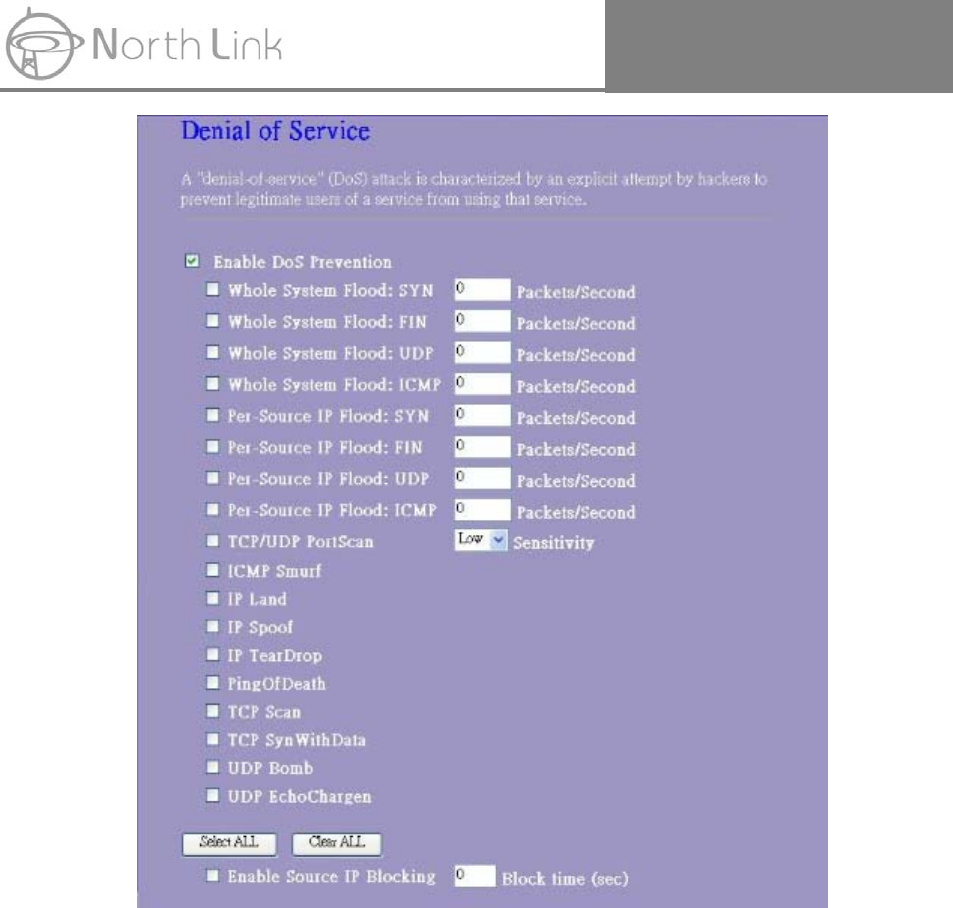

3.9.5 Denial-of-Service·····························································································55
3.9.6 Log···················································································································57
3.9.7 Upgrade Firmware···························································································58
3.9.8 Save/Reload Setting························································································58
3.9.9 Password·········································································································59
Wireless 11n Router
6
Unpacking Information
Thank you for purchasing the product. Before you start, please check all the contents of this
package.
The product package should include the following:
1. One Wireless Router
2. One Power Adapter
3. One resource CD, including:
User’s Manual
QIG
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.
Conventions
The Router mentioned in this guide stands for IEEE 802.11n Wireless Router without any
explanation.
Wireless 11n Router
7
Chapter 1 Introduction to Wireless Router
1.1 General Description
Draft 802.11n Wireless Connectivity
The IEEE802.11n Wireless Router provides a better wireless signal for network than existing
wireless 802.11g technology. It complies with IEEE 802.11n draft 2.0 and IEEE802.11b/g
wireless standards.
Greater Range and Coverage
The router allows multiple users to share one broadband connection, as well as secures your
private network. With its built-in switch port and wireless AP, LAN users can share files, printers,
or playing network games all at a blazing speed. This technology maximizes the speed and
range of your wireless signal to significantly outperform 802.11g devices.
Advanced Network Security
As for security, it also supports the latest wireless security features to help prevent
unauthorized access, be it from over a wireless network or from the Internet. Moreover,
supporting for WPA and WPA2 standards ensure that you will be able to use the best possible
encryption, regardless of your client devices. In addition, this Wireless 11n Router utilizes dual
active firewalls (SPI and NAT) to prevent potential attacks from across the Internet.
1.2 Key Features
¾ Supports 2.4 GHz frequency band
¾ Supports wireless data encryption with WPA, WPA2, Open/ shared key, and pair-wise key
authentication services
¾ Supports QoS: WMM, WMM-SA Client mode, Ingress and Egress bandwidth control
¾ Supports authentication for wireless connectivity based on ESSID
¾ Provides MAC access control and hidden SSID function
¾ Support MDI/MDIX auto crossover function
¾ Supports NAT IP Sharing and DHCP server
¾ Supports WAN connection type: Static IP, PPPoE, PPTP, DHCP L2TP client
¾ Supports ACL, DOS, Virtual DMZ, DNS relay, UPnP, VPN-Pass through
¾ Supports DDNS (DynDNS, TZO)
¾ Supports firmware upgrade function via Web
Wireless 11n Router
8
Chapter 2 Installing and Using Wireless Router
This chapter provides a step-by-step guide to the installation and configuration of the Wireless
Router. We suggest you go over the whole chapter and then do more advanced operation.
2.1 Connecting this Router to your network
Steps to build up the network:
¾ Connect the phone line from the wall socket to the line-in port on the ADSL modem, or the
coaxial cable to the line-in port on the Cable modem.
¾ Connect the ADSL or Cable modem to the Ethernet WAN port on the back of the Wireless
Router by using the UTP cable.
¾ Plug-in the power adapter to the modem and turn on the power. Install the Ethernet card into
the computer by referring to the User Guide that came with the card.
¾ Connect the computer to the Wireless Router by using standard twisted-pair Ethernet cable
from the computer’s Ethernet card to a 10/100Mbps Ethernet port on the back of the
Wireless Router.
¾ Plug-in the power adapter to the Router and the other side to the wall outlet.
2.2 Configuring the IP address of your computer
In order to communicate with this Wireless Router, you have to configure the IP addresses of
your computer to make it compatible with the device.
Note: The router supports DHCP server and it is enabled as default. Users that configure your
IP address as “Obtain an IP address automatically” may skip the following IP configuration
instruction.
1. The default network setting of the device:
IP address: 192.168.2.1
Subnet Mask: 255.255.255.0
DHCP Server: enable
2. In the following TCP/IP configuration guide, the IP address “192.168.2.2” is assumed to be
your IP address if you want to specify IP addresses manually. Please DO NOT choose
“192.168.2.1” as the IP address. For the IP address “192.168.2.1“has been set as the
Wireless 11n Router
9
default IP for this device.
3. The following TCP/IP configuration guide uses windows XP as the presumed operation
system.
Procedures to configure IP addresses for your computer
1. If you are in Classic Start menu view, click Start > Settings > Network Connections.
If you are in Start menu view, click Start > Control Panel > Network Connections.

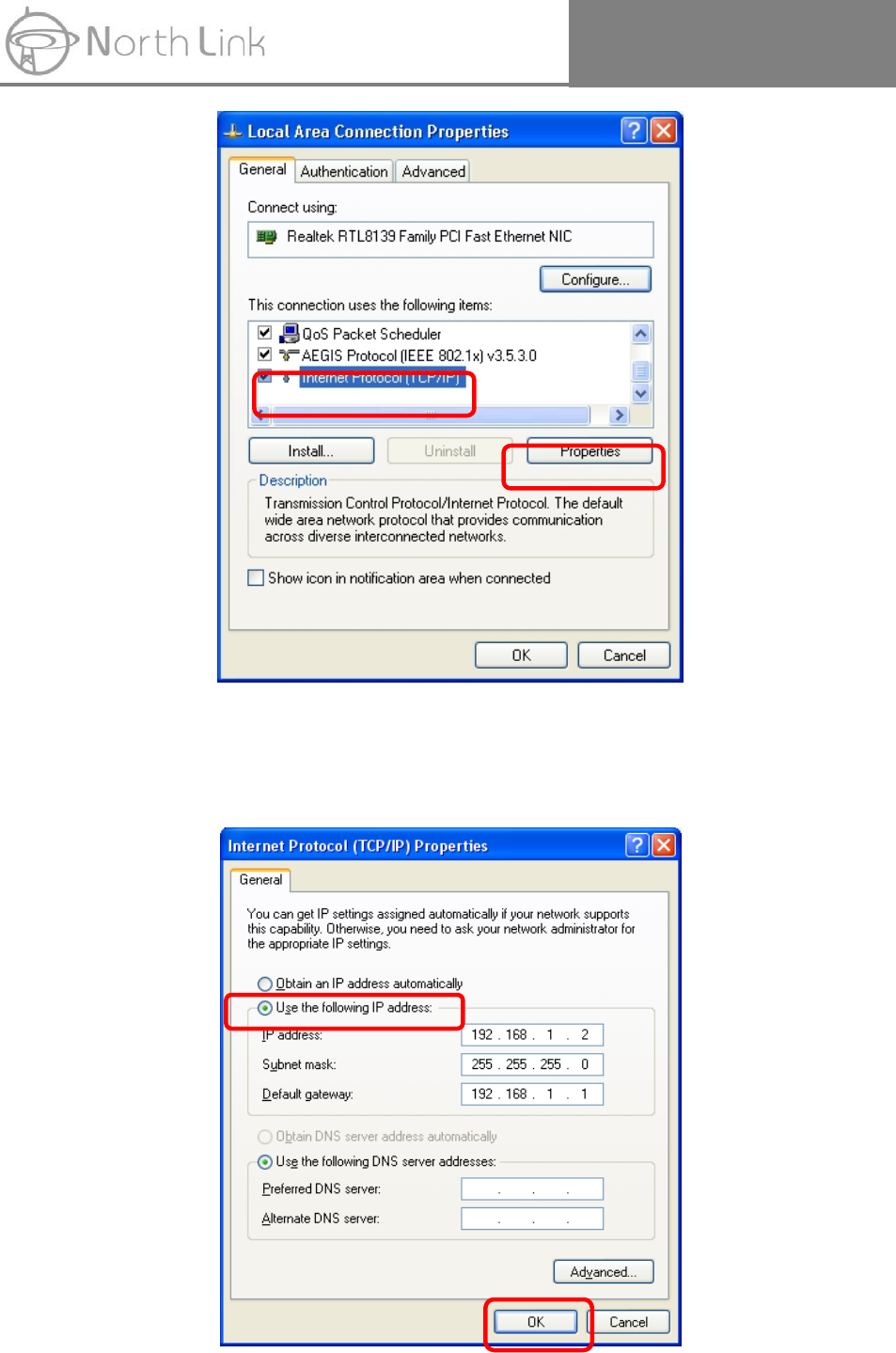

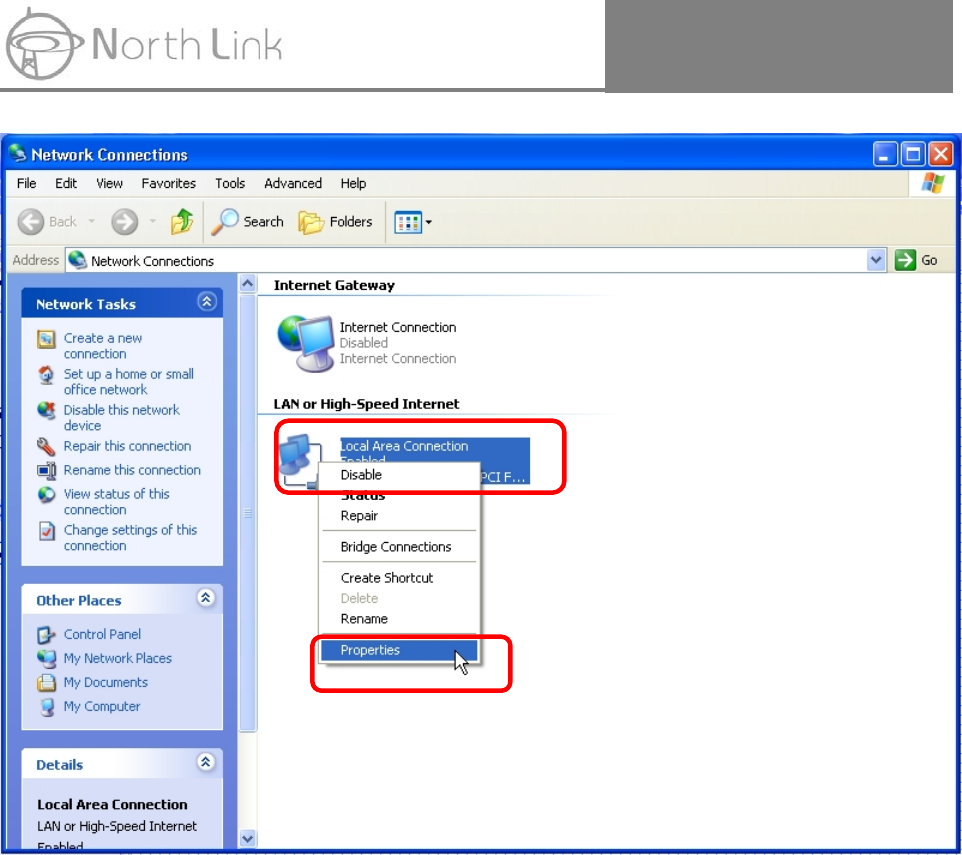

2. Right-click on Local Area Connection item and click on Properties.
Wireless 11n Router
10
3. Choose Internet Protocol (TCP/IP) and click Properties.
Wireless 11n Router
11
4. You may choose “Obtain an IP address automatically” (recommend) to get IP address
automatically or choose “Use the following IP address” to specify IP addresses manually.
Please click the OK button after your configuration.
Wireless 11n Router
12
Chapter 3 Management
3.1 Starting the WEB-Based Management Interface
The device uses WEB as the management interface. You can use a browser to access the
management interface easily. Please follow the steps listed below.
1. Open the Internet WEB browser.
2. Type 192.168.2.1 into the URL WEB address location and press Enter.
3. The Login window appears.
- Enter admin in the User Name location (default value).
- Enter admin in the Password location (default value).
- Click OK button.
3.2 The Graphic User Interface
After the password authorization, the information page shows up as the home page of the Graphic
User interface. You may click on each folder on left column of each page to get access to each
configuration page. Please note that you should click the Save Settings button to apply your
configuration to this device. You can also restore the default settings by clicking the Reset
Settings button.
Wireless 11n Router
13
If you purchase Wireless 11n 2T2R Router / Travel Router, the Graphic User Interface as
follows:
If you purchase Wireless 11n 1T1R Router / Travel Router, the Graphic User Interface as
follows:
Wireless 11n Router
14
3.3 Setup Wizard
If you are using the router for the first time, please follow the procedures of the setup wizard to do
a step-by-step configuration.
Note: The following instruction does an overall introduction to the Setup Wizard. For detail
information to each item, please refer to instruction of each page.
1. To start the Setup Wizard, click the “Next” button to proceed.
2. Select your demanding operation mode and click “Next”.
Wireless 11n Router
15
3. Mark the check box to enable synchronizing time by NTP server. Select the religion you live
and a NTP server by clicking the drop list then click “Next”.
4. Specify an IP address and subnet mask for connecting to the router in LAN.
Wireless 11n Router
16

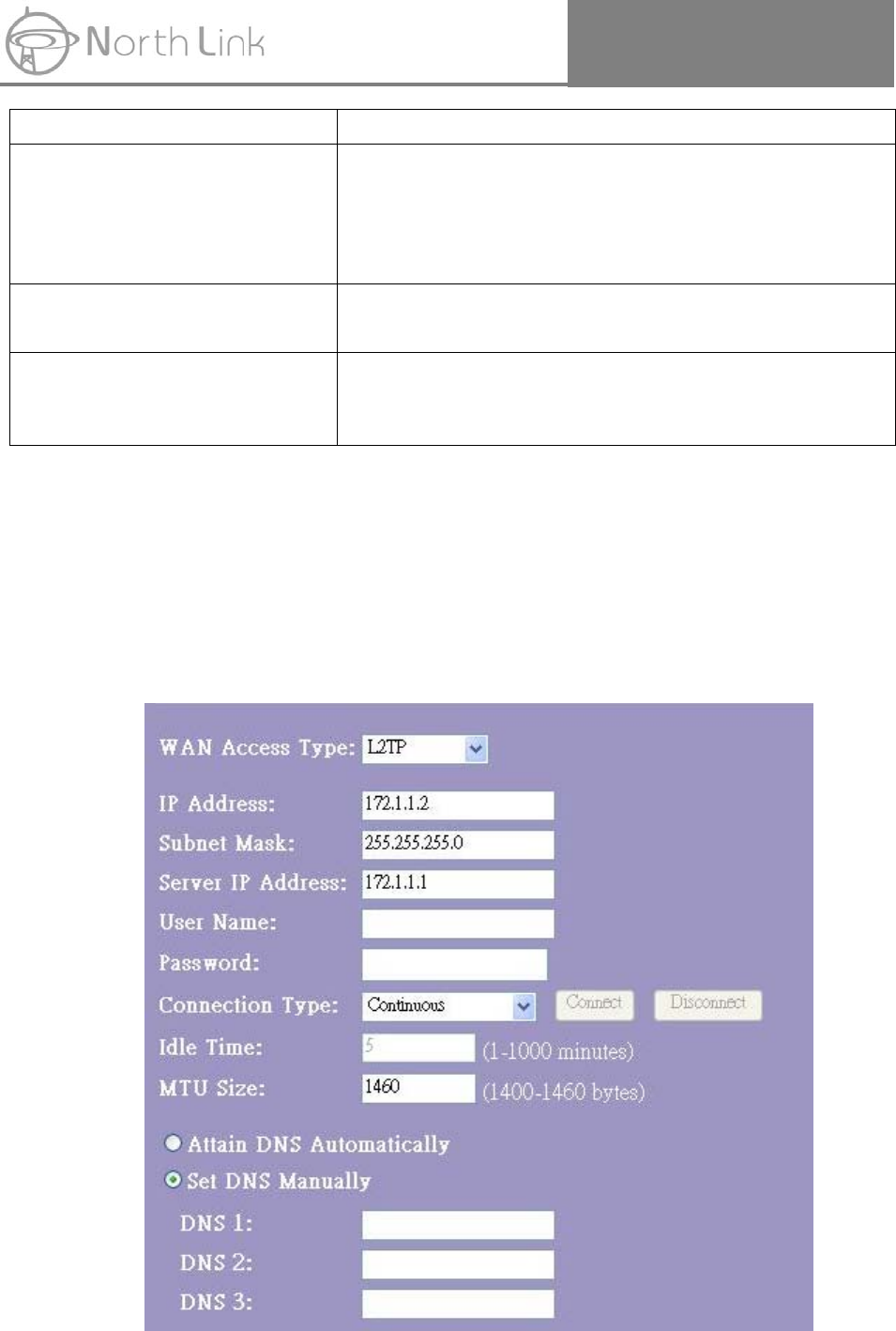

5. Select a WAN access type for the router to connect to Internet. Fill in the parameters that
required in each blank, and then click the “Next” button. You may get those parameters from
your ISP. WAN Access Type : Static IP, DHCP Client, PPPoE, PPTP, L2TP
6. Select the wireless parameters that are used for associating with this router and click “Next”.
Wireless 11n Router
17
\
Items Information
Band 2.4GHz(B),2.4GHz(G),2.4GHz(N),2.4GHz(B+G),2.4GH
z(G+N), 2.4GHz(B+G+N)
Mode AP, Client, WDS, AP+WDS
Network Type Infrastructure, Ad-hoc
Channel Width 40MHz, 20MHz
ControlSideba
nd Upper, Lower
Channel
Number Auto,1,2,3,4,5,6,7,8,9
Country This contains USA(FCC), Canada(IC), Europe(ETSI),
Spain, France, Japan(MKK)
1.Note to US model owner: To comply with US FCC regulation, the country selection
function has been completely removed from all US models. The above function is for
non-US models only.
2.The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the intended
destination. The firmware setting is not accessible by the end user.
Wireless 11n Router
18
7. Click the drop list to select the encryption type for your wireless network. Fill in the parameters
for the encryption type you select and click finish to complete configuration. Encryption type :
None, WEP, WPA(TKIP), WPA2(AES), WPA2 Mixed
Wireless 11n Router
19

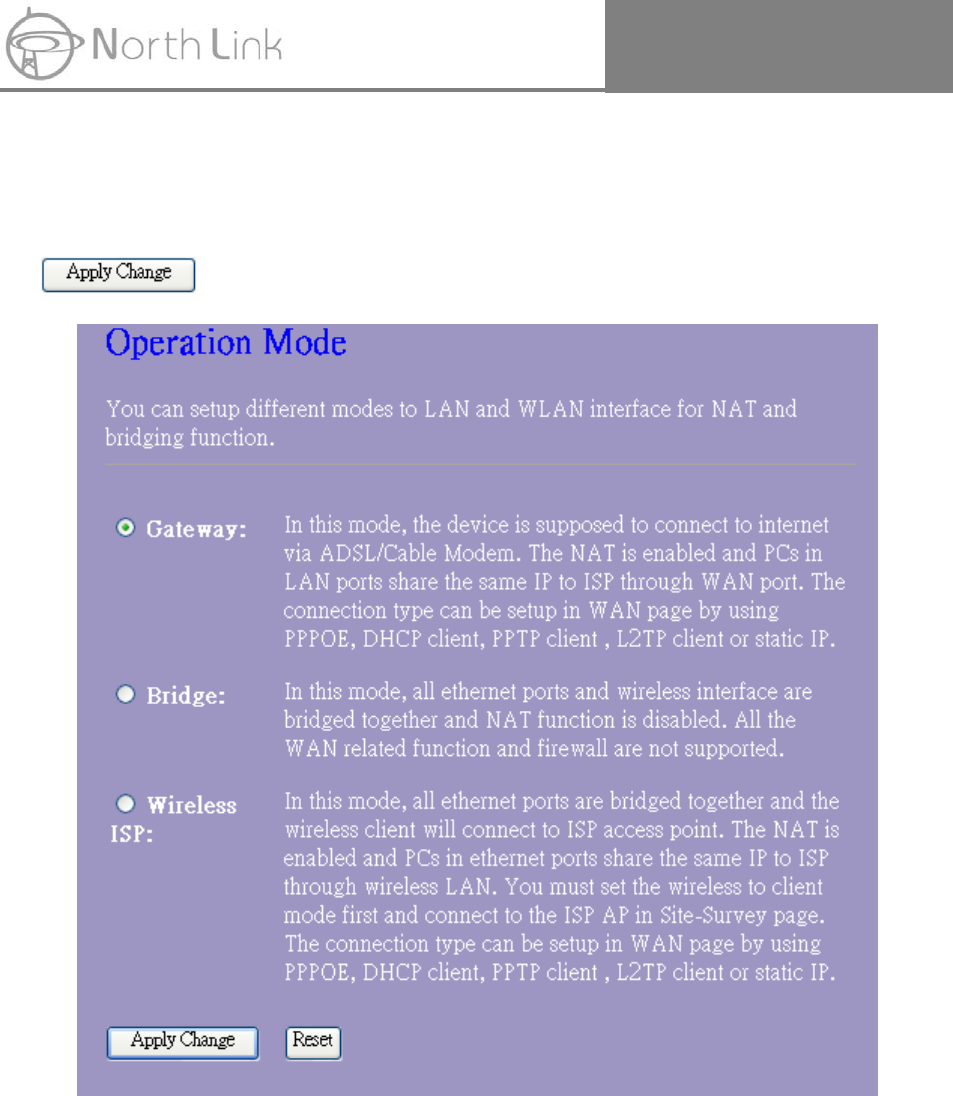

3.4 Operation Mode
To select an operation mode for this router, click on the mode that you want to perform and click
the button to execute.
Wireless 11n Router
20
3.5 Wireless
3.5.1 Basic Settings
You can set up the configuration of your Wireless basic settings and monitor the Wireless Clients
associate with your router.
Items Information
Disable Wireless LAN
Interface Mark the checkbox to disable interface of Wireless LAN
Band
To select a band for this device to match 802.11b, 802.11g,
802.11n, 802.11b/g, 802.11g/n or 802.11b/g/n. optional parameters:
2.4GHz(B),2.4GHz(G),2.4GHz(N),2.4GHz(B+G),2.4GHz(G+N),
2.4GHz(B+G+N)
Wireless 11n Router
21
Mode
Configure this device as AP, Client, WDS or AP+WDS. If you set
this device as AP or AP+WDS mode, the button is
available for you to set up four SSID for this wireless network. Click
on this button to do more configurations.
Network Type
When you configure this device in Client mode, this drop-down list
allows users to change the network type into infrastructure mode or
ad-hoc mode.
Ad-Hoc mode: connects two computers directly without the use of
a router or AP. It is also know as a peer-to-peer network.
Infrastructure Mode: the wireless network contains at least one
wireless client and one wireless AP or router. This client connects to
Internet or intranet by communicating with this wireless AP.
SSID Service set identifier (SSID) for the name of the wireless network.
Channel Width Select to use 20MHz or 40MHz as the wireless channel frequency.
Control Sideband If you have selected the channel width of 40MHz for this router, you
can control this router to use the frequency for a deflection of
“Upper” or “Lower.”
Channel Number Select a channel for the wireless network of this device.
Country This contains USA(FCC), Canada(IC), Europe(ETSI), Spain,
France, Japan(MKK)
Broadcast SSID
If you enable "Broadcast SSID", every wireless station located
within the coverage of this wireless router can discover this wireless
router easily. If you are building a public wireless network, enabling
this feature is recommended. Disabling "Broadcast SSID" can
provide better security.
WMM This will enhance the data transfer performance of multimedia
contents when they’re being transferred over wireless network.
WMM is not available in 11n mode.
Data Rate The transmit limitation of data packets of this wireless router. The
wireless router will use the highest possible selected transmission
rate to transmit the data packets.
Associated Client Click "Show Active Clients" button, then an "Active Wireless Client
Table" pops up. You can see the status of all active wireless
stations that are connecting to the access point.
Enable MAC clone Mark the checkbox to clone the MAC address of the device. This
function is only available when you set this router as Client mode.
You can also manually set the MAC address in WAN setting.
Enable Universal
Repeater Mode Mark this checkbox to enable Universal Repeater Mode which acts
this device as an AP and client simultaneously.
Wireless 11n Router
22
SSID of Extended
Interface While you enable the Universal Repeater Mode, you have to
specify an SSID for the extended interface.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
1.Note to US model owner: To comply with US FCC regulation, the country selection
function has been completely removed from all US models. The above function is for
non-US models only.
2.The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the intended
destination. The firmware setting is not accessible by the end user.

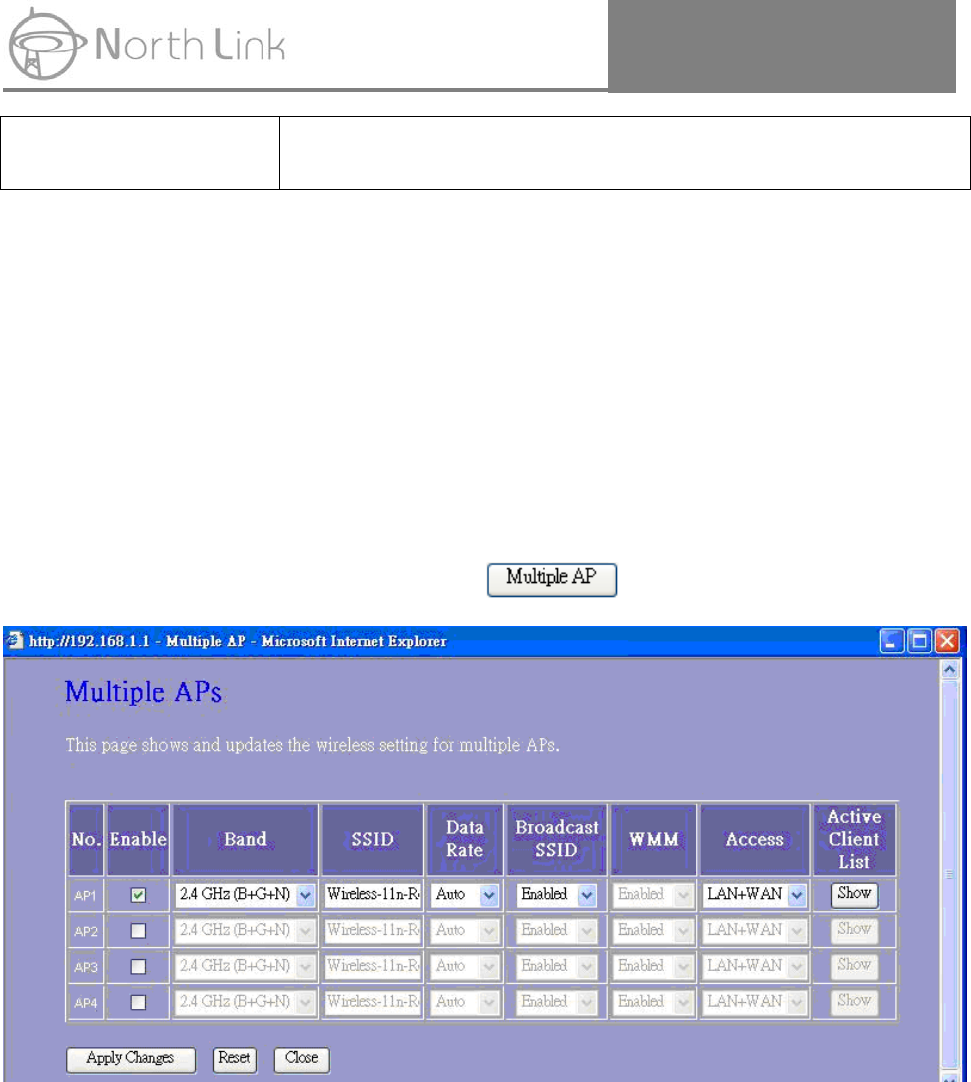

1. Multiple APs
This is the window that pops up after clicking the button.
Select one of the AP, and then click the button “Show”, “Active Wireless Client Table – AP1”
windows pops up.
Wireless 11n Router
23
2. Active Wireless Client Table
This is the window that pops up after clicking the button.
3.5.2 Advanced Settings
You can set advanced wireless LAN parameters of this router. We recommend not changing these
parameters unless you know what changes will be on this router.
Wireless 11n Router
24
Items Information
Fragment
Threshold
This value should remain at its default setting of 2346. If you
experience a high packet error rate, you may slightly increase your
fragmentation threshold within the value range of 0 to 2346. Setting
the fragmentation threshold too low may result in poor performance.
RTS Threshold
Request To Send threshold. This value should remain at its default
setting of 2347. If you encounter inconsistent data flow, only minor
modifications to the value range between 1 and 2347 are
recommended.
Beacon Interval Beacons are packets sent by an access point to synchronize a
wireless network. Specify a beacon interval value. Default (100ms)
is recommended.
Preamble Type The length of CRC blocks in the frames during the wireless
communication.
IAPP To enables multiple AP to communicate and pass information
regarding the location of associated Stations.
Protection Some 802.11g wireless adapters support 802.11g protections,
which allows the adapter search for 802.11b/g singles only. Select
Wireless 11n Router
25
“Enabled” to support protection or select “Disabled” to disable this
function.
Aggregation To aggregate lots of packets into a big one before transmitting
packets. This can reduce control packet overhead.
Short GI Indicates that the 802.11g network is using a short slot time
because there are no legacy (802.11b) stations present
RF Output Power Select the signal strength for the wireless network.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
3.5.3 Security
The Security function protects your wireless network from invasion. We provide WEP and WPA
encryption to secure your wireless network. Please select Disable, WEP, WPA, WPA2, and
WPA-Mixed in the drop list. If you select none, any data will be transmitted without encryption and
any station can access the router.
Items Information
Select SSID Please choose a SSID you have set for this router in the Wireless >
Basic Settings from the drop-down list. The SSID will be shown on
the wireless network for recognizing.
Encryption There are 5 modes for you to select: Disable, WEP, WPA, WPA2,
and WPA-Mixed. Please refer to the following description.
802.1x Authentication Users that do not use this function or connecting to an open-wireless
network please skip this part. Please configure the settings in
accordance with the Certificated Server.
Wireless 11n Router
26
1. Security Mode -- WEP
Items Information
Encryption Select a security encryption mode for this router.
Authentication There provide three options for selecting: Open System,
Wireless 11n Router
27
Shared Key, Auto
Key Length Select 64-bit or 128-bit as the key encryption length.
Key Format Select ASCII1 or Hex2 to setup the key value.
Encryption Key Enter the key according to the key format you select.
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.

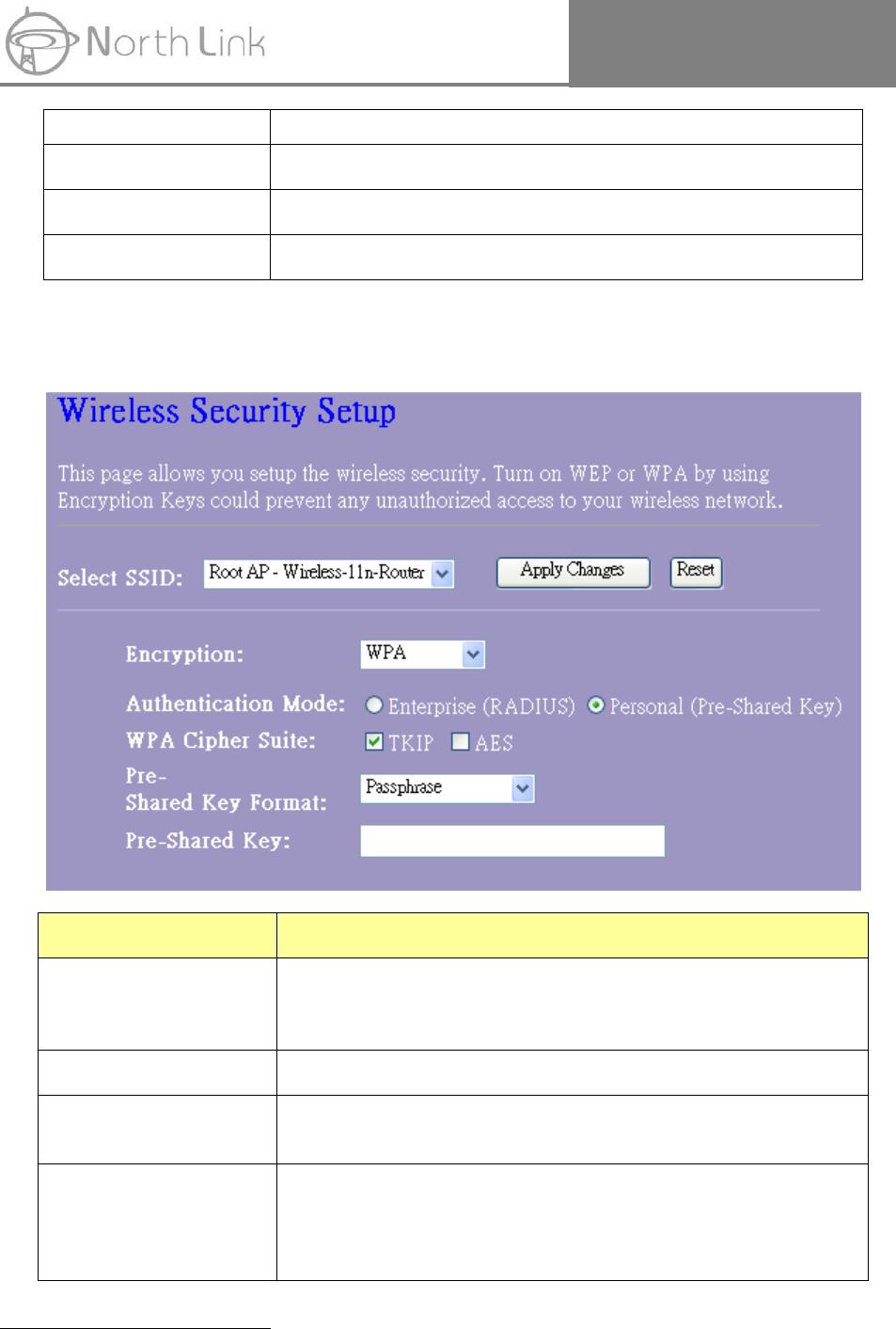

2. Security Mode – WPA / WPA 2
Items Information
Authentication Mode There are two items, “Enterprise (RADIUS)” and “Personal
(Pre-Shared Key)”. You can select the mode by clicking the
item.
WPA Cipher Suite Select the WPA Cipher Suite to be TKIP or AES.
Pre-Shared Key
Format To decide the format, select Pass phrase or Hex in the drop
list.
Pre-Shared Key
Enter the Pre-shared Key according to the pre-shared key
format you select. This is the shared secret between AP and
STA. This field must be filled with character longer than 8 and
less than 64 lengths.
1 ASCII (American Standard Code for Information Interchange) is a code for representing English letters as numbers
from 0-127.
2 Hexadecimal digits consist of the numbers 0-9 and the letters A-F.
Wireless 11n Router
28
3. Security Mode – WPA-Mixed
Items Information
Authentication Mode There are two items, “Enterprise (WPA-Radius)” and
“Personal (Pre-Shared Key)”. You can select the mode
by clicking the item.
WPA / WPA2 Cipher Suite Select the WPA/WPA2 Cipher Suite to be TKIP or AES.
Pre-Shared Key Format To decide the format, select Passphrase or Hex in the
drop list.
Pre-Shared Key Enter the Pre-shared Key according to the pre-shared
key format you select. This field must be filled with
character longer than 8 and less than 64 lengths.
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.
Wireless 11n Router
29
3.5.4 Access Control
To restrict the clients of Access authentication of Stations, set up the control list in this page.
Items Information
Wireless Access
Control Mode
Click on the drop list to choose the access
control mode. You may select “Allow listed” to
allow those allowed MAC addresses or select
“Deny Listed” to ban those MAC addresses from
accessing to this device or select “Disable”.
MAC Address &
Comment Fill in the MAC address that you wish to control,
and give a definition to it.
Current Access Control
list
Lists the MAC Access Control Settings you have
added before. Click on the list to change
configuration. To Delete the station on the list,
mark the check box in the select item and click
the “Delete Selected”. If you want to delete all
stations on the list, click “Delete All” to remove all
of them.
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.
Wireless 11n Router
30

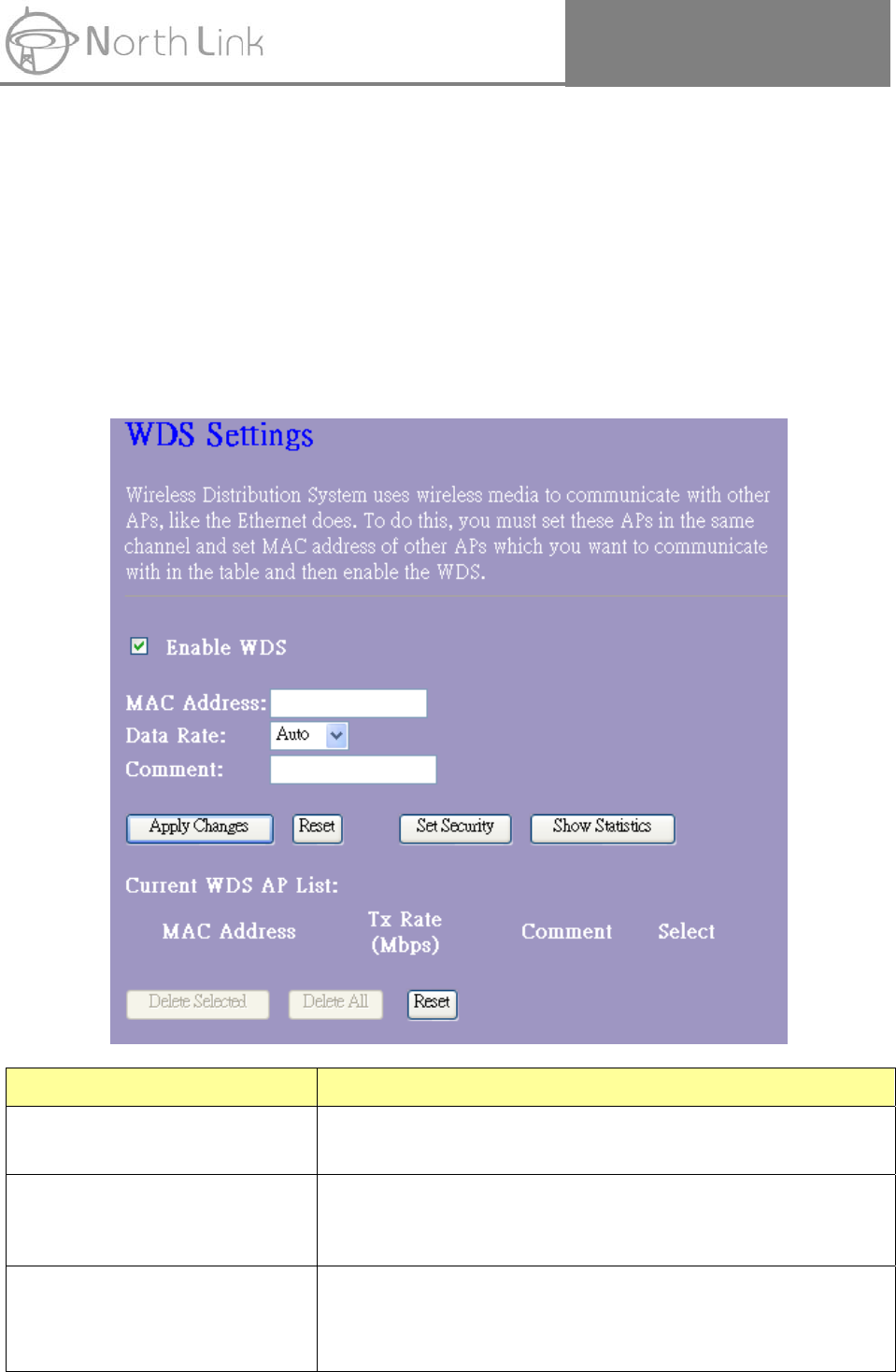

3.5.5 WDS Settings
When you use this device as WDS or AP+WDS mode, “WDS Setting” function can be operated.
Wireless Distribution System allows the router to communicate with other APs wirelessly. To make
it work, you must ensure that these APs and the Router are in the same channel. Please add
these APs MAC address and comment values into the WDS list. Don’t Forget to Enable the WDS
by click the check box of “Enable WDS” and press “Apply Changes” button to save. To Delete the
AP on the list, Click the check box in the select item and click the “Delete Selected”. If you want to
delete all APs on the list, click “Delete All” to remove all of them.
Items Information
MAC Address & Comment Fill in the MAC address that you wish to control, and give a
definition to it.
Data Rate The transmit limitation of data packets of this wireless router.
The wireless router will use the highest possible selected
transmission rate to transmit the data packets.
Current WDS AP List Lists the WDS Settings you have added before. Click on the
list to change configuration. To Delete the station on the list,
mark the check box in the select item and click the “Delete
Selected”. If you want to delete all stations on the list, click
Wireless 11n Router
31
“Delete All” to remove all of them.
3.5.6 Site Survey
This page shows available wireless network information. When you use this device as a client
station (STA), you may connect to other AP or Router. Select one of the lists in the site survey
table and click on to connect to other wireless network nearby. The button
can be used to scan nearby Router and AP again.
3.5.7 WPS Settings
The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security
setup and management of Wi-Fi networks. This Router supports the configuration setup using PIN
configuration method or PBC configuration method through an internal or external Registrar.
Wireless 11n Router
32
Items Information
WPS Status You cannot manually select the items here. The WPS Status will change
from “UnConfigured” to “Configured” after you enable WPS function and
setup a wireless security key for this device.
Self-PIN Number If you use this device as a client, you can use this code when trying to
connect this device to other AP by using the PIN method.
Push Button
Configuration Push Button Communication (PBC) method use a simple action of
pushing a button on both the AP and the new STA to reach the function
of easy setup WPS connection. You can simply click the
button in this GUI page. After click on the button, please run the client’s
WPS and push the PBC button within 2 minutes.
Client PIN
Number Personal Identification Number (PIN) method. Users have to fill in the
PIN code of enrollee device and click on the button to make
communication with other AP. After click on the button, please run the
client’s WPS and push the PIN button within 2 minutes.
Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
3.5.8 Schedule
You can configure the schedule via this page. Click “Enable Wireless Schedule”, then config days
or time which you want. Wireless will start or stop at your scheduled time. Please do not forget to
configure system time before enabling this feature.
Wireless 11n Router
33
Wireless 11n Router
34
3.6 TCP/IP Settings
3.6.1 LAN Interface Setup
To set up the configuration of LAN interface, private IP of your router LAN port and subnet mask
for your LAN segment.
Items Information
IP Address The IP of your Router LAN port (default 192.168.2.1).
Subnet Mask Subnet Mask of you LAN (default 255.255.255.0). All devices on the
network must have the same subnet mask to communicate on the
network.
Default Gateway Enter the IP Address of the router in your network.
DHCP
DHCP stands for Dynamic Host Configuration Protocol. It is a
protocol for assigning dynamic IP addresses “automatically.” You can
select to use this router as a DHCP client or DHCP server. To give
your LAN client an IP, you have to enable “DHCP Server”. If not,
manual setting up your client IP is necessary when you want to use
Wireless 11n Router
35
the router as your client’s default gateway.
DHCP Client Range Specify the DHCP Client IP address range (default start from 150 and
end to 200). You can also click the “Show Client” button to list those
connected DHCP clients.
Static DHCP This function is only available when you use this router as a DHCP
server. This router may automatically assign the static DHCP address
to the specific clients.
Domain Name (Optional) The name of your local domain.
802.1d Spanning
Tree To prevent from network loops and preserve the quality of bridged
network
Clone MAC Address
Your ISP may require a particular MAC address in order for you to
connect to the Internet. This MAC address is the PC’s MAC address
that your ISP had originally connected your Internet connection to.
MAC cloning feature allows the MAC address reported by WAN side
network interface card to be set to the MAC address already
registered with the ISP eliminating the need to register the new MAC
address with the ISP. This feature does not change the actual MAC
address on the NIC, but instead changes the MAC address reported
by Wireless Router to client requests. To Change the MAC address,
enter it in the text box.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.

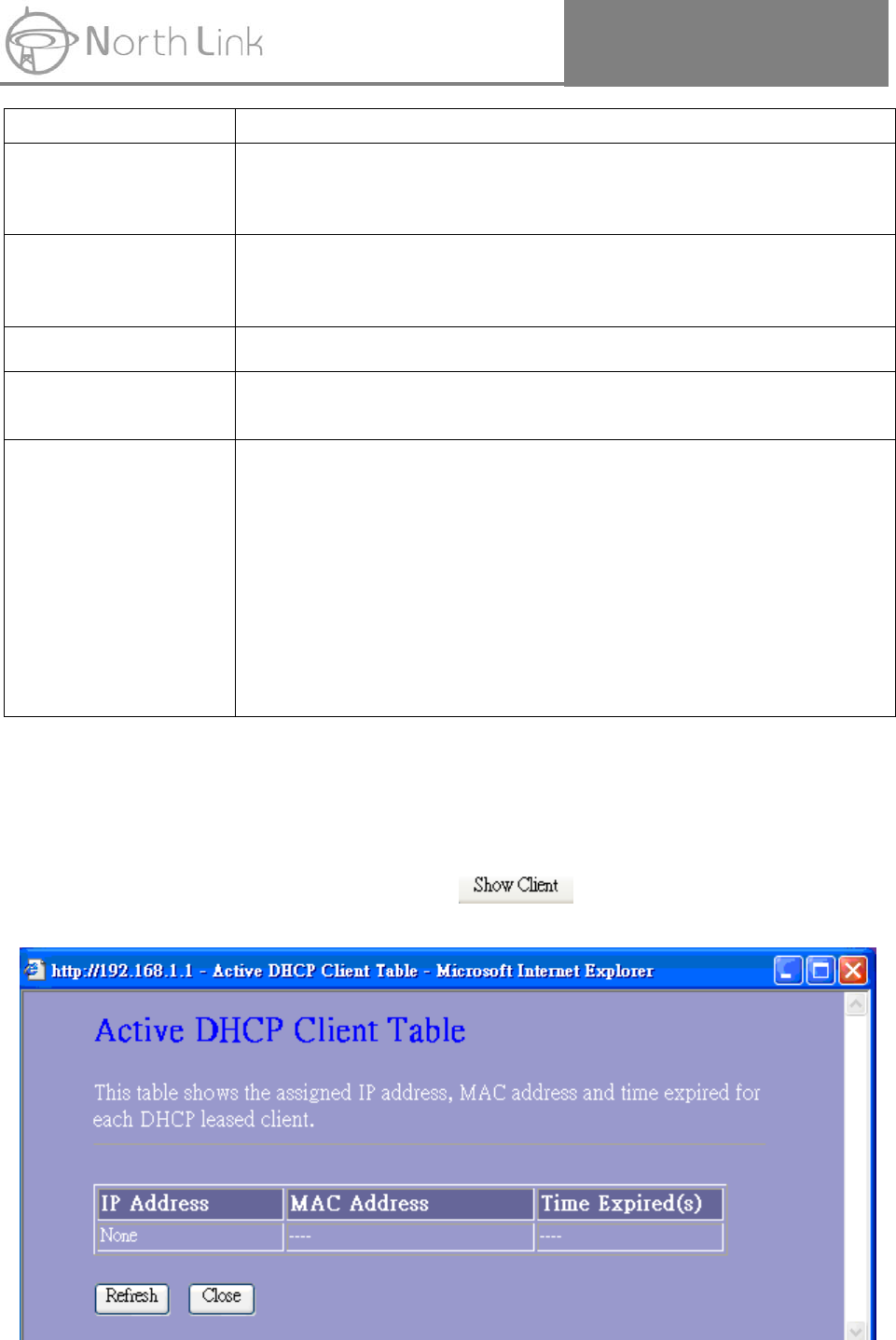

1. Active DHCP Client List
This is the window that pops up after clicking the button. It shows the information of
IP/MAC address and expire time of the DHCP clients that have connected with this device.
Wireless 11n Router
36

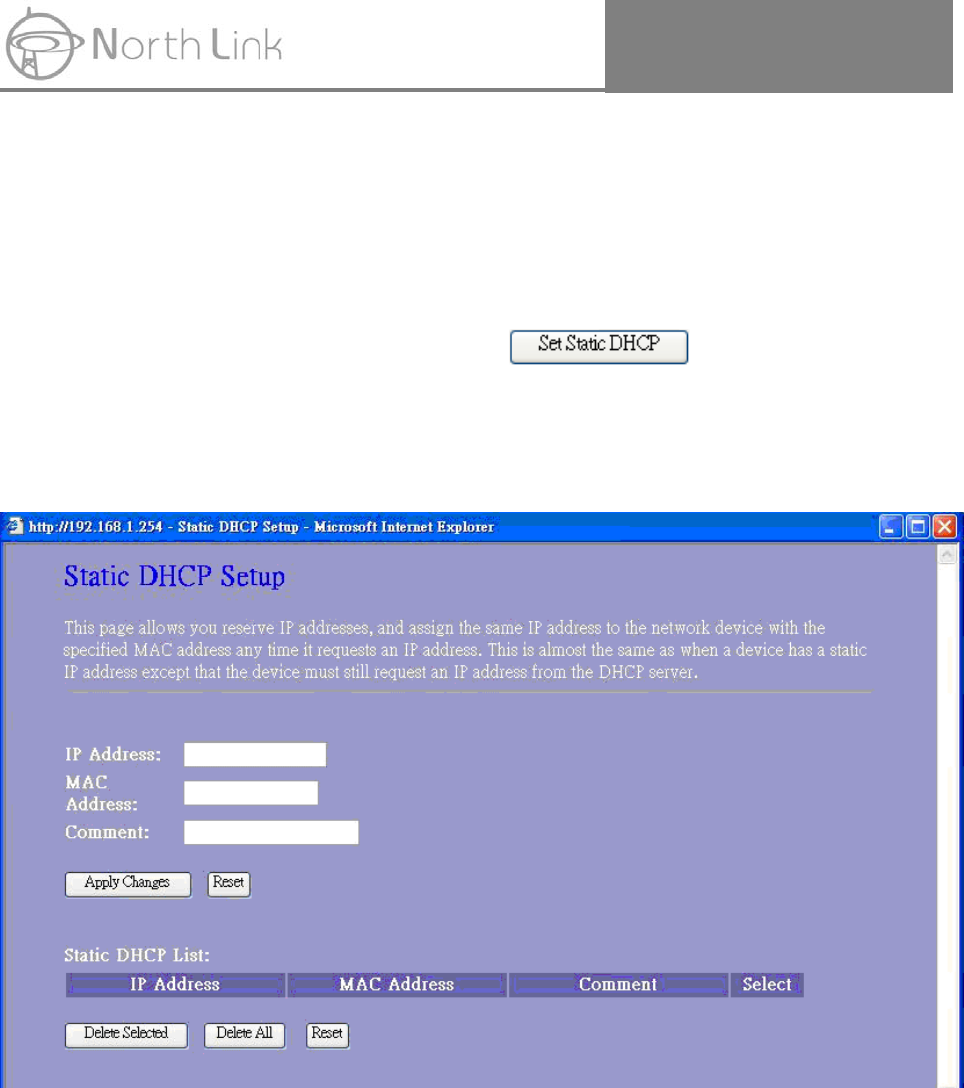

2. Static DHCP Setup
This is the window that pops up after clicking the button. Click on the list to
change configuration. To delete the station on the list, mark the check box in the select item and
click the “Delete Selected”. If you want to delete all stations on the list, click “Delete All” to remove
all of them.
3.6.2 WAN Interface Setup
This page allows users to configure those parameters for connecting to Internet. You may select
the Internet connection type from the “My Connection type” drop list and configure parameters for
each mode. Five modes for selection: Static, DHCP, PPPoE, L2TP, and PPTP mode.
Wireless 11n Router
37
1. Static Mode (fixed IP)
Devices that are assigned the same IP address may not be visible on the network. Enter the IP
address of the DNS server. The DNS server translates domain names into IP addresses.
Wireless 11n Router
38
Items Information
IP Address, Subnet Mask and
Default Gateway Fill in the IP address, Subnet Mask and Default Gateway
that provided by your Internet Service Provider (ISP).
MTU Size
To Enable the Maximum Transmission Unit of Router
setup. Any packet over this number will be chopped up
into suitable size before sending. Larger number will
enhance the transmission performance.
Enter the MTU number in the blank to set the limitation
(default 1500 bytes).
DNS 1~3 To specify the Domain Name System (DNS). The DNS
server translates domain names into IP addresses. Enter
the DNS provided by your ISP in 1st, 2nd and 3rd server.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
2. DHCP (Auto Config)
Wireless 11n Router
39
Items Information
Host Name The name of this device.
MTU Size
To Enable the Maximum Transmission Unit of Router
setup. Any packet over this number will be chopped up
into suitable size before sending. Larger number will
enhance the transmission performance.
Enter your MTU number in the text-box to set the
limitation (default 1492 bytes).
Attain DNS Automatically If your DNS provide by ISP is dynamic, choose “Attain
DNS automatically
Set DNS Manually
To specify the Domain Name System (DNS). The DNS
server translates domain names into IP addresses.
Enter the DNS provided by your ISP in 1st, 2nd and 3rd
server.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
3. PPPoE (ADSL)
Items Information
Wireless 11n Router
40
Username, Password and
Service Name Fill in the User Name, password and service name that
provided by your ISP.
Connection Type
There are three connection types:
“Continuous”: always keep connection.
“Connect on demand”: bill by connection time. You can set
up the idle time for the value. Specifies the number of time that
elapses before the system automatically disconnects the
PPPoE session.
“Manual”: To connect to ISP, click “Connect” manually from
the WEB user interface. The WAN connection will not lose its
connection even the idle time is out. If the WAN line breaks
down and latter links again, the router will not auto-connect to
the ISP.
Idle Time The value specifies the number of idle time that elapses before
the system automatically disconnects the PPPoE session.
MTU Size
To Enable the Maximum Transmission Unit of Router setup.
Any packet over this number will be chopped up into suitable
size before sending. Larger number will enhance the
transmission performance.
Enter your MTU number in the text-box to set the limitation
(default 1452 bytes).
Attain DNS Automatically If your DNS provide by ISP is dynamic, choose “Attain DNS
automatically
Set DNS Manually To specify the Domain Name System (DNS). The DNS server
translates domain names into IP addresses. Enter the DNS
provided by your ISP in 1st, 2nd and 3rd server.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
4. PPTP
Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks
(VPNs).
Wireless 11n Router
41
Items Information
IP address & Subnet Mask Fill in IP address & Subnet Mask that match the same
subnet provided by your Internet Service Provider (ISP).
Username and Password Fill in Username and Password that provided by your
Internet Service Provider (ISP).
Idle Time The value specifies the number of idle time that elapses
before the system automatically disconnects the PPTP
session.
MTU Size
To Enable the Maximum Transmission Unit of Router
setup. Any packet over this number will be chopped up
into suitable size before sending. Larger number will
enhance the transmission performance.
Enter the MTU number in the blank to set the limitation
(default 1460 bytes).
Request MPPE Encryption Mark to enable the Microsoft Point-to-Point Encryption
function. MPPE compresses data across PPP or VPN
Wireless 11n Router
42
links.
Request MPPC Compression
Mark to enable the Microsoft Point-to-Point Compression
function. MPPC can only be used in products that
implement the Point to Point Protocol AND for the sole
purpose of interoperating with other MPPC and Point to
Point Protocol implementations.
Attain DNS Automatically If your DNS provide by ISP is dynamic, choose “Attain
DNS automatically
DNS 1~3 To specify the Domain Name System (DNS). The DNS
server translates domain names into IP addresses. Enter
the DNS provided by your ISP in 1st, 2nd and 3rd server.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
5. L2TP
The Layer Two Tunneling Protocol (L2TP) provides a standard method for transporting the link
layer of the Point-to-Point Protocol (PPP) between a dial-up server and a Network Access Server,
using a network connection in lieu of a physical point-to-point connection.
Wireless 11n Router
43
Items Information
IP address & Subnet Mask Fill in IP address & Subnet Mask that match the same
subnet provided by your Internet Service Provider (ISP).
Username and Password Fill in the Username and Password that provided by your
Internet Service Provider (ISP).
MTU Size
To Enable the Maximum Transmission Unit of Router
setup. Any packet over this number will be chopped up
into suitable size before sending. Larger number will
enhance the transmission performance.
Enter the MTU number in the blank to set the limitation
(default 1460bytes).
Attain DNS Automatically If your DNS provide by ISP is dynamic, choose “Attain
DNS automatically
DNS 1~3 To specify the Domain Name System (DNS). The DNS
server translates domain names into IP addresses. Enter
the DNS provided by your ISP in 1st, 2nd and 3rd server.
6. Common configurations for WAN interface
There are some settings are able to be configured on each WAN access types:
Items Information
Wireless 11n Router
44
Clone MAC Address
When ISP use MAC address authentication (with
DHCP), then the MAC address of the Ethernet card
attached to your Cable modem must be registered with
the ISP before connecting to the WAN (Internet). If the
Ethernet card is changed, the new MAC address must
be registered with the ISP.
MAC cloning feature allows the MAC address reported
by WAN side network interface card to be set to the
MAC address already registered with the ISP
eliminating the need to register the new MAC address
with the ISP. This feature does not change the actual
MAC address on the NIC, but instead changes the
MAC address reported by Wireless Router to client
requests. To Change the MAC address, enter it in the
text box.
Enable Web Server Access on
WAN from port To Enable the user to access this Router with WAN
port IP address from Internet
Enable IPsec pass through on
VPN connection Mark the check box to enable IPsec pass through on
VPN connection and clear the checkbox to disable.
Enable PPTP pass through on
VPN connection Mark the check box to enable PPTP pass through on
VPN connection and clear the checkbox to disable.
Enable L2TP pass through on
VPN connection Mark the check box to enable L2TP pass through on
VPN connection and clear the checkbox to disable.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
3.7 Firewall Settings
3.7.1 Port Filter
The firewall could not only obstruct outside intruders from intruding your system, but also
restricting the LAN users. Port filter restricts certain type of data packets from your LAN to Internet
through the router.
Wireless 11n Router
45
Items Information
Enable Port Filtering Mark to enable the configuration, and clear to disable.
Port Range Fill in the port range that you wish to filter. The valid
numbers are 1~65535.
Protocol Select the protocol type of TCP, UDP or Both.
Comment Input any text to describe this mapping
Current Filter Table
Lists the Port Filter Settings you have added before. To
delete the settings on the list, click the check box in the
select item and click the “Delete Selected”. If you want
to delete all entries on the list, click “Delete All” to
remove all of them.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
3.7.2 IP Filter
The Wireless Router could filter the outgoing packets for security or management consideration.
Wireless 11n Router
46
Items Information
Enable IP Filtering Mark to enable the configuration, and clear to disable.
Local IP Address Fill in the IP address that you wish to filter.
Protocol Select the protocol type of “TCP”, “UDP” or both.
Comment Input any text to describe this mapping,
Current Filter Table
Lists the IP Filter Settings you have added before. To delete
the settings on the list, click the check box in the select item
and click the “Delete Selected”. If you want to delete all entries
on the list, click “Delete All” to remove all of them.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
Wireless 11n Router
47
3.7.3 MAC Filter
The Wireless Router could filter the outgoing packets for security or management consideration.
Items Information
Enable MAC Filtering Mark to enable the configuration, and clear to disable.
MAC Address Fill in the MAC address that you wish to filter.
Comment Input any text to describe this mapping.
Current Filter Table
Lists the MAC Filter Settings you have added before. To
delete the settings on the list, click the check box in the
select item and click the “Delete Selected”. If you want to
delete all entries on the list, click “Delete All” to remove
all of them.
Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
Wireless 11n Router
48
3.7.4 Port Forwarding
The Port Forwarding allows you to re-direct a particular range of service port numbers (from the
Internet/WAN Ports) to a particular LAN IP address.
Items Information
Enable Port Forwarding Mark to enable the configuration, and clear to disable.
IP Address Fill in the IP address that you wish to forward.
Protocol Select the protocol type of TCP, UDP or Both.
Port Range Fill in the port range that you wish to forward. The valid numbers
are 1~65535.
Comment Input any text to describe this mapping.
Current Port Forwarding
Table
Lists the Port Forward Settings you have added before. To delete
the settings on the list, click the check box in the select item and
click the “Delete Selected”. If you want to delete all entries on the
list, click “Delete All” to remove all of them.
Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
Wireless 11n Router
49
3.7.5 URL Filter
The URL Filter allows users to prevent certain URL from accessing by users in LAN. This filter will
block those URLs that contain certain keywords.
Items Information
Enable URL Filtering Mark to enable the configuration, and clear to disable.
URL Address Fill in the URL address that you wish to filter.
Current Filter Table
Lists the URL Filter Settings you have added before. To
delete the settings on the list, click the check box in the
select item and click the “Delete Selected”. If you want to
delete all entries on the list, click “Delete All” to remove
all of them.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
Wireless 11n Router
50
3.7.6 DMZ
To configure it, mark to enable virtual DMZ and then enter the Host IP (private IP address) and
click to enact the setting.
3.8 QoS
The QoS (Quality of Service) Settings page provides different priority to different users.
Wireless 11n Router
51
3.9 Management
3.9.1 Status
This information page shows the current settings of this device. You could check if the parameters
match your configuration.
Wireless 11n Router
52
3.9.2 Statistics
This page allows users to get information of data transferring condition, and monitor the status
and performance of this router including receiving and sending packets. To see the latest report,
click button.
Wireless 11n Router
53
3.9.3 DDNS Settings
DDNS (Dynamic Domain Name Server) service allows users to connect to this device via a fixed
and easy-to–remember hostname. This router supports DDNS service of following service
providers:
DynDNS (http://www.dyndns.org), TZO (http://www.tzo.com)
Please go to one of DDNS service provider’s web page listed above, and get a free DDNS
account by the instructions given on their web page.
Wireless 11n Router
54
Items Information
Service Provider The website that provides DDNS service. Please select
from the drop-down list.
Domain Name The hostname that you have applied for the device.
User Name/Email DDNS login account. For DynDNS users, please fill in your
user name; for TZO users, please fill in your email
address.
Password/Key The password of your DDNS service account.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
3.9.4 Time Zone Setting
This page allows users to configure the time of the router. To specify manually, fill in the blanks in
“Current Time” and click the “Apply Change” button. To synchronize time from a timeserver, please
mark the “Enable NTP client update” checkbox, select a NTP server from the drop list or manually
enter a NTP server. Click the “Apply Change” button after your configuration.
Wireless 11n Router
55
3.9.5 Denial-of-Service
A DoS (Denial of Service) attack attempt to disrupt the network and information system by sending
abnormal packets to overload your Internet connection. DoS protect function helps to detect and
block those malevolent DoS attack. It is strongly recommended that this setting be left enabled.
Please mark to enable the DoS protection function. Manually adjust the value of packet threshold
and click to enact the setting.
Wireless 11n Router
56
Wireless 11n Router
57

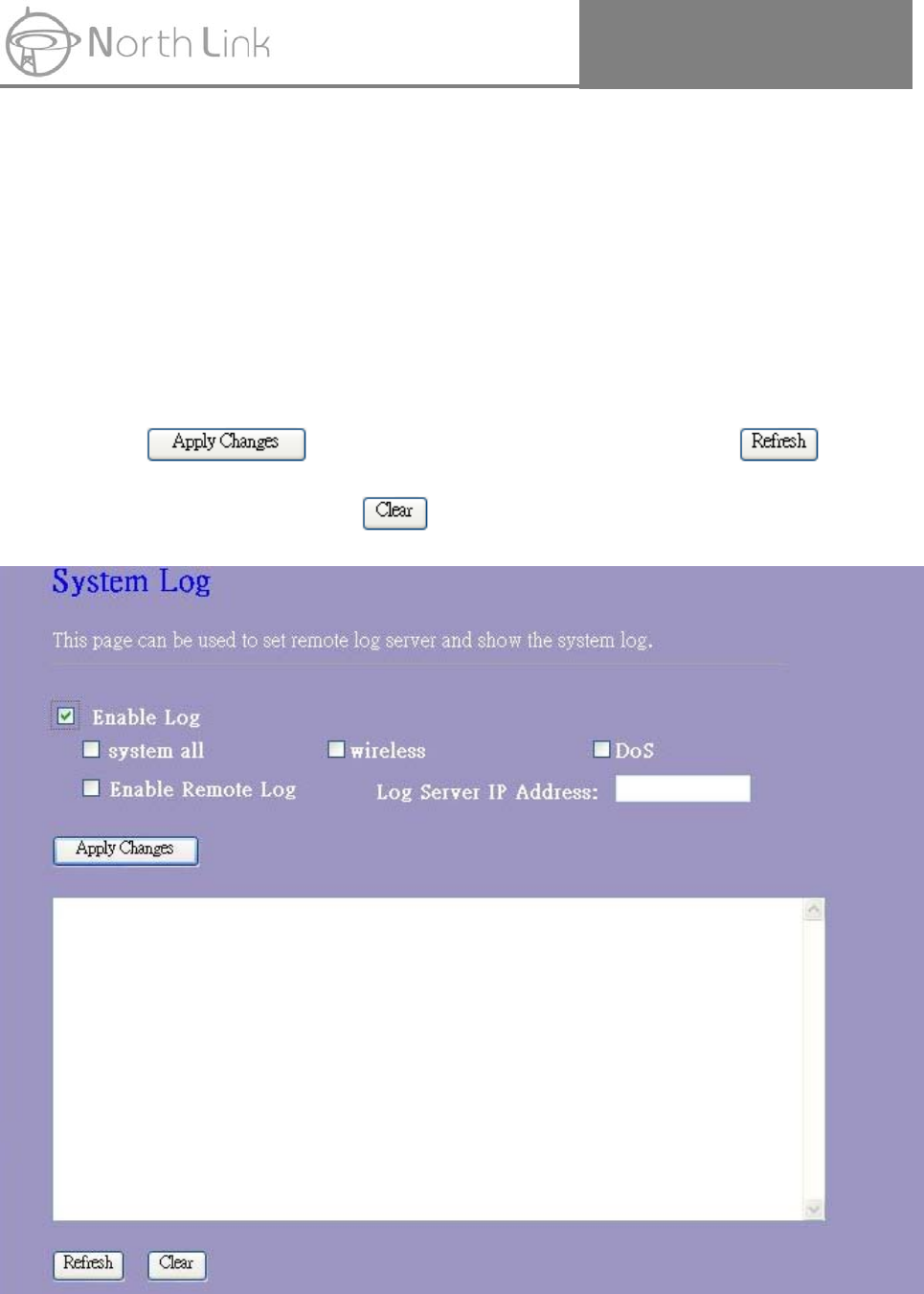

3.9.6 Log
This System Log page shows the information of the current activities on the router. To enable
system log function:
1. Mark the “Enable Log” checkbox.
2. To see all information of the system, select the “system all” checkbox.
To see wireless information only, select the “wireless” checkbox.
To send the log information to a certain note, select the “Enable Remote Log” checkbox and
fill in the IP address in the “Log Server IP Address” box.
3. Click the button to activate. You could also click the button to
refresh the log information or click the button to clean the log table.
Wireless 11n Router
58
3.9.7 Upgrade Firmware
Sometimes a new firmware may be issued to upgrade the system of this device. You could
upgrade the firmware you got in this page. To upgrade the firmware, please click on the
button, locate the firmware in your computer and then click the button to
execute.
3.9.8 Save/Reload Setting
The Save/Reload Setting page allows users to backup and download the configuration status of
the device or restore the factory default configuration.
Wireless 11n Router
59
Items Information
Save Settings to File Click on the button to save the currently configure
settings.
Load Settings from File
Click to select the file that you save, and then
click to start the process. Please wait for it to
complete.
Reset Settings to Default Click to start the process and it will be completed till
the status LED starts blinking.
3.9.9 Password

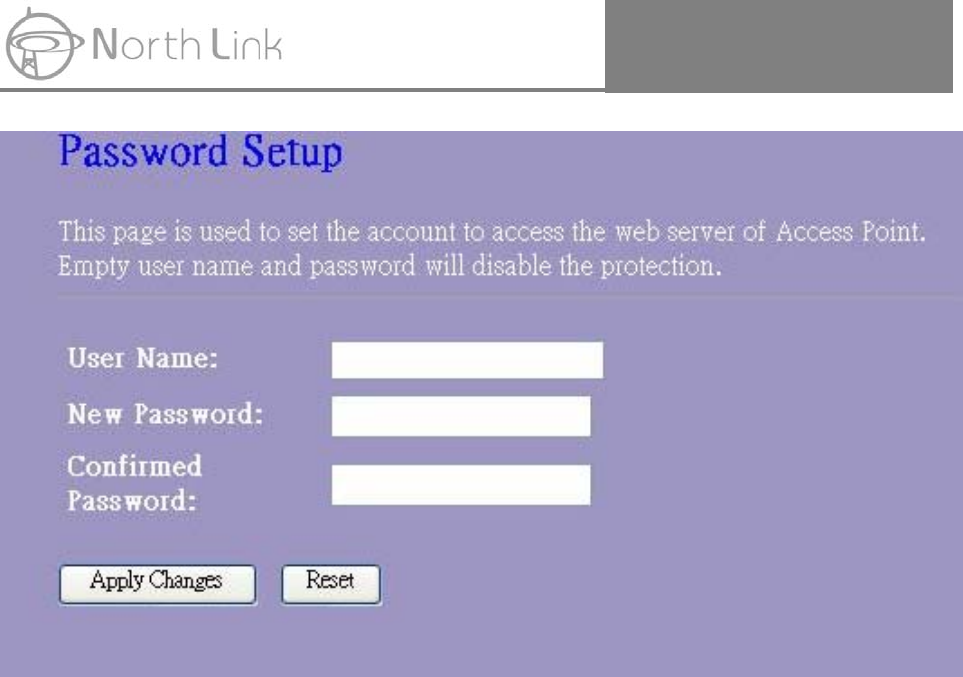

To set up the Administrator Account information, enter the Username, New password, and reenter
the password on the text box. Don’t forget to click the to save the configuration.
Wireless 11n Router
60
