Overview
Product Introduction
CooVox EX16S (hereafter referred to EX16S) is an FXS port expansion box especially designed for ZYCOO CooVox
V2 series IPPBX systems. Each box provides 16 FXS channels for connecting analog phones and fax machines to
your CooVox V2 IPPBX system as extensions through your LAN.

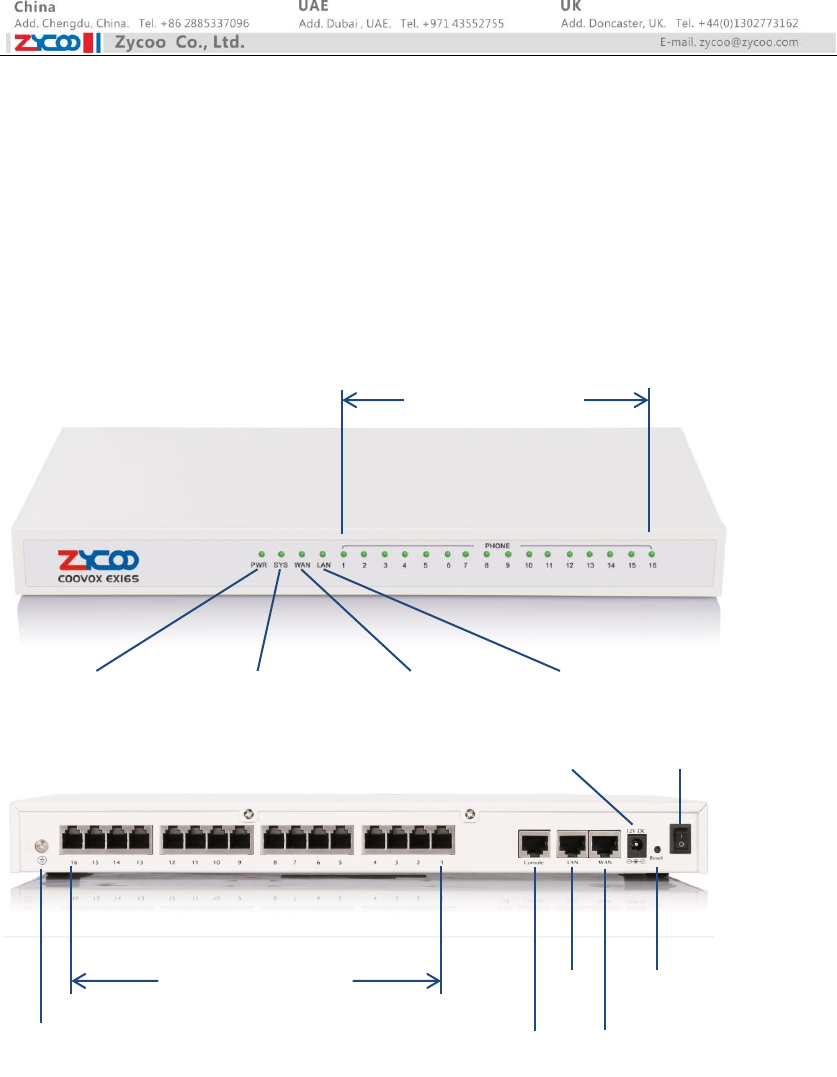

EX16S Front Panel View
EX16S Rear Panel View
Reset Button
Ground
FXS Port 1 -16
Console
LAN
WAN
Power Slot
Power Switch
Power Indicator
System Indicator
WAN Indicator
LAN Indicator
FXS Port Indicator 1 -16
Page 3 Copyright © ZYCOO All Rights Reserved v2.1.6
Specifications
EX16S Specification Table
Processor
1GHz dual-core A7 processor
Memory
512MB DDR3 SDRAM
Storage
8GB SD card
Lines
16 x RJ11 FXS
Console
1 x Console port (Baud rate 115200)
Network
2 x 10/100Mbps
Signaling
SIP(RFC3261)
Audio Codecs
G.722/G.711-Ulaw/G.711-Alaw/G.726/G.729/GSM/SPEEX
Dimension
280 x 150 x 65mm
Weight
1.58KG (3.48lb)
Mounting
Desktop and rack-mountable
Power
DC 12V/3.5A
Main Features
Zero-config: Zero configurations required on the EX16S boxes, they are all auto-provisioned
and managed by ZYCOO CooVox V2 series IPPBXs.
Feature rich and ease of use: Inherits nearly all innovative VoIP call features from the
CooVox V2 series IPPBX system.
Robust and reliable: 1GHz A7 processor on board guarantees superior user experience.
Expandable: Each EX16S connects to CooVox V2 system through your LAN, you can expand
FXS ports by deploy several EX16S boxes in your LAN till fulfill all analog phones and Fax
machines you have.
Compatible IP PBX Models
EX16S is specially designed for ZYCOO CooVox V2 series IPPBX’s. It is compatible with the below
IPPBX models:
CooVox-U20 V2 (U20-2BRI included)
CooVox-U50 V2
CooVox-U60 V2
CooVox-U80
CooVox-U100 V2
For a fully loaded deployment, each FXS port on the EX16S requires an extension number from
the CooVox V2 IPPBX system, so how many EX16S boxes can be used with the CooVox V2 IPPBX
depending on the extension numbers the IPPBX can support. Recommended deployment as
Page 4 Copyright © ZYCOO All Rights Reserved v2.1.6
below:
CooVox-U20 V2 recommended EX16S deployment: 1 unit
CooVox-U50 V2 recommended EX16S deployment: 1 to 6 units
CooVox-U60 V2 recommended EX16S deployment: 1 to 12 units
CooVox-U80 recommended EX16S deployment: 1 to 12 units
CooVox-U100 V2 recommended EX16S deployment: 1 to 31 units
---------------------------------------------------------------------------------------------------------------------------------
Notice
The CooVox V2 IPPBX firmware should be upgraded to v2.1.6 in order to cooperate with the EX16S
expansion boxes.
---------------------------------------------------------------------------------------------------------------------------------
Page 5 Copyright © ZYCOO All Rights Reserved v2.1.6
Installation
Hardware Installation
Open the packaging of the EX16S box and find the Quick Installation Guide, follow the
instructions to install the EX16S box properly in your local network.
Once the EX16S device has been installed in the LAN and powered up, you may check if it’s ready
for configurations by the LED indicators, please refer to the LED indication table below:
LED Indication Reference Table
LED Label
Function
Status
Indication
PWR
Power status
Green
Power on
Off
Power off
SYS
System status
Wink
System is running
Off
System booting or failed
WAN/LAN
WAN/LAN interface status
Wink
Data transmitting
Off
No data transmitting
Phone(1-16)
FXS interface status
Green
Channel loading succeed
Off
Channel loading failure
---------------------------------------------------------------------------------------------------------------------------------
Notice
1. Please do not use a third party power adaptor to power EX16S.
2. You may install the EX16S device on desktop or mount it on to the rack.
3. If you don’t have a DHCP server in your local network, you may use an analog phone to first
change the WAN port to static IP mode by feature code **14 and then assign an available IP
to the WAN port of the device by feature code **15.
4. If you are installing 2 or more units of EX16S in your local network please do not use LAN port,
as LAN port has a static IP “192.168.10.100” which may cause IP conflict.
---------------------------------------------------------------------------------------------------------------------------------
Page 6 Copyright © ZYCOO All Rights Reserved v2.1.6
EX16S Discovery
Once you have connected the EX16S box to your local network, you may discover it from the
CooVox V2 series IPPBX Web GUI.

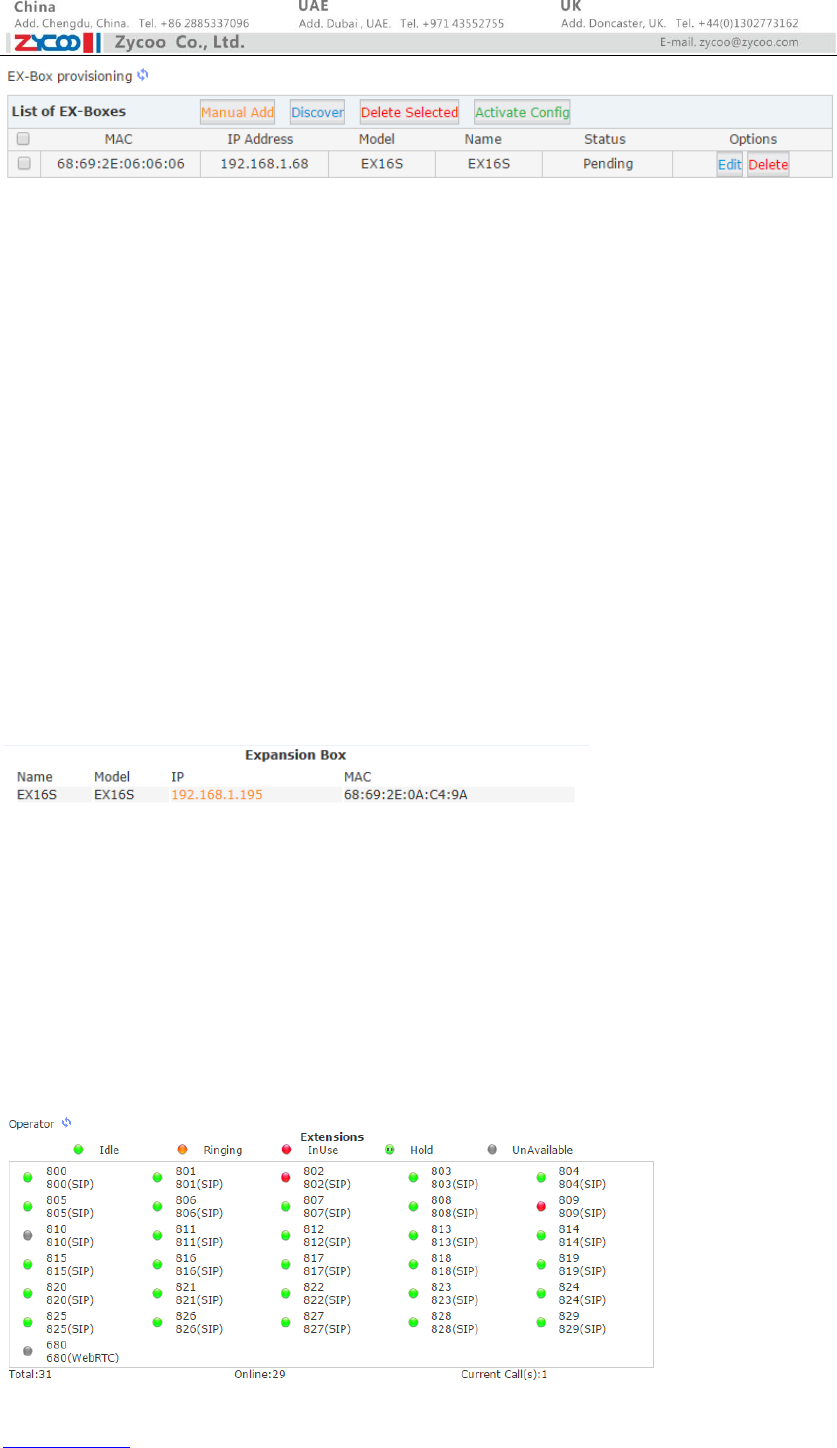

Please open the CooVox V2 IPPBX Web GUI and navigate to Advanced -> EX-Box Provision page.
Click on the “Discover” button to start discovering all the EX16S boxes in you LAN. You may also
click on “Manual Add” button to add one EX16S at a time by specifying its IP address.
The discovered devices will be listed on this page.
In the above diagram, you can see a newly discovered EX16S box and its detailed information.
---------------------------------------------------------------------------------------------------------------------------------
Notice
Only by deploying the CooVox V2 IPPBX and EX16S expansion boxes in the same local network,
and configured with IP addresses within the same network segment, so they can work together.
---------------------------------------------------------------------------------------------------------------------------------
Auto Provisioning

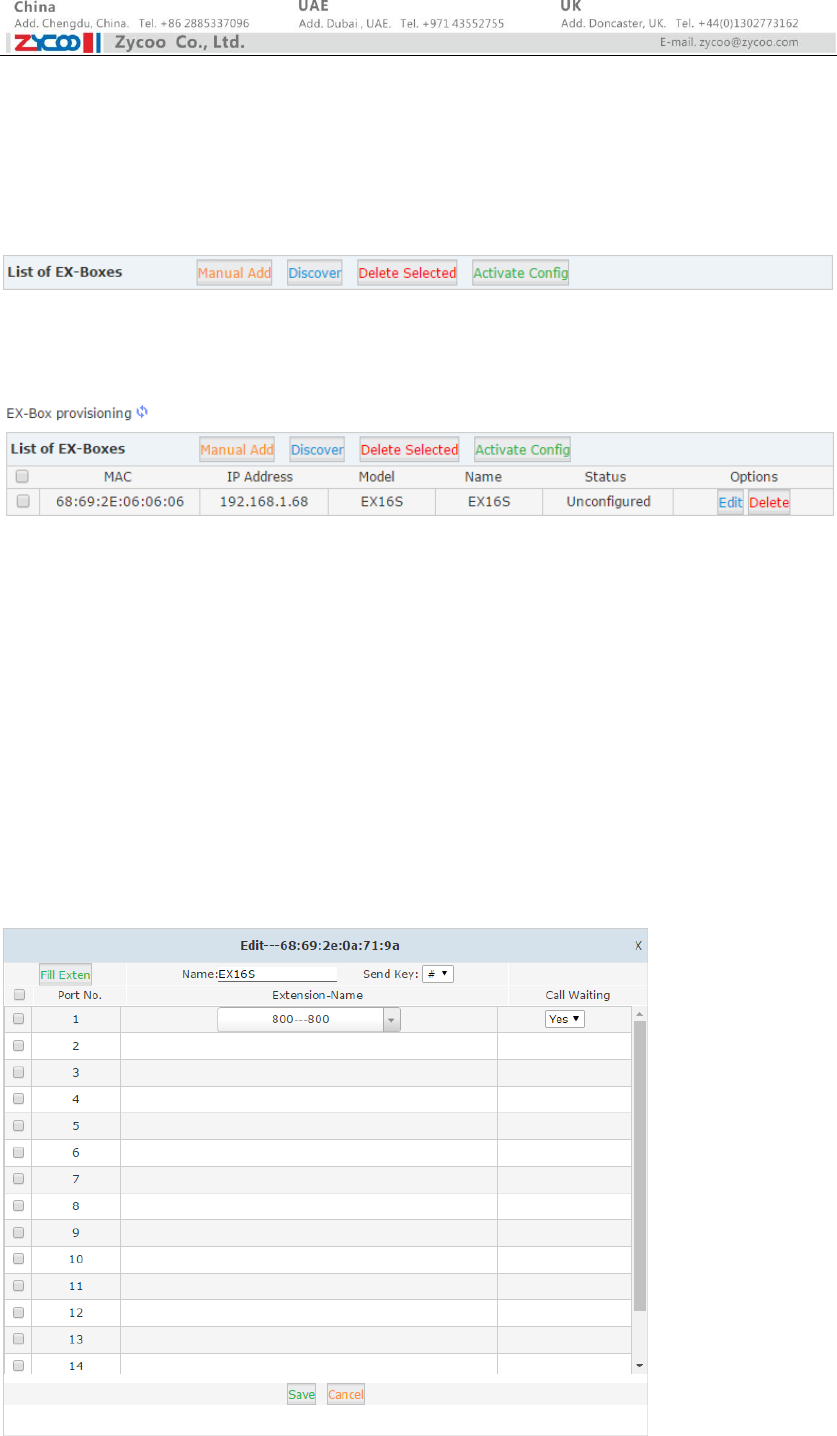

Each EX16S box can be configured with in a minute. Please click on the “Edit” button of a newly
discovered EX16S device to configure it.
Page 7 Copyright © ZYCOO All Rights Reserved v2.1.6

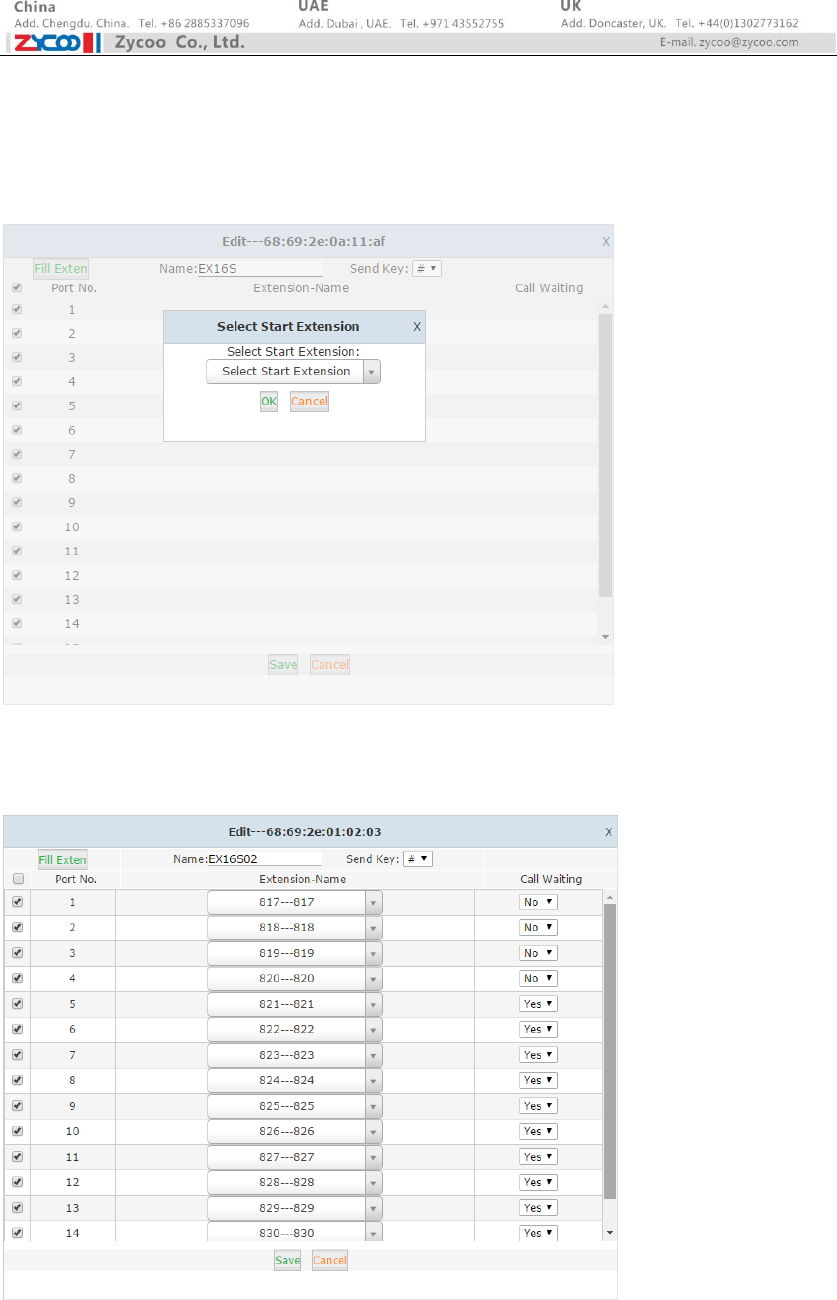

Step 1: In the “Name” field, specify a name for this EX16S device for identification.
Step 2: You may select a key from ‘#’ and ‘*’ as send key, so that after dialing each number, you
can press this key to send out the number immediately.
Step 3: Select all 16 ports or only some ports that you want to use.
Step 4: Click on “Fill Exten” button to assign extension numbers to the selected FXS ports.
You only have to specify a start extension number and click on “OK” button to automatically
assign extension numbers to the selected ports from the first port that you have selected. For
each number call waiting had been enabled, you may disable it if it’s not required.
Please ensure there’s enough available extension numbers that can be assigned to the FXS ports
you have selected, or you will have to create some more extensions from Basic->Extensions page.
After assigning extensions to the EX16S device, please click on “Save” button.
Step 5: Once new configurations submitted, you’ll the EX16S status as “Pending”.
Page 8 Copyright © ZYCOO All Rights Reserved v2.1.6
Now click on “Activate Config” button to deliver configurations to the EX16S device and make it
effective. Once done the box is ready for phone calls.
---------------------------------------------------------------------------------------------------------------------------------
Notice
The following settings are inherited from the CooVox V2 IPPBX system that you don’t have to
configure.
Feature codes
System voice prompts language
Tone zone
Time zone
---------------------------------------------------------------------------------------------------------------------------------
Status Monitoring on CooVox V2
On the CooVox V2 IPPBX “Home” page, in the “Device Info” section, besides the IPPBX you will
also see the connected EX16S displaying here.
The IP address is clickable and can be used to access the Web GUI of the EX16S device. Different
displaying color stands for different status.
Orange: Device has been discovered but not configured yet.
Green: Connected and configurations effective.
Red: Connected with new configurations pending.
Grey: Disconnected.
EX16S connects to the CooVox V2 IPPBX system by SIP registration. So the extension register
status of the EX16S system can be monitored on the IPPBX “Operator” page.

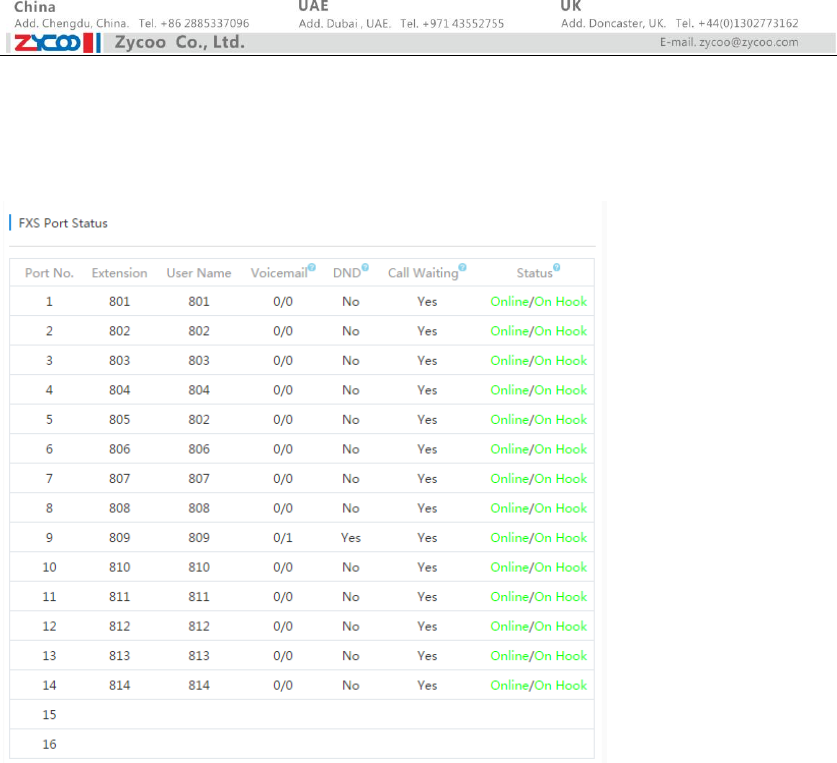

Extension status also can be monitored on the EX16S Web GUI. It will be introduced in chapter
FXS Port Status.
Page 9 Copyright © ZYCOO All Rights Reserved v2.1.6
Maintenance
Access Web GUI
As mentioned previously from the CooVox V2 IPPBX “Home” page, by clicking on the IP address
of the EX16S device, you can open the Web GUI of the EX16S for maintenance.
You may also access the EX16S Web GUI by specifying its IP address in the browser address bar.
For example, the IP of EX16S is 192.168.1.195, you may enter IP “192.168.1.195” directly or full
URL “https://192.168.1.195:9999” to access.
Default login credentials are:
Username: admin
Password: admin

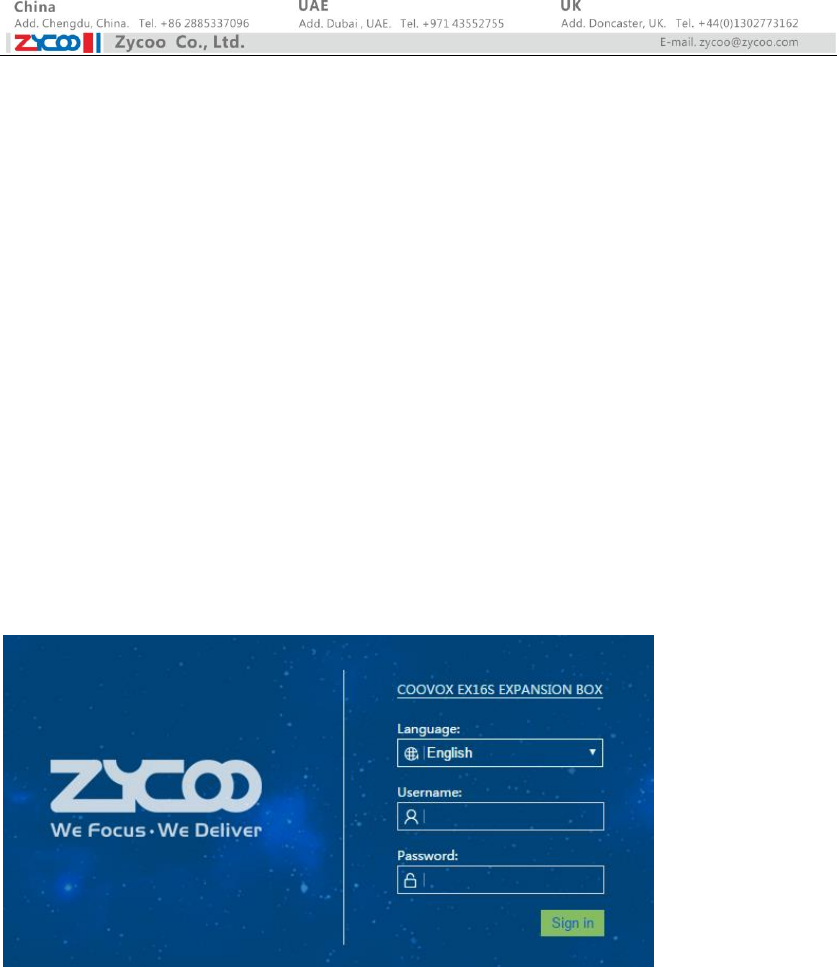

The login page as below diagram, please enter username and password and then click on the
“Sign In” button to login in.
Page 10 Copyright © ZYCOO All Rights Reserved v2.1.6
System Status and Port Status

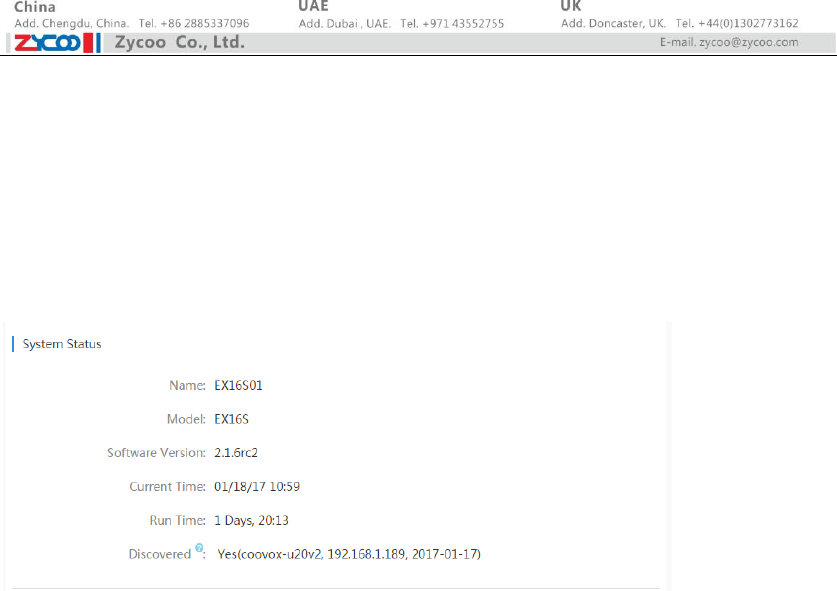

Once logged in, you’ll first be directed to the Status->System Status page. Here on this page you
can see detailed system, network and resources information.
System Information
Name: This is the name that you have defined for identifying this EX16S box from the IPPBX
EX-Box Provision page.
Model: The device model.
Software Version: The version number of the software running on this device.
Current Time: The real-time system time of this device.
Run Time: The time of how long the system has been running.
Discovered: Indicates if the device has been discovered by any CooVox V2 IPPB system or not.
If yes, it will also indicate which IPPBX model and on what time it’s been discovered.
---------------------------------------------------------------------------------------------------------------------------------
Notice
Once the EX16S has been discovered by a CooVox V2 IPPBX system, this box will be marked as
“discovered” and cannot be discovered by any other CooVox V2 IPPBX system. Unless the EX16S is
reset or it will only be able to work with the only IPPBX system.
---------------------------------------------------------------------------------------------------------------------------------
Page 11 Copyright © ZYCOO All Rights Reserved v2.1.6

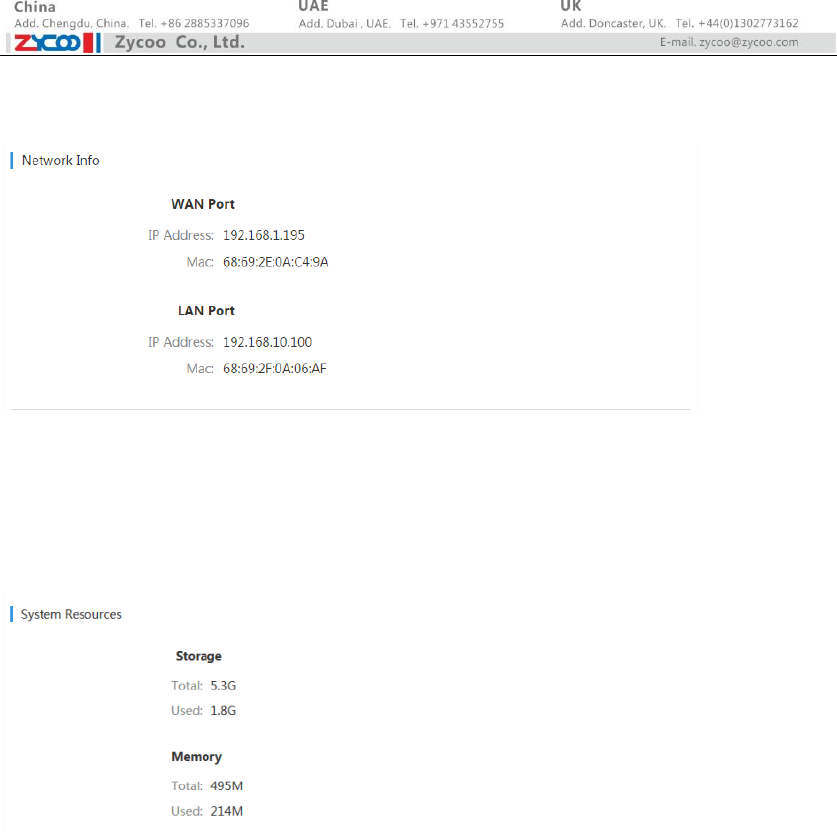

Network Info
Indicates the IP address and MAC ID of both WAN and LAN interface of the EX16S device.
System Resources
In “System Resources” section, it monitors the SD card and memory usage.
Page 12 Copyright © ZYCOO All Rights Reserved v2.1.6
FXS Port Status
Click on “FXS Port Status” submenu, on this page you can have a detailed view of the FXS port
status of the EX16S device.
Port No.: FXS port from port 1 to port 16.
Extension: The extension numbers that have been assigned to the FXS ports.
User Name: The extension user name that have been defined on the IPPBX system.
Voicemail: Indicates how many new(unread)/old(read) voice messages the extension users
have got.
DND: Indicates the DND(Do Not Disturb) states, if DND states is “Yes”, then this extension
will only be able to make but not receive phone calls.
Call Waiting: Indicates the call waiting states, if call waiting states is “Yes”, the extensions will
be able to have an additional phone call come in, users can use to “Hook Flash” to switch
between these 2 calls.
Status: Indicates the port register status and analog phone on-hook and off-hook status.
Status on the left side of the slash symbol indicates the SIP register status, either “Online” or
“Offline”.
Online: Extension number registered and ready for phone calls.
Offline: Extension number has not been registered and cannot be used for phone calls.
Status on the right side of the slash symbol indicates the analog phone status, could be
On-Hook, Off-Hook and Ringing.
On Hook: On-hook state means the extension is idle.
Off Hook: Off-hook means the extension is in-use.
Ringing: The phone has got an inbound call and is ringing now.
Page 13 Copyright © ZYCOO All Rights Reserved v2.1.6
Reports
Call Logs

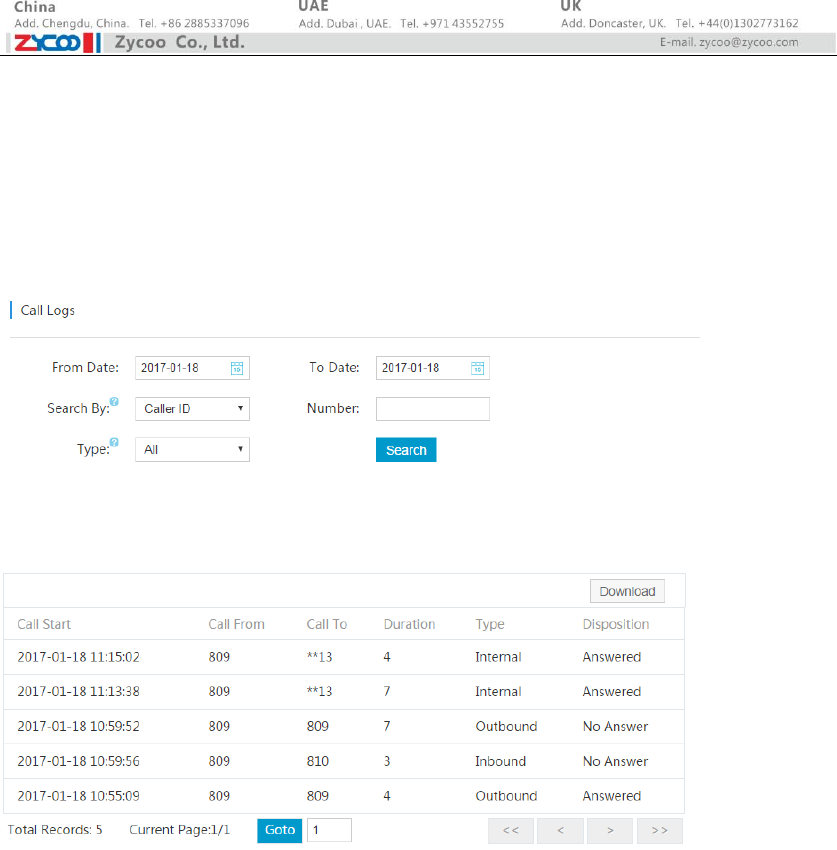

On Reports->Call Logs page you will be able to check all call logs that are related to the extension
numbers of this EX16S box.
You may search call logs by specifying a time duration and caller/callee number. If the “Number”
field was left blank, you will search all call logs within the specified time duration but irrelevant to
any numbers.
In the search results, each row is a call history. The title of each column describes the detailed
information of the call history.
Call Start: When this call took place.
Call From: The caller number.
Call To: The callee number.
Duration: How long the call conversation lasts.
Type: The direction of the calls internal, Outbound or Inbound.
Disposition: Indicates how the calls were handled.
Download: By clicking on the download button you can download the call logs search
results.

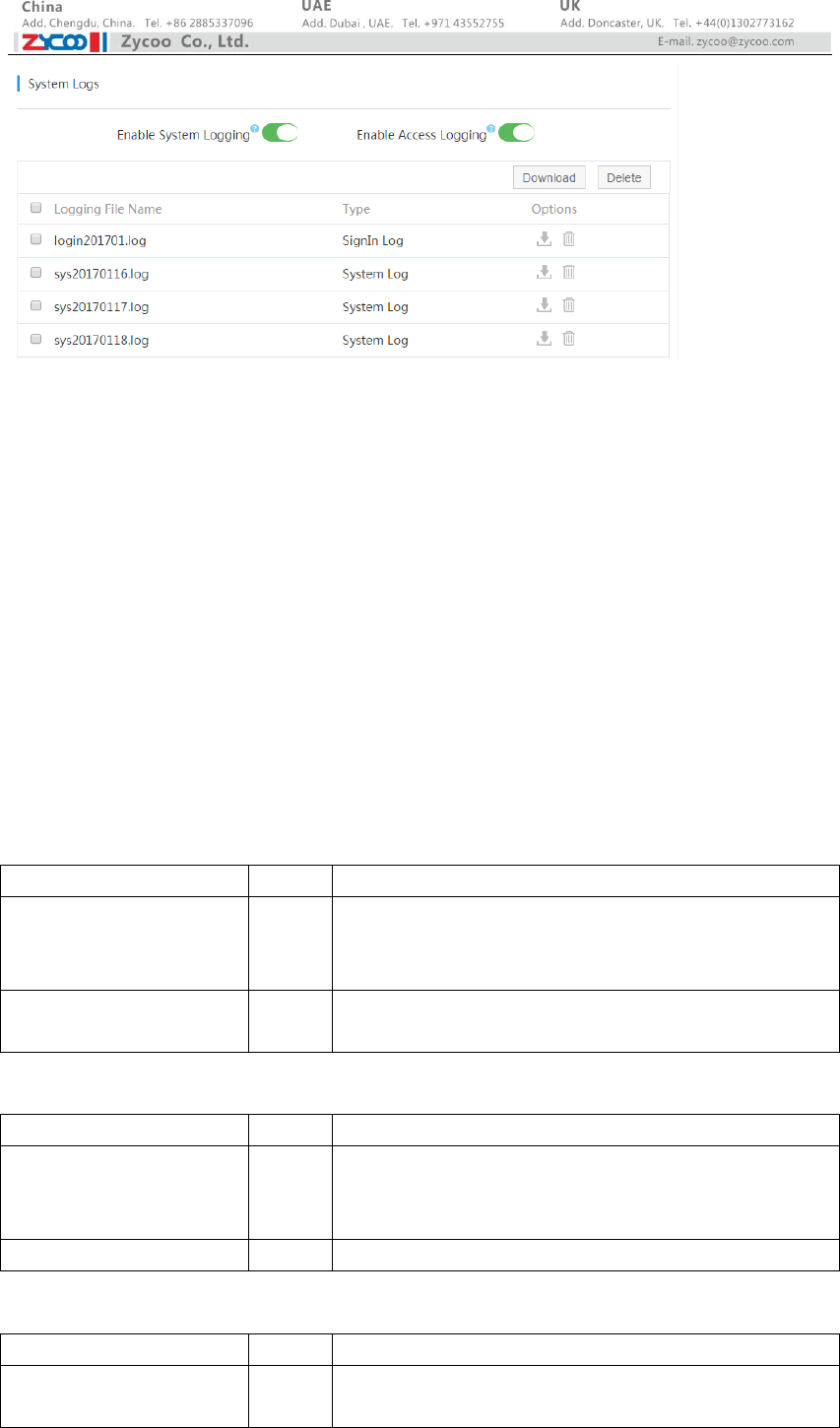

System Logs
System logs are traces that can be used for troubleshooting. There are 2 types of logs in EX16S
system, they are system logging and access logging. The system logging, if turned on, it logs the
system activities and system events; the access logging, if turned on, it logs the system access
incidents, including Web access and SSH access.
Page 14 Copyright © ZYCOO All Rights Reserved v2.1.6
Enable System Logging: If enabled, it will generate a log file each day and named by a prefix
“sys” and followed by the date of when it’s created.
Enable Access Logging: If enabled, it will generate a log file each month and name by a prefix
“login” and followed by the year and month when it’s created.
Feature Codes
Global Feature Codes
The global feature codes on Feature Codes->Global Feature Codes are inherited from the CooVox
V2 IPPBX system, which guarantees the same usage throughout the CooVox V2 IPPBX system.
Below are the telephony features and the feature codes can be used on EX16S system.
Call Queue
Function
Code
Description
Pause Queue Member
*95
By dialing this code a call queue agent can stop the call
queue/queues from sending inbound calls to this
extension.
Unpause Queue Member
*095
Paused queue member can dial this code to continue
answering inbound calls from call queue/queues.
DND
Function
Code
Description
DND Activate
*74
Puts an extension into Do Not Disturb state. All calls to
the extension will return a busy signal, or send the call to
voicemail.
DND Deactivate
*074
Takes an extension out of Do Not Disturb State.
Voicemail
Function
Code
Description
Dial Voicemail
*60
Used to check voicemail box of any extension on the IP
phone system.
Page 15 Copyright © ZYCOO All Rights Reserved v2.1.6
My Voicemail
*61
Used to check the voicemail box assigned to the
extension itself.
Call Transfer
Function
Code
Description
Blind Transfer
#
In an active phone call press this code and enter the
destination number to initiate a direct transfer and the
initiator will be disconnect immediately.
Attended Transfer
*2
In an active phone call press this code and enter the
destination number to first introduce this call to the
destination number then hangup to complete transfer or
press * to disconnect with the destination number and
resume the original call
Disconnect Call
*
In an attended transfer press this code to disconnect with
the destination number and resume the original call.
Conferences
Function
Code
Description
Invite Participant
0
In an active conference, the conference admin can dial
this code to invite new participants.
Return With Participant
**
Dial this code to return to conference with the invited
party.
Return without Participant
*#
Dial this code to return to conference without the invited
party.
3-way Conference Call
*0
In an active phone call, by dialing this code to put the
other party on hold and dial tone will be presented, now
dial a third party number, after the call is answered, dial
this code again to establish a 3-way conference call.
Call Forward
Function
Code
Description
Forward All Activate
*71
Forward all incoming calls to another number by
dialing this code followed by the number to be
forwarded to.
Forward All Deactivate
*071
Deactivate call forward of all incoming calls by dialing
this code directly.
Forward Busy Activate
*72
By dialing this code and followed by the number to be
forwarded to. It will cause forwarding when the
extension is busy.
Forward Busy Deactivate
*072
Deactivate call forward on busy by dialing this code
directly.
Forward Unavailable Activate
*73
By dialing this code followed by the number to be
forwarded to. It will cause forwarding when no one
answers the inbound calls.
Page 16 Copyright © ZYCOO All Rights Reserved v2.1.6
Forward Unavailable Deactivate
*073
Deactivate call forward on no answer by dialing this
code directly.
Call Waiting
Function
Code
Description
Call Waiting Activate
*31
By dialing this code to activate call waiting. Call waiting
allows an additional call to come in even if the extension is
on an active phone call. User can use hook flash to switch
between two calls.
Call Waiting Deactivate
*031
By dialing this code to deactivate call waiting.
Pickup Call
Function
Code
Description
General Call Pickup
*8
By dialing this code users can pick-up an incoming call on a
ringing extension in the same pick-up group.
Direct Call Pickup
**
By dialing this code followed by the number of the ringing
extension, users can pick-up the incoming call directly even if
they are in different pick-up groups.
Blacklist
Function
Code
Description
Blacklist a number
*75
By dialing this code followed by the number to be blacklisted
to add a number to blacklist.
Whitelist a number
*075
By dialing this code followed by the number to remove a
number from blacklist.
Call Parking
Function
Code
Description
Call Parking Number
700
By using the transfer codes to transfer a call to the
parking number this call will be parked, before the whole
process is completed the IP phone system will announce
where the call has been parked.
Call Retrieve Extensions
701-720
IP phone system will announce one of these numbers
that the call is parked on and by dialing this number on
any of the extensions can retrieve the parked call.
Call Spy
Function
Code
Description
General Spy
*90
By dialing this code followed by the extension number to listen
to the phone call conversation only.
Whisper Spy
*91
By dialing this code followed by an extension number to listen
to the phone call conversation and whisper with the extension
user.
Page 17 Copyright © ZYCOO All Rights Reserved v2.1.6
Barge Spy
*92
By dialing this code followed by an extension number to barge
in the phone call conversation and talk to both of the callers.
Wakeup Call
Function
Code
Description
Wakeup Call Main Menu
*55
Advanced wakeup call menu for adding, viewing and
canceling wakeup calls.
Direct Wakeup Call Request
*55*
Add a wakeup call directly by dialing this feature code
followed by a specific date and time in 8-digit number
format, for example, feature code is *55*, you can dial
*55*08010730 to add a wakeup call of 7:30am on
August 1st.
Cancel All Wakeup Call
*055
By dialing this code to cancel all requested wakeup calls.
Others
Function
Code
Description
Once Touch Recording
*1
On an active phone call by dialing this code the call will start
to be recorded.
Intercom
*50
By dialing this code followed by an extension number (this
extension must be an IP phone) to intercom an extension
user.
Paging
*51
By dialing this code followed by an extension number (this
extension must be an IP phone) to page an extension user.
Directory
*3
By dialing this code and following the voice prompts to enter
the first 3 letters of the extension user's first or last name,
you can call the extension without knowing its number.
---------------------------------------------------------------------------------------------------------------------------------
Notice
These global feature codes are synchronized from the CooVox V2 series IPPBX system which the
EX16S boxes are connected to, if the codes are changed on the IPPBX side, it will automatically
change on the EX16S side as well.
---------------------------------------------------------------------------------------------------------------------------------
EX16S Administration Codes
EX16S administration codes can be used to manage the EX16S from an analog phone attached on
any FXS port, no matter the EX16S is configured or not.
Function
Code
Description
Check WAN Port IP
**11
By dialing this code you'll hear the system announce the IP
address of the EX16S WAN interface.
Page 18 Copyright © ZYCOO All Rights Reserved v2.1.6
Check LAN Port IP
**12
By dialing this code you'll hear the system announce the IP
address of the EX16S LAN interface.
Check Account Number
**13
By dialing this code you can check the extension number of
the analog phone.
Set Network Mode
**14
By dialing this code and following the voice prompts you can
set the WAN port network mode to be static IP or DHCP.
Set IP Address
**15
By dialing this code and follow the voice prompts you can set
an IP address to the WAN interface.
---------------------------------------------------------------------------------------------------------------------------------
Notice
These EX16S administration codes are fixed codes which are unchangeable. You can use these
codes to manage the EX16S box even the EX16S is fresh new with nothing configured.
---------------------------------------------------------------------------------------------------------------------------------
Administration
Network Settings

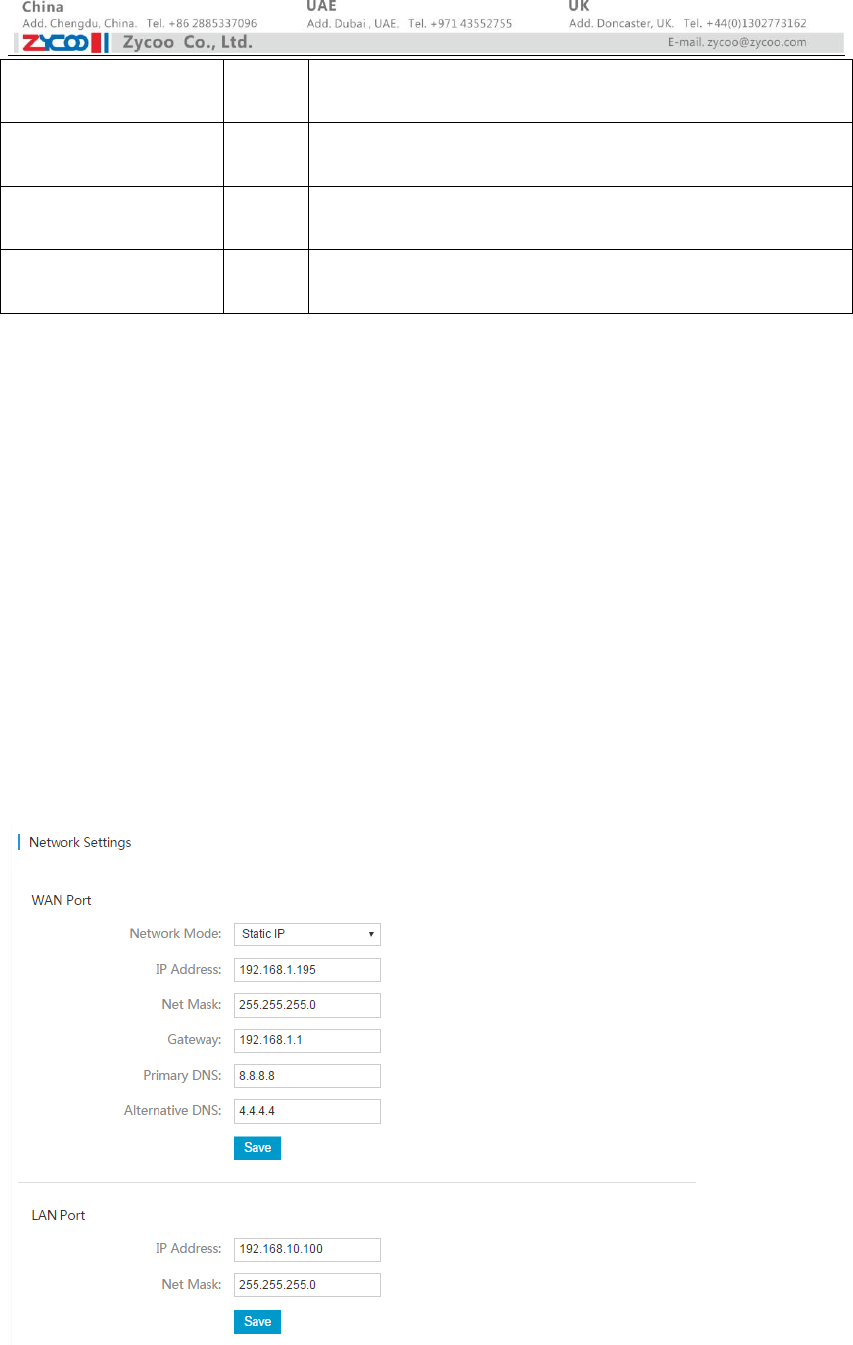

The EX16S box has 2 network interfaces, WAN port can be configured as DHCP or static IP mode,
while LAN port can only be used in static IP mode.
To configure its network profiles please navigate to Administration->Network Settings page.
By default, WAN was on DHCP mode, so it requires a DHCP server in you LAN. If not, you’ll have
to use an analog phone to change its network mode to static IP and manually assign an IP address
to it on the phone by feature codes.
Page 19 Copyright © ZYCOO All Rights Reserved v2.1.6
It’s not recommended to use LAN port to connect the EX16S boxes in your LAN, cause it might
cause IP conflict.
Services

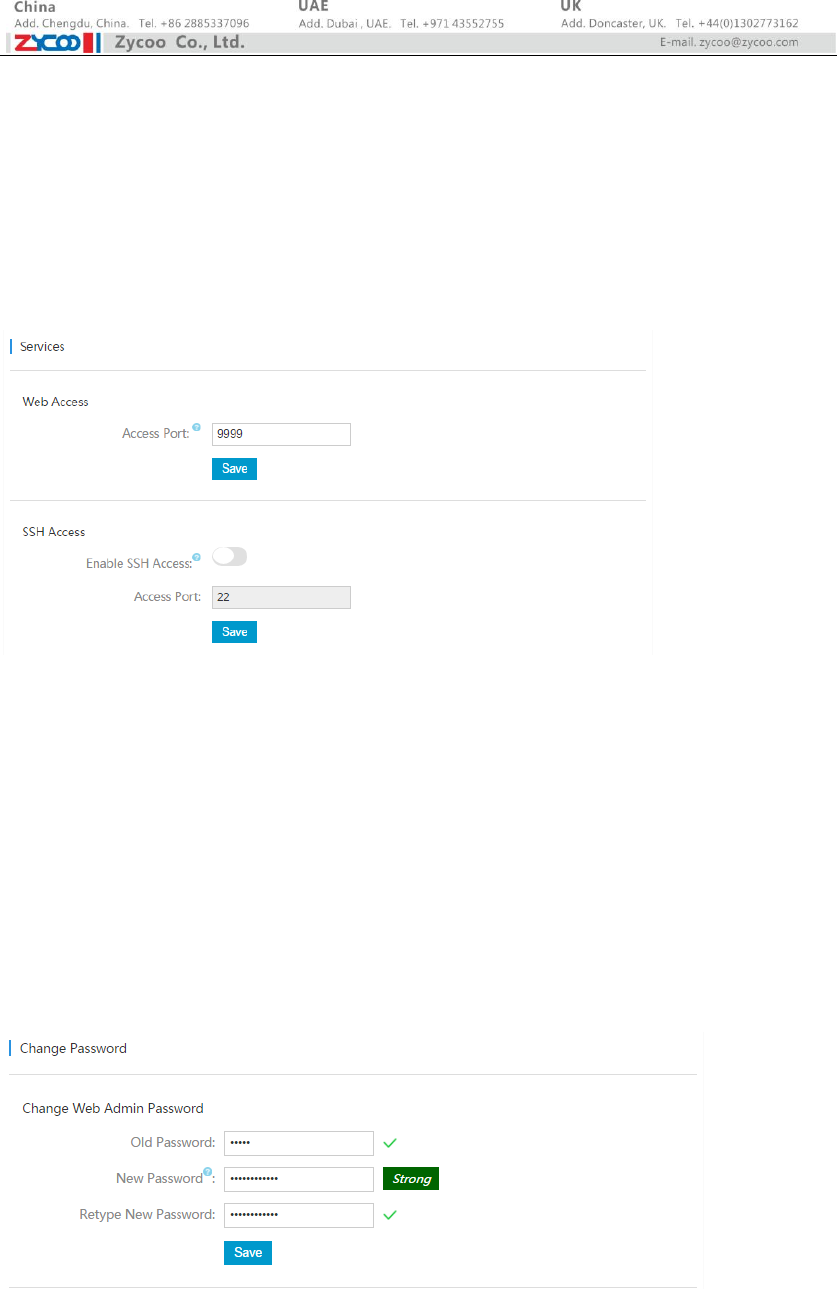

On Administration->Services page, you may change the EX16S Web GUI port number. And for SSH
access, you may enable or disable from this page as well. But it’s not recommended to enable
SSH access to the EX16S system, as SSH access can be used only for advanced troubleshooting.
Default Web GUI access port is 9999, if needed you may change to some other available port
number.
And for SSH access, by default it’s been disabled. And it’s recommended to keep it that way. If
advanced troubleshooting is required to access the EX16S system by SSH, please disable it after
troubleshooting process.
Change Password
It is always recommended that you can change the default admin user password of the EX16S
system for security precautions.
Please navigate to Administration->Change Password page to change it.
New admin user password should be at least 6 characters long and contain a combination of
numbers, letters and symbols.
For the SSH root password, if needed you can change it from this page as well.
Page 20 Copyright © ZYCOO All Rights Reserved v2.1.6
Reset & Reboot

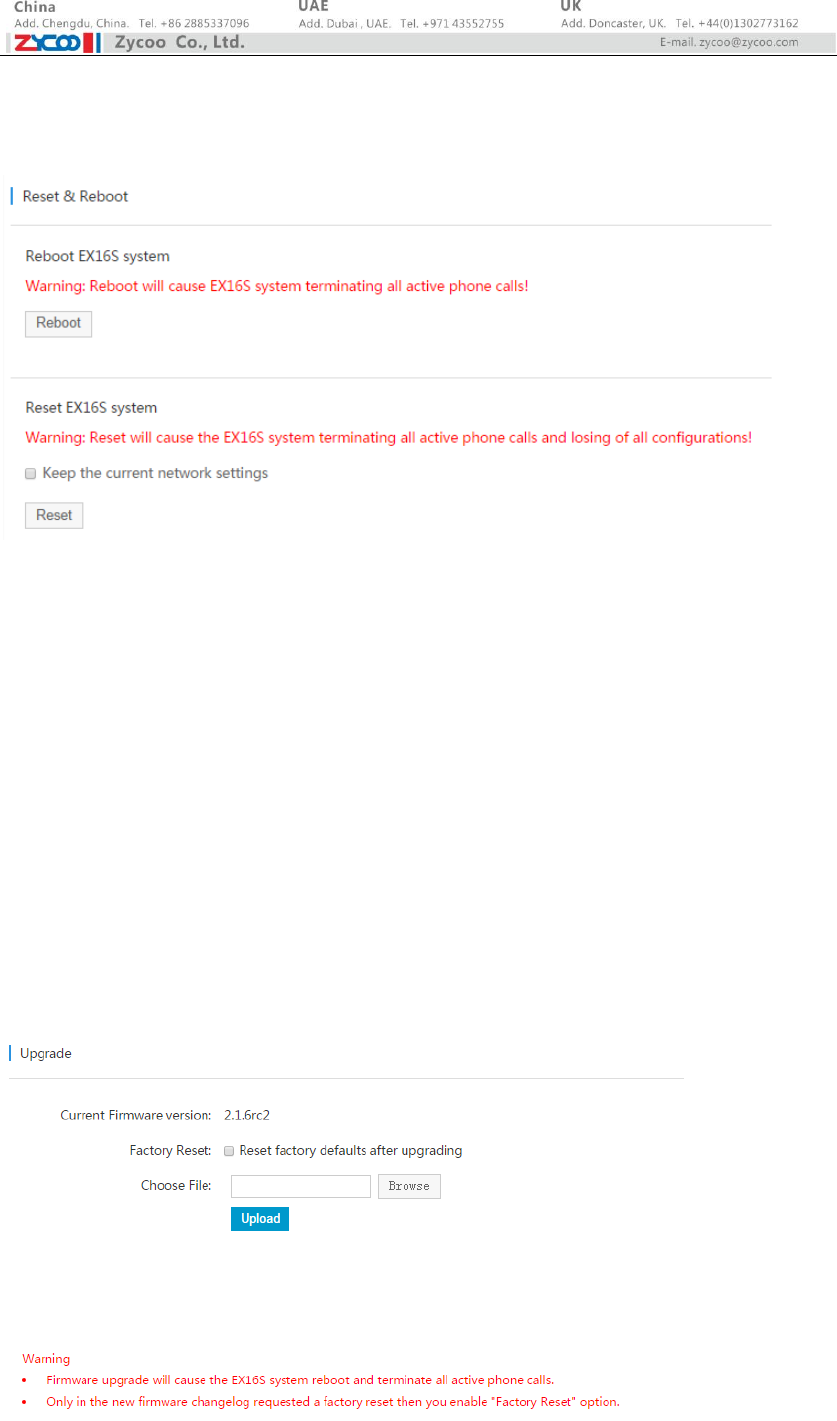

To reboot or reset the EX16S, please navigate to Administration->Reset & Reboot page.
As it already elaborated on this page, a reboot will cause EX16S system terminating all active
phone calls, so please ensure there’s no phone call going on in the system then reboot the system.
And reset the EX16S system will not only terminate all active phone calls but also remove all
configurations. So you will have to discover this EX16S box again from the CooVox V2 IPPBX Web
GUI. If you’d like to keep the network settings then “Keep the current network settings” option
might help.
Upgrade
Zycoo will update the EX16S firmware at regular intervals for new features and bug fixes. You can
visit our official website www.zycoo.com to check the updates for EX16S box.
The downloaded firmware package should be in .rar or .zip format, please extract the package
first and use the uImage-md5.xxx file to upgrade your IPPBX system. Please navigate to EX16S
Web GUI Administration->Upgrade page.
Page 21 Copyright © ZYCOO All Rights Reserved v2.1.6
Click on “Browse” button to locate the firmware package and click on “Upload” button to start
upgrading the EX16S firmware.
As elaborated on this page, firmware upgrading will cause the EX16S system reboot and
terminate all active phone calls, please ensure there’s no phone call going on in the system and
perform firmware upgrading.
The option “Factory Reset” which allows you to reset the EX16S system after upgrading, please
be noted that only in the new firmware changelog says a factory reset is needed then you enable
this option before upload new firmware, otherwise do not reset.
Diagnostics
On EX16S Administration->Diagnostics page, users can use PING, Traceroute and Ethernet
Capture tools for troubleshooting.
The PING command is a very common method for troubleshooting the accessibility of devices. It
uses a series of Internet Control Message Protocol (ICMP) Echo messages to determine:
Whether a remote host is active or inactive.
The round-trip delay in communicating with the host.
Packet loss.

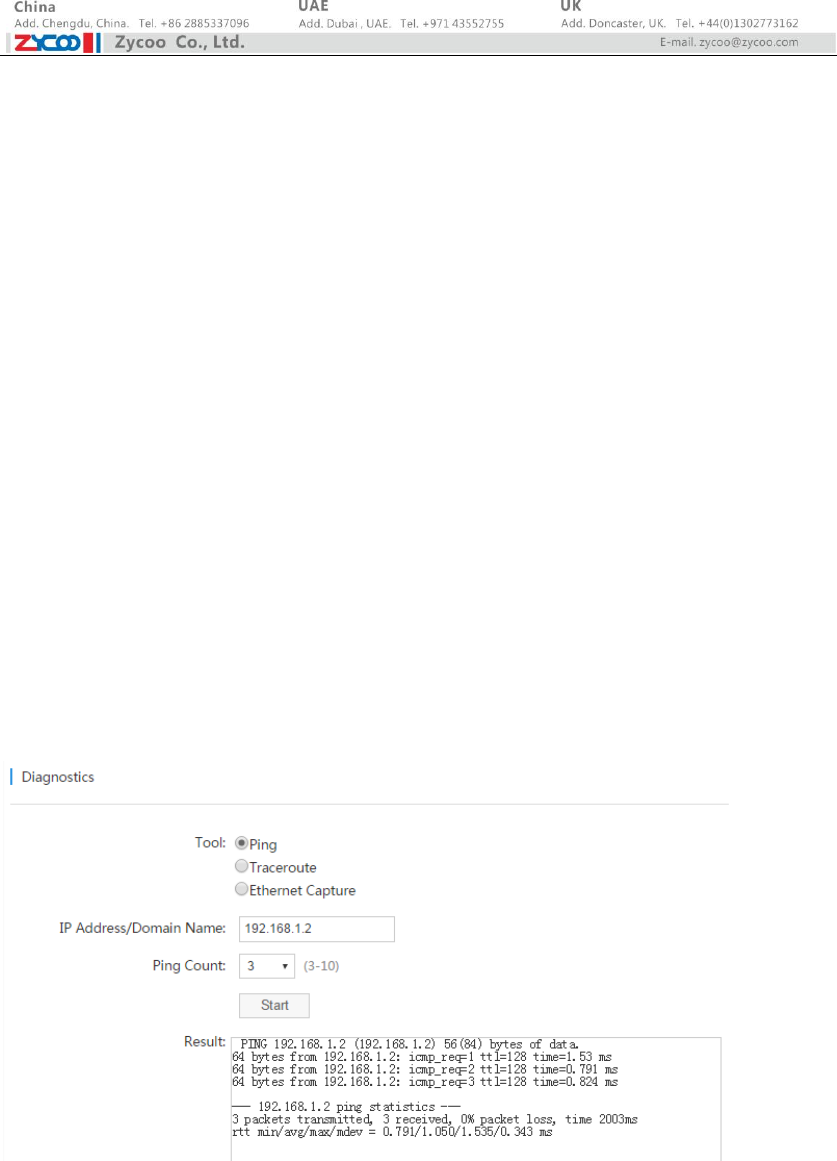

In the “Tool” section select “Ping”, in the “IP Address/Domain Name” blank enter the IP or
domain name, specify the “Ping Count” and then click on “Start” button to start PING command,
the results will be displayed in the “Result” field.

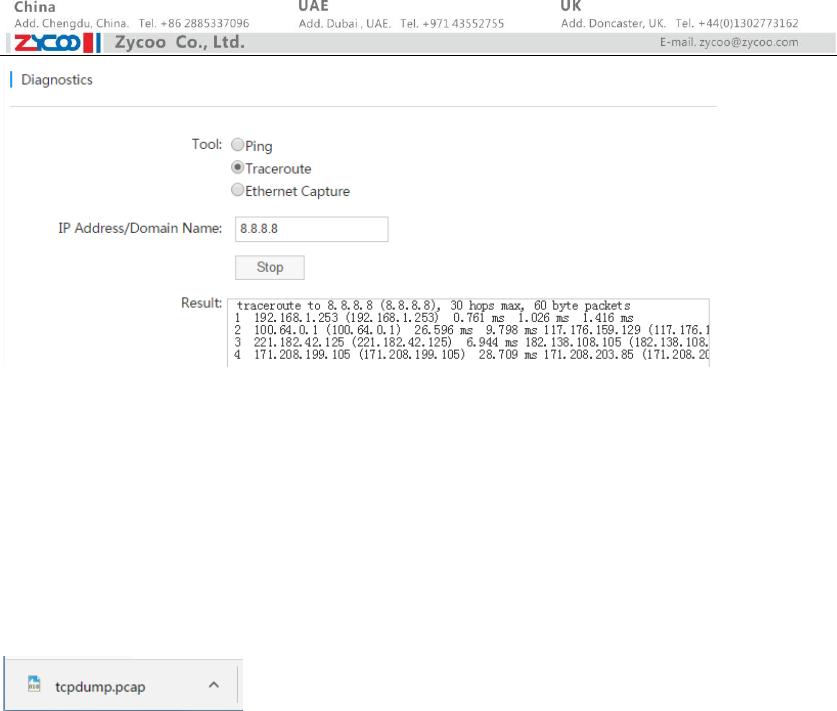

The Traceroute command is used to discover the routes that the packets actually take when
traveling to their destination.
In the “Tool” section select “Traceroute”, and specify the domain or IP address that you want to
lookup and then click on “Start” button to start the process.
Page 22 Copyright © ZYCOO All Rights Reserved v2.1.6
The “Ethernet Capture” tool allows users to capture TCP/IP and other packets being transmitted
or received over a network to which the EX16S is attached. The captured packets can be
downloaded from the EX16S system and been analyzed on your Windows PC to display the SIP
traffic details. It can be used to debug a VoIP call problem.
In the “Tool” section select “Ethernet Capture”, and select the network interface the EX16S is
using, and then click on “Start” button to start the process. Now you make phone calls which may
reproduce the problem, once done, click on “Stop” button, the captured packet will be
automatically downloaded to your desktop.
The downloaded file name would be “tcpdump.pcap”, you may open it with Wireshark or some
other packet analyzer on your Windows PC.
Page 23 Copyright © ZYCOO All Rights Reserved v2.1.6
ZYCOO Co., Ltd.
Website: www.zycoo.com
Support: support@zycoo.com
ZYCOO China
7F, B7, Tianfu Software Park, Chengdu, China (610041)
Tel: +86 (28)85337096
ZYCOO UAE
Office No. 5, 3rd Floor, Al Riffa Plaza Bldg., Bur Dubai, Dubai, UAE.
Tel: +971 (4) 3552755
ZYCOO UK
LS21, Armstrong House, First Avenue, Robin Hood Airport, Doncaster, UK (DN93GA)
Tel: +44(0)1302773162
