User manual
Asset GPS Tracker
User Guide
(Version 1.1.1)
To ensure quickly and correctly use, please read
this manual carefully before using. Any changes
to the product appearance, color or accessories
are without notice.
1.Overview
1.1 Main Functions
·GPS + LBS + WIFI positioning
·Intelligent power saving
·IPX5 waterproof grade
·Tamper alert
·Strong magnet installation
·Fast charging
·10000mAh battery
·Listen-in
1.2 Specifications
Frequency
Location accuracy
Monitoring range
Working voltage/ current
Battery
Working hour
LED
Operating temperature
Dimension
Weight
GSM 850/900/1800/1900MHz
<10 meters
≤5 meters
3.7V/ 60mA
10000mAh/3.7V industrial grade
lithium polymer battery
30 days (drive for 2 hours a day)
Red: work status
-20℃— +70℃
108(L) x 61(W) x 30(H) mm
285g

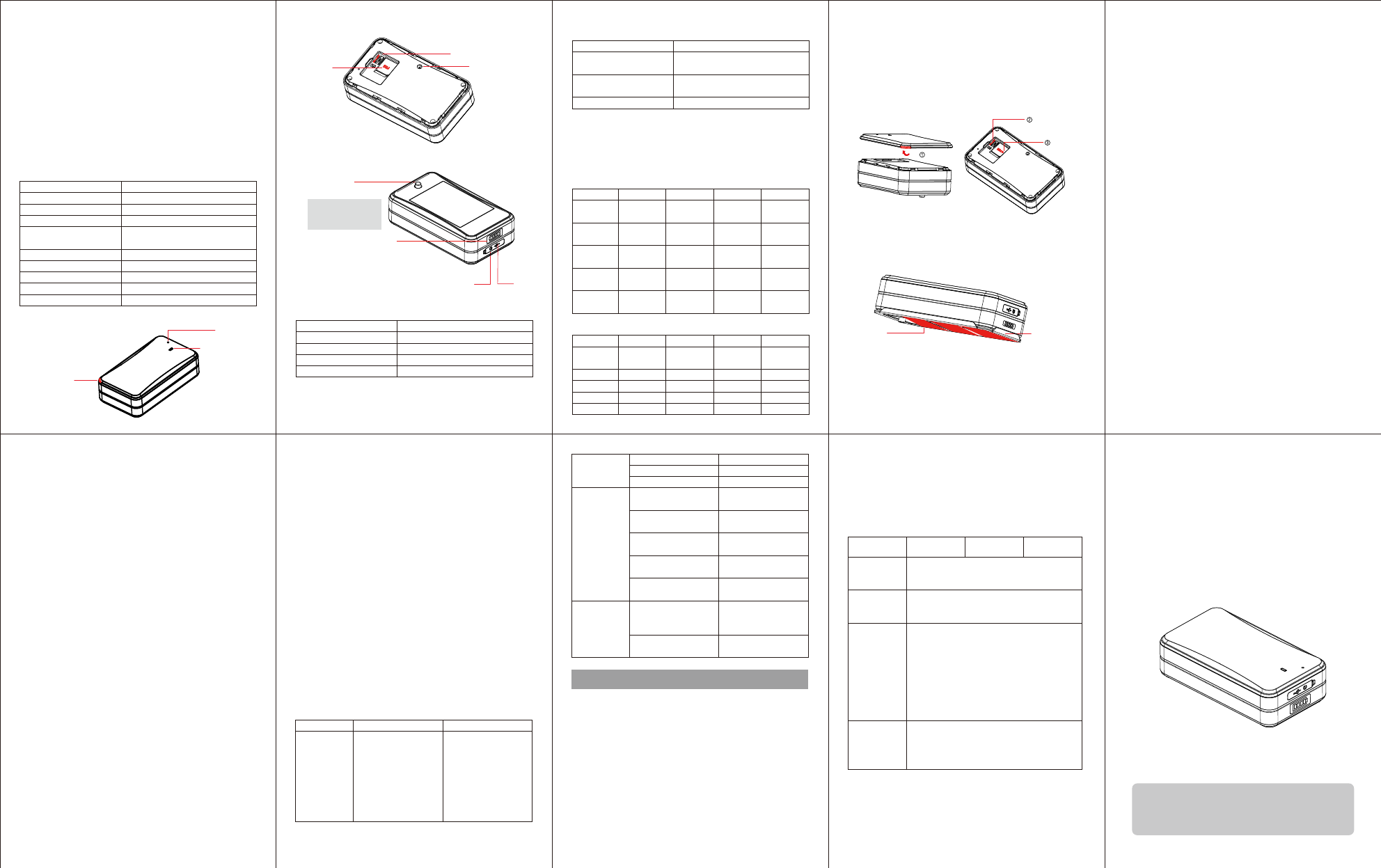

2.Appearance
2.1 Appearance
Notch
MIC
GSM
status indicator
SIM card Cover remove
detection switch
Anti-tamper
button
Battery indicator
Power
2.2 Standard Accessories
Device
Bracket
User guide
Charger
Charge cable
1
1
1
1
1
2.3 GSM Indicator
Status
Flicker quickly ( every 0.3
seconds)
Flicker slowly ( 0.1s on;
2s off)
Always ON
Meaning
GSM initialization/ No GSM signal/
No SIM card
Login platform
Calling
GSM indicator is off after the device power on for 3 minutes.
If device power on, shortly press the power button to activate
LED, which will be off in 60 seconds.
2.4 Battery Indicator
Charging:
Battery
0-25%
25-50%
50-75%
75-96%
charging
completed
LED 1
ON:1s;
OFF:1s
ON
ON
ON
ON
LED 2
OFF
ON:1s;
OFF:1s
ON
ON
ON
LED 3
OFF
OFF
ON:1s;
OFF:1s
ON
ON
LED 4
OFF
OFF
OFF
ON:1s;
OFF:1s
ON
Not charging:
Battery
voltage
shortage
0-25%
25-50%
50-75%
75-100%
LED 1
OFF
ON
ON
ON
ON
LED 2
OFF
OFF
ON
ON
ON
LED 3
OFF
OFF
OFF
ON
ON
LED 4
OFF
OFF
OFF
OFF
ON
GSM indicator is off after the device power on for 3 minutes. If
device power on, shortly press the power button to activate LED,
which will be off in 20 seconds.
3. SIM card
SIM card should have access to GPRS and SMS.
Remove the cover, switch to OFF and insert the SIM card.
Notch
Battery switch
is on OFF
position
SIM card:
Insert SIM
card
4. Installation
With strong magnet, the device has easy installation and can
absorb on any magnetic item. Attached 3M foam tape and
bracket help fix the device on non-magnetic items.
3M sticker Stand
5. Operation
Power on: Press power button for 3 seconds ( battery switch is in
ON position)
Power off: Press power button for 3 seconds
5.1 Power ON/OFF
Set SOS number via APP, GPS tracking platform or SMS (SMS
only valid in tracking mode)
1.SMS command to add SOS number:
SOS,A, number 1, number 2, number 3#
E.g. SOS,A,1351234xxxx, 1371234xxxx,1301234xxxx#
2.SMS command to delete SOS number:
SOS,D,number sequence 1, number sequence 2, number
sequence 3#
E.g. SOS,D,1,2,3#
3.Query current SOS number:SOS#
5.2 SOS Number
(1)Tracking mode (default): GSM is always ON and location data
uploaded in set time interval. Time interval can be set on APP or
designated platform.
5.3 Working Mode
“2” means ultra-standby mode.
“T1” means the start time of sleeping period. Format:
HH:MM.
“T2” means the sleep time interval, range 1-72(hours).
Default: 24 hours.
Note: SMS command takes effect after device wakes up.
E.g.MODE,2,12:00,8# (Meaning: Device starts to fall asleep at
12:00, and wakes up every 8 hours)
The anti-tamper button will pop out and alert will be sent if the
device is disassembled.
In standby mode, alert message will be uploaded and tracking
mode will be activated for 20 minutes if device dis-assembly is
detected. After 20 minutes, device enters into ultra-long standby
mode. Dis-assembly alert can be turned off by command: cancel#
5.4 Tamper Alert
Cover detection button pops out and alert will be sent when
device cover is dismantled.
In standby mode, alert message will be uploaded and tracking
mode will be activated for 20 minutes if cover dismantlement is
detected. After 20 minutes, device enters into ultra-long standby
mode. Dis-assembly alert can be turned off by command: cancel#
5.5 Cover Remove Alert
When battery is low, the device will activate low battery alarm.
5.6 Low Battery Alert
6. Platform & APP
6.1 Login service platform
Please login the designated service platform to set and operate
the device.
6.2 Download APP
Please download and install the APP in designated website,
APP store or Google Play store.
7. Warning
Battery specified by manufacturer is recommended.
Maintenance or service arising from any other accessories
is not guaranteed.
Manufacturer assumes no responsibility for any damage caused
by non-original accessories.
Do not bend or open the battery.
Do not immerse or burn the battery.
Device dis-assembly is strongly forbidden.
Nonprofessionals’ operation may cause device damage.
Troubleshooting
If you are having trouble with your device, try these
troubleshooting procedures before contacting a service
professional.
Problems Causes Solutions
The signal waves are
unable to transmit
when use the GPS
tracker in the places
that have poor signal
reception, such as: tall
building around or
basement.
Using the GPS tracker
in the places that have
good signal condition.
Poor signal
Unable to
boot
Power switch is off Switch to ON
No battery
No SIM card
charge
Insert SIM card
Unable to
connect to
the network
SIM card inserted
incorrectly
Check SIM card
Dirty things exist
above the SIM card
Clean SIM card
Invalid SIM card Contact network
supplier
Not in GSM service
area
Move to service area
Poor signal Move to area with
strong signal
Fail to locate SIM has no access to
GPRS
Contact network
supplier to get GPRS
service
Always reply “Address
inquiry failed”
Contact supplier
Warranty instructions and service
1. The warranty is valid only when the warranty card is properly
completed, and upon presentation of the proof of purchase
consisting of original invoice indicating the date of purchase,
model and serial No.of the product. We reserve the right to
refuse warranty if this information has been removed or changed
after the original purchase of the product from the dealer.
2. Our obligations are limited to repair of the defect or replacement
the defective part or at its discretion replacement of the product
itself.
3. Warranty repairs must be carried out by our Authorized Service
Centre. Warranty cover will be void, even if a repair has been
attempted by any unauthorized service centre.
4. Repair or replacement under the terms of this warranty does
not provide right to extension or renewal of the warranty period.
5. The warranty is not applicable to cases other than defects in
material, design and workmanship.
Maintenance Record
Date Serviced by
Product Model
IMEI Number
Fault
Descriptions
Comments
Push and loosen
the button will
trigger tamper alert
Notice: In this mode, all command will NOT be executed until
the device wakes up at preset time interval. If you want to
compel the device to wake up and receive command, you can a.
By trigger the tamper alert button at the back; b. By unplug the
battery and plug it in again.
SMS command format:
MODE,2,T1,T2#
SMS command format:
MODE,1,T1,T2#
1 means tracking mode
T1: upload interval of GPS data in moving status,
unit: second, 10-3600s; default: 10s
T2:upload interval of GPS data in static status
unit: second, 180-86400s; default: 3600s
(2) Ultra-long standby mode: device wakes up and uploads
location data in a fixed time.
USB
Battey switch
GPS + LBS
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to
exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the general population. The guidelines
are based on standards that were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health. The exposure
standard for wireless tracker employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the
phone transmitting at its highest certified power level in all tested frequency bands. Although the
SAR is determined at the highest certified power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power required to reach the network. In
general, the closer you are to a wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC
that it does not exceed the limit established by the government adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the
body) as required by the FCC for each model. The highest SAR value for this model phone when
worn on the body, as described in this user guide, is 0.781W/Kg(Body-worn measurements differ
among phone models, depending upon available accessories and FCC requirements). While there
may be differences between the SAR levels of various phones and at various positions, they all
meet the government requirement for safe exposure. The FCC has granted an Equipment
Authorization for this model phone with all reported SAR levels evaluated as in compliance with
the FCC RFexposure guidelines. SAR information on this model phone is on file with the FCC and
can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on
FCC ID: 2APULAT4 Additional information on Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com.
* In the United States and Canada, the SAR limit for tracker used by the public is 1.6 watts/kg
(W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial margin of
safety to give additional protection for the public and to account for any variations in
measurements.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure
requirements, a minimum separation distance
of 10mm must be maintained between the user’s body and the handset, including the antenna.
Third-party belt-clips, holsters,
and similar accessories used by this device should not contain any metallic components.
Body-worn accessories that do not meet these requirements may not comply with RF exposure
requirements and should be avoided. Use only the supplied or an approved antenna.
