Zalman Tech ZM600-HP Power supply unit User Manual Microsoft PowerPoint ZM600 HP 0823

Zalman Tech Co., Ltd. Power supply unit Microsoft PowerPoint ZM600 HP 0823

Users Manual

1. Safety Precautions
▣ The following precautions and directions are measures against possible accidents
and injuries. Please read them thoroughly before using this product.
Warning
Neglecting the following may cause
Serious injury or death.
Caution
Neglecting the following may cause minor
injuries, degrade product conditions or
cause malfuncion.
3. Notes on Installation
*For more information on the product, please visit our website at www.zalman.co.kr.
2. Components
1) One Power Supply
2) One Cable for CPU2
3) One Cable for PCI-E2
4) Three Cables for ODD/HDD
5) Two Cables for S-ATA
6) One Fan Dual-connector (ZM-DC1)
(See page 4 for details)
7) One Power Cord for AC Power Source (Not included in some countries)
8) One Users Manual
9) Five Cable Ties
Opening the cover of the product while
the power cord is plugged into an outlet may
cause electrocution or critical damage to the
product.
▶ Handling the power cord with wet hands
may cause in electrocution.
▶ Inserting fingers or metallic objects into
the cooling fan may cause in injury or
electrocution.
▶ Operating the product in an extremely cold or
hot environment can degrade product
performance and lifespan.
▶ Liquids that enter the product may cause
malfunction.
▶ Operation in a humid or non-ventilated
environment may reduce product lifespan.
▣ Plugging the main power connector P1 into the motherboard while the product is connected
to the AC power source may result in damage to the motherboard.
▣ Make sure that the connectors are connected to their designated locations, and that the
connectors are not oriented in the wrong direction when connecting the DC output connectors.
▣ If the Power on LED fails to light up when the main power button is pressed after completing
the installation procedure, some devices may be connected incorrectly or the motherboard may
be faulty.
※ To ensure a safe and easy installation, please read the safety precautions above
and the following notes.
FCC Compliance Statements
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
Warning : Your are cautioned that any change or modifications to the equipment
not expressly approved by the party responsible for compliance could void your
authority to operate such equipment.
4. The Zalman Advantage
Zalmans CNPS products enable a noiseless computing environment, in
accordance with our policy of developing people-friendly products.
This ultra-quiet power supply complies with ATX12V Version 2.2, and supports the
Lastest dual-core CPUs(Intel Core2 series/AMD Athlon64-X2 series), as well ass the
Lastest dual graphic card systems(SLI/CrossFire).

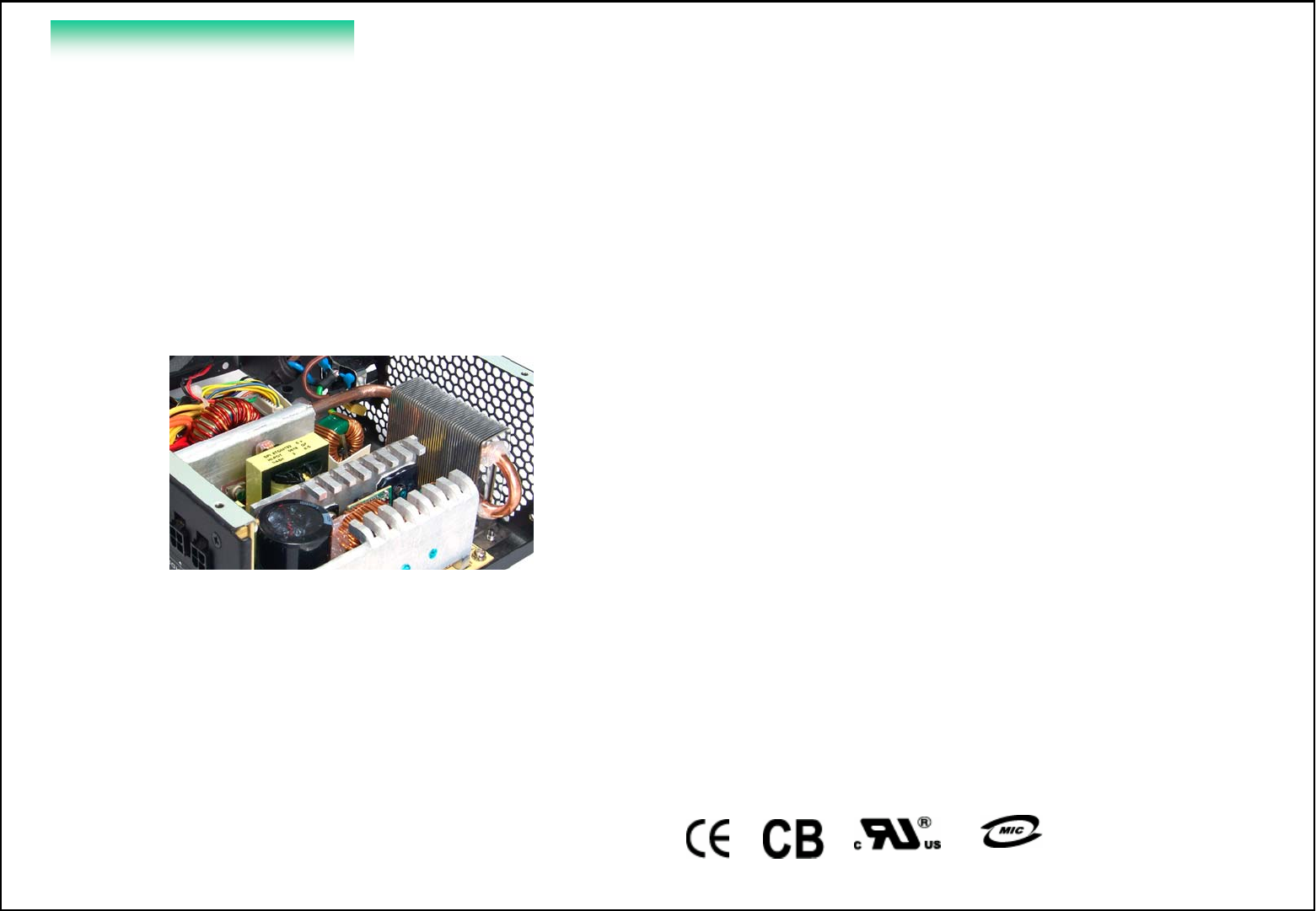

▣ Heatpipe Installed for Maximum Cooling Performance and Ultra-Quiet Operation
A heatpipe with ultra-high cooling performance incorporated on the power supplys main
Rectifiers enables high load operation even at low RPM for a dramatic reduction in noise levels.
Improved Power Factor & Reduced Harmonics through Active PFC
By implementing Active PFC(Power Factor Correction), the Power Factor (PF) is
improved from 75% (Passive PFC) up to 99% while harmful harmonic frequencies are
reduced to meet the line harmonic distortion requirements of IEC61000-3-2 Class D.
▣ High Efficiency Design
This power supply is capable of reaching a maximum of 84% efficiency(230VAC, Full &
Typical Load) through its of the use of high switching frequency and low power-loss
circuitry.
▣ ATX20+4 Pin Main Connector
ATX20+4 pin main connector broadens the range of motherboard compatibility.
▣ Supports ATX12V CPU 4-Pin and EPS12V CPU 8-Pin
Two ATX12V CPU 2ⅹ2(4-Pin) power cables can be combined to form an EPS12V CPU
8-Pin power cable.
▣Dual PCI Express VGA Power 6-Pin Connector
Supports Nvidia SLI and ATI CrossFire dual graphic card systems.
▣ EZ Grip Connectors for ODDs & HDDs
EZ Grip Connectors for easy removal of the plugs from ODDs & HDDs.
▣ Four Independent +12VDC Outputs
Four +12VDC rails supply power independently to the CPU, VGA, motherboard, and peripheral
components for the highest level of stability and performance.
▣ Sleeved Cables
All power cables are sleeved for easy cable management and improved air circulation inside
the computer case.
▣ Ultra Quiet 120mm Fan
Ultra quiet 2-Ball Bearing ADDA 120mm fan maximizes the airflow and minimizes the noise
level enabling a noiseless computing environment with optimized cooling.
▣ Module Cables
Module cables provide organized cable management and improved air circulation
inside the computer case.
▣ Gold-Plated Terminals
Gold-plating the terminals minimize power loss by reducing contact resistance.
▣ WEEE & RoHS
Complies to WEEE & RoHS Environmental Directives of Europe.
* WEEE : Waste Electrical and Electronic Regulations
* RoHS : Restriction of Hazadous Substances Regulations
▣ International Safety and EMC Certifications
FCC IDENTIFIER :
SAOZM600-HP
E198072 ZMT-FC-ZP6HP(B)
▣ Multiple Safety Features
Over-voltage Protection, Over-current Protection, Short-circuit Protection,
Under-voltage Protection, Over-temperature Protection.
▣ Internal Blue LED
Blue LEDs are installed inside the power supply for cool aesthetics.
* CNPS (Computer Noise Prevention System) refers to a system that reduces a conventional
computers noise lever (30dB or more) to an inaudible level (20dB or less).
Zalmans silent/ultra-quiet computers of the highest quality.
▣Output Power Cable Specifications
Voltage
Frequency
AC Input Range 115V A C
(Rated) 230V A C I
min
I
max
I
peak
P FC T y pe +3.3V 0.8A 24A
Power Factor +5V 0.3A 24A
Inrush Current Limit 115V A C +12V 1 0A 16A
(@ Cold start at 25℃)
230V A C +12V 2 0A 16A
Efficiency +12V3 1A 16A
V out +12V 4 1A 16A
+3.3V DC ±5% +3.14V ~ +3.47V -12V 0.0A 0.5A
+5V DC ±5% +4.75V ~ +5.25V +5V S B 0.0A 2.5A 3.5A
+12V 1DC ±5% +11.4V ~ +12.6V
+12V 2DC ±5% +11.4V ~ +12.6V
+12V 3DC ±5% +11.4V ~ +12.6V
+12V 4DC ±5% +11.4V ~ +12.6V
-12V DC ±10% -10.8V ~ -13.0V
+5V S B ±5% +4.75V ~ +5.25V
Vout
+3. 3V DC
+5V DC
+12V 1DC
+12V 2DC
+12V 3DC
+12V 4DC
-12V DC
+5V S B
DC Output Ripple &
Noise
DC Output Voltage
Regulations
Over-current Protection (OCP)
Under-voltage Protection (UVP)
Operation 0℃ ~ +50℃
Ambient Humidity
Operation 5 %RH ~ 95 %RH
Dim ensions
Specification
100m V
At Full
Load
At Full
Load
Regulation Range
200m V
200m V
200m V
100m V
100m V
Combined
Power
Protection
Short-circuit Protection(SCP)
Over-voltage Protection (OVP)
18.5
W
AC Input Range
8
4% Maximum @230VAC, Full & Typical Loa
d
99% M a x im um
60A
100A
10A
5A
150mm(L) * 165mm(W) * 86mm(H)
155W
504W
Stored 5 %RH ~ 95 %RH
600W
Stored -20℃ ~ +80℃
Ambient Temperature
Over-temperature Protection (OTP)
200m V
200m V
100V AC ~ 240V AC ±10% DC OUT P UT
Active PFC
ZM 600-HP
Vout Output Load Rating
47Hz ~63Hz

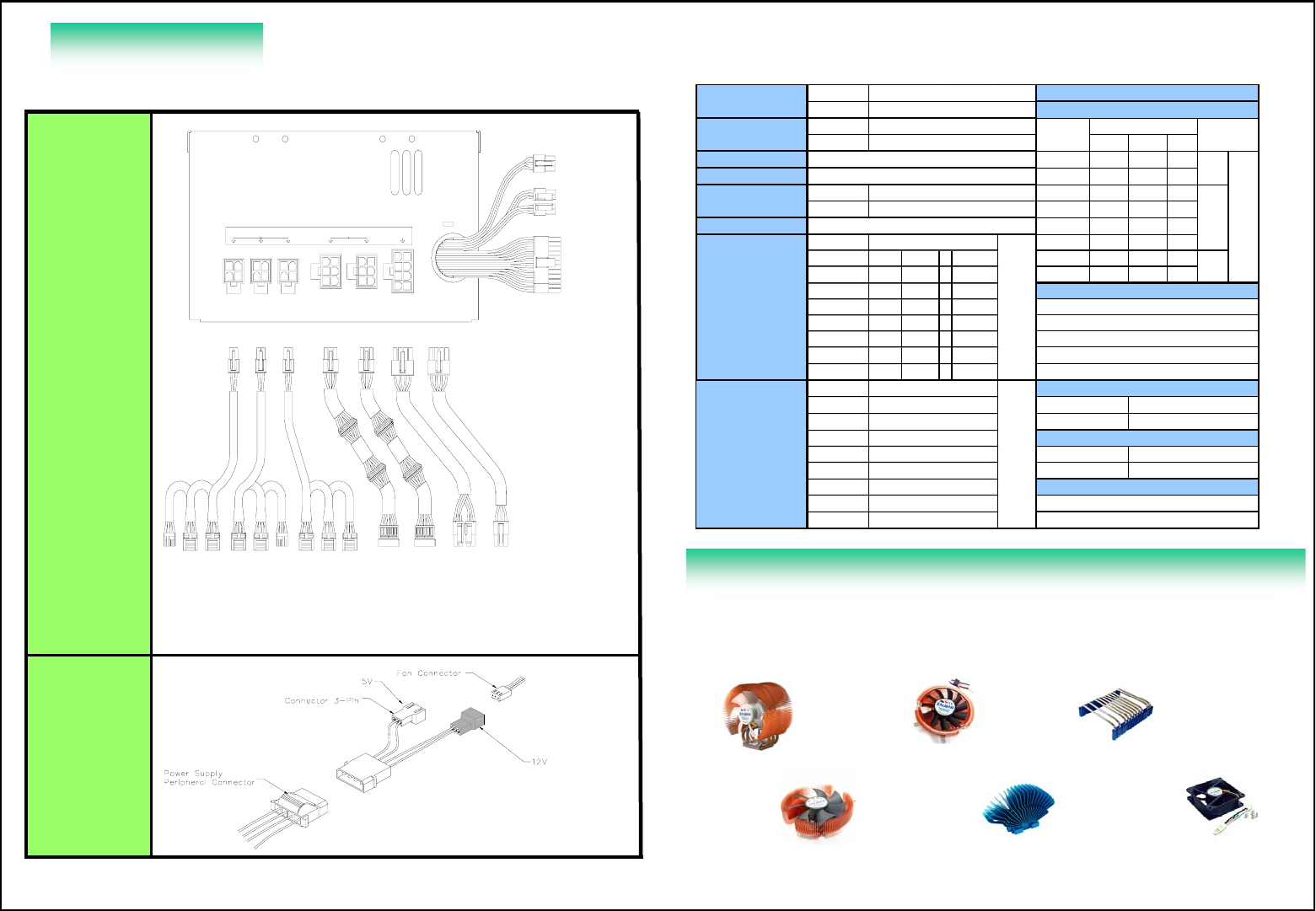

5. Specifications ▣Electrical & Physical Characteristics
Using the
Dual-
Connector
(ZM-DC1)
Cable
Types and
Function
6. Zalmans CNPS (Computer Noise Prevention System) Products
Fanless Northbridge Cooler Noiseless Case Fan
For a stable and noiseless system of the highest quality, use Zalmansultra
Quiet CPU Coolers, Quiet VGA Coolers, Heatpipe HDD Coolers, Fanless Northbridge
Coolers, and Noiseless Case Fans.
Ultra Quiet CPU Cooler Heatpipe HDD Cooler
Quiet VGA Cooler
Quiet CPU Cooler
ZM-DC1
ODD/HDD S-ATA CPU2
PCI-E2
FDD Power
Connector
ODD/HDD Power
Connector
ODD/HDD Power
Connector
ODD/HDD Power
Connector
ODD/HDD Power
Connector
FDD Power
Connector
ODD/HDD Power
Connector
ODD/HDD Power
Connector
S-ATA Power
Connector
S-ATA Power
Connector
CPU2 Power
Connector
PCI Express2
Power Connector
CPU1 Power
Connector
PCI Express1
Power Connector
Mainboard Power
Connector
ODD/HDD Power
Connector
Thank you for purchasing Zalmans product.
Warranty- If this product has any defects, then Zalman guarantees that it can be exchanged
within three (3) years from the time of purchase.
* Product exchange is made with the reseller where the product was purchased.
For further inquiries, contact Zalman headquarters at www.zalman.co.kr or via e-mail to a
representative.
There will be no exchanges in the following cases:
A) Violation of the Safety Precautions and the Notes on Installation in this manual.
B) Human fatality and/or property damage due to events of natural causes.
C) External case damage, electrical problems, and damage to components caused by
careless mishandling.
Contact Information
Zalman Tech Co., Ltd.
Homepage : www.zalman.co.kr
E-mail : zalman@zalman.co.kr
Zalman USA, Inc.
Homepage : www.zalmanusa.com
E-mail : support@zalmanusa.com
6. Product Warranty (International)
Disclaimer Zalman Tech co., Ltd and Zalman USA, INC. are not responsible for any damages
due to external cause, including but not limited to, improper use, problems with
electrical power, accident, neglect, alteration, repair, improper installation, or
improper testing.
