DISHWASHER

ZT 685

INSTRUCTION BOOKLET

152989 03/1 GB

COP04

It is most important that this instruction book should be retained with the appliance

for future reference. Should the appliance be sold or transferred to another owner, or

should you move house and leave the appliance, always ensure that the book is left with

the appliance in order that the new owner can get to know the functioning of the

appliance and the relevant safety information.

This information has been provided in the interest of your safety. You MUST read it

carefully before installing or using the appliance.

Installation

■This appliance is heavy. Care should be taken when

moving it.

■It is dangerous to alter the specifications or attempt

to modify this product in any way.

■Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

■Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

■Any plumbing work required to install this

appliance should be carried out by a qualified

plumber or competent person.

Child Safety

■This appliance is designed to be operated by adults.

Children should not be allowed to tamper with the

controls or play with the product.

■Keep all packaging well away from children.

■Keep all detergents in a safe place out of children's

reach.

During Use

■Items that are contaminated by petrol, paint,steel or

iron debris, corrosive, acidic or alkaline chemicals

must not be washed in this dishwasher.

■Under no circumstances should you open the door

whilst the appliance is in operation. Always turn off

the appliance before opening the door.

■Only use detergent specifically designed for use in

dishwashers.

■Long blades knives stored in an upright position are

a potential hazard.

■Long and/or sharp items of cutlery such as carving

knives must be positioned horizontally in the upper

basket.

■When finishing loading or unloading close the

door, as an open door can be a hazard.

■Do not sit or stand on the open door.

■Isolate the appliance from the power supply and

turn off the water supply after use.

■Care should be taken when cleaning the bottom

door seal and hinge area as any exposed metal

edges may cut if care is not taken.

■This product should be serviced by an authorised

Service engineer, and only genuine spare parts

should be used.

■Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by

inexperienced persons may cause injury or serious

malfunctioning. Contact your local Service Force

Centre. Always insist on genuine spare parts.

Conservation

In the interest of the environment:

■Materials marked with the symbol are

recyclable.

■Check with your local Council or Environmental

Health Office to see if there are facilities in your

area for re-cycling this appliance.

■When the appliance is to be scrapped, cut off the

power supply cable and make the door closing

device unusable to prevent young children from

being trapped inside.

■Help to keep your country tidy - use authorised

disposal sites for your old appliance.

Important safety information

2PSI01UK

For the user

Important safety information 2

Guide to use the instruction book 3

Description of the appliance 4

The control panel 5

Before use 6

Setting the water softener 6

Rinse aid 8

Use of detergent 9

Using your appliance 11

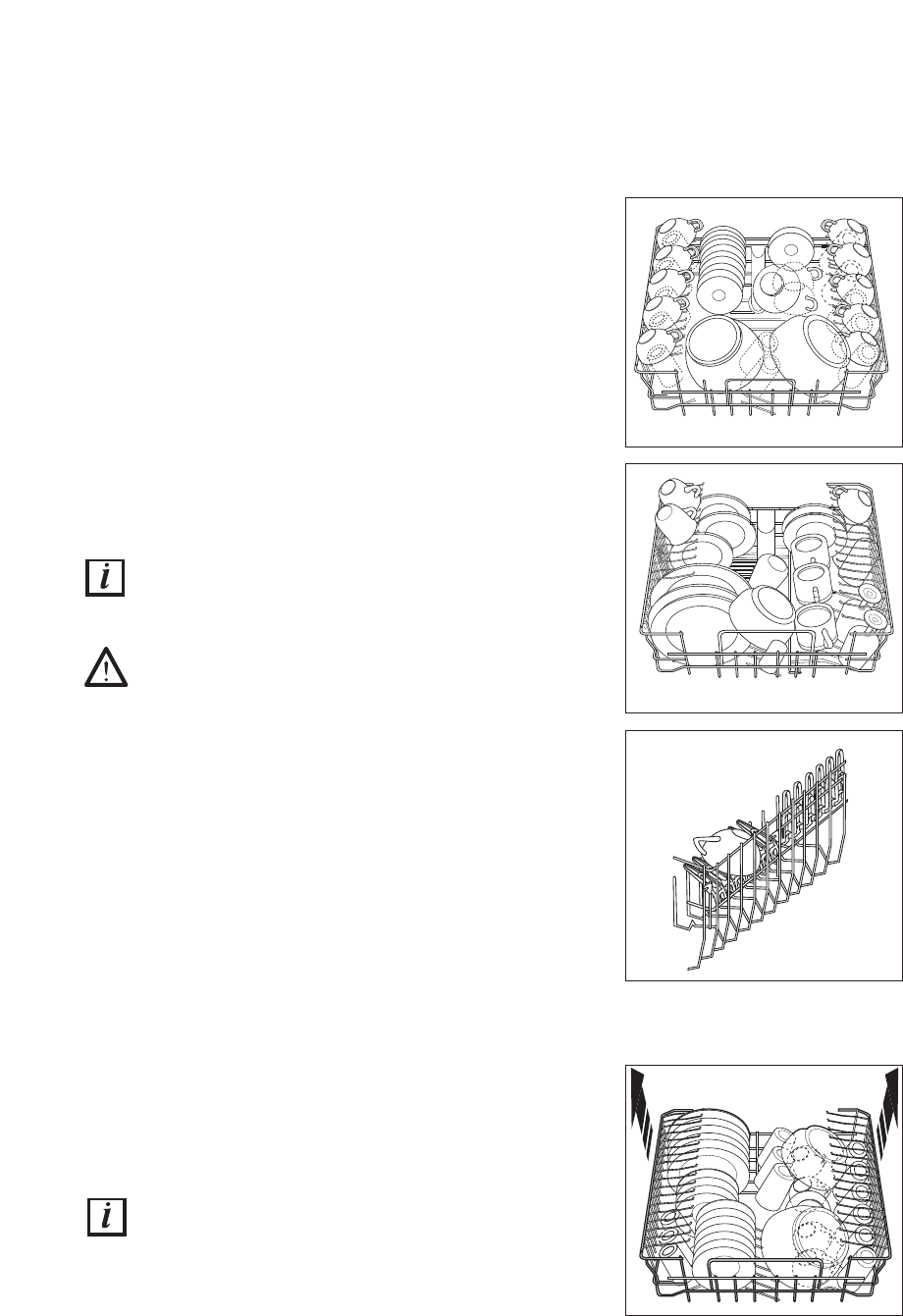

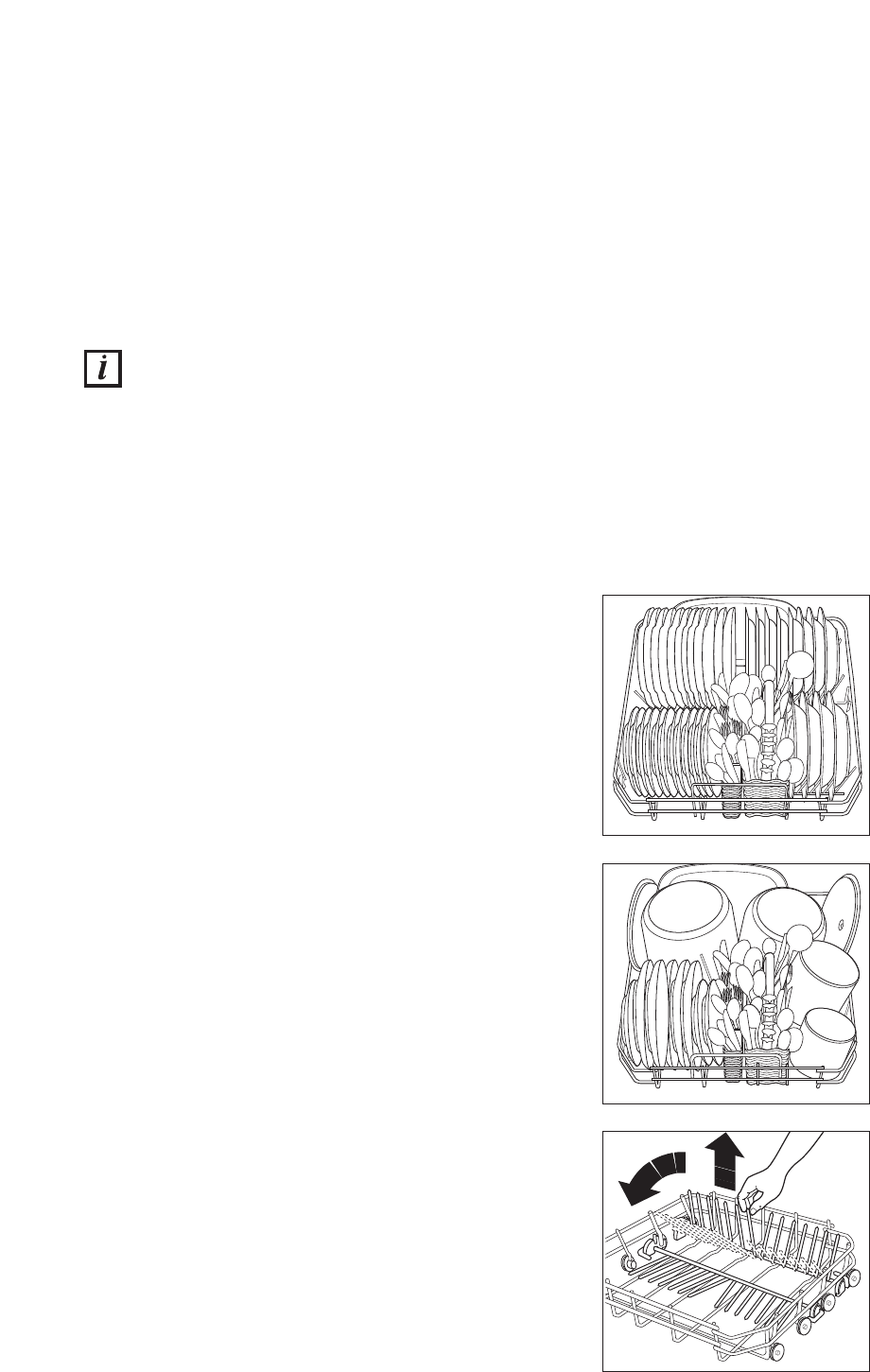

Loading your appliance 11

Adjusting the height of the upper basket 13

Hints and tips 14

Washing programmes 15

Operating sequence 16

Maintenance and cleaning 17

Internal cleaning 17

Cleaning the central filter 17

Cleaning the large filter 17

External cleaning 18

Prolonged periods of non-operation 18

Frost precautions 18

Moving the machine 18

Something not working 19

Service and spare parts 21

Guarantee Conditions 22

For the installer

Installation instruction 23

Technical specifications 23

Water supply connections 24

Water outlet connection 25

Electrical connection 26

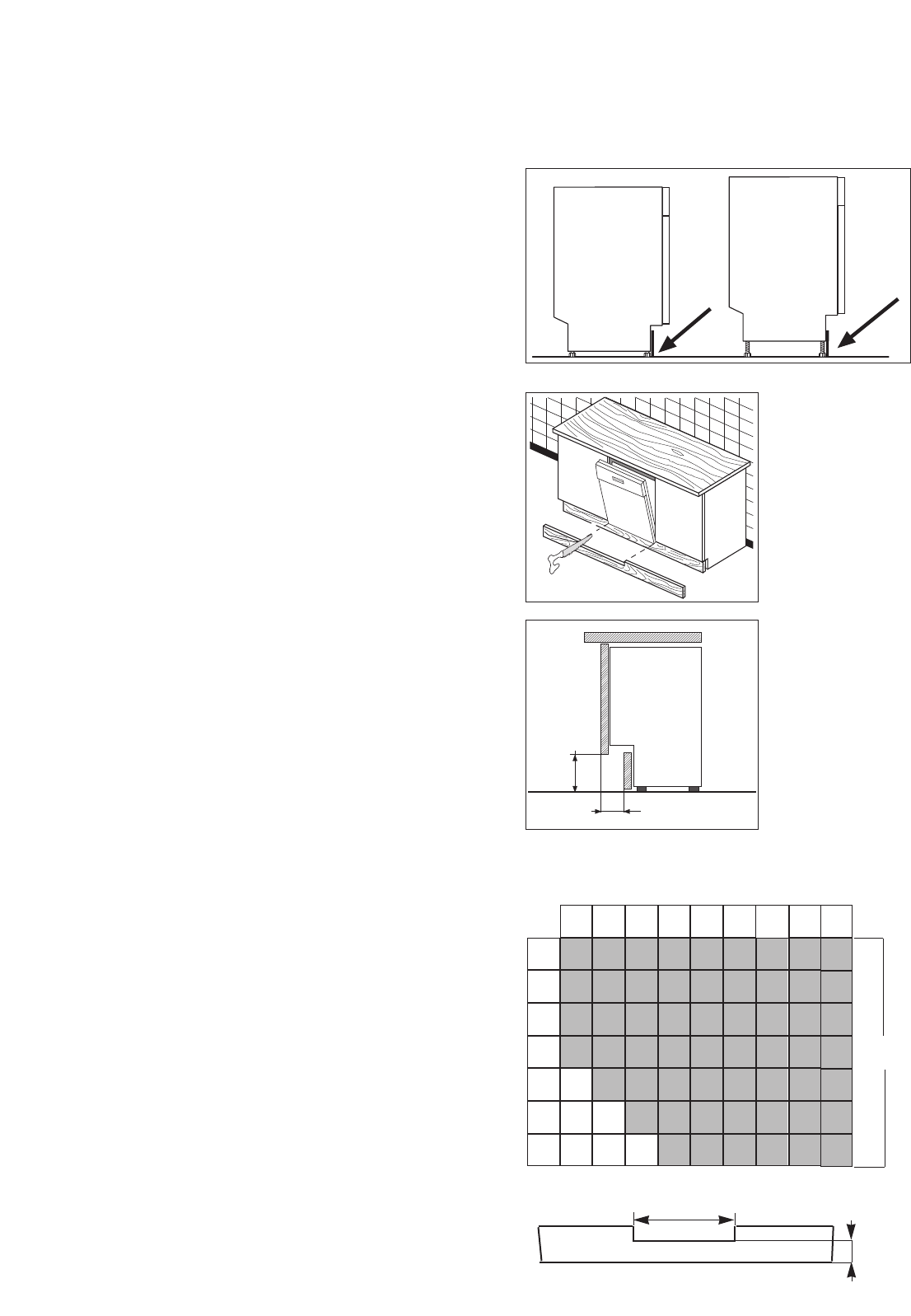

Building-in 27

Adjusting the height of the appliance 27

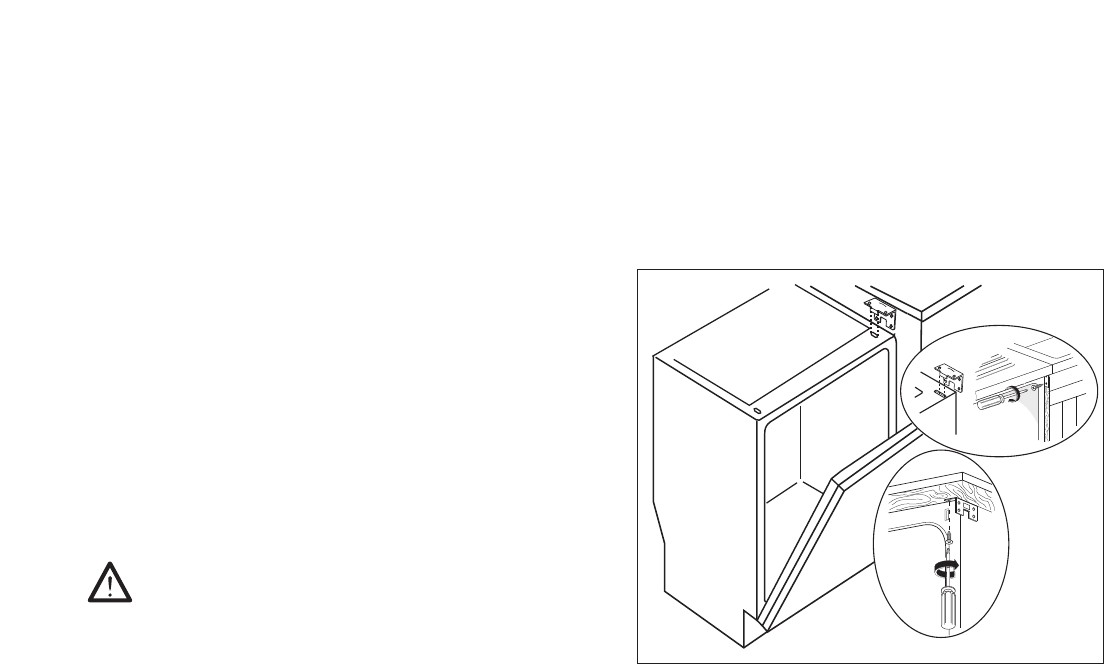

The furniture door 28

Securing to the adjacent units 29

Noise protection 30

Kitchen plinth adjustment 30

Contents

3PCO07/1UK

Guide to use the instruction book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

Step by step instructions

Hints and tips

☞

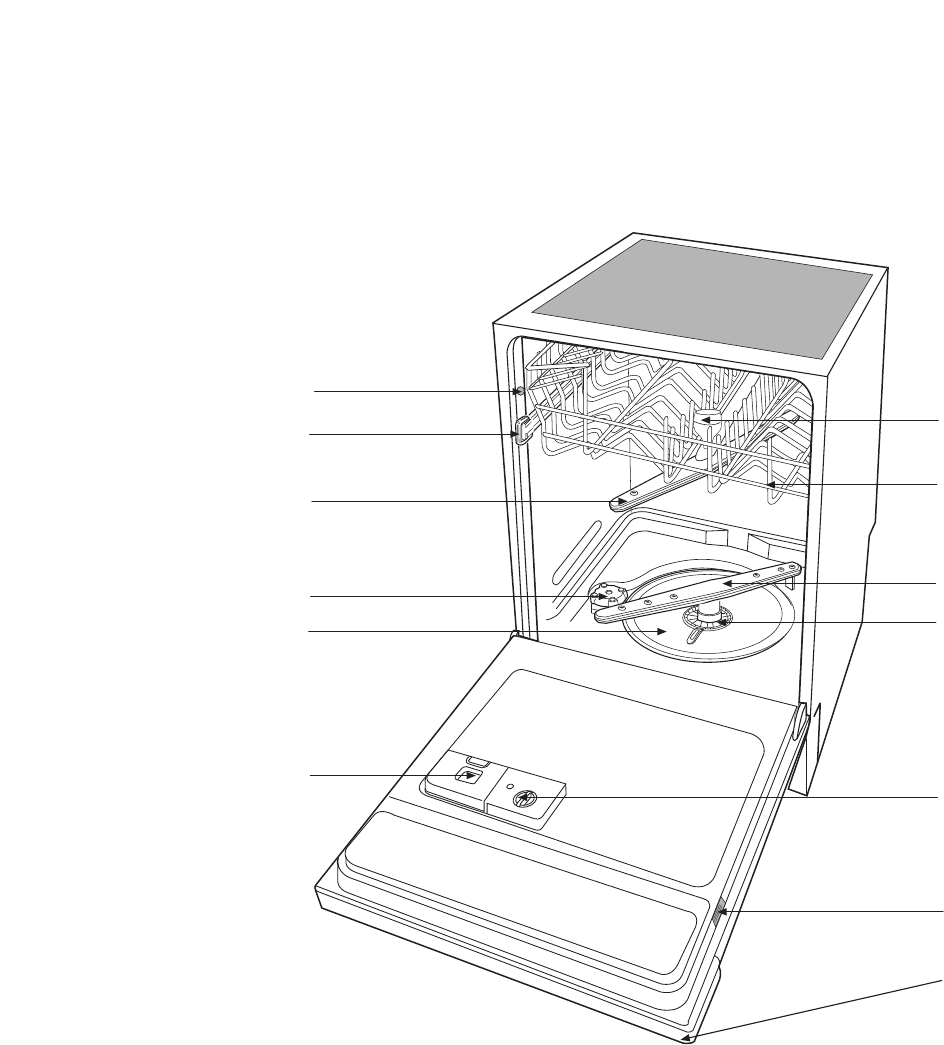

Description of the appliance

4PDA07/1UK

1

2

3

4

5

6

7

8

9

10

11

12

13

IN84

1Levelling spacers

2. Upper basket stop

3. Upper spray arm

4. Salt container

5. Large filter

6. Detergent dispenser

7. Control panel

8. Rating plate

9. Rinse aid dispenser

10. Central filter

11. Lower spray arm

12. Upper basket

13. SID (Super Intensity Dispenser)

In this fully integrated appliance the controls are

located on the top of the door. When selecting a

programme, the door needs to be open.

Audible signals have been introduced to help indicate

which operations the dishwasher is performing.

Short signal "instruction accepted"

When any of the buttons are pressed: a short audible

signal informs you that the machine has accepted the

instruction given.

Long signal "programme starting"

A continuous audible signal lasting about one second,

heard only when you close the dishwasher door,

informs you that the washing programme is starting.

Intermittent signal "end of programme"

An intermittent audible signal, lasting for

approximately five seconds, informs you that the

wash programme has finished. If you wish to

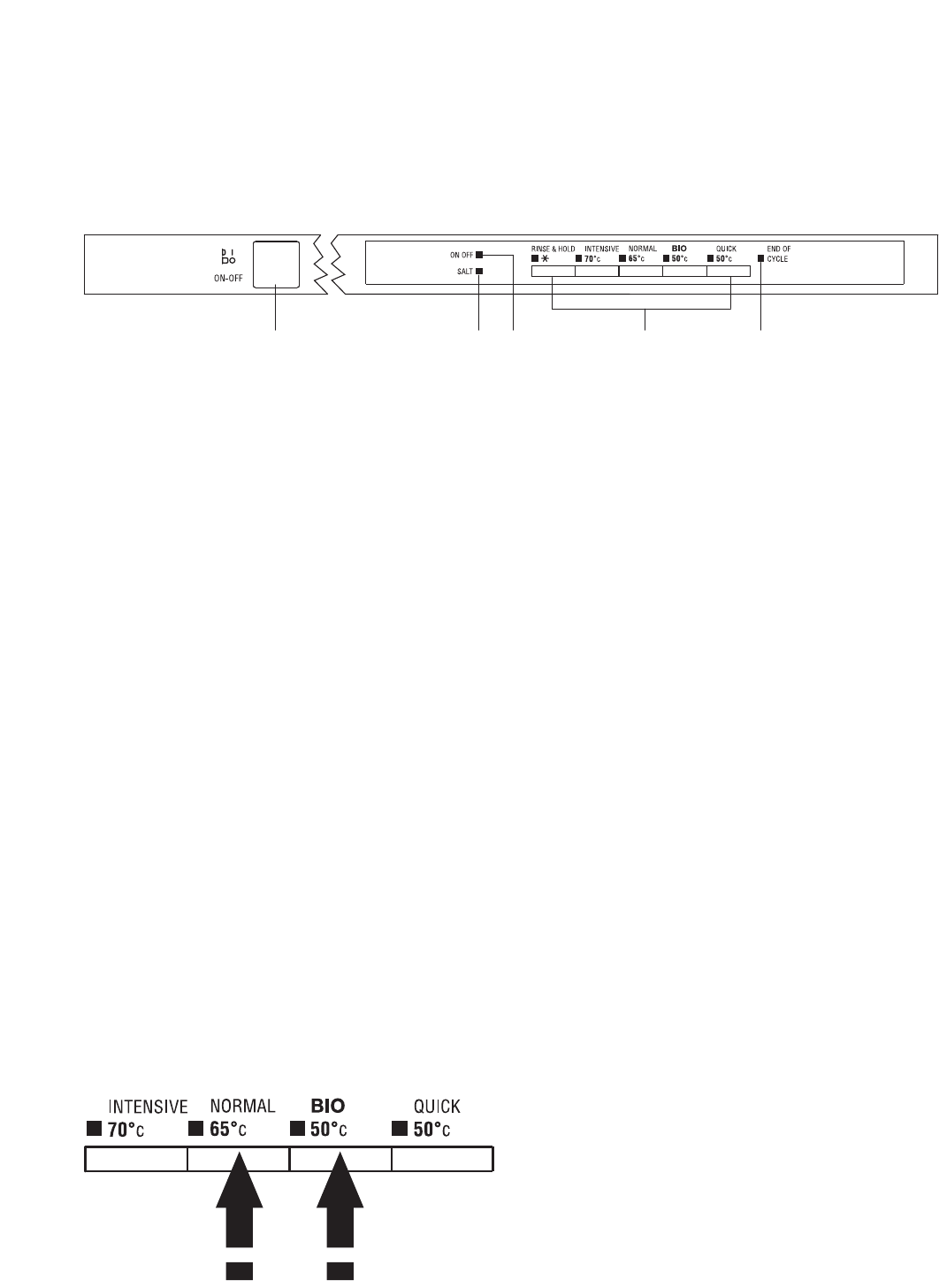

deactivate these audible signals, press both the

"NORMAL 65°c" and "BIO 50°c" programme

buttons together for about 3 seconds, until the

intermittent audible signal can no longer be heard.

To reactivate the audible signals, press both buttons

together again for about 3 seconds, until an

intermittent audible signal is heard.

1.On/Off pushbutton

Depress this button to switch the dishwasher on.

The On/Off indicator light illuminates indicating that

the washing programme can be selected and started.

Depress again this button to switch the appliance off.

2.Salt refill indicator light

This illuminates when the salt container needs

refilling. This light will remain on if salt is not added -

for example in a soft water area, where salt is not

required.

3.On/Off indicator light

4.Programme selector

buttons

Depress the button corresponding to the desired

washing programme (see "Washing programmes"

chart).

5.End of cycle indicator

light

This light flashes when the programme has finished.

To switch it off depress the On/Off button.

The control panel

5PCP11UK

1 2 3 4 5

SO234

Before using your dishwasher for the first time:

ensure that the electrical and water

connections comply with the installation

instructions

remove all packaging from inside the appliance

set the water softener

fill the salt container

fill the rinse aid dispenser.

Setting the water softener

The dishwasher is equipped with a water softener

designed to remove minerals and salts from the water

supply, which would have a detrimental or adverse

effect on the operation of the appliance.

The higher the content of these salts, the harder your

water is.

Water hardness is measured in equivalent scales, Clarke

degrees and French degrees.

The softener should be adjusted according to the

hardness of the water in your area. Your local Water

Authority can advise you on the hardness of the water in

your area.

If your water is "level 0" it is already soft and therefore

there is no need to use salt. (In this case the salt refill

indicator light will remain illuminated).

The dishwasher is factory set at level 2.

If this level is not suitable for your area the softener

should be adjusted.

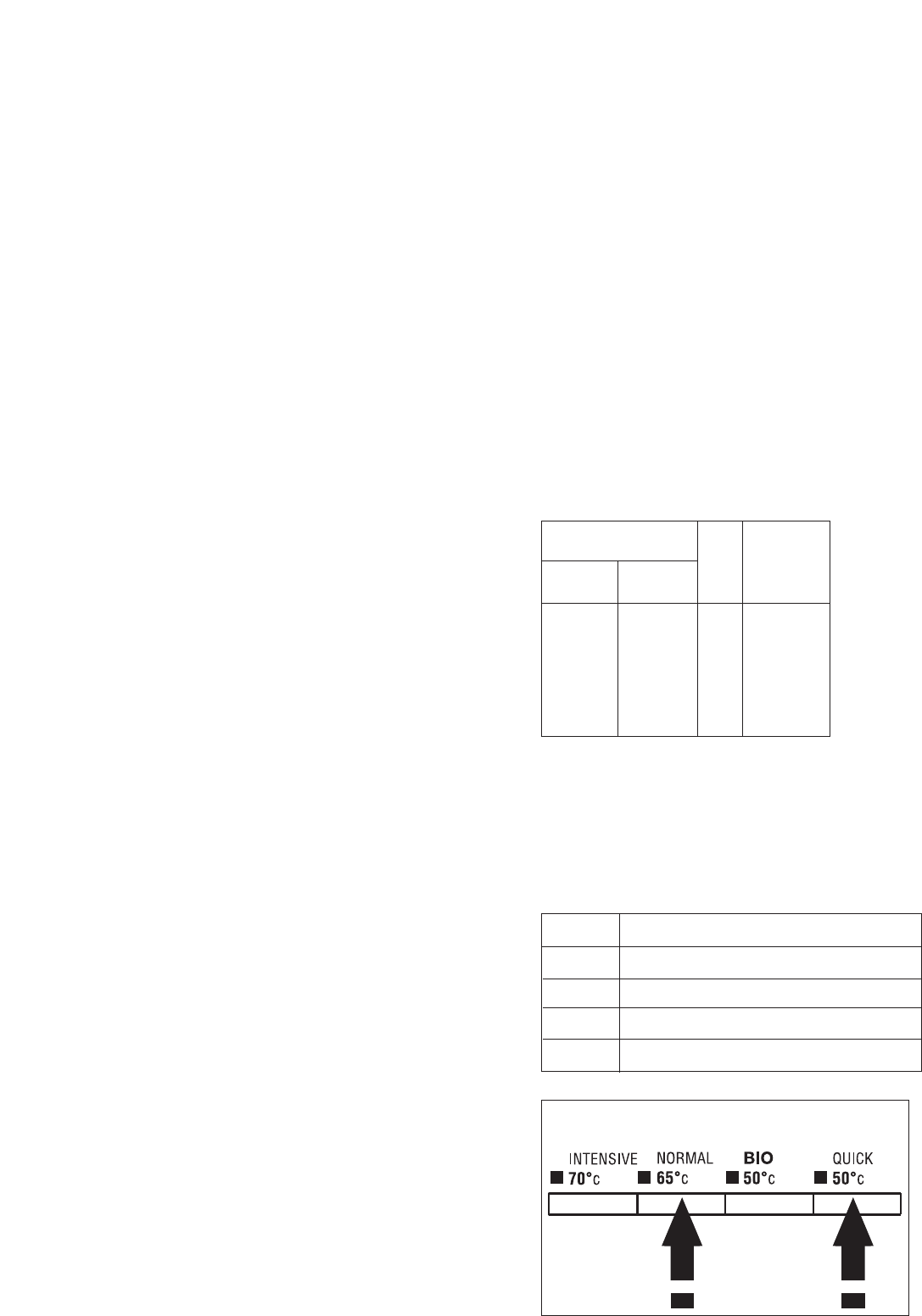

You may change the factory setting level setting by

means of the wash programme selector buttons. Each

button corresponds to a different level (see chart).

To select a different level proceed as

follows:

- Press the "NORMAL 65°c" and "QUICK 50°c"

programme buttons simultaneously for about 5

seconds until the short signal "instruction accepted" is

heard. The pilot light corresponding to the current

level (level 2) flashes very rapidly.

- Press the programme button corresponding to the

required level.

- 5 seconds after having last pressed any of the

programme buttons, the dishwasher memorises the

level selected and returns to the programme setting

mode.

Before use

6PBU04UK

SO235

Level Use

of

salt

French

degrees

Clarke

degrees

0

1

*2

3

4

5

0 ÷ 5

6 ÷ 17

18 ÷ 28

29 ÷ 42

43 ÷ 63

64 ÷ 84

NO

YES

YES

YES

YES

YES

0 ÷ 7

8 ÷ 20

21 ÷ 40

41 ÷ 60

61 ÷ 80

81 ÷ 120

Water

hardness

* factory setting

☞

☞

☞

☞

☞

☞

Level 1 "RINSE AND HOLD" programme button

Level 2 "INTENSIVE 70°c" programme button

Level 3 "NORMAL 65°c" programme button

Level 4 "BIO 50°c" programme button

Level 5 "QUICK 50°c" programme button

Filling with salt

If your water is "level 0" it is already soft and therefore

there is no need to use salt. (In this case the salt refill

indicator light will remain illuminated).

Salt must be used from "level 1" upward.

Only use salt specifically designed for

use in dishwashers.

All other types of salt not specifically

designed for use in dishwasher,

especially table salt, will damage the

water softener.

Only fill with salt just before starting one of the

complete washing programmes (not the Rinse and Hold

programme). This will prevent any grains of salt or salty

water, which may have been spilled, remaining on the

bottom of the machine for any period of time, which

may cause corrosion.

To fill:

1. To fill with salt, unscrew the cap of the salt

container.

2. Pour about 1 litre of water inside the container,

or until it is full (this is necessary only before

filling with salt for the first time).

3. Then using the funnel provided, pour in the salt

until the container is full (approx. 1.5 - 1.8 kg).

Do not worry if water over flows from the unit

when filling with salt, this is quite normal.

4. Replace the cap making sure that there is no

trace of salt on the screw thread or on the

gasket.

5. Screw on the cap tightly.

The salt container will require topping up periodically.

You are reminded of this by the "Salt refill indicator

light" on the control panel which comes on when the salt

has finished.

The "Salt refill indicator light" on the

control panel can remain illuminated

for 2-6 hours after the salt has been

replenished, assuming the dishwasher

remains switched on. If you are using

salts that take longer to dissolve then

this can take longer. The function of

the machine is not affected.

☞

7PFS06UK

SALT

SR07

Rinse aid

Rinse aid is automatically added during the last rinse,

ensuring thorough rinsing, spot and streak free drying.

The dispenser, which is positioned inside the door, holds

about 110 ml of rinse aid, which is sufficient for 16 - 40

dishwashing programmes, depending upon the dosage

setting.

Filling with Rinse Aid:

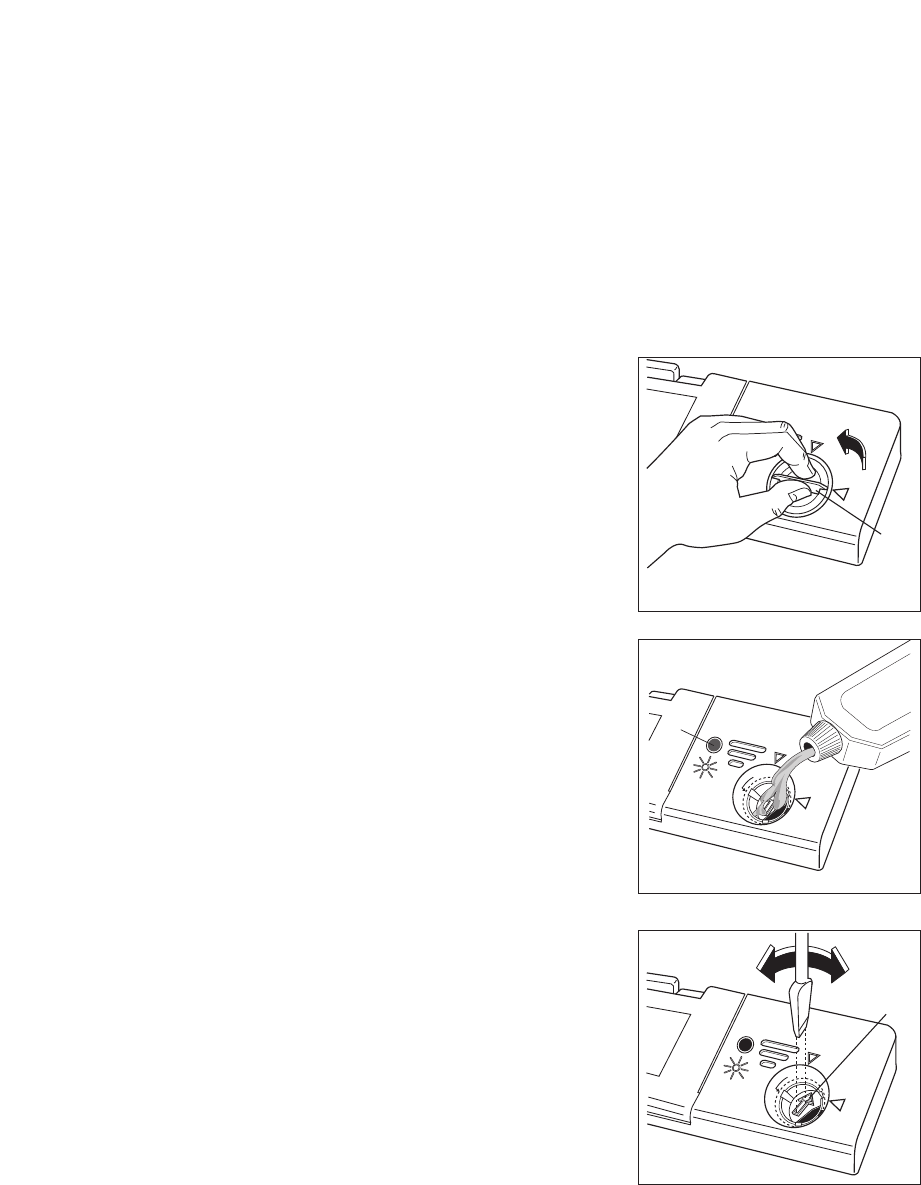

1. Open the container by turning the lid (A)

anticlockwise.

2. Add the rinse aid until the container is

completely full (approx. 110 ml). The indicator

(B) will be completely dark.

3. Top up the rinse aid when the indicator (B)

becomes clear.

Ensure that the lid is closed after every

refill.

Do not put liquid detergent in the rinse aid department.

Clean up any rinse aid spilt during filling with an

absorbent cloth to avoid excess foaming during the next

wash.

Adjusting the dose

According to the finish and drying results obtained,

adjust the dose of rinse aid by means of the 6 position

selector (C) (position 1 minimum dosage, position 6

maximum dosage). (Start from position 3). Gradually

increase the dose if there are drops of water or lime

spots on the dishes after washing. Reduce it if there are

sticky whitish streaks on the dishes.

8PFR01UK

BR01

A

m

a

x

6

5

4

3

2

1

B

BR03

BR02

C

m

a

x

6

5

4

3

2

1

Use of detergent

Only use detergents specifically

designed for use in dishwashers.

We recommend the use of Finish detergents which are

available in the following options:

Finish Double Action Tablets. Each tablet has the exact

amount of detergent required, simply place in the

dispenser.

Finish Powder recommended for every day use.

Finish Liquid Gel ideal for every day use. As the gel is

extra gentle is it recommended for fine bone china.

To fill the dishwasher with detergent

proceed as follows:

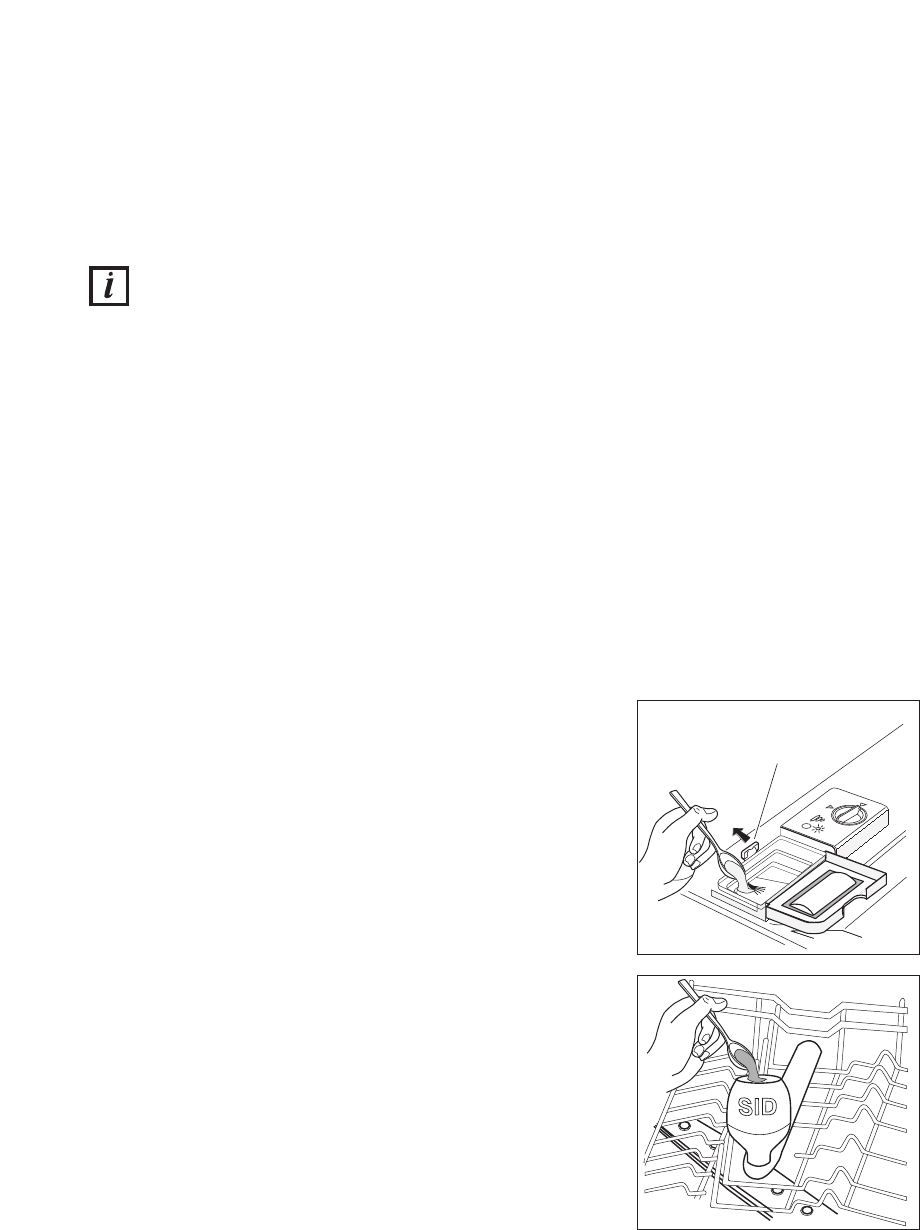

1. Open the dispenser lid by pulling the catch (D).

2. Add the detergent according to the

recommendations in the programme chart. As

all detergents are not the same, you should

also consult the instructions on the packet.

To help correctly dose the right amount of

detergent, inside the container there are two

reference marks:

- MIN = 15 ml

- MAX = 30 ml

3. Always close the lid.

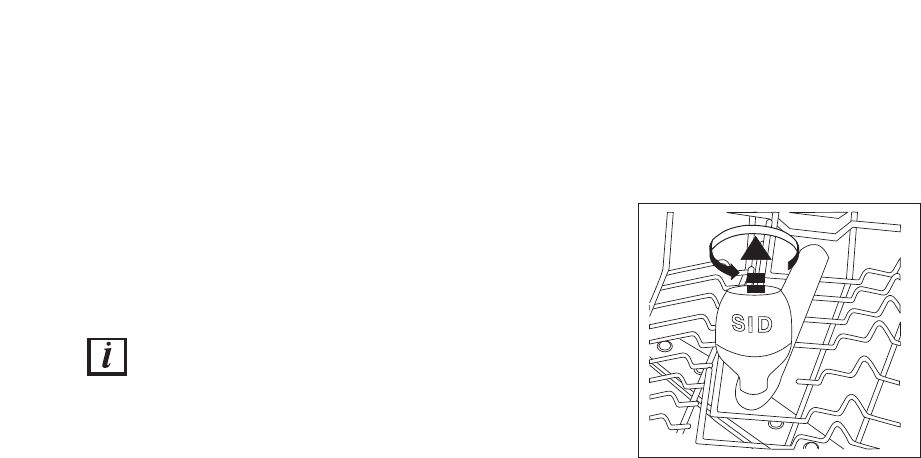

4. If the programme has a prewash add the

required detergent in the "SID" located in the centre

of the upper basket.

Insufficient quantities of detergent will produce poor

washing results, whereas an excessive amount of

detergent will not improve washing results and is also

wasteful.

Using no more than the correct amount also contributes

to reducing pollution.

9PUD04UK

D

MIN

MAX

DE07

DE14

Compact detergents with

enzymes

In these compact powders the environmently unfriendly

components have been replaced by natural enzymes and

other more biodegradable substances.

The enzymes deploy their full dirt dissolving power at a

temperature as low as 50°C.

By choosing the "Bio" programmes you can therefore

achieve the same cleaning results that would otherwise

be achievable only with 65°C programmes and

conventional detergents.

10 PUD03UK

BBRILLIANTRILLIANT

FOR AFOR A

SSHHIINNEE

RINSE

CONCENTRATED DISHWASHER DETERGENT

ACTION

NEW

DOUBLE

LIQUID GEL

POWDER

EASY

POURING

PACK

For best results we recommend the use of Finish detergents, rinse aid and salt.

DE15

Loading your appliance

Before placing dishes in the machine, remove any scraps

of food, to avoid clogging the filters and consequently

reducing the performance.

Do not load very small items which

can fall through the baskets.

Open the door and slide out the baskets to load the

dishes.

The lower basket

The lower basket is designed to take saucepans, lids,

plates (up to 27 cm in diameter), salad bowls, cutlery

etc.

Serving dishes and large lids should be arranged around

the edge of the basket, ensuring that the upper spray arm

can turn freely.

The two rear rows of prongs on the lower basket can be

easily lowered to allow you to load pots, pans and

bowls.

To lower the prongs:

Slightly pull them upward and let them drop

down (see picture)

To bring them back to the standing position, just

pull them up again.

Using your appliance

11 PBA10UK

UI39 IEC 436 / DIN 44990

UI21

UI18

☞

The cutlery basket

Long bladed knives stored in an

upright position are a potential

hazard.

Long and/or sharp items of cutlery

such as carvings knives must be

positioned horizontally in the upper

basket.

Take care when loading or unloading

sharp items such as knives.

Cutlery should be placed in the removable cutlery

basket with the handles facing downwards. If the

handles protrude from the bottom of the basket,

obstructing the lower spray arm, load the cutlery with

the handles facing upwards.

Mix spoons with other cutlery to prevent them from

sticking together.

Silver cutlery tends to go black if mixed with steel

cutlery. Place it in the cutlery basket separate from the

others.

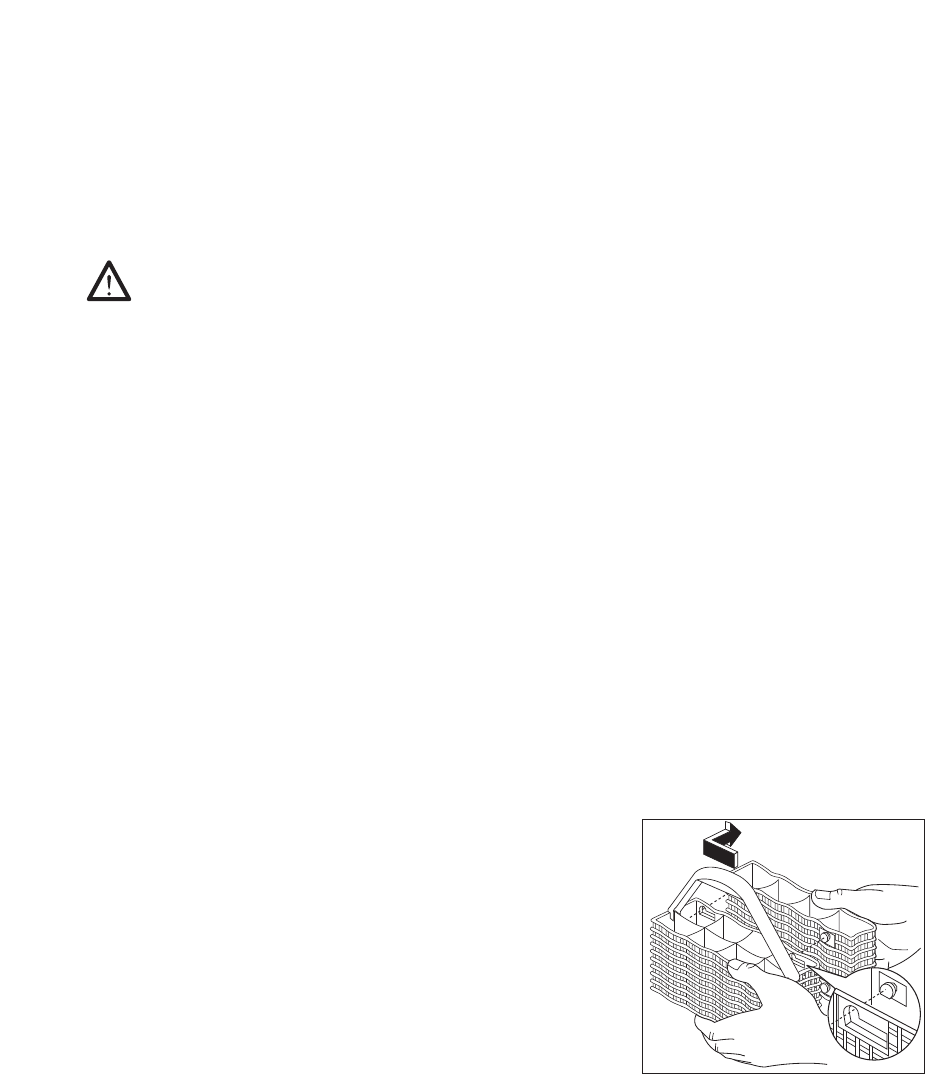

The cutlery basket is in two parts which can be

separated to give greater loading flexibility. To separate

the two parts, slide them horizontally in opposite

directions and pull them apart. To reassemble, reverse

the procedure.

12 PBA11UK

UI07

The upper basket

The upper basket is designed for plates (dessert plates,

saucers, dinner plates of up to 24 cm in diameter), salad

bowls, cups and glasses.

Light items (plastic bowls etc.) should be loaded in the

upper basket and arranged so they do not move.

Arrange items on and underneath the fold-down cup

racks so that water can reach all surfaces. For taller

items, the cup racks can be folded upwards. Long-stem

glasses can then be suspended from the prongs of the

cup racks.

Before closing the door, ensure that

the spray arms can rotate freely.

After loading or unloading your

machine always close the door, as an

open door can be a hazard.

Adjusting the height of the

upper basket

If washing very large plates (over 27 cm and up to 31

cm in diameter) you can load them in the lower basket

after moving the upper basket to the higher position.

To move to the higher position proceed as

follows:

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards until the

mechanism is engaged and the basket is stable.

When the top basket is in the higher position it

will only take plates up to 20 cm in diameter and

you will not be able to use the raised cup racks.

To lower the basket to the original

position:

1. Pull out the basket until it stops.

2. Carefully lift both sides upwards and then allow the

mechanism to drop back down slowly, keeping hold

of it.

Never lift or lower the basket on one side

only.

13 PBA14UK

IEC 436 / DIN 44990

US28

US29

US39

RC04

To save energy

Place dishes in the machine immediately after every

meal and wait until the dishwasher is full before

washing.

If necessary run the Rinse and Hold programme (see

"Washing Programmes" chart on the following page),

so that any food scraps do not become caked on the

dishes while you are waiting to run the complete wash

programme.

Do not prewash dishes under running water.

For best washing results:

Before loading remove all scraps of food and soak

very heavily soiled pots and pans.

Arrange saucepans, cups and glasses etc. upside-

down.

Tilt items with convex or concave surfaces so that the

water drains off easily.

Avoid contact between the dishes as far as possible.

You will improve drying results by leaving the

dishwasher door ajar for at least 15-30 minutes as

soon as the programme finishes.

Wait a few minutes before removing the dishes; in

this way they will be cooler and the drying will be

improved.

Empty the lower basket first and then the upper one;

this will avoid water dripping from the upper basket

onto the dishes in the lower one.

Items not suitable for

dishwashers:

The following items should not be

washed in the dishwasher (unless they

are sold as dishwasher proof):

- Cutlery with wooden or horn handles or

glued parts

- bronze cutlery

- saucepans with wooden handles

- aluminium ware

- crystal ware

- leaded glass

- plastic items

- antique or fine decorated china

Certain types of decoration can discolour when

washed in a dishwasher.

Crystal-ware and plastic objects, if not guaranteed

dishwasher proof should be washed by hand.

Certain types of glass can also become opaque

after being washed several times in a dishwasher.

A chemical reaction can occur between silver cutlery

and stainless steel cutlery. As a precaution, do not

wash together.

Iron and cast iron objects can rust and stain other

items.

Aluminium tends to go black, copper, pewter

and brass tend to stain.

If in doubt check with manufacturer

of the item.

When buying new dishes, ensure

that they are dishwasher proof.

Hints and tips

14 PHT01UK

Washing programmes

15 PWP09UK

Programme Degree of soil

and

type of load

Heavy soil.

Crockery, cutlery

pots and pans

Normal soil.

Crockery and

cutlery

Light soil.

Crockery and

cutlery

Required

pushbuttons

Cycle

description

Recommended quantity

of detergent

in the

dispenser in the

SID

INTENSIVE

70°c

* NORMAL

65°c

** QUICK

50°c

ON

OFF

ON

OFF

ON

OFF

25 g 10 g

25 g 5 g

25 g /

Prewash up to 55°C

Main wash up to 70°C

2 cold rinses

1 hot rinse up to 65°C

Thermal dry

Main wash up to 50°C

1 cold rinse

1 hot rinse up to 55°C

Any.

Partial load (to be

completed later in

the day).

RINSE &

HOLD ON

OFF / / 1 cold rinse

Cold prewash

Main wash up to 65°C

1 cold rinse

1 hot rinse up to 65°C

Thermal dry

Normal soil.

Crockery and

cutlery

* BIO

50°c ON

OFF 25 g 5 g

Cold prewash

Main wash up to 50°C

1 cold rinse

1 hot rinse up to 65°C

Thermal dry

*Testing programme according to IEC 436/DIN 44990

Programme "NORMAL 65°c" with detergent type A and programme "BIO 50°c" with detergent type B;

Standard place settings: 12.

Rinse aid selector on position 3.

Recommended quantity of detergent: 25 g in the dispenser

5 g in the SID.

** This is a special programme for quick washing (approx. 40 minutes) a full load of lightly soiled crockery etc.

RINSE & HOLD

INTENSIVE

70°c

NORMAL

65°c

BIO

50°c

QUICK

50°c

1. Check the filters

Ensure they are clean and properly positioned

(see cleaning instructions).

2. Check that there is rinse

aid and salt

3. Load the dishes

Remove any scraps of food.

Pull the lower basket out and arrange the

saucepans, plates and cutlery in it.

Pull the upper basket out and arrange the plates,

saucers, glasses and cups etc. in it.

Slide the basket back into the machine.

4. Ensure that the spray

arms can rotate freely.

5. Measure out detergent

Add the required amount of detergent into the

dispenser according to the "Washing

programmes" chart and close the lid.

6. Close the detergent

dispenser lid

7. Select the programme

The selection of a programme occurs with the

door partially opened.

Depress the On/Off button; the On/Off

indicator light comes on.

Depress the programme button which

corresponds to the washing programme you

wish to select; the corresponding indicator light

will flash.

8. Start the programme

Close the dishwasher door. An audible signal of

about 1 second advises you that the

programme has started. The indicator light

which corresponds to the programme under

way is now permanently on.

9. At the end of the

washing programme

The dishwasher will automatically stop and an

intermittent audible signal of about 5 seconds

informs you that the programme has finished.

Wait until the end of the signal before opening

the door.

10. Switch off the

dishwasher

Open the door.

The "End of cycle" indicator light flashes.

Depress the On/Off button to switch the

dishwasher off.

11. Cancel the wash

programme

To change a wash programme in progress

depress the button corresponding to the

programme you wish to cancel for about 1

second, until the relevant control light goes out.

The dishwasher is now reset and you can select

a new programme.

In general it is not advisable to open

the door while the machine is

working. If the door is opened

however, a safety device ensures

that the machine stops.

Care must be taken if the door is

opened during the hot phase or

immediately after a programme has

finished, as steam may escape.

When the wash programme has

finished, it is recommended that the

dishwasher is unplugged and the

water tap turned off.

Operating sequence

16 POS06UK

Internal cleaning

Ensure that the seals around the door, the detergent and

rinse aid dispensers are cleaned regularly with a damp

cloth.

We recommend the use of Finish Dishwasher Cleaner

every 3 months or run a 65°C wash without dishes using

detergent. Regular use of Finish Dishwasher Cleaner

cleans inaccessible parts, eliminates unpleasant food

odours and helps prevent the build-up of limescale.

Cleaning the central filter

(After each wash)

Scraps of food may accumulate in the drain filter (A)

and should be removed by rinsing the filter under

running water.

To remove the drain filter:

simply pull it out by the handle.

Once cleaned, refit the filter by pushing it back to its

original position until it engages.

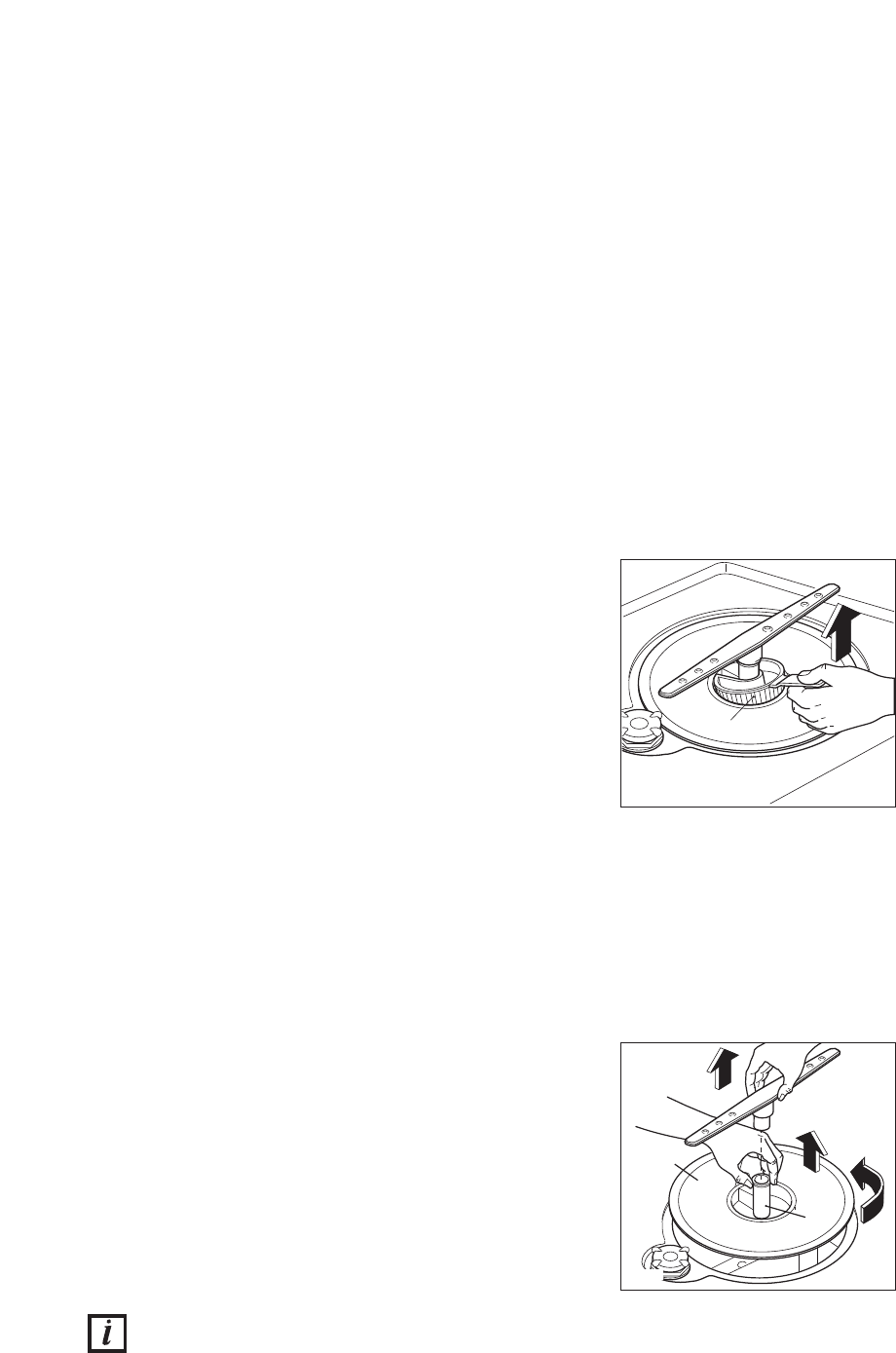

Cleaning the large filter

(Every two months)

If necessary clean the large filter (B) on both sides under

running water, using a brush.

To remove the large filter

1. Remove the spray arm by pulling it upwards on

one side.

2. Turn the column (C) anticlockwise by 90° and

then slide out the filter.

3. Once cleaned refit it following the above

instructions in reverse order.

4. Ensure the filter is in its original position, the

handle of the drain filter should be pointing

towards the front of the appliance.

The dishwasher must not be used

without filters.

Incorrect repositioning and fitting of

the filters will produce poor washing

results.

Cleaning the filters is vital to ensure

correct operation of the machine.

Maintenance and cleaning

17 PMC04UK

A

MA04

C

90°

B

MA05

☞

☞

Check that the SID is not clogged with detergent

residue. If necessary, rinse it under running water after

having removed it from the basket by twisting it

anticlockwise and pulling it upwards.

Fasten it back onto the support by turning it clockwise.

Never use your dishwasher without

the SID dispenser.

External cleaning

Clean the external surfaces of the machine and control

panel with a damp soft cloth. If necessary use only

neutral detergents. Never use abrasive products,

scouring pads or solvent (acetone, trichloroethylene

etc....).

Prolonged periods of non-

operation

If you are not using the machine for any

period of time you are advised to:

1. Unplug the appliance and then turn off the

water;

2. Fill the rinse aid dispenser;

3. Leave the door ajar to prevent the formation of

any unpleasant smells;

4. Leave the inside of the machine clean.

Frost precautions

Avoid placing the machine in a location where the

temperature is below 0°C. If this is unavoidable, empty

the machine, close the appliance door, disconnect the

water inlet pipe and empty it.

Moving the machine

If you have to move the machine (moving

house etc....):

1. Unplug it;

2. Turn the water tap off;

3. Remove the water inlet and discharge hoses;

4. Pull the machine out together with the hoses.

Avoid over tilting the machine during transport.

18 PMC05UK

MA12

Symptom Fault code Solution

The machine will not start ■The On/Off button has not been pressed.

■The door has not been properly closed.

■The plug is not properly inserted in the power

socket.

■Check the plug fuse.

■There is no current at the socket.

The dishwasher does not "Rinse & Hold" ■Ensure the water tap is open.

fill with water programme light ■Ensure the mains water supply has not been cut off.

flashing very fast ■The inlet hose may be squashed or bent.

Reposition the hose.

■The inlet hose may be blocked.

Switch off the water supply, and clean the filter.

The filters are blocked "Intensive" ■Clean the filters (refer to “Maintenance and

programme light cleaning”).

flashing very fast ■The spray arms are not rotating. Ensure the

crockery is loaded correctly.

The dishwasher will not drain "Quick" ■The drain hose may be squashed or bent.

programme light Reposition the hose.

flashing very fast ■The sink may be blocked. Clear any blockages.

■The drain hose extension is not correct. Follow the

instructions for connecting to the waste.

■There is no vent in the end of the drain hose.

"Normal" or "Bio" ■Switch off the dishwasher. Switch it back on and

programme light start the programme. If the alarm reappears, call

flashing very fast the local Service Force Centre.

The machine is noisy ■Dishes are rattling against each other, refer to

"Loading your machine".

■The spray arms are knocking against the dishes.

Refer to "Loading your machine".

The door is difficult to close ■The dishwasher is not level, or not properly built-

in.

Something not working

19 PSN08UK

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling

out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below.

The dishwasher is fitted with a number of alarm systems which can help you quickly determine the cause of any

problems.

If the "On/Off" indicator light on the control panel is off and you see the following signals, carry out the suggested

corrective action:

- switch off the dishwasher, switch back on and start the wash programme.

If the fault code reappears, contact your local Service Force Centre.

Important: If you call out an engineer to a fault listed below or to repair a fault caused by incorrect use or

installation a charge will be made even if the appliance is in guarantee.

Symptom Solution

The dishes are not clean (poor wash) ■The baskets are too full.

■The dishes have not been arranged properly.

■The spray arms do not rotate.

■The spray arms are clogged.

■The filters are clogged.

■The filters are not in position.

■Not enough detergent has been used or it is unsuitable.

■The detergent is old or has gone hard.

■The salt container cap is not properly closed.

■The washing programme selected is too gentle.

Visible lime deposits or white film on ■The rinse aid has run out or too little is being used.

the dishes ■Check that there is salt and that the salt cap is tight.

■Ensure the water softener has been adjusted to suit the water

hardness in your area.

The dishes are not quite dry ■The dishes have been left too long inside the machine.

20 PSN09UK

If after all these checks, the problem persists, contact

your local Service Force Centre, quoting the model and

serial number. This information can be found on the

rating plate located on the right hand side of the

dishwasher door (see picture).

Service and spare parts

In the event of your appliance requiring service, or if

you wish to purchase spare parts please contact your

local Zanussi Service Force Centre by telephoning:

0990 929929

Your telephone call will be automatically routed to the

Service Centre covering your post code area. Service

Centre addresses can be found in the accompanying

Customer Care book.

Before calling out an engineer, please ensure you have

read the details under the heading “Something Not

Working” and have the model number and purchase date

to hand.

In-guarantee customers should ensure that the

checks under the heading “Something Not Working”

have been made as the engineer will make a charge if

the fault is not a mechanical or electrical breakdown.

Please note that it will be necessary to provide proof

of purchase for any in-guarantee service calls.

Customer Care Department

For general enquiries concerning your Zanussi appliance

or for further information on Zanussi products please

contact our Customer Care Department by letter or

telephone as follows:

Customer Care Department

Zanussi

Zanussi House

Hambridge Road

Newbury

Berkshire

RG145EP

Tel: 01635 521313

21 PSN06UK

Prod.No.

........

Ser. No.

.........

Mod.

........

RA01

Standard guarantee conditions

We, Zanussi, undertake that if within 12 months of the date of purchase this Zanussi appliance or any part thereof

is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace

the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s

instructions.

• The appliance has not been serviced, maintained repaired, taken apart or tampered with by any person not

authoried by us.

• All service work under this guarantee must be undertaken by a Zanussi Service Force Centre.

• Any appliance or defective part replaced shall become the Company’s property.

• This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these

hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or

removable parts of glass or plastic.

• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the

United Kingdom.

• Appliances found to be in use within a commercial environment, plus those which are subject to rental

agreements.

• Products of Zanussi manufacture which are not marketed by Zanussi.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home

subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.

• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of

use for this brand or range of products.

• This guarantee relates to you and cannot be transferred to another user.

• Your new home is within European Community (EC) or European Free Trade Area.

• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a

normal household.

• The product is installed taking in account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new

home. They will then ensure that the local Service Organisation is aware of your move and able to look after you

and your appliance.

France Senlis +33 (0) 44 62 29 99

Germany Nurenberg +49 (0) 911 323 2600

Italy Pordenone +39 (0) 1678 47053

Sweden Stockholm +46 (0) 8 738 79 50

UK Newbury +44 (0) 1635 521313

Guarantee Conditions

22 PSN07UK

Any electrical work required to install

this appliance should be carried out

by a qualified electrician or

competent person.

Any plumbing work required to install

this appliance should be carried out

by a qualified plumber or competent

person.

Ensure the machine is easily accessible for

servicing when installed.

Technical specifications

Installation instructions

23 PTS09UK

DIMENSIONS Width 59.6 cm

Height 81.8 - 87.8 cm

Max depth 55 cm

Max depth with open door 111.4 cm

ELECTRICAL CONNECTION Voltage 220/240 V - 50 Hz

MOTOR RATING DURING WASH 200 W

POWER OF HEATING ELEMENT 2100 W

OVERALL POWER 2300 W

WATER SUPPLY PRESSURE Minimum 50 kPa (0.5 bar)

Maximum 800 kPa (8 bar)

CAPACITY (STANDARD IEC)

PLACE SETTINGS 12

CONSUMPTION Water 19 l

Electricity 1.4 kW/h

Remove all packaging before positioning

the machine.

If possible, position the machine next to a water tap and

a drain.

Water supply connections

This dishwasher must be plumbed into a cold water

supply.

The water pressure must be within the limits given in

the technical specifications.

Your local Water Authority will advise you on the

average mains pressure in your area.

The dishwasher features fill and drain hoses which can

be turned either to the left or the right to suit the

installation.

The locknut must be correctly fitted to

avoid water leaks.

Avoid bends or kinks in the hose which could prevent or

slow down the water supply.

If the machine is connected to new pipes or pipes which

have not been used for a long time, you should run the

water for a few minutes before connecting the inlet

hose. This will prevent deposits of sand or rust clogging

the inlet hose filter.

24 PWA01UK

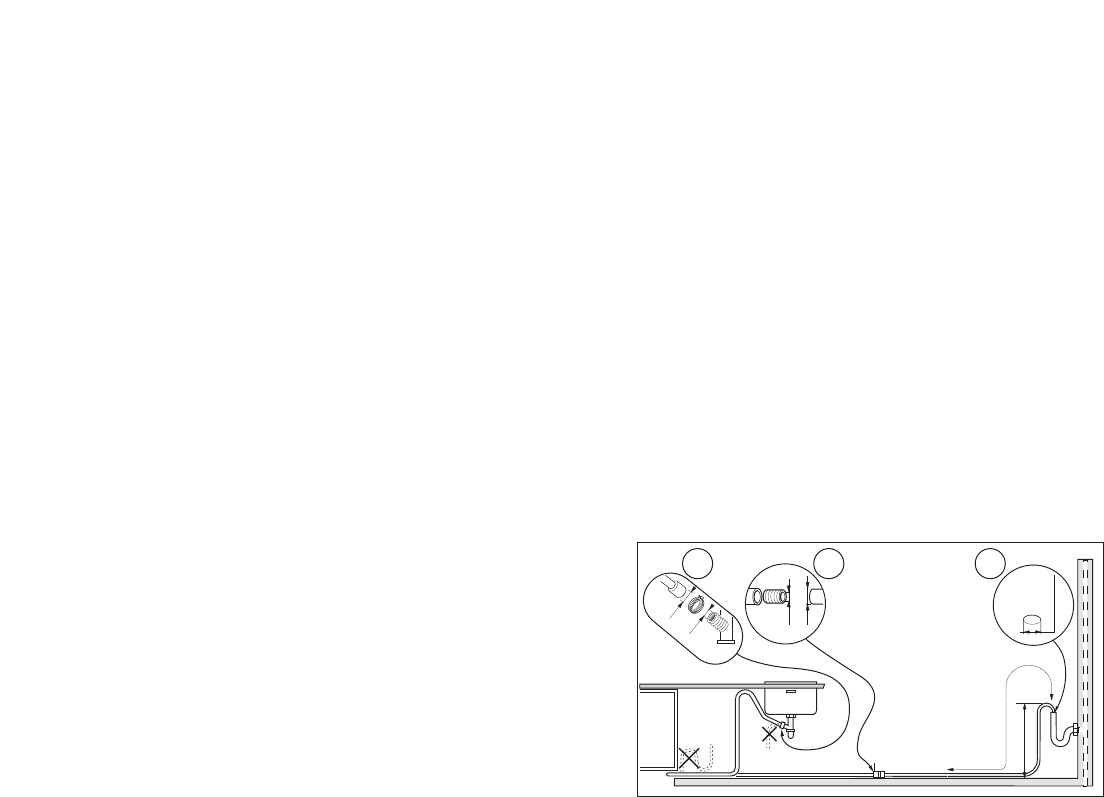

Water outlet hose

connection

The end of the drain hose can be connected in the

following ways:

A- To the sink outlet siphon, securing it if necessary

with a clip.

B- To a wall outlet provided with a vent-hole, minimum

internal diameter 4 cm.

The waste connection must be at a height of between 30

cm (minimum) and 100 cm (maximum) from the floor.

It makes no difference which way the drain hose faces,

either to the right or left of the dishwasher.

Ensure the hose is not bent or squashed as this could

prevent or slow down the discharge of water.

C-If you use a drain hose extension it must be no longer

than 2 metres and its internal diameter must be no

smaller than the diameter of the hose provided.

Likewise the internal diameter of the couplings used for

connections to the waste outlet must be no smaller than

the diameter of the hose provided.

The sink plug must not be in place when

the machine is draining as this could cause

the water to siphon back into the machine.

25 PWA04UK

CS11

min 30 cm

max 100 cm

+ 2 m max

min 4 cm

Ø 21

Ø 18

Ø 18

Ø 21

A BC

Electrical connection

This appliance must be earthed.

The manufacturer declines any

responsibility should this safety measures

not be observed.

If the plug that is fitted to your appliance is not suitable

for the socket, it must be cut off and the appropriate plug

fitted.

Important

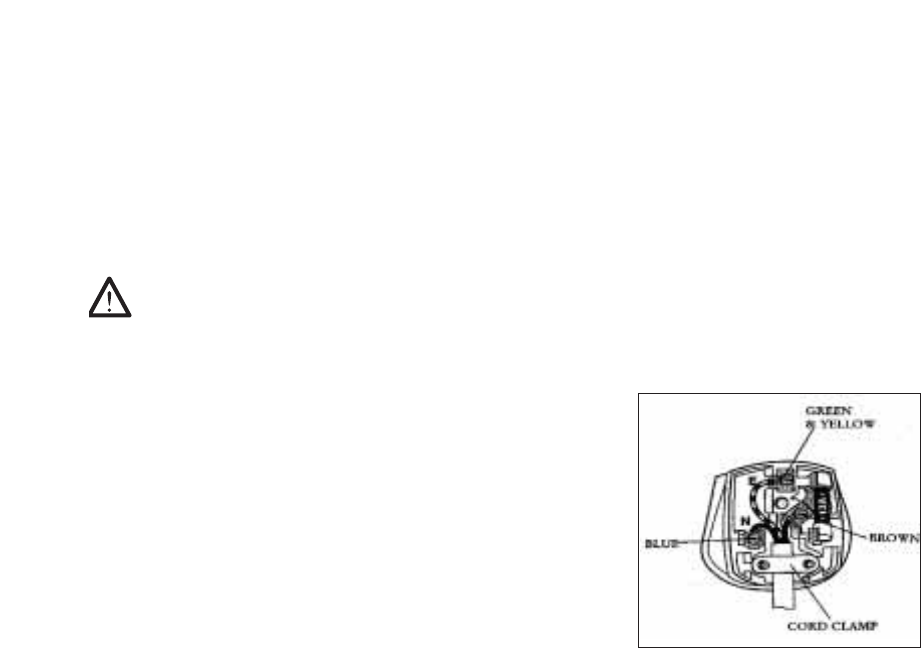

The wires on the mains lead are coloured in accordance

with the following code:

Green and Yellow -Earth

Blue -Neutral

Brown -Live

If you fit your own plug, the colours of the wires in the

mains lead of your appliance may not correspond with

the markings identifying the terminals in your plug.

Proceed as follows:

1. Connect the Green and Yellow (earth) wire to the

terminal in the plug which is marked with the letter

"E" or the earth symbol or coloured green and

yellow.

2. Connect the Blue (neutral) wire to the terminal in the

plug which is marked with the letter "N" or coloured

black.

3. Connect the Brown (live) wire to the terminal in the

plug which is marked with the letter "L" or coloured

red.

The plug moulded onto the lead incorporates a 13amp

BSI362 fuse. Only ASTA or BSI fuses should be used.

The plug must not be used if the fuse cover/carrier is

lost. The cover/carrier is indicated by the coloured insert

at the base of the product.

A replacement cover/carrier must be obtained from your

local Service Force Centre.

This appliance complies with the following

E.E.C. Directives:

- 73/23 or 19.2.73 (Low Voltage Directive)

and subsequent modifications;

- 89/336 or 3.5.89 (Electromagnetic

Compatibility Directive) and subsequent

modifications.

26 PWA02UK

CE03

This dishwasher is designed to be fitted under a kitchen

counter or worksurface.

It is essential that the recess dimensions indicated in the

diagram are followed.

No further openings for venting of the dishwasher are

required, but only to let the water fill and drain hose and

power supply cable pass through.

The recess height may be anywhere between 820 and

880 mm from the floor as the dishwasher incorporates

adjustable feet (max 60 mm).

A distance of 2 mm should be allowed between the top

of the dishwasher and the counter top.

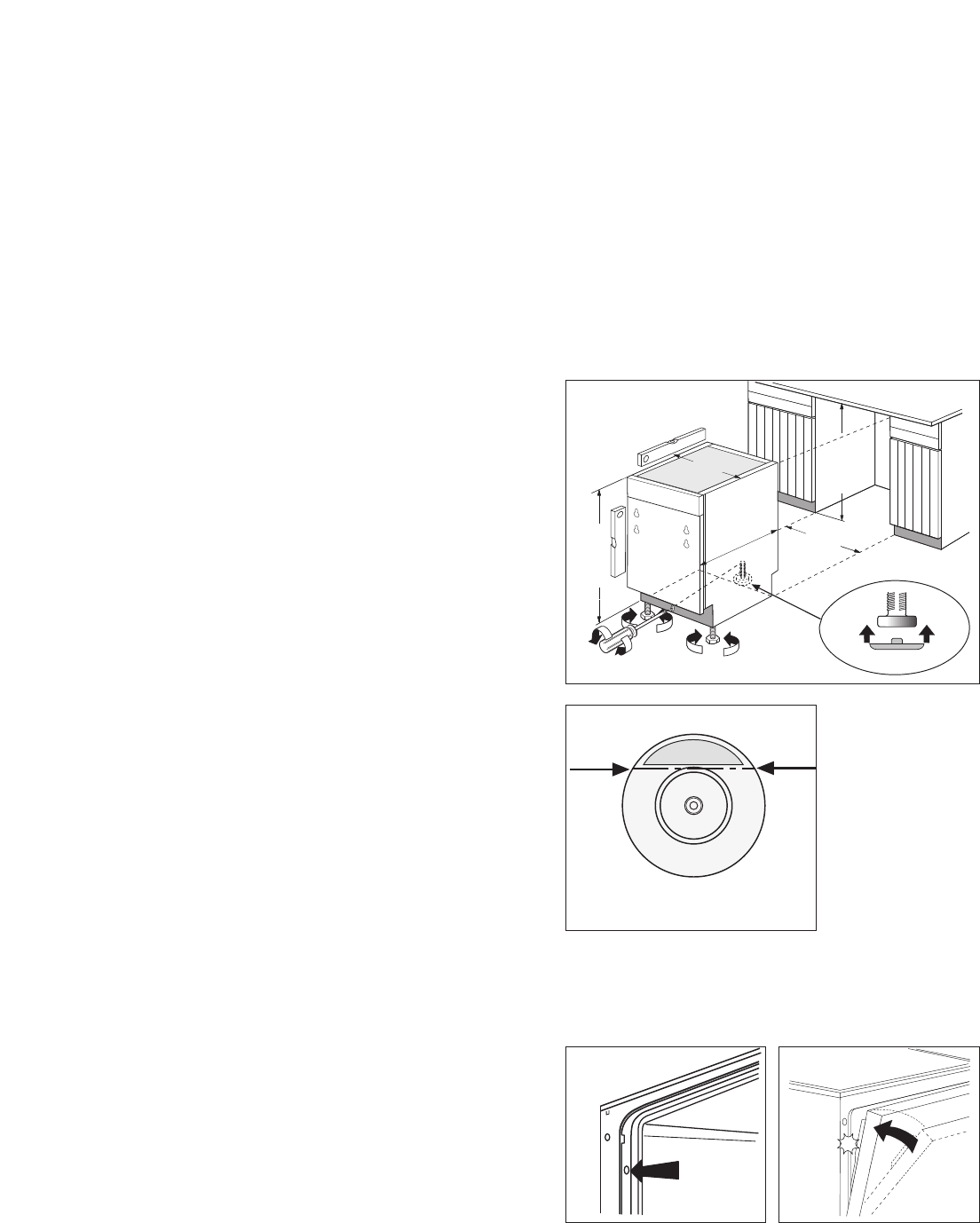

Adjusting the height of the

appliance

To adjust the height proceed as follows:

1. Loosen or tighten the two front feet.

2. The rear foot is adjusted by turning the screw in

the middle of the front kick plate to the left or

right.

A pad is supplied for the rear foot to make sliding the

appliance in and out of the recess easier.

To fit the pad, press it onto the rear foot.

If required, the dimensions of this pads can be reduced

by breaking it where marked.

Good levelling is essential for correct closure and

sealing of the door. When the appliance is correctly

levelled, the door will not catch on the levelling spacers,

either side of the cabinet.

If the door does not close correctly, loosen or tighten the

adjustable feet until the machine is perfectly level.

Building-in

27 PFI20UK

575

max

600

596

555

max

600

+

-

550

max

596

820 880

÷

818 878

÷

II64

II52

IN11 IN12

The furniture door

The door on this appliance is designed for the overlay of

a panel having the following dimensions:

Width: 596 mm

Height: 664 - 724 mm max

Thickness: 20 mm max

Weight: 2 - 7.5 kg max

The panel height should be no more than indicated,

otherwise complete opening of the door will no

longer be possible as the panel hits against the

dishwasher plinth.

Mounting the furniture door

onto the door

The height of the panel depends on the height of

adjacent kitchen units (see kitchen plinth adjustment).

The panel must be fitted with a handle, as the

dishwasher handle will be hidden by the panel. Drill the

panel with a Ø 2 x 14 bit according to the dimensions

indicated in the figure.

Screw the two fastening pivots in the holes indicated in

the figure.

Mount the decor panel by inserting the two fastening

pivots into the slotted holes of the door. Lift the decor

panel until perfect alignment with the fascia panel is

obtained.

Once the correct position has been found, open the door

and fasten the decor panel by means of the six 4 x 40

screws provided, using the holes through the inner door.

28 PFI16/1UK

==

525

187

596 max

II92

II79

II80

Securing to the adjacent

units

To prevent the dishwasher tilting, it must be secured to

either the worktop or adjacent kitchen cabinet/wall using

the brackets supplied.

Insert the two fixing brackets into the slots provided in

the top front part of the dishwasher as shown in the

figure.

Secure the brackets to the adjacent units with the 3.5 x

16 screws using the upper or the side holes.

The appliance must be secured to the

underside of the underside of the

worktop using the brackets provided.

Failure to do this could cause damage

or injury.

29 PFI14/1UK

II54

Noise protection

Adhesive noise protection ensures excellent noise

insulation. This should be fitted when the dishwasher

has been mounted in the recess and the height adjusted.

Apply the protection as shown in the drawing, making

sure that the non-adhesive section reaches right down to

the floor.

Kitchen plinth adjustment

To allow correct opening of the door it is sometimes

necessary to cut the kitchen plinth. Refer to the cutting

table.

According to dimensions (a) and (b) as shown on the

figure, you will find on the following table the depth (x)

of the cut to be made on the plinth.

The dimensions (a) and (b) of the table are those most

frequently used in the kitchen furnitures.

30 PFI17UK

II59

II61

a

b

II15

170 160 150 140 130 120 110 100

136 131 125 118 110 100 93 85

135 131 125 118 110 102 92 85

137 132 125 118 110 102 94 85

138 134 128 120 110 104 95 85

139 130 124 115 105 98 88

138 129 120 110 100 90

135 125 115 105 95

90

75

75

75

75

78

80

85

/

/ /

/

40

50

60

70

80

90

100 / /

Height (a)*

Depth (b)*

X

X

600 mm

minimum

Dimensions of the

cut on the plinth

(*) dimensions in mm

1 02/99
