ZANUSSI

Manual

User

Machine

Washing

ZWG1100M

ZWG1140M

ZWG1120M

Contents

Safety information

Safety information _ _ _ _ _ _ _ _ _ _ _ _ _2

Product description _ _ _ _ _ _ _ _ _ _ _ _ 4

Control Panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ 5

Washing programmes _ _ _ _ _ _ _ _ _

Helpful hints and tips _ _ _ _ _ _ _ __ _ _ 9

First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10

Personalisation _ _ _ _ _ _ _ _ _ _ _ _ _ _ 10

Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 11

_ _ _ _ _

_ _ _ _

_ _ _ _ _ 7-8

_ _ _ _ _

_ _ _ _

_ _ _ _ _ _

Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ 13

What to do if ... _ _ _ _ _ _ _ _ _ _ _ _ _ _ 15

Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ 17

Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18

Electrical connection

Environmental concerns _ _ _ _ _ _ _ _ _ 19

_ _ _ _ _

_ _ _ _

_ _ _ _ _

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 19

_ _ _ _ _

Subject to change without notice

Important!

General safety

Read carefully & keep for future

reference.

• The safety of your appliance complies with the

industry standards and with legal requirements on

the safety of appliances. However, as

manufacturers, we feel it is our duty to provide the

following safety notes.

• It is most important that this instruction book

should be retained with the appliance for future

reference. Should the appliance be sold or

transferred to another owner, or should you move

house and leave the appliance, always ensure that

the book is supplied with the appliance in order

that the new owner can get to know the functioning

of the appliance and the relevant warnings.

• You MUST read them carefully before installing or

using the appliance.

• Before first starting up, check the appliance for any

damage incurred during transport. Never connect

up a damaged appliance . If parts are damaged,

contact your supplier.

• If the appliance is delivered in the winter months

when there are minus temperatures, store it at

room temperature for 24 hours before using for the

first time.

• It is dangerous to alter the specifications or attempt

to modify this product in any way.

• During high temperature wash programmes the

doorglass may get hot. Do not touch it!

•Make sure that small children and pets do not climb

into the drum.To avoid this, please check into the

drum before using.

•Any objects such as coins, safety pins, nails,

screws,stones or any other hard, sharp material

can cause extensive damage and must not be

placed into the machine.

•Only use the advised quantities of fabric softener

and detergent. Damage to the fabric can ensue if

you over-fill. Refer to the manufacturer’s

recommendations of quantities.

•Wash small items such as socks, laces, washable

belts etc in a washing bag or pillow case as it is

possible for such items to slip down between the

tub and the inner drum.

•Do not use your washing machine to wash articles

with whalebones, material without hems or torn

material.

•Always unplug the appliance and turn off the

watersupply after use, cleaning and maintenance.

•Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by

inexperienced people may cause injury or serious

malfunctioning. Contact your local Service Centre.

Always insist on genuine spare parts.

•This appliance is heavy. Care should be taken

when moving it.

•When unpacking the appliance, check that it is not

damaged. If in doubt, do not use it and contact the

Service Centre.

Installation

ZANUSSI

•All packing and transit bolts must be removed

before use. Serious damage can occur to the

product and to property if this is not adhered to.

See relevant section in the user manual.

•After having installed the appliance, check that it is

not standing on the inlet and drain hose and the

worktop is not pressing the electrical supply cable

against the wall.

•If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely under the appliance.

•Always be sure, that there is no water leakage

from hoses and their connections after the

installation.

•If the appliance is installed in a location subject to

frost, please read the “dangers of freezing”chapter.

•Any plumbing work required to install this appliance

should be carried out by a qualified plumber or

competent person.

•Any electrical work required to install this appliance

should be carried out by a qualified electrician or

competent person.

•This appliance is designed for domestic use. It

must not be used for purposes other than those for

which it was designed.

•Only wash fabrics which are designed to be

machine washed.Follow the instructions on each

garment label.

•Do not overload the appliance. See the Washing

Programme Table.

•Before washing, ensure that all pockets are empty

and buttons and zips are fastened. Avoid washing

frayed or torn articles and treat stains such as

paint, ink, rust, and grass before washing.

Underwired bras must NOT be machine washed.

•Garments which have been in contact with volatile

petroleum products should not be machine

washed.

Use

If volatile cleaning fluids are used, care should be

taken to ensure that the fluid is removed from the

garment before placing in the machine.

•Never pull the power supply cable to remove the

plug from the socket; always take hold of the plug

itself.

•Never use the appliance if the power supply cable,

the control panel, the working surface or the base

are damaged so that the inside of the washing

machine is accessible.

•This appliance is not intended for use by person

(including children) with reduced physical sensory

or mental capabilities or lack of experience and

knowledge unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

•The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children - danger

of suffocation! - Keep them out of children’s reach!

•Keep all detergents in a safe place out of children’s

reach.

•Make sure that children or pets do not climb into

the drum. To prevent children and pets becoming

trapped inside the drum this machine incorporates

a special feature.

Child safety

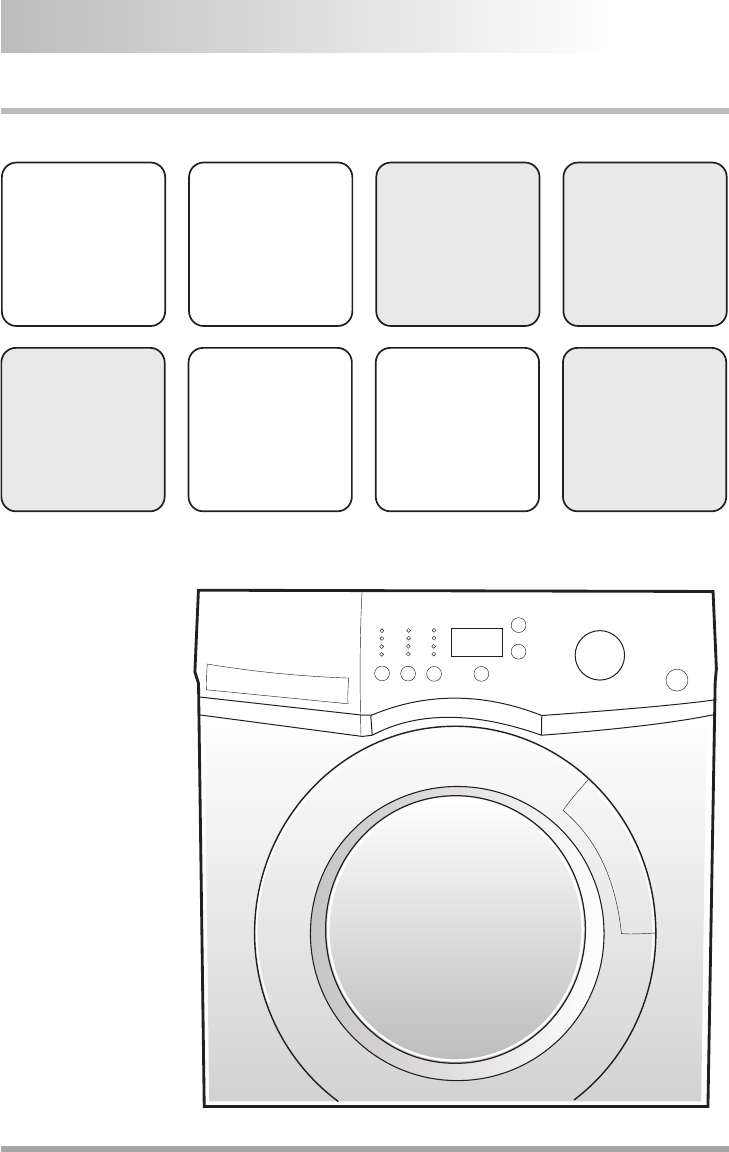

Product description

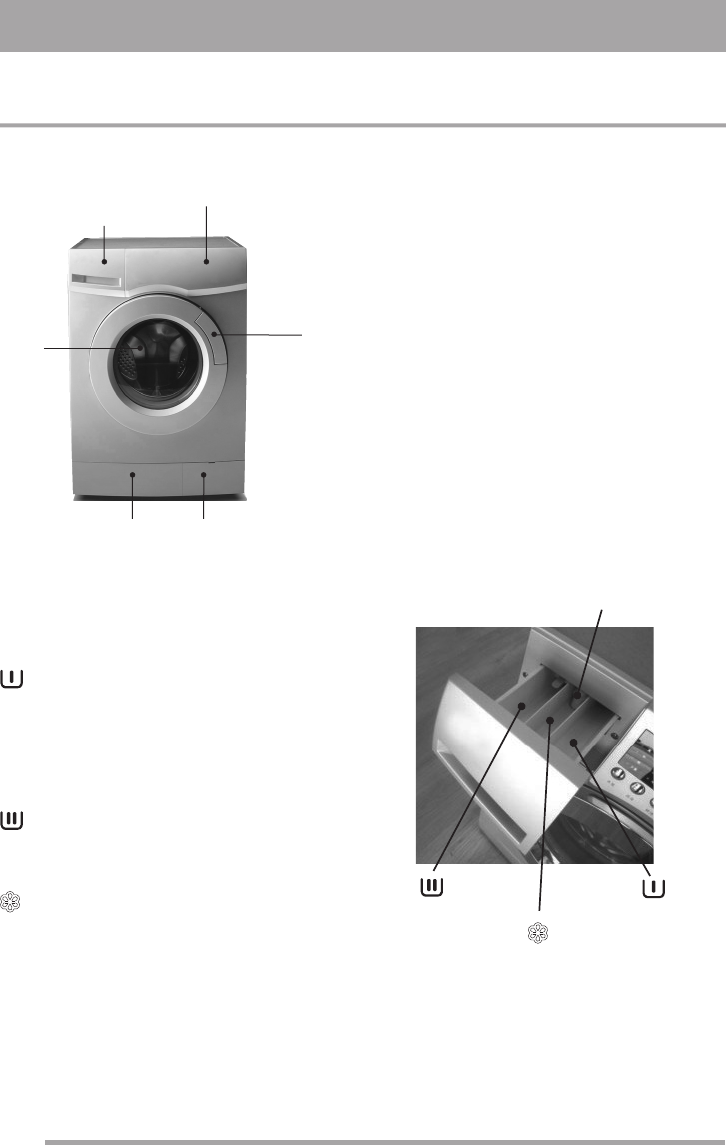

The detergent

compartment

Door handle

Filter door

Service panel

The control panel

Basket

1. Install the washing machine

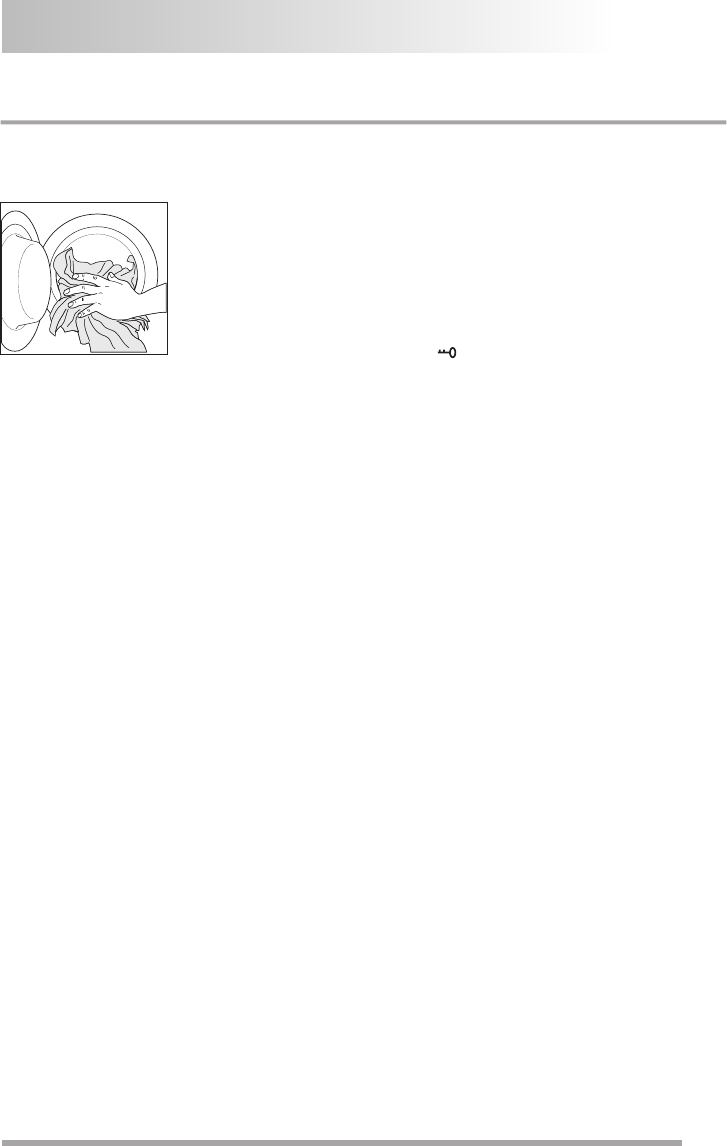

2. Load the laundry

3. measure out the detergent

4. Close the machine door

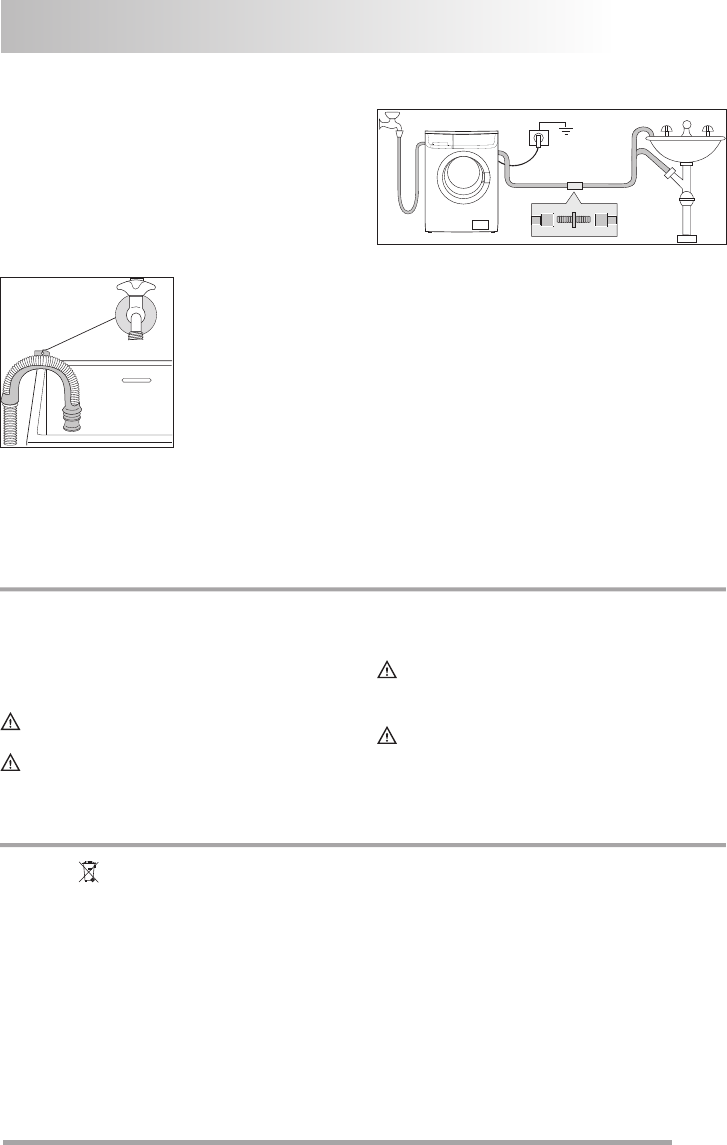

5. Put down (hang up) the drain pipe

6. Turn on the water tap

7. Plug the power supply

8. Select the desired programme

9. Press the [start/pause] key

Detergent dispenser drawer

Compartment for detergent used for

prewash and soak phase or for stain

remover used during the stain action phase

(if available). The prewash and soak

detergent is added at the beginning of the

wash programme. The stain remover is

added during the stain action phase.

Compartment for powder or liquid

detergent used for main wash. If using liquid

detergent pour it just before starting the

programme.

Compartment for liquid additives (fabric

softener, starch).

Follow the product manufacturer’s

recommendations on quantities to use and

do not exceed the «MAX» mark in the

detergent dispenser drawer. Any fabric

softener or starching additives must be

poured into the compartment before starting

the wash programme.

Main wash detergent

Special additive

Pre-wash detergent

«MAX»

Quick Guide

ZANUSSI

Control panel

234

8 7 6 5

3 8

4 9

Display DELAY START button

OPTIONS button SPIN button

Programme selector dial TEMPERATURE button

START/PAUSE button SOIL LEVEL button

ADDITIONAL CHILD LOCK button

Display

•

The corresponding lights (pre wash, washing,

rinse, spin) will flash when the washing proceeds

to each step during the washing process.

The «DELAY» will light when the delay programme

is selected and it will display the delay time. It will

start the programme after [xx] hours.

After the washing procedure is began, [REMAIN]

will be lightened, and the displayed time indicates

that the washing will be finished within [xxx] time.

In order to get better care of your clothes you can

select the extra rinse or pre wash function.

So your clothes have a more efficient and clean

wash different wash cycles can be selected

depending on the users needs.

OPTIONS button

Programme selector dial

•

When the child lock function is selected, «

will be light up.

When the door is at the lock state, «DOOR

LOCKED» will be light up. The door can be opened

only after the light turns off.

CHILD

LOCKED»

START/PAUSE button

•

• Y

•

• B

•

ou can select according to the soil level of the

laundry.

y pressing this button you can change the spin

speed of the selected programme or to select

Rinse Hold option

This button is used for delay wash. You can get

0-24 hours through pressing this key contimuously.

The delay time means the wash will begin in «xx»

hours.

Start/Pause» button, has the start and pause

function. When this button is pressed continuously,

this machine is switched between start and

pause.

This button is used to adjust the wash temperature.

You can select different water temperature or no

heating by pressing the button repeatedly.

SOIL LEVEL button

TEMPERATURE button

SPIN SPEED button

DELAY START button

Additional child lock.

There is an additional, selectable child safety

feature. To select it, press button for three

seconds. The Child Lock button also locks the

Start/Pause button. An English text and the image

of the head of a child appear in the display when

the lock is activated.

You can now also press the Pause button without

anything happening.

There will just be an error beep. When the

programme has finished, the door can be opened,

but to select the next wash you need to press the

Child Lock button once more to cancel the child

lock.

Turning the machine off and then on again will not

cancel the child lock, so it can be left permanently

locked.

•

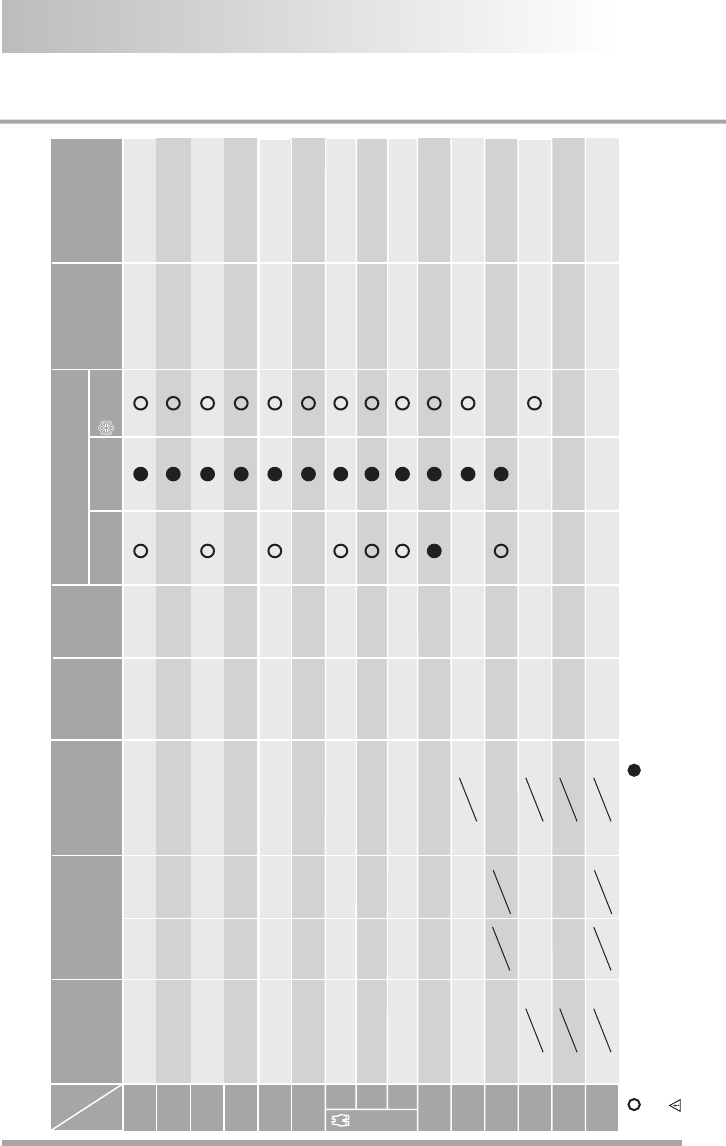

Washing Programmes for ZWG1100M-ZWG1120M

Maximum Maximum spin speed The maximum washing

capacity (kilogram)

Detergent box

Pre-wash Main wash

Extra Rinse Pre-Wash

95 1000 1200

1000 1200

2.5

1000 1200

800 900

600 600

1000 1200

600 600

Optional

Optional Selected

Must

Optional

Non-optional

III

( )Default

It means the detergent or the softener cannot be added.

temperature

(Centigrade) RPM

Optional

Non-optional

Cycle

Fabric

Kidswear

The operation time of the wash machine will change with the variance of the water temperature, water level, clothes, inlet water pressure and drain state.

It means to add the detergent or the softener when it is needed. It means it is necessary to add the detergent or the wash effect cannot be reached.

Softener

1:23

0:23

2:47

0:43

0:57

0:34

1:20

0:53

1:34

1:52

1:03

0:32

0:14

0:08

0:01

Default

operation time

Comparatively thick

clothes

The clothes that only

need the single wash

Comparatively dirty

clothes

Lightly Soiled

Ordinary clothes

No detergent

Clothes to be

washed (suggestion)

Woolen clothes

Chemical fibre clothes

Silk clothes

Children's underwear

Ordinary children's wear

Comparatively dirty

children's wear

ZANUSSI

Quick

Cottons

Wool

Cottons

Quick

Delicates

Intensive

Colour

Hygene

Drain

Synthetics

Intensive

Rinse

Spin

Main Wash

Only

Self

Clean

Maximum spin speed The maximum washing

capacity (kilogram)

Detergent box

Pre-wash Main wash

Extra Rinse Pre-Wash

1400

2.5

1400

1000

600

1400

600

Optional

Optional Selected

Must

Optional

Non-optional

III

It means the detergent or the softener cannot be added.

(Centigrade) RPM

Optional

Non-optional

The operation time of the wash machine will change with the variance of the water temperature, water level, clothes, inlet water pressure and drain state.

It means to add the detergent or the softener when it is needed. It means it is necessary to add the detergent or the wash effect cannot be reached.

Softener

1:24

0:24

3:05

0:43

0:58

0:34

1:21

0:54

1:35

1:53

1:03

0:32

0:15

0:09

0:01

Default

operation time

Comparatively thick

clothes

The clothes that only

need the single wash

Comparatively dirty

clothes

Lightly Soiled

Ordinary clothes

No detergent

Clothes to be

washed (suggestion)

Woolen clothes

Chemical fibre clothes

Silk clothes

Children's underwear

Ordinary children's wear

Comparatively dirty

children's wear

Washing Programmes for ZWG1140M

Maximum

( )Default

temperature

Cycle

Fabric

Quick

Cottons

Wool

Cottons

Quick

Delicates

Kidswear

Intensive

Colour

Hygene

Drain

Synthetics

Intensive

Rinse

Spin

Main Wash

Only

Self

Clean

Helpful hints and tips

ZANUSSI

Sorting out the laundry

Before loading the laundry

Removing stains

Blood:

Oil based paint:

Dried grease stains:

Rust:

Mould stains:

Grass:

Ball point pen and glue:

Lipstick:

Red wine:

Follow the wash code symbols on each garment label

and the manufacturer’s washing instructions. Sort the

laundry as follows: whites, coloureds, synthetics,

delicates, woollens.

Never wash whites and coloureds together. Whites

may lose their «whiteness» in the wash.

New coloured items may run in the first wash; they

should therefore be washed separately the first time.

Button up pillowcases, close zip fasteners, hooks and

poppers. Tie any belts or long tapes.

Remove persistent stains before washing.

Rub particularly soiled areas with a special detergent

or detergent paste.

Treat curtains with special care. Remove hooks or tie

them up in a bag or net.

Stubborn stains may not be removed by just water

and detergent. It is therefore advisable to treat them

prior to washing.

treat fresh stains with cold water. For dried

stains, soak overnight in water with a special

detergent then rub in the soap and water.

moisten with benzine stain remover,

lay the garment on a soft cloth and dab the stain;

treat several times.

moisten with turpentine, lay the

garment on a soft surface and dab the stain with the

fingertips and a cotton cloth.

oxalic acid dissolved in hot water or a rust

removing product used cold. Be careful with rust

stains which are not recent since the cellulose

structure will already have been damaged and the

fabric tends to hole.

treat with bleach, rinse well (whites

and fast coloureds only).

soap lightly and treat with bleach (whites and

fast coloureds only).

moisten with acetone*, lay

the garment on a soft cloth and dab the stain.

moisten with acetone as above, then treat

stains with methylated spirits. Treat any residual

marks with bleach.

soak in water and detergent, rinse and

treat with acetic or citric acid, then rinse. Treat any

residual marks with bleach.

Ink:

Tar stains:

Detergents and additives

Quantity of detergent to be used

depending on the type of ink, moisten the fabric

first with acetone*, then with acetic acid; treat any

residual marks on white fabrics with bleach and then

rinse thoroughly.

first treat with stain remover, methylated

spirits or benzine, then rub with detergent paste.

Good washing results also depend on the choice of

detergent and use of the correct quantities to avoid

waste and protect the environment.

Although biodegradable, detergents contain

substances which, in large quantities, can upset the

delicate balance of nature.

The choice of detergent will depend on the type of

fabric (delicates, woollens, cottons, etc.), the colour,

washing temperature and degree of soiling.

All commonly available washing machine detergents

may be used in this appliance:

•powder detergents for all types of fabric

•powder detergents for delicate fabrics (60°C max)

and woollens

•liquid detergents, preferably for low temperature

wash programmes (60°C max) for all types of fabric,

or special for woollens only.

The detergent and any additives must be placed in

the appropriate compartments of the dispenser

drawer before starting the wash programme.

If using liquid detergents, a programme without

prewash must be selected.

Your appliance incorporates a recirculation system

which allows an optimal use of the concentrated

detergent.

Follow the product manufacturer’s recommendations

on quantities to use and do not exceed the «MAX»

mark in the detergent dispenser drawer.

The type and quantity of detergent will depend

on the type of fabric, load size, degree of soiling

and hardness of the water used.

Follow the product manufacturers’instructions

on quantities to use.

Use less detergent if:

•you are washing a small load

•the laundry is lightly soiled

•large amounts of foam form during washing.

*do not use acetone on artificial silk.

Degrees of water hardness

Water hardness is classified in so-called

«degrees» of hardness. Information on hardness

of the water in your area can be obtained from

the relevant water supply company, or from your

local authority. If the water hardness degree is

medium or high we suggest you use a water

softener, following the manufactures

instructions.

When the degree of hardness is soft, re-adjust

the quantity of the detergent.

First Use

Personalization

•Ensure that the electrical and water connections

comply with the installation instructions.

•Remove any material from the drum.

Acoustic signals

Child safety lock

The machine is provided with an acoustic device,

which sounds in the following cases:

•at the end of the cycle

•if there is a fault.

It is not possible deactivate the acoustic signal.

This device permits you to leave the appliance

unattended so you do not need to worry that children

might be injured by or cause damage to the

appliance. This function remains enabled also when

the washing machine is not working.

•Run a cotton cycle at the highest temperature

without any laundry in the machine, to remove any

manufacturing residue from the drum and tub. Pour

1/2 a measure of detergent into the main wash

compartment and start the machine.

You can activate it as follow:

1. Press button 4 to start the washing programme.

2. Press button 5 for three seconds to activate the

safety device .

Now, it will be impossible to change any other

programme or option.

Load the laundry

Measure out the detergent and the fabric softener

Select the required programme by means of the

programme selector dial (3)

Important!

Select the spin speed by pressing button 7

Select the available options by pressing buttons 2

Open the door by

carefully pulling the door

handle outwards. Place

the laundry in the drum,

one item at a time,

shaking them out as much

as possible. Close the

door.

Pull out the dispenser drawer until it stops. Measure

out the amount of detergent required, pour it into the

main wash compartment or in the appropriate

compartment if the selected programme/option it

requires (see more details in «Detergent dispenser

drawer»).

If required, pour fabric softener into the compartment

marked (the amount used must not exceed the

«MAX» mark in the drawer). Close the drawer gently.

Turn the programme selector dial to the required

programme.

The selector dial can be turned either clockwise or

anticlockwise.

Turn the selector dial to position to reset the

programme or to switch the machine off.

At the end of the programme the selector dial must be

turned to position , to switch the machine off.

If you turn the programme selector dial to

another programme when the machine is working, the

machine will not perform the new selected

programme.

When selecting a programme, the appliance

proposes automatically a suggested spin speed for

that programme. (See «Washing programmes» for

the maximum allowed spin speed).

Press this button repeatedly to change the spin

speed, if you want your laundry to be spun at a

different speed. The relevant pilot light illuminates.

Daily Use

With this button you can select an additional Prewash

or an additional Rinse or both.

When this button is pressed, the corresponding pilot

light illuminates. When it is pressed again, the pilot

light goes out.

To start the selected programme, press this button.

The icon illuminates to indicate that the appliance

starts operating and the door is locked.

If you have chosen a delayed start, the machine will

begin the countdown.

Before you start the programme, if you wish to delay

the start, press this button to select the desired delay.

The selected delay time value will appear on the

display for a few seconds, then the duration of the

programme will appear again. By pressing this button,

the washing programme can be delayed by 1 hour up

to a maximum of 24 hours.

You must select this option after you have set the

programme and before you start the programme.

You can cancel or modify the delay time at any

moment, before you press button 4.

Selecting the delay start:

1. Select the programme and the required options.

2. Select the delay start by pressing button 6.

3. Press button 4:

- the machine starts its hourly countdown.

- the programme will start after the selected delay

has expired.

Start the programme by pressing button 4

Select the Delay Start by pressing button 6

ZANUSSI

Cancelling the Delay Start after having started the

programme:

1. Set the washing machine to PAUSE by pressing

button .

2. Press button repeatedly until the display shows 0'.

3. Press button again to start the programme.

•The door will be locked throughout the delay time.

If you need to open the door, you must first set the

washing machine to PAUSE by pressing button

and wait a few minutes before opening the door.

After you have closed the door, press the same

button again.

The Delay Start cannot be selected with

the draining programme.

It is possible to change some options before the

programme carries them out.

Before you make any change, you must pause the

washing machine by pressing button 4.

Changing a running programme is possible only by

resetting it. Turn the programme selector dial to

and then to the new programme position. Start the

new programme by pressing button 4 again.

The washing water in the tub will be not emptied out.

Press the button to interrupt a programme which is

running.

Press the button again to restart the programme.

Turn the selector dial to to cancel a programme

which is running, and wait few minutes to open the

door (it is possible only if in the tub there is not

water).

The machine stops automatically.

The blinking zero appears on the display.

If a programme or an option that ends with water left

in the tub has been selected, the door is locked to

indicate that the water must be emptied out before

opening the door.

Follow the below instructions to empty out the water:

1. Turn the programme selector dial to .

2. Select the draining or spinning programme.

Important!

Altering an option or a running programme

Interrupting a programme

Cancelling a programme

At the end of the programme

3. Reduce the spin speed if needed, by pressing the

relevant button.

4. Press button .

At the end of the programme, the door is released,

after few minutes, and can be opened. Turn the

programme selector dial to to switch the machine

off.

Remove the laundry from the drum and carefully

check that the drum is empty. If you do not intend to

carry out another wash, close the water tap. Leave

the door open to prevent the formation of mildew and

unpleasant smells.

1. Once the programme has finished after a few

minutes the energy saving system will be enabled.

The brightness of the display and the indicator pilot

lights are off.

2. If the appliance is switch on but in PAUSE, only the

Stand-By:

brightness of the display is off.

By pressing any button the appliance will come out of

the energy saving status.

Care and cleaning

ZANUSSI

Warning!

Descaling

External cleaning

Cleaning the dispenser drawer

Cleaning the drawer recess

You must DISCONNECT the appliance

from the electricity supply, before you can carry

out any cleaning or maintenance work.

The water we use normally contains lime. It is a good

idea to periodically use a water softening powder in

the machine.

Do this separately from any laundry washing, and

according to the softening powder manufacturer's

instructions.

This will help to prevent the formation of lime

deposits.

Clean the exterior cabinet of the appliance with soap

and water only, and then dry thoroughly.

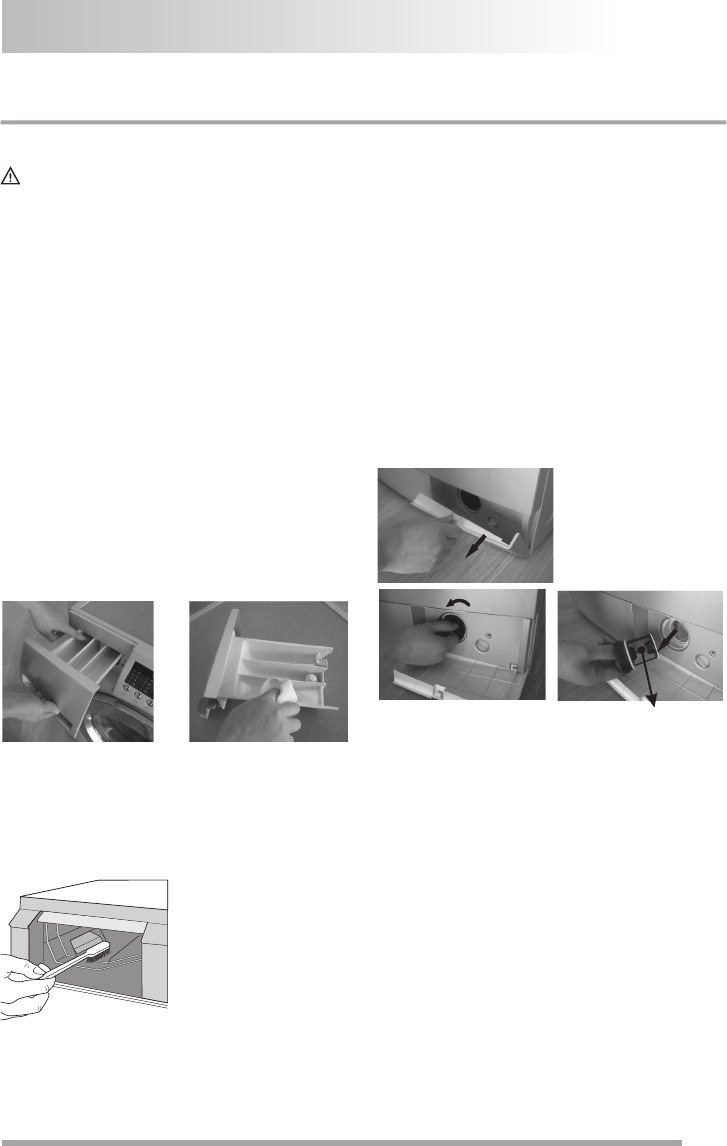

The washing powder and additive dispenser drawer

should be cleaned regularly.

Flush it out under a tap, to remove any traces of

accumulated powder.

Havin g removed the drawer,

use a small brush to

clean the recess ensuring

that all washing powder

residue is removed from

the upper and lower part

of the recess.

Replace the drawer and

run the rinse programme without any clothes in the

drum.

Cleaning the pump

Important!

Warning!

According to the soil level within the cycles and the

frequency of the cycles, you have to inspect and

clean the filter regularly.

The pump should be inspected if:

•the machine does not empty and/or spin;

•the machine makes an unusual noise during

draining due to objects such as safety pins, coins

etc. blocking the pump.

Proceed as follows:

1 disconnect the appliance;

2 if necessary wait until the water has cooled down.

3 Open the pump

door. Place a

container close to the

pump to collect any

spillage.

4 When no more water comes out, unscrew the

pump cover and remove it. Always keep a rag nearby

to dry up spillage of water when removing the cover.

5 Remove any objects from the pump impeller by

rotating it.

6 Screw the pump cover fully in.

7 Close the pump door.

When the appliance is in use and depending on the

programme selected there can be hot water in the

pump. Never remove the pump cover during a wash

cycle, always wait until the appliance has finished the

cycle, and is empty. When replacing the cover,

ensure it is securely retightened so as to stop leaks

and young children being able to remove it.

Clean

1Press

Pull out at the same time

Pump cover

If you wash rugs, it is compulsory to inspect and

clean the filter.

Cleaning the water inlet filters

Important!

If the appliance doesn't fill, takes long to fill with water,

the starting button blinks yellow or the display (if

available) shows the relevant alarm (see chapter

«What to do if...» for more details), check if the water

inlet filters are blocked.

To clean the water inlet filters:

•Turn off the water tap.

•Unscrew the hose

from the tap.

•Clean the filter in the

hose with a stiff brush.

•Screw the hose back onto the tap. Make sure the

connection is tight.

•Unscrew the hose from the machine. Keep a rag

nearby because some water may flow.

•Clean the filter in the valve with a stiff brush or with

the piece of cloth.

•Screw the hose back to the machine and make sure

the connection is tight.

•Turn on the water tap.

Frost precaution or emergency emptied out

If the machine is exposed to temperatures below 0°C

or if the water is not discharged, proceed as follows.

1 Pull out the plug from the power socket.

2 Turn off the water tap.

3 Unscrew the inlet hose.

4 Place a bowl on the floor and place the end of the

inlet and drain hoses into it. The water should drain

by gravity into the bowl.

5 Select and run a draining programme.

6 Clean the pump if necessary as previously

described.

7 Screw the water inlet hose back on.

8 When you intend to start the machine up again,

make sure that the room temperature is above

0°C.

ZANUSSI

What to do if.....

Certain problems are due to lack of simple

maintenance or oversights, which can be solved

easily without calling out an engineer.

Before contacting your local Service Centre, please

carry out the checks listed below.

Malfunction

Possible Cause / Solution

The washing machine does not work Close the washing machine's door.

Water leakage Correctly connect the inlet water pipe.

The spin of the clothes is abnormal

Reload and distribute the laundry evenly in the drum.

There is the peculiar smell in the wa-

shing machine Run a Self-clean cycle without any clothes.

No water is visible in the drum No fault-water is under the visible area.

There is the remaining water in the

softener's box

No fault- the effect of the softener will not be affected.

The remaining detergent is left on

the clothes

The washing machine does not fill

Turn on the water tap.

Check the selection of .the procedure

Reconnect the water inlet pipe.

Check if the water pressure is sufficient.

Check if the inlet water pipe is bent or blocked.

Close the washing machine’s door.

The washing machine fills and drains

at the same time.

Make sure the end of the drainage pipe is higher

than the water level inside the machine .

Check if the drainage pipe and waste have been

sealed.

The washing machine does not drain

Check if the drainage pumps is blocked.

Check if the drainage pipe is bent or blocked.

Check the height of the drainage nozzle, make

sure it is 0.6-1 meter high from the bottom of the

washing machine.

Vibration of the washing machine

Level the washing machine.

Fasten the footing.

Check if all the delivery bolts have all been removed.

Press the S key.▽ ▼tart/Pause

The water-fast component of the non-phosphorus

detergent will be left on the clothes to form into spot.

Please select «Rinse&Spin» programme.

or brush away the fleck after the clothes is dried.

Malfunction

Possible Cause / Solution

The machine stops when the proce-

dure has not been finished Power failure or water cut.

The water inside the inner barrel has been drained

but there is still a small amount of water in the

drainage pump and pipe. The drainage pump

continuously work and takes in the air, then there

wil be noise which is normal situation.

The machine stops for some time

during the wash procedure.

The washing machine adds water automatically.

There is too much foam in the tube, the foam is

being drained.

Foam spills from the detergent

drawer

Check if the amount of detergent is excessive,

if it is the specialized detergent for the drum

washing machine.

Reduce the amount of detergent used next time.

Dip one scoop of the softener mixed with 1/2 liter

of water to the detergent box II.

If the washing machine cannot work normally, a alarm code will appear on the display. Please carry

out the following checks.

Display Reason Solutions

Open the water tap, to check if the inlet hose is squashed

or kinked, check if the filter in the inlet valve is blocked or

not; check if the water pressure is too low.

Check if the drain pump is blocked (see page 11).

Check if the voltage is too high if it is this case, a constant

voltage device is needed.

Inlet water

overtime

Overtime of

the drainage

The door has

not been closed

Voltage is

too high

Check if the door of the washing machine is closed check

if the clothes are trapped by the door seal.

Try to use again or contact your local service center if the

problem persists.

Others

Alarm codes

The drainage pump is noisy during

operation after the water has been

drained.

ZANUSSI

If you are unable to identify or solve the problem,

contact our service centre. Before telephoning, make

a note of the model, serial number and purchase date

of your machine. The Service Centre will require this

information.

Technical data

948mm 495mm

855mm

595mm

Rated Mains 2 0-240 V2 / 50Hz

Water pressure 0.02MPa~1MPa

Net weight 65Kg

6Kg

1400 (ZWG1140M)

1200 (ZWG1120M)

1000 (ZWG1100M)

Drain method Upper drain

Spin method

Washing capacity

Maxinum spin speed rpm

Centrifugal

Wash power

Spin power

Heat power

Max. Power

2000W

150W

2150W

360W

Waterproof Level

Drain Method Upper Drainage

Drain Hose

Height from the floor:

60cm minimum,

100cm maximum

IPX4

Installation

Unpacking

Positioning

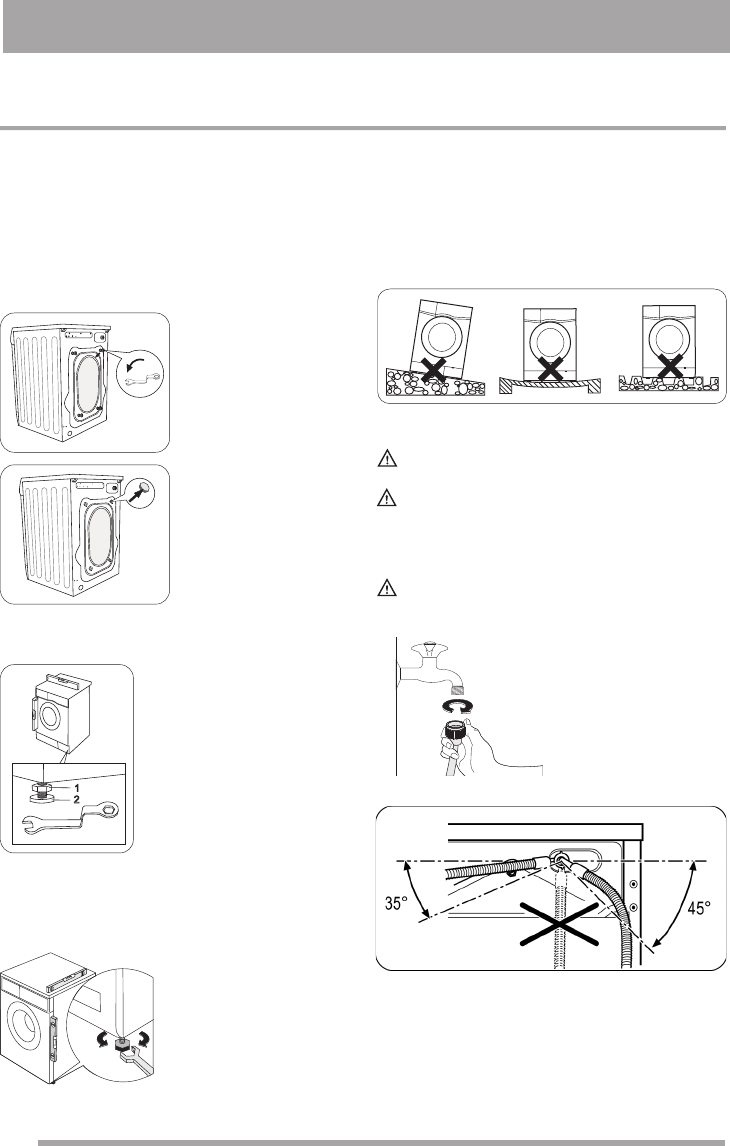

All transit bolts and packing must be removed before

using the appliance.

You are advised to keep all transit devices so that

they can be refitted if the machine ever has to be

transported again.

Unscrew the four bolts

using a spanner.

Slide out the relevant

plastic spacers.

Fill the holes with the

corresponding plastic

plug caps supplied in the

bag containing the

instruction booklet.

Install the machine on a flat

hard floor. Make sure that air

circulation around the machine

is not impeded by carpets, rugs

etc. Check that the machine

does not touch the wall or other

kitchen units. Level the

washing machine by raising or

lowering the feet. The feet may

be tight to adjust as they

incorporate a self locking nut,

but the machine MUST be level and stable.

Any necessary adjustment can be made with a

spanner.

If necessary, check the

setting with a spirit level.

Accurate levelling prevents vibration, noise and

displacement of the machine during operation. Never

place cardboard, wood or similar materials under the

machine to compensate for any unevenness in the

floor.

This appliance must be connected to a

cold water supply.

Before connecting up the appliance to

new pipework or to pipework that has not been

used for some time, run off a reasonable amount of

water to flush out any debris that may have collected

Do not use the hose from your previous

appliance to connect to water supply.

Connect the hose to a tap

with a 3/4”thread.

Always use the hose

supplied with the

appliance.

The other end of the inlet hose which connects to the

appliance can be turned as showed in the picture. Do

not place the inlet hose downwards. Angle the hose to

the left or right depending on the position of your

water tap. Set the hose correctly by loosening the ring

nut. After positioning the inlet hose, be sure to tighten

the ring nut again to prevent leaks.

Water inlet

Caution!

ZANUSSI

Caution!

Water drainage

Hooked over the edge

of a sink

The inlet hose must not be lengthened. If it

is too short and you do not wish to move the tap, you

will have to purchase a new, longer hose specially

designed for this type of use.

The end of the drain hose can be positioned in three

ways:

using the

plastic hose guide

supplied with the

machine.

In this case, make sure

the end cannot come

unhooked when the

machine is emptying.

This could be done by

tying it to the tap with a piece of string or attaching it

to the wall.

In a sink drain pipe branch

Directly into a drain pipe

This branch must be above the trap so that the bend

is at least 60 cm above the ground.

at a height of not less than

60 cm and not more than 90 cm. The end of the drain

hose must always be ventilated , i.e. the inside

diameter of the drain pipe must be larger than the

outside diameter of the drain hose.

The drain hose must not be kinked.

Electrical connection

Environment concerns

Information on the electrical connection is given on

the rating plate on the inner edge of the appliance

door. Check that your domestic electrical installation

can take the maximum load required, also taking into

account any other appliances in use.

Connect the machine to an earthed

socket.

The manufacturer does not accept any

responsibility for damage or injury through failure

Caution!

The symbol on the product or on its packaging

indicates that this product may not be treated as

household waste. Instead it should be taken to the

appropriate collection point for the recycling of

electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent

potential negative consequences for the environment

and human health, which could otherwise be caused

by inappropriate waste handling of this product.

to comply with the above safety precaution.

Should the appliance power supply cable

need to be replaced, this MUST be carried out by

a Service Centre.

The power supply cable must be easily accessible

after installing the machine.

Caution!

For more detailed information about recycling of this

product, please contact your local council, your

household waste disposal service or the shop where

you purchased the product.

The materials marked with the symbol are recyclable.

> <=polyethylene

> <=polystyrene

> <=polypropylene

Packaging materials

> <=paperPAP

ZANUSSI

www.electrolux.com

www.zanussi.be

Subject to change without notice

Zanussi Zwg1100M Users Manual Elux User 6kg 1400r V5...

ZWG1100M to the manual d1bd216a-f021-4c09-8ad7-a2a1fa371628

Navigation menu

Versions of this User Manual:

Views

Navigation
