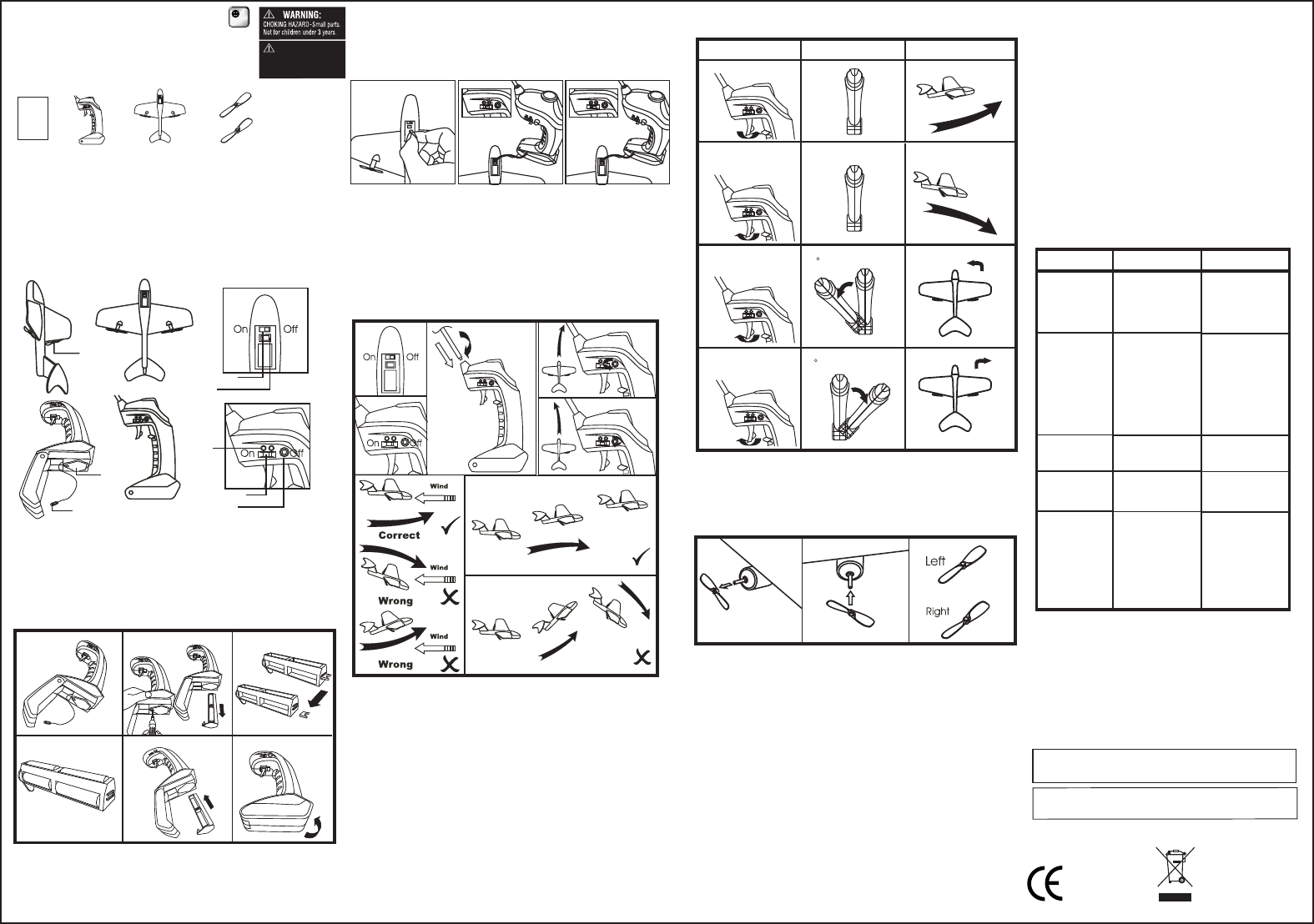

Instruction Manual
#5001
8+
Please read through this instruction manual carefully before starting to operate.
Please ensure to remove all accessories and components from packaging.
Transmitter
Aeroplane propeller
Manual
What is required to play
Battery requirements
Recommended to use alkaline batteries for best performance
Aeroplane : Li-poly battery (included in the aeroplane)
Transmitter : 6 x 1.5V (AA) (006P , 6F22) size batteries.
Part Index
Do not touch the propeller when operating.
Do not use in a crowd.
Supervision of adult or expert required
when the device is in use.
Propeller
On/Off Switch
Power/
Charge
LED
charging socket
on/off switch
veering trim
charging plug
battery
chamber
Recharging the Device
1) Switch off the power of the device and push the power switch of the remote control to OFF.
2) Connect the plug of the remote control charger to the charging socket on the device, the green
LED light on the remote control charger indicates that power charging is in progress.
3) The green LED light goes off automatically when charging process is completed.
4) Disconnect the device from the plug, wind up the cable of the charger and place it back
into the box, close the battery chamber cover.
Note:
1) The charging process takes approximately 20 – 30 minutes.
2) The green light of the remote control charger automatically goes off when the batteries are full.
Operation of the device can last for approximately 10 minutes.
The remote control charger features a smart security function which automatically terminate the
charging process when it reaches 4.25V, charging duration may therefore varies with the amount of
power remains in the batteries.
Choosing the right venue and weather:
How to play
1) Install the antenna to the remote control and screw tight. Push the power switch of the device to ON.
Push the power switch of the remote control to ON. The red light lights up.
2) To ensure horizontal flying place the remote control vertically. Pull the control trigger back to approximately
1/3 until the aeroplane starts flying. Toss the aeroplane horizontally with your left hand along line of eyesight.
When flying to the right, adjust the veering fine toner to the left; when flying to the left, adjust the
veering fine toner to the right. Release the control trigger to stop the aeroplane. The left and right controls
can be adjusted by the steering trims on the controller to ensure straight alignment
3) Repeat the above steps to keep the aeroplane flying straight.
4) When tossing the aeroplane, make sure that it is facing a slight breeze and flying horizontally.
5) Do not toss the aeroplane vertically upwards as it may cause it to fall immediately and get damaged eventually.
LIGHT ON LIGHT OFF
0197
English
NO.5001
©ZAPTOYS 2007
MADE IN CHINA
6).When angle of elevation is too wide lower the speed by utilizing the panel. On the contrary, increase speed by
utilizing the panel when the aeroplane tends to nosedive.
1) Choose a spacious, obstacle-free area when operating indoor, ensure that the device is operating away from
electronic fans/air conditioner as theses facilities may affect air flow.
2) Choose a fine, calm or slightly breezy day when operating outdoor. (A condition where fog moves while tree
leaves remain steady.)
3) Warning: Power consumption will increase when operating in strong wind, it may also affect proper control of
the aeroplane or the device may even get puff off or damage.
4) Operation on grass lawn suggested as this can avoid the device from being damage by surrounding objects.
5) Operation away from crowds, ponds, residential building area and forests suggested.
6) Do not operate under extremely hot (over 50°) or extremely cold (under 0°) temperature.
7) Do not operate in rainy or snowy days or near high voltage cables as the user may be exposed to risk of
electric shock.
Batteries Installation – Remote Control
1) Open the battery chamber cover as shown in (1).
2) Turn the Philip’s type screwdriver anti-clockwise to loosen the battery chamber as shown in (2).
3) Take out the battery chamber, remove the part at the end this part will be useless as shown in (3).
4) Place 6pcs of AA batteries into the battery chamber according to correct polarity as shown in (4).
5) Re-install the battery chamber into the remote control. Tighten the chamber with a Philip’s type screwdriver by
screwing clockwise as shown in (5).
6) Close the battery chamber cover as shown in (6).
1
4 5
6
2
3
Set up and usage of the remote control
Follow steps below when changing to a new propeller in case of damage:
-Pull out the top of the propeller and remove the damaged part.
˙-Insert new propeller onto the steel axle properly.
-Place propeller according to markings of left and right and also place side with groove facing outward away
from motor
Replacement of propeller
TROUBLE SHOOTING
Problem Reason Solution
Caution
-Supervision from parents or adults required when placing or installing batteries.
-Static environment may cause product failure. In this case user will need to reset the product. Special reminder
for adults (parents):
-Perform regular checking of socket and surrounding accessories. If any damage is found in the remote control
charger, stop using the device until it is completely fixed.
-This toy is not suitable for children under 8 years old.
-Only use the charger provided with the product when recharging.
-Do not attempt to use the remote control charger with any other batteries.
- The plane and transmitter are not shock resistant
- Do not play in the thunderstorms
- Do not place the plane or transmitter near sources of heat or in direct sunlight
for long periods of time.
- Do not operate the plane when small children are present
- Do not mix old and new batteries together. Do not mix battery types or brands.
- Non-rechargeable batteries should not be recharged.
- Rechargeable batteries should be removed from the toy while being charged.
- Rechargeable batteries should only be charged under adult supervision.
- Only batteries of the same or compatible type as recommended should be used.
- Batteries should be inserted with the correct polarity.
- Exhausted batteries should be removed from the toy.
- The supply terminals should not be short-circuited.
- Do not touch the motor after play, as it may become hot after long operation time.
Batteries Warning:
-Do not recharge non-chargeable batteries.
-Remove the chargeable batteries from the toy before charging.
(Applicable to remote control only)
-Use of charger is limited to adults.
-Do not mix different types of batteries together as well as old and new batteries.
(Applicable to remote control only)
-Only batteries of the same type can be recharged together.
-Batteries should be inserted according to the correct polarity.
-Always remove exhausted batteries from the toy. (Applicable to remote control only)
-Do not connect power terminal to the circuit board.
-This product comes with 1PC Li-Poly batteries. For safe usage,
-Please note the following things:
-Do not discard batteries in fire or near heat source.
-Do not place batteries near heat source such as fire or electric heating device.
-Do not ram or pitch batteries against hard surfaces.
-Do not place batteries in water. Batteries should be stored in cool and dry places.
-Only use the charger provided with the product when recharging batteries.
-Never disassemble batteries.
-Do not touch the power socket.
-Do not weld batteries directly or pierce batteries with pin or other sharp objects.
-Do not carry batteries with metallic objects such as necklaces/hair clips.
-Do not re-install or alter the composition of batteries.
-Batteries should be recharged every six months. (when not in use)
-Switch off the power after use. Used batteries should be stored in recycle bags or
separate bags.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of FCC Rules and R&TTE Directive
1999/5/EC. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference the radio
communications.However, there is no guarantee that interference will not occur
in a particular installation.If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
needed.
- Consult the dealer or an experienced radio/TV technician for help.
Safe Usage and Maintenance:
- In case the toy is not in use for a long time, remove batteries from the device. (Applicable to remote control only)
- Wipe the toy with a clean and wet cloth.
- Ensure that the toy is placed away from heat source.
- Do not place toy in water as this may cause short circuit of the circuit board.
- Do not expose the plane to extreme temperatures
- Always keep the plane clean, use a dampened cloth to clean, followed by a
dry cloth to wipe water away. Never use chemical to clean the product.
- Long operation time may generate high heat levels causing wear and tear.
To extend product life, players are recommended to allow a 10 minute cool
down period before installing new batteries.
- Keep this instruction manual in place for future use.
Warning:
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment
Please read these instructions carefully before use!
Hereby, Zaptoys International, declares that this product is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
1. 2. 3.
4. 5. 6.
Preparations before flying:
Propeller not
spinning or
spinning slowly.
1) ON/OFF switch is
positioned at OFF.
1) Switch the power
to ON.
2) Recharge
batteries.
Continuous
turning and
suddenly
descending after
take off.
2) Batteries not yet
saturated.
The veering fine
toner on the
remote control is in
the wrong position.
Adjust the veering
fine toner of the
remote control
Fail to take off or
descending
slowly when flying.
Falling before the
ascending stage
after take off
1) The aeroplane is
not facing the wind
during take off.
2) Ensure the
batteries have
enough power.
3) The elevator is in
the wrong angle or
wrong speed.
1) Face the wing
when tossing the
aeroplane before
take off.
2) Recharge the
device.
3) Adjust the control
stick to the left
technically (Do
not hold tight,
control by slightly
tapping the stick.)
in order to increase
or lower flying
speed.
Battery low. Recharge batteries.
No response or slow
response when
operating with
remote control
Lose control.
Affected by high frequency
radiation from the
surrounding high voltage
cable/adapter/special
building.
1) Another remote control
of the same frequency
or signal is operating
another product or this
product.
2) Location of the
aeroplane is beyond the
operation coverage of
the remote control.
1) Operate this product
in an interference-free
environment.
2) Ensure that the
antenna is extended to
full length; the
aeroplane is operating
within remote control
coverage. The remote
control coverage is up
to 50M.
Move the aeroplane away
from the interference or
operate the product in
other places.
Manual control trigger Remote control Movements
Pull steadily to increase
angle of trigger
Take off/Fly upward
Lower speed/Landing
turn left
turn right
Relax steadily to reduce
angle of trigger
To fly steadily,
keep angle of the trigger
unchanged.
Tilt the remote control
45 To the left sharply
Tilt the remote control
45 To the right sharply.
To fly steadily, keep
angle of the trigger
unchanged
Product features:
1) Full function digital proportion remote control.
2) Accurate speed control.
3) Light weight body and long lasting operation. (Li-poly battery)
4) Unique body material with outstanding shock-proof functionality.
5) Easy operation under indoor/outdoor environment.
6) Smooth veering to the left and right.
7) Integrated with 1 band 3 signal for 3 players.
THIS PRODUCT IS FOR THE USE IN U.K., SPAIN, GERMANY, FRANCE, BELGIUM, ITALY,
SWITZERLAND, THE NETHERLANDS, DENMARK, U.S., CANADA AND PORTUGAL.
