Users Manual

Z-2242 / Z-2240
QUICK START & REGULATORY GUIDE
Product Features:
Accessory Option :
Item Description
System
Processor Qualcomm MSM8960
Dual Core 1.5GHz
Android OS Android Jeally Bean 4.2.2
Memory 1GB LPDDR2 SDRAM
Storage Internal 8GB eMMC Flash
(To be continued)
Display, Camera and
Scaning
Display
Size: 4.5"
Resolution: WVGA 720(W)*1280(H)
Display Type: TFT, Transmissive
Contrast ratio: 900 (Typ)
Brightness: 400 nits (Typ)
Backlight Type: LED
Viewing Angle: 80/80/80/80 (typ), Full viewing (IPS)
Touch Panel
Capacitive Type, 5-point multiple touch, OGS
Glass: Dragontail, Anti-explosion, Wet Finger touch,
Strengthen Glass
Scanner
Opticon MDI-3100-SR
1D/2D Barcode Hardware decode, CMOS sensor (black and
white)
Light source: Red*2 (auxiliary), Green*1 (aiming)
Effective pixel 752(H)x 480(V) dot
Aiming distance: L=110+/-20mm(from front edge of camera
module)
Image capture speed: 60 fps
Supported barcode types:
UPC-A/E/E1/addon 2/5, EAN-13/addon 2/5, EAN-
8/addon 2/5,
Code 39, Tri-optic, Codebar, Industrial 2 of 5, Interleaved 2 to
5, S-code, Matrix 2 of 5, Chinese Post Matrix 2 of 5, Korean
Postal Authority, Intelligent Mail, POSTNET, Japanese Postal,
IATA, MSI/Plessey, Telepen, UK/ Plessey, Code 128/GSI 128,
CODE 93, CODE 11, GS1 Databar, GS1 Databar Limited, GS1
Databar Expanded, Codeablock F, DataMatrix ECC200,
DataMatrix ECC000-140, Aztec Code, Aztec Runes, Chinese
Sensible Code, QR Code, Micro QR Code, Maxi Code, PDF 417,
Micro PDF417, GS1 DataBar Composite, UPC/EAN Composite.
Front Camera No
Rear Camera
Sensor OmniVision MT9E013
Resolution: 8MP (3264H*2448V)
Angle of view: 74.5°C
Auto-Focus Type: VCM(Voice Coil Motor)
Focus Range: 10cm~ Infinity
Automatic Mode :
AEC (Auto exposure Control),
AGC (Auto Gain Control),
AWB (Auto White Balance),
Communication and WLAN network
Radio
Support Voice Call
- UMTS 1/3/5/8
(2100/1800/850/900MHz)
- GSM 850/900/1800/1900
GPS Qualcomm GPS One Gen8, AGPS, Glonass
Bluetooth
4.0 Class II EDR
Profile: PAN, HSP, HID, FTP, DUN, A2DP, AVRCP and OPP
profiles
WLAN 802.11 a/b/g/n Dual Band (2.4G/5G), Wi-Fi direct, Wi-Fi
hotspot (2.4G)
NFC (Optional)
NXP PN547
NFC detect range: 0~4cm
Card type: ISO/ICE 14443A/MIFARE; Jewel/Topaz tags; FeliCa
cards; ISO/IEC 14443B; ISO/IEC 15693/ICODE
Power
Battery Capacity 3450 mAh (3.7V)
Battery removable Non-removable
Battery Charging
Time 4.5 hours
Battery Life 10 hours
1
Reset Function Physical key under micro SD door
1
Conditional and vary depending on different user scenario.
Charging method
(1) AC adaptor charging (via micro USB)
(2) docking station charging (no sleeve charging)
(3) battery cartridge
Wireless charger
(Optional) Qi (WPC V1.1) Compliant Power Supply
RTC Yes
Peripheral
Sensors
3-axis accelerometer
Proximity sensor
Ambient light sensor
Magnetometer
Gyroscope
GPS
Indicator
2pcs
(Indication of battery full, low battery, charging(including
wireless charging) and BT)
Receiver 1pcs
Audio Jack N/A
Vibrater 1pcs
Speaker 1pcs
Microphone 2pcs
I/O
Extension port On main board (internal). Please see pin define in Appendix 1
(P.13)
Micro USB 1pcs, OTG, software upgrade, battery charging
SD Card Micro SD (SDHC can support up to 64GB)
SIM card Micro Dual SIM sockets
Buttons
Power*1
Volume (up and down)
Programmable key*3pcs
(original scan key*2pcs, original P key*1pcs)
Mechanical and Environment
Dimension L 149.87 x W 80.24 x T 30.61 mm
Weight 345g
Ingress Protection IP65
Drop 1.5M on poly wood, 6 drops
ESD Air: ±8KV
Contact: ±4KV
Operating
Temperature (include
LCM and battery)
0°C~ 45°C battery in charging mode
-20°C+60°C battery in discharging mode
Storage Temperature
-20~+60°C
Accessories (in package)
Adaptor Jack 1pcs, 5.35V/2A
Micro USB to USB
Cable 1pcs, 100cm

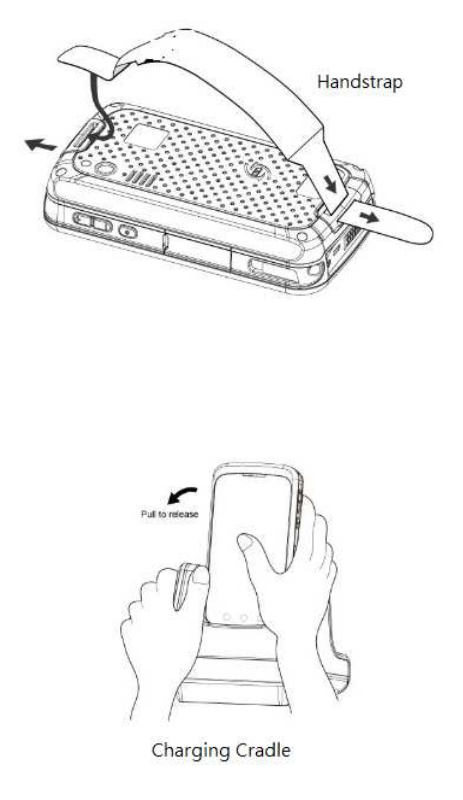

Hand strap 1pcs

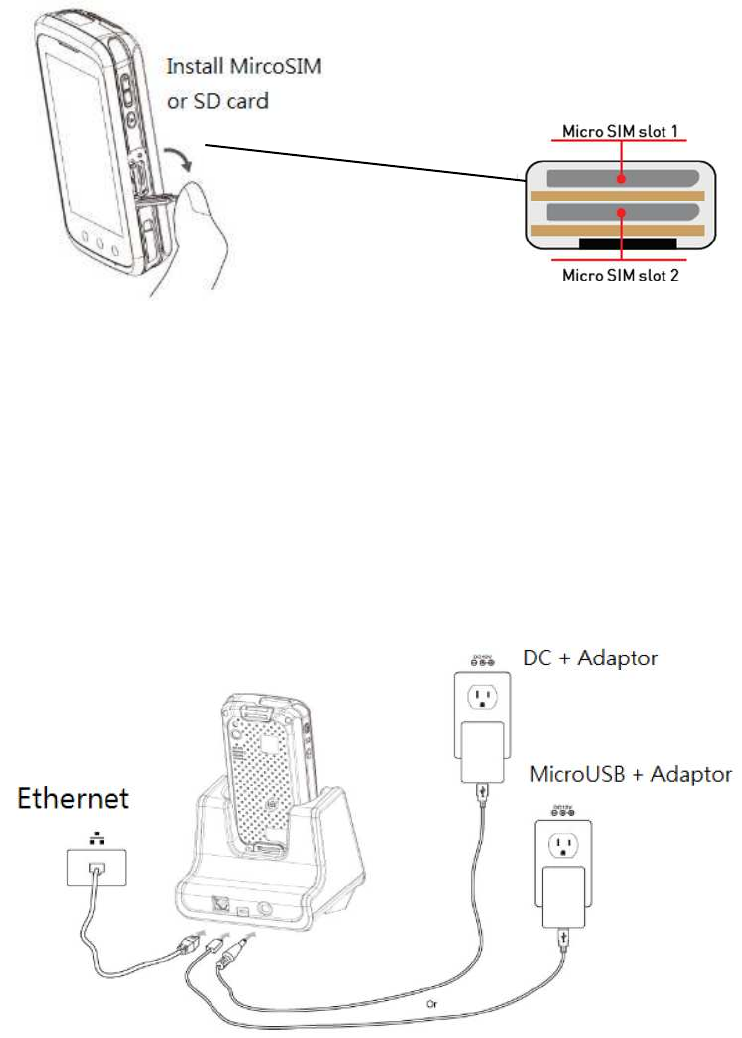

Micro SD / Micro SIM Card Installation
Open Micro SD/Micro SIM door, insert the Micro SD into slot.
Insert Micro SIM into SIM slot.
(Note: SIM 1 is set as default network connection; SIM switch: Go to “Settings” in Android system
“SIM SWITCH” “Choose SIM” “SIM 2”)
Close the door after installation.
Getting Started
Charge the battery
Before using the Z-2242 / Z-2240, charge the battery using one of the following
accessories approved by ZEBEX:
- Micro USB cable through PC
- Micro USB cable + Power Adaptor Jack
- Cradle Charging + DC Power Cable + Power Adaptor Jack
Started Z-2242 / Z-2240
Power On Z-2242 / Z-2240
Press and release the power button
LED blinks in red indicating low and risk battery and stating red indicating that
the battery is charging. The LED becomes green when battery is fully charged,
then.
Note:
Device turns to the modes as below by pressing power button key.
Suspend Mode
Press and release the power button to place the Z-2242 / Z-2240 in suspend mode. In suspend
mode the device turns off the display and goes into a low power state to conserve battery power.
Power Off
To Power off the Z-2242 / Z-2240, press and hold the button until the device option dialog box
appears, choose “Power off”. When the Power off dialog box appears, tap “OK”.
Reset
Reset the Z-2242 / Z-2240 if application stop responding. Press and hold the power button until
the device options dialog box appears then touch Reset.
Hardware Reset
If the Z-2242 / Z-2240 stop responding, perform a hardware reset by long press power button.
Data Capture
Scan a Bar Code with Imager
1. Switch on the barcode

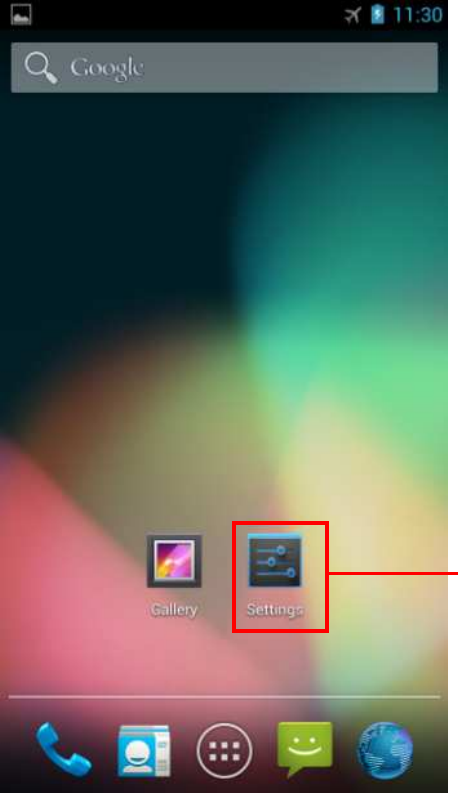

Go to “Settings” find Barcode Scan Slide Barcode Scan to “ON”
Settings
- Go to “BarcodeScan” Type: To choose Barcode type
- Select “ Beep”: To have beep sound after scan
- Select” Vibrate”: Need device vibration after scan
- Select” Automatic Carriage Return” Require to send enter key
automatically after scan
Barcode Scan
2. Launch a bar code reading application or use Data Wedge.
3. Point the exit window at the bar code
4. Press and hold the two side Scan button

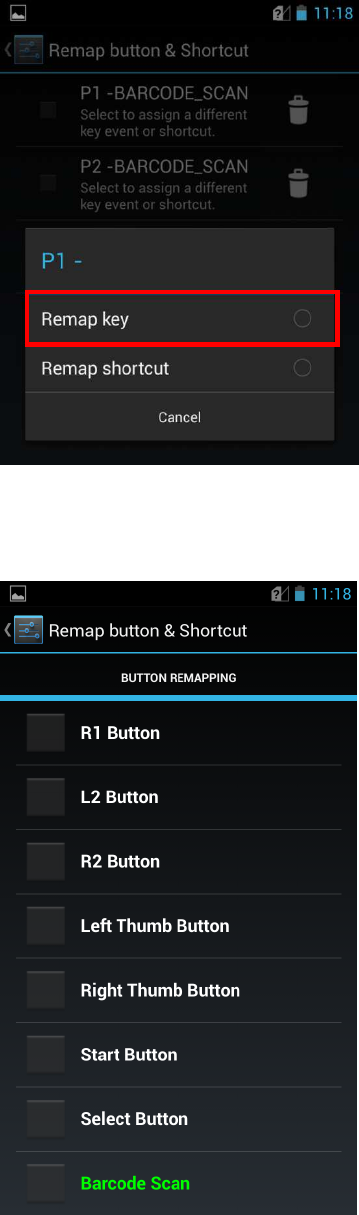

Left/Right Side Key Set-up:
Go to “Settings” Select “Remap button & Shortcut”
Select “P1”
Select Remap Key
Choose “Barcode Scan”
Select “P2”
Remap Key choose “Barcode Scan”
5. The red laser aiming pattern turns on to assist in aiming, scan ready when beep
sounds.
6. Release the scan button.
Scan a Bar Code with Camera
Using the rear camera to scan bar code.
1. Launch a bar code reading application or use Data Wedge.
2. Point the back of the Z-2242 / Z-2240 at the bar code.
3. Press the scan button
Photo & Videos
Using the rear camera to take photos and capture video.
Note: Ensure device memory or extend Micro SD card is space is available.
(P2)
Scan Key(P1)
GPS Information
Acquiring satellite signals may take a few minutes.
Without a clear view, acquisition takes longer and possible unable to catch the
position quickly.
Turn off GPS application if no use.

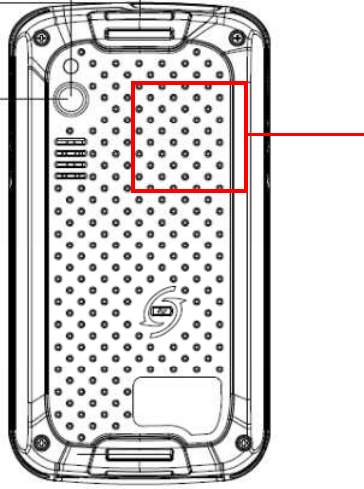

Near Field Communication (NFC) Feature
Allow Data exchange in short-range (less than 4cm) when the phone touches another
device. The NFC areas, being of both a phone and other NFC compatible device (ex:
tags, reader, phones and so on.), should be close to one another for communication.

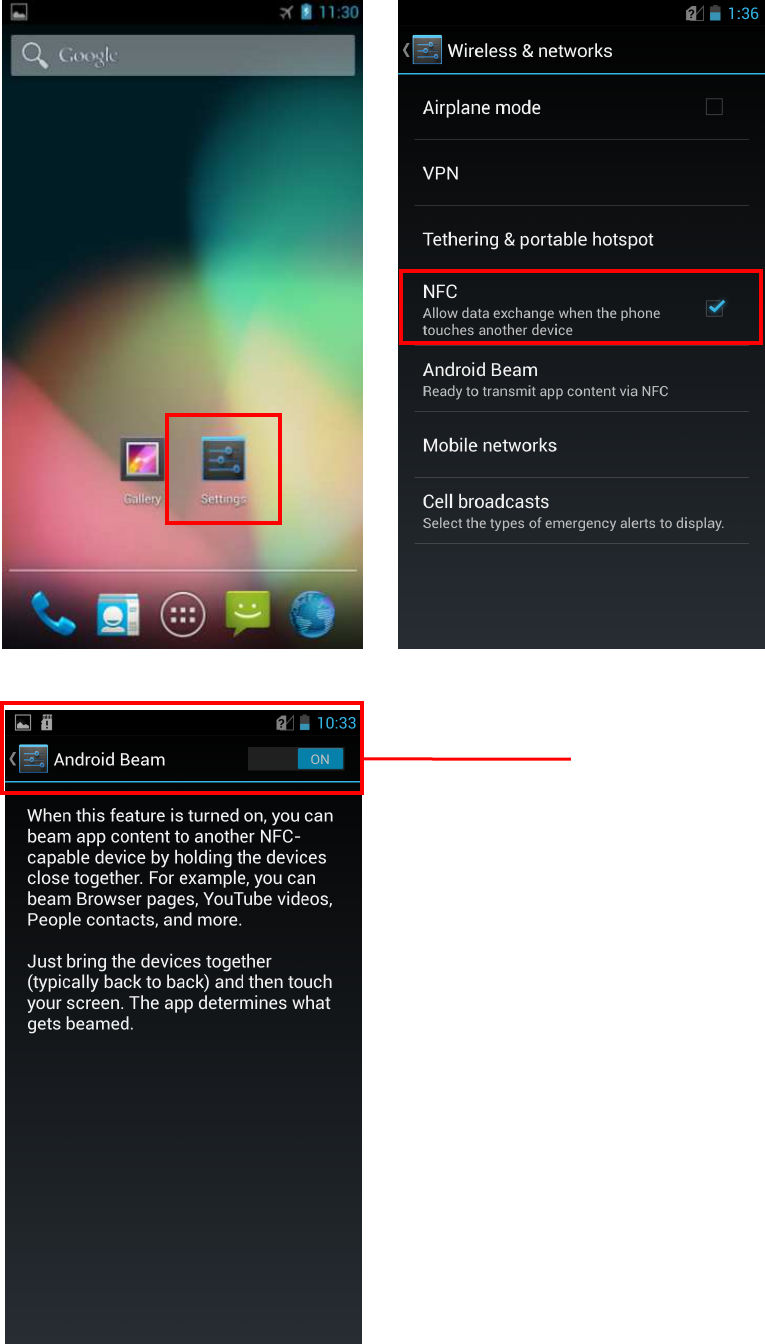

Enable NFC Feature
Go to “Settings” Tick “NFC”
NFC Detection
Enable Android Beam
Slide to “ON”
Regulatory Information
Caution: Only use ZEBEX approved accessories.
Wireless Device Country Approval
Regulatory markings, subject to certification, are applied to the device signifying the
radio(s) are approved for use in the European countries under CE coverage.
For 2.4GHz or 5GHz products : Europe includes Austria, Belgium, Bulgaria, Czech
Republic, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta,
Netherland, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
Caution: Operation of the device without regulatory approval is illegal.
Country Roaming
This device incorporates the international roaming feature which will ensure the
product operates on the correct channels for the particular country of use.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an
uncontrolled environment and are safe for intended operation as described in this
manual. The further RF exposure reduction can be achieved if the product can be
kept as far as possible from the user body or set the device to lower output power if
such function is available.
For body-worn operating conditions please use belt-clips, holsters, and/or
accessories that have no metallic component in the assembly and must provide at
least 1cm separation between the device and the user's body.
Warnings of Use Wireless Devices
Please observe warning notices with regard to the usage of wireless devices.
Potentially Hazardous Atmospheres – Vehicles Use
You are reminded of the need to observe restrictions on the use of radio devices in
fuel depots, chemical plants etc. and areas where the air contains chemicals or
particles ( such as grain, dust, or metal powders ) and any other area where you
would normally be advised to turn off your vehicle engine.
Safety in Aircraft
Turn off your wireless device whenever you are instructed to do so by airport or
airline staff.
Safety in Hospitals
Wireless devices transmit radio frequency energy and may affect medical electrical
equipment. Wireless devices should be switched off whenever you are requested to
do so in hospitals, clinics or healthcare facilities. These requests are designed to
prevent possible interference with sensitive medical equipment.
Safety Information – Europe
This device was tested for typical body-worn operation. Use only ZEBEX tested and
approved accessories to ensure EU compliance.
Laser Devices
Class 2 laser scanners use a lower power, visible light diode. As with any very bright
light source, such as the sun , the user should avoid staring directly into the light
beam. Momentary exposure to a class 2 laser is not known to be harmful.
Caution: Use of controls, adjustments or performance of procedures other than
those specified herein may result in hazardous laser light exposure.
Power Adaptor
Use only a Z-2242 / Z-2240 approved Power Adaptor with electrical ratings :
Output 5Vdc, min 2A, with a maximum ambient temperature of at least 45℃.
Use of alternative power adaptor will invalidate any approvals given to this device
and maybe dangerous.
Battery Information
Use only a ZEBEX approved batteries.
When batteries are stores over six (6) months, some irreversible deterioration in
overall battery quality may occur. Store batteries at half of full charge in a dry, cool
place, removed from the equipment to prevent loss of capacity, rusting of metallic
parts and electrolyte leakage. When storing batteries for one year or longer, the
charge level should be verified at least once a year and charged to half of full charge.
Batty Safety
The area in which the units are charged should be clear of debris and
combustible materials or chemicals. Particular care should be taken where the
device is charged in a non -commercial environment.
Follow battery usage, storage, and charging guidelines found in the user guide.
Improper battery use may result in a fire, explosion, or other hazard.
To charge the device battery, the battery and charger temperature must be
between 0℃~+50℃
Do not use incompatible batteries and chargers. Use of an incompatible battery
or charger may present a risk of fire, explosion, leakage, or the hazard.
Do not disassemble or open, crush, bend or deform, puncture, or shred.
Severe impact from dropping any battery-operated device on a hard surface
could cause the battery to overheat.
Do not short circuit a battery or allow metallic or conductive objects to contact
the battery terminals.
Do not modify or remanufacture, attempt to insert foreign objects into the
battery, immerse or expose to water or other liquids, or expose to fire, explosion,
or other hazard.
Do not leave or store the equipment in or near areas that might get very hot,
such as in a parked vehicle or near a radiator or other heat source. Do not place
battery into a microwave oven or dryer.
Battery usage by children should be supervised.
Please follow local regulations to promptly dispose of used re-chargeable
batteries.
Do not dispose of batteries in fire.
Seek medical advice immediately if a battery has been swallowed. In the event of
a battery leak, do not allow the liquid to come in contact with the skin or eyes. If
contact has been made, wash the affected area with large amounts of water and
seek medical advice.
Marking and European Economic Area (EEA)
Frequency of Operation
The use of 2.4 GHz RLAN's, for use through the EEA, have the following restrictions:
Maximum radiated transmit power of 100 mW EIRP in the frequency range 2.400
- 2.4835 GHz
France, outside usage is restricted to 2.4 - 2.454 GHz.
Italy requires a user license for outside usage. Bluetooth
®
Wireless Technology
for use through the EEA has the following restrictions:
Maximum radiated transmit power of 100mW EIRP in the frequency range 2.400
-2.4835 GHz
France, outside usage is restricted to 10mW EIRP
Italy requires a user license for outside usage.

Navigation menu
