user manual
AP-0622 Access Point
INSTALLATION GUIDE
2AP-0622 Access Point
MOTOROLA SOLUTIONS and the Stylized M Logo are registered in the US Patent & Trademark Office. © Motorola Solutions,
Inc. 2011. All rights reserved.
Installation Guide 3
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 AP-0622 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.0 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Access Point Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Integrated Antenna Model Wall Mount Instructions . . . . . . . . . . . 8
2.5 Integrated Antenna Model Suspended Ceiling T-Bar Mount . . . . 11
2.6 External Antenna Model Wall Mount Instructions . . . . . . . . . . . . 12
2.7 External Antenna Model Suspended Ceiling T-Bar Mount . . . . . . 15
2.8 External Antenna Suspended Ceiling Tile (Plenum) Mount. . . . . . 17

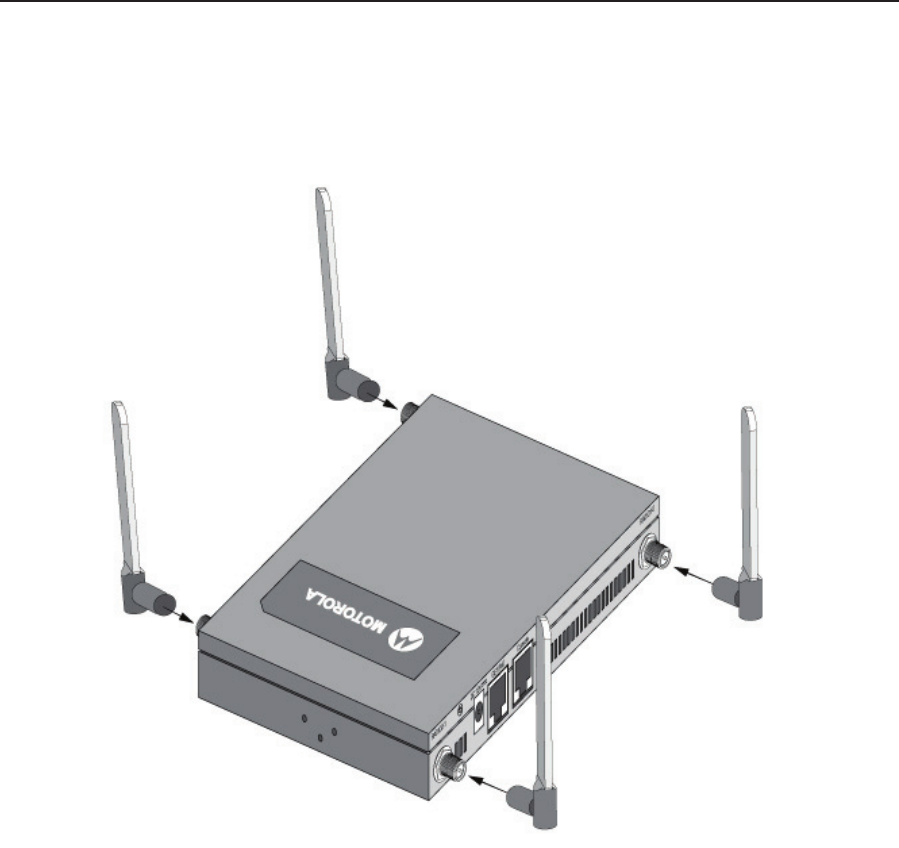

2.9 AP-0622 External Antenna Model Antenna Options . . . . . . . . . . . 19
2.10 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.0 Initial Access Point Configuration . . . . . . . . . . . . . . . . . . . . . 22
4.0 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.1 AP-0622 Integrated Antenna Model Electrical Characteristics. . . 23
4.2 AP-0622 Integrated Antenna Model Physical Characteristics . . . 23
4.3 AP-0622 External Antenna Model Electrical Characteristics . . . . 24
4.4 AP-0622 External Antenna Model Physical Characteristics . . . . . 24
4.5 Radio Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.0 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6.0 Part Numbers, Support, and Sales . . . . . . . . . . . . . . . . . . . . . 34
7.0 Motorola Solutions, Inc. End-User License Agreement . . . 35
8.0 AP-0622 Access Point China ROHS Compliance . . . . . . . . . 38
4AP-0622 Access Point
1 Introduction
The AP-0622 access point, a component of the Motorola Solutions wireless controller system, links wireless
802.11a/b/g/n devices to the controller, enabling the growth of your wireless network with a cost effective
alternative to standard access points. The AP-0622 access point provides multiple deployment options.
The AP-0622 access point receives all power and transfers data through the same CAT-5 or better Ethernet cable.
An 802.3af Ethernet switch or power supply (specifically rated for the AP-0622) is required (Part No.
PWRS-14000-148R).
This guide applies to Model Number AP-0622.
This document is written for the qualified network device installer.
1.1 Document Conventions
The following graphical alerts are used in this document to indicate notable situations:
NOTE Tips, hints, or special requirements that you should take note of.
CAUTION Care is required. Disregarding a caution can result in data loss or
equipment malfunction.
WARNING! Indicates a condition or procedure that could result in personal injury or
equipment damage.
!
Installation Guide 5
1.2 Warnings
• Read all installation instructions and site survey reports, and verify correct equipment installation before
connecting the AP-0622 model access point.
• Remove jewelry and watches before installing this equipment.
• Verify the unit is grounded before connecting it to the power source.
• Verify any device connected to this unit is properly wired and grounded.
• Verify there is adequate ventilation around the device, and that ambient temperatures meet equipment
operation specifications.
1.3 Site Preparation
• Consult your site survey and network analysis reports to determine specific equipment placement, power
drops, and so on.
• Assign installation responsibility to the appropriate personnel.
• Identify and document where all installed components are located.
• Ensure adequate, dust-free ventilation to all installed equipment.
• Identify and prepare Ethernet and console port connections.
• Verify cable lengths are within the maximum allowable distances for optimal signal transmission.
1.4 AP-0622 Package Contents
An AP-0622 access point is available in integrated antenna and external antenna models. Contents differ
depending on the model ordered.

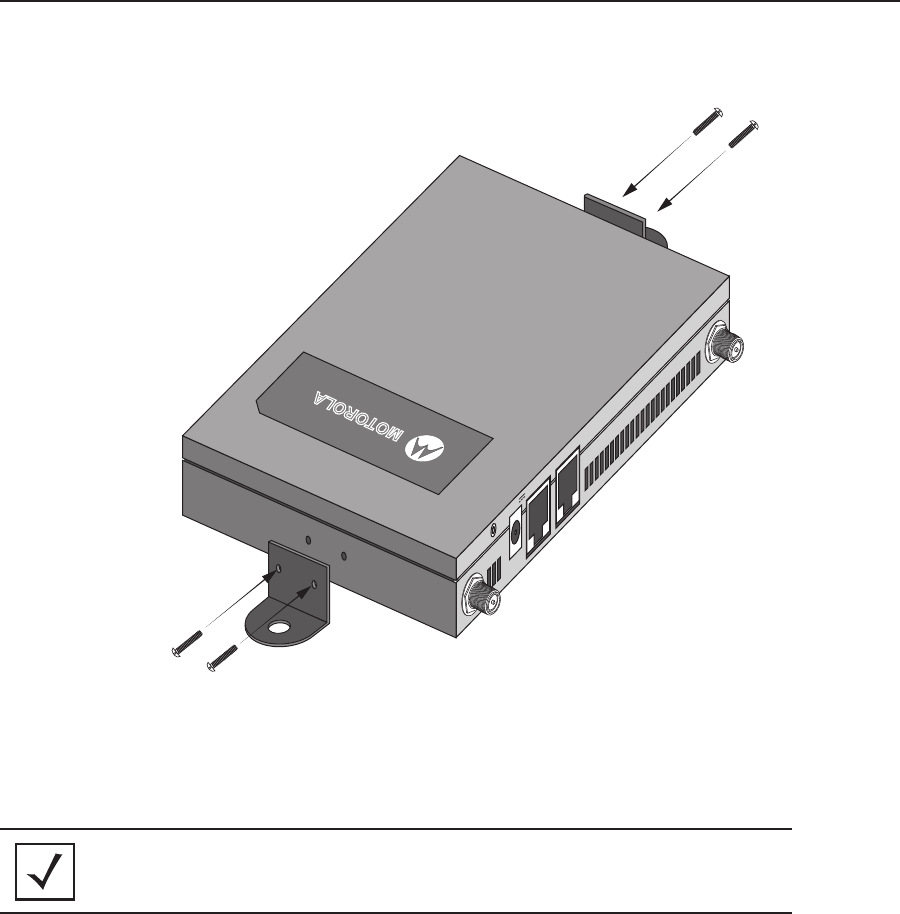

1.4.1 External Antenna Model Package Contents
• AP-0622 access point with external antenna connectors (Plenum Rated)
• 2 customer installed mounting lugs
• 4 mounting lug retaining screws
• AP-0622 Installation Guide (This Guide)
1.4.2 Internal Antenna Model Package Contents
• AP-0622 access point with internal antennas
• AP-0622 Installation Guide (This Guide)
6AP-0622 Access Point
1.4.3 Features
• 2 RJ-45 connectors, one for 10/100/1000 Ethernet and the other for the serial/console connector
• LED indicators
• Slots for wall mounting
• Clips for mounting on a suspended ceiling T-bar (internal antenna model only) with separately orderable
accessories
• Lock port for Kensington style Security Lock

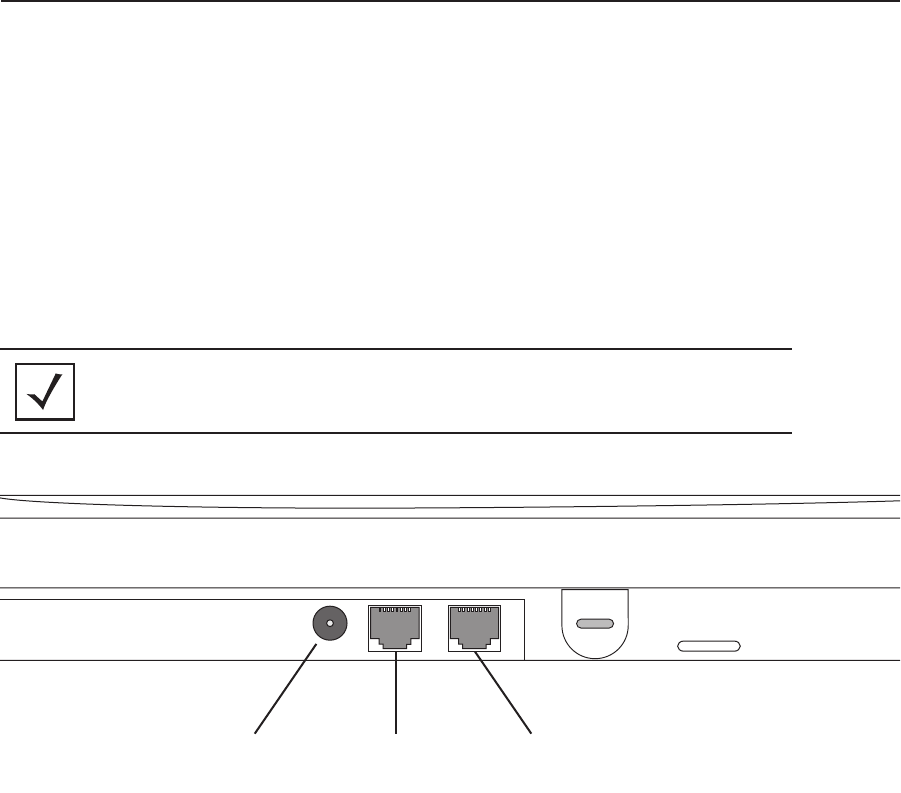

The AP-0622 access point has one RJ-45 connector supporting an 10/100/1000 Ethernet port and accepts
802.3af-compliant power from an external source. The illustration below is of an integrated antenna model
AP-0622.
The AP-0622 access point comes with dual radios supporting 802.11a/b/g/n. The access point contains runtime
firmware which enables the unit to boot after a power up or watchdog reset. The runtime firmware on the access
point and the firmware downloaded from the connected controller can be updated via the Ethernet interface.
NOTE When operating in a Gigabit Ethernet environment, CAT-5e or CAT-6 cable
is recommended for Gigabit operation.
DC12V GE1/PoE Console
Installation Guide 7
2 Hardware Installation
2.1 Installation Instructions
The AP-0622 access point mounts either on a wall (with customer supplied M4 x 25 pan head screws and wall
anchor - or equivalent) or on a suspended ceiling T-bar. If deploying an external antenna model AP622, access point
mounting kit (Part No. KT-135628-01) is required. An AP-0622 is not designed for mounting on a desk.
To prepare for the installation:
1. Match the model number on the purchase order with the model numbers in the packing list and on the case of
the access point.
2. Verify the contents of the box include the intended AP-0622 access point, and he included hardware matches
the package contents on page 4.
3. Review site survey and network analysis reports to determine the location and mounting position for the
AP-0622 access point.
4. Connect a CAT-5 or better Ethernet cable to a compatible 802.3af power source and run the cable to the
installation site. Ensure there is sufficient slack on the cable to perform the installation steps.
2.2 Precautions
Before installing an AP-0622 model Access Point, verify the following:
• Your using the correctly rated power supply for the AP-0622 (PWRS-14000-148R)
• Motorola Solutions recommends you do not to install the AP-0622 in wet or dusty areas.
• Verify the environment has a continuous temperature range between 0° C to 40° C.
Part Number Description
AP-0622-66030-US 802.11n dependent access point, dual radio, internal antenna
AP-0622-66040-US 802.11n dependent access point, dual radio, external antenna
AP-0622-66030-WR 802.11n dependent access point, dual radio, internal antenna
AP-0622-66040-WR 802.11n dependent access point, dual radio, external antenna
NOTE In the above part numbers, a country code of “WR” represents a world
wide model, whereas “US” defines the model as only legally deployable
in the United States.
NOTE When operating in a Gigabit Ethernet environment, CAT-5e or CAT-6 cable
is recommended for Gigabit operation.
8AP-0622 Access Point
2.3 Access Point Placement
For optimal performance, install the access point away from transformers, heavy-duty motors, fluorescent lights,
microwave ovens, refrigerators and other industrial equipment. Signal loss can occur when metal, concrete, walls
or floors block transmission. Install the access point in an open area or add access points as needed to improve
coverage.
Antenna coverage is analogous to lighting. Users might find an area lit from far away to be not bright enough. An
area lit sharply might minimize coverage and create dark areas. Uniform antenna placement in an area (like even
placement of a light bulb) provides even, efficient coverage.
Place the access point using the following guidelines:
• Install the access point at an ideal height of 10 feet from the ground.
• Orient the access point antennas vertically for best reception (applies to external antenna models only).
To maximize the access point’s radio coverage area, Motorola Solutions recommends conducting a site survey to
define and document radio interference obstacles before installing the access point.
2.4 Integrated Antenna Model Wall Mount Instructions
This mounting requires hanging the AP-0622 along its width or length using the two slots on the bottom of the unit.
The AP22 can be mounted onto any plaster, wood, or cement wall surface using customer supplied screw hardware
(M3.5 x 0.6 x 20 mm- or equivalent).
2.4.1 Wall Mount Hardware
• Two wide-shoulder Phillips pan head self-tapping screws (customer supplied)
• Two wall anchors (customer supplied)
• Security cable (optional)
NOTE The following screws are recommended: (ANSI Standard) #6-18 X
0.875in. Type A or AB Self-Tapping Screw, or (ANSI Standard Metric)
M3.5 X 0.6 X 20mm Type D Self-Tapping Screw.
Installation Guide 9

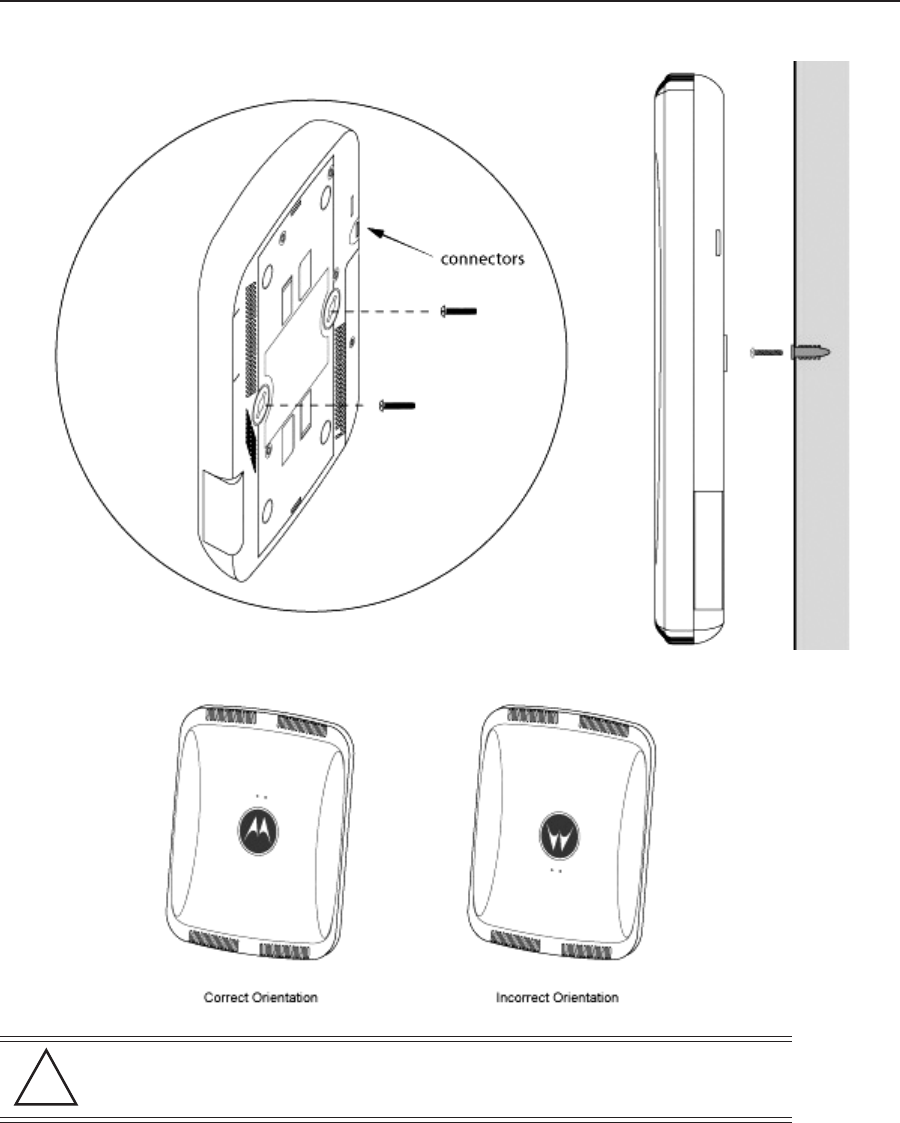

2.4.2 Wall Mount Procedure
1. Orient the case on the wall by its width or length.
CAUTION To ensure proper operation of an AP-0622 access point, ensure it is
mounted in the correct orientation as shown above.
!
10 AP-0622 Access Point
2. Mark two points (for drill holes) 4.08 inches (103 .7 mm) apart on a horizontal line.
3. At each point, drill a hole in the wall, insert an anchor, screw into the anchor the wall mounting screw and stop
when there is 1mm between the screw head and the wall .
4. If required, install and attach a Kennsington security cable (customer supplied) to the unit’s lock port.
5. Attach an Ethernet cable from the access point to a controller with an 802.3af-compatible power source or use
the PWRS-14000-148R power supply to supply power to the AP-0622 (once fully cabled).
6. Place the middle of each of the case’s mount slots over the screw heads.
7. Slide the case down along the mounting surface to hang the mount slots on the screw heads.

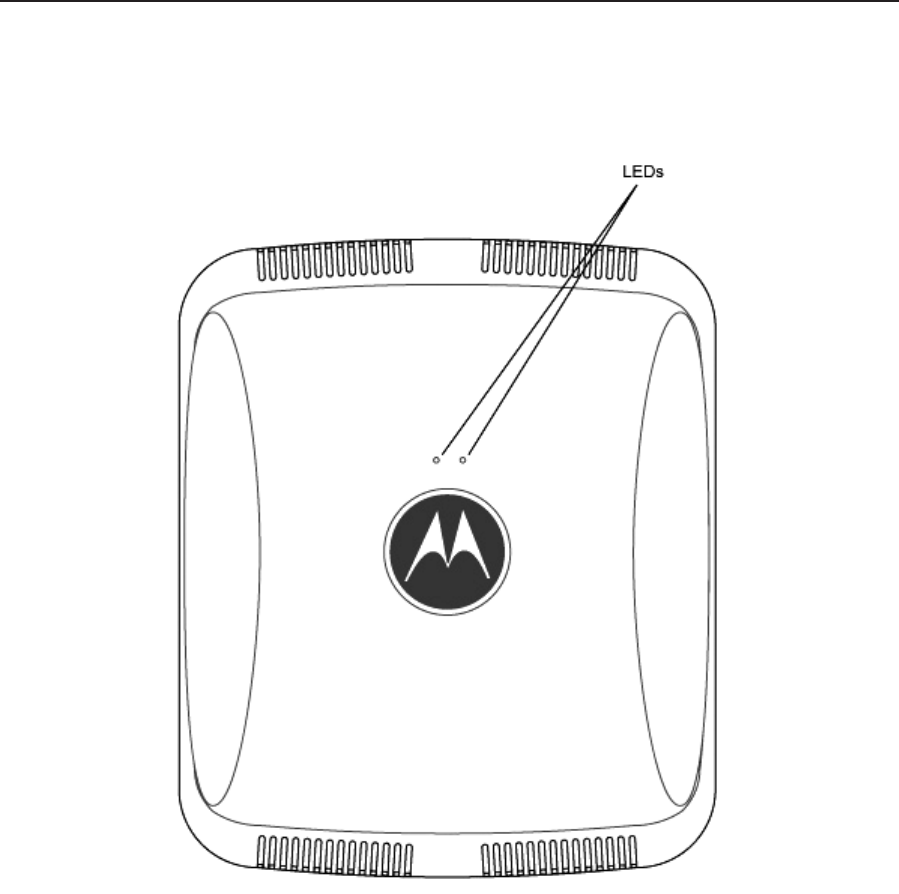

8. Verify the unit has power by observing that the LEDs are lit or flashing.
NOTE When pre-drilling a hole the recommended hole size is 2.8mm (0.11in.).
CAUTION If not using a 802.3af capable controller to power the AP-0622, ensure
only the AP-0622’s designated power supply (PWRS-14000-148R) is
used to supply power to the access point. Using an incorrectly rated
power supply could damage the unit and void the product warranty.
Do not actually connect to the power source until the cabling portion
of the installation is complete.
!
Installation Guide 11

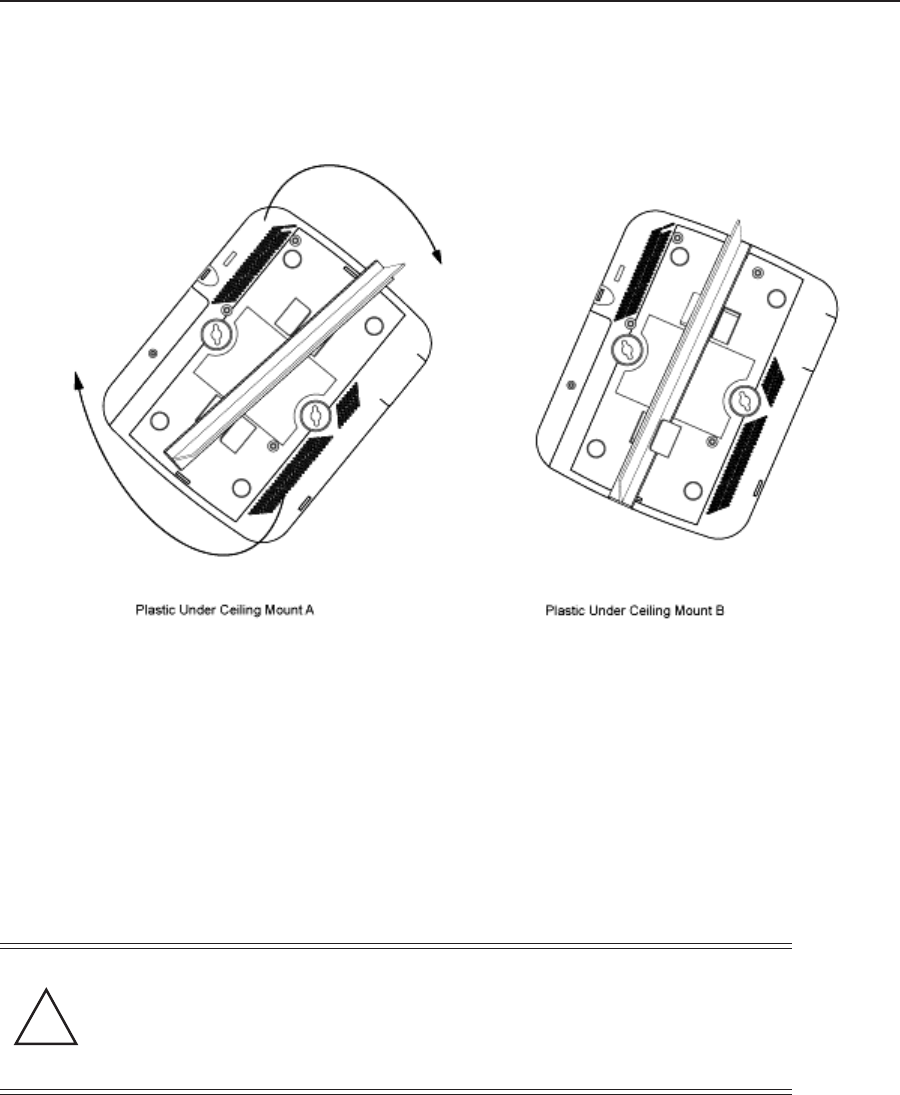

2.5 Integrated Antenna Model Suspended Ceiling T-Bar Mount
Ceiling mount requires holding the AP-0622 access point up against a T-bar of a suspended ceiling grid and twisting
the case onto the T-bar.
2.5.1 Suspended Ceiling T-Bar Mount Procedure
1. If required, install and attach a Kensington security cable (customer supplied) to the unit’s lock port.
2. Attach an Ethernet cable from the access point to a controller with an 802.3af compatible power source or use
the PWRS-14000-148R power supply to supply power to the AP-0622 (once fully cabled).
3. Align the bottom of the T-bar with the back of the case.
4. Orient the case by its length, and the length of the T-bar.
5. Rotate the case 45 degrees clockwise, or about 10 o’clock.
6. Push the back of the case onto the bottom of the T-bar.
7. Rotate the case 45 degrees counter-clockwise. The clips click as they fasten to the T-bar.
8. Verify the unit has power by observing the LEDs.
CAUTION If not using a 802.3af capable controller to power the AP-0622, ensure
only the AP-0622’s designated power supply (PWRS-14000-148R) is
used to supply power to the access point. Using an incorrectly rated
power supply could damage the unit and void the product warranty.
Do not actually connect to the power source until the cabling portion
of the installation is complete.
!
12 AP-0622 Access Point
2.6 External Antenna Model Wall Mount Instructions
A wall mount deployment requires hanging the AP-0622 access point along its width or length using the pair of
slots on the bottom of the unit. The AP-0622 can be mounted on to any plaster, wood or cement wall surface using
the provided wall anchors.
2.6.1 Wall Mount Hardware
• Two customer provided wide-shoulder Phillips pan head self-tapping screws (M3.5 x 0.6 x 20 mm)
• Two wall anchors (customer supplied)
• Security cable (optional)
2.6.2 Wall Mount Procedure - New Installation
This section describes a new AP-0622 installation with no previous access point existing on the intended wall
surface.
NOTE The following screws are recommended: (ANSI Standard) #6-18 X
0.875in. Type A or AB Self-Tapping Screw, or (ANSI Standard Metric)
M3.5 X 0.6 X 20mm Type D Self-Tapping Screw.
Installation Guide 13
1. Attach the two provided mounting ears (using four ear mounting screws) to the two narrow ens of the AP-0622.
Align the ears using the built in ear alignment pin on the access point housing. Torque the screws to 6 lb-in.
2. Place the access point against the wall, ensuring the access point’s Motorola Solutions “bat wings” logo is in
the correct orientation.
3. Mark the screw hole locations on a vertical axis using the ear’s mounting holes.
4. At each point, drill a hole in the wall and insert the anchor.
5. Place the access point on the anchor. Insert screws through the access point’s mounting ears and into the
anchor.
6. If required, install and attach a Kensington security cable (customer supplied) to the unit’s lock port.
7. Attach an Ethernet cable from the access point to a controller with an 802.3af-compatible power source or use
the PWRS-14000-148R power supply to supply power to the AP-0622 (once fully cabled).
8. Attach appropriate antennas to the connectors.
9. Attach an Ethernet cable from the access point to a controller with an 802.3af compatible power source.
NOTE When pre-drilling a hole the recommended hole size is 2.8mm (0.11in.).
RADIO2-1 RADIO1-0
DC 12V GE1/PoE Console
MOTOROLA
14 AP-0622 Access Point
10. Verify the access point is receiving power by observing that the LEDs are lit or flashing.
2.6.3 Wall Mount Procedure - Existing Access Point Replacement
An existing external antenna model AP300 (WSAP-5100-100) or external antenna model AP650 (AP-0650-660X0)
access point, installed on a wall (plenum installation), can be placed by an AP-0622. Simply remove the existing
legacy model access point form its mounting screws, leave the mounting hardware in place and install the new
external antenna model AP-0622 directly on to the existing mounting hardware. The cabling procedure for such a
replacement is as described in the previous section.
CAUTION If not using a 802.3af capable controller to power the AP622, ensure
only the AP622’s designated power supply (PWRS-14000-148R) is
used to supply power to the access point. Using an incorrectly rated
power supply could damage the unit and void the product warranty.
Do not actually connect to the power source until the cabling portion
of the installation is complete.
!
Installation Guide 15
2.7 External Antenna Model Suspended Ceiling T-Bar Mount
Ceiling mount requires holding the AP-0622 access point up against a T-bar of a suspended ceiling grid and twisting
the case onto the T-bar. If deploying an external antenna model AP-0622 on a ceiling T-Bar, access point mounting
kit (Part No. KT-135628-01) or ceiling mount hardware (SCT-2) is required.
2.7.1 Suspended Ceiling T-Bar Mount Procedure - Using Mounting Kit
The following installation uses the access point mounting kit (Part No. KT-135628-01) to deploy the access point
on a ceiling T-Bar.
1. If required, install and attach a Kensington security cable (customer provided) to the unit’s lock port.
2. Using only the mounting bracket from the mounting kit, rotate and click the mounting bracket into the mounting
slots on the AP-0622.
3. Attach an Ethernet cable from the access point to a controller with an 802.3af compatible power source or use
the PWRS-14000-148R power supply to supply power to the AP-0622 (once fully cabled).
4. With the ceiling tile raised, slip the T-Bar bracket on to the exposed T-Bar flange.
5. Lower the ceiling tile and verify the stability of the T-Bar mounting bracket connection. There will be no
stability in this assembly until the ceiling tile is lowered on to the T-Bar to secure the mounting hardware.
6. Verify the unit has power by observing the LEDs.

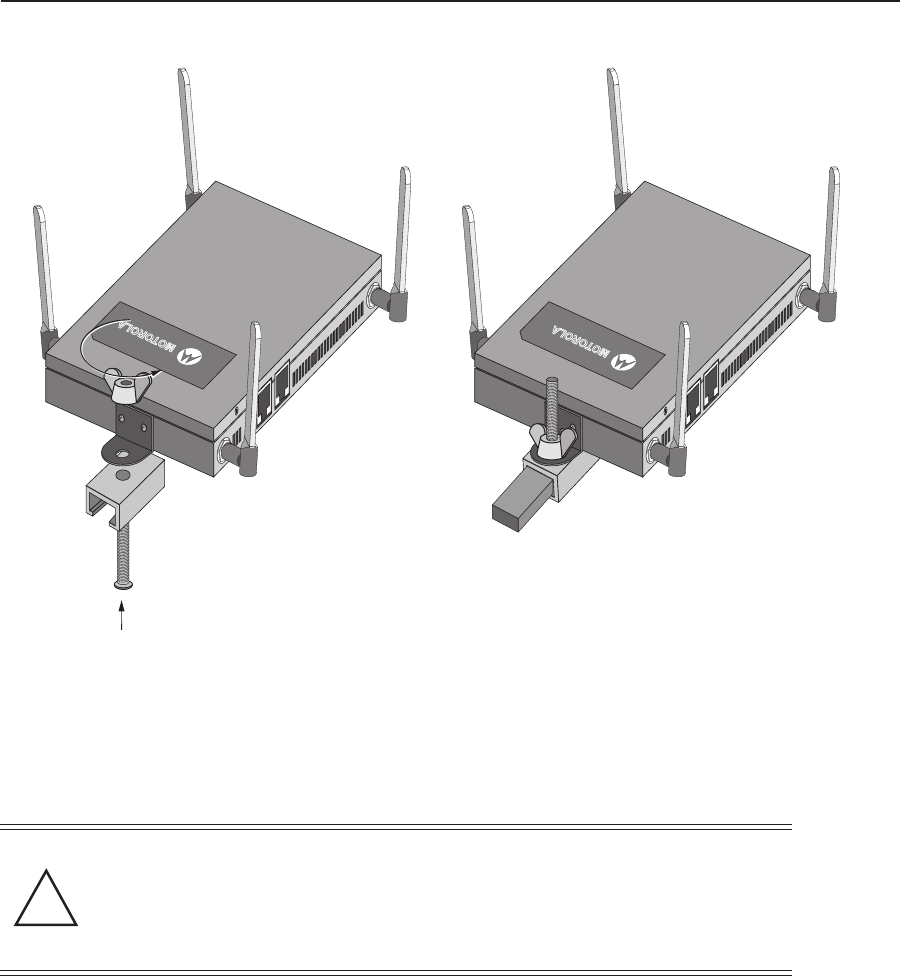

2.7.2 Suspended Ceiling T-Bar Mount Procedure - Using Ceiling Mount Hardware
The following installation uses the access point ceiling mounting kit (Part No. SCT-2) to deploy the access point on
a ceiling T-Bar.
1. If required, install and attach a Kensington security cable (customer provided) to the unit’s lock port.
2. Remove nut from the SCT-2 kit and place assembly and screw through access point mounting ear.
3. Place the clips from the SCT-2 ceiling mount kit over ceiling T-Bar.
4. Tighten clips using provided nuts.
CAUTION If not using a 802.3af capable controller to power the AP-0622, ensure
only the AP-0622’s designated power supply (PWRS-14000-148R) is
used to supply power to the access point. Using an incorrectly rated
power supply could damage the unit and void the product warranty.
Do not actually connect to the power source until the cabling portion
of the installation is complete.
!
16 AP-0622 Access Point
5. Attach an Ethernet cable from the access point to a controller with an 802.3af compatible power source or use
the PWRS-14000-148R power supply to supply power to the AP-0622 (once fully cabled).
6. Attach appropriate antennas to the connectors.
7. Attach an Ethernet cable from the access point to the controller with an 802.3af compatible power source.
8. Verify the unit has power by observing the LEDs.
CAUTION If not using a 802.3af capable controller to power the AP-0622, ensure
only the AP-0622’s designated power supply (PWRS-14000-148R) is
used to supply power to the access point. Using an incorrectly rated
power supply could damage the unit and void the product warranty.
Do not actually connect to the power source until the cabling portion
of the installation is complete.
RADIO2-1 RADIO1-0DC 12V GE1/PoE Console
RADIO2-1 RADIO1-0
DC 12V GE1/PoE Console
MOTOROLA
MOTOROLA
!
Installation Guide 17
2.8 External Antenna Suspended Ceiling Tile (Plenum) Mount
Ceiling mount requires placing the AP-0622 access point above suspended ceiling tile.
2.8.1 Suspended Ceiling Mount Hardware
• Security cable (optional)
• Mounting ears
• Customer supplied pipe or channel clamps
2.8.2 Ceiling Mount Procedure
1. If possible, remove the ceiling tile from its frame and place it, finish side down, on a work surface.
2. If required, install and attach a Kensington security cable (customer provided) to the unit’s lock port.
3. Place the access point on the ceiling tile or attach to a plenum beam or pipe using industry available clamps.
4. Attach appropriate antennas to the connectors.
5. Bring the tile into the ceiling space
6. Attach an Ethernet cable from the access point to a controller with an 802.3af compatible power source or use
the PWRS-14000-148R power supply to supply power to the AP-0622 (once fully cabled).
7. Verify the access point is receiving power by observing the LEDs.
8. Place the ceiling tile back in its frame.
NOTE Notes or warnings about suspended ceiling mounts apply to all
installations where the unit is placed on suspended ceiling tile.
CAUTION Motorola Solutions does not recommend mounting the AP-0622
access point directly to any suspended ceiling tile with a thickness
less than 12.7mm (0.5in.) or a suspended ceiling tile with an
unsupported span greater than 660mm (26in.). Motorola Solutions
strongly recommends fitting the AP-0622 access point with the
supplied mounting ears and hanging the access point on a pipe or
beam.
CAUTION If not using a 802.3af capable controller to power the AP-0622, ensure
only the AP-0622’s designated power supply (PWRS-14000-148R) is
used to supply power to the access point. Using an incorrectly rated
power supply could damage the unit and void the product warranty.
Do not actually connect to the power source until the cabling portion
of the installation is complete.
!
!
18 AP-0622 Access Point
2.9 AP-0622 External Antenna Model Antenna Options
Motorola Solutions supports two antenna suites for AP-0622 External Antenna models. One antenna suite
supporting the 2.4 GHz band and another antenna suite supporting the 5 GHz band. Select an antenna model best
suited to the intended operational environment of your access point.
Installation Guide 19
The 2.4 GHz antenna suite includes the following models:
The 5 GHz antenna suite includes the following models:
For up-to-date information on supported antennas and antenna specifications, please refer to the Motorola
Solutions Enterprise Wireless LAN Antenna Specification Guide available on the Motorola Solutions Web site.
Part Number Antenna Type
ML-2452-APA2-01 Dipole Antenna
ML-2499-SD3-01R Patch Antenna
ML-2499-HPA3-01R Omni Antenna
ML-2452-PNA5-01R Panel Antenna
ML-2452-PTA3M3-036 Omni Antenna
ML-2452-APAG2A1-01 (Black)
ML-2452-APAG2A1-02 (White)
Dipole Antenna
Part Number Antenna Type
ML-2452-APA2-01 Dipole Antenna
ML-5299-PTA1-01R Patch Antenna
ML-5299-HPA1-01R Omni Antenna
ML-2452-PNA5-01R Panel Antenna
ML-2452-PTA3M3-036 Omni Antenna
ML-2452-APAG2A1-01 (Black)
ML-2452-APAG2A1-02 (White)
Dipole Antenna
20 AP-0622 Access Point
2.10 LED Indicators
Both Integrated Antenna and External Antenna models have LED activity indicators on the front of the case. With
the External Antenna models mounted above a ceiling, LEDs are at the center of an oval badge on the ceiling.
The LEDs provide a status display indicating error conditions, transmission, and network activity for the 5 GHz
802.11a/n (amber) radio or the 2.4 GHz 802.11b/g/n (green) radio.
Installation Guide 21
Task 5 GHz Activity LED (Amber) 2.4 GHz Activity LED (Green)
Unadopted Off Blinking at 5Hz
Normal
Operation
• If this radio band is enabled:
Blink at 5 second interval
• If this radio band is disabled:
Off
• If there is activity on this band:
Blink at a 1Hz
• If this radio band is enabled:
Blink at 5 second interval
• If this radio band is disabled:
Off
If there is activity on this band:
Blink at a 1Hz
Firmware
Update
On Off
Locate AP
Mode
Blink at 5Hz Blink at 5Hz
22 AP-0622 Access Point
3 Initial Access Point Configuration
The AP-0622 access point receives its configuration once adopted by a Motorola Solutions RFS4000, RFS6000,
RFS7000 or NX9000 series controller. There are no required initial configuration settings beyond verifying power
and LED functionality for an AP-0622 model access point. Once adopted, the access point is managed by its
connected controller and can receive periodic firmware updates when Motorola Solutions releases updates with
new controller functionality.
For information on how use a Motorola Solutions RFS Series controller to manage an AP-0622 access point, refer
to http://support.symbol.com/support/product/manuals.do.
Installation Guide 23
4 Specifications
4.1 AP-0622 Integrated Antenna Model Electrical Characteristics
An AP-0622 Integrated model Access Point has the following electrical characteristics:
4.2 AP-0622 Integrated Antenna Model Physical Characteristics
An AP-0622 Integrated Antenna model Access Point has the following physical characteristics:
Operating Current &
Voltage
12VDC, 1A (accessory power connector)
48V,0.25A (PoE connector)
Dimensions 9.38 inches x 7.5 inches x 1.38 inches
23.82 cm x 19.50 cm x 3.50 cm
Housing Plastic
Weight 0.90 lbs / 0.40 kg
Operating
Temperature
32°F to 104°F/0°C to 40°C
Storage Temperature -40°F to 185°F/-40°C to 85°C
Operating Humidity 5 to 95% Relative Humidity non-condensing
Storage Humidity 85% Relative Humidity non-condensing
Operating Altitude
(max)
8,000 ft @ 28C
Storage Altitude
(max)
30,000 ft @ 12C
Electrostatic
Discharge
+/-15kV Air and +/-8kV Contact @ 50% Relative Humidity
24 AP-0622 Access Point
4.3 AP-0622 External Antenna Model Electrical Characteristics
An AP-0622 External Antenna model Access Point has the following electrical characteristics:
4.4 AP-0622 External Antenna Model Physical Characteristics
An AP-0622 External Antenna model Access Point has the following physical characteristics:
Operating Current &
Voltage
12VDC, 1A (accessory power connector)
48V,0.25A (PoE connector)
Dimensions 7.88 inches x 5.00 inches x 1.00 inches
20.01 cm x 12.70 cm x 2.54 cm
Housing Metal
Weight 1.45 lbs / 0.65 kg
Operating
Temperature
32°F to 104°F/0°C to 40°C
Storage Temperature -40°F to 185°F/-40°C to 85°C
Operating Humidity 5 to 95% Relative Humidity non-condensing
Storage Humidity 85% Relative Humidity non-condensing
Operating Altitude
(max)
8,000 ft @ 28C
Storage Altitude
(max)
30,000 ft @ 12C
Electrostatic
Discharge
+/-15kV Air and +/-8kV Contact @ 50% Relative Humidity
Installation Guide 25
4.5 Radio Characteristics
The AP-0622 model Access Points have the following radio characteristics:
Operating Channels All channels from 4920 MHz to 5825 MHz except channel
52 -64
Channels 1-13 (2412-2472 MHz)
Channel 14 (2484 MHz) Japan only
Actual operating frequencies depend on regulatory approval for the
country of use.
Data Rates Supported 802.11b: 1,2,5.5,11Mbps
802.11g: 1,2,5.5,11,6,9,12,18,24,36,48, and 54Mbps
802.11a: 6,9,12,18,24,36,48, and 54Mbps
802.11n: MCS 0-15 up to 300Mbps
Wireless Medium Direct Sequence Spread Spectrum (DSSS),
Orthogonal Frequency Division Multiplexing (OFDM)
Spatial multiplexing (MIMO)
Network Standards 802.11a, 802.11b, 802.11g, 802.3, 802.11n (Draft 2.0)
Maximum Available
Transmit Power
Maximum available conducted transmit power per chain:
2.4 GHz: 21dBm
Maximum available conducted transmit power all chains:
2.4 GHz: 24dBm
Maximum available conducted transmit power per chain:
5 GHz: 19dBm
Maximum available conducted transmit power all chains:
5 GHz: 22dBm
Transmit Power
Adjustment
1dB increments
26 AP-0622 Access Point
5 Regulatory Information
This device is approved under the Symbol Technologies, Inc. brand: Symbol Technologies, Inc. is a wholly owned subsidiary of Motorola
Solutions, Inc. (collectively "Motorola").
This guide applies to Model Number AP-0622.
All Motorola/Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as
required.
Local language translations are available at the following website:
http://supportcentral.motorola.com/
Any changes or modifications to Motorola/Symbol Technologies equipment, not expressly approved by Motorola/Symbol Technologies, could
void the user’s authority to operate the equipment.
Motorola/Symbol devices are professionally installed, the Radio Frequency Output Power will not exceed the maximum allowable limit for
the country of operation.
Antennas: Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could cause
damage and may violate regulations.
This device is only to be used with a Motorola/Symbol Technologies Wireless Switch.
Country Approvals
Regulatory markings, subject to certification, are applied to the device signifying the radio(s) is/are approved for use in the following
countries: United States, Canada, Japan, China, S. Korea, Australia, and Europe.
Please refer to the Declaration of Conformity (DoC) for details of other country markings. This is available at: http://www.motorola.com/doc
Note: For 2.4GHz or 5GHz Products: Europe includes, Austria, Belgium, Bulgaria, Czech Republic, Cyprus, Denmark, Estonia, FinlFor 2.4GHz
or 5GHz Products: Europe includes, Austria, Belgium, Bulgaria, Czech Republic, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovak Republic, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
Operation of the device without regulatory approval is illegal.
Health and Safety Recommendations
Country Selection
Select only the country in which you are using the device. Any other selection will make the operation of this device illegal.
Frequency of Operation – FCC and IC
You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants etc. and areas where the air
contains chemicals or particles (such as grain, dust, or metal powders).
5 GHz Only
The use in the UNII (Unlicensed National Information Infrastructure) band 1 (5150-5250 MHz) is restricted to Indoor Use Only; any other use
will make the operation of this device illegal.
Installation Guide 27
Industry Canada Statement:
Caution: The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-Channel mobile
satellite systems. High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz and
these radars could cause interference and/or damage to LE-LAN devices.
Avertissement: Le dispositive fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l'intérieur afin de
réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux.
Les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bands 5250-5350
MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Health and Safety Recommendations
Warnings for Use of Wireless Devices
Please observe all warning notices with regard to the usage of wireless devices.
Potetially Hazerdous Atmospheres - Fixed Installations
You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants etc. and areas where the air
contains chemicals or particles (such as grain, dust, or metal powders).
Safety in Hospitals
Wireless devices transmit radio frequency energy and may affect medical electrical equipment. When installed adjacent to other
equipment, it is advised to verify that the adjacent equipment is not adversely affected.
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained between a handheld wireless device and a
pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with independent research and
recommendations by Wireless Technology Research.
Persons with Pacemakers:
• Should ALWAYS keep the device more than 15cm (6 inches) from their pacemaker when turned ON.
• Should not carry the device in a breast pocket.
• Should use the ear furthest from the pacemaker to minimize the potential for interference.
• If you have any reason to suspect that interference is taking place, turn OFF your device.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device, to determine if the operation of your wireless product may interfere
with the medical device.
RF Exposure Guidelines
Safety Information
Reducing RF Exposure - Use Properly
Only operate the device in accordance with the instructions supplied.
The maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for
point-to-point and non point-to-point operation as appropriate.
28 AP-0622 Access Point
International
The device complies with internationally recognized standards covering human exposure to electromagnetic fields from radio devices. For
information on “International” human exposure to electromagnetic fields refer to the Motorola/Symbol Declaration of Conformity (DoC) at:
http://www.motorola.com/doc
EU
Remote and Standalone Antenna Configurations
To comply with EU RF exposure requirements, antennas that are mounted externally at remote locations or operating near users at
stand-alone desktop of similar configurations must operate with a minimum separation distance of 20 cm from all persons.
US and Canada
Co-located statement
To comply with FCC RF exposure compliance requirement, the antennas used for this transmitter must not be co-located or operating in
conjunction with any other transmitter/antenna except those already approved in this filling.
Remote and Standalone Antenna Configurations
To comply with FCC RF exposure requirements, antennas that are mounted externally at remote locations or operating near users at
stand-alone desktop of similar configurations must operate with a minimum separation distance of 20 cm from all persons.
Power Supply
Use ONLY a LISTED Motorola, Type no. PWRS-14000-148R (12VDC @ 4.16A), direct plug-in power supply, marked Class 2 (IEC60950-1, SELV).
This device can be powered from a 802.3af compliant power source which is certified by the appropriate agencies.
Use of alternative Power Supply will invalidate any approvals given to this unit and may be dangerous.
Wireless Devices - Countries
Country Selection
Select only the country in which you are using the device. Any other selection will make the operation of this device illegal.
Operation in the US and Canada
The use on UNII (Unlicensed National Information Infrastructure) Band 1 5150-5250 MHz is restricted to indoor use only, any other use will
make the operation of this device illegal.
The available channels for 802.11 b/g operation in the US are Channels 1 to 11. The range of channels is limited by firmware.
NOTE The US only models (AP-0622-66030-US and AP-0622-66040-US) have the country code
permanently set to the US. The (AP-0622-66030-WR and AP-0622-66040-WR) models
cannot be configured for use in the US.
25
25
Installation Guide 29
Radio Frequency Interference Requirements—FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Radio Frequency Interference Requirements – Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Radio Transmitters
For RLAN Devices:
The use of 5 GHz RLAN’s, for use in Canada, have the following restrictions:
•Restricted Band 5.60 – 5.65 GHz
This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement
est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter
tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.
Label Marking: The Term "IC:" before the radio certification signifies that Industry Canada technical specifications were met.
30 AP-0622 Access Point
CE Marking and European Economic Area (EEA)
The use of 2.4GHz RLAN’s, for use through the EEA, have the following restrictions:
• Maximum radiated transmit power of 100 mW EIRP in the frequency range 2.400 -2.4835 GHz.
• France outside usage, the equipment is restricted to 2.400-2.45 GHz frequency range.
• Italy requires a user license for outside usage.
Statement of Compliance
Motorola hereby, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC. A Declaration of Conformity may be obtained from http://www.motorola.com/doc.
Korea Warning Statement for Class B
Other Countries
Australia
Use of 5GHz RLAN’s in Australia is restricted in the following band 5.50 – 5.65GHz.
Brazil
Declarações Regulamentares para AP-0622 - Brasil
Nota: A marca de certificação se aplica ao Transceptor, modelo AP622. Este equipamento opera em caráter secundário, isto é, não tem
direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando
em caráter primário. Para maiores informações sobre ANATEL consulte o site: www.anatel.gov.br
Chile
Este equipo cumple con la Resolución No 403 de 2008, de la Subsecretaria de telecomunicaciones, relativa a radiaciones electromagnéticas.
Mexico
Restrict Frequency Range to: 2.450 – 2.4835 GHz.
기 종 별 사 용 자 안 내 문
B 급 기기
( 가정용 방송통신기기 )
이 기기는 가정용 (B 급 ) 으로 전자파적합등록을
한 기기로서 주로 가정에서 사용하는 것을 목적
으로 하며 , 모든 지역에서 사용할 수 있습니다 .
Class B (Broadcasting Communication
Device for Home Use)
This device obtained EMC registration mainly for home use
(Class B) and may be used in all areas.
Installation Guide 31

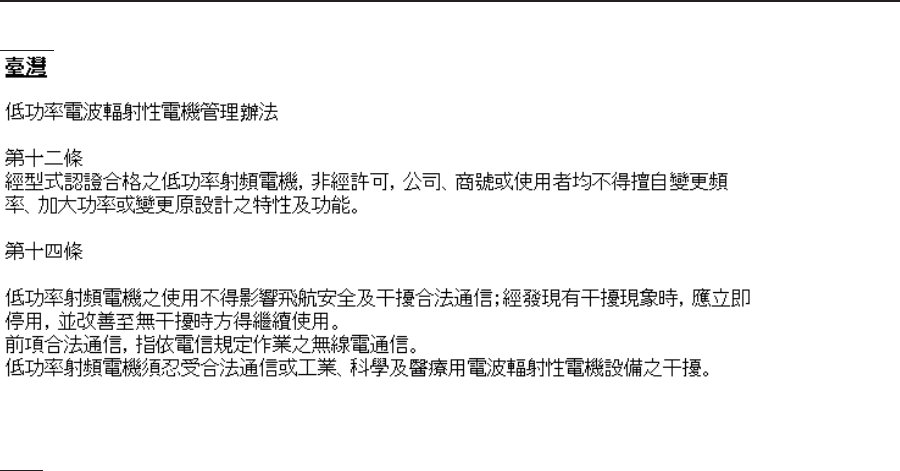

Taiwan
5.25-5.35 ⿁䌿丏ᐊܻ᪡П⛵㎮䊛㿞ڇ䔌䀁٭ˈ䰤ᮐᅸܻՓ⫼
Korea
당해 무선설비는 운용 중 전파혼신 가능성이 있음
당해 무선설비 는전파혼 신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다 .
Turkish WEEE Statement of Compliance
EEE Yönetmeli÷ine Uygundur
32 AP-0622 Access Point
Waste Electrical and Electronic Equipment (WEEE)
English: For EU Customers: All products at the end of their life must be
returned to Motorola for recycling. For information on how to return product,
please go to: http://www.motorola.com/recycling/weee.
Français: Clients de l'Union Européenne: Tous les produits en fin de cycle
de vie doivent être retournés à Motorola pour recyclage. Pour de plus amples
informations sur le retour de produits, consultez :
http://www.motorola.com/recycling/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán
entregarse a Motorola al final de su ciclo de vida para que sean reciclados.
Si desea más información sobre cómo devolver un producto, visite:
http://www.motorola.com/recycling/weee.
Bulgarish: Ɂɚ ɤɥɢɟɧɬɢ ɨɬ ȿɋ: ɋɥɟɞ ɤɪɚɹ ɧɚ ɩɨɥɟɡɧɢɹ ɢɦ ɠɢɜɨɬ ɜɫɢɱɤɢ
ɩɪɨɞɭɤɬɢ ɬɪɹɛɜɚ ɞɚ ɫɟ ɜɪɴɳɚɬ ɧɚ Motorola ɡɚ ɪɟɰɢɤɥɢɪɚɧɟ. Ɂɚ ɢɧɮɨɪɦɚɰɢɹ
ɨɬɧɨɫɧɨ ɜɪɴɳɚɧɟɬɨ ɧɚ ɩɪɨɞɭɤɬɢ, ɦɨɥɹ ɨɬɢɞɟɬɟ ɧɚ ɚɞɪɟɫ:
http://www.motorola.com/recycling/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende
ihrer Lebensdauer zum Recycling an Motorola zurückgesandt werden.
Informationen zur Rücksendung von Produkten finden Sie unter
http://www.motorola.com/recycling/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del
rispettivo ciclo di vita devono essere restituiti a Motorola al fine di consentirne
il riciclaggio. Per informazioni sulle modalità di restituzione, visitare il
seguente sito Web: http://www.motorola.com/recycling/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem
ser devolvidos à Motorola para reciclagem. Para obter informações sobre
como devolver o produto, visite: http://www.motorola.com/recycling/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van
hun levensduur naar Motorola te worden teruggezonden voor recycling.
Raadpleeg http://www.motorola.com/recycling/weee voor meer informatie
over het terugzenden van producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji
nale¿y zwróciæ do firmy Motorola w celu ich utylizacji. Informacje na temat
zwrotu produktów znajduj¹ siê na stronie internetowej
http://www.motorola.com/recycling/weee.
ýeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich
životnosti vrátit spoleènosti Motorola k recyklaci. Informace o zpùsobu
vrácení produktu najdete na webové stránce:
http://www.motorola.com/recycling/weee.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada
taaskasutamise eesmärgil Motorola'ile. Lisainformatsiooni saamiseks toote
tagastamise kohta külastage palun aadressi:
http://www.motorola.com/recycling/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Motorola
vállalathoz kell eljuttatni újrahasznosítás céljából. A termék
visszajuttatásának módjával kapcsolatos tudnivalókért látogasson el a
http://www.motorola.com/recycling/weee weboldalra.
Installation Guide 33
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd
måste returneras till Motorola för återvinning. Information om hur du
returnerar produkten finns på http://www.motorola.com/recycling/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava
kierrätettäväksi Motorola-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja
tuotteen palauttamisesta on osoitteessa
http://www.motorola.com/recycling/weee.
Dansk: Til kunder i EU: Alle produkter skal returneres til Motorola til
recirkulering, når de er udtjent. Læs oplysningerne om returnering af
produkter på: http://www.motorola.com/recycling/weee.
ǼȜȜȘȞȚțȐ: īȚĮ ʌİȜȐIJİȢ ıIJȘȞ Ǽ.Ǽ.: ǵȜĮ IJĮ ʌȡȠȧȩȞIJĮ, ıIJȠ IJȑȜȠȢ IJȘȢ įȚȐȡțİȚĮȢ
ȗȦȒȢ IJȠȣȢ, ʌȡȑʌİȚ ȞĮ İʌȚıIJȡȑijȠȞIJĮȚ ıIJȘȞ Motorola ȖȚĮ ĮȞĮțȪțȜȦıȘ. īȚĮ
ʌİȡȚııȩIJİȡİȢ ʌȜȘȡȠijȠȡȓİȢ ıȤİIJȚțȐ ȝİ IJȘȞ İʌȚıIJȡȠijȒ İȞȩȢ ʌȡȠȧȩȞIJȠȢ,
İʌȚıțİijșİȓIJİ IJȘ įȚİȪșȣȞıȘ http://www.motorola.com/recycling/weee ıIJȠ
ǻȚĮįȓțIJȣȠ.
Malti: Gƫal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aƫƫar tal-ƫajja ta'
l-uĪu tagƫhom, iridu jiƥu rritornati gƫand Motorola gƫar-riƛiklaƥƥ. Gƫal aktar
tagƫrif dwar kif gƫandek tirritorna l-prodott, jekk jogƫƥbok Īur:
http://www.motorola.com/recycling/weee.
Românesc: Pentru clienĠii din UE: Toate produsele, la sfârúitul duratei lor de
funcĠionare, trebuie returnate la Motorola pentru reciclare. Pentru informaĠii
despre returnarea produsului, accesaĠi:
http://www.motorola.com/recycling/weee.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe
vrniti podjetju Motorola za reciklažo. Za informacije o vraþilu izdelka obišþite:
http://www.motorola.com/recycling/weee.
Slovenþina: Pre zákazníkov z krajín EU: Všetky výrobky musia byĢ po
uplynutí doby ich životnosti vrátené spoloþnosti Motorola na recykláciu.
Bližšie informácie o vrátení výrobkov nájdete na:
http://www.motorola.com/recycling/weee.
Lietuviǐ: ES vartotojams: visi gaminiai, pasibaigus jǐ eksploatacijos laikui,
turi bnjti grąžinti utilizuoti Ƴ kompaniją „Motorola“. Daugiau informacijos, kaip
grąžinti gaminƳ, rasite: http://www.motorola.com/recycling/weee.
Latviešu: ES klientiem: visi produkti pƝc to kalpošanas mnjža beigƗm ir
jƗnogƗdƗ atpakaƺ Motorola otrreizƝjai pƗrstrƗdei. Lai iegnjtu informƗciju par
produktu nogƗdƗšanu Motorola, lnjdzu, skatiet:
http://www.motorola.com/recycling/weee.
Türkçe: AB Müúterileri için: KullanÕm süresi dolan tüm ürünler geri
dönüútürme için Motorola'ya iade edilmelidir. Ürünlerin nasÕl iade edilece÷i
hakkÕnda bilgi için lütfen úu adresi ziyaret edin:
http://www.motorola.com/recycling/weee.
34 AP-0622 Access Point
Part Numbers, Support, and Sales
Motorola’s Enterprise Mobility Support Center
If you have a problem with your equipment, contact Enterprise Mobility support for your region. Support and issue
resolution is provided for products under warranty or that are covered by an Enterprise Mobility Services
agreement. Contact information and web self-service is available by visiting http://supportcentral.motorola.com/.
When contacting Enterprise Mobility support, please provide the following information:
• Serial number of the unit
• Model number or product name
• Software type and version number
Motorola Solutions responds to calls by email or telephone within the time limits set forth in support agreements.
If you purchased your Enterprise Mobility business product from a Motorola Solutions business partner, contact
that business partner for support.
Customer Support Web Sites
Motorola Solutions‘ Support Central Web site, located at http://supportcentral.motorola.com/ provides
information and online assistance including developer tools, software downloads, product manuals and online
repair requests.
Manuals
http://support.symbol.com/support/product/manuals.do
Part Number Description
AP-0622-66030-US 802.11n dependent access point, dual radio, internal antenna
AP-0622-66040-US 802.11n dependent access point, dual radio, external antenna
AP-0622-66030-WR 802.11n dependent access point, dual radio, internal antenna
AP-0622-66040-WR 802.11n dependent access point, dual radio, external antenna
Installation Guide 35
6 Motorola Solutions, Inc. End-User License Agreement
BY DOWNLOADING, INSTALLING, OR USING THE SOFTWARE DESCRIBED IN THIS DOCUMENT, YOU OR THE ENTITY OR COMPANY THAT
YOU REPRESENT ("LICENSEE") ARE UNCONDITIONALLY CONSENTING TO BE BOUND BY AND ARE BECOMING A PARTY TO THIS LICENSE
AGREEMENT ("AGREEMENT"). LICENSEE'S USE OR CONTINUED USE OF THE DOWNLOADED OR INSTALLED MATERIALS SHALL ALSO
CONSTITUTE ASSENT TO THE TERMS OF THIS AGREEMENT. IF LICENSEE DOES NOT UNCONDITIONALLY AGREE TO ALL OF THE TERMS
OF THIS AGREEMENT, DO NOT CONTINUE THE INSTALLATION PROCESS. IF THESE TERMS ARE CONSIDERED AN OFFER, ACCEPTANCE IS
EXPRESSLY LIMITED TO AND EXPRESSLY CONTINGENT UPON THESE TERMS. IF YOU ARE ACCEPTING THESE TERMS ON BEHALF OF A
COMPANY, ANOTHER PERSON OR ANY OTHER LEGAL ENTITY, YOU REPRESENT AND WARRANT THAT YOU HAVE THE AUTHORITY TO
BIND THAT COMPANY, PERSON OR ENTITY.
1 LICENSE GRANT. Subject to the terms of this Agreement, Motorola, Inc. and/or its subsidiaries ("Licensor") hereby grants Licensee a
limited, personal, non-sublicensable, non-transferable, nonexclusive license to use the software that Licensee is about to download
or install and the documentation that accompanies it (collectively, the "Software") for Licensee's personal use in connection with
hardware produced by Licensor and only in accordance with the accompanying documentation. Licensee may download, install and
use the Software only on a single computer. Licensee may make one copy of the Software (excluding any documentation) for backup
purposes, provided that copyright and other restricted rights notices of Licensor and its suppliers are reproduced exactly.
2 LICENSE RESTRICTIONS. Except as expressly permitted by this Agreement, Licensee shall not, nor permit anyone else to, directly or
indirectly: (i) copy (except for one backup copy), modify, distribute or create derivative works based upon the Software; (ii) reverse
engineer, disassemble, decompile or otherwise attempt to discover the source code or structure, sequence and organization of the
Software; or (iii) rent, lease, or use the Software for timesharing or service bureau purposes, or otherwise use the Software for any
commercial purpose/on behalf of any third party. Licensee shall maintain and not remove or obscure any proprietary notices on the
Software, and shall reproduce such notices exactly on all permitted copies of the Software. All title, ownership rights, and intellectual
property rights in and to the Software, and any copies or portions thereof, shall remain in Licensor and its suppliers or licensors.
Licensee understands that Licensor may modify or discontinue offering the Software at any time. The Software is protected by the
copyright laws of the United States and international copyright treaties. The Software is licensed, not sold. This Agreement does not
give Licensee any rights not expressly granted herein.
3 INTELLECTUAL PROPERTY; CONTENT. All title and intellectual property rights in and to the Software (including but not limited to any
images, photographs, animations, video, audio, music, text and "applets" incorporated into the Software), and any copies you are
permitted to make herein are owned by Licensor or its suppliers. All title and intellectual property rights in and to the content which
may be accessed through use of the Software is the property of the respective content owner and may be protected by applicable
copyright or other intellectual property laws and treaties. This EULA grants you no rights to use such content. As a condition to
Licensee's use of the Software, Licensee represents, warrants and covenants that Licensee will not use the Software: (i) to infringe
the intellectual property rights or proprietary rights, or rights of publicity or privacy, of any third party; (ii) to violate any applicable law,
statute, ordinance or regulation; (iii) to disseminate information or materials in any form or format ("Content") that are harmful,
threatening, abusive, harassing, tortuous, defamatory, vulgar, obscene, libelous, or otherwise objectionable; or (iv) to disseminate any
software viruses or any other computer code, files or programs that may interrupt, destroy or limit the functionality of any computer
software or hardware or telecommunications equipment. Licensee, not Licensor, remains solely responsible for all Content that
Licensee uploads, posts, e-mails, transmits, or otherwise disseminates using, or in connection with, the Software.
4 FEES; SUPPORT AND UPGRADES. Licensor may, at Licensor's sole option, provide support services related to the Software ("Support
Services"). Nothing in this Agreement grants Licensee any right to receive any Support Services. Use of any Support Services provided
is governed by the Licensor policies and programs described in the user manual, in "online" documentation, and/or in other
Licensor-provided materials or support agreements. Any supplemental software code provided to you as part of any Support Services
shall be considered part of the Software and subject to the terms and conditions of this EULA. With respect to technical information
you provide to Licensor as part of any Support Services, Licensor may use such information for its business purposes, including for
product support and development. Licensor will not utilize such technical information in a form that personally identifies Licensee.
5 TERMINATION. Either party may terminate this Agreement at any time, with or without cause, upon written notice. Any termination of
this Agreement shall also terminate the licenses granted hereunder. Upon termination of this Agreement for any reason, Licensee
36 AP-0622 Access Point
shall return all copies of the Software to Licensor, or destroy and remove from all computers, hard drives, networks, and other storage
media all copies of the Software, and shall so certify to Licensor that such actions have occurred. Sections 2-13 shall survive
termination of this Agreement.
6 DISCLAIMER OF WARRANTIES. To the maximum extent permitted by applicable law, Licensor and its suppliers provide the Software
and any (if any) Support Services AS IS AND WITH ALL FAULTS, and hereby disclaim all warranties and conditions, either express,
implied or statutory, including, but not limited to, any (if any) implied warranties or conditions of merchantability, of fitness for a
particular purpose, of lack of viruses, of accuracy or completeness of responses, of results, and of lack of negligence or lack of
workmanlike effort, all with regard to the Software, and the provision of or failure to provide Support Services. ALSO, THERE IS NO
WARRANTY OR CONDITION OF TITLE, QUIET ENJOYMENT, QUIET POSSESSION, CORRESPONDENCE TO DESCRIPTION, OR
NON-INFRINGEMENT WITH REGARD TO THE SOFTWARE. THE ENTIRE RISK AS TO THE QUALITY OF OR ARISING OUT OF USE OR
PERFORMANCE OF THE SOFTWARE AND SUPPORT SERVICES, IF ANY, REMAINS WITH LICENSEE.
7 EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, IN NO EVENT SHALL LICENSOR OR ITS SUPPLIERS BE LIABLE FOR ANY GENERAL, SPECIAL, INCIDENTAL, DIRECT,
INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS OR
CONFIDENTIAL OR OTHER INFORMATION, FOR BUSINESS INTERRUPTION, FOR PERSONAL INJURY, FOR LOSS OF PRIVACY, FOR
FAILURE TO MEET ANY DUTY INCLUDING OF GOOD FAITH OR OF REASONABLE CARE, FOR NEGLIGENCE, AND FOR ANY OTHER
PECUNIARY OR OTHER LOSS WHATSOEVER) ARISING OUT OF OR IN ANY WAY RELATED TO THE USE OF OR INABILITY TO USE THE
SOFTWARE, THE PROVISION OF OR FAILURE TO PROVIDE SUPPORT SERVICES, OR OTHERWISE UNDER OR IN CONNECTION WITH
ANY PROVISION OF THIS AGREEMENT, EVEN IN THE EVENT OF THE FAULT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY,
BREACH OF CONTRACT OR BREACH OF WARRANTY OF LICENSOR OR ANY SUPPLIER, AND EVEN IF LICENSOR OR ANY SUPPLIER
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
8 LIMITATION OF LIABILITY AND REMEDIES. Notwithstanding any damages that Licensee might incur for any reason whatsoever
(including, without limitation, all damages referenced above and all direct or general damages), the entire liability of Licensor and any
of its suppliers under any provision of this Agreement and Licensee's exclusive remedy for all of the foregoing shall be limited to the
greater of the amount actually paid by Licensee for the Software or U.S.$5.00. The foregoing limitations, exclusions and disclaimers
shall apply to the maximum extent permitted by applicable law, even if any remedy fails its essential purpose.
9 INDEMNITY. Licensee agrees that Licensor shall have no liability whatsoever for any use Licensee makes of the Software. Licensee
shall indemnify and hold harmless Licensor from any claims, damages, liabilities, costs and fees (including reasonable attorney fees)
arising from Licensee's use of the Software as well as from Licensee's failure to comply with any term of this Agreement.
10 FAULT TOLERANCE. The Software is not fault-tolerant and is not designed, manufactured or intended for use or resale in on-line
control equipment in hazardous environments requiring fail-safe performance, such as, but not limited to, the operation of nuclear
facilities, aircraft navigation or communication systems, air traffic control, life support machines, or weapons systems, in which the
failure of the Software could lead directly or indirectly to death, personal injury, or physical or environmental damage ("High Risk
Activities"). Licensor and its suppliers specifically disclaim any express or implied warranty of fitness for High Risk Activities.
11 U.S. GOVERNMENT LICENSE RIGHTS. Software provided to the U.S. Government pursuant to solicitations issued on or after
December 1, 1995 is provided with the commercial license rights and restrictions described elsewhere herein. Software provided to
the U.S. Government pursuant to solicitations issued prior to December 1, 1995 is provided with "Restricted Rights" as provided for in
FAR, 48 CFR 52.227-14 (JUNE 1987) or DFAR, 48 CFR 252.227-7013 (OCT 1988), as applicable. The "Manufacturer" for purposes of
these regulations is Motorola, Inc., One Symbol Plaza, Holtsville, NY 11742.
12 EXPORT RESTRICTIONS. Licensee shall comply with all export laws and restrictions and regulations of the Department of Commerce,
the United States Department of Treasury Office of Foreign Assets Control ("OFAC"), or other United States or foreign agency or
authority, and Licensee shall not export, or allow the export or re-export of the Software in violation of any such restrictions, laws or
regulations. By downloading or using the Software, Licensee agrees to the foregoing and represents and warrants that Licensee is not
located in, under the control of, or a national or resident of any restricted country.
13 MISCELLANEOUS. Licensee may not sublicense, assign, or transfer this Agreement, or its rights or obligations hereunder, without the
prior written consent of Licensor. Any attempt to otherwise sublicense, assign, or transfer any of the rights, duties, or obligations
hereunder is null and void. Licensor may assign this Agreement in its sole discretion. In the event that any of the provisions of this
Installation Guide 37
Agreement shall be held by a court or other tribunal of competent jurisdiction to be illegal, invalid or unenforceable, such provisions
shall be limited or eliminated to the minimum extent necessary so that this Agreement shall otherwise remain in full force and effect.
No waiver or modification of this Agreement will be binding upon a party unless made in writing and signed by a duly authorized
representative of such party and no failure or delay in enforcing any right will be deemed a waiver. This Agreement shall be governed
by the laws of the State of New York without regard to the conflicts of law provisions thereof. The application the United Nations
Convention of Contracts for the International Sale of Goods is expressly excluded. Unless waived by Licensor for a particular instance,
any action or proceeding arising out of this Agreement must be brought exclusively in the state or federal courts of New York and
Licensee hereby consents to the jurisdiction of such courts for any such action or proceeding. This Agreement supersedes all prior
discussions and writings and constitutes the entire agreement between the parties with respect to the subject matter hereof. The
prevailing party in any action arising out of this Agreement shall be entitled to costs and attorneys' fees.
38 AP-0622 Access Point
7 AP-0622 Access Point China ROHS Compliance
O：表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以
下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量
要求。
对销售之日的所售产品，本表表示，公司供应链的电子信息产品可能包含这些物质。注意：在所售产品
中可能会也可能不会含有所有所列的部件。
This table was created to comply with China RoHS requirements for Motorola Solutions‘ AP-0622 Access Point.
部件名称
(Parts)
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr6+)
多溴联
苯
(PBB)
多溴二苯
醚
(PBDE)
金属部件
(Metal Parts) OOOOO O
电路模块
(Circuit Modules) XOOOO O
电缆及电缆组件
(Cables and Cable Assemblies) XOOOO O
塑料和聚合物部件
(Plastic and Polymeric Parts) OOOOO O
光学和光学组件
(Optics and Optical Components) OOOOO O
电池
(Batteries) OOOOO O
15
Installation Guide 39
40 AP-0622 Access Point
Motorola Solutions, Inc.
1301 E. Algonquin Rd.
Schaumburg, IL 60196-1078, U.S.A.
http://www.motorolasolutions.com
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.
© 2011 Motorola Solutions, Inc. All Rights Reserved.
72-157808-01 Revision A
December 2011
150200000395A R02
