Users Manual
Access Point
Installation Guide
AP-8432
MN-002724-01
AP8432_IG.book Page 1 Monday, March 14, 2016 8:39 AM
2AP-8432 Access Point
Zebra and the Zebra head graphic are registered trademarks of ZIH Corp. The
Symbol logo is a registered trademark of Symbol Technologies, Inc., a Zebra
Technologies company.
© 2016 Symbol Technologies, Inc.
AP8432_IG.book Page 2 Monday, March 14, 2016 8:39 AM
Installation Guide 3
1.0 Introduction ............................................................................................. 5
1.1 Document Conventions ....................................................................... 5
1.2 Warnings ............................................................................................. 5
1.3 Site Preparation ................................................................................... 6
1.4 AP-8432 Package Contents ................................................................ 6
1.4.1 Features ...................................................................................... 6
1.5 AP-8432 Antennas .............................................................................. 7
1.5.1 Dual Band 2.4 GHz / 5 GHz Internal - US/Taiwan/EU/Canada .. 7
2.0 Hardware Installation ............................................................................. 8
2.1 Installation Instructions ........................................................................ 8
2.2 Precautions ......................................................................................... 9
2.3 Access Point Placement ...................................................................... 9
2.4 Power Injector System ........................................................................ 9

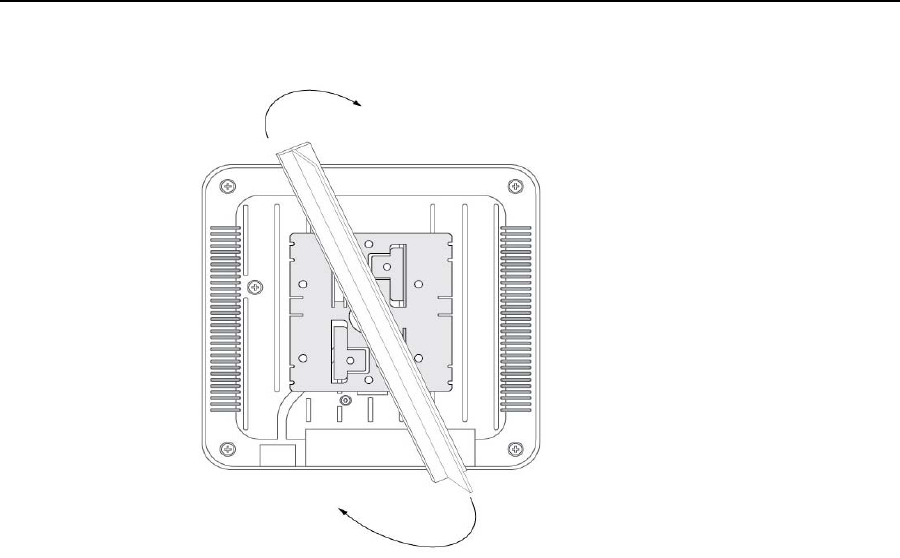

2.5 Wall Mount Instructions ..................................................................... 12
2.5.1 Wall Mount Procedure - New Installation .................................. 13
2.6 Suspended Ceiling T-Bar Mount Instructions .................................... 15

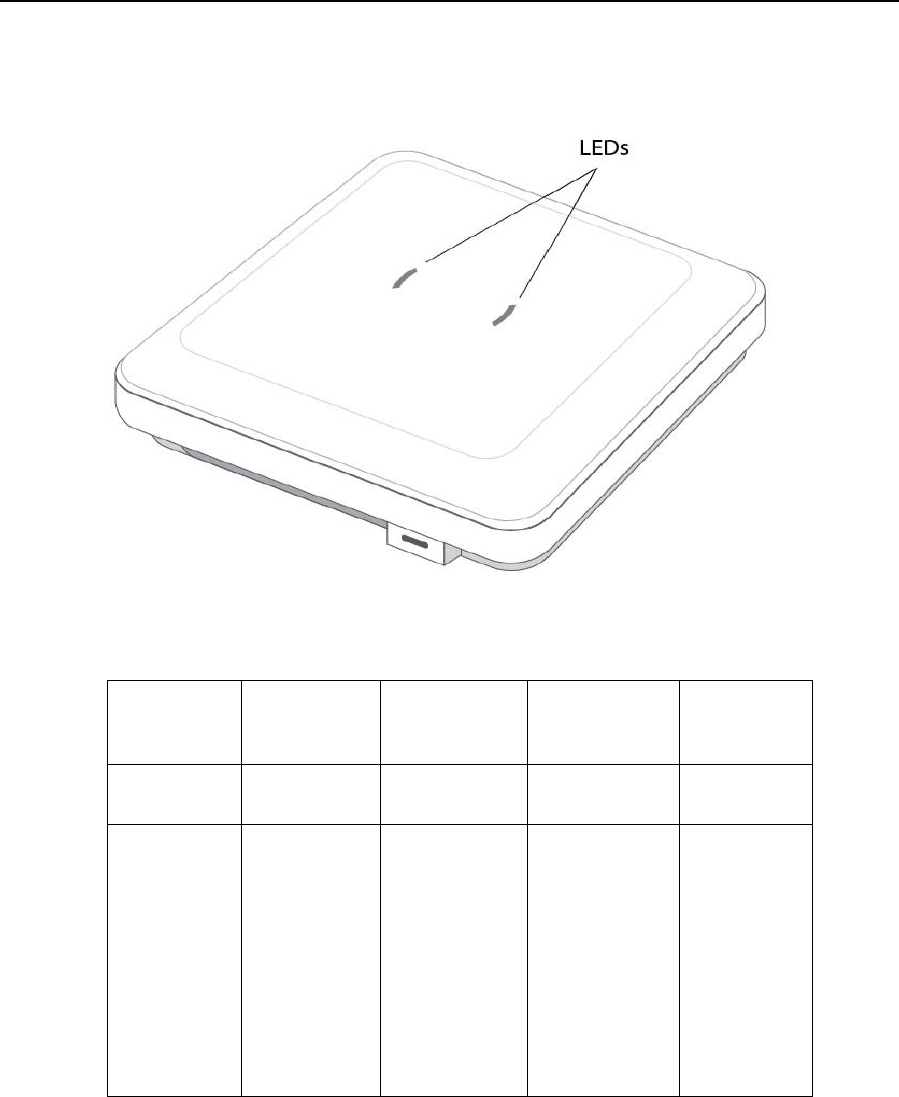

2.7 LED Indicators ................................................................................... 18

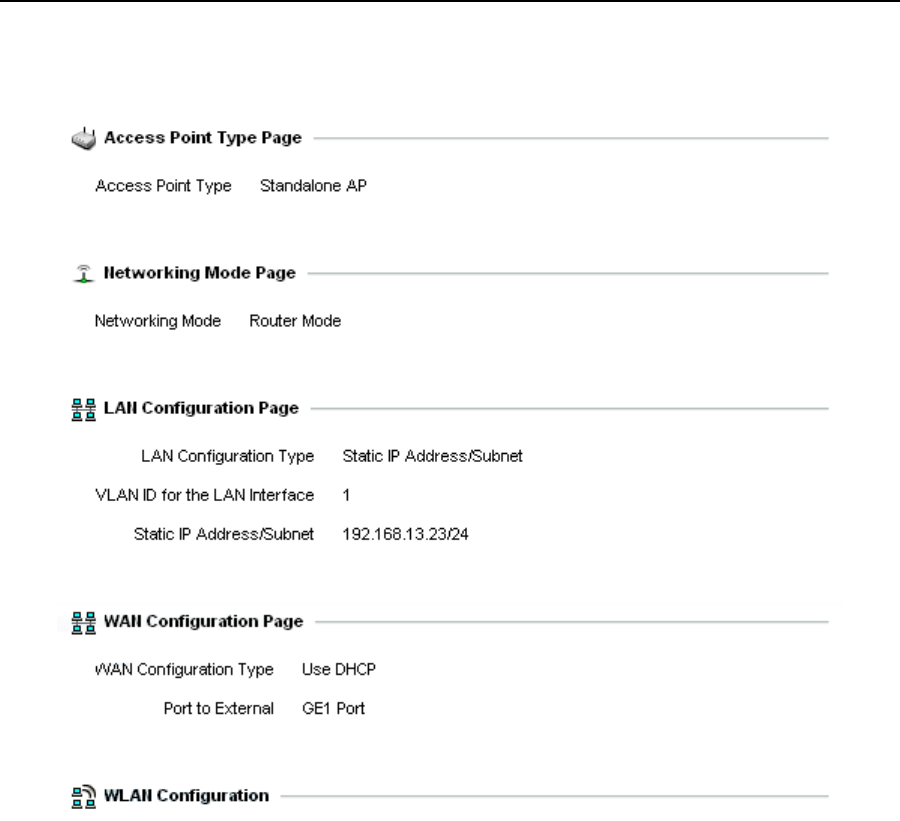

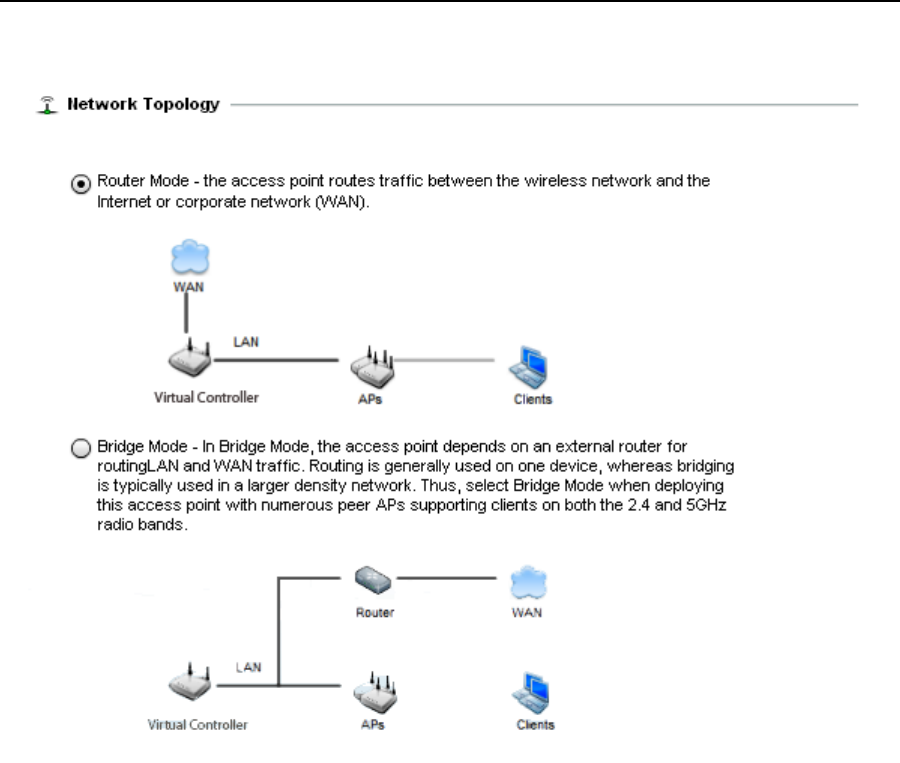

3.0 Basic Access Point Configuration ...................................................... 20
4.0 AP-8432 Access Point Specifications ................................................. 32
4.1 Electrical Characteristics ................................................................... 32
4.2 Physical Characteristics .................................................................... 32
4.3 Radio Characteristics ........................................................................ 33
5.0 Regulatory Information ........................................................................ 34
5.1 Regulatory Information ...................................................................... 34
5.1.1 Bluetooth Wireless Technology ................................................ 34
5.2 Wireless Device Country Approvals .................................................. 34
5.2.1 Country Selection ...................................................................... 35
5.2.2 Frequency of Operation – FCC and IC ..................................... 35
5.3 Warnings for Use of Wireless Devices .............................................. 36
AP8432_IG.book Page 3 Monday, March 14, 2016 8:39 AM
4AP-8432 Access Point
5.3.1 Potentially Hazardous Atmospheres - Vehicle Installation ........ 36
5.3.2 Potentially Hazardous Atmospheres - Fixed Installations ......... 36
5.3.3 Safety in Aircraft ........................................................................ 36
5.3.4 Safety in Hospitals .................................................................... 36
5.4 RF Exposure Guidelines ................................................................... 37
5.4.1 Safety Information ..................................................................... 37
5.4.2 International .............................................................................. 38
5.4.3 EU ............................................................................................. 38
5.4.4 US and Canada ........................................................................ 38
5.5 Power Supply .................................................................................... 39
5.6 Radio Frequency Interference Requirements—FCC ........................ 39
5.6.1 Radio Transmitters (Part 15) ..................................................... 40
5.6.2 Radio Frequency Interference Requirements - Canada ........... 40
5.7 CE Marking and European Economic Area (EEA) ............................ 41
5.8 Statement of Compliance .................................................................. 41
5.9 Japan (VCCI) - Voluntary Control Council for Interference ............... 42
5.10 Korea Warning Statement for Class B ITE ...................................... 42
5.11 Other Countries ............................................................................... 42
5.12 Waste Electrical and Electronic Equipment (WEEE) ....................... 45
5.13 TURKISH WEEE Statement of Compliance .................................... 46
6.0 Support .................................................................................................. 47
7.0 Zebra Technologies Inc. End-User Software License Agreement ... 48
8.0 AP-8432 Access Point China ROHS Compliance .............................. 53
AP8432_IG.book Page 4 Monday, March 14, 2016 8:39 AM
Installation Guide 5
1 Introduction
Zebra AP-8432 internal antenna Access Point's are high-tier Access Points for
dependable and efficient network performance.
The Access Point’s unique WiNG 5 software enables the Access Point to
function as either a Standalone Access Point, an Adaptive Access Point or a
Virtual Controller.
If new to Access Point technology, refer to the WiNG Access Point System
Reference Guide to familiarize yourself with Access Point technology and the
feature set supported by the WiNG operating system. The guide is available at
www.zebra.com/support.
This document is written for the qualified network device installer.
1.1 Document Conventions
The following graphical alerts are used in this document to indicate notable
situations:
1.2 Warnings
• Read all installation instructions and site survey reports, and verify
correct equipment installation before connecting the AP-8432 Access
Point.
• Remove jewelry and watches before installing this equipment.
• Verify any device connected to this unit is properly wired and
grounded.
• Verify there is adequate ventilation around the device, and that
ambient temperatures meet equipment operation specifications.
Note • Tips, hints, or special requirements that you should take note of.
Caution • Care is required. Disregarding a caution can result in data loss or
equipment malfunction.
AP8432_IG.book Page 5 Monday, March 14, 2016 8:39 AM
6AP-8432 Access Point
1.3 Site Preparation
• Consult your site survey and network analysis reports to determine
specific equipment placement, power drops, and so on.
• Assign installation responsibility to the appropriate personnel.
• Identify and document where all installed components are located.
• Ensure adequate, dust-free ventilation to all installed equipment.
• Identify and prepare Ethernet and console port connections.
• Verify cable lengths are within the maximum allowable distances for
optimal signal transmission.
1.4 AP-8432 Package Contents
An AP-8432 Access Point is available in internal antenna configurations only. An
AP-8432 ships with the following:
• AP-8432 Access Point
• AP-8432 Installation Guide (This Guide)
• Wall mount screws and mounting bracket
1.4.1 Features
An AP-8432 Access Point supports the following feature set:
• Two RJ-45 connectors (GE1/POE and Console)
• Four LED indicators
• One 5GHz 802.11ac radio, and a dual band 2.4GHz/5GHz 802.11ac radio
• One Bluetooth radio
• Baud rate: 115200
• PoE out support on 2nd Ethernet port
GE1/POE accepts 802.3at or 802.3af compliant power from an external source.
Note • When operating in a Gigabit Ethernet environment, CAT-5e or
CAT-6 cable is recommended for Gigabit operation. The equipment is to
be connected only to PoE networks. Zebra does not recommend routing
network cables outside.
AP8432_IG.book Page 6 Monday, March 14, 2016 8:39 AM
Installation Guide 7
1.5 AP-8432 Antennas
1.5.1 Dual Band 2.4 GHz / 5 GHz Internal - US
An AP-8432 internal antenna Access Point supports the following dual band
antenna:
Antenna Type 2.4 GHZ Gain
(dBi) 5 GHZ Gain (dBi) Elevation Gain
(dBi)
Monopole Bluetooth: 7.7
Radio 2: 4.4 Radio 1: 6.8
Radio 2: 5.9 Radio 1: 3.4
Radio 2: 4.1
AP8432_IG.book Page 7 Monday, March 14, 2016 8:39 AM
8AP-8432 Access Point
2 Hardware Installation
2.1 Installation Instructions

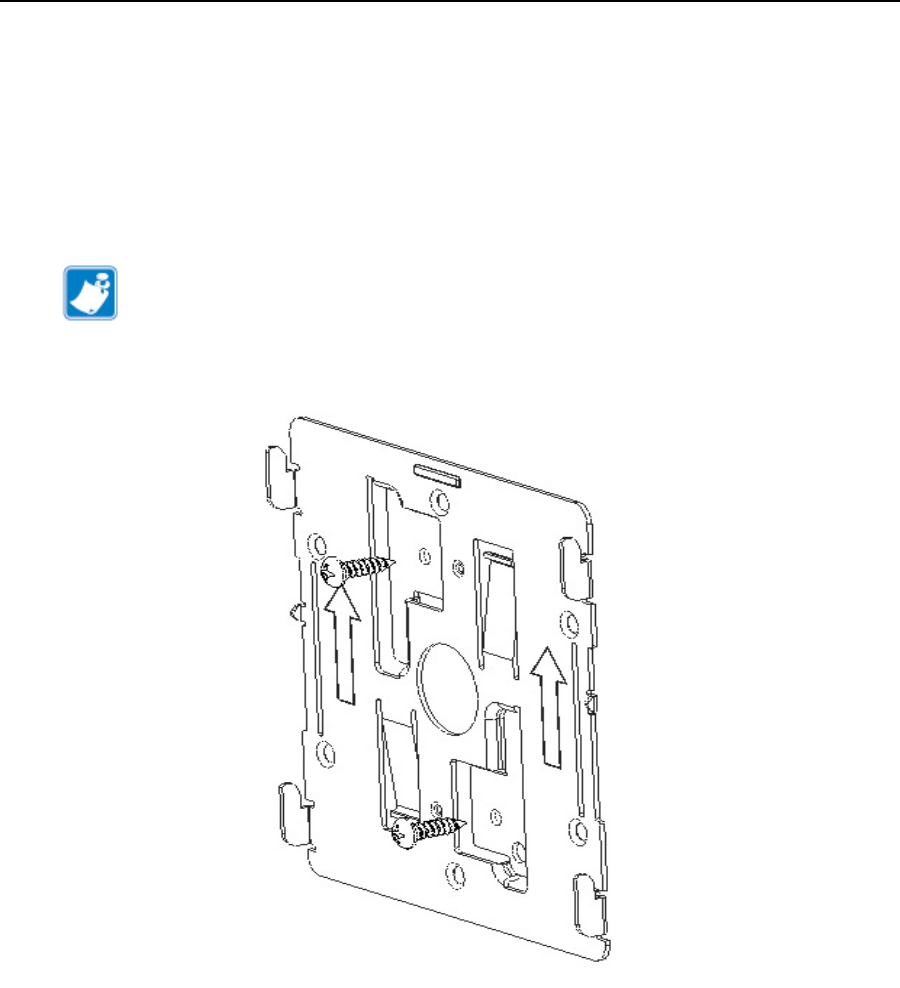

An AP-8432 Access Point mounts either on a wall (with M 3.5 x 0.6 x 23 MM
pan head screws and mounting bracket or equivalent) or on a suspended
ceiling T-bar.
To prepare for the installation:
1. Match the part number on the purchase order with the part numbers in
the packing list and on the case of the Access Point.
2. Verify the contents of the box include the intended AP-8432 Access
Point, and the included hardware matches the package contents (see
AP-8432 Package Contents on page 6).
3. Review site survey and network analysis reports to determine the
location and mounting position for the AP-8432 Access Point.
4. Connect a CAT-5 or better Ethernet cable to a compatible 802.3at or
802.3af power source and run the cable to the installation site. Ensure
there is sufficient slack in the cable to perform the installation steps.
Part Number Description
AP-8432-680B30-US AP-8432 dual radio 802.11ac 4x4:4 MIMO Access
Point internal antenna US version
AP-8432-680B30-WR AP-8432 dual radio 802.11ac 4x4:4 MIMO Access
Point internal antenna International version
AP-8432-680B30-EU AP-8432 dual radio 802.11ac 4x4:4 MIMO Access
Point internal antenna EU version
Note • When operating in a Gigabit Ethernet environment, CAT-5e or CAT-6
cable is recommended for Gigabit operation.
AP8432_IG.book Page 8 Monday, March 14, 2016 8:39 AM
Installation Guide 9
2.2 Precautions
Before installing an AP-8432 Access Point, verify the following:
• Your are using the correctly rated power solution for the AP-8432
(either the AP-PSBIAS-2P3-ATR Power Injector or the
PWR-BGA48V45W0WW external power supply)
• Do not to install the AP-8432 in wet or dusty areas.
• Verify the environment has a continuous temperature range between
32° F to 104° or 0° C to 50° C.
2.3 Access Point Placement
For optimal performance, install the Access Point away from transformers,
heavy-duty motors, fluorescent lights, microwave ovens, refrigerators and
other industrial equipment. Signal loss can occur when metal, concrete, walls
or floors block transmission. Install the Access Point in an open area or add
Access Points as needed to improve coverage.
Antenna coverage is analogous to lighting. Users might find an area lit from far
away to be not bright enough. An area lit sharply might minimize coverage and
create dark areas. Uniform antenna placement in an area (like even
placement of a light bulb) provides even, efficient coverage.
Install the Access Point at an ideal height of 10 feet from the ground.
To maximize the Access Point’s radio coverage area, Zebra recommends
conducting a site survey to define and document radio interference obstacles
before installing the Access Point.

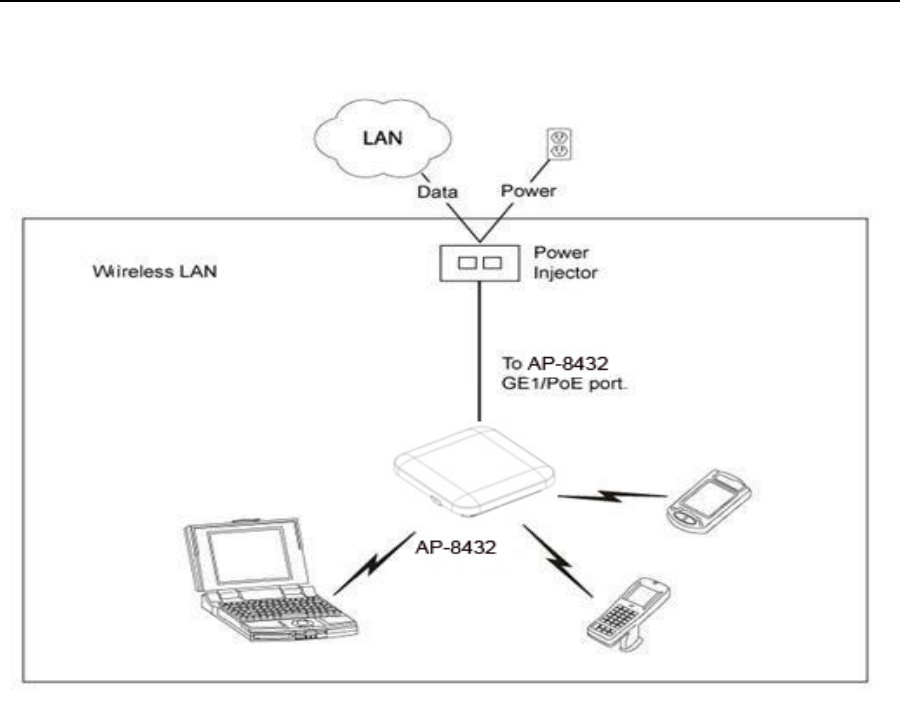

2.4 Power Injector System
An AP-8432 Access Point can receive power via an Ethernet cable connected
to the GE1/POE (LAN) port.
When users purchase a WLAN solution, they often need to place Access
Points in obscure locations. In the past, a dedicated power source was
required for each Access Point in addition to the Ethernet infrastructure. This
often required an electrical contractor to install power drops at each Access
Point location. The Power Injector merges power and Ethernet into one cable,
reducing the burden of installation and allowing optimal Access Point
placement in respect to the intended coverage area.
AP8432_IG.book Page 9 Monday, March 14, 2016 8:39 AM
10 AP-8432 Access Point
The AP-8432’s supported Power Injector (Part No. AP-PSBIAS-2P3-ATR) is a
high power POE Injector delivering up to 30 watts. The Access Point can only
use a Power Injector when connecting the unit to the Access Point’s GE1/POE
port. The Power Injector is separately ordered and not shipped with an
existing AP-8432.
The Access Point power supply (Part No. PWR-BGA48V45W0WW) is not
included with the Access Point and is orderable separately as an accessory. If
the Access Point is provided both POE power and PWR-BGA48V45W0WW
power concurrently, the Access Point will source power from the
PWR-BGA48V45W0WW supply only. Disconnecting the AC power from the
PWR-BGA48V45W0WW causes the Access Point to re-boot before sourcing
power from the POE Power Injector. If the AP is operating using injector
supplied power, the AP will not automatically reboot if an AC adapter is
connected. The Access Point continues to operate with power supplied from
the AC adapter without change to the Access Point operating configuration. If
using AC adapter supplied power and a change to the AP’s operating
configuration is warranted, the Access Point needs to be manually rebooted
by the customer.
Caution • Using a non-compliant injector, or an injector supporting legacy
modes prohibits the AP-8533 from functioning optimally.
Caution • Do not plug the AP-PSBIAS-2P3-ATR Power Injector into the
Access Point’s Console port. Connecting the Power Injector into the console
port can damage the port and void the Access Point’s product warranty.
Caution • The Access Point supports any standards-based compliant power
source. However, using the wrong solution (including a POE system used on a
legacy Access Point) could either limit functionality or severely damage the
Access Point and void the product warranty.
AP8432_IG.book Page 10 Monday, March 14, 2016 8:39 AM
Installation Guide 11
A separate Power Injector is required for each AP-8432 Access Point
comprising the network.
The Power Injector can be installed free standing, on an even horizontal
surface or wall mounted using the Power Injector’s wall mounting key holes.
The following guidelines should be carefully followed before cabling the Power
Injector to an Ethernet source and an Access Point:
• Do not block or cover airflow to the Power Injector.
• Keep the Power Injector away from excessive heat, humidity, vibration
and dust.
AP8432_IG.book Page 11 Monday, March 14, 2016 8:39 AM
12 AP-8432 Access Point
• The Power Injector isn’t a repeater, and does not amplify the Ethernet
signal. For optimal performance, ensure the Power Injector is placed as
close as possible to the data port.
To install the Power Injector to an Ethernet data source and an Access Point:
1. Connect the Power Injector to an AC outlet (110VAC to 220VAC).
2. Connect an RJ-45 Ethernet cable between the Power Injector Data &
Power Out connector and the Access Point’s GE1/POE port.
3. Connect an RJ-45 Ethernet cable between the network data supply
(host) and the Power Injector Data In connector.
Ensure the cable length from the Ethernet source (host) to the Power
Injector and Access Point does not exceed 100 meters (333 ft).
The Power Injector has no On/Off power switch. The Injector receives
power and is ready for device connection and operation as soon as AC
power is applied. Refer to the Installation Guide shipped with the Power
Injector for a description of the device’s LEDs.
2.5 Wall Mount Instructions
A wall mount deployment requires hanging the AP-8432 with the provided
mounting bracket and two screws. The AP-8432 can be mounted on to any
plaster, wood or cement wall surface using the provided mounting bracket.
The hardware required to install the AP-8432 on a wall consists of:
• Two wide-shoulder Phillips pan head self-tapping screws
(M3.5 x 0.6 x 23 mm)
• Mounting bracket
Optional customer provided installation tools include:
• Phillips head screw driver, or drill and drill bit
CAUTION To avoid problematic performance and restarts, disable POE from a
wired switch port connected to an Access Point if mid-span power
sourcing equipment (PSE) is used between the two, regardless of
the manufacturer of the switch.
CAUTION Ensure AC power is supplied to the Power Injector using an AC
cable with an appropriate ground connection approved for the
country of operation.
AP8432_IG.book Page 12 Monday, March 14, 2016 8:39 AM
Installation Guide 13
2.5.1 Wall Mount Procedure - New Installation
This section describes a new AP-8432 installation with no previous Access
Point existing on the intended wall surface.
1. Place the mounting bracket against the wall.
2. Mark the screw hole locations depending on the intended deployment
orientation of the unit.
3. At each point, drill a hole in the wall and attach the mounting bracket.
4. Place the Access Point on the mounting bracket.
5. Cable the Access Point using either the Power Injector solution
(AP-PSBIAS-2P3-ATR) or the approved AP-8432 power supply
(PWR-BGA48V45W0WW).
Note • When pre-drilling a hole the recommended hole size is 4mm (0.16in.).
AP8432_IG.book Page 13 Monday, March 14, 2016 8:39 AM
14 AP-8432 Access Point
For Power Injector installations:
a. Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the
Power Injector Data & Power Out connector and the Access Point’s
GE1/POE port.
b. Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the
network data supply (host) and the Power Injector Data In
connector.
c. Ensure the cable length from the Ethernet source (host) to the
Power Injector and Access Point does not exceed 100 meters
(333 ft). The Power Injector has no On/Off power switch. The Power
Injector receives power as soon as AC power is applied.
For standard power adapter (non Power Injector) and line cord
installations:
a. Connect a RJ-45 Ethernet cable between the network data supply
(host) and the Access Point’s GE1/POE port.
b. Verify the power adapter is correctly rated according to the country
of operation.
c. Connect the power supply line cord to the power adapter.
d. Attach the power adapter cable into the power connector on the
Access Point.
e. Attach the power supply line cord to a power supply.
6. Verify the Access Point is receiving power by observing the LEDs are lit
or flashing. For more information on AP-8432 LED behavior, see LED
Indicators on page 18.
The Access Point is ready to configure.
Caution • If not using an AP-PSBIAS-2P3-ATR Power Injector, ensure
only the AP-8432’s designated power supply (PWR-BGA48V45W0WW) is
used to supply power to the Access Point. Using an incorrectly rated
power supply could damage the Access Point and void the product
warranty. Do not actually connect to the power source until the cabling
portion of the installation is complete.
AP8432_IG.book Page 14 Monday, March 14, 2016 8:39 AM
Installation Guide 15
2.6 Suspended Ceiling T-Bar Mount Instructions
Ceiling mount requires holding the AP-8432 up against the T-bar of a
suspended ceiling grid and twisting the unit on to the T-bar. If deploying the
AP-8432 on a sculpted ceiling T-Bar, the Access Point mounting kit (Part No.
KT-135628-01) can optionally be used as well.
1. Install the mounting bracket on the T-bar, then attach the mounting
bracket using the mounting slots on the Access Point.
2. Cable the Access Point using either the Power Injector solution
(AP-PSBIAS-2P3-ATR) or the approved AP-8432 power supply
(PWR-BGA48V45W0WW).
For Power Injector installations:
a. Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the
network data supply (host) and the Power Injector Data In
connector.
b. Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the
Power Injector Data & Power Out connector and the Access Point’s
GE1/POE port.
c. Ensure the cable length from the Ethernet source (host) to the
Power Injector and Access Point does not exceed 100 meters
(333 ft). The Power Injector has no On/Off power switch. The Power
Injector receives power as soon as AC power is applied.
AP8432_IG.book Page 15 Monday, March 14, 2016 8:39 AM
16 AP-8432 Access Point
For standard power adapter (non Power Injector) and line cord
installations:
a. Connect a RJ-45 Ethernet cable between the network data supply
(host) and the Access Point’s GE1/POE port.
b. Verify the power adapter is correctly rated according the country of
operation.
c. Connect the power supply line cord to the power adapter.
d. Attach the power adapter cable into the power connector on the
Access Point.
e. Attach the power supply line cord to a power supply.
3. Verify the unit has power by observing the LEDs. For more information
on AP-8432 LED behavior, see LED Indicators on page 18.

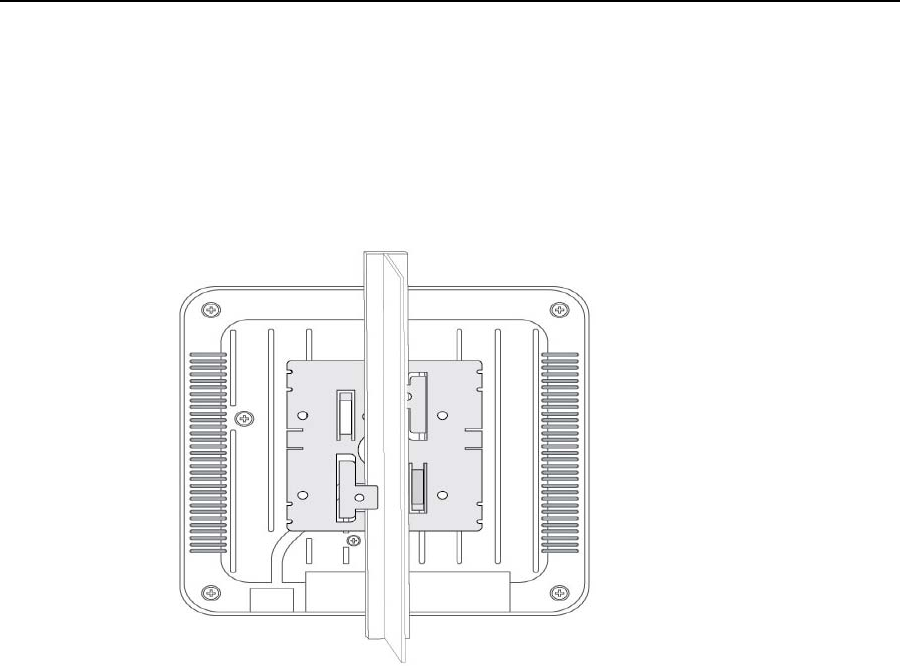

4. Align the bottom of the ceiling T-bar with the back of the Access Point.
5. Orient the Access Point chassis by its length and the length of the
ceiling T-bar.
6. Rotate the Access Point chassis 45 degrees clockwise.
7. Push the back of the Access Point chassis on to the bottom of the
ceiling T-bar.
Caution • If not using an AP-PSBIAS-2P3-ATR Power Injector, ensure
only the AP-8432’s designated power supply
(PWR-BGA48V45W0WW) is used to supply power to the Access
Point. Using an incorrectly rated power supply could damage the
Access Point and void the product warranty. Do not actually connect
to the power source until the cabling portion of the installation is
complete.
AP8432_IG.book Page 16 Monday, March 14, 2016 8:39 AM
Installation Guide 17
8. Rotate the Access Point chassis 45 degrees counter-clockwise. The
clips click as they fasten to the T-bar.
The Access Point is ready to configure.
AP8432_IG.book Page 17 Monday, March 14, 2016 8:39 AM
18 AP-8432 Access Point
2.7 LED Indicators
The AP-8432 LED activity indicators are located on the top of the housing and
are visible through the enclosure.
The LEDs display error conditions, and transmission, and network activity for
the 5 GHz 802.11ac (amber) radio and the 2.4 GHz 802.11n (green) radio,
sensor radio (white) and the BLE radio (blue).
State
5 GHz
Activity LED
(Amber)
2.4 GHz
Activity LED
(Green) LED (Blue) LED (White)
Firmware
Update On Off Off Off
Normal
Operation • If the radio
for this is
disabled:
turned off.
• If there is
activity on
this band:
Blink
interval at 2
times per
second
• If the radio
for this is
disabled:
turned off.
• If there is
activity on
this band:
Blink
interval at 2
times per
second
N/A N/A
AP8432_IG.book Page 18 Monday, March 14, 2016 8:39 AM
Installation Guide 19
Not
configured On On N/A N/A
Locate AP
Mode LEDs blink in
an alternating
green, amber,
blue and white
pattern using
an irregular
blink rate.
This LED
state in no
way
resembles
normal
operating
conditions
LEDs blink in
an alternating
green, amber,
blue and white
pattern using
an irregular
blink rate. This
LED state in no
way resembles
normal
operating
conditions.
LEDs blink in
an alternating
green, amber,
blue and white
pattern using
an irregular
blink rate. This
LED state in no
way resembles
normal
operating
conditions.
LEDs blink in
an alternating
green,
amber, blue
and white
pattern using
an irregular
blink rate.
This LED
state in no
way
resembles
normal
operating
conditions
Sensor
without
SS
connected
N/A N/A N/A Off
Sensor with
SS
connected
N/A N/A N/A On
Air
Termination
state
N/A N/A N/A Blinking 0.5
second in 1
second duty
cycle
BT radio
disabled N/A N/A Off N/A
BT radio
enabled
(operational)
N/A N/A On N/A
State
5 GHz
Activity LED
(Amber)
2.4 GHz
Activity LED
(Green) LED (Blue) LED (White)
AP8432_IG.book Page 19 Monday, March 14, 2016 8:39 AM
20 AP-8432 Access Point
3 Basic Access Point Configuration
Once the AP-8432 is installed and powered on, complete the following steps
to get the Access Point up and running and access management functions:
1. The Access Point’s IP address is optimally provided using DHCP. A
zero config IP address can also be derived if DHCP resources are un-
available. Using zero config, the last two octets in the IP address are the
decimal equivalent of the last two bytes in the Access Point’s hardcoded
MAC address.
For example:
MAC address - 00:C0:23:00:F0:0A
Zero-config IP address - 169.254.240.10
To derive the Access Point’s IP address using its MAC address:
a. Open the Windows calculator by selecting Start > All Programs >
Accessories > Calculator. This menu path may vary slightly
depending on your version of Windows.
b. With the Calculator displayed, select View > Scientific. Select the
Hex radio button.
c. Enter a hex byte of the Access Point’s MAC address. For example,
F0.
d. Select the Dec radio button. The calculator converts F0 into 240.
Repeat this process for the last Access Point MAC address octet.

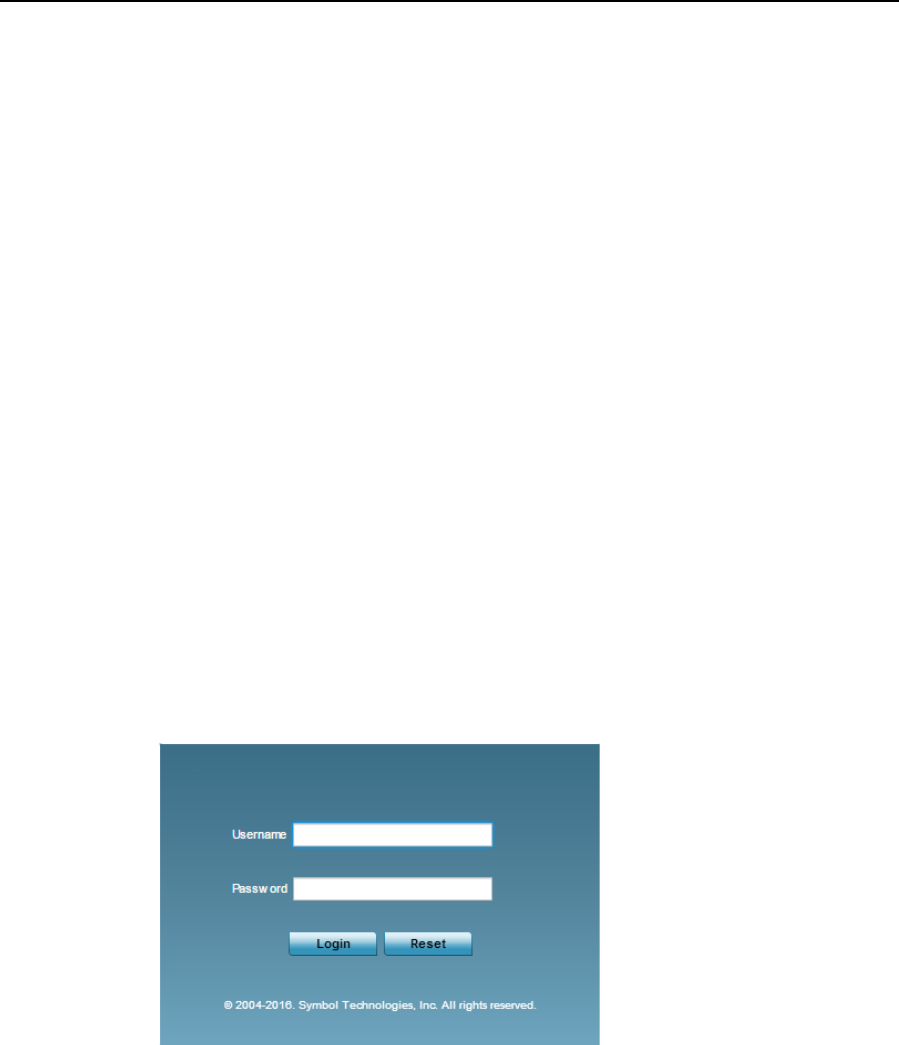

2. Point the Web browser to the Access Point’s IP address. The following
login screen displays:
3. Enter the default username admin in the Username field.
4. Enter the default password admin123 in the Password field.
AP8432_IG.book Page 20 Monday, March 14, 2016 8:39 AM
Installation Guide 21
5. Click the Login button to load the management interface.
If this is the first time the management interface has been accessed, the
Initial Setup Wizard automatically displays.
Note • When logging in for the first time, you’re prompted to change the
password to enhance device security in subsequent logins.
Note • If you get disconnected when running the wizard, you can connect
again with the Access Point’s actual IP address (once obtained) and
resume the wizard.
AP8432_IG.book Page 21 Monday, March 14, 2016 8:39 AM
22 AP-8432 Access Point

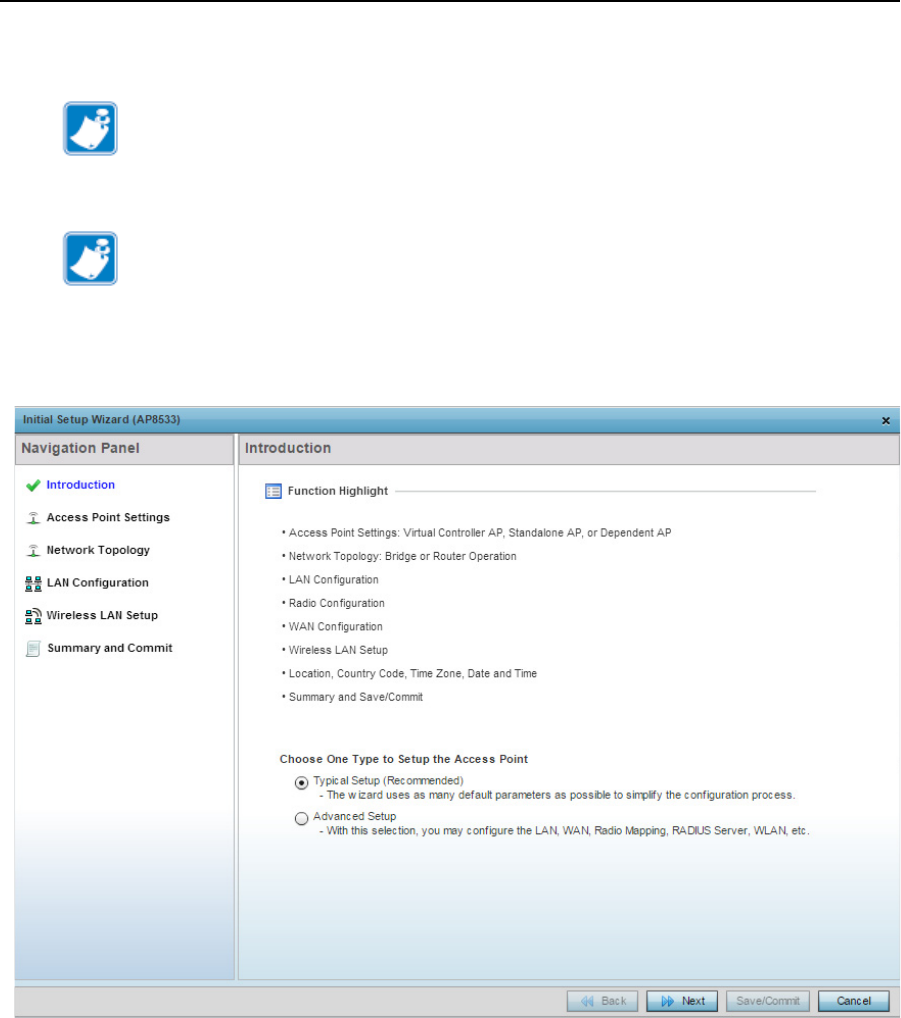

The Introduction screen displays the various actions that can be
performed using the wizard under the Function Highlight field.
Use the Choose One type to Setup the Access Point field options to
select the type of wizard to run. The Typical Setup is the recommended
wizard. This wizard uses the default parameters for most of the
configuration and sets a working network with the least amount of
manual configuration.
The Advanced Setup wizard is for administrators who prefer more
control over the different configuration parameters. A few more
configuration screens are available for customization when the
Advanced Setup wizard is used.
The first page of the Initial Setup Wizard displays the Navigation Panel
and Function Highlights for the configuration activities comprising the
Access Point's initial setup. This page also displays options to select the
typical or advanced mode for the wizard.
The Navigation Panel for the Typical Setup Wizard displays the basic
configuration options.
Note • The Initial Setup Wizard displays the same pages and content for
each Access Point type supported. The only difference being the number
of radios configurable by Access Point, as models vary.
AP8432_IG.book Page 22 Monday, March 14, 2016 8:39 AM
Installation Guide 23

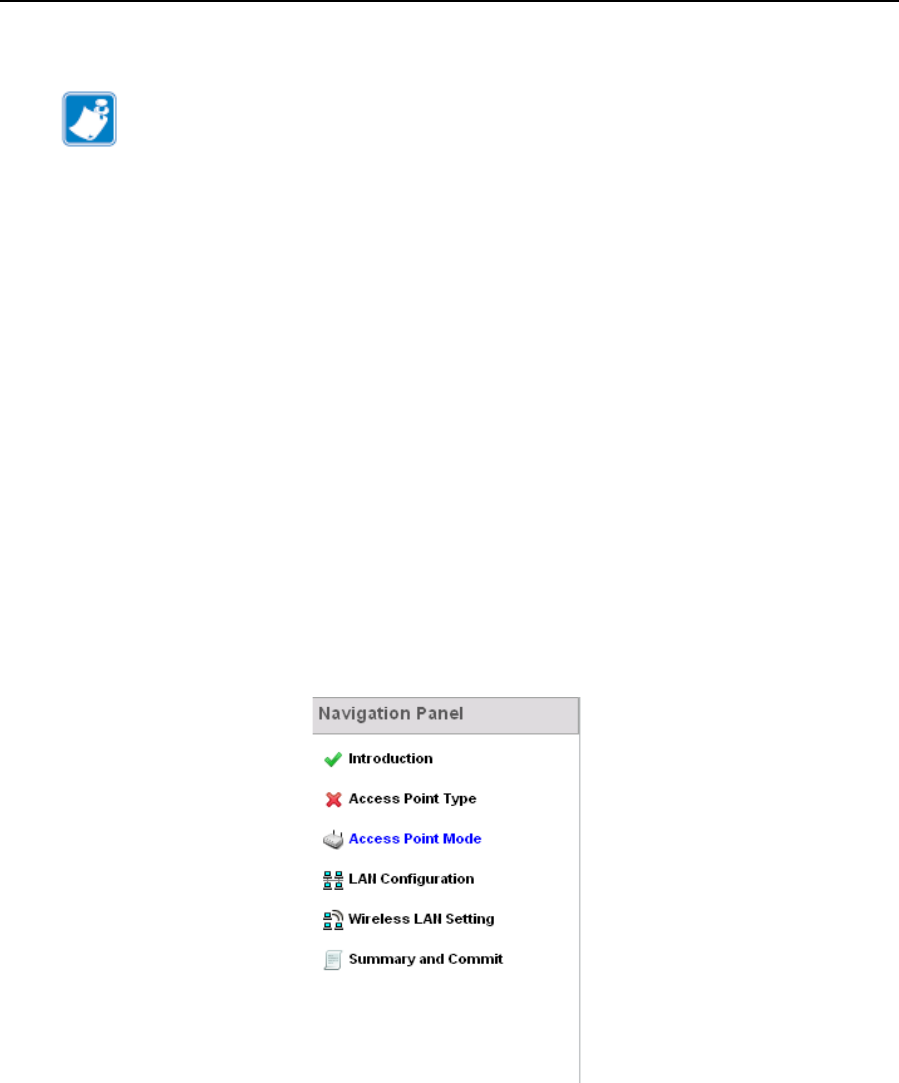

A green checkmark to the left of an item in the Navigation Panel
defines the task as having its minimum required configuration set
correctly. A red X defines a task as still requiring at least one parameter
be defined correctly.
6. Select Save/Commit within each page to save the updates made to
that page's configuration. Select Next to proceed to the next page listed
in the Navigation Panel without saving your updates.
For the purposes of this guide, use the Typical Setup
(Recommended) option to simplify the process of getting the Access
Point up and running quickly with a minimum number of changes to the
Access Point’s default configuration.
For information on using the Access Point’s Advanced Setup option,
refer to the WiNG Access Point System Reference Guide to familiarize
yourself with the feature set supported by the WiNG operating system.
The guide is available at www.zebra.com/support.
To configure the Access Point using the Typical Setup Wizard:
7. Select Typical Setup from the Choose One type to Setup the Access
Point field on the Initial Setup Wizard.
8. The Typical Setup Wizard displays the Access Point Settings screen
to define the Access Point's Standalone versus Virtual Controller AP
functionality. This screen also enables selection of the country of
operation for the Access Point.
Note • While you can navigate to any page in the navigation panel, you
cannot complete the Initial AP Setup Wizard until each task in the
Navigation Panel has a green checkmark.
AP8432_IG.book Page 23 Monday, March 14, 2016 8:39 AM
24 AP-8432 Access Point
9. Select an Access Point Type from the following options:
•Virtual Controller AP - When more than one Access Point is
deployed, a single Access Point can function as a Virtual Controller
AP. Up to 24 Access Points can be connected to, and managed by,
a single Virtual Controller AP of the same Access Point type. These
connected Access Points must be the same type as the Virtual
Controller AP.
•Standalone AP - Select this option to deploy this Access Point
as an autonomous fat Access Point. A Standalone AP isn't
managed by a Virtual Controller AP, or adopted by a controller.
10. Select the Country Code of the country where the Access Point is
deployed. Selecting a proper country is a critical task while configuring
the Access Point, as it defines the correct channels of operation and
ensures compliance to the regulations of the selected country. This field
is only available for the Typical Setup Wizard.
11. Select Next to set the Access Point’s network mode.
Note • The professional installer should refer to the WiNG Access Point
System Reference Guide available at www.zebra.com/support for detailed
information on how to set the Access Point’s transmit power, antenna gain
and channel in respect to the deployment country’s unique regulatory
requirements.
Note • If wanting to adopt the Access Point to a controller or service
platform, use the controller or service platform’s resident UI to connect to
the Access Point, provision its configuration and administrate the Access
Point’s configuration.
Note • If designating the Access Point as a Standalone AP, its
recommended the Access Point’s UI be used exclusively to define its
device configuration, and not the CLI. The CLI provides the ability to
define more than one profile and the UI does not. Consequently, the two
interfaces cannot be used collectively to manage profiles without
encountering problems.
AP8432_IG.book Page 24 Monday, March 14, 2016 8:39 AM
Installation Guide 25
12. The Typical Setup Wizard displays the Network Topology screen to
define how the Access Point manages network traffic.
13. Select an Access Point Mode from the available options.
•Router Mode - In Router Mode, the Access Point routes traffic
between the local network (LAN) and the Internet or external
network (WAN). Router mode is recommended in a deployment
supported by just a single Access Point.
•Bridge Mode - In Bridge Mode, the Access Point depends on an
external router for LAN and WAN traffic. Routing is generally used
on one device, whereas bridging is typically used in a larger density
network. Select Bridge Mode when deploying this Access Point with
numerous peer Access Points supporting clients on both the
AP8432_IG.book Page 25 Monday, March 14, 2016 8:39 AM
26 AP-8432 Access Point
2.4GHz and 5GHz radio bands.

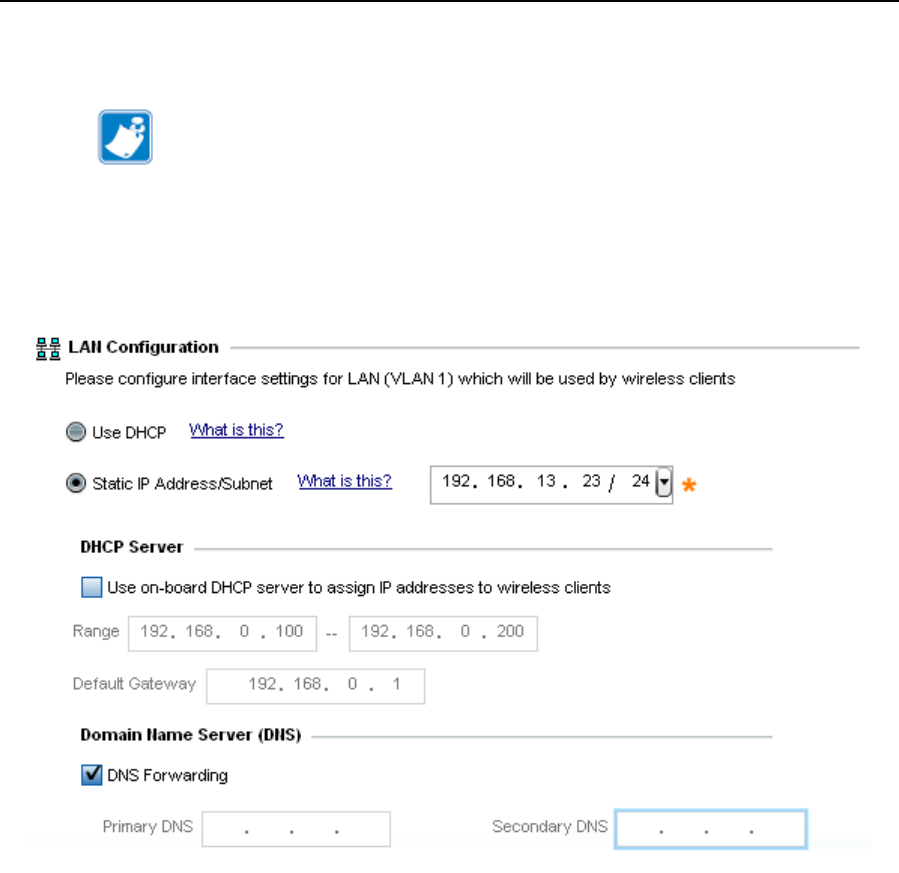

14. Select Next. The Typical Setup Wizard displays the LAN
Configuration screen to set the Access Point's LAN interface
configuration.
15. Set the following DHCP and Static IP Address/Subnet information for
the LAN interface:
•Use DHCP - Select the checkbox to enable an automatic
network address configuration using the Access Point’s DHCP
server.
•Static IP Address/Subnet - Enter an IP Address and a subnet for
the Access Point's LAN interface. If Use DHCP is selected, this field
is not available. When selecting this option, define the following
DHCP Server and Domain Name Server (DNS) resources, as those
Note • When Bridge Mode is selected, WAN configuration cannot be
performed and the Typical Setup Wizard does not display the WAN
configuration screen.
AP8432_IG.book Page 26 Monday, March 14, 2016 8:39 AM
Installation Guide 27
fields will become enabled on the bottom portion of the screen.
•Use on-board DHCP server to assign IP addresses to wireless
clients - Select the checkbox to enable the Access Point’s DHCP
server to provide IP and DNS information to requesting clients on
the LAN interface.
•Range - Enter a starting and ending IP Address range for client
assignments on the LAN interface. Avoid assigning IP addresses
from x.x.x.1 - x.x.x.10 and x.x.x.255, as they are often reserved for
standard network services. This is a required parameter.
•Default Gateway - Define a default gateway address for use with
the default gateway. This is a required parameter.
•DNS Forwarding - Select this option to allow a DNS server to
translate domain names into IP addresses. If this option is not
selected, a primary and secondary DNS resource must be
specified. DNS forwarding is useful when a request for a domain
name is made but the DNS server, responsible for converting the
name into its corresponding IP address, cannot locate the matching
IP address.
•Primary DNS - Enter an IP Address for the main Domain Name
Server providing DNS services for the Access Point's LAN interface.
•Secondary DNS - Enter an IP Address for the backup Domain
Name Server providing DNS services for the Access Point's LAN
interface.
16. Select Next. The Typical Setup Wizard displays the Wireless LAN
Setup screen to set the an Access Point's WLAN 1 and WLAN 2.
AP8432_IG.book Page 27 Monday, March 14, 2016 8:39 AM
28 AP-8432 Access Point

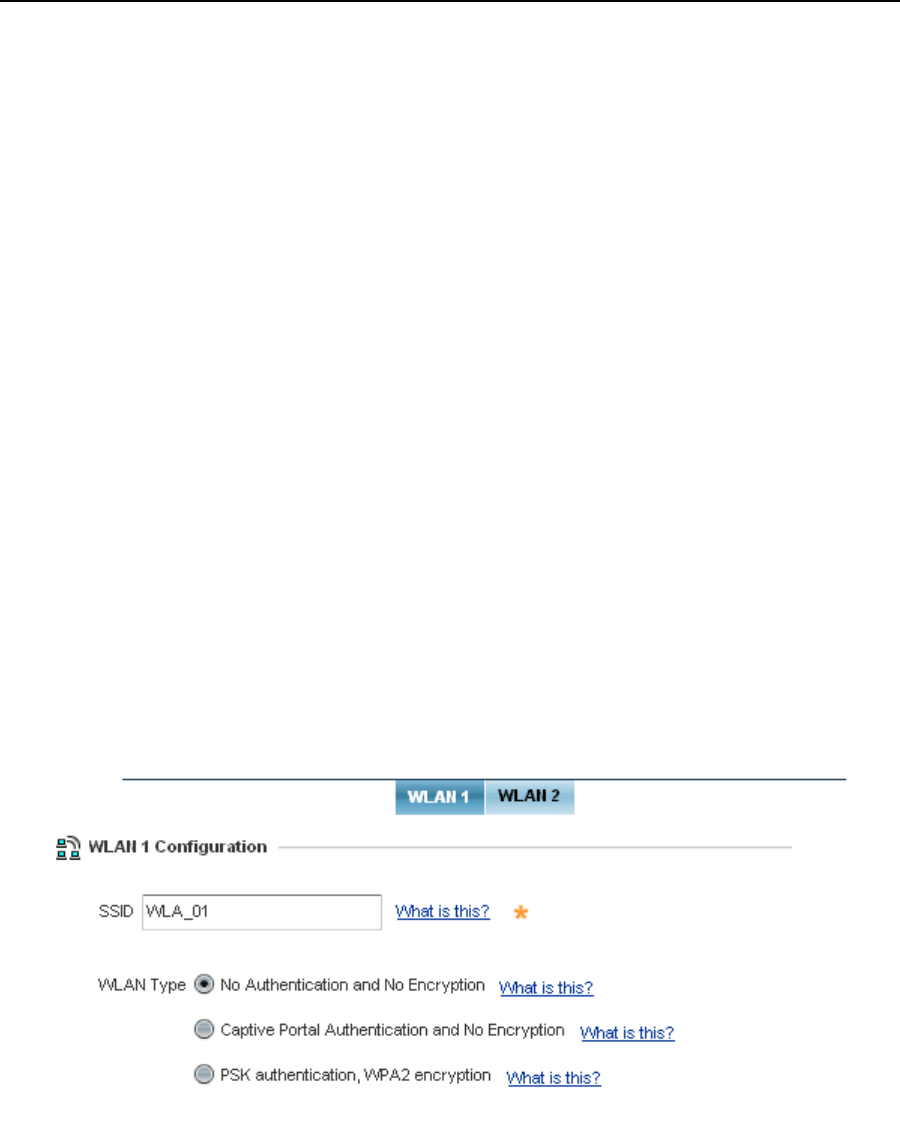

17. Set the following WLAN1 Configuration parameters:
•SSID - Configure the SSID for the WLAN.
•WLAN Type - Configure encryption and authentication settings
to protect the data and user integrity of WLAN 1.
•No Authentication and No Encryption - Configures a network
without any user authentication or data encryption. This means any
data transmitted through the network is in plain text. Any device
between end points can see the information transmitted. This is the
least secure of all network configurations.
•Captive Portal Authentication and No Encryption - Uses a
RADIUS server to authenticate users before allowing them on to the
network. Once on the network, no encryption is used for the data
transmitted through the network. Select this option to use a Web
page (either internally or externally hosted) to authenticate users
before access is granted to the network.
•PSK authentication, WPA2 encryption - Configures a network
that uses PSK authentication and WPA2 encryption. Select this
option to implement a pre-shared key that must be correctly shared
between the Access Point and requesting clients.

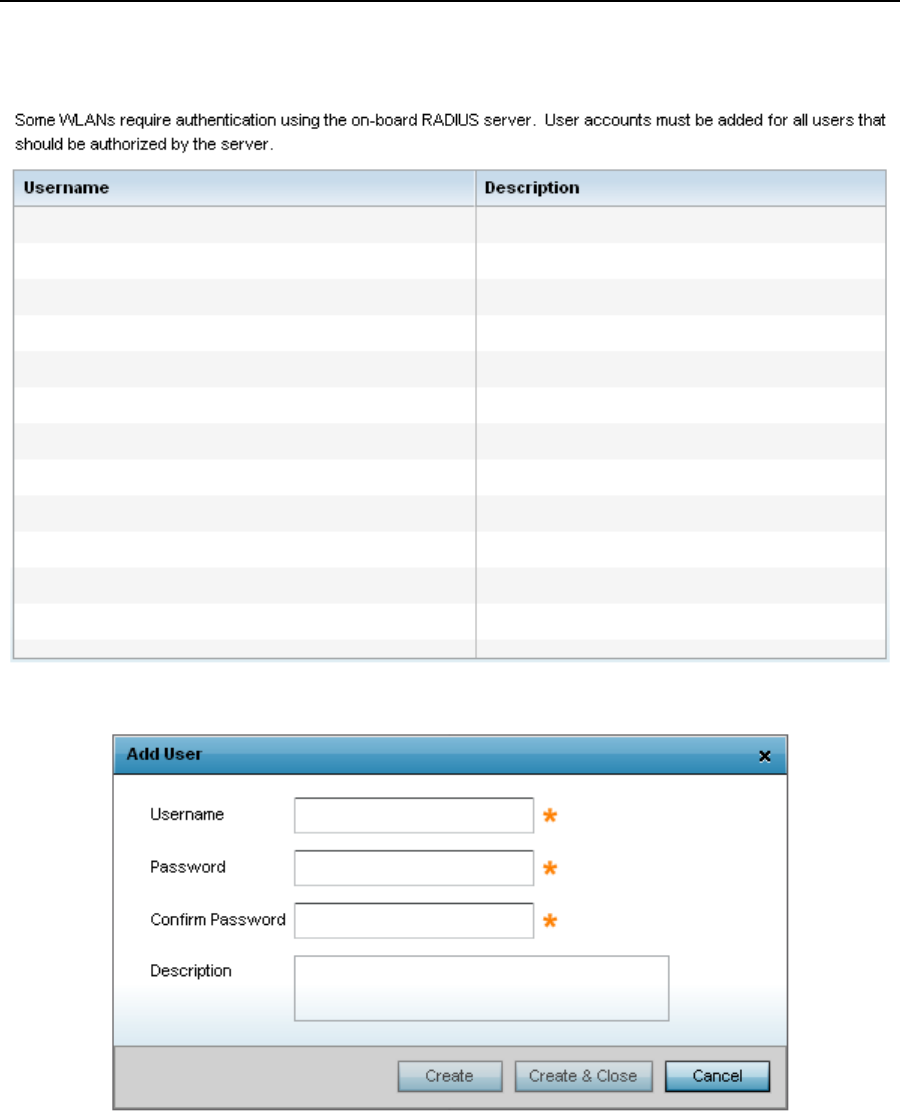

18. Select Next. The Typical Setup Wizard displays the RADIUS Server
Configuration screen if required.
Otherwise, the Typical Setup Wizard displays the Summary and
Commit screen.
AP8432_IG.book Page 28 Monday, March 14, 2016 8:39 AM
Installation Guide 29
19. Use the Radius Server Configuration screen to configure the users
for the onboard RADIUS server. Use the screen to add, modify and
remove RADIUS users.
20. Select Add User to display the dialog to enter user information to add
to the RADIUS server user database.
AP8432_IG.book Page 29 Monday, March 14, 2016 8:39 AM
30 AP-8432 Access Point
21. Enter the following user information:
•Username - Provide a user name to authenticate the user.
•Password - Provide a password to authenticate the user.
• Confirm Password - Confirm the password by entering the same
password entered in the Password field.
• Description - Provide a description to identify the user created in
the RADIUS server database.
22. Select Create to create the entry in the RADIUS server database and
add another user. Select Create & Close to create an entry in the
RADIUS server database and close the Add User dialog.
23. Select Modify User within the RADIUS Server Configuration screen to
modify information for an existing user.
24. Select Delete User on the RADIUS Server Configuration screen to
remove information for an existing user. Select Yes to verify the
removal.
25. Select Cancel to revert to the last saved configuration.
Note • The Username cannot be modified with this dialog.
AP8432_IG.book Page 30 Monday, March 14, 2016 8:39 AM
Installation Guide 31
26. Select Next. The Typical Setup Wizard displays the Summary and
Commit screen to summarize the screens (pages) and settings
updated using the Typical Setup Wizard.
No user intervention or additional settings are required. Its an additional
means of validating the Access Point’s updated configuration before it’s
deployed. However, if a screen displays settings not intended as part of
the initial configuration, then any screen can be selected again from
within the Navigation Panel and its settings modified accordingly.
If the configuration displays as intended, select Save/Commit to
implement these settings to the Access Point’s configuration. If
additional changes are warranted based on the summary, either select
the target page from the Navigational Panel, or use the Back and Next
buttons to scroll to the target screen.
AP8432_IG.book Page 31 Monday, March 14, 2016 8:39 AM
32 AP-8432 Access Point
4 AP-8432 Access Point Specifications
4.1 Electrical Characteristics
An AP-8432 Access Point has the following electrical characteristics:
4.2 Physical Characteristics
An AP-8432 Access Point has the following physical characteristics:
Operating Current
& Voltage 48VDC, 0.625A (AUX input voltage)
48VDC PWR-BGA48V45W0WW Power Supply
48VDC, 0.53A (POE)
802.3at AP-PSBIAS-2P3-ATR Power Injector
Dimensions 8.25 in. L x 8.25 in. W x 1.8 in. H
210 mm L x 210 mm W x 46 mm H
Weight 3.0 lbs/1.37 kg
Operating
Temperature 32° F to 140° F/0° C to 50° C
Storage
Temperature -40° F to 158° F/-40° C to 70° C
Operating
Humidity 95% RH non-condensing
Operating Altitude
(maximum) 13,000 ft @ 28C
Storage Altitude
(maximum) 30,000 ft @ 12C
Electrostatic
Discharge ESD to ±12KV air and ±8KV contact
AP8432_IG.book Page 32 Monday, March 14, 2016 8:39 AM
Installation Guide 33
4.3 Radio Characteristics
The AP-8432 Access Point has the following radio characteristics:
Data Rates
Supported 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps
802.11a: 6,9,12,18,24,36,48, and 54 Mbps 802.11n:
MCS 0-31 up to 600Mbps
802.11ac: MCS 0-9 up to 1.733Gbps
Wireless Medium Direct Sequence Spread Spectrum (DSSS)
Orthogonal Frequency Division Multiplexing (OFDM)
Spatial multiplexing (MIMO)
Network
Standards IEEE 802.11a/b/g/n/ac, MU-MIMO
802.11d and 802.11i WPA2
WMM and WMM-UAPSD
Transmit Power
Adjustment 1dB increments
AP8432_IG.book Page 33 Monday, March 14, 2016 8:39 AM
34 AP-8432 Access Point
5 Regulatory Information
5.1 Regulatory Information
This guide applies to the following Model Numbers: AP-8432I.
All Zebra devices are designed to be compliant with the rules and regulations
in the locations they are sold and will be labeled as required.
Local language translations are available at the following Website:
www.zebra.com/support
Any changes or modifications to Zebra equipment, not expressly approved by
Zebra could void the user's authority to operate the equipment.
Zebra devices are professionally installed, the Radio Frequency Output Power
will not exceed the maximum allowable limit for the country of operation.
Antennas: Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could cause damage
and may violate regulations.
This device is only to be used with a Zebra Wireless Switch.
For use only with Zebra approved and UL Listed mobile computers, Zebra
approved, and UL Listed/Recognized battery packs.
Caution:
Only use Zebra approved and UL Listed accessories, battery
packs, and battery chargers.
Do NOT attempt to charge damp/wet mobile computers or
batteries. All components must be dry before connecting to an external power
source.
Declared maximum operating temperature: 50°C.
5.1.1 Bluetooth Wireless Technology
This is an approved Bluetooth® product. For more information or to view the
End Product Listing, please visit https://www.bluetooth.org/tpg/listings.cfm.
AP8432_IG.book Page 34 Monday, March 14, 2016 8:39 AM
Installation Guide 35
5.2 Wireless Device Country Approvals
Note: This section is only applicable to WW/WR/EU configurations.
Regulatory markings subject to certification are applied to the device signifying
the radio(s) is/are approved for use in the following countries and continents:
United States, Canada, Japan, China, South Korea, Australia, and Europe.
Please refer to the Declaration of Conformity (DoC) for details of other country
markings. This is available at: www.zebra.com/doc
Note: Europe includes Austria, Belgium, Bulgaria, Croatia, Czech Republic,
Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia,
Spain, Sweden, Switzerland, and the United Kingdom.
Caution:
Operation of the device without regulatory approval is illegal.
5.2.1 Country Selection
Select only the country in which the device will be used. Any other selection
will make the operation of this device illegal.
Country Roaming
This device incorporates the International Roaming feature (IEEE802.11d)
which will ensure the product operates on the correct channels for the
particular country of use.
5.2.2 Frequency of Operation – IC
5 GHz Only
Industry Canada Statement:
Caution: The device for the band 5150-5250 MHz is only for indoor
usage to reduce potential for harmful interference to co-Channel
mobile satellite systems. High power radars are allocated as
primary users (meaning they have priority) of 5250-5350 MHz and
5650-5850 MHz and these radars could cause interference and/or
damage to LE-LAN devices.
AP8432_IG.book Page 35 Monday, March 14, 2016 8:39 AM
36 AP-8432 Access Point
Avertissement: Le dispositif fonctionnant dans la bande
5150-5250 MHz est réservé uniquement pour une utilisation à
l'intérieur afin de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux.
Les utilisateurs de radars de haute puissance sont désignés utilisateurs
principaux (c.-à-d., qu'ils ont la priorité) pour les bands 5250-5350 MHz et
5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LAN-EL.
2.4 GHz Only
The available channels for 802.11bg operation in the US are Channels 1 to 11.
The range of channels is limited by firmware.
5.3 Warnings for Use of Wireless Devices
Caution: Please observe all warning notices with regard to the
usage of wireless devices.
5.3.1 Potentially Hazardous Atmospheres - Vehicle Installation
You are reminded of the need to observe restrictions on the use of radio
devices in fuel depots, chemical plants etc. and areas where the air contains
chemicals or particles (such as grain, dust, or metal powders).
5.3.2 Potentially Hazardous Atmospheres - Fixed Installations
You are reminded of the need to observe restrictions on the use of radio
devices in fuel depots, chemical plants etc. and areas where the air contains
chemicals or particles such as grain, dust, or metal powders.
5.3.3 Safety in Aircraft
Switch off your wireless device whenever you are instructed to do so by airport
or airline staff. If your device offers a 'flight mode' or similar feature, consult
airline staff as to its use in flight.
5.3.4 Safety in Hospitals
Wireless devices transmit radio frequency energy and may affect
medical electrical equipment. When installed adjacent to other
equipment, it is advised to verify that the adjacent equipment is not adversely
affected.
AP8432_IG.book Page 36 Monday, March 14, 2016 8:39 AM
Installation Guide 37
Wireless devices transmit radio frequency energy and may affect medical
electrical equipment.
Wireless devices should be switched off wherever you are requested to do so
in hospitals, clinics, or healthcare facilities. These requests are designed to
prevent possible interference with sensitive medical equipment.
Wireless devices transmit radio frequency energy and may affect medical
electrical equipment. When installed adjacent to other equipment, it is advised
to verify that the adjacent equipment is not adversely affected.
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches)
be maintained between a handheld wireless device and a pacemaker to avoid
potential interference with the pacemaker. These recommendations are
consistent with independent research and recommendations by Wireless
Technology Research.
Persons with Pacemakers:
• Should ALWAYS keep the device more than 15cm (6 inches) from their
pacemaker when turned ON.
• Should not carry the device in a breast pocket.
• Should use the ear furthest from the pacemaker to minimize the
potential for interference.
• If you have any reason to suspect that interference is taking place, turn
OFF your device.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device, to
determine if the operation of your wireless product may interfere with the
medical device.
5.4 RF Exposure Guidelines
5.4.1 Safety Information
Reducing RF Exposure - Use Properly
Only operate the device in accordance with the instructions supplied.
AP8432_IG.book Page 37 Monday, March 14, 2016 8:39 AM
38 AP-8432 Access Point
5.4.2 International
The device complies with internationally recognized standards covering
human exposure to electromagnetic fields from radio devices. For information
on “International” human exposure to electromagnetic fields refer to the
Declaration of Conformity (DoC) at www.zebra.com/doc.
5.4.3 EU
Remote and Standalone Antenna Configurations
To comply with EU RF exposure requirements, antennas that are mounted
externally at remote locations or operating near users at stand-alone desktop
of similar configurations must operate with a minimum separation distance of
40cm from all persons.
5.4.4 US and Canada
Co-located statement
To comply with FCC RF exposure compliance requirements, the antenna used
for this transmitter must not be co-located or operating in conjunction with any
other transmitter/antenna except those already approved in this filling.
To satisfy US and Canadian RF exposure requirements, a transmitting device
must operate with a minimum separation distance of 40cm or more from a
person's body.
Pour satisfaire aux exigences Américaines et Canadiennes d'exposition aux
radiofréquences, un dispositif de transmission doit fonctionner avec une
distance de séparation minimale de 40cm ou plus de corps d'une personne.
Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 40cm between the radiator and your body.
NOTE IMPORTANTE: (Pour l'utilisation de dispositifs mobiles)
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement doit être installé
et utilisé avec un minimum de 40cm de distance entre la source de
rayonnement et votre corps.
AP8432_IG.book Page 38 Monday, March 14, 2016 8:39 AM
Installation Guide 39
Remote and Standalone Antenna Configurations
To comply with FCC RF exposure requirements, Antennas that are mounted
externally must be professionally installed at a fixed location and operate with
a minimum distance of 40cm from all persons.
To comply with FCC Antenna requirements, the Antenna must be adjusted
such that the RF emission lobes are below 30 degrees elevation.
5.5 Power Supply
This device must be powered from a 802.3af or 802.3at compliant power
source which has been certified by the appropriate agencies, or by a Zebra
approved UL LISTED ITE (IEC/EN 60950-1, LPS/SELV) power supply with
electrical ratings: Output 48 Vdc 45 watts with a maximum ambient
temperature rating of at least 50 degrees C. The use of an alternative power
supply will invalidate any approvals given to this unit and may be dangerous.
5.6 Radio Frequency Interference Requirements—FCC
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
AP8432_IG.book Page 39 Monday, March 14, 2016 8:39 AM
40 AP-8432 Access Point
5.6.1 Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
5.6.2 Radio Frequency Interference Requirements - Canada
CAN ICES-3 (B)/NMB-3(B)
Radio Transmitters
For RLAN Devices:
The use of 5 GHz RLAN’s, for use in Canada, have the following restrictions:
• Restricted Band 5.60 – 5.65 GHz
IC statement
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement
Label Marking: The Term "IC:" before the radio certification only signifies that
Industry Canada technical specifications were met
In accordance with the regulations of Industry Canada, this radio transmitter
can operate with an antenna of a type and a maximum gain (or lower)
approved for the transmitter by Industry Canada. With the aim of reducing the
risk of radio interference to other users, the chosen antenna type and its gain
should be selected so that the equivalent isotropically radiated power (e.i.r.p.)
does not exceed the intensity necessary for the establishment of a satisfactory
connection.
Conformément à la réglementation d'Industrie Canada, le présent émetteur
radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou
inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de
réduire les risques de brouillage radioélectriqueà l'intention des autres
utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la
AP8432_IG.book Page 40 Monday, March 14, 2016 8:39 AM
Installation Guide 41
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire àl'établissement d'une communication satisfaisante.
In compliance with respective local regulatory law, AP software provides
professional installers the option to configure the antenna type and antenna
gain for approved antennas.
This radio transmitter (AP-8432) has been approved by Industry Canada to
operate with the antenna types listed below and having a maximum gain
allowable and the impedance required for each type of antenna. The antenna
types not included in this list, or whose gain is higher than the maximum gain
indicates, are strictly prohibited for the operation of the transmitter.
Refer to AP-8432 Antennas on page 7 for a listing of the 2.4 GHz and 5 GHz
antennas initially approved for use with AP-8432 Access Points.
Le présent émetteur radio (AP-8432) a été approuvé par Industrie Canada
pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un
gain admissible maximal et l'impédance requise pour chaque type d'antenne.
Les types d'antenne non inclus dans cette liste ou dont le gain est supérieur
au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur.
5.7 CE Marking and European Economic Area (EEA)
WARNING: This is a Class B product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
The use of 2.4GHz RLAN’s, for use through the EEA, have the following
restrictions:
• Maximum radiated transmit power of 100 mW EIRP in the frequency
range 2.400 -2.4835 GHz.
Bluetooth® Wireless Technology for use through the EEA has the following
restrictions:
• Maximum radiated transmit power of 100 mW EIRP in the frequency
range 2.400 -2.4835 GHz.
5.8 Statement of Compliance
Zebra hereby, declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
A Declaration of Conformity may be obtained from www.zebra.com/doc.
AP8432_IG.book Page 41 Monday, March 14, 2016 8:39 AM
42 AP-8432 Access Point
5.9 Japan (VCCI) - Voluntary Control Council for Interference
Class B ITE
5.10 Korea Warning Statement for Class B ITE
5.11 Other Countries
All 2.4GHz and 5GHz Wireless Devices:
Australia
Use of 5GHz RLAN’s in Australia is restricted in the following band 5.50 –
5.65GHz.
Brazil (UNWANTED EMISSIONS - ALL PRODUCTS)
Regulatory declarations for AP-8432 - BRAZIL
For more information consult the website www.anatel.gov.br.
Nota: A marca de certificação se aplica ao Transceptor, modelo AP-8432.
Este equipamento opera em caráter secundário, isto é, não tem direito a
proteção contra interferência prejudicial, mesmo de estações do mesmo tipo,
e não pode causar interferência a sistemas operando em caráter primário.
Para maiores informações sobre ANATEL consulte o site: www.anatel.gov.br.
Este equipamento opera em caráter secundário, isto é, não tem direito a
proteção contra interferência prejudicial, mesmo de estações do mesmo tipo,
e não pode causar interferência a sistemas operando em caráter primário.
Este produto está homologado pela Anatel, de acordo com os procedimentos
regulamentados pela Resolução n°242/2000 e atende aos requisitos técnicos
aplicados, incluindo os limites de exposição da Taxa de Absorção Específica
referente a campos elétricos, magnéticos e eletromagnéticos de
radiofrequência, de acordo com as Resoluções n° 303/2002 e 533/2009.
AP8432_IG.book Page 42 Monday, March 14, 2016 8:39 AM
Installation Guide 43
Este dispositivo está em conformidade com as diretrizes de exposição à
radiofrequência quando posicionado pelo menos 25 centímetros de distância
do corpo. Para maiores informações, consulte o site da Anatel.
Chile
Este equipo cumple con la Resolución No 403 de 2008, de la Subsecretaria
de telecomunicaciones, relativa a radiaciones electromagnéticas.
China
Hong Kong
In accordance with HKTA1039, the band 5.15GHz - 5.35GHz is for indoor
operation only.
Mexico
Restrict Frequency Range to: 2.450 – 2.4835 GHz.
La operación de este equipo está sujeta a las siguientes dos condiciones: (1)
es posible que este equipo o dispositivo no cause interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo
la que pueda causar su operación no deseada.
S. Korea
For a radio equipment using 2400~2483.5MHz or 5725~5825MHz, the
following two expression should be displayed;
AP8432_IG.book Page 43 Monday, March 14, 2016 8:39 AM
44 AP-8432 Access Point
Taiwan
在5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備，限於室內使用
Turkey
Bu cihaz Türkçe karakterlerin tamam?n? ihtiva eden ETSI TS 123.038 V8.0.0
(veya sonraki sürümün
kodu) ve ETSI TS 123.040 V8.1.0 (veya sonraki sürümün kodu) teknik
özelliklerine uygundur.
Ukraine
Thailand
Дане обладнання відповідає вимогам технічного регламенту №1057, № 2008 на обмеження щодо
використання деяких не без п ечних речовин в елек тричних та елект ронних пристроях.
AP8432_IG.book Page 44 Monday, March 14, 2016 8:39 AM
Installation Guide 45
5.12 Waste Electrical and Electronic Equipment (WEEE)
English: For EU Customers: All products at the end of their life must be returned to Zebra for
recycling. For information on how to return product, please go to: www.zebra.com/weee.
Français: Clients de l'Union Européenne: Tous les produits en fin de cycle de vie doivent être
retournés à Zebra pour recyclage. Pour de plus amples informations sur le retour de produits,
consultez : www.zebra.com/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Zebra
al final de su ciclo de vida para que sean reciclados. Si desea más información sobre cómo
devolver un producto, visite: www.zebra.com/weee.
Български: За клиенти от ЕС: След края на полезния им живот всички продукти трябва
да се връщат на Zebra за рециклиране. За информация относно връщането на продукти,
моля отидете на адрес: www.zebra.com/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer Lebensdauer
zum Recycling an Zebra zurückgesandt werden. Informationen zur Rücksendung von
Produkten finden Sie unter www.zebra.com/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita
devono essere restituiti a Zebra al fine di consentirne il riciclaggio. Per informazioni sulle
modalità di restituzione, visitare il seguente sito Web: www.zebra.com/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser devolvidos à
Zebra para reciclagem. Para obter informações sobre como devolver o produto, visite:
www.zebra.com/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun levensduur
naar Zebra te worden teruggezonden voor recycling. Raadpleeg www.zebra.com/weee voor
meer informatie over het terugzenden van producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji nale¿y zwróciæ do
firmy Zebra w celu ich utylizacji. Informacje na temat zwrotu produktów znajduj¹ siê na stronie
internetowej www.zebra.com/weee.
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich životnosti vrátit
spoleènosti Zebra k recyklaci. Informace o zpùsobu vrácení produktu najdete na webové
stránce: www.zebra.com/weee.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise
eesmärgil Zebra'ile. Lisainformatsiooni saamiseks toote tagastamise kohta külastage palun
aadressi: www.zebra.com/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra vállalathoz kell eljuttatni
újrahasznosítás céljából. A termék visszajuttatásának módjával kapcsolatos tudnivalókért
látogasson el a www.zebra.com/weee weboldalra.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till
Zebra för återvinning. Information om hur du returnerar produkten finns på
www.zebra.com/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi
Zebra-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa
www.zebra.com/weee.
AP8432_IG.book Page 45 Monday, March 14, 2016 8:39 AM
46 AP-8432 Access Point
Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når de er udtjent.
Læs oplysningerne om returnering af produkter på: www.zebra.com/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει
να επιστρέφονται στην Zebra για ανακύκλωση. Για περισσότερες πληροφορίες σχετικά με την
επιστροφή ενός προϊόντος, επισκεφθείτε τη διεύθυνση www.zebra.com/weee στο ∆ιαδίκτυο.
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu tagħhom, iridu
jiġu rritornati għand Zebra għar-riċiklaġġ. Għal aktar tagħrif dwar kif għandek tirritorna l-prodott,
jekk jogħġbok żur: www.zebra.com/weee.
Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de funcţionare,
trebuie returnate la Zebra pentru reciclare. Pentru informaţii despre returnarea produsului,
accesaţi: www.zebra.com/weee.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti podjetju Zebra
za reciklažo. Za informacije o vračilu izdelka obiščite: www.zebra.com/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby ich
životnosti vrátené spoločnosti Zebra na recykláciu. Bližšie informácie o vrátení výrobkov
nájdete na: www.zebra.com/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti grąžinti
utilizuoti į kompaniją „Zebra“. Daugiau informacijos, kaip grąžinti gaminį, rasite:
www.zebra.com/weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā atpakaļ Zebra
otrreizējai pārstrādei. Lai iegūtu informāciju par produktu nogādāšanu Zebra, lūdzu, skatiet:
www.zebra.com/weee.
Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Zebra'ya
iade edilmelidir. Ürünlerin nasıl iade edileceği hakkında bilgi için lütfen şu adresi ziyaret edin:
www.zebra.com/weee.
5.13 TURKISH WEEE Statement of Compliance
EEE Yönetmeliğine Uygundur
AP8432_IG.book Page 46 Monday, March 14, 2016 8:39 AM
Installation Guide 47
6 Support
If you have a problem with your equipment, contact support for your region.
Contact information is available at: www.zebra.com/support
When contacting support, please provide the following information:
• Serial number of the unit
• Model number or product name
• Software type and version number
Support responds to calls by e-mail, telephone, or fax within the time limits set
forth in support agreements. If you purchased your product from a business
partner, contact that business partner for support.
Customer Support Web Sites
The Support site, located at www.zebra.com/support provides information and
online assistance including developer tools, software downloads, product
manuals and online repair requests.
AP8432_IG.book Page 47 Monday, March 14, 2016 8:39 AM
48 AP-8432 Access Point
7 Zebra Technologies Inc. End-User Software
License Agreement
BY INSTALLING AND/OR USING THIS PRODUCT, YOU ACKNOWLEDGE THAT
YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE
BOUND ITS TERMS. IF YOU DO NOT AGREE TO THE TERMS OF THIS
AGREEMENT, ZEBRA IS NOT WILLING TO LICENSE THE PRODUCT TO YOU,
AND YOU MUST NOT INSTALL OR USE THIS PRODUCT.
Definitions
Grant of License
Zebra Technologies Corporation ("Zebra") grants you ("Licensee" or "you") a
personal, nonexclusive, nontransferable, revocable, nonassignable, limited license
to use the software and documentation ("Product(s)") subject to the terms and
conditions of this Agreement. You shall use the Products only for your internal
business purposes, exclusively to support Zebra devices. Any use of the Products
outside of the conditions set forth herein is strictly prohibited and will be deemed a
breach of this Agreement resulting in immediate termination of your License. In the
event of a breach of this Agreement, Zebra will be entitled to all available remedies
at law or in equity (including immediate termination of the license without notice,
immediate injunctive relief and repossession of all Products unless Licensee is a
Federal agency of the United States Government).
You shall not distribute, sublicense, rent, loan, lease, export, re-export, resell, ship or
divert or cause to be exported, re-exported, resold, shipped or diverted, directly or
indirectly, the Products under this Agreement. You shall not, and shall not permit
others to: (i) modify, translate, decompile, bootleg, reverse engineer, disassemble, or
extract the inner workings of the Products, (ii) copy the look-and-feel or functionality
of the Products; (iii) remove any proprietary notices, marks, labels, or logos from the
Products; (iv) rent or transfer all or some of the Products to any other party without
Zebra's prior written consent; or (v) utilize any computer software or hardware which
is designed to defeat any copy protection device, should the Products be equipped
with such a protection device.
Title to all copies of Products will not pass to Licensee at any time and remains vested
exclusively in Zebra. All intellectual property developed, originated, or prepared by
Zebra in connection with the Products remain vested exclusively in Zebra, and this
Agreement does not grant to Licensee any intellectual property rights.
AP8432_IG.book Page 48 Monday, March 14, 2016 8:39 AM
Installation Guide 49
Portions of the Products are protected by United States patent and copyright laws,
international treaty provisions, and other applicable laws. Therefore, you must treat
the Products like any other copyrighted material (e.g., a book or musical recording)
except that you may make one copy of the Product solely for back-up purposes.
Unauthorized duplication of the Products constitutes copyright infringement, and in
the United States is punishable in federal court by fine and imprisonment.
Limited Warranty
Zebra warrants for a period of ninety (90) days from your receipt of the Products to
you that the Software, under normal use, will perform substantially in accordance with
Zebra's published specifications for that release level of the Software. The written
materials are provided "AS IS" and without warranty of any kind. Zebra's entire
liability and your sole and exclusive remedy for any breach of the foregoing limited
warranty will be, at Zebra's option, the provision of a downloadable patch or
replacement code, or a refund of the unused portion of your bargained for contractual
benefit up to the amount paid for the Products.
Disclaimer
THIS LIMITED WARRANTY IS THE ONLY WARRANTY PROVIDED BY ZEBRA,
AND ZEBRA MAKES, AND YOU RECEIVE, NO OTHER WARRANTIES OF ANY
KIND, WHETHER EXPRESS, IMPLIED, STATUTORY, OR IN ANY
COMMUNICATION WITH YOU. ZEBRA SPECIFICALLY DISCLAIMS ANY
WARRANTY INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILTY,
NONINFRINGEMENT, OR FITNESS FOR A PARTICULAR PURPOSE. ZEBRA
DOES NOT WARRANT THAT THE PRODUCTS WILL MEET YOUR
REQUIREMENTS, OR THAT THE OPERATION OF THE PRODUCTS WILL BE
UNINTERRUPTED OR ERROR FREE, OR THAT DEFECTS IN THE PRODUCTS
WILL BE CORRECTED. ZEBRA MAKES NO WARRANTY WITH RESPECT TO
THE CORRECTNESS, ACCURACY, OR RELIABILITY OF THE PRODUCTS. Some
jurisdictions do not allow the exclusion of implied warranties, so the above exclusion
may not apply to you.
Limitation of Liability
THE TOTAL LIABILITY OF ZEBRA UNDER THIS AGREEMENT FOR DAMAGES
SHALL NOT EXCEED THE FAIR MARKET VALUE OF THE PRODUCTS
LICENSED UNDER THIS AGREEMENT. IN NO EVENT WILL ZEBRA BE LIABLE IN
ANY WAY FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR
PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION,
LOST BUSINESS PROFITS, OR LIABILITY OR INJURY TO THIRD PERSONS,
WHETHER FORESEEABLE OR NOT, REGARDLESS OF WHETHER ZEBRA HAS
AP8432_IG.book Page 49 Monday, March 14, 2016 8:39 AM
50 AP-8432 Access Point
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some jurisdictions
do not permit limitations of liability for incidental or consequential damages, so the
above exclusions may not apply to you. This Limitation of Liability provision survives
the termination of this Agreement and applies notwithstanding any contrary provision
in this Agreement. Licensee must bring any action under this Agreement within one
(1) year after the cause of action arises.
Maintenance
Unless provided for in a separate agreement, Zebra shall not be responsible for
maintenance or field service of the Products.
High Risk Activities
The Products are not fault-tolerant and are not designed, manufactured or intended
for use or resale as on-line control software in hazardous environments requiring
fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation
or communication systems, air traffic control, direct life support machines, or
weapons systems, in which the failure of the Products could lead directly to death,
personal injury, or severe physical or environmental damage ("High Risk Activities").
Zebra and its suppliers specifically disclaim any express or implied warranty of fitness
for High Risk Activities, and if you elect to use the Products in any High Risk Activities,
you agree to indemnify, defend, and hold Zebra harmless from and against any and
all costs, damages, and losses related to that use.
U.S. Government
If you are acquiring the Products on behalf of any unit or agency of the U.S.
Government, the following shall apply. Use, duplication, or disclosure of the Products
is subject to the restrictions set forth in subparagraphs (c) (1) and (2) of the
Commercial Computer Software - Restricted Rights clause at FAR 52.227-19 (JUNE
1987), if applicable, unless being provided to the Department of Defense. If being
provided to the Department of Defense, use, duplication, or disclosure of the
Products is subject to the restricted rights set forth in subparagraph (c) (1) (ii) of the
Rights in Technical Data and Computer Software clause at DFARS 252.227-7013
(OCT 1988), if applicable. Products may or may not include a Restricted Rights
notice, or other notice referring specifically to the terms and conditions of this
Agreement. The terms and conditions of this Agreement shall each continue to apply,
but only to the extent that such terms and conditions are not inconsistent with the
rights provided to you under the aforementioned provisions of the FAR and DFARS,
as applicable to the particular procuring agency and procurement transaction.
AP8432_IG.book Page 50 Monday, March 14, 2016 8:39 AM
Installation Guide 51
Assignment
Except as otherwise provided in this section, neither party may assign this
Agreement, or any of its rights or obligations under this Agreement, without the prior
written approval of the other party, which will not be unreasonably withheld. Any
attempted assignment, delegation, or transfer without the necessary approval will be
void. Notwithstanding the foregoing, for any Zebra acquisition, merger,
consolidation, reorganization, or similar transaction, or any spin-off, divestiture, or
other separation of a Zebra business, Zebra may, without the prior written consent of
the other party: (i) assign its rights and obligations under this Agreement, in whole or
in part, or (ii) split and assign its rights and obligations under this Agreement so as to
retain the benefits of this Agreement for both Zebra and the assignee entity(ies) (and
their respective Affiliates) following the split.
Governing Law
This Agreement shall be governed by the laws of the United States of America to the
extent that they apply and otherwise by the laws of the State of New York without
regard to its conflict of laws provisions or by the internal substantive laws of the
country to which the Products is shipped if end-user customer is a sovereign
governmental entity. The terms of the U.N. Convention on Contracts for the
International Sale of Goods do not apply. In the event that the Uniform Computer
information Transaction Act, any version of this Act, or a substantially similar law
(collectively "UCITA") becomes applicable to a Party's performance under this
Agreement, UCITA does not govern any aspect of this End User License Agreement
or any license granted under this End-User License Agreement, or any of the parties'
rights or obligations under this End User License Agreement. The governing law will
be that in effect prior to the applicability of UCITA.
Compliance with Laws
Licensee will comply with all applicable laws and regulations, including export laws
and regulations of the United States. Licensee will not, without the prior authorization
of Zebra and the appropriate governmental authority of the United States, in any form
export or re-export, sell or resell, ship or reship, or divert, through direct or indirect
means, any item or technical data or direct or indirect products sold or otherwise
furnished to any person within any territory for which the United States Government
or any of its agencies at the time of the action, requires an export license or other
governmental approval. Violation of this provision will be a material breach of this
Agreement, permitting immediate termination by Zebra.
AP8432_IG.book Page 51 Monday, March 14, 2016 8:39 AM
52 AP-8432 Access Point
Third Party Software
The Products may contain one or more items of Third-Party Software. The terms of
this Agreement govern your use of any Third-Party Software UNLESS A SEPARATE
THIRD-PARTY SOFTWARE LICENSE IS INCLUDED, IN WHICH CASE YOUR USE
OF THE THIRD-PARTY SOFTWARE WILL THEN BE GOVERNED BY THE
SEPARATE THIRD-PARTY LICENSE.
Open Source Software
The Products may contain one or more items of Open Source Software. Open Source
Software is software covered by a publicly available license governed solely under
Copyright law, whereas the complete terms and obligations of such license attach to
a licensee solely through the act of copying, using and/or distribution of the licensed
software, such obligations often include one or more of attribution obligations,
distribution obligations, copyleft obligations, and intellectual property encumbrances.
The use of any Open Source Software is subject to the terms and conditions of this
Agreement as well as the terms and conditions of the corresponding license of each
Open Source Software package. If there is a conflict between the terms and
conditions of this Agreement and the terms and conditions of the Open Source
Software license, the applicable Open Source Software license will take precedence.
Copies of the licenses for the included Open Source Software, if any, as well as their
attributions, acknowledgements, and software information details, are provided in the
electronic copy of this Agreement, which is available in the Legal Notices or README
file associated with the Product. Zebra is required to reproduce the software licenses,
acknowledgments and copyright notices as provided by the authors and owners,
thus, all such information is provided in its native language form, without modification
or translation. Depending on the license terms of the specific Open Source Software,
source code may not be provided. Please reference and review the entire Open
Source Software information to identify which Open Source Software packages have
source code provided or available. For instructions on how to obtain a copy of any
source code made publicly available by Zebra related to Open Source Software
distributed by Zebra, you may send your request (including the Zebra Product name
and version, along with the Open Source Software specifics) in writing to: Zebra
Technologies Corporation, Open Source Software Director, Legal Department, 3
Overlook Point, Lincolnshire, IL 60069 USA.
©2016 ZIH Corp and/or its affiliates. All rights reserved. Zebra and the stylized Zebra
head are trademarks of ZIH Corp., registered in many jurisdictions worldwide. All
other trademarks are the property of their respective owners.
AP8432_IG.book Page 52 Monday, March 14, 2016 8:39 AM
Installation Guide 53
8 AP-8432 Access Point China ROHS Compliance
本表格依据 SJ/T 11364 的规定编制。
O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量 要求以下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定 的限量要求。(
企业可在此处，根据实际情况对上表中打 “×” 的技术原因进 行进一步说明。）
This table was created to comply with China RoHS requirements for AP-8432
Access Points.
部件名称
(Parts)
有害物质
铅
(Pb) 汞
(Hg) 镉
(Cd)
六价铬
(Cr(VI))
多溴联
苯
(PBB)
多溴二苯
醚
(PBDE)
金属部件
(Metal Parts) XOOO O O
电路模块
(Circuit Modules) XOOO O O
电缆及电缆组件
(Cables and Cable
Assemblies)
XOOO O O
塑料和聚合物部件
(Plastic and Polymeric Parts) OOOO O O
光学和光学组件
(Optics and Optical
Components)
OOOO O O
电池
(Batteries) OOOO O O
15
AP8432_IG.book Page 53 Monday, March 14, 2016 8:39 AM
54 AP-8432 Access Point
AP8432_IG.book Page 54 Monday, March 14, 2016 8:39 AM
Installation Guide 55
AP8432_IG.book Page 55 Monday, March 14, 2016 8:39 AM
56 AP-8432 Access Point
AP8432_IG.book Page 56 Monday, March 14, 2016 8:39 AM
Zebra Technologies Corporation
Lincolnshire, IL 60069 USA
Zebra and the Zebra head graphic are registered trademarks of ZIH Corp. The
Symbol logo is a registered trademark of Symbol Technologies, Inc. a Zebra
Technologies company.
© 2016 Symbol Technologies, Inc.
MN-002724-01 Revision A April 2016
AP8432_IG.book Page 55 Monday, March 14, 2016 8:39 AM
AP8432_IG.book Page 56 Monday, March 14, 2016 8:39 AM
