Zebra Technologies Corporation WiFi Voice Communication Appliance CA10 Regulatory Guide 20090611
User manual rev
![](/img.php?id=1124691&img=bg1.png)
CA10 PosterCA10 Poster
BLACK
PANTONE 285
CA10

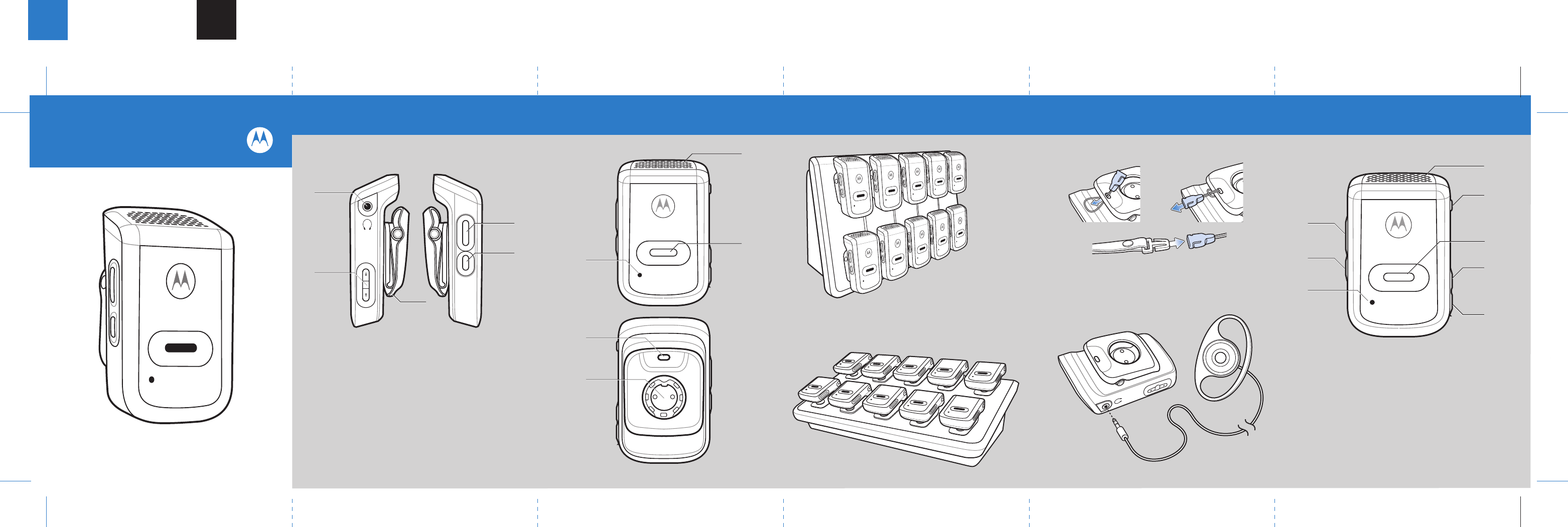

FEATURES
Lanyard Installation
Button Functions (default)
Headset Installation
12
3
ACCESSORIES BUTTON FUNCTIONSCHARGING
Quick Start Guide
1 Headset/USB port
3 Belt/Collar Clip
5 TBD Button
7 Lanyard Fastener
9 Speaker
2 Volume Control
4 Push-to-Talk Button
6 Microphone
8 Charging Contacts
10 SmartCast Button
1 Push-to-Talk
3 Microphone
5 Headset Jack
7 Volume Up
2 TBD
4 Speaker
6 SmartCast (Private Call)
8 Volume Down
The CA10 can be charged in
the 10-dock charging cradle.
This cradle can simultaneously charge
up to ten (10) CA10 devices.
The cradle is designed for convenient wall or desk installation.
CA10 devices are secured in placeusing magnetic contacts.
Insert the headset
connector into the
headset plug on the
side of the CA10.
1. Slip the lanyard safety loop through the fastener on the CA10 clip.
2. Pull the lanyard safety clasp through the loop and pull to secure
the lanyard to the clip.
3. Attached the lanyard extension to the safety clasp.
1
1
2
3
4
5
6
7
8
6
7
8
2
4
9
10
5
3
![](/img.php?id=1124691&img=bg2.png)
CA10 PosterCA10 Poster
BLACK
PANTONE 285
CA10
PERF
Quick Start Guide
1
2
3
4
5
6
7
8

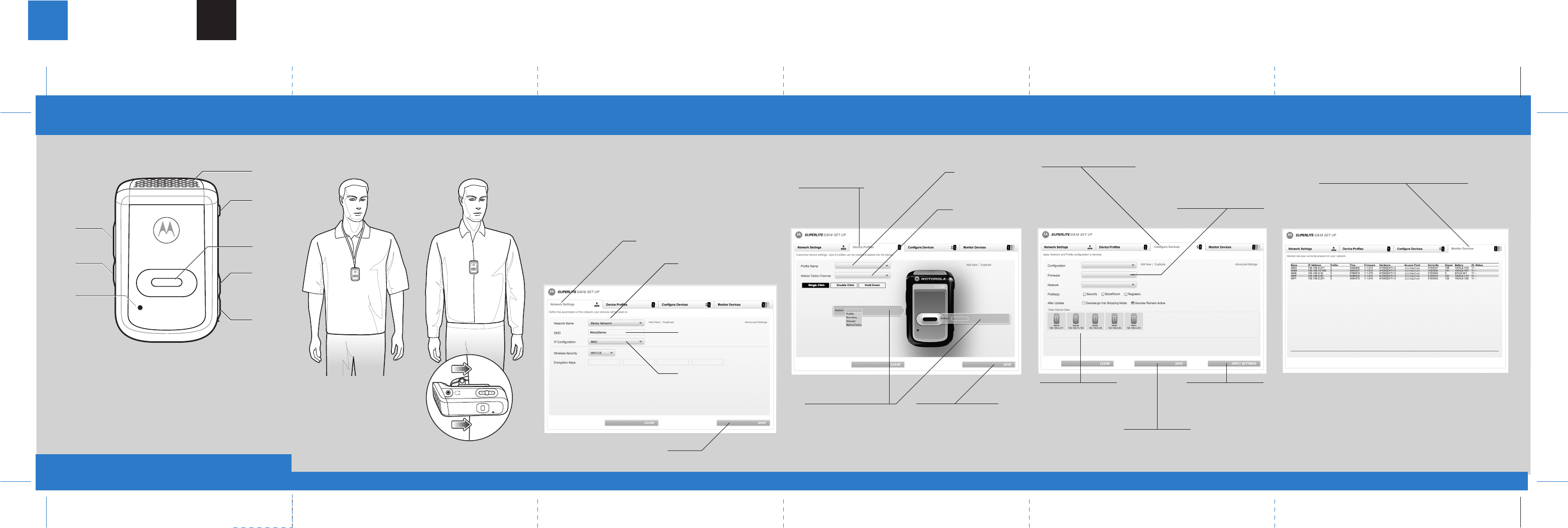

WEARABLE OPTION DEPLOYMENT APPLICATION SETUP
Lanyard Clip to Shirt 1. Unzip the deployment application zip file anywhere on your Windows PC or a Mac
2. Make sure that your computer is on the deployment network ie a temporary
WiFi network with SSID=parrot2008 and Security Settings=Open
3. Make sure you computer has a static IP set to 192.168.0.201
4. Go to the directory where you unzipped the deployment application and run
Launcher.bat (Launcher.sh for Mac)
5. Double click on SuperLite UI shortcut to open “http://localhost:9090/DA/DA”
in your browser (Safari or IE6 or higher)
6. Next few pages go thru the UI that opens up in the browser
Use this Tab to enter information
about your network
Select the WT channel
you want to set for
your devices
Enter a profile name
to refer to these
settings in future
After selecting UI interaction
eg “Single Click” .. select the
functions to be performed
by each button
Press Save to save all settings
that you entered above
Enter Network configuration name
here, so you can refer to it in future
Use this tab to set walkie
talkie channel and assign
button functions. You can
skip this tab and just use
factory defaults
Press Save to save all settings
that you entered above
Enter the SSID of your
WiFi network here
Enter your wireless
security parameters
Use this Tab to apply Network
and Profile Settings to your devices
Note: All configuration elements
shown below are optional.
You can select whichever you
want to push down to devices
eg if you only want to update
firmware, select the firmware
version from the drop down
and leave everything else empty
As the devices are turned on
and they are able to join the
factory default Wifi network
(ssid=parrot2008), they will
start showing up here.
Press Apply to send a signal
to ALL devices to start
downloading the above
configuration
Use this Tab to monitor devices that are on your network.
The data on this page is automatically refreshed as new
updates are sent by devices
Press Save to save all
settings that you entered
above
![](/img.php?id=1124691&img=bg3.png)
Page 2 of 4
1. Regulatory Information
This device is approved under the Symbol Technologies brand: Symbol Technologies, Inc., is the Enterprise
Mobility business of Motorola, Inc. (“Motorola”).
This guide applies to the following Model Numbers: CA1060.
All Motorola/Symbol devices are designed to be compliant with rules and regulations in locations they are sold and
will be labeled as required.
Any changes or modifications to Motorola/Symbol Technologies equipment, not expressly approved by
Motorola/Symbol Technologies, could void the user’s authority to operate the equipment.
CAUTION:
Only use Motorola/Symbol approved and UL Listed accessories, battery packs and battery chargers.
Do NOT attempt to charge damp/wet mobile computers or batteries. All components must be dry before connecting
to an external power source.
2. Wireless Device Country Approvals
Country Roaming
This device incorporates the International Roaming feature (IEEE802.11d) which will ensure the product operates on
the correct channels for the particular country of use.
Ad-Hoc Operation
Ad-Hoc operation is limited to Channels 36-48 (5150-5250 MHz). Use of this band is restricted to Indoor Use Only,
any other use will make the operation of this device illegal.
Frequency of Operation – FCC and IC
The use in the UNII (Unlicensed National Information Infrastructure) band 1 5150-5250 MHz band is restricted to
Indoor Use Only; any other use will make the operation of this device illegal.
The available channels for 802.11 b/g operation in the US are Channels 1 to 11. The range of channels is limited by
firmware.
3. Health and Safety Recommendations
Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations below.
Consult with your local Health & Safety Manager to ensure that you are adhering to your company’s safety programs
to prevent employee injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
![](/img.php?id=1124691&img=bg4.png)
Page 3 of 4
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Note: The following section is only applicable for mobile computers.
War Warnings for Use of Wireless Devices
Wireless devices transmit radio frequency energy and may affect medical electrical equipement.
Wireless devices should be switched off wherever you are requested to do so in hospitals, clinics or healthcare
facilitlies. These requests are designed to prevent possible interference with sensitive medical equipement.
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained between a handheld
wireless device and a pacemaker to avoid potential interference with the pacemaker. These recommendations
are consistent with independent research and recommendations by Wireless Technology Research.
Persons with Pacemakers:
• Should ALWAYS keep the device more than 15cm (6 inches) from their pacemaker when turned ON.
• Should not carry the device in a breast pocket.
• Should use the ear furthest from the pacemaker to minimise the potential for interference.
• If you have any reason to suspect that interference is taking place, turn OFF your device.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device, to determine if the operation of your
wireless product may interfere with the medical device.
RF Exposure Guidelines
Safety Information
Reducing RF Exposure – Use Properly
Only operate the device in accordance with the instructions supplied.
Safety i
n Hospitals
![](/img.php?id=1124691&img=bg5.png)
Page 4 of 4
Body-Worn Devices
This device was tested for typical body-worn operation. Use only Motorola/Symbol tested and approved belt-clips,
holsters, and similar accessories to ensure FCC Compliance. The use of third-party belt-clips, holsters, and similar
accessories may not comply with FCC RF exposure compliance requirements, and should be avoided. The FCC
has granted an Equipment Authorization for these model phones with all reported SAR levels evaluated as in
compliance with the FCC RF emission guidelines. SAR information on these model phones is on file with the FCC
and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid.
4. Batteries
There are limitations to how long a battery can operate or be stored before needing replacement. Many factors
affect the actual life cycle of a battery pack, such as heat, cold, harsh environmental conditions and severe drops.
Battery Safety Guidelines
• Follow battery usage, storage, and charging guidelines found in the user's guide.
• Improper battery use may result in a fire, explosion, or other hazard.
• Do not disassemble or open, crush, bend or deform, puncture, or shred.
• Severe impact from dropping any battery-operated device on a hard surface could cause the battery to overheat.
• Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or
other liquids, or expose to fire, explosion, or other hazard.
• Do not leave or store the equipment in or near areas that might get very hot, such as in a parked vehicle or near a
radiator or other heat source. Do not place battery into a microwave oven or dryer.
• Battery usage by children should be supervised.
• Please follow local regulations to promptly dispose of used re-chargeable batteries.
• Do not dispose of batteries in fire.
• Seek medical advice immediately if a battery has been swallowed.
• In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been
made, wash the affected area with large amounts of water and seek medical advice.
• If you suspect damage to your equipment or battery, contact Motorola Enterprise Mobility support to arrange for
inspection.
5. Use with Hearing Aids
When some wireless devices are used near some hearing devices (hearing aids and cochlear implants), users may
detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this
interference noise, and wireless devices also vary in the amount of interference they generate. In the event of
interference you may want to consult your hearing aid supplier to discuss solutions.
6. Radio Frequency Interference Requirements- FCC
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
Page 5 of 4
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
7. Radio Frequency Interference Requirements- Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Radio Transmitters
This device complies with RSS 210 of Industry & Science Canada. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Label Marking: The Term "IC:" before the radio certification only signifies that Industry Canada technical
specifications were met.
