CONCIERGE
QUICK START GUIDE
CONCIERGE
SCAN N ER
ACCESSORY
CONCIERGE
HUB
Motorola Solutions reserves the right to make changes to any product to improve reliability, function, or design. Motorola Solutions does
not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application
described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent,
covering or relating to any combination, system, apparatus, machine, material, method, or process in which Motorola Solutions
products might be used. An implied license exists only for equipment, circuits, and subsystems contained in Motorola Solutions
products.
Warranty
For the complete Motorola Solutions hardware product warranty statement, go to: http://www.motorolasolutions.com/warranty.
Service Information
If you have a problem using the equipment, contact your facility’s Technical or Systems Support. If there is a problem with the
equipment, they will contact the Motorola Solutions Global Support Center at: http://www.motorolasolutions.com/support.
Software Support
Motorola Solutions wants to ensure that customers have the latest release of entitled software at the time of product purchase. To
confirm that your Motorola Solutions device shipped with the latest release of entitled software, visit:
www.motorolasolutions.com/support. Check for the latest software from Software Downloads > Product Line/Product > Go. If your
device does not have the latest entitled software release as of your product purchase date, please e-mail a request to Motorola
Solutions at: entitlementservices@motorolasolutions.com. You must include the following essential device information with your request:
• Model number
• Serial number
• Proof of purchase
• Title of the software download you are requesting.
If it is determined by Motorola Solutions that your device is entitled to the latest software release, you will receive an e-mail containing a
link directing you to a Motorola Solutions Web site to download the appropriate software.
Features for the CONCIERGE HUB
REAR VIEW
FRONT VIEW

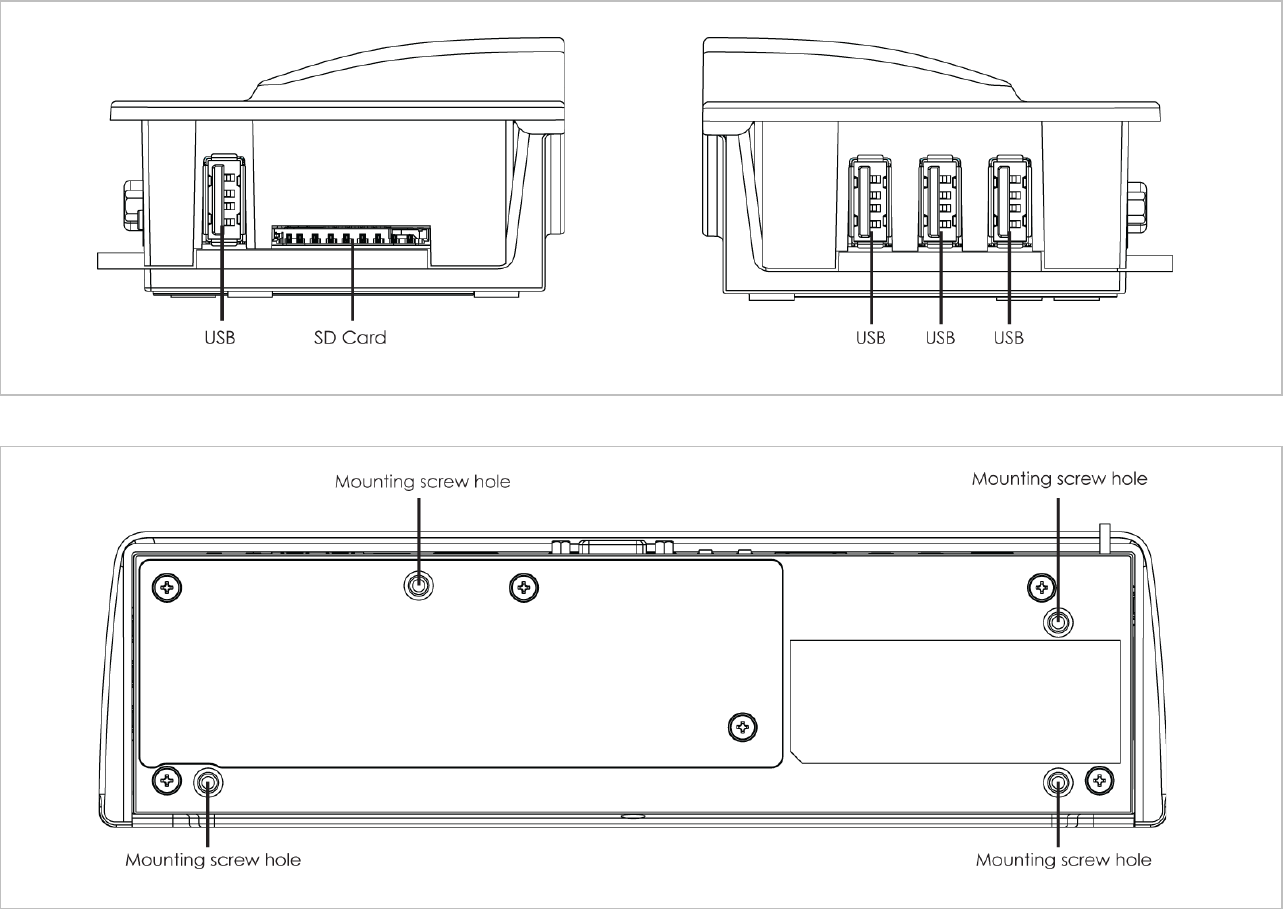

Features for the CONCIERGE HUB
BOTTOM VIEW
SIDE VIEWS

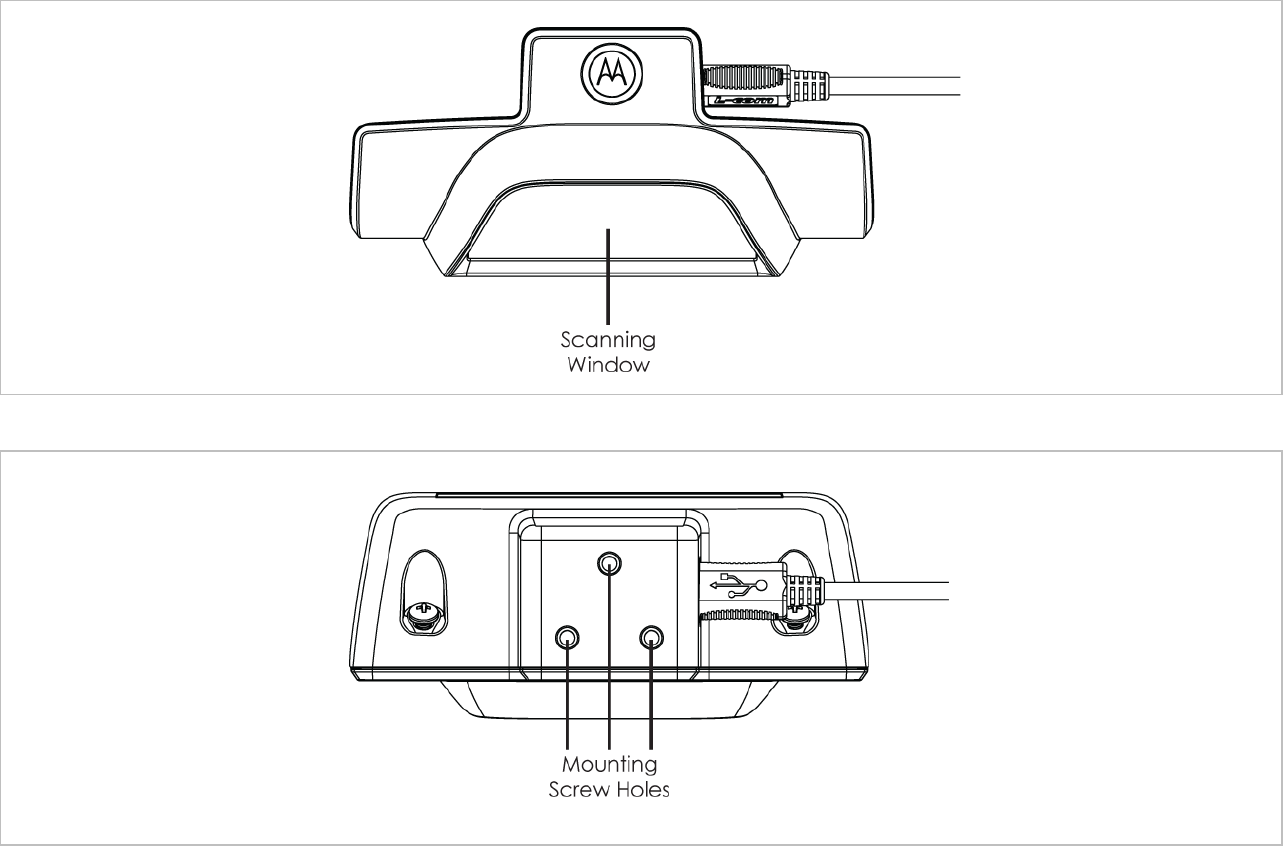

Features for the CONCIERGE SCANNER ACCESSORY
FRONT VIEW
TOP VIEW
Configuration Notes
The instructions in this manual describe a typical CONCIERGE configuration.
The actual hardware and software configuration will vary for your installation configuration.
Important hardware notes…
• The CONCIERGE HUB and CONCIERGE SCANNER ACCESSORY are designed to function with a touchscreen display that is
selected and installed per the customer specified configuration.
• The customer may choose to an optional Magnetic Stripe Reader (MSR) to process credit cards (sold separately).
• The instructions below describe a basic system configuration of a CONCIERGE HUB and CONCIERGE SCANNER ACCESSORY
connected to a touchscreen display.
• The actual hardware system configuration will vary based on customer preference.
Important software notes…
• The customer may develop and install additional custom software applications which will run on the CONCIERGE HUB.
• The instructions below describe default software applications included with the CONCIERGE HUB.
Getting Started
To get started…
• Connect the CONCIERGE HUB (“HUB”) to a
touchscreen display using the video cable, audio cable,
and USB cable included with the touchscreen display.
• If using the CONCIERGE SCANNER ACCESSORY
(“SCANNER”), connect the HUB to the SCANNER using
the USB cable included with the SCANNER.
• Plug-in the power supply to the HUB.
• The HUB software will automatically boot to the Home
Page.

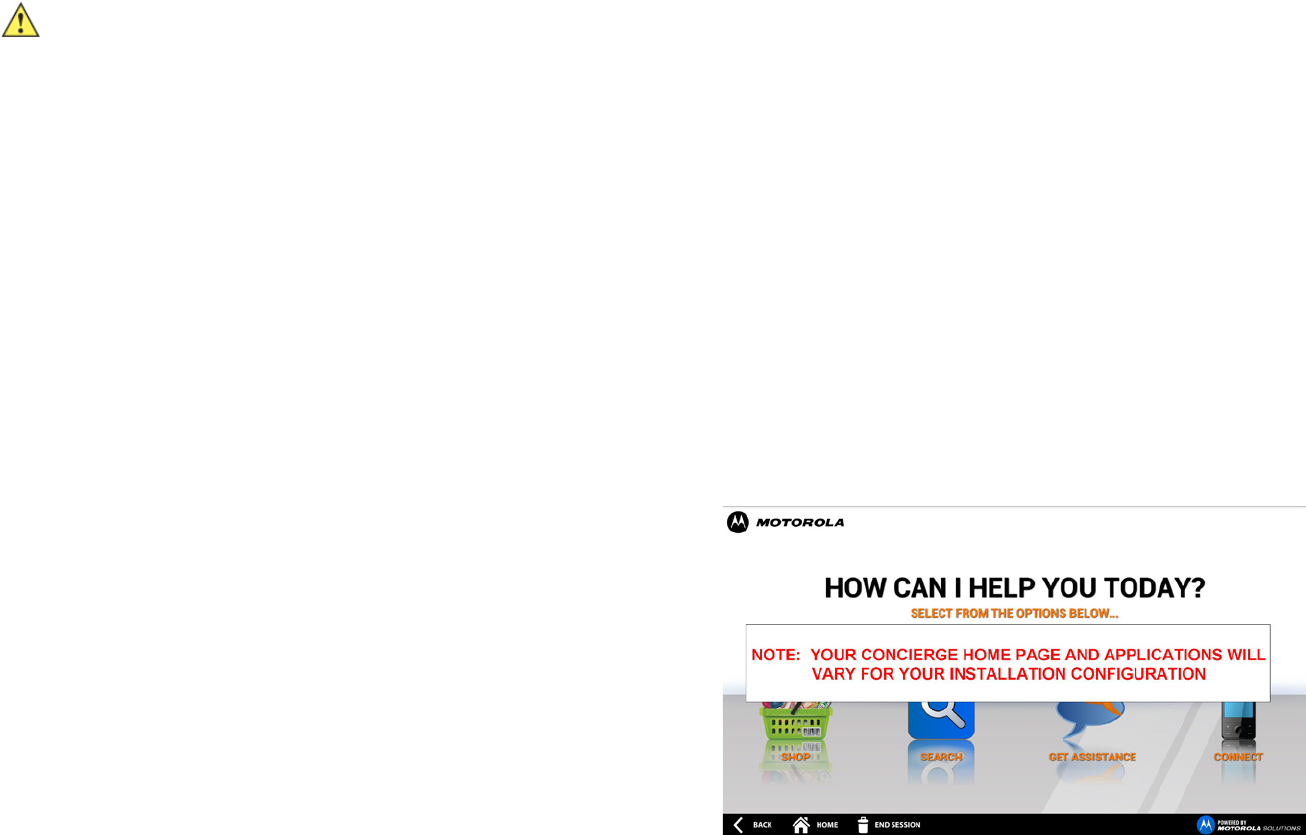

CONCIERGE HOME PAGE

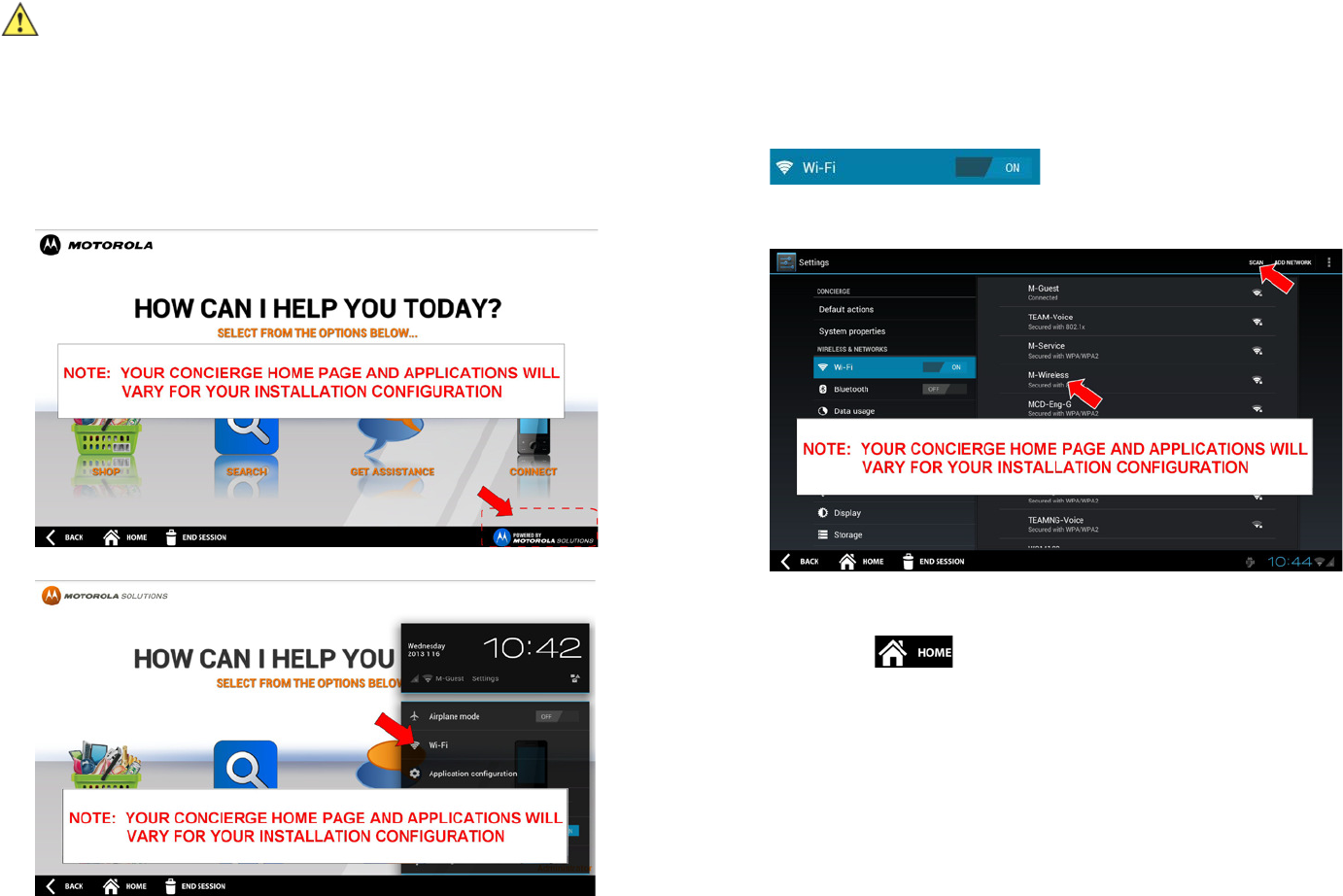

Connect to a WLAN Network
The actual software configuration will vary for your
installation configuration.
To set up a WLAN network:
1. From the touchscreen monitor, touch & hold the area in the
bottom right of the Home Page to activate a hidden button
(actual button may vary for your configuration)
2. Touch the ‘Wi-Fi’ icon
3. Ensure ‘Wi-Fi’ is set to ‘ON
4. Identify the appropriate WiFi network from the list on the
right (press ‘SCAN’ to refresh this list)
5. If your network is encrypted, then enter the security
password and press ‘Connect’
6. Press the icon to return to the Home Page

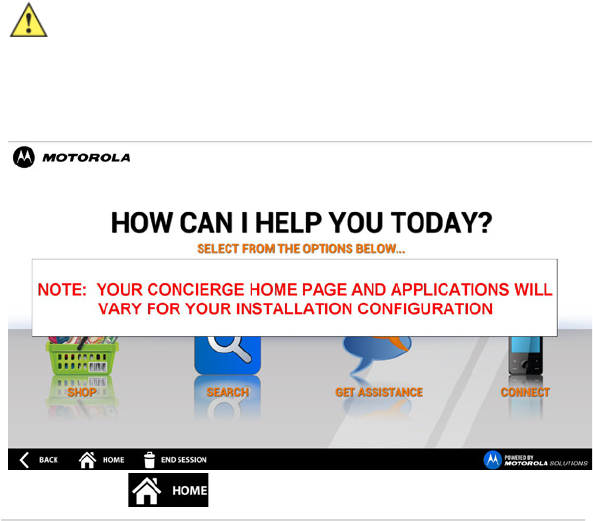

Launching Applications
The actual software configuration will vary for your
installation configuration.
Touch an application icon to launch the application
Press the icon to return to the Home Page
Powering Down
To power down the CONCIERGE HUB, unplug the power
supply from the back of the unit.
Scanning Barcodes
If you are using the CONCIERGE SCANNER ACCESSORY
(“SCANNER”), then follow these instructions to scan
barcodes…
1. Hold a bar-coded item approximately 6 to 12 inches from the
SCANNER’s scanning window
2. The SCANNER’s proximity sensor will sense the item and
begin projecting a red LED and laser aiming pattern which
allows positioning the barcode within its field of view
3. Center the printed barcode symbol within the aiming pattern,
ensuring the entire symbol is within the illuminated
rectangular area formed by the cross pattern
4. A successful scan will pass the barcode data to the
CONCIERGE HUB application
Motorola Solutions, Inc.
1301 E. Algonquin Rd.
Schaumburg, IL 60196-1078, U.S.A.
http://www.motorolasolutions.com
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.
© 2013 Motorola Solutions, Inc. All Rights Reserved.
72-172175-01 Revision A – January 2013
