2 CR8178-SC Standard Cradle
Introduction
The CR8178-SC (standard) cordless digital scanner cradle acts as charger and
radio communication interface for the DS8178 cordless digital scanner. The
CR8178-SC can sit on a desktop or be mounted on a wall. The CR8178-SC
healthcare cradle can sit on a desktop or be mounted on a wall or cart.
The cradle receives data from the digital scanner via a Bluetooth radio, and sends
that data to the host through an attached cable. The cradle also charges the
digital scanner’s internal battery when the digital scanner is inserted. The digital
scanner can be charged from an external power supply or a USB cable powered
by the host.
This document provides basic instructions on setting up and using the cradle.
Equipment Supplied
The cradle package includes one CR8178-SC cradle.
Accessories
The following equipment may be needed:
• Power supply (for faster charging).
• Mounting
•Two M4 screws (for a vertical mount using the threaded brass screw holes,
if applicable). Not available from Zebra.
•Wall mount bracket. Not available from Zebra.
•3M™ Dual Lock™ fasteners for mounting. Sold separately from Zebra.
Save the shipping container for storing or shipping. Inspect all equipment for
damage. If anything is damaged or missing, call an authorized Zebra Support
Center immediately.
Related Documentation
•DS8178 Quick Start Guide, p/n MN-002753-xx.
•DS8178 Product Reference Guide, p/n MN-002752-xx.
•CR8178-PC Presentation Cradle Quick Reference Guide, p/n MN-002854-xx.
•CR8178-PC Document Capture Stand, p/n MN-002858-xx.
All documentation and translations are available at: www.zebra.com/support.
Service Information
If you have a problem running your unit or using your equipment, contact your
facility’s Technical or Systems Support. If there is a problem with the equipment,
they will contact the Zebra Global Customer Support at
http://www.zebra.com/support.
For the latest version of this guide go to: http://www.zebra.com/support.
Draft 1
Quick Reference Guide 3
Cradle Features
Top
Charging/
Communications
Contacts
LED
Page
Button
Removable
Scanner Latch
(vertical/mobile cart
mount position)
LED
Pairing
Bar
Code
Scanner Lock (when
converter knob is set
to vertical mount)
Removable
Scanner Latch
(horizontal mount
position)
Draft 1
4 CR8178-SC Standard Cradle
Bottom
NOTE When mounting on a mobile cart the desk/wall mount
converter knob must be in the wall mount position (locked).

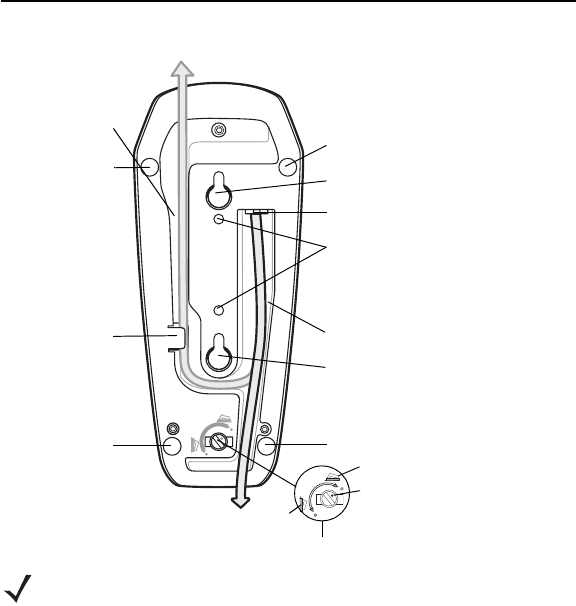

Keyhole Mounting Hole
Rubber Foot
Rubber Foot
Interface Cable
Groove
Interface Cable
Groove
Interface Cable
Support Hook
Keyhole Mounting Hole
Interface Port
Desk/Wall Mount Converter Knob
Rubber Foot Rubber Foot
Vertical Mount Threaded
Brass Screw Holes (2 -
M4x5 mm)
Wall or Mobile Cart
Desk
Point Triangle Indicator
Appropriately to Select
Draft 1
Quick Reference Guide 5
Cradle Connections
1. Connect the appropriate cable to the power supply and an AC power source, if
necessary. This ensures detection of the host and prevent inadvertently back
powering the cradle from improper detection of the host.
2. Insert the interface cable into the host port.
3. Insert the interface cable into the cradle’s host port.
4. If applicable, thread the interface cable under the interface cable support hook
and run the cable along the interface cable groove.
5. Pair the digital scanner to the cradle either by inserting it in the cradle (if Pair
on Contacts is enabled) or by scanning the pairing bar code.
6. If necessary, scan the appropriate host bar code (for non-autodetected
interfaces). Refer to the Product Reference Guide.
Changing the Host Interface
To connect to a different host, or to the same host through a different cable:
1. Unplug the interface cable from the host.
2. Unplug the power supply from the cradle, if a power supply is used.
3. Connect the interface cable to the new host, or the new interface cable to the
existing host.
4. Reconnect the power supply, if required.
5. If necessary, scan the appropriate host bar code (for non-autodetected
interfaces). Refer to the Product Reference Guide.
Using a DC Power Supply
The cradle can operate from host supplied power, if available. If host power is
limited or not available, an external DC power supply can be used with certain
host interface cables that support a power jack. An external power supply is
recommended if fastest charging is required.
CAUTION Always disconnect the DC power supply BEFORE
disconnecting the cable to the host end or the cradle
may not recognize the new host.
Draft 1
6 CR8178-SC Standard Cradle
Mounting the Cradle

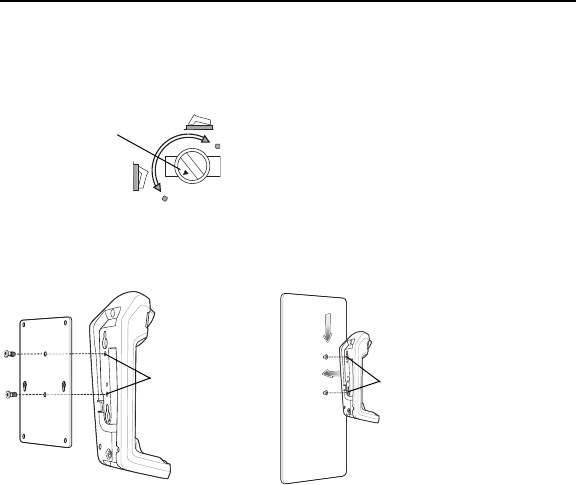

Horizontal Mount
1. Ensure the scanner latch is in the horizontal mount position (see Removable
Scanner Latch (horizontal mount position) on page 3).
2. Use a screwdriver or coin to turn the desk/wall mount converter knob (triangle
indicator) to the position shown below.
3. The rubber feet on the bottom of the cradle provide traction and prevent
surface damage.
Vertical Mount/Mobile Cart
Mount the cradle vertically as follows:
1. Ensure the scanner latch is in the vertical mount position (see Removable
Scanner Latch (vertical/mobile cart mount position) on page 3).
2. Mount using the two brass threaded screw holes or the two keyhole mounts.

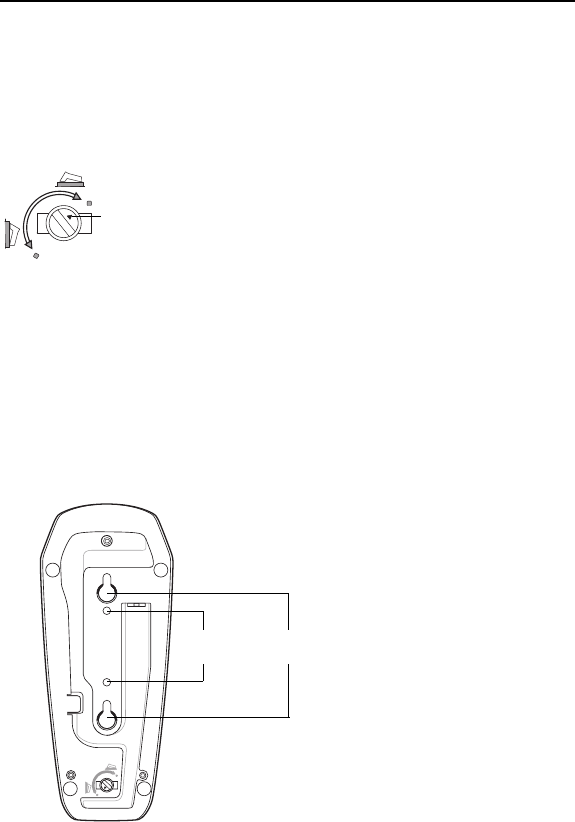

a. When mounting using the two brass threaded screw holes, drill the holes 45.5
mm (1.8 in) apart and use two M4 screws.
b. When mounting using the two keyhole mounts, install the screws on the wall
81 mm (3.2 in) apart.
Desk Position
45.5 mm
(1.8 in)
81 mm
(3.2 in)
Note: Drawing is not to scale.
Draft 1
Quick Reference Guide 7
3. Use a screwdriver or coin to turn the desk/wall mount converter knob (triangle
indicator) to the position shown below. The scanner locking mechanism in the
cradle protracts to engage and grip the depression at the base of the digital
scanners handle.
4. Attach the interface and power cables (see Cradle Connections on page 5).
5. Press the cables into the cable grooves.
6. Attach the cradle securely to the surface using the vertical mount threaded
brass screw holes or mounting holes.
7. Insert the digital scanner in the cradle.
Wall or Mobile
Cart Position
Draft 1
8 CR8178-SC Standard Cradle

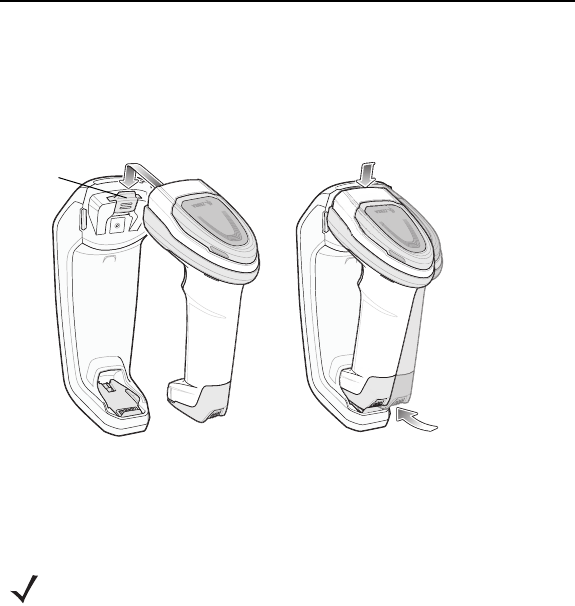

Inserting the Digital Scanner in the Cradle
To insert the digital scanner in the cradle:
1. Insert the scanner into the cradle top first ensuring that the cradle latch
depression connects with the scanner latch on the cradle.
2. Push the handle until it clicks into place, engaging the contacts in the cradle
and digital scanner.
Sending Data to the Host Computer
The cradle receives data from the digital scanner via a wireless radio connection
and transmits it to the host computer via the host cable. The digital scanner and
cradle must be paired for successful wireless communication.
Pairing
Pairing registers a digital scanner to the cradle such that the digital scanner and
cradle can exchange information. The cradle operates in two modes:
Point-to-Point and Multipoint-to-Point. In Point-to-Point mode, pair the digital
scanner to the cradle either by inserting it in the cradle (if pair on contacts is
enabled), or by scanning the pairing bar code. In Multipoint-to-Point mode, you
can pair up to seven digital scanners to one cradle.
To pair the digital scanner with the cradle, scan a pairing bar code. A
high-low-high-low beep sequence followed by a low-high beep sequence
indicates successful pairing and connection to the remote device. A long low, long
high beep sequence indicates unsuccessful pairing.
NOTE The pairing bar code that connects the digital scanner
to a cradle is unique to each cradle. Do not scan data or
parameters until pairing completes.
Scanner
Latch
Draft 1
Quick Reference Guide 9
Lost Connection to Host
If scanned data does not transmit to the cradle’s host, ensure that all cables are
firmly inserted and the power supply is connected to an appropriate AC outlet, if
applicable. If scanned data still does not transmit to the host, reestablish a
connection with the host:
1. Disconnect the host interface cable from the cradle.
2. Wait three seconds.
3. Reconnect the host interface cable to the cradle.
4. Reestablish pairing with the cradle by scanning the pairing bar code.
Charging the Digital Scanner Battery
When using a new battery in the digital scanner, the battery requires a charge to
be enabled. Insert the battery in the digital scanner and place the digital scanner
in the cradle (see Inserting the Digital Scanner in the Cradle on page 8). The
battery begins charging when the cradle LED indicator starts flashing amber. The
battery is fully charged when the cradle LED is solid green. A complete charge of
a fully discharged battery can take up to three hours using external power and up
to ten hours using the USB interface cable.
Cradle LED Indicators
LED Indication
Standard Use
Green (stays on) Power Up
Radio Indications
Green (off, then on) Bluetooth connection established
Blue Page button
Blue (fast/fast/slow) Page issued
Battery Indications
Amber (stays on) Pre-charging
Amber blinking Charging
Green (stays on) Fully charged
Amber fast blinking Charging Error
Battery End of Life Indications
Red blinking Charging
Red (stays on) Fully charged
Red fast blinking Charging error
Draft 1
10 CR8178-SC Standard Cradle
Troubleshooting
If the cradle does not work after following the previous procedures:
• Check the system power.
• Check for loose cable connections.
• Check that the digital scanner is inserted properly in the cradle.
• Check that the host settings are correct and the cradle is connected to the
appropriate port on the host.
• If water spills on the contacts area, the unit might not function properly. Turn
the power off and tilt the cradle to drain as much liquid as possible. Do not
shake the cradle. Use a paper towel to dry the outside surfaces, and expose
the unit to room conditions for up to 24 hours to allow liquid to dry around the
contacts.
Health and Safety Recommendations
Ergonomic Recommendations
• Reduce or eliminate repetitive motion.
• Maintain a natural position.
• Reduce or eliminate excessive force.
• Keep objects that are used frequently within easy reach.
• Perform tasks at correct heights.
• Reduce or eliminate vibration.
• Reduce or eliminate direct pressure.
• Provide adjustable workstations.
• Provide adequate clearance.
• Provide a suitable working environment.
• Improve work procedures.
Maintenance Indications
Red (stays on) Enter boot loader
Red blinking Firmware installation
CAUTION In order to avoid or minimize the potential risk of
ergonomic injury, follow the recommendations below.
Consult with your local Health and Safety Manager to
ensure that you are adhering to your company's
safety programs to prevent employee injury.
LED Indication
Draft 1
Quick Reference Guide 11
Regulatory Information
This device is approved under Zebra Technologies Corporation.
This guide applies to the following Model Number: CR8178-SC.
All Zebra devices are designed to be compliant with the rules and regulations in
the locations they are sold and will be labeled as required.
Local language translations are available at the following website:
http://www.zebra.com/doc.
Any changes or modifications to Zebra equipment not expressly approved by
Zebra could void the user's authority to operate the equipment.
Bluetooth® Wireless Technology
This is an approved Bluetooth® product. For more information or to view the End
Product Listing, please visit
https://www.bluetooth.org/tpg/listings.cfm.
Power Supply
Use ONLY one of the following Zebra approved UL LISTED ITE (IEC/EN 60950-1,
LPS) power supplies with an ambient temperature of at least 50 degrees C and
one of the following electrical ratings:
- Output 12Vdc, min 4.16A
- Output 5.0Vdc, 1.2A
- Output 5.2Vdc, min 1.2A
Use of alternative power supplies will invalidate any approvals given to this unit
and may be dangerous.
Wireless Device Country Approvals
Regulatory markings subject to certification are applied to the device signifying
the radio(s) is/are approved for use in the following countries and continents:
United States, Canada, Japan, China, South Korea, Australia, and Europe.
Please refer to the Declaration of Conformity (DoC) for details of other country
markings. This is available at: http://www.zebra.com/doc.
Note: Europe includes Austria, Belgium, Bulgaria, Croatia, Czech Republic,
Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden,
Switzerland, and the United Kingdom.
CAUTION Operation of the device without regulatory approval is
illegal.
Draft 1
12 CR8178-SC Standard Cradle
Warnings for Use of Wireless Devices
Caution: Please observe all warning notices with regard to the usage of
wireless devices.
Potentially Hazardous Atmospheres - Fixed Installations
You are reminded of the need to observe restrictions on the use of radio devices
in fuel depots, chemical plants etc. and areas where the air contains chemicals or
particles such as grain, dust, or metal powders.
Safety in Aircraft
Switch off your wireless device whenever you are instructed to do so by airport or
airline staff. If your device offers a 'flight mode' or similar feature, consult airline
staff as to its use in flight.
Safety in Hospitals
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be
maintained between a handheld wireless device and a pacemaker to avoid
potential interference with the pacemaker. These recommendations are
consistent with independent research and recommendations by Wireless
Technology Research.
Persons with Pacemakers:
• Should ALWAYS keep the device more than 15cm (6 inches) from their
pacemaker when turned ON.
• Should not carry the device in a breast pocket.
• Should use the ear furthest from the pacemaker to minimise the potential for
interference.
• If you have any reason to suspect that interference is taking place, turn OFF
your device.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device to
determine if the operation of your wireless product may interfere with the medical
device.
Draft 1
Quick Reference Guide 13
RF Exposure Guidelines
Safety Information
• Reducing RF Exposure - Use Properly
Only operate the device in accordance with the instructions supplied.
• International
The device complies with internationally recognized standards covering human
exposure to electromagnetic fields from radio devices. For information on
'International' human exposure to electromagnetic fields, refer to the Zebra
Declaration of Conformity (DoC) at http://www.zebra.com/doc.
For further information on the safety of RF energy from wireless devices, see
https://www.zebra.com/us/en/about-zebra/company-information/corporate-res
ponsibility.html located under Corporate Responsibility.
• Europe
To satisfy EU RF exposure requirements, a transmitting device must operate
with a minimum separation distance of 20 cm or more from a person's body.
• US and Canada
To satisfy US and Canadian RF exposure requirements, a transmitting device
must operate with a minimum separation distance of 20 cm or more from a
person's body.
Pour satisfaire aux exigences Américaines et Canadiennes d'exposition aux
radio fréquences, un dispositif de transmission doit fonctionner avec une
distance de séparation minimale de 20 cm ou plus de corps d'une personne.
Radio Frequency Interference Requirements-FCC
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Draft 1
14 CR8178-SC Standard Cradle
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment in an outlet on a circuit different from the receiver is
connection.
• Consult the dealer or an experienced radio/TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received including interference that
may cause undesired operation.
Radio Frequency Interference Requirements-Canada
CAN ICES-3 (B)/NMB-3(B).
Radio Transmitters - This device complies with Industry Canada's license-exempt
RSS's. Operation is subject to the following two conditions: (1) This device may
not cause interference; and (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
Cet appareil est conforme exempts de licence le flux RSS de Industrie Canada.
Son fonctionnement est soumis aux deux conditions suivantes:
(1) Ce dispositif ne peut causer des interférences; et (2) Cet appareil doit accepter
toute interférence, y compris les interférences qui peuvent causer un mauvais
fonctionnement de l'appareil.
CE Marking and European Economic Area (EEA)
Bluetooth® Wireless Technology for use through the EEA have the
following restrictions:
Maximum radiated transmit power of 100mW EIRP in the frequency range 2.400
-2.4835 GHz.
Statement of Compliance
Zebra hereby declares that this radio equipment is in compliance with Directive
2011/65/EU and 1999/5/EC or 2014/53/EU (2014/53/EU supersedes 1999/5/EC
from 13th June 2017).
The full text of the EU Declaration of Conformity is available at the following
Internet address: http://www.zebra.com/doc.
Draft 1
Quick Reference Guide 15
Japan (VCCI) - Voluntary Control Council for Interference
Class B ITE
Korea Warning Statement for Class B ITE
Brazil (UNWANTED EMISSIONS - ALL PRODUCTS)
Declarações Regulamentares para CR8178 - Brazil
Nota: A marca de certificação se aplica ao Transceptor, modelo CR8178. Este
equipamento opera em caráter secundário, isto é, não tem direito a proteção
contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode
causar interferência a sistemas operando em caráter primário.
Para maiores informações sobre ANATEL consulte o site: www.anatel.gov.br.
Este produto está homologado pela Anatel, de acordo com os procedimentos
regulamentados pela Resolução n°242/2000 e atende aos requisitos técnicos
aplicados, incluindo os limites de exposição da Taxa de Absorção Específica
referente a campos elétricos, magnéticos e eletromagnéticos de radiofrequência,
de acordo com as Resoluções n° 303/2002 e 533/2009.
Este dispositivo está em conformidade com as diretrizes de exposição à
radiofrequência quando posicionado pelo menos X centímetros de distância do
corpo. Para maiores informações, consulte o site da Anatel.
Chile
Este equipo cumple con la Resolución No 403 de 2008, de la Subsecretaria de
telecomunicaciones, relativa a radiaciones electromagnéticas.
Conforme a Resolución 755 parte j.1), se ajustará el dispositivo a operar en
interiores en las siguientes bandas con una potencia máxima radiada no superior
a 150mW:
2.400 hasta 2.483,5 MHz
5.150 hasta 5.250MHz
5.250 hasta 5.350MHz
5.725 hasta 5.850MHz
Además, de acuerdo con Resolución 755, para la banda 5150-5250MHz la
operación del equipo estará restringida al interior de inmuebles y la densidad de
Draft 1
16 CR8178-SC Standard Cradle
potencia radiada máxima no supera 7,5mW/MHz en cualquier banda de 1MHz y
0.1875mW/25kHz en cualquier banda de 25kHz.
China
www.zebra.com/support
Eurasian Customs Union
Mexico
Restrict Frequency Range to: 2.450 - 2.4835 GHz.
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este
equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que
pueda causar su operación no deseada.
South Korea
For a radio equipment using 2400~2483.5MHz or 5725~5825MHz, the following
two expression should be displayed;
Taiwan
Turkish WEEE Statement of Compliance
EEE Yönetmeliğine Uygundur.
忂彯孧斖ẍᶳ仹⛨⎗ᶳ弥⻻⛘宕妨㓗㊩䘬ṏ⑩宜㖶Ḏ
Евразийский Таможенный Союз
Данный продукт соответствует требованиям знака EAC.
臺灣
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、
商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，
應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信規定作業之 無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Draft 1
Quick Reference Guide 17
Waste Electrical and Electronic Equipment
(WEEE)
English: For EU Customers: All products at the end of their life must be returned
to Zebra for recycling. For information on how to return product, please go to:
http://www.zebra.com/weee.
Français: Clients de l'Union Européenne: Tous les produits en fin de cycle de vie
doivent être retournés à Zebra pour recyclage. Pour de plus amples informations
sur le retour de produits, consultez : http://www.zebra.com/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán
entregarse a Zebra al final de su ciclo de vida para que sean reciclados. Si desea
más información sobre cómo devolver un producto, visite:
http://www.zebra.com/weee.
Bulgarish: За клиенти от ЕС: След края на полезния им живот всички
продукти трябва да се връщат на Zebra за рециклиране. За информация
относно връщането на продукти, моля отидете на адрес:
http://www.zebra.com/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer
Lebensdauer zum Recycling an Zebra zurückgesandt werden. Informationen zur
Rücksendung von Produkten finden Sie unter http://www.zebra.com/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo
ciclo di vita devono essere restituiti a Zebra al fine di consentirne il riciclaggio. Per
informazioni sulle modalità di restituzione, visitare il seguente sito Web:
http://www.zebra.com/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser
devolvidos à Zebra para reciclagem. Para obter informações sobre como
devolver o produto, visite: http://www.zebra.com/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun
levensduur naar Zebra te worden teruggezonden voor recycling. Raadpleeg
http://www.zebra.com/weee voor meer informatie over het terugzenden van
producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji
nale¿y zwróciæ do firmy Zebra w celu ich utylizacji. Informacje na temat zwrotu
produktów znajduj¹ siê na stronie internetowej http://www.zebra.com/weee.
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich
životnosti vrátit spoleènosti Zebra k recyklaci. Informace o zpùsobu vrácení
produktu najdete na webové stránce: http://www.zebra.com/weee.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada
taaskasutamise eesmärgil Zebra'ile. Lisainformatsiooni saamiseks toote
tagastamise kohta külastage palun aadressi: http://www.zebra.com/weee.
Draft 1
18 CR8178-SC Standard Cradle
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra
vállalathoz kell eljuttatni újrahasznosítás céljából. A termék visszajuttatásának
módjával kapcsolatos tudnivalókért látogasson el a http://www.zebra.com/weee
weboldalra.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste
returneras till Zebra för återvinning. Information om hur du returnerar produkten
finns på http://www.zebra.com/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava
kierrätettäväksi Zebra-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen
palauttamisesta on osoitteessa http://www.zebra.com/weee.
Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når
de er udtjent. Læs oplysningerne om returnering af produkter på:
http://www.zebra.com/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής
τους, πρέπει να επιστρέφονται στην Zebra για ανακύκλωση. Για περισσότερες
πληροφορίες σχετικά με την επιστροφή ενός προϊόντος, επισκεφθείτε τη
διεύθυνση http://www.zebra.com/weee στο ∆ιαδίκτυο.
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu
tagħhom, iridu jiġu rritornati għand Zebra għar-riċiklaġġ. Għal aktar tagħrif dwar kif
għandek tirritorna l-prodott, jekk jogħġbok żur: http://www.zebra.com/weee.
Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de
funcţionare, trebuie returnate la Zebra pentru reciclare. Pentru informaţii despre
returnarea produsului, accesaţi: http://www.zebra.com/weee.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti
podjetju Zebra za reciklažo. Za informacije o vračilu izdelka obiščite:
http://www.zebra.com/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí
doby ich životnosti vrátené spoločnosti Zebra na recykláciu. Bližšie informácie o
vrátení výrobkov nájdete na: http://www.zebra.com/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi
būti grąžinti utilizuoti į kompaniją „Zebra“. Daugiau informacijos, kaip grąžinti
gaminį, rasite: http://www.zebra.com/weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā
atpakaļ Zebra otrreizējai pārstrādei. Lai iegūtu informāciju par produktu
nogādāšanu Zebra, lūdzu, skatiet: http://www.zebra.com/weee.
Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme
için Zebra'ya iade edilmelidir. Ürünlerin nasıl iade edileceği hakkında bilgi için
lütfen şu adresi ziyaret edin: http://www.zebra.com/weee.
Draft 1
Quick Reference Guide 19
CMM Disclosure
本表格依据SJ/T 11364 的规定编制。
O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以
下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要
求。( 企业可在此处，根据实际情况对上表中打 “×” 的技术原因进行进一步说明。）
This table was created to comply with China RoHS requirements.
(Parts) (Pb) (Hg) (Cd) (PBB) (PBDE)
(Metal Parts)
(Circuit Modules)
(Cables and Cable Assemblies)
(Plastic and Polymeric Parts)
(Optics and Optical Components)
(Batteries)
OOO O O O
OO O O
OOO O
OO O O OO
O
OO O O OO
OO O O O
OO
ᴿᇩ⢟䍞
(Cr (VI))
10
X
O
Draft 1
Zebra Technologies Corporation
3 Overlook Point
Lincolnshire, Illinois 60069 USA
http://www.zebra.com
Zebra and the stylized Zebra head are trademarks of ZIH Corp., registered in many
jurisdictions worldwide. All other trademarks are the property of their respective owners.
© 2016 Symbol Technologies LLC, a subsidiary of Zebra Technologies Corporation.
MN-002784-02 Rev. A - September 2016
Draft 1

Navigation menu
