users manual

Setup and

Deployment

User’s Guide

For

Infrastructure Mode

Setup and Deployment

iii

Foreword

This document describes in detail the confidential and proprietary technology of MeshNetworks’

™ Architecture. MeshNetworks products and technology are protected by US and

international patent and patent pending technology. This document represents the current

design; the contents are subject to change at any time at the discretion of MeshNetworks, Inc.

, MeshManager, MeshTray, MeshView, and MeshNetworks’ logo are trademarks or

registered trademarks of MeshNetworks, Inc. Microsoft, Windows, Windows 2000, and

Windows PocketPC are registered trademarks of Microsoft Corporation. Sun and Sun Blade

are registered trademarks of Sun Microsystems, Inc. All other product names and services

identified throughout this publication are trademarks or registered trademarks of their respective

companies. No such uses or the use of any trade name is intended to convey endorsement or

MeshNetworks

Setup and Deployment

Table of Contents

SECTION 1 - OVERVIEW...........................................................................................................1

Introduction........................................................................................................................1

Documentation Overview..................................................................................................1

Acronyms ...........................................................................................................................1

Related Documentation ...................................................................................................2

SECTION 2 - DESCRIPTION OF THE SYSTEM............................................................3

Introduction........................................................................................................................3

Subscriber Devices (SDs) .................................................................................................4

Wireless Routers (WRs) ....................................................................................................4

Intelligent Access Points (IAPs) .......................................................................................5

Mobile Internet Switching Controller (MiSC)....................................................................5

Operational View of the System..............................................................................6

Network Architecture.........................................................................................................7

SECTION 3 - SETUP AND DEPLOYMENT................................................................................8

Subscriber Device (SD) .....................................................................................................8

Equipment.......................................................................................................................8

Record MAC Address of the WMC6300 ..........................................................................8

Loading and Verifying Software.......................................................................................8

Testing ..........................................................................................................................11

Intelligent Access Point (IAP) .........................................................................................11

Equipment.......................................................................................................................2

Record MAC Address of the IAP .....................................................................................3

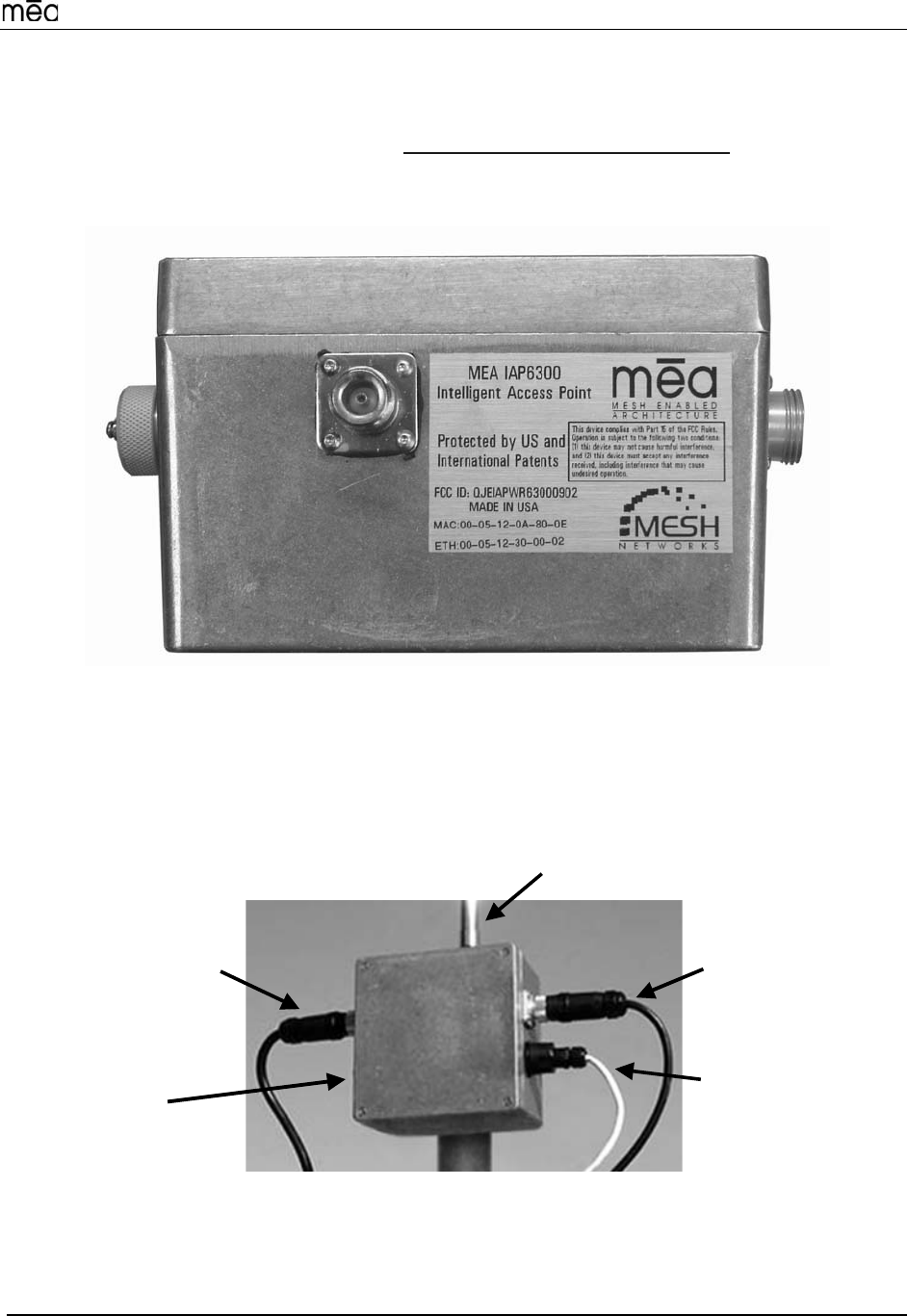

IAP Assembly..................................................................................................................3

MeshNetworks

Deployment.....................................................................................................................5

Initial IAP Configuration...................................................................................................6

Testing ............................................................................................................................6

Wireless Router (WR) ........................................................................................................7

Equipment.......................................................................................................................7

Record MAC Address of the MWR6300 ..........................................................................8

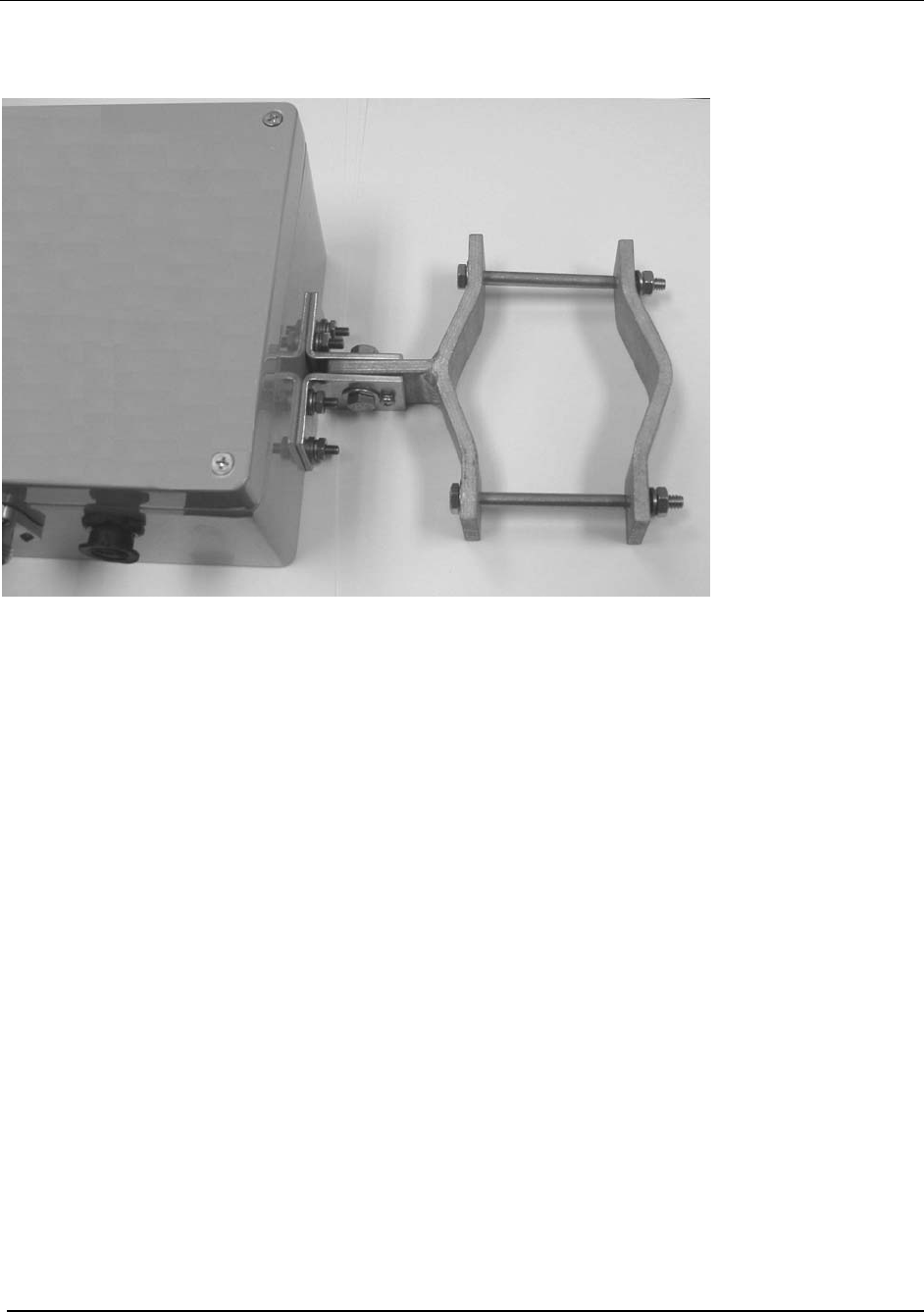

MWR6300 Assembly.......................................................................................................9

Deployment.....................................................................................................................9

Initial Configuration..........................................................................................................9

Testing ..........................................................................................................................10

Mobile Internet Switching Controller (MiSC)..................................................................11

Equipment.....................................................................................................................11

Network Setup Description............................................................................................12

MiSC Assembly.............................................................................................................13

Onsite Configuration of Routers ....................................................................................14

Network Configuration – Device Manager .....................................................................15

Network Configuration – IAP Configuration Via Web Interface ......................................15

Testing ..........................................................................................................................22

Default Addresses and Logins.......................................................................................23

SECTION 4 - MAC ADDRESS TABLES ..................................................................................25

IAP MAC Addresses ........................................................................................................25

WR MAC Addresses ........................................................................................................25

WMC MAC Addresses......................................................................................................26

SECTION 5 - SITE SELECTION/DEPLOYMENT GUIDELINES...............................................27

General Site Selection Guidelines..................................................................................27

Antenna Guidelines .........................................................................................................27

Setup and Deployment

vii

Lab Checkout...................................................................................................................28

General Deployment Guidelines.....................................................................................28

It is recommended that field deployment follow the same steps as described in

General Site Selection Guidelines..................................................................................28

Antenna Guidelines ................................................................Error! Bookmark not defined.

SECTION 6 - CUSTOMER SERVICE INFORMATION.............................................................30

SECTION 7 - WMC INSTALLATION DEBUG PROCEDURES ................................................31

SECTION 8 - LICENSE AND WARRANTY INFORMATION ....................................................33

SECTION 9 - FCC REGULATORY INFORMATION.................................................................38

FCC Information...............................................................................................................38

FCC RF Radiation Exposure Statement .........................................................................38

Safety Information for the Products....................................................................40

SECTION 10 - SAFETY CERTIFICATION ...............................................................................40

Setup and Deployment

Section 1 - Overview

Introduction

The wireless broadband system allows a network operator to deploy a wireless, multi-

hopping ad hoc network. This document describes how to setup, configure, and deploy a

system to operate in infrastructure mode. Infrastructure mode allows the user’s to have access

to a wired network. For a deployment that does not need access to a wired network, refer to the

“ Setup and Deployment for Peer-to-Peer Mode” document.

The system is designed for easy installation. The infrastructure components of a

system are preinstalled with a default configuration for connection to a wired network. Any

configuration items described in this document are for site-specific information.

MeshNetworks recommends that the Network Operator receive setup and deployment training

at MeshNetworks’ facility prior to deploying the network. MeshNetworks may optionally

provide the Network Operator assistance with site surveys and deployment.

Note: The MWR6300 Wireless Routers and IAP6300 Intelligent Access Points require

“professional installation” to ensure the installation is performed in accordance with FCC

licensing regulations.

Documentation Overview

The Setup and Deployment User’s Guide is arranged in the following sections:

Section 1 - Overview provides an overview of the Starter Kit and the organization of the

User’s Guide.

Section 2 – Description of the System provides a general overview of a complete

Network.

Section 3 - Starter Kit Setup and Deployment provides installation and configuration

information for the Subscriber Device, Wireless Router, Intelligent Access Point, and the MiSC.

Section 4 - MAC Address Tables provides three convenient tables to record network

configuration data.

Section 5 – Site Selection Guidelines provides deployment and installation suggestions.

Section 6 - The Customer Service Information section provides contact information if you

need assistance with your Starter Kit.

Section 7 - License and Warranty Information contains MeshNetworks’ License Agreement

and Warranty for the products.

Section 8 - FCC Regulatory Information provides important warnings and safety information.

Acronyms

HAS Hardware Authentication Server

IAP Intelligent Access Point

Mesh Enabled Architecture

MeshNetworks

MiSC Mobile Internet Switching Controller

SD Subscriber Device (a host device with a WMC6300 installed and operational)

WMC Wireless Modem Card

WR Wireless Router

Documentation

Setup and Deployment User’s Guide for Peer-to-Peer Mode

WMC6300 Wireless Modem Card User’s Guide for Windows 2000

WMC6300 Wireless Modem Card User’s Guide for Windows XP

MeshView Administration Tool User’s Guide

MeshManager User’s Guide

MeshFlash User’s Guide

Location Analyzer Deployment Tool User’s Guide

Setup and Deployment

Section 2 - Description of the System

Introduction

MeshNetworks develops Mobile Broadband communications systems with “meshed”

architectures. That is, each node can connect directly, or indirectly (by hopping through other

nodes), with any other node in the network. The peer-to-peer nature of the mesh architecture

combined with data rate control in each subscriber and infrastructure node in the network

insures reliable delivery while providing increased network capacity through geographic reuse of

the frequency spectrum.

The network comprises four distinct elements:

• Subscriber Devices (SDs)

• Wireless Routers (WRs)

• Intelligent Access Points (IAPs)

• Mobile Internet Switching Controllers (MiSCs)

The overwhelming portion of the value that MeshNetworks provides is in the Wireless Modem

Card (WMC). The WMC is used in Subscriber Devices as well as in the Wireless Router and

Intelligent Access Point (IAP), both of which are types of infrastructure equipment.

MeshNetworks provides a Mobile Internet Switching Controller (MiSC) which is assembled from

industry standard equipment and conforms to industry standards. MeshNetworks also provides

the network applications, which are required for proper operation and value extraction from the

mobile Internet system.

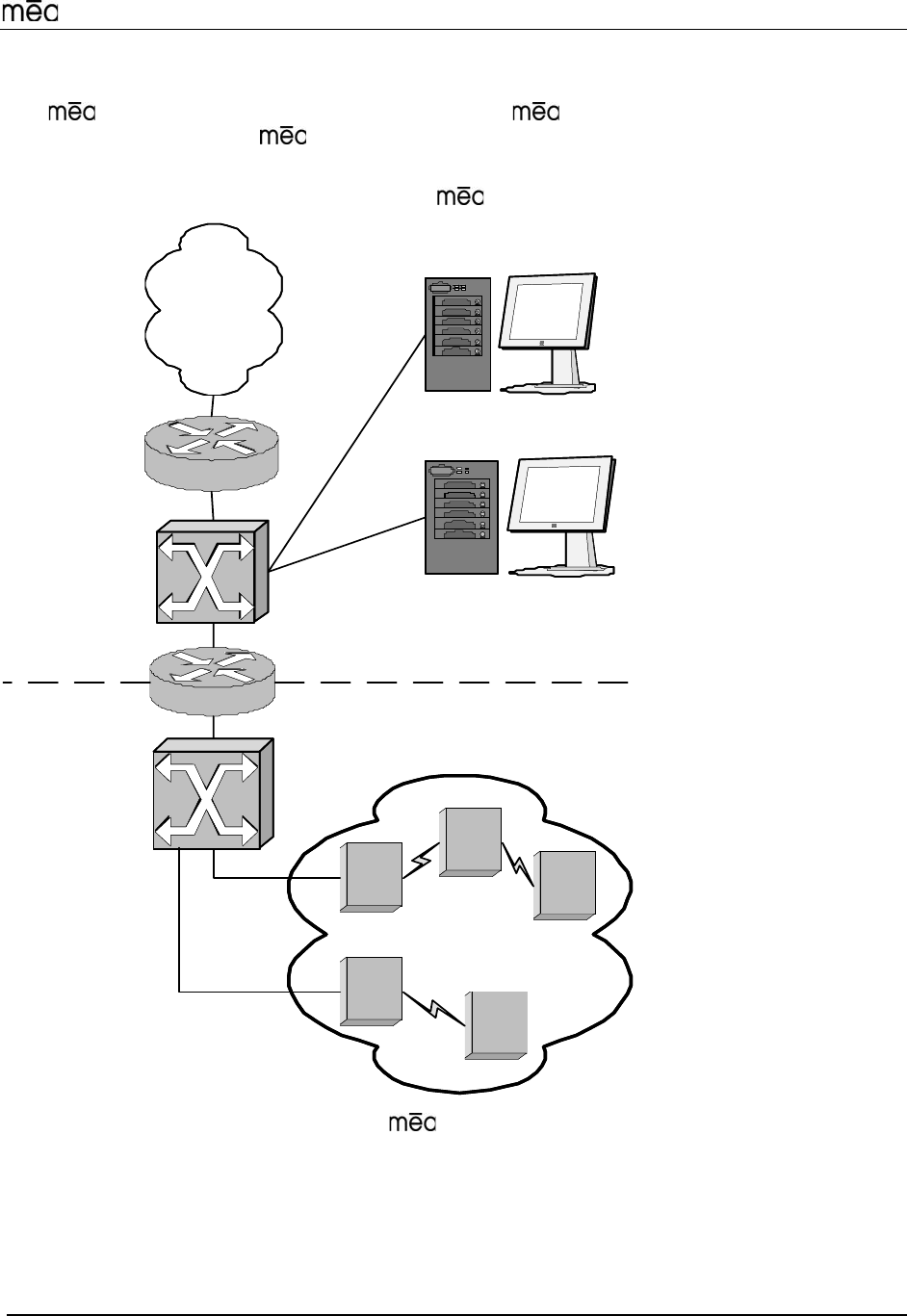

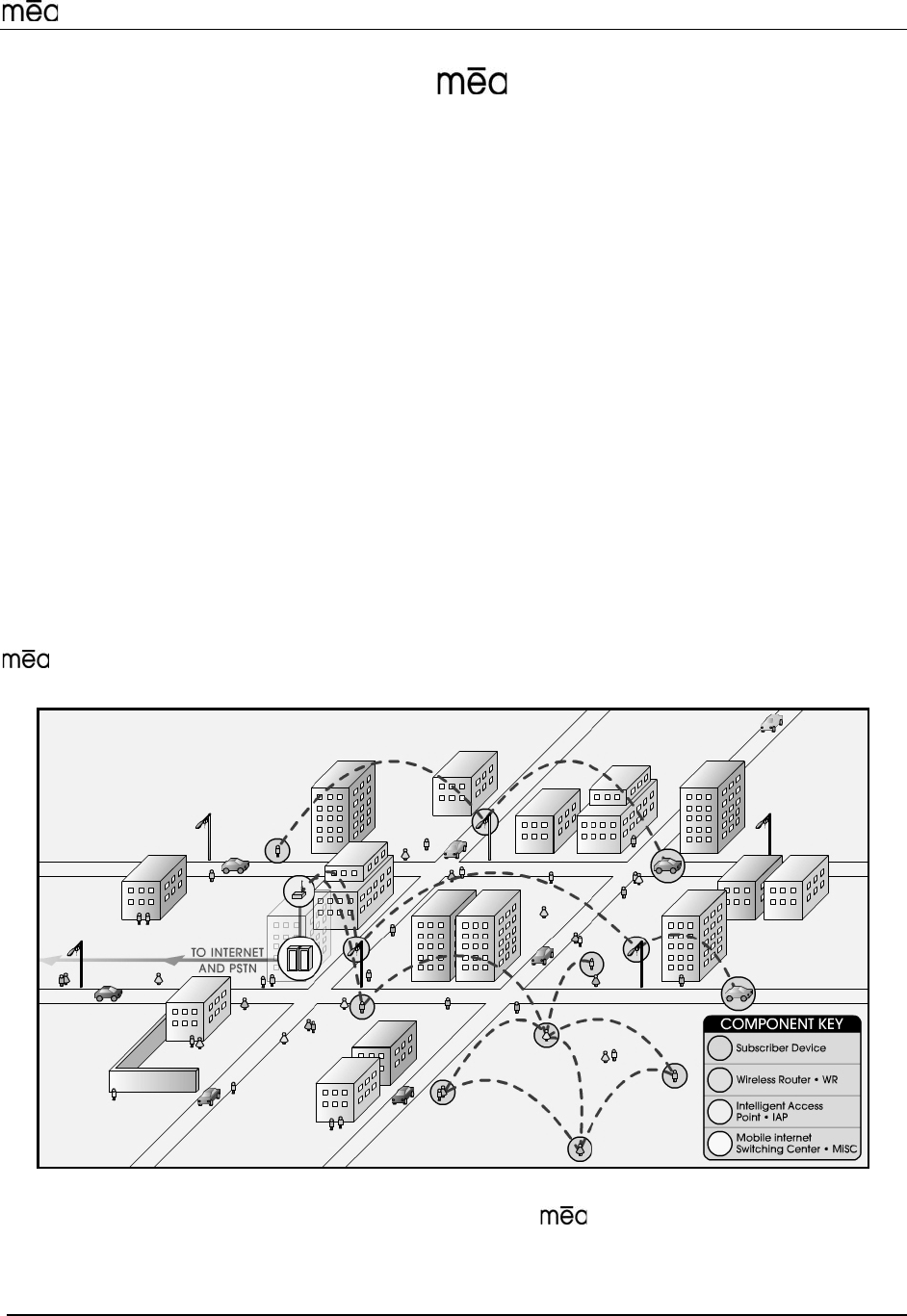

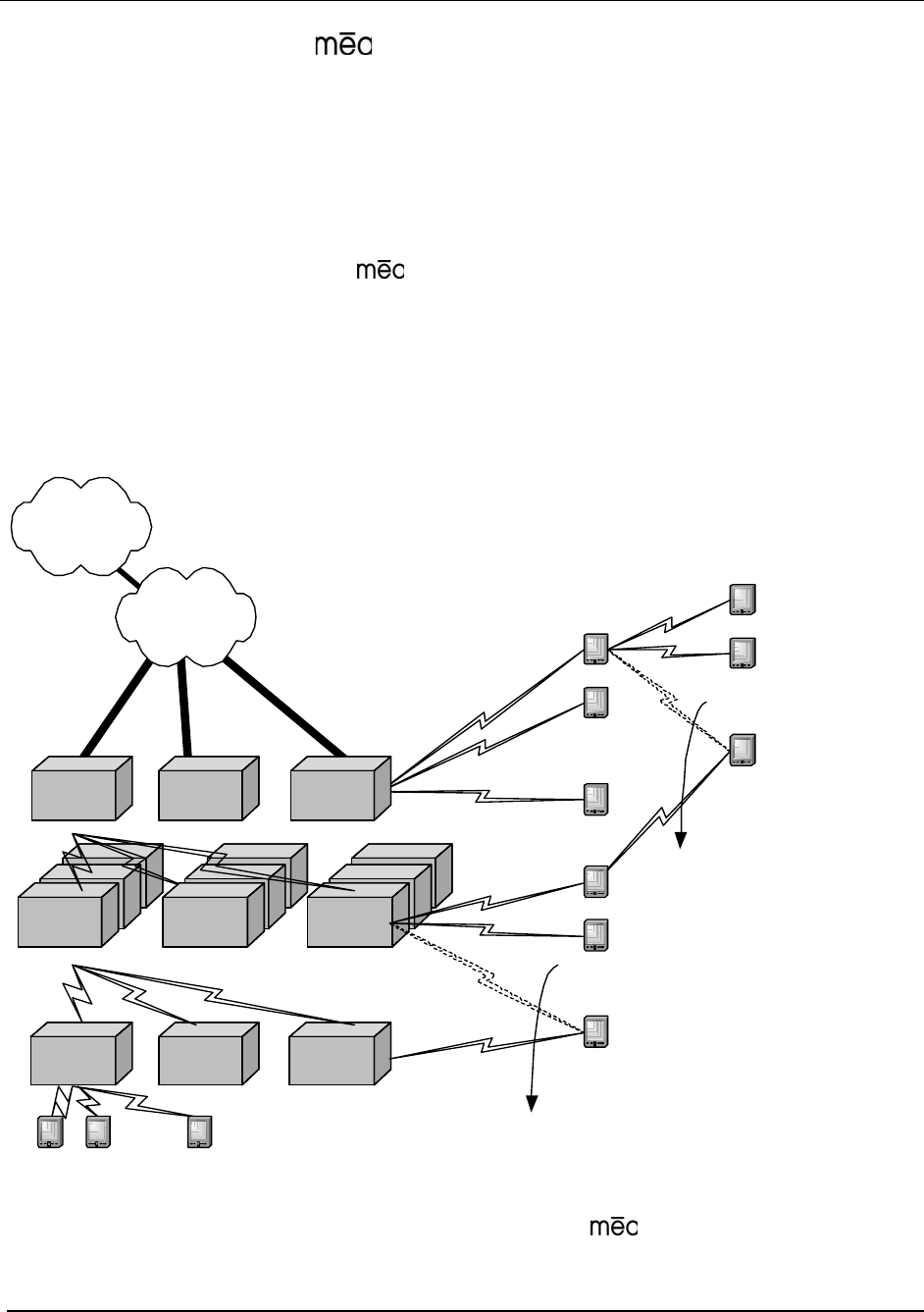

Figure 1. Elements of the System

All network elements are designed to support mobile applications. Subscriber Devices can be

either mobile or fixed, while the remaining components are typically fixed. Wireless Routers and

MeshNetworks

IAPs can be mounted on utility poles, light poles, traffic apparatus, billboards, and buildings.

Their fixed positions allow the Subscriber Device to pinpoint its location within one second.

WRs and IAPs can also be mobile, attached to emergency vehicles, utility vehicles, or fleet

vehicles. It is important to note that the WMC technology within a Subscriber Device is identical

to the WMC technology in Wireless Routers and IAPs.

The system was designed to minimize the cost associated with deploying a mobile Internet

with end user data access rates on the order of DSL or Cable Modem. The chosen metric of

network efficiency for a data centric network is bits per second per Hertz per square kilometer

per dollar (bps/hz/km2/$). This metric balances the user data rates, allocated bandwidth,

coverage area, and cost. One of the most important factors in optimizing this metric is the

choice of network architecture.

Subscriber Devices (SDs)

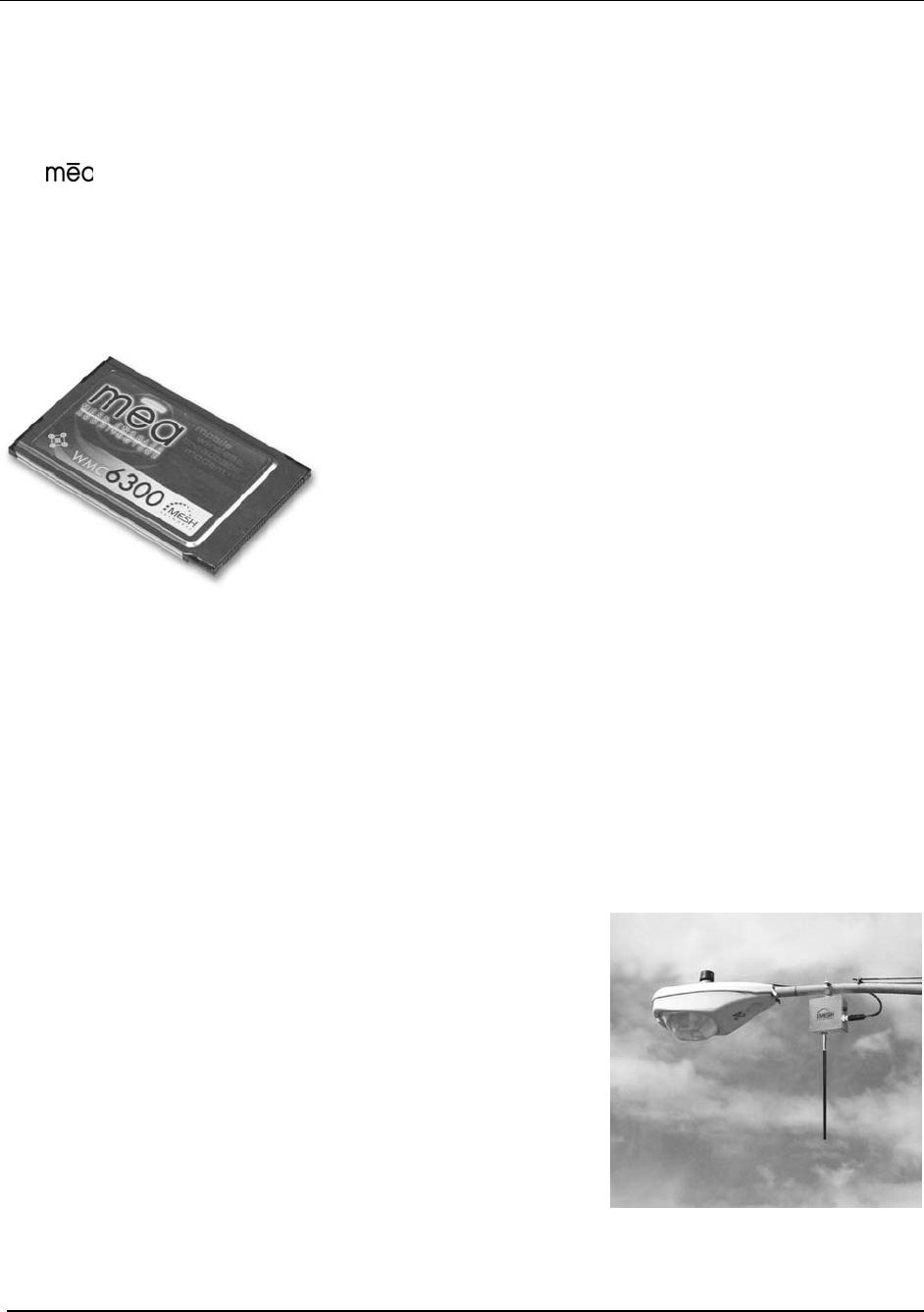

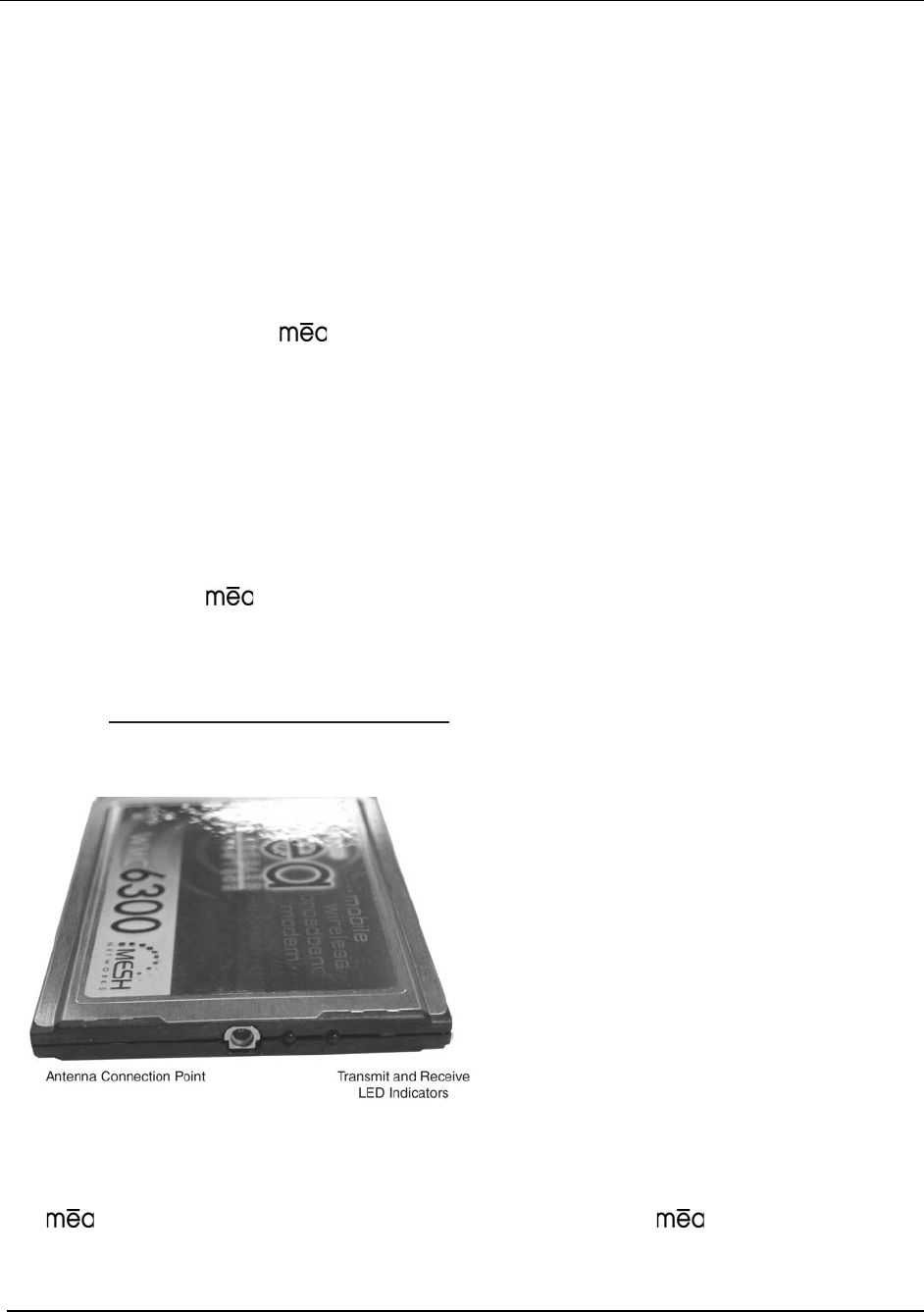

The MeshNetworks’ Wireless Modem Card (WMC) is

provided as a PCMCIA form factor device. The WMC is

used with an off-the-shelf IP-enabled laptop computer.

These two devices together make up a Subscriber Device

(SD).

The WMC provides access to the fixed infrastructure network

and other networks, such as the Internet, and it can also

function as a Wireless Router and repeater for other SDs.

SDs can therefore be a key part of the network infrastructure. Adding subscribers can

effectively increase the number of Wireless Routers in the network, which increases the number

of alternative paths that subscribers may utilize. This can reduce both the time and cost to

deploy network infrastructure, while also increasing the spectral efficiency and therefore the

capacity of the network. In addition, because SDs can also operate in an ad hoc peer-to-peer

mode, two or more SDs can form a network without the need for any fixed infrastructure.

Wireless Routers (WRs)

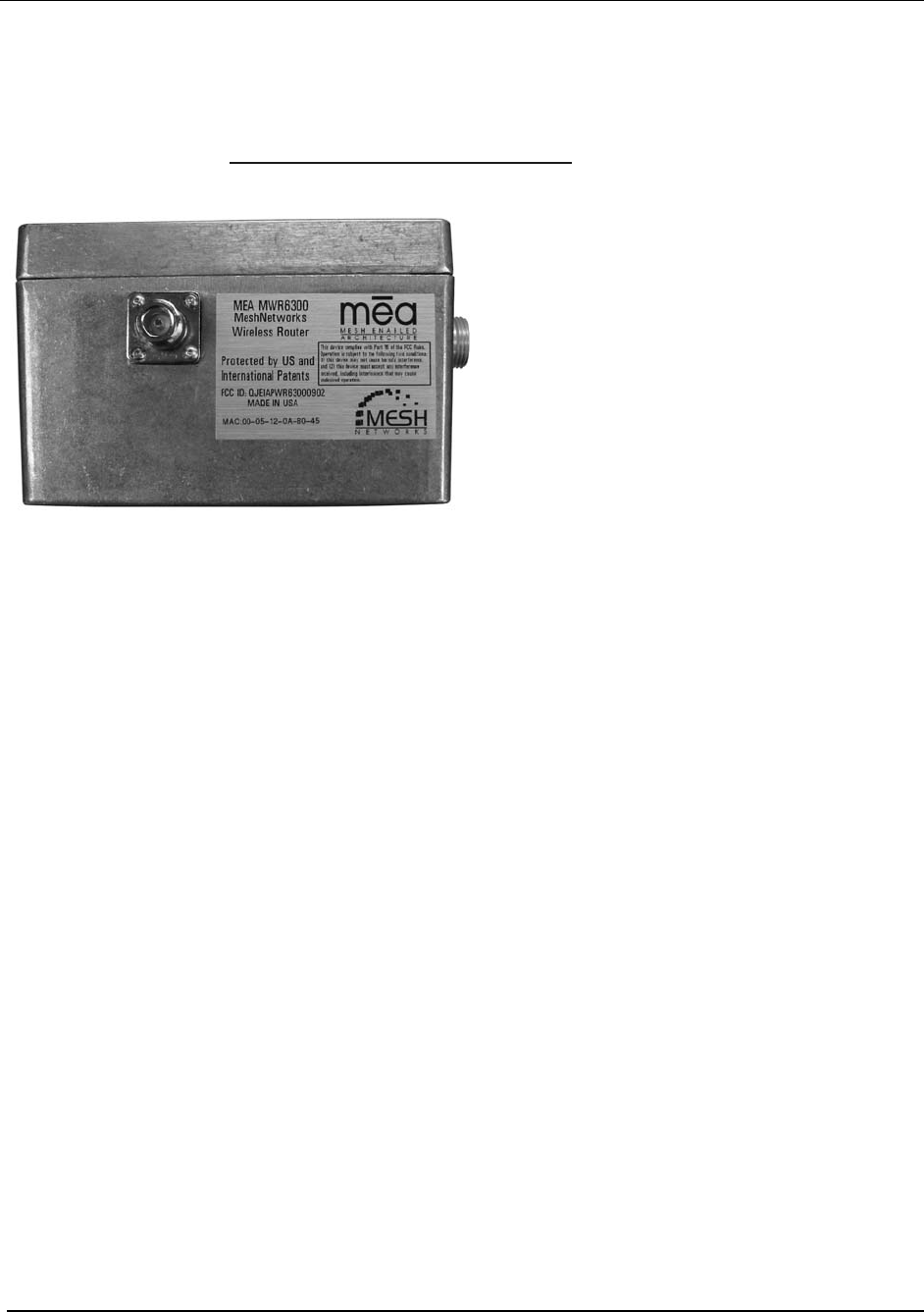

The Wireless Router (WR) is a low-cost small-sized wireless device that is primarily deployed to

seed a geographical area, extending the range between IAPs and subscribers, and to

simultaneously increase the network’s spectral efficiency. Wireless Routers provide a number

of functions in the network, such as:

• Range Extension for Subscriber Devices and IAPs

• Hopping Points for subscriber peer-to-peer

networking

• Automatic Load Balancing

• Route Selection

• Network capacity optimization through small packet

consolidation

• Fixed reference for geo-location services

The Wireless Router's small size and light weight allow it to

be mounted almost anywhere. No towers are required. WR software can be updated via over-

the-air downloads.

Setup and Deployment

Intelligent Access Points (IAPs)

The Intelligent Access Point (IAP) is a low-cost small device that

acts as the transition point from the wireless network to the wired

core network and from there, through media gateways, out to the

Internet. Each IAP offers up to 6 Mbps burst data rate to

subscribers. IAPs support the 10/100 base-T Ethernet interface.

Other interfaces are supported through commercially available

media translation devices. If additional network capacity is

required, more IAPs can be easily deployed - without the need for

extensive RF or site planning. IAPs provide functions such as:

• Local mobility management of SDs

• Fixed reference for geo-location services

• Hopping points for subscriber peer-to-peer networking

• Transition point from the wireless to the wired portions of

the network

• Route Selection

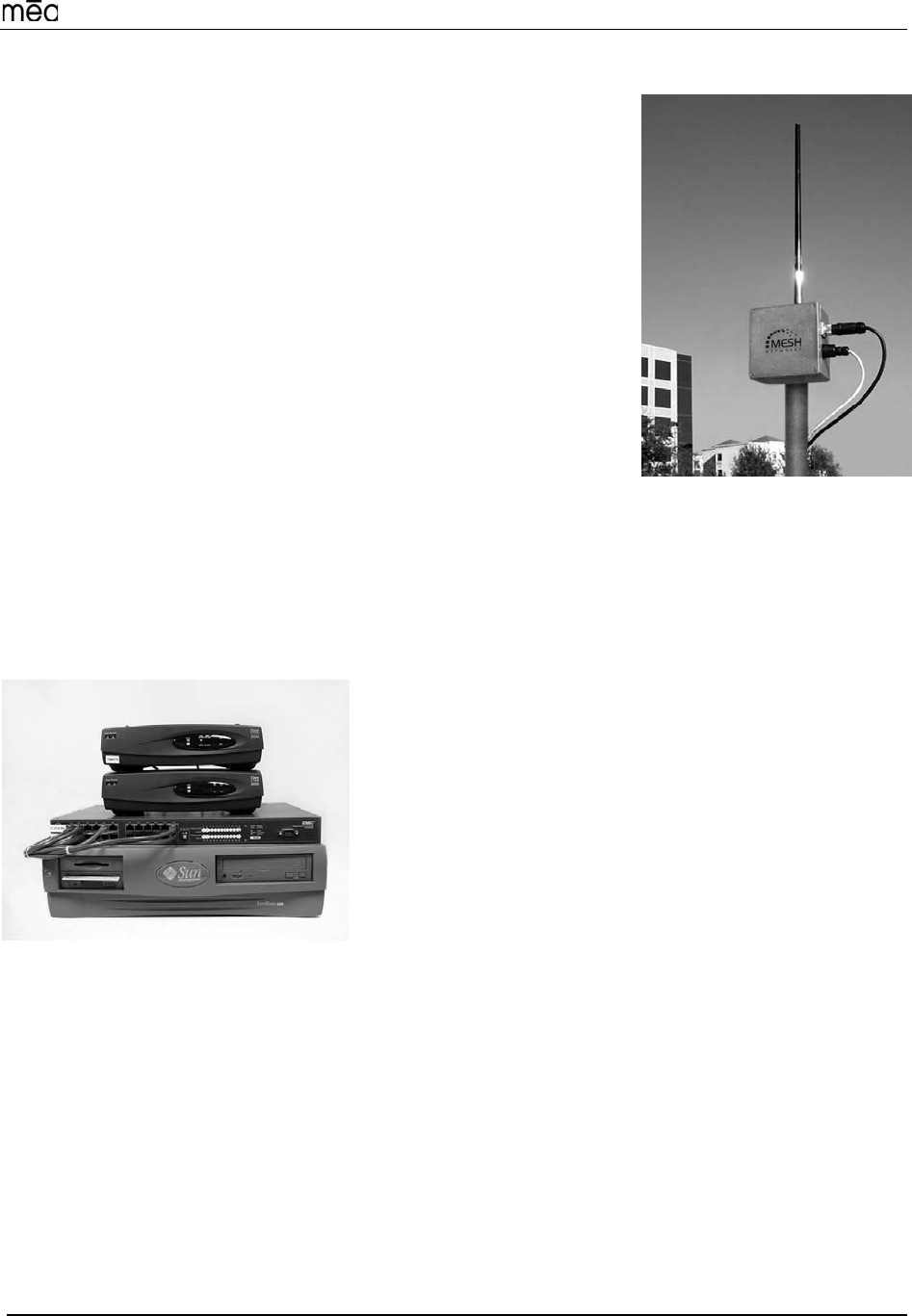

The IAP’s small size and light weight allow it to be mounted anywhere power and network

connectivity are available. No towers are required. IAP software can be updated via over-the-

wire downloads.

Mobile Internet Switching Controller (MiSC)

The Mobile Internet Switching Controller (MiSC) provides

connectivity between the IAPs and wired world, and

hosts the network’s management and provisioning

functions. The MiSC is composed of off-the-shelf

hardware components, such as LAN routers and

application servers. MiSC software consists of both off-

the-shelf and MeshNetworks’ proprietary software,

MeshManager. The MeshManager software provides

functions for the network such as:

• Subscriber Provisioning, Management, and

Authentication

• Configuration and Fault Management

• Network Monitoring and Reporting

MeshNetworks

Operational View of the System

Figure 2 shows the different ways in which a subscriber can reach an IAP. It can connect

directly, or hop through any number or combination of WRs and SDs. Additionally, if the

subscriber wishes to execute a peer-to-peer application such as a file transfer, the subscriber

can communicate directly, or through any combination of SDs, WRs, and IAPs.

The ability to use ad hoc routing to forward traffic improves the scalability of the mobile wireless

Internet. In particular, the ability for the user to accomplish a peer-to-peer application without

the use of infrastructure has tremendous advantages. A significant problem in every mobile

wireless network is backhaul. The architecture provides the ability to route traffic from

applications through SDs and WRs without ever reaching an IAP or the wired Internet. This

reduces the amount of backhaul required by enabling the SDs to accomplish the backhaul

whenever the opportunity arises. This results in lower deployment costs, reduced backhaul,

and lower operating expenditures. The service provider can provide the same level of service

with less equipment by empowering the SDs with ad hoc networking capability.

WR 1 WR 2 WR k2

WR k1WR 1

. . .

SD 2

SD 1

. . .

SD 2

SD 1

SD 2

. . .

SD 2

SD 1

SD 3

. . .

SD 2SD 1 SD 4

. . .

MiSC

IAP

Handoff

Router Mesh

Mobile Internet Switching Controller

Intelligent Access Point

Wireless Router

Subscriber Device

MiSC

Global

Internet

IAP 1 IAP 2 IAP N

WR 2

Figure 2. Operational View of the System

Setup and Deployment

Network Architecture

The network utilizes two subnets, one for the wireless elements and one for the

server elements. All of the wireless elements must be in a single subnet. The subnets are

connected together by the core router, and the edge router provides Internet connectivity.

Figure 3 shows the logical network layout of a network.

core router

edge router

Internet

server

switch

wireless

switch

MeshManager

server

other servers

wireless

domain

IAP1

IAPn

. . .

server subnet

wireless

subnet

Figure 3. Network Architecture

MeshNetworks

Section 3 - Setup and Deployment

Subscriber Device (SD)

A Subscriber Device consists of both a Wireless Modem Card (WMC6300) and an End User

provided host device such as a notebook computer. The WMC6300 is designed for insertion

into an industry-standard Type II PCMCIA card slot located in a Host device. The WMC6300

has an antenna port to connect the external antenna and two LED Indicators. The Red LED is

the transmit indicator and the Green LED is the receive indicator as shown in Figure 4.

Equipment

The following list defines the hardware components required to setup the WMC6300:

• WMC6300 Wireless Modem Card

• Antenna with a MMCX connector

• WMC6300 Software and Documentation CD for Windows 2000™ and Windows XP™

Equipment that must be supplied by the End User includes the following:

• Notebook PCs running the Microsoft Windows 2000 or Windows XP Operating System

Optional Equipment

• Refer to the data sheets for a list of optional equipment

Record MAC Address of the WMC6300

The transceiver MAC address is recorded on the back of the WMC6300 cards. Record this

number in Section 4 - MAC Address Tables, as it will be required later to configure and test

the device.

Figure 4. WMC6300 Antenna Port and LED Indicators

Loading and Verifying Software

The WMC6300 Software and Documentation CD contains the drivers and MeshTray

software for use on the End User’s equipment. Please review the instructions for each

operating system as there is a different sequence of events depending on the operating system.

Setup and Deployment

Detailed instructions can be found in the WMC6300 User’s Guide for each operating system.

In addition, the Administration Software and Documentation CD includes installation

software to load the MeshView Administration Tool. MeshView may be installed as an option on

a subscriber device to assist the Network Operator with network deployment. Refer to the

MeshView Administration Tool User’s Guide for additional information on this application.

Installing the WMC6300 Software for Windows 2000

The WMC6300 Wireless Modem Card User’s Guide for Windows 2000 provides complete

step-by-step instructions for use during the installation and configuration of the WMC6300. The

following is an abbreviated version of the installation process.

Note: Please install the Software before you insert the WMC6300 card.

Complete the following procedure to install the WMC6300 software and drivers:

1. Insert the Software and Documentation CD into the computer’s CD-ROM drive.

2. The Setup program will be displayed.

Note: If the installation program does not start automatically, open the Windows Start

menu, click on Run, and then type d:setup.exe (where d is the letter of the CD-ROM

drive) and click the “OK” button.

3. Click the “Next” button to continue the software installation process.

4. Follow the onscreen prompts to complete the installation process.

5. Insert the antenna into the WMC6300 card.

6. Insert theWMC6300 card into the PCMCIA slot of the host computer.

If MeshView is desired, insert the Administration Software and Documentation CD, open

the Windows Start menu, click on Run, and then type d:setupmv.exe (where d is the letter of

the CD-ROM drive) and click the “OK” button. Follow onscreen prompts to complete the

installation process.

Installing the WMC6300 Software for Windows XP

The WMC6300 Wireless Modem Card User’s Guide for Windows XP provides complete

step-by-step instructions for use during the installation and configuration of the WMC6300. The

following is an abbreviated version of the installation process.

Note: Please install the Software after you insert the WMC6300 card. .

Complete the following procedure to install the WMC6300 software and drivers:

1. Insert the antenna into the WMC6300 card.

2. Insert the WMC6300 card into the computer.

3. Click the “Cancel” button for the 2 “Found New Hardware” windows.

4. Click the “Close” button for the “Found New Hardware information” window.

5. Insert the WMC6300 Software and Documentation CD into the computer’s CD-ROM

drive.

MeshNetworks

6. The Setup program will be displayed.

Note: If the installation program does not start automatically, open the Windows Start

menu, click on Run, and then type d:setup.exe (where d is the letter of the CD-ROM

drive) and click the OK button.

7. Click the “Next” button to continue the software installation process.

8. Follow the onscreen prompts to complete the software installation process.

9. Eject the WMC6300 card. Wait 10 seconds and reinsert the WMC6300 card.

10. For the 2 Found New Hardware windows, ensure the Install Software Automatically

button is selected, click on the Next button, and follow the onscreen prompts.

Installing the MeshView Administration Tool

Complete the following procedure to install MeshView:

1. Insert the Administration Software and Documentation CD into the CD-ROM drive.

2. Click the Windows “Start” menu. Click on “Run” and enter d:setupmv.exe in the

textbox (Note: d is the letter of the CD-ROM drive). Click the “OK” button to continue the

installation process.

3. Follow onscreen prompts to complete the installation process.

DNS Server Configuration

The DNS server IP address is automatically supplied to the Subscriber Device upon

successfully connecting to the Network. If there are problems with resolving web URLs, the

DNS address can also be manually configured. The Network Operator must supply the DNS IP

address for the Internet connection.

Instructions to setup a Windows 2000 Host:

1. Start/Settings/Network and Dial-up Connections/Local Area Connection

(choose the Local Area Connection Corresponding to the Wireless Modem Card)

2. Click on the “Properties” button.

3. Highlight Internet Protocol (TCP/IP) in the Components window.

4. Click on the “Properties” button.

5. Click on the “Advanced” button.

6. Click on the DNS tab

7. Click on the DNS “Add” button.

8. Enter the “DNS Server IP Address” provided by the network administrator and then click

the “Add” button.

9. Click the “OK” button to close the Advanced TCP/IP Settings windows.

10. Click the “OK” button to close the Internet Protocol (TCP/IP) Properties windows.

11. Click the “OK” button to close the Local Area Connection Properties windows.

12. Click the “Close” button to close the Local Area Connection Status window.

This configuration should remain in the Windows 2000 host.

Setup and Deployment

Instructions to setup a Windows XP host:

4. Click on Start/Control Panel/Network and Dial-up Connections/Local Area Connection

5. Right click on the Local Area Connection Corresponding to the Wireless Modem Card

and select “Properties” from the pop up menu.

6. Highlight Internet Protocol (TCP/IP) in the Components window.

7. Click on the “Properties” button.

8. Click on the “Advanced” button.

9. Click on the DNS tab

10. Click on the DNS “Add” button.

11. Enter the “DNS Server IP Address” provided by the network administrator and then click

the “Add” button.

12. Click the “OK” button to close the Advanced TCP/IP Settings windows.

13. Click the “OK” button to close the Internet Protocol (TCP/IP) Properties windows.

14. Click the “OK” button to close the Local Area Connection Properties windows.

15. Click the “Close” button to close the Local Area Connection Status window.

This configuration should remain in the Windows XP host.

Testing

When the WMC6300 is inserted, you may receive an audible indicator that the device has been

recognized. (If there is a problem with the drivers, Windows will prompt you for a new device

installation.)

Using MeshTray, configure the WMC6300 for peer-to-peer mode. Click on the Windows “Start”

button and select “Run” from the popup menu. Enter the command “ipconfig“ in the textbox

and click on the “OK” button to check your IP address. If an IP address in the range of 10.x.y.2

is displayed, the transceiver is working properly. Change the WMC6300 back to Infrastructure

mode.

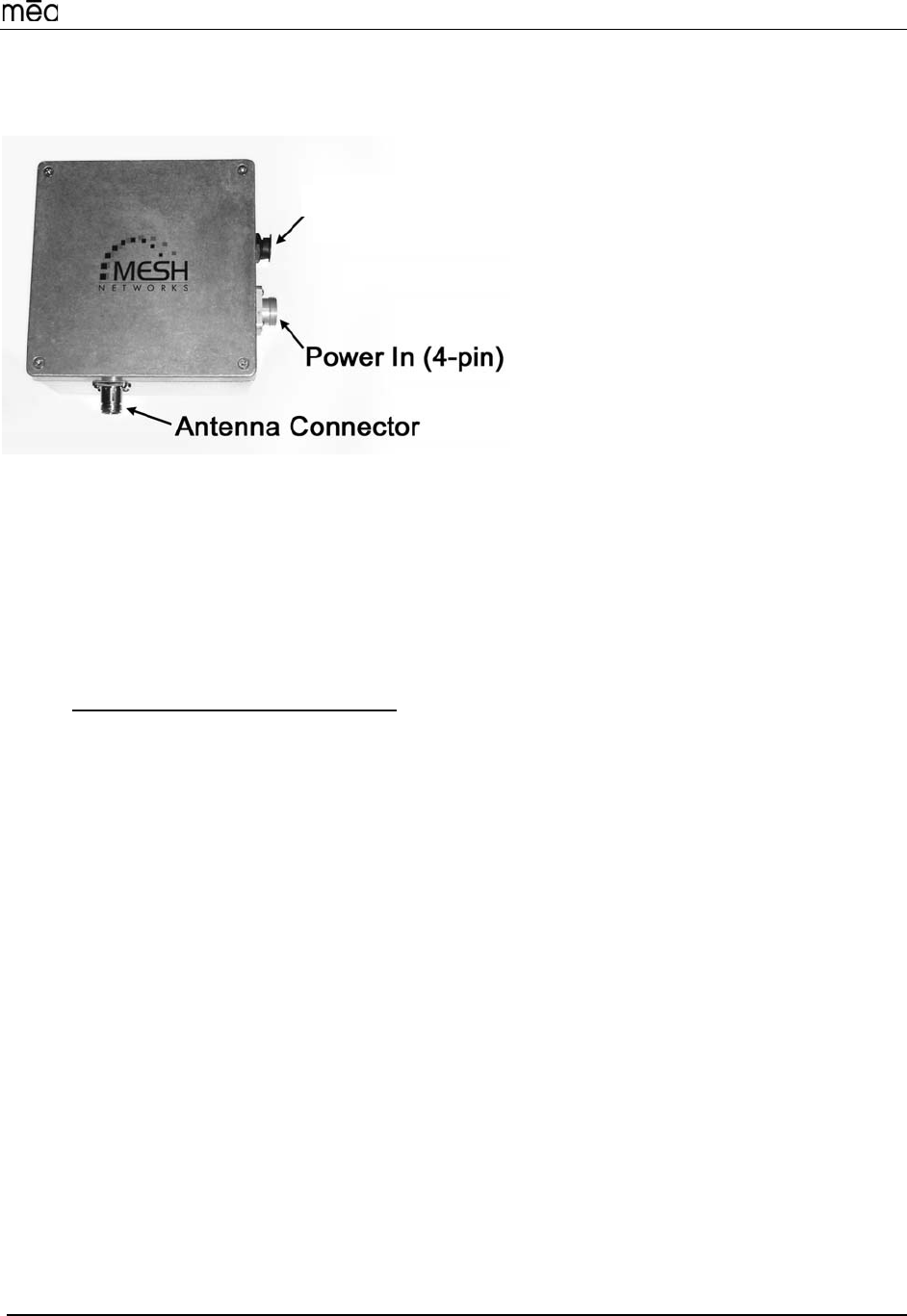

Intelligent Access Point (IAP)

The IAP is an infrastructure device that is positioned at a fixed location such as a building

rooftop. The IAP6300 requires professional installation to ensure that the installation is

performed in accordance with FCC licensing regulations.

The principle function of the IAP is to provide the Subscriber Devices in the coverage area of

the IAP access to wired services. The IAP also provides a fixed location reference for Geo-

Location (optional feature), provides wireless routing for units in the IAPs coverage area, and is

the principal network management interface to associated Wireless Routers and Subscriber

Devices.

The IAP provides a mounting point for a mounting bracket that can be attached to either a

pole or a flat surface. For a deployment, a permanent AC power source for each IAP must

be provided. The RJ-45 weatherproof plug can be terminated in the field, allowing custom

MeshNetworks

lengths to be assembled quickly on site.

Equipment

The following list defines the standard hardware components for the IAP:

• IAP Box with N-type Female Antenna Connector

• 120V A/C Power Cable with a NEMA 5-15 plug

• Antenna with N-type Male Antenna Connector

• Weatherproof RJ-45 Connector

• Mounting Bracket

The Network Operator must supply the following:

• Mounting Location

• 120V A/C Power Source

• Ethernet connection between the IAP and the MiSC

• Hand tools for bracket installation (??)

Optional Equipment

Typical optional equipment includes the following:

• Net-to-Net boxes for T1 deployment

• Power Cords terminating in PE cell connector

Approved Antennas Options

Manufacturer

Part Number

Gain Type

Maxrad Z1578 8 dBi Onmi

Maxrad Z1576 4 dBi Onmi

Hyperlink HG2409MU 8 dBi Onmi

Hyperlink HG2407U 7.5 dBi Onmi

Refer to the IAP data sheet for a complete list of options.

Setup and Deployment

Record MAC Address of the IAP

The transceiver MAC address is recorded on a label located on the antenna side of the IAP as

shown in Figure 5. Record this number in Section 4 - MAC Address Tables, because it will be

required later to configure and test the device.

Figure 5 IAP6300 Identification Label

IAP Assembly

The Figure 6 shows the external connection points on an IAP6300 box.

Figure 6. IAP6300 Connection Points

Antenna Connector

Power Out (3-pin)Power In (4-pin)

Test Port

(Not Shown)

RJ45 (Data) Port

MeshNetworks

Figure 7 Mounting Bracket Assembly

Figure 8. Bracket Attached to the IAP6300

Setup and Deployment

Assemble the IAP using the following procedure:

1. If desired, mount the IAP6300 box using the enclosed bracket. Refer to Figure 8.

2. Place the bracket at the desired position on the pole The bracket can accommodate

pole diameters between 1-3.5 inches. The bolts supplied with the bracket will

accommodate pole diameters of 2.75 – 3.5 inches. If needed, obtain a ¼-20 hex bolt of

an appropriate length for pole diameters between 1-2.75 inches (stainless steel bolts are

recommended).

3. Adjust the position of the box so that the antenna will be in a vertical position. Tighten

the pivot and angle locking bolts on the shaft of the bracket as shown in Figure 9

4. Insert the antenna into the N-type Connector on the top of the box, and rotate to close.

5. Insert the IAP Power Plug into the 4-pin connector.

6. Install the weatherproof connector on the Ethernet cable as described at:

http://www.siemon.com/installation_instructions/pdf/IMAXIndustrialUTPPlug.pdf

7. Insert the Ethernet Cable into the RJ-45 port and tighten the connector to ensure a

weatherproof seal.

8. If used, insert the Media Converter Power Cable into the 3-pin connector.

9. The Test Port is unused during deployment

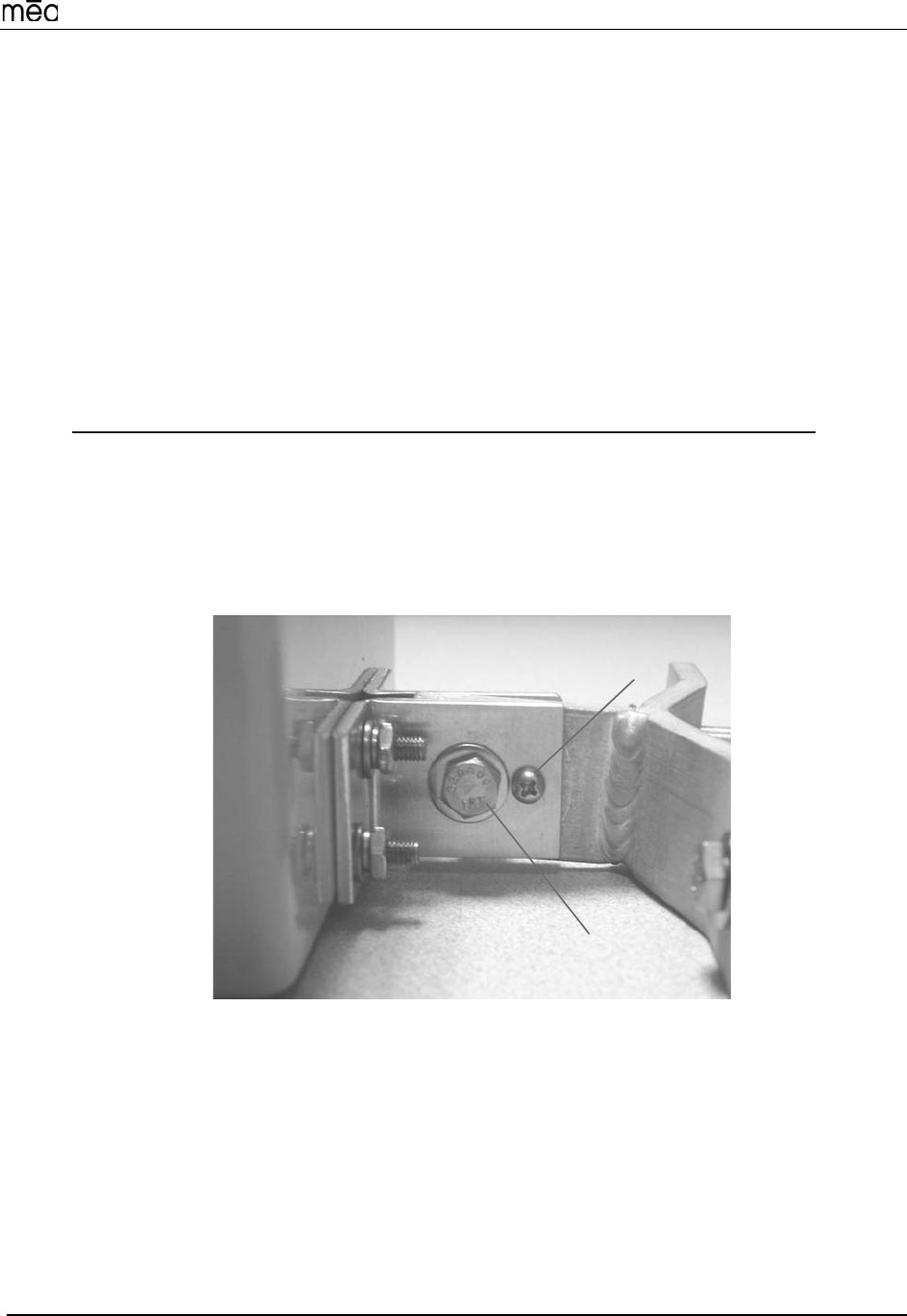

6 x 32 x 3/4

Angle Locking Bolt

1/4 x 1 inch Pivot Bolt

(Requres 7/16 Wrench)

Figure 9. Bracket Adjustment Bolts

Deployment

The IAP may be mounted on a pole having a diameter of 1-3.5 inches, utilizing the provided

bracket. The antenna must have a separation distance of at least 2 meters from the body of all

persons and must not be co-located or operating in conjunction with any other antenna or

transmitter. Users and installers must be provided with antenna installation and transmitter

operating conditions to satisfy RF exposure compliance.

MeshNetworks

When deploying the IAP, the antenna should be a minimum of 30 inches from any nearby metal

poles to avoid distortion of the RF pattern.

The IAP must have an Ethernet connection to the MiSC. If the distance between the IAP and

the MiSC is greater than 100 meters, the Network Operator may utilize a T1 with the optional

Net-to-Net boxes. The IAP has a 5V, 3-pin, power out connection on the side of the box to

power the Net-to-Net boxes. Other media converters may be used at the network operator’s

discretion.

The installation location must provide AC power to the IAP.

It is the responsibility of the Network Operator to ensure that the installation complies with any

local building codes and permits.

Initial IAP Configuration

Prior to attempting configuration of the IAP, the IAP must be powered on and have connectivity

to the MiSC.

Geo-location is an optional configuration item that is entered into an infrastructure device via the

Device Manager tool, located on the MeshManager server (refer to the MeshManager User’s

Guide). MeshNetworks recommends that a DGPS receiver be used to obtain accurate GPS

coordinates, and that the longitude, latitude, and altitude values have 5 digits following the

decimal point.

Testing

Once there is an Ethernet connection to the MiSC, verify the health of the IAP with the following

procedure:

1. Apply power to the IAP.

2. Obtain the transceiver MAC address that was recorded in Section 4 - MAC Address

Tables. The address will be in the format 00-05-12-0A-xx-yy.

3. From MeshManager, display devices using the MAC address.

4. Select the appropriate IAP in the device tree, and then ping the device (right click and

select ping).

A response to the ping commands verifies that both the transceiver and SBC are

communicating.

Setup and Deployment

Wireless Router (WR)

The MWR6300 (Wireless Router) is an infrastructure device positioned in a fixed location, such

as on a pole, wall, or rooftop. The MWR6300 requires professional installation to ensure the

installation is performed in accordance with FCC licensing regulations.

The Wireless Routers provides range extension, a means to route around obstructions, and a

fixed location reference for use in Geo-Location (an optional feature).

The MWR6300s comes with a mounting bracket that can be attached to a pole with a

diameter of 1-3.5 inches . For a deployment, a permanent AC power source for each WR

must be provided.

Equipment

The following list defines the hardware components needed to setup a WR:

• WR Box with N-type Antenna Connector

• 120V A/C Power Cable with a NEMA 5-15 plug

• Antenna with N-type Male Antenna Connector

• Mounting Bracket

The Network Operator must supply the following:

• Mounting Location

• 120V A/C Power Source

• Hand tools for bracket installation

Optional Configurations:

• Power Cable to connect to a Fisher-Pierce 7570B photoelectric cell

Approved Antennas Options:

Manufacturer

Part Number

Gain Type

Maxrad Z1578 8 dBi Onmi

Maxrad Z1576 4 dBi Onmi

Hyperlink HG2409MU 8 dBi Onmi

Hyperlink HG2407U 7.5 dBi Onmi

Refer to the WR data sheet for a complete list of options.

MeshNetworks

Record MAC Address of the MWR6300

The transceiver MAC address is recorded on the label located on the antenna side of the

MWR6300 as shown in Figure 10.

Record this number in Section 4 - MAC Address Tables, because it will be required later to

configure and test the device.

Figure 10. MWR6300 Identification Label

Setup and Deployment

MWR6300 Assembly

Figure 11 shows the external; connection points on a MWR6300 box.

Test Port

Figure 11. MWR6300 External Connection Points

Assemble the WR using the following procedure:

1. If desired, mount the WR box using the enclosed bracket. Refer to the procedure in the

IAP assembly section of this document.

2. Insert the Antenna into the N-type Connector on the top of the box, and rotate to close.

3. Insert the Power Plug into the 4-pin Connector.

4. The transceiver MAC address is recorded on the back of the WR. Record this number in

Section 4 - MAC Address Tables, as it will be required to configure and test the device.

5. The Test Port is unused during deployment.

Deployment

The MWR6300 can be mounted on a pole by using the provided bracket.

When deploying the MWR6300, the antenna should be a minimum of 30 inches from any

nearby metal poles to avoid distortion of the RF pattern. The antenna must have a separation

distance of at least 2 meters from the body of all persons and must not be co-located or

operating in conjunction with any other antenna or transmitter. Users and installers must be

provided with antenna installation and transmitter operating conditions to satisfy RF exposure

compliance.

Typically, wireless routers are distributed within a network to extend range and guarantee

coverage. A rule of thumb is to deploy 3-4 hop networks to optimize range, latency, and

throughput.

The MWR6300 installation location must provide AC power for the device.

It is the responsibility of the Network Operator to ensure that the installation complies with any

local building codes and permits.

Initial Configuration

The optional configuration process for Geo-Location is the same as the IAP.

MeshNetworks

Testing

Verify the operation of the MWR6300 using the following procedure:

1. Apply power to the MWR6300.

2. Obtain the transceiver MAC address that was recorded in Section 4 - MAC Address

Tables. The address will be in the format 00-05-12-0A-xx-yy.

3. From MeshManager, display devices using the MAC address.

4. Select the appropriate WR in the device tree, and then ping the device (right click and

select ping).

A response to the ping command verifies that the transceiver is communicating.

Setup and Deployment

Mobile Internet Switching Controller (MiSC)

The MiSC provides routing, switching, and management functions for the wireless network, and

the connection to the wired world.

Equipment

The following list defines the standard components needed for the MiSC:

• SMC 24 Port Switch

• Cisco 1720 – Edge Router

• Cisco 1720 – Core Router

• MeshManager Server (Server, Monitor, Keyboard, Mouse), pre-installed with the

MeshManager software

• 5 Ethernet Cables

The Network Operator must supply the following:

• Physical location and AC power for the routers, switch, and server(s)

• Ethernet connection(s) from the switch to the IAP(s)

• Ethernet connection to Internet or to Network Operator’s private network (Custom IP

network configuration may be required depending on Network Operator’s network

configuration)

• Public address for Edge Router, DNS resolver address

• PC running Windows 2000 with an Ethernet Port for MiSC Configuration and

MeshView

• Optional Equipment:

• Geo Server

• T1 Network Extenders

Refer to the MiSC data sheet for a complete list of options.

MeshNetworks

Network Setup Description

The basic MiSC hardware configuration is shown in Figure 12.

Figure 12. Basic MiSC Configuration

The following describes the parameters for setting up the network:

• All wireless devices must be within the same subnet.

• currently uses the non-routable 10.x.x.x (8 bit) subnet as defined in RFC 1918.

• The IAPs, WRs, and SDs will use DHCP to obtain an IP address, the default

configuration returns a 10.x.x.x address.

• All MeshNetworks devices have a default gateway of 10.0.0.1

• The Network Operator provides the address of the DNS server. The Subscriber

Devices must be manually configured to access the DNS server in order to resolve web

URLs. (See WMC6300 User’s Guide for instructions on this.)

Setup and Deployment

MiSC Assembly

The MiSC hardware consists of commercial off-the-shelf components. The components are

pre-configured with a basic configuration that requires minimal site-specific changes.

The SMC switch arrives configured as two virtual LANs. The upper row of Ethernet ports is for

the server subnet; the lower row of ports is for the wireless subnet.

Unpack the SMC switch and mount as desired (either in a rack or on a table top). Connect the

switch to a power source.

Unpack the Cisco router labeled “EdgeRTR” and connect to a power source. Plug interface

labeled “10BT Ethernet” into the Internet or the Network Operator’s private network. (The

network operator supplies this cable; it will be an Ethernet cable for connecting to a hub or

switch, or an Ethernet crossover cable if connecting to another router.) Plug interface labeled

“10/100 Ethernet” into the SMC switch on port 1.

Unpack the Cisco router labeled “CoreRTR” and connect to a power source. Plug interface

labeled “10BT Ethernet” into the SMC switch on port 12. Plug the interface labeled “10/100

Ethernet” into the SMC switch on port 24.

Unpack the Sun Blade/MeshManager server and monitor and connect to a power source. Plug

the network interface into any of the ports 2-11 on the SMC Switch.

Connect Network Operator supplied computer running Windows 2000. Plug the network

interface into any of the ports 2-11 on the SMC Switch.

Connect the IAPs to any of the ports 13-23 on the SMC switch.

MeshNetworks

Onsite Configuration of Routers

EdgeRTR Configuration

The EdgeRTR must have on-site configuration done if there is a desire to connect to the

Internet. Prior to performing the following steps, obtain the IP address, netmask, and default

gateway for the public interface from the Internet Service Provider. These are shown as

ip.ip.ip.ip, nm.nm.nm.nm, and gw.gw.gw.gw, respectively, in the instructions below. Also,

obtain the IP address of the EdgeRTR, it will be in the form of 172.a.0.1.

Telnet into the EdgeRTR from a computer connected to the server subnet. Use the address

172.a.0.1 to connect to the EdgeRTR.

Update the public IP information using the commands below

Password:g0ld1

EdgeRTR>enable

Password:g0ld11

EdgeRTR#configure terminal

Enter configuration commands, one per line. End with CNTL/Z.

EdgeRTR(config)#interface Ethernet0

EdgeRTR(config-if)#ip address

ip.ip.ip.ip

mm.nm.nm.nm

EdgeRTR(config-if)#exit

EdgeRTR(config)#no ip route 0.0.0.0 0.0.0.0

EdgeRTR(config)#ip route 0.0.0.0 0.0.0.0

gw.gw.gw.gw

EdgeRTR(config)#exit

EdgeRTR#copy running-config startup-config

Destination filename [startup-config]? <return>

Building configuration...

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!![OK]

EdgeRTR#exit

EdgeRTR TEST

Use a computer connected to the switch (in either the server or wireless subnet) to ping to the

ISP gateway IP. Next, test access to the Internet using a web browser. If this fails troubleshoot

and retry.

Setup and Deployment

Network Configuration – Device Manager

“Device Manager” is a utility located on the MeshManager server. It is used to configure and

monitor the deployed network. Refer to the MeshManager User’s Guide for detailed instructions

on how to use the Device Manager.

Mea systems are delivered with the initial configuration of IAPs, WRs, and SDs in the

MeshManager system. This allows for easy testing of the system as units are tested on site.

There are two basic tests to verify correct operation the system. The first test is to perform ping

tests to each device and the second test is to verify access the Internet.

Network Configuration – IAP Configuration Via Web Interface

A second method of performing various network configuration functions for an IAP may be

accomplished using a standard web browser. Connect a host PC to the switch in the MiSC.

Using a standard Internet Browser such as Microsoft’s Internet Explorer or Netscape, enter the

IP Address corresponding to the IAP to be configured as shown in Figure 13. If you do not

know the IP address of the IAP then contact the system administrator. Optionally, if the network

has been configured with a DHCP Server and a DNS Server, you may use the Device System

Name. Since all IAPs ship with the same default Device System Name, it is recommended that

you install and configure the IAPs one at a time.

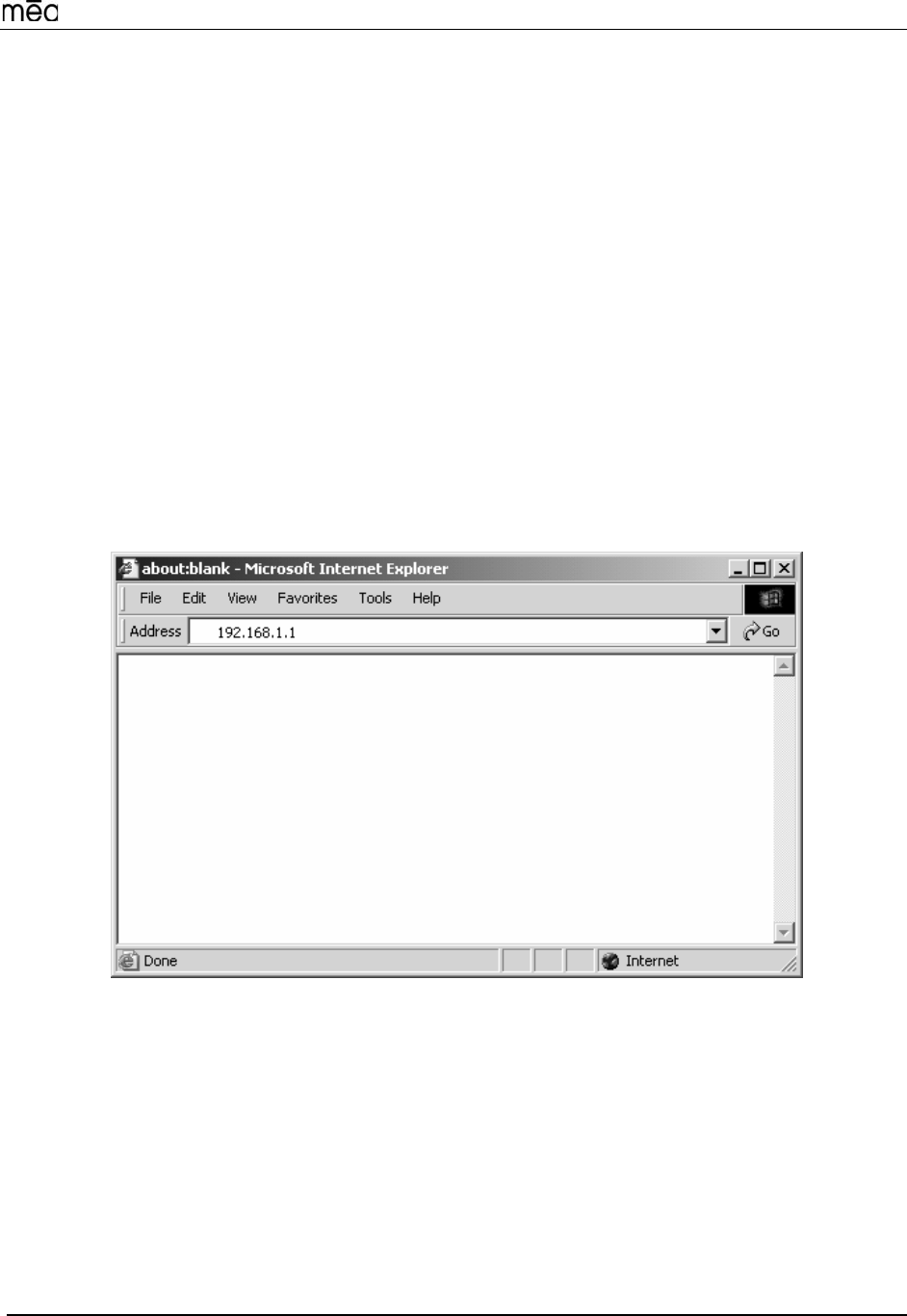

Figure 13. MEA Device Administration Connection

A Log On window for the Configuration Utility will be displayed in the browser, as shown in

Figure 14. Before the Configuration Utility is displayed, the user must complete the simple

logon procedure before proceeding. When the Log On is complete, the Configuration Utility will

be displayed. The default login is “admin’ and the password is “admin”. The password can be

changed, as described further in this document.

MeshNetworks

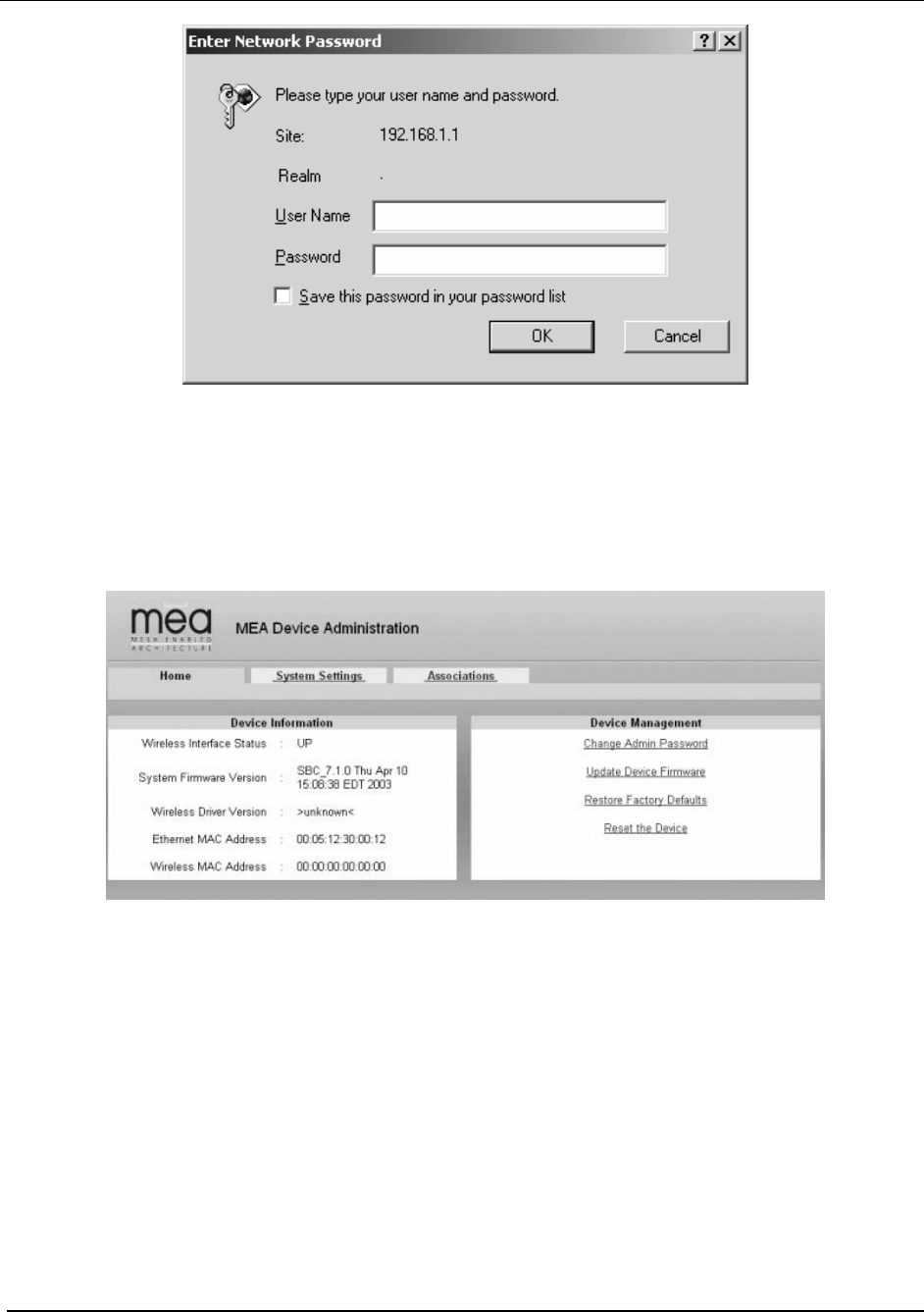

Figure 14. MEA Device Administration Logon Window

At the completion of the logon, the Home Tab screen will be displayed as shown in Figure 15.

Home Tab

Figure 15. MEA Device Administration Home Tab

The Device Information window provides data on:

Wireless Interface Status (up or down)

System Firmware Version (software running on the SBC in the IAP)

Ethernet MAC Address (address of the SBC)

Wireless MAC Address (address of the transceiver)

Also located on the Home Tab are Device Management options for

Change Administration Password

Update Device Firmware

Restore Factory Defaults

Setup and Deployment

Reset the Device

The Device Management options are detailed below.

Home Tab – Change Admin Password

From the Home tab, the user can select the “Change Admin Password” to change the

administrator password of the device.

WARNING – If the password is lost, the password can only be reset at the factory. Do not

forget to record the information in an appropriate location for future use.

1. To change the password, select “Change Admin Password”.

2. “Enter the new password” will be displayed on the Change Password window as shown

in Figure 16. Enter the new password in the “New Password” textbox.

3. Enter the new password again in the “New Password (again)” textbox.

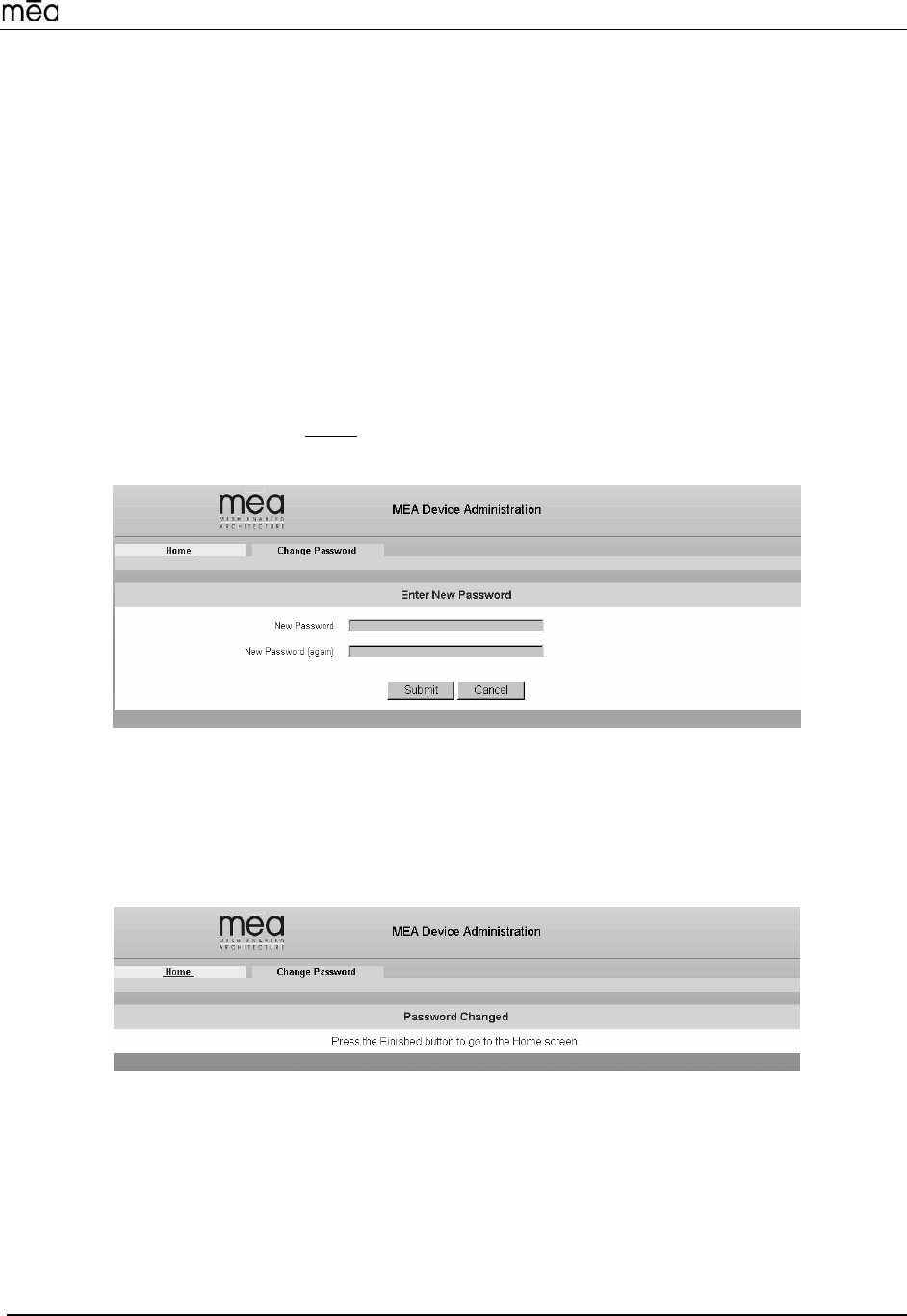

Figure 16. MEA Device Administration Enter New Password Window

4. Click on the “Submit” button. The browser will display a message that confirms the

password change as shown in Figure 17.

Figure 17. MEA Device Administration Password Changed Window

Home Tab – Update Device Firmware

From the Home Tab, select “Update Device Firmware” to load a new version of the firmware

into the IAP.

. A New Device Firmware window will be displayed as shown in Figure 18

MeshNetworks

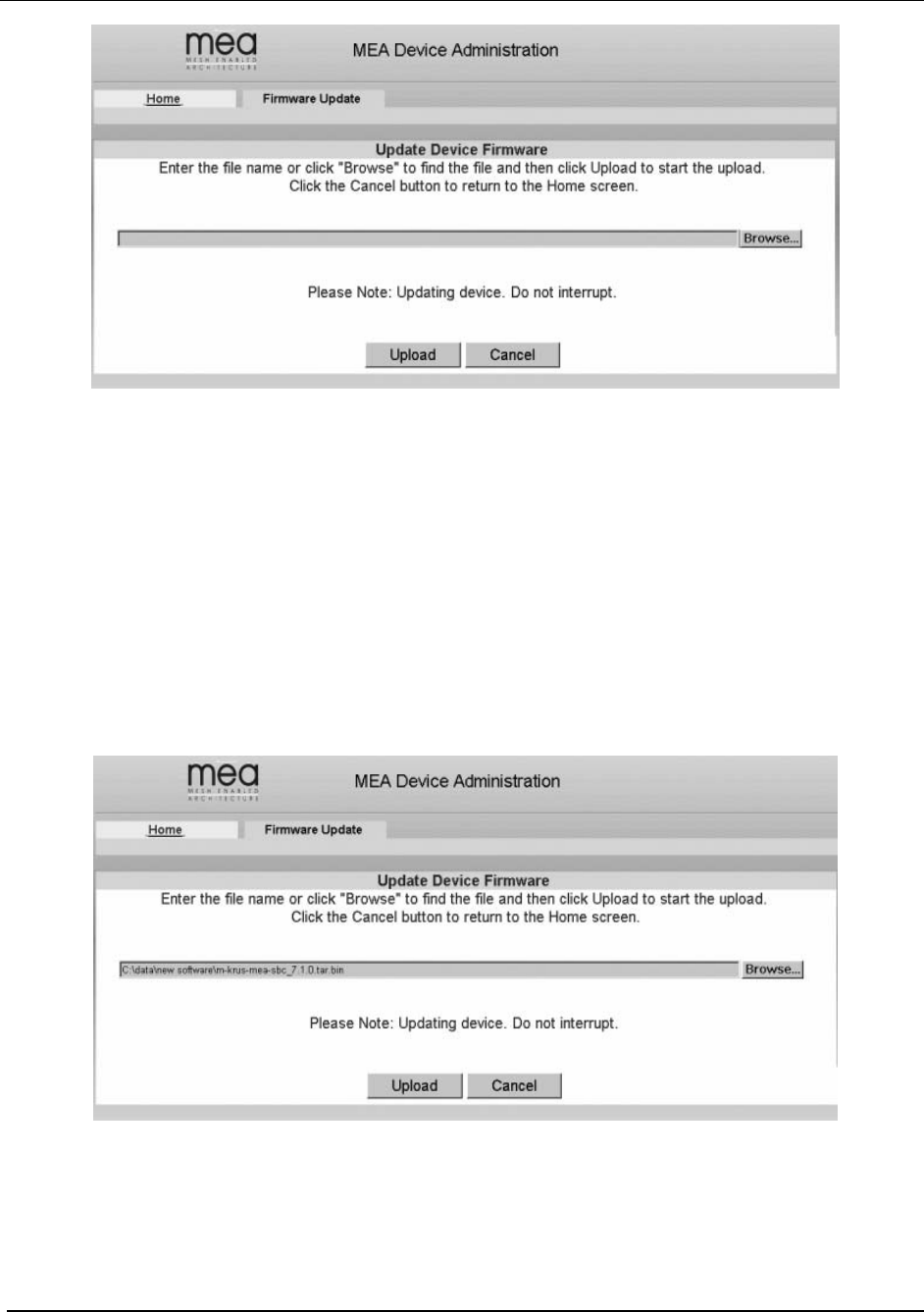

Figure 18. MEA Device Administration Update Device Firmware Window

1. Click on the “Browse” button to navigate to the correct location of the firmware “bin” file,

or specify the path and file name of the firmware “bin” file to be uploaded to the device.

If the “Browse” button is selected, the “Choose file” window is displayed. Selecting the

filename starting with “m-krc” will overwrite any custom configurations which have been applied

to the AP. Selecting the filename starting with “m-r” will retain any custom configurations.

Locate and select the desired firmware “bin” file to be uploaded to the device. Then click on

the “OK” button

The path and file name of the firmware “bin” file will be displayed in the Update Device

Firmware window as shown in Figure 19. Click on the “Upload” button to continue the process

or select “Cancel” to terminate the Firmware Update procedure

Figure 19. MEA Device Administration Update Device Firmware Window (2)

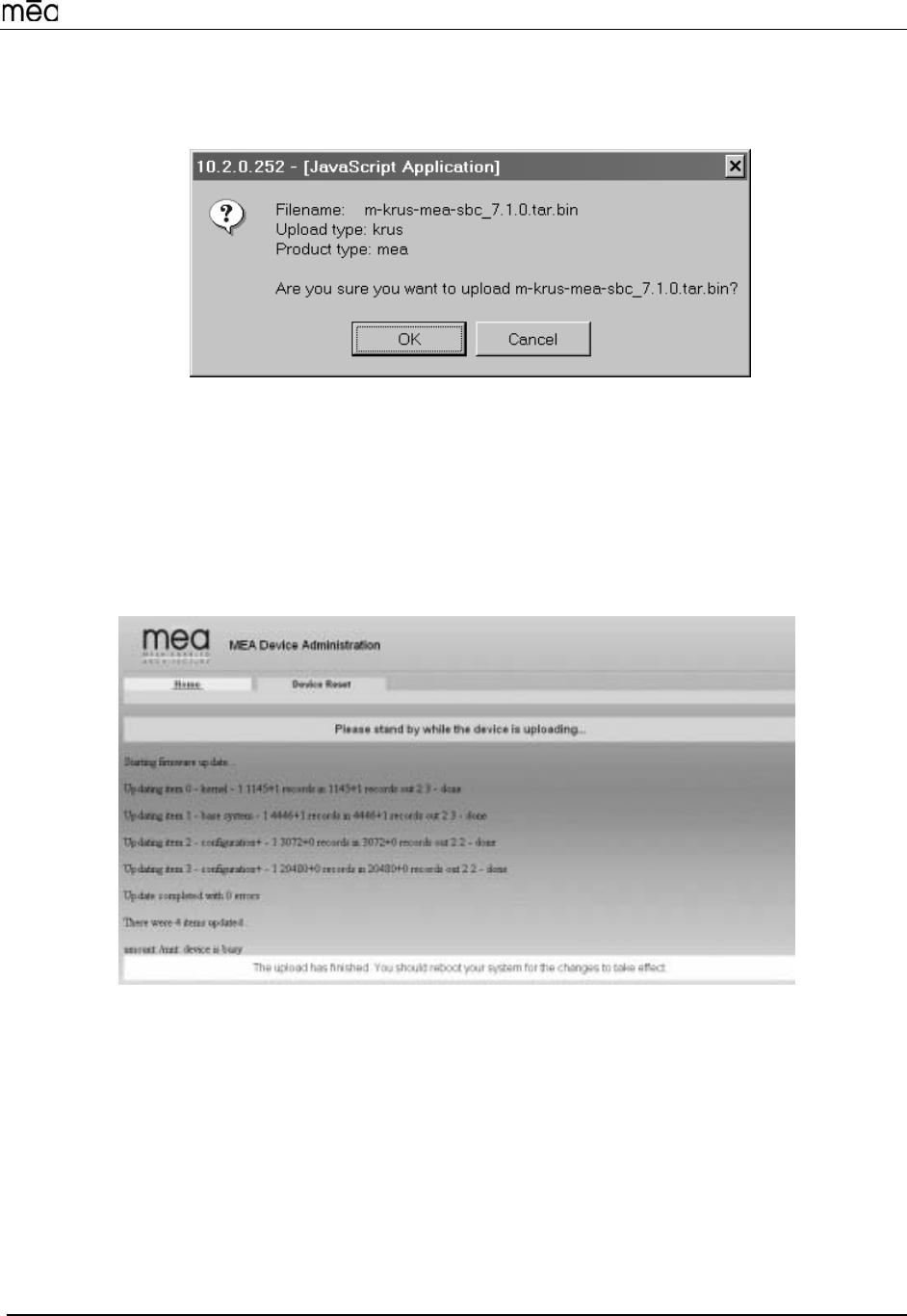

2. If the “Upload” button is selected, an upload confirmation message is displayed as

shown in Figure 20 to confirm that you want to continue the Firmware Update procedure.

Setup and Deployment

Click on the “OK” button to continue or select “Cancel” to terminate the Firmware

Update procedure.

Figure 20. MEA Device Administration Update Confirmation Window

3. If the “OK” button is selected, the new Firmware is loaded into the device. The Firmware

Update window will then be displayed to indicate that the selected file was successfully

uploaded and to recommend that you reboot the device.

4. As the Firmware is being uploaded, a status page is displayed as shown in Figure 21.

Figure 21. MEA Device Administration Update Device Status Window

5. At the completion of the update, the IAP’s SBC must be reset for the update to take

effect. Select the “Home” tab and then click on the “Reset Device” button as described

in the procedure located on page 21. The device will reset and return to the “Home” tab.

Note: Do not to close the browser until the process is complete.

MeshNetworks

Home Tab – Restore Factory Defaults

From the Home Tab, the user can select “Restore Factory Defaults” to restore the firmware to

Factory Default settings. By selecting the “Restore Factory Defaults” button, the IAP setting

will be returned to the default configuration. The user will receive a caution message before

proceeding with the restore process as shownbe in Figure 22.

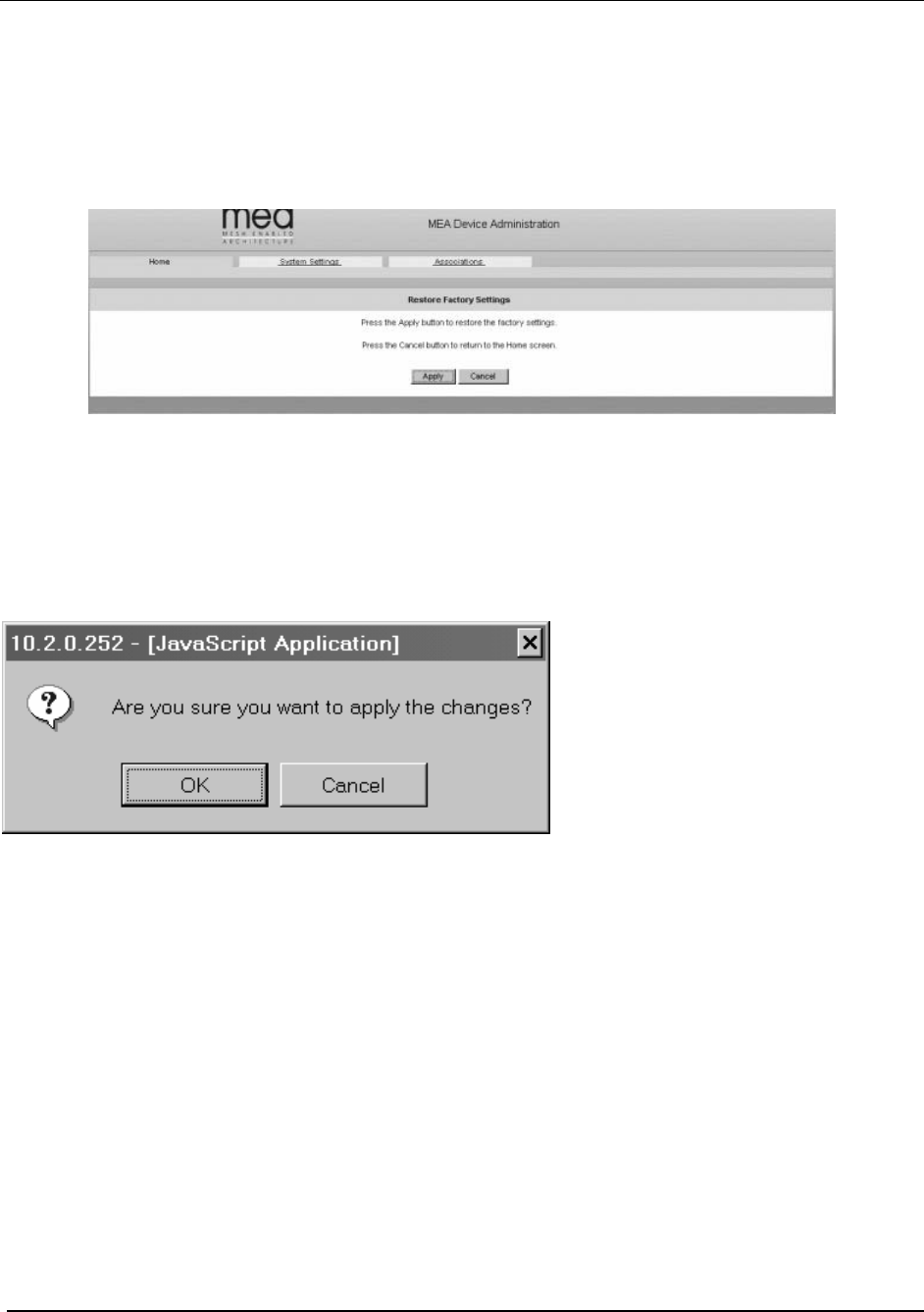

Figure 22. MEA Device Administration Restore Factory Defaults Window

6. Click on the “Apply” button to continue the restore process or select the “Cancel” button

to terminate the process with out changing the device settings.

7. If the “Apply” button is selected, a confirmation message is displayed as shown in

Figure 23 to confirm that you want to continue the Restore Factory Settings procedure.

Figure 23. Restore Factory Defaults Confirmation Message

8. Click on the “OK” button to continue or select “Cancel” to terminate the procedure.

If the “OK” button is selected, the setting will be restored and the device will reset automatically.

Upon completion of the process, the browser will return automatically to the “Home” tab.

Home Tab – Reset Device

From the Home tab, the user can select the “Reset the Device” button to reset the device and

reinitialize the IAP. The configuration settings are preserved during the initialization process.

The user will receive a caution message before proceeding with the reset.

1. Select the “Reset the Device” button to initiate the reset process on the IAP.

2. The Reset the Device window is displayed as shown in Figure 24. Select the “Reset”

button to continue the process.

The Reset the Device window displays a message that describes the process and the time to

completion as shown in Figure 25. The device will reset automatically upon completion of the

update process and then return to the “Home” tab to display status information.

Setup and Deployment

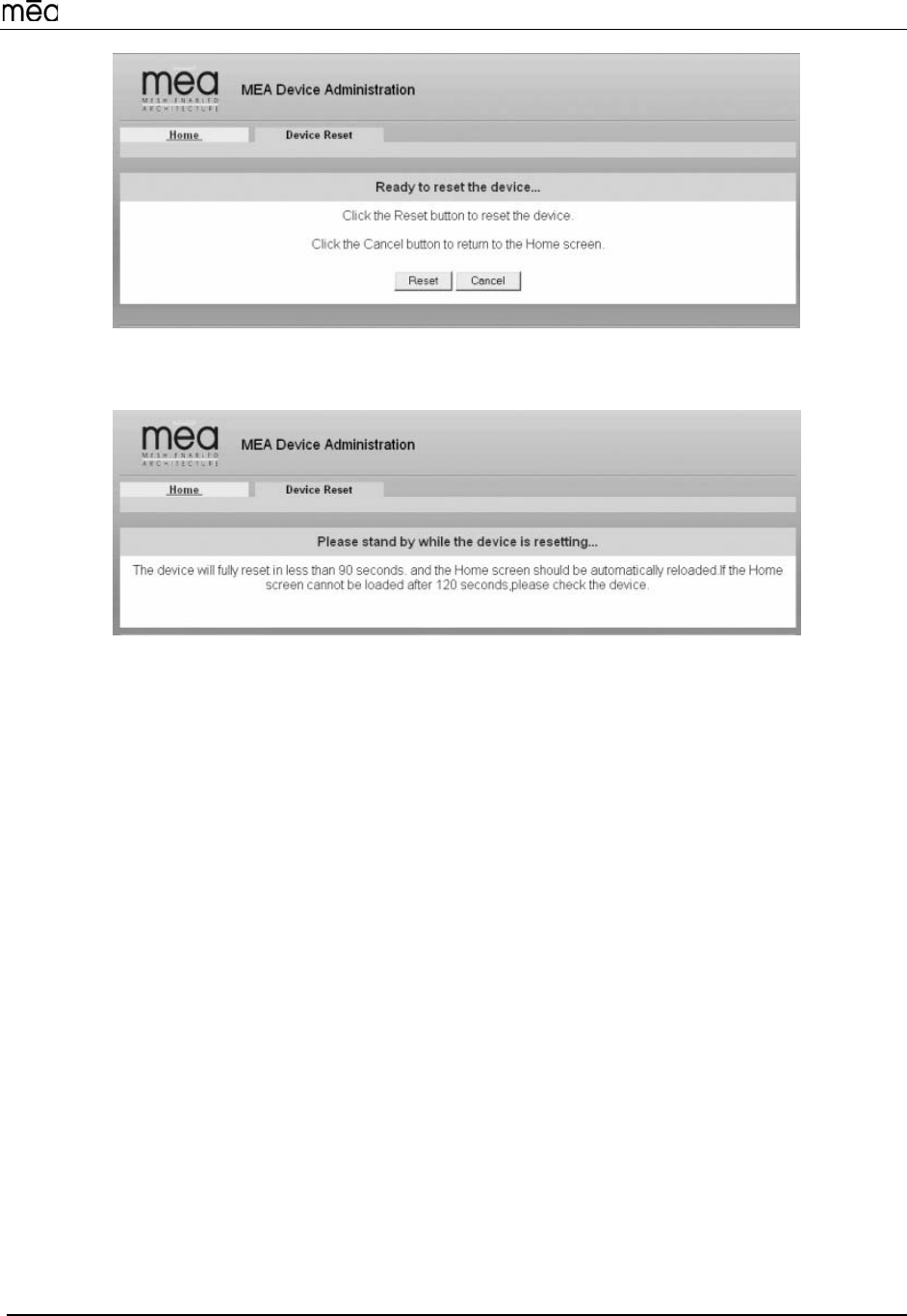

Figure 24. MEA Device Administration Device Reset Window

Figure 25. MEA Device Administration Device Reset Window (2)

System Settings Tab

The System Settings Tab is shown in Figure 26

MeshNetworks

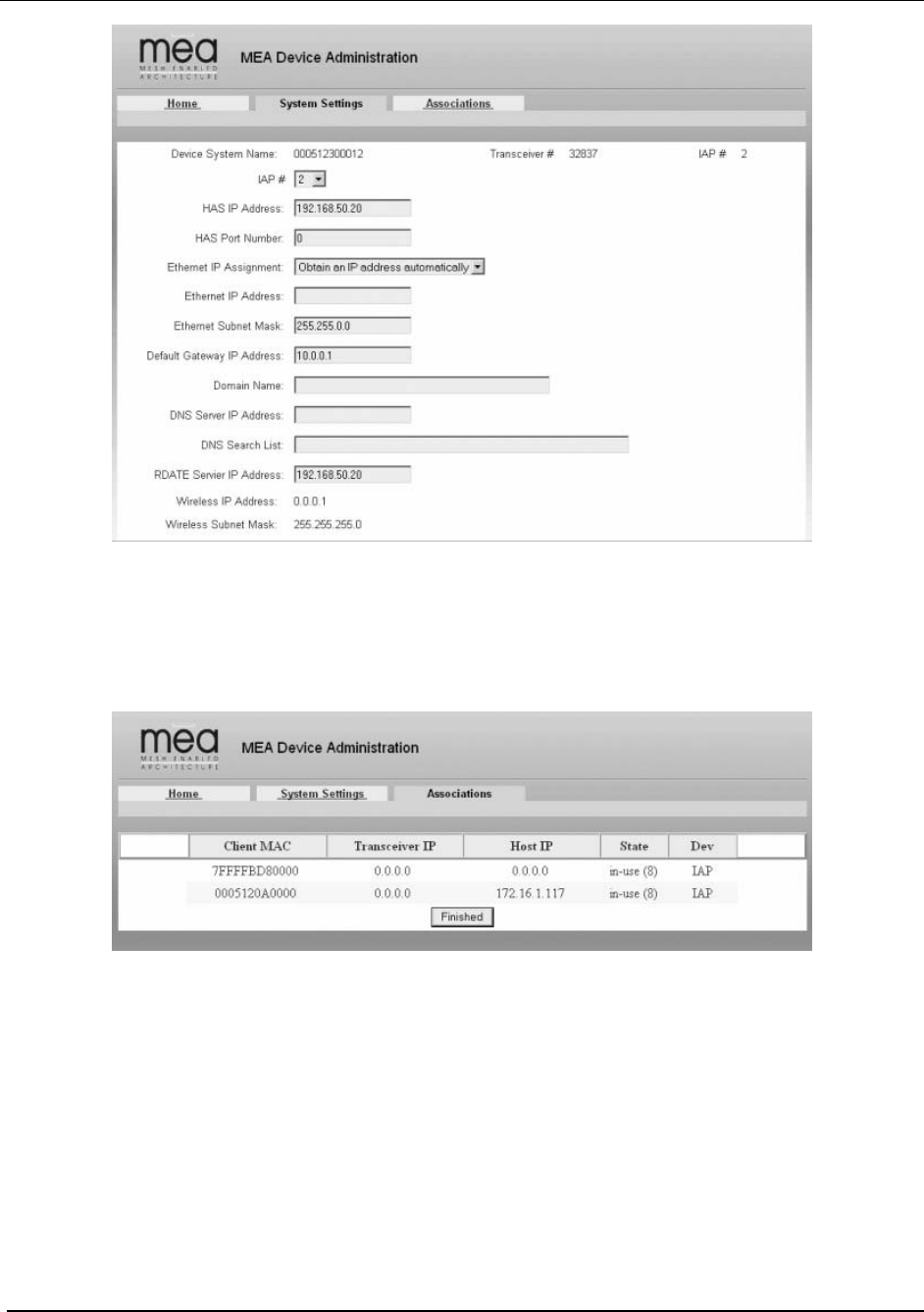

Figure 26. MEA Device Administration System Settings Tab

Associations Tab

The Associations Tab is an information only window as is shown in Figure 27

Figure 27. MEA Device Administration Associations Tab

This window displays all devices currently associated with an IAP. There will always be at least

2 entries: one for the IAP’s SBC and one for the IAP’s transceiver.

Testing

Basic MiSC Tests

To verify the basic connectivity of the MiSC, conduct the following from the MeshManager

server using the Device Manager application:

Setup and Deployment

• Ping an IAP

• Ping the NAT Router

• Ping the Edge Router

Wireless System Tests

From Device Manager, complete the following to verify correct operation of the system:

1. Ping the SBC of the deployed IAPs

• From the Device Manager drop down menu, select Preferences/Use SBC Address

• For each IAP in the device tree, right click and select Ping Device

2. Ping the transceiver of the deployed IAPs

• From the Device Manager drop down menu, select Preferences/Use Transceiver

Address

• For each IAP in the device tree, right click and select Ping Device

3. Ping the transceiver of the deployed WRs

• From the Device Manager drop down menu, select Preferences/Use Transceiver

Address

• For each WR in the device tree, right click and select Ping Device

4. Ping the transceiver of each Subscriber Devices

• From the Device Manager drop down menu, select Preferences/Use Transceiver

Address

• For each SD in the device tree, right click and select Ping Device

Internet Test

If the system has been configured to access the Internet, complete one of the two

following tests to verify correct network setup:

1. From a provisioned SD, start the web browser and enter a URL such as

http://www.MeshNetworks.com.

2. From a SD, open a DOS/cmd window and ping an URL, e.g., ping

www.meshnetworks.com.

Default Addresses and Logins

The following are the default values for the system components. These may be updated during

installation.

Device Description Default

Core Router login password g0ld1

Core Router enable password g0ld11

Core Router IP address on Sever 172.31.0.2

MeshNetworks

Device Description Default

Core Router Wireless subnet IP address for Core

Router 10.0.0.1

Edge Router login password g0ld1

Edge Router enable password g0ld11

Edge Router IP address on Server 172.31.0.1

Sun Blade root password g0ld11

Sun Blade node name MeshManager

Sun Blade IP address for next-level hierarchical DNS

server (none)

Sun Blade IP address if Mesh VPN support is

provided 172.31.0.20

Sun Blade Secondary IP address for IAP rdate server 192.168.50.20

Sun Blade Secondary IP address for IAP HAS server 192.168.50.20

Sun Blade Secondary IP address for IAP syslog

server 172.18.0.50

Sun Blade Server subnet DHCP range 172.31.1.1 to 172.31.1.254

Sun Blade Wireless subnet DHCP range 10.2.0.1 to 10.2.0.254

IAP Default Gateway 10.0.0.1

IAP IP address for rdate server 192.168.50.20

IAP IP address for HAS server 192.168.50.20

IAP IP address for syslog server 172.18.0.50

Subscriber

Device Default Gateway 10.0.0.1

Subscriber

Device DNS Server 192.168.50.20

Setup and Deployment

Section 4 - MAC Address Tables

IAP MAC Addresses

IAP MAC Address

00-05-12-0A-xx-yy

WR MAC Addresses

WR MAC Address

00-05-12-0A-xx-yy

MeshNetworks

WMC MAC Addresses

WMC MAC Address

00-05-12-0A-xx-yy

Setup and Deployment

Section 5 - Site Selection/Deployment Guidelines

General Site Selection Guidelines

The IAP location(s) should be selected first since they have the additional requirement of routing

information back to the MiSC. This may be done via an Ethernet cable if the IAP and MiSC are

located within 100 meters (the max length permitted for standard Ethernet) of each other. If the

distance is greater than 100 meters, a mechanism for extending the Ethernet connection will be

required, e.g., using fiber or T1. (MeshNetworks recommends T1 backhaul equipment from

Net-to-Net Technologies.)

Once the IAPs have been placed, then the location of the WRs can be determined. Optimally,

the devices should be distributed such that a SD has no more than 3 hops to an IAP.

AC power must be available for both IAPs and WRs.

Lastly, any local building/structure codes must be adhered to, as well as proper permits for

placing devices on structures that are not owned by the Network Operator (e.g., light poles).

MeshNetworks has developed the “Location Analyzer” tool to assist in the placement of

infrastructure. This tool runs on a Windows 2000 SD. The tool collects and analyzes data,

ultimately resulting in a deployment quality indication. Refer to the Location Analyzer

documentation for information on configuring and using this tool.

Antenna Guidelines

The location of fixed infrastructure antennas must address proper antenna orientation, selection

of elevation pattern for the specific locale, the avoidance of pattern distortion, and the impact of

obscuration and non-line-of-sight paths.

Polarization - Most of the antennas used in deployment will be vertically polarized. To maximize

line-of-sight signal reception, both the transmitting and receiving antennas should be vertically

oriented to avoid signal loss due to polarization mismatch. This applies to mobile and stationary

antennas. For example, placing a magnetically mounted vehicle antenna on a curved portion of

the vehicle roof so that its axis is not vertical risks a measure of signal loss at range, dependent

upon the specific elevation pattern details, as discussed above.

Local obstructions - Antennas should be mounted either above or below the plane of

obstructions as shown in Figure 28.

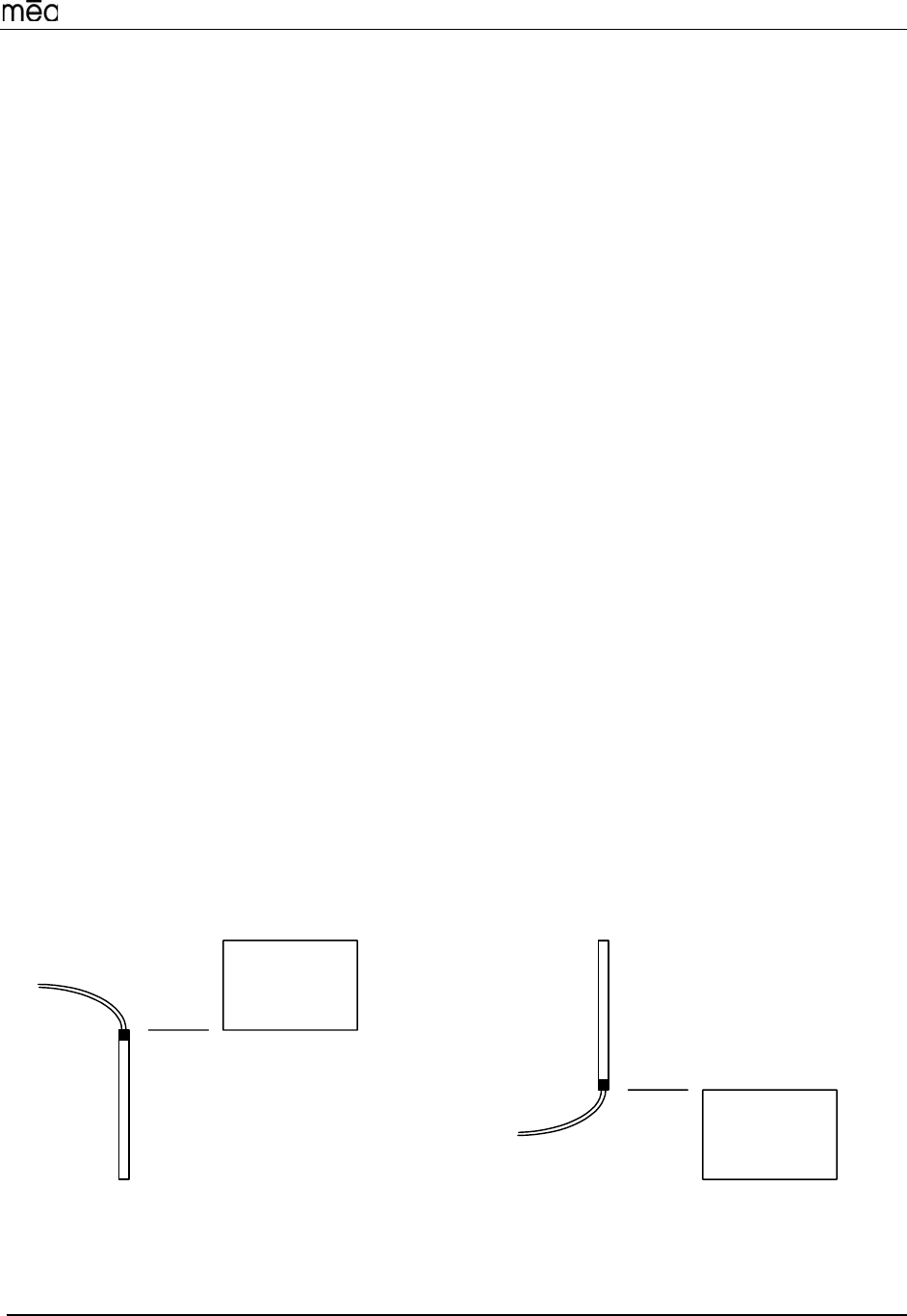

Figure 28. Antenna Mounting

Low gain “rubber duck” antennas that are mounted directly to Mesh transceivers are designed

Obstruction

Antenna

Obstruction

MeshNetworks

for transmitting and receiving vertically polarized radiation. Hence, care must be taken to insure

close-to-vertical orientation of these antennas to avoid substantial signal loss due to polarization

mismatch. Additionally, attenuation sustained by use of these antennas inside vehicles can be

as high as 10 dB. Typically, losses are in the 4 to 7 dB range if the antenna is above the “metal

can” of the vehicle so that radiation and reception occur at window level.

Lab Checkout

Prior to deploying any equipment in the field, it is recommended to test the equipment in a lab

environment to ensure the equipment is functioning.

Step 1 - Verify MiSC

Set up the MiSC as discussed in the MiSC Assembly section. Attach a Windows computer to

the SMC switch. Verify that the following can be pinged: edge router, core router,

MeshManager. Refer to the Default Addresses and Logins section for the addresses.

Step 2 – Verify IAPs.

Using an Ethernet cable, attach the IAPs, one at a time, to the SMC switch. Using either the

MAC or ETH address on the IAP box for reference, use MeshManager to verify that the IAP

can be reached, and that it is obtaining an address from the DHCP server. Next, start an SD in

infrastructure mode, and ensure that it also receives an IP address from the DHCP server.

This verifies that both the SBC and the transceiver in the IAP are functioning.

Step 3 – Verify WRs

Connect an IAP as described in Step 2. Power up the WRs one at a time. Using the MAC

address on the WR box for reference, verify that the MeshManager console can reach each

WR, and that an appropriate IP address is displayed.

Step 4 – Verify PCMCIA cards

Connect an IAP as described in Step 2, Load a host computer with the WMC6300 drivers as

described in section ??. Insert a WMC6300 card into the host device. Start MeshTray. Verify

that the status tab displays a valid IP address. Eject the WMC6300 card utilizing the “Unplug

or Eject Hardware” icon. Insert another WMC6300 card and repeat the MeshTray test.

General Deployment Guidelines

It is recommended that field deployment follow the same steps as

described in General Site Selection Guidelines

The IAP location(s) should be selected first since they have the additional requirement of routing

information back to the MiSC. This may be done via an Ethernet cable if the IAP and MiSC are

located within 100 meters (the max length permitted for standard Ethernet) of each other. If the

distance is greater than 100 meters, a mechanism for extending the Ethernet connection will be

required, e.g., using fiber or T1. (MeshNetworks recommends T1 backhaul equipment from

Net-to-Net Technologies.)

Once the IAPs have been placed, then the location of the WRs can be determined. Optimally,

the devices should be distributed such that a SD has no more than 3 hops to an IAP.

AC power must be available for both IAPs and WRs.

Lastly, any local building/structure codes must be adhered to, as well as proper permits for

placing devices on structures that are not owned by the Network Operator (e.g., light poles).

Setup and Deployment

MeshNetworks has developed the “Location Analyzer” tool to assist in the placement of

infrastructure. This tool runs on a Windows 2000 SD. The tool collects and analyzes data,

ultimately resulting in a deployment quality indication. Refer to the Location Analyzer

documentation for information on configuring and using this tool.

Antenna Guidelines

The location of fixed infrastructure antennas must address proper antenna orientation, selection

of elevation pattern for the specific locale, the avoidance of pattern distortion, and the impact of

obscuration and non-line-of-sight paths.

Polarization - Most of the antennas used in deployment will be vertically polarized. To maximize

line-of-sight signal reception, both the transmitting and receiving antennas should be vertically

oriented to avoid signal loss due to polarization mismatch. This applies to mobile and stationary

antennas. For example, placing a magnetically mounted vehicle antenna on a curved portion of

the vehicle roof so that its axis is not vertical risks a measure of signal loss at range, dependent

upon the specific elevation pattern details, as discussed above.

Local obstructions - Antennas should be mounted either above or below the plane of

obstructions as shown in Figure 28.

Figure 28. Antenna Mounting

Low gain “rubber duck” antennas that are mounted directly to Mesh transceivers are designed

for transmitting and receiving vertically polarized radiation. Hence, care must be taken to insure

close-to-vertical orientation of these antennas to avoid substantial signal loss due to polarization

mismatch. Additionally, attenuation sustained by use of these antennas inside vehicles can be

as high as 10 dB. Typically, losses are in the 4 to 7 dB range if the antenna is above the “metal

can” of the vehicle so that radiation and reception occur at window level.

Lab Checkout. IAPs should be deployed first and verified as functional. Next the WRs should

be deployed in a “near to far” pattern; in other words, WRs that are 1 hop from an IAP should

be deployed first, followed by WRs that are 2 hops from an IAP, etc. This allows the

functionality of each WR to be determined at the time of installation, thus eliminating any extra

truck rolls to trouble-shoot a WR.

MeshNetworks

Section 6 - Customer Service Information

For information about solving difficulties in deploying your System, please see the

Frequently Asked Questions in the support page at http://www.meshnetworks.com/.

If you have read this document, reviewed the FAQ, and made every effort to resolve installation

or operation issues yourself and still require help, please contact MeshNetworks Customer

Support using the following contact information:

MeshNetworks, Inc.

Attention: Customer Support

PO Box 948133

Maitland, Florida 32794-8133

Hours of Operation

Monday through Friday 8:00 AM – 5:00 PM (Eastern Standard Time)

Technical Support: (800) 311 – 3365 (USA)

(407) 659 – 5300

e-mail measupport@meshnetworks.com

Setup and Deployment

Section 7 - WMC Installation Debug Procedures

Due to the multi-function driver which is installed as part of the WMC6300 software, there are

occasionally some problems encountered during the installation. The following is a set of

procedures for correcting problem installations.

MeshNetworks

Setup and Deployment

Section 8 - License and Warranty Information

MeshNetworks, Inc.

End User License Agreement

IMPORTANT NOTICE TO END USERS: This End User License Agreement (this

“Agreement”) is a legal agreement between the licensee of the Licensed Software being made

available for use with the MeshNetworks Equipment (either an individual person or a single

legal entity, who will be referred to in this Agreement as “You”) and MeshNetworks. Inc.

1 DEFINITIONS. In this Agreement, “Licensed Software” means the computer programs, in

machine-readable, interpreted, compiled or other form, furnished to You for use with the

MeshNetworks Equipment, whether owned or licensed by MeshNetworks, and including without

limitation, (i) computer programs residing on any medium and all materials or contained in any

download supplied by MeshNetworks in connection with the Licensed Software, (ii) related user

manuals and explanatory written materials or files (“Documentation”); and (b) upgrades,

modified versions, updates, additions, and copies of the Licensed Software, if any, provided to

You by MeshNetworks, either directly or indirectly (collectively, “Updates”). The “MeshNetworks

Equipment” means the equipment on which the Licensed Software is intended to operate.

“Source” means the party from whom you purchased the MeshNetworks Equipment and

obtained the Licensed Software. “MeshNetworks” means MeshNetworks, Inc., 485 N. Keller

Road, Suite 250, Maitland, FL 32751. “Support Services” has the meaning set forth in Section 7.

2 LICENSE. As long as You comply with the terms of this Agreement, MeshNetworks grants

You a personal, non-exclusive, non-transferable (except as provided in Section 11) license to

use the Licensed Software (in object code form only) for Your own use in the operation on the

MeshNetworks Equipment. The license granted hereunder is perpetual.

3 SOFTWARE TITLE. MeshNetworks is not selling You the Licensed Software. Title to the

Licensed Software, including all translations, compilations, derivative works and copies remain

with MeshNetworks or its licensors, as the case may be.

4 INTELLECTUAL PROPERTY AND CONFIDENTIALITY. You acknowledge that the

Licensed Software and Documentation contain copyrighted material, trade secrets and other

material that is proprietary to MeshNetworks, and that except as expressly provided in this

Agreement, MeshNetworks retains all rights, title and interests in and to the Licensed Software

and all proprietary rights in it. You further acknowledge that unauthorized use of such material

may cause serious and irreparable loss or damage to MeshNetworks and its licensors, and

therefore you agree that in the event of a breach of this Agreement MeshNetworks will be

entitled to injunctive relief to restrain such breach, in addition to monetary damages and its

reasonable attorneys’ fees, charges and costs in enforcing the Agreement. You will keep the

Licensed Software, any backup copy of the Licensed Software and the Documentation strictly

confidential and will not disclose or provide them (or any information relating to them) to any

other person or entity. You will also take all reasonable steps to safeguard the Licensed

Software to ensure that unauthorized personnel do not have access to the Licensed Software,

and You will notify MeshNetworks of any unauthorized use of the Licensed Software. Except as

expressly stated herein, this Agreement does not grant You any intellectual property rights in

the Licensed Software and all rights not expressly granted herein are reserved by

MeshNetworks.

MeshNetworks

5 RESTRICTIONS. You will not:

5.1 Use the Licensed Software in conjunction with any other equipment or for any purpose

other than for the operation and monitoring of the MeshNetworks Equipment and for your

internal business purposes in accordance with the operating instructions MeshNetworks

or the Source may provide to you from time to time;

5.2 Decompile, reverse engineer, disassemble, translate or reduce the Licensed Software to a

human-perceivable form;

5.3 Modify, adapt, or translate or create derivative works based upon the Licensed Software

in whole or in part;

5.4 Lease, rent, sublicense, share, lend, distribute, disclose, network, or pledge the Licensed

Software to or for the benefit of any third party;

5.5 Use the Licensed Software in a client-server environment, electronically transmit the

Licensed Software from one computer to another or over a network or otherwise allow a

third party to remotely access or use the Licensed Software;

5.6 Transfer any of your rights in the Licensed Software or the Documentation to another

party;

5.7 Use the Licensed Software for any unlawful or harmful purpose;

5.8 Make copies of the Licensed Software, other than a reasonable number of copies of the

Licensed Software for back-up or archival purposes and such other copies as are

necessary for You to use the Licensed Software as described in the Documentation;

5.9 Remove or alter any trademark, copyright, confidentiality or other proprietary right notice

in the Licensed Software or Documentation or any copy made by You; or

5.10 Circumvent any access control mechanism that effectively controls access to the Licensed

Software for any purpose.

6 LIMITED WARRANTY.

6.1 Software Warranty. MeshNetworks warrants that the Licensed Software will operate

substantially in compliance with the Documentation for a period of ninety (90) days after

delivery to You. Any supplements or Updates to the Licensed Software provided to You

after the expiration of ninety (90) days limited warranty period are not covered by any

warranty or condition, express or implied. In the event of a breach of the foregoing

warranty, You must notify the Source within such 90-day period. In the event that you

notify the Source of a breach of the foregoing warranty within such 90-day period, the

Source will, at the Source’s option, either (i) use commercially reasonable efforts to

correct any substantial non-conformity, (ii) replace the non-conforming item of Licensed

Software, or (iii) return the fee paid by You for such item of Licensed Software. The

foregoing will be entire liability of MeshNetworks and the Source and your sole and

exclusive remedy for a breach under the foregoing limited warranty. Neither the Source,

nor MeshNetworks will have no liability under this warranty to the extent that (a) the

Licensed Software has been misused or exposed to environmental or operating conditions

beyond those specified by MeshNetworks, (b) the Licensed Software has been damaged,

altered by accident, neglect, misuse or other abuse, (c) the claimed defect has been

caused, in whole or in part, by a person or persons other than MeshNetworks, by other

products or software not provided by MeshNetworks, or by circumstances not under

MeshNetworks' control, or (d) You fail to incorporate all error fix releases that

MeshNetworks or the Source has provided. In the event the Source fails to perform its

Setup and Deployment

responsibilities as described in this Section 6.1 within a reasonable period of time,

MeshNetworks or one of its independent contractors will perform such obligations. The

warranty period, but not the scope of obligations described above, may be extended by a

written agreement between You and the Source.

6.2 DISCLAIMER OF PERFORMANCE WARRANTIES. EXCEPT AS SET FORTH IN

SECTION 6.1 ABOVE, THE LICENSED SOFTWARE IS LICENSED TO YOU “AS IS.”

MESHNETWORKS DOES NOT REPRESENT OR WARRANT, AND EXPRESSLY

DISCLAIMS ANY REPRESENTATION OR WARRANTY, THAT:

6.2.a THE OPERATION OF THE LICENSED SOFTWARE WILL BE UNINTERRUPTED OR

ERROR FREE; AND

6.2.b THE FUNCTIONS OR FEATURES OF THE LICENSED SOFTWARE WILL MEET

YOUR REQUIREMENTS, OR THAT THE LICENSED SOFTWARE WILL OPERATE IN

THE HARDWARE AND SOFTWARE COMBINATIONS SELECTED BY YOU. YOU

ASSUME ALL RESPONSIBILITY FOR THE SELECTION OF PRODUCTS AND THE

LICENSED SOFTWARE TO ACHIEVE YOUR INTENDED RESULTS, AND FOR YOUR

USE OF AND RESULTS OBTAINED FROM THE LICENSED SOFTWARE.

6.3 DISCLAIMER OF IMPLIED WARRANTIES. EXCEPT AS SET FORTH IN SECTION 6.1

ABOVE, THE LICENSED SOFTWARE IS LICENSED TO YOU “AS IS.”

MESHNETWORKS EXPRESSLY DISCLAIMS, TO THE MAXIMUM EXTENT

PERMITTED BY APPLICABLE LAW, ANY AND ALL REPRESENTATIONS AND

WARRANTIES, EXPRESS, IMPLIED, OR STATUTORY, INCLUDING

REPRESENTATIONS OR WARRANTIES OF NON-INFRINGEMENT OF ANY THIRD

PARTY INTELLECTUAL PROPERTY RIGHTS, OWNERSHIP, MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT, SYSTEM

INTEGRATION, AND DATA ACCURACY. MESHNETWORKS’ EXPRESS WARRANTY

WILL NOT BE ENLARGED, DIMINISHED OR AFFECTED BY, AND NO OBLIGATION

OR LIABILITY WILL ARISE OUT OF, THE RENDERING OF TECHNICAL OR OTHER

ADVICE OR SERVICE BY MESHNETWORKS OR THE SOURCE IN CONNECTION

WITH THE LICENSED SOFTWARE.

6.4 NO CONSEQUENTIAL DAMAGES. UNDER NO CIRCUMSTANCES WILL EITHER

PARTY BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES ARISING IN ANY WAY OUT OF THIS AGREEMENT OR THE USE OF THE

LICENSED SOFTWARE AND DOCUMENTATION HOWEVER CAUSED (WHETHER

ARISING UNDER A THEORY OF CONTRACT, TORT (INCLUDING NEGLIGENCE), OR

OTHERWISE), INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOST PROFITS,

LOSS OF DATA, OR COSTS OF PROCUREMENT OF SUBSTITUTE GOODS OR

SERVICES. THE LIMITATIONS ON LIABILITY SET FORTH IN THIS SECTION WILL

APPLY NOTWITHSTANDING THE FAILURE OF ESSENTIAL PURPOSE OF ANY OF

THE LIMITED REMEDIES SET FORTH IN SECTION 6.1 ABOVE.

6.5 LIMITATION OF LIABILITY. THE TOTAL LIABILITY OF MESHNETWORKS, THE

SOURCE AND MESHNETWORKS’ LICENSORS ARISING OUT OF OR RELATING TO

THIS AGREEMENT WILL NOT EXCEED THE LICENSE FEES AND PURCHASE PRICE

RECEIVED BY THE SOURCE FROM YOU IN THE TWELVE (12) MONTHS PRIOR TO

THE EVENT GIVING RISE TO THE LIABILITY.

7 SUPPORT SERVICES. The Source may provide You with support services related to the

Licensed Software (“Support Services”). Use of Support Services is governed by the Source’s

policies and programs or in other materials from the Source. Any Updates or other

MeshNetworks

supplemental software code provided to You as part of the Support Services are considered

part of the Licensed Software and subject to the terms and conditions of this Agreement. You

acknowledge and agree that MeshNetworks and its licensors, contractors, resellers and

distributors may use technical information You provide to them as part of the Support Services

for its business purposes, including for product support and development.

8 INDEMNIFICATION. MeshNetworks will defend, indemnify and hold You harmless from any

liability arising from any third party claim or proceeding against You to the extent that such claim

or proceeding is based on an assertion that the Licensed Software infringes any issued United

States patent or any trade secret or copyright of any third party; provided, however, that You

notify MeshNetworks promptly in writing of any such claim or proceeding and give

MeshNetworks full and complete authority, information and assistance to defend such claim or

proceeding at the expense of MeshNetworks; and further provided that You give MeshNetworks

sole control of the selection of counsel and the defense of any such claim or proceeding and all

negotiations for its compromise or settlement. Should the Licensed Software become, or in

MeshNetworks’ opinion be likely to become, the subject of a claim of infringement,

MeshNetworks will have the right, at MeshNetworks’ option and expense, (i) to procure for You

the right to continue using the Licensed Software, or (ii) to replace or modify the Licensed

Software with a non-infringing version of substantially equivalent function and performance.

9 LIMITATION. MeshNetworks will have no liability to You hereunder for any infringement

based upon (i) the combination of the Licensed Software with other products not provided by

MeshNetworks; (ii) the use of other than a current, unaltered version of the Licensed Software;

(iii) the use of any derivative works, modification or improvement of the Licensed Software not

created by MeshNetworks; (iv) any use of the Licensed Software in the practice of a process not

specified by MeshNetworks. Section 8 and 9 state the sole, exclusive and entire liability of

MeshNetworks, and the sole, exclusive and entire remedy with respect to any claim of

intellectual property infringement by the Licensed Software.

10 TERMINATION. If You breach any provision of this Agreement, then MeshNetworks may, in

addition to any other remedies it may have under law, terminate any license granted hereunder

effective immediately without liability after ten (10) days written notice to You, and You will

promptly cease all use of the Licensed Software and will return to MeshNetworks all copies of

the Licensed Software. In such event, at the request of MeshNetworks you will certify in writing

that the original and all copies of the Licensed Software has been destroyed or returned to

MeshNetworks.

11 ASSIGNMENT AND MESHNETWORKS EQUIPMENT TRANSFER. You may not

sublicense or assign this Agreement or any interest or right granted herein without

MeshNetworks’ prior written consent. The Licensed Software is designed and configured for the

sole purpose of operating with the MeshNetworks Equipment, and accordingly this Agreement

will be automatically assigned on the sale or transfer of the MeshNetworks Equipment with

which the Licensed Software operates to the person or entity who takes title to such

MeshNetworks Equipment; provided, however, that such assignee or transferee abides by the

obligations and restrictions set forth in this Agreement.

12 GOVERNMENT LICENSEE. The MeshNetworks Equipment and Licensed Software and

accompanying documentation were developed at private expense and no part of them is in the

public domain. The Licensed Software is “Restricted Computer Software” and “Commercial

Computer Software” and if You are acquiring the Licensed Software for the United States

Government, then it is acquiring only “restricted rights” in the Licensed Software and its

Documentation, all as defined in the applicable provisions of the Department of Defense Federal

Acquisition Regulation Supplement and the Federal Acquisition Regulations. Such unit will

Setup and Deployment

include a “restricted rights legend” on the MeshNetworks Equipment and Licensed Software as

may be necessary to insure the limitation of rights acquired by the government.

Notwithstanding the foregoing, this Agreement will not become effective with respect to the

United States Government without MeshNetworks’ prior written approval.

13 EXPORT CONTROLS. This Agreement is subject to the laws, regulations, orders, and

decrees of the United States that may be imposed from time to time restricting the import/export

of the Products to/from the United States. You will not export or re-export the Licensed

Software, or any part of the Licensed Software, directly or indirectly, prohibited by or in violation

of the laws, rules or regulations of the United States or any applicable jurisdiction. Nor will You

export or re-export the Licensed Software, or any part of the Licensed Software, directly or

indirectly without first obtaining the required permission to do so from the applicable

governmental agencies.

14 COMPLIANCE WITH LICENSES. You agree that upon request from MeshNetwork or the

Source, You will within fifteen (15) days fully document and certify in writing that use of any and

all Licensed Software at the time of the request is in conformity with this Agreement or some

other valid license from MeshNetworks.

15 MISCELLANEOUS. This Agreement is governed by the laws of the state of Florida, United

States of America. The state or federal courts located in or having jurisdiction over Orlando,

Florida, United States of America will have exclusive jurisdiction over all maters pertaining to

this Agreement. If any term or condition of this Agreement is or will become invalid or

unenforceable, then such part will be ineffective to the extent of such invalidity only, without

affecting this Agreement’s remaining provisions. Those rights and obligation, which by their

nature are intended to survive the expiration or termination of this Agreement, will survive. The

remedies at law of either party in the event of default or impending default by the other party in

the performance of any terms of this Agreement will not be adequate, and such terms may be

specifically enforced by a decree for specific performance, injunction or other appropriate

equitable relief. The failure of MeshNetworks to enforce at any time any provision of this

Agreement will in no way be construed to be a present or future waiver of such provision, nor

will it affect MeshNetworks ability to enforce any provisions of this Agreement. This Agreement

is the entire agreement between the parties with respect to the subject matter set forth herein

and supersedes all prior oral written agreements between the parties with respect thereto and

may only be amended in writing by the parties.

MeshNetworks

Section 9 - FCC Regulatory Information

FCC Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept

any interference received; including interference that may cause undesired operation.

The IAP6300 (Intelligent Access Point) is an infrastructure device that is positioned at a fixed

location such as a building rooftop. The IAP6300 requires professional installation to ensure

that the installation is performed in accordance with FCC licensing regulations.

The MWR6300 (Wireless Router) is an infrastructure device positioned in a fixed location, such

as on a pole, wall, or rooftop. The MWR6300 requires professional installation to ensure the

installation is performed in accordance with FCC licensing regulations.

Federal Communications Commission (FCC) Statement:

This Equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference in a commercial installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by MeshNetworks could void the user’s

authority to operate the equipment.

FCC RF Radiation Exposure Statement

1. CAUTION: This equipment complies with FCC RF radiation exposure limits set forth for

an uncontrolled environment. This equipment should be installed and operated with a

minimum distance of 2 meters between the antenna and your body.

2. This Transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

Setup and Deployment

MeshNetworks

Safety Information for the Products

The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has adopted

a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted

by FCC certified equipment. MeshNetworks’ products meet the uncontrolled

environmental limits found in OET-65 and ANSI C95.1, 1991. Proper operation of this radio

according to the instructions found in this manual and the hardware and software guides on the

CD will result in user exposure that is substantially below the FCC recommended limits.

• Do not touch or move the antenna(s) while the unit is transmitting or receiving.

• Do not hold any component containing a radio such that the antenna is very close to or

touching any exposed parts of the body, especially the face or eyes, while transmitting.

• Do not operate a portable transmitter near unshielded blasting caps or in an explosive

environment unless it is a type especially qualified for such use.

• Do not operate the radio or attempt to transmit data unless the antenna is connected;

otherwise, the radio may be damaged.

• Antenna use:

• In order to comply with FCC RF exposure limits, dipole antennas should be located

at a minimum distance of 2 meters or more from the body of all persons.

Section 10 - Safety Certification

XXXXXX (6 digit control # assigned by Follow Up Services, upon completion of the

listing report)

Conforms to UL STD ANSI/UL 60950 3rd Edition

Certified to CAN/CSA C22.2 NO. 60950-00

Equipment shall be suitable for use in Air pressure: 86kPa to106kPa.

Zebra Technologies IAPWR63000303 Wireless Router and Intelligent Access Point User Manual users manual

Zebra Technologies Corporation Wireless Router and Intelligent Access Point users manual

users manual

Navigation menu

Namespaces

Views

Navigation
