Zebra Technologies LI4278 Linear Imager with Bluetooth User Manual 15489601a Back 090511 DRAFT

Zebra Technologies Corporation Linear Imager with Bluetooth 15489601a Back 090511 DRAFT

User Manual

http://www.motorola.com/li4278

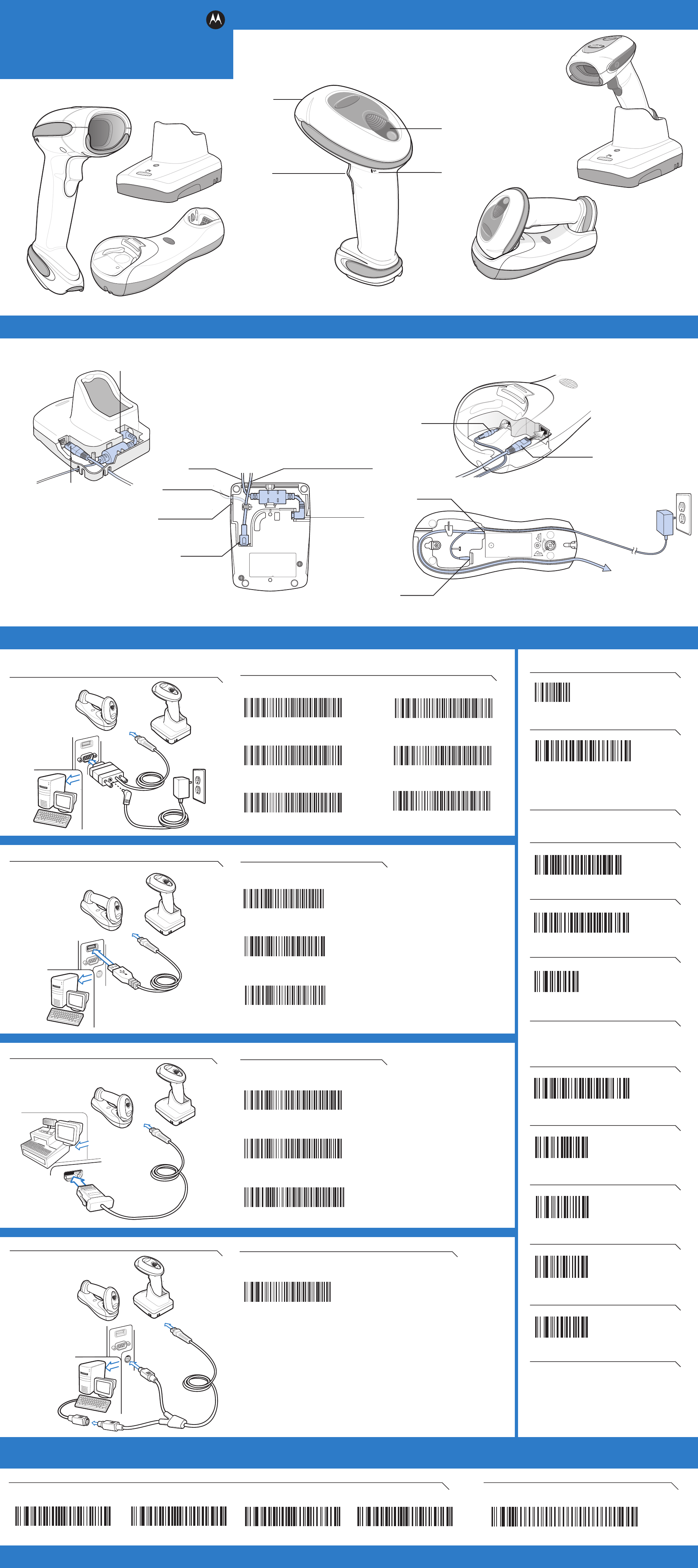

QUICK START GUIDE
LI4278 LINEAR IMAGER
LI4278 PosterLI4278 Poster
BLACK
PANTONE 285
Perforation
1
2
3
4
OR
OR
OR
OR
Refer to the LI4278 Product Reference Guide, or the cradle
Quick Reference Guides for detailed information about cradle setup.
When charging, use the cradle power supply for faster charge time.
Important: Charge the linear imager scanner for 24 hours before the first full day of use.
Scan a bar code below to choose how the scanner connects to a remote device. Scan CRADLE HOST if connecting to the CR0078 cradle.
Refer to the Product Reference Guide for detailed information.
CRADLE HOST SERIAL PORT PROFILE (MASTER)SERIAL PORT PROFILE (SLAVE)
HID PROFILE (SLAVE)
Radio Communications Host Types
UNPAIR/DISCONNECT
Unpairing/Disconnection
SET DEFAULTS
BATTERY OFF
STEP 4 - SCAN RADIO COMMUNICATIONS HOST TYPES
HELPFUL BAR CODES
RETURN TO FACTORY DEFAULTS
BATTERY OFF FOR LONG TERM STORAGE/SHIPPING
ADD AN ENTER KEY
To add an Enter key after scanned data, scan all THREE
<DATA><SUFFIX 1>
SCAN OPTIONS
ENTER
1
2
3
ADD A TAB KEY
SCAN SUFFIX
7
0
0
9
1
2
3
4
5
To add a Tab key after scanned data, scan all THREE
123Scan2 is an easy-to-use , PC-based
software tool that enables rapid and
easy customized setup via a bar code or
USB cable. For more information, visit:
http://www.motorola.com/123Scan2.
123SCAN2
(Carriage Return/Line Feed)
bar codes in numerical order.
Enter key bar codes above in numerical order then
scan all FIVE bar codes below in numerical order.
POST IN WORK AREAPOST IN WORK AREA
STEP 2 - CONNECT HOST INTERFACE
STEP 1 - CRADLE CABLE CONNECTION
See Product Reference Guide
for detailed information
NOTE: Cables may vary depending on configuration
STEP 3 - SET UP INTERFACE (Scan Host Bar Codes)
Cradles
1 Scan Window
2 Scan Trigger
3 LED
4 Beeper
RS-232
USB
Keyboard Wedge
IBM 46XX
RS-232
Scan ONE of the bar codes below
USB
Scan ONE of the bar codes below
Keyboard Wedge
Scan bar code below
IBM 46XX
Scan ONE of the bar codes below
HID KEYBOARD EMULATION
IBM HAND-HELD USB
SNAPI WITHOUT IMAGING
(For use with hands-free base only)
ICL RS-232
NIXDORF RS-232 MODE A
NIXDORF RS-232 MODE B
FUJITSU RS-232
OPOS/JPOS
STANDARD RS-232
PORT 5B
PORT 9B
IBM PC/AT and IBM PC COMPATIBLE
PORT 17
Connect to
Appropriate Host
Power
Host
Host
(if required)
Power
Alternate
Host Groove
Alternate
Power Groove
Host Port
Host Port
Power
Power Port
Power Port
Connect to
appropriate host
Power supply
optional
Power
PRELIMINARY DRAFT
LI4278 PosterLI4278 Poster
BLACK
PANTONE 285
Perforation
http://www.motorola.com/ds6878
LI4278 LINEAR IMAGER
LI4278 LINEAR IMAGER
Motorola Solutions, Inc.
One Motorola Plaza Holtsville, New York 11742-1300, USA
72-154896-01 Revision A October 2011
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are
trademarks or registered trademarks of Motorola Trademark Holdings, LLC
and are used under license. All other trademarks are the property of their
respective owners.
© 2011 Motorola Solutions, Inc. All rights reserved.
012345 012345

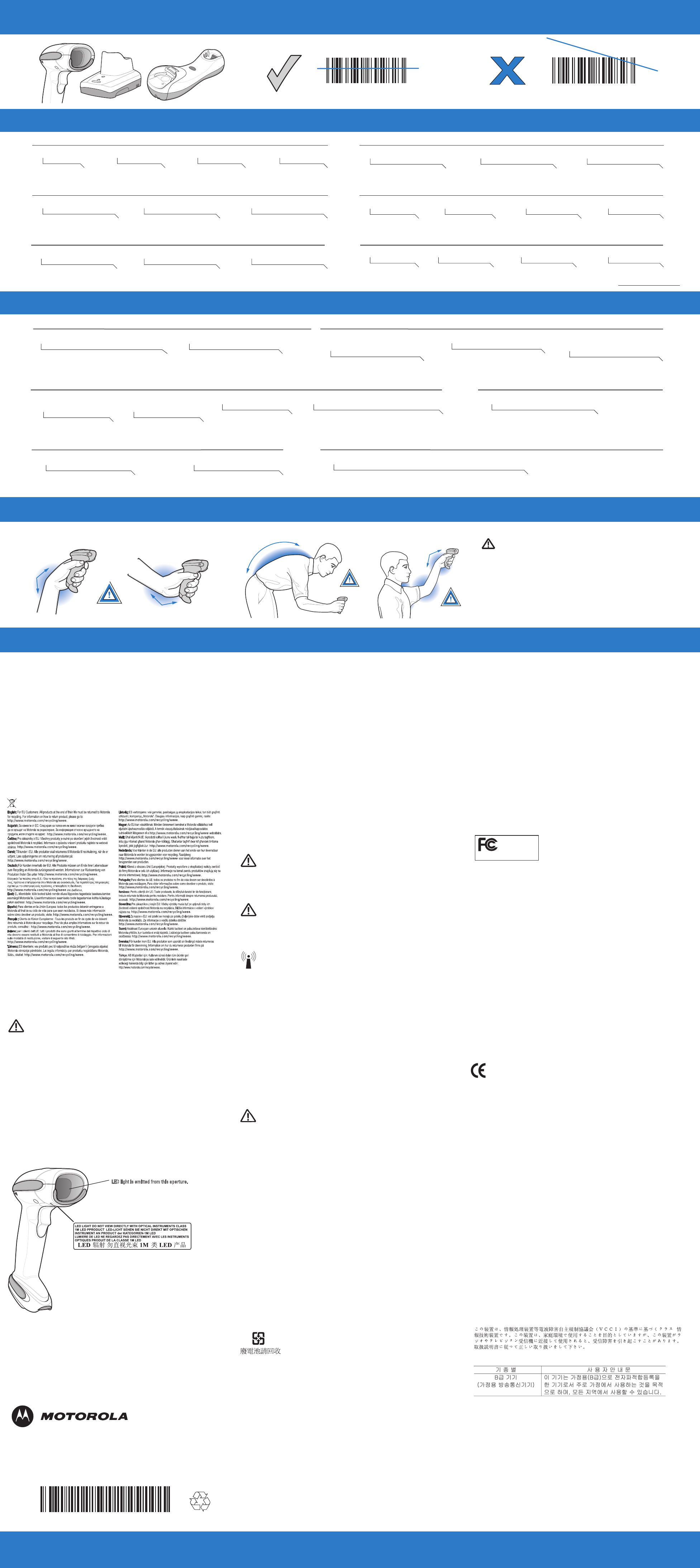

TROUBLESHOOTING
Low/medium/high beep
Power up
Short medium beep
Bar code decoded
4 long low beeps
Transmission error detected;
data is ignored
4 short beeps
Low battery
Standard Use Hand-Held Scanning
High/low beep
Correct programming
sequence performed
Low/high beep
Incorrect programming sequence
or “Cancel” bar code scanned
High/low/high/low beep
Successful
parameter setting
Parameter Menu Scanning
BEEPER INDICATIONS LED INDICATIONS
Off
Scanner is on and ready to scan,
or no power to scanner
Green
Bar code is successfully decoded
Red
Transmission error
Hands-Free (Presentation) Scanning
Off
No power to
scanner
Off Momentarily
Bar code is
successfully decoded
Green
Scanner is ready
to scan
Red
Transmission error
Local Contact:
SCANNING
High/low beep
Bluetooth
disconnection
Low/high beep
Bluetooth connection
established
High/low/high/low beep
Pairing bar code
scanned
Wireless Operation Charging
Off
No power to
scanner
Green - Fast Continuous
Scanner is charging
Green - Slow Continuous
Non-critical battery
temperature fault
Green - Solid
Scanner is fully charged
Aiming
No power to scanner
Check system power; battery may be discharged;
charge scanner in cradle; check battery door is closed;
ensure battery end cap is secured
Scanner is disabled
Ensure that correct host
interface cable is used
Scan appropriate host
parameter bar codes
Ensure all cable connections
are secure
Scanner not working
Bar code unreadable
Ensure bar code is not defaced;
try scanning test bar code of same
bar code type
Distance between scanner
and bar code incorrect
Move scanner closer to
or further from bar code
Scanner not programmed
for bar code type
Ensure scanner is programmed to read
type of bar code beingscanned
Scanner not decoding bar code
Scanner not programmed for
correct host interface
Interface cable is loose
Scanner decoding bar code, but data not transmitting to host
Scanner not programmed for correct host interface
Scan appropriate host parameter bar codes
Scanned data incorrectly displayed on host
Pair the scanner to
the cradle
Scanner not paired to
host-connected interface
In this order: disconnect power supply; disconnect
host cable; wait three seconds; reconnect host cable;
reconnect power supply; reestablish pairing
Cradle lost connection to host
Battery is above or below normal operating temperature
Do not use scanner; move scanner to location with normal operating temperature;
refer to the Product Reference Guide for more information
LED indicates battery temperature
Low battery start-up
Wait for red LED to turn green
indicating scanner is charging
Cradle communication error
Inspect contacts; remove and reinsert
scanner in cradle
LED indicates low battery start-up
AVOID EXTREME
WRIST ANGLES
AVOID BENDING
AVOID REACHING
RECOMMENDED USAGE GUIDE - OPTIMUM BODY POSTURE
REGULATORY INFORMATION
Health and Safety Recommendations
Avoid Extreme Wrist Angles Avoid ReachingAvoid Bending
POST IN
WORK AREA
Scanner Labeling
Tested to comply
with FCC Standards
FOR HOME OR OFFICE USE
B
Waste Electrical and Electronic Equipment (WEEE)
© 2011 MOTOROLA, Inc. All rights reserved.
Motorola reserves the right to make changes to any product to improve reliability, function, or design.
Motorola does not assume any product liability arising out of, or in connection with, the application or use of any
product, circuit, or application described herein. No license is granted, either expressly or by implication,
estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system,
apparatus, machine, material, method, or process in which Motorola products might be used. An implied license
exists only for equipment, circuits, and subsystems contained in Motorola products.
Warranty
For the complete Motorola hardware product warranty statement, go to:
http://www.motorola.com/enterprisemobility/warranty.
Service Information
If you have a problem using the equipment, contact your facility’s Technical or Systems Support. If there is a
problem with the equipment, they will contact the Motorola Solutions Support at:
http://supportcentral.motorola.com.
For the latest version of this guide go to: http://supportcentral.motorola.com.
Power Supply
Use only Motorola/Symbol approved power supply. The power supply shall be Listed to UL/CSA 60950-1 and
certified to IEC60950-1 and EN60950-1 with SELV outputs. Use of alternative power supply will invalidate any
approval given to this device and may be dangerous.
TURKISH WEEE Statement of Compliance
EEE Yönetmeliğine Uygundur
Korea Warning Statement for Class B ITE
Aim/Illumination
Optical Output: 0.87mW
Pulse Duration: Continuous
Emitted Wavelength: 590-650nm
Viewing the LED output with certain optical instruments (for example, eye loupes, magnifiers
and microscopes) may poseand eye hazard.
Caution: Use of controls or adjustments or performance of procedures other than those
specified herein may result inhazardous LED light exposure.
LED light is emitted from this aperture.
Japan (VCCI) - Voluntary Control Council for Interference
Class B ITE
Marking and European Economic Area (EEA)
Bluetooth® Wireless Technology for use through the EEA has the
following restrictions:
Maximum radiated transmit power of 100mW EIRP in the frequency range 2.400 -2.4835 GHz
France, outside usage is restricted to 10mW EIRP
Italy requires a user license for outside usage.
Radio Transmitters
This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause undesired
operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
Label Marking: The Term "IC:" before the radio certification only signifies that Industry Canada
technical specifications were met.
Radio Frequency Interference Requirements - Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
This device is approved under the Symbol Technologies, Inc. brand: Symbol Technologies, Inc. is a
wholly owned subsidiary of Motorola Solutions, Inc. (collectively “Motorola”). This guide applies to
Model Number: LI4278. All Motorola/Symbol devices are designed to be compliant with rules and
regulations in locations they are sold and will be labeled as required. Local language translations are
available at the following website:http://supportcentral.motorola.com.
Any changes or modifications to Motorola/Symbol Technologies equipment, not expressly approved by
Motorola/Symbol Technologies, could void the user’s authority to operate the equipment.
LED Devices
Complies with IEC/EN60825-1:2001 & EN 62471: 2006 and IEC62471: 2008
LED Output: this device contains two LEDs for illumination and aiming.
Bluetooth® Wireless Technology
This is an approved Bluetooth® product. For more information or to view End Product Listing, please visit
https://www.bluetooth.org/tpg/listings.cfm.
Wireless Device Country Approvals
Regulatory markings, subject to certification, are applied to the device signifying the radio(s) is/are approved
for use in the following countries: United States, Canada, Japan, China, S. Korea, Australia, and Europe 1,2.
Please refer to the Declaration of Conformity (DoC) for details of other country markings. This is available at
http://www.motorola.com/doc.
Note1: For 2.4GHz or 5GHz Products: Europe includes, Austria, Belgium, Bulgaria, Czech Republic, Cyprus,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.
Note 2: The use of RFID Devices have varying restrictions of use; please refer to the Motorola/Symbol
Declaration of Conformity (DoC) for details.
Operation of the device without regulatory approval is illegal.
Health and Safety Recommendation
Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic injury
follow the recommendations below. Consult with your local Health & Safety
Manager to ensure that you are adhering to your company's safety programs
to prevent employee injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Frequency of Operation – FCC and IC
2.4 GHz Only
The available channels for 802.11 b/g operation in the US are Channels 1 to 11. The range of channels
is limited by firmware.
Radio Frequency Interference Requirements -FCC
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
Consult the dealer or an experienced radio/TV technician for help.
Class 1M LED Safety
LED Devices
Complies with IEC/EN60825-1:2001 & EN 62471: 2006 and IEC62471: 2008.
LED Output – this device contains two LEDs for illumination and aiming.
Warnings for Use of Wireless Devices
Please observe all warning notices with regard to the usage of wireless devices.
Safety in Aircraft
Switch off your wireless device whenever you are instructed to do so by airport or airline staff. If your
device offers a ‘flight mode’
or similar feature, consult airline staff as to its use in flight.
Safety in Hospitals
Wireless devices transmit radio frequency energy and may affect medical electrical equipement.
Wireless devices should be switched off wherever you are requested to do so in hospitals, clinics or
healthcare facilitlies. These requests are designed to prevent possible interference with sensitive
medical equipement.
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained between
a handheld wireless device and a pacemaker to avoid potential interference with the pacemaker.
These recommendations are consistent with independent research and recommendations by
Wireless Technology Research.
Persons with Pacemakers:
• Should ALWAYS keep the device more than 15cm (6 inches) from their pacemaker when turned ON.
• Should not carry the device in a breast pocket.
• Should use the ear furthest from the pacemaker to minimise the potential for inter¬ference.
• If you have any reason to suspect that interference is taking place, turn OFF your device.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device, to determine if the operation
of your wirelessproduct may interfere with the medical device.
RF Exposure Guidelines
Safety Information
Reducing RF Exposure – Use Properly
Only operate the device in accordance with the instructions supplied.
International
The device complies with internationally recognized standards covering human exposure to electromagnetic
fields from radio devices. For information on “International” human exposure to electromagnic fields refer
to the Motorola/Symbol Declaration of Conformity (DoC) at http://www.motorola.com/doc.
Power Supply
Use only Motorola/Symbol approved power supply. The power supply shall be Listed to UL/CSA 60950-1
and certified to IEC60950-1 and EN60950-1 withSELV outputs. Use of an alternative power supply will
invalidate any approval given to this device and may be dangerous.
Batteries
Taiwan - Recycling
EPA (Environmental Protection Administration) requires dry battery producing or importing firms in
accordance with Article 15 of the Waste Disposal Act are required to indicate the recycling marks
on the batteries used in sales, giveaway or promotion. Contact a qualified Taiwanese recycler for proper
battery disposal.
Battery Information
Motorola/Symbol rechargeable battery packs are designed and constructed to the highest standards
within the industry. However, there are limitations to how long a battery can operate or be stored before
needing replacement. Many factors affect the actual life cycle of a battery pack, such as heat, cold, harsh
environmental conditions and severe drops. When batteries are stored over six (6) months, some
irreversible deterioration in overall battery quality may occur. Store batteries at half of full charge in a dry,
cool place, removed from the equipment to prevent loss of capacity,
rusting of metallic parts and electrolyte leakage. When storing batteries for one year or longer, the charge
level shouldbe verified at least once a year and charged to half of full charge. Replace the battery when
a significant loss of run time is detected.Standard warranty period for all Symbol batteries is 30 days,
regardless if the battery was purchased separately or included as part of the mobile computer or bar
code scanner. For more information on Symbol batteries, please visit:
http:/mysymbolcare.symbol.com/battery/batbasics1.html
Statement of Compliance
Motorola/Symbol hereby, declares that this device is in compliance with the essential requirements
and other relevant provisions of Directives 1999/5/EC, 2004/108/EC and 2006/95/EC.
Declaration of Conformities may be obtained from http://www.motorola.com/doc.
Battery Safety Guidelines
• The area in which the units are charged should be clear of debris and combustible materials or chemicals.
Particular care should be taken where the device is charged in a non commercial environment.
• Follow battery usage, storage, and charging guidelines found in the user's guide.
• Improper battery use may result in a fire, explosion, or other hazard.
• To charge the mobile device battery, the battery and charger temperatures must be between +32 ºF
and +104 ºF (0 ºC and +40 ºC)
• Do not use incompatible batteries and chargers. Use of an incompatible battery or charger may present
a risk of fire, explosion, leakage, or other hazard. If you have any questions about the compatibility of a
battery or a charger, contact Motorola Enterprise Mobility support.
• For devices that utilize a USB port as a charging source, the device shall only be connected to products
that bear the USB-IF logo or have completed the USB-IF compliance program.
• Do not disassemble or open, crush, bend or deform, puncture, or shred.
• Severe impact from dropping any battery-operated device on a hard surface could cause the battery
to overheat.
• Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to
water or other liquids, or expose to fire, explosion, or other hazard.
• Do not leave or store the equipment in or near areas that might get very hot, such as in a parked vehicle
or near a radiator or other heat source. Do not place battery into a microwave oven or dryer.
• Battery usage by children should be supervised.
• Please follow local regulations to promptly dispose of used re-chargeable batteries.
• Do not dispose of batteries in fire.
• Seek medical advice immediately if a battery has been swallowed.
Other Countries
Brazil
Declarações Regulamentares para LI4278
NOTA: A marca de certificação se aplica ao Equip. de Radiação Restrita, modelo Symbol DS3578.
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência
prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando
em caráter primário.” Para maiores consultas sobre ANATEL consulte o site: www.anatel.gov.br.
Mexico
Restrict Frequency Range to: 2.450 - 2.4835 GHz.
S. Korea
For a radio equipment using 2400~2483.5MHz or 5725~5825MHz, the following two expressions
should be displayed:
당해 무선설비는 운용 중 전파혼신 가능성이 있음
당해 무선설비 는전파혼 신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다.
Taiwan
臺灣
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機,非經許可,公司、
商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,
應立即停用,並改善至無干擾時方得繼續使用。
前項合法通信,指依電信規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic
injury follow the recommendations below. Consult with your local
Health & Safety Manager to ensure that you are adhering to your
company’s safety programs to prevent employee injury.
• Reduce or eliminate repetitive motion.
• Maintain a natural position.
• Reduce or eliminate excessive force.
• Keep objects that are used frequently
within easy reach.
• Perform tasks at correct heights.
• Reduce or eliminate vibration.
• Reduce or eliminate direct pressure.
• Provide adjustable workstations.
• Provide adequate clearance.
• Provide a suitable working environment.
• Improve work procedures.
PRELIMINARY DRAFT

Navigation menu
