Zebra Technologies MD-ZBR4WA Zebra Embedded Bluetooth 2.0 radio User Manual UMAN MZS 2

Zebra Technologies Corporation Zebra Embedded Bluetooth 2.0 radio UMAN MZS 2

Contents

Users Manual

UMAN-MZS-001 rev. A
September, 2006
3
MZ Series User Guide
continued
Table of Contents
Proprietary Statements .............................................................. 5
Document Conventions .............................................................. 7
Introduction to the MZ Series .................................................... 8
Unpacking and Inspection ............................................................... 8
Reporting Damage ........................................................................... 8
MZ Series Introduction ................................................................... 9
Getting Ready to Print .............................................................. 10
Battery ............................................................................................. 10
Installing the Battery .................................................................................. 10
MZ Series Quad Docking Station .............................................................. 13
Battery Safety ............................................................................................. 14
Charger Safety ............................................................................................ 14
Charging the Battery .................................................................................. 11
Loading the Media (All models) .................................................... 15
Operator Controls .......................................................................... 17
Verify the Printer Is Working ......................................................... 19
Printing a Configuration Label ................................................................... 19
Connecting the Printer ................................................................... 19
Cable Communication ................................................................................ 20
IR Communications .................................................................................... 21
Wireless Communications with Bluetooth™ ............................................. 22
Bluetooth Networking Overview ............................................................... 22
WLAN Overview ............................................................................. 23
Setting Up the Software ............................................................................. 23
Radio Regulatory Information ..................................................24
Zebra Bluetooth Radios MZ-ZBR3 ............................................................. 24
WLAN Module Using 802.11b/g Radio ..................................................... 25
Wearing the Printer ...................................................................27
Belt Clip ....................................................................................................... 27
Adjustable Shoulder Strap ......................................................................... 28
Preventive Maintenance ...........................................................29
Extending Battery Life ................................................................... 29
General Cleaning Instructions .......................................................30
Troubleshooting ......................................................................... 33
Interpreting Indicators ................................................................... 33
Troubleshooting Topics ................................................................. 33
Resetting an MZ Series Printer .....................................................34
Troubleshooting Tests ...................................................................35
Printing a Configuration Label ................................................................... 35
Communications Diagnostics .................................................................... 35
Calling Technical Support .......................................................................... 36
Specifications .............................................................................40
Printing Specifications .............................................................................. 40
Memory and Communications Specifications, MZ series ....................... 40
Media Specifications .................................................................................. 40
Font and Bar Code Specifications for MZ Series ...................................... 41
USB Communications Port ........................................................................ 42
Physical, Environmental and Electrical Specifications ............................. 42
MZ Series Accessories .............................................................................. 44
4
MZ Series User Guide
Appendix A ................................................................................. 45
USB Interface Cables ................................................................................. 45
Cable .......................................................................................................... 45
More Interface Cables ............................................................................... 45
Appendix B Media Supplies ..........................................................46
Appendix C Maintenance Supplies .................................................46
Appendix D ................................................................................. 47
Battery Disposal ......................................................................................... 47
Product Disposal ........................................................................................ 47
Appendix E .................................................................................48
Product Support ......................................................................................... 48
Product Support Contacts ......................................................................... 49
Appendix F Using zebra.com .........................................................50
Index ............................................................................................53
Patent Numbers .........................................................................55
5
MZ Series User Guide
Proprietary Statements
This manual contains proprietary information of Zebra Technologies Corporation. It is
intended solely for the information and use of parties operating and maintaining the equip-
ment described herein. Such proprietary information may not be used, reproduced, or dis-
closed to any other parties for any other purpose without the expressed written permission
of Zebra Technologies Corporation.
Product Improvements
Since continuous product improvement is a policy of Zebra Technologies Corporation, all
specifications and signs are subject to change without notice.
FCC Compliance Statement
NOTE: This equipment has been tested and found to comply with the limits or a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular instal-
lation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet or circuit different from that to which the re-
ceiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: Exposure to Radio Frequency radiation. To conform to FCC RF exposure re-
quirements this device shall be used in accordance with the operating conditions and in-
structions listed in this manual. Note that there are several radio options available with this
printer. Additional regulatory information is contained in later sections devoted to each
radio individually.
NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded
cables must be used with the unit to insure compliance.
Changes or modifications to this unit not expressly approved by Zebra Technologies Cor-
poration could void the user’s authority to operate this equipment.
Canadian Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
“IC:” before the equipment certification number signifies that the Industry Canada techni-
cal specifications were met. It does not guarantee that the certified product will operate to
the user’s satisfaction.
Agency Approvals and Regulatory Information
• Design certified by TUV • FCC part 15
• Canadian STD RSS-210 • EN55024:1998 European Immunity Standard
• EN60950: 2000 Safety Standard • NOM/NYCE (Mexico)
• C-Tick (Australia) • EN55022:1998 Class B European
Electromagnetic Radiation Standard
Liability Disclaimer
Inasmuch as every effort has been made to supply accurate information in this manual,
Zebra Technologies Corporation is not liable for any erroneous information or omissions.
Zebra Technologies Corporation reserves the right to correct any such errors and disclaims
liability resulting therefrom.
No Liability for Consequential Damage
In no event shall Zebra Technologies Corporation or anyone else involved in the creation,
production, or delivery of the accompanying product (including hardware and software)
be liable for any damages whatsoever (including, without limitation, damages for loss of
business profits, business interruption, loss of business information, or other pecuniary
loss) arising out of the use of or the results of use of or inability to use such product, even
if Zebra Technologies Corporation has been advised of the possibility of such damages.
Because some states do not allow the exclusion of liability for consequential or incidental
damages, the above limitation may not apply to you.
continued
6
MZ Series User Guide
Copyrights
The copyrights in this manual and the label print engine described therein are owned by
Zebra Technologies Corporation. Unauthorized reproduction of this manual or the software
in the label print engine may result in imprisonment of up to one year and fines of up to
$10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability.
This product may contain ZPL®, ZPL II®, and ZebraLinktm programs; Element Energy Equal-
izer® Circuit; E3®; and AGFA fonts. Software © ZIH Corp. All rights reserved worldwide.
ZebraLink and all product names and numbers are trademarks, and Zebra, the Zebra logo,
ZPL, ZPL II, Element Energy Equalizer Circuit, and E3 Circuit are registered trademarks of
ZIH Corp. All rights reserved worldwide.
Monotype®, Intellifont® and UFST® are trademarks of Monotype Imaging, Inc. registered in
the United States Patent and Trademark Office and may be registered in certain jurisdic-
tions.
AndyTM , CG PalacioTM, CG Century SchoolbookTM, CG TriumvirateTM, CG TimesTM, Monotype
KaiTM, Monotype MinchoTM and Monotype SungTM are trademarks of Monotype Imaging,
Inc. and may be registered in some jurisdictions.
HY Gothic HangulTM is a trademark of Hanyang Systems, Inc.
AngsanaTM is a trademark of Unity Progress Company (UPC) Limited.
Andale®, Arial®, Book Antiqua®, Corsiva®, Gill Sans®, Sorts® and Times New Roman® are
trademarks of The Monotype Corporation registered in the United States Patent and Trade-
mark Office and may be registered in certain jurisdictions.
Century Gothic™, Bookman Old StyleTM and Century SchoolbookTM are trademarks of The
Monotype Corporation and may be registered in certain jurisdictions.
HGPGothicB is a trademark of the Ricoh company, Ltd. and may be registered in some ju-
risdictions.
UniversTM is a trademark of Heidelberger Druckmaschinen AG, which may be registered in
certain jurisdictions, exclusively licensed through Linotype Library GmbH, a wholly owned
subsidiary of Heidelberger Druckmaschinen AG.
Futura® is a trademark of Bauer Types SA registered in the United States Patent and Trade-
mark Office and may be registered in some jurisdictions.
TrueType® is a trademark of Apple Computer, Inc. registered in the United States Patent and
Trademark Office and may be registered in certain jurisdictions.
All other product names are the property of their respective owners.
All other brand names, product names, or trademarks belong to their respective holders.
©2006 ZIH Corp.
7
MZ Series User Guide
Document Conventions
The following conventions are used throughout this docu-
ment to convey certain information:
If you are viewing this guide online, click the underlined text
to jump to a related Web site. Click on italic text (not under-
lined) to jump to that location in this manual..
Cautions, Important, and Note
Caution • Warns you of the potential for electrostatic discharge.
Caution • Warns you of a potential electric shock situation.
Caution • Warns you of a situation where excessive heat could cause
a burn
Caution • Advises you that failure to take or avoid a specific action
could result in physical harm to you.
Caution • Advises you that failure to take or avoid a specific action
could result in physical harm to the hardware.
Important • Advises you of information that is essential to complete a
task.
Note • Indicates neutral or positive information that emphasizes or
supplements important points of the main text.
8
MZ Series User Guide
Introduction to the MZ Series
Thank you for choosing one of our Zebra® MZ™ series
Mobile Printers. These rugged printers are sure to become
productive and efficient additions to your workplace thanks
to their innovative design. Because they are made by Zebra
Technologies, you’re assured of world-class support for all of
your bar code printers, software, and supplies.
• This user’s guide gives you the information you will need
to operate any MZ series printer.
• The MZ series uses the CPCL programming language.
To create and print labels using the CPCL language, re-
fer to the Mobile Printer Programming Guide and our
Label Vista™ label creation program which are both avail-
able on our Web site at www.zebra.com.
Unpacking and Inspection
Inspect the printer for possible shipping damage:
• Check all exterior surfaces for damage.
• Open the media cover (refer to “Loading the Media” in
the Getting Ready to Print section) and inspect the media
compartment for damage.
In case shipping is required, save the carton and all packing
material.
Reporting Damage
If you discover shipping damage:
• Immediately notify and file a damage report with the ship-
ping company. Zebra Technologies Corporation is not re-
sponsible for any damage incurred during shipment of
the printer and will not cover the repair of this damage
under its warranty policy.
• Keep the carton and all packing material for inspection.
• Notify your authorized Zebra re-seller.
9
MZ Series User Guide
1
2
3
4
5
6
7
8
9
10
1. Feed Switch
2. Media Status Light
3. USB Port
4. Battery Charging Receptacle
5. Media Sensor
6. Media Cover
7. Platen
8. Printhead
9. Latch Release Button
10. Communications Status
Indicator
11. IR window
12. Charge Status Indicator
13. Power Switch
14. Power Indicator
15. Belt Clip
16. Battery Door Latch
17. Battery Compartment Cover
18. Battery Pack
19. External Charge Contacts

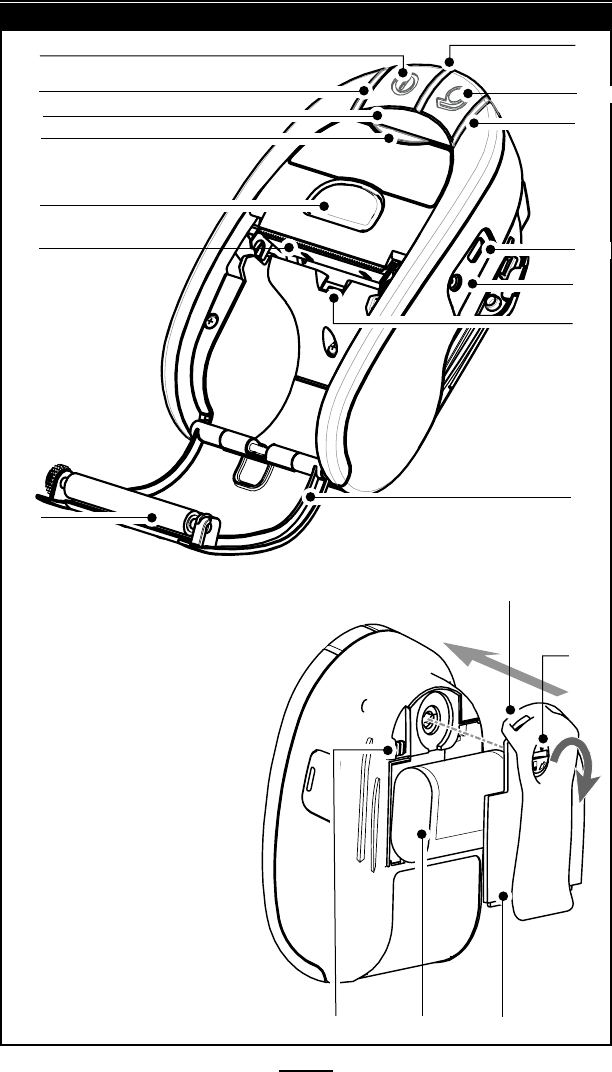

Figure 1: MZ Series Overview (MZ220 Illustrated)
15
18
19 17
11
12
13 14
16
10
MZ Series User Guide
Getting Ready to Print
Battery
Installing the Battery
Important • Batteries are shipped partially charged. Remove any
protective packaging from new battery packs prior to use.
Figure 2: Installing the Battery
1. Use a coin to rotate the
Battery Compartment lock
1/4 turn as shown.
2. Remove the Battery
Compartment Cover
3. Plug the Battery
Pack connector into the
Printer.
Battery Pack
Note location of label
4. Re-install the Battery Compartment Cover and rotate
the lock back 1/4 turn to lock it in place .
Ensure the battery leads are not pinched prior to replacing the
battery cover.
11
MZ Series User Guide
When the battery is first installed, the printer power and
charge indicators should indicate the battery is not fully
charged (see “Charging the Battery” below and “Operator
Controls”).
You must charge the battery fully before using the printer
for the first time. To ensure maximum battery capacity, new
batteries should go through two or three complete charge/dis-
charge cycles when first put into service.
Charging the Battery
Preparing the Charger Power Supply
Before charging the battery for the first time, you must pre-
pare the Charger power Supply. Refer to Figure 3

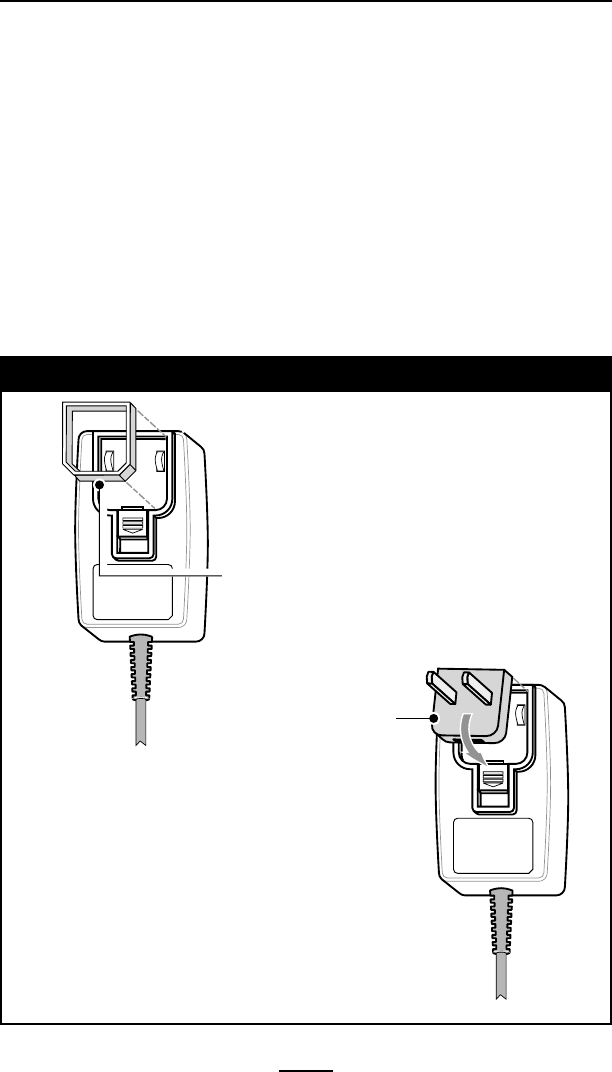

Figure 3: Preparing the Charger Power Supply
continued
1. Remove the power supply from its box.
Remove and discard the shipping ring from the
mains receptacle cavity.
Shipping Ring
Remove and discard
2. Verify that the mains adapter shipped with your
Printer is the correct one for your region.
3. Install the mains adapter into the Power Supply
by hooking the top edge into the mains receptacle
cavity, and rotating it until it snaps into place.
Mains Adapter
12
MZ Series User Guide

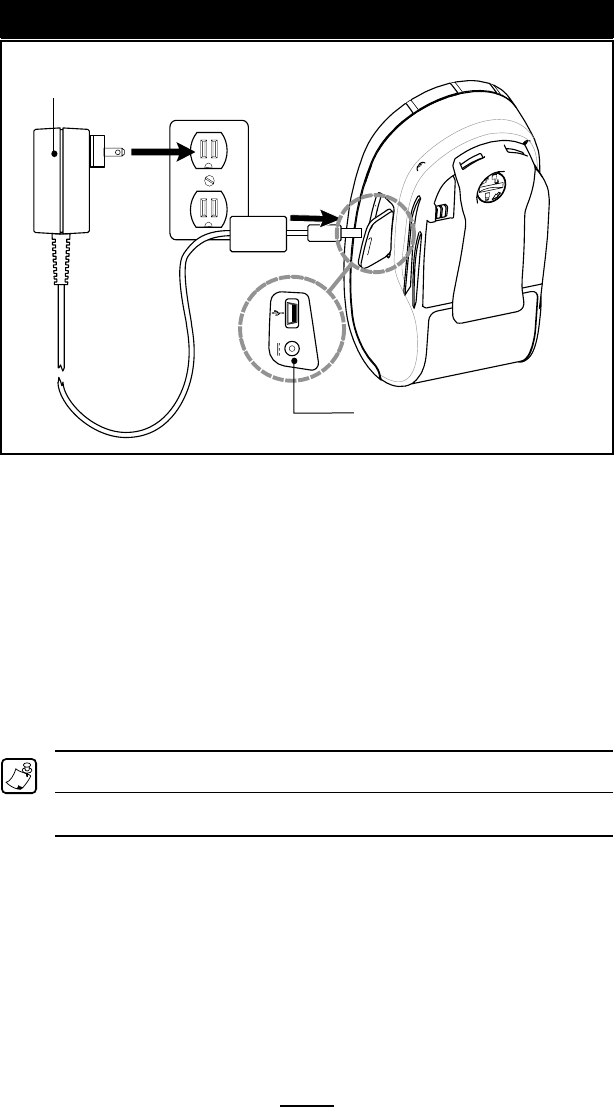

Charging the battery
Refer to Figure 4.
1. Plug the Charger into the appropriate A.C. wall recepta-
cle. Then insert the charge cable into the printer’s char-
ger jack.
2. The printer’s charger indicator will indicate the status of
the charger as follows:
• An amber light indicates the battery is charging, and that
the battery is less than 90% charged.
• A green light indicates the battery is fully charged. The
battery is ready for use.
Note • Use of the printer while charging will increase charge times.
Note • These times are for completely discharged batteries.
Approximate Charge Times :
Battery 80% Charged: __ Hrs
Battery Fully Charged: __Hrs.
Battery packs which are only partially discharged will take
less time to reach their charged state. Batteries which have
reached 80% of their charge capacity may be used, however,
it is recommended that you allow the batteries to reach a full
charge to maintain maximum battery life.
MZ Series Charger
Power Supplyr
Charger Jack
Figure 4: Charging the Battery
13
MZ Series User Guide
MZ Series Quad Docking Station
The MZ series Quad Docking Station is designed to dock
and charge up to four MZ series printers simultaneously.
1. Ensure that the Docking Station has been installed prop-
erly per its instruction manual. Ensure that the power
supply is properly connected and its power indicator light
is on.
2. Slide a printer into any one of the four docking bays as
shown in Figure 5. The printer’s charge status indicator
will turn amber if the printer is properly inserted and the
battery is less than 90% charged.
The printer’s charge indicators will allow you to monitor the
charging process. Refer to the Controls section of this manual
for more information.
Figure 5: MZ Series Quad Docking Station
Amber/Green (Charge)
Indicator
Green (Power)
Indicator
Slide Printer into docking bay
14
MZ Series User Guide
Battery Safety
Caution • Avoid accidental short circuiting of any battery. Allowing
battery terminals to contact conductive material will create a short
circuit which could cause burns and other injuries or could start a
fire.
Important • Always dispose of used batteries properly. Refer to
Appendix D for more battery recycling information.
Important • Always observe the safety precautions in the Lithium-ion
Technical Bulletin included with each Battery Pack.
Caution • Use of any charger not approved specifically by Zebra for
use with its batteries could cause damage to the battery pack or the
printer and will void the warranty.
Read carefully and always observe the safety guidelines for Li-Ion
batteries provided with each battery Pack
Charger Safety
Do not place the Quad Charger in locations where liquids or metallic
objects may be dropped into the charging bays.
Use care when installing either the Charger Power supply supplied
wit the printer or the power supply supplied with the MZ series Quad
Charger. Do not block the ventilating slots on the top and bottom
covers of either power supply.
Ensure that the Charger is plugged into a power source which will not
accidently be turned off if you will be charging batteries overnight.
15
MZ Series User Guide
Loading the Media (All models)
1. Open the printer: Refer to Figure 6.
• Press the latch release button on the top of the printer as
shown at “1” below. The media cover will flip open auto-
matically revealing the media compartment.
2. Load the media: Refer to Figure 7
• Insert the roll of media into the media compartment.
Ensure that the media pulls off the core in the direction
shown in Figure 6.
3. Close the Media Cover: Refer to Figure 8.
• Pull a short length of media out of the printer
• Close the Media Cover firmly and ensure it is securely
latched on both sides..
• Turn on the printer and press the Feed button.
The printer will advance media until the Feed button is re-
leased. Verify the media is feeding properly and without
binding or skewing sideways

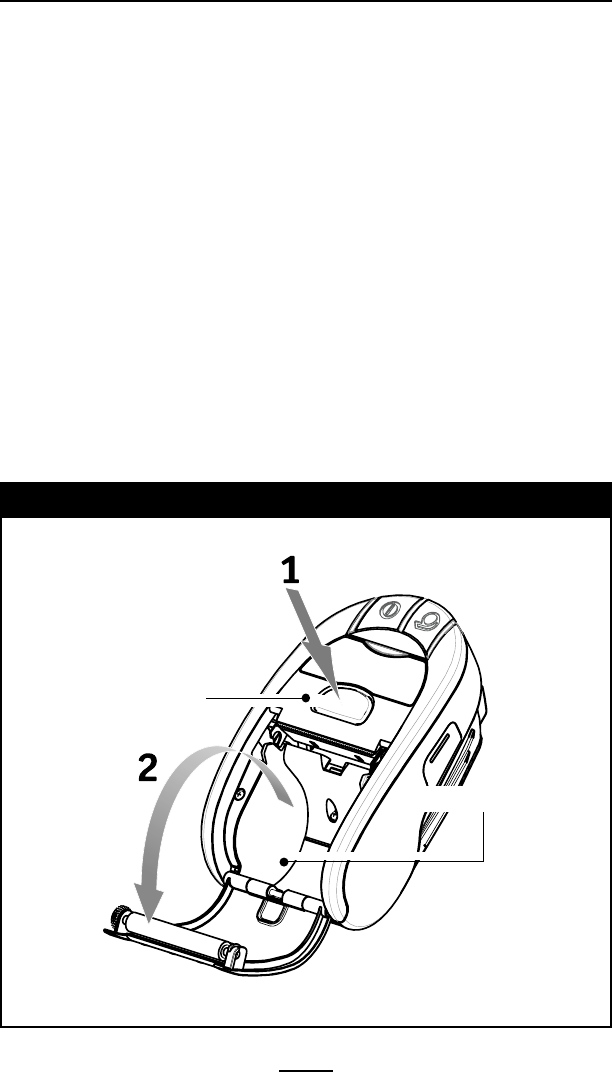

Figure 6: Opening the MZ Printer (MZ 220 shown)
continued
Media Compartment
Latch Release
Button
16
MZ Series User Guide
Figure 7: Installing Media
Media Roll
Note direction media
pulls off the roll.
Media Cover
Pull a short length of media
out of the Printer
Figure 8: Closing the Media Cover
Ensure both sides of the media
cover are securely latched when
closed.
17
MZ Series User Guide
Operator Controls
MZ series printer controls are detailed below and in Figure 9.
The printer has two control buttons and four multipurpose
indicators.
The Power Button turns the printer on and off.
The Feed Button advances a length of media until it is re-
leased.
The Green/Amber indicator to the left of the Power Button
indicates the status of the printer’s built-in charger:
• The indicator is off indicates the battery is not being
charged.
• If the indicator is amber the battery is being charged.
• If the indicator is green, the battery is fully charged.
The Green Indicator between the Power and Feed buttons
has two states:
• A rapidly blinking light indicates a low battery condition.
• A steadily lit indicator means that power is on and the
battery charge level is sufficient for use
The Amber Indicator to the right of the Feed button is an er-
ror indicator.
• An un-lit indicator means there is no error condition and
the printer can be used.
• A blinking indicator could mean one of two conditions ex-
ist, which will inhibit printer operation:
1. There is no media loaded.
2. The media cover is open.
3. If both the above conditions are met and the error
light is still flashing, there could be no application load-
ed in the printer, or the application could have become
corrupted.
The Blue Indicator just above the product I.D. label is a com-
munications indicator. Its functions vary depending on the
wireless communications option installed in the printer.
• If the printer uses only standard IrDA® wireless commu-
nication:
A blinking light indicates data is being received from a
linked IrDA device.
• If the printer has a Bluetooth™ radio option:
1. A steady light indicates the printer has paired with an-
18
MZ Series User Guide
other Bluetooth device.
2. A blinking light indicates that the printer is receiving
data via Bluetooth communications.
• If the printer has an 802.11b/g radio installed:
1. A steady light indicates the printer has associated with
a wireless Local Area Network (WLAN).
2. A blinking light indicates that the printer is attempting
to associate with a WLAN.

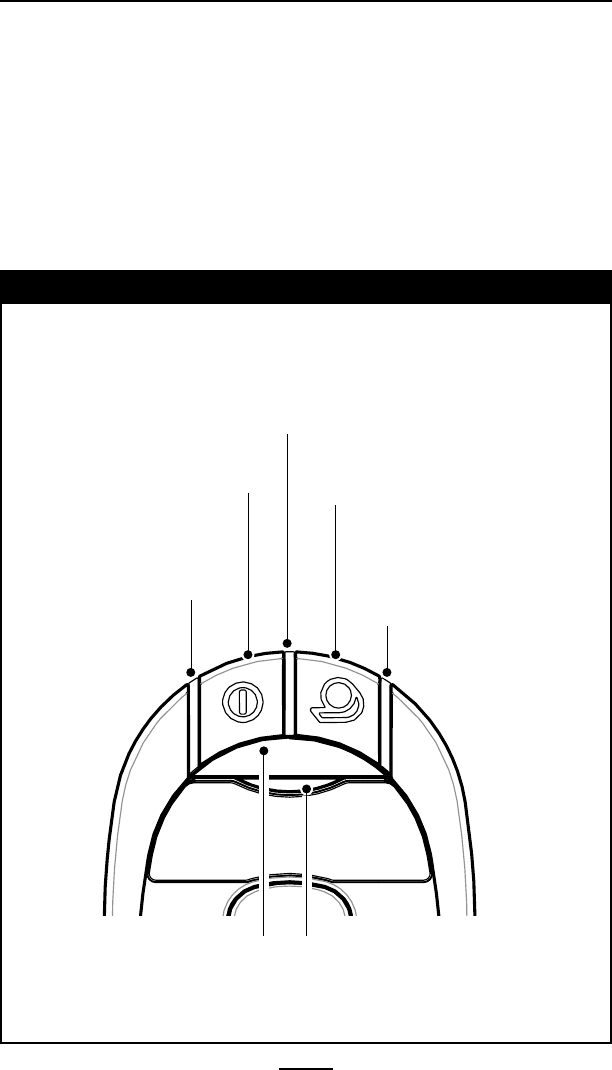

Figure 9: Standard Control panel
Figure 9: Printer Controls
Power Button
Press and hold to turn unit on.
Press again to turn unit off
Feed Button
Press to advance the media. Release
to stop.
Communication Light (Blue)
When lit steadily indicates a wireless
communications link is established, when
blinking indicates data transmission.
Charge Light (Green/
Amber)
Green indicates the battery fully
charged. Amber indicates the
battery is less than 90% charged.
IrDA Window
This area must be within the line of
sight of any other IrDA enabled device
for IR communications to occur.
Media Status Light
(Amber)
When off Indicates normal operation,
blinking indicates either no media or
that the media compartment is open
Power Light (Green)
Indicates power status and battery condition.
A steadily lit indicator means the battery has
more than a 30% charge remaining. A blinking
indicator means the battery has less than a 30%
charge remaining.
19
MZ Series User Guide
Verify the Printer Is Working
Before you connect the printer to your computer, portable
data terminal ore wireless LAN, make sure that the printer is in
proper working order. You can do this by printing a configu-
ration label using the “two key reset” method. If you can’t get
this label to print, refer to “Troubleshooting”.
Printing a Configuration Label
1. Turn the printer off. Load the media compartment with
journal media (media with no black bars printed on the
back)
2. Press and hold the Feed Button.
3. Press and release the Power button and keep the Feed
button pressed. When printing starts, release the Feed
button.
The unit will print a line of interlocking “x” characters to
ensure all elements of the print head are working, print out the
version of software loaded in the printer and then print two re-
ports.
The first report indicates model, ROM version, serial num-
ber, baud rate, etc. The second report prints out more de-
tailed information on the printer’s configuration and parameter
settings. If no second report appears, there is no application
loaded. (See the Troubleshooting Section for sample printouts
and a further discussion on how to use the configuration label
as a diagnostic tool.)
Connecting the Printer
The printer must establish communications with a host ter-
minal which sends the data to be printed. Communications
occur in four basic ways:
• Via a cable using the USB 2.0 protocol. USB drivers are
included in the Zebra Universal Driver which can be
downloaded from www.zebra.com.
• Via the industry standard IrDA protocol. IR capability is
standard with MZ series printers.
• By means of an optional Bluetooth short range radio link.
• By means of a wireless LAN (Local Area Network) using
an optional radio per 802.11b/g specifications.
20
MZ Series User Guide
Cable Communication
Caution • The printer should be turned off before connecting or
disconnecting the communications cable.
The small connector on the USB cable plugs into the printer.
The connectors are keyed to assure correct alignment; do not
try to force the cable if it does not plug in. The other end of
the cable must be plugged into the host terminal as shown in
Figure 10, or the USB port on a computer (Figure 11.) The MZ
series is configured with the USB Open HCI interface driver al-
lowing it to communicate with Windows® based devices.
USB drivers are included in the Zebra Universal Driver which
can be downloaded from the Zebra Web site. Other terminals
or communications devices may require the installation of
special drivers to use the USB connection. Consult the factory
for further details.
USB Communications
Cable to Terminal
Refer to Appendix A for details.

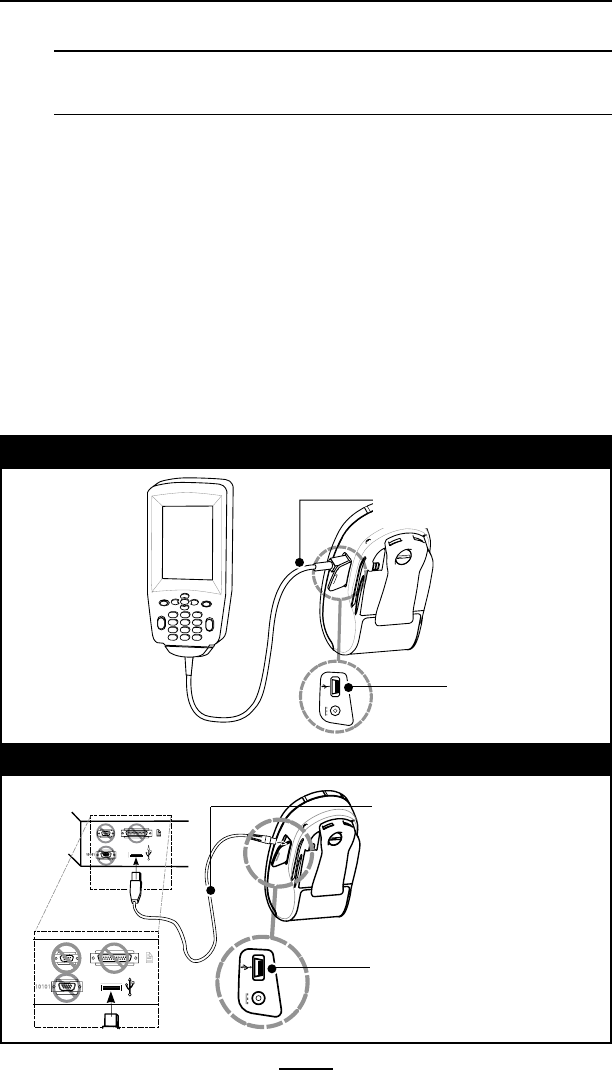

Figure 10: Cable Communications
Figure 11: Communications with a P.C.
Communications
Port
USB Communications
Cable to Computer
Refer to Appendix A details.
Communications
Port
21
MZ Series User Guide
IR Communications
Ensure that there is a direct line of sight between the print-
er and the terminal that will be sending data. The IR window
on the front of the printer must face the corresponding win-
dow on the terminal to properly send and receive signals. The
maximum distance IrDA signals can be transmitted reliably is
1M (39”).
IrDA compliant terminals will automatically initiate com-
munications to the printer. An IrDA terminal will seek out
any linkable devices and establish communications between
them, even turning the printer on if necessary.

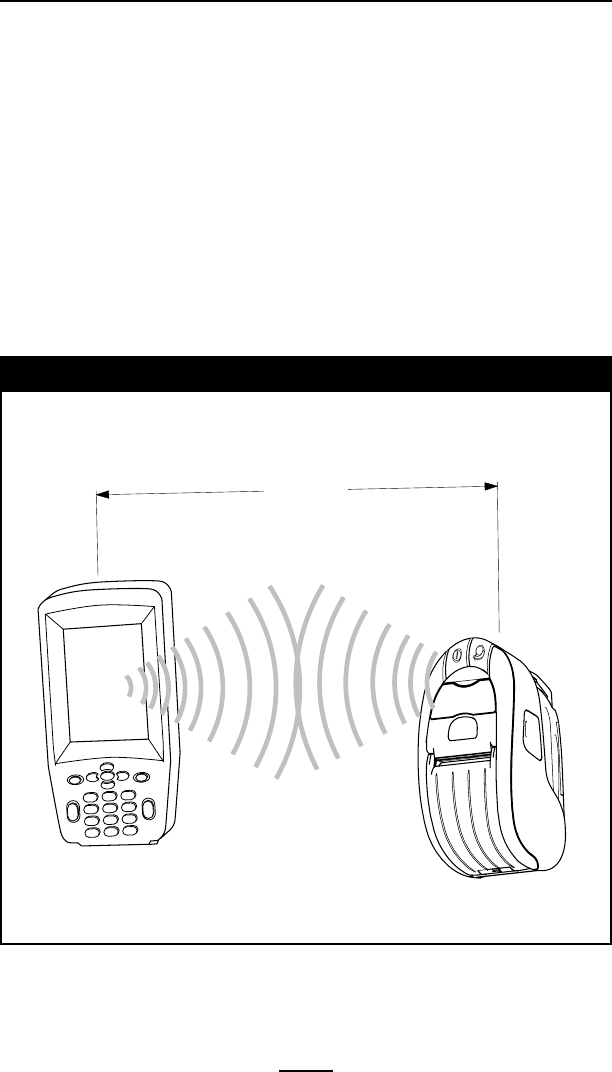

Figure 14: IR Communications
Figure 12: IR Communication
1M (39”)
22
MZ Series User Guide
Wireless Communications with Bluetooth™
Bluetooth is a worldwide standard for the exchange of data
between two devices via radio frequencies. Bluetooth radios
are relatively low powered to help prevent interference with
other devices running at similar radio frequencies. This limits
the range of a Bluetooth device to about 10 meters (32 feet).
Both the printer and the device it communicates with must fol-
low the Bluetooth standard. Other than conditions specified
elsewhere in this manual, only one of the radio options can be
installed in the printer at one time and the antenna used for
these transmitters must not be co-located or must not operate
in conjunction with any other antenna.
Bluetooth Networking Overview
Each Bluetooth enabled MZ series printer is identified by
a unique Bluetooth Device Address (BDA) loaded into the
printer when manufactured. In order to exchange data, two
Bluetooth enabled devices must establish a connection.
Bluetooth software is always running in the background,
ready to respond to connection requests. One device (known
as the master or the client) must request a connection with an-
other. The second device (the slave or the server) then accepts
or rejects the connection. A Bluetooth enabled MZ series
printer will normally act as a slave creating a miniature net-
work with the terminal sometimes referred to as a “piconet.”.
For the most part, communications using the Bluetooth pro-
tocol are initiated and processed without any operator inter-
vention.
23
MZ Series User Guide
WLAN Overview
All MZ series printers can be equipped with radios using the
industry standard 802.11b/g protocol. MZ series printers will
have the FCC I.D. number of the radio on the serial number la-
bel on the back of the unit.
MZ series printers with the Zebra 802.11b/g WLAN radio op-
tion can be identified by the FCC ID: I28MD-ZLAN11G on the
serial number label on the back of the printer.
Methods of establishing communications to MZ series
printers will vary with each LAN application. General in-
formation on establishing WLAN communications can be
found in either the ”CPCL Programmers Manual” or the
“Zebra Mobile Printer Wireless Configuration Guide” both
available on-line at www.zebra.com.
More information and LAN configuration utilities are includ-
ed in Zebra’s Label Vista™ program (version 2.8 and later).
Label Vista may be downloaded from the Zebra Web site.
Setting Up the Software
MZ series printers use Zebra’s CPCL Programming language
which was designed for mobile printing applications. CPCL is
fully described in the ”CPCL Programmers Manual”, available
on-line from the Zebra Web site.
You can also use Label Vista™, Zebra’s Windows® based la-
bel creation program which uses a graphical interface to cre-
ate and edit labels in the CPCL language.
Refer to Appendix F for tips on downloading the Label Vista
application from Zebra’s Web site.
24
MZ Series User Guide
Important Notice:
This device is a portable RF printer intended for commercial and
industrial use in all EU and EFTA member states.
Radio Regulatory Information
Zebra Bluetooth Radios MZ-ZBR3
Caution • Exposure to Radio Frequency Radiation. The radiated output
power of this internal Bluetooth radio is far below the FCC radio
frequency exposure limits. The internal Bluetooth radio operates
within guidelines found in radio frequency safety standards and
recommendations. Do not use the printer in an unauthorized manner.
Note • The following section only applies when the MZ-ZBR3
(FCC ID: I28MD-BTC2TY6) Bluetooth Radio is installed in a MZ series
printer. The antenna used for this transmitter must not be co-located
or must not operate in conjunction with any other antenna.
European Regulatory Information for this Radio
This device is intended for use in all EU and EFTA member states.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of compliance with the R&TTE Directive 1999/5/EC:
• EN55022:1998
European Immunity Standard
• EN 60950: 2000
Safety of Information Technology Equipment
• EN 300 328-2 V1.4.1 (2003-04)
Technical requirements for spread-spectrum radio equipment
• EN 301 489-1/-17 V1.5.1/1.2.1 (2003-12) -17 v1.2.1 (2002-08)
EMC requirements for spread-spectrum radio equipment.
This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and
office use in all EU and EFTA member states.
25
MZ Series User Guide
WLAN Module Using 802.11b/g Radio
The following section only applies when the 802.11b/g
WLAN module (With FCC ID: I28MD-ZLAN11G) is installed
in a MZ series printer. Only one of the radio options can be
installed in the printer at one time and the antenna used for
these transmitters must not be co-located or must not operate
in conjunction with any other antenna.
MZ series printers have the FCC ID number on a label on the
back of the unit.
Caution • Use of a MZ series printer with the radio module marked
with FCC ID: I28MD-ZLAN11G meets the FCC requirements for
radio frequency (RF) radiation exposure in the standard body worn
configuration with no minimum separation. In this configuration,
which applies whether the belt clip or shoulder strap is used, the face
of the printer from which paper is transported is facing away from the
user’s body. The standard configuration must always be used when
the printer is body worn.
The MZ 220 and MZ 320 printers with this radio option have
been SAR tested. The maximum SAR value measured for
each model is listed below:
Model SAR value W/Kg 1g average))
MZ220 .049
MZ 320 .038
European Regulatory Information for this Radio
AT BE CY CZ DK
EE FI FR DE GR
HU IE IT LV LT
LU MT NL PL PT
SK SI ES SE GB
Note: -Member states in the EU with restrictive use for this device are
crossed out!
This device is also authorized for use in all EFTA member states (CH, IS, LI, NO)
Important Notice:
This device is a portable RF printer intended
for commercial and industrial use in all EU and
EFTA member states except in France where
restrictive use applies.
continued
26
MZ Series User Guide
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of compliance with the R&TTE Directive 1999/5/EC:
• EN55022:1998
European Immunity Standard
• EN 60950: 2000
Safety of Information Technology Equipment
• EN 300 328-2 V1.2.1 (2001-12)
Technical requirements for spread-spectrum radio equipment
• EN 301 489-17 V1.2.1 (2002-08)
EMC requirements for spread-spectrum radio equipment.
This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and
office use in all EU and EFTA member states, except in France where restrictive
use applies.
The use of this frequency band in France is subject to restrictions. You may only
use channels 10 and 11 (2457 and 2462 MHz) on French territory, except in those
French departments as listed in the table below where channels 1-13 (2412-2472
MHz) may be used. For more information see http://www.anfr.fr/ and/or http://
www.art-telecom.fr
01 Ain 36 Indre 69 Rhone
02 Aisne 37 Indre et Loire 70 Haute Saone
03 Allier 39 Jura 71 Saone et Loire
05 Hautes Alpes 41 Loir et Cher 72 Sarthe
08 Ardennes 42 Loire 75 Paris
09 Ariege 45 Loiret 77 Seine et Marne
10 Aube 50 Manche 78 Yvelines
11 Aude 54 Meurthe et Moselle 79 Deux Sievres
12 Aveyron 55 Meuse 82 Tarn et Garonne
16 Charente 57 Moselle 84 Vaucluse
19 Correze 58 Nievre 86 Vienne
2A Corse Sud 59 Nord 88 Vosges
2B Haute Corse 60 Oise 89 Yonne
21 Cote d’Or 61 Orne 90 Territoire de Belfort
24 Dordogne 63 Puy de Dome 91 Essonne
25 Doubs 64 Pyrenees Atlantique 92 Hauts de Seine
26 Drome 65 Hautes Pyrenees 93 Seine St Denis
27 Eure 66 Pyrenees Orientales 94 Val de Marne
32 Gers 67 Bas Rhin
35 Ille et Vilaine 68 Haute Rhin
27
MZ Series User Guide
Wearing the Printer
Belt Clip
Refer to Figure 13. All MZ series printers are have a belt clip
installed as a standard feature. To use: hook the clip over
your belt, and ensure that the clip is securely attached to the
belt. The belt clip will pivot slightly to allow you to move free-
ly while wearing the printer.
continued
Figure 13: Using the Belt Clip
Clip printer to belt
28
MZ Series User Guide

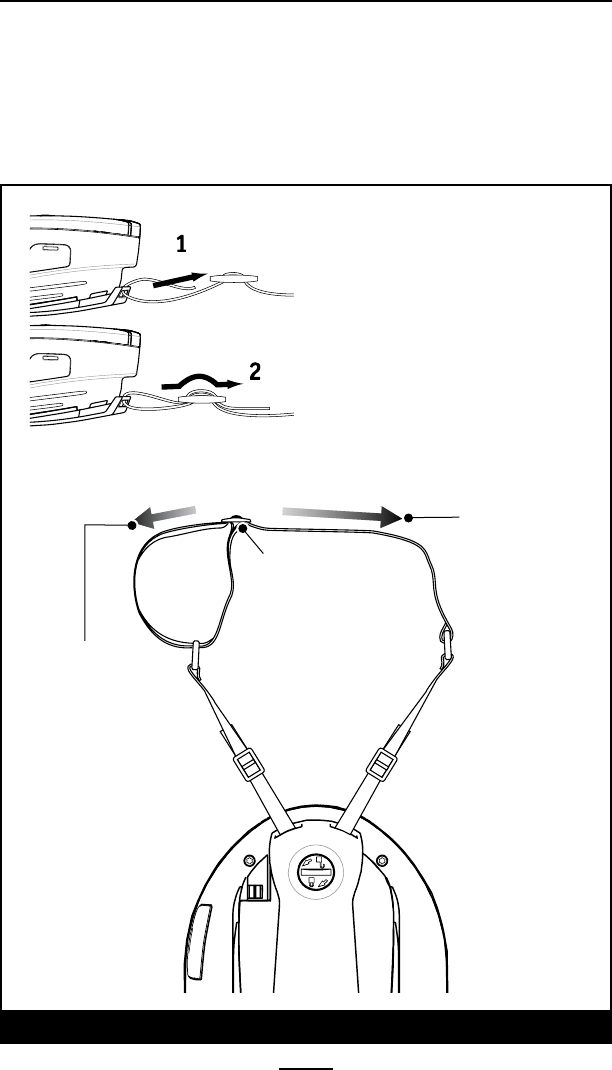

Adjustable Shoulder Strap
Refer to Figure 14 if you have ordered the shoulder strap op-
tion for your printer. Secure each end of the shoulder strap as
shown below. Use the main buckle on the shoulder strap to
adjust to the desired length.
Hold Buckle
Pull Strap here to
lengthen
Pull Strap here to
shorten
Figure 14: Using the Optional Shoulder Strap
Once the shoulder strap is secured,
slide the buckle as shown until
you achieve the desired
length.
Thread the free end of the shoulder strap
through one of the slots on the belt clip
Thread the free end of the shoulder strap through the
buckle and pull tight to adjust.
Secure the other end of the strap in the remaining slot on the belt clip.
29
MZ Series User Guide
Preventive Maintenance
Extending Battery Life
• Always observe the safety precautions in the Lithium-
Ion Battery Technical Bulletin included with each Battery
Pack.
• Never expose the battery to direct sunlight or tempera-
tures over 104° F (40° C).
• Do not charge the battery when the temperature exceeds
113° F (45° C).
• Always use a Zebra power supply designed specifically
for the MZ series printers. Use of any other kind of pow-
err supply may damage the battery.
• Use the correct media for your printing requirements. An
authorized Zebra re-seller can help you determine the op-
timum media for your application.
• If you print the same text or graphic on every label, con-
sider using a pre-printed label.
• Choose the correct print darkness, and print speed for
your media.
• Use software handshaking (XON/XOFF) whenever possi-
ble.
• Consider purchasing an extra battery.
• Remember that any rechargeable battery will lose its
ability to maintain a charge over time. It can only be re-
charged a finite number of times before it must be re-
placed. Always dispose of batteries properly. Refer to
Appendix D for more information on battery disposal.
• If you print while charging the battery, charge times will
be prolonged. Extensive printing while charging could
deplete the battery enough to cause the low battery
warning indicator to turn on. You should suspend print-
ing at that time and allow the battery to re-charge com-
pletely.
continued
30
MZ Series User Guide
General Cleaning Instructions
Caution • To avoid possible personal injury or damage to the printer,
never insert any pointed or sharp objects into the printer.
Always turn the printer off before performing any cleaning
procedures.
Use care when working near the tear bar. The edges are very sharp.
Caution • The printhead can be very hot after prolonged printing.
Allow it to cool off before attempting any cleaning procedures.
Only use the cleaning pen supplied with the printer or a cotton swab
saturated with alcohol for cleaning the printhead.
Caution • Use only cleaning agents specified in the following tables.
Zebra Technologies Corporation will not be responsible for damage
caused by any other cleaning materials used on this printer.
continued
Area Method Interval
Printhead
Use a Zebra cleaning pen or a
70% isopropyl alcohol solution
on a cotton swab to clean the
print elements from end to end
(the print elements are located
in the thin gray line on the
printhead).
After every five rolls of media
(or more often, if needed)
Platen
Rotate the platen roller and
clean it thoroughly with a
Zebra cleaning pen or a 70%
isopropyl alcohol solution and
a cotton swab.
Tear bar
Clean thoroughly with a
Zebra cleaning pen or a 70%
isopropyl alcohol solution and
a cotton swab.
Exterior Water dampened cloth As needed
Media
Compartment
Interior
Brush/air blow.
After every five rolls of media
(or more often, if needed)
MZ Series Cleaning Instructions
31
MZ Series User Guide
continued

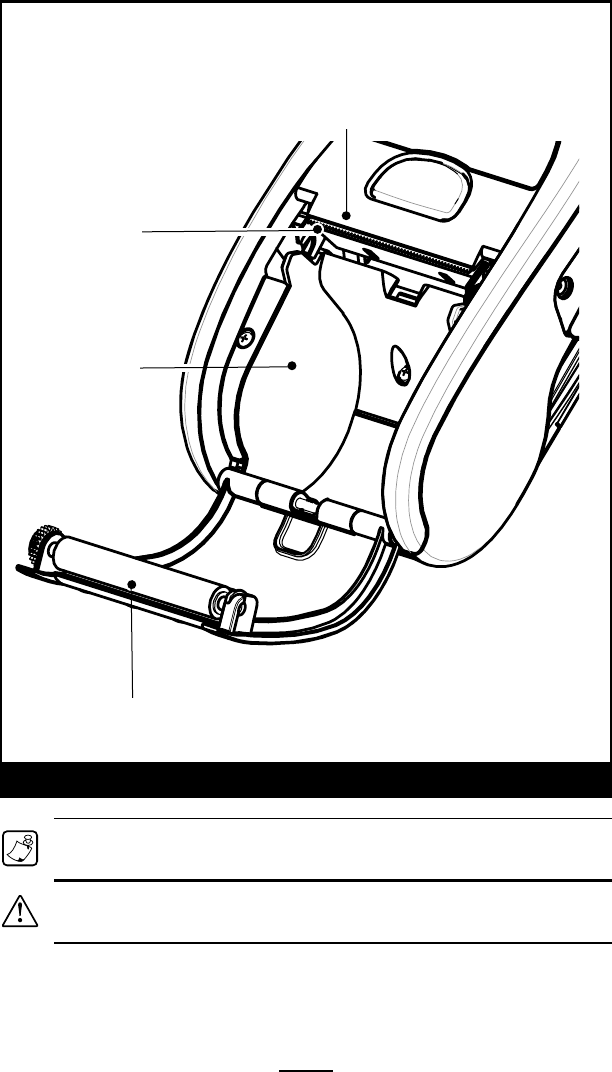

Figure 15: MZ Series Cleaning
Tear Bar
Printhead
Elements
Platen Surface
Media
Compartment
Note • Twelve packs of approved cleaning pens are available from Zebra
as p/n AN11209-1.
Caution • To avoid possible personal injury or damage to the Printer,
never insert any pointed or sharp objects into the Printer.
32
MZ Series User Guide
Troubleshooting
Interpreting Indicators
The printer’s indicators display various printer functions
and their status. Check the indicator status, then refer to the
Troubleshooting topic referenced in the chart.
Function Indicator
Color
Indicator Status:
Steady
Indicator Status:
Blinking
Troubleshooting
Topic
Power Green
Indicates printer is on
and battery condition
is OK to use.
Blinking signifies Low
Battery 3
Charger Amber/
Green
Off indicates battery
is not charging. Am-
ber indicates battery
is cha rgin g. Gre en
indicates battery is
charged.
N/A 1,6,10
Error Amber Off indicates no error
condition
No media or media
door is open.
Application may be
missing or corrupted
2,4,7,9
Commu-
nications Blue
Cable/IrDA:N/A D at a is b ei ng r e-
ceived 5,8
Bluetooth: Printer
has paired with
another Bluetooth
device.
D at a i s b ei ng r e-
ceived 5,8
802.11b/g: Radio is
associated with a
WLAN
Radio is trying to as-
sociate with a WLAN. 5,8
Troubleshooting Topics
1. No power:
• Ensure you press and hold the Power switch until the
Power light comes on.
• Check that battery is installed properly.
• Recharge or replace battery as necessary.
2. Media does not feed:
• Be sure Media Cover is closed and latched.
• Check media compartment. Ensure media is not binding
on the sides of the compartment.
3. Poor or faded print
• Clean printhead.
• Check battery for possible damage. Recharge or replace as
necessary.
• Check quality of media.
4. Partial or missing print:
• Check media alignment.
33
MZ Series User Guide
• Clean printhead.
• Ensure Media Cover is properly closed and latched.
5. No print:
• Replace battery.
• Check cable to terminal.
• (Wireless units only) Restore wireless connection.
6. Reduced battery life:
• Check battery date code — if battery is one to two years
old, short life may be due to normal aging.
• Recharge or replace battery.
7. Flashing Amber indicator:
• Check that media is loaded and that printhead is closed and
securely latched.
• If media is present and latch is closed, indicates that no
application is present or application is corrupted. Program
must be re-loaded.
8. Communication Error:
• (Wireless units only) Check that media is loaded, head is
closed and blue communication link light is on.
• Replace cable to terminal.
9. Label Jam:
• Open media cover.
• Generously apply alcohol to Printer in area of jammed
label.
10. Battery Pack Is Hard to Install
• Do not force the battery into place. Verify you have not
pinched any wires between the battery and the printer.
• Verify you are plugging the battery connector into the
printer correctly.
Resetting an MZ Series Printer
If the printer has locked up and is not responding to any operator inputs or
external commands, either from a connected terminal or from a linked LAN,
you can perform a forced reset as follows:
1. Open the media compartment and remove any media.
2. Press the Feed button and hold it approximately ten seconds until the
Power, Communications and Error indicators turn off and stay off.
3. After the three indicators turn off wait ten more seconds and press the
Power button. The Printer will restart and normal operation can resume.
34
MZ Series User Guide
Troubleshooting Tests
Printing a Configuration Label
To print out a listing of the printer’s current configuration fol-
low these steps:
1. Turn the printer off. Load the media compartment with
journal media (media with no black bars printed on the
back)
2. Press and hold the Feed Button.
3. Press and release the Power button and keep the Feed
button pressed. When printing starts, release the Feed
button.
Refer to Figures 16 and 16a for a sample configuration print-
out.
Communications Diagnostics
If there is a problem transferring data between the computer
and the printer, try putting the printer in the Communications
Diagnostics Mode (also referred to as the “DUMP” mode). The
printer will print the ASCII characters and their text represen-
tation (or the period ‘.’, if not a printable character) for any data
received from the host computer
To enter Communications Diagnostics Mode:
1. Print a configuration label as described above.
2. At the end of 2nd diagnostics report, the printer will print:
“Press FEED key to enter DUMP mode”.
3. Press the FEED key. The printer will print: “Entering
DUMP mode”.
Note • If the FEED key is not pressed within 3 seconds, the printer
will print “DUMP mode not entered” and will resume normal
operation.
4. At this point, the printer is in DUMP mode and will print
the ASCII hex codes of any data sent to it, and their text
representation (or “.” if not a printable character).
Additionally, a file with a “.dmp” extension containing the
ASCII information will be created and stored in the printer’s
memory. It can be viewed, “cloned” or deleted using the Label
Vista application. (Refer the Label Vista documentation for
more information.)
35
MZ Series User Guide
To terminate the Communications Diagnostics Mode and re-
turn the printer to normal operations:
1. Turn the printer OFF.
2. Wait 5 seconds.
3. Turn the printer ON.
Calling Technical Support
If the printer fails to print the configuration label, or you en-
counter problems not covered in the Troubleshooting Guide,
contact Zebra Technical Support. Technical Support ad-
dresses and phone numbers for your area can be found in
Appendix D of this manual. You will need to supply the fol-
lowing information:
• Model number and type (e.g. MZ 220)
• Unit serial number (Found on the large label on the back
of the printer, also found in the configuration label print-
out. Refer to Figures 23 and 24)
• Product Configuration Code (PCC) (15 digit number found
on the label on the back of the unit)
36
MZ Series User Guide
continued
Unit Serial
Number
Application
Number
Print Head Test
This example
has a
Bluetooth™
radio installed.
Figure 16: Configuration Label Example (MZ 220 illustrated)
End of First
Report
Report ap-
pears only
on units with
wireless op-
tions installed.
Units with no
wireless op-
tions will print
an empty line
and resume
37
MZ Series User Guide
Flash
Memory
Size
Maximum
Label Size
Figure16a: Configuration Label Example (continued)
Bluetooth
radio
parameters
38
MZ Series User Guide
Figure 16c: Configuration Label Example (continued)
Amount of
Memory
Available
Resident Fonts
CCL (CPCL)
programming
language is
supported
39
MZ Series User Guide
Specifications
Note.- Printer specifications are subject to change without notice.
Printing Specifications
MZ 220 MZ 320
Print Width Up to 1.89 in. (48,0 mm) Up to 2.9 in. (71,2 mm)
Print Speed 2” per second (76,2 mm/second)
Print Head Life,
calculated
1,964,160 in. (50 Km) nominal
Print Density 203 dots/inch (8 dots/mm)
Printhead Burn
Line to Tear Edge 0.2 in. (5,08 mm)
Memory and Communications Specifications, MZ series
Flash Memory 4 MB
SRAM 8 MB
Standard
Communications
USB 2.0 Full Speed Interface (12 Mbps)
& Infrared wireless link (meets IrDA 1.1
communications specifications )
Optional Wireless
Communications
Optional Bluetooth compatible module
Optional 802.11b/g SRRF module
Only one wireless option may be installed in a printer.
Media Specifications
MZ 220 MZ 320
Width 2.0 ± .03 in. (50,8 ±0.8
mm)
3.0 ± .03 in. (76,2 mm±0.8
mm )
Max. Printable
Area
1.9” (48,3 mm) x 32”
(812,8 mm)
2.9” (73,7 mm) x 21”
(53,3mm)
Label Thickness .002 in to .004 in (0,050 mm to 0,102 mm)
Max. Media Roll
dia. 1.88 in. (47,8 mm) O.D.
Label Inner
Core Diameter 0.40 to 0.75 in.. (10,2 to 19 mm)
Use Zebra brand direct thermal or UV resistant coated media that is outside wound.
40
MZ Series User Guide
Font and Bar Code Specifications for MZ Series
Linear &
2-D Bar
Bar Codes
Available
Codabar (NW-7)
UCC/EAN 128
Code 39
Code 93
EAN 8/JAN 8, 2 and 5 digit extensions
EAN 13/JAN 13, 2 and 5 digit extensions
EAN 14/JAN 14, 2 and 5 digit extensions
lnterleaved 2 of 5
MSI/Plessey
FIM/POSTNET
UPC-A, 2 and 5 digit extensions
UPC-E, 2 and 5 digit extensions
QR Code
MaxiCode
PDF 417
RSS (Reduced Space Symbology®)
Composite Symbology®
Rotation
Angles0°, 90°, 180°, and 270°
Fonts
Available
Standard Fonts: 25 bit-mapped fonts; 1
scalable (CG Trimvirate Bold Condensed*)
Downloadable optional bit-mapped &
scalable fonts via Label Vista software
International character sets:
Chinese 16 x 16 (trad), 16 x 16 (simplified),
24 x 24 (simplified);
Japanese 16 x 16, 24 x 24
Korean Myang 16 x 16
Greek
Hebrew/Arabic
*contains UFST from Agfa Monotype Corporation
41
MZ Series User Guide
continued

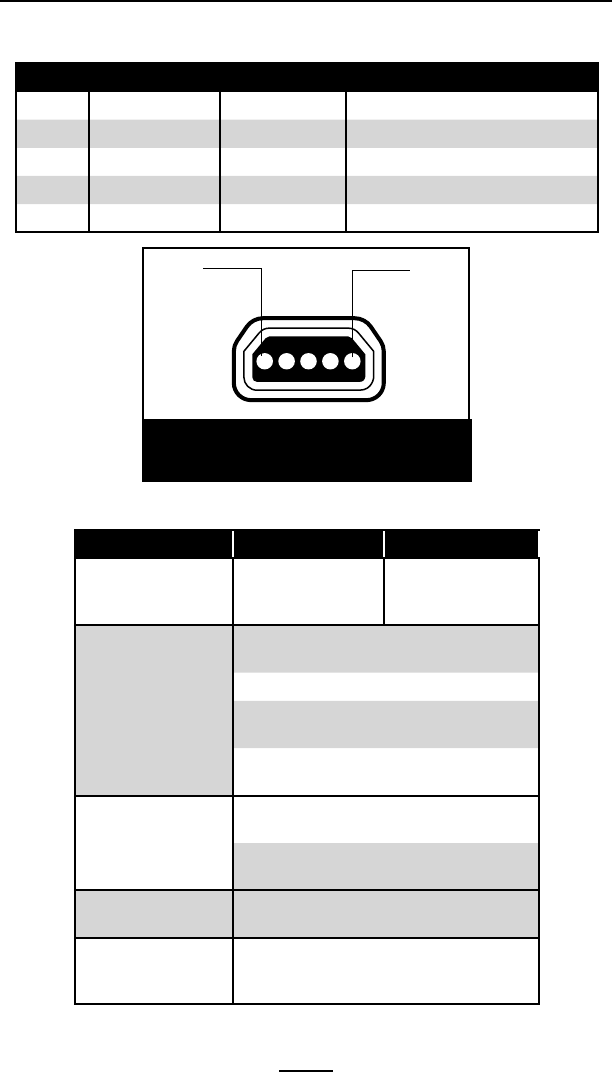

USB Communications Port
Figure 17: USB Communications
Port
51
Pin# Signal Name Type Description
1 VBUS - USB Bus Power
2 USB - bi-directional I/O signals
3 USB + bi-directional I/O signals
4 USB_ID - Identifies A/B connector
5 Return - Ground
Physical, Environmental and Electrical Specifications
MZ 220 MZ 320
Weight w/
battery,
excluding media
.70 lbs.
(317,5 g. )
.75 lbs.
(340,2 kg.)
Temperature
Operating : 14° to 122° F (-10° to
50° C)
Charging: 32° to 104° F (-0° to 40° C)
Storage w/o battery: -4° to 140° F
(-25° to 60° C)
Storage w/ battery: -4° to 113° F
(-25° to 45°C)
Relative
Humidity
Operating: 10% to 90% (non-
condensing)
Storage: 10% to 90% (non-
condensing)
Battery Lithium-Ion, 7.4 VDC (nominal);
1500 AHr.
Intrusion
Protection (IP)
Rating
42
42
MZ Series User Guide

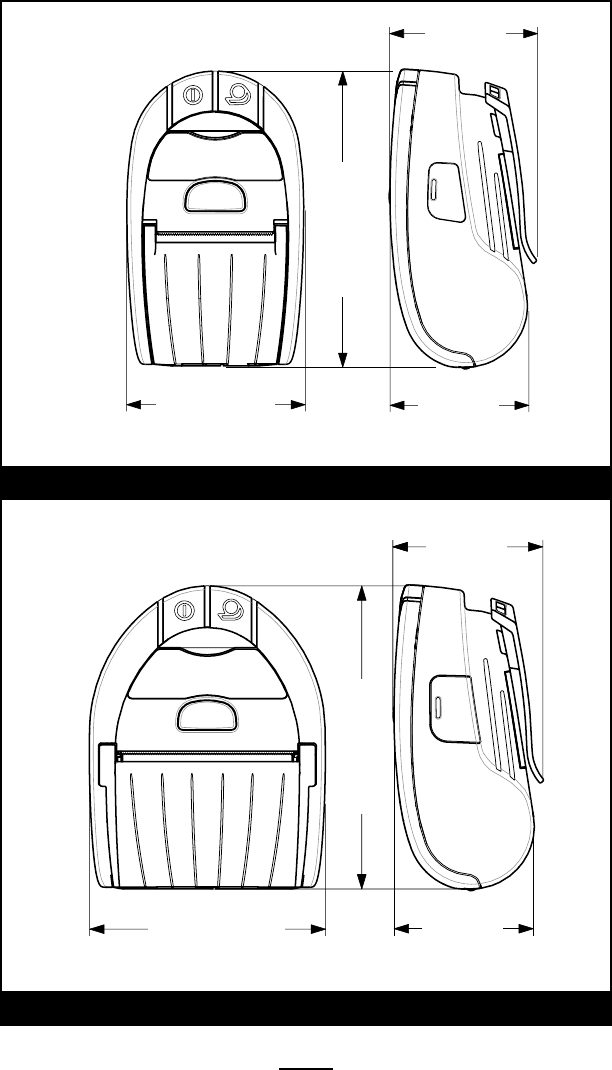

Figure 18: MZ 220 Overall Dimensions
Figure 19: MZ 320 Overall Dimensions
5.34” (135,6 mm)
3.18” (80,7 mm) 2.26”
(57,4 mm)
2.47”
(62,7 mm)
5.34” (135.6 mm)
2.26”
(57,4 mm)
2.47”
(62,7 mm)
4.11” (104,4 mm)
43
MZ Series User Guide
MZ Series Accessories
Description MZ 220/ MZ 320/
Adjustable shoulder strap • •
Protective soft case • •
Vehicle Adapter Cable • •
Extra battery packs • •
MZ Series Quad Docking
Station
100-240 VAC • •
Refer to Appendix A for information on Data I/O Cables
For more details on available accessories, contact your authorized
Zebra reseller.
44
MZ Series User Guide Appendices
Appendix A
Interface Cables
USB Cable
Part Number AT17010-1; USB A to USB Mini B Cable
MORE INTERFACE CABLES
Contact the Factory or your Zebra Sales Representative for more
information on interface cables to most major manufactur’s data
terminals.
You may also vist the Zebra Web site at http://www.zebra.com for a
listing of interface cables for all series of Zebra mobile printers
45
MZ Series User Guide Appendices
Appendix B
Media Supplies
To insure maximum printer life and consistent print qual-
ity and performance for your individual application, it is rec-
ommended that only media produced by Zebra be used.
Advantages include:
• Consistent quality and reliability of media products.
• Large range of stocked and standard formats.
• In-house custom format design service.
• Large production capacity which services the needs of
many large and small media consumers including major
retail chains world wide.
• Media products that meet or exceed industry standards.
For more information call Zebra Technologies Corporation at
+1.866.230.9495 (U.S., Canada and Mexico) and ask to speak
to a Media Sales Representative.
Appendix C
Maintenance Supplies
In addition to using quality media provided by Zebra, it is
recommended that the printer be cleaned as prescribed in the
maintenance section. The following items are available for
this purpose:
• Cleaning Pen (10 pack), Reorder No. AN11209-1
• Cleaning Kit with Cleaning Pen, and Cotton Swabs,
Reorder No. AT702-1
46
MZ Series User Guide Appendices
Appendix D
Battery Disposal
The EPA certified RBRC® Battery Recycling
Seal on the Lithium-Ion (Li-ion) battery sup-
plied with your printer indicates Zebra
Technologies Corporation is voluntarily partici-
pating in an industry program to collect and re-
cycle these batteries at the end of their useful
life, when taken out of service in the United States or Canada.
The RBRC program provides a convenient alternative to plac-
ing used Li-ion batteries into the trash or the municipal waste
stream, which may be illegal in your area.
Important • When the battery is worn out, insulate the terminals with
tape before disposal
Please call 1-800-8-BATTERY for information on Li-ion bat-
tery recycling and disposal bans/restrictions in your area.
Zebra Technologies Corporation’s involvement in this program
is part of our commitment to preserving our environment and
conserving our natural resources.
Outside North America, please follow local battery recycling
guidelines.
Product Disposal
Do not dispose of this product in unsorted
municipal waste. This product is recyclable.
Please recycle according to your local stan-
dards. For more information, please see our
web site at: http://www.zebra.com/recycle.
47
MZ Series User Guide Appendices
Appendix F
Product Support
When calling with a specific problem regarding your
printer, please have the following information on hand:
• Model number/type (e.g. MZ 220)
• Unit serial number
• Product Configuration Code (PCC)
For Product Support Contacts, see the table at right or con-
tact your local reseller.
MZ Series Serial Number Label
MZ 220 illustrated
Serial
Number
Bar Code
PCC
Bar Code
48
MZ Series User Guide Appendices
In the Americas contact
Regional Headquarters Technical Support Customer Service Dept.
Zebra Technologies International,LLC
333 Corporate Woods Parkway
Vernon Hills, Illinois 60061.3109 U.S.A
T: +1 847 793 2600
Toll-free +1 800 423 0422
T: +1 847 913 2259
F: +1 847 913 2578
Hardware:
hwtsamerica@zebra.com
Software:
swtsamerica@zebra.com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +1 866 230 9494
F: +1 847 913 8766
E: VHCustServ@zebra.com
In Europe, Africa, the Middle East, and India contact
Regional Headquarters Technical Support Internal Sales Dept.
Zebra Technologies Europe Limited
Zebra House
The Valley Centre, Gordon Road
High Wycombe
Buckinghamshire HP13 6EQ, UK
T: +44 (0)1494 472872
F: +44 (0) 1494 450103
T: +44 (0) 1494 768298
F: +44 (0) 1494 768210
Germany:
Tsgermany@zebra.com
F: +44 (0) 1494 768244
E: mseurope@zebra.com
France::
Tsfrance@zebra.com
Spain/Portugal:
Tsspain@zebra.com
All other areas:
Tseurope@zebra.com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +44 (0) 1494 768316
F: +44 (0) 1494 768244
E: mseurope@zebra.com
In the Asia Pacific region contact
Regional Headquarters Technical Support Customer Service
Zebra Technologies Asia Pacific, LLC
16 New Industrial Road
#05-03 Hudson TechnoCentre
Singapore 536204
T: +65 6858 0722
F: +65 6885 0838
T: +65 6858 0722
F: +65 6885 0838
E:
tsasiapacific@zebra.com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +65 6858 0722
F: +65 6885 0837
Product Support Contacts
49
MZ Series User Guide Appendices
continued
Appendix E
Using zebra.com
The following details using the search functions on Zebra’s
Web site www.zebra.com for finding specific documents .
Finding Manuals:
http://www.zebra.com/id/zebra/na/en/index/resource_library/manuals.html
Example: FInd the Mobile Printer WIreless Configuation Guide.
Perform the above step and select as a manual type “Networking Manual”
Finding the Label Vista Download page:
http://www.zebra.com/id/zebra/na/en/index/drivers_downloads.html
Select manual
type
Select
language
Sort by
“Manual Type”
(optional step)
Select printer
model (e.g.
MZ 220)
Click
on“SUBMIT”
Select the Wireless
Configuration Guide
Click on
“Download”
to save a .pdf
file to your
local drive
50
MZ Series User Guide Appendices
At the resulting window select your printer model from the pull-down menu in the “Utilities” section.
MZ 220
Enter your printer
model number and
click on “SUBMIT”
Click on
“Download” to save
a demo application
to your local drive
52
MZ Series User Guide
Index
A
Accessories
Belt clip 27
list of 43
Shoulder Strap 28
B
Battery, charging 11
MZ Series Charger Power Supply 12
using Quad Docking Station 13
Battery, installing 10
Battery life, tips for extending 29
Bluetooth™ Networking Overview 22
Bluetooth Device Address (BDA) 22
C
Cleaning
general instructions 30
Communications
infrared (IR) 21
RS232
Connector signals 41
with a cable 20
Communications diagnostics 34
Configuration label, printing 34
D
Damage, shipping 8
Declaration of Conformity
EU countries
Bluetooth radio 24
Zebra 802.11g WLAN 25
L
Label Vista 23
use in troubleshooting 34
M
Manual
CPCL Programming 8,23
Media, loading 15
O
Operator Controls 17
P
Programming language
CPCL 8
R
Radio options.See Wireless communications
Regulatory Information
Bluetooth radio ( MZ-ZBR3) 24
Zebra 802.11b/g Radio 25
S
Safety Precautions
placement of charger 14
while charging batterys 14
Software 23
Specifications
Font/bar Code 40
Memory/communications 39
Physical 41
printing 39
T
Technical Support, contacting 35
Troubleshooting
Communications Diagnostics Mode 34
control panel indicators 32
Standard control panel indicators
Troubleshooting tests 34
printing a configuration label 19,34
QL configuration label example 36
Troubleshooting Topics ,32
W
Wireless communications
Bluetooth™ radio 22
Infrared (IrDA) 21
Local Area Network
Zebra 802.11b/g WLAN Radio 25
WLAN Overview 23
53
MZ Series User Guide
Specifications
Font/bar Code 40
Memory/communications 39
Physical 41
printing 39
T
Technical Support, contacting 35
Troubleshooting
Communications Diagnostics Mode 34
control panel indicators 32
Standard control panel indicators
Troubleshooting tests 34
printing a configuration label 19,34
QL configuration label example 36
Troubleshooting Topics ,32
W
Wireless communications
Bluetooth™ radio 22
Infrared (IrDA) 21
Local Area Network
Zebra 802.11b/g WLAN Radio 25
WLAN Overview 23
D275,286
D347,021
D389,178
D430,199
D433,702
3,964,673
4,019,676
4,044,946
4,360,798
4,369,361
4,387,297
4,460,120
4,496,831
4,593,186
4,607,156
4,673,805
4,736,095
4,758,717
4,816,660
4,845,350
4,896,026
4,897,532
4,923,281
4,933,538
4,992,717
5,015,833
5,017,765
5,021,641
5,029,183
5,047,617
5,103,461
5,113,445
5,140,144
5,132,709
5,142,550
5,149,950
5,157,687
5,168,148
5,168,149
5,180,904
5,229,591
5,230,088
5,235,167
5,243,655
5,247,162
5,250,791
5,250,792
5,262,627
5,267,800
5,280,163
5,280,164
5,280,498
5,304,786
5,304,788
5,321,246
5,335,170
5,364,133
5,367,151
5,372,439
5,373,148
5,378,882
5,396,053
5,396,055
5,399,846
5,408,081
5,410,139
5,410,140
5,412,198
5,415,482
5,418,812
5,420,411
5,436,440
5,444,231
5,449,891
5,449,893
5,468,949
5,479,000
5,479,002
5,479,441
5,486,057
5,503,483
5,504,322
5,528,621
5,532,469
5,543,610
5,545,889
5,552,592
5,570,123
5,578,810
5,589,680
5,612,531
5,642,666
5,657,066
5,768,991
5,790,162
5,791,796
5,806,993
5,813,343
5,816,718
5,820,279
5,848,848
5,860,753
5,872,585
5,874,980
5,909,233
5,976,720
5,978,004
5,995,128
5,997,193
6,004,053
6,010,257
6,020,906
6,034,708
6,036,383
6,057,870
6,068,415
6,068,415
6,095,704
6,109,801
6,123,471
6,147,767
6,151,037
6,201,255 B1
6,231,253 B1
6,261,009
6,261,013
6,267,521
6,270,072 B1
6,285,845 B1
6,292,595
6,296,032
6,364,550
6,379,058 B1
6,409,401 B1
6,411,397 B1
6,428,227 B2
6,530,705
6,540,122
6,607,316
6,609,844
6,874,958
6,899,477Ł
