Zebra Technologies RFD2000 RFID Sled User Manual
Zebra Technologies Corporation RFID Sled
User Manual
www.zebra.com/rfd2000
RFD2000
To remove the TC20, firmly hold the RFD2000 sled handle, and lift the TC20 off of
the sled base.
2
1
3
7
8
4
5
9
6
Post in Work AreaPost in Work Area

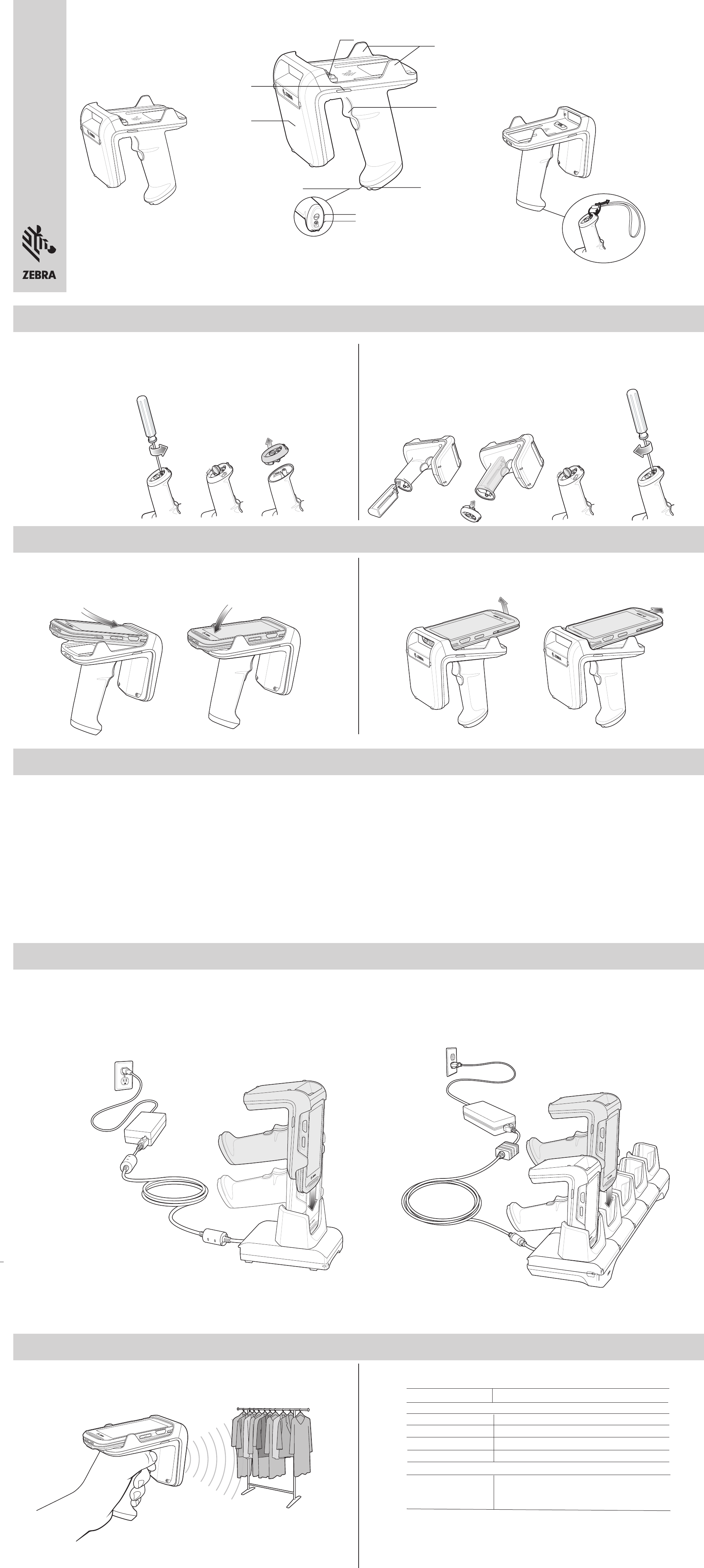

Quick Start Guide
RFID Sled
BATTERY REPLACEMENT
See Product Reference Guide for detailed information
DEVICE INSTALLATION
1 LED Indicator (2)
2 Antenna
3 Battery Compartment
FEATURES
Inserting the TC20 into the RFID Sled
LED INDICATORS
Inserting the Battery
Removing the TC20 from the RFID Sled
CHARGING
Charging
The RFD2000 RFID Sled and TC20 Mobile Computer may be charged in the charging cradle individually or attached together.
Fully charge the RFD2000 by placing it in the charging cradle before first use. When an RFD2000 RFID Sled is removed from
a charging cradle, it is automatically powered On. If a reader is not used for a duration of thirty minutes, the reader enters
Off mode. Pressing the handle trigger for two seconds turns the reader back On.
1. Insert the battery, connector end first, contacts facing toward trigger, into the
Battery Compartment.
2. Place the Battery Cap on.
3. Turn the Battery Latch clockwise using a flat head screw driver
or coin.
4. Screw the Battery Cap screw using a Phillips head screw driver and tighten.
4 Battery Compartment Latch
5 Battery Compartment Screw
Single Slot Charging Cradle Five Slot Charging Cradle
To use the RFD2000 for the first time with the TC20:
1. Charge the RFD2000 in the charging cradle.
2. Attach the TC20 on the RFD2000.
3. Set the region and power level (using the RFID Demo Application,
RFID Manager Application, or the Partner Application).
Using the RFD2000
GETTING STARTED
6 Lanyard Hook
7 Trigger
8 Retention Clip (2)
9 Connector for TC20
INTRODUCTION
The RFD2000 sled provides Radio Frequency Identification
(RFID) tag reading, wrtiting, and locating capability to
Zebra’s TC20 mobile computer.
For detailed information, refer to the Product Reference
Guide at: www.zebra.com/support.
OPTIMUM TAG DECODING
RFID Operation
Using RFID Manager for Android /RFID Demo
To use the RFID Manager / Zebra RFID Demo for RFID operations:
1. Ensure that the RFID Manager for Android is installed on the TC20. The Zebra RFID
Demo can be installed after RFID Manager is installed and verified.
2. Launch the application on the TC20.
3. Connect the RFD2000.
4. Before using the device for the first time, set the region in which the device
is operating. To set the region, open the application and select
Settings > Regulatory.
5. The application displays a successfully installed message. To manually verify the
installation is successfully installed, select Setting > ???
Note: Zebra RFID Manager does not supply real time information or allow settings
setup if the RFID Demo Application or Partner Application is connected to the
RFD2000.
SOFTWARE
Condition Power LED
Battery Indication While Charging
Pre-charging Amber (Fast, Fast, Slow)
Charging Amber (Blinking)
Fully Charged Green (Stays On)
Charging Error Amber (Fast Blinking)
Battery Indication While Not Charging*
Battery Charge Status Green when remaining charge is 99%-51%
Amber when remaining charge is 21%-50%
Red when remaining charge is 0%-20%
Place the TC20 fully forward on the RFD2000 sled base and push the TC20 down
into the retention clips to secure the TC20 to the RFID Sled.
For the latest versions of guides and software, go to:
www.zebra.com/support.
Lanyard
Remove the Battery
1. Remove the Battery Cap screw using a Phillips head screw driver.
2. Turn the Battery Latch counter clockwise approximately 30º using a flat head screw
driver or coin.
3. Remove the Battery Cap.
4. Remove Battery.
Note: For initial use, fully charge the RFD2000 RFID sled for X ??? hours.
*The battery charge status LED indicator appears within four seconds
of removing the RFD2000 RFID Sled from the charging cradle.
Note: Zebra RFID Manager for Android must be installed before the RFID Demo application.
Draft 6
RFD2000
RFD2000
Recommended Usage Guide
MN-003129-01 Revision A November 2017
©2017 ZIH Corp and/or its affiliates. All rights reserved. Zebra and the
stylized Zebra head are trademarks of ZIH Corp, registered in many
jurisdictions worldwide. All other trademarks are the property of their
Waste Electrical and Electronic Equipment (WEEE)
Korea Warning Statement for Class B ITE
사용자 안내문
이 기기는 가정용(B급)으로 전자파적합등록을
한 기기로서 주로 가정에서 사용하는 것을 목적
으로 하며, 모든 지역에서 사용할 수 있습니다.
기 종 별
B급 기기
(가정용 방송통신기기)
Warranty
For the complete Zebra hardware product warranty statement, go to:
www.zebra.com/warranty.
For Australia Only
This warranty is given by Zebra Technologies Asia Pacific Pte. Ltd., 71
Robinson Road, #05-02/03, Singapore 068895, Singapore. Our goods
come with guarantees that cannot be excluded under the Australia
Consumer Law. You are entitled to a replacement or refund for a major
failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a
major failure.
Zebra Technologies Corporation Australia’s limited warranty above is in
addition to any rights and remedies you may have under the Australian
Consumer Law. If you have any queries, please call Zebra Technologies
Corporation at
+65 6858 0722. You may also visit our website: www.zebra.com for the
most updated warranty terms.
Service Information
If you have a problem using the equipment, contact your facility’s Technical or
Systems Support. If there is a problem with the equipment, they will contact
English: For EU Customers: All products at the end of their life must be returned to Zebra for recycling.
For information on how to return product, please go to: www.zebra.com/weee.
Bulgarish: За клиенти от ЕС: След края на полезния им живот всички продукти трябва да се в
ръщат на Zebra за рециклиране. За информация относно връщането на продукти, моля отидет
е на адрес: www.zebra.com/weee.
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich životnosti vrátit spoleènosti
Zebra k recyklaci. Informace o zpùsobu vrácení produktu najdete na webové stránce:
www.zebra.com/weee.
Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når de er udtjent. Læs
oplysningerne om returnering af produkter på: www.zebra.com/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer Lebensdauer zum Recycling
an Zebra zurückgesandt werden. Informationen zur Rücksendung von Produkten finden Sie unter
www.zebra.com/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει ν
α επιστρέφονται στην Zebra για ανακύκλωση. Για περισσότερες πληροφορίες σχετικά με την επι
στροφή ενός προϊόντος, επισκεφθείτε τη διεύθυνση www.zebra.com/weee στο Διαδίκτυο.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise eesmärgil
Zebra'ile. Lisainformatsiooni saamiseks toote tagastamise kohta külastage palun aadressi:
www.zebra.com/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Zebra al final de
su ciclo de vida para que sean reciclados. Si desea más información sobre cómo devolver un producto,
visite: www.zebra.com/weee.
Français : Clients de l'Union Européenne : Tous les produits en fin de cycle de vie doivent être
retournés à Zebra pour recyclage. Pour de plus amples informations sur le retour de produits, consultez
: www.zebra.com/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita devono
essere restituiti a Zebra al fine di consentirne il riciclaggio. Per informazioni sulle modalità di
restituzione, visitare il seguente sito Web: www.zebra.com/weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā atpakaļ Zebra
otrreizējai pārstrādei. Lai iegūtu informāciju par produktu nogādāšanu Zebra, lūdzu, skatiet:
www.zebra.com/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti grąžinti utilizuoti į
kompaniją „Zebra“. Daugiau informacijos, kaip grąžinti gaminį, rasite: www.zebra.com/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra vállalathoz kell eljuttatni
újrahasznosítás céljából. A termék visszajuttatásának módjával kapcsolatos tudnivalókért látogasson el
a www.zebra.com/weee weboldalra.
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu tagħhom, iridu jiġu
rritornati għand Zebra għar-riċiklaġġ. Għal aktar tagħrif dwar kif għandek tirritorna l-prodott, jekk
jogħġbok żur: www.zebra.com/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun levensduur naar Zebra
te worden teruggezonden voor recycling. Raadpleeg www.zebra.com/weee voor meer informatie over
het terugzenden van producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji nale¿y zwróciæ do firmy
Zebra w celu ich utylizacji. Informacje na temat zwrotu produktów znajduj¹ siê na stronie internetowej
www.zebra.com/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser devolvidos à Zebra para
reciclagem. Para obter informações sobre como devolver o produto, visite: www.zebra.com/weee.
Românesc: Pentru clienţii din UE: Toate produsele, la sfârşitul duratei lor de funcţionare, trebuie
returnate la Zebra pentru reciclare. Pentru informaţii despre returnarea produsului, accesaţi:
www.zebra.com/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby ich životnosti
vrátené spoločnosti Zebra na recykláciu. Bližšie informácie o vrátení výrobkov nájdete na:
www.zebra.com/weee.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti podjetju Zebra za
reciklažo. Za informacije o vraèilu izdelka obišèite: www.zebra.com/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi
Zebra-yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa
www.zebra.com/weee.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Zebra för
återvinning. Information om hur du returnerar produkten finns på www.zebra.com/weee.
Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Zebra'ya iade
edilmelidir. Ürünlerin nasıl iade edileceği hakkında bilgi için lütfen şu adresi ziyaret edin:
www.zebra.com/weee.
TURKISH WEEE Statement of Compliance
EEE Yönetmeliğine Uygundur
Regulatory Information
This device is approved under Zebra Technologies Corporation. This guide
applies to the RFD2000.
All Zebra devices are designed to be compliant with rules and regulations in
locations they are sold and will be labeled as required.
Local language translations are available at the following website:
www.zebra.com/support.
Any changes or modifications to Zebra equipment, not expressly approved by
Zebra, could void the user’s authority to operate the equipment.

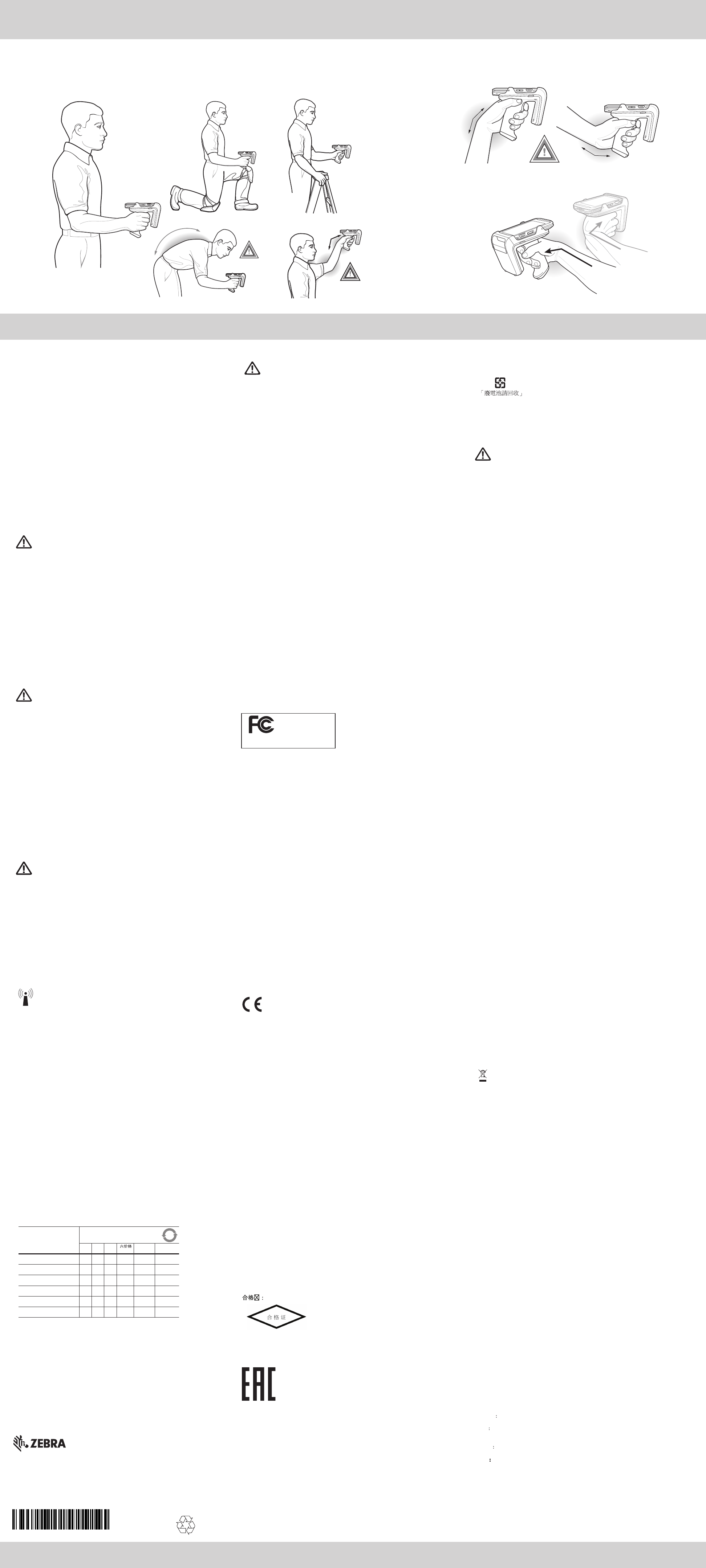

Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic injury
follow the recommendations below. Consult with your local Health & Safety
Manager to ensure that you are adhering to your company's safety programs
to prevent employee injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Statement of Compliance
Zebra hereby declares that this radio equipment is in compliance with Direc-
tives, 2014/53/EU and 2011/65/EU.The full text of the EU Declaration of
Conformity is available at the following internet address: www.zebra.com/doc.
Zebra Technologies Corporation
Lincolnshire, IL U.S.A.
www.zebra.com
CE Marking and European Economic Area (EEA)
Caution:
Only use Zebra approved and UL listed accessories, battery packs, and
battery chargers.
Do NOT attempt to charge damp/wet mobile computers or batteries. All
components must be dry before connecting to an external power source.
Declared maximum operating temperature: 50ºC.
Wireless Device Country Approvals
Note: this section is only applicable to WW/WR/EU configurations.
Regulatory markings, subject to certification, are applied to the device signifying
the radio(s) is/are approved for use in the following countries: United States,
Canada, Japan, China, S. Korea, Australia, and Europe.
Please refer to the Declaration of Conformity (DoC) for details of other country
markings. This is available at http://www.zebra.com/doc.
Note: Europe includes, Austria, Belgium, Bulgaria, Czech Republic, Cyprus,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden,
Switzerland and the United Kingdom.
Caution:
Operation of this device without regulatory approval is illegal.
Health and Safety Recommendations
Warnings for Use of Wireless Devices
Caution:
Please observe all warning notices with regard to the usage of wireless
devices.
Radio Transmitters
This device complies with Industry Canada’s licence-exempt RSSs. Operation
is subject to the following two conditions: (1) This device may not cause
interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radio électrique subi même
si le brouillage est susceptible d'en compromettre le fonctionnement.
Potentially Hazardous Atmospheres - Vehicles Use
Safety in Aircraft
You are reminded of the need to observe restrictions on the use of radio
devices in fuel depots, chemical plants, etc., and areas where the air contains
chemicals or particles such as grain, dust, or metal powders and any other
area where you would normally be advised to turn off your vehicle engine.
Tested to comply
with FCC Standards
FOR HOME OR OFFICE USE
Radio Frequency Interference Requirements - FCC
Note: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received including interference
that may cause undesired operation.
Radio Frequency Interference Requirements – Canada
CAN ICES-3 (B)/NMB-3 (B)
Switch off your wireless device whenever you are instructed to do so by airport
or airline staff. If your device offers a ‘flight mode’ or similar feature, consult
airline staff as to its use in flight.
Safety in Hospitals
Pacemaker manufacturers recommended that a minimum of 15 cm (6 inches)
be maintained between a handheld wireless device and a pacemaker to avoid
potential interference with the pacemaker. These recommendations are
consistent with independent research and recommendations by Wireless
Technology Research.
Pacemakers
Persons with Pacemakers
Wireless devices transmit radio frequency energy and may affect medical
electrical equipment.
Wireless devices should be switched off wherever you are requested to do so in
hospitals, clinics, or healthcare facilitlies. These requests are designed to
prevent possible interference with sensitive medical equipment.
• Should ALWAYS keep the device more than 15cm (6 inches) from their
pacemaker when turned ON.
• Should not carry the device in a breast pocket.
• Should use the ear furthest from the pacemaker to minimise the potential for
interference.
• If you have any reason to suspect that interference is taking place, turn OFF
your device.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device to
determine if the operation of your wireless product may interfere with the
medical device.
Only operate the device in accordance with instructions supplied.
RF Exposure Guidelines
Safety Information
Reducing RF Exposure - Use Properly
The device complies with internationally recognized standards covering
human exposure to electromagnetic fields from radio devices. For
information on ’International‘ human exposure to electromagnetic fields,
refer to the Zebra Declaration of Conformity (DoC) at
www.zebra.com/doc.
For further information on the safety of RF energy from wireless devices,
see www.zebra.com/responsibility located under Corporate Responsibility.
International
Europe - Handheld Devices
To comply with EU RF exposure requirements, this device must be operated
in the hand with a minimum separation distance of 20 cm or more from a
person’s body. Other operating configurations should be avoided.
US
This device was tested for typical hand held operation. The FCC has
granted an Equipment Authorization for these model phones with all
reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on these model phones is on file with the
FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid.
The use of third-party accessories may not ensure compliance with FCC
RF exposure requirements, and should be avoided.
Chile
Brazil (UNWANTED EMISSIONS - ALL PRODUCTS)
Declarações Regulamentares para RFD2000 - Brazil
Nota: A marca de certificação se aplica ao Transceptor, modelo RFD2000.
Este equipamento opera em caráter secundário, isto é, não tem direito a
proteção contra interferência prejudicial, mesmo de estações do mesmo tipo,
e não pode causar interferência a sistemas operando em caráter primário.
Para maiores informações sobre ANATEL consulte o site: www.anatel.gov.br.
Este produto está homologado pela Anatel, de acordo com os procedimentos
regulamentados pela Resolução n°242/2000 e atende aos requisitos técnicos
aplicados, incluindo os limites de exposição da Taxa de Absorção Específica
referente a campos elétricos, magnéticos e eletromagnéticos de
radiofrequência, de acordo com as Resoluções n° 303/2002 e 533/2009.
Este equipo cumple con la Resolución No 403 de 2008, de la
Subsecretaria de telecomunicaciones, relativa a radiaciones electromagnéticas.
Canada
This device was tested for typical hand held operation. The ISED has
approved these model phones with all reported SAR levels evaluated as in
compliance with the ISED RF exposure guidelines. SAR information on
these model phones is on file with the ISED and can be found under the
SAR Results section of https://sms- sgs.ic.gc.ca/equipmentSearch/-
searchRadioEquipments. The use of third-party accessories may not
ensure compliance with ISED RF exposure requirements, and should be
avoided.
Cet appareil a été testé pour une opération manuelle typique. L'ISED a
approuvé ces modèles de téléphones avec tous les niveaux SAR
déclarés évalués conformément aux directives d'exposition RF ISED.
L'information SAR sur ces modèles de téléphones est en mémoire avec
l'ISED et peut être trouvée dans la section Résultats SAR de https://sms-
sgs.ic.gc.ca/equipmentSearch/searchRadioEquipements.
L'utilisation d'accessoires tiers peut ne pas garantir la conformité aux
exigences d'exposition RF ISED, et devrait être évitée.
Batteries
REGULATORY INFORMATION
Taiwan - Recycling
EPA (Environmental Protection Administration) requires dry battery produc-
ing or importing firms in accordance with Article 15 of the Waste Disposal
Act are required to indicate the recycling marks on the batteries used in
sales, giveaway, or promotion. Contact a qualified Taiwanese recycler for
proper battery disposal.
Battery Information
Caution:
Please observe all warning notices with regard to the usage of wireless
devices.
Caution:
Please observe all warning notices with regard to the usage of wireless
devices.
Caution: Risk of explosion if battery is replaced by an incorrect type.
Dispose of batteries according to instructions.
Use only Zebra approved batteries. Accessories which have battery
charging capability are approved for use with the following battery models:
Part Number: BT-000341-01 and BT-000341-02; (3.6 Vdc, 3150 mAh).
Zebra approved rechargeable battery packs are designed and constructed
to the highest standards within the industry.
However, there are limitations as to how long a battery can operate or be
stored before needing replacement. Many factors affect the actual life cycle
of a battery pack such as heat, cold, harsh environmental conditions, and
severe drops.
When batteries are stored over six months, some irreversible deterioration in
overall battery quality may occur. Store batteries at half of full charge in a
dry, cool place, removed from the equipment to prevent loss of capacity,
rusting of metallic parts, and electrolyte leakage. When storing batteries for
one year or longer, the charge level should be verified at least once a year
and charged to half of full charge.
Replace the battery when a significant loss of run time is detected.
Standard warranty period for all Zebra batteries is one year, regardless if the
battery was purchased separately or included as part of the mobile computer
or bar code scanner. For more information on Zebra batteries, please visit:
www.zebra.com/batterybasics.
The area in which the units are charged should be clear of debris and
combustible materials or chemicals. Particular care should be taken where
the device is charged in a non-commercial environment.
• Follow battery usage, storage, and charging guidelines found in the user's
guide.
• Improper battery use may result in a fire, explosion, or other hazard.
• To charge the mobile device battery, the battery and charger temperatures
must be between +32 ºF and +104 ºF (0 ºC and +40 ºC).
• Do not use incompatible batteries and chargers. Use of an incompatible
battery or charger may present a risk of fire, explosion, leakage, or other
hazard. If you have any questions about the compatibility of a battery or a
charger, contact Zebra support.
• Do not disassemble or open, crush, bend or deform, puncture, or shred.
• Severe impact from dropping any battery-operated device on a hard
surface could cause the battery to overheat.
• Do not short circuit a battery or allow metallic or conductive objects to
contact the battery terminals.
• Do not modify or remanufacture, attempt to insert foreign objects into the
battery, immerse or expose to water or other liquids, or expose to fire, e
explosion, or other hazard.
• Do not leave or store the equipment in or near areas that might get very
hot, such as in a parked vehicle or near a radiator or other heat source. Do
not place battery into a microwave oven or dryer.
• Battery usage by children should be supervised.
• Please follow local regulations to promptly dispose of used re-chargeable
batteries.
• Do not dispose of batteries in fire.
• Seek medical advice immediately if a battery has been swallowed.
• In the event of a battery leak, do not allow the liquid to come in contact
with the skin or eyes. If contact has been made, wash the affected area
with large amounts of water and seek medical advice.
• If you suspect damage to your equipment or battery, contact Zebra support
to arrange for inspection.
Battery Safety Guidelines
China
通过访问以下网址可下载当地语言支持的产品说明书
www.zebra.com/support
锂电池安全警示语:
警告：请勿拆装，短路，撞击，挤压或者投入火中及水中；
注意：如果电池被不正确型号替换，或出现鼓胀，会存在爆炸及其他危险
请按说明处置使用过的电池
合格：
Eurasian Customs Union
Евразийский Таможенный Союз
Данный продукт соответствует требованиям знака EAC .
Taiwan
臺灣
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、
商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時
應立即停用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Thailand
เครื่องโทรคมนาคมและอุปกรณ์นี้ มีความสอดคล้องตามข้อกำหนดของ กทช.
Zebra reserves the right to make changes to any product to improve
reliability, function, or design. Zebra does not assume any product liability
arising out of, or in connection with, the application or use of any product,
circuit, or application described herein. No license is granted, either
expressly or by implication, estoppel, or otherwise under any patent right or
patent, covering or relating to any combination, system, apparatus, machine,
material, method, or process in which Zebra products might be used. An
implied license exists only for equipment, circuits, and subsystems contained
in Zebra products. Zebra and the Zebra head graphic are registered
trademarks of ZIH Corp. The Symbol logo is a registered trademark of
Symbol Technologies, Inc., a Zebra Technologies company.
This Zebra Product may include Zebra Software, Commercial Third Party
Software, and Publicly Available software. Refer to Product Reference Guide
for complete copyright, conditions and disclaimer information.
OPTIMUM BODY POSTURE AVOID EXTREME WRIST ANGLES
for High Scanning
Optimum Body Posture
Optimum Body Posture
for Low Scanning
Optimum Upright
Body Posture
Use a ladder
Taking breaks and task rotation recommended
This table was created to comply with China RoHS requirements.
China RoHS
(Parts)
(Pb)(Hg)
(Cd)
(PBB)(PBDE)
(Metal Parts)
(Circuit Modules)
(Cables and Cable Assemblies)
(Plastic and Polymeric Parts)
(Optics and Optical Components)
(Batteries)
有害物质
铅汞 镉 多溴联苯 多溴二苯醚部件名称
金属部件
电路模块
电缆及电缆组件
塑料和聚合物部件
光学和光学组件
电池
•
35
O O O
OO
O O O O O
O O O O
O O O
O O O O OO
O
O O
X
O O O O
O
O
(Cr (VI))
This table was created to comply with China RoHS requirements.
本表格依据SJ/T 11364 的规定编制。
O: 表示该有害物质在该部件所有均质材料中的含量均在 SJ/T 11364--2014 规定的限量
要求以下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11364--2014 规定
的限量要求。(企业可在此处，根据实际情况对上表中打“×”的技术原因进
行进一步说明。）
AVOID EXTREME
WRIST ANGLES
AVOID BENDING
AVOID REACHING
O
O
O
Lorem ipsum
Draft 6
