Introduction
This guide applies to the STB3578 with FIPS, and STB3574 Industrial Ethernet cradles.
• The STB3578 with FIPS cradle receives data from the scanner via a Bluetooth radio, and sends
that data to the host through an attached cable. The STB3578 cradle can also be used with LS3578
scanners for charging and radio communication.
• The STB3574 Industrial Ethernet cradle receives and transfers data via a configurable Ethernet IP
address. The cradle can be configured to use one of three Industrial Ethernet Protocols:
PROFINET, EtherNet/IP, and Modbus TCP. Go to: https://www.zebra.com/us/en/support-
downloads.html to download the configuration software for this cradle.
Both cradles charge the scanner’s internal battery pack when the scanner is inserted. The scanner can
be charged from an external power supply, or a powered host cable.
This document provides basic instructions on setting up and using the cradle. Any discussion about
transmission of data refers specifically to the STB3578 cradle. Refer to the STB3574 Industrial
Ethernet Developer Cradle Developer Guide, p/n MN-002694-01, for detailed information about
receiving and transferring data with the STB3574 cradle.
CAUTION LS3478 and DS3478 cordless scanners are incompatible with STB3508/
3578 cradles. LS3578 and DS3578 cordless scanners are incompatible with
STB3408/3478 cradles.
Equipment Supplied
The STB3578 and STB3574 cradle packages include:
•Cradle
• Four rubber feet (for desk mounting).
Accessories
The following equipment may be needed:
• Three 1.5" #8 Phillips head screws (for wall mounting, if applicable, not available from Zebra).
• Power supply for desk/wall mounting configuration.
Save the shipping container for storing or shipping. Inspect all equipment for damage. If anything is
damaged or missing, call an authorized Zebra Support Center immediately.
Related Documentation
•LS3578 Product Reference Guide, p/n 72E-93911-xx.
•LS3578 Quick Start Guide, p/n 72-93587-xx.
•DS3578 with FIPS Product Reference Guide, p/n 72E-153466-xx.
•DS3578 Quick Start Guide, p/n 72-151247-xx.
•FLB3508/3578 Quick Reference Guide, p/n 72-150221-xx.
• STB3574 Industrial Ethernet Cradle Product Reference Guide.
All documentation is available at: www.zebra.com/support.

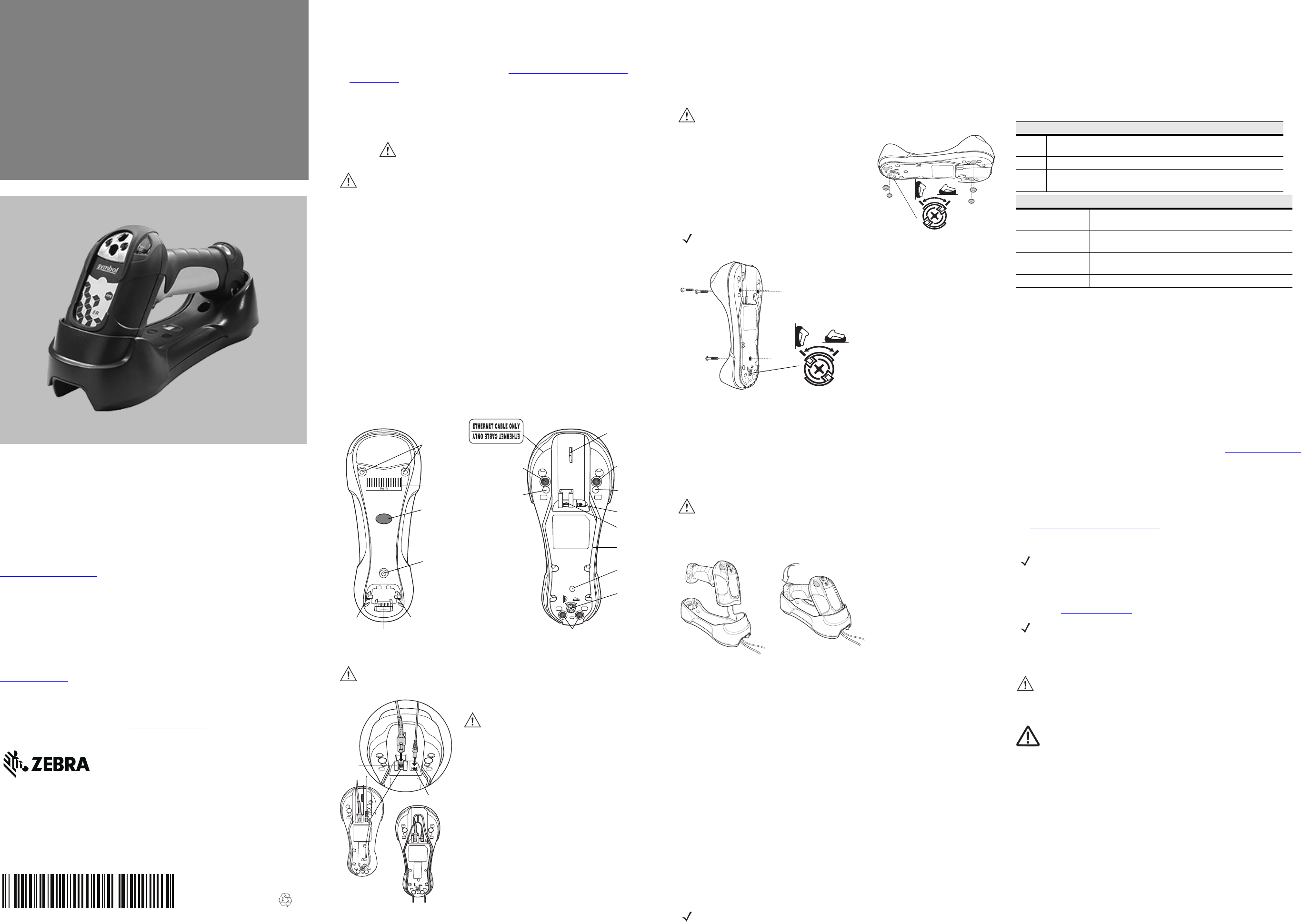

Cradle Parts
Cradle Connections
Changing the Host Interface (STB3578 only)
To connect the STB3578 cradle to a different host, or to the same host through a different cable:
1. Unplug the power supply from the cradle.
2. Unplug the interface cable from the host.
3. Connect the interface cable to the new host, or the new interface cable to the existing host.
4. Reconnect the power supply, if required.
5. If necessary, scan the appropriate host bar code (for non-autodetected interfaces). Refer to the
Product Reference Guide.
Using a Host Interface to Supply Power
Some hosts can provide power to the cradle via the host interface, instead of an external power supply.
Mounting the Cradle
Horizontal Mount
1. Ensure the desk/wall mount converter knob is in
the correct position, shown at right.
2. If mounting the cradle horizontally where no
fastening is necessary, peel the protective paper
from the back of the rubber feet included with the
cradle packaging, and attach the feet to the cradle
at the indentations in the plastic. These feet
provide traction and prevent surface damage.
Vertical Mount
To mount the cradle on a vertical surface:
1. Use a Phillips screwdriver to turn the desk/wall mount converter knob to the position shown below.
The front latches protract to engage the depressions at the base of the scanner’s handle.
2. Attach the interface and power cables to the appropriate ports (see
<bl_blue><em_Emphasis>Cradle Connections).
3. Press the cables into the cable grooves.
4. Position the cradle on the mounting surface, or use the template included in this guide.
5. Mark the surface through the three holes on the bottom of the cradle, or use the mounting template
to determine the location of the screw holes.
6. Pre-drill holes to accommodate three 1.5" #8 Phillips head screws.
7. Attach the cradle securely to the surface.
8. Place the scanner in the cradle.
Inserting the Scanner in the Cradle
To insert the scanner in the cradle:
• Insert the scanner top first. Push the handle until it clicks into place, engaging the contacts in the
cradle and scanner.
Sending Data to the Host Computer
The cradle receives data from the scanner via a wireless radio connection and transmits it to the host
computer via the host cable. The scanner and cradle must be paired for successful wireless communication.
Pairing
Pairing registers a scanner to the cradle such that the scanner and cradle can exchange information.
The STB357X operates in two modes: Point-to-Point (scanner-to-cradle) and Multipoint-to-Point (multi
scanner-to-cradle). In Point-to-Point mode, the scanner is paired to the cradle either by insertion into
the cradle (if pairing on insertion is enabled), or by scanning the pairing bar code. In Multipoint-to-Point
mode, up to three scanners can be paired to one cradle when using a Non-FIPS digital scanner and
cradle. When using a FIPS enabled digital scanner and a FIPS enabled cradle, up to seven digital
scanners can be paired to one cradle. The multipoint bar code must be scanned to activate this
feature. Refer to the Product Reference Guide for more information.
The cradle includes pairing bar codes on both its front and back. To pair the scanner with the cradle,
scan a pairing bar code. A high-low-high-low beep sequence followed by a low-high beep sequence
indicates successful pairing and connection to the remote device. A long low, long high beep sequence
indicates unsuccessful pairing. Refer to the Product Reference Guide for more information.
Lost Connection to Host
If scanned data does not transmit to the cradle’s host, ensure that all cables are firmly inserted and the power
supply is connected to an appropriate AC outlet, if applicable. If scanned data still does not transmit to the
host, reestablish a connection with the host:
1. Disconnect the power supply from the cradle.
2. Disconnect the host interface cable from the cradle.
3. Wait three seconds.
4. Reconnect the host interface cable to the cradle.
5. Reconnect the power supply to the cradle, if required.
6. Reestablish pairing with the cradle by scanning the pairing bar code.
Charging the Scanner Battery in the Cradle
To charge the scanner battery, place the scanner in the cradle (see
<bl_blue><em_Emphasis>Inserting the Scanner in the Cradle). The battery begins charging when the
scanner LED indicator starts flashing green. A complete charge of a fully discharged battery can take
up to 4.5 hours using external power and up to 10 hours using the interface cable.
Scanner LED Indicators
The green LED on the scanner indicates charging activity (see the table below). If the scanner is
charging in fast mode (non-bus powered mode), the green LED blinks at a fast rate. If the scanner is
charging in slow mode (bus-powered mode), the LED blinks at a slow rate.
If the red LED on the scanner begins flashing, indicating a charging problem, remove the scanner from
the cradle and replace the battery. If the red LED on the scanner continues flashing, contact the Zebra
Support Center.
Troubleshooting
If the cradle does not work after following the previous procedures:
• Check the system power.
• Check for loose cable connections.
• Check that the scanner is inserted properly in the cradle.
• Check that the host settings are correct and the cradle is connected to the appropriate port on the
host.

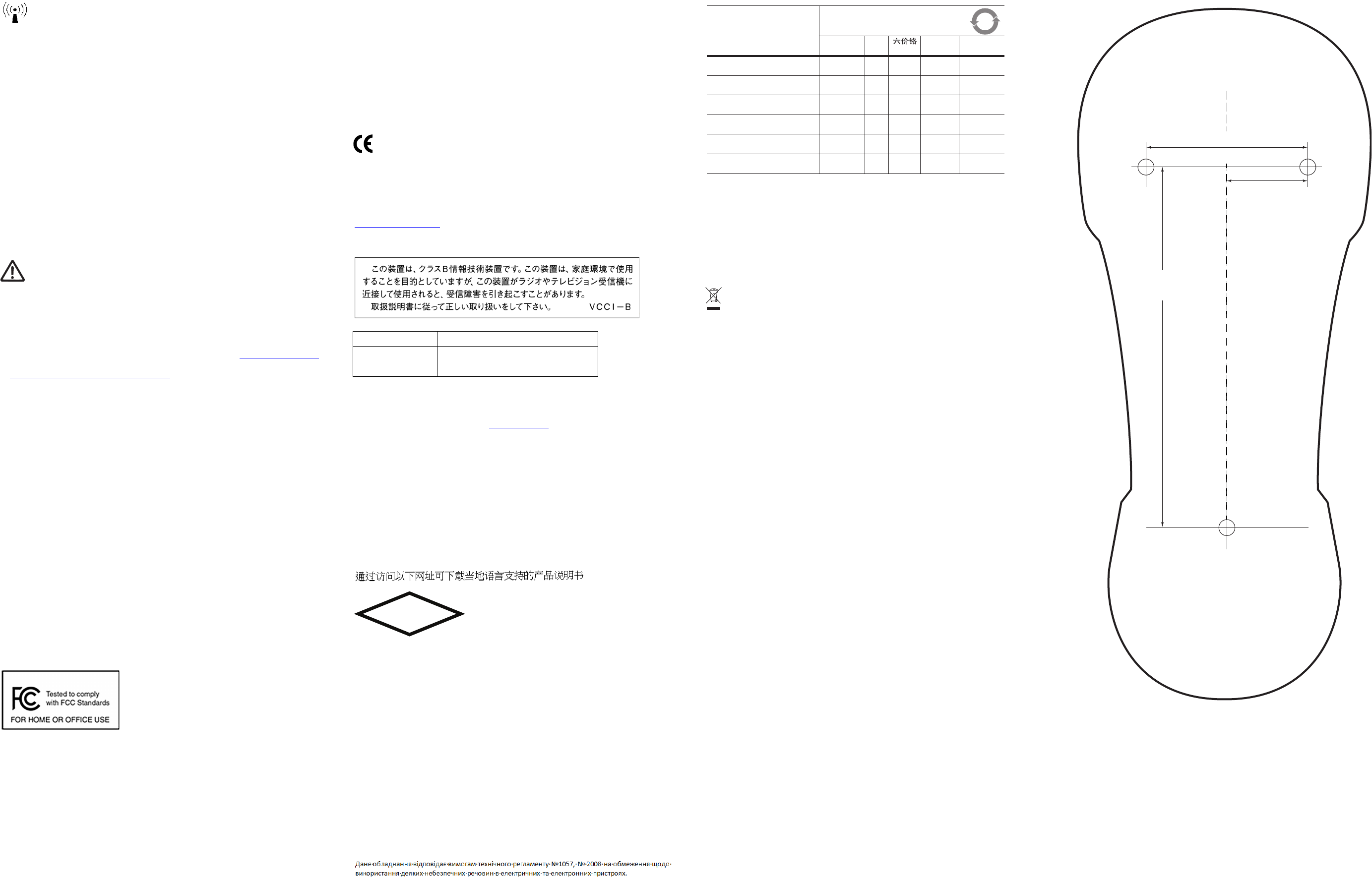

Regulatory Information
For devices with Symbol, or Symbol Technologies Inc., etc. on the Manufacturing Label and for devices
manufactured at Reynosa, or any other Zebra factory facilities:
This device is approved under Zebra Technologies Corporation.
This guide applies to Model Numbers STB3574 and STB3578.
All Zebra devices are designed to be compliant with the rules and regulations in the locations they are
sold and will be labeled as required.
Local language translations are available at the following website: www.zebra.com/support.
Any changes or modifications to Zebra equipment not expressly approved by Zebra could void the
user's authority to operate the equipment.
For use only with Zebra approved and UL Listed scanners, Zebra approved, and UL Listed/Recognized
battery packs.
Bluetooth® Wireless Technology
This is an approved Bluetooth® product. For more information or to view the End Product Listing, please
visit https://www.bluetooth.org/tpg/listings.cfm.
Wireless Device Country Approvals
Regulatory markings subject to certification are applied to the device signifying the radio(s) is/are
approved for use in the following countries and continents: United States, Canada, Japan, China, South
Korea, Australia, and Europe.
Please refer to the Declaration of Conformity (DoC) for details of other country markings. This is
available at: www.zebra.com/support.
Health and Safety Recommendations
Ergonomic Recommendations
Caution: In order to avoid or minimize the potential risk of ergonomic injury, follow the
recommendations below. Consult with your local Health and Safety Manager to ensure that you
are adhering to your company's safety programs to prevent employee injury.
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adjustable workstations
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Potentially Hazardous Atmospheres - Fixed Installations
You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical
plants etc. and areas where the air contains chemicals or particles such as grain, dust, or metal
powders.
IMPORTANT It is recommended that a cable with a shielded modular plug be used with
STB3578-CF and FLB3578-CF cradles.
IMPORTANT Connect the interface cable and power supply (if necessary) in the following
order to ensure proper operation of the scanner and cradle.
Mounting
Screw Hole
(2)
Charging/Communication
Contacts
Latch
Pairing Bar
Code
Rubber
Foot Rubber
Foot
Rubber Feet (2)
Mounting
Screw Hole
Power Cable
Groove
Mounting
Screw Hole
Cable
Hook
Power Port
Host Port
Host Cable
Groove
Mounting
Screw Hole
Converter
Knob
Latch
Back
Front
LED
Mounting
Screw Hole
STB3574 Only
Host
Port
Power Port
1. Insert the interface cable into the cradle’s host port.
2. Connect the other end of the interface cable to the host.
3. If necessary, connect the power supply to the cradle’s
power port (if required by the interface, or to allow fast
charging of the scanner).
4. Connect the appropriate cable to the power supply and
an AC power source, if necessary.
5. If applicable, thread the interface cable over the cable
support hook and run the host and power cables into
their respective cable grooves.
6. If necessary, scan the appropriate host bar code (for non-
autodetected interfaces). Refer to the Product Reference
Guide.
IMPORTANT Ensure to use the correct interface
cable. The STB3578 cradle
requires a multi-interface cable;
the STB3574 Industrial Ethernet
requires an Ethernet cable.
CAUTION If the scanner does not recognize the host, disconnect the power supply, then reconnect
after connecting the host cable.
NOTE Do not use the rubber feet when mounting in a vertical orientation.
CAUTION Do not pour, spray, or spill any liquid on the cradle.
NOTE The cradle does not always require a power supply, depending on the host interface
Converter Knob:
Horizontal Position
Converter
Knob
Vertical
Position
Standard Scanner Use LED Sequences
Off No power applied to scanner (battery is discharged or removed); scanner is
in low power and ready to scan.
Green A bar code was successfully decoded.
Red A data transmission error; scanner malfunction; or, LS3578 cordless
scanner was inserted into an STB3478 cradle.
Charging Use LED Sequences
Green Slow Flash The scanner charges at the slow rate (used when the cradle is
powered by the host cable).
Green Fast Flash The scanner charges at the fast rate (used when cradle is
powered from an external power supply).
Red Flash Charging problem. Refer to the Product Reference Guide for
more information.
Red and Green Flash Temperature fault.
NOTE This section is only applicable to WW/WR/EU configurations.
NOTE Europe includes Austria, Belgium, Bulgaria, Croatia, Czech Republic, Cyprus,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, and the
United Kingdom.
CAUTION Operation of the device without regulatory approval is illegal.
Safety in Hospitals
Wireless devices transmit radio frequency energy and may affect medical electrical equipment.
Wireless devices should be switched off wherever you are requested to do so in hospitals, clinics, or
healthcare facilities. These requests are designed to prevent possible interference with sensitive
medical equipment.
Wireless devices transmit radio frequency energy and may affect medical electrical equipment. When
installed adjacent to other equipment, it is advised to verify that the adjacent equipment is not adversely
affected.
Pacemakers
Pacemaker manufacturers recommended that a minimum of 15cm (6 inches) be maintained between a
hand-held wireless device and a pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with independent research and recommendations by Wireless
Technology Research.
Persons with Pacemakers:
• Should ALWAYS keep the device more than 15cm (6 inches) from their pacemaker when turned
ON.
• Should not carry the device in a breast pocket.
• Should use the ear furthest from the pacemaker to minimize the potential for interference.
• If you have any reason to suspect that interference is taking place, turn OFF your device.
Other Medical Devices
Please consult your physician or the manufacturer of the medical device to determine if the operation
of your wireless product may interfere with the medical device.
RF Exposure Guidelines
Safety Information
• Reducing RF Exposure - Use Properly
Only operate the device in accordance with the instructions supplied.
• International
The device complies with internationally recognized standards covering human exposure to
electromagnetic fields from radio devices. For information on 'International' human exposure to
electromagnet fields, refer to the Zebra Declaration of Conformity (DoC) at http://www.zebra.com/doc.
For further information on the safety of RF energy from wireless devices, see
http://responsibility.zebra.com/index.php/downloads/, which is located under Wireless Communications
and Health.
• Europe
• Remote and Standalone Antenna Configurations
To comply with EU RF exposure requirements, antennas that are mounted externally at remote
locations or operating near users at stand-alone desktop of similar configurations must operate
with a minimum separation distance of 20 cm from all persons.
• US and Canada
• Co-located statement
To comply with FCC RF exposure compliance requirement, the antenna used for this transmitter
must not be co-located or operating in conjunction with any other transmitter/antenna except
those already approved in this filling.
To satisfy US and Canadian RF exposure requirements, a transmitting device must operate with
a minimum separation distance of 20 cm or more from a person's body.
Pour satisfaire aux exigences Américaines et Canadiennes d'exposition aux radio fréquences, un
dispositif de transmission doit fonctionner avec une distance de séparation minimale de 20 cm ou
plus de corps d'une personne.
• Remote and Standalone Antenna Configurations
To comply with FCC RF exposure requirements, antennas that are mounted externally at remote
locations or operating near users at stand-alone desktop of similar configurations must operate
with a minimum separation distance of 20 cm from all persons.
To satisfy FCC RF exposure requirements, a mobile transmitting device must operate with a
minimum separation distance of 20 cm or more from a person's body.
Power Supply
Use ONLY a Zebra approved UL LISTED ITE (IEC/EN 60950-1, LPS/SELV) power supply with electrical
ratings: Output 12 Vdc, min 1.5 A, with a maximum ambient temperature of at least 40 degrees C. Use
of alternative power supply will invalidate any approvals given to this unit and may be dangerous.
Radio Frequency Interference Requirements- FCC
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received including interference that may cause undesired operation.
Radio Frequency Interference Requirements- Canada
CAN ICES-3 (B)/NMB-3(B)
Radio Transmitters
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following
two conditions: (1) This device may not cause interference; and (2) This device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire
de brouillage; (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Label Marking: The Term 'IC:' before the radio certification only signifies that Industry Canada technical
specifications were met.
CE Marking and European Economic Area (EEA)
Bluetooth® Wireless Technology for use through the EEA has the following restrictions:
• Maximum radiated transmit power of 100mW EIRP in the frequency range 2.400 -2.4835 GHz.
Statement of Compliance
Zebra hereby declares that this radio equipment is in compliance with Directive 2011/65/EU and
1999/5/EC or 2014/53/EU (2014/53/EU supersedes 1999/5/EC from 13th June 2017).
The full text of the EU Declaration of Conformity is available at the following Internet address:
http://www.zebra.com/doc.
Japan
(VCCI) - Voluntary Control Council for Interference
Korea
Other Countries
Brazil (UNWANTED EMISSIONS - ALL PRODUCTS)
Regulatory declarations for STB357X - BRAZIL
For more information consult the website www.anatel.gov.br.
Declarações Regulamentares para STB357X - Brazil
Nota: A marca de certificação se aplica ao Transceptor, modelo STB357X. Este equipamento opera
em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de
estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.
Para maiores informações sobre ANATEL consulte o site: www.anatel.gov.br
Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência
prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando
em caráter primário.
Chile
Este equipo cumple con la Resolución No 403 de 2008, de la Subsecretaria de telecomunicaciones,
relativa a radiaciones electromagnéticas.
China
Mexico
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este
equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar
cualquier interferencia, incluyendo la que pueda causar su operación no deseada.
South Korea
For a radio equipment using 2400~2483.5MHz or 5725~5825MHz, the following two expression
should be displayed;
당해 무선설비는 운용 중 전파혼신 가능성이 있음
당해 무선설비 는전파혼 신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없습니다 .
Taiwan
臺灣
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原
設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干
擾時方得繼續使用。
前項合法通信，指依電信規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Ukraine
Thailand
เครื่ องโทรคมนาคมและอปกรณนี้ มีความสอดคลองตามขอกําหนดของ กทช .
TURKISH WEEE Statement of Compliance
EEE Yönetmeliğine Uygundur
China RoHS
English: For EU Customers: All products at the end of their life must be returned to Zebra for
recycling. For information on how to return product, please go to: http://www.zebra.com/weee.
Français : Clients de l'Union Européenne : Tous les produits en fin de cycle de vie doivent être
retournés à Zebra pour recyclage. Pour de plus amples informations sur le retour de produits,
consultez : http://www.zebra.com/weee.
Español: Para clientes en la Unión Europea: todos los productos deberán entregarse a Zebra al final
de su ciclo de vida para que sean reciclados. Si desea más información sobre cómo devolver un
producto, visite: http://www.zebra.com/weee.
Bulgarish: За клиенти от ЕС: След края на полезния им живот всички продукти трябва да се
връщат на Zebra за рециклиране. За информация относно връщането на продукти, моля
отидете на адрес: http://www.zebra.com/weee.
Deutsch: Für Kunden innerhalb der EU: Alle Produkte müssen am Ende ihrer Lebensdauer zum
Recycling an Zebra zurückgesandt werden. Informationen zur Rücksendung von Produkten finden Sie
unter http://www.zebra.com/weee.
Italiano: per i clienti dell'UE: tutti i prodotti che sono giunti al termine del rispettivo ciclo di vita devono
essere restituiti a Zebra al fine di consentirne il riciclaggio. Per informazioni sulle modalità di
restituzione, visitare il seguente sito Web: http://www.zebra.com/weee.
Português: Para clientes da UE: todos os produtos no fim de vida devem ser devolvidos à Zebra para
reciclagem. Para obter informações sobre como devolver o produto, visite:
http://www.zebra.com/weee.
Nederlands: Voor klanten in de EU: alle producten dienen aan het einde van hun levensduur naar
Zebra te worden teruggezonden voor recycling. Raadpleeg http://www.zebra.com/weee voor meer
informatie over het terugzenden van producten.
Polski: Klienci z obszaru Unii Europejskiej: Produkty wycofane z eksploatacji nale¿y zwróciæ do firmy
Zebra w celu ich utylizacji. Informacje na temat zwrotu produktów znajduj¹ siê na stronie internetowej
http://www.zebra.com/weee.
Čeština: Pro zákazníky z EU: Všechny produkty je nutné po skonèení jejich životnosti vrátit
spoleènosti Zebra k recyklaci. Informace o zpùsobu vrácení produktu najdete na webové stránce:
http://www.zebra.com/weee.
Eesti: EL klientidele: kõik tooted tuleb nende eluea lõppedes tagastada taaskasutamise eesmärgil
Zebra'ile. Lisainformatsiooni saamiseks toote tagastamise kohta külastage palun aadressi:
http://www.zebra.com/weee.
Magyar: Az EU-ban vásárlóknak: Minden tönkrement terméket a Zebra vállalathoz kell eljuttatni
újrahasznosítás céljából. A termék visszajuttatásának módjával kapcsolatos tudnivalókért látogasson
el a http://www.zebra.com/weee weboldalra.
Slovenski: Za kupce v EU: vsi izdelki se morajo po poteku življenjske dobe vrniti podjetju Zebra za
reciklažo. Za informacije o vraèilu izdelka obišèite: http://www.zebra.com/weee.
Svenska: För kunder inom EU: Alla produkter som uppnått sin livslängd måste returneras till Zebra för
återvinning. Information om hur du returnerar produkten finns på http://www.zebra.com/weee.
Suomi: Asiakkaat Euroopan unionin alueella: Kaikki tuotteet on palautettava kierrätettäväksi Zebra-
yhtiöön, kun tuotetta ei enää käytetä. Lisätietoja tuotteen palauttamisesta on osoitteessa
http://www.zebra.com/weee.
Dansk: Til kunder i EU: Alle produkter skal returneres til Zebra til recirkulering, når de er udtjent. Læs
oplysningerne om returnering af produkter på: http://www.zebra.com/weee.
Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να
επιστρέφονται στην Zebra για ανακύκλωση. Για περισσότερες πληροφορίες σχετικά με την επιστροφή
ενός προϊόντος, επισκεφθείτε τη διεύθυνση http://www.zebra.com/weee στο ∆ιαδίκτυο.
Malti: Għal klijenti fl-UE: il-prodotti kollha li jkunu waslu fl-aħħar tal-ħajja ta' l-użu tagħhom, iridu jiġu
rritornati għand Zebra għar-riċiklaġġ. Għal aktar tagħrif dwar kif għandek tirritorna l-prodott, jekk
jogħġbok żur: http://www.zebra.com/weee.
Slovenčina: Pre zákazníkov z krajín EU: Všetky výrobky musia byť po uplynutí doby ich životnosti
vrátené spoločnosti Zebra na recykláciu. Bližšie informácie o vrátení výrobkov nájdete na:
http://www.zebra.com/weee.
Lietuvių: ES vartotojams: visi gaminiai, pasibaigus jų eksploatacijos laikui, turi būti grąžinti utilizuoti į
kompaniją „Zebra“. Daugiau informacijos, kaip grąžinti gaminį, rasite: http://www.zebra.com/weee.
Latviešu: ES klientiem: visi produkti pēc to kalpošanas mūža beigām ir jānogādā atpakaļ Zebra
otrreizējai pārstrādei. Lai iegūtu informāciju par produktu nogādāšanu Zebra, lūdzu, skatiet:
http://www.zebra.com/weee.
Türkçe: AB Müşterileri için: Kullanım süresi dolan tüm ürünler geri dönüştürme için Zebra'ya iade
edilmelidir. Ürünlerin nasıl iade edileceği hakkında bilgi için lütfen şu adresi ziyaret edin:
http://www.zebra.com/weee.
Wall Mount Template
기 종 별 사 용 자 안 내 문
B급 기기
( 가정용 방송통신기기 ) 이 기기는 가정용 (B 급 ) 으로 전자파적합등록을
한 기기로서 주로 가정에서 사용하는 것을 목적
으로 하며 , 모든 지역에서 사용할 수 있습니다 .
⚗ 㫋 幐
Waste Electrical and Electronic
Equipment (WEEE)
(Parts)
(Pb) (Hg)
(Cd)
(PBB) (PBDE)
(Metal Parts)
(Circuit Modules)
(Cables and Cable Assemblies)
(Plastic and Polymeric Parts)
(Optics and Optical Components)
(Batteries)
䫻⊔䭿 ཐ⓪㚊㤥 ཐ⓪ӂ㤥䟐
䜞Ԭ〦
䠇ኔ䜞Ԭ
⭫䐥⁗ඍ
⭫㔼⭫㔼㓺Ԭ
ງᯏૂ㚐ਾ⢟䜞Ԭ
ݿᆜૂݿᆜ㓺Ԭ
⭫⊖
•
15
ᴿᇩ⢟䍞
(Cr (VI))
This table was created to comply with China RoHS requirements.
ᵢ㺞Ṳדᦤ6-7Ⲻ㿺ᇐ㕌Ⱦ
2 㺞⽰䈛ᴿᇩ⢟䍞൞䈛䜞Ԭᡶᴿൽ䍞ᶆᯏѣⲺ䠅ൽ൞*%7㿺ᇐⲺ䲆䠅
㾷≸ԛсȾ
; 㺞⽰䈛ᴿᇩ⢟䍞㠩ቇ൞䈛䜞ԬⲺḆжൽ䍞ᶆᯏѣⲺ䠅䎻࠰*%7㿺ᇐ
Ⲻ䲆䠅㾷≸ȾԷѐਥ൞↚༺θṯᦤᇔ䱻߫ሯр㺞ѣᢉćhĈⲺᢶᵥഖ䘑
㺂䘑ж↛䈪᱄Ⱦε
XOO O O O
OO O O
OO O
OO O O OO
O
OO
X
O
O
OOO O
O O O
O
X
OO
Dimension tolerance = ± 0.01 inch (± 0.25 mm)
2.26"
[57.28mm]
1.13"
[28.64mm]
5.05"
[128.27mm]
