WiData Firefly Real Time Location System Tag User’s Guide
Introduction
WiData Firefly System
The Firefly RF Location System is designed to permit users to determine the position of tagged assets in both indoor and
outdoor facilities such as factories and freight yards. The system locates tagged assets by a process involving redundant
triangulation. Each tag autonomously emits a 2.4 GHz direct sequence spread spectrum (DSSS) radio signal at
predetermined blink rate. Each tag’s blink rate is randomized around its predetermined value to minimize the number of
collisions between transmissions made by different tags. The signal emitted by the tag is received by a minimum of four
DSSS receivers each of which are capable of decoding that tag’s transmission. A typical transmission contains a preamble
which is used to synchronize the receiver, the tag’s serial number which identifies the tag, a status word which monitors
various tag functions, data stored in the tag’s memory and finally a CRC used to assure that the tag’s message is correct as
received.
Tag configuration parameters such as blink rate and user data to be stored in memory are loaded into the tag using a
device called a Hand Held Communicator (HHC). The HHC consists of a Type II PCMCIA card inserted into a laptop or
handheld PC. The PCMCIA card contains a short range (2 to 10 feet) radio transmitter and receiver which communicates
with a very low power transmitter and receiver contained in each tag. This short range communication link operates at 2.4
GHz. The modulation scheme used by the PCMCIA card was chosen to minimize power consumption by the battery
operated tag receiver. The DSSS transmitter allows the system to locate users of the HHC anywhere in the service area
covered by the system.

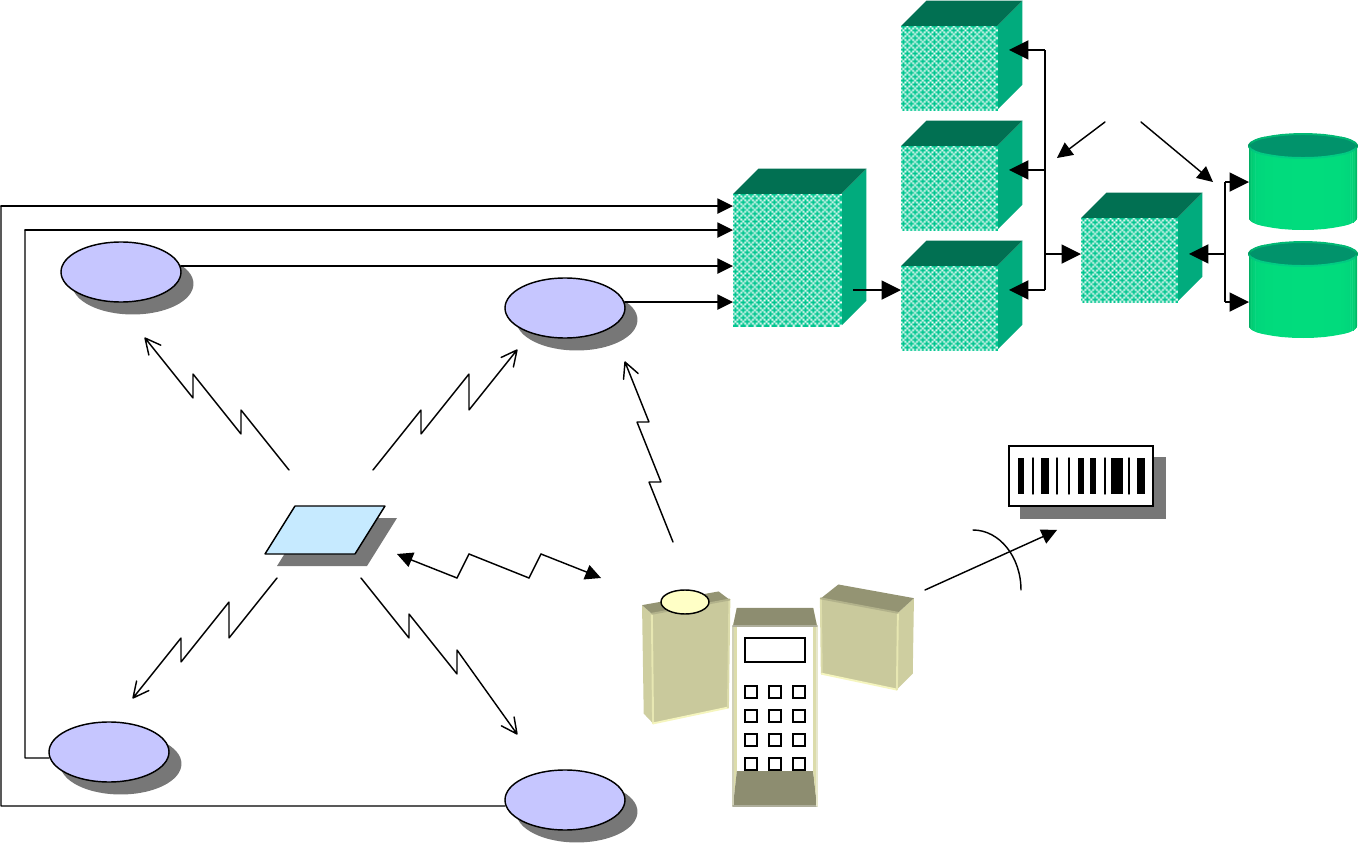

The principal components of the system are shown in the following figure.
WiData Firefly Real Time Locating System Tag User’s Guide
Figure 1
Firefly System
Block Diagram
Reader
Tag with
GUI
Client
GUI
Client
RF
Client
and
Front End
Processor
Reader
Reader
Reader
HPC
Comunctr Bar
PCMCIA Scanner
2-way OOK
modulated RF
1-way spread
spectrum RF
1-way spread
spectrum RF for
sending tag ID
association with
bar code read
Dimensions:
* reader - reader = 200 ft
* tag - reader = 200 ft
* tag - interrogator = 1-20 ft
* WLAN - WLAN = 200 - 500 ft
(Blink S/N & telem)
(Who?, Where?, Memory)memory
WiData
Server
Indigenous
N
etwork(s)
FireFly
DBMS
Indigenous
MIS
DBMS
Code
Laser bar code scanner
WiData Firefly Real Time Locating System Tag User’s Guide
Instructions
WiData Model TFF-1000-00AA Tag
The WiData Model TFF-1000-00AA Tag is a compact battery operated radio frequency device which is a component of the WiData
Firefly Real Time Location System. The Firefly System is designed to track and locate items tagged with Model TFF-1000-00AA
tags. Each tag emits short, low power bursts of widely spread spectrum radio energy. These bursts are received by the Firefly System
Infrastructure. The time difference of arrival of bursts at each Infrastructure receiver are noted and the position of tagged items are
computed by multiple triangulation. Each burst contains the tag’s unique identification code and a status data word that provides
information on the tag’s configuration, battery state and other data. These data are entered into tags using the WiData Model HPC-
2000-00AA Hand Held Communicator. The tag’s identification number, status data word and it’s location are provided to the user by
the Infrastructure. Multiple tags may be present in typical installations allowing a large number of items to be tracked and located in
real time. The tags are packaged in sealed cases designed to operate in both indoor and outdoor environments. The tags have self
contained antennas and have no user replaceable parts or adjustments.
Battery life under typical conditions is in excess of 5 years.
Tag Installation and Activation
Tags are shipped with all radio emitters deactivated. Prior to installing a tag on an item to be tracked the tag must be activated. This is
done using The WiData Model HPC-2000-00AA Hand Held Communicator. The Communicator is used to configure and activate the
tag, and to confirm that the tag is properly configured and operational. The detailed procedure for tag activation is covered in the
HPC-2000-00AA Communicator Users Manual.
The tag is attached using appropriate mounting hardware kits.
Operation
WiData Firefly Real Time Location System Tag User’s Guide
Operation
Configuration and Setup
The WiData Firefly Real Time Locating System Tag does not require any special configuration or setup to operate with
the Firefly System.
Operation
The WiData Firefly Real Time Locating System Tag is controlled and activated using the Hand Held Communicator.
Most applications allow the user perform one or more of the following functions:
Read data from tag memory
Write data to tag memory
Turn tag DSSS blink on and set the blink rate
Turn tag DSSS blink off
List Ids of tags within the OOK/FSK range of the Hand Held Communicator
Locate a specific tag by report the signal tag’s OOK/FSK signal strength
Upload data to the Firefly Data Base using DSSS transmit mode.
All Hand Held Communicator application software is pre-configured to individual system requirements before system
installation. All available functions are menu selectable through easy on screen instructions.
Specifications
WiData Firefly Real Time Location System Tag User’s Guide
Specifications
Tag
Dimensions 2.3 x 2.5 x 1.1 inches
58 x 64 x 25 mm
Weight 2 oz
Operation Temperature -25 to +60 °C
Storage Temperature -20 to +70 °C
Humidity 100% condensing
Drop 4 feet to concrete
DSSS RF Performance
Frequency 2441.750 MHz
Spreading (PN Code) 511 chips/bit
Chip Rate 30.521875 MHz
Power <5mW
Range (to DSSS reader) greater than 200 feet
OOK/FSK RF Performance
Frequency 2446.520 MHz
OOK/FSK Rates 375 kHz (Logic 0)
535 kHz (Logic 1)
Power <1mW
Range (to communicator) 0 to 6 feet
