User Guide for WhereTag IV Module D1587 Rev 01

WhereTag IV Module

User Guide

Part Numbers:

26048, 26391, 26683

User Guide

____________________________________________________________________________________________ 2

User Guide for WhereTag IV Module D1587 Rev 01

____________________________________________________________________________________________ 3

User Guide for WhereTag IV Module D1587 Rev 01

Typographical Conventions

Warnings call attention to a procedure or practice that

could result in personal injury if not correctly performed.

Do not proceed until you fully understand and meet the

required conditions.

Cautions call attention to an operation procedure or

practice that could damage the product if not correctly

performed. Do not proceed until understanding and meeting

these required conditions.

Notes provide information that can be helpful in

understanding the operation of the product.

___________

CAUTION

____________

_________

Note

_________

____________________________________________________________________________________________ 4

User Guide for WhereTag IV Module D1587 Rev 01

REGULATORY COMPLIANCE INFORMATION

The following regulatory agency information is for WhereTag IV Module, which includes

part numbers 26048, 26391, and 26683.

RF Notice

Any changes or modifications to Zebra Enterprise Solutions (ZES) equipment not

expressly approved by ZES could void the user’s authority to operate the equipment.

FCC Compliance Statement

This device complies with Part 15 rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference; (2) this device must

accept any interference which may cause undesired operation.

FCC ID: XWX-TFF2005

This equipment has been tested and found to comply with the limits for both Class A and

Class B devices, pursuant to Part 15 of the FCC Rules & Regulations.

Canadian DOC Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

IC: 8701A-TFF2005

Labeling

If the FCC and IC identification number is not visible when the module is installed inside

another device, then the outside of the device into which the module is installed must

also display a label referring to the enclosed module. This exterior label can use the

wording such as “Contains FCC ID: XWX-TFF2005” and “Contains IC: 8701A-TFF2005”.

Any similar wording that expresses the same meaning may be used.

The WhereTag IV Module will be only installed in devices produced by Zebra

Enterprise Solutions Corp..

____________________________________________________________________________________________ 5

User Guide for WhereTag IV Module D1587 Rev 01

Document Revision History

Revision Change Change Description Date Initials

01 Draft 7/3/10 HH

____________________________________________________________________________________________ 6

User Guide for WhereTag IV Module D1587 Rev 01

Table of Contents Page

REGULATORY COMPLIANCE INFORMATION........................................................................................................4

1 INTRODUCTION ......................................................................................................................................................7

1.1 SYSTEM OVERVIEW...................................................................................................................................................7

1.2 WHERETAG IV MODULE ..........................................................................................................................................7

1.3 WHERELAN LOCATION SENSOR (LOS) AND LOCATION ACCESS POINT (LAP) ........................................................9

1.4 WHEREPORT III AND WHEREPORT IV....................................................................................................................10

1.5 WHEREWAND II PROGRAMMER .............................................................................................................................10

1.6 VISIBILITY SERVER SOFTWARE (VSS)....................................................................................................................10

2 SPECIFICATIONS (SUBJECT TO CHANGE WITHOUT NOTICE)..............................................................12

2.1 WHERETAG IV MODULE .......................................................................................................................................12

Table of Figures Page

FIGURE 1 ZES REAL TIME LOCATING SYSTEM BLOCK DIAGRAM.......................................................................................9

____________________________________________________________________________________________ 7

User Guide for WhereTag IV Module D1587 Rev 01

1 INTRODUCTION

1.1 System overview

The ZES Real Time Locating System (RTLS) is designed to permit users to determine the position

of tagged assets in both indoor and outdoor facilities such as factories and freight yards. The system

locates tagged assets by a process involving redundant triangulation. Each tag autonomously emits

a 2.4 GHz direct sequence spread spectrum (DSSS) radio signal at predetermined blink rate. Each

tag’s blink rate is randomized around its predetermined value to minimize the number of collisions

between transmissions made by different tags. The signal emitted by the tag is received by a

minimum of four Location Antennas. A typical transmission contains a preamble which is used to

synchronize the receiver, the tag’s serial number which identifies the tag, a status word which

monitors various tag functions, data stored in the tag’s memory and finally a CRC used to assure

that the tag’s message is correct as received.

The principal components of ZES’s RTLS are shown in Figure 1.

1.2 WhereTag IV Module

The WhereTag IV Module is a compact battery powered radio frequency device which is used in

WhereTag IV, WhereCall III+ and WhereCall IV tag products. These tag products are key

components of the ZES Real Time Locating System (RTLS). The tags can be attached to assets of

many kinds, such as forklifts, containers, ULDs, hospital and test equipment as well as trailers and

container chassis's. It is used to manage those assets by allowing them to be identified and located

by the system.

The WhereTag IV Module "blinks" an RF transmission at pre-programmed rates ranging from 1

second to 5 days between blinks. The ZES RTLS infrastructure receives these blinks and use

sophisticated Differential Time of Arrival, (DTOA), algorithms to determine the location of the tag.

Accuracy of this determined location can be as low as 2 meters and is nominally within 3 meters in

most installations. The WhereTag IV Module complies with the ISO 24730-2 RTLS standard. It

____________________________________________________________________________________________ 8

User Guide for WhereTag IV Module D1587 Rev 01

operates in the globally accepted 2.4GHz frequency band and transmits spread spectrum signals in

accordance with the standard. The use of direct sequence spread spectrum technology provides

extremely long range; in excess of 1,000 meter locate range outdoors, and 120 meter locate range

indoors. The WhereTag IV Module also incorporates an 802.11b/g transceiver for data

communication and/or positioning by standard or location-enabling 802.11 access points. The

combination of low average power consumption and good engineering allow the WhereTag IV

Module to operate for long periods of time without any maintenance. Battery life can be as long as 6

years when connected to a AA lithium battery. A magnetic receiver is also built into the WhereTag

IV Module. The module can receive low frequency magnetic signals from an exciter called a

WherePort. The WherePort transmissions can be read at distances ranging from 1 to 8 meters.

Each WhereTag IV Module has a unique identification number that is transmitted via radio during

each blink. WhereTag IV Modules are configured with ZES’s WhereWand.

____________________________________________________________________________________________ 9

User Guide for WhereTag IV Module D1587 Rev 01

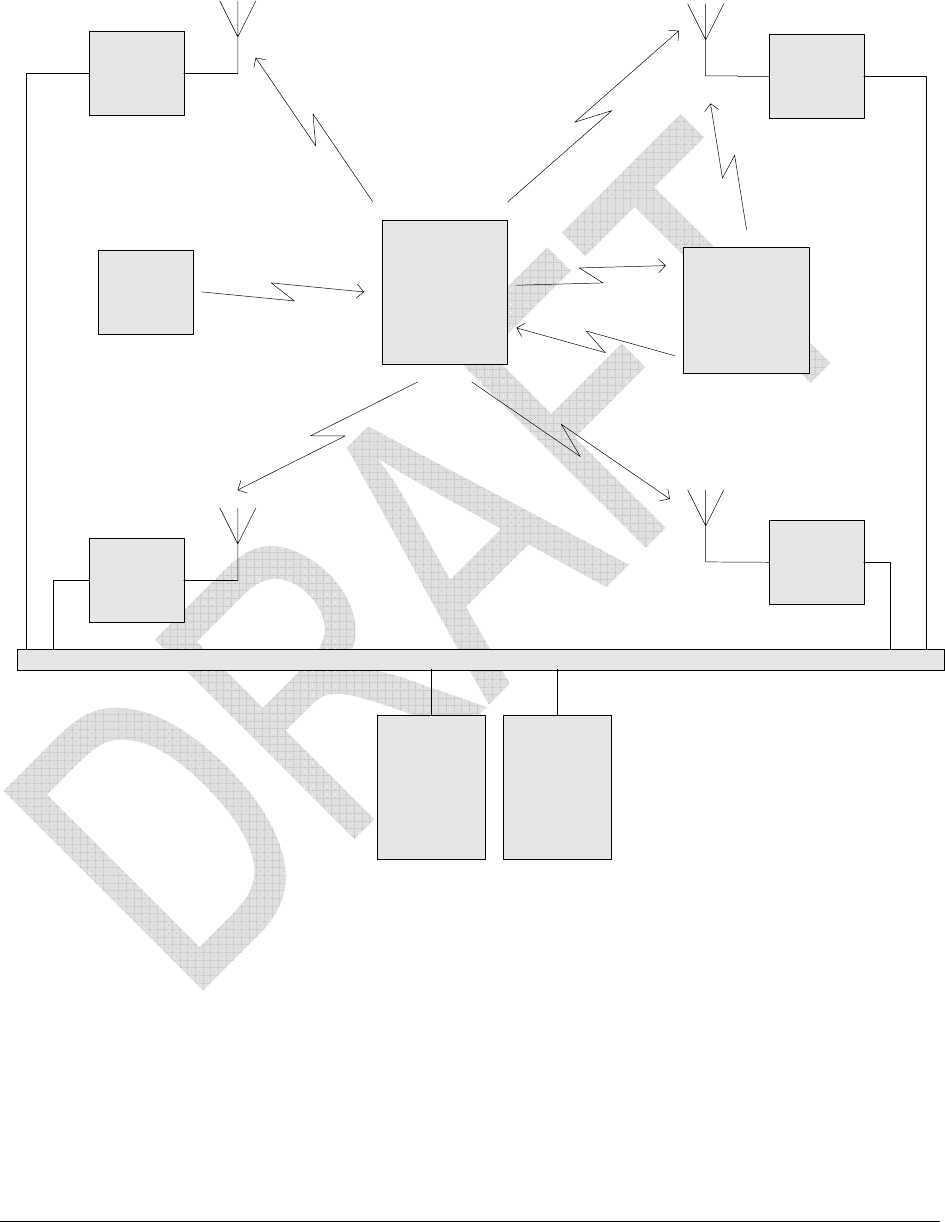

Figure 1 ZES Real Time Locating System Block Diagram

Tags with

WhereTag IV

Module

VSS Server VSS

Database

1-Way 2.4 GHz ISO24730 or 802.11b/g

(Range = 400 ft indoors or 3000 ft

outdoors)

WherePort

1-Way 115 kHz FSK

(Range = 25 ft)

WhereWand

Hand-held

Computer with

Laser Barcode

Reader

115 kHz

FSK

2.4 GHz

OOK

(Range = 3 ft)

1-Way 2.4

GHz

ISO24730

WhereLan WhereLan

WhereLan

Corporate LAN

Wired

Ethernet or

Wireless

802.11 Link

Wired

Ethernet or

Wireless

802.11 Link

1-Way 2.4 GHz ISO24730 or 802.11b/g

(Range = 400 ft indoors or 3000 ft

outdoors)

1.3 WhereLan Location Sensor (LOS) and Location Access Point (LAP)

The Location Sensor and Locating Access Point receive the tag transmissions and forwards the

information to the ZES Visibility Server Software which performs locations calculations, database

functions and systems management. The Location Sensors and Locating Access Points

communicate with each other and the Visibility Server Software via standard wired Ethernet cables

or an 802.11b-compliant wireless LAN. Utilizing sophisticated DSP technology, the LOS and LAP

____________________________________________________________________________________________ 10

User Guide for WhereTag IV Module D1587 Rev 01

are able to track large populations of WhereTags simultaneously. They can be installed in a grid

configuration to provide ubiquitous coverage over large areas comprised of many cells. The

Locating Access Point combines multiple functions: an RTLS Location Sensor and a Wi-Fi certified

access point for wireless LAN clients and applications

1.4 WherePort III and WherePort IV

WherePort III and WherePort IV are proximity communication devices that are used to trigger a

WhereTag IV Module to transmit an alternate "blink" pattern. When a tag passes though the

WherePort's field, the tag can initiate a pre-programmed and (typically) faster blink rate to allow

more location points as a tagged asset passes through a critical threshold, such as a

shipping/receiving dock door or from one zone to another. When the tag is sending WherePort-

initiated blinks, the tag includes the identification number of the WherePort.

1.5 WhereWand II Programmer

The WhereWand II Handheld Programmer consists of a handheld computer connected to a palm-

size box radio frequency device. The WhereWand is capable of two-way wireless communication

with tag devices. The WhereWand is also capable of wired communication with WherePort devices.

The third capability of the WhereWand is wireless communications with the WhereLan. The

WhereWand communicates with tag devices by sending magnetic FSK data to the tag and receiving

on-off keyed / frequency shift keyed (OOK/FSK) RF data from the tag. Communication with the tag

allow the user to set tag configuration parameters such as DSSS blink intervals and tag responses

to such stimuli as WherePorts and/or switch/telemetry inputs. It also allows the user to read back

configuration and other data from the tag.

1.6 Visibility Server Software (VSS)

ZES's Visibility Server Software (VSS) is an integrated software package that provides all

the tools required to effectively manage assets and resources as well as the ZES Real-Time

Locating System (RTLS). Visibility provides all core software components to allow efficient

____________________________________________________________________________________________ 11

User Guide for WhereTag IV Module D1587 Rev 01

resource management. Key among those software components is WhereSoft Locate, which

is a distributed Windows Service. When WhereSoft Locate is combined with Visibility and

any of the many applications available from ZES, it is possible to locate assets, know their

status, and react to any number of user configurable alert conditions. Visibility also provides

the tools required to control and monitor the Real-Time Location System (RTLS). It includes

configuration tools, diagnostics, system alerts, an interface manager and installation tools.

____________________________________________________________________________________________ 12

User Guide for WhereTag IV Module D1587 Rev 01

2 SPECIFICATIONS (SUBJECT TO CHANGE WITHOUT

NOTICE)

2.1 WhereTag IV Module

CAPABILITIES

Frequency Range .............................. 2.4 to 2.483 GHz

Typical Locate Range, Indoors .......... 100 m (325 ft)

Typical Locate Range, Outdoors........ 1,000 m (3200 ft)

Typical Read Range, Indoors............. 200 m (650 ft)

Typical Read Range, Outdoors.......... 1,750 m (5700 ft)

User Configurable Blink Rate............. 1 sec to 5 days

WherePort Range .............................. 8 m (24 ft) (With WherePort set for maximum power

and optimum orientation.)

ELECTRICAL

Power................................ ……………AA 3.6V Lithium Thionyl Chloride

ENVIRONMENTAL / PHYSICAL

Operating Temperature Range .......... -30º C to +70º C (-22º F to +158º F)

Storage Temperature Range ............. -30º C to +70º C (-22º F to +158º F)

Dimensions (Including a AA battery):

Height ................................................ 2.1 cm (0.9 in)

Length................................................ 6.6 cm (2.6 in)

Width.................................................. 4.4 cm (1.7 in)

Weight................................................ 50 g (1.7 oz)

____________________________________________________________________________________________ 13

User Guide for WhereTag IV Module D1587 Rev 01

REGULATORY APPROVALS

North America

FCC Part 15 Class B, Part 15.247

Industry Canada ICES-003, RSS-210, RSS-GEN

ANSI INCITS 371.1-2003

Europe

CE, R&TTE Directive 99/5/EC: EN 300328, EN 301489-1/-17, EN 60950-1

Worldwide

ISO/IEC 24730-2 Compliant

Cisco CCX Compliant

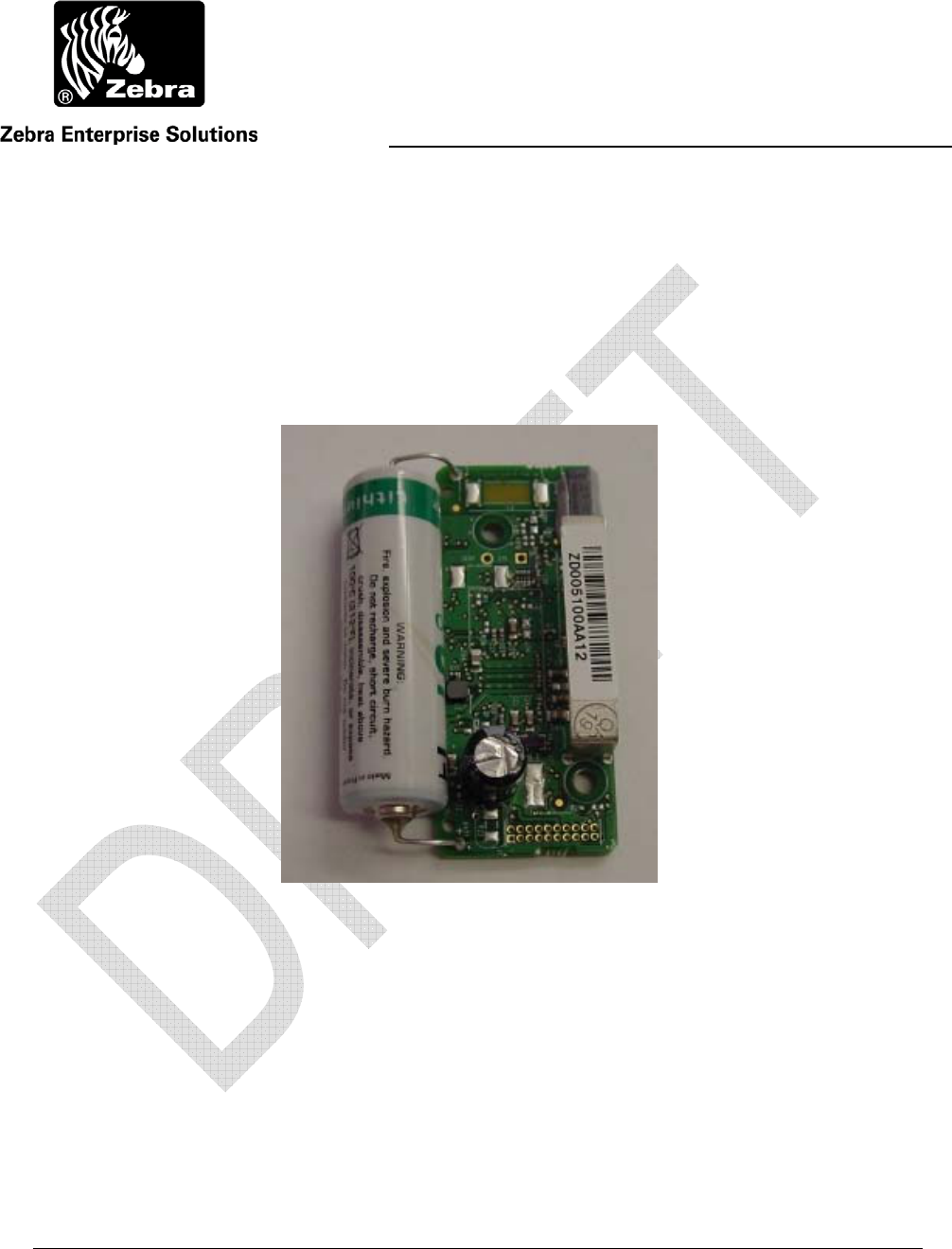

Zebra Technologies TFF2005 WhereTag IV Module User Manual

Zebra Technologies Corporation WhereTag IV Module Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
