Zebra Technologies UWT1301 Ultra Wideband Transmitter User Manual
Zebra Technologies Corporation Ultra Wideband Transmitter
User Manual
D1685 Rev -Draft
DartTag
User’s Manual
D1685 Rev -Draft April 2015
© 2015 Zebra Enterprise Solutions Corp., a Zebra Technologies Company
The copyrights in this document and the software and/or firmware in the products described therein are owned by
Zebra Enterprise Solutions Corp. (“Zebra”) and its licensors. Unauthorized reproduction of this manual or the
software and/or firmware in the products may result in imprisonment of up to one year and fines of up to $10,000
(17 U.S.C.506). Copyright violators may be subject to civil liability.
DartWand, DartTags, Sapphire and all product names and/or numbers are trademarks of Zebra. All rights reserved
worldwide.
All other brand names, product names, or trademarks belong to their respective holders.
Proprietary Statement/Use
This document contains proprietary information of Zebra which may not be used, reproduced, or disclosed to any
other parties for any other purpose without the express, written permission of Zebra. This document has been made
available as part of the license that has been granted to an authorized user of Zebra software. It is intended solely for
the information and use of parties operating and maintaining the equipment described herein. Use of this
documentation is subject to the terms and limitations of that license agreement. This document describes all
functionality that can be licensed for this product. Not all functionality described in this document may be available
to you depending on your license agreement. If you are not aware of the relevant terms of your license agreement,
contact sales at Zebra.
Product Improvements
Continuous improvement of products is a policy of Zebra. All specifications and designs are subject to change
without notice.
Liability Disclaimer
Zebra takes steps to ensure that its published documentation is correct; however, errors do occur. Zebra reserves the
right to correct any such errors and disclaims liability resulting therefrom.
Limitation of Liability
In no event shall Zebra , any of its licensors or anyone else involved in the creation, production, or delivery of the
accompanying product (including hardware and software) be liable for any of the following (collectively referred to
as "Injuries"): injuries (including death) or damages to persons or to property, or damages of any other kind, direct,
indirect, special, exemplary, incidental or consequential, including, but not limited to, loss of use, lost profits, lost
revenues, loss of data, business interruption, replacement costs, debt service or rental payments, or damages owing
by you to others, whether arising out of contract, tort, strict liability or otherwise, arising from or relating to the
design, use (or inability to use) or operation of these materials, the software, documentation, hardware, or from any
services provided by Zebra (whether or not Zebra or its licensors knew or should have known of the possibility of
any such Injuries) even if a remedy set forth herein is found to have failed of its essential purpose. Some
jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you.
Zebra Enterprise Solutions Corp.
2940 N 1st Street
San Jose CA 95134 USA
http://zes.zebra.com
Tel: +1 408 473 8500
Fax: +1 408 473 8501
3
D1685 Rev -Draft April 2015
Contents
1 Introduction ............................................................................................................. 4
2 Installation and Operation ..................................................................................... 4
3 Orientation .............................................................................................................. 4
UWT-1100 \ UWT-1101 ................................................................................................................... 4
UWT-1200 ........................................................................................................................................ 5
UWT-1300 ........................................................................................................................................ 5
UWT-1301 ........................................................................................................................................ 5
4 Adjustment .............................................................................................................. 5
5 Regulatory Information .......................................................................................... 6
US Regulatory Information ............................................................................................................... 6
Canada Regulatory Information ....................................................................................................... 7
EU Regulatory Information ............................................................................................................... 7
Other Regulatory Information ........................................................................................................... 8
RF Notice ......................................................................................................................................... 8
Introduction
4
D1685 Rev -Draft April 2015
1 Introduction
DartTags are a wireless ultra-wideband (UWB) device from Zebra Technologies that are used for real-
time tracking and identification of assets and personnel. DartTags transmit UWB pulses which are
detected by a series of Dart UWB receivers. Dart receivers report detected tag events to the Dart RTLS
location processing hub where tag location information is computed and reported.
The DartTag tag family consists of the UWT-1100/1101, the UWT-1200, the UWT-1300 and the UWT-
1301. DartTags provide extended range and precision that is unmatched by conventional RFID solutions.
These UWB tags uniquely provide reliability and accuracy in difficult electromagnetic and multipath
environments, along with superb battery life for use in demanding industrial requirements.
2 Installation and Operation
DartTags are shipped with the transmitter off. With a proper Dart RTLS system in place, the installation
of DartTags is complete when the tag is activated. Tag transmitters are turned on (activated) using a ZLS
configuration tool. DartTags transmitting continuously at one blink per second are expected to last
multiple years. Batteries are non-replaceable.
3 Orientation
UWT-1100 \ UWT-1101
The UWT-1100 and UWT-1101 DartTag (asset tag) is designed to provide optimal performance when
used with either the top or bottom side of the tag pointing upwards. The picture below shows the top and
back side of the tag and the proper orientation.
Adjustment
5
D1685 Rev -Draft April 2015

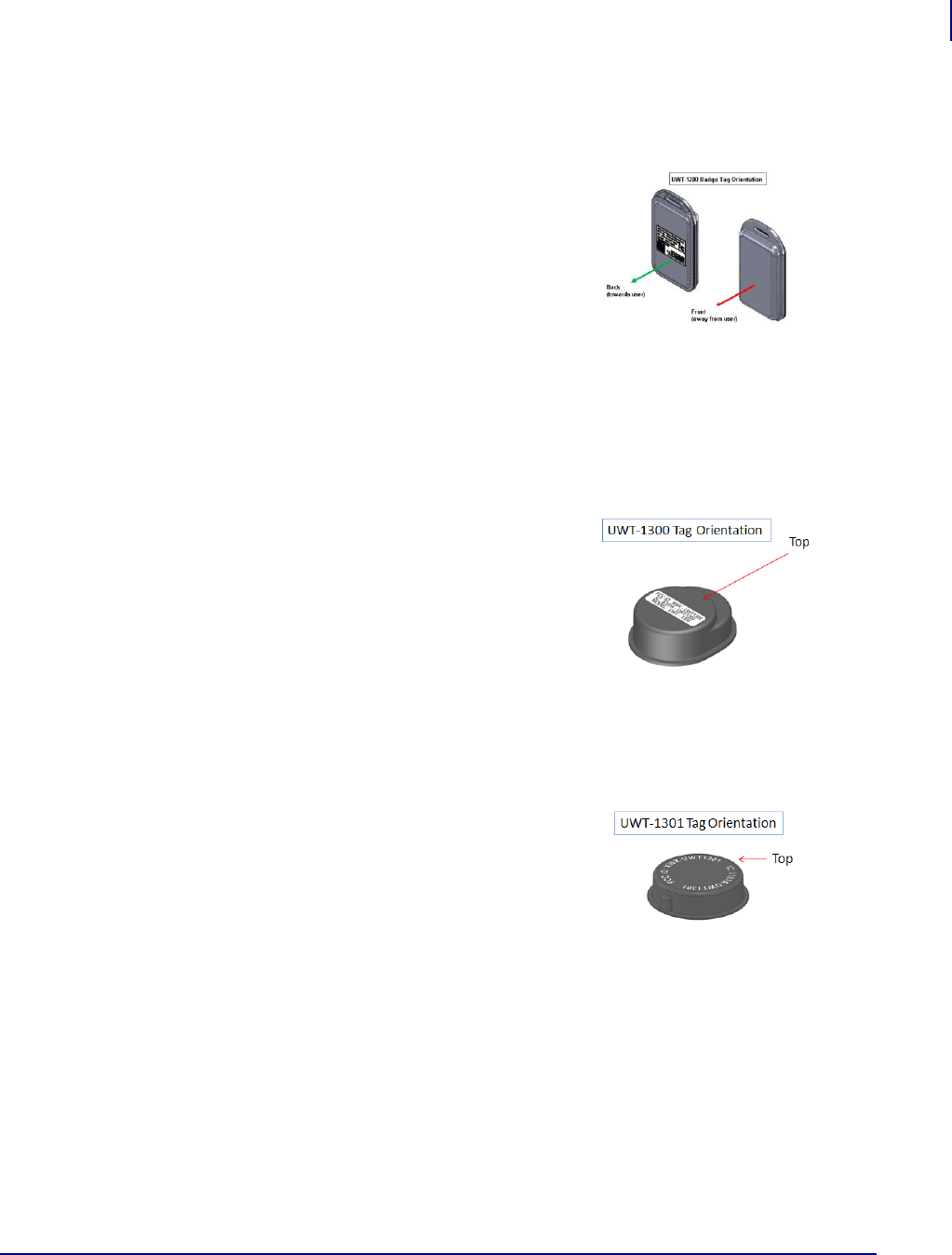

UWT-1200
The UWT-1200 DartTag Badge (badge tag) is designed to provide optimal performance when used in a
specific orientation during use. The picture below shows the front and back side of the tag and the proper
orientation.
UWT-1300
The UWT-1300 is designed to provide optimal performance when the top side of the tag is pointing
upwards. The picture below shows the top side of the tag and the proper orientation.
UWT-1301
The UWT-1301 is designed to provide optimal performance when the top side of the tag is pointing
upwards. The picture below shows the top side of the tag and the proper orientation.
4 Adjustment
No adjustment is necessary once a DartTag is activated. The user may choose to program the tag transmit
rate with a Zebra configuration tool.
6
Regulatory Information Regulatory Information
D1685 Rev -Draft April 2015
5 Regulatory Information
US Regulatory Information
FCC ID: XWX-UWT1100, XWX-UWT1101, XWX-UWT1200, XWX-UWT1300, XWX-UWT1301
This device complies with FCC Part 15.250 (c).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference which may cause undesired operation
Additionally,
(1) Operation on board an aircraft or satellite is prohibited.
(2) Devices operating under this section may not be employed for the operation of toys.
(3) Except for operation onboard a ship or terrestrial transportation vehicle, the use of a fixed
outdoor infrastructure is prohibited. A fixed infrastructure includes antennas mounted on outdoor
structures, e.g., antennas mounted on the outside of a building or on a telephone pole.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Regulatory Information
7
D1685 Rev -Draft April 2015
Canada Regulatory Information
IC ID: 8701A-UWT1100, 8701A-UWT1101, 8701A-UWT1200, 8701A-UWT1300, 8701A-UWT1301
This device complies with ICES-003, RS-220, and RSS-GEN for indoor use only.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference which may cause undesired operation
Cet appareil est conforme à la norme NMB-003, RS-220 et RSS-GEN pour une utilisation en intérieur
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
EU Regulatory Information
The UWB transmitter equipment conforming to ETSI EN 302 500-1 shall not be:
installed at a fixed outdoor location;
installed or used in flying models, aircraft and other forms of aviation;
installed or used in a road or rail vehicle.

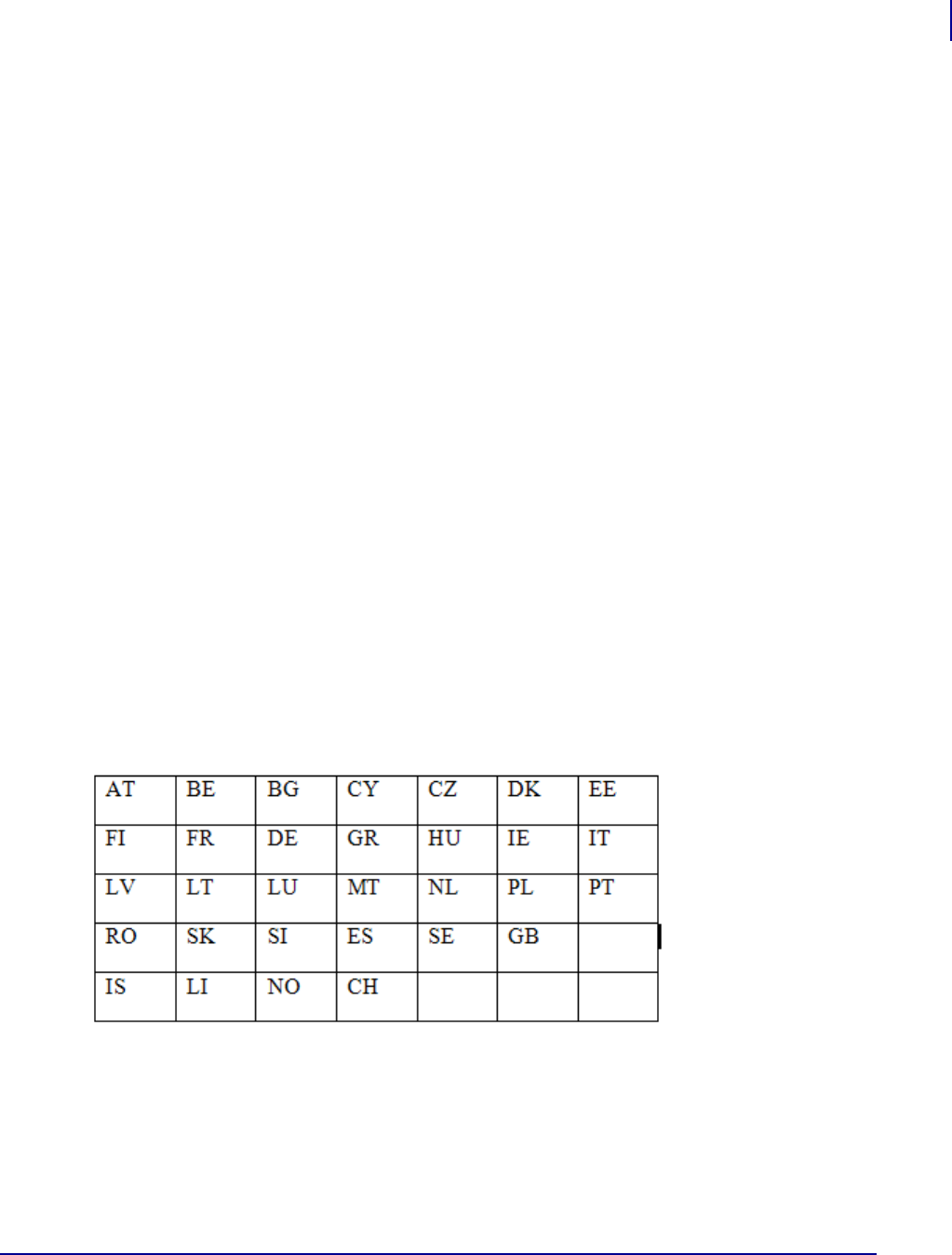

The UWT-1100, UWT-1101, UWT-1200, UWT-1300, and UWT-1301 DartTags are Class I
transmitters approved for use in the following countries.
8
Regulatory Information
D1685 Rev -Draft April 2015
Other Regulatory Information
UWT-1100
China
CMIIT: 2010DJ5958
Singapore
Complies with iDA Standards, License: DA103846
UWT-1200
China
CMIIT: 2010DJ5957
Singapore
Complies with iDA Standards, License: DA103846
RF Notice
Any changes or modifications to Zebra equipment not expressly approved by Zebra Technologies
Corporation could void the user’s authority to operate the equipment.
