Introduction
4
D1685 Rev H July 2015
1 Introduction
DartTags are a wireless ultra-wideband (UWB) device from Zebra Technologies that are used for real-
time tracking and identification of assets and personnel. DartTags transmit UWB pulses which are
detected by a series of Dart UWB receivers. Dart receivers report detected tag events to the Dart RTLS
location processing hub where tag location information is computed and reported.
DartTags provide extended range and precision that is unmatched by conventional RFID solutions. These
UWB tags uniquely provide reliability and accuracy in difficult electromagnetic and multipath
environments, along with superb battery life for use in demanding industrial requirements.
2 Installation and Operation
DartTags are shipped with the transmitter off. With a proper Dart RTLS system in place, the installation
of DartTags is complete when the tag is activated. Tag transmitters are turned on (activated) using a ZLS
configuration tool. DartTags transmitting continuously at one blink per second are expected to last
multiple years. Batteries are non-replaceable.
5
September 2015
3 UWT-1400
UWT-1400 Orientation & Mounting

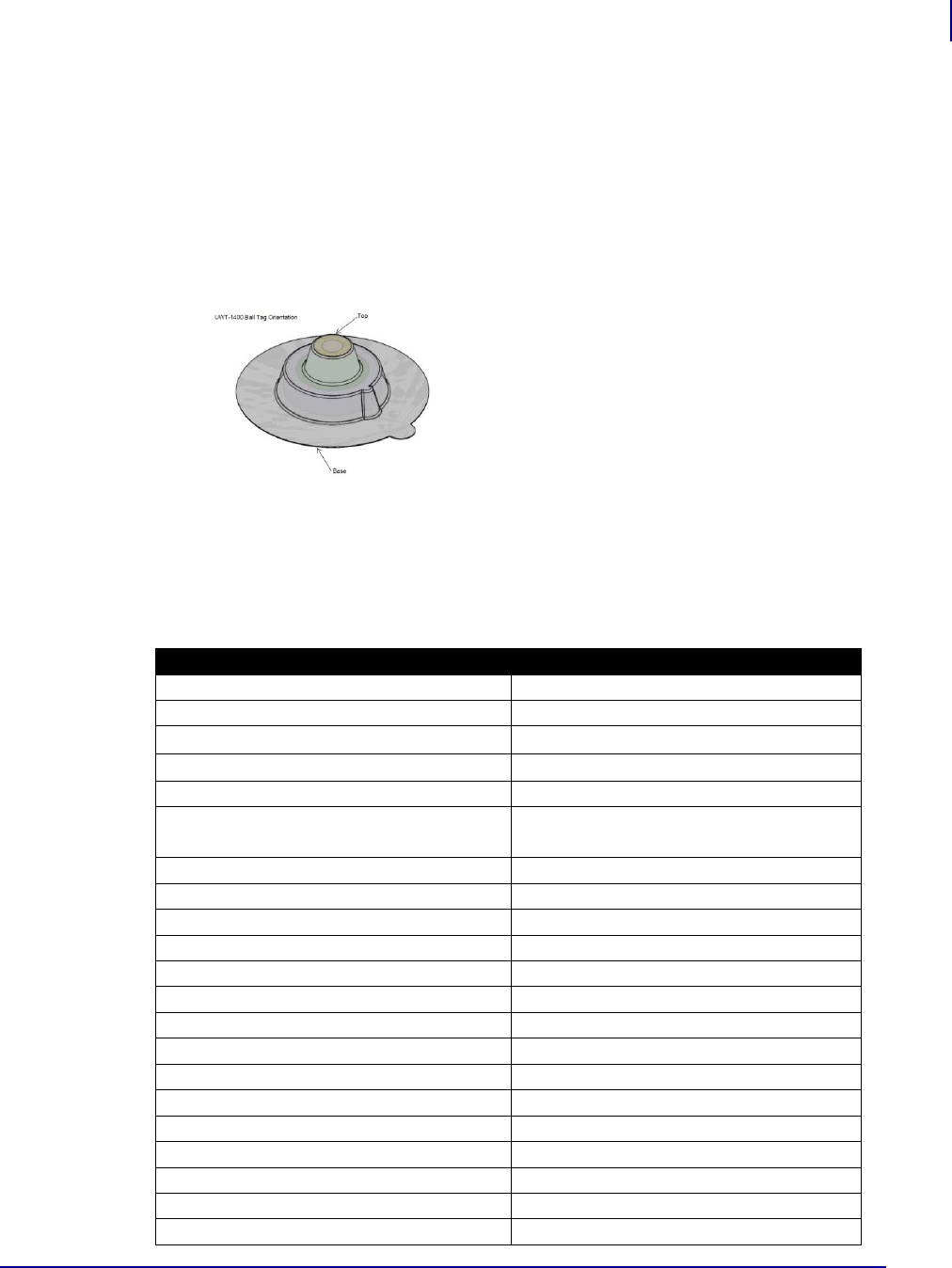

The UWT-1400 (ball tag) is designed to provide optimal performance when the top side of the tag is
pointing upwards. The picture below shows the top side of the tag and the proper orientation.
The UWT-1400 is designed with a polymer enclosure for adhesion mounting in balls No additional
mounting options are provided.
UWT-1400 Specifications
UWT-1400 Tag Specifications
Center Frequency
6.55 GHz
Transmit Frequency
6.35 – 6.75 GHz
Typical Battery Life (25C)
UWT-1400: 1 year @ 1Hz
Operating Temperature
-40C to 70C (-40F to 158F)
Power
UWT-1401: CR1616
Dimensions
Ø22.7 mm x 10 mm
(Ø0.895 in x 0.395 in)
Weight
6 g (0.21 oz.)
Temperature reading accuracy
Not supported
Blink Rate (Hz):
Programmed Blink Rate
Median Rate
0.01 Hz
0.014 Hz
0.1 Hz
0.12 Hz
0.2 Hz
0.24 Hz
0.5 Hz
0.47 Hz
1 Hz
0.95 Hz
2 Hz
1.9 Hz
3 Hz
3.8 Hz
6Hz
7.6 Hz
12Hz
15.2 Hz
25Hz
30.4 Hz
50Hz
60.8 Hz
6
Regulatory Information
September 2015
4 Adjustment
No adjustment is necessary once a DartTag is activated. The user may choose to program the tag transmit
rate with a Zebra configuration tool.
5 Regulatory Information
US Regulatory Information
FCC ID: XWX-UWT1400
This device complies with FCC Part 15.250 (c).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference which may cause undesired operation
Additionally,
(1) Operation on board an aircraft or satellite is prohibited.
(2) Devices operating under this section may not be employed for the operation of toys.
(3) Except for operation onboard a ship or terrestrial transportation vehicle, the use of a fixed
outdoor infrastructure is prohibited. A fixed infrastructure includes antennas mounted on outdoor
structures, e.g., antennas mounted on the outside of a building or on a telephone pole.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
7
September 2015
Canada Regulatory Information
IC ID: 8701A-UWT1400
This device complies with ICES-003, RS-220, and RSS-GEN for indoor use only.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference which may cause undesired operation
Cet appareil est conforme à la norme NMB-003, RS-220 et RSS-GEN pour une utilisation en intérieur
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
EU Regulatory Information
The UWB transmitter equipment conforming to ETSI EN 302 500-1 shall not be:
installed at a fixed outdoor location;
installed or used in flying models, aircraft and other forms of aviation;
installed or used in a road or rail vehicle.

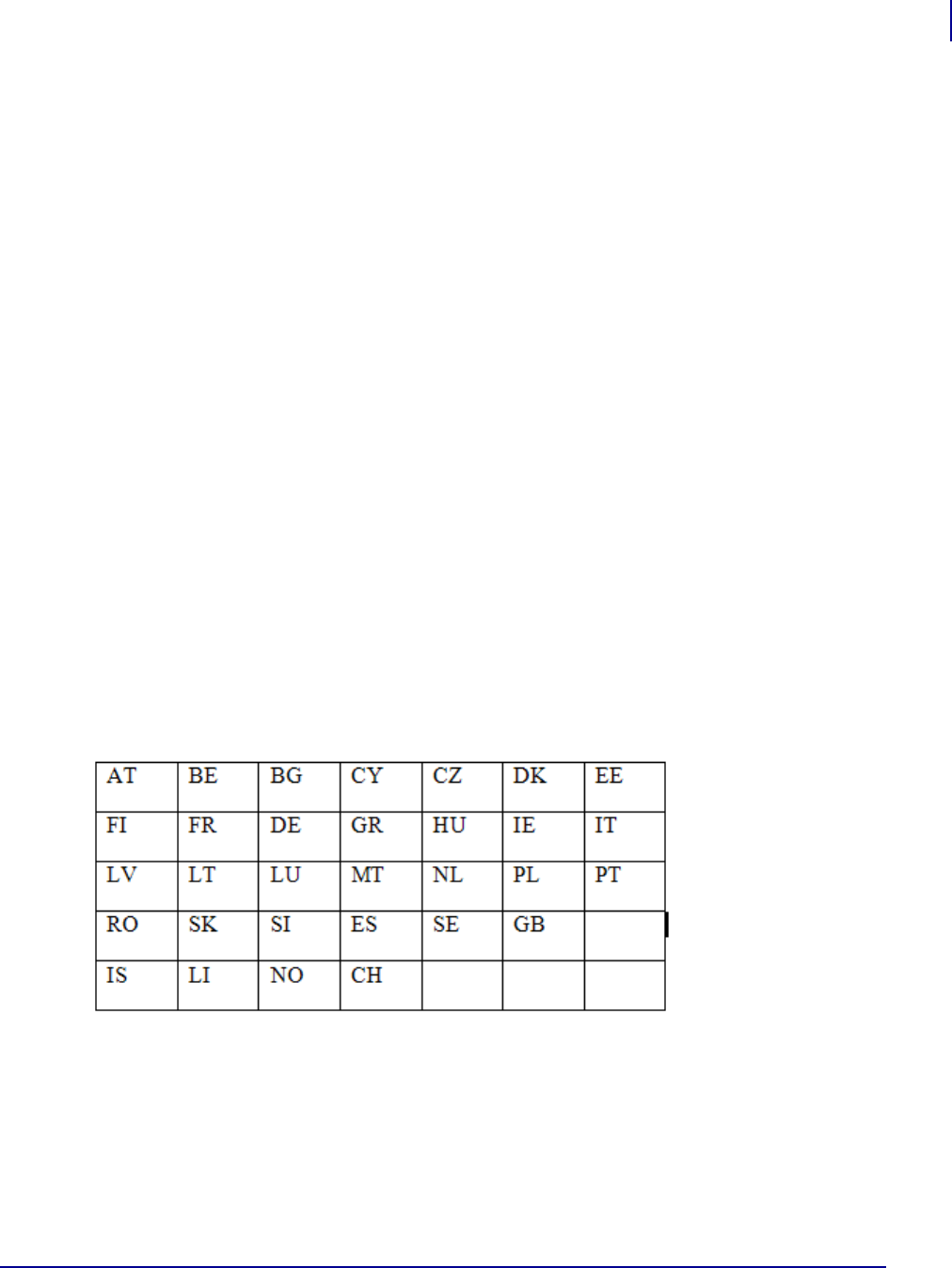

The UWT-1400 DartTags are Class I transmitters approved for use in the following countries.
8
Regulatory Information
September 2015
Other Regulatory Information
RF Notice
Any changes or modifications to Zebra equipment not expressly approved by Zebra Technologies
Corporation could void the user’s authority to operate the equipment.
