Zebra Technologies WLM54AG23 802.11 b/g 2.4GHz Module User Manual

Zebra Technologies Corporation 802.11 b/g 2.4GHz Module

User Manual

User Guide
________________________________________________________________________________________________ 1
User Guide for Wireless 802.11 Network Mini PCI Adapter
D1704 Rev A
©2010 Zebra Enterprise Solutions. All product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respe ctive owners.
Wireless 802.11 Network Mini PCI Adapter
User Guide
Model: WLM54AG23
User Guide
________________________________________________________________________________________________ 2
User Guide for Wireless 802.11 Network Mini PCI Adapter
D1704 Rev A
©2010 Zebra Enterprise Solutions. All product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respe ctive owners.
REGULATORY COMPLIANCE INFORMATION
The following regulatory agency information is for model WLM54AG23, which includes
ZES part number26998.
RF Notice
Any changes or modifications to Zebra Enterprise Solutions (ZES) equipment not
expressly approved by ZES could void the user’s authority to operate the equipment.
FCC Compliance Statement
This device complies with Part 15 rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference; (2) this device must
accept any interference which may cause undesired operation.
This equipment has been tested and found to comply with the limits for Class B devices,
pursuant to Part 15 of the FCC Rules & Regulations.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
User Guide
________________________________________________________________________________________________ 3
User Guide for Wireless 802.11 Network Mini PCI Adapter
D1704 Rev A
©2010 Zebra Enterprise Solutions. All product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respe ctive owners.
Labeling
If the FCC and IC identification numbers are not visible when the module is installed
inside another device, then the outside of the device into which the module is installed
must also display a label referring to the enclosed module. This exterior label can use the
wording such as “Contains FCC ID: XWX-WLM54AG23” and “Contains IC: 8701A-
WLM54AG23”. Any similar wording that expresses the same meaning may be used.
This mini PCI adapter, P/N 26998, will be only installed in devices produced by Zebra
Enterprise Solutions Corp.
RF EXPOSURE STATEMENT
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator and your body. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
User Guide
________________________________________________________________________________________________ 4
User Guide for Wireless 802.11 Network Mini PCI Adapter
D1704 Rev A
©2010 Zebra Enterprise Solutions. All product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respe ctive owners.
Document Revision History
Change
Change Description
Date
Initials
C02320
Initial Release
12/09/10
HH
User Guide
________________________________________________________________________________________________ 5
User Guide for Wireless 802.11 Network Mini PCI Adapter
D1704 Rev A
©2010 Zebra Enterprise Solutions. All product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respe ctive owners.
Table of Contents Page
REGULATORY COMPLIANCE INFORMATION ................................................................................................................... 2
RF EXPOSURE STATEMENT ............................................................................................................................................. 3
1 INTRODUCTION .................................................................................................................................................... 6
2 INSTALLATION ...................................................................................................................................................... 6
3 ANTENNA OPTIONS .............................................................................................................................................. 8
User Guide
________________________________________________________________________________________________ 6
User Guide for Wireless 802.11 Network Mini PCI Adapter
D1704 Rev A
©2010 Zebra Enterprise Solutions. All product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respe ctive owners.
1 INTRODUCTION
This mini PCI adapter is manufactured by Compex Systems. It contains a dual-mode single chip
MAC/BB/Radio for IEEE 802.11a, 11g, and 11b Wireless LAN. It can support high-speed data
transmission of up to 54 Mbps in the 2.4 GHz and 5 GHz frequency bands based on 802.11b/g and
802.11a mode respectively. Only 802.11b/g mode is used when the device is installed in ZES
products. This PCI adapter has been originally certified with 2-dBi dipole antenna by Compex.
ZES has re-certified this card with FCC and IC for use with higher gain antennas, which are listed in
section 3.
2 INSTALLATION
ATTENTION: The mini PCI card is sensitive to ESD. Perform the
following steps in ESD controlled areas and use applicable procedures
for handling ESD sensitive devices.

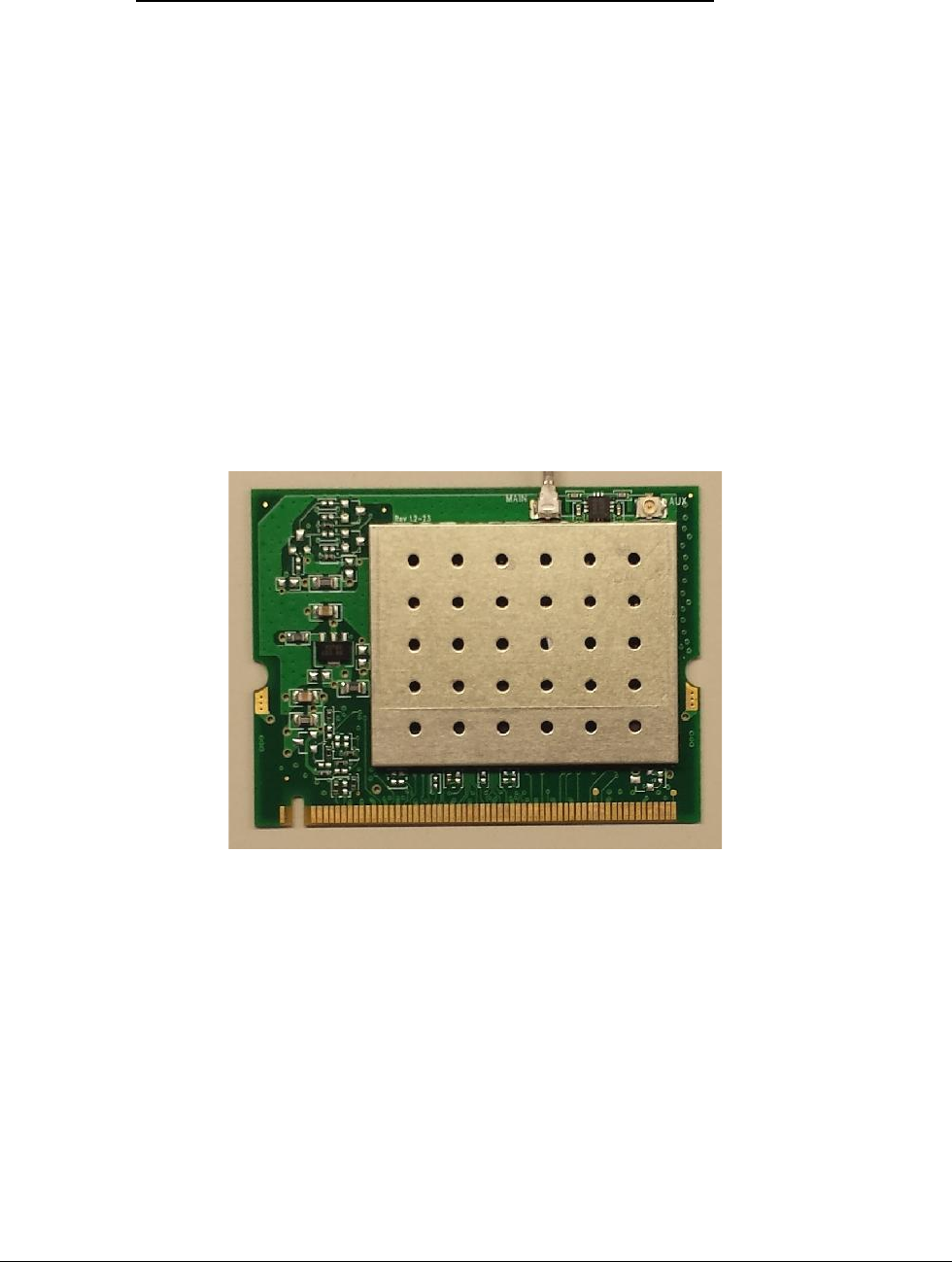

2.1 Ensure that the power to the host equipment is turned off. Connect the antenna
cable to connector marked MAIN on the card.
MAIN
C
Cable to Antenna
User Guide
________________________________________________________________________________________________ 7
User Guide for Wireless 802.11 Network Mini PCI Adapter
D1704 Rev A
©2010 Zebra Enterprise Solutions. All product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respe ctive owners.
2.2 Align the notched end of the card with the socket. Insert the card into the socket.
2.3 Push the card down until it snaps into the two retention clips.
Notch
Retention
Clips
User Guide
________________________________________________________________________________________________ 8
User Guide for Wireless 802.11 Network Mini PCI Adapter
D1704 Rev A
©2010 Zebra Enterprise Solutions. All product names and numbers are Zebra Enterprise Solutions trademarks. All other trademarks are the property of their respe ctive owners.
3 ANTENNA OPTIONS
This mini PCI card has been tested and found to be in compliance when used with the following 2.4
GHz antennas:
3.1 Cisco Aironet 5.2-dBi Dipole Omnidirectional Antenna (P/N AIR-ANT2506)
3.2 Cisco Aironet 2-dBi Dipole Omnidirectional Antenna (P/N AIR-ANT4941)
