WMC6300
Wireless Modem Card
User’s Guide
Version 1.0
DRAFT
DMM000001-01 Copyright 2002, MeshNetworks, Inc. All Rights Reserved
WMC6300 Client User’s Guide
Foreword
This document describes in detail the confidential and proprietary technology of MeshNetworks’
™ Architecture. MeshNetworks products and technology are protected by US and
international patent and patent pending technology. This document represents the current
design; the contents are subject to change at any time at the discretion of MeshNetworks, Inc.
, MeshTray, and MeshNetworks’ logo are trademarks or registered trademarks of
MeshNetworks, Inc. Microsoft, Windows, Windows 2000 and Windows CE are registered
trademarks of Microsoft Corporation. All other product names and services identified
throughout this publication are trademarks or registered trademarks of their respective
companies. No such uses or the use of any trade name is intended to convey endorsement or
other affiliation with this publication. Copyright 2002, MeshNetworks, Inc. All Rights Reserved.
iii
MeshNetworks
iv
WMC6300 Client User’s Guide
Table of Contents
.......................................................................................................................................... 1
Introduction .......................................................................................................................... 1
System Requirements ......................................................................................................... 1
General System Requirements ......................................................................................... 1
What’s in the Box................................................................................................................. 2
INSTALLING THE SOFTWARE...................................................................................................3
Installing Software (Windows 2000 Clients Only) ................................................. 3
Configuring the DNS Address ............................................................................................8
Installing the Antenna Assembly on a Laptop Computer ................................................ 9
Installing the Magnetic Antenna Assembly (Optional)................................................... 11
Installing the WMC6300 Wireless Modem Card .............................................................. 12
Removing the WMC6300 Wireless Modem Card............................................................. 13

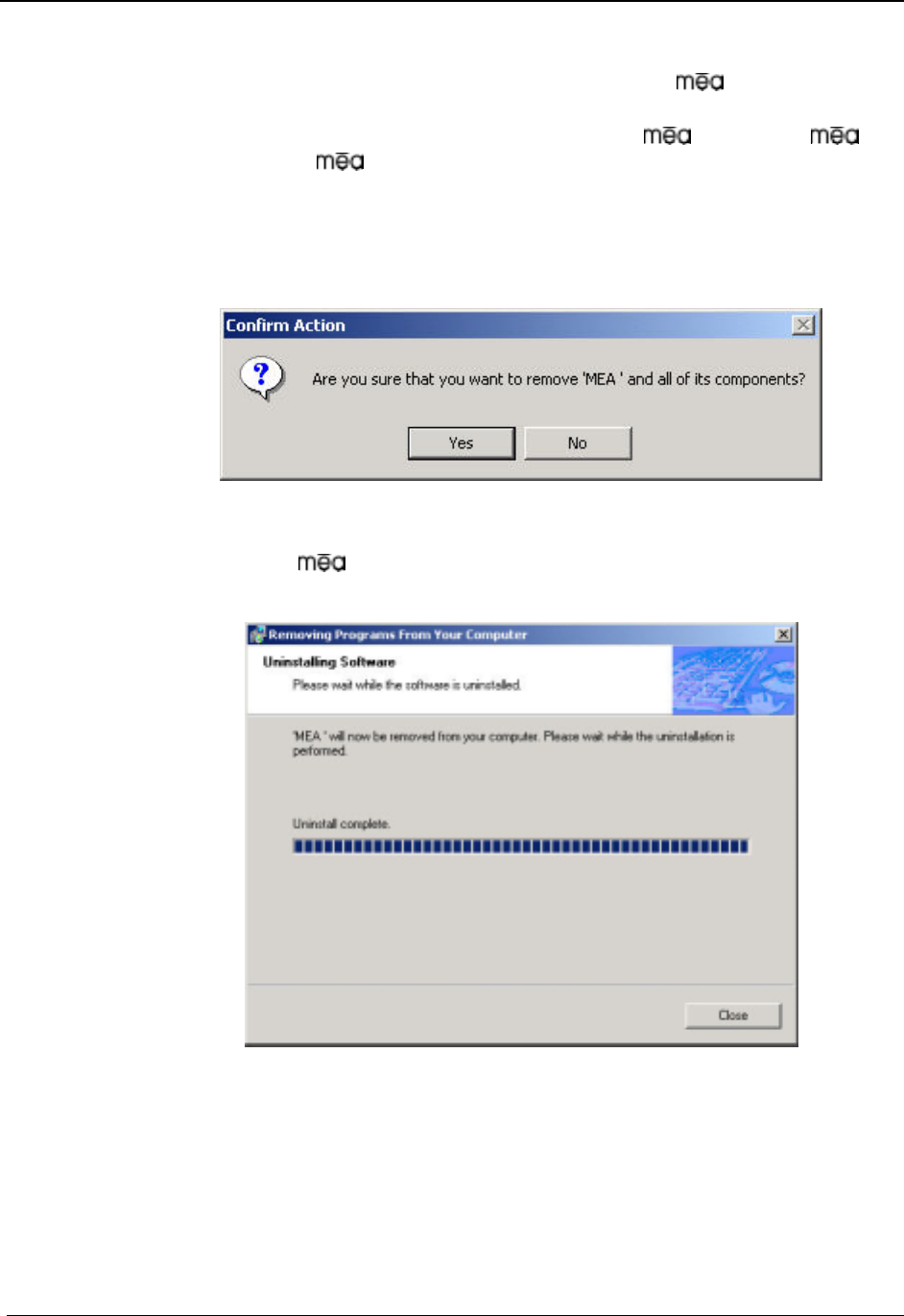

Uninstalling Application Software (Windows 2000 Clients Only) ................................ 14
OVERVIEW OF MESHNETWORKS’ MESHTRAY .................................................................... 15
MeshTray™......................................................................................................................... 15
MeshTray Status ................................................................................................................16
Starting MeshTray..............................................................................................................16
Terminating MeshTray....................................................................................................... 16
CUSTOMER SERVICE INFORMATION .................................................................................... 17
LICENSE AND WARRANTY INFORMATION ........................................................................... 18
Important Information........................................................................................................ 18
REGULATORY INFORMATION ................................................................................................ 21
FCC Information.................................................................................................................21
FCC RF Radiation Exposure Statement........................................................................... 21
Safety Information for the WMC6300.................................................................... 22
v
MeshNetworks
vi
WMC6300 Client User’s Guide
Introduction
Thank you for purchasing the WMC6300 Wireless Modem Card. Please install
the Application Software and Drivers before inserting the Wireless Modem
Card in your system. To get started proceed to the Installing the Software
section of this document.
is a wireless communication system capable of supporting high data rate
mobile communication at vehicular speeds. The system is designed to
allow standard client hosts with a PCMCIA interface to have a mobile broadband
Ethernet connection. The system works transparently to the client host in a
manner similar to an Ethernet connection. provides Internet Protocol based
data and location services. Its geo-location accuracy and availability is better
than ±10 meters within 1 second. It is capable of supporting subscribers
traveling up to 100 miles per hour.

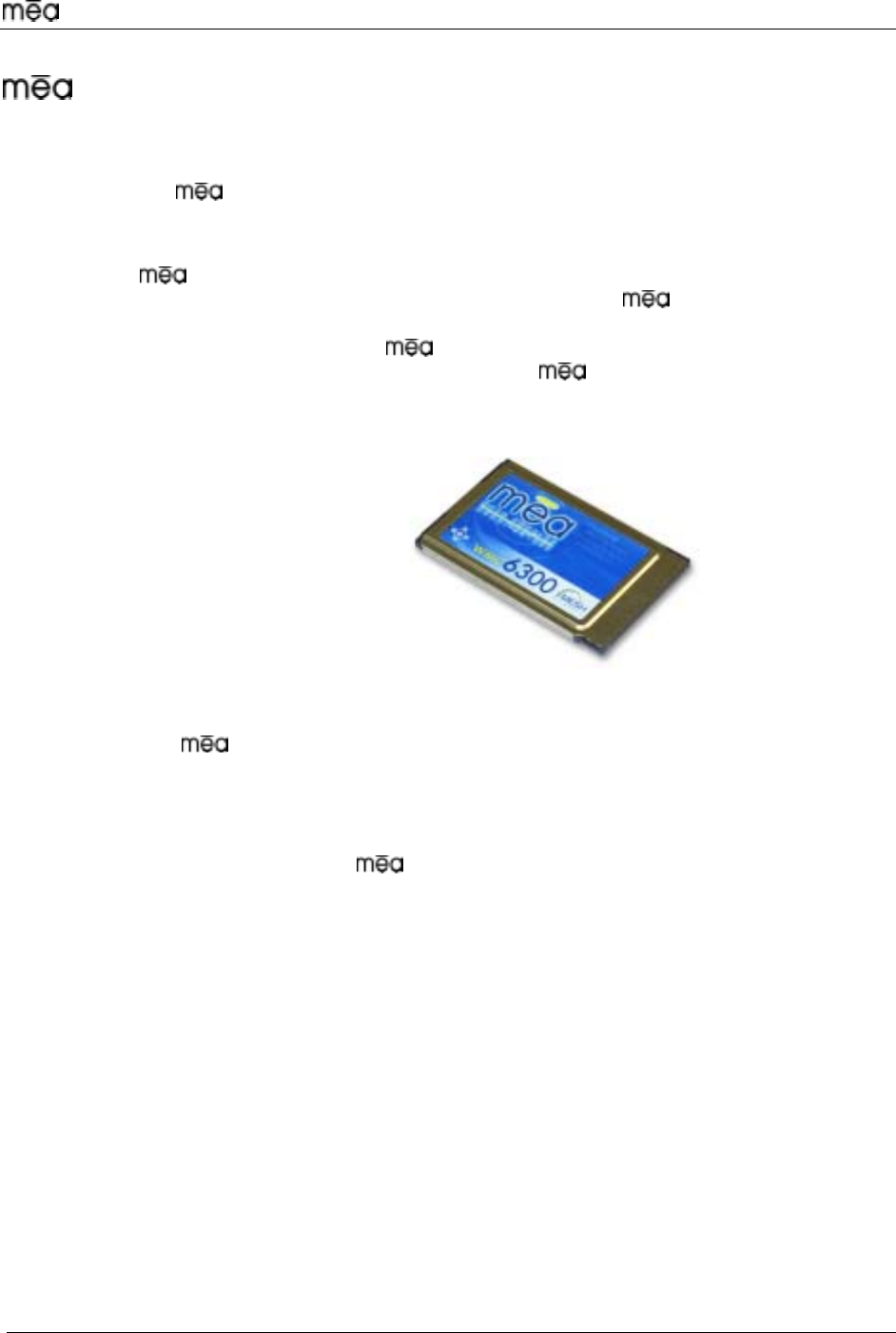

Figure 1. MeshLAN WMC6300 Wireless Modem Card
The
hoclient st may still require configuration and authentication before it will be
allowed to access services on the core network. Access to the core network is
controlled by the network administrator according to current operating practice.
This document provides detailed installation and configuration instructions for
use when installing the WMC6300 Wireless Modem Card and its Software.
system pro s a secure and reliable transport for the client hvide ost. The
System Requirements
General System Requirements
ure the computers meet the following minimum
• Intel based Laptop or Notebook PC running the Microsoft Windows 2000
• rd disk storage
drive or DVD drive
d slot in the Host device
For best results, ens
requirements:
operating systems
5 MB of available ha
• Keyboard
• Mouse
• CD-ROM
• Available Type II PCMCIA car
1
MeshNetworks
What’s in the o B x
Each WMC6300 Wireless Modem Card is a full-featured wireless
networking interface. The following is a list of the items provided with each
WMC6300 card:
• WMC
• Hz Antenna with a 12 inch cable an
6300 Wireless Modem Card
2.4 G d MMCX connector
• Antenna Clip with adhesive backing
• WMC6300 Software and Documentation CD
Figure 2. What’s in the Box
The
to load the Adobe Acrobat Reader software.
Note: For best results, the WMC6300
CD contains an on-line version of the WMC6300 User’s Guide in
Adobe PDF format. If required, the CD also contains an installation executable
WMC6300 card into the device.
software should be installed before
you insert the
2
WMC6300 Client User’s Guide
Installing the Software
Installing Software (Windows 2000 Clients Only)
Note: Install the Software before installing the WMC6300 in your system.
Complete the following procedure to install the Software:
1. Insert the Software Installation CD into the computers’ CDROM
drive.
2. The Setup program will be displayed as shown in Figure 3.
Note: If the installation program does not start automatically, open the
Windows Start menu, click on Run, and then type d:setup.exe (where d
is the letter of the CD-ROM drive) and click the “OK” button.
Click the “Next” button to continue the installation process. 3.
Figure 3. Installation Welcome Window
3
MeshNetworks
4.
5.

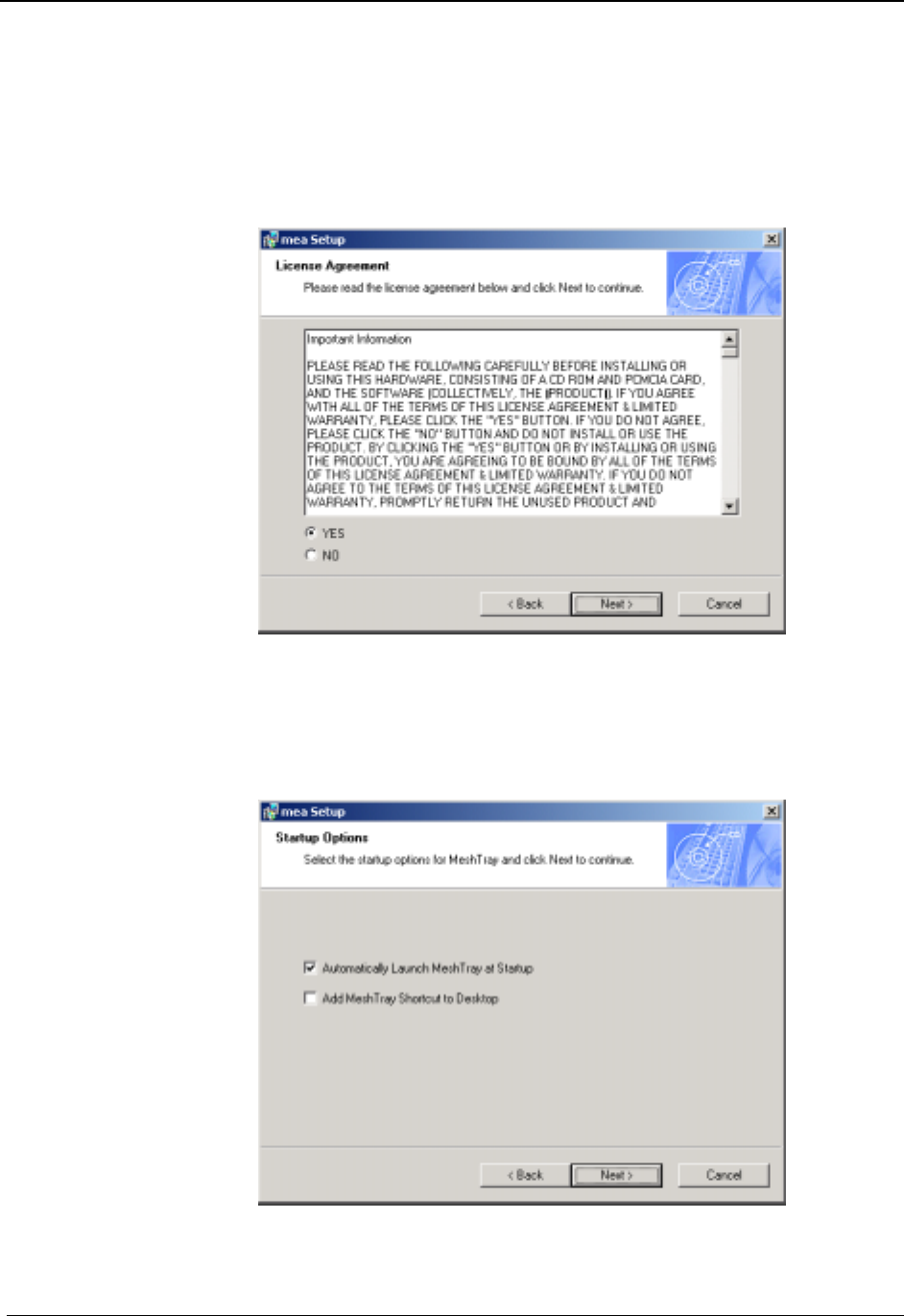

The “License Agreement” window will be displayed. Please review the
End User License Agreement. Use the scroll bar located at the right side
of the window to display the complete text message.
Note: If you do not agree with the terms of the license agreement, click
on “Cancel” and the installation will be terminated.
To continue with the installation process, click on the “YES” button as
shown in Figure 4 and then click on “Next” to continue the installation.
Figure 4. Agree with License Agreement Window
6. The “Ready to Install” window will be displayed as shown in Figure 5.
The user can modify the default installation configuration by checking or
un-checking the boxes on this installation window. Click on “Next” to
continue the installation process.
Figure 5. Ready to Install Window
4
WMC6300 Client User’s Guide

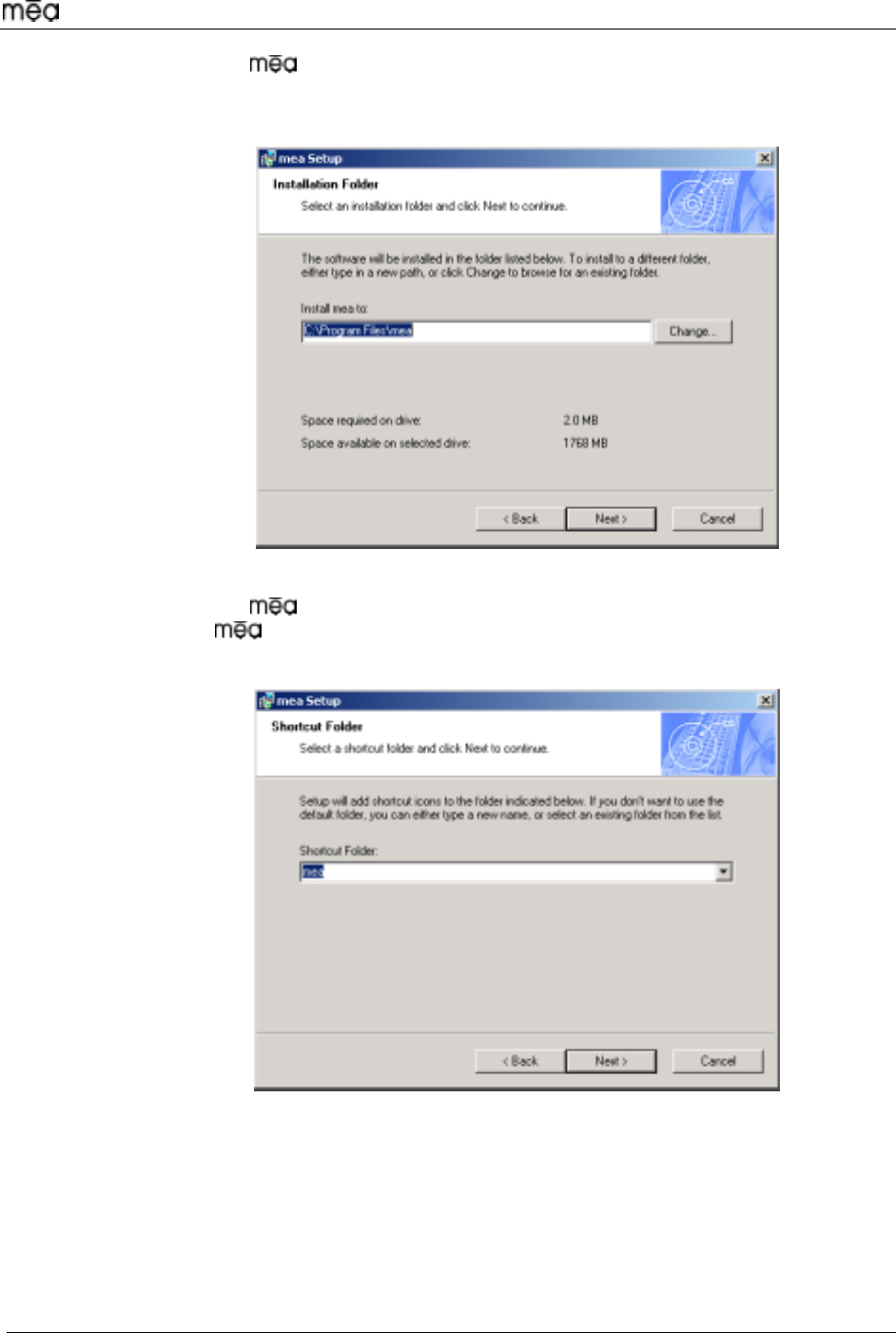

7. The setup program allows the user to change the default installation
folder as shown in Figure 6. Click on “Next” to accept the location to
install the software to and continue the installation process.
Figure 6. Installation Folder Location
8. The setup program allows the user to change the default name
() of the Shortcut folder as shown in Figure 7. Click on “Next” to
accept the name and continue the installation process.
Figure 7. Shortcut Name Selection
5
MeshNetworks

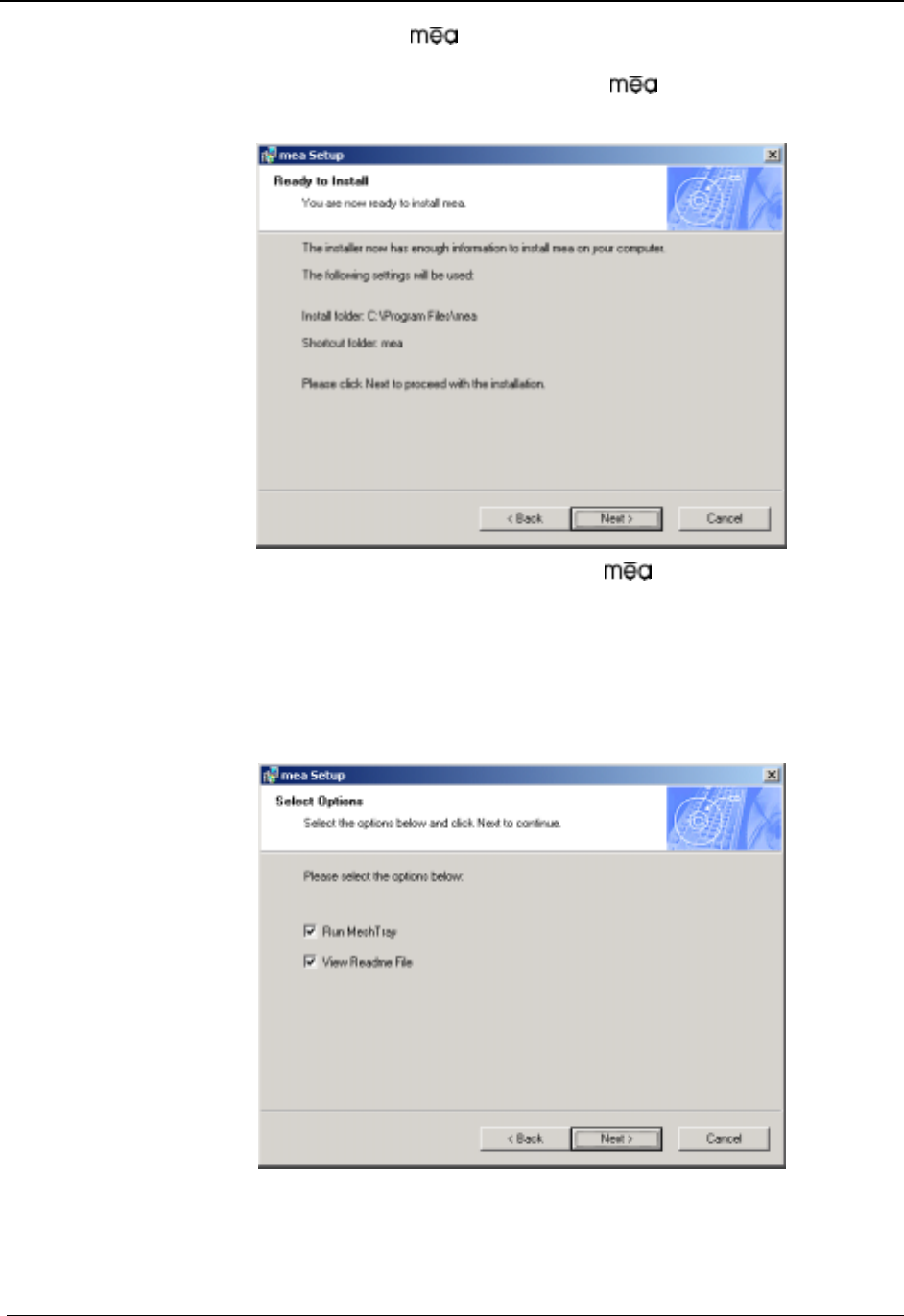

9. The “Ready to Install Window” will be displayed as shown in Figure
8. This window displays the Install Folder location and the Shortcut
Folder name that will be used to install the software. Click on “Next”
to proceed with the installation process.
Figure 8. Ready to Install Window
10. During the installation process, the “Performing Setup Actions” window
displays a status bar that indicates the progress of the installation. When
the file transfer is complete, a window will be displayed as shown in
Figure 9 that allows the user to view the “ReadMe” file for late breaking
release information. It also allows the user to immediately run MeshTray.
Click on “Next” to proceed with the installation process.
Figure 9. Select Options Window
6
WMC6300 Client User’s Guide
11.
12.
If selected, the “ReadMe” file will be displayed. Review the contents of
the file and then close the dialog window by clicking on the “X” located in
the upper-right corner of the window.

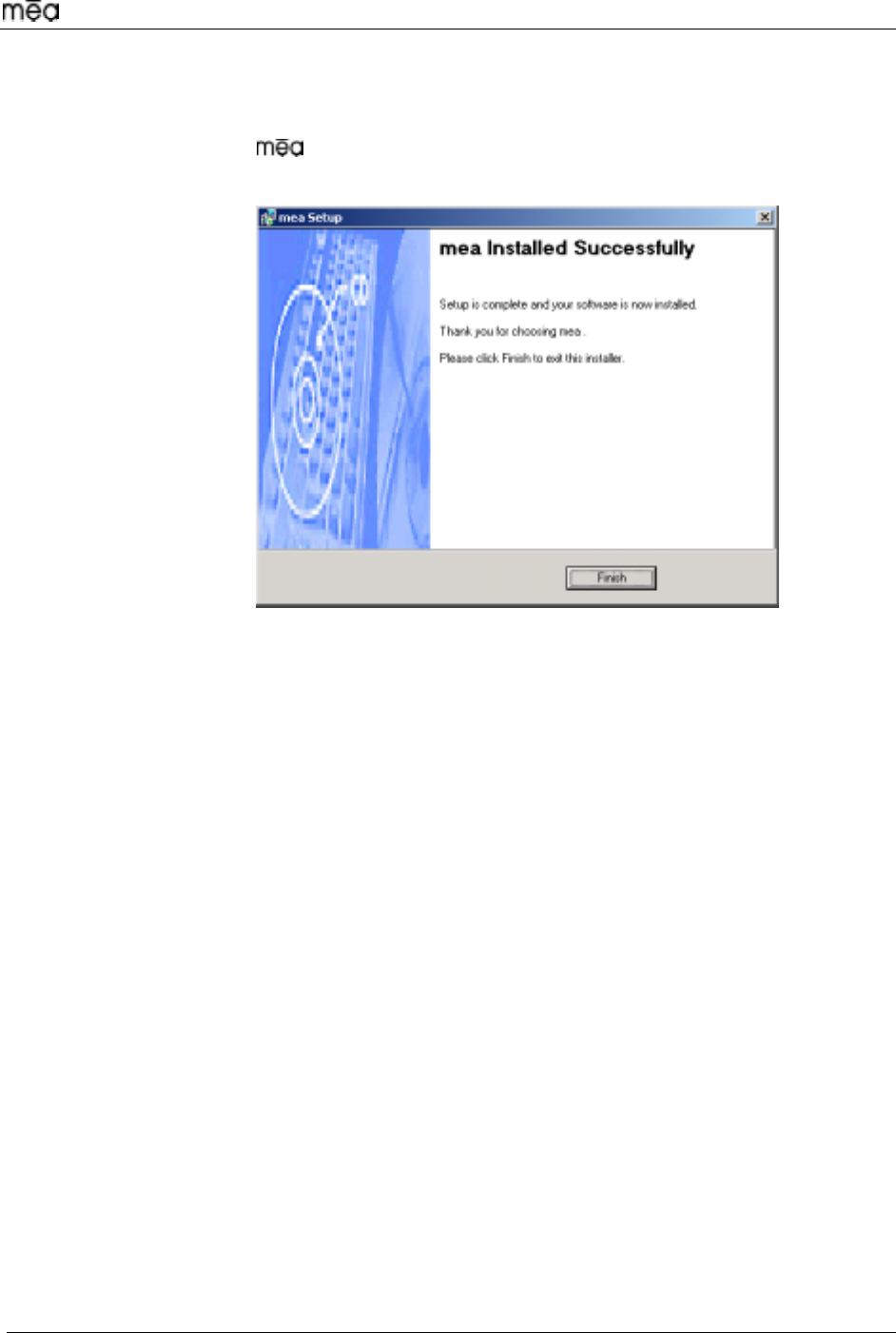

The “ Installed Successfully” dialog window will appear as shown in
Figure 10. Click on “Finish” to complete the installation process.
Figure 10. Finished Popup Window
7
MeshNetworks
Configuring the DNS Address
The Network Operator must supply the DNS IP address for an Internet
connection. This address must be manually configured in order for web URLs
such as www.meshnetworks.com to be resolved. Complete the following
procedure to configure the address:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Click on Start/Settings/Network and Dial-up Connections/Local Area
Connection
(choose the Local Area Connection Corresponding to the Wireless
Modem Card)
Click on the “Properties” button.
Highlight “Internet Protocol (TCP/IP)” in the Components window.
Click on the “Properties” button.
Click on the “Advanced” button.
Click on the “DNS” tab
Click on the DNS “Add” button.
Enter the “DNS Server IP Address” provided by the network administrator
and then click the “Add” button.
Click the “OK” button to close the Advanced TCP/IP Settings windows.
Click the “OK” button to close the Internet Protocol (TCP/IP) Properties
windows.
Click the “OK” button to close the Local Area Connection Properties
windows.
Click the “Close” button to close the Local Area Connection Status
window.
This configuration should remain in the Windows 2000 host.
8
WMC6300 Client User’s Guide
Installing the Antenna Assembly on a Laptop Computer
Complete the following procedure to mount the Antenna Assembly on a standard
laptop computer.
Warning
This unit is not FCC certified for use in a PDA.
Always eject card when not in use.
1. Locate the Antenna and insert the connector into the WMC6300 antenna
port as shown in Figure 11.
Note: The connector will “snap” into place when fully inserted.
Figure 11. Attach Antenna to the WMC6300
2. Locate the Antenna Clip shown in Figure 12 and remove paper that
protects the adhesive backing.
Figure 12. Antenna Clip
3. Attach the Antenna Clip to the back of the laptop computer display
approximately 1 inch from the top corner of the display as shown in
Figure 13. Ensure that the location selected for the Antenna Clip will
reach the WMC6300 with the provided cable length.
Note: The antenna operational position must be greater than 8 inches or
20 cm from the bottom of the case and such that the Antenna is vertically
orientated when the laptop is in use.
9
MeshNetworks
Warning
Use only the MeshNetworks supplied antenna.
Use of another antenna is prohibited and violates FCC regulations.

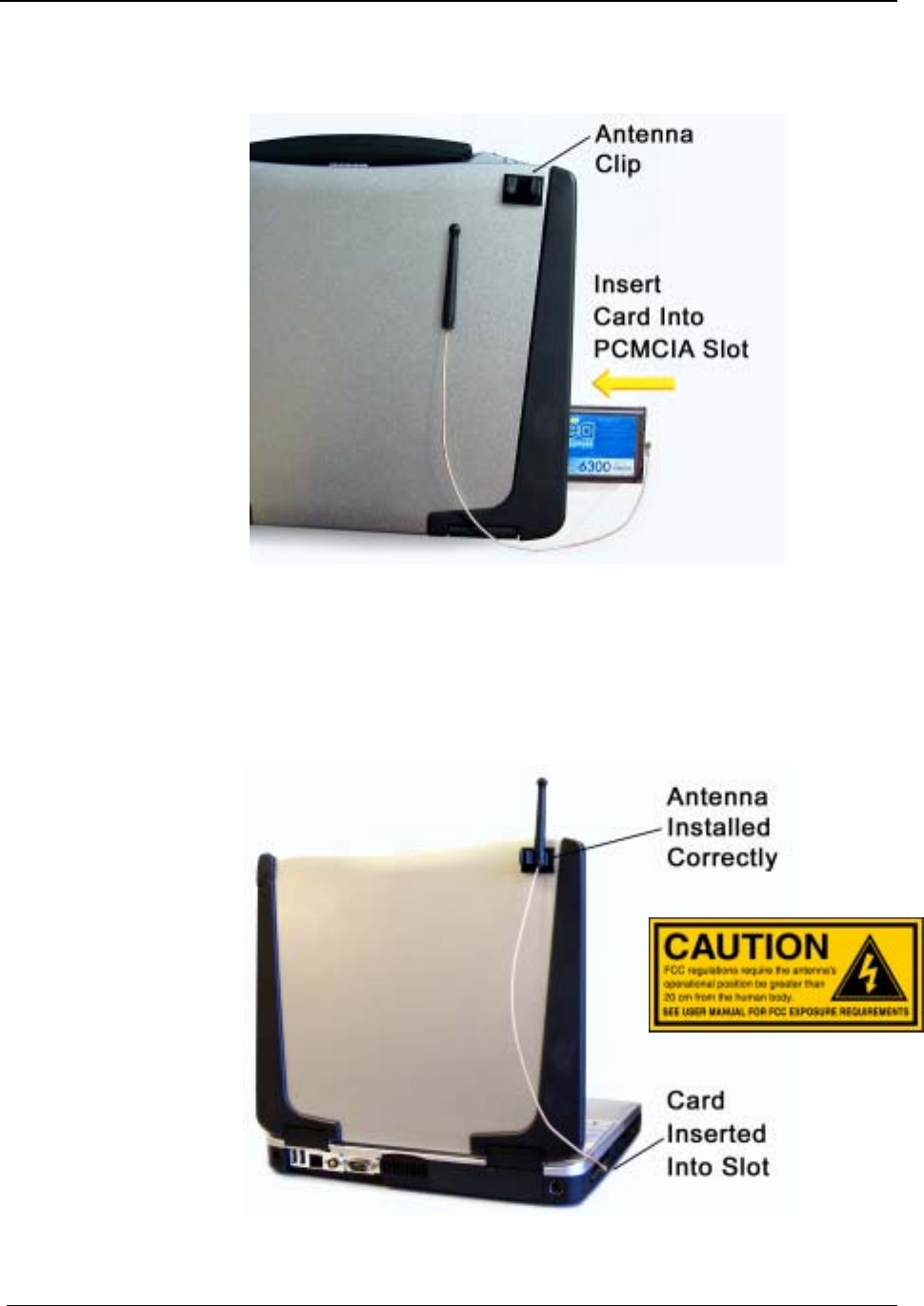

Figure 13. Mounting the Antenna Clip
4. Insert the Antenna into the Antenna Clip as shown in Figure 14.
Warning
Never use the WMC6300 with the Antenna removed from the Clip.
Never use the WMC6300 with the Antenna disconnected from the Card.
Never use the WMC6300 with the display in the closed position.
Figure 14. Insert the Antenna into the Clip
10
WMC6300 Client User’s Guide
Installing the Magnetic Antenna Assembly (Optional)
Complete the following procedure to mount the Magnetic Mount Antenna with a
12-foot cable assembly to the rooftop of an automobile.
1.
2.
3.

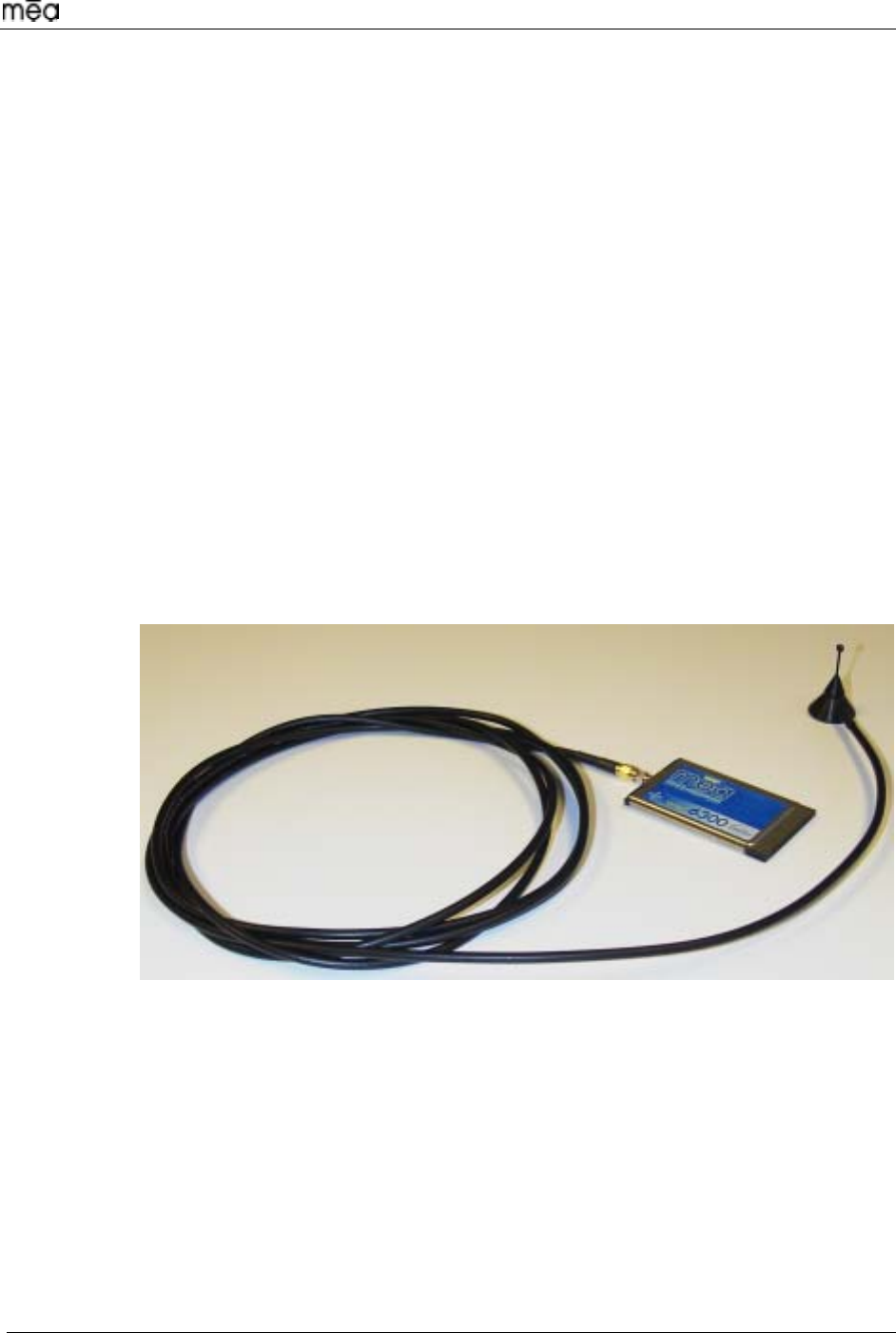

Locate the Magnetic Antenna and route the 12-foot cable as required
from the location of the Host Computer to the rooftop of the automobile.
Ensure that the Antenna will reach the Host Computer with the provided
cable length.
The base of the antenna contains a powerful magnet that will adequately
secure the antenna to the rooftop. Attach the base of the Magnetic Mount
Antenna to the rooftop of the automobile so that the antenna is in a
vertical orientation.
Warning
FCC regulations require that the antenna’s operational position
must be greater than 20 cm from the human body.
Never use the WMC6300 with the Antenna removed from the rooftop.
Never use the WMC6300 with the Antenna disconnected from the Card.
Insert the Antenna’s Cable Connector into the WMC6300 antenna port as
shown in Figure 15. Note: The connector will “snap” into place when
fully inserted.
Figure 15. Attach Magnetic Mount Antenna to the WMC6300
11
MeshNetworks
Installing the WMC6300 Wireless Modem Card
Complete the following procedure to install the WMC6300 Wireless Modem Card
in the computer.
1.
2.
Locate an available Type II PCMCIA card slot in the computer. If
necessary, remove the slot dust cover from the slot.
To ensure the correct orientation of the card is observed, insert the
WMC6300 Wireless Modem Card into the computer’s PCMCIA card slot
with the label side up as shown in Figure 16.
CAUTION - Never force the card into the slot.
Figure 16. Installing the WMC6300 Wireless Modem Card
Warning
This unit is not FCC certified for use in a PDA.
3. The New Hardware Found Popup Window is displayed as shown in
Figure 17 to indicate that the hardware is installed and ready for use.
Figure 17. Found New hardware Popup
12
WMC6300 Client User’s Guide
Removing the WMC6300 Wireless Modem Card
The WMC6300 should be ejected using the following procedure to ensure that
power to the card is disabled prior to removal.
Warning
Always eject card when not in use.
1.
2.
3.
4.
5.
Click on the Unplug or Eject Hardware icon in the system task bar
Select “Stop MeshNetworks PC Card Parent”
Click on the Eject button
Wait for a message which indicates that the device may be safely
removed from the system

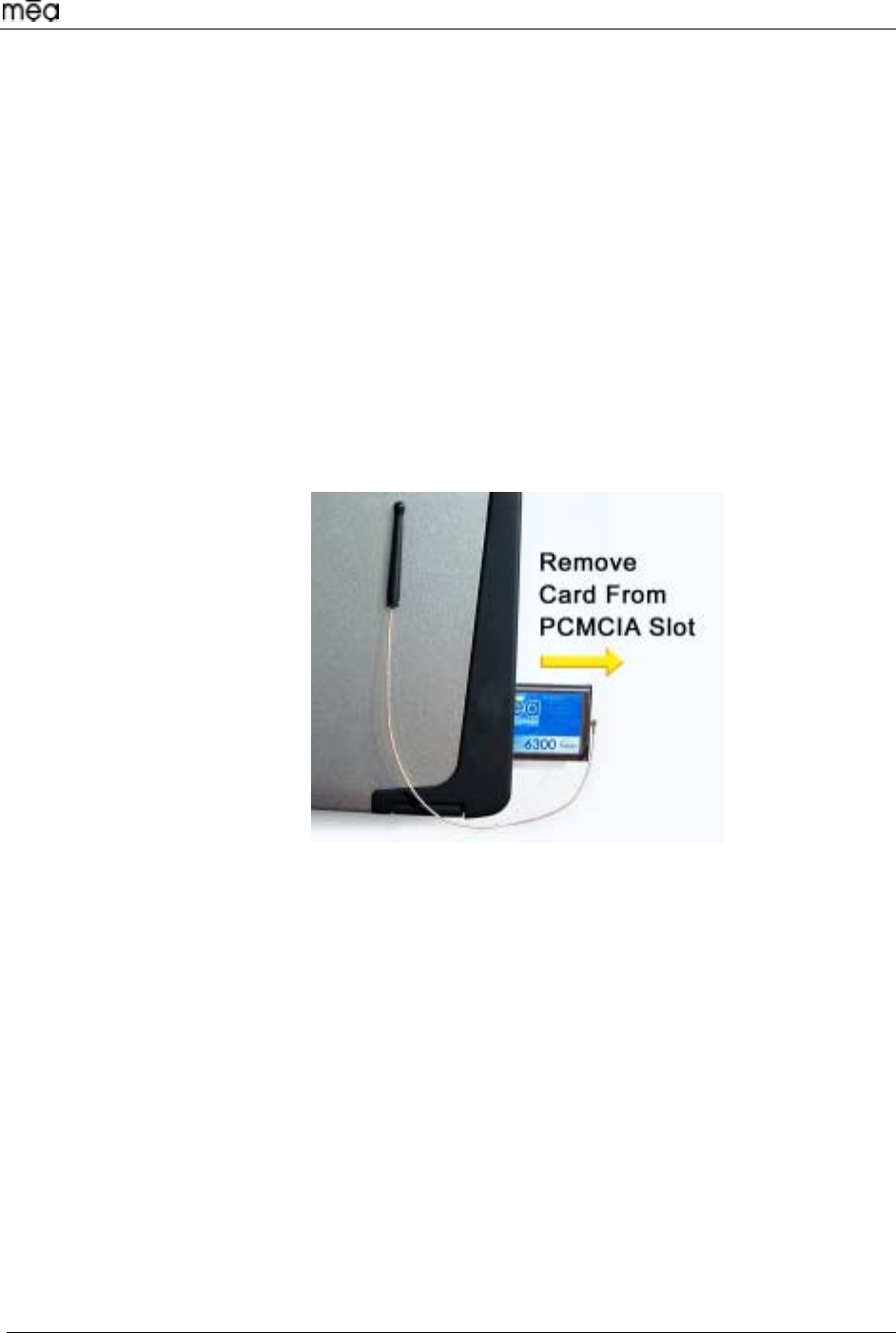

Remove the WMC6300 from the PCMCIA slot as shown in Figure 18.
Figure 18. Removing the WMC6300 from the PCMCIA slot
13
MeshNetworks
Uninstalling Application Software (Windows 2000 Clients Only)
Complete the following procedure to “Uninstall” the Ad Hoc Routing
Software:
From the Start menu, select Program Files→ →Uninstall .
Note: The software can also be uninstalled using “Add/Remove
Programs” located in the Control Panel.
1.
2. The Uninstall program will ask, “Are you sure you want to remove
MeshNetworks Software…” as shown in Figure 19. Click on “Yes” to
continue.
Figure 19. Confirm Uninstall
3. The “Removing Programs From Your Computer” window will be displayed
while the software is uninstalled as shown in Figure 20. When the
Uninstalling Software Process is complete, click on the “Close” button.
Figure 20. Removing Programs From Your Computer Window
14
WMC6300 Client User’s Guide
Overview of MeshNetworks’ MeshTray
MeshTray™
MeshTray is a status application that reports vital and statistical information
about the card. Because MeshTray is a “tray” application, it stays in the
system status tray area when minimized as shown in Figure 21 and Figure 22.
Inactive MeshTray Icon
Figure 21. Inactive MeshTray Icon
As shown in Figure 22, the MeshTray icon displays the Link Strength to the
associated IAP as color-coded bars. (More bars indicate greater Link Quality.)
MeshTray Icon
Figure 22. MeshTray Link Strength Indicator
By clicking on the MeshTray icon, the application is restored to a property sheet
interface as shown in Figure 23.
15
MeshNetworks
MeshTray Status
When the utility is launched, MeshTray displays useful system information such
as a description of the device, the MAC address of the node, the IP address of
the currently associated IAP, and the type of device (i.e., Subscriber Device,
Wireless Router or IAP). The Driver and Firmware version and the IAP Address
are also displayed.
Figure 23. MeshTray Status Page
Starting MeshTray
During the software installation process, a MeshTray shortcut icon is installed on
the users’ desktop. To start the MeshTray application, double-click on the
MeshTray icon.
Terminating MeshTray
If desired, the MeshTray application may be terminated by positioning the curser
over the MeshTray icon that is located in the Toolbar. Then, right-click on the
MeshTray icon and select “Exit” as shown in Figure 24. The task is terminated
and the icon is removed until the application is started again from the Start menu.
Figure 24. Exit MeshTray
16
WMC6300 Client User’s Guide
Customer Service Information
For information about solving difficulties in setting up your mea WMC6300, please see the
Frequently Asked Questions in the support page at http://www.meshnetworks.com/.
If you have read this document, reviewed the FAQ, and made every effort to resolve installation
or operation issues yourself and still require help, please contact your WMC6300 supplier
for assistance.
17
MeshNetworks
License and Warranty Information
Important Information
PLEASE READ CAREFULLY THE FOLLOWING BEFORE INSTALLING OR USING THIS
HARDWARE, CONSISTING OF A CD ROM AND PCMCIA CARD, AND THE SOFTWARE
(COLLECTIVELY, THE “PRODUCT”). IF YOU AGREE WITH ALL OF THE TERMS OF THIS
LICENSE AGREEMENT & LIMITED WARRANTY, PROCEED WITH THE INSTALLATION AND
USE OF THE PRODUCT FOLLOWING THE ONSCREEN INSTRUCTIONS. IF YOU DO NOT
AGREE, DO NOT INSTALL OR USE THE PRODUCT. BY INSTALLING OR USING THE
PRODUCT, YOU ARE AGREEING TO BE BOUND BY ALL OF THE TERMS OF THIS
LICENSE AGREEMENT & LIMITED WARRANTY. IF YOU DO NOT AGREE TO THE TERMS
OF THIS LICENSE AGREEMENT & LIMITED WARRANTY, PROMPTLY RETURN THE
UNUSED PRODUCT AND DOCUMENTATION TO THE SOURCE (AS DEFINED BELOW)
FOR A FULL REFUND OF THE PURCHASE PRICE.
License Agreement & Limited Warranty
LICENSE GRANT
MeshNetworks, Inc. ("MeshNetworks"), by and through its resellers and suppliers (collectively,
the “Source”) hereby licenses to the end-user (“You”) the software accompanying this Product
("Software"). You have right of possession to the CD ROM on which the Software is recorded
(in accordance with your arrangement with the Source), but MeshNetworks retains title to the
Software and related documentation. The license is non-exclusive, non-transferable, non-
sublicensable and confers a right to use only the machine-readable, object code form of the
Software for its normal and intended purpose by a single-user. You may make one backup
copy of the Software in machine-readable form, provided the backup copy is not installed or
used on any electronic device. You must reproduce on the backup copy the MeshNetworks’
copyright notice and any other proprietary legends that were on the original copy of the
Software.
RESTRICTIONS
You acknowledge that the Product contains copyrighted material, trade secrets and other
proprietary material owned by MeshNetworks, and that unauthorized use of such material may
cause serious loss or damage to MeshNetworks. You agree that You will not:
• decompile, reverse engineer, disassemble, translate or reduce the Product to a human-
perceivable form.
• modify, adapt, pledge, lease, rent, share, lend, distribute, disclose or create derivative
works based upon the Product in whole or in part.
• electronically transmit the Software from one computer to another or over a network.
• transfer any of your rights in the Software, the backup copy of the Software, the media,
the documentation, or this License Agreement & Limited Warranty to another party.
• use the Product for any unlawful or harmful purpose.
TERM, TERMINATION
This license is effective until terminated. You may terminate this license at any time by
destroying the Software, related documentation and all copies thereof. This license will
terminate immediately without notice from MeshNetworks if You fail to comply with any provision
of this License Agreement & Limited Warranty. Upon termination You must destroy the
Software, related documentation and all copies thereof.
18
WMC6300 Client User’s Guide
HARDWARE WARRANTY
MeshNetworks warrants to You that the hardware elements of the Product will be substantially
free from material defects in workmanship and materials, under normal use and service, for a
period of one (1) year from the date of acquisition from the Source.
Our sole obligation under this express warranty will be, at our option and expense, (1) to repair
the defective hardware element or, (2) deliver to You an equivalent hardware element to replace
the defective item. Any hardware element that is replaced will become our property.
Replacement hardware elements may be new or reconditioned. We warrant any replaced or
repaired hardware elements for the greater of ninety (90) days from shipment, or the remainder
of the initial warranty period.
SOFTWARE WARRANTY
MeshNetworks warrants to You that the Software, except as noted below, will perform in
substantial conformance to its published program specifications, for a period of ninety (90) days
from the date of acquisition from the Source. No updates are provided under this warranty. Our
sole obligation under this express warranty will be, at our option and expense, to replace any
defective software product, with software which substantially conforms to applicable
MeshNetworks’ published program specifications.
You assume responsibility for the selection of the appropriate applications program and
associated reference materials. MeshNetworks makes no warranty or representation that the
Software will meet your requirements or work in combination with any hardware or applications
software products provided by third parties, that the operation of the Software will be
uninterrupted or error free, or that all defects in the Software will be corrected.
WARRANTY SERVICE
You must contact the Source of the Product within the applicable warranty period to obtain
warranty service authorization. Dated proof of purchase may be required. A Return Material
Authorization (RMA) number will be issued. This number must be marked on the outside of the
package. The Product must be packaged appropriately for safe shipment and sent prepaid. It
is recommended that returned Products be insured or sent by a method that provides for
tracking of the package. Responsibility for loss or damage does not transfer to the intended
recipient until the returned item is received by such party. We will make commercially
reasonable efforts to ship the repaired or replaced item to You, at our expense, not later than
ten (10) business days after receipt of the defective Product. We will retain risk of loss or
damage until the Product is delivered to You.
We will not be responsible for any software, firmware, information, or memory data belonging to
You contained in, stored on, or integrated with any Products returned to the Source for repair,
whether under warranty or not.
WARRANTIES EXCLUSIVE, WARRANTY DISCLAIMER
TO THE FULL EXTENT ALLOWED BY LAW, THE FOREGOING WARRANTIES AND
REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, TERMS, OR
CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW,
STATUTORY OR OTHERWISE, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, SATISFACTORY QUALITY,
CORRESPONDENCE WITH DESCRIPTION, INFORMATIONAL CONTENT, ACCURACY,
SYSTEM INTEGRATION, NON-INFRINGEMENT AND QUIET ENJOYMENT, ALL OF WHICH
ARE EXPRESSLY DISCLAIMED. WE DO NOT WARRANT THAT THE FUNCTIONS
CONTAINED IN THE PRODUCT WILL MEET YOUR REQUIREMENTS, THAT THE PRODUCT
WILL BE COMPATIBLE WITH ANY OTHER SOFTWARE, HARDWARE OR OPERATING
SYSTEM, THAT THE OPERATION OF THE PRODUCT WILL BE UNINTERRUPTED OR
19
MeshNetworks
ERROR-FREE. WE NEITHER ASSUME NOR AUTHORIZE ANY OTHER PERSON TO
ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE,
INSTALLATION, MAINTENANCE OR USE OF THIS PRODUCT.
WE WILL NOT BE LIABLE UNDER THIS WARRANTY IF TESTING AND EXAMINATION
DISCLOSE THAT THE ALLEGED DEFECT OR MALFUNCTION IN THE PRODUCT DOES
NOT EXIST OR WAS CAUSED BY MISUSE, NEGLECT, IMPROPER INSTALLATION OR
TESTING, UNAUTHORIZED ATTEMPTS TO OPEN, REPAIR OR MODIFY THE PRODUCT,
OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OTHER HAZARDS.
LIMITATION OF LIABILITY
TO THE FULL EXTENT ALLOWED BY LAW, MESHNETWORKS EXCLUDES FOR ITSELF,
ITS RESELLERS AND SUPPLIERS AND THEIR RESPECTIVE DIRECTORS, OFFICERS,
EMPLOYEES, OR AGENTS, ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL,
OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS
OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING
OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF WE HAVE
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO
REPAIR OR REPLACEMENT. AT OUR OPTION THIS DISCLAIMER OF LIABILITY FOR
DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN WILL FAIL OF
ITS ESSENTIAL PURPOSE.
Some jurisdictions do not allow the exclusion or limitation of implied warranties or the limitation
of incidental or consequential damages for certain products supplied to consumers, or the
limitation of liability for death or personal injury, so the above limitations and exclusions may be
limited in their application to You. When the implied warranties are not allowed to be excluded
in their entirety, they will be limited to the duration of the applicable written warranty. This
warranty gives You specific legal rights which may vary depending on local law.
EXPORT COMPLIANCE
You agree and certify that the Product will be utilized only in the United States of America or in
compliance with 22CFR125.4(b)(9).
GOVERNING LAW
This License Agreement & Limited Warranty will be governed by the laws of the state of Florida,
U.S.A., and by the laws of the United States, excluding their conflicts of laws principles. Both
the Uniform Computer Information Transactions Act and the United Nations Convention on
Contracts for the International Sale of Goods are hereby excluded in their entirety from
application to this License Agreement & Limited Warranty.
20
WMC6300 Client User’s Guide
Regulatory Information
FCC Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received; including interference that may cause undesired operation.
Federal Communications Commission (FCC) Statement:
This Equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a commercial installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the WMC6300 and radio or television receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the supplier of the WMC6300 or an experienced radio/TV technician for help.
FCC RF Radiation Exposure Statement
CAUTION: This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 cm between the antenna and your body.
1.
2. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
7
21
MeshNetworks
22
Safety Information for the WMC6300
The Federal Communications Commission (FCC) with its action in ET Docket 96-8 has adopted
a safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted
by FCC certified equipment. MeshNetworks’ products meet the uncontrolled
environmental limits found in OET-65 and ANSI C95.1, 1991. Proper operation of this radio
according to the instructions found in this manual and the hardware and software guides on the
CD will result in user exposure that is substantially below the FCC recommended limits.
• Do not touch or move the antenna(s) while the unit is transmitting or receiving.
• Do not hold any component containing a radio such that the antenna is very close to or
touching any exposed parts of the body, especially the face or eyes, while transmitting.
• Do not operate a portable transmitter near unshielded blasting caps or in an explosive
environment unless it is a type especially qualified for such use.
• Do not operate the radio or attempt to transmit data unless the antenna is connected;
otherwise, the radio may be damaged.
• Antenna use:
• In order to comply with FCC RF exposure limits, dipole antennas should be located
at a minimum distance of 7.9 inches (20 cm) or more from the body of all persons.
WARNING
Use the antenna supplied by MeshNetworks.
Use of other antennas is prohibited may violate FCC regulations.
NOTE: The manufacturer is not responsible for any unauthorized modifications to this
equipment. Such modifications could void the user’s authority.

Navigation menu
