user manual 2 of 3
26
EZ320 User Guide
Nylon Soft Case
The EZ320 printer also has the option of being used with a
Nylon Soft Case (not included) which allows the user greater
portability. The case loops onto a user’s belt and provides ac-
cess to the printer’s paper path and printer controls. Use of
the soft case is illustrated in Figure 14 below.
Figure 14: Using the Optional Soft Case
Belt
1) Slide the EZ320 printer into
the soft case so that the paper exit
path lines up with the opening on
the case.
2) The belt is fed through the
belt loop on the back of the soft
case to secure in place.
27
EZ320 User Guide
Preventive Maintenance
Extending Battery Life
• Always observe the safety precautions in the Lithium-
Ion Battery Technical Bulletin included with each Battery
Pack.
• Never expose the battery to direct sunlight or tempera-
tures over 60° C (140° F).
• Do not charge the battery when the temperature exceeds
45° C (113° F).
• Always use a Zebra power supply designed specifical-
ly for the EZ320 printers. Use of any other kind of power
supply may damage the battery.
• Use the correct media for your printing requirements. An
authorized Zebra re-seller can help you determine the op-
timum media for your application.
• If you print the same text or graphic on every label, con-
sider using a pre-printed label.
• Choose the correct print darkness, and print speed for
your media.
NOTE: The Tone setting can be modied via a Set/Get/Do command.
Please refer to the CPCL Programming Manual at
www.zebra.com/manuals for details.
• Remember that any rechargeable battery will lose its
ability to maintain a charge over time. It can only be re-
charged a finite number of times before it must be re-
placed. Always dispose of batteries properly.
• If you print while charging the battery, charge times will
be prolonged. Extensive printing while charging could
deplete the battery enough to cause the low battery
warning indicator to turn on. You should suspend printing
at that time and allow the battery to re-charge completely.
continued
28
EZ320 User Guide
General Cleaning Instructions
Caution • To avoid possible personal injury or damage to the printer,
never insert any pointed or sharp objects into the printer.
Always turn the printer o before performing any cleaning
procedures.
Use care when working near the tear bar. The edges are very sharp.
Caution • The printhead can be very hot after prolonged printing.
Allow it to cool o before attempting any cleaning procedures.
Only use the cleaning pen or a cotton swab saturated with alcohol for
cleaning the printhead.
Caution • Use only cleaning agents specied in the following tables.
Zebra Technologies Corporation will not be responsible for damage
caused by any other cleaning materials used on this printer.
Area Method Interval
Printhead
Use a Zebra cleaning pen or a
70% Isopropyl alcohol solution on
a cotton swab to clean the print
elements from end to end (the
print elements are located in the
thin gray line on the printhead).
After every five rolls of media
(or more often, if needed)
Platen
Rotate the platen roller and
clean it thoroughly with a Zebra
cleaning pen or a 70% Isopropyl
alcohol solution and a cotton
swab.
Tear bar
Clean thoroughly with a Zebra
cleaning pen or a 70% Isopropyl
alcohol solution and a cotton
swab.
Exterior Water dampened cloth As needed
Media
Compartment
Interior Brush/air blow. After every five rolls of media
(or more often, if needed)
Media/Black Bar
Sensor
EZ320 Cleaning Instructions
29
EZ320 User Guide
continued
Figure 15: EZ320 Cleaning
Note • Twelve packs of approved cleaning pens are available from Zebra
as p/n AN11209-1.
Caution • To avoid possible personal injury or damage to the Printer,
never insert any pointed or sharp objects into the Printer.
Media
Compartment
Tear Bar
Media/Black
Bar Sensor
Printhead
Elements
Platen Surface
30
EZ320 User Guide
Troubleshooting
Interpreting Indicators
The printer’s indicators display various printer functions
and their status. Check the indicator status, then refer to the
Troubleshooting topic referenced in the chart.
Function Indicator
Color
Indicator Status:
Steady
Indicator Status:
Blinking
Troubleshooting
Topic
Battery
Status
Indicator
Green
Indicates printer is on
and battery condition is
OK to use.
One (of three) LED’s
blinks and printer beeps
to signify Low Battery
3
Charger Amber/
Green
Off indicates battery
is not charging. Am-
ber indicates battery
is charging. Gr een
indicates battery is
charged.
N/A 1,6,10
Error Amber Off indicates no error
condition.
No media or media
door is open.
Application may be
missing or corrupted
2,4,7,9
Bluetooth Blue
Bluetooth: Printer
has paired with
another Bluetooth
device.
Solid blue indicates
connected. Fast blink-
ing indicates data is
being received
5,8
Troubleshooting Topics
1. No power:
• Ensure you press and hold the Power switch until the Battery
Status Indicator lights come on.
• Check that battery is installed properly.
• Recharge or replace battery as necessary.
2. Media does not feed:
• Be sure Media Cover is closed and latched.
• Check media compartment. Ensure media is not binding
on the sides of the compartment.
3. Poor or faded print
• Clean printhead.
• Check battery for possible damage. Recharge or replace as
necessary.
• Check quality of media.
• Check the “Tone” setting using Zebra Setup Utility.
31
EZ320 User Guide
4. Partial or missing print:
• Check media alignment.
• Clean printhead.
• Ensure Media Cover is properly closed and latched.
5. No print:
• Replace battery.
• Check cable to terminal.
• (Bluetooth units only) Re-Pair Bluetooth connection with
Master device.
6. Reduced battery life:
• Check battery date code — if battery is one to two years
old, short life may be due to normal aging.
• Recharge or replace battery.
7. Flashing Amber indicator:
• Check that media is loaded and that printhead is closed and
securely latched.
• If media is present and latch is closed, indicates that no
application is present or application is corrupted. Program
must be re-loaded.
8. Communication Error:
• (Bluetooth units only) Check that media is loaded, head is
closed and blue communication link light is on.
•(USB) Replace cable to terminal.
9. Label Jam:
• Open media cover.
• Use Isopropyl alcohol to clean printer in area of jammed
label.
10. Battery Pack Is Hard to Install
• Do not force the battery into place.
• Verify you are seating the battery properly in the battery
compartment.
32
EZ320 User Guide
Resetting an EZ320 Printer
If the printer has locked up and is not responding to any operator inputs or
external commands from a connected terminal, you can perform a forced
reset as follows:
1. Press and hold the power button for 5 seconds and then release.
The printer will power down.
2. Re-start the Printer as usual. Any pending data in the printer will
have been deleted and must be re-sent.
Determining Your Printer Version
The printer build date is identied by the Year and Week codes of the printer serial number label
located on the bottom of the unit. (See Figure 16 below).
Zebra Technologies Corporation
EZ320
7,4V 15A
This product is covered by one or more Zebra US patents.Made in China
中
PLACE BAR CODE HERE
PLACE BAR CODE HERE
序列号: XXEZSYYWWNNNN
XXX-XXXXXXXX-XX
PCC:
Figure 16: Determining Your Printer Version
2 Digit Product
Code
2 Digit
Customer Code
Site Code
Date Code
YYWWNNNN
Week (01-52)
Last 2 Digits of
year (00-99
Sequential Number
(00001-99999)
Resets each week
33
EZ320 User Guide
Troubleshooting Tests
Printing a Conguration Label
To print out a listing of the printer’s current configuration fol-
low these steps:
1. Turn the printer off. Load the media compartment with journal
media (media with no black bars printed on the back)
2. Press and hold the Feed Button.
3. Press and hold the Power button and keep the Feed button
pressed.
4. When the printer turns on, release the Power button, and
once printing starts, release the Feed button.
Refer to Figures 17a, 17b, and 17c for a sample configuration
printout.
Communications Diagnostics
If there is a problem transferring data between the computer and
the printer, try putting the printer in the Communications Diagnostics
Mode. The printer will print the ASCII characters and their text repre-
sentation (or the period ‘.’, if not a printable character) for any data re-
ceived from the host computer
To enter Communications Diagnostics Mode:
1. Print a configuration label as described above.
2. At the end of 2nd diagnostics report, the printer will print: “Press
FEED key to enter Diagnostics mode”.
3. Press the FEED key. The printer will print: “Entering Diagnostics
mode”.
Note • If the FEED key is not pressed within 3 seconds, the printer
will print “Diagnostics mode not entered” and will resume normal
operation.
4. At this point, the printer is in Diagnostics mode and will print the
ASCII hex codes of any data sent to it, and their text representa-
tion (or “.” if not a printable character).
Additionally, a file with a “.dmp” extension containing the ASCII in-
formation will be created and stored in the printer’s memory.
34
EZ320 User Guide
To terminate the Communications Diagnostics Mode and re-
turn the printer to normal operations:
1. Turn the printer OFF.
2. Wait 5 seconds.
3. Turn the printer ON.
Calling Technical Support
If the printer fails to print the configuration label, or you en-
counter problems not covered in the Troubleshooting Guide,
contact Zebra Technical Support. Technical Support addresses
and phone numbers for your area can be found in Appendix D
of this manual. You will need to supply the following informa-
tion:
• Model number and type (e.g. EZ320)
• Unit serial number (Found on the large label on the back
of the printer, also found in the configuration label print-
out. Refer to Figure 17a.)
• Product Configuration Code (PCC) (15 digit number found
on the label on the back of the unit)
35
EZ320 User Guide
Unit Serial
Number
Application
Number
Print Head Test
This example
has a
Bluetooth™
radio installed.
Figure 17a: Conguration Label Example
36
EZ320 User Guide
continued
Flash
Memory
Size
Maximum
Label Size
Figure17b: Conguration Label Example (continued)
Bluetooth
radio
parameters
37
EZ320 User Guide

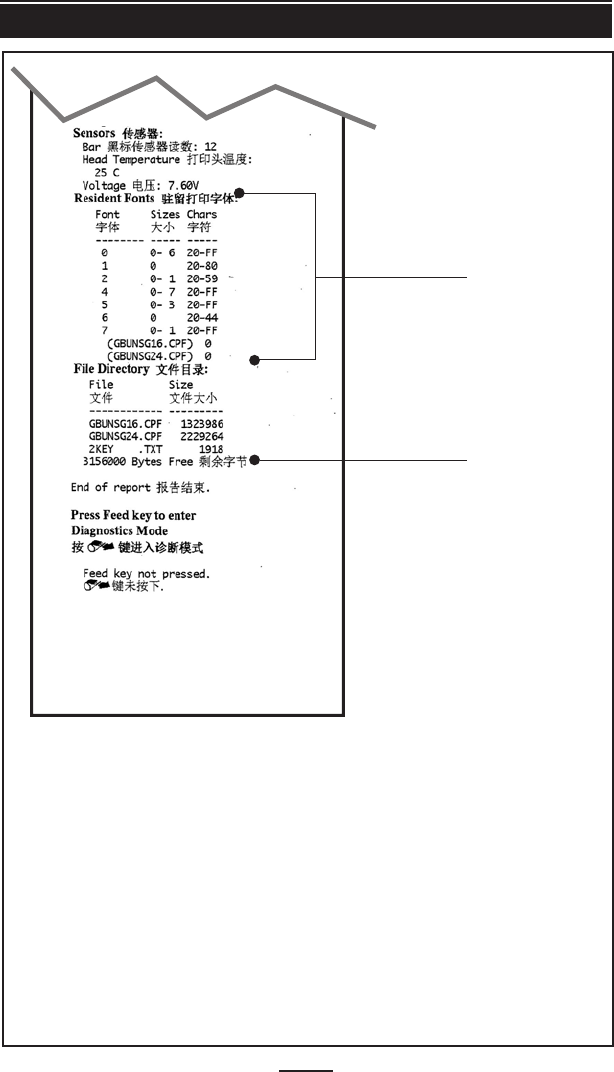

Figure 17c: Conguration Label Example (continued)
Amount of
Memory
Available
Resident Fonts
38
EZ320 User Guide
Specifications
Note.- Printer specications are subject to change without notice.
Printing Specications
Parameter EZ320
Print Width Fixed width 74,0 mm (2.91 in.)
Print Speed (typical)* 50,8 mm/second (2 in. per second)
Print Head Life,
calculated 25400000 mm (1 million inches) of media fed
Print Density 8 dots/mm (203 dots/inch)
Printhead Burn
Line to Tear Edge 5,0 mm (.197 in.)
* Extreme temperatures and print densities may aect print speed.
Please contact Zebra for guidance to maximize the performance of
your solution.
Memory and Communications Specications, EZ320
Flash Memory 8 MB
SRAM 16 MB
Standard
Communications
USB 2.0 Full Speed Interface (12 Mbps)
Standard Bluetooth compliant with Bluetooth
specification 2.0
39
EZ320 User Guide
Media Specications
Parameter EZ320
Width 80,0 mm ±1 mm
(3.15 in. ± 0.03 in.)
Max.
Printable
Area
Width
Length
74,0 mm (2.91 in.)
14,5 mm (.57 in.) min. to 813 mm (32 in.) max
Media Thickness 0.060 mm to 0.1143 mm (.0023 in to .0045 in)
Max. Media Roll dia. 42,0 mm (1.65 in.) O.D.
Label Inner Core
Diameter 10,2 to 19,0 mm (0.40 to 0.75 in.)
Black Mark
Dimensions
The reflective media black marks should extend from the right
side of the roll on the front side of the media.
Minimum mark width: 7 mm (0.28 in.) perpendicular to
edge of media, starting from the right edge of the roll when
looking at the print side of the media.
Mark length: 3,0-11,0 mm (0.12 - 0.43 in.) parallel to edge of
the roll. (See illustration below).
7,0 mm (0.28”)
3,0 mm-11,0 mm (0.12”-0.43”)
minimum
Black Mark Dimensions)
40
EZ320 User Guide
Font and Bar Code Specications for EZ320
Linear & 2-D
Bar Bar Codes
Available
Codabar (NW-7)
UCC/EAN 128
UCC composite A/B/C
Code 39
Code 93
Code 128
EAN 8, 13, 2 and 5 digit extensions
EAN-8 composite
EAN 13 composite
lnterleaved 2 of 5
MSI/Plessey
FIM/POSTNET
Intelligent Mail Barcode
UPC-A, 2 and 5 digit extensions
UPC-E, 2 and 5 digit extensions
UPC-A composite
UPC-E composite
QR Code
MaxiCode
PDF 417
GS1 DataBar (RSS-14)
GS1 DataBar (RSS-14) expanded
GS1 DataBar (RSS-14) truncated
GS1 DataBar (RSS-14) limited
GS1 DataBar (RSS-14) stacked
GS1 DataBar (RSS-14) stacked
omnidirectional
Aztec
Rotation
Angles0°, 90°, 180°, and 270°
continued
41
EZ320 User Guide
Fonts
Available
GBUNSG24.CPF Simplified Chinese 24x24
GBUNSG16.CPF Simplified Chinese 16x16
CTUNMK24.CPF Traditional Chinese 24x24
Note: GB-18030 and BIG5 both support ASCII character sets.
The default EZ320 Encoding is GB-18030. To print Traditional
Chinese, use ENCODING BIG5 command. See below for font
and encoding selection as well as examples.
Pre-loaded Fonts
1. GBUNSG24.CPF
• Description: Simplified Chinese 24x24
• Encoding Command: GB18030 (default)
• Example (Label Mode):
! 0 200 200 300 1
ENCODING GB18030
TEXT GBUNSG24.CPF 0 10 50 add text here. . .
PRINT
• Example (Line-print Mode):
! U1 ENCODING GB18030
! U1 SETLP GBUNSG24.CPF 0 24
add text here, line 1
add text here, line 2
2. GBUNSG16.CPF
• Description: Simplified Chinese 16x16
• Encoding Command: GB18030 (default)
• Example (Label Mode):
! 0 200 200 300 1
ENCODING GB18030
TEXT GBUNSG16.CPF 0 10 50 add text here. . .
PRINT
• Example (Line-print Mode):
! U1 ENCODING GB18030
! U1 SETLP GBUNSG16.CPF 0 24
add text here, line 1
add text here, line 2
42
EZ320 User Guide
3. CTUNMK24.CPF
• Description: Traditional Chinese 24x24
• Encoding Command: BIG5
• Example (Label Mode):
! 0 200 200 300 1
ENCODING BIG5
TEXT CTUNMK24.CPF 0 10 50 add text here. . .
PRINT
• Example (Line-print Mode)
! U1 ENCODING BIG5
! U1 SETLP CTUNMK24.CPF 0 24
add text here, line 1
add text here, line 2
*SimSun is provided under license from Ascender Corporation. SimSun is
copyright ZHONGYI Electronic and Microsoft Corporation.
43
EZ320 User Guide
Physical, Environmental and Electrical Specications
Parameter EZ320
Weight w/
battery,
excluding media 295g. (.65 lbs.)
Temperature
Operating : -10° to 50° C (14° to 122° F)
Charging: 0° to 40° C (32° to 104° F)
Storage w/o battery: -25° to 60° C
(-4° to 140° F)
Storage w/ battery: -25° to 45°C
(-4° to 113° F)
Relative
Humidity
Operating: 10% to 90% (non-
condensing)
Storage: 10% to 90% (non-
condensing)
Battery Lithium-Ion 2S-1P, 7.4 VDC (nominal);
1150 mAHr.
Printer Input
Power 12.0 VDC ±10%; 2A max
Ingression
Protection (IP)
Rating
42
5 1
Figure 18: USB Communications Port
USB Communications Port
Pin# Signal Name Type Description
1 VBUS - USB Bus Power
2 USB - bi-directional I/O signals
3 USB + bi-directional I/O signals
4 USB_ID - Identifies A/B connector
5 Return - Ground
44
EZ320 User Guide
2.55"
5.54"
4.32"
100.8 mm
(3.97 in.)
125 mm (4.92 in.)
48 mm
(1.89 in.)
Figure 19: EZ320 Overall Dimensions
125 mm (4.92”)
(1.89”)
48 mm
100.8 mm
(3.97”)
45
EZ320 User Guide
EZ320 Accessories
Description
Adjustable belt strap p/n P1033361 (included)
Protective carrying case P1033362 (optional)
AC Adapter AT17947-1 (included)
Extra battery packs (p/n P1026078)
Single bay battery charger (optional)
Refer to Appendix A for information on Data I/O Cables
For more details on available accessories, contact your authorized
Zebra re-seller.
46
EZ320 User Guide Appendices
Appendix A
Interface Cables
- GND
- D+
- D-
- VBUS
- VBUS
- D-
- D+
- NC
- GND
USB Cable
Part Number AT17010-1; USB A to USB Mini B Cable
MORE INTERFACE CABLES
Contact the Factory or your Zebra Sales Representative for more
information on interface cables to most major manufacturer’s data
terminals.
You may also visit the Zebra Web site at http://www.zebra.com for a
listing of interface cables for all series of Zebra mobile printers
Appendix B
Maintenance Supplies
In addition to using quality media provided by Zebra, it is recom-
mended that the printer be cleaned as prescribed in the maintenance
section. The following items are available for this purpose:
• Cleaning Pen (12 pack), Reorder No. AN11209-1
• Cleaning Pads (10 pack), Reorder No. AN11207-1
47
EZ320 User Guide Appendices
Appendix C
Media Supplies
Please make sure that the media supplies used in the EZ320
conform to the specifications listed below for the printer.
The different media types outlined in the following table
were tested and verified to work properly in the EZ320.
EZ320 Media
Description Weight Width Thickness Roll OD Core
OD
Non-topcoated direct
thermal receipt paper
60g/m280 mm +/- 1 mm 0.058 mm 40 mm 12.7 mm
Non-topcoated direct
thermal receipt paper
100g/m280 mm +/- 1 mm 0.086 mm 40 mm 12.7 mm
Non-topcoated direct ther-
mal receipt paper, black bar
100g/m280 mm +/- 1 mm 0.086 mm 40 mm 12.7 mm
Topcoated direct thermal
receipt paper
80g/m280 mm +/- 1 mm 0.081 mm 40 mm 12.7 mm
Direct thermal polypropyl-
ene receipt, perforations
80g/m280 mm +/- 1 mm 0.081 mm 40 mm 12.7 mm
Non-topcoated direct ther-
mal receipt paper, black bar
100g/m260 mm +/- 1 mm 0.086 mm 40 mm 12.7 mm
Direct thermal polypropyl-
ene receipt, non-perforated
80g/m260 mm +/- 1 mm 0.081 mm 40 mm 12.7 mm
48
EZ320 User Guide Appendices
Appendix D
Product Support
When calling with a specific problem regarding your
printer, please have the following information on hand:
• Model number/type (e.g. EZ320)
• Unit serial number
• Product Configuration Code (PCC)
For Product Support Contacts, see the table on the next
page or contact your local re-seller.
Zebra Technologies Corporation
EZ320
7,4V 15A
This product is covered by one or more Zebra US patents.Made in China
中
PLACE BAR CODE HERE
PLACE BAR CODE HERE
序列号:
XXEZSYYWWNNNN
XXX-XXXXXXXX-XX
PCC:
EZ320 Serial Number Label
Serial
Number
Bar Code
PCC
Bar Code
49
EZ320 User Guide Appendices
In the Asia Pacic region contact
Regional Headquarters Technical Support Customer Service
Zebra Technologies Asia Pacic, LLC
120 Robinson Road
#06-01 Parakou Building
Singapore 068913
T: +65 6858 0722
F: +65 6885 0838
T: +65 6858 0722
F: +65 6885 0838
E: tsasiapacic@zebra.
com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +65 6858 0722
F: +65 6885 0837
Regional Oce Technical Support Customer Service
Beijing China Regional Oce
Room 2103/2105
Global Trade Center Tower A
36 North Third Ring Road East
Dongcheng District
Beijing 100013, P.R. China
T: +86 10 5825 7428
F: +86 10 5825 7429
T: +65 6858 0722
F: +65 6885 0838
E: tschina@zebra.com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +65 6858 0722
F: +65 6885 0837
Guangzhou China Regional Oce
Room 3318, 33/F Oce Tower
China shine Plaza, 9 Linhexi Road
Tianhe District, Guangzhou 510610, P.R.C.
T: +86 20 3810 7798
F: +86 20 3810 7783
T: +65 6858 0722
F: +65 6885 0838
E: tschina@zebra.com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +65 6858 0722
F: +65 6885 0837
Shanghai China Oce
Room 2308-2312
Plaza66 Tower2
1366 Nanjing Road(w)
Shanghai 200040, P.R. China
T: +86 21 5175 8558
F” +86 21 6288 8393
T: +65 6858 0722
F: +65 6885 0838
E: tschina@zebra.com
For printers, parts, media,
and ribbon, please call your
distributor, or contact us.
T: +65 6858 0722
F: +65 6885 0837
Product Support Contacts
50
EZ320 User Guide Appendices
continued
Appendix E
Product Documentation
Please refer to Zebra’s web site (see below) at
www.zebra.com.cn/products for finding specific product
documentation and software downloads for the EZ320 printer.
51
EZ320 User Guide
Index
A
Accessories
Belt strap 25
Soft case 26
list of 45
B
Battery, charging 12
Battery, installing 10
Battery life, tips for ex-
tending 27
Battery, removing 11
Bluetooth Device Address
(BDA) 23
Bluetooth™ Networking
Overview 23
C
Cleaning
general instructions 29
Communications
USB
Connector signals 43
with a cable 22
Communications diagnos-
tics 33
Configuration Label
printing 34
D
Damage, shipping 7
M
Manual
CPCL Programming 7
Media
loading 80 mm 16
60 mm 18
black bar sensors 18
O
Operator Controls 19
P
Programming language
CPCL 7
S
Safety Precautions
placement of charger 15
Single Bay Charger 14
Specifications
Font/bar Code 40
Media 39
Memory/communications 38
Physical 43
printing 38
T
Technical Support, contacting
34
Troubleshooting
Communications Diagnostics
Mode 33
control panel indicators 30
Troubleshooting tests 33
printing a configuration label
21,33
EZ320 configuration label
example 35,36,37
Troubleshooting Topics 31
W
Wireless communications
Bluetooth™ radio 23
52
EZ320 User Guide
Mobile Printer
EZ320
™
Zebra Technologies Corporation
475 Half Day Road, Suite 500
Lincolnshire, IL 60069
Phone: 1.847.634.6700 or 1.800.423.0442
Fax: 1.847.913.8766
Patent Numbers
D275,286
D347,021
D389,178
D430,199
D433,702
D549,768
3,964,673
4,019,676
4,044,946
4,360,798
4,369,361
4,387,297
4,460,120
4,496,831
4,593,186
4,607,156
4,673,805
4,736,095
4,758,717
4,816,660
4,845,350
4,896,026
4,897,532
4,923,281
4,933,538
4,992,717
5,015,833
5,017,765
5,021,641
5,029,183
5,047,617
5,103,461
5,113,445
5,140,144
5,132,709
5,142,550
5,149,950
5,157,687
5,168,148
5,168,149
5,180,904
5,229,591
5,230,088
5,235,167
5,243,655
5,247,162
5,250,791
5,250,792
5,262,627
5,267,800
5,280,163
5,280,164
5,280,498
5,304,786
5,304,788
5,321,246
5,335,170
5,364,133
5,367,151
5,372,439
5,373,148
5,378,882
5,396,053
5,396,055
5,399,846
5,408,081
5,410,139
5,410,140
5,412,198
5,415,482
5,418,812
5,420,411
5,436,440
5,444,231
5,449,891
5,449,893
5,468,949
5,479,000
5,479,002
5,479,441
5,486,057
5,503,483
5,504,322
5,528,621
5,532,469
5,543,610
5,545,889
5,552,592
5,570,123
5,578,810
5,589,680
5,612,531
5,642,666
5,657,066
5,768,991
5,790,162
5,791,796
5,806,993
5,813,343
5,816,718
5,820,279
5,848,848
5,860,753
5,872,585
5,874,980
5,909,233
5,976,720
5,978,004
5,995,128
5,997,193
6,004,053
6,010,257
6,020,906
6,034,708
6,036,383
6,057,870
6,068,415
6,068,415
6,095,704
6,109,801
6,123,471
6,147,767
6,151,037
6,201,255 B1
6,231,253 B1
6,261,009
6,261,013
6,267,521
6,270,072 B1
6,285,845 B1
6,292,595
6,296,032
6,364,550
6,379,058 B1
6,409,401 B1
6,411,397 B1
6,428,227 B2
6,530,705
6,540,122
6,607,316
6,609,844
6,874,958
6,899,477
This product and/or its use may be covered by one or more of the
following US patents and corresponding international patents
worldwide
Mobile Printer
EZ320
™
Zebra Technologies Corporation
475 Half Day Road, Suite 500
Lincolnshire, IL 60069
Phone: 1.847.634.6700 or 1.800.423.0442
Fax: 1.847.913.8766
