ZM400/ZM600
Product Guide - EMEA 1 May 2007
Z Series™
ZM400™ /ZM600™
Thermal Bar Code Printer
Product Guide
ZM400/ZM600
Product Guide - EMEA 2 May 2007
© 2007 ZIH Corp.
This document and the information contained therein is the confidential and
proprietary information of Zebra, and may not be distributed without the express
written permission of Zebra.
ZebraLink and all product names and numbers are trademarks. Zebra, the Zebra
Head logo, ZPL, ZPL II, Stripe, Z Series are registered trademarks of ZIH Corp.
All rights reserved worldwide.
Product and company names mentioned in this document may be trademarks of
their respective owners.
All competitor product information is gathered from public sources at the time of
publication. It has not been verified or tested by Zebra.
ZM400/ZM600
Table of Contents
Product Guide - EMEA 3 May 2007
ZM400/ZM600 Thermal Bar Code Printer
Product Guide
Table of Contents
May 2007
I. INTRODUCTION........................................................................................................... 4
Positioning Summary....................................................................................................... 5
II. TARGET MARKETS AND APPLICATIONS............................................................. 6
III. PRINTER TOUR WITH KEY BENEFITS................................................................. 8
IV. TYPICAL USER/HOW TO SELL ........................................................................... 12

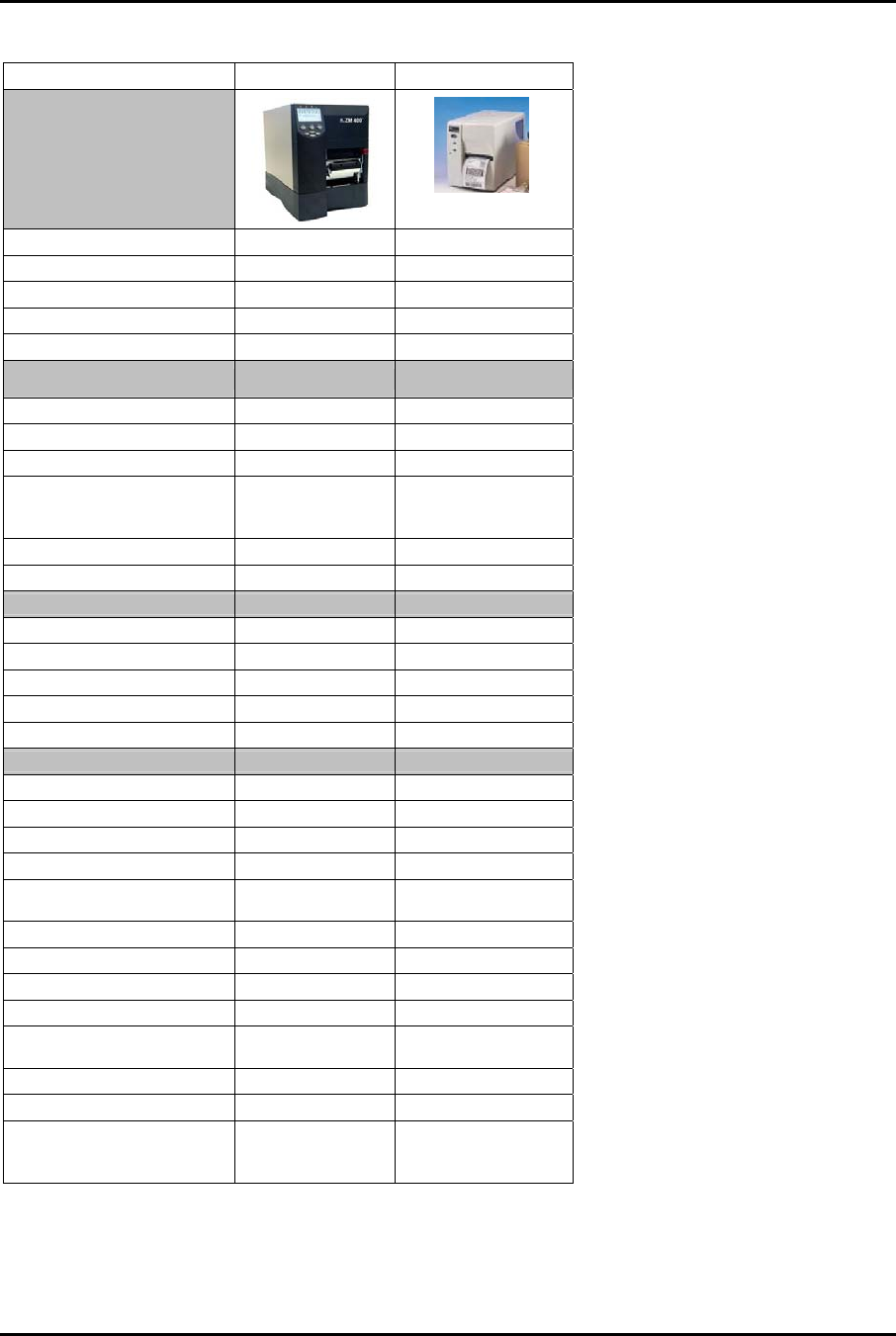

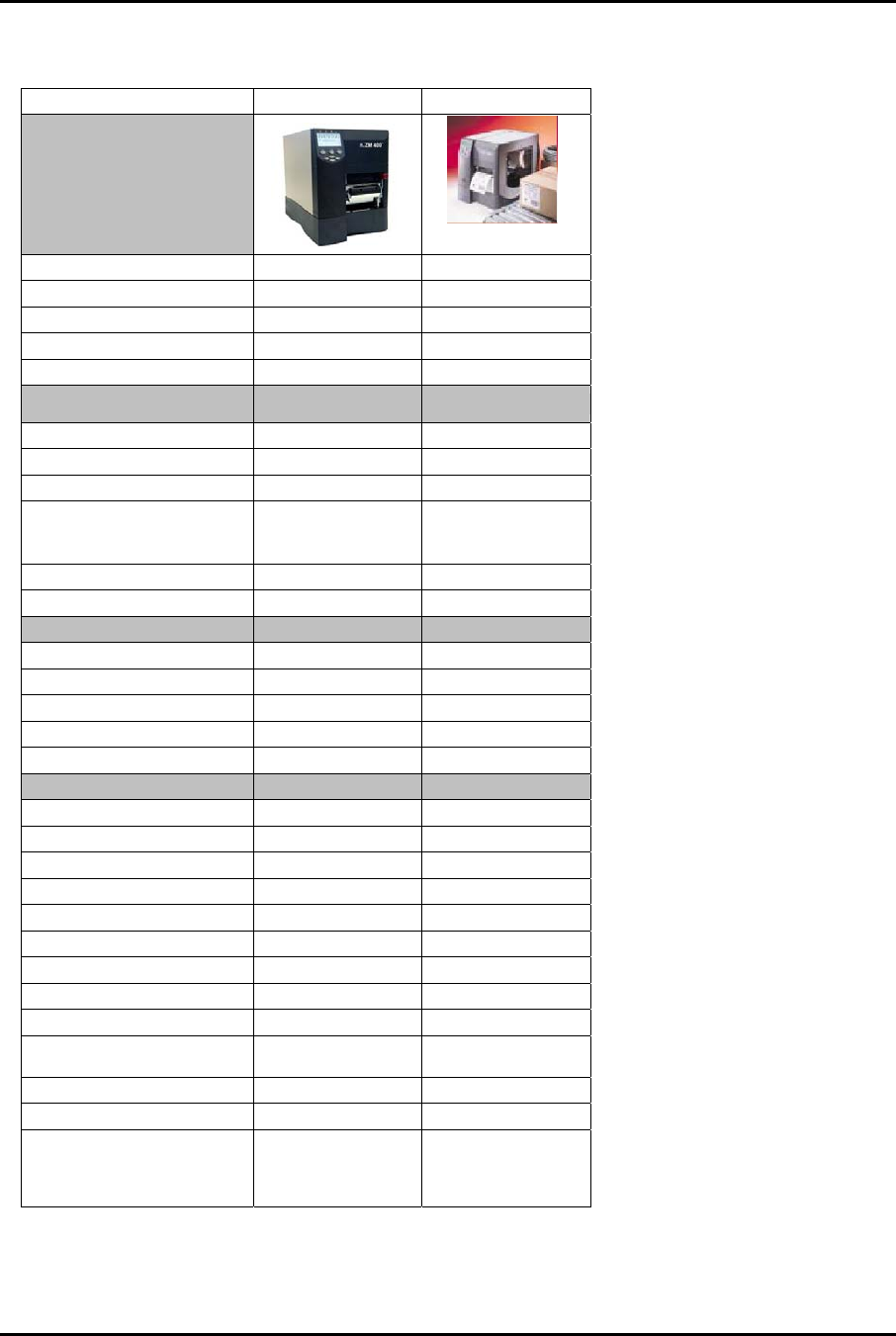

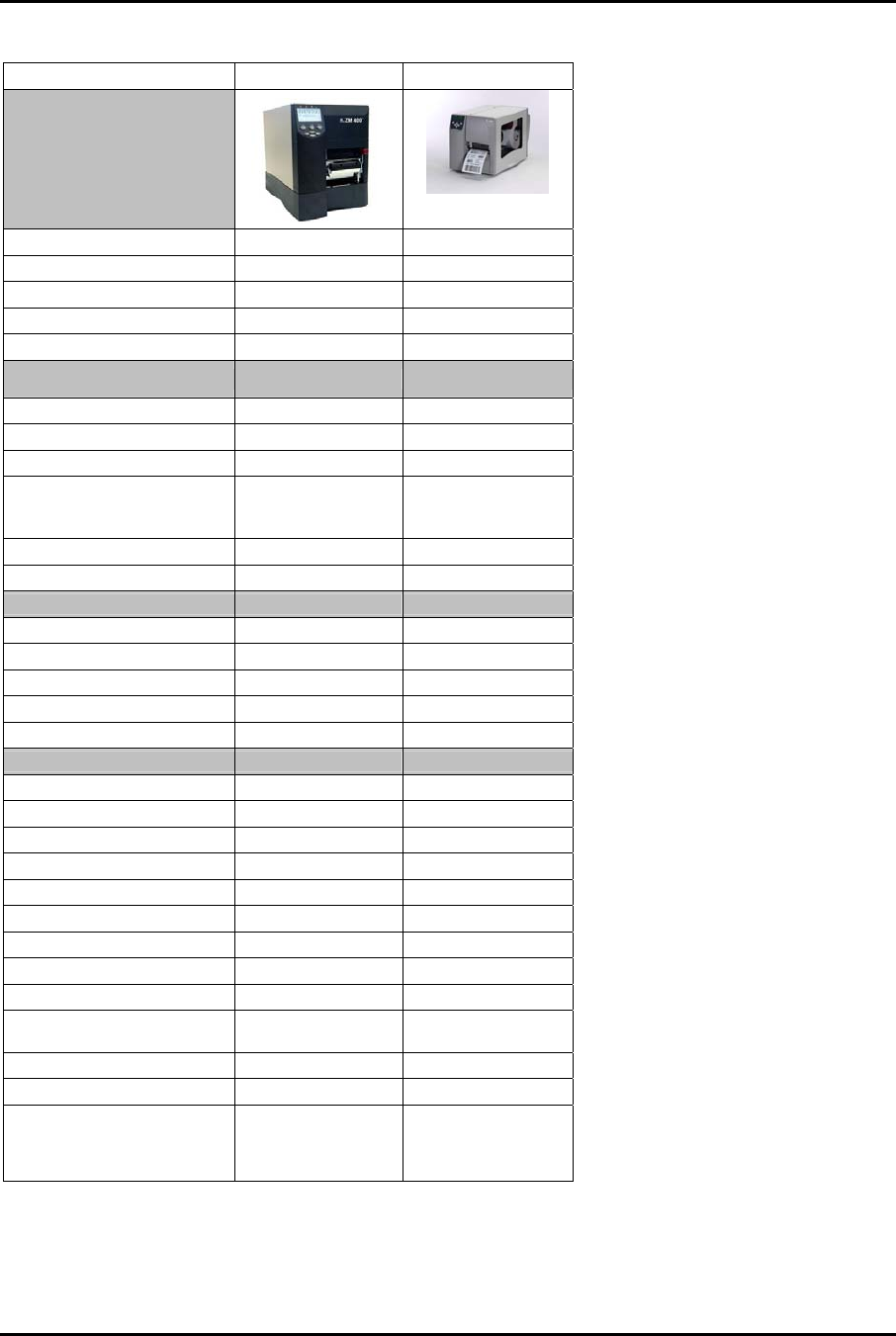

V. INTERNAL COMPARISON ..................................................................................... 15
ZM400 vs. Stripe S600.................................................................................................. 15
ZM400 vs. 2746e............................................................................................................ 16

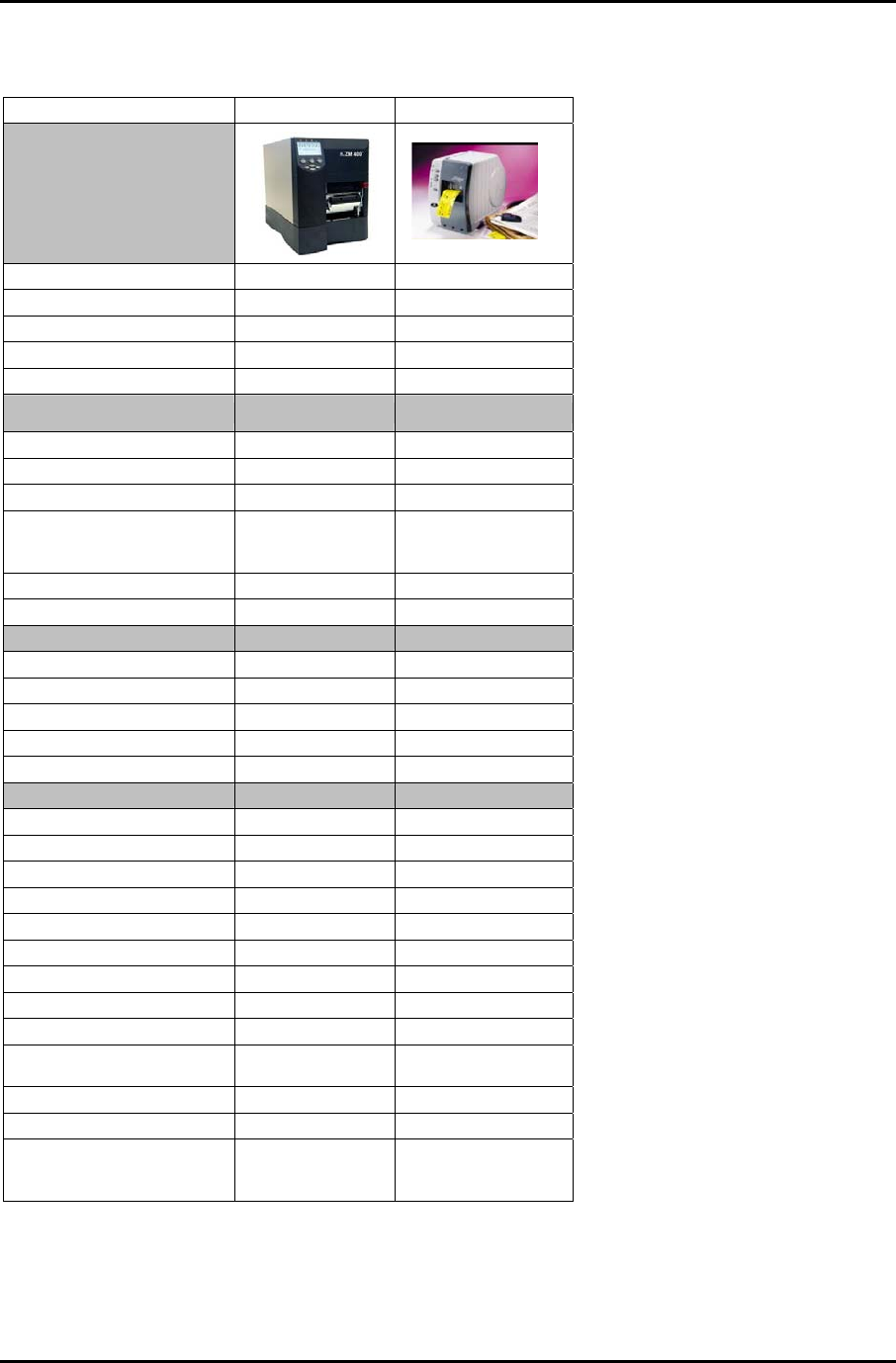

ZM400 vs. S4M............................................................................................................... 17
ZM400 vs. Z4Mplus ....................................................................................................... 18
ZM400 vs. 110XiIIIPlus ................................................................................................. 19

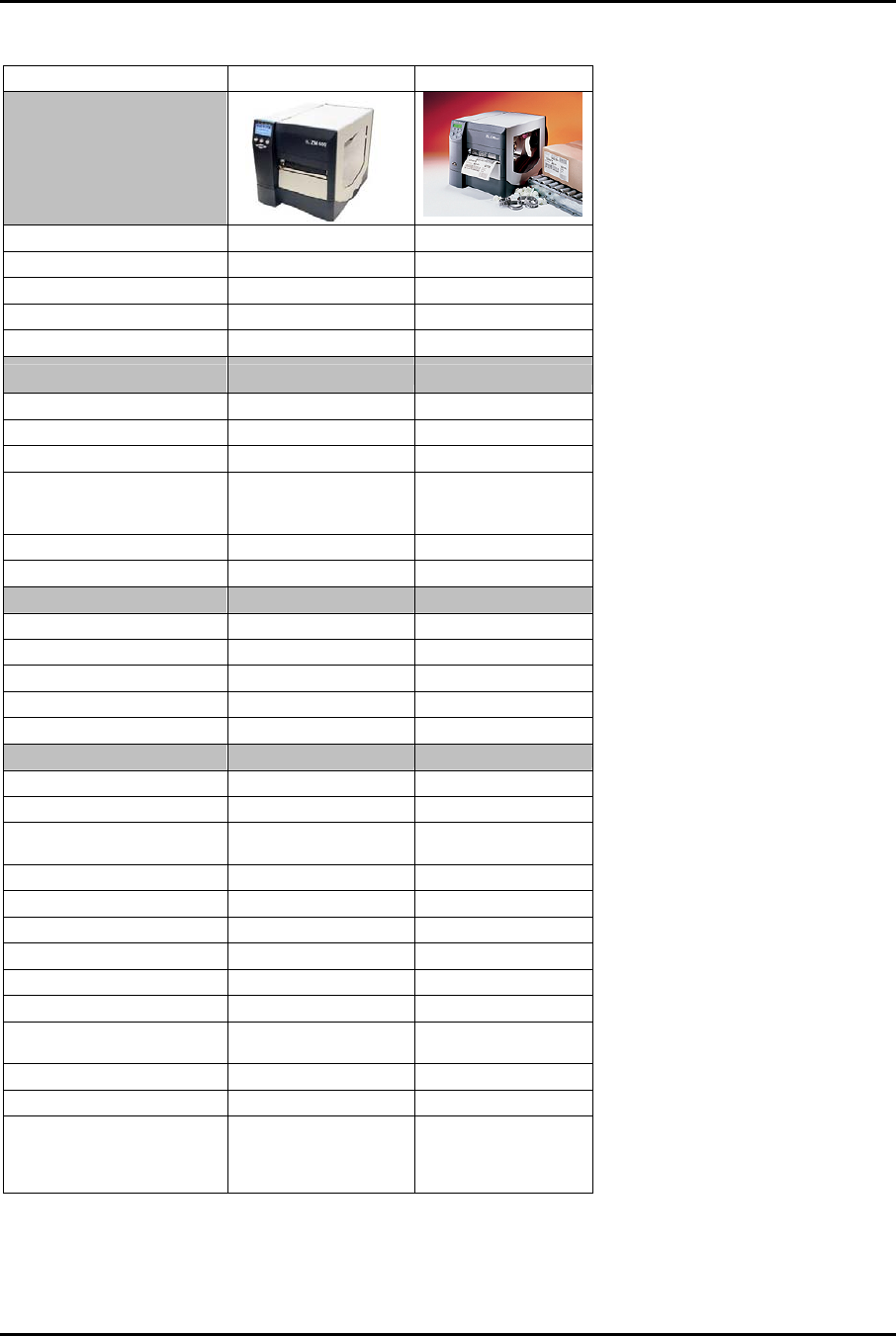

ZM600 vs. Z6Mplus ....................................................................................................... 20

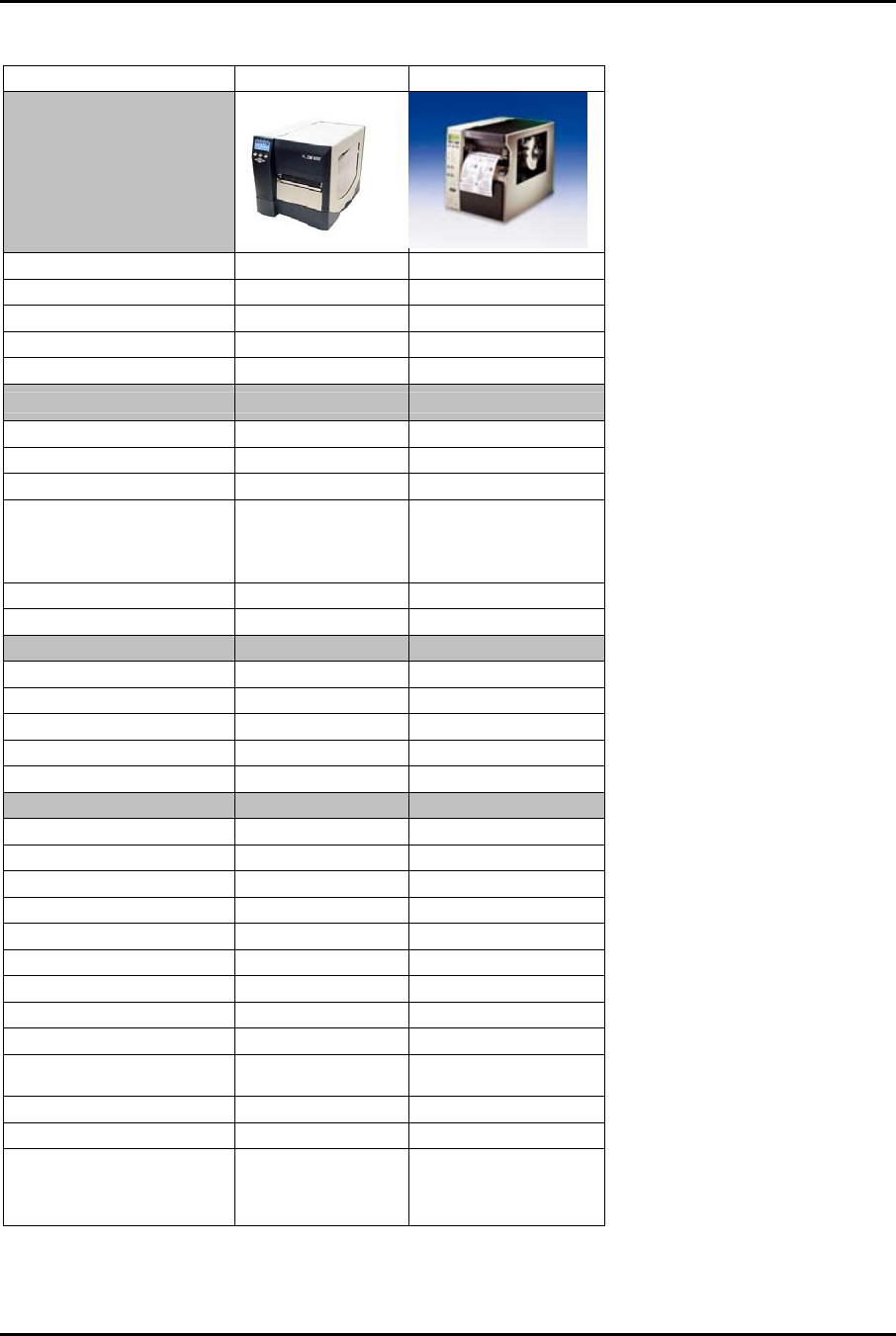

ZM600 vs. 170XiIIIPlus ................................................................................................. 21
VI. ZEBRA ADVANTAGE.............................................................................................. 22
VII. Q & A......................................................................................................................... 24
VIII. APPENDIX A (ZM400).......................................................................................... 26
IX. APPENDIX B (ZM600) ............................................................................................ 30
ZM400/ZM600
Introduction
Product Guide - EMEA 4 May 2007
I. INTRODUCTION
The Best in Class Just Got Better
Price-competitive, rugged Z Series metal printers have always been the price-
performance leaders in their class. Offering 10-inches-per-second print speed,
fast throughput, and rugged reliability, these industrial/commercial workhorses
enhance productivity in a wide range of warehouse, manufacturing, and business
applications. Now, the ZM400™ and ZM600™ printers offer more options to
meet an even wider array of applications and needs.
Better Connected for a Connected World:
• Better connected to your customer’s network—with a variety
of modern connectivity options for easy integration into any
network environment: USB 2.0, secure 802.11b/g wireless
LAN, or ZebraNet® 10/100 Print Server that allows
simultaneous parallel and Ethernet connectivity.
• Better connected to your customer’s applications—with built-
in RFID Ready investment protection, choice of print
resolution including 600 dpi, ink side coated in or out ribbon
spindles, and XML-enabled printing.
• Better connected to your customer’s needs—with easy setup
via a large, easy-to-read, operator friendly front panel that
includes Asian-language support; easy loading of supplies;
and easy maintenance with quick-changing printheads and
platens.
Versatile:
Paired with performance-matched Genuine Zebra Supplies for optimal printing
performance, the hardworking ZM400 and ZM600 are perfect for many industries
and applications, including:
Work in process Shipping/receiving
Order fulfillment Compliance labeling
Distribution Warehouse management
Transportation/Logistics Pharmacy/healthcare
ZM400/ZM600
Positioning Summary
Product Guide - EMEA 5 May 2007
Positioning Summary
Fast Print Speed and Quick Throughput: The ZM400/ZM600 printer’s ability
to print fast and print a lot of labels for a long time means these printers
can keep up with the needs of the fastest production lines.
Metal Frame and Case: The rugged construction of the ZM400/ZM600 printer
makes it suitable for a variety of operating environments.
Multitude of Optional Features & Flexibility:
• Connectivity: While parallel, serial and USB 2.0 connectivity are
standard, these printers also support internal 10/100 Ethernet and
802.11b/g wireless Ethernet. In addition, using Ethernet no longer
requires the sacrifice of the parallel port.
• Media handling: These printers can be use in a variety of ways,
including tear-off, peel and present (with and without liner take-up),
full roll rewind for batch operations, and cut mode.
• Programming Language, Memory & Fonts: Of course, these new
printers support Zebra’s ZPL programming language, which is
Unicode™ compliant, and with the addition of optional memory &
fonts, are ready for any global printing needs. The ZM400/ZM600
printers also support Zebra’s EPL programming language as well
as its XML programming solution. They also supports ZebraLink
APL technology, allowing the printer to adapt to legacy Intermec
environments (APL-I™) or Datamax environments (APL-D™).
Most Applications: Like its legacy replacements, the Z4Mplus and Z6Mplus
printers, the new ZM400/ZM600 printers are designed to fit into most
applications seamlessly and effortlessly.
Price-Performance Leaders: The ZM400/ZM600 printers are backed with
many standard features as well. A large, easy-to-read LCD display that
handles 16 different languages (including Japanese, Chinese & Korean),
USB 2.0 connectivity, and RFID-Ready for future-proofing your
investment are just some of the many.
The ZM400 and ZM600 combine fast print speed, quick throughput and a
high duty cycle into a rugged full-sized metal printer designed to enhance
productivity. In addition, the Z Series printers’ multitude of optional
features and flexibility allow it to support most warehouse and business
applications. The Z Series Thermal Printers are commercial/industrial
workhorses that are the price-performance leaders in their class.
ZM400/ZM600
Applications and Target Markets
Product Guide - EMEA 6 May 2007
II. TARGET MARKETS AND APPLICATIONS
Given all the standard and optional features available on the ZM400 and ZM600
printers, they are well suited for most applications and vertical markets. Here are
just a few:

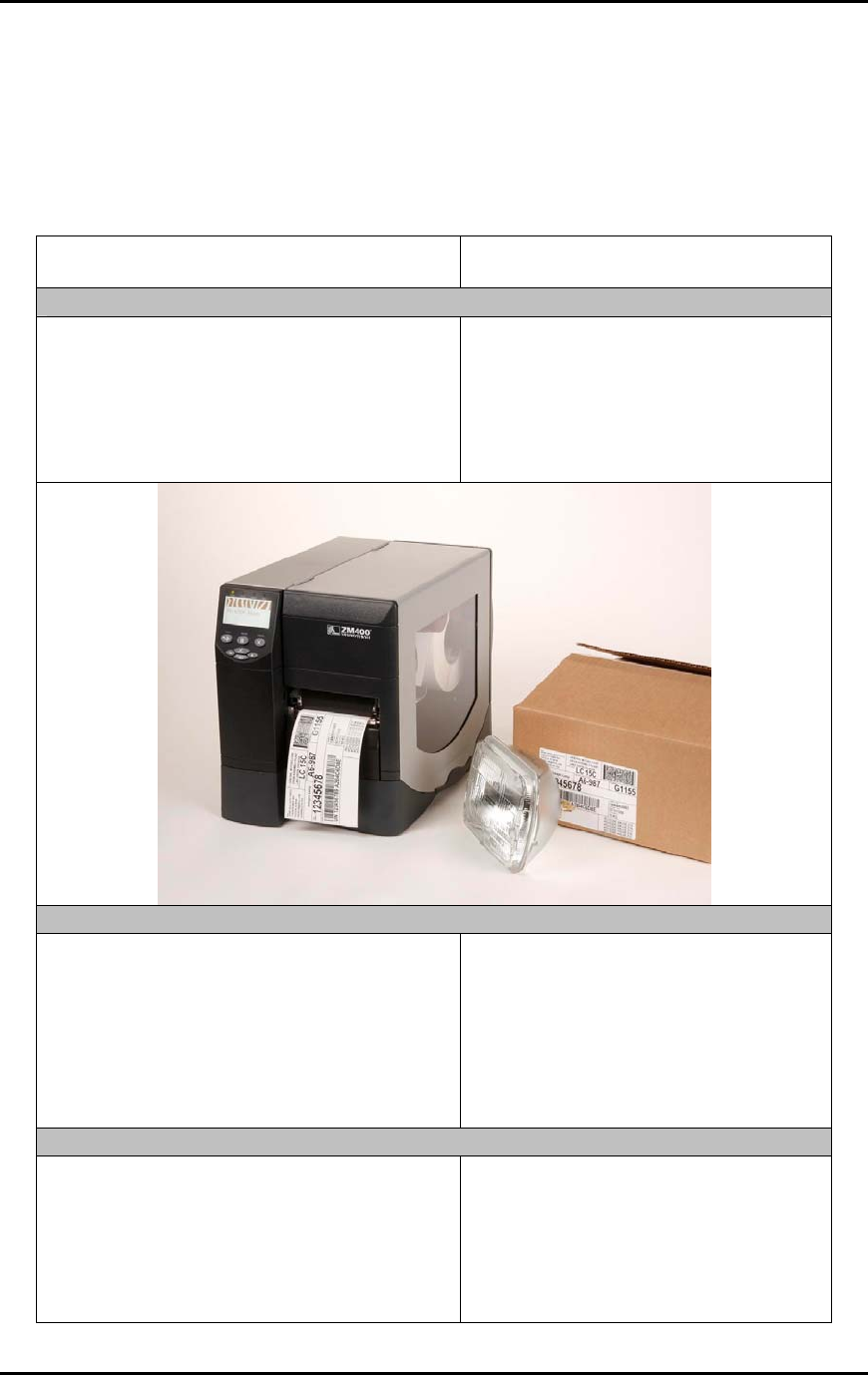

Market Segments Example Applications
Manufacturing
Automotive
Electronics
Aerospace
Commercial Products
Engineering/Industrial Design
Inventory Control
Shipping/Receiving
Order Entry
Part Labeling
Work in Progress
Document Identification
Logistics
Distribution
Warehousing
Third Party Logistics
Pallet/Carton/Product Labeling
Shipping/Receiving Labels
Inventory management
Shelf Labeling
Cross-docking labels
Shipping Labels
Transportation and Ticketing
Parcel Delivery
Public Transportation
Concert/Sporting Events
Trains/Airlines
Asset Tracking
Shipping/Receiving
Ticketing
Baggage Handling
Receipt Printing
ZM400/ZM600
Applications and Target Markets
Product Guide - EMEA 7 May 2007

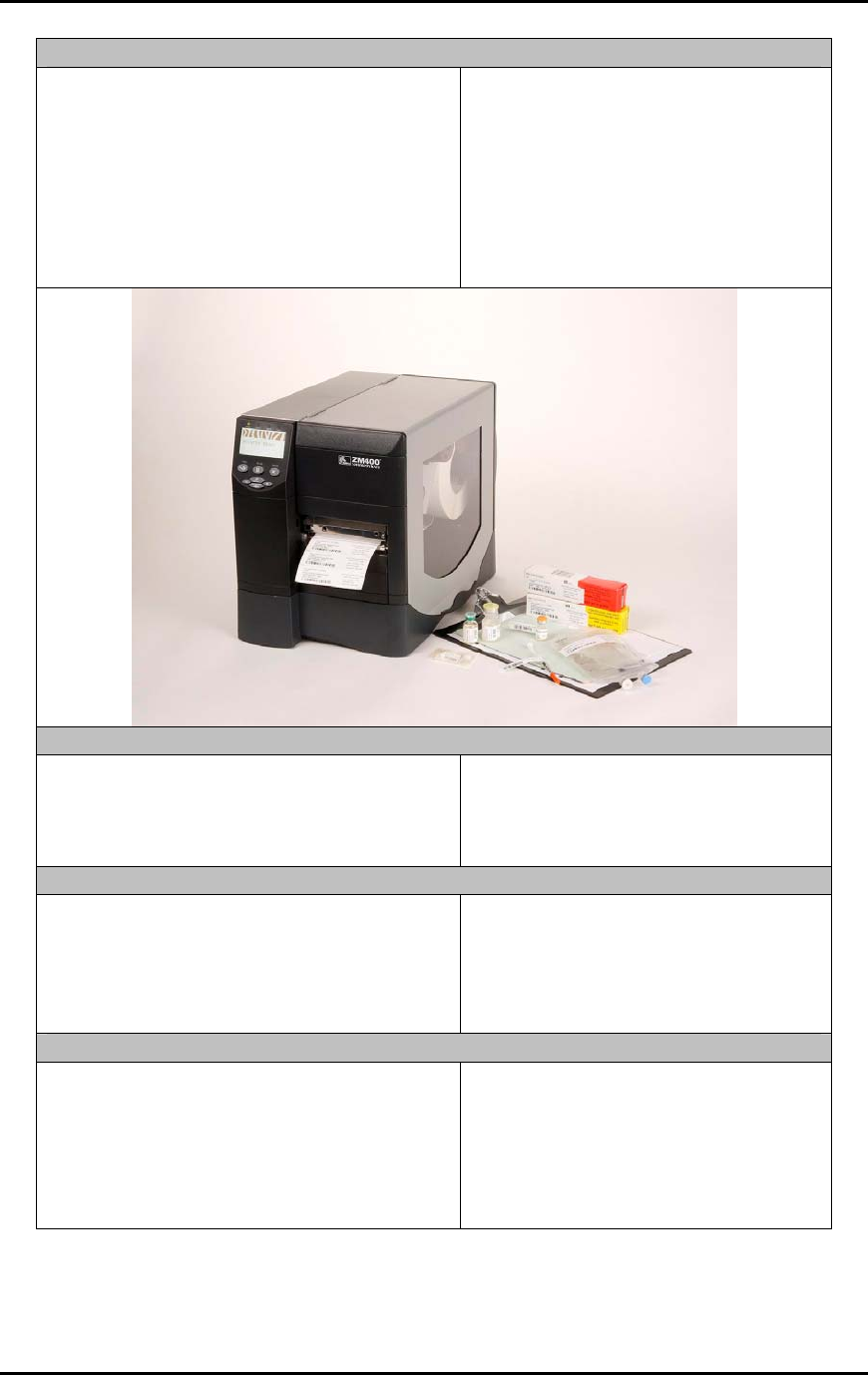

Healthcare
Hospitals and Clinics
Laboratories
Pharmacies
Medical Instrument Suppliers/Service
Managed Care Facilities
Back Office
Patient ID
Blood Bag Labeling
Pharmaceutical Labels
Specimens Labelling
Document management
Patient File Labels
Prescription Labeling
Postal
Postal Tracking
Sorting
Parcel/Baggage/Package Route
Offices
Product/Services
Law Firms/Insurance Agencies
Lead Fulfillment/Mailroom
Satellite Office Locations
Document/Labor/Parcel Tracking
Record/Mailing Labels
Document Identification
Government
Defense
Vehicle Licensing
Law Enforcement
Police
Asset Tracking
Warehouses
Inventory Management
Document management
Driver Records
ZM400/ZM600
Applications and Target Markets
Product Guide - EMEA 8 May 2007

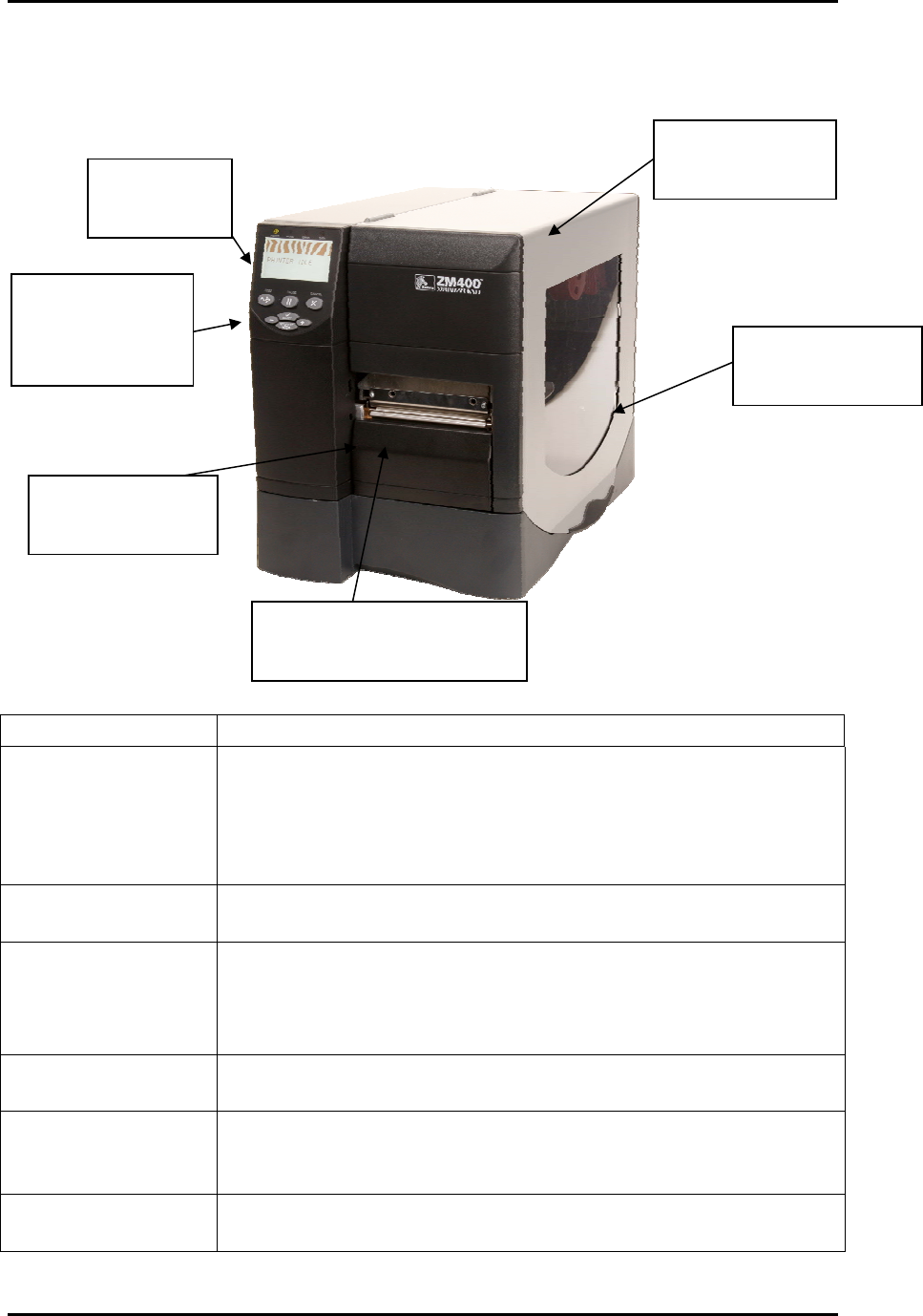

III. PRINTER TOUR WITH KEY BENEFITS
Feature Benefit
LCD Display • Large, easy-to-read display means less support
requirements with a quick setup time
• Easy to make adjustments or to configure the printer
• 16 languages for truly global use
• New support for Japanese, Chinese and Korean
10/8/4 ips Print
Speed
• Industry leading print speed and throughput in its class
• 10 ips @ 203 dpi, 8 ips @ 300 dpi, and 4 ips @ 600 dpi
Print Resolution • Support for 203, 300 and 600 dpi
• Flexibility to accommodate application needs
• Field-changeable resolution options
• 4” 600dpi (available on ZM400 only)
Large Media
Window
• Monitor ribbon and media minimizing downtime
• Improves customer efficiency and productivity
Metal Enclosure • Low total cost of ownership
• Reliability and dependability in various operating
environments
Zebra Reliable
Zebra Dependable
• Reduced downtime means improved productivity
• Lower cost of ownership
Easy-to-Use
Control
Panel
LCD
Display
10/8/4 ips
Print Speed
Metal
Enclosure
Large Media
Window
203, 300, 600 dpi
Print Resolution
ZM400/ZM600
Printer Tour with Key Benefits
Product Guide - EMEA 9 May 2007

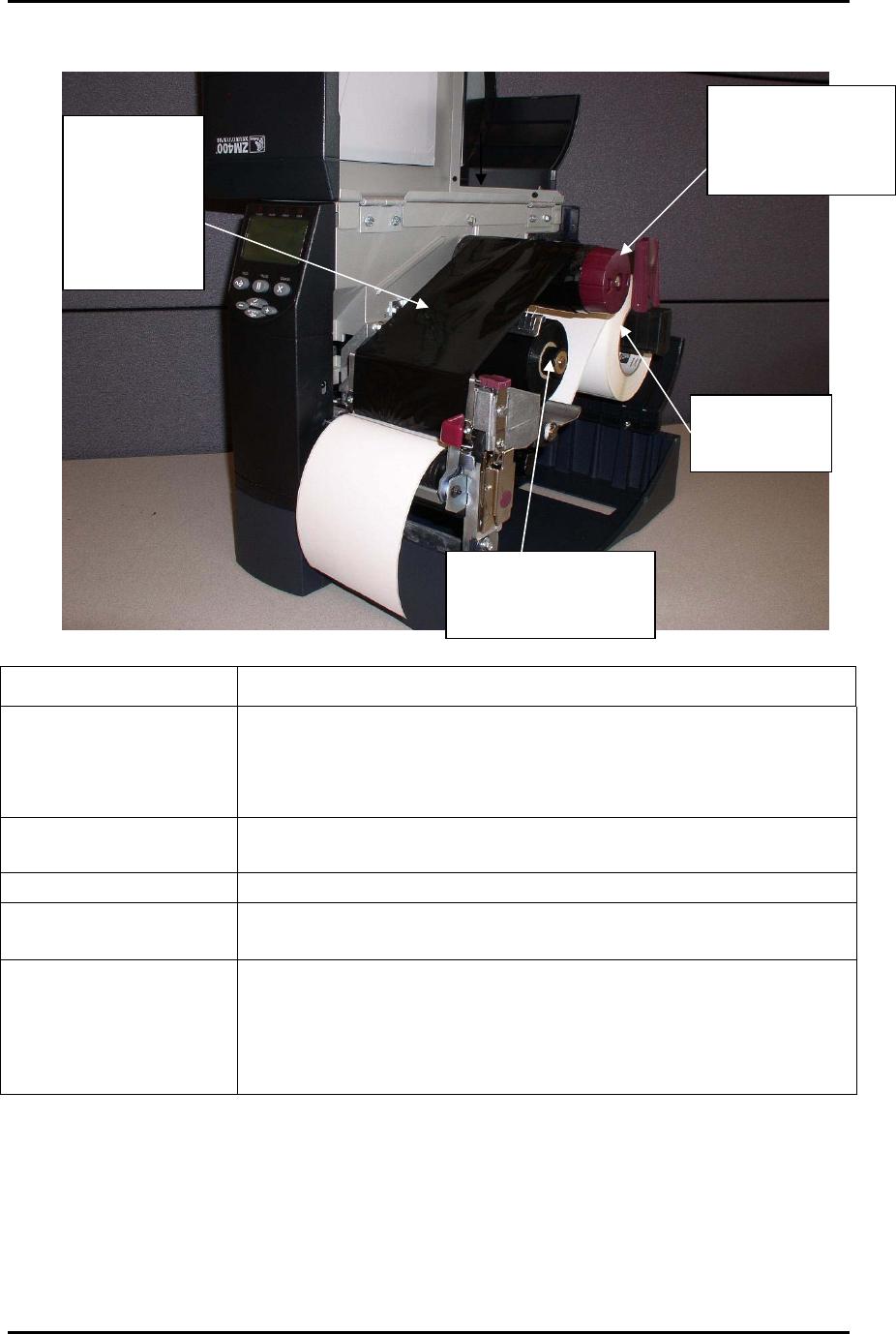

Feature Benefit
Thermal Transfer
Ribbon Handling
System
• Fits into both direct thermal and thermal transfer
applications
• Produce more durable and longer lasting images on a
wide variety of thermal transfer media
450 Meter Ribbon
Supply
• Reduces downtime by supporting a 3 to 1 media to
ribbon ratio
8” Roll Capacity • Reduces downtime by supporting full size media roll
Collapsible Take-Up
Spindle
• Quick and easy ribbon change
• No need to buy or save ribbon cores
Programming
Languages
Supported: ZPL,
EPL, APL-I, APL-D,
XML
• No need to switch from existing language
• Easy to convert to Zebra printer without changing code
• XML Support for direct connect to popular ERP
systems such as Oracle WMS.
450 meter
Ribbon Supply
8” Roll
Capacity
Thermal
Transfer
Ribbon
Handling
System
Collapsible
Take-Up
Spindle
ZM400/ZM600
Printer Tour with Key Benefits
Product Guide - EMEA 10 May 2007

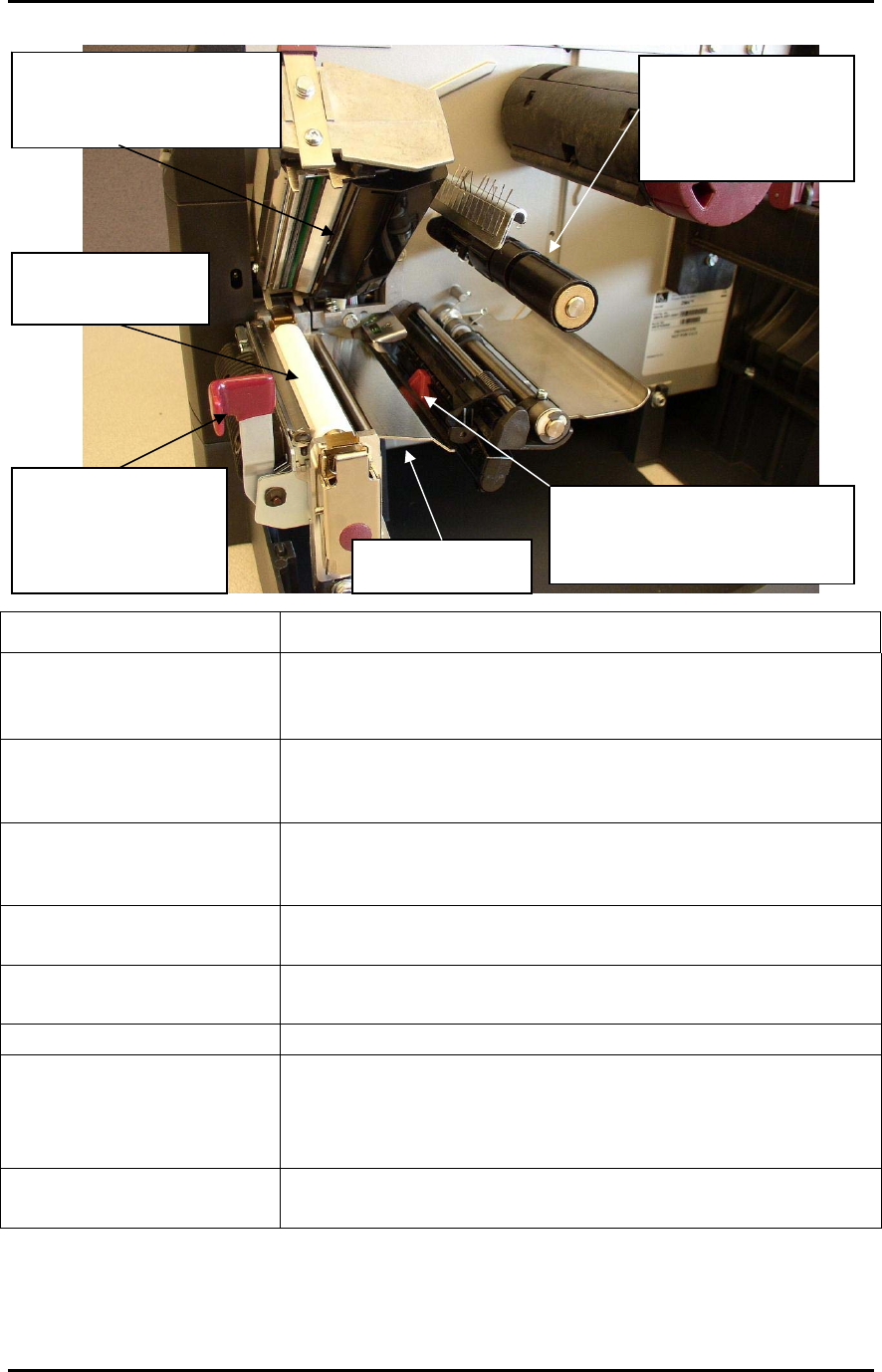

Feature Benefit
Movable transmissive
and a fixed reflective
sensor standard
• Ability to sell into a wide variety of applications
• Handles all types of gap, notch and black mark
media
Peel, Full Roll Rewind,
Liner Take-up and
Cutter options
• Media handling options to meet most applications
• Increase productivity
Side-loading design
with cantilevered
printhead
• Media and ribbons are easy to load
• Reduces training and support requirements
Auto-calibration • Automatically adjusts to any size label
• Minimizes waste
Real Time Clock • Ability to add a date or time stamp when required
• Fits into many applications
Quick Change Platen • Simplifies and reduces maintenance costs
Supports Ribbon
coated-in or coated-out
(Coated-in available on
ZM400 Only)
• Can selected the type of spindle that matches
current supplies
• Provides ideal “drop-in” compatibility with Datamax
Prodigy when used with Zebra’s APL-D.
RFID Ready • Adaptable to grow with changing application needs
• Upgradeability provides initial investment protection
Movable Transmissive
Sensor and Fixed
Reflective Sensor
Quick Change
Platen
Side-loading design
with cantilevered
printhead
RFID Ready
Peel, Liner
Take-up,
Rewind and
Cutter Options
Spindles for
Ribbon ink side
in or ink side
out available
ZM400/ZM600
Printer Tour with Key Benefits
Product Guide - EMEA 11 May 2007
Feature Benefit
Fanfold Slot • Multiple media feed path options provide supplies
and application flexibility.
Parallel, USB 2.0 and
Serial Standard
Optional Internal 10/100
Ethernet and 802.11b/g
Wireless
Simultaneous use of
Parallel and Ethernet
• Provides flexible connectivity options
• Easy to integrate into a variety of
communications environments
• Connect to multiple hosts or sources
Plug n’ Play compatibility
with Windows
• Easy to set up the printer
ZebraLink™ Solutions
(ZPL Only)
• User can control and monitor printer remotely
64 MB Flash Option • Improve performance with ability to store formats,
fonts and graphics directly on printer

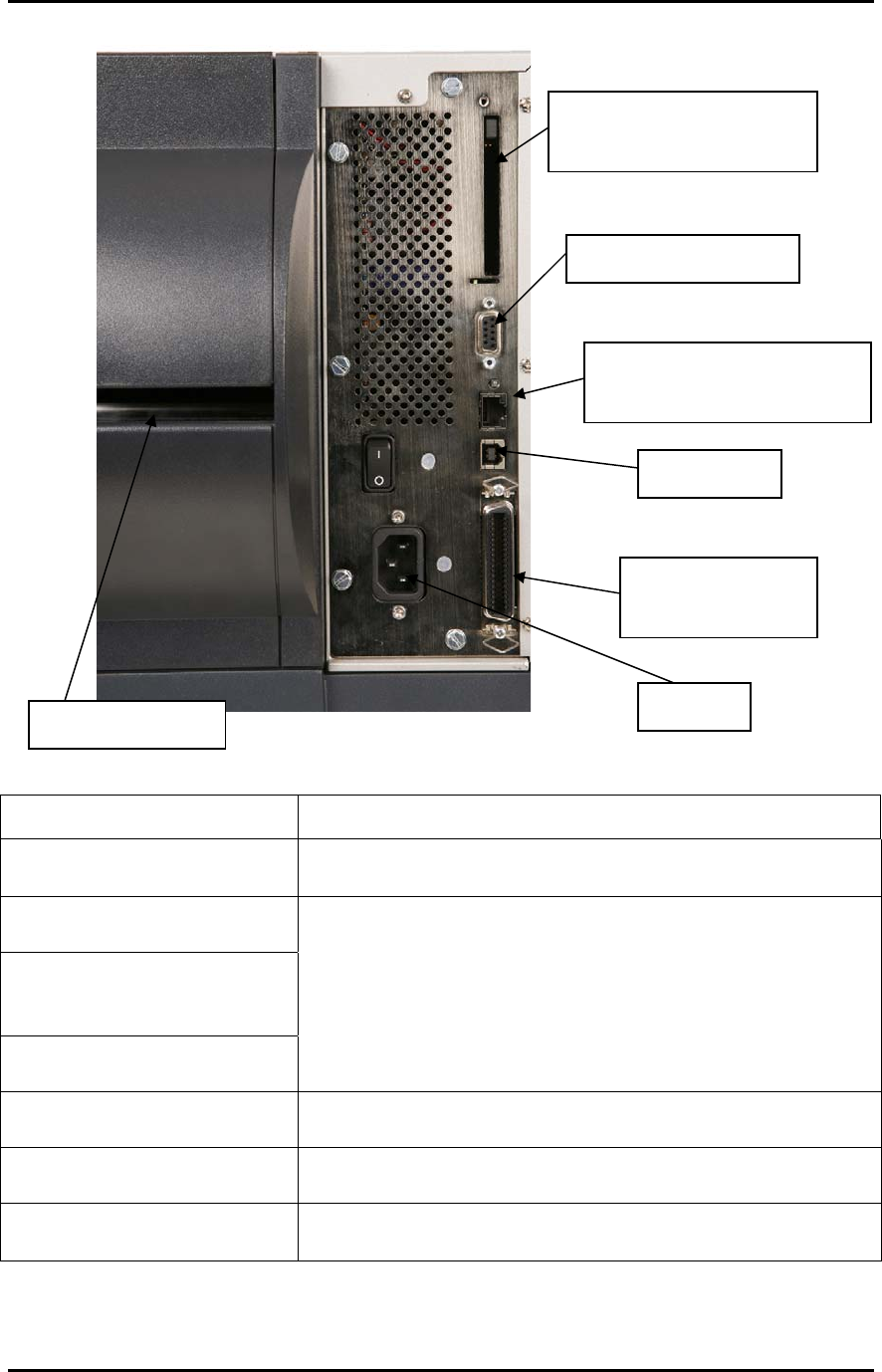

DB-9 Serial port
802.11 b/g radio
slot (optional)
Power
Fanfold Slot
IEEE Parallel
Port
USB 2.0
10/100 Int. Ethernet
(optional)
ZM400/ZM600
Typical User/How to Sell
Product Guide - EMEA 12 May 2007
IV. TYPICAL USER/HOW TO SELL
When should I sell or recommend a ZM400 or ZM600 thermal printer?
When the user wants one or more of the following:
• Minimal printer downtime
o Metal frame and case enclosure provide a rugged and reliable
printer with minimal downtime
o Quick and easy platen and printhead replacement
o Large LCD Screen for quick printer set-up
o Side-loading printhead design for quick and easy loading media
and ribbon
• A thermal printer designed for world-wide applications
o Fully Unicode compliant
o LCD menu commands in 16 languages
o Compatible with ZebraNet Bridge Enterprise
• The ability to easily adapt should your application needs change
o Cutter option
o Field changeable printhead resolutions (dpi)
o 8-inch diameter rewind
o RFID printer encoding
o 300dpi or 600dpi print resolution
o Peel-N-Present
o RFID printing and encoding
• Variety of ways to connect to the host system
o USB 2.0
o 802.11 b/g wireless
o ZebraNet 10/100 PrintServer Ethernet
o Serial & Parallel Ports
• Minimize time to print a single label
o Fast 10 inches-per-second print speed
o Fast throughput
o Parallel and Ethernet simultaneous connectivity
• The printed image needs to last for months to years
o Variety of Zebra media and ribbons to meet application needs
o ZM400 and ZM600 are capable of handing most media types
• To replace a Datamax Prodigy/Prodigy Plus or an Intermec 3400d without
changing formats by utilizing Zebra’s Alternative Programming Languages
• To upgrade their desktop, Stripe S600, or S4M printer to a higher volume
printer with upgradeable options.
ZM400/ZM600
Typical User/How to Sell
Product Guide - EMEA 13 May 2007
How the ZM400 and ZM600 thermal printer compare to Zebra’s other printer
products.
Designed to enhance productivity, the versatile and cost effective ZM400
and ZM600 thermal printers provide the features, options, and performance that
make them suitable for all but the most demanding applications. Both are sturdy
full-size printers with rugged metal cases and frames that deliver fast print
speeds, rapid throughput, and high duty cycles. The ZM400 and ZM600
represent the price-performance leaders in their class. This combination makes
the ZM400 and ZM600 the ideal printers for most warehouse, industrial, and
business applications.
The inexpensive S4M is another robust 4-inch printer sporting a sturdy
metal frame and case. While the S4M offers the same durable construction as
the ZM400, its smaller feature and option set delivers slightly less performance
than the ZM400. The S4M represents the ideal low cost printer for many basic
industrial commercial printing applications.
With its practical basic feature set, precision operation, reputation for
reliability, and top-of-the-line all metal construction, the dependable 105SL
thermal printer is a stalwart commercial / industrial workhorse suitable for both
the precision printing of small labels as well as heavy duty industrial / commercial
printing in most common applications.
The full featured XilllPlus printers are Zebra’s flagship printers designed to
optimize high performance printing in all applications. The XilllPlus printers
feature all-metal construction throughout. The XiIIIPlus printers boast a full metal
case, frame, and precision machined metal spindles to deliver the ultimate in
durability and long life high speed printing precision. These designs consistently
deliver the highest reliability, performance, quality, and precision printing
available, even when positioned in the harshest of industrial environments. The
Xilllplus is able to hold tight registration on all types of media, including the slick
synthetic medias commonly found on electronic circuit boards. The XilllPlus are
totally uncompromised in their design and are perfectly positioned for 24/7 duty in
mission-critical environments.
ZM400/ZM600
Typical User/How to Sell
Product Guide - EMEA 14 May 2007
The following chart will help to qualify the ZM400/ZM600 printers as the
correct choice for a solution.
S4M ZM400/ZM600 XilllPlus
Metal
4” print width only Metal
4” & 6” print width
Full-Metal
4”, 6” and 8” print
widths
6 ips Max Print Speed 10 ips Max Print
Speed 12 ips Max Print Speed
Printing for many
applications Printing for most
applications Printing for all
applications
Wide Range of
Connectivity Options Wide Range of
Connectivity Options Wide Range of
Connectivity Options
No RFID
RFID Ready
RFID Ready
RFID Enabled
Outstanding value
printer for budget
minded consumers
Price-Performance
Leader delivering
application flexibility
Peak Performance
Printer for mission-
critical, 24/7
applications
ZM400/ZM600
Competitive Comparison
Product Guide - EMEA 15 May 2007
V. INTERNAL COMPARISON
ZM400™ Stripe® S600
Printer Features
Print Width, max. 4.09” (104mm) 4.09" (104mm)
Dots/Inch 203/300/600 203 dpi
Max Print Speed 10 ips (254mm/s) 6 ips (152mm/s)
Standard RAM 16MB 2 MB
STD Flash Memory 8MB 1 MB
Media Features
Label Width, max. 4.5” (114mm) 4.5” (114mm)
Label Width, min. 1.0” (25.4mm) 0.75” (19.4mm)
Label Length, max 39.0” (991mm) 39” (991mm)
Label Length min.
0.5” (12.7mm)
Tear/Peel/Rewind,
1.0” (25.4mm) Cut.
0.63” (16.0mm) Tear
1.0” (25.4mm) Peel
Roll Size, O.D. & Mounting 8.0” (203mm) 8.0" (203mm)
Max Ribbon Length 1476’ (450m) 1476’ (450m)
Interface
Serial Std Std
Parallel Std Std
Ethernet 10/100 Opt N/A
USB 2.0 Interface Std N/A
Wireless 802.11b/g Opt N/A
Other
Ribbon Coated Inside or Outside Outside
Media and Ribbon Window Std N/A
Field Upgradeable Printhead Yes N/A
RFID Ready Std N/A
Full Roll Rewind Opt Partial Only
Cutter Opt Opt
Media Supply Spindle No No
Quick Change Platen Roller Std No
Real Time Clock Std N/A
Printer Languages ZPL, EPL, APL-I,
APL-D, XML ZPL
LCD Display 240 x 128 (pixels) None
Weight 32.4lbs (15kg) 17lbs (7.7kg)
Size (H x W x L) 13.3” x 10.9” x
18.7” (338mm x
278mm x 475mm)
13” x 8.2” x 17”
(330mm x 210mm x
432mm)
ZM400 vs. Stripe S600
• While the S600 printer is
made entirely of plastic,
the ZM400 printer is
more robust containing
a metal frame and case
ideally suited for many
applications, including
product ID, receiving,
shipping, and
compliance labeling.
• The ZM400 printer
offers a larger selection
of connectivity options
than the S600, including
internal Ethernet and
wireless.
• The ZM400 printer has
a much faster print
speed and duty cycle
than the S600.
• The footprint of the
ZM400 printer, while
slighter larger than the
S600 is still small
enough to be a good fit
for certain space
constrained
environments such as
mobile carts.
• The ZM400 printer’s
LCD and quick change
platen offer quicker
setup time and easy
maintenance resulting in
more time to print labels
and be productive.
ZM400/ZM600
Internal Comparison
Product Guide - EMEA 16 May 2007
ZM400™ 2746e
Printer Features
Print Width, max. 4.09” (104mm) 4.09" (104mm)
Dots/Inch 203/300/600 203 dpi
Max Print Speed 10 ips (254mm/s) 6 ips (152mm/s)
Standard RAM 16MB 512KB
STD Flash Memory 8MB 1MB
Media Features
Label Width, max. 4.5” (114mm) 4.5" (114mm)
Label Width, min. 1.0” (25.4mm) 1.12" (29mm)
Label Length, max 39.0” (991mm) 22" (559mm)
Label Length min.
0.5” (12.7mm)
Tear/Peel/Rewind,
1.0” (25.4mm) Cut.
.38” (9.7mm) Tear
.5” (12.5mm) Peel
1.0” (25.4mm) Cutter
Roll Size, O.D. & Mounting 8.0” (203mm) 8.0" (203mm)
Max Ribbon Length 1476’ (450m) 1160' (360m)
Interface
Serial Std Std
Parallel Std Std
Ethernet 10/100 Opt 10 Base-T Opt
USB 2.0 Interface Std USB v1.1
Wireless 802.11b/g Opt None
Other
Ribbon Coated Inside or Outside Outside
Media and Ribbon Window Std Std
Field Upgradeable Printhead Yes No
RFID Ready Std No
Full Roll Rewind Opt Std Liner Take-up
only
Cutter Opt Opt
Media Supply Spindle No No
Quick Change Platen Roller Std No
Real Time Clock Std Opt
Printer Languages ZPL, EPL, APL-I,
APL-D, XML EPL
LCD Display 240 x 128 (pixels) None
Weight 32.4lbs (15kg) 28.6 lbs (13 kg)
Size (H x W x L) 13.3” x 10.9” x
18.7” (338mm x
278mm x 475mm)
12.38" x 9.5" 16.75"
(314mm x 241mm x
425 mm)
ZM400 vs. 2746e
• The ZM400 printer’s front
control panel features a
streamlined menu for
simple navigation, while
its proven side-loading
design eliminates label
and ribbon threading for
quick, easy loading.
• Built with the ruggedness
of a metal enclosure and
die-cast frame, the ZM400
offers Zebra quality and
reliability at a competitive
price.
• The ZM400 printer offers
much faster print speed
and throughput than the
2746e (10 ips vs. 6 ips).
• The ZM400 printer offers
a larger selection of
connectivity options than
the 2746e, including
wireless.
• The ZM400 printer is easy
to integrate in existing
applications as it operates
in EPL, as well as ZPL,
APL-D and APL-I.
ZM400/ZM600
Internal Comparison
Product Guide - EMEA 17 May 2007
ZM400™ S4M
Printer Features
Print Width, max. 4.09” (104mm) 4.1" (104mm)
Dots/Inch 203/300/600 203/300 dpi
Max Print Speed 10 ips (254mm) 6 ips (152mm)
Standard RAM 16MB 8MB
STD Flash Memory 8MB 4MB
Media Features
Label Width, max. 4.5” (114mm) 4.5" (114mm)
Label Width, min. 1.0” (25.4mm) 0.75" (19.4mm)
Label Length, max 39.0” (991mm) 39" (991mm)
Label Length min.
0.5” (12.7mm)
Tear/Peel/Rewind,
1.0” (25.4mm)Cutter
0.7" (17.8mm) Tear,
0.5" (12.7mm) Peel.
Roll Size, O.D. & Mounting 8.0” (203mm) 8" (203mm)
Max Ribbon Length 1476’ (450m) 1476' (450m)
Interface
Serial Std Std
Parallel Std Std
Ethernet 10/100 Opt 10/100 Opt
USB 2.0 Interface Std USB v1.1 Std
Wireless 802.11b/g Opt 802.11b/g Opt
Other
Ribbon Coated Inside or Outside Outside
Media and Ribbon Window Std Std
Field Upgradeable Printhead Yes Yes
RFID Ready Std No
Full Roll Rewind Opt No
Cutter Opt No
Media Supply Spindle No No
Quick Change Platen Roller Std No
Real Time Clock Std Opt
Printer Languages ZPL, EPL, APL-I,
APL-D, XML ZPL, EPL, APL-I,
APL-D,
LCD Display 240 x 128 (pixels) 2 x 14
Weight 32.4lbs (15kg) 27.2 lbs (12.4 kg)
Size (H x W x L) 13.3” x 10.9” x 18.7”
(338mm x 278mm x
475mm)
11.7" x 10.7" x 18.8"
(295mm x 272mm x
477mm)
ZM400 vs. S4M
• Both the ZM400 and the
S4M printer are reliable,
metal printers ideally
suited for many
applications, including
product ID, receiving,
shipping and compliance
labeling.
• While both printers offer
setup via an LCD display,
the display on the ZM400
is larger, easier to read
and offers Asian language
support.
• The S4M printer has a
lower duty cycle than the
ZM400, but much higher
than that of a LP/TLP
2844. The S4M is the
ideal printer for
applications that need
more than a desktop yet
don’t need the
horsepower of a ZM400.
• The ZM400 printer offers
significantly faster print
speeds and thus faster
throughput for batch
printing and other high
speed applications.
• The ZM400 printer offers
greater application
flexibility with regard to
Media handling and
resolution, supporting
options such liner take-up,
full media rewind, cutter
and 600 dpi.
ZM400/ZM600
Internal Comparison
Product Guide - EMEA 18 May 2007
ZM400™ Z4Mplus
Printer Features
Print Width, max. 4.09” (104mm) 4.09" (104mm)
Dots/Inch 203/300/600 203/300 dpi
Max Print Speed 10 ips (254mm) 10 ips (254mm)
Standard RAM 16MB 8MB
STD Flash Memory 8MB 4MB
Media Features
Label Width, max. 4.5” (114mm) 4.5" (114mm)
Label Width, min. 1.0” (25.4mm) 1.0" (25.4mm)
Label Length, max 39.0” (991mm) 39.0" (991mm)
Label Length min. 0.5” (12.7mm)
Tear/Peel/Rewind,
1.0” (25.4mm)Cutter
0.5” (12.7mm)
Tear/Peel/Rewind,
1.0” (25.4mm)Cutter
Roll Size, O.D. & Mounting 8.0” (203mm) 8.0" (203mm)
Max Ribbon Length 1476’ (450m) 1476' (450m)
Interface
Serial Std Std
Parallel Std Std
Ethernet 10/100 Opt 10/100 Opt
USB 2.0 Interface Std No
Wireless 802.11b/g Opt 802.11b Opt
Other
Ribbon Coated Inside or Outside Outside
Media and Ribbon Window Std Std
Field Upgradeable Printhead Yes Std
RFID Ready Std No
Full Roll Rewind Opt Opt
Cutter Opt Opt
Media Supply Spindle No No
Quick Change Platen Roller Std No
Real Time Clock Std Std
Printer Languages ZPL, EPL, APL-I,
APL-D, XML ZPL, APL-I, APL-D,
XML
LCD Display 240 x 128 (pixels) 2 X 16)
Weight 32.4lbs (15kg) 32.4lbs (15kg
Size (H x W x L) 13.3” x 10.9” x 18.7”
(338mm x 278mm x
475mm)
13.3” x 10.9” x 18.7”
(338mm x 278mm x
475mm)
ZM400 vs. Z4Mplus
• The ZM400 is the next
generation of 4” Z Series
printers, offering
everything that Z4Mplus
offers and more. The best
in class just got better.
• While both printers offer
setup via an LCD display,
the display on the ZM400
is larger, easier to read
and offers Asian language
support.
• The ZM400 offers a higher
print speed at 300 dpi (8
ips vs. 6 ips.) and a true 4”
600 dpi print solution.
• Ethernet support has been
greatly enhanced.
Internal 10/100 Ethernet
no longer requires
sacrificing the parallel
port. Additional wireless
support is offered via the
WirelessPlus PrintServer.
• RFID-Ready on the
ZM400 offers investment
protection for when you
are ready to upgrade to
RFID.
• An optional ribbon spindle
supporting ribbon coated
ink-side in allows better
“drop in” compatibility with
Datamax Prodigy
replacements when used
with APL-D.
ZM400/ZM600
Internal Comparison
Product Guide - EMEA 19 May 2007
ZM400™ 110 XilllPlus™
Printer Features
Print Width, max. 4.09” (104mm) 4.01" (103mm)
Dots/Inch 203/300/600 203/300/600
Max Print Speed 10 ips (254mm) 10 ips (254mm)
Standard RAM 16MB 16MB
STD Flash Memory 8MB 4MB
Media Features
Label Width, max. 4.5” (114mm) 4.5" (114mm)
Label Width, min. 1.0” (25.4mm) 0.79" (25.4mm)
Label Length, max 39.0” (991mm) 39" (991mm)
Label Length min. 0.5” (12.7mm)
Tear/Peel/Rewind,
1.0” (25.4mm)Cutter
0.7” (17.7mm) Tear,
0.5” (12.7mm) Peel,
0.25”(6.4mm)Rewind,
1.5”(57.2mm) Cutter.
Roll Size, O.D. & Mounting 8.0” (203mm) 8" (203mm)
Max Ribbon Length 1476’ (450m) 1476' (450m)
Interface
Serial Std Std
Parallel Std Std
Ethernet 10/100 Opt Opt
USB 2.0 Interface Std Std
Wireless 802.11b/g Opt 802.11b/g Opt
Other
Ribbon Coated Inside or Outside Outside
Media and Ribbon Window Std Std
Field Upgradeable
Printhead Yes No
RFID Ready Std Opt
Full Roll Rewind Opt Opt
Cutter Opt Opt
Media Supply Spindle No Opt
Quick Change Platen Roller Std No
Real Time Clock Std Std
Printer Languages ZPL, EPL, APL-I,
APL-D, XML ZPL, APL-I, APL-D,
XML
LCD Display 240 x 128 (pixels) 2X16
Weight 32.4lbs (15kg) 50lbs (23kg)
Size (H x W x L) 13.3” x 10.9” x 18.7”
(338mm x 278mm x
475mm)
15.5" x 10.4" x 19.5"
(394mm x 264mm x
495mm)
ZM400 vs. 110XiIIIPlus
• While the ZM400 offers a
4” 600 dpi print width vs.
the 110XiIIIPlus 3.2” 600
dpi print width, the min
label length of the
110XiIIIPlus is smaller,
offering a better solution
for small electronic labels
• The 110XiIIIPlus is all
metal, including spindles,
gears, etc. offering a
heavy duty construction
capable of lasting in the
most abusive
environments.
• While the print speed of
both printers is
comparable, the
110XiIIIPlus offers a
higher duty cycle making it
more appropriate for 24/7
mission critical
applications.
• The 110XiIIIPlus printer’s
optional media spindle
allows unique mounting
possibilities not offered by
the ZM400.
• By providing media back
tension, the 110XiIIIPlus
printer’s media spindle
can also help provide
tighter registration when
printing on tiny labels.
• The 110XiIIIPlus printer’s
adjustable print
mechanism allows users
to precisely “dial-in” a print
line position for the best
print quality possible.
ZM400/ZM600
Internal Comparison
Product Guide - EMEA 20 May 2007
ZM600™ Z6Mplus™
Printer Features
Print Width, max. 6.60” (168mm) 6.60" (168mm)
Dots/Inch 203/300 203/300
Max Print Speed 10 ips (254mm) 10 ips (254mm)
Standard RAM 16MB 8MB
STD Flash Memory 8MB 4MB
Media Features
Label Width, max. 7.0” (178mm) 7.0" (178mm)
Label Width, min. 2.0” (51mm) 2.0" ( 51mm)
Label Length, max 39.0” (991mm) 39.0" (991mm)
Label Length Min. 0.5” (12.7mm)
Tear/Peel/Rewind,
1.0” (25.4mm)Cutter
.5" (12.7mm) / 1.0"
(25.4mm)
Roll Size, O.D. & Mounting 8.0” (203mm) 8" (203mm)
Max Ribbon Length 1476’ (450m) 1476' (450m)
Interface
Serial Std Std
Parallel Std Std
Ethernet 10/100 Opt Optional
USB 2.0 Interface Std N/A
Wireless 802.11b/g Opt 802.11b Optional
Other N/A
Ribbon Coated Inside or Outside Outside
Media and Ribbon Window Std Std
Field Upgradeable
Printhead Yes Yes
RFID Ready Std No
Full Roll Rewind Opt Opt
Cutter Opt Opt
Media Supply Spindle No No
Quick Change Platen Roller Std No
Real Time Clock Std Std
Printer Languages ZPL, ELP, APL-I, APL-
D, XML ZPL, APL-I, APL-D,
XML
LCD Display 240 x 128 (pixels) 2X16 Char
Weight 34.7lbs (16kg) 34.7lbs (16kg)
Size (H x W x L) 13.3” x 13.4” x 18.7”
(338mm x 441mm x
475mm)
13.3” x 13.4” x 18.7”
(338mm x 441mm x
475mm)
ZM600 vs. Z6Mplus
• The ZM600 is the next
generation of 6” Z Series
printers, offering
everything that Z6Mplus
offers and more. The best
in class just got better.
• While both printers offer
setup via an LCD display,
the display on the ZM600
is larger, easier to read
and offers Asian language
support.
• The ZM600 offers a higher
print speed at 300 dpi (8
ips vs. 6 ips.).
• Ethernet support has been
greatly enhanced.
Internal 10/100 Ethernet
no longer requires
sacrificing the parallel
port. Additional wireless
support is offered via the
WirelessPlus PrintServer.
• RFID-Ready on the
ZM600 offers investment
protection for when you
are ready to upgrade to
RFID.
ZM400/ZM600
Internal Comparison
Product Guide - EMEA 21 May 2007
ZM600™ 170XiIIIplus™
Printer Features
Print Width, max. 6.60” (168mm) 6.60” (168mm)
Dots/Inch 203/300 203/300
Max Print Speed 10 ips (254mm) 12 ips (305mm)
Standard RAM 16MB 16MB
STD Flash Memory 8MB 4MB
Media Features
Label Width, max. 7.0” (178mm) 7.1” (180mm)
Label Width, Min 2.0” (51mm) 2.0” (51mm)
Label Length, max 39.0” (991mm) 39.0” (991mm)
Label Length min. 0.5” (12.7mm)
Tear/Peel/Rewind,
1.0” (25.4mm)Cutter
0.7”(17.7mm) Tear, 0.5”
(12.7mm) Peel,
0.25”(6.4mm)Rewind,
1.5”(57.2mm) Cutter.
Roll Size, O.D. & Mounting 8.0” (203mm) 8" (203mm)
Max Ribbon Length 1476’ (450m) 1476' (450m)
Interface
Serial Std Std
Parallel Std Std
Ethernet 10/100 Opt 10/100 Opt
USB 2.0 Interface Std Std
Wireless 802.11b/g Opt 802.11b/g Opt
Other
Ribbon Coated Inside or Outside Outside
Media and Ribbon Window Std Std
Field Upgradeable Printhead Yes No
RFID Ready Std No
Full Roll Rewind Opt Opt
Cutter Opt Opt
Media supply spindle No Opt
Quick Change Platen Roller Std No
Real Time Clock Std Std
Printer Languages ZPL, ELP, APL-I,
APL-D, XML ZPL, APL-I, APL-D,
XML
LCD Display 240 x 128 (pixels) 2X16
Weight 34.7lbs (16kg) 67lbs. (30.5 kg)
Size (H x W x L) 13.3” x 13.4” x 18.7”
(338mm x 441mm x
475mm)
15.5” x 13.15” x 19.5”
(393.7mm x 334.4mm x
495.3mm)
ZM600 vs. 170XiIIIPlus
• The 170XiIIIPlus is all
metal, including spindles,
gears, etc. offering a
heavy duty construction
capable of lasting in the
most abusive
environments.
• The 170XiIIIPlus printer
offers significantly faster
print speeds and thus
faster throughput for batch
printing and other high
speed applications.
• The 170XiIIIPlus offers a
higher duty cycle making it
more appropriate for 24/7
mission critical
applications.
• The 170XiIIIPlus printer’s
optional media spindle
allows unique mounting
possibilities not offered by
the ZM600.
• By providing media back
tension, the 170XiIIIPlus
printer’s media spindle
can also help provide
tighter registration when
printing on tiny labels.
• The 170XiIIIPlus printer’s
adjustable print
mechanism allows users
to precisely “dial-in” a print
line position for the best
print quality possible.
ZM400/ZM600
Technical Specifications
Product Guide - EMEA 22
VI. ZEBRA ADVANTAGE
THE ZEBRA ADVANTAGE
Zebra Technologies delivers innovative engineering to create the widest
breadth of products in the market – all of which use Zebra’s Programming
Language (ZPL). Zebra’s products are recognized for their quality and
reliability. When you sell Zebra products, you can expect value-added
services and support, including…
• Quality Products / World-Wide Dedicated Zebra Technical Support
A high-quality product line backed by 30+ years of experience in the bar code
printer industry coupled with the best service and support available. No other
bar code printer company can back your selection with a solid base of
manufacturing, sales, service and support.
• Fast / Friendly Customer Service with Multi-Lingual Capabilities
Zebra takes pride in having a highly trained, multilingual customer service
department and extensive reseller network to support your customers around
the globe. Zebra assigns dedicated associates who are certified product
experts, which means they will know which Zebra product combinations are
optimal for your application(s). A Zebra associate will also ensure that your
orders are shipped on time, will quickly resolve any problems, and will answer
your questions as they arise.
• Global Network of Authorized Service Providers
Zebra has a worldwide presence that extends into 70 countries, supporting
customers and businesses anywhere it is required. When you make a
commitment to Zebra, you know Zebra is making a commitment to you as
well.
• Fast, Affordable Depot Repair
If your printer should require maintenance that can’t be resolved over the
phone or via our fax back website system, Zebra’s factory repair services
department offers several service options, including two-day rush depot
repair. Or, you can work with Zebra’s third-party service providers who can
provide on-site or depot repair programs.
• 24-Hour Interactive Technical Support via Zebra’s
Website at: www.zebra.com
Zip Support™ is Zebra’s 24/7/365 (24hrs per day/7days a week/365 days a
year) technical support via the internet. Access is a breeze! Our
knowledgeable technical support staff is available to answer your questions
and can be reached via phone or the internet. Information on flat-rate repair
prices, training schedules, printer specifications, software, maintenance parts
lists and troubleshooting procedures is also located on our internet website.
ZM400/ZM600
Zebra Advantage
Product Guide - EMEA 23 May 2007
All information is accessible 24 hours a day, providing an invaluable service
developed specifically with our partners and customers in mind.
• Flexible Training Options
Zebra offers a variety of training courses that are unparalleled in the industry.
Reseller partners and their customers can receive comprehensive certified
manufacturer training by participating in Zebra’s training programs, which are
conducted by our knowledgeable staff. We have a flexible training schedule in
which you can choose from individual courses or packaged course groupings
that are offered at Zebra’s offices. If you’d like, we can even arrange to come
to your location with customized courses developed to tackle your specific
needs.
• 12-Month Warranty on Zebra Printers
At Zebra, we have a quality philosophy that goes far beyond ISO 9001
certification procedures and Total Quality Management processes. Our
competitive product warranties – 12 month for labor and parts and 6 months for
printheads – are consistent with industry standards.
• ZPL/ZPLII Backwards and Forwards Compatibility/Application
Flexibility
Zebra’s ZPL/ZPLII printer programming language represents a consistent
platform that guarantees backward and forward compatibility with all existing
and new generation Zebra printers. Compared to other competitive printer
languages, ZPL/ZPLII offers more application flexibility in that it can be easily
reconfigured for any ASCII based system. It is a compact, concise and
relatively simple code language designed to promote quick printer processing,
yet is rich in bar code font and graphics capabilities.
• Software Options to Suit Your Specific Application Needs
Zebra’s printers, software and wireless connectivity options produce the most
integrated printing solutions available. Zebra’s ZPL, ZebraDesigner™ Pro and
ZebraNet™ Bridge Enterprise, and ZebraNet® products complement our printers
to provide maximum printing power and seamless system integration, even for
the most complex of labeling applications. Our printers have a number of
connectivity options, including Ethernet and wireless (RFID) to name a few,
that further facilitate painless system integration.
Genuine Zebra Supplies
Our Genuine Zebra Supplies are researched and made to a higher standard to
ensure reliable printer performance. Developed specifically to optimize
performance on Zebra printers, Zebra offers hundreds of labels, tags and
ribbons to choose from. Many labels and ribbon varieties are (standard) in
stock items, available to ship to your customers as part of our Zip Ship™
Supplies stocking program. Custom media options are also available to satisfy
customer’s specialized application requirements.
ZM400/ZM600
Q &A
Product Guide - EMEA 24 May 2007
VII. Q & A
1. Are the ZM400/ZM600 printers compatible with other Zebra printers?
YES. The ZM400 and ZM600 printers both use the same Zebra Programming
Language (ZPL) and Zebra Programming Language II (ZPL II) as other Zebra
Printers. ZPL II compatibility allows the ZM400 and ZM600 to seamlessly integrate
into other existing applications using Zebra manufactured printers, including those
who have upgraded from the S4M, and Z4Mplus (or Z6Mplus). Customers
upgrading from the 2746e and EPL desktop printers will find the transition to the EPL
version seamless. However, please note, customers choosing APL-I, APL-D, or EPL
will not be compatible with other Zebra printers. These printers will be compatible
with the legacy printer the customer is replacing.
2. Are the ZM400/ZM600 printers Windows compatible?
YES. All ZM400 and ZM600 printers include a Windows driver. This driver will allow
the printer to be used in conjunction with popular Windows applications, like that of
Microsoft® Word™, Excel™, or PowerPoint™. The Windows driver will enable the end-
user to design labels in their applications of choice for print output directly to the
printer. In addition to the driver, you can download a ZebraDesigner™ demonstration
package from our Internet homepage: www.zebra.com.
3. Can the ZM400/ZM600 printers support Asian fonts?
YES. The ZM400 and ZM600printer support several Asian languages, including
Japanese, Chinese, and Korean. Asian support is built-in to the printer, but requires
the use of an Asian font. These fonts can be purchased from Zebra. Some fonts may
require the 64MB flash option.
4. Can the ZM400/ZM600 printers replace legacy Intermec and Datamax
printers?
YES. The ZM400 and ZM600 printers support both APL-I and APL-D, meaning that
the ZM400 and ZM600 can be dropped into many legacy printing application without
costly modifications to label formats. However, it is important to note that the user
will not be able to use ZPL when purchasing an APL-I or APL-D ZM400 or ZM600
printer.
5. Do the ZM400/ZM600 printers have the ability to upgrade to RFID?
YES. Both the ZM400 and ZM600 printers are RFID ready and can be easily
upgraded to RFID whenever desired with the appropriate RFID encoder upgrade kit
for your local geography (availability is dependent on local laws/geography).
6. I would like to use a peel with rewind, is that available?
The ZM400 printer supports a value peel option, which can be alone, or in
combination with liner take-up or full roll rewind. The peel option on the ZM600 can
be used alone or in combination with full roll rewind. Cutter options are also
available on both the ZM400 and ZM600.
ZM400/ZM600
Q & A
Product Guide - EMEA 25 May 2007
7. What supplies are supported?
Visit www.zebra.com for the listings of supplies that can be used with the ZM400 or
ZM600 printer.
8. What connectivity options are available?
Both printers come standard with Parallel, Serial and USB 2.0 ports. Other options
include internal Ethernet via ZebraNet PrintServer 10/100baseT PrintServer and
802.11b/g wireless PCMCIA card socket.
9. How much memory is standard on the ZM400/ZM600 printers?
The ZM400 and ZM600 printers come standard with 16MB DRAM memory and 8MB
flash (2MB user available). An optional 64MB on board Flash option is also available.
The 64MB option is a factory only option and must be selected when ordering. There
are no PCMCIA or compact flash memory card options available for the ZM400 or
ZM600 printer.
ZM400/ZM600
Specifications Subject to Change without Notice Technical Specifications
Product Guide - EMEA 26 May 2007
VIII. APPENDIX A (ZM400)
Technical Specifications Sheets
ZEBRA ZM400™ PRINTER SPECIFICATIONS
Specifications are provided for reference and are based on printer tests using Zebra brand ribbons and labels. Results may vary in actual application
settings or when using other than recommended Zebra supplies. Zebra recommends always qualifying any application with thorough testing
Standard Features
• 203 dpi print resolution (8 dots/mm)
• Thin film print head with E3® Element Energy Control
• Thermal transfer and direct thermal printing of bar codes, text,
and graphics
• ZPL® or ZPL II® programming language, selectable through
software or front panel
• 32 bit high speed processor
• On board Real Time Clock (RTC)
• 16MB DRAM memory
• 8MB Flash memory (2 MB User Available)
• USB 2.0, RS-232 Serial and bi-directional parallel ports
• A fixed position reflective sensor and a movable transmissive
sensor to support gap, notch and black mark media
• Sleek personality / rugged metal design:
⇒ Die-cast aluminum frame: 0.20" (5mm) thick – ensures
parallelism of spindles for consistent print quality
⇒ Metal powder-coated base withstands harsh industrial
conditions
⇒ Metal media cover with enlarged clear window: easy to
view supplies
⇒ Die-cast print mechanism with head open lock withstands
general wear & tear and facilitates media loading.
• Standard LCD control panel: Back-lit, 240 x 128 pixel graphic
display w/ full menus to change set-up options in multiple
languages (16 languages including Japanese, Chinese & Korean)
• Charcoal gray form design for improved smudge resistance
• RFID-Ready: providing a migration path to the RFID
technology needed in the future (where allowed by regulatory
agencies).
Optional Features
• Print head: 300 dpi(12 dots/mm) & 600 dpi(24 dots/mm)
• Full-width guillotine knife cutter and catch tray, operates under
software control cutting labels individually or in strips (not
compatible with rewind and peel options)
• Choice of 2 peel options:
⇒ A front mount, passive peel option, w/ no take-up spindle
⇒ Liner-Take-Up option - full roll liner take-up spindle
accommodates standard printer base –works with peel
option
• Rewind – internally rewinds full roll of printed labels on 3”
core, or peels & rewinds liner
• Factory Installed 64MB (58MB user available) Flash Memory
Option
• Additional scalable and smooth bitmapped fonts available
• Internal or external ZebraNet 10/100 Print Server option —
supports 10Base-T, 100Base-TX, and fast Ethernet 10/100 auto-
switching networks, plus complete use of ZebraLink WebView
and Alert features.
• ZebraNet Wireless Plus Print Server – provides internally
integrated wireless option with support for Symbol and Cisco
radio cards.
• Optional ribbon spindle to support ribbon wound ink-side in.
ZebraLink Solutions
Software
ZebraDesigner Pro – An intuitive, easy-to-use software program for
creating complex label designs (option).
ZebraDesigner – Offers basic features for simple label design
ZebraNet Bridge Enterprise – Centrally manage Zebra printers
from a single PC screen anywhere on your global network.
ZebraNet Utilities v 7.0 – Provides enhanced printing, conversion,
and administration capabilities; message management; and more.
Zebra Universal Driver – The most powerful driver available from
Zebra
Firmware
ZPL II – Universal language for Zebra printers. Simplifies label
formatting and enables format compatibility with existing systems
that run Zebra printers.
• Web View –Connect and control Zebra bar code printers via
the printer’s Web interface using a common Web browser.
• Alert – Printers equipped with ZebraNet print servers provide
alerts via any email-enabled, wired, or wireless device to
minimize downtime.
XML-Enabled ZPL – allows XML communications from today’s
enterprise systems
EPL II – Eltron Programming Language is an optional firmware
version for 203 dpi printers that provide backwards compatibility
with many desktop printers as well as the Zebra 2746e Thermal
Transfer Printer.
APL – Zebra’s Alternative Programming Language allows
integration into mixed printer environments without re-programming
formats.
• APL-I firmware – allows a 203 dpi (8 dots /mm) Zebra
printer to parse and print IPL code intended for an Intermec
3400D. (With APL-I firmware installed, ZPL programming
language is not recognized, and ZPL specific features are
not available.)
• APL-D firmware – allows a 203 dpi (8 dots / mm) Zebra
Printer to parse and print DPL code intended for a Prodigy
Plus. (With APL-D firmware installed, ZPL programming
language is not recognized, and ZPL specific features are
not available.)
ZM400/ZM600
Specifications Subject to Change without Notice Technical Specifications
Product Guide - EMEA 27 May 2007
Printing Specifications
• 203 dpi resolution (8 dots/mm)
- Dot size (W x L):
0.0049" x 0.0049" (0.125mm x 0.125mm)
• 300 dpi resolution (12 dots/mm)
- Dot size (W x L):
0.0033" x 0.0039" (0.084mm x 0.099mm)
• 600 dpi resolution (24 dots/mm)
- Dot size (WxL):
0.0016” x 0.0016” (0.042mm x 0.042mm)
• First dot location measured from inside media backing edge:
0.10" ±.04" (2.5mm ± 1 mm)
• Maximum print width: 4.09" (104mm)
• Maximum continuous media print length:
203 dpi 300 dpi 600 dpi
157"
3988mm 73”
1854mm 39"
991mm
• Media registration tolerance:
- Vertical = < ±0.039" (±1.0mm) on non-continuous media - ---
Horizontal = < ±0.039" (±1.0mm) within a roll of media
• Programmable print speeds:
- 203 dpi = 2.4" (61mm), 3” (76mm) through 10" (254mm) per
second in 1" increments
- 300 dpi = 2.4" (61mm), 3” (76mm) through 8" (203mm) per
second in 1" increments
- 600 dpi = 1.5” (38mm), 2” (51mm), 3” (76mm), 4” (102mm)
per second
Media Specifications
• Maximum non-continuous label length: 39" (991mm)
• Media type: continuous, die-cut, tags, black-mark
• Media web width (label and liner):
1.0" (25.4mm) to 4.50" (114mm) Tear / Cutter
1.0” (25.4mm) to 4.25” (108mm) Peel / Rewind
• Minimum label length:
- 0.5" (12.7mm) in Tear, Peel and Rewind Mode
- 1.0" (25.4mm) in Cutter Mode
• Media thickness (label and liner):
0.0023" (0.058mm) to 0.010" (0.25mm)
• Maximum media roll size:
8.0" (203mm) O.D. on a 3" (76mm) I.D. core
• Maximum fan-fold pack size:
8.0"L (203mm) x 4.5"W (114mm) x 6.2"H (157mm)
• Gap and notch sensing standards:
- Inter-label gap: 2 - 4mm, preferably 3mm
- Sensing notch: 0.25"W (6mm) x 0.12"L (3mm)
- Sensing hole: 0.125" (3mm) diameter
* Note: Notch & Hole Position centered from 0.25” to 2.25”
from media inner edge
• Black mark sensing standards:
- Black mark length (parallel to inside media edge):
0.098" - 0.453" (2.5mm - 11.5mm)
- Black mark width (perpendicular to inside media edge):
> 0.37" (> 9.5mm)
- Black mark location: within 0.040"(1mm) of inside media edge
- Black mark density: > 1.0 Optical Density Units (ODU)
- Maximum media density: 0.5 ODU
Ribbon Specifications
• Ribbon width: 2.00" (51mm) to 4.33" (110mm)
• Standard Lengths: 984' (300m) or 1476' (450m)
• Maximum ribbon roll size:
3.2" (81.3mm) O.D. on a 1.0" (25.4mm) I.D. core
• Ribbon wound ink-side out (Ribbon wound ink-side in can be
used with optional ribbon spindle).
Standard Printer Fonts
Fonts A, B, C, D, E, F, G, H, and GS are expandable up to 10 times,
height and width independently. However, fonts E and H (OCR-A
and OCR-B) are not considered “in-spec" when expanded.
The scalable smooth font 0 (CG Triumvirate™ Bold Condensed) is
expandable on a dot-by-dot basis, height and width independent,
while maintaining smooth edges. Maximum character size depends
on available memory.
IBM Code Page 850 international character sets are available in the
fonts A, B, C, D, E, F, G, and 0 through software control.
Font Matrix Type* Character Size
Inches Millimeters
Height
Width
Inter-character Gap
Height
Width
Char/inch
Height
Width
Char/mm
A 9 5 1 U-L-D 0.044 0.029 34.0 1.13 0.75 1.33
B 11 7 2 U 0.054 0.044 22.7 1.38 1.13 0.89
C,D 18 10 2 U-L-D 0.088 0.059 17.0 2.25 1.50 0.67
E 28 15 5 OCR-B 0.137 0.098 10.2 3.50 2.50 0.40
F 26 13 3 U-L-D 0.127 0.078 12.8 3.25 2.00 0.50
G 60 40 8 U-L-D 0.294 0.235 4.3 7.50 6.00 0.17
H 21 13 6 OCR-A 0.103 0.093 10.7 2.63 2.38 0.42
GS 24 24 2 SYMBOL 0.118 0.127 7.8 3.00 3.25 0.31
P 20 18 N/A U-L-D .098 .088 N/A 2.50 2.25 N/A
Q 28 24 N/A U-L-D .137 .118 N/A 3.50 3.00 N/A
R 35 31 N/A U-L-D .172 .152 N/A 4.38 3.88 N/A
S 40 35 N/A U-L-D .196 .172 N/A 5.00 4.38 N/A
T 48 42 N/A U-L-D .235 .206 N/A 6.00 5.25 N/A
U 59 53 N/A U-L-D .289 .260 N/A 7.38 6.63 N/A
V 80 71 N/A U-L-D .392 .348 N/A 10.00 8.88 N/A
0 Default: 15 x 12 U-L-D Scalable
*U = Uppercase, L = Lowercase, D = Descenders
Font Matrices for 8 dot/mm (203 DPI) Print heads
ZM400/ZM600
Specifications Subject to Change without Notice Technical Specifications
Product Guide - EMEA 28 May 2007
Font Matrix Type* Character Size
Inches Millimeters
Height
Width
Inter-character Gap
Height
Width
Char/inch
Height
Width
Char/mm
A 9 5 1 U-L-D .035 0.020 50.5 0.89 0.50 1.98
B 11 7 2 U .043 0.030 33.7 1.09 0.76 1.32
C,D 18 10 2 U-L-D .070 0.040 25.3 1.78 1.01 0.99
E 41 20 6 OCR-B .160 0.086 11.7 4.06 2.18 0.46
F 26 13 3 U-L-D .101 0.053 18.9 2.57 1.34 0.74
G 60 40 8 U-L-D .234 0.158 6.3 5.94 4.03 0.25
H 30 19 9 OCR-A .177 0.092 10.8 2.97 2.35 0.43
GS 24 24 2 SYMBOL .094 0.086 11.7 2.38 2.18 0.46
P 20 18 N/A U-L-D .078 .059 N/A 1.98 1.51 N/A
Q 28 24 N/A U-L-D .109 .079 N/A 2.77 2.02 N/A
R 35 31 N/A U-L-D .137 .102 N/A 3.47 2.60 N/A
S 40 35 N/A U-L-D .156 .116 N/A 3.96 2.94 N/A
T 48 42 N/A U-L-D .187 .139 N/A 4.75 3.53 N/A
U 59 53 N/A U-L-D .230 .175 N/A 5.84 4.45 N/A
V 80 71 N/A U-L-D .312 .234 N/A 7.92 5.96 N/A
0 Default: 15 x 12 U-L-D Scalable
*U = Uppercase, L = Lowercase, D = Descenders
Font Matrices for 12 dot/mm (300 DPI) Print heads
Font Matrix Type* Character Size
Inches Millimeters
Height
Width
Inter-character Gap
Height
Width
Char/inch
Height
Width
Char/mm
A 9 5 1 U-L-D .014 0.010 104.2 0.38 0.25 3.97
B 11 7 2 U .018 0.014 69.4 0.46 0.38 2.65
C,D 18 10 2 U-L-D .029 0.019 52.1 0.76 0.50 1.98
E 82 40 12 OCR-B .131 0.083 12.0 3.44 2.18 0.46
F 26 13 3 U-L-D .042 0.026 39.1 1.09 0.67 1.49
G 60 40 8 U-L-D .096 0.077 13.0 2.52 2.02 0.50
H 60 38 18 OCR-A .096 0.090 11.2 2.52 2.35 0.43
GS 24 24 2 SYMBOL .038 0.042 24.0 1.01 1.09 0.92
P 20 18 N/A U-L-D .032 .029 N/A 0.84 0.76 N/A
Q 28 24 N/A U-L-D .045 .038 N/A 1.18 1.01 N/A
R 35 31 N/A U-L-D .056 .050 N/A 1.47 1.30 N/A
S 40 35 N/A U-L-D .064 .056 N/A 1.68 1.47 N/A
T 48 42 N/A U-L-D .077 .067 N/A 2.02 1.76 N/A
U 59 53 N/A U-L-D .094 .085 N/A 2.48 2.23 N/A
V 80 71 N/A U-L-D .128 .114 N/A 3.36 2.98 N/A
0 Default: 15 x 12 U-L-D Scalable
*U = Uppercase, L = Lowercase, D = Descenders
Font Matrices for 24 dot/mm (600 DPI) Print head
Bar Code Symbologies & Specifications
(ZPL Only, Other Firmware Languages may vary)
• Bar code modulus "X" dimension:
- Picket fence (non-rotated) orientation:
203 dpi = 4.9 mil to 49 mil
300 dpi = 3.3 mil to 33 mil
600 dpi = 1.6 mil to 16 mil
- Ladder (rotated) orientation:
203 dpi = 4.9 mil to 49 mil
300 dpi = 3.9 mil to 39 mil
600 dpi = 1.6 mil to 16 mil
• Bar code ratios – 2:1 to 3:1 in supported symbologies
• Aztec
• Codabar (supports ratios of 2:1 to 3:1
• CODABLOCK
• Code 11
• Code 16k
• Code 39 (supports ratios of 2:1 to 3:1
• Code 49 (2-D)
• Code 93
• Code 128 (subsets A, B, C, and UCC case C codes)
• Data Matrix
• EAN-8, EAN-13, EAN extensions
• Interleaved 2 of 5 (supports ratios 2:1 to 3:1, modulous10
check digit)
• Planet Code
• Logmars
• MaxiCode (2-D)
• PDF417 (2-D)
• Micro PDF (2-D)
• Plessy
• Postnet
• QR-Code
• MSI
• Standard 2 of 5
• Industrial 2 of 5
• UPC-A, UPC-E, UPC extensions
• RSS
• TLC 39
Zebra Programming Language®
(ZPL® and ZPL II®)
• Communicates in printable ASCII characters
• Compatible with mainframe, mini, and PC hosts
• Downloadable objects include graphics, scalable and bitmap
fonts, label templates and formats
• Data compression
• Automatic memory allocation for format while printing
• Automatic serialization of fields
• Format inversion (white on black)
• Mirror-image printing
• Four position field rotation (0º, 90º, 180º, 270º)
• Slew command
• Programmable label quantities with print, pause, cut control
• Status messages to host upon request
• Unicode compliant
Supports UTF-8 and UTF-16
Natively supports bidirectional and complex scripts
Support for OpenType Glyph Substitution
ZM400/ZM600
Specifications Subject to Change without Notice Technical Specifications
Product Guide - EMEA 29 May 2007
Eltron Programming Language® (EPL II®)
• Compatible with mainframe, mini, and PC hosts
• Four position field rotation (0º, 90º, 180º, 270º)
• Variable field support (00 to 99)
• Counter support (up to 10)
• Variable field addition and subtraction
• Status reporting
• Form storage
• Metered print odometer
Communications Specifications
• USB 2.0
• IEEE 1284 Bi-directional parallel interface
• High-speed serial interfaces
- RS-232C, with DB9F connector
- Configurable baud rate (300 – 115,200kB), parity,
and data bits. Stop bits at 1 or 2.
- Software (XON/XOFF), hardware (DTR/DSR, or
RTS/CTS) communication handshake protocols
- RS422/485 with optional adapter.
• ZebraNet® Wireless Plus Print Server – 802.11b/g - compliant
wireless print server
• ZebraNet® 10/100 Print Server - Ethernet network print server
(10BASE-T, 100BASE-TX)
Electrical Specifications
• Auto-detectable 90-265VAC, 48-62 Hz, 5A fused power supply
• Agency approvals: IEC 60950-1 EN 55022 Class B, EN55024,
EN 61000-3-2, EN 61000-3-3.
• Product Markings: cTUVus, CE, FCC-B, ICES-003, VCCI, C-
Tick, NOM, S-Mark (Arg), CCC, GOST-R, BSMI, MIC, ZIK,
SABS
Physical Specifications
• Height: 13.3" (338mm)
• Width: 10.9" (278mm)
• Depth: 18.7" (475mm)
• Weight: 32.4lbs. (15kg)
• Shipping Weight: 49 lbs (22kg)
Environmental Specifications
• Operating environment:
Thermal Transfer = 40º to 104ºF (5º to 40ºC)
Direct Thermal = 32º to 104ºF (0º to 40ºC)
20% to 85% non-condensing R.H.
• Storage/Transportation environment:
-40º to 140ºF (-40º to 60ºC)
5% to 85% non-condensing R.H.
Preventative Maintenance
Zebra recommends cleaning the printer on a regular basis using
standard Zebra printer parts and cleaning supplies. Consult your
User’s Guide for further details.
• Cleaning:
The exterior is cleaned with a lint-free cloth, and if necessary, a
mild detergent solution or desktop cleaner. Interior components
(print head, platen roller, media sensor, peel bar, ribbon and
media paths) are cleaned with alcohol or blown air to remove
any particles.
• Lubrication:
All mechanical parts are self-lubricating and do not require
additional lubrication.
• Print Registration:
Media registration and minimum label length are affected by
media type and width, ribbon type and print speed. Performance
improves as these factors are optimized. Zebra recommends
always qualifying any application with thorough testing.
• Print Head Replacement:
For optimal printing quality and proper printer performance
across our product line, Zebra strongly recommends the use of
genuine Zebra™ supplies as part of the total solution.
Specifically, the ZM400 and ZM600 printers are designed to
work only with genuine Zebra™ printheads, thus maximizing
safety and print quality.
ZM400/ZM600
Specifications Subject to Change without Notice Technical Specifications
Product Guide - EMEA 30 May 2007
IX. APPENDIX B (ZM600)
Technical Specifications Sheets
ZEBRA ZM600™ PRINTER SPECIFICATIONS
Specifications are provided for reference and are based on printer tests using Zebra brand ribbons and labels. Results may vary in actual
application settings or when using other than recommended Zebra supplies. Zebra recommends always qualifying any application with thorough
testing.
Standard Features
• 203 dpi print resolution (8 dots/mm)
• Thin film print head with E3® Element Energy Control
• Thermal transfer and direct thermal printing of bar codes, text,
and graphics
• ZPL® or ZPL II® programming language, selectable through
software or front panel
• 32 bit high speed processor
• On board Real Time Clock (RTC)
• 16MB DRAM memory
• 8MB Flash memory (2 MB User Available)
• USB 2.0, RS-232 Serial and bi-directional parallel ports
• A fixed position reflective sensor and a movable transmissive
sensor to support gap, notch and black mark media
• Sleek personality / rugged metal design:
⇒ Die-cast aluminum frame: 0.20" (5mm) thick – ensures
parallelism of spindles for consistent print quality
⇒ Metal powder-coated base withstands harsh industrial
conditions
⇒ Metal media cover with enlarged clear window: easy to
view supplies
⇒ Die-cast print mechanism with head open lock withstands
general wear & tear and facilitates media loading.
• Standard LCD control panel: Back-lit, 240 x 128 pixel graphic
display w/ full menus to change set-up options in multiple
languages (16 languages including Japanese, Chinese &
Korean)
• Charcoal gray form design for improved smudge resistance
• RFID-Ready: providing a migration path to the RFID
technology needed in the future (where allowed by regulatory
agencies).
Optional Features
• Print head: 300 dpi(12 dots/mm)
• Full-width guillotine knife cutter and catch tray, operates
under software control cutting labels individually or in strips
(not compatible with rewind and peel options)
• A front mount, passive peel option, w/ no take-up spindle
• Rewind – internally rewinds full roll of printed labels on 3”
core, or peels & rewinds liner
• Factory Installed 64MB (58MB user available) Flash Memory
Option
• Additional scalable and smooth bitmapped fonts available
• Internal or external ZebraNet 10/100 Print Server option —
supports 10Base-T, 100Base-TX, and fast Ethernet 10/100
auto-switching networks, plus complete use of ZebraLink
WebView and Alert features.
• ZebraNet Wireless Plus Print Server – provides internally
integrated wireless option with support for Symbol and Cisco
radio cards.
ZebraLink Solutions
Software
ZebraDesigner Pro – An intuitive, easy-to-use software program
for creating complex label designs (option).
ZebraDesigner – Offers basic features for simple label design
ZebraNet Bridge Enterprise – Centrally manage Zebra printers
from a single PC screen anywhere on your global network.
ZebraNet Utilities v 7.0 – Provides enhanced printing, conversion,
and administration capabilities; message management; and more.
Zebra Universal Driver – The most powerful driver available
from Zebra
Firmware
ZPL II – Universal language for Zebra printers. Simplifies label
formatting and enables format compatibility with existing systems
that run Zebra printers.
• Web View –Connect and control Zebra bar code printers
via the printer’s Web interface using a common Web
browser.
• Alert – Printers equipped with ZebraNet print servers
provide alerts via any email-enabled, wired, or wireless
device to minimize downtime.
XML-Enabled ZPL – allows XML communications from today’s
enterprise systems
EPL II – Eltron Programming Language is an optional firmware
version for 203 dpi printers that provide backwards compatibility
with many desktop printers as well as the Zebra 2746e Thermal
Transfer Printer.
APL – Zebra’s Alternative Programming Language allows
integration into mixed printer environments without re-
programming formats.
• APL-I firmware – allows a 203 dpi (8 dots /mm) Zebra
printer to parse and print IPL code intended for an
Intermec 3400D. (With APL-I firmware installed, ZPL
programming language is not recognized, and ZPL
specific features are not available.)
• APL-D firmware – allows a 203 dpi (8 dots / mm) Zebra
Printer to parse and print DPL code intended for a
Prodigy Plus. (With APL-D firmware installed, ZPL
programming language is not recognized, and ZPL
specific features are not available.)
ZM400/ZM600
Specifications Subject to Change without Notice Technical Specifications
Product Guide - EMEA 31 May 2007
Printing Specifications
• 203 dpi resolution (8 dots/mm)
- Dot size (W x L):
0.0049" x 0.0049" (0.125mm x 0.125mm)
• 300 dpi resolution (12 dots/mm)
- Dot size (W x L):
0.0033" x 0.0039" (0.084mm x 0.099mm)
• First dot location measured from inside media backing edge:
0.10" ±.04" (2.5mm ± 1mm)
• Maximum print width: 6.6" (168mm)
• Maximum continuous media print length:
203 dpi 300 dpi
102"
2590mm 45”
1143mm
• Media registration tolerance:
- Vertical = < ±0.039" (±1.0mm) on non-continuous media - --
- Horizontal = < ±0.039" (±1.0mm) within a roll of media
• Programmable print speeds:
- 203 dpi = 2.4" (61mm), 3” (76mm) through 10" (254mm)
per second in 1" increments
- 300 dpi = 2.4" (61mm), 3” (76mm) through 8" (203mm) per
second in 1" increments
Media Specifications
• Maximum non-continuous label length: 39" (991mm)
• Media type: continuous, die-cut, tags, black-mark
• Media web width (label and liner):
2.0" (51mm) to 7.0" (178mm) Tear / Cutter
2.0” (51mm) to 6.75” (171mm) Peel / Rewind
• Minimum label length:
- 0.5" (12.7mm) in Tear, Peel and Rewind Mode
- 1.0" (25.4mm) in Cutter Mode
• Media thickness (label and liner):
0.0023" (0.058mm) to 0.010" (0.25mm)
• Maximum media roll size:
8.0" (203mm) O.D. on a 3" (76mm) I.D. core
• Maximum fan-fold pack size:
8.0"L (203mm) x 7.0"W (178mm) x 6.2"H (157mm)
• Gap and notch sensing standards:
- Inter-label gap: 2 - 4mm, preferably 3mm
- Sensing notch: 0.25"W (6mm) x 0.12"L (3mm)
- Sensing hole: 0.125" (3mm) diameter
* Note: Notch & Hole Position centered from 0.15” to 3.5”
from media inner edge
• Black mark sensing standards:
- Black mark length (parallel to inside media edge):
0.098" - 0.453" (2.5mm - 11.5mm)
- Black mark width (perpendicular to inside media edge):
> 0.37" (> 9.5mm)
- Black mark location: within 0.040" (1mm) of inside media
edge
- Black mark density: > 1.0 Optical Density Units (ODU)
- Maximum media density: 0.5 ODU
Ribbon Specifications
• Ribbon width: 2.00" (51mm) to 6.85" (174mm)
• Standard Lengths: 984' (300m) or 1476' (450m)
• Maximum ribbon roll size:
3.2" (81.3mm) O.D. on a 1.0" (25.4mm) I.D. core
• Ribbon wound ink-side out.
Standard Printer Fonts
Fonts A, B, C, D, E, F, G, H, and GS are expandable up to 10
times, height and width independently. However, fonts E and H
(OCR-A and OCR-B) are not considered “in-spec" when expanded.
The scalable smooth font 0 (CG Triumvirate™ Bold Condensed) is
expandable on a dot-by-dot basis, height and width independent,
while maintaining smooth edges. Maximum character size depends
on available memory.
IBM Code Page 850 international character sets are available in the
fonts A, B, C, D, E, F, G, and 0 through software control.
Font Matrices for 8 dot/mm (203 DPI) Print heads
Font Matrix Type* Character Size
Inches Millimeters
Height
Width
Inter-character Gap
Height
Width
Char/inch
Height
Width
Char/mm
A 9 5 1 U-L-D 0.044 0.029 34.0 1.13 0.75 1.33
B 11 7 2 U 0.054 0.044 22.7 1.38 1.13 0.89
C,D 18 10 2 U-L-D 0.088 0.059 17.0 2.25 1.50 0.67
E 28 15 5 OCR-B 0.137 0.098 10.2 3.50 2.50 0.40
F 26 13 3 U-L-D 0.127 0.078 12.8 3.25 2.00 0.50
G 60 40 8 U-L-D 0.294 0.235 4.3 7.50 6.00 0.17
H 21 13 6 OCR-A 0.103 0.093 10.7 2.63 2.38 0.42
GS 24 24 2 SYMBOL 0.118 0.127 7.8 3.00 3.25 0.31
P 20 18 N/A U-L-D .098 .088 N/A 2.50 2.25 N/A
Q 28 24 N/A U-L-D .137 .118 N/A 3.50 3.00 N/A
R 35 31 N/A U-L-D .172 .152 N/A 4.38 3.88 N/A
S 40 35 N/A U-L-D .196 .172 N/A 5.00 4.38 N/A
T 48 42 N/A U-L-D .235 .206 N/A 6.00 5.25 N/A
U 59 53 N/A U-L-D .289 .260 N/A 7.38 6.63 N/A
V 80 71 N/A U-L-D .392 .348 N/A 10.00 8.88 N/A
0 Default: 15 x 12 U-L-D Scalable
*U = Uppercase, L = Lowercase, D = Descenders
ZM400/ZM600
Specifications Subject to Change without Notice Technical Specifications
Product Guide - EMEA 32 May 2007
Font Matrix Type* Character Size
Inches Millimeters
Height
Width
Inter-character Gap
Height
Width
Char/inch
Height
Width
Char/mm
A 9 5 1 U-L-D .035 0.020 50.5 0.89 0.50 1.98
B 11 7 2 U .043 0.030 33.7 1.09 0.76 1.32
C,D 18 10 2 U-L-D .070 0.040 25.3 1.78 1.01 0.99
E 41 20 6 OCR-B .160 0.086 11.7 4.06 2.18 0.46
F 26 13 3 U-L-D .101 0.053 18.9 2.57 1.34 0.74
G 60 40 8 U-L-D .234 0.158 6.3 5.94 4.03 0.25
H 30 19 9 OCR-A .177 0.092 10.8 2.97 2.35 0.43
GS 24 24 2 SYMBOL .094 0.086 11.7 2.38 2.18 0.46
P 20 18 N/A U-L-D .078 .059 N/A 1.98 1.51 N/A
Q 28 24 N/A U-L-D .109 .079 N/A 2.77 2.02 N/A
R 35 31 N/A U-L-D .137 .102 N/A 3.47 2.60 N/A
S 40 35 N/A U-L-D .156 .116 N/A 3.96 2.94 N/A
T 48 42 N/A U-L-D .187 .139 N/A 4.75 3.53 N/A
U 59 53 N/A U-L-D .230 .175 N/A 5.84 4.45 N/A
V 80 71 N/A U-L-D .312 .234 N/A 7.92 5.96 N/A
0 Default: 15 x 12 U-L-D Scalable
*U = Uppercase, L = Lowercase, D = Descenders
Font Matrices for 12 dot/mm (300 DPI) Print heads
Bar Code Symbologies & Specifications
(ZPL Only, Other Firmware Languages may vary)
• Bar code modulus "X" dimension:
- Picket fence (non-rotated) orientation:
203 dpi = 4.9 mil to 49 mil
300 dpi = 3.3 mil to 33 mil
- Ladder (rotated) orientation:
203 dpi = 4.9 mil to 49 mil
300 dpi = 3.9 mil to 39 mil
• Bar code ratios – 2:1 to 3:1 in supported symbologies
• Aztec
• Codabar (supports ratios of 2:1 to 3:1)
• CODABLOCK
• Code 11
• Code 16k
• Code 39 (supports ratios of 2:1 to 3:1)
• Code 49 (2-D)
• Code 93
• Code 128 (subsets A, B, C, and UCC case C codes)
• Data Matrix
• EAN-8, EAN-13, EAN extensions
• Interleaved 2 of 5 (supports ratios 2:1 to 3:1, modulous10
check digit)
• Planet Code
• Logmars
• MaxiCode (2-D)
• PDF417 & Micro-PDF (2-D)
• Plessy
• Postnet
• QR-Code
• MSI
• Standard 2 of 5
• Industrial 2 of 5
• UPC-A, UPC-E, UPC extensions
• RSS
• TLC 39
Zebra Programming Language®
(ZPL® and ZPL II®)
• Communicates in printable ASCII characters
• Compatible with mainframe, mini, and PC hosts
• Downloadable objects include graphics, scalable and bitmap
fonts, label templates and formats
• Data compression
• Automatic memory allocation for format while printing
• Automatic serialization of fields
• Format inversion (white on black)
• Mirror-image printing
• Four position field rotation (0º, 90º, 180º, 270º)
• Slew command
• Programmable label quantities with print, pause, cut control
• Status messages to host upon request
• Unicode compliant
Supports UTF-8 and UTF-16
Natively supports bidirectional and complex scripts
Support for OpenType Glyph Substitution
Eltron Programming Language® (EPL II®)
• Compatible with mainframe, mini, and PC hosts
• Four position field rotation (0º, 90º, 180º, 270º)
• Variable field support (00 to 99)
• Counter support (up to 10)
• Variable field addition and subtraction
• Status reporting
• Form storage & Metered Print Odometer
Communications Specifications
• USB 2.0
• IEEE 1284 Bi-directional parallel interface
• High-speed serial interfaces
- RS-232C, with DB9F connector
- Configurable baud rate (300 – 115,200kB), parity,
and data bits. Stop bits at 1 or 2.
- Software (XON/XOFF), hardware (DTR/DSR, or
RTS/CTS) communication handshake protocols
- RS422/485 with optional adapter.
• ZebraNet® Wireless Plus Print Server – 802.11b/g - compliant
wireless print server
• ZebraNet® 10/100 Print Server - Ethernet network print server
(10BASE-T, 100BASE-TX)
Electrical Specifications
• Auto-detectable 90-265VAC, 48-62 Hz, 5A fused power
supply
• Agency approvals: IEC 60950-1, EN 55022 Class B,
EN55024, EN 61000-3-2, EN 61000-3-3.
• Product Markings: cTUVus, CE, FCC-B, ICES-003, VCCI, C-
Tick, NOM, S-Mark (Arg), CCC, GOST-R, BSMI, MIC, ZIK,
SABS
ZM400/ZM600
Specifications Subject to Change without Notice Technical Specifications
Product Guide - EMEA 33 May 2007
Physical Specifications
• Height: 13.3" (338mm)
• Width: 13.4" (341mm)
• Depth: 18.7" (475mm)
• Weight: 34.7lbs. (16kg)
• Shipping Weight: 54 lbs (24.5kg)
Environmental Specifications
• Operating environment:
Thermal Transfer = 40º to 104ºF (5º to 40ºC)
Direct Thermal = 32º to 104ºF (0º to 40ºC)
20% to 85% non-condensing R.H.
• Storage/Transportation environment:
-40º to 140ºF (-40º to 60ºC)
5% to 85% non-condensing R.H.
Preventative Maintenance
Zebra recommends cleaning the printer on a regular basis using
standard Zebra printer parts and cleaning supplies. Consult your
User’s Guide for further details.
• Cleaning:
The exterior is cleaned with a lint-free cloth, and if necessary,
a mild detergent solution or desktop cleaner. Interior
components (print head, platen roller, media sensor, peel bar,
ribbon and media paths) are cleaned with alcohol or blown air
to remove any particles.
• Lubrication:
All mechanical parts are self-lubricating and do not require
additional lubrication.
• Print Registration:
Media registration and minimum label length are affected by
media type and width, ribbon type and print speed.
Performance improves as these factors are optimized. Zebra
recommends always qualifying any application with thorough
testing.
• Print Head Replacement:
For optimal printing quality and proper printer performance
across our product line, Zebra strongly recommends the use of
genuine Zebra™ supplies as part of the total solution.
Specifically, the ZM400 and ZM600 printers are designed to
work only with genuine Zebra™ printheads, thus maximizing
safety and print quality.
