Zentan Technology 122K 122 KHz Transmitter User Manual ZT 11 MANUAL

users manual

POSITION THE CHEST TRANSMITTER

1 Attach the adjustable elastic strap to the transmitter.

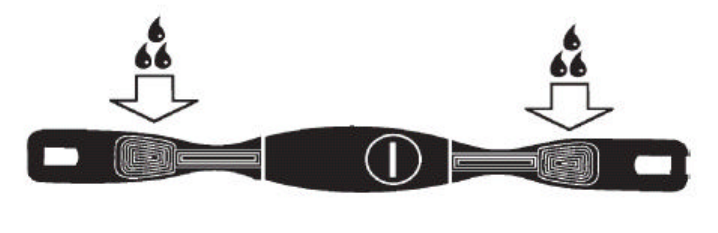

2 Moisten the rubber electrodes on the underside of the belt as shown.

Water or saliva can be used.

3 The transmitter should be positioned next to your skin with the

Logo facing forwards in the middle of the chest, just

below the breast.

4 Adjust the strap length to ensure a secure but comfortable fit.

The transmitter is activated automatically when on the body and is deactivated

automatically when removed.

INSTALL THE RECEIVER

Plug the receiver wire harness fully into the console wire harness. Press the receiver

module into the console base until it snaps into place. Be careful to avoid pinching the wire

harness.

CARE AND MAINTENANCE

1 Thoroughly wipe your chest transmitter and allow the elastic strap to dry after each

use. Story the chest transmitter in a cool dry place.

2 Do not expose your chest transmitter to direct sunlight for extended periods such as

leaving it in a car.

3 Do not expose your chest transmitter to extremes of temperature above 122℉(50℃)

or below 14℉(-10℃).

Replace the transmitter battery

Undo the battery hatch with a coin and remove the old battery. Ensure that the new battery

is inserted into the hatch correctly with the plus sign facing the battery hatch. Check the

rubber gasket is clean, correctly fitted and not damaged, then close the hatch securely.

Caution: Before you start any exercise programme, you are advised to consult your

doctor or physician.

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference

(2) This device must accept any interference received, including interference that

cause undesired operation.

You are cautioned that changes or modifications not expressly approved by the

party responsible for compliance could void your authority to operate the

equipment.
