Zentan Technology 122T 122T User Manual computer wl dt indd
Zentan Technology Co., Ltd. 122T computer wl dt indd
Users Manual
WIRELESS COMPUTER
Indoorcycling Group GmbH
Happurger Strasse 84-88
90482 Nuernberg – Germany
info@indoorcycling.com
Wireless Commercial Computer - PRO 1.0
Articel no. ST 020120
Articel no. 020120
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 1
Caution!
Read all precautions and instructions in this manual before you begin using this
equipment. Please keep this manual for future reference.
Improper assembly, use or maintenance can void the warranty terms.

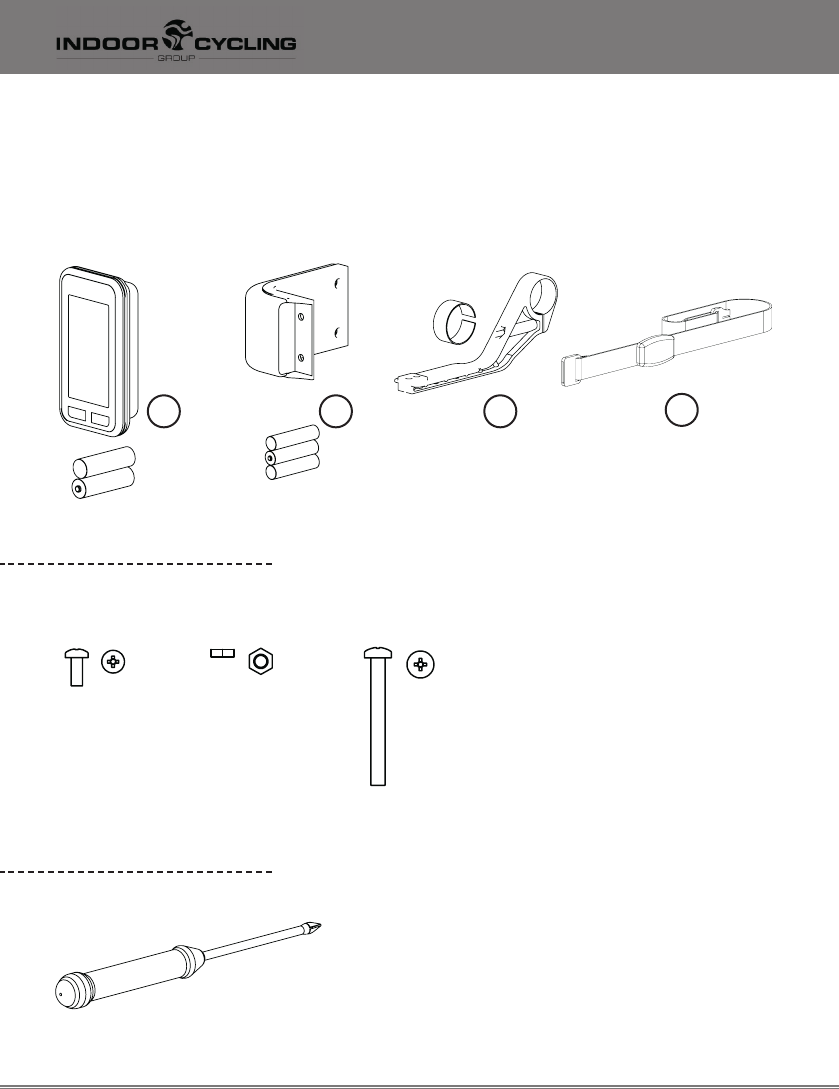

PARTS
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 2
2x 1x
1x
2x 1x
1x
2x 1x
1x
1 2 3
2x 1x
1x
2x 1x
1x
2x 1x
1x
2x 1x
1x
2x 1x
1x
2x 1x
1x
2x 1x
1x
AB C
1x 1x
2x
PZ 2
WIRELESS COMPUTER
4
optional
accessory
Computer consol Wireless cadence
transmitter
Computer
mounting bracket Textile heart
rate chest belt
Art.no.: 020121
Art.no.: ST 020121 Art.no.: 020123
Art.no.: ST 020123
Art.no.: 020122
Art.no.: ST 020122 Art.no.: 020125
Art.no.: ST 020125
M5 x 50
M4 x 10 M5
2x 1x
1x
2x 1x
1x
2x 1x
1x
AA
AA AAA
AAA
AAA
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 3

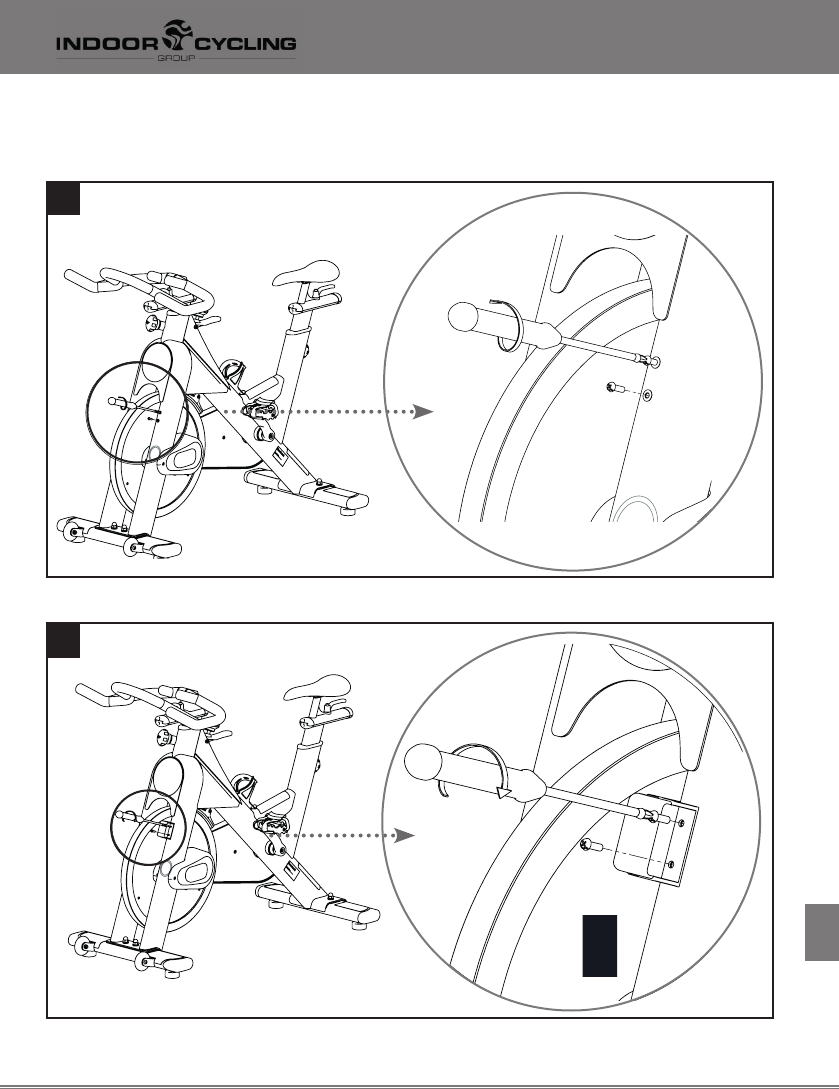

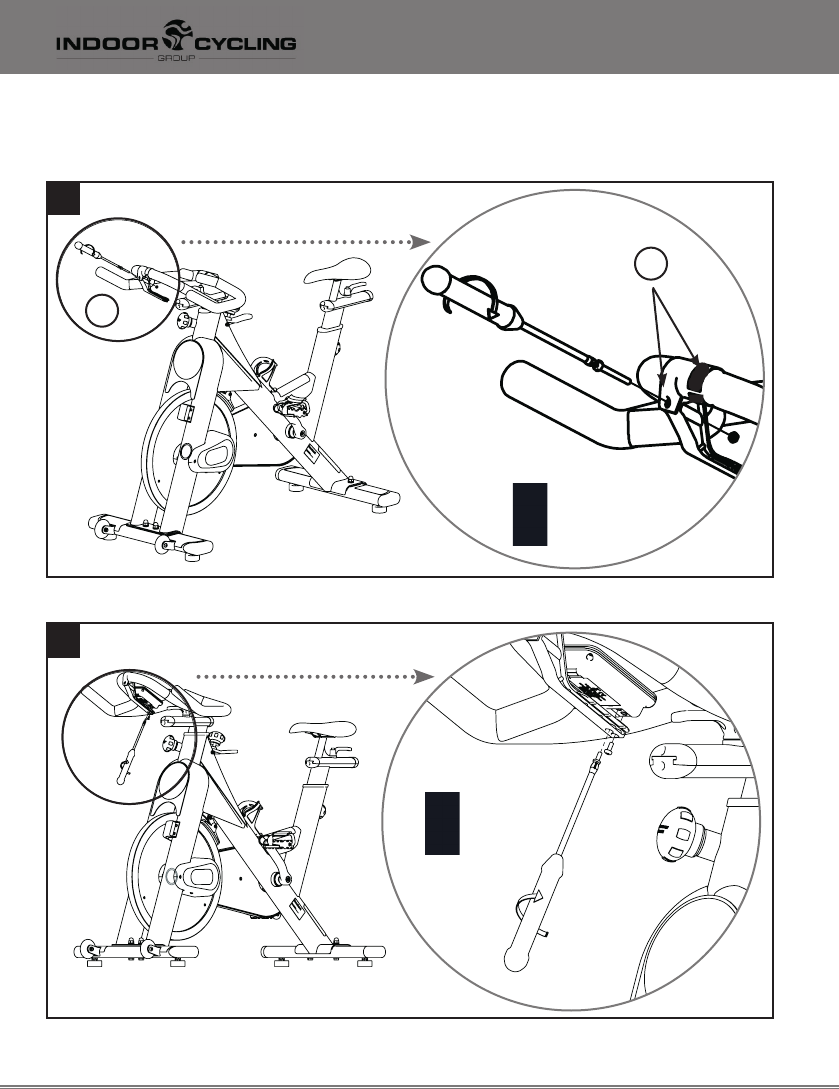

ASSEMBLY
1
2
1
WIRELESS COMPUTER
hand tight
☞
1
2
default setting
The channel transmitting the cadence signal
from the transmitter to the computer consol is
pre set. A sticker on the housing indicates the
preset channel on computer & transmitter.
The channel can manually be changed. To
avoid cross reading please assure a clearance
of 52`` (1,3m) between components set on
identical channels or simple swap to another
channel (page 7, picture 10).

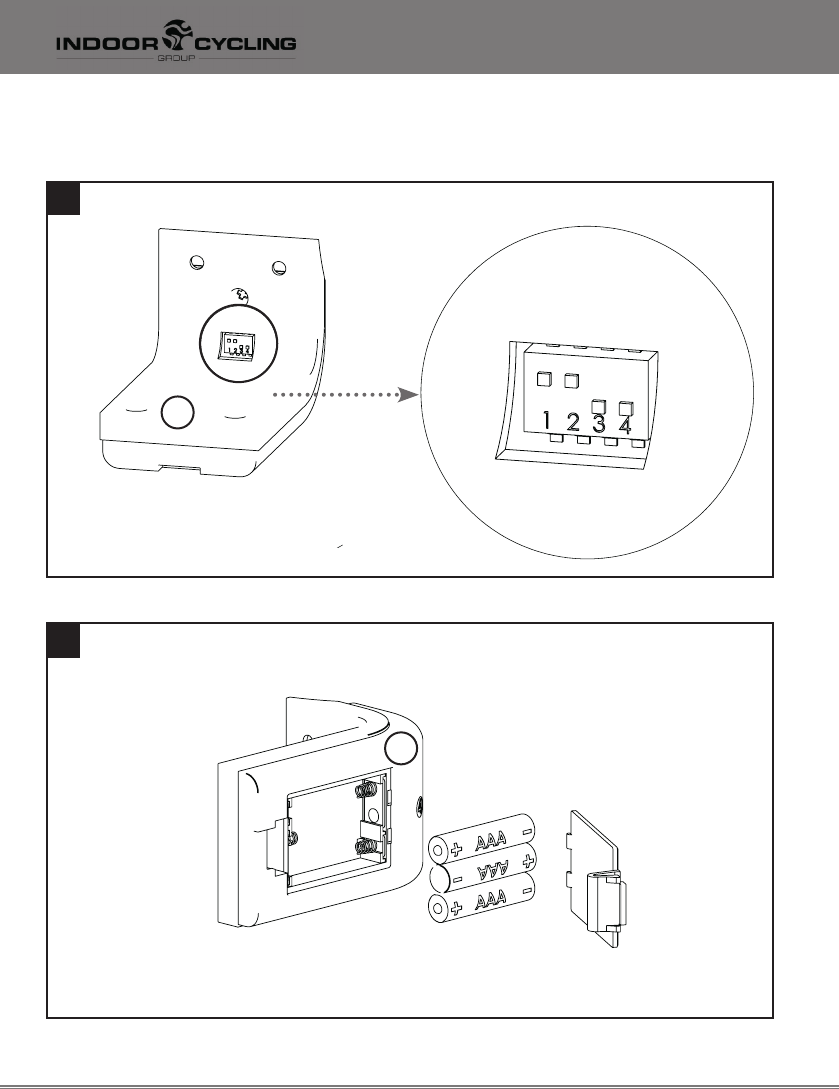

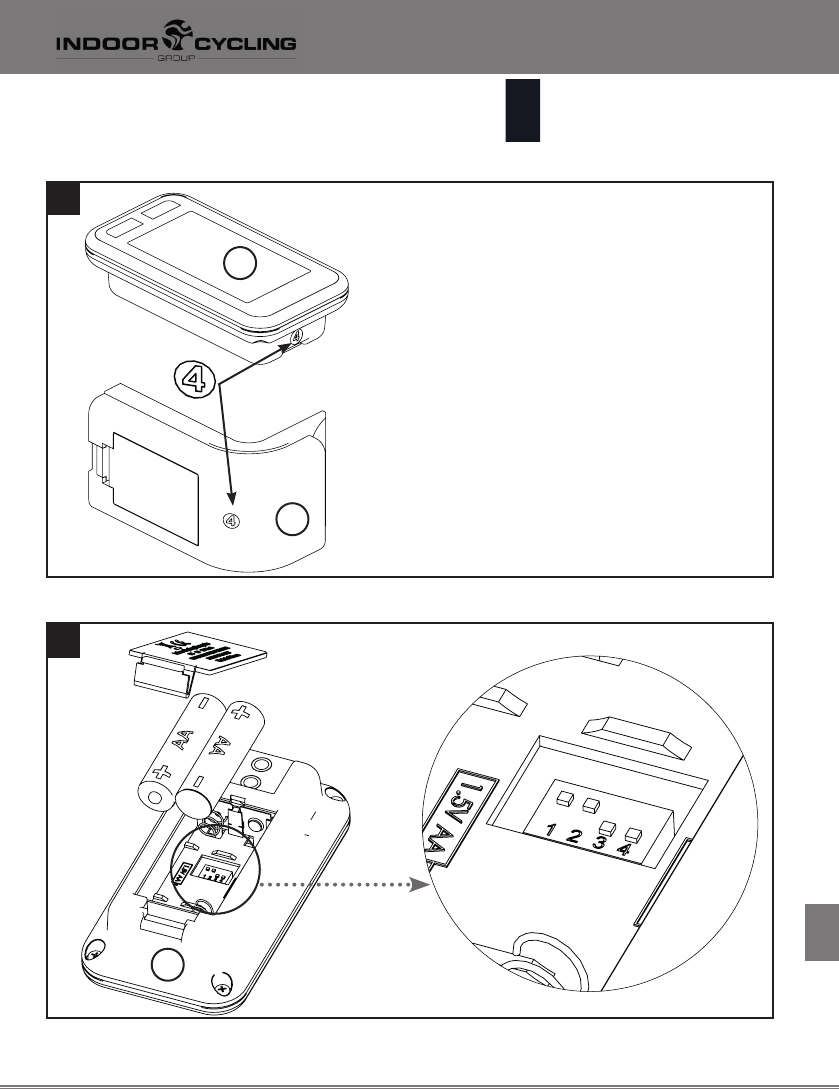

To assure that the digital cadence signal is
synchronized, please check if the channel
setting on the computer consol corresponds
with the setting of the cadence transmitter.
Please view picture no. 2 and 3.
ENG
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 4
3
4
2
WIRELESS COMPUTER
2
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 5
5
6
WIRELESS COMPUTER
☞
ENG
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 6
7
8
3
WIRELESS COMPUTER
1 x B
☞
☞
2 x A
1 x C
3
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 7
9
10
WIRELESS COMPUTER
120º

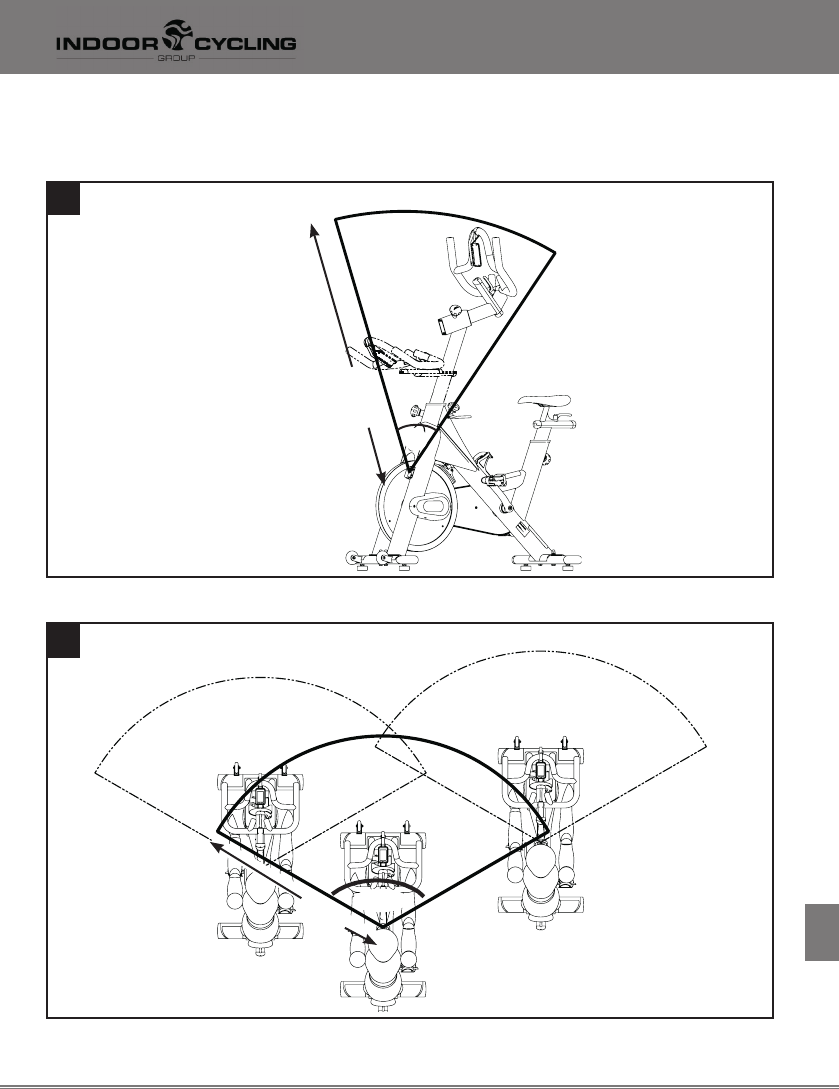

digital cadence signal distribution
45º
130 cm
52 inch
analouge heart rate signal distribution
ra
ENG
bike 1
bike 2
bike 3
cross reading no cross reading
120 cm
48 inch
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 8
COMMERCIAL INDOOR CYCLING COMPUTER
Specifications
Technical Features: • Wireless Data Transmission (16 channel digital
cadence and analogue heart rate 5,4khz ± 10%)
• Compatible with analogue Polar heart rate transmission
(integrated chest belt receiver)
• Display background illumination (5 seconds)
• Simple operation via Sun and Flow button
• Premium design
• Superior handlebar mounting bracket
• Optional setting for Miles or kilometer reading
Training Features: • Heart Rate reading (actual and average)
• Cadence / RPM reading (actual and average)
• Training Time
• Distance
• Calorie Consumption
• Scan functionality for time, distance and calories
WIRELESS COMPUTER
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 9
COMMERCIAL INDOOR CYCLING COMPUTER
Before you start
your training: • Make sure the channel setting of the consol is in sync with
the cadence transmitter setting to allow proper cadence reading
• Turn on the computer consol by pressing any of the two buttons
( Sun or Flow)
• Test if the consol reads and displays your HR signal transmitted
from your personal HR chest belt properly
• The blinking of the Heart symbol on the computer display
indicates the reception of a compatible analogue HR signal
• It may takes up to 3 seconds before the actual HR data is
displayed
• Chose your desired units, Miles or Kilometer
How to operate: Miles/kilometer setting:
• Press the “sun” button for 5sec.to enter setup mode. Change
unit setting from Miles to Kilometer by pressing the “flow” button
and confirm your choice by touching the “sun” button again
for 1 sec.
Rest user data:
• Press the “flow” button for 3sec to reset all currently stored
user data such as time, distance and Kcal, average HR and RPM
Engage light function:
• while operating the “sun” button briefly during exercise, the
display illuminates and automatically turns off after 5 sec.
Training info:
• Chose your desired i- training information displayed on the
lower part of the computer LCD by operating the “flow”
button” briefly during exercise. The display will shifted
between time to distance to cal to scan.
• If you chose the Scan mode the display will alternate between
time, distance, kcal
WIRELESS COMPUTER
ENG
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 10
WIRELESS COMPUTER

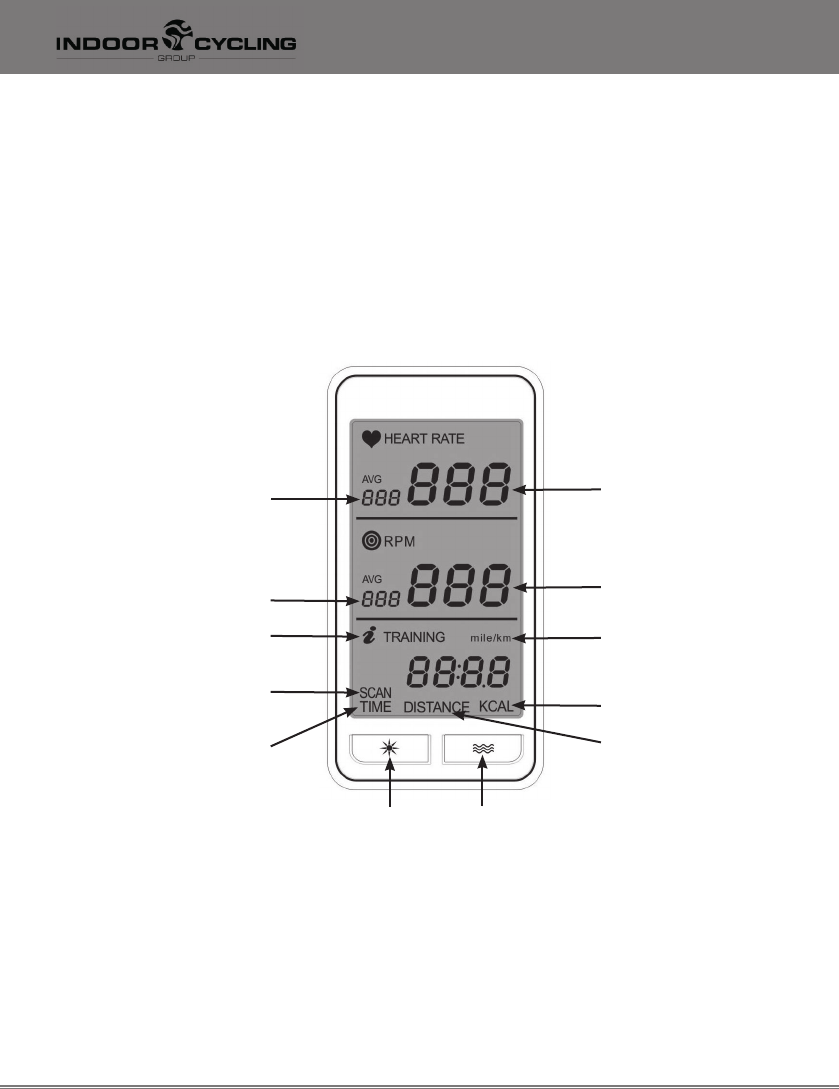

sun button flow button
heart rate - actual
heart rate - average
cadence/RPM - average
cadence/RPM - actual
training information
training time
mile/km (presetting)
scan functionally for time,
distance and calories
distance
calorie consumption
COMMERCIAL INDOOR CYCLING COMPUTER
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 11
WIRELESS COMPUTER
ENG
The batteries may not:
• come in contact with fire
• come in contact with coins or other metal objects
• be used together with older batteries
• be used with other makes or different types.
If you don´t use the equipment for a longer period of time, please remove the
batteries to avoid any damage by leaking or corroding batteries. If batteries have
discharged , remove all residue immediately and insert new batteries into the
computer. If you come into contact with residue, remove this carefully.
If possible please use rechargeable batteries to help save the environment.

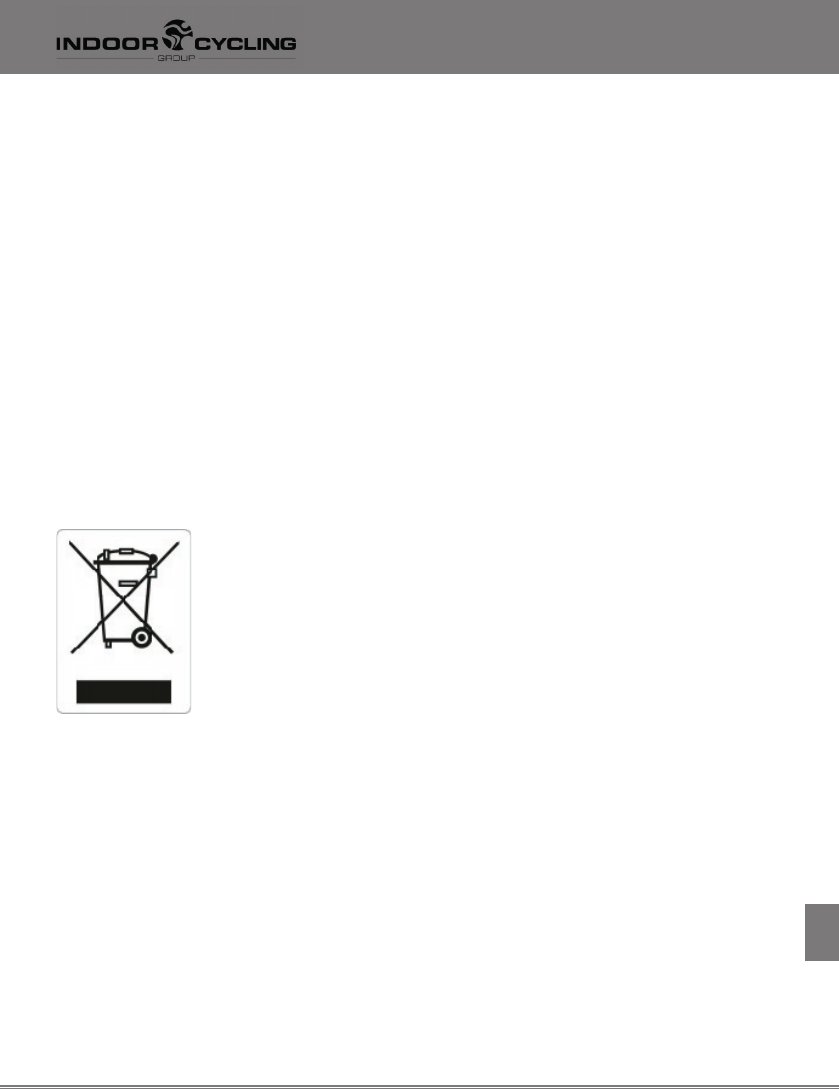

Signed products or batteries with this symbol may not be
disposed of in the normal domestic refuse. For a professional
disposal please inform about relevant local laws or guidelines
for the disposal of electrical devices and batteries. And act
accordingly.
Version 1.0 Copyright by Indoorcycling Group GmbH 2009 | www.indoorcycling.com ENG 12
WIRELESS COMPUTER
Indoorcycling Group GmbH warrants that all new equipment will be free of manufacturing
defects in workmanship and materials, becoming effective on the date of original
installation. The wireless commercial computer ST 020120 / 020120 is developed for
the use in professional groupclass environments and therefore designed for
commercial applications. Improper assembly, use or mechanical damages can void the
warranty terms.
LIMITED WARRANTY
Wireless Commercial Computer
1 Year warranty : Cadence transmitter and computer consol
Batteries are excluded from any warranty.
FCC ID: QSW122T
FCC Compliance and Advisory Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
according to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try correct the interference by one or more
of the following measures:
1.Reorient the receiving antenna.
2.Increase the separation between the equipment and receiver.
3.Connect the equipment into and outlet on a circuit different from that to which the receiver is
connected.
4.Consult the dealer or an experienced radio/TV technician for help.
Any special accessories needed for compliance must be specified in the instruction manual.
Warning: A shielded-type power cord is required in order to meet FCC emission limits and
also to prevent interference to the nearby radio and television reception. It is essential that
only the supplied power cord be used. Use only shielded cables to connect I/O devices to this
equipment.
CAUSION: Any changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
