Zentan Technology Co., Ltd. TP5 Duplex Heart Rate Transmitter
Users Manual
Model No.: ZT31D-F
Brand Name: CARDIOSPORT
Product Name: TP5 Duplex Heart
Rate Transmitter
Block Diagram
TP5 Duplex Heart Rate Transmitter
Model Number：ZT31D-F
FCC ID : QSWDHRCS2

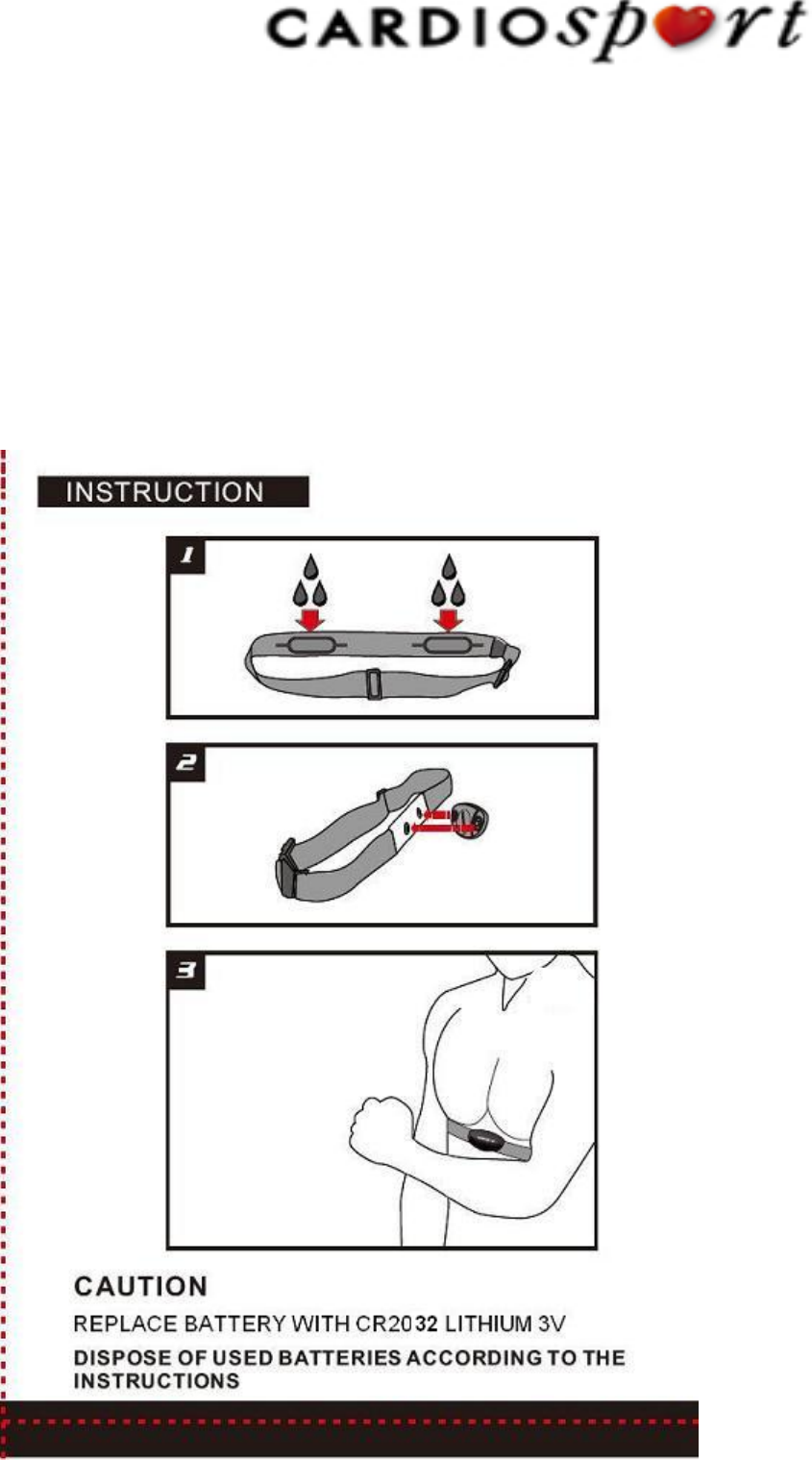

▪ Attach one end of the adjustable elastic strap to the transmitter
▪ Moisten the rubber electrodes of the belt with either water or saliva as shown
▪ Position the transmitter on the chest just below the breastbone,
with the Cardiosport logo the right way up.
▪ Pass the elastic strap around your chest and attach to the other end of the
transmitter.
▪ Adjust the strap to give a close but comfortable fit.
FCC Compliance and Advisory Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
according to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try correct the interference by one or more
of the following measures:
1.Reorient the receiving antenna.
2.Increase the separation between the equipment and receiver.
3.Connect the equipment into and outlet on a circuit different from that to which the receiver is
connected.
4.Consult the dealer or an experienced radio/TV technician for help.
Any special accessories needed for compliance must be specified in the instruction manual.
Warning: A shielded-type power cord is required in order to meet FCC emission limits and
also to prevent interference to the nearby radio and television reception. It is essential that
only the supplied power cord be used. Use only shielded cables to connect I/O devices to this
equipment.
CAUSION: Any changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
