Zephyr Technology 7566 textile HRM strap User Manual
Zephyr Technology Corporation textile HRM strap
User Manual
Zephyr TM HxMTM Smart
USER GUIDE
PACKAGE CONTENTS
Congratulations on purchasing a
ZephyrTM HxMTM Smart Heart Rate
Monitor. This package contains the
following:
1. ZephyrTM HxMTM Smart, BluetoothTM
Smart enabled heart rate monitor
2. ZephyrTM Smart Silicon sensing
strap.
FEATURES
• Heart Rate and R-R data
• Accessibility to features will depend
on the app being used to receive
transmitted data.
APPS
ZephyrTM HxMTM Smart Heart Rate
Monitor works with a wide variety of
Smartphone apps. For the latest list of
compatible apps, go
to www.ZephyrAnywhere.com/ConsumerFitness
or the Apple Apps Store or Google Play.
OPERATING INSTRUCTIONS

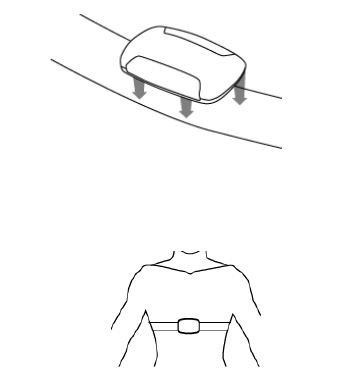

Wearing your device
• Snap your HxMTM Smart device
to your chest strap
• Moisten the sensor pads on the
inside of the chest strap and put
it on

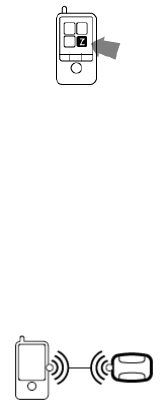

DOWNLOAD THE APP AND
CONNECT YOUR HxMTM SMART
• Select, download and install the
app on your Smartphone.
• Make sure you are wearing
your HxMTM Smart device so
that it is turned on. A green LED
will flash every 3 seconds.
• Start your app and connect it to
your HxMTM Smart device. The
LED will flash twice every 3
seconds when connected to
your Smartphone.
SPECIFICATIONS
HR Range:
25 – 240 BPM
Battery Type:
CR2032
Transmit Range:
10m
Frequency:
2.4 – 2.4835GHz
Garment Washes:
50
Operating Limits:
Temperature:
-10 – 50°C
Humidity:
5 – 95%
GUIDE TO SAFE & EFFECTIVE USE
• Please consult your physician before
exercising with this device
• Please do not use this device around other
medical equipment without permission
• Please do not use this device in places
where wireless devices are prohibited,
such as on aircraft
CARE AND MAINTENANCE
• As required, wipe clean with a moist
cloth
• Do not leave in direct sunlight
• Please do not expose to chemicals
• Can be immersed in water (1m) for
short periods (20 min)
• Keep away from fire or other heat
sources
STRAP
• Wash after every 30 days of use
• Machine wash cool (<40°C)
• Delicate setting
• Hang (NOT tumble) dry
• Do not bleach or iron
• Do not dry clean
WARRANTY
1 Zephyr provides a limited 12 month
warranty for the HxMTM BT product.
Zephyr warrants to the original purchaser
of this product that it will replace, repair or
refund the cost of this product or any part
proven to be defective in material or
workmanship. In no event shall Zephyr be
liable for direct, incidental or consequential
damages arising out of use of this product,
and any recovery is limited to the purchase
price.
2 Warranty claims will be initiated by
emailing support@zephyrtech.zendesk.com
3 During the warranty period, if this product
does not work properly under normal use
and care conditions, and if this is caused
by a design, material or workmanship
defect, Zephyr will decide to replace or
repair the product at their discretion
according to the following conditions. If a
returned product is found not within the
range of the warranty, Zephyr retains the
right to charge a handling fee.
a.The warranty is effective only when proof
of purchase can be provided.
b.If Zephyr repairs or replaces the product,
the repaired or replaced product will
continue to be covered for the balance of
the warranty period.
c. If it is deemed that the device has not yet
been used or maintained as
recommended, and is considered
reasonable, the warranty will not apply to
this product.
d.If the product has been altered in any
way by non-Zephyr authorized
personnel, the warranty will not apply to
this product.
e.A malfunction or damage caused by use
of the Zephyr product with other products
will not be covered by the warranty.
This device has been designed to conform to the following:
• FCC Part 15
• RTTE Directive 1999/4/EC
• This product complies with RoHS 2002/95/EC
• This device contains transmitter module
FCC ID: VZ6-7566
• This device complies with Part 15 of the FCC Rules. Operation
is subject to the following conditions:
o This device may not cause harmful interference, and
o This device must accept any interference received, including
interference that may cause undesired operation.
Note: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such changes or
modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help."
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil s’accorde avec Industrie Canada licence-exempte RSS standard.
(1) cet appareil ne peut pas causer l’intervention, et (2) cet appareil doit
accepter de l’intervention, y compris l’intervention qui peut causer l’opération
non désirée de.
This Class【B】 digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Contact:
Zephyr Technology
1 Annapolis St
Suite 200
Annapolis
MD 21401
USA
Tel: +1 (443) 569-3603
Fax: +1 (443) 926-9402
Email:support@zephyrtech.zendesk.com
info@zephyranywhere.com
sales@zephyranywhere.com
Web: www.zephyranywhere.com
9600.0328 2012-10-15
