Door sealing

systems

2 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Index

Door sealing systems

Thresholds ........................................................................................7

Automatic door bottoms............................................................41

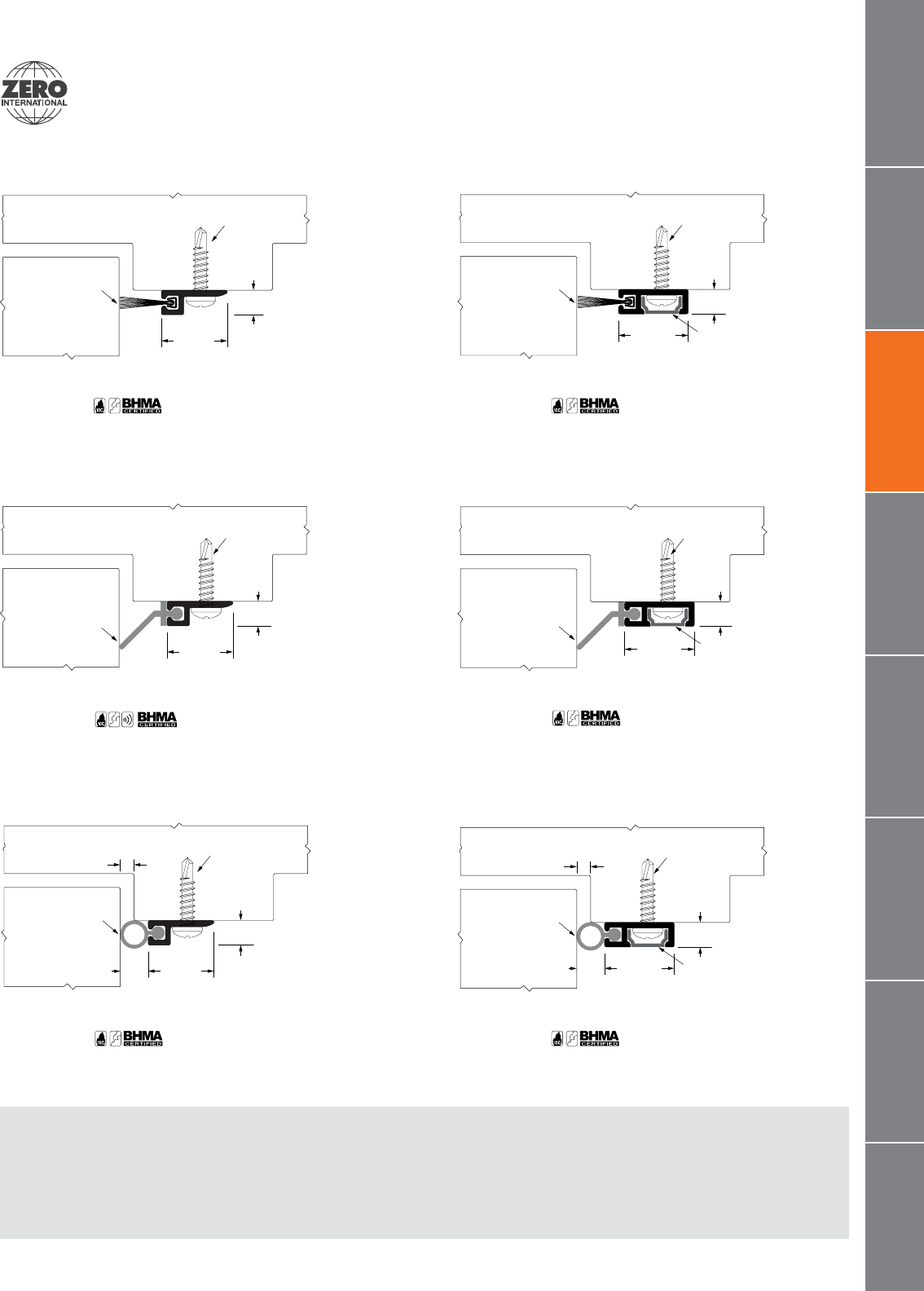

Perimeter seals ............................................................................55

Weatherstripping .........................................................................89

Solutions ...................................................................................... 103

Intumescent ................................................................................106

Sound Control ............................................................................109

Specialty ....................................................................................... 114

Part number index ......................................................................127

www.zerointernational.com • Door sealing systems • Zero • 3

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

The standard for quality in door sealing hardware

Allegion's Zero International brand is recognized as the standard for quality

in door sealing hardware. Our perimeter seals and thresholds are engineered

for durability and reliable performance even under the most challenging

installation and operating conditions. Our sealing products also support

green building applications by promoting heating and cooling eciency.

The comprehensive Zero product line includes advanced sound-control gasketing and a full array of other

specialized sealing systems for doors and windows, as well as intumescent ﬁre and smoke protection systems.

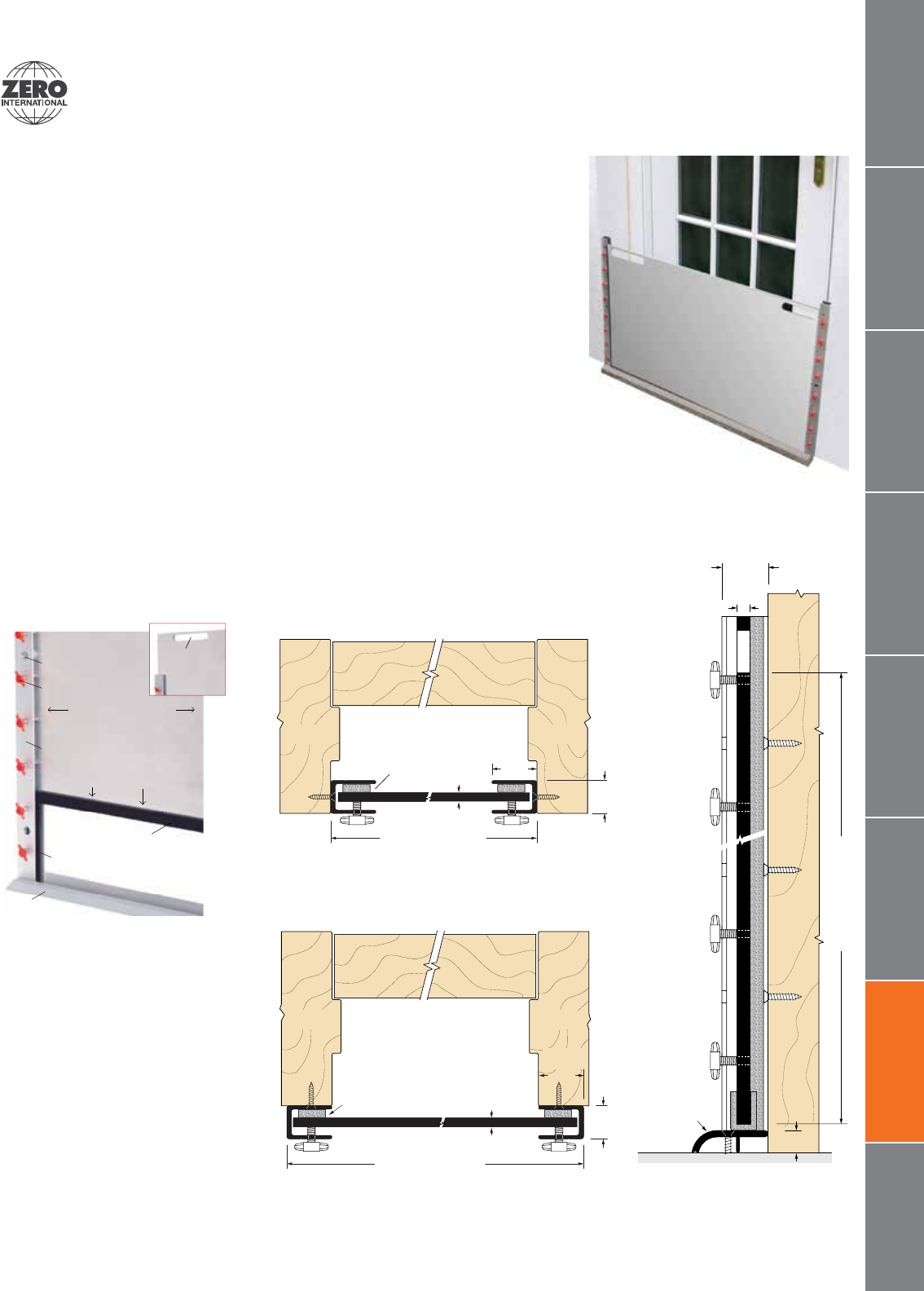

We also offer a line of ﬂood barrier shields with proven value for protecting door openings and building contents

in ﬂood-prone areas

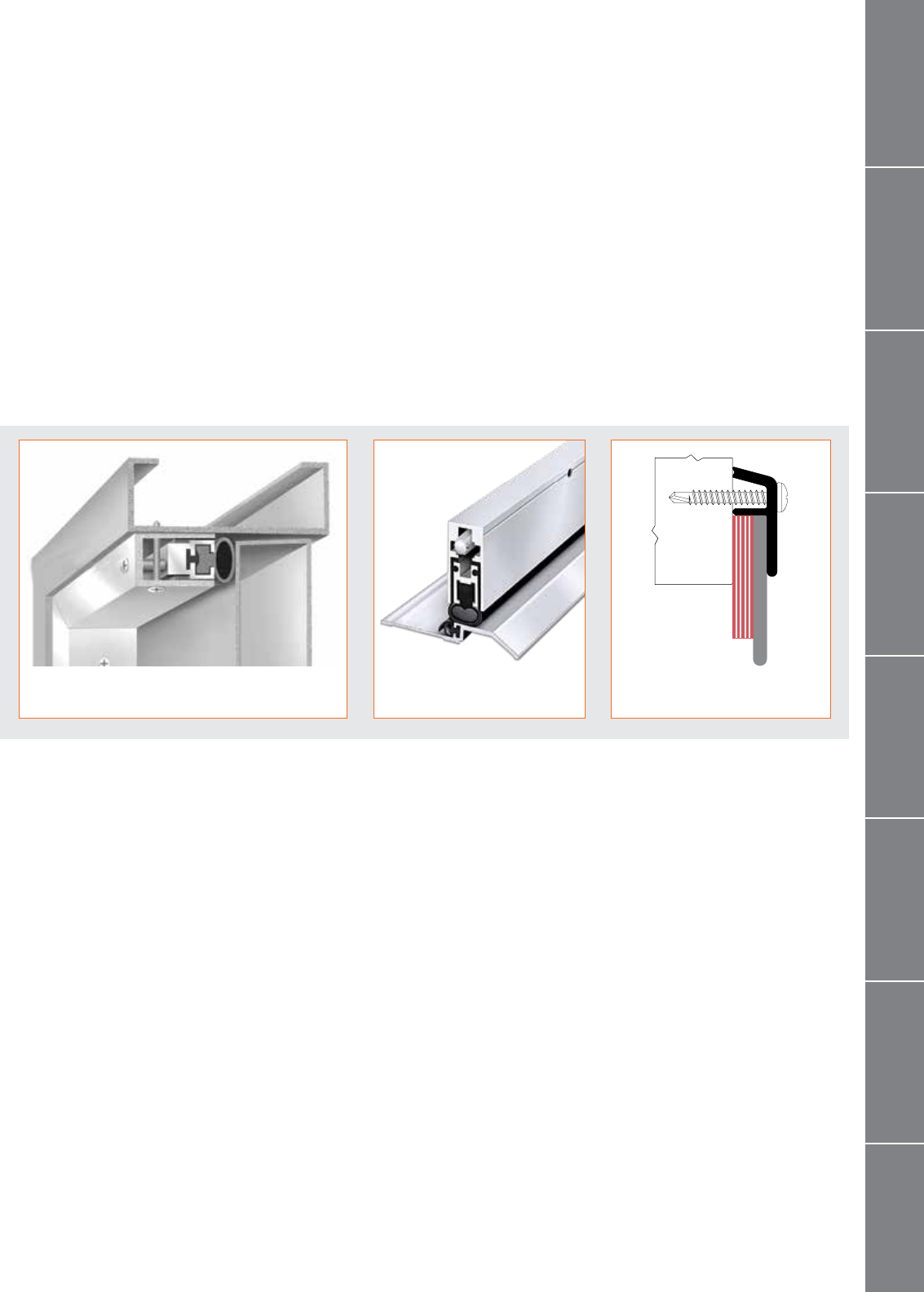

Door sealing systems Introduction

339FS

Gap solutions-

restore lost ﬁre rating

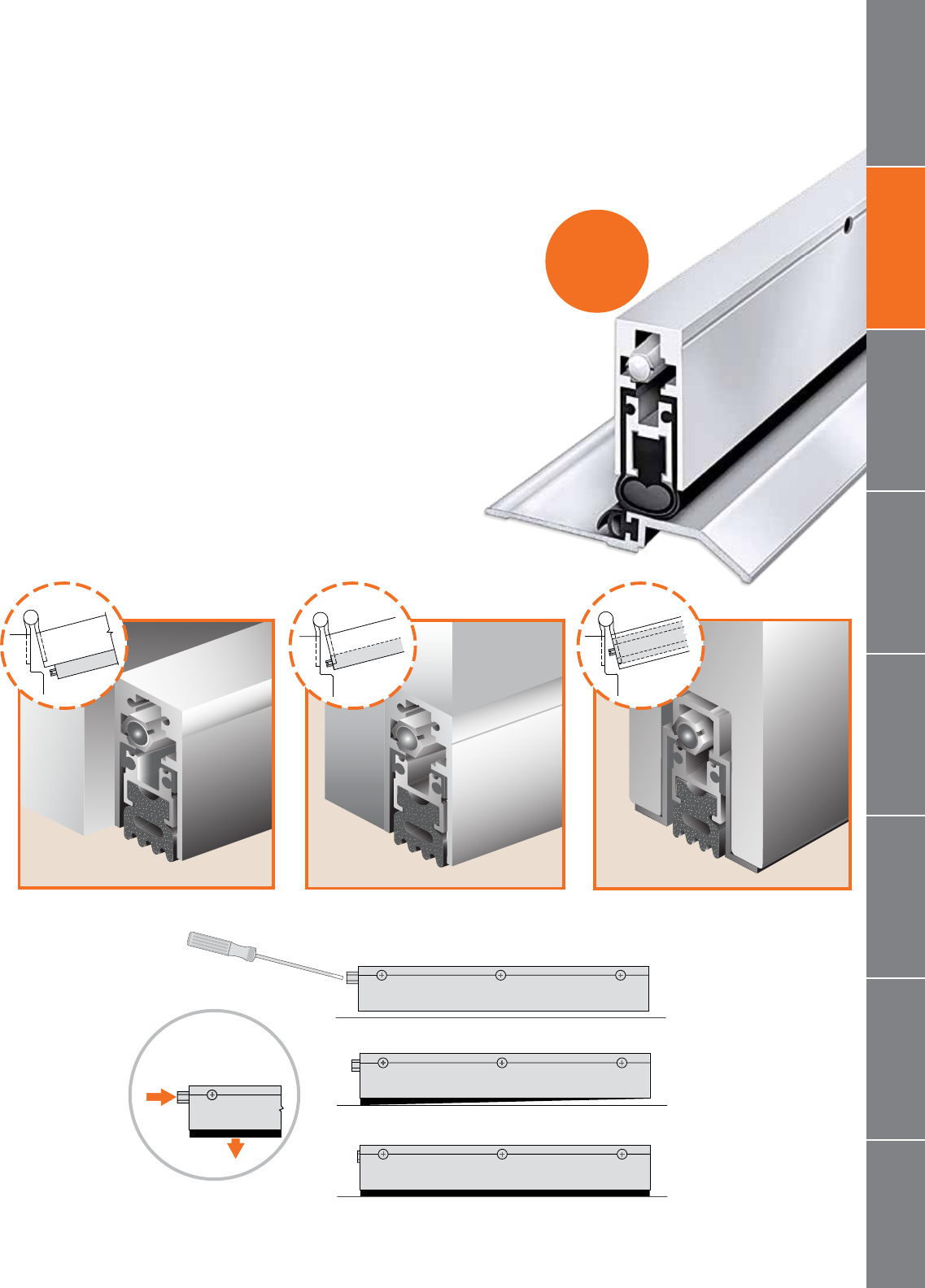

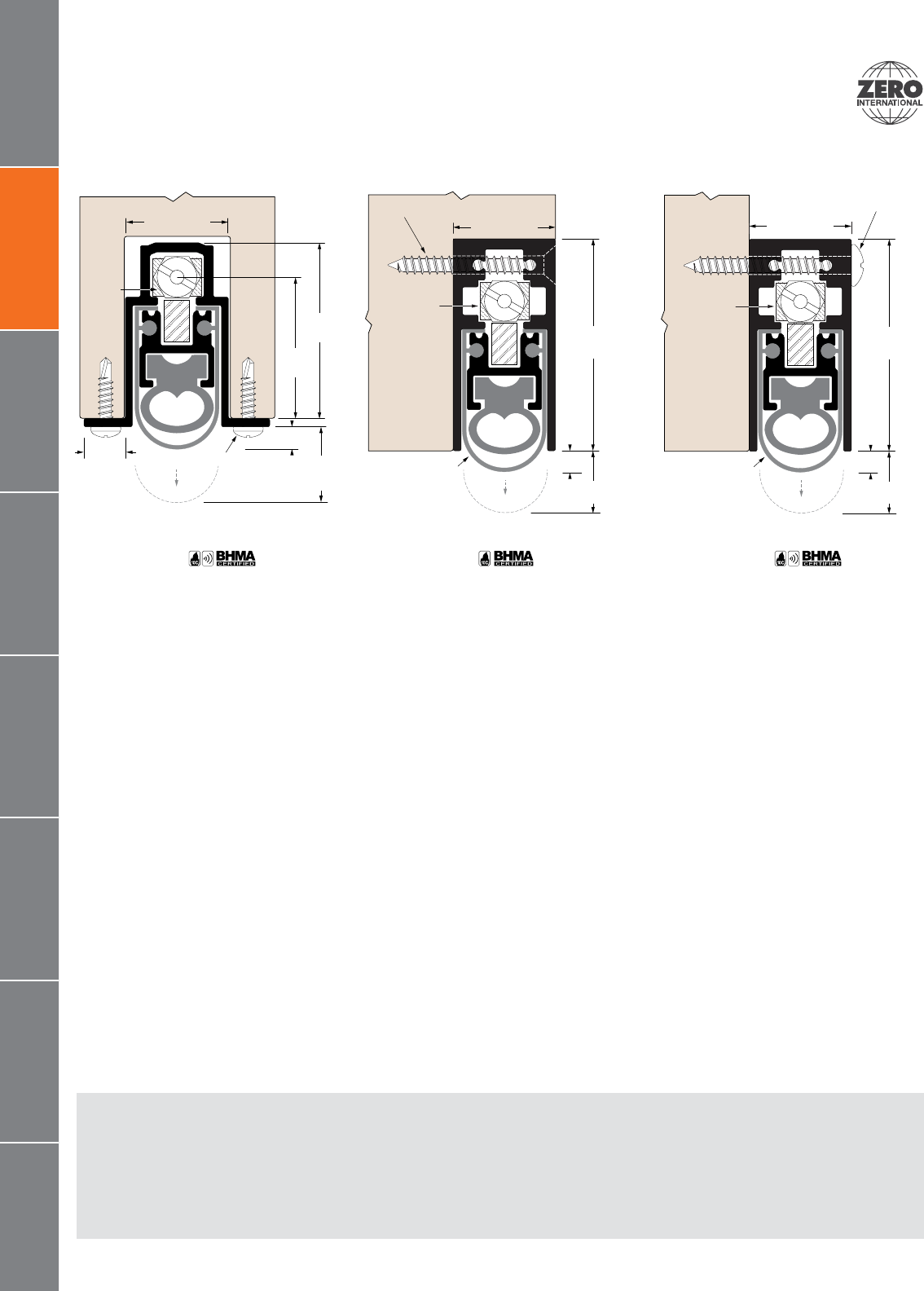

Sound trap system Patented automatic door

bottom technology

4 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Aluminum

Aluminum products are extruded from the 6063 alloy with

hardness of T5 or T6. A variety of ﬁnishes are available.

See speciﬁc model numbers for available ﬁnishes. Note

that some ﬁnishes, such as aluminum mill, wear better in

high trac applications than others. Anodized options are

offered, they will show wear aer in abrasive applications

and do not carry a warranty on ﬁnish.

Bronze

Bronze products are extruded from brass alloy 380,

technically known as “architectural bronze”. It contains

57.5% copper, 41% zinc, 1.3% lead, and 0.2% aluminum.

When furnished in mill ﬁnish, a light golden color, it

oxidizes over time to a rich darkened bronze.

Spring Bronze

Rolled bronze, used only for cushion and spring material, is

technically known as commercial bronze. The alloy is

85- 90% copper and 10-15% zinc. Commonly used

material in weatherstripping applications.

Zinc

Rolled zinc is alloy 191, and is highly resistant to corrosion.

When exposed to the elements, a zinc carbonate ﬁlm is

formed providing long-term protection. Commonly used

material in weatherstripping applications.

Neoprene

The neoprene used in Zero gasketing is a multipurpose

synthetic rubber with a balanced combination of

properties. Zero products use two types of neoprene:

closed-cell sponge and solid. All neoprene is black in color,

and by virtue of its chlorine content, is ﬂame-resistant and

self-extinguishing.

Silicone

Silicone-rubber has many variations and can be

compounded to meet any number of applications with

tensile strength up to 1500 PSI. Other properties include:

low compression set, good resilience, moderate solvent

resistance, excellent heat resistance, good release

characteristics, and good performance at extreme low

temperatures. Generally not recommended for exposure

to concentrated solvents and acids, or dilute sodium

hydroxide.

EPDM rubber

EPDM rubber is excellent for outdoor use. It is well known

for its superior ozone, weathering, and aging resistance. It

also has excellent water and steam resistance, maintains

its ﬂexibility at low temperatures, features excellent

resistance to alkalis, acids, and oxygenated solvents, and

is very color stable. EPDM is generally not recommended

for use in environments where exposure to oil, gasoline,

and hydrocarbon solvents is common.

Polypropylene brush

Inert polypropylene polymer resists deterioration under

harsh environmental conditions. It consists of a "brush" of

polypropylene ﬁber held by a carrier of the same material.

They are welded together to resist corrosion, unlike the

metal carrier of a traditional brush. The polypropylene ﬁn

running down the center of the ﬁbers is unique. The ﬁn is

every bit as ﬂexible as the ﬁbers themselves but, more

importantly it makes the material twice as effective as a

"traditional brush" in air inﬁltration tests.

Door sealing systems

Base materials

www.zerointernational.com • Door sealing systems • Zero • 5

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Door sealing systems

Product symbols and

classiﬁcation standards

FIRE RATED-UL10C

UL Classiﬁed to ANSI/UL 10C, Positive Pressure Fire Tests of Door Assemblies, for application to

hollow metal type ﬁre doors rated up to 3 hours, ﬁberglass or wood composite type ﬁre doors rated up

to 1-1/2 hours, and wood type ﬁre doors rated up to 20 minutes.

FIRE RATED-UL10B

UL Classiﬁed to ANSI/UL 10B, Fire Tests of Door Assemblies, for application to hollow metal type ﬁre

doors rated up to 3 hours, ﬁberglass or wood composite type ﬁre doors rated up to 1-1/2 hours, and

wood type ﬁre doors rated up to 20 minutes.

FIRE RATED-CAN

UL Classiﬁed to CAN/ULC-S104 Standard Method for Fire Tests of Door Assemblies for application to

hollow metal type ﬁre doors rated up to 3 hours, ﬁberglass or wood composite type ﬁre doors rated up

to 1-1/2 hours, and wood type ﬁre doors rated up to 20 minutes.

SMOKE AND DRAFT CONTROL

UL Classiﬁed to ANSI/UL 10C and ANSI/UL 1784 as Category H Smoke & Dra Control Gasketing.

Complies with IBC and NFPA 105 for use on “S” labeled positive pressure ﬁre doors. Check UL File #

R18465 for complete details of ﬁre door requirements and ratings for models marked with this symbol.

AIR INFILTRATION

Tested in accordance with ASTM E-283 Standard Test for Determining Rate of Air Leakage Through

Exterior Windows, Curtain Walls and Doors.

SOUND

Acoustical rating achieved by OEM testing using speciﬁc door assembly conﬁgurations.

ADA ACCESSIBLE

For use with ADA compliant doors meeting requirements of ICC/ANSI A117.1-2017 Standard for

Accessible and Usable Buildings and Facilities, and IBC 2018.

WARNOCK HERSEY MARK

UL - UNDERWRITER LABORATORIES MARK

6 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Door sealing systems

Notes

Thresholds

Door sealing systems

8 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Index

Thresholds

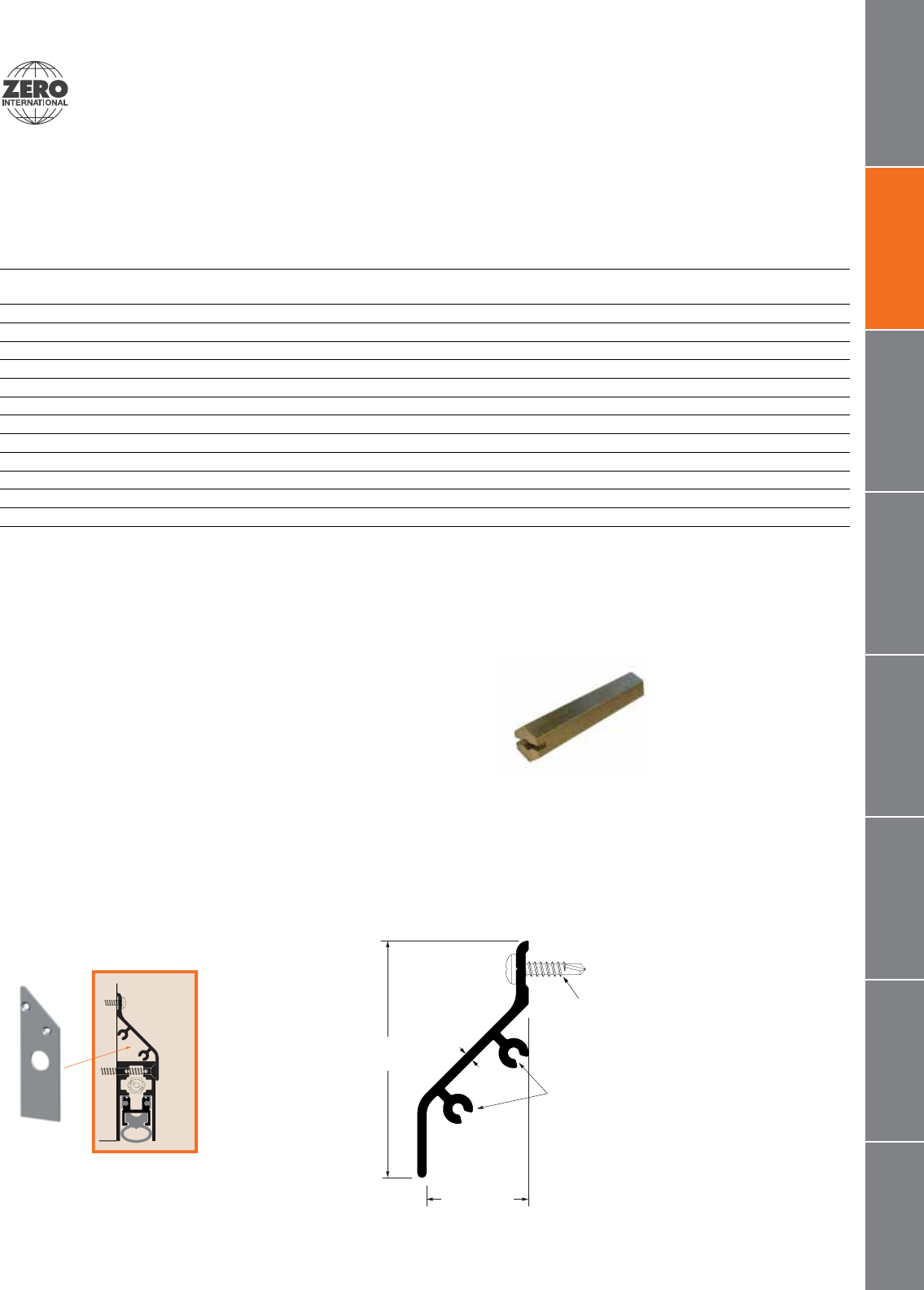

Accessories & options

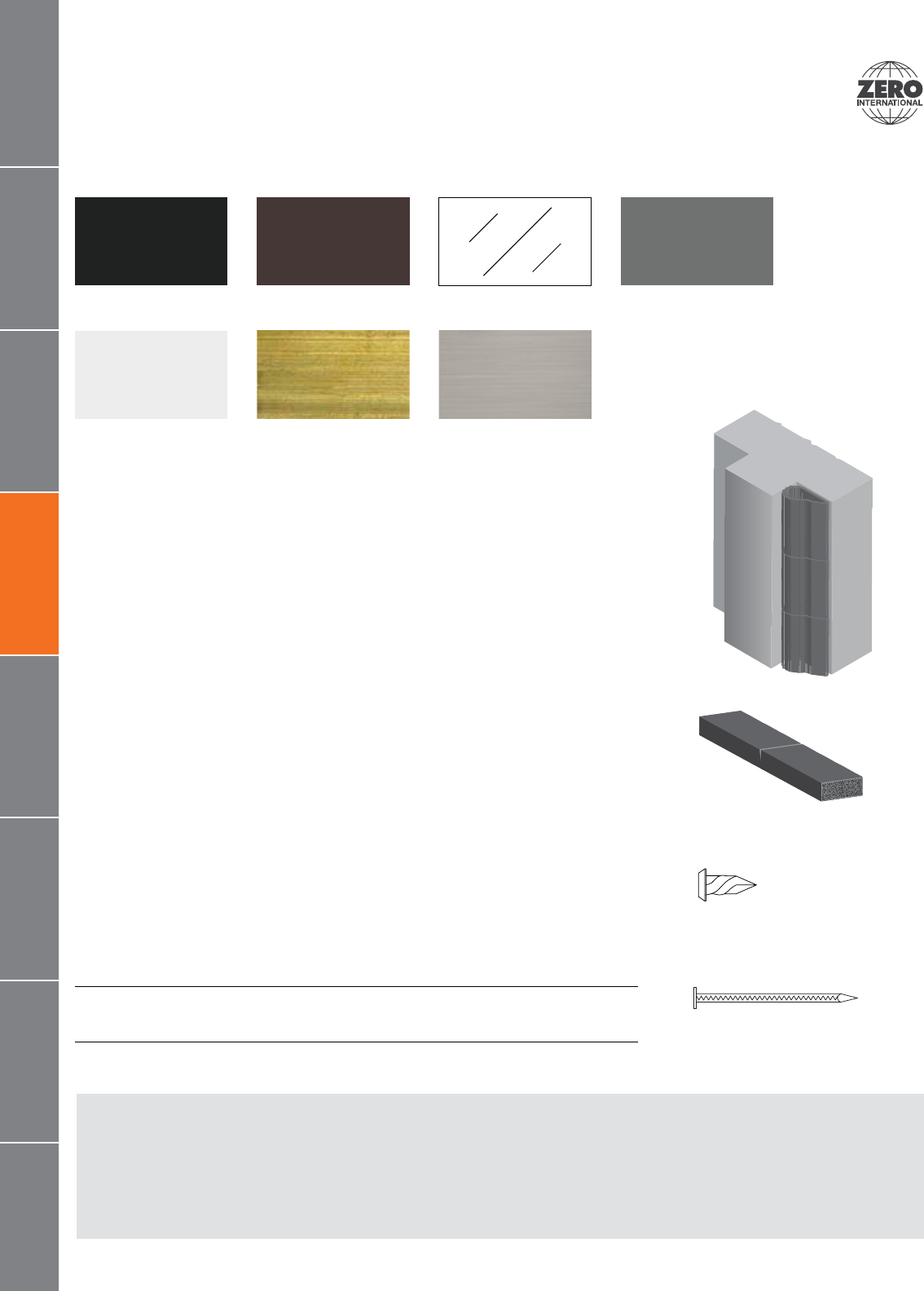

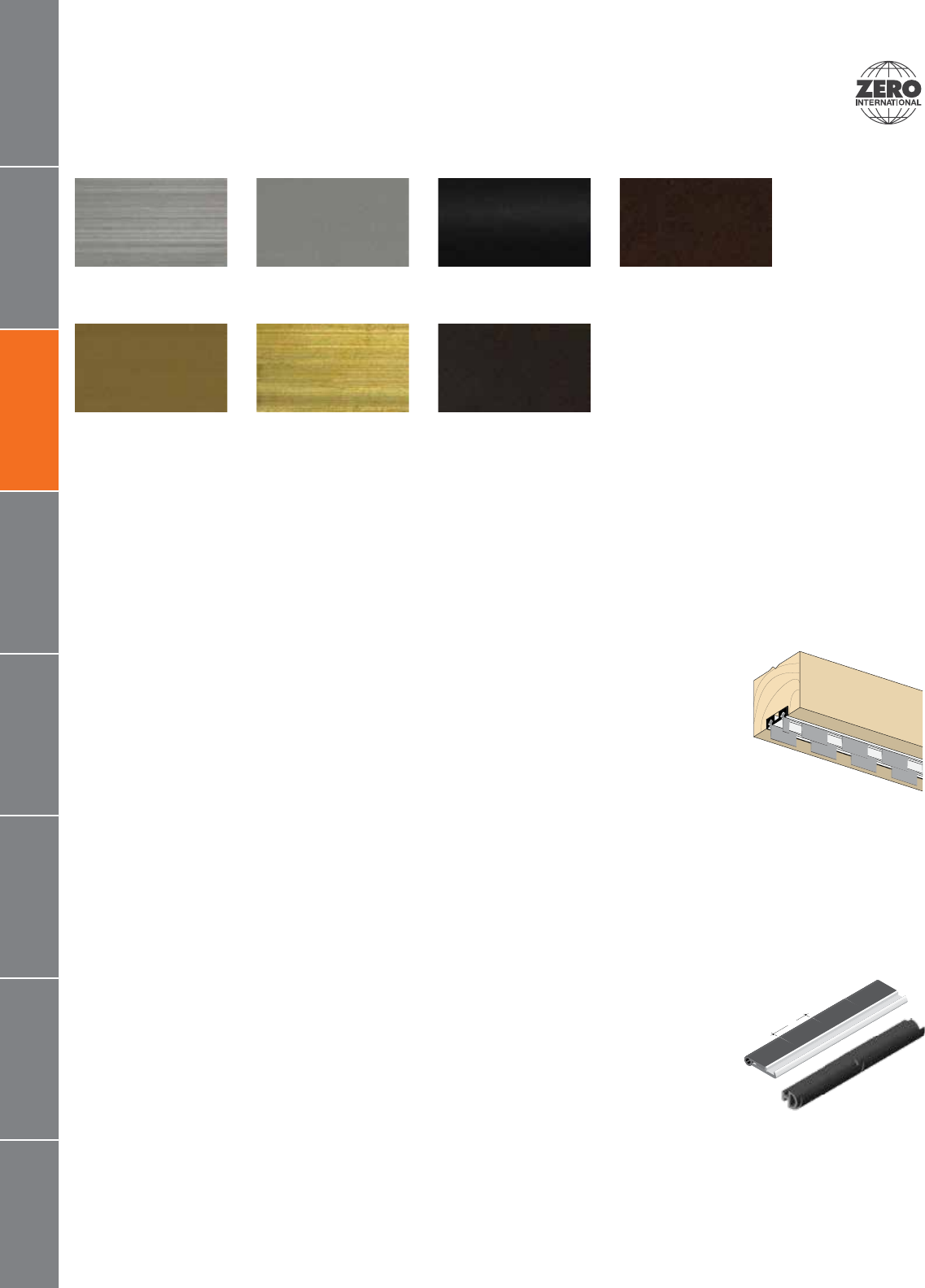

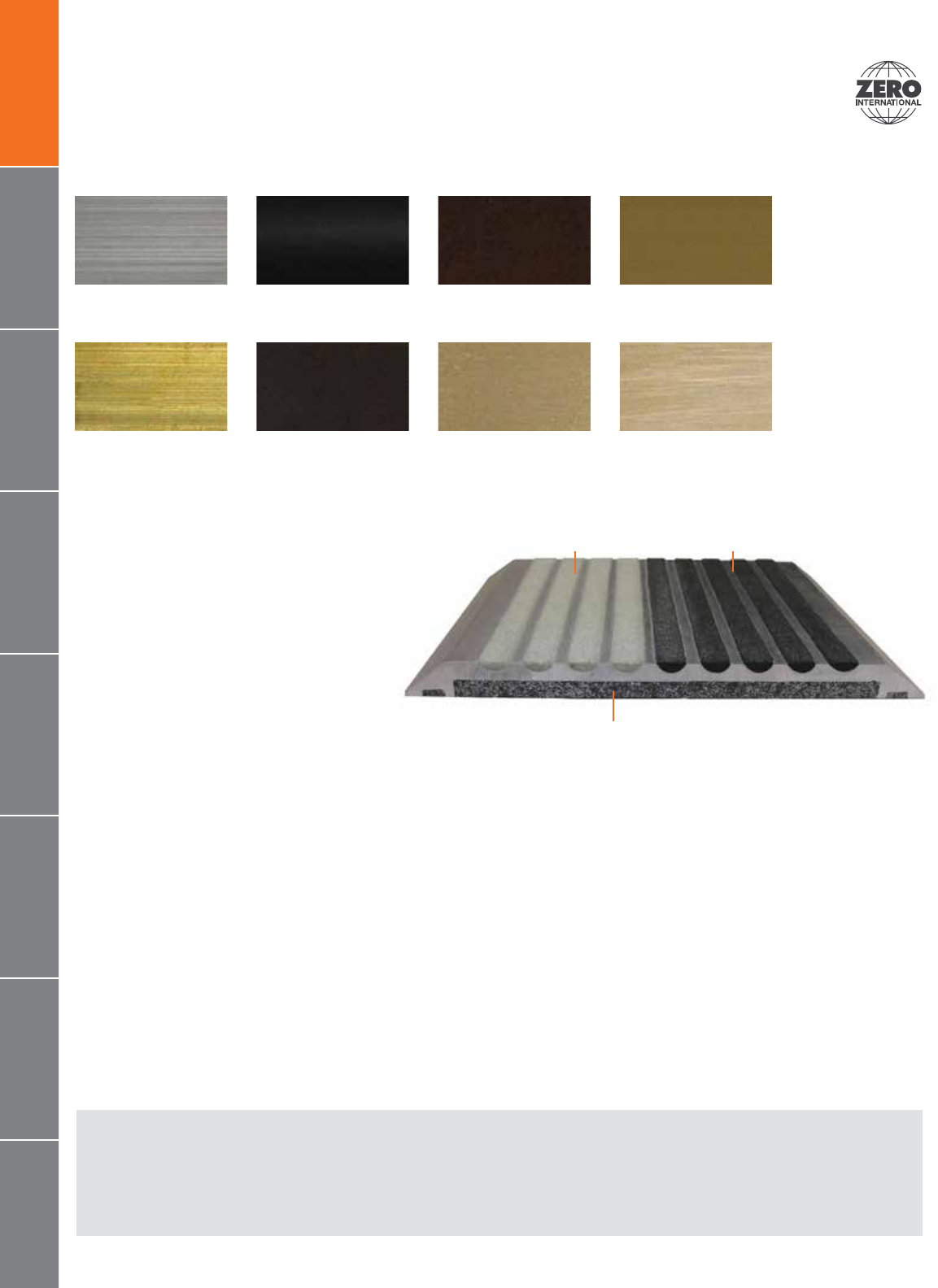

Finishes/Options ...........................................................................................................10

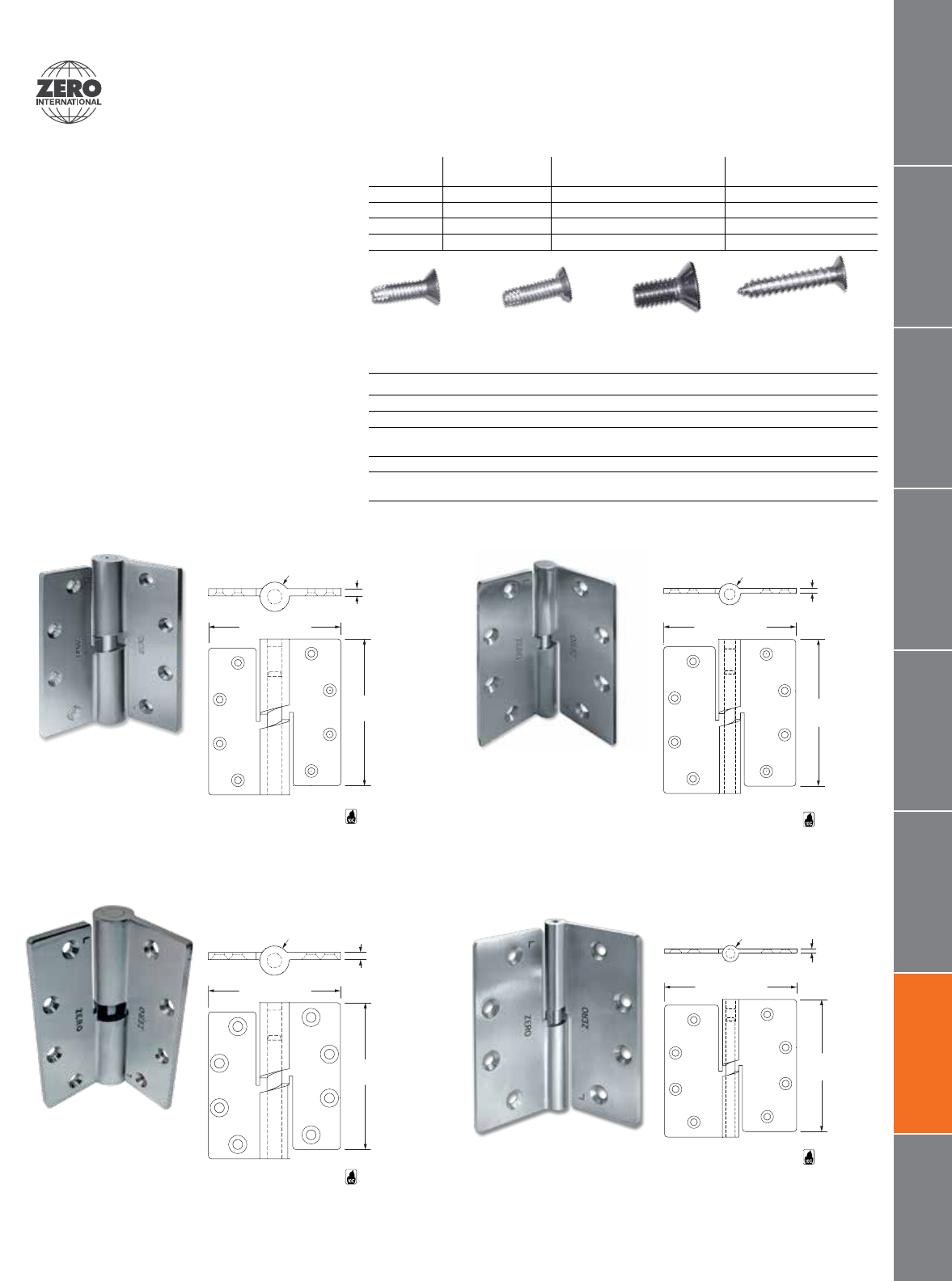

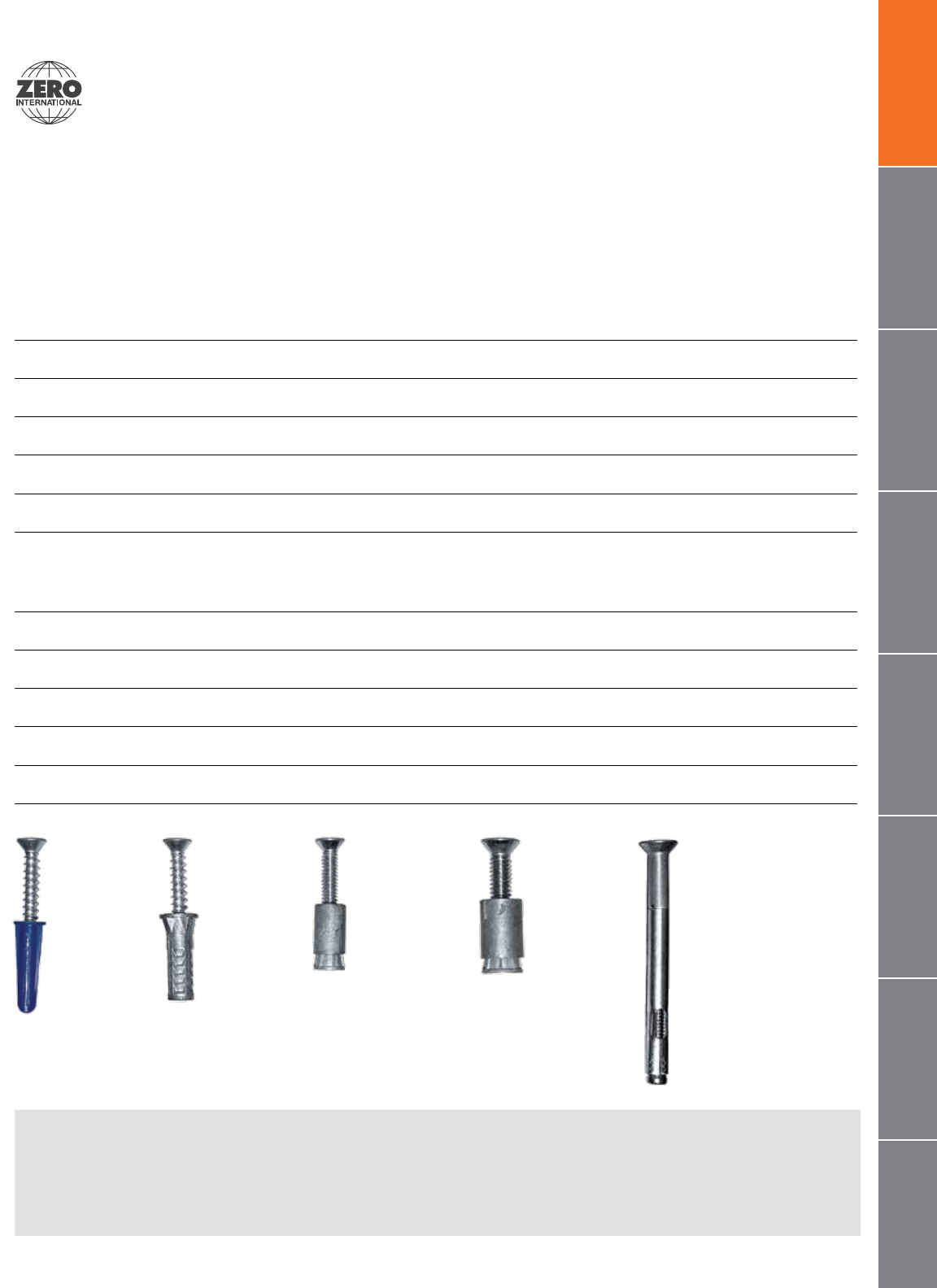

Fasteners ...........................................................................................................................11

Replacement rubber seals .......................................................................................... 12

23 Interlocking hook...................................................................................................... 12

25 Interlocking angle .................................................................................................... 12

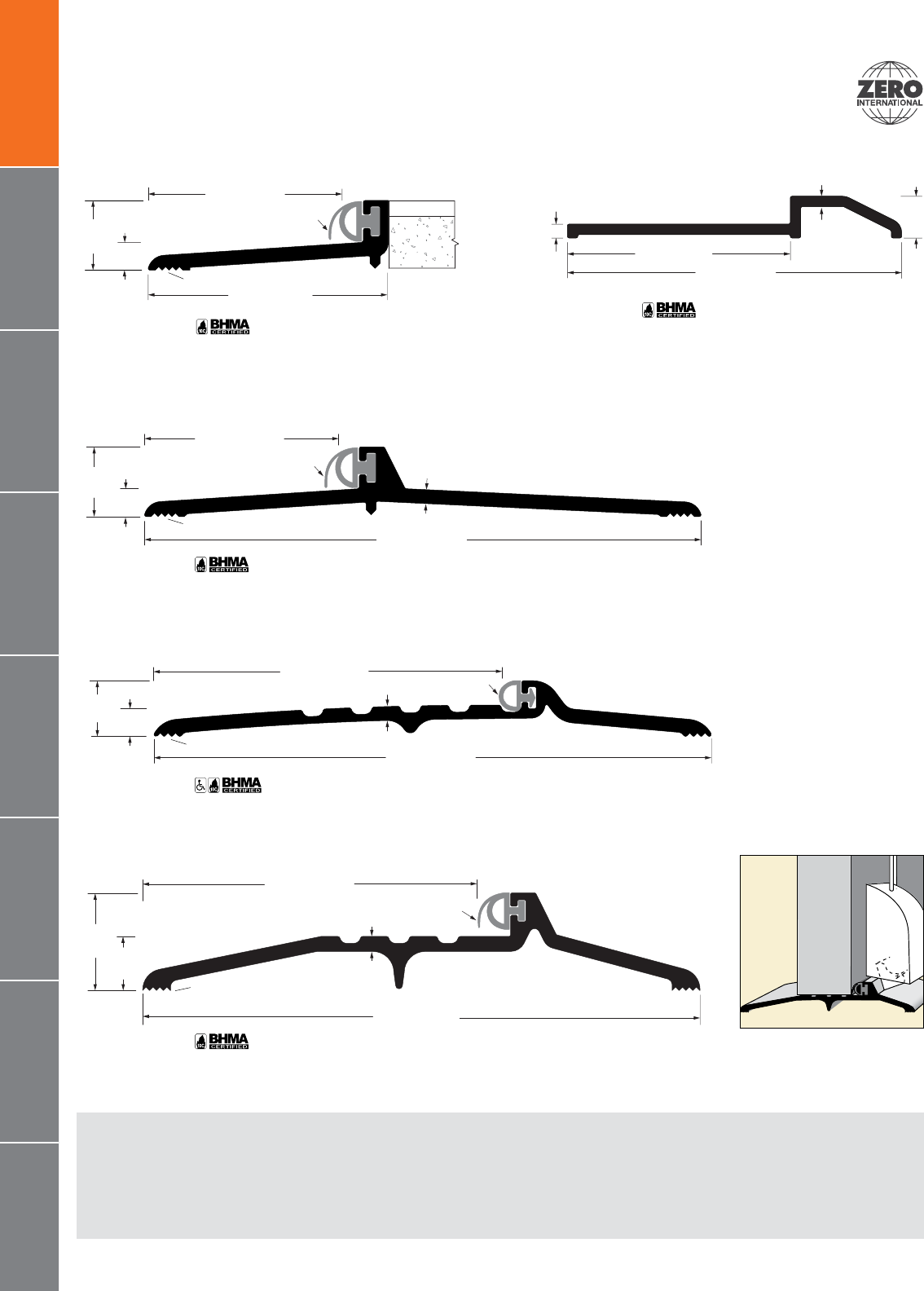

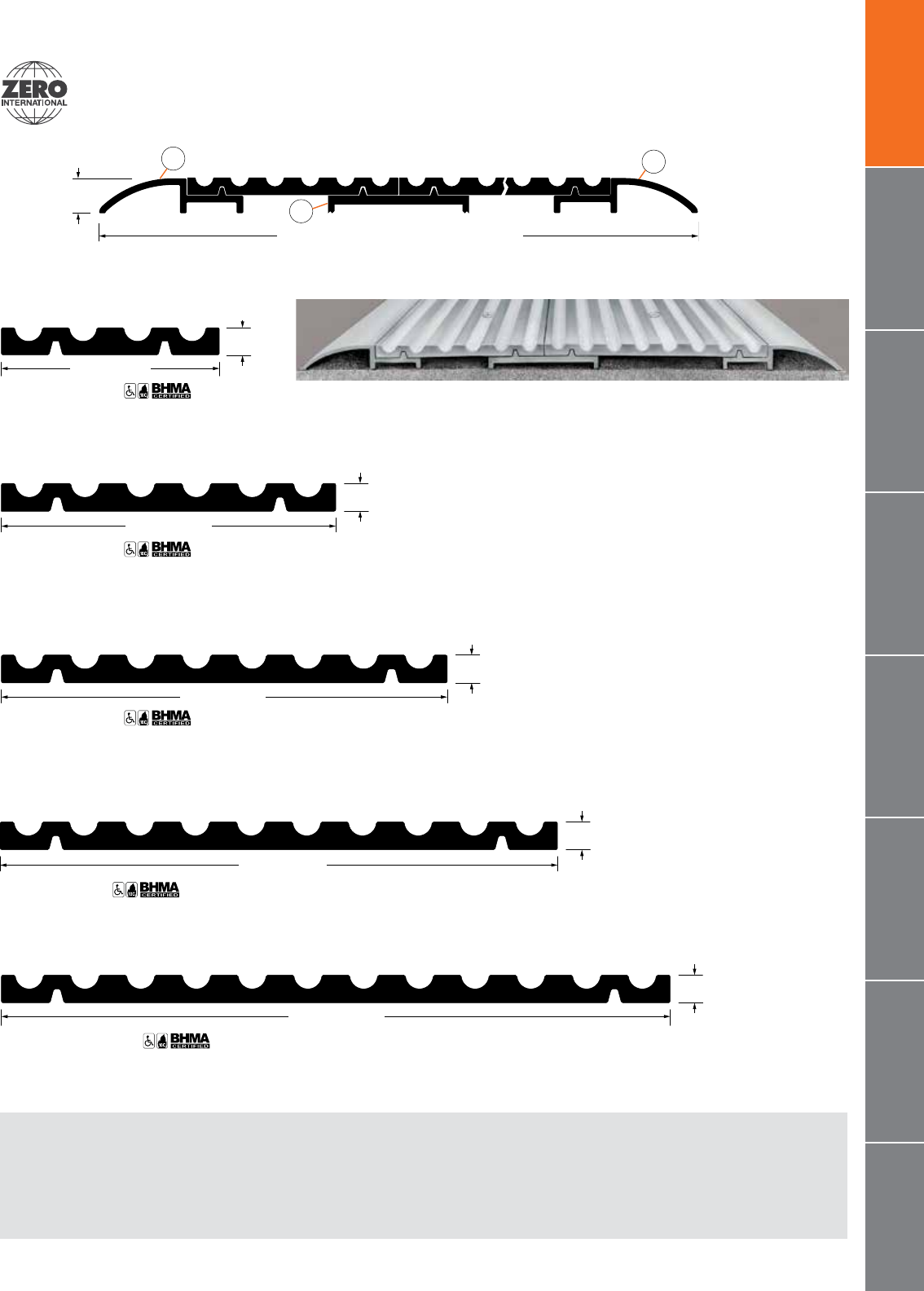

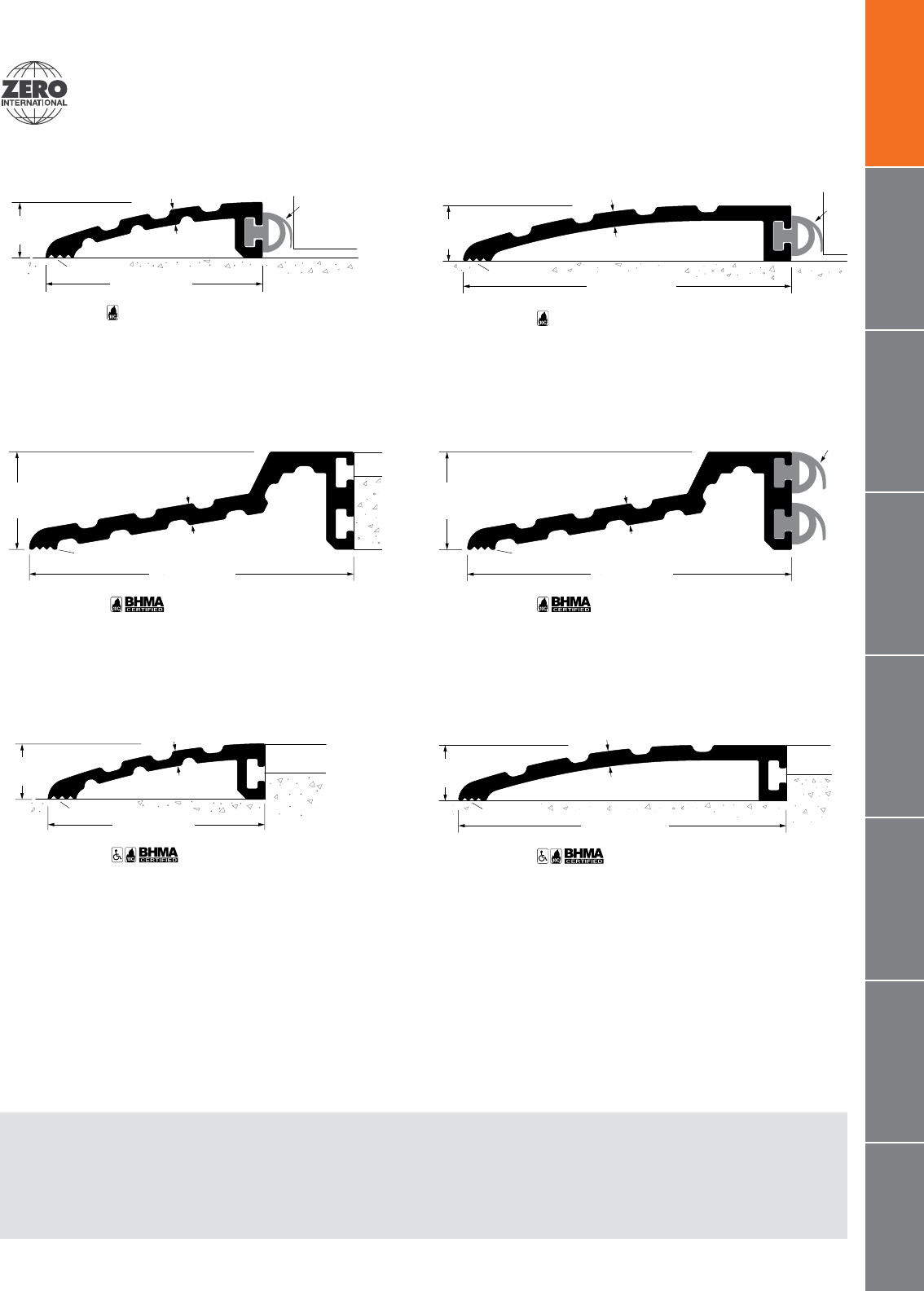

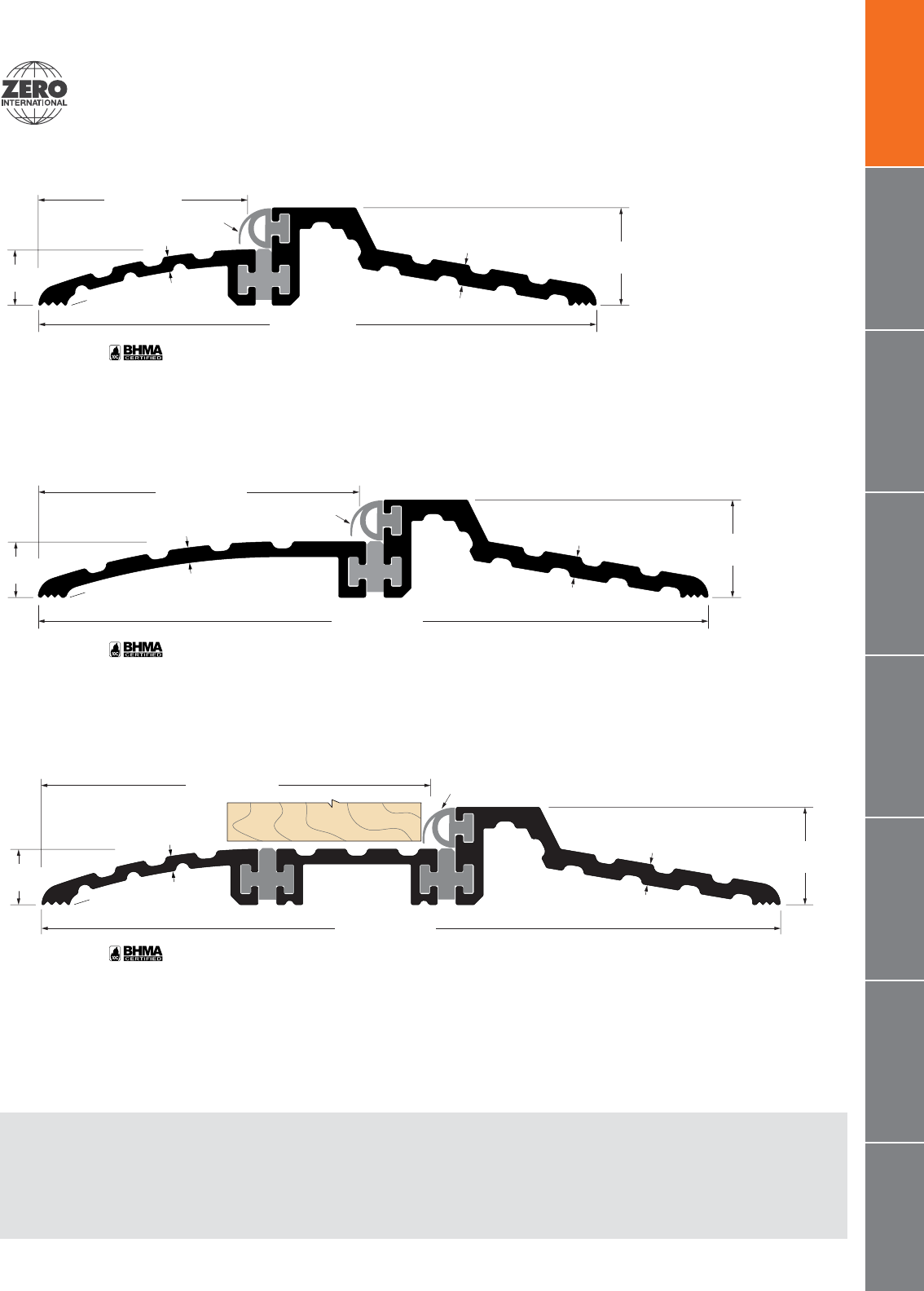

Saddle thresholds

63 .......................................................................................................................................14

64 .......................................................................................................................................14

544 .....................................................................................................................................14

545 .....................................................................................................................................14

545B ..................................................................................................................................14

546 .....................................................................................................................................14

547 .....................................................................................................................................15

548 .....................................................................................................................................15

653 .....................................................................................................................................15

654 .....................................................................................................................................15

664 ....................................................................................................................................15

164 ......................................................................................................................................16

655 .....................................................................................................................................16

8655 ..................................................................................................................................16

656 .....................................................................................................................................16

6570 .................................................................................................................................. 17

647 ..................................................................................................................................... 17

657 ..................................................................................................................................... 17

6575 ................................................................................................................................... 17

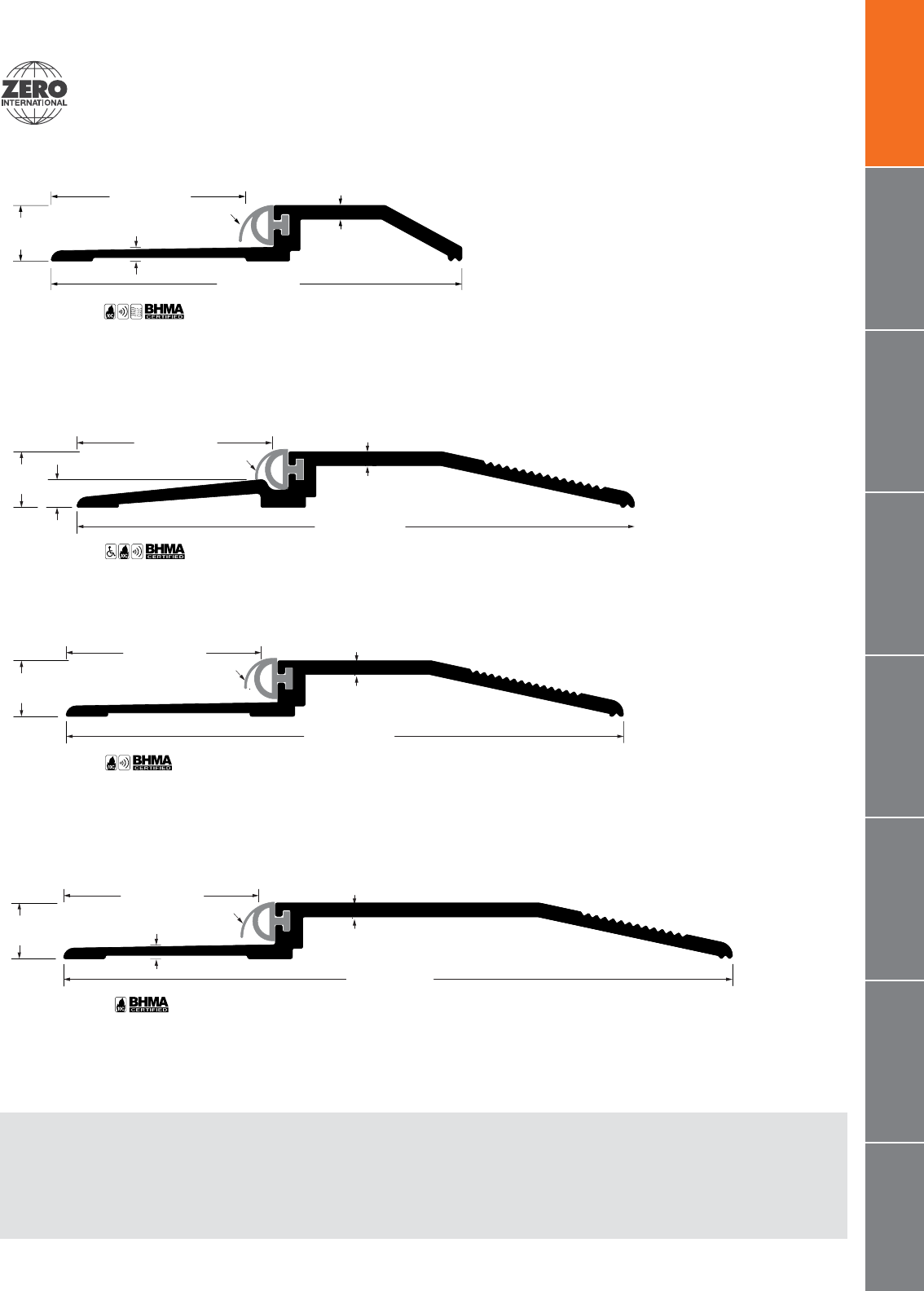

Half-saddle thresholds

1545 ...................................................................................................................................18

15.........................................................................................................................................18

1545B .................................................................................................................................18

304 .....................................................................................................................................18

1673 ....................................................................................................................................18

1674 ....................................................................................................................................18

1675 ....................................................................................................................................18

627 .....................................................................................................................................19

628 .....................................................................................................................................19

523 .....................................................................................................................................19

524 .....................................................................................................................................19

622 .....................................................................................................................................19

623 .....................................................................................................................................19

Offset thresholds

102 .....................................................................................................................................20

104.....................................................................................................................................20

103 .....................................................................................................................................20

Rabbeted thresholds

564 ..................................................................................................................................... 21

566 ..................................................................................................................................... 21

567 ..................................................................................................................................... 21

568..................................................................................................................................... 21

267 .................................................................................................................................... 22

663 .................................................................................................................................... 22

265 .................................................................................................................................... 22

65 ...................................................................................................................................... 22

560 ................................................................................................................................... 22

561 ..................................................................................................................................... 23

563 .................................................................................................................................... 23

565 .................................................................................................................................... 23

Thermal break thresholds

624 .................................................................................................................................... 24

625 ....................................................................................................................................24

8724 ..................................................................................................................................24

626 ....................................................................................................................................24

8726 ..................................................................................................................................24

525 .................................................................................................................................... 25

526 .................................................................................................................................... 25

8729 .................................................................................................................................. 25

Carpet divider thresholds

522 ....................................................................................................................................26

643 ....................................................................................................................................26

1682 ..................................................................................................................................26

1682B ...............................................................................................................................26

1684 ..................................................................................................................................26

1685R ...............................................................................................................................26

1686R ...............................................................................................................................26

Adjustable thresholds

672 .................................................................................................................................... 27

673 .................................................................................................................................... 27

674 .................................................................................................................................... 27

675 .................................................................................................................................... 27

676 .................................................................................................................................... 27

678 ....................................................................................................................................28

6710 ..................................................................................................................................28

105 .....................................................................................................................................28

106 ....................................................................................................................................28

107 .....................................................................................................................................28

269 ....................................................................................................................................28

469....................................................................................................................................28

Series 671 ........................................................................................................................29

84R-PSA .........................................................................................................................29

268 ....................................................................................................................................29

68 ......................................................................................................................................29

168.....................................................................................................................................29

69 ......................................................................................................................................29

48 ......................................................................................................................................29

49 ......................................................................................................................................29

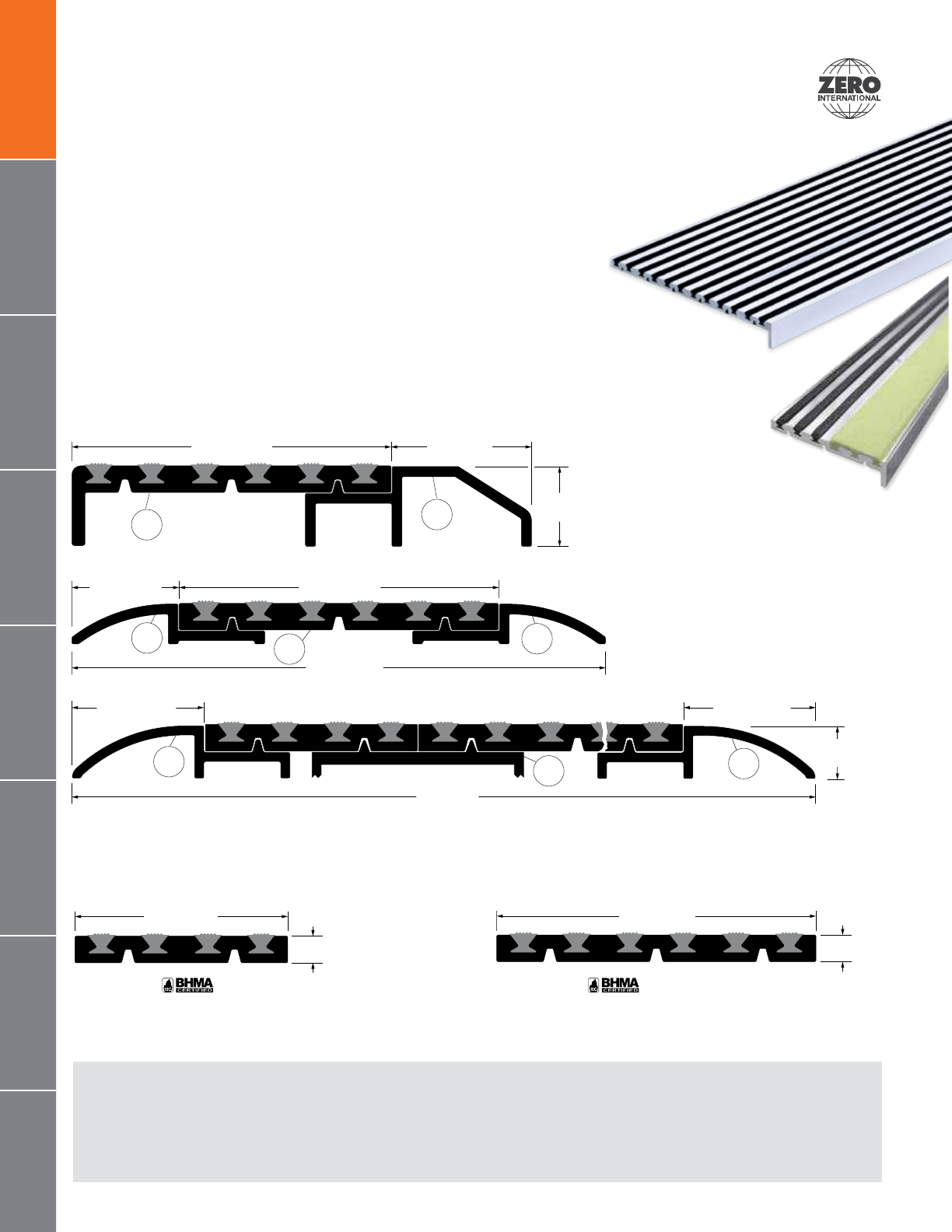

Traction tread adjustable thresholds

3672 ..................................................................................................................................30

3673 ..................................................................................................................................30

3674 ................................................................................................................................... 31

3675 ................................................................................................................................... 31

3676 ...................................................................................................................................31

2676 ................................................................................................................................... 31

2673 ................................................................................................................................... 31

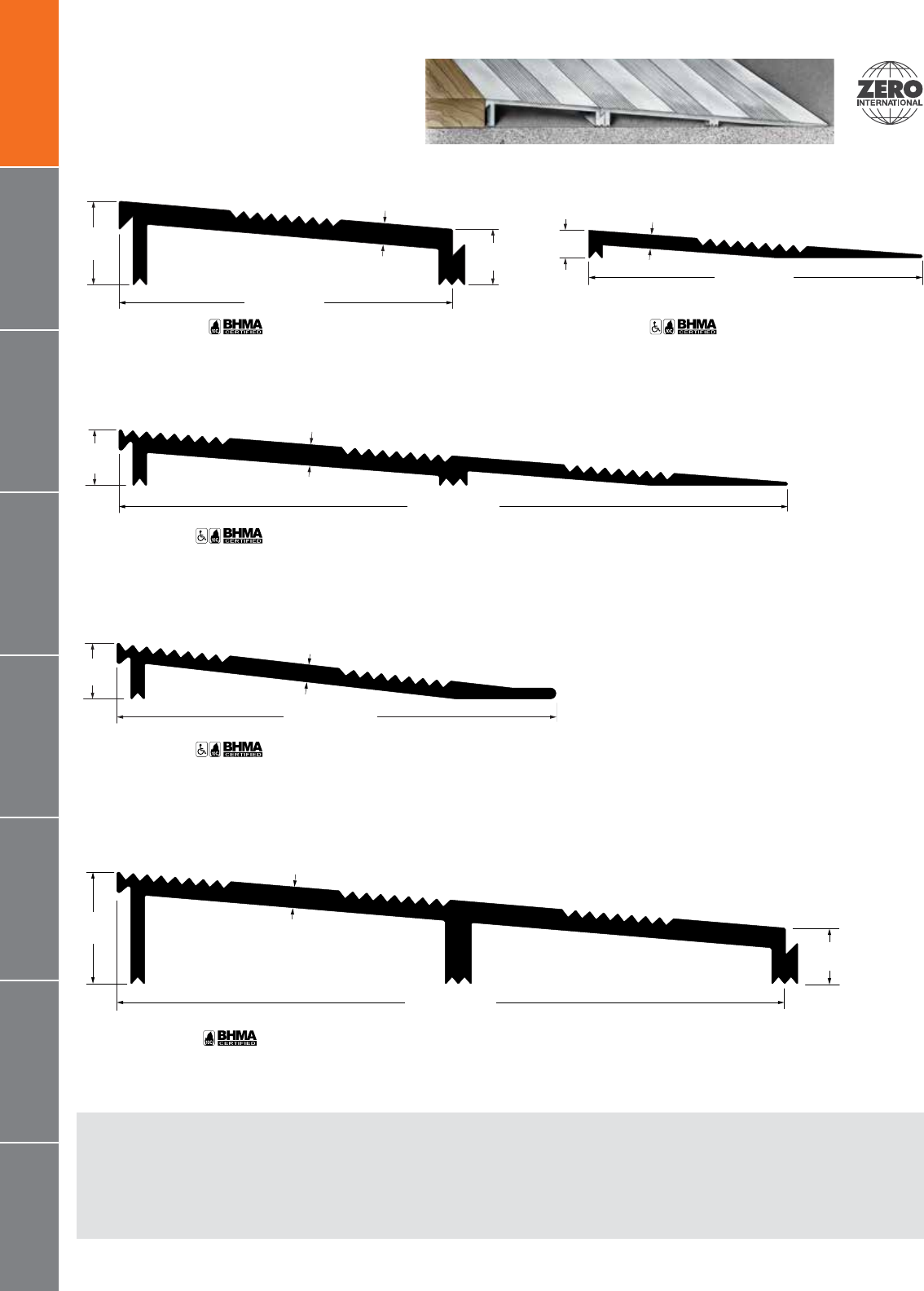

Ramps

233 .................................................................................................................................... 32

235 .................................................................................................................................... 32

236 .................................................................................................................................... 32

2361................................................................................................................................... 32

232 .................................................................................................................................... 32

237 ..................................................................................................................................... 33

234 .................................................................................................................................... 33

238 .................................................................................................................................... 33

233 .................................................................................................................................... 33

236 .................................................................................................................................... 33

259R ................................................................................................................................. 33

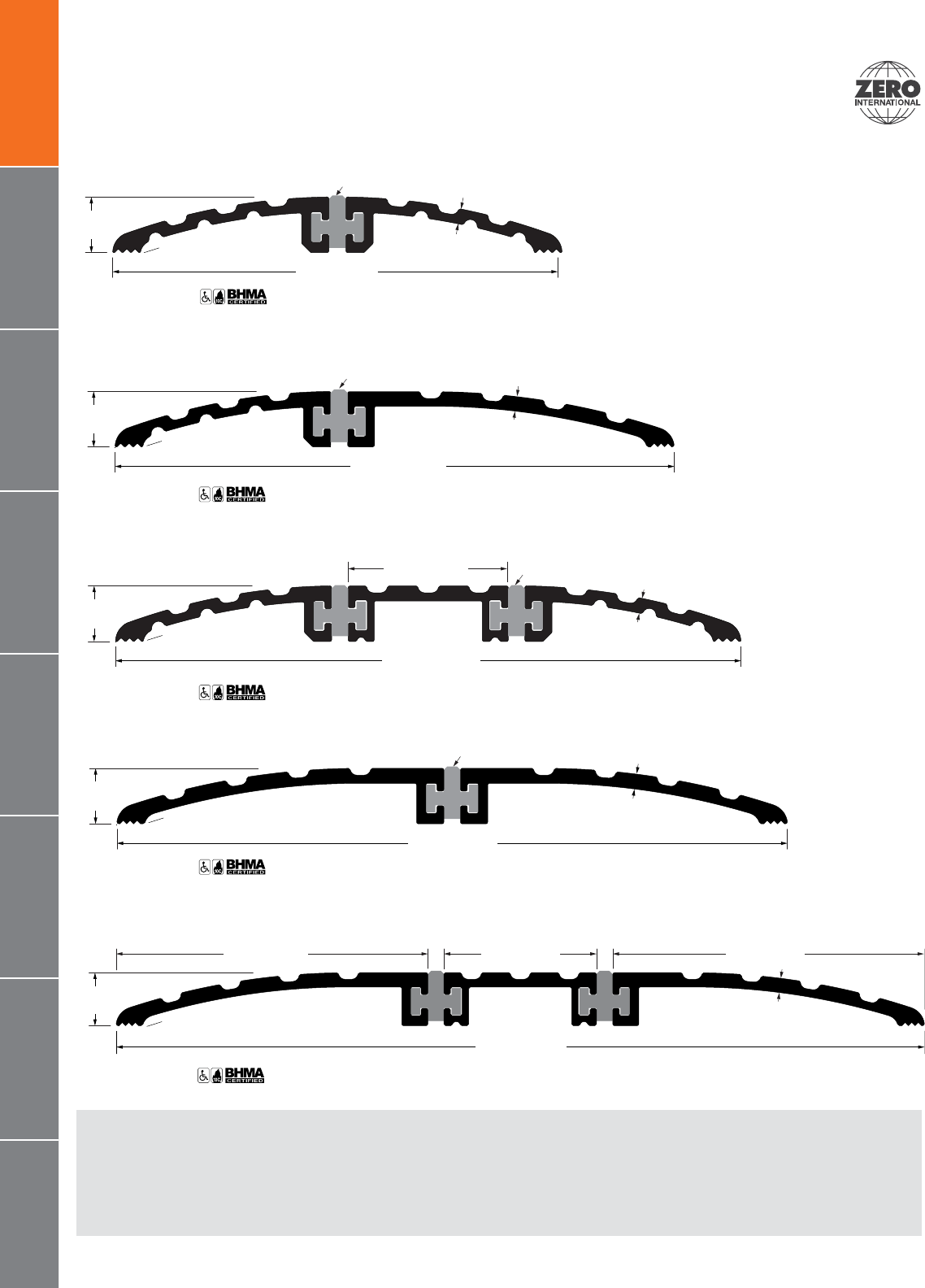

Interlocking thresholds

70.......................................................................................................................................34

76 .......................................................................................................................................34

73 .......................................................................................................................................34

80 ......................................................................................................................................34

175 .....................................................................................................................................34

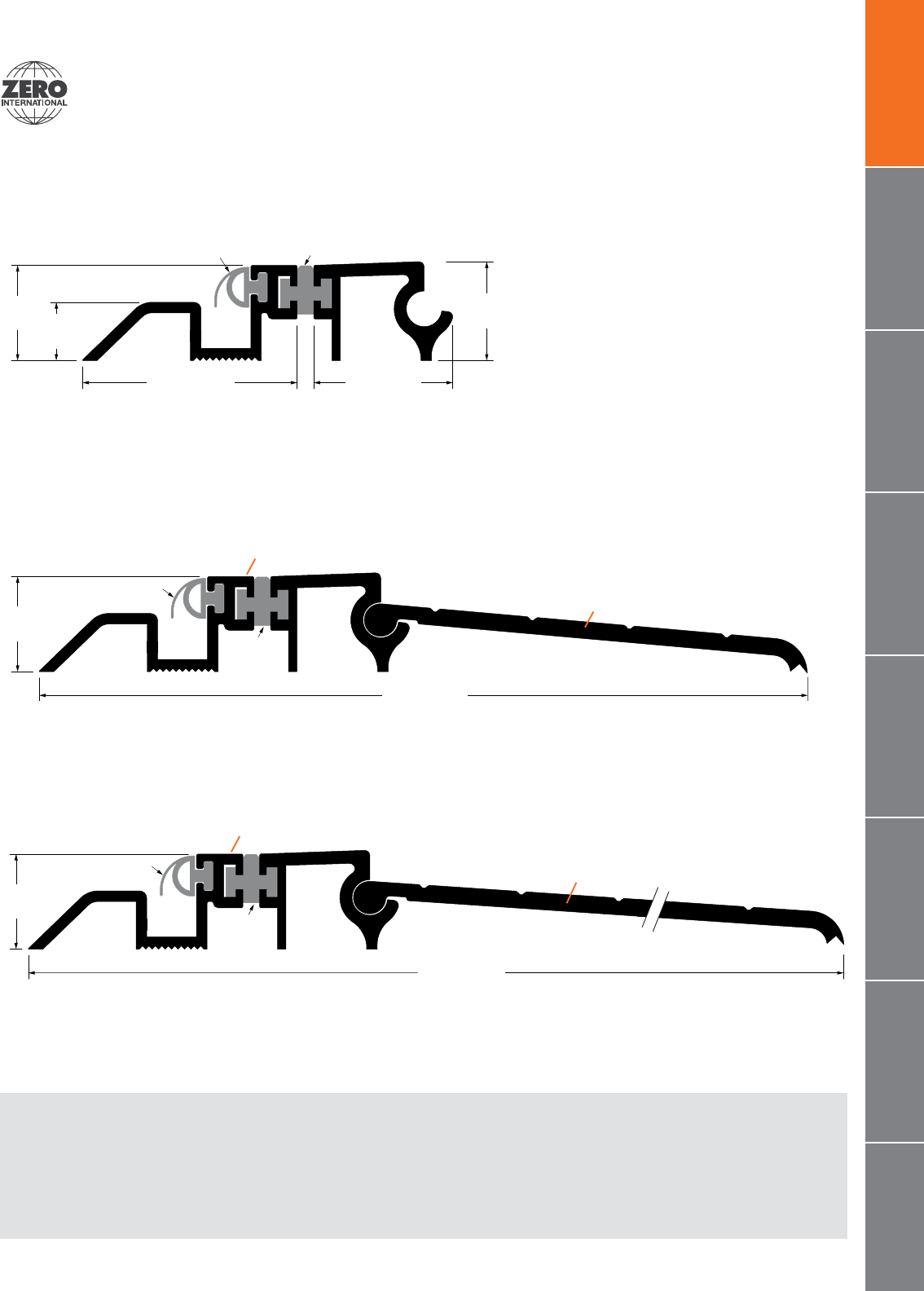

Adjustable interlocking bronze threshold systems

7000 .................................................................................................................................35

7332 ..................................................................................................................................35

7334 ..................................................................................................................................35

7335 ..................................................................................................................................36

7336 ..................................................................................................................................36

7337 ..................................................................................................................................36

7338 .................................................................................................................................. 37

7338/7334 ...................................................................................................................... 37

7338/7335 ...................................................................................................................... 37

Specialized threshold solutions

Adjustable thresholds – bulkhead systems .........................................................38

Roof curb thresholds ...................................................................................................38

8452 Wheelchair accessible shower threshold ...................................................38

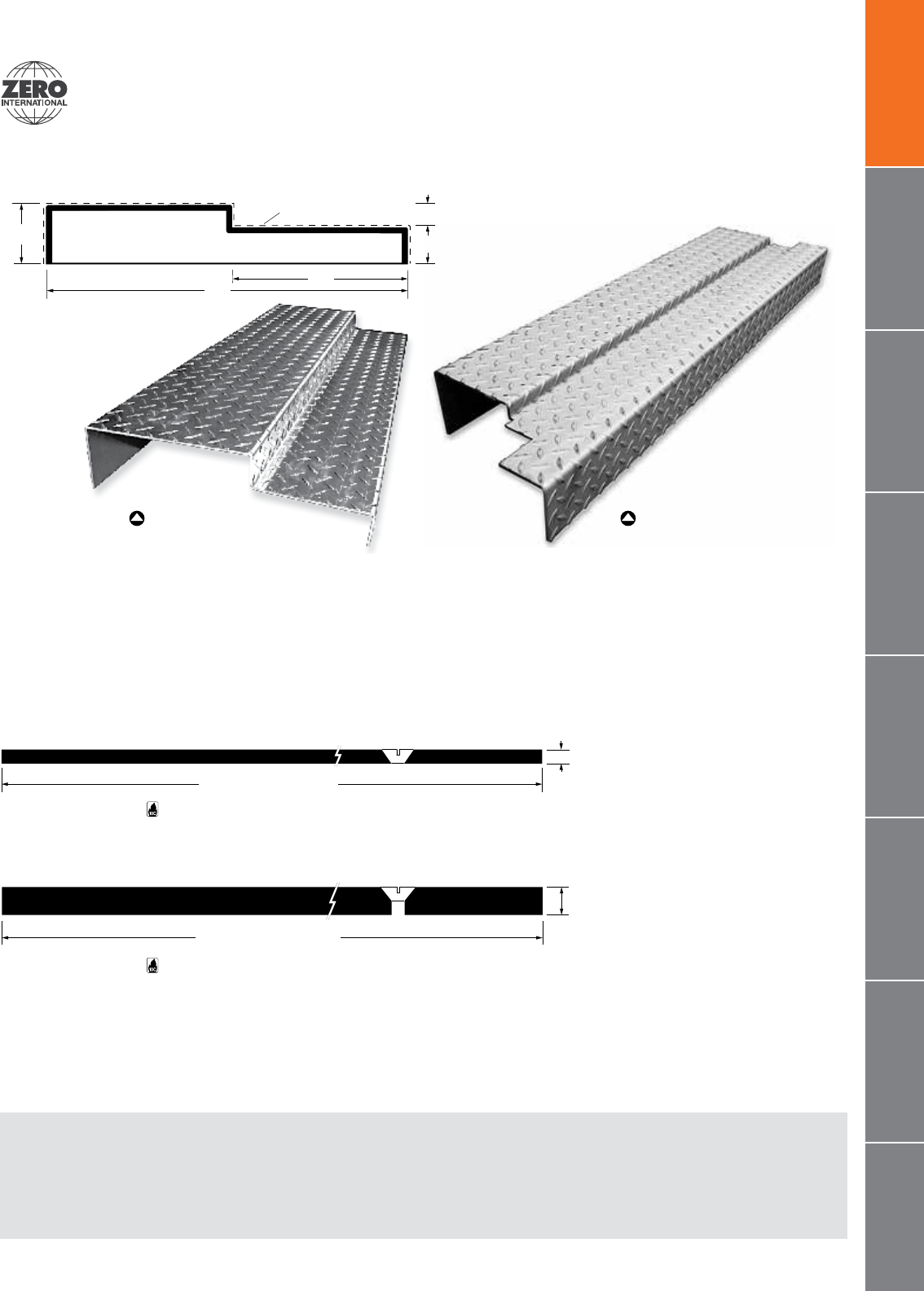

Diamond-plate bulkhead thresholds .....................................................................39

Aluminum cover plates ...............................................................................................39

600CP .............................................................................................................................39

601CP ...............................................................................................................................39

Cover plate assemblies for ﬂoor-mounted automatic door closers ............ 40

657 ................................................................................................................................... 40

6575 ................................................................................................................................. 40

www.zerointernational.com • Door sealing systems • Zero • 9

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Legs not required

.187"(4.7)

.070"(1.8)

Claw-grip edge

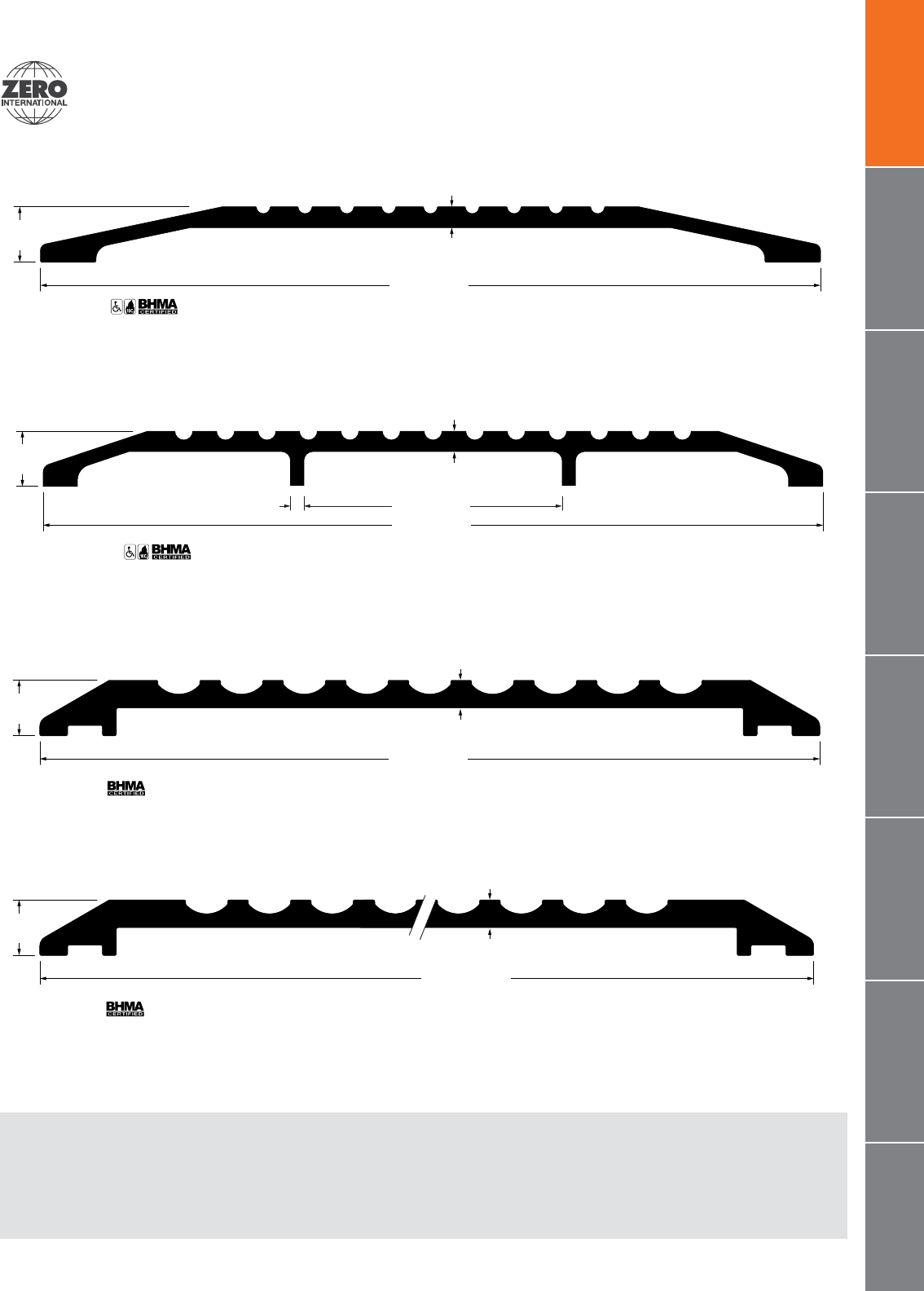

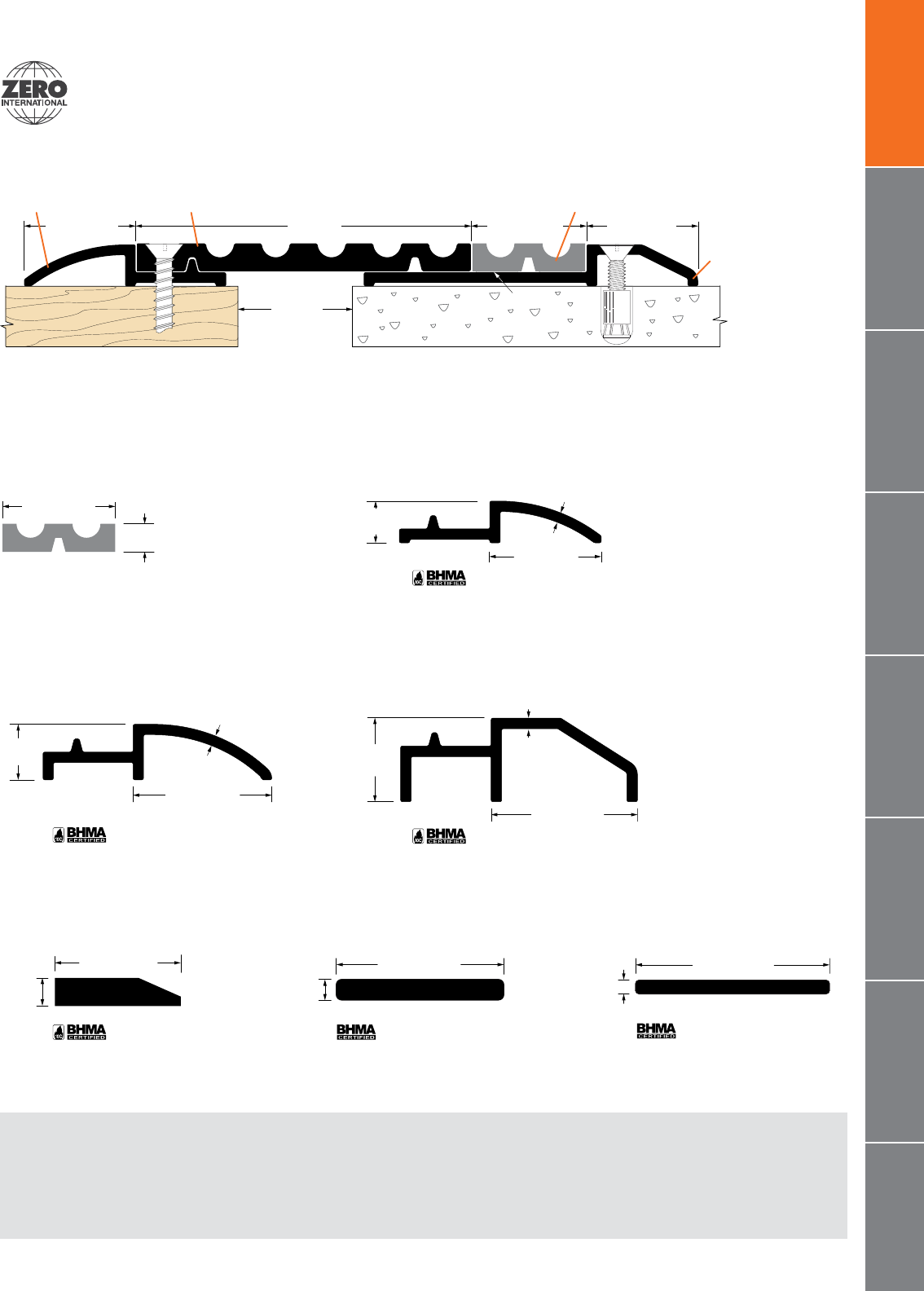

High quality thresholds with

broad application coverage

ZERO thresholds feature top-

quality materials and construction,

designed to stand up to the

demands of heavy trac

applications as well as those with

extreme temperature differentials.

The heavy-gauge material allows

you to drill and screw our

thresholds directly into concrete

without the diculties common

when using lighter commercial

materials, such as buckling under

heavy loads or loose screws.

Thresholds Introduction

A variety of types of thresholds are available to accommodate the speciﬁc needs

of your application. With unique options such as:

Energy-ecient thermal-break thresholds – Specially designed to prevent

the transfer of outside temperature and frost to the interior side of the door

Adjustable-width systems – Features threshold rests that interlock with

various size plates. Much easier to trim and ﬁt than conventional, single-size

cast-bronze thresholds. Install without exposed screws on the base for better

aesthetics and durability.

Extruded bulb ﬁnger (EBF) double sealing system – Designed to ensure an

airtight seal even when doors are misaligned because of poor installation or

slightly warped. If the door fails to make contact with the bulb in this

neoprene gasket, the extra “ﬁnger” acts as a supplemental seal to block air

ﬂow.

Commercial and institutional facilities can beneﬁt from using them for both

interior and perimeter applications. Fire rated doors, ADA openings and sound

rated assemblies are just some of the applications that rely on specialized Zero

threshold solutions. Since thresholds serve many important purposes, from

increasing energy eciency of a building by restricting airﬂow to creating a

barrier for smoke, sound and light, it is crucial to standardize on high quality

materials with a robust design that are back by the Zero brand you can trust.

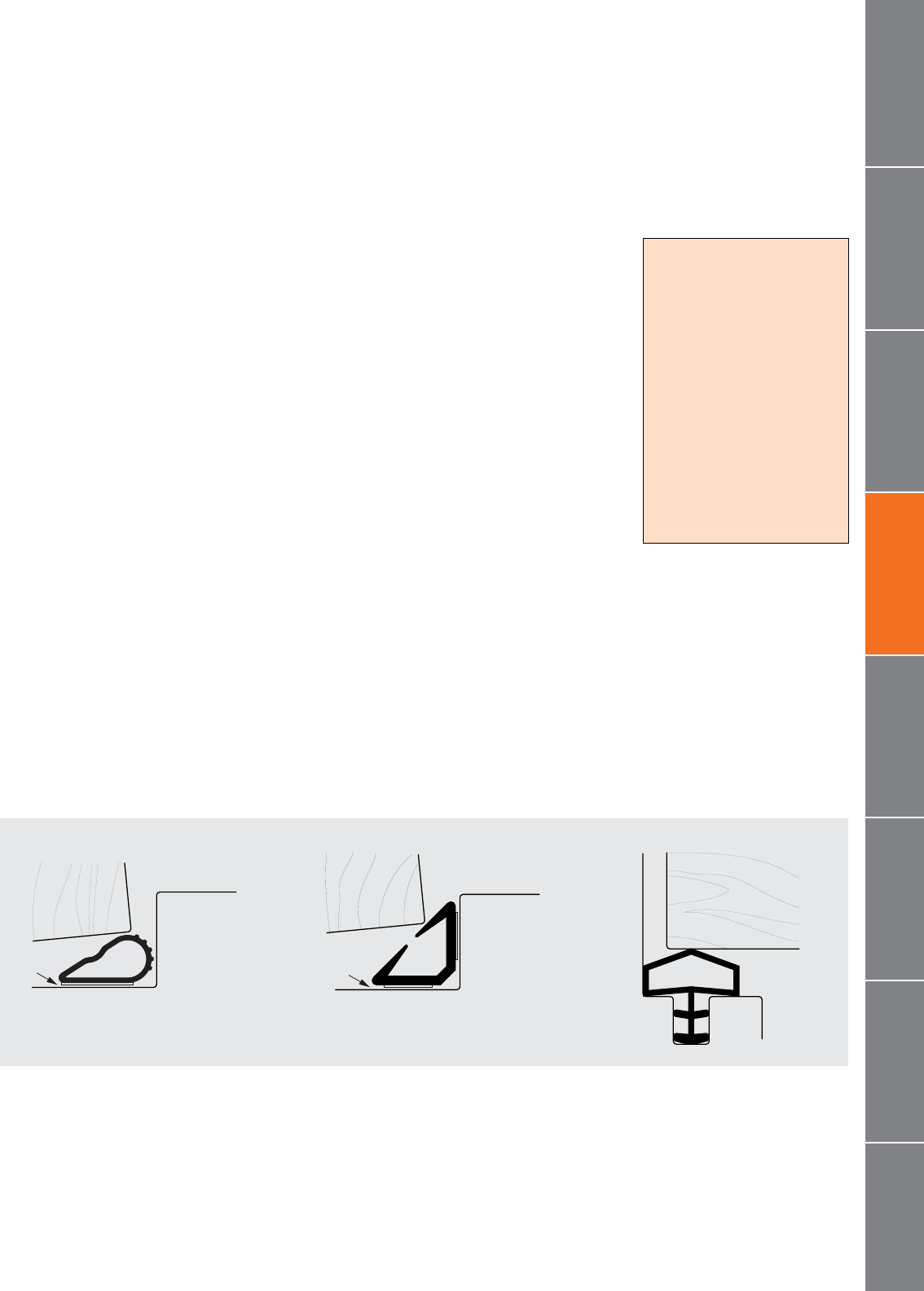

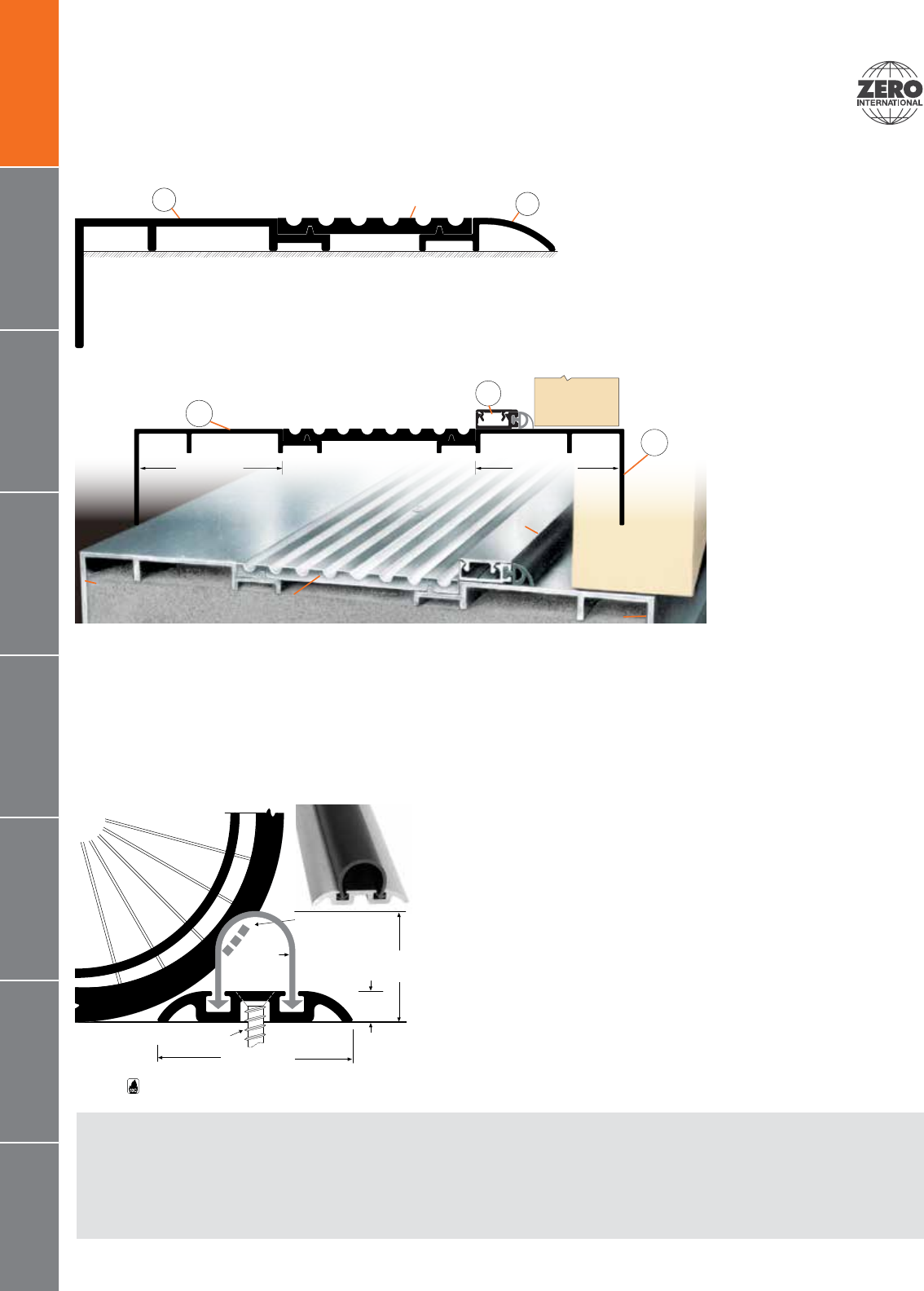

EBF (Extruded bulb/ﬁnger)

The Neoprene gasket is dsigned with an

extra lip for double seal protection, and

to compensate for any warping or

misalignment during installation.

Zero Compress-O-Matic®

Specify this

special feature

560A

654 Threshold

Typical light-gauge threshold

10 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

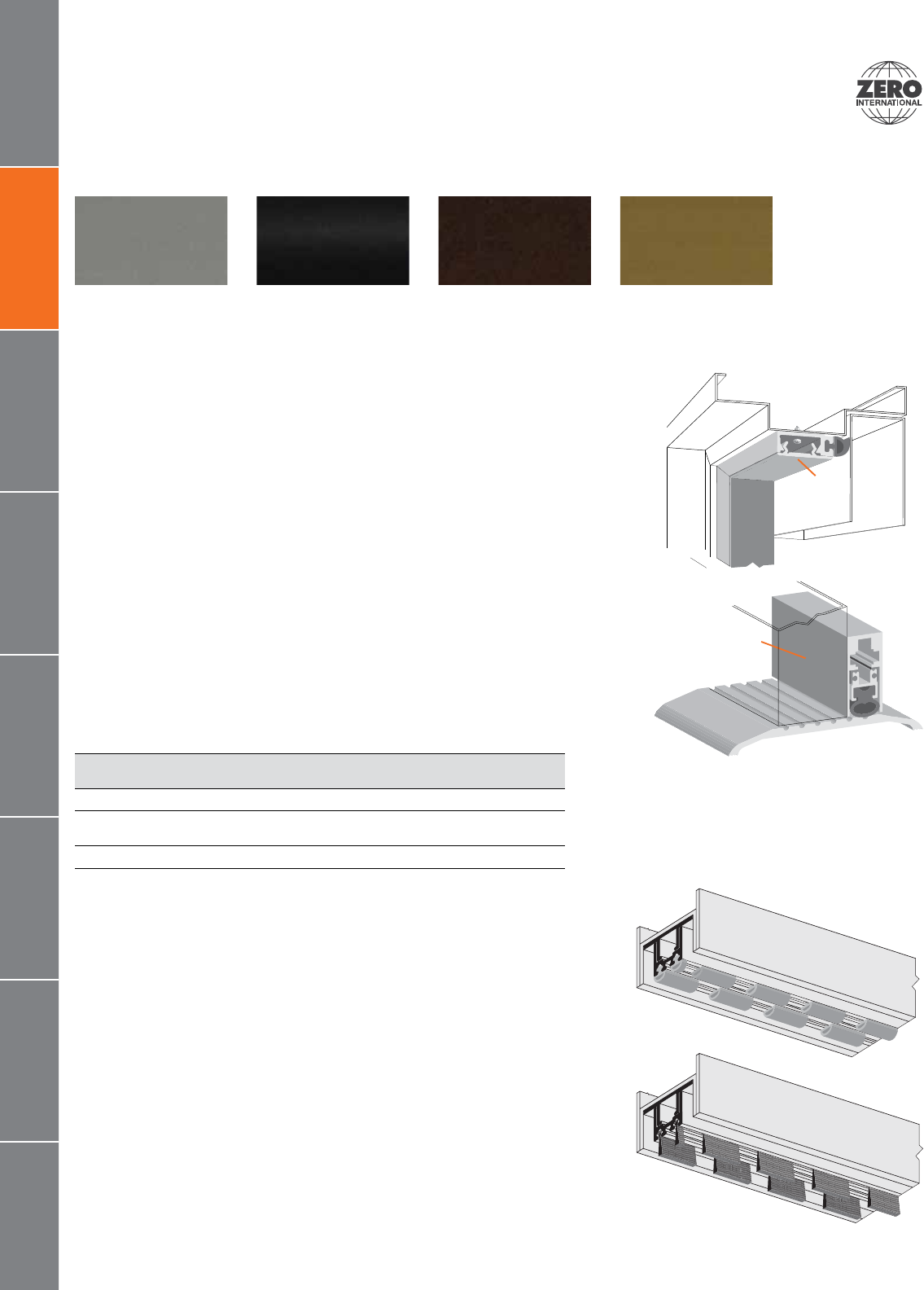

Accessories & options

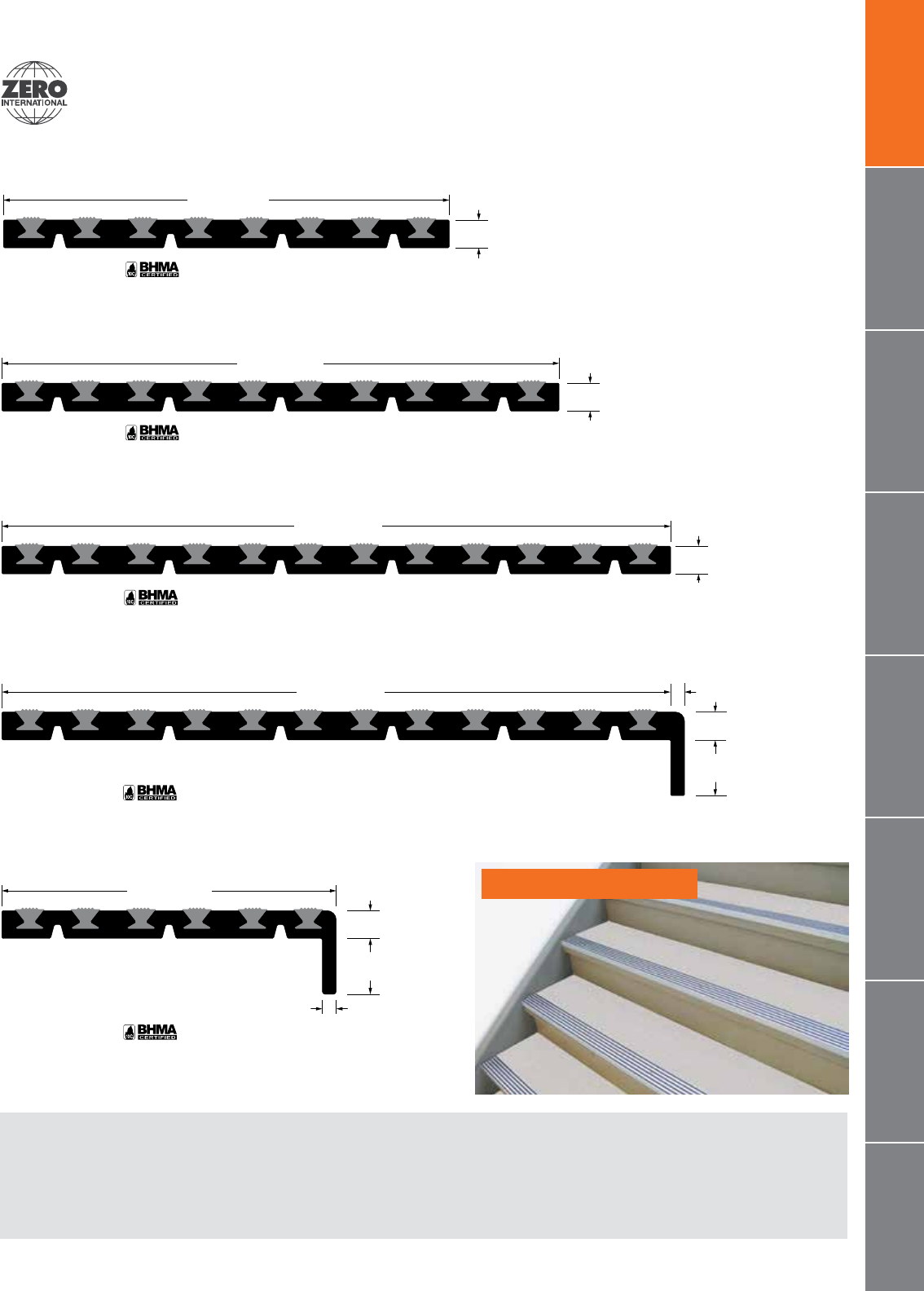

Non-slip epoxy abrasive (E or EL)

Thresholds can be ordered with non-slip epoxy abrasive particles bonded into the grooves, with (EL) or without (E)

photoluminescence for exit path markings. The tread provides a coecient of friction of 1.02 dry and 0.98 wet to comply

with ADA, OSHA and most local building code requirements.

Full body strength (V3)

An aluminum composite ﬁller containing aluminum oxide and silicon carbide. Available as option for most proﬁles, with

no requirement for customized extrusions. Ideal applications include: heavy commercial trac in supply rooms,

manufacturing plants, schools, cafeterias, automobile dealers, hospitals, industrial facilities.

No holes (NH)

Models supplied standard without mounting holes are noted on the product pages. All other models are supplied standard

with mounting holes. Specify NH to order models without mounting holes drilled.

Options

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy

tread, full body strength ﬁll

NH No holes

WH Weep hole (available on 76, 175 models only)

BV Beveled edges (length only - 600 and 601)

Aluminum Mill Finish

BK*

Black Anodized

(711, 315AN)

Aluminum Dark Bronze

Anodized (313AN)

Aluminum Gold Anodized

(688)

Bronze, Architectural

Mill Finish

B-ORB

Oil-Rubbed Bronze

(US10B/613)

B-SAT

Satin Polished Bronze

B-POL

High Buff Polished Bronze

Finishes

*Black, Dark Bronze and Gold anodized aluminum ﬁnishes will show wear over time and are not included in the standard warranty.

www.zerointernational.com • Door sealing systems • Zero • 11

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Accessories & options

Fasteners

Thresholds are supplied with the appropriate screws and quantities needed for installation based on

threshold width, unless noted to order separately. Use the part numbers below for ordering additional

screws, or ordering separately where indicated.

All-purpose screws

Part # Description Applicable threshold models Package contents

47254099 Threshold screw pack — Clear Anodized All “A” ﬁnish thresholds 4 screws #10 X 1-1/2"

FPHSMS

47254100 Threshold screw pack — Dark Bronze All “D” ﬁnish thresholds 4 screws #10 X 1-1/2"

FPHSMS Black ZP

47254101 Threshold screw pack — Bronze All “B” and “G” ﬁnish thresholds 4 screws #10 X 1-3/4“

FPHWS Brass

47254102 Threshold screw pack — Stainless Steel All “STST” ﬁnish thresholds 4 screws #10 X 1-1/4”

FPHSMS S.S.

47254101-10B Threshold screw pack — Oil Rubbed Bronze All ORB ﬁnish thresholds 4 screws #10 X 1-3/4”

FPHWS Brass, Oil Rubbed

Anchors for concrete installations

Part # Description/Model number Applicable threshold models Package contents

47257389 221-Plastic shield screw pack

Silver metallic ﬁnish

Screw pack for 221 4 plastic shields and 4

#10 X 1-1/4" FPHSMS

47257390 222-Lead shield screw pack

Silver metallic ﬁnish

Screw pack for 222 4 lead shields and 4

#10 X 1-1/4" FPHSMS

47257391 223-10-24 Concrete anchor screw pack

Silver metallic ﬁnish

Screw pack for 223 4 10-24 anchors with 4

#10-24 X 1-1/2" FPHMS

47257392 224-1/4-20 Concrete anchor screw pack

Silver metallic ﬁnish

Screw pack for 224 4 10-24 anchors with 4

1/4-20 X 1-1/2" FPHMS

47257393 226-S.S. Sleeve anchor 1/4X3"

Silver metallic ﬁnish

Screw pack for 226 4 sleeve anchors

221

Plastic shield

222

Lead shield

223

MSLA-10

Anchor with

machine screw

10/24

224

MSLA-4

Anchor with

machine screw

1/4-20

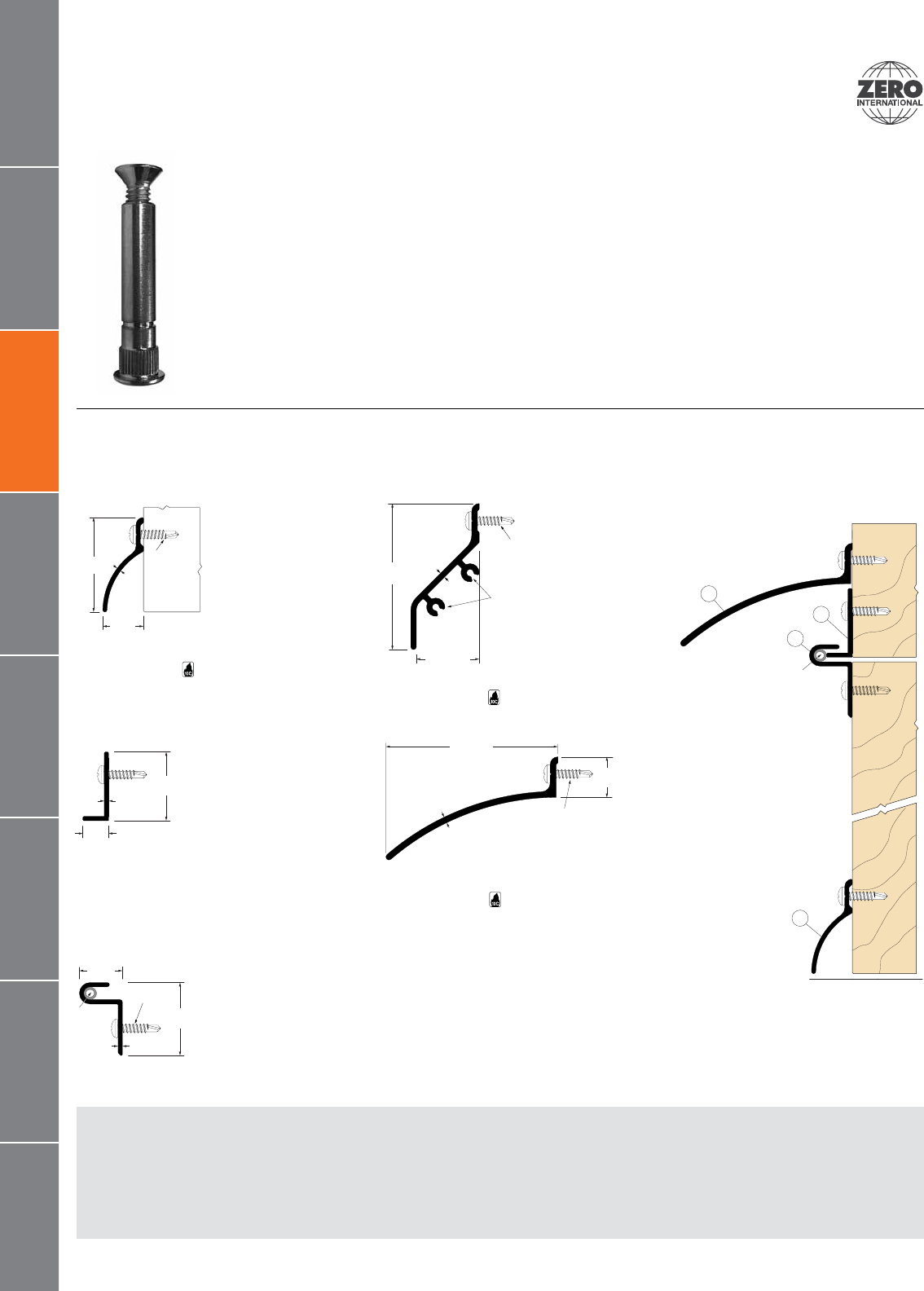

226

Stainless steel sleeve anchor

Optional for all thresholds

• An expansion anchor with

a unique ﬂat head machine

screw all in one unit.

• Easy installation. Place

threshold in position and drill

1/4" dia. x 3 1/2" deep hole

through countersunk hole in

threshold. Drop the anchor in

place and tighten with

screwdriver.

12 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Thresholds

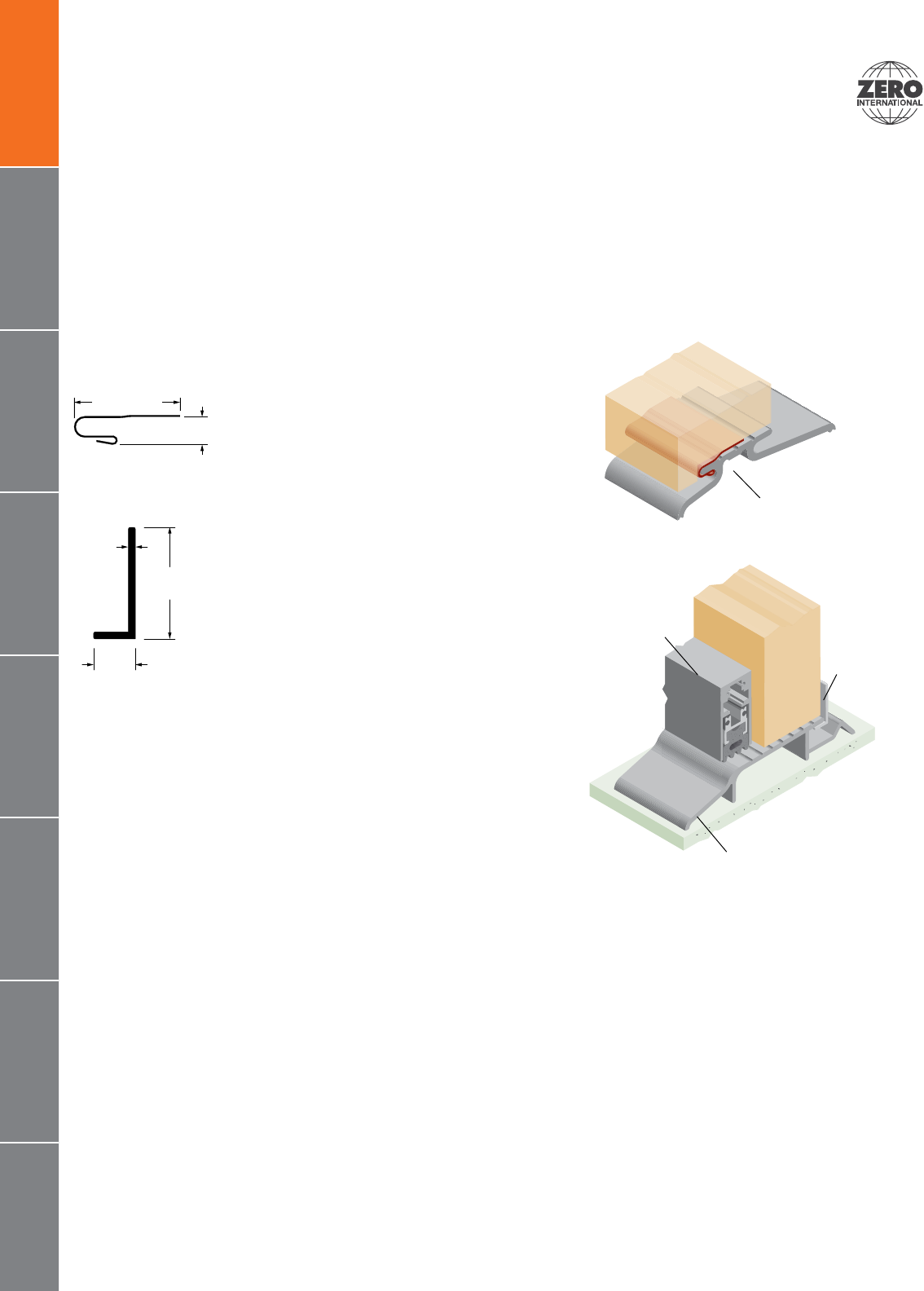

Accessories & options

Interlocking

Angle

#175

#361

Optional #25

23 Interlocking hook

25 Interlocking angle

Finishes:

A, BK, D, G

To order this accessory, please refer to How-to-Order instructions in the Perimeter Seals section. If you are

using an interim Thresholds catalog that does not include perimeter seals, please call Allegion Customer Care

for ordering assistance at: 877-671-7011, option 2 for technical services.

Note: Interlocking hook and angle can be used with 70, 76, 73, 80, 175

Replacement rubber seals

Replacement seals are available for threshold models containing rubber components.

See Appendix for replacement rubber seals. If viewing an interim catalog, contact technical support.

Protection from water inﬁltration and leakage

These accessories can be used with any interlocking threshold to impede water inﬁltration

around thresholds.

Interlocking Hooks

34 Gauge Bronze Spring

#23

.250"

(6.4)

.950"(24.1)

.062"

(1.6)

.375"

(9.5)

1.00"

(25.4)

www.zerointernational.com • Door sealing systems • Zero • 13

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Thresholds How to order

Thresholds order guide

How to order:

Model Finish Options Fasteners Length

63 A EV3 221 36

Model

Example

63 3" Saddle Threshold

546 6" Saddle Threshold

236 Ramp

674 Adjustable Threshold

1674 Half-Saddle Threshold

Finish

A - Aluminum Mill Finish

D - Aluminum Dark Bronze Anodized

G - Aluminum Gold Anodized

BK - Black Anodized

B - Bronze, Architectural Mill Finish

B-ORB - (US10B/613) Oil Rubbed, Aged Bronze

NOTE: No E,V3, EV3, EL, ELV3 if ORB is requested.

B-SAT** - Satin Polished Bronze

B-POL**- High Buff Polished Bronze

** - 7000, 7332, 7334, 7335, 7336, 7337, 7338 only

Options

Blank - no options

E - Epoxy Tread

EL - Photoluminescent and Epoxy Tread

V3 - Full Body Fill

EV3 - Epoxy and V3

ELV3 - Photoluminescent Epoxy and V3

NH - No Mounting Holes

WH - Weep Hole (available on 76, 175 models only)

BV - Beveled Edges (length only - 600 and 601 models only)

Fasteners

221 - Plastic Shield

222 - Lead Shield

223 - MSLA-10, Anchor with Machine Screw, 10-24

224 - MSLA-4, Anchor with Machine Screw, 1/4"-20

226 - Stainless Steel Anchor, 1/4" x 3"

Length

Use decimal to nearest 1/8" Increment

14 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

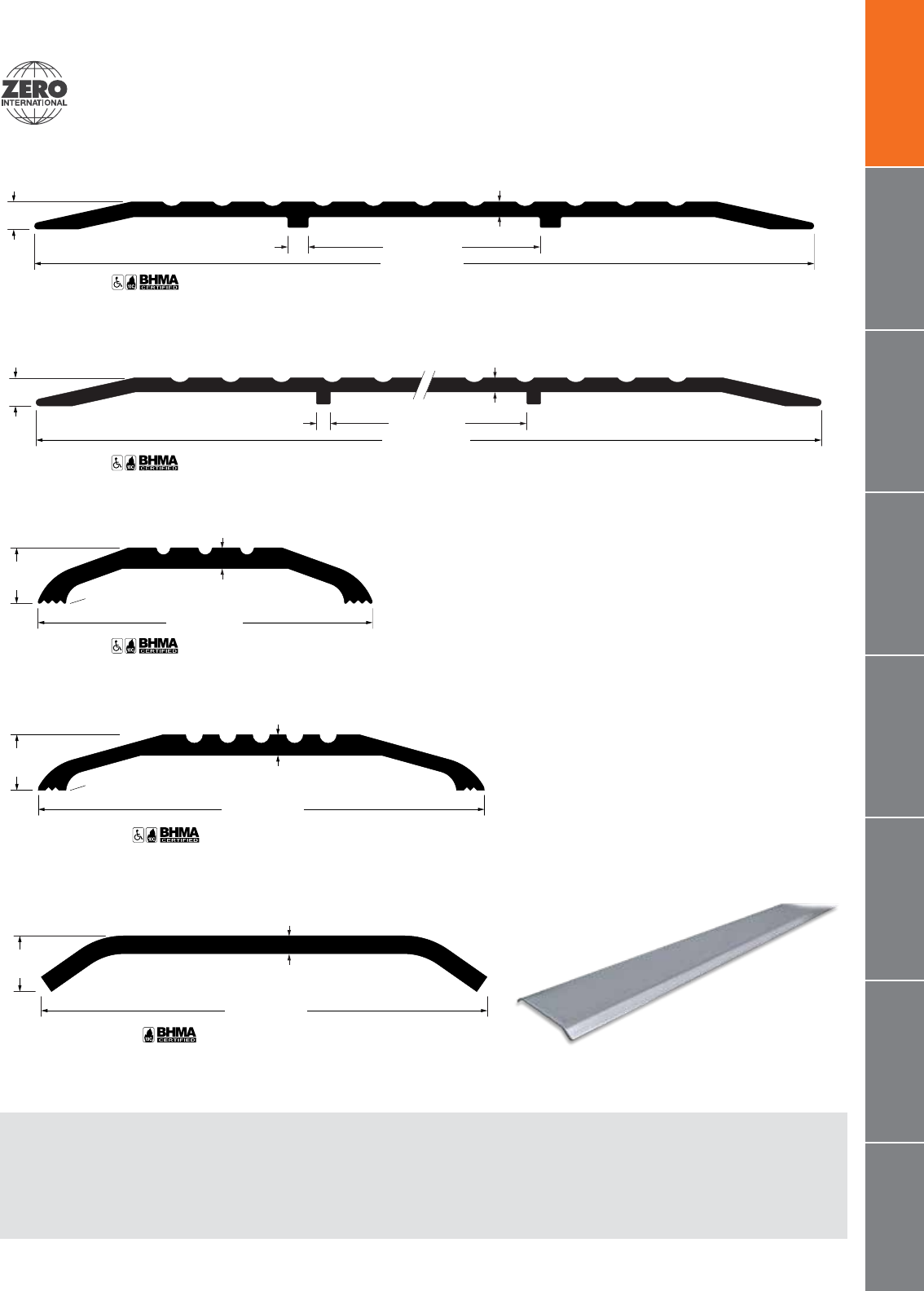

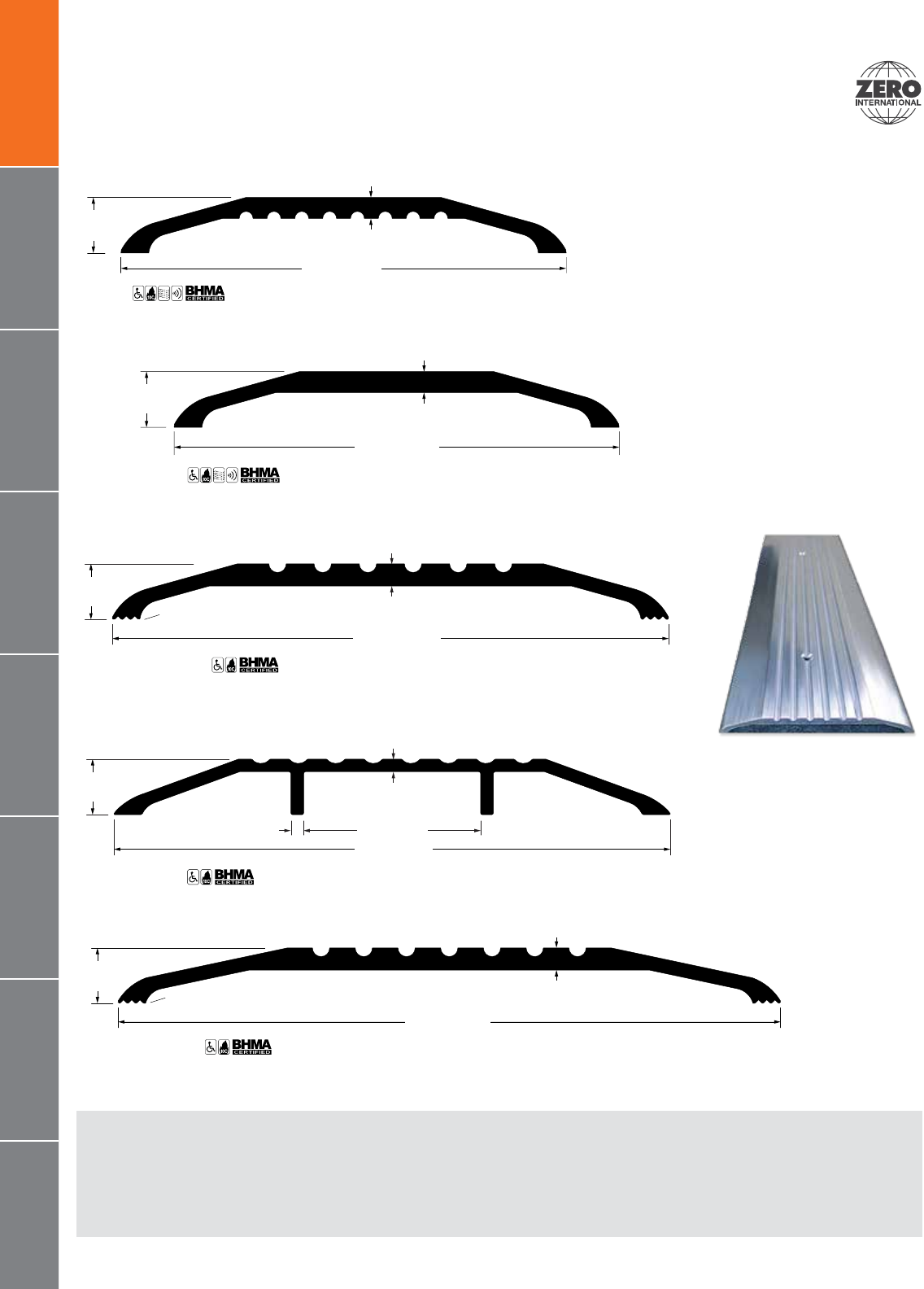

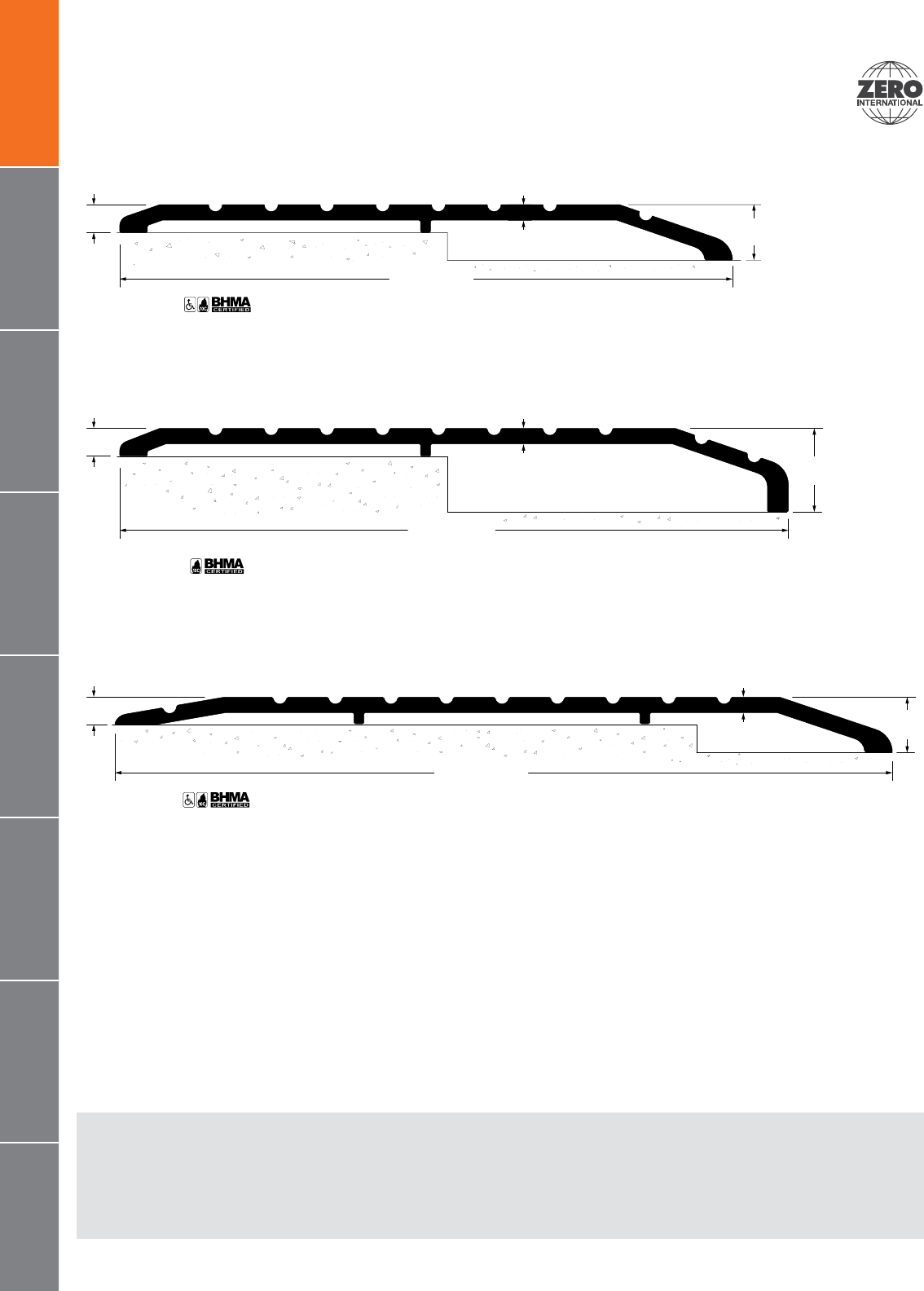

Saddle thresholds

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

63A, 63BK, 63D, 63G J32100, J32130

63A-E, 63BK-E, 63D-E, 63G-E J32200, J32230

544

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

544A, 544BK, 544D, 544G J32100, J32130

544A-E, 544BK-E, 544D-E, 544G-E J32200, J32230

545

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

545A, 545BK, 545D, 545G J32100, J32130

545A-E, 545BK-E, 545D-E, 545G-E J32200, J32230

545

.250"

(6.4)

.125"(3.2)

5.00"(127.0)

1.60"(40.6).125"(3.2)

546

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

546A, 546BK, 546D, 546G J32100, J32130

546A-E, 545BK-E, 546D-E, 546G-E J32200, J32230

Supplied without mounting holes.

546

.250"

(6.4)

.140"(3.6)

6.00"(152.4)

2.00"(50.8).188"(4.8)

545B

Finishes:

B, B-ORB

Options:

E, EL, V3,

EV3, ELV3

(not available for B-ORB ﬁnish)

ANSI/BHMA:

545B J12100, J12130

545B-E J12200, J12230

5.00"(127.0)

.250"

(6.4)

.125"(3.2)

.125"(3.2) 1.60"(40.6)

Claw-grip edge

545B

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

64A, 64BK, 64D, 64G J32100, J32130

64A-E, 64BK-E, 64D-E, 64G-E J32200, J32230

.250"

(6.4)

.125"

(3.2)

3.00"(76.2)

544

.250"

(6.4)

.125"(3.2)

4.00"(101.6)

1.50"(38.1).125"(3.2)

2.50"(63.5)

.125"

(3.2)

.250"

(6.4)

www.zerointernational.com • Door sealing systems • Zero • 15

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Saddle thresholds

653

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

653A, 653BK, 653D, 653G J32100, J32130

653A-E, 653BK-E, 653D-E, 653G-E J32200, J32230

653

3.00"(76.2)

.187"(4.7)

.500"

(12.7)

Claw-grip edge

547

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

547A, 547BK, 547D, 547G J32100, J32130

547A-E, 547BK-E, 547D-E, 547G-E J32200, J32230

Supplied without mounting holes.

547

.250"

(6.4)

.140"(3.6)

7.00"(177.8)

2.00"(50.8).188"(4.8)

548

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

548A, 548BK, 548D, 548G J32100, J32130

548A-E, 548BK-E, 548D-E, 548G-E J32200, J32230

Supplied without mounting holes.

548

.250"

(6.4)

.125"(3.2)

8.00"(203.2)

2.75"(69.8).125"(3.2)

654

.187"(4.7)

.500"

(12.7)

Claw-grip edge

4.00"(101.6)

654

Finishes:

A, BK, D, G,

B, B-ORB

Options:

E, EL, V3,

EV3, ELV3

(not available for B-ORB ﬁnish)

ANSI/BHMA:

654A, 654BK, 654D, 654G J32100, J32130

654A-E, 654BK-E, 654D-E, 654G-E J32200, J32230

654B J12100, J12130

654B-E J12200, J12230

664

Finishes:

Stainless

steel only

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

664STST J52300

664STST-E J52400

E-Epoxy recommended for public access openings

664

.160"

(4.1)

.500"

(12.7)

4.00"(101.6)

16 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Saddle thresholds

8655

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

8655A, 8655BK, 8655D, 865G J32100, J32130

8655A-E, 8655BK-E, 8655D-E, 8655G-E J32200, J32230

8655

.500"

(12.7)

5.00"(127.0)

.115"

(2.9)

1.60"(40.6).115"(2.9)

655

Finishes:

A, BK, D, G,

B, B-ORB

Options:

E, EL, V3,

EV3, ELV3

(not available for B-ORB ﬁnish)

ANSI/BHMA:

655A, 655BK, 655D, 655G J32100, J32130

655A-E, 655BK-E, 655D-E, 655G-E J32200, J32230

655B J12100, J12130

655B-E J12200, J12230

655

.200"(5.1)

.500"

(12.7)

5.00"(127.0)

Claw-grip edge (for 655A only)

656

Finishes:

A, BK, D, G,

B, B-ORB

Options:

E, EL, V3,

EV3, ELV3

(not available for B-ORB ﬁnish)

ANSI/BHMA:

656A, 656BK, 656D, 656E J32100, J32130

656A-E, 656BK-E, 656D-E, 656G-E J32200, J32230

656B J12100, J12130

656B-E J12200, J12230

Supplied without mounting holes.

656

6.00"(152.4)

.500"

(12.7)

Claw-grip edge

.200"(5.1)

164

Finishes:

A, BK, D, G

ANSI/BHMA:

164A, 164BK, 164D, 164G J32300, J32330

164A-E, 164BK-E, 164D-E, 164G-E J32400, J32430

Model #654 is a recommended alternative if epoxy and/or body strength ﬁlls are desired.

.187"(4.7)

4.00"(101.6)

.500"

(12.7)

164

164B

.187"(4.7)

4.00"(101.6)

.500"

(12.7)

164B

Finishes:

B, B-ORB

ANSI/BHMA:

164B J12100, J12130

164B-E J12200, J12230

Model #654 is a recommended alternative if epoxy and/or body strength ﬁlls are desired.

164B

.500"

(12.7)

4.00"(101.6)

.187"(4.7)

655A-V3 (Full body strength)

www.zerointernational.com • Door sealing systems • Zero • 17

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Saddle thresholds

647

Finishes:

B, B-ORB

Options:

E, EL, V3,

EV3, ELV3

(not available for B-ORB ﬁnish)

ANSI/BHMA:

647B J12100, J12130

647B-E J12200, J12230

Supplied without mounting holes.

6570

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

6570A, 6570BK, 6570D, 6570G J32100, J32130

6570A-E, 6570BK-E, 6570D-E, 6570G-E J32200, J32230

Supplied without mounting holes.

6570

.500"

(12.7)

.188"(4.8)

7.00"(177.8)

647

.500"

(12.7)

.187"(4.7)

7.00"(177.8)

2.30"(58.4)

.125"(3.2)

657

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

657A, 675BK, 657D, 657G J32100

657A-E, 675BK-E, 657D-E, 657G-E J32200

6575

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

657A, 675BK, 657D, 657G J32100

657A-E, 675BK-E, 657D-E, 657G-E J32200

657

.500"

(12.7)

.250"

(6.4)

7.00"(177.8)

6575

.500"

(12.7)

.250"(6.4)

7.500"(190.5)

Note: Model 6570 (see Saddle Thresholds section) may also be suitable for this application (Type 1 only), depending on conﬁguration with

ﬂoor-mounted automatic door closers. Check that the bevel allows adequate clearance.

18 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

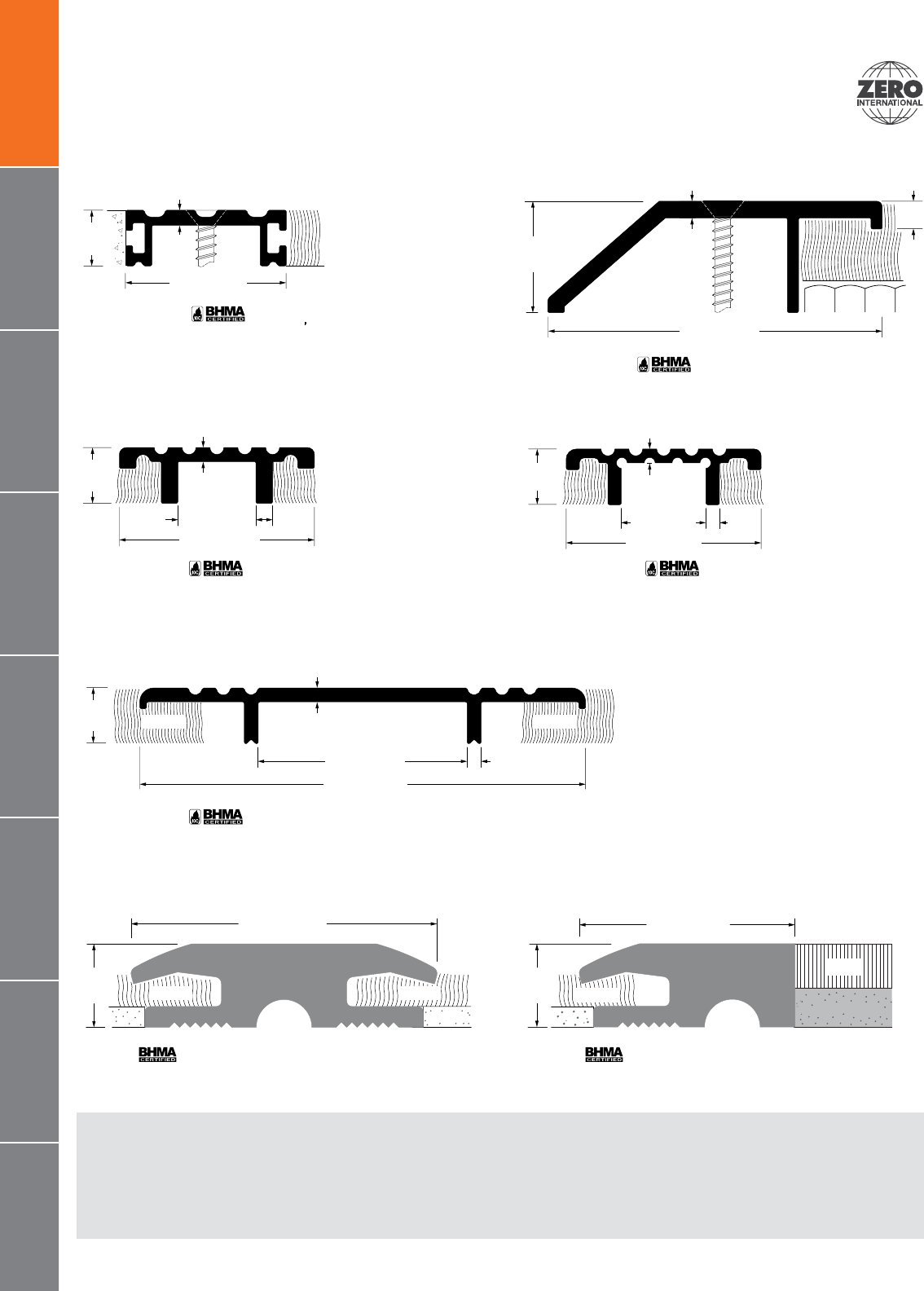

Half-saddle thresholds

1545

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

1545A, 1545D, 1545G, 1545BK J33100, J33130

1545A-E, 1545D-E, 1545G-E, 1545BK-E J33200, J33230

1545B

Finishes:

B, B-ORB

Options:

E, EL, V3,

EV3, ELV3

(not available

for ORB ﬁnish)

ANSI/BHMA:

1545B J13100, J13130

1545B-E J13200, J13230

1673

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

1673A, 1673D, 1673G, 1673BK J33100

1673A-E, 1673D-E, 1673G-E, 1673BK-E J33200

Note: Notch allows use with adjustable threshold system. (See p.23)

1674

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

1674A, 1674D, 1674G, 1674BK J33100

1674A-E, 1674D-E, 1674G-E, 1674BK-E J33200

Note: Notch allows use with adjustable threshold system. (See p.23)

1675

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

1675A, 1675D, 1675G, 1675BK J33100, J33130

1675A-E, 1675D-E, 1675G-E, 1675BK-E J33200, J33230

Note: Notch allows use with adjustable threshold system. (See p.23)

1673

.250"

(6.4)

Claw-grip edge

Notch

3.00"(76.2)

.500"

(12.7)

1674

.250"

(6.4)

Claw-grip edge

Notch

4.00"(101.6)

.500"

(12.7)

1675

.250"

(6.4)

Claw-grip edge

Notch

5.00"(127.0)

.500"

(12.7)

1545

2.500"(71.5)

.250"

(6.4)

.125"

(3.2)

1545B

.125"(3.2)

2.500" (71.5)

Claw-grip edge

.250"

(6.4)

Finishes:

B, B-ORB

ANSI/BHMA:

15B J13100, J14170

.318"

(8.1)

.105"(2.7)

1.400"(35.6)

304

Finishes:

A, BK, D, G

ANSI/BHMA:

304A, 304D, 304G, 304BK J33300, J34170

304

37"

(11.1)

.125"

(3.2)

1.500"(38.1)

www.zerointernational.com • Door sealing systems • Zero • 19

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

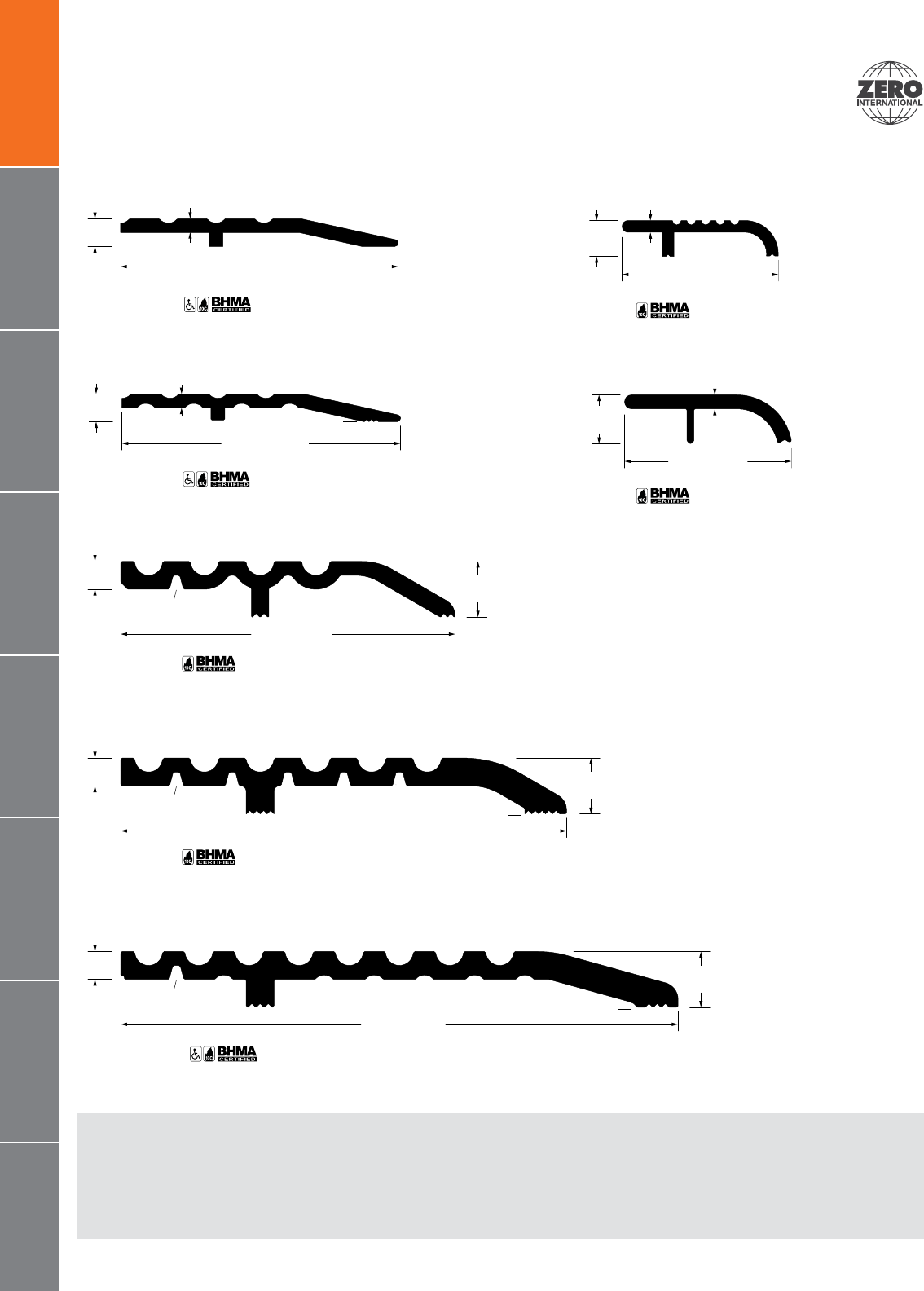

Half-saddle threshold

Thresholds

523

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

523A, 523D, 523G, 523BK J33100

523A-E, 523D-E, 523G-E, 523BK-E J33200

524

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

524A, 524D, 524G, 524BK J33100

524A-E, 524D-E, 524G-E, 524BK-E J33200

Neoprene extruded bulb/ﬁnger for double-sealing protection.

523

Tile

Claw-grip edge

.187"(4.7)

2.910"(73.9)

.875"

(22.2)

524

Claw-grip edge

.187"(4.7)

2.910"(73.9)

.875"

(22.2)

EBF seals

623

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

623A, 623D, 623G, 623 BK J33100

623A-E, 623D-E, 623G-E, 623BK-E J33200

Also suitable for use as carpet divider threshold.

ADA compliant when installed ﬂush with the ﬂooring

622

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

622A, 622D, 622G, 622BK J33100

622A-E, 622D-E, 622G-E, 622BK-E J33200

Also suitable for use as carpet divider threshold.

ADA compliant when installed ﬂush with the ﬂooring

623

Tile

.500"

(12.7)

Claw-grip edge

.135"(3.4)

2.940"(74.7)

622

.500"

(12.7)

Claw-grip edge

1.940"(49.3)

.135"(3.4)

Tile

627

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

627A, 627D, 627G, 627BK J33100

627A-E, 627D-E, 627G-E, 627BK-E J33200

Neoprene extruded bulb/ﬁnger for double-sealing protection.

628

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

628A, 628D, 627G, 627BK J33100

628A-E, 628D-E, 628G-E, 628BK-E J33200

Neoprene extruded bulb/ﬁnger for double-sealing protection.

627

.500"

(12.7)

1.940"(49.3)

.135"

(3.4)

EBF seal

Claw-grip edge

628

2.940" (74.7)

.135"

(3.4)

.500"

(12.7)

Claw-grip edge

EBF

seal

20 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

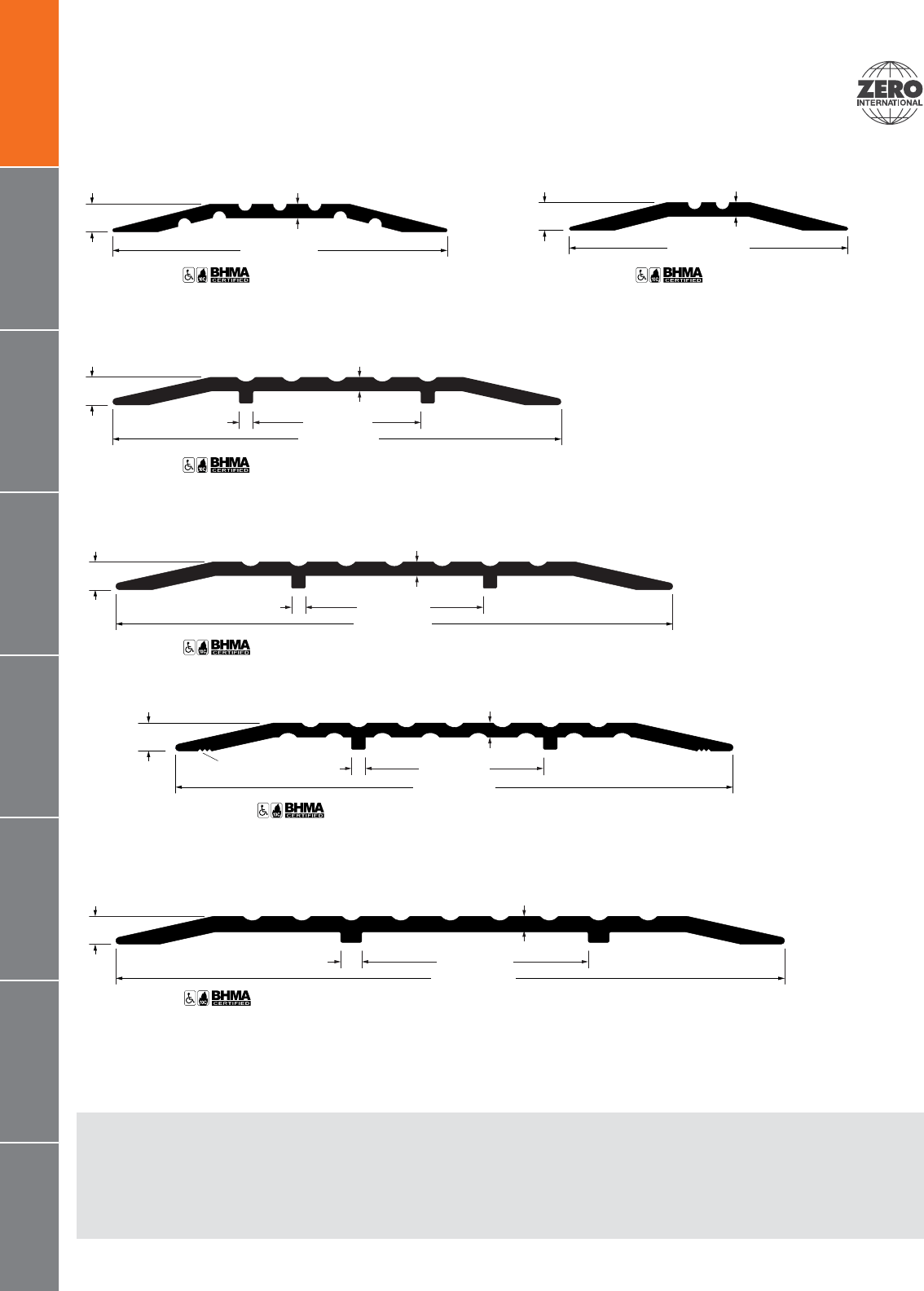

Offset thresholds

102

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

102A, 102D, 102G, 102BK J32180

102A-E, 102D-E, 102G-E, 102BK-E J32280

Handicap offset. Supplied without mounting holes.

103

Finishes:

A, BK, D, G

Options:

E, EL”

ANSI/BHMA:

103A, 103D, 103G, 103BK J32180

103A-E, 103D-E, 103G-E, 103BK-E J32280

Handicap offset. Supplied without mounting holes.

104

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

104A, 104D, 104G, 104BK J32180

104A-E, 104D-E, 104G-E, 104BK-E J32280

Supplied without mounting holes.

102

.250

(6.4)

5.500"

(139.7)

.500"

(12.7)

.140"(3.6)

104

.250

(6.4)

.750"

(19.1)

.140"(3.6)

6.00"(152.4)

103

.250

(6.4) .500"

(12.7)

.140"(3.6)

7.00"(177.8)

www.zerointernational.com • Door sealing systems • Zero • 21

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Rabbeted thresholds

564

Finishes:

A, BK, D, G

B, B-ORB

Options:

E, EL, V3,

EV3, ELV3

(not available for

B-ORB ﬁnish)

ANSI/BHMA:

564A, 564D, 564G, 564BK J36300

564A-E, 564D-E, 564G-E, 564BK-E J36400

564B J16300

564B-E J16400

Suitable for sound control applications and OEM use.

Neoprene extruded bulb/ﬁnger for double-sealing protection.

566

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

566A, 566D, 566G J36100, J36130

566A-E, 566D-E, 566G-E, 566BK-E J36200, J36230

Neoprene extruded bulb/ﬁnger for double-sealing protection.

568

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

568A, 568D, 568G, 568BK J36100

568A-E, 568D-E, 568G-E, 568BK-E J36200

Neoprene extruded bulb/ﬁnger for double-sealing protection.

567

Finishes:

B, B-ORB

Options:

E, EL, V3,

EV3, ELV3

(not available for

B-ORB ﬁnish)

ANSI/BHMA:

567B J16100

567B-E J16200

Extruded bulb/ﬁnger for double-sealing protection.

564

EBF seal

3.687"(93.6)

.125"(3.2)

1.750"(44.5)

.500"

(12.7)

566

.125"(3.2)

1.750"(44.5)

.500"

(12.7)

EBF seal

5.00"(127.0)

.250"

(6.4)

567

.125"(3.2)

1.750"(44.5)

.500"

(12.7)

EBF seal

5.00"(127.0)

568

.125"(3.2)

1.750"(44.5)

.500"

(12.7)

EBF seal

6.00"(152.4)

.125"(3.2)

22 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

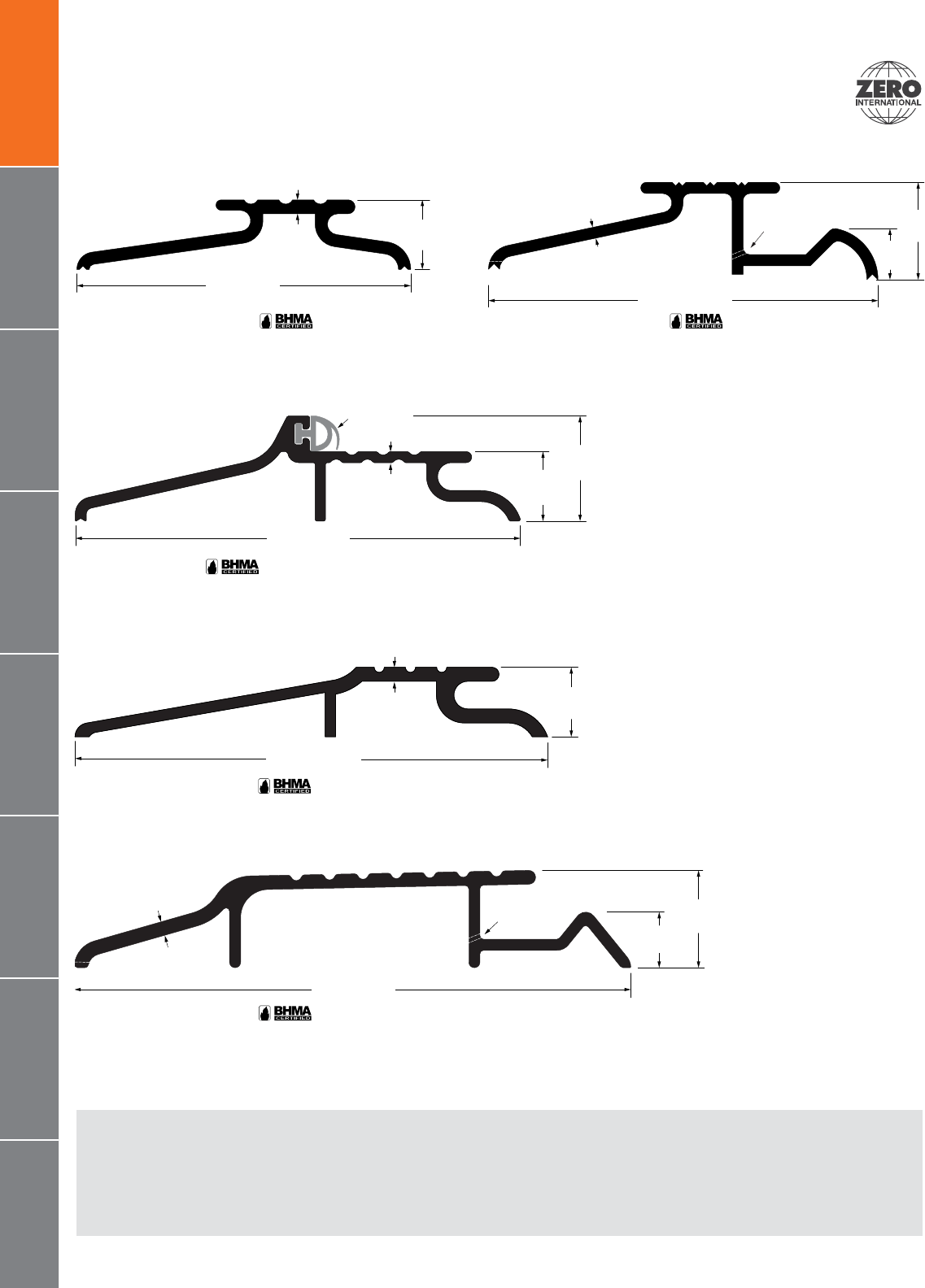

Rabbeted thresholds–standard

267

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

267A, 264D, 267G, 267BK J36300

267A-E, 267D-E, 267G-E, 267BK-E J36400

Suitable for uneven ﬂoors.

Neoprene extruded bulb/ﬁnger for double-sealing protection.

265

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

265A, 265D, 265G, 265BK J36300

265A-E, 265D-E, 265G-E, 265BK-E J36400

For latch track hardware.

Neoprene extruded bulb/ﬁnger for double-sealing protection.

Finishes:

A, BK, D, G,

B, B-ORB

Options:

E, EL

(not available

for ORB ﬁnish)

ANSI/BHMA:

65A, 65D, 65G, 65BK J36100, J36130

65A-E, 65D-E, 65G-E, 65BK-E J36200, J36230

65B J16100, J16130

65B-E J16200, J16230

For latch track hardware.

560

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

560A, 560D, 560G, 560BK J36100

560A-E, 560D-E, 560G-E, 560BK-E J36200

For latch track hardware.

Neoprene extruded bulb/ﬁnger for double-sealing protection.

267

2.155" (54.7)

Tile

EBF seal

Claw-grip edge

1.750"(44.5)

.625"

(15.9) .250"

(6.4)

663

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

663A, 663D, 663G , 663BK J37360, J373360

663A-E, 663BK-E, 663D-E, 663G-E J37400, J37436

Rabbeted, butt & transition.

Supplied without mounting holes.

663

.375"

(9.5)

2.00"(50.8)

3.00"(76.2)

.094"(2.4)

.125"

(3.2)

265

.125"(3.2)

For latch track hardware

EBF seal

Claw-grip edge

1.750"(44.5)

.625"

(15.9).250"

(6.4)

5.00"(127.0)

Silicone

Claw-grip edge

.500"

(12.7) .250"

(6.4)

3.125"(79.4)

.125"(3.2)

5.00"(127.0)

Specially designed for bottom-latching

exits and locks.

560

.875"

(22.2)

5.00"(127.0)

.135"(3.4)

.500"

(12.7)

EBF seal

3.063"(77.8)

Claw-grip edge

#560

www.zerointernational.com • Door sealing systems • Zero • 23

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Rabbeted thresholds

561

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

561A, 561D, 561G, 561BK J36100

561A-E, 564D-E,561G-E, 561BK-E J36200

Neoprene extruded bulb/ﬁnger for double-sealing protection.

563

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

563A, 563D, 563G, 563BK J36100

563A-E, 563D-E, 563G-E, 563BK-E J36200

Neoprene extruded bulb/ﬁnger for double-sealing protection.

565

Finishes:

A, BK, D, G,

B, B-ORB

Options:

E, EL, V3,

EV3, ELV3

(not available

for B-ORB ﬁnish)

ANSI/BHMA:

565A, 565D, 565G, 565BK J36100

565A-E, 565D-E, 565G-E, 565BK-E J36200

565B J16100

565B-E J16200

Neoprene extruded bulb/ﬁnger for double-sealing protection.

561

EBF seal

Claw-grip edge

1.00"

(25.4)

.500"

(12.7)

2.750"(69.9)

.140"(3.6)

4.500"(114.3)

1.750"(44.5)

.500"

(12.7)

EBF seal

Claw-grip edge

.875"

(22.2)

.135"(3.4)

3.562"(90.5)

563

.500"

(12.7)

.875"

(22.2)

EBF seal

Claw-grip edge

4.860"(123.4)

1.750"(44.5)

.203"(5.2)

565

24 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Note:

Special anchors available for mounting

most thresholds on concrete surfaces.

Width dimensions for thresholds on this

page are nominal. Slight variations may

result from thermal break manufacturing.

Thermal break thresholds

624

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

624A, 624D, 624G, 624BK J32139

624A-E, 624D-E, 624G-D, 624BK-E J32239

625

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

625A, 625BK, 625D, 625G J32139

625A-E, 625BK-E, 625D-E, 625G-E J32239

8724

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

8724A, 8724D, 8724G, 8724BK J32139

8724A-E, 8724D-E, 8724G-E, 8724BK-E J32239

626

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

626A, 626D, 626G, 626BK J32139

626A-E, 626D-E, 626G-D. 626BK-E J32239

8726

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

8726A, 8726D, 8726G, 8726BK J32139

8726A-E, 8726D-E, 8726G-E, 8726BK-E J32239

624

.500"

(12.7)

4.00"(101.6)

PVC Break .135"(3.4)

Claw-grip edge

625

.500"

(12.7)

5.00"(127.0)

Claw-grip edge

.135"(3.4)

PVC Break

8724

.500"

(12.7)

Claw-grip edge

5.625"(142.9)

PVC Break

1.440"(36.6)

.135"(3.4)

626

.500"

(12.7)

Claw-grip edge

PVC Break .135"(3.4)

6.00"(152.4)

8726

.500"

(12.7)

7.625"(193.7)

1.440"(36.6)

.135"(3.4)

Full illustration not to scale

Claw-grip edge

2.940"(74.7)2.940"(74.7)

www.zerointernational.com • Door sealing systems • Zero • 25

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Thresholds

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Width dimensions for thresholds on this page

are nominal. Slight variations may result from

thermal break manufacturing.

.500"

(12.7)

.875"

(22.2)

EBF seal

Claw-grip edge

.187"(4.7)

1.890"(48.0)

.135"(3.4)

5.00"(127.0)

525

Thermal break thresholds

525

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

525A, 525BK, 525D, 525G J36190

525A-E, 525BK-E, 525D-E, 525G-E

Neoprene extruded bulb/ﬁnger for double-sealing protection.

526

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

526A, 526BK, 526D, 526G J36190

526A-E, 526BK-E, 526D-E, 526G-E J36290

Neoprene extruded bulb/ﬁnger for double-sealing protection.

8729

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

8729A, 8729BK, 8729D, 8729G J36190

8729A-E, 8729BK-E, 8729D-E, 8729G-E J36290

Neoprene extruded bulb/ﬁnger for double-sealing protection.

.500"

(12.7)

.875"

(22.2)

EBF seal

Claw-grip edge

6.00"(152.4)

.187"(4.7)

2.940"(74.7)

.135"(3.4)

526

.500"

(12.7)

.875"

(22.2)

.187"(4.7)

6.625" (168.3)

EBF seal

Claw-grip edge

.135"(3.4)

3.500"(88.9)

8729

26 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Carpet divider thresholds

522

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

522A, 522BK, 522D, 522E J32140

522A-E, 522BK-E, 522D-E, 522G-E J32240

1685R

Finishes:

Black only

ANSI/BHMA:

1685R J72340

Tractio n Tread ™ rubber for non-rated door. Supplied without mounting holes.

1686R

Finishes:

Black only

ANSI/BHMA:

1686R J73340

Tractio n Tread ™ rubber for non-rated door. Supplied without mounting holes.

522

.500"

(12.7)

1.440"(36.6)

.135"(3.4)

1682

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

1682A, 1682BK, 1682D, 1682G J32140

1682A-E, 1682BK-E, 1682D-E, 1682G-E J32240

1682

.500"

(12.7)

.125"(3.2)

.500"

(12.7)

1.750"(44.5)

.700"(17.8) .150"

(3.8)

1682B

.760"(19.3)

1.750"(44.5)

.120"

(3.0)

1684

.500"

(12.7)

.125"(3.2)

CarpetCarpet

4.00"(101.6)

.125"(3.2)

1.875"(47.6)

1684

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

1684A, 1684BK, 1684D, 1684G J32140

1684A-E, 1684BK-E, 1684D-E, 1684G-E J32240

643

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

643A, 643BK, 643D, 643G J33300, J33340

643A-E, 643BK-E, 643D-E, 643G-E J33400, J33440

643

.250"

(6.4)

1.00"

(25.4)

3.00"(76.2)

.150"(3.8)

1685R

Padding

CarpetCarpet

2.750"(69.9)

.750"

(19.1)

1686R

Raised Floor

Tile

Carpet

.750"

(19.1)

1.938"

(49.2)

1682B

Finishes:

B, B-ORB

Options:

E, EL, V3,

EV3, ELV3

(not available

for B-ORB ﬁnish)

ANSI/BHMA:

1682B J12140

1682B-E J12240

.125"(3.2)

.500"

(12.7)

1682B

.120"

(3.0)

1.750"(44.5)

.760"(19.3)

www.zerointernational.com • Door sealing systems • Zero • 27

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Suitable for use as recessed expansion joint

ﬂoor plate for ADA openings.

Thresholds

Installation note:

ZERO adjustable thresholds systems can be installed

easily and quickly without welding or screws on the base.

Screws are required only to secure the top plate.

For thresholds with vertical wraparounds (# 105, #106,

#107), screws are recommended in both directions for

ﬁrm attachment at anchor points.

Adjustable thresholds

672

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

672A, 672D, 672G, 672BK J37100, J37136

672A-E, 672D-E, 672G-E, 672BK-E J37200, J37236

Supplied without mounting holes.

673

Finishes:

A, BK, D, G

B, B-ORB

Options:

E, EL,

(not available

for B-ORB ﬁnish)

ANSI/BHMA:

673A, 673D, 673G, 673BK J37100, J37136

673A-E, 673D-E, 673G-E, 673BK-E J37200, J37236

673B J17100, J17136

673B-E J17200, J17236

Supplied without mounting holes.

674

Finishes:

A, BK, D, G

B, B-ORB

Options:

E, EL,

(not available

for B-ORB ﬁnish)

ANSI/BHMA:

674A, 674D, 674G, 674BK J37100, J37136

674A-E, 674D-E, 674G-E, 674BK-E J37200, J37236

674B J17100, J17136

673B-E J17200, J17236

Supplied without mounting holes.

676

Finishes:

A, BK, D, G

B, B-ORB

Options:

E, EL,

(not available

for B-ORB ﬁnish)

ANSI/BHMA:

676A, 676D, 676G, 676BK J37100, J37136

676A-E, 676D-E, 676G-E, 676BK-E J37200, J37236

676B J17100, J17136

676B-E J17200, J17236

Supplied without mounting holes.

675

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

675A, 675D, 675G, 675BK J37100, J37136

675A-E, 675D-E, 675G-E, 675BK-E J37200, J37236

Supplied without mounting holes.

672

.250"

(6.4)

2.00"(50.8)

673

.250"

(6.4)

3.00"(76.2)

674

.250"

(6.4)

4.00"(101.6)

675

.250"

(6.4)

5.00"(127.0)

676

.250"

(6.4)

6.00"(152.4)

68 68

.500"

(12.7) 269

Varies from 4"(101.6) to 22"(558.8) width

Varies .375"(9.5), .500"(12.7), .750"(19.1) height

28 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Suitable for use as recessed expansion joint

ﬂoor plate for ADA openings.

Adjustable thresholds

678

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

678A, 678D, 678G, 678BK J37100, J37136

678A-E, 678D-E, 678G-E, 678BK-E J37200, J37236

Supplied without mounting holes.

105

Finishes:

A, BK, D, G

Options:

E, EL, V3

ANSI/BHMA:

105A, 105D, 105G, 105BK J37360

Supplied without mounting holes.

107

Finishes:

B, B-ORB

Options:

E, EL, V3

ANSI/BHMA:

107B J17360

Supplied without mounting holes.

269

Finishes:

ANSI/BHMA:

269A J37360, J37336

Connection plate

469

Finishes:

ANSI/BHMA:

469A J37360, J37336

Connection plate

678

.250"

(6.4)

8.00"(203.2)

6710

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

6710A, 6710D, 6710G, 6710BK J37136

6710A-E, 6710D-E, 6710G-E, 6710BK-E J37236

Supplied without mounting holes.

6710

10.00"(254.0)

.250"

(6.4)

105

.094"(2.4)

3.00"(76.2)

.500"

(12.7)

2.00"

(50.8)

107

.500"

(12.7)

2.00"

(50.8)

1.875"(47.6)

.125"(3.2)

106

Finishes:

A, BK, D, G

Options:

E, EL, V3

ANSI/BHMA:

106A , 106BK, 106D, 106G J37360

Supplied without mounting holes.

106

2.00"(50.8)

.094"(2.4) .500"

(12.7)

.750"(19.1)

269

.250"

(6.4)

.125"

(3.2)

2.00"(50.8)

469

.125"

(3.2)

2.00"(50.8)

.094"

(2.4)

www.zerointernational.com • Door sealing systems • Zero • 29

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Adjustable thresholds

Series 671

Order components separately.

Floor cover for 1" expansion joints, surface.

Ideal for use as transition threshold for free-ﬂoating wood gymnasium ﬂoors. Requires a 1/8" gap between metal and rubber components to prevent

damage to rubber from expansion pressures.

PSA

1.00"(25.4) "00.1seiraV (25.4) 1.00"(25.4)

663

84R-PSA268

1.00"(25.4)

Varies

673 or 3673

168

Finishes:

A, BK, D, G

B, B-ORB

ANSI/BHMA:

168A, 168BK, 168D, 168G J37360

168B J17360

Threshold rest. Supplied without mounting holes.

Finishes:

ANSI/BHMA:

48A J37300

Threshold prep/ shim. Supplied without mounting holes.

.750"

(19.1)

.094"

(2.4)

1.313"(33.4)

168

.187"

(4.7)

1.500"

(38.1)

Finishes:

ANSI/BHMA:

49A J37300

Threshold prep/ shim. Supplied without mounting holes.

.125"

(3.2)

1.750" (44.5)

268

Finishes:

A, BK, D, G

B, B-ORB

ANSI/BHMA:

268A, 268BK, 268D, 268G J37360, J37336

268B J17360, J17336

Threshold rest. Supplied without mounting holes.

84R-PSA

Finishes:

Gray

ANSI/BHMA:

84R-PSA J72160

268

.375"

(9.5)

1.00"(25.4)

.094"

(2.4)

Finishes:

A, BK, D, G

B, B-ORB

ANSI/BHMA:

68A , 68BK, 68D, 68G J37360, J37336

68B J17360, J17336

Threshold rest. Supplied without mounting holes.

1.250"(31.8)

.094"

(2.4)

.500"

(12.7)

Finishes:

ANSI/BHMA:

69A J32110, J32123, J37300

Threshold prep/shim. Supplied without mounting

holes.

6969

.250"

(6.4)

1.125"

(28.6)

84R-PSA

.250"

(6.4)

1.00"(25.4)

30 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Tr a c t i o n t r e a d a d j u s t a b l e t h r e s h o l d s

Traction Tread™ thresholds and nosings are available with an epoxy abrasive (non-slip

particles) bonded into the grooves, or with formulated rubber inserts.

Rubber traction tread: Attractive, smooth, tough rubber inserts that are ﬂush with the

aluminum surface for indoor applications. The aluminum/rubber combination is easy to cut

and drill at the jobsite. Superior non-slip traction with great longevity. Available in black color

only. Rubber traction tread is standard, unless Abrasive (E) or Photoluminescent (EL)

Traction tread is speciﬁed.

Abrasive traction tread (E): The ultimate safety surface. This extremely durable surface

provides a high degree of safety for outdoor applications and is ideal for schools, hospitals,

industrial buildings. The epoxy abrasive particle mix is bonded to the aluminum base.

Available in black color only.

Photoluminescent traction tread (EL): Rubber or abrasive traction tread integrated with

epoxy abrasive photoluminescent tread. For indoor exit path applications.

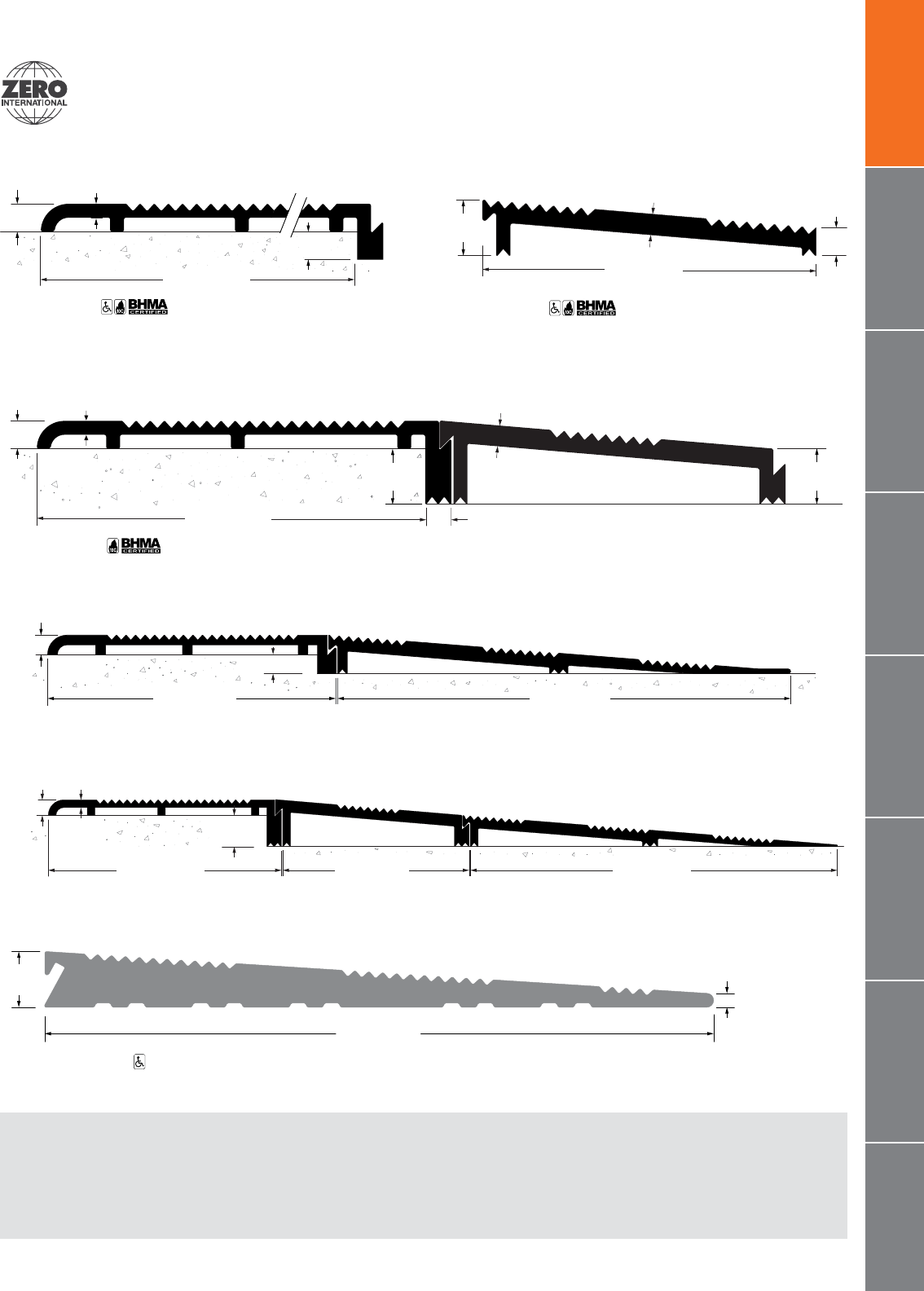

Threshold assembly applications

Note: Order components separately.

Suitable for slip-resistant applications.

3672

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

3672A, 3672D, 3672G, 3672BK J37100

3672A-E, 3672D-E, 3672G-E, 3672BK-E J37236

Supplied without mounting holes.

3672

.250"

(6.4)

2.00"(50.8)

3673

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

3673A, 3673D, 3673G, 3673BK J37100

3673A-E, 3673D-E, 3673G-E, 3673BK-E J37236

Supplied without mounting holes.

3673

3.00"(76.2)

.250"

(6.4)

3.00"

(76.2)

.750"

(19.1)

2673 168

1.313"

(33.4)

268

3673

1.00"

(25.4)

3.00"

(76.2)

5.00"

(127.0)

68 269 68

VARIES

.500"

(12.7)

1.250"

(31.8)

1.250"

(31.8)

www.zerointernational.com • Door sealing systems • Zero • 31

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

2676

6.00"(152.4) .125"(3.2)

.250"

(6.4)

.500"

(12.7)

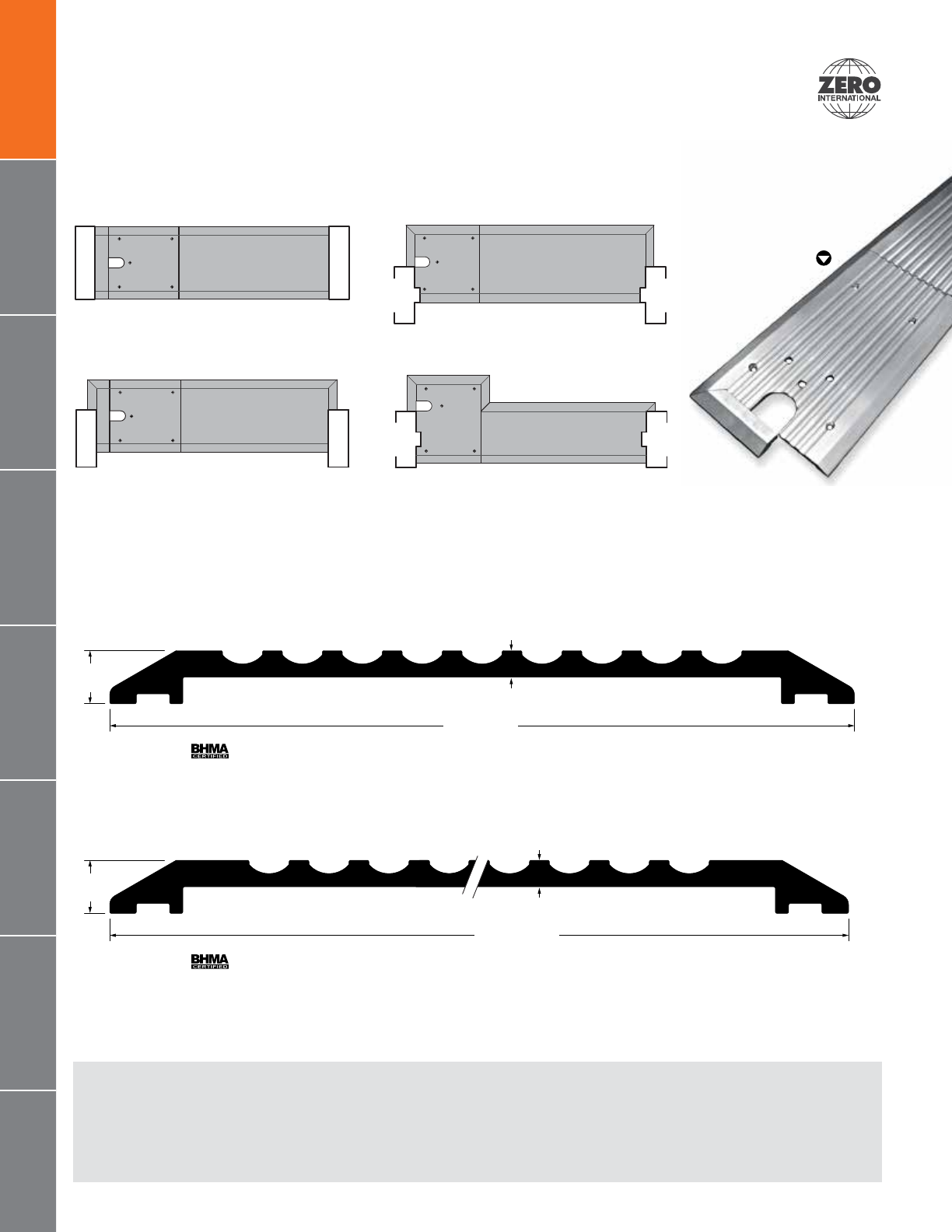

Tr a c t i o n t r e a d a d j u s t a b l e t h r e s h o l d s

2676

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

2676A, 2676D, 2676G, 2376BK J37380, J37386

2676A-E, 2676D-E, 2676G-E, 2676BK-E J37280, J37286

Supplied without mounting holes.

2673

Finishes:

A, BK, D, G,

B, B-ORB

Options:

E, EL

(not available

for ORB ﬁnish)

ANSI/BHMA:

2673A, 2673D, 2673G, 2673BK J37380, J37386

2673A-E, 2673D-E, 2673G-E, 2673BK-E J37380, J37386

2673B J37380, J37386

2673B-E J37380, J37386

Supplied without mounting holes.

2673

.250"

(6.4)

3.00"(76.2)

.500"

(12.7)

.125"(3.2)

3674

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

3674A, 3674D, 3674G, 3674BK J37136

3674A-E, 3674D-E, 3674G-E,3674BK-E J37236

Supplied without mounting holes.

3675

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

3675A, 3675D, 3675G, 3675BK J37136

3675A-E, 3675D-E, 3675G-E, 3676BK-E J37236

Supplied without mounting holes.

3676

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

3676A, 3676D, 3676G, 3676BK J37136

3676A-E, 3676D-E, 3676G-E, 3676BK-E J37236

Supplied without mounting holes.

3674

4.00"(101.6)

.250"

(6.4)

3675

.250"

(6.4)

5.00"(127.0)

3676

.250"

(6.4)

6.00"(152.4)

Safety Stair Treads

32 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Ramps

233

Finishes:

A, BK, D, G

Options:

E, EL,V3

EV3, ELV3

ANSI/BHMA:

233A, 233D, 233G, 233BK J38100, J38160

233A-E, 233D-E, 233G-E, 233BK-E J38200, J38260

Supplied without mounting holes.

236

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

236A, 236D, 236G, 2361BK J38100, J38130

236A-E, 236D-E, 236G-E, 236BK-E J38200, J38230

Supplied without mounting holes.

2361

Finishes:

Options:

E, EL

ANSI/BHMA:

2361AA, 2361D, 2361G, 2361BK J38100, J38130

2361AA-E, 2361D-E, 2361G-E, 2361BK-E J38200, J38230

Supplied without mounting holes.

Available in anodized aluminum only (AA).

232

Finishes:

A, BK, D, G

Options:

E, EL, V3

EV3, ELV3

ANSI/BHMA:

232A, 232D, 232G, 232BK J38100, J38160

232A-E, 232D-E, 232G-E, 232BK-E J38200, J38260

Supplied without mounting holes.

235

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

235A, 235D, 235G, 235BK J38130

235A-E, 235D-E, 235G-E, 235BK-E J38230

Supplied without mounting holes.

.750"

(19.1) .500"

(12.7)

.187"(4.7)

3.00" (76.2)

233

3.00" (76.2)

.250"

(6.4)

.125"(3.2)

235

6.00"(152.4)

.500"

(12.7)

.187"(4.7)

236

.500"

(12.7)

3.940"(100.1)

.155"(3.9)

2361

6.00"(152.4)

.500"

(12.7)

1.00"

(25.4)

.187"(4.7)

232

www.zerointernational.com • Door sealing systems • Zero • 33

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Ramps

237

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

237A, 237D, 237G, 237BK J38100, J38130

237A-E, 237D-E, 237G-E, 237BK-E J38200, J38230

ADA compliant when installed ﬂush with the ﬂooring. Supplied without mounting holes.

259R

Finishes:

Black only.

No ﬁnish designation required

ANSI/BHMA:

259R J78130

Supplied without mounting holes for custom drilling at installation. Can also be installed

238 233

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

238A, 238D, 238G, 238BK J38100, J38160

238A-E, 238D-E, 238G-E, 238BK-E J38100, J38260

Order components separately. Supplied without mounting holes.

237 236

Order components separately. Full illustration not to scale

238 233 236

Order components separately. Full illustration not to scale

3.500"(88.9)

.125"

(3.2)

.250"

(6.4)

.250"

(6.4)

237

.250

(6.4)

.187"

(4.7)

.500"

(12.7)

.125"

(3.2)

233 238

.500"

(12.7)

3.500"(88.9) .235"(6.0)

6.00"(152.4)

237236

.250

(6.4)

.250"(6.4)

3.500"(88.9)

238 233 236

.250"

(6.4)

.125"

(3.2)

.500"

(12.7)

6.00"(152.4)3.00"(76.2)3.500"(88.9)

259R

.250

(6.4)

.125"

(3.2)

6.00"

(152.4)

234

Finishes:

A, BK, D, G

Options:

E, EL

ANSI/BHMA:

234A, 234D, 234G, 234BK J38100, J38130

234A-E, 234D-E, 234G-E , 234BK-E J38200, J38230

Supplied without mounting holes.

.250"

(6.4)

3.00"(76.2)

.187"(4.7)

.500"

(12.7)

234

34 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Note:

Special anchors available for mounting

most thresholds on concrete surfaces.

Interlocking Hooks and Angles page 6.

Interlocking thresholds

Finishes:

B, B-ORB

Options:

E, EL, V3, EV3, ELV3

(not available for ORB ﬁnish)

ANSI/BHMA:

70B J14170

70B-E J14270

In-swing or out-swing

Finishes:

A, BK, D, G

Options:

E, EL, V3, ELV3

ANSI/BHMA:

73A, 73BK, 73D, 73G J34170

73A-E, 73BK-E, 73D-E, 73G-E J34270

Out-swing

Finishes:

B, B-ORB

Options:

E, EL, V3, ELV3

(not available for ORB ﬁnish)

ANSI/BHMA:

80B J14170

80B-E J14270

In-swing

175

Finishes:

A, BK, D, G,

B, B-ORB

Options:

E, EL, V3, ELV3

(not available for ORB ﬁnish)

ANSI/BHMA:

175A, 175D, 175G, 175BK J34170

175A-E, 175D-E, 175G-E, 175BK-E J34270

175B J14170

175B-E J14270

In-swing. Drain pan required underneath when used with weep holes.

70 IN-SWING OR OUT-SWING

.625"

(15.9)

.125"(3.2)

3.00"(76.2)

Finishes:

B, B-ORB

Options:

E, EL, V3, EV3, ELV3

(not available for ORB ﬁnish)

ANSI/BHMA:

76B J14170

76B-E J14270

In-swing. Drain pan required underneath when used with weep holes.

76 IN-SWING

Weep Hole (optional)

Placement may vary

Exit Hole (ﬁeld-installed)

.875"

(22.2)

.460"

(11.7)

3.500"(88.9)

.100"(2.5)

73 OUT-SWING

.625"

(15.9)

.125"(3.2)

EBF seal

.945"

(24.0)

4.00"(101.6)

80 IN-SWING

.625"

(15.9)

4.250"(108.0)

.125"(3.2)

175IN-SWING

Weep Hole (optional)

Placement may vary

Exit Hole (ﬁeld-installed)

.125"(3.2)

5.00"(127.0)

.875"

(22.2)

.500"

(12.7)

www.zerointernational.com • Door sealing systems • Zero • 35

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

B-SAT Heavy satin bronze

B-POL Bright buff polished bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

See Thresholds Accessories & options page for details.

Thresholds

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

B-SAT Heavy satin bronze

B-POL Bright buff polished bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

See Thresholds Accessories & options page for details.

Note:

Special anchors available for mounting

most thresholds on concrete surfaces.

SAT AND POL ﬁnishes are available for

these systems for cost upgrade.

Interlocking Hooks and Angles page 6.

Adjustable interlocking

bronze threshold systems

7000

Finishes:

B, B-ORB,

B-SAT, B-POL

7334

Finishes:

B, B-ORB,

B-SAT, B-POL

7332

Finishes:

B, B-ORB,

B-SAT, B-POL

Interlocking extension leg. Can be used once per assembly.

.886"

(22.5)

2.646"(67.2)

7000

7332

.282"

(7.2)

.110"(2.8)

.437"

(11.1)

2.156"

(54.8)

EXTENSION LEG

7334

.282"

(7.2)

4.00"(101.6)

.141"

(3.6)

Specialty interlocking bronze threshold systems

Suitable combinations of threshold components are shown below.

Decorative

Bronze

Interlocking

Thresholds

Width

Interlocking Threshold Section Main Threshold Plate

Extension Plate for use with

7334B and 7335B

Qty Model # Height Part Width Qty. Model # Part Width Qty. Model # Part Width

Standard

6.20" 17000 .886" 2.371" 1 7334 3.829"

7.20" 17000 .886" 2.371" 1 7335 4.829"

8.28 17000 .886" 2.371" 1 7337 3.829" 1 7332 2.080"

9.28 17000 .886" 2.371" 1 7335 4.829" 1 7332 2.080"

Therma Seal

6.90" 17338 .890" 3.069" 17334 3.829"

7.90" 17338 .890" 3.069" 17335 4.829"

8.98" 17338 .890" 3.069" 17334 3.829" 1 7332 2.080"

9.98" 17338 .890" 3.069" 17335 4.829" 1 7332 2.080"

36 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

B-SAT Heavy satin bronze

B-POL Bright buff polished bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

SAT AND POL ﬁnishes are available for these

systems for cost upgrade.

Adjustable interlocking

bronze threshold systems

7335

Finishes:

B, B-ORB,

B-SAT, B-POL

7335

.282"

(7.2)

.141"(3.6)

5.00"(127.0)

7336

Finishes:

B, B-ORB,

B-SAT, B-POL

ANSI/BHMA:

7336 J14170

7337

Finishes:

B, B-ORB,

B-SAT, B-POL

ANSI/BHMA:

7337 J14170

7336

6.200"(157.5)

.886"

(22.5)

IN-SWING

7000

7334

7337

7.200"(182.9)

IN-SWING

7000

7335

.886"

(22.5)

7000

7332

7334 .886"

(22.5)

8.245"(209.4)

Full illustration not to scale

www.zerointernational.com • Door sealing systems • Zero • 37

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

B-SAT Heavy satin bronze

B-POL Bright buff polished bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

See Thresholds Accessories & options page for details.

Thresholds

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Adjustable interlocking

bronze threshold systems

7338/7334

In-swing. Interlocking assembly for in-swinging door. Order components separately.

7338/7335

In-swing. Interlocking assembly for in-swinging door. Order components separately.

.855"

(21.7)

PVC break

EBF seal

7338

7334

IN-SWING

6.90"(175.0)

.855"

(21.7)

7335

PVC break

EBF seal

IN-SWING

7338

7.90"(200.7)

7338

Finishes:

B, B-ORB,

B-SAT, B-POL

Thermal seal. Interlocking assembly for in-swinging door. Order as one unit.

7338

.523"

(13.3)

.855"

(21.7)

.890"

(22.6)

1.245"(31.6)1.928"(49.0)

EBF seal PVC break

38 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

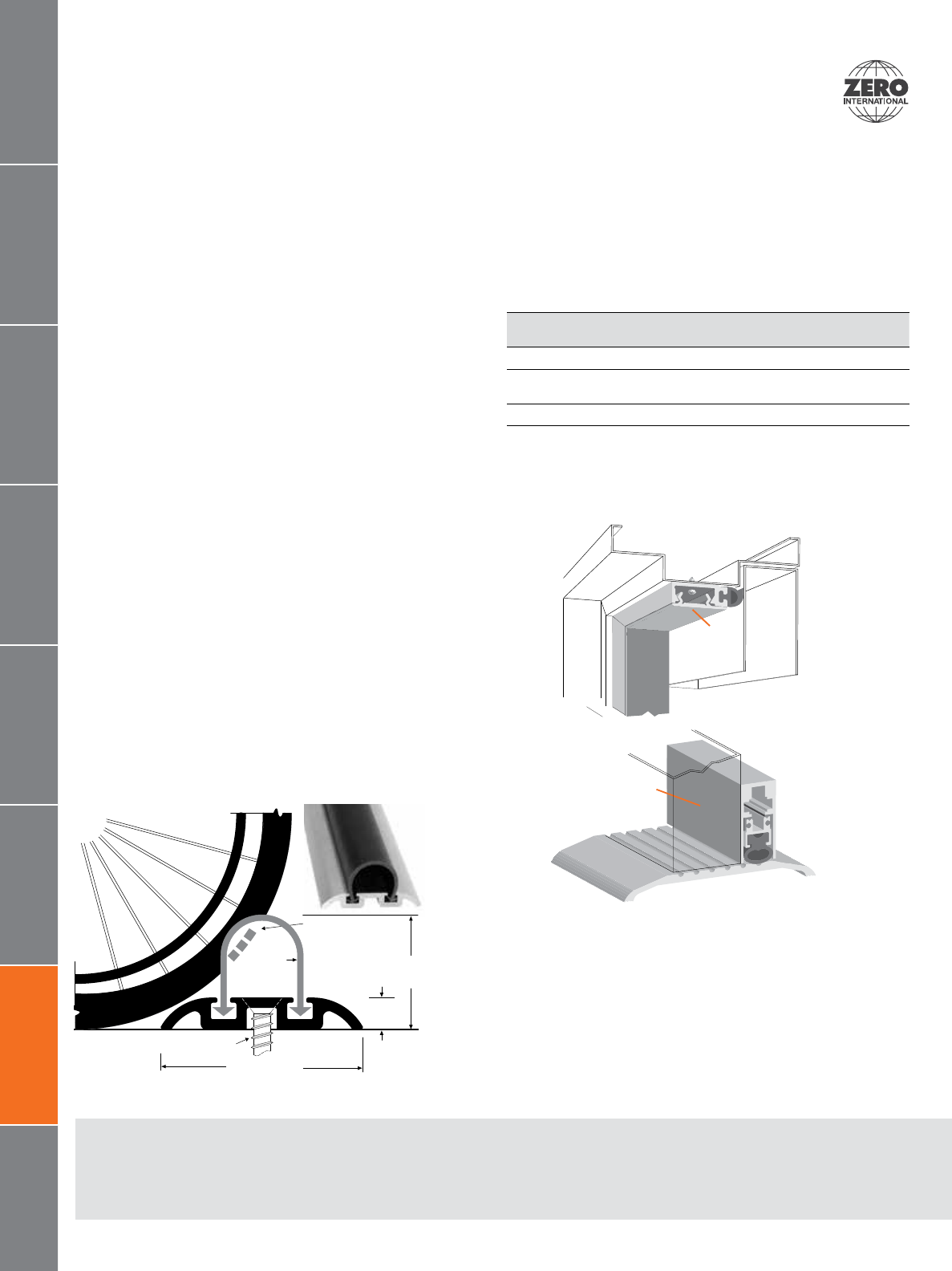

Specialized threshold solutions

Roof curb thresholds

Suitable for rooop entryways, ﬂood abatement thresholds, and other raised-concrete applications.

Order components separately.

Conﬁguration shown above provides a good low-proﬁle solution. Consult with Technical Customer Care for other conﬁgurations and applications.

Note: When specifying this system for rooop entryways, include at least an additional ¼"in length to accommodate rooop ﬂashing. Order the next whole inch size greater.

Reminder: When measuring sill cover pieces, include extensions to the outside of the frame that might be needed for a close ﬁt without gaps.

Adjustable saddles can be installed

using aluminum plates,or TRACTION TREAD™ plates

#475

Adjustable

Stop

#105

105

475

Varies from 2.00"(50.8) to 22.00"(558.8)

(Specify width)

3.00"(76.2) 3.00"(76.2)

Adjustable thresholds – bulkhead systems

Threshold varies in width

105 68

1.750"(44.5)

.278"

(7.1)

1.00"

(25.4)

#10x1.5"(38.1) FPHSMS

Wheel compresses

rubber for access

EPDM

rubber

8452 Wheelchair accessible shower threshold

Designed for use when a shower must be accessible to a wheelchair.

The rubber gasket keeps water in while allowing the wheel to pass over easily.

Finishes:

A, BK, D, G

ANSI/BHMA:

8452A,8452BK, 8452D, 8452G J32330

www.zerointernational.com • Door sealing systems • Zero • 39

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

Thresholds

See Thresholds Accessories & options page for details.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Specialized threshold solutions

669 DP-A Aluminum

669 DP-S

669 DP-STST

Steel

Stainless Steel

STAINLESS STEEL shownALUMINUM shown

1”

Diamond Plate

Specify dimensions

A, B, C, D

Custom Order

Diamond-plate bulkhead thresholds

Available as Engineered Special. Order requires dimensions A, B, C, D.

Notes:

A dimension – minimum 1"

D dimension – must be at least 1" greater than A dimension

600CP Standard

Finishes:

A, BK, D, G

Options:

E, EL,

BV (beveled edges)

ANSI/BHMA:

600CP J37300

600CPE J37400

Aluminum cover plates

601CP Standard

Finishes:

A, BK, D, G

Options:

E, EL,

BV (beveled edges)

ANSI/BHMA:

601CP J37300

601CPE J37400

600CP Standard

.125"

(3.2)

48" Maximum (1219.2)

.250"

(6.4)

48" Maximum (1219.2)

601CP Standard

For expansion joint covers or wherever extra width

and strength are needed.

Available in widths 6" to 48" and lengths 36" to 120".

Consult your structural engineer to determine

maximum width and length appropriate for your

speciﬁc application.

• Manufactured from AL 5052 rolled aluminum.

• Square edges are standard. Beveled edges (length

only) available on request at additional cost –

beveled edges are one-half the thickness of the

part at a 45 degree angle.

• Plates are not drilled unless speciﬁed.

• Custom drilling available at additional cost.

• Made to order and non-returnable. Orders cannot

be canceled aer order conﬁrmation and

acknowledgement.

40 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum mill ﬁnish

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

V3 Full body strength ﬁll

EV3 Epoxy and full body strength ﬁll

ELV3 Photoluminescent and abrasive epoxy tread, full body

strength ﬁll

Note:

Special anchors available for mounting most

thresholds on concrete surfaces.

See Thresholds Accessories & options page for details.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

TYPE 3 shown

Thresholds

Specialized threshold solutions

Cover plate assemblies for ﬂoor-mounted automatic door closers

TYPE 1 TYPE 3

TYPE 4 TYPE 5

Because speciﬁed dimensions may vary, cover plate assemblies for ﬂoor closer thresholds require submittal of a template for Engineered Specials processing.

When ordering, please specify handing.

• Cover plates may be ordered for models 547 and 647. Because of the low, extended angle on the ramps on these ADA-compliant models, the control box of the cover

plate assembly needs to be level with the ﬂoor to prevent interference with the support legs. Request milling the legs to provide sucient clearance if needed.

• Additional models that can be used with cover plate assemblies are shown below.

TYPE 1

For doors hung in center of frame

Le hand shown

TYPE 4

For doors hung ﬂush with face of frame

Le hand shown

TYPE 3

For use with all offset closers and pivot sets

Le hand shown

TYPE 5

For use with offset closers and pivot sets

Le hand shown

657

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

657A, 675BK, 657D, 657G J32100

657A-E, 675BK-E, 657D-E, 657G-E J32200

6575

Finishes:

A, BK, D, G

Options:

E, EL, V3,

EV3, ELV3

ANSI/BHMA:

657A, 675BK, 657D, 657G J32100

657A-E, 675BK-E, 657D-E, 657G-E J32200

657

.500"

(12.7)

.250"

(6.4)

7.00"(177.8)

6575

.500"

(12.7)

.250"(6.4)

7.500"(190.5)

Note: Model 6570 (see Saddle Thresholds section) may also be suitable for this application (Type 1 only), depending on conﬁguration with

ﬂoor-mounted automatic door closers. Check that the bevel allows adequate clearance.

Automatic

door bottoms

Door sealing systems

42 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Automatic door bottoms

Index

Accessories & options

Finishes ...................................................................................................44

320 End cap ......................................................................................... 46

361 End cap .......................................................................................... 46

321 End cap ........................................................................................... 46

141 End cap ........................................................................................... 46

351 End cap........................................................................................... 46

360 End cap ......................................................................................... 46

Automatic door bottom (ADB) screw packs ............................... 47

Replacement rubber seals ................................................................ 47

Brass spring actuator nut .................................................................. 47

Specialty exterior protection ............................................................ 47

Rain drip 141 .......................................................................................... 47

Heavy duty

360...........................................................................................................49

362 ...........................................................................................................49

361 ............................................................................................................49

364 ...........................................................................................................49

366 ...........................................................................................................49

365 ...........................................................................................................49

369 .......................................................................................................... 50

368 .......................................................................................................... 50

367 .......................................................................................................... 50

Regular duty

350 ............................................................................................................51

352 ............................................................................................................51

351 .............................................................................................................51

355 ............................................................................................................51

3551 ...........................................................................................................51

3552 ..........................................................................................................51

Light duty

320 ...........................................................................................................52

323 ...........................................................................................................52

321 ............................................................................................................52

Special purpose

364FS ......................................................................................................53

365FS ......................................................................................................53

7350.........................................................................................................53

www.zerointernational.com • Door sealing systems • Zero • 43

Zero’s patented automatic door bottom technology ensures

an ecient seal against the ﬂoor or saddle.

As the door is closed, the adjustable plunger is compressed against the

door frame, activating a concealed ﬂat spring mechanism. This mechanism

drops the seal smoothly from the housing in a scissor-like motion as

illustrated below. The door seal compresses on either even or uneven

surfaces and retracts automatically when the door is opened.

Door bottoms are available in specialized versions for various applications,

including: "light spring" (LS options). Zero door bottoms are designed to

block penetration by air, sound, smoke and ﬂames.

All Zero automatic door bottoms function the same way. The concealed

spring mechanism causes the insert seal to activate on the hinge side ﬁrst.

It prevents the seal from dragging along the ﬂoor or threshold while the

door is being closed to avoid door hang-up or closing delay.

Tested and

validated for

5 million

cycles

Mortised 360

TOP VIEW

Semi mortised 362

TOP VIEW

Surface mounted 361

TOP VIEW

HINGE SIDE

Adjusting

Hex Nut

Plunger not yet compressed

Plunger partially compressed

Plunger completely compressed

PLUNGER

RUBBER

Automatic door bottom

operating principle

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

The Zero quality advantage

Automatic door bottoms Introduction

US Patent# 4947584

44 • Zero • Door sealing systems • www.zerointernational.com

Automatic door bottoms

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Accessories & options

Light spring (LS)

When speciﬁed, the “light spring” replaces the standard heavy-duty

spring mechanism that drops the seal from the door bottom housing.

This feature can be useful for reducing opening and closing force for use

with ADA-compatible doors.

Zero 365LS ADB was tested for opening force in conjunction with Zero

475 Head & Jamb Gasketing on an ADA compatible door, results are

shown below.

Air ﬂow/sound block (FLO)

Available as an option for mortised automatic door bottom models 355

and 3552.

The FLO conﬁguration is a practical solution for applications requiring air

ﬂow while blocking light and sound as much as possible. The design

uses sound-dampening silicone seals or nylon brush which are notched

and overlapped in staggered rows. This feature is commonly used for

hotel doorways designed to exchange or allow air circulation between

guest rooms and hallways.

Options

LS Light spring SEC Security screws

FLO Air ﬂow/ sound block LK Locking key 8361

Z49 Easy access plate NH No holes

PL Pull out (all Z49 come with

pull out feature, unless

otherwise specified)

Clear Anodized Aluminum

(628, US28AN)

Black Anodized Aluminum

(711, 315AN)

Dark Bronze Anodized

Aluminum (710, 313AN)

Gold Anodized Aluminum

(688, US10AN)

Finishes

#475 and #365LS 1.9 lbs. opening force

365LS

Automatic

door bottom

475

Head

and jamb

475 and 365LS - 1.9 lbs opening force

Test door: 36" X 84" x 1-3/4"

Tes t resu lts : Opening

force (lbs.)

Closing

force (lbs.)

Test 1 475 Head and Jamb 1.75 7.90

Test 2 475 Head and Jamb

365LS Automatic Door Bottom

1.90 9.05

Test 3 Closing force with no seals - 6.75

355A-FLO

3552A-FLO

355-FLO

3552-FLO

Note: See individual model for ﬁnish options.

www.zerointernational.com • Door sealing systems • Zero • 45

Automatic door bottoms

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Accessories & options

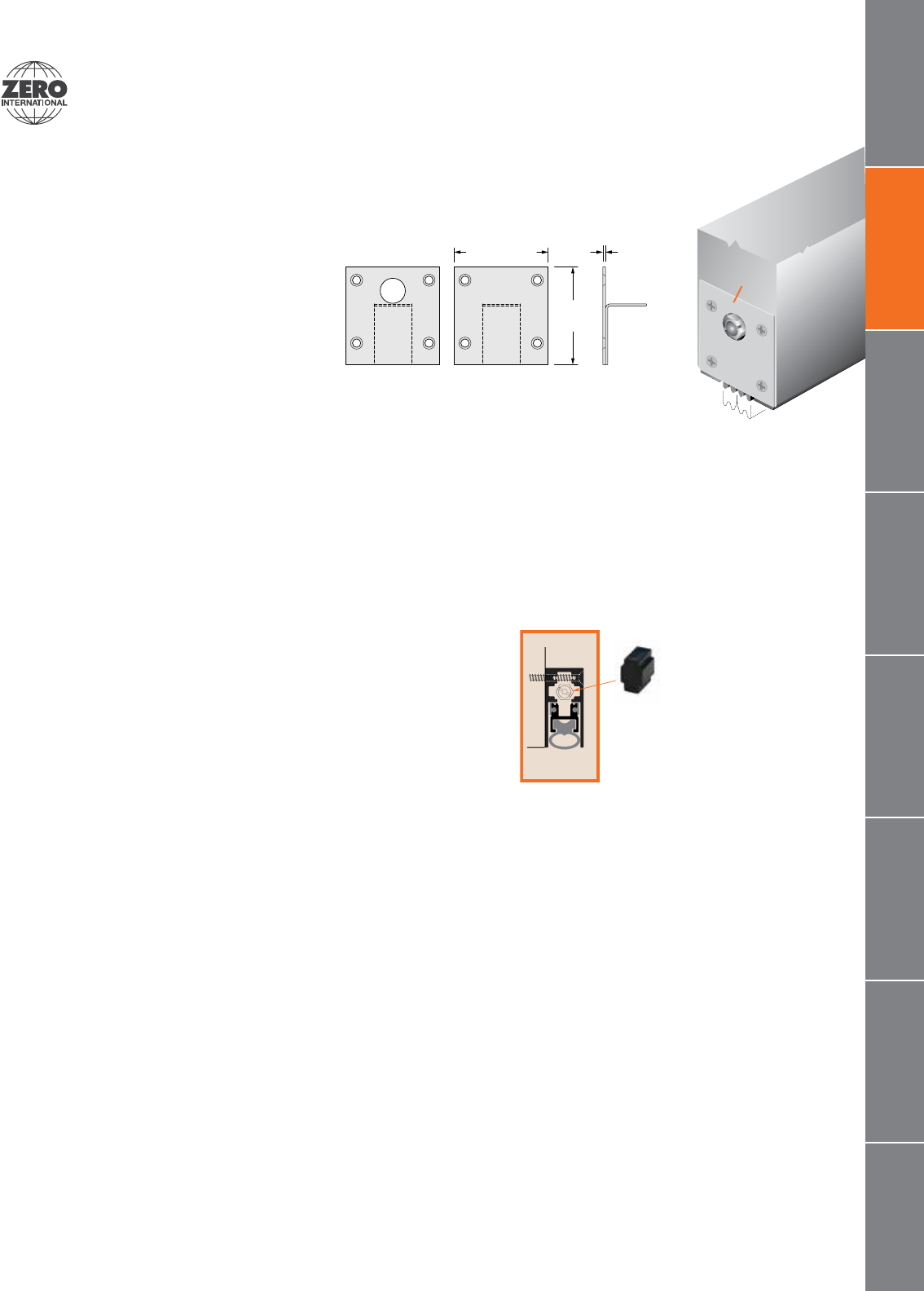

Z49

18ga.

thick

1.687"(42.8)

1.750"

(44.5)

Z49

Concealed

door bottom

Z49

Concealed Door Bottom

Z49 End cap – Easy-access end caps for mortised door

bottoms (Z49)

This option provides easy access end caps for

cleaning the door bottom drop mechanism. It is

well suited for applications in healthcare and

other facilities subject to higher standards and

routine inspections for cleanliness. Z49 comes

standard with (PL) Pull Out feature unless

otherwise speciﬁed.

Available ﬁnishes: Powder coat USP-600

Pull-out option (PL)

Allows for easy removal of the inner seal assembly without removing

the entire ADB or the door. This option is recommended for

applications where the seal may need replaced or cleaned frequently.

Note: Not available in lengths less than 26" for models 367, 368 and 369.

All other models available in lengths 23" and up.

Security screws (SEC)

Tamper-resistant Torx security screws. Prevents unauthorized removal

in hospitals, schools and public places.

Locking key 8361 (LK)

Fits over adjusting nut. Not for use with an end cap. For models 351,

352, 361, 362, 365, 366, 367, 368.

No holes (NH)

Door bottoms are supplied standard with mounting holes. To order

without mounting holes drilled, specify NH.

8361 Key

Locking key

366

8361

46 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Automatic door bottoms

Accessories & options

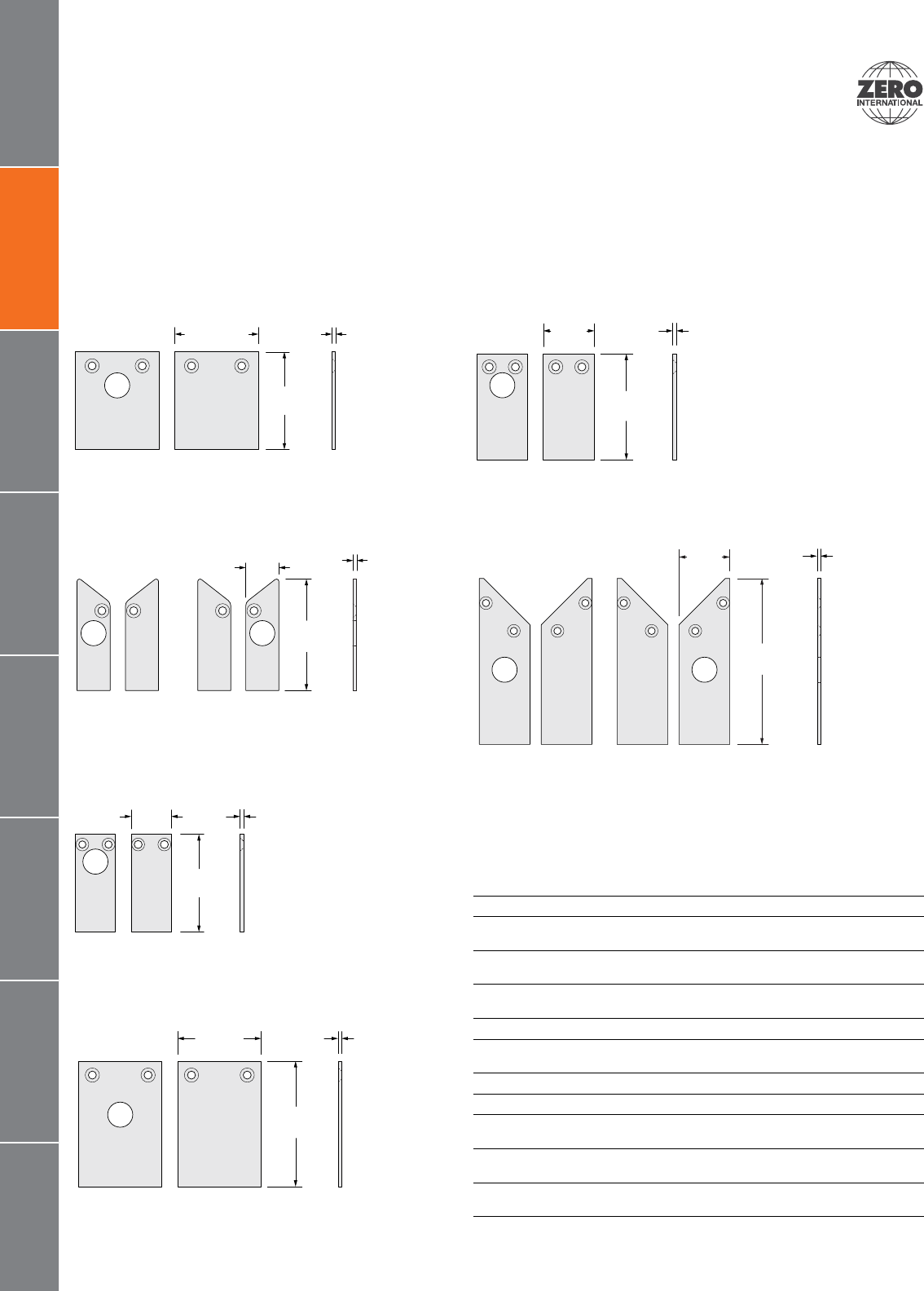

End caps

Anodized aluminum plate .063" thick.

All available in AA, Clear Anodized Aluminum ﬁnish, some available in D-Dark Bronze powder coat ﬁnish.

Supplied standard as noted for each endcap model.

320 End cap

Endcap for 320 and 323 door bottoms

320 ENDCAP

1.500(38.1)

1.750"

(44.5)

.063"

(1.6)

351 End cap

Endcap for 351, 352 door bottoms

351 ENDCAP

.719"

(18.3)

1.750"

(44.5)

.063"

(1.6)

141 End cap

Endcap for 362, 366, 368 with 141 rain drip

141 ENDCAP

.063"

(1.6)

2.977"

(75.6)

.910"

(23.1)

HRHL

321 End cap

Endcap for 321 door bottoms

321 ENDCAP

.594"

(16.1)

1.999"

(50.8)

.063"

(1.6)

360 End cap

Endcap for 350, 360, 364, 369, 7350 door bottoms

360 ENDCAP

1.500"

(38.1)

2.250"

(57.2)

.063"

(1.6)

361 End cap

Endcap for 361, 362, 365, 366, 367, 368 door bottoms

361 ENDCAP

.915"

(23.2)

1.900"

(48.3)

.063"

(1.6)

Endcap kits for automatic door bottoms (ADBs)

End caps and screws are provided in standard kits supplied with the ADB

models noted below.

Use these part numbers for ordering additional or replacement kits.

Models Part number ADB ﬁnish Details

360, 364, 369

with Z49 option

47252145 AA 2 endcaps and 8 screws

321 47253671 AA 4 endcaps and 2 screws

for both handings

321 47253671-695 BK, D, G 4 endcaps and 2 screws

for both handings

320, 323 47251270 AA 2 endcaps and 4 screws

350, 360, 364,

369, 7350

47251371 AA 2 endcaps and 4 screws

351, 352 47251332 AA 2 endcaps and 4 screws

351, 352 47251332-695 BK, D, G 2 endcaps and 4 screws

361, 362, 365,

366, 367, 368

47251383 AA 2 endcaps and 4 screws

361, 362, 365,

366, 367, 368

47251383-695 BK, D, G 2 endcaps and 4 screws

362, 366, 368 with

141 rain drip end cap

47253705 AA 2 endcaps and 4 screws

www.zerointernational.com • Door sealing systems • Zero • 47

Automatic door bottoms

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Accessories & options

Replacement rubber seals

Replacement seals are available for ADB models containing rubber components.

Ordering information is provided in the appendix. If you are viewing an interim version of this catalog,

please contact Customer Support for replacement rubber.

Automatic door bottom (ADB) screw packs

Automatic door bottoms are supplied with the appropriate screws and quantities needed for

installation based on order length. Use the part numbers below for ordering additional screws.

Models Category Part number ADB Finish Details

320, 323, 350, 355, 360, 364, 369,

3551, 3552, 7350 Up to 108"

ADB 47253854 AA 22 Screws #6 x 3/4" PPHSDS ZP

321, 351, 361, 365, 367 up to 108" ADB 47253868-00 AA 11 Screws #8 X 1-1/2" Truss PHSMS ZP

321, 351, 361, 365, 367 up to 108" ADB 47253868-34 G11 Screws #8 X 1-1/2" Truss PHSMS Gold ZP

321, 351, 361, 365, 367 up to 108" ADB 47253868-695 D, BK 11 Screws #8 X 1-1/2" Truss PHSMS Black ZP

352, 362, 366, 368, up to 108" ADB 47253866-00 AA 11 Screws #8 X 1-1/2" FPHSMS ZP

352, 362, 366, 368 up to 108" ADB 47253866-34 G11 Screws #8 X 1-1/2" FPHSMS - Gold ZP

352, 362, 366, 368 up to 108" ADB 47253866-695 D, BK 11 Screws #8 X 1-1/2" FPHSMS - Black ZP

352, 362, 366, 368 ADB 47259741 AA 11 Screws #8 X 1-1/2" Flat security torx SMS

352, 362, 366, 368 ADB 47259741-480 D, BK 11 Screws #8 X 1-1/2" Flat security torx SMS, Black ZP

352, 362, 366, 368 ADB 47259741-633 G 11 Screws #8 X 1-1/2" Flat security torx SMS, BRS Plate

321, 351, 361, 365, 367 ADB 47259744 AA 11 Screws #8 X 1-1/2" Button security torx SMS, Clear ZP

321, 351, 361, 365, 367 ADB 47259744-480 D, BK 11 Screws #8 X 1-1/2" Button security torx SMS, Black ZP

321, 351, 361, 365, 367 ADB 47259744-633 G 11 Screws #8 X 1-1/2" Button security torx SMS, BRS plate

Specialty exterior protection

Perimeter water sheds can be useful for impeding water ingress at door bottoms. To order, please refer to How-to-

Order instructions in the Perimeter Seals section. If you are using an interim Automatic Door Bottom catalog that

does not include perimeter seals, please call Allegion Customer Care for ordering assistance at: 877-671-7011,

option 2 for technical services.

Brass spring actuator nut

50 mm 47255867

Extends the length of the door bottom actuator rod to compensate

for variation in door gaps or other installed conditions.

Rain drip 141

Finishes:

AA, BK, D, G

ANSI/BHMA:

141AA, 141BK, 141D, 141G R3Y936

For 362, 366, 368 surface-mounted applications (with ﬂat head screws).

141

Water Shed

366

141AA

-End Cap

141

Adaptors for

End Caps

2.125"

(54.0)

.062"

(1.6)

.916"(23.3)

#6 x 1.00"

(25.4)

PPHSDS

48 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

How to order

Model Finish Options Length Metric End Cap

360 AA LS 36 Z49

Models

Example

320*

321

323

350*

351

352

355*

360*

361

364*

364FS

365

365FS

367

368

369*

3551*

3552*

7350

*Models: 320, 350, 355, 360, 364 and 369, available in AA ﬁnish only.

End caps not included with 355, 3551, and 3552.

Finishes

AA - Aluminum Clear Anodized (US28)

BK - Black Anodized (315AN)

D - Aluminum Dark Bronze Anodized (313AN)

G - Aluminum Gold Anodized

Options

Blank - no options

LS - Light spring (not available on models: 355, 364FS, 365FS, 366FS, 367, 368, 369, 3551, 3552)

FLO - Air Flow conﬁguration (available on 355 and 3552 only)

Z49 - Easy access plate

PL - Pull out option

SEC - #8 X 1-1/2" Flat security Torx SMS (available on 352, 362, 366, and 368), #8 x 1-1/2" Button SEC Torx SMS

(available on 321, 351, 361, 365, 367)

LK - Locking key 8361

NH - No mounting holes

Length

Use decimal to nearest 1/8" increment. Sizes under 18" trimming may be limited.

Metric

Blank = US Standard

MM = Metric in millimeters (rounded to the nearest 1/8")

End cap

Blank = Std. End Caps Included

Z49 = End cap for models only: (360, 364, 364FS, 369)

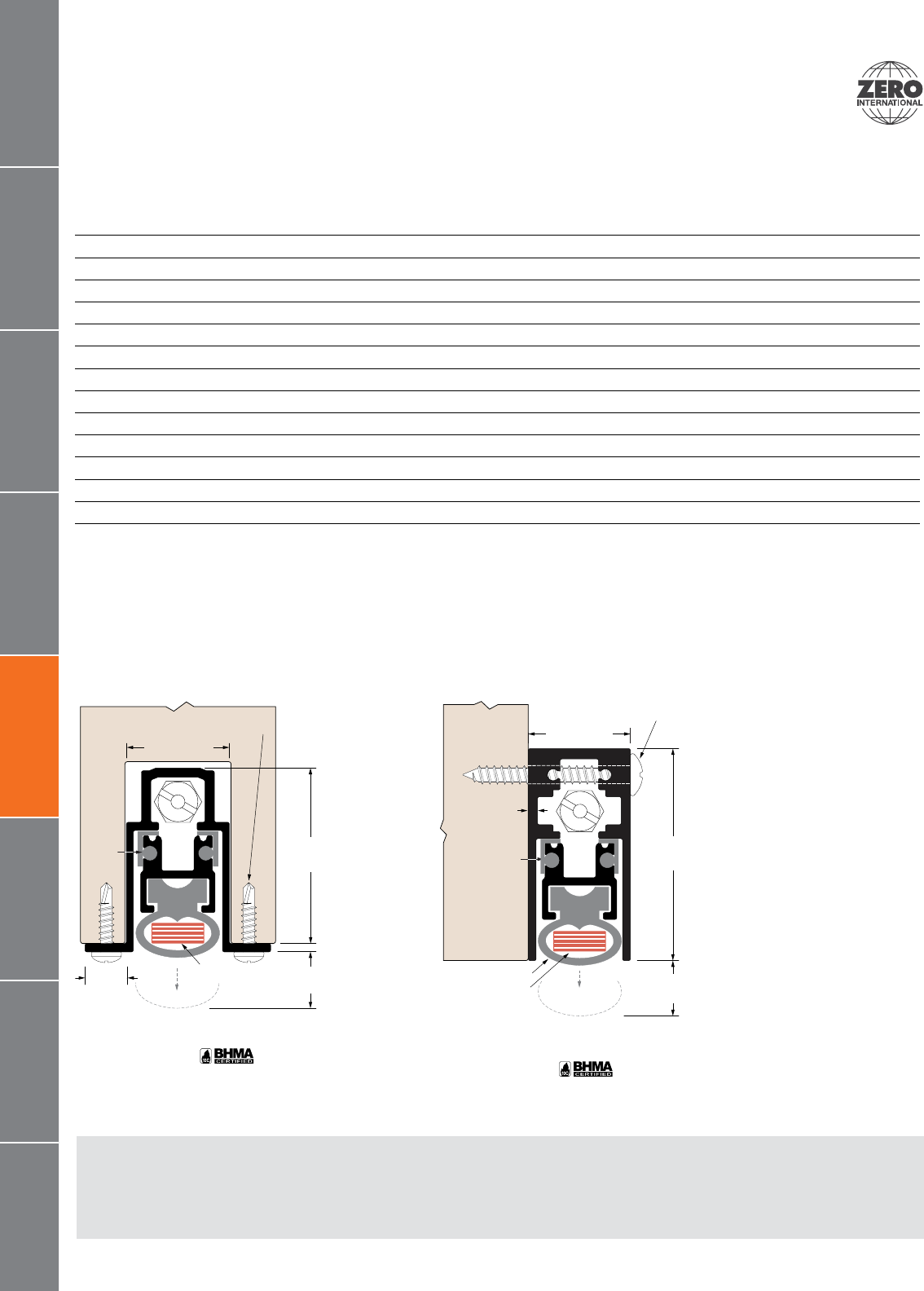

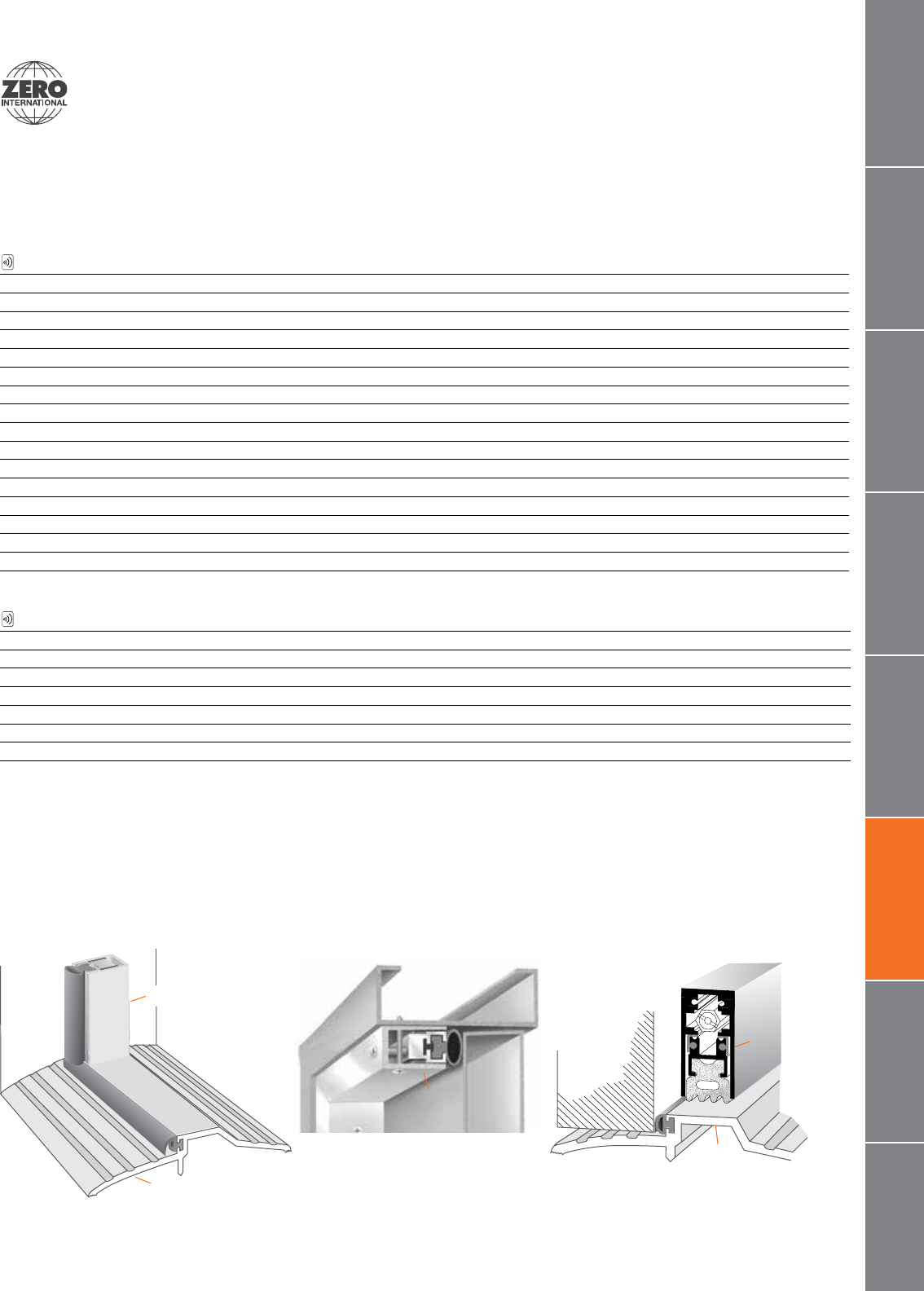

Automatic door bottoms order guide

Automatic door bottoms How to order

See ADB Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 49

Automatic door bottoms

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

Options:

LS Light spring

FLO Air ﬂow/ sound block

Z49 Removable end cap

PL Pull out

SEC Torx security screws

LK Locking key

NH No holes

Note:

Maximum order length is 60" unless noted otherwise. Lengths up to 96" on some

models available as engineering special order.

Lengths 10" - 18" available only with light spring drop mechanism.

Not recommended for maximum drop greater than .500".

Except where noted, all models on this page are shipped in standard LH/RHR

conﬁguration with locking screw concealed (facing the door). Handing is reversible.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

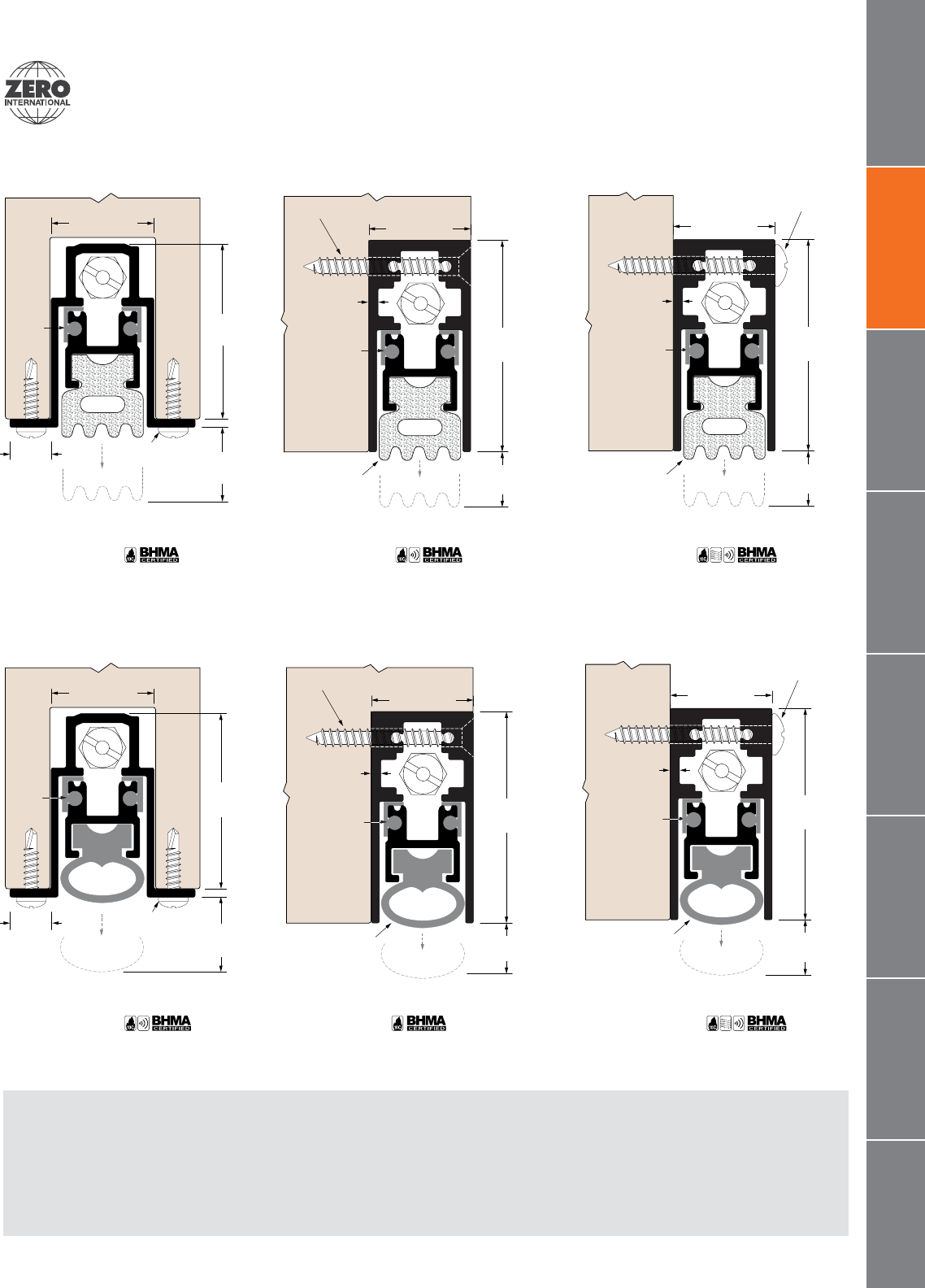

Heavy duty

364

Finishes:

Options:

LS, Z49

End Cap,

PL, NH

ANSI/BHMA:

364AA R3B324

Mortised. Supplied with solid neoprene extrusion.

Note: consult your local AHJ for maximum allowable

door undercut.

.371"

(9.4)

1.575"

(40.0)

.924"(23.5)

364

Max. effective drop

.875"(22.2)

#6 x .750"(19.1) PPHSDS

.075"

(1.9)

Zero

quiet

seal

360

Finishes:

Options:

LS, Z49

End Cap,

PL, NH

ANSI/BHMA:

360AA R3C324

Mortised. Supplied with closed cell sponge neoprene.

Note: Consult your local AHJ for maximum allowable

door undercut.

.075"

(1.9)

.371"

(9.4)

1.575"

(40.0)

.924"(23.5)

Max. effective drop

.875"(22.2)

#6 x .750"(19.1) PPHSDS

360

Zero

quiet

seal

362

Finishes:

AA, BK,

D, G

Options:

LS, PL,

SEC,LK, NH

ANSI/BHMA:

362AA, 362BK, 362D, 362G R3B344

Semi-mortised applications. Supplied with closed cell sponge

neoprene. Note: Consult your local AHJ for maximum allowable

door undercut.

362

1.901"

(48.3)

.916"(23.3)

Max. effective drop

.875"(22.2)

Zero

quiet

seal

.083"

(2.2)

Closed cell

sponge

neoprene

#8 x 1.500"(38.1) FPHSMS

361

Finishes:

AA, BK,

D, G

Options:

LS, PL,

NH, LK, SEC

ANSI/BHMA:

361AA, 361BK, 361D, 361G R3C334

Surface-mounted applications. Supplied with closed cell sponge

neoprene.

361

1.901"

(48.3)

.916"(23.3)

Max. effective drop

.875"(22.2)

Zero

quiet

seal

.083"

(2.2)

Closed cell

sponge

neoprene

#8 x 1.500"(38.1) TPHSMS

365

Finishes:

AA, BK,

D, G

Options:

LS, PL, SEC,

LK, NH

ANSI/BHMA:

365AA, 365BK, 365D, 365G R3B334

Surface-mounted applications.

Supplied with solid neoprene extrusion.

365

Neoprene

Max. effective drop

.875"(22.2)

.083"

(2.2)

1.901"

(48.3)

.916"(23.3)

#8 x 1.500"(38.1) TPHSMS

Zero

quiet

seal

366

Finishes:

AA, BK,

D, G

Options:

LS, PL, SEC,

LK, NH

ANSI/BHMA:

366AA, 366BK, 366D, 366G R3B344

Semi-mortised applications. Suppiled with solid neoprene

extrusion. Note: Consult your local AHJ for maximum allowable door

undercut.

#8 x 1.500"(38.1) FPHSMS

366

Neoprene

Zero

quiet

seal

Max. effective drop

.875"(22.2)

.083"

(2.2)

1.901"

(48.3)

.916"(23.3)

See ADB Accessories & options page for details.

50 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

Options:

LS Light spring

FLO Air ﬂow/ sound block

Z49 Removable end cap

PL Pull out

SEC Torx security screws

LK Locking key

NH No holes

Note:

Maximum order length is 60" unless noted otherwise. Lengths up to 96" on some

models available as engineering special order.

Lengths 10" - 18" available only with light spring drop mechanism.

Not recommended for maximum drop greater than .500".

Except where noted, all models on this page are shipped in standard LH/RHR

conﬁguration with locking screw concealed (facing the door). Handing is reversible.

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Automatic door bottoms

Heavy duty

369

Finishes:

Options:

Z49 End

Cap, PL,

ANSI/BHMA:

369AA R3B324

Mortised. Supplied with double solid neoprene seal. Magnet

feature only on ADBs 24" and over. Note: Consult your local AHJ

for maximum allowable door undercut.

.375"(9.5)

369

.371"

(9.4)

1.575"

(40.0)

.924"(23.5)

1.250"

(31.8)

Magnet

#6 x .750"(19.1) PPHSDS Max.

effective drop

.875"(22.2)

368

Finishes:

AA, BK,

D, G

Options:

PL, SEC,

LK, NH

ANSI/BHMA:

368AA, 368BK, 368D, 368G R3B344

Semi-mortised applications. Suppiled with solid neoprene

extrusion. Magnet feature only on ADBs 24" and over.

Note: Consult your local AHJ for maximum allowable

door undercut.

#8 x 1.500"(38.1) FPHSMS

368

Double

neoprene

seals

.375"

(9.5)

Max. effective drop

.875"(22.2)

1.901"

(48.3)

.916"(23.3)

Magnet

367

Finishes:

AA, BK,

D, G

Options:

SEC, PL,

LK, NH

ANSI/BHMA:

367AA, 367BK, 367D, 367G R3B334

Surface-mounted. Supplied with double solid neoprene seal.

Magnet feature only on ADBs 24" and over.

367

Double

neoprene

seals

.375"

(9.5)

Max. effective drop

.875"(22.2)

1.901"

(48.3)

.916"(23.3)

#8 x 1.500"(38.1) TPHSMS

Magnet

See ADB Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 51

Automatic door bottoms

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

Options:

LS Light spring

FLO Air ﬂow/ sound block

Z49 Removable end cap

PL Pull out

SEC Torx security screws

LK Locking key

NH No holes

Note:

Maximum order length is 60" unless noted otherwise. Lengths up to 96" on some

models available as engineering special order.

Lengths 10" - 18" available only with light spring drop mechanism.

Not recommended for maximum drop greater than .500".

Except where noted, all models on this page are shipped in standard LH/RHR

conﬁguration with locking screw concealed (facing the door). Handing is reversible.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

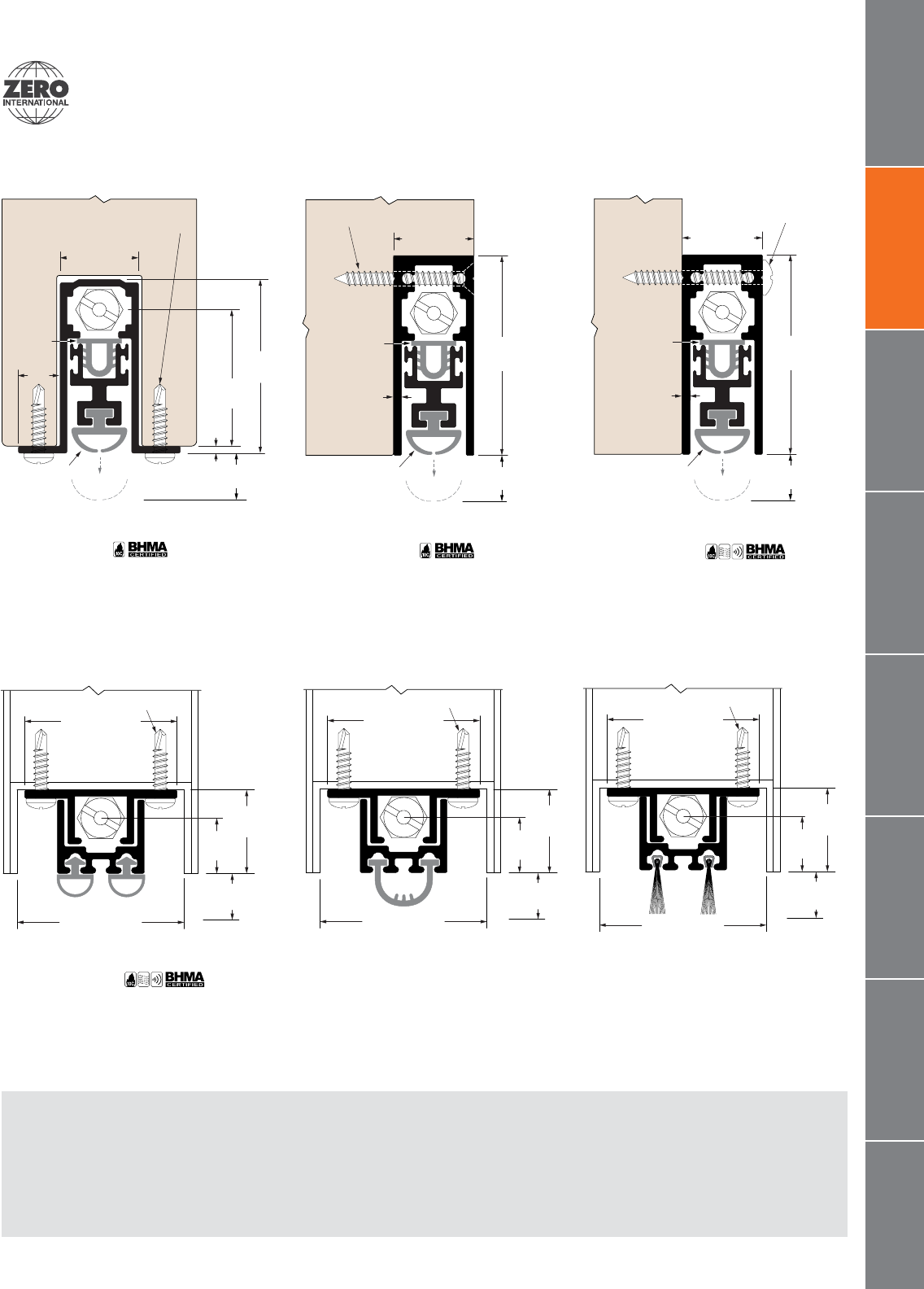

Regular duty

350

Finishes:

Options:

LS, PL, NH

ANSI/BHMA:

350AA R3B324

Mortised. Supplied with solid neoprene extrusion. Lengths 60-96"

available as engineering specials.

352

Finishes:

AA, BK,

D, G

Options:

LS, PL, SEC,

LK, NH

ANSI/BHMA:

352AA, 352BK, 352D, 352G R3B344

Semi-mortised. Supplied with solid neoprene extrusion.

Lengths 60-96" available as engineering specials.

Neoprene

#6 x .750”(19.1) PPHSDS

Zero

quiet

seal

Max. drop

.750"(19.1)

350

1.560"

(39.6)

1.250"

(31.8)

.062"

(1.9)

.375"

(9.5)

.705"(17.9)

351

Finishes:

AA, BK,

D, G

Options:

LS, SEC, PL,

LK, NH

ANSI/BHMA:

351AA, 351BK, 351D, 351G R3B3334

Surface-mounted. Supplied with solid neoprene extrusion.

Lengths 60-96" available as engineering specials.

Neoprene

#8 x 1.500"(38.1) TPHSMS

Zero

quiet

seal

Max. Drop

.750"(19.1)

351

1.793"

(45.5)

.722"(18.3)

.070"

(1.8)

355

Finishes:

Options:

FLO, PL, NH

ANSI/BHMA:

355A R3E324

For use with hollow metal doors. Mortised. Supplied without

end caps.

Max. Drop

.500"(12.7)

#6 x .750"(19.1) PPHSDS

355

1.375"(34.9)

1.500"(38.1)

.750"

(19.1)

.500"

(12.7)

Neoprene

#8 x 1.500"(38.1) FPHSMS

Zero

quiet

seal

Max. Drop

.750"(19.1)

352

1.793"

(45.5)

.722"(18.3)

.070"

(1.8)

3551

Finishes:

Options:

PL, NH

For use with hollow metal doors. Mortised.

Supplied without end caps.

3552

Finishes:

Options:

FLO, PL, NH

For use with hollow metal doors. Mortised.

Supplied without end caps.

#6 x .750"(19.1) PPHSDS

3551

1.375"(34.9)

1.500"(38.1)

Max. Drop

.500"(12.7)

.750"

(19.1)

.500"

(12.7)

#6 x .750"(19.1) PPHSDS

3552

1.375"(34.9)

1.500"(38.1)

Max. Drop

.500"(12.7)

.750"

(19.1)

.500"

(12.7)

See ADB Accessories & options page for details.

52 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

Options:

LS Light spring

FLO Air ﬂow/ sound block

Z49 Removable end cap

PL Pull out

SEC Torx security screws

LK Locking key

NH No holes

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Note:

Maximum order length is 60" unless noted otherwise.

Lengths 10" - 18" available only with light spring drop mechanism.

Not recommended for maximum drop greater than .500".

Except where noted, all models on this page are shipped in standard LH/RHR

conﬁguration with locking screw concealed (facing the door). Handing is reversible.

Light duty

Automatic door bottoms

320

Finishes:

Options:

LS, PL, NH

ANSI/BHMA:

320AA R3B324

Mortised. Lengths 60-96" available as engineering specials.

.595"

(15.1)

Zero

quiet seal

.062"

(1.6)

Max. drop

.750"(19.1)

#6 x .750”(19.1) PPHSDS

320

Neoprene

1.458"

(37.0)

.375"

(9.5)

323

Finishes:

Options:

LS, PL, NH

ANSI/BHMA:

323A R3B324

Mortised. Supplied with two handing holes that allow changing

handing without changing mounting orientation.

Lengths 60-96" available as engineering specials.

Max. drop

.750"(19.1)

.595"

(15.1)

Zero

quiet seal

Neoprene

.062"

(1.6)

#6 x .750”(19.1) PPHSDS

323

1.458"

(37.0)

.375"

(9.5)

321

Finishes:

AA, BK,

D, G

Options:

LS, PL, SEC,

ANSI/BHMA:

321AA, 321BK, 321D, 321G R3B334

Surface-mounted. Supplied with two handing holes that allow

changing handing without changing mounting orientation.

Lengths 60-96" available as engineering specials.

.595"

(15.1)

Neoprene

Zero

quiet seal

.062"

(1.6)

Max. drop

.750"(19.1)

#8 x 1.50”(38.1)

TPHSMS

321

2.00"

(50.8)

See ADB Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 53

Automatic door bottoms

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

Options:

LS Light spring

FLO Air ﬂow/ sound block

Z49 Removable end cap

PL Pull out

SEC Torx security screws

LK Locking key

NH No holes

Note:

Maximum order length is 60" unless noted otherwise. Lengths up to 96" on some

models available as engineering special order.

Lengths 10" - 18" available only with light spring drop mechanism.

Not recommended for maximum drop greater than .500".

Except where noted, all models on this page are shipped in standard LH/RHR

conﬁguration with locking screw concealed (facing the door). Handing is reversible.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

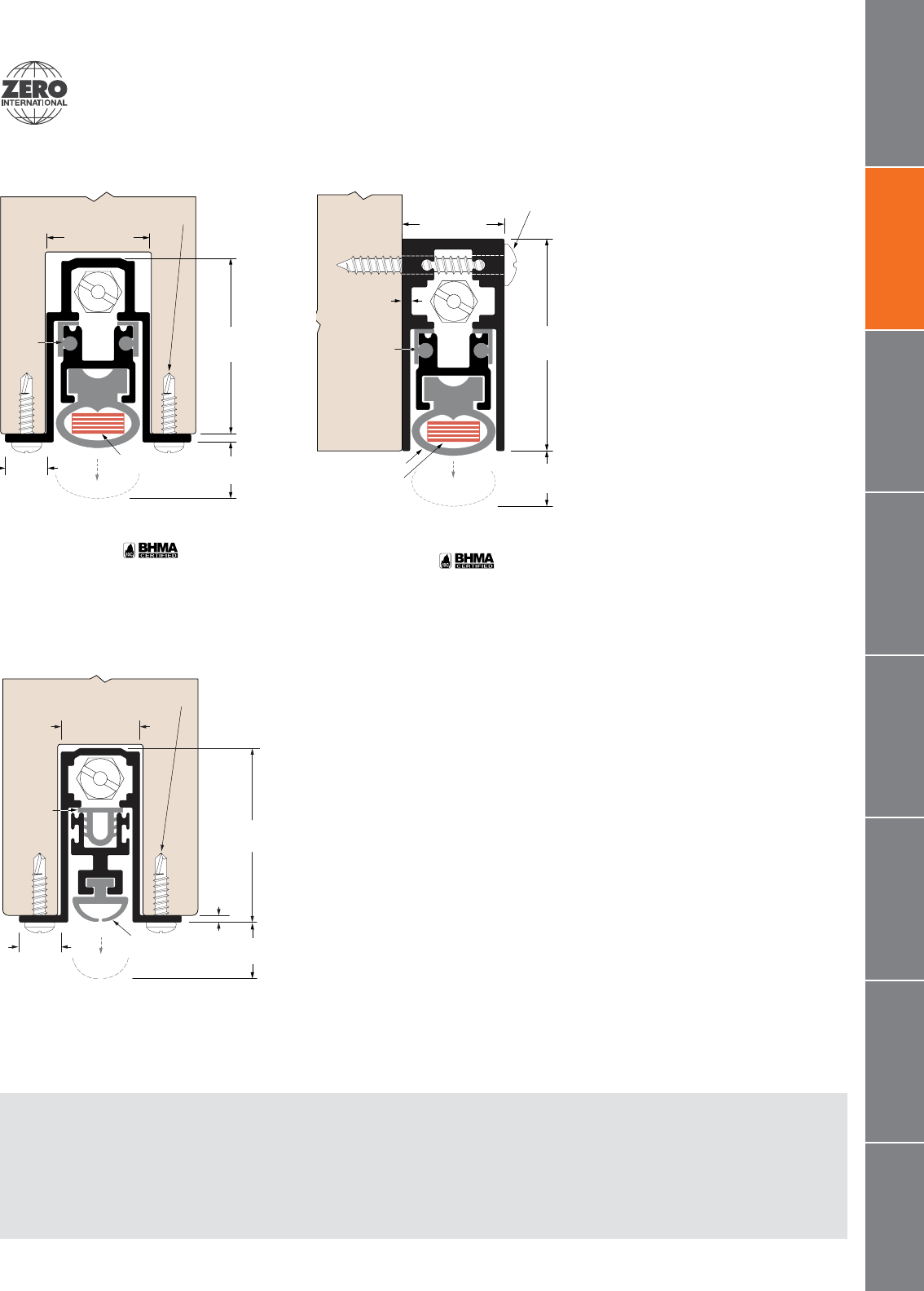

Special purpose

364FS

Finishes:

Options:

Z49, PL,

ANSI/BHMA:

364FSAA R3B324

Mortised. Intumescent ﬁre protection.

365FS

Finishes:

AA, BK,

D, G

Options:

LK, PL, SEC,

ANSI/BHMA:

365FS-AA, 365FS-BK,

365FS-D, 355FSG R3B334

Surface-mounted application. Intumescent ﬁre protection.

.371"

(9.4)

1.575"

(40.0)

.924"(23.5)

364FS

Max. Drop

.500"(12.7)

#6 x .750"(19.1) PPHSDS

.075"

(1.9)

Zero

quiet

seal

Intumescent

365FS

Neoprene

Max. Drop

.500"(12.7)

Intumescent

.083"

(2.2)

1.901"

(48.3)

.916"(23.3)

#8 x 1.500"(38.1) TPHSMS

Zero

quiet

seal

7350

Finishes:

Options:

LS, PL, NH

Mortised, for latching pocket/sliding doors.

Note: This automatic door bottom functions differently from other ZERO

door bottoms. When the plunger is compressed, the mechanism causes

the insert seal to activate and drop evenly along the door bottom.

Maximum length of 48".

.062"

(1.9)

1.560"

(39.6)

.705"(17.9)

Neoprene

#6 x .750”(19.1) PPHSDS

Zero

quiet

seal

Max. Drop

.750"(19.1)

7350

.375"

(9.5)

Intumescent automatic door bottoms

Sliding door automatic door bottom

54 • Zero • Door sealing systems • www.zerointernational.com

Automatic door bottoms

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Notes

Perimeter

seals

Door sealing systems

56 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Perimeter seals

Index

Accessories & options

Finishes ............................................................................................................................58

Specialized perimeter seal accessories ................................................................ 60

Door sweeps

39 ......................................................................................................................................62

339 ....................................................................................................................................62

539 ....................................................................................................................................62

39W ..................................................................................................................................62

339W ................................................................................................................................62

328 ....................................................................................................................................62

50M...................................................................................................................................63

477 .....................................................................................................................................63

8191 ...................................................................................................................................63

329 ....................................................................................................................................63

8197 ..................................................................................................................................63

571 .....................................................................................................................................63

871 .....................................................................................................................................64

255 ....................................................................................................................................64

8192 ..................................................................................................................................64

98 ......................................................................................................................................64

96 ......................................................................................................................................64

8194 ..................................................................................................................................65

8193 ..................................................................................................................................65

8198 ..................................................................................................................................65

639W ...............................................................................................................................65

95 ......................................................................................................................................65

93 ......................................................................................................................................65

Door shoes

111 ...................................................................................................................................... 66

153 .................................................................................................................................... 66

253 ................................................................................................................................... 66

110 ..................................................................................................................................... 66

154 .................................................................................................................................... 66

254 ................................................................................................................................... 66

452 ................................................................................................................................... 66

72 ...................................................................................................................................... 66

52 ...................................................................................................................................... 66

8151 ................................................................................................................................... 67

8049R .............................................................................................................................. 67

3544 ................................................................................................................................. 67

53 ....................................................................................................................................... 67

511 ...................................................................................................................................... 67

8149 .................................................................................................................................. 67

381 ..................................................................................................................................... 67

3546 ................................................................................................................................. 67

Intumescent door sweeps & shoes

339FS .............................................................................................................................. 68

39FSA.............................................................................................................................. 68

521FS ............................................................................................................................... 68

59FS ................................................................................................................................68

253FS .............................................................................................................................. 68

111FS ................................................................................................................................. 68

Adjustable sealing systems – jamb-applied

770 ....................................................................................................................................69

770FS ...............................................................................................................................69

170 .....................................................................................................................................69

7770 ..................................................................................................................................70

770SP / 770STST .........................................................................................................70

712......................................................................................................................................70

870 ....................................................................................................................................70

871 .....................................................................................................................................70

873 ....................................................................................................................................70

Head and jamb gasketing

3708 .................................................................................................................................. 71

3709 .................................................................................................................................. 71

470 ..................................................................................................................................... 71

472...................................................................................................................................... 71

270 ..................................................................................................................................... 71

272 ...................................................................................................................................... 71

485 .................................................................................................................................... 72

475 .................................................................................................................................... 72

478 .................................................................................................................................... 72

570 .................................................................................................................................... 72

370 .................................................................................................................................... 72

375..................................................................................................................................... 72

139 ..................................................................................................................................... 73

312 ..................................................................................................................................... 73

314 ..................................................................................................................................... 73

140..................................................................................................................................... 73

318 ..................................................................................................................................... 73

322 .................................................................................................................................... 73

50 ...................................................................................................................................... 74

1370 ................................................................................................................................... 74

376 .................................................................................................................................... 74

5831FS ............................................................................................................................. 74

5832FS ............................................................................................................................ 74

58FS ................................................................................................................................. 74

98 ...................................................................................................................................... 74

99 ...................................................................................................................................... 74

100 .................................................................................................................................... 74

31 ........................................................................................................................................ 75

5831 .................................................................................................................................. 75

32 ....................................................................................................................................... 75

5832 ................................................................................................................................. 75

33 ....................................................................................................................................... 75

5833 ................................................................................................................................. 75

326 .................................................................................................................................... 76

328 .................................................................................................................................... 76

429 .................................................................................................................................... 76

8305 ................................................................................................................................. 76

302FS ............................................................................................................................... 76

328FS ............................................................................................................................... 76

8193 ...................................................................................................................................77

8879 ..................................................................................................................................77

8302 ..................................................................................................................................77

8877 ...................................................................................................................................77

8303 ..................................................................................................................................77

8878 ..................................................................................................................................77

Meeting stiles

Adjustable surface-mounted meeting stiles for beveled doors

55/155 ..............................................................................................................................78

55/555 .............................................................................................................................78

55FS/555FS ................................................................................................................... 78

871 .....................................................................................................................................78

873 .................................................................................................................................... 78

Adjustable mortised meeting stiles for bull-nosed doors

56/557 ............................................................................................................................. 79

56/156 ............................................................................................................................. 79

56FS/557FS ................................................................................................................... 79

3056FS/3557FS ........................................................................................................... 79

Surface-mounted meeting stiles for beveled doors, both doors active

8192 ................................................................................................................................. 80

8193 ................................................................................................................................. 80

8194 ................................................................................................................................. 80

8879 ................................................................................................................................80

8195 ................................................................................................................................. 80

98 ..................................................................................................................................... 80

99 .......................................................................................................................................81

100 .....................................................................................................................................81

326 .....................................................................................................................................81

328 .....................................................................................................................................81

370 .....................................................................................................................................81

375......................................................................................................................................81

Mortised meeting stiles for bull-nosed doors, both doors active

34/38 ...............................................................................................................................82

35/38 ...............................................................................................................................82

36/38 ...............................................................................................................................82

53 .......................................................................................................................................82

398V .................................................................................................................................82

399V .................................................................................................................................82

59FS .................................................................................................................................83

159FS ................................................................................................................................83

8217S ................................................................................................................................83

381 .....................................................................................................................................83

Astragals — One door active or coordinating doors

905 ...................................................................................................................................84

44 ......................................................................................................................................84

47 .......................................................................................................................................84

383 ....................................................................................................................................84

383FS ...............................................................................................................................84

43.......................................................................................................................................84

1840/41 ............................................................................................................................85

40/41 ................................................................................................................................85

1840 ..................................................................................................................................85

40 ......................................................................................................................................85

41 .......................................................................................................................................85

139 .................................................................................................................................... 86

140.................................................................................................................................... 86

322 ................................................................................................................................... 86

339 ................................................................................................................................... 86

Specialized solutions

Door closer mounting brackets

328SPB ............................................................................................................................ 87

870SPB ........................................................................................................................... 87

770SPB ............................................................................................................................ 87

www.zerointernational.com • Door sealing systems • Zero • 57

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

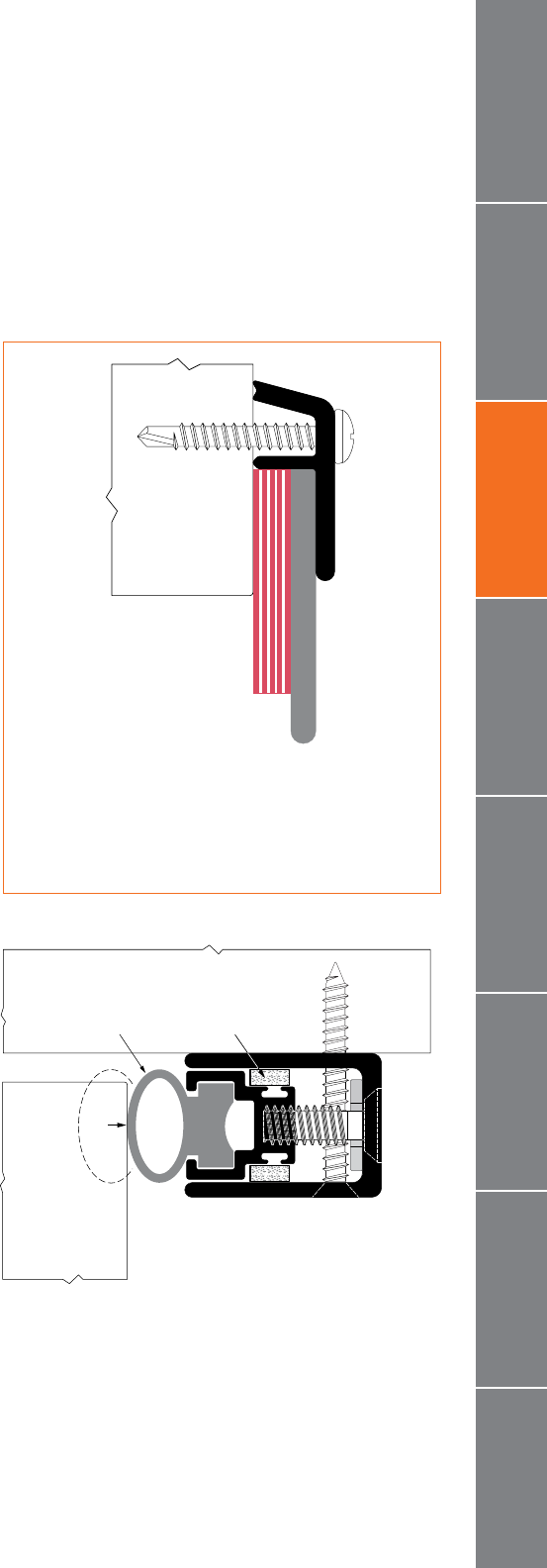

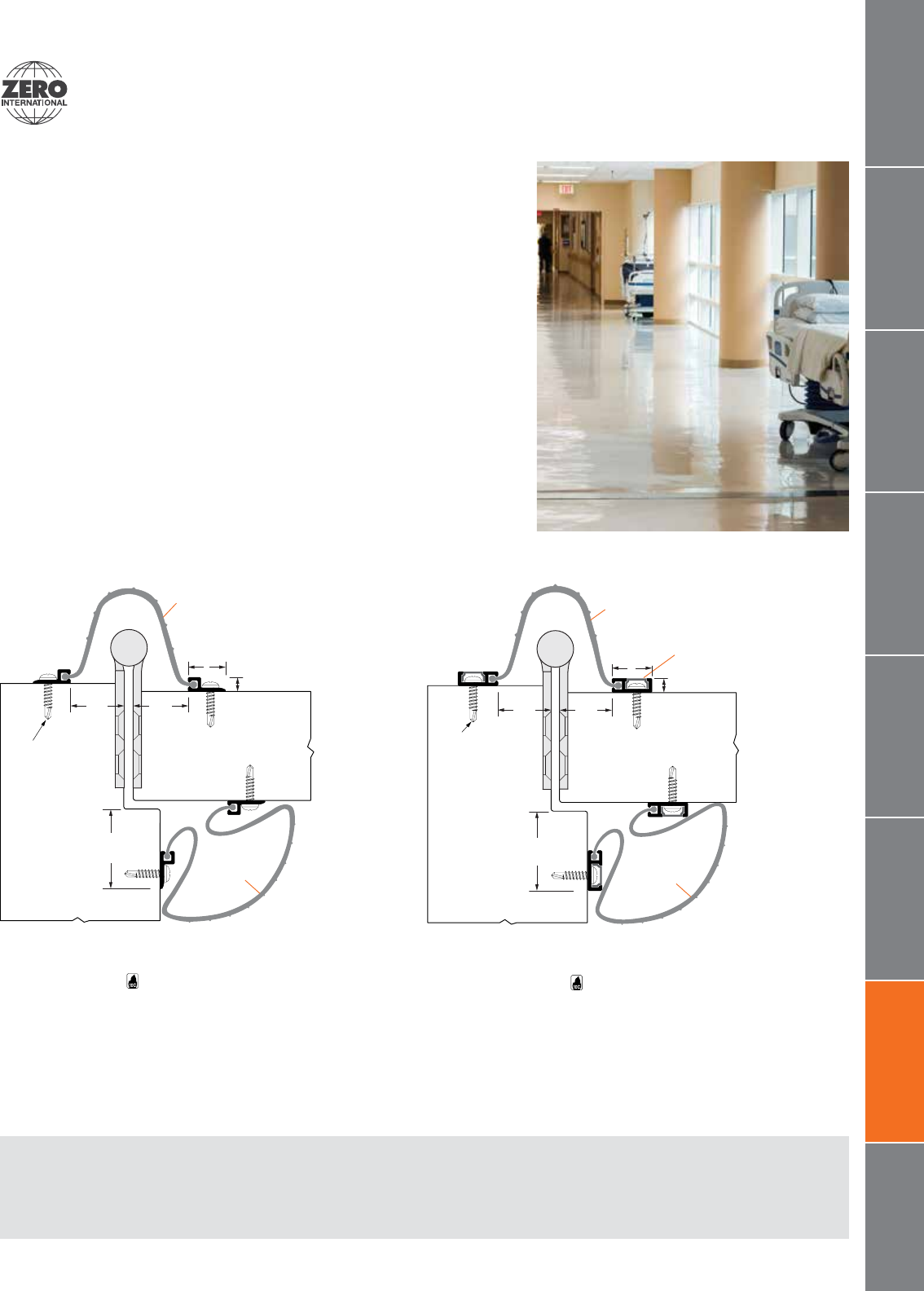

339FS

Gap solutions - restore lost ﬁre ratings

Fire ratings lost when installation or alignment problems

cause larger clearances can be restored using Zero

intumescent solutions, without the costs of structural

changes or door replacement. See Zero's full line of

intumescent door sweeps on page 16.

770

Solid

neoprene

Sponge

neoprene

CASED FRAME

770

339FS

Perimeter seals Introduction

Optimal choice and performance

Zero door gaskets for protecting head, jamb, sill, and meeting stiles are

engineered for reliable performance in demanding environments. Constructed

from top-quality materials, they are built to last. We offer an unequaled range of

capabilities, features, aesthetic options and specialized solutions.

When you need the best seal to satisfy codes, or ﬁeld conditions

are less than perfect, our mechanically fastened gasketing

provides many choices:

Solid or closed cell sponge neoprene, silicone, EPDM rubber,

nylon brush, and pile with ﬁn seals.

Sealing reinforcement using double seals, magnetic door

seals, or spring-loaded mechanisms.

Snap-on covers for aesthetics, as well as protecting

mounting screws from abuse.

ZAG ligature resistant option available on select head & jamb

gaskets to prevent removal for self-harm or other

inappropriate uses.

EBF double sealing system available on selected gasketing

(as well as thresholds), our extruded bulb/ﬁnger ensures an

airtight seal even when doors are misaligned because of

poor installation, or slightly warped.

Adjustable features to compensate for door alignment

problems at installation or in service.

Adjustable sealing systems

Field conditions at installation are rarely perfect in the real

world, alignment problems can cause gaps that diminish the

performance of even the best-designed gasketing. Even with

successful installations, similar problems can surface later on as

doors cycle through changes in temperature and humidity.

Zero engineering provides ﬁeld-proven solutions. Whenever

gaps in door seals occur, it can be dicult to make needed

adjustments using conventional gasketing. Zero’s adjustable

gasketing solves those problems with ease. Just a few turns of a

screwdriver is all it takes to tighten adjusting screws along the

length of the gasket and restore a tight seal.

58 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Airﬂow/sound block (FLO)

Available as an option for mortised door shoe models #381 and #3546. The FLO conﬁguration

is a practical solution for applications requiring air ﬂow while blocking light and sound as much

as possible. The design uses sound-damping neoprene or EPDM seals which are notched and

overlapped in staggered rows. This feature is commonly used for hotel doorways designed to

exchange or amplify air conditioning between guest rooms and hallways.

Pressure-sensitive adhesive (PSA)

PSA is available as an option for door sweep and meeting stile models, which are provided

standard with screws: #8192, #8193, #8194 Perimeter seals that are supplied with PSA

standard are designated by model numbers showing “-PSA.”

Ligature resistant gasketing (ZAG)

This patented ligature-resistant option prevents unintended usage of the gasketing, including

harming oneself or others. When ZAG is speciﬁed, the rubber is scored before insertion into the

aluminum extrusion. This allows for normal function for its speciﬁed purpose, but the seal will

now break apart if removal is attempted or any weight is placed on the seal.

Order as a set (S)

Head & jamb gasketing and adjustable sealing systems can be ordered either as “straight-

stick” components (order by length) or as a set of three components – two side jambs and a

head jamb (order by size of door opening = Width" x Height"). Other perimeter seals are

ordered only as “straight-stick.”

Security screws (SEC)

Tamper-resistant Torx security screws. Prevents unauthorized removal in hospitals, schools

and public places.

Options

FLO Air flow/ sound block ZAG Ligature resistant

gasketing SEC Security screws

PSA Pressure-sensitive

adhesive

S Order as a set

Finishes

Aluminum Mill Finish

Aluminum Clear Anodized

(628, US28)

BK*

Aluminum Black Anodized

(711, 315AN)

Aluminum Dark Bronze

Anodized (710, 313AN)

Aluminum Gold Anodized

(688, 10AN)

Bronze, Architectural

Mill Finish

B-ORB

Oil-Rubbed Bronze

(US10B/613)

381A-FLO

FLO option: Neoprene seals

are notched and overlapped to

facilitate air ﬂow.

Accessories & options

*Black, Dark Bronze and Gold anodized aluminum ﬁnishes will show wear over time and are not included in the standard warranty. Black, Dark Bronze and Gold

anodized aluminum ﬁnished products may require a longer lead time, please contact customer service for accurate lead times.

6" Typ.

328AA-ZAG

485N-ZAG

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 59

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Accessories & options

Fasteners

Perimeter seals are supplied with the appropriate screws and quantities needed for installation based

on order length. Use the part numbers below for ordering additional screws.

Standard screw packs - head and jamb

Applicable perimeter seal models Part # Description Finish Package contents

170, 770, 7770, 770SP, 770STST 47254760 Head & Jamb AA 19 Screws #8x1-1/2" FPHSMS, ZP

170D, 770D, 7770D 47254761 Head & Jamb D, BK 19 Screws #8x1-1/2" FPHSMS, black ZP

170G, 770G, 7770G 47254762 Head & Jamb G 19 Screws #8x1-1/2" FPHSMS, brass plate

11, 31, 32, 33, 39, 39W, 44STST, 47, 50, 50MA, 52, 53, 55, 55FS, 72,

95, 96, 98, 99, 100, 110, 111, 111FS, 139, 140, 141, 142, 153, 154, 155,

253, 253FS, 254, 255, 270, 272, 302FS, 312, 314, 318, 322, 326,

328, 328FS, 329, 339, 339W, 339FS, 376, 381, 452, 470, 472, 475,

477, 478, 485,511, 539, 555, 555FS, 570, 639W, 712, 870, 871, 873,

905, 1370, 3544, 3546, 3709, 8049R, 8149, 8151, 8191, 8192, 8193,

8194, 8195, 8197, 8198, 8302, 8303, 8305, 8877, 8878, 8879

47254768 Head & Jamb AA, A 6 Screws #6x1 PPHSDS

11, 31, 32, 33, 39, 39W, 47, 50, 50MA, 51-90, 51-180, 55, 55FS, 95,

96, 98, 99, 100, 110, 111, 111FS, 139, 140, 141, 142, 153, 154, 155, 255,

270, 272, 302FS, 312, 314, 318, 322, 326, 328, 328FS, 329, 339,

339W, 339FS, 470, 472, 485, 511, 539, 555, 555FS, 570, 639W,

712, 870, 871, 873, 905, 951, 971-BIO, 972-BIO, 973-BIO, 974-BIO,

1370, 3709, 8191, 8192, 8193, 8194, 8195, 8197, 8198, 8302, 8303,

8305, 8877, 8878, 8879

47254769 Head & Jamb,

Finger Guards

D, BK 6 Screws #6x1 PPHSDS, black ZP

11, 31, 32, 33, 39, 39W, 47, 50, 50MA, 51-90, 51-180, 55, 55FS, 95,

96, 98, 99, 100, 110, 111, 111FS, 139, 140, 141, 142, 153, 154, 155, 255,

270, 272, 302FS, 312, 314, 318, 322, 326, 328, 328FS, 329, 339,

339W, 339FS, 470, 472, 485, 511, 539, 555, 555FS, 570, 639W,

712, 870, 871, 873, 905, 951, 971-BIO, 972-BIO, 973-BIO, 974-BIO,

1370, 3709, 8191, 8192, 8193, 8194, 8195, 8197, 8198, 8302,

8303,8305, 8877, 8878, 8879

47254770 Head & Jamb,

Finger Guards

G, B 6 Screws #6x1 PPHSDS, brass plate

41, 1840 47254801 Head & Jamb AA, D,

10 Screws #6x3/4" FPHSMS, 10 screws

#6x3/4" FPHSMS Dark Bronze ﬁnish, and

10 Screws #6x3/4" gold ﬁnish

429 47254804 Head & Jamb AA 10 Screws #10x3/4" PPHSDS

43SP, 43STST 47254805 Head & Jamb All

ﬁnishes

11 1/4-20X1 FPHMS, 11 1/4-20 sex bolts 1"

long, and 4 #10 x 3/4" PPHSDS

521FS 47254806 Head & Jamb All

ﬁnishes

6 - #10 x 1 1/2 FPHSMS CLR ZP Flanged,

#10 C-sink washer

383, 383FS 47254807 Meeting Stile AA, D,

10 - #8 x 3/4" FPHSMS and 10 #8 x 3/4"

FPHSMS black ZP

383, 383FS 47261363 Head & Jamb G10- #8 x 3/4" FPHSMS, brass plate

51-90, 51-120, 51-180, 951,971-BIO, 972-BIO, 974-BIO, 973-BIO 47254808 Finger Guard A or AA 14 - #6x3/4" PPHSMS

56, 156, 557 47257629 Head & Jamb All

ﬁnishes

20 - 8-32x5/8 OPHMS steel ZP

adjustment screws

Security screws

Finish for D, BK and G Torx screws are available upon request.

Applicable perimeter seal models Part Number Description Finish Package contents

11, 31, 32, 33, 39, 44, 47, 50, 52, 53, 55, 72, 95, 96, 98, 99, 100, 110,

111, 139, 140, 141, 142, 153, 154, 155, 254, 255, 270, 272, 312, 314, 318,

322, 326, 328, 329, 339, 376, 381, 429, 452, 470, 472, 475, 477, 478,

485, 539, 555, 570, 712, 870, 871, 873, 905, 1370, 3709, 8049,

8149, 8151, 8191, 8192, 8193, 8194, 8195, 8197, 8198, 8302, 8303,

8305, 8306, 8877, 8878, 8879, 111FS, 302FS, 328FS, 339FS,

339W, 39W, 50M, 555FS, 55FS, 639W, 973BIO, 511, 51, 951,

971BIO, 972BIO, 974BIO

47259852 HNJ and FG A or AA 12 - #6X1 Button SEC TORX SMS, clear

170, 770, 770FS, 7770 47259939 ADJ AA, SP,

or STST

19 - #8X1-1/2" Flat SEC TORX SMS, clear

383, 383FS 47259975 STILES AA

10 - #8X3/4" Flat SEC TORX SMS, clear ZP

See Perimeter seals Accessories & options page for details.

60 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

11 Rain drip

Finishes:

AA, BK, D, G

Options:

SEC

ANSI/BHMA:

11AA, 11BK, 11D, 11G R3Y936

141 Rain drip

Finishes:

AA, BK, D, G

Options:

SEC

ANSI/BHMA:

141AA, 141BK, 141D, 141G R3Y936

Application

Order components separately.

144

Finishes:

AA, BK, D, G

Options:

SEC

Security thru sex bolt

Offered for models #43 SP and #43STST, this

assembly consists of:

¼-20 X .75" (25.4) FPHSMS

¼-20 X 1.50" (25.4) sex bolt

It may be used with doors up to 1 3/4" thick.

Replacement rubber seals

Replacement seals are available for perimeter

seal models containing rubber components.

See appendix for replacement rubber seals. If

viewing an interim version of the catalog, please

contact Tech Support for replacement rubber

information.

1.375"

(34.9)

.593"

(15.1)

.062"

(1.6)

#6 x 1.00"(25.4)

PPHSDS

141

Adaptors for

End Caps

2.125"

(54.0)

.062"

(1.6)

.916"(23.3)

#6 x 1.00"

(25.4)

PPHSDS

144

Silicone

tube

.062"

(1.6)

1.062"

(27.0)

.625"

(15.9)

#6 x 1.00"

(25.4)

PPHSDS

142 Rain drip

Finishes:

AA, BK, D, G

Options:

SEC

ANSI/BHMA:

142AA, 142BK, 142D, 142G R3Y976

25 Interlocking angle

Finishes:

AA, BK, D, G

Options:

SEC

This accessory can be used interlocking with rain seal model

#144 to impede water ingress through perimeter seals on

out-swinging doors.

.062"

(1.6)

1.00"

(25.4)

.375"

(9.5)

Specialized perimeter seal accessories

Specialty exterior protection – Rain drips water shed for outswing doors.

Silicone tube

142

144

Top of

door

Accessories & options

142

.590"

(15.0)

.088"

(2.2)

2.50"(63.5)

#6 x 1.00"(25.4) PPHSDS

www.zerointernational.com • Door sealing systems • Zero • 61

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Perimeter seals How to order

Perimeter seals order guide

Perimeter seals: head and jamb, meeting stiles (astragals), sweeps, and ﬁnger guards

Model Finish

Set/

options

Length/

width Height Metric

870 AA S36 84

Models

Example

39 Sweep

140 Head & jamb, astragal-meeting stile

328* Head & jamb, astragal-meeting stile, sweep

429 Head & jamb

511 Door shoe

8198 Sweep

Finishes

A - Aluminum mill ﬁnish

AA - Aluminum clear anodized

BK - Black anodized

D - Aluminum dark bronze anodized

G - Aluminum gold anodized

B - Bronze mill ﬁnish

B-ORB - (US10B/613) Oil rubbed, aged bronze

*See speciﬁc product page for available ﬁnishes

Options

Blank - Straight stick length only, sweeps and astragals always stick

S - Door set, width always given ﬁrst, only available for “Head & Jamb”

FLO - High air ﬂow conﬁguration available on models: 381, 3546

PSA - Pressure sensitive adhesive

ZAG - Ligature resistant gasketing

*See speciﬁc product page for available options

Length/Width

Length - for straight stick items use ﬁrst measure only, use decimal to nearest 1/8"

Width - for use with Sets, "S", use decimal to nearest 1/8"

Height

Height - for use with sets, use decimal to nearest 1/8" always measure following “x” when “S” set is denoted.

Metric

Blank = US standard

MM = Metric in millimeters (rounded to the nearest 1/8")

See Perimeter seals Accessories & options page for details.

62 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

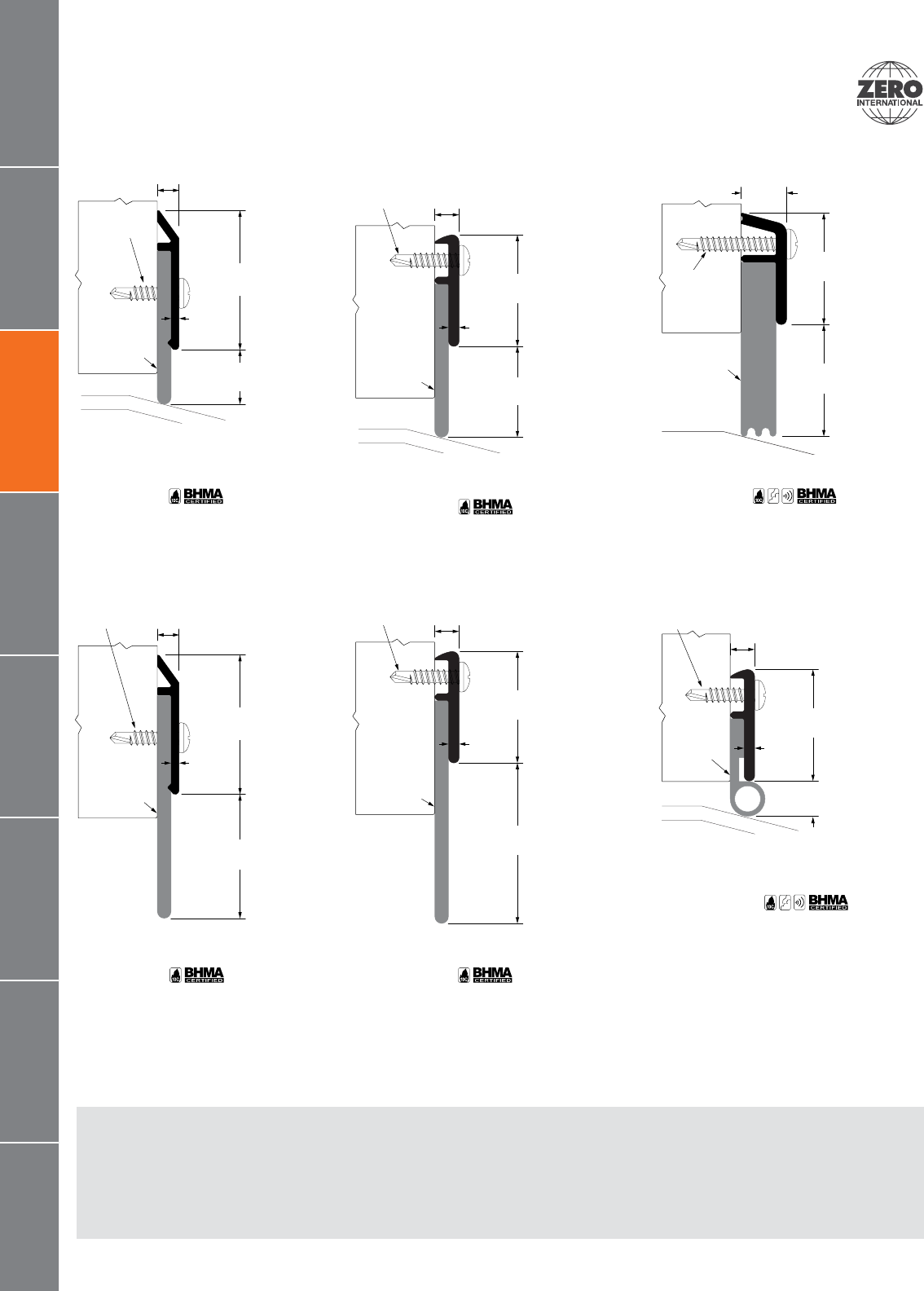

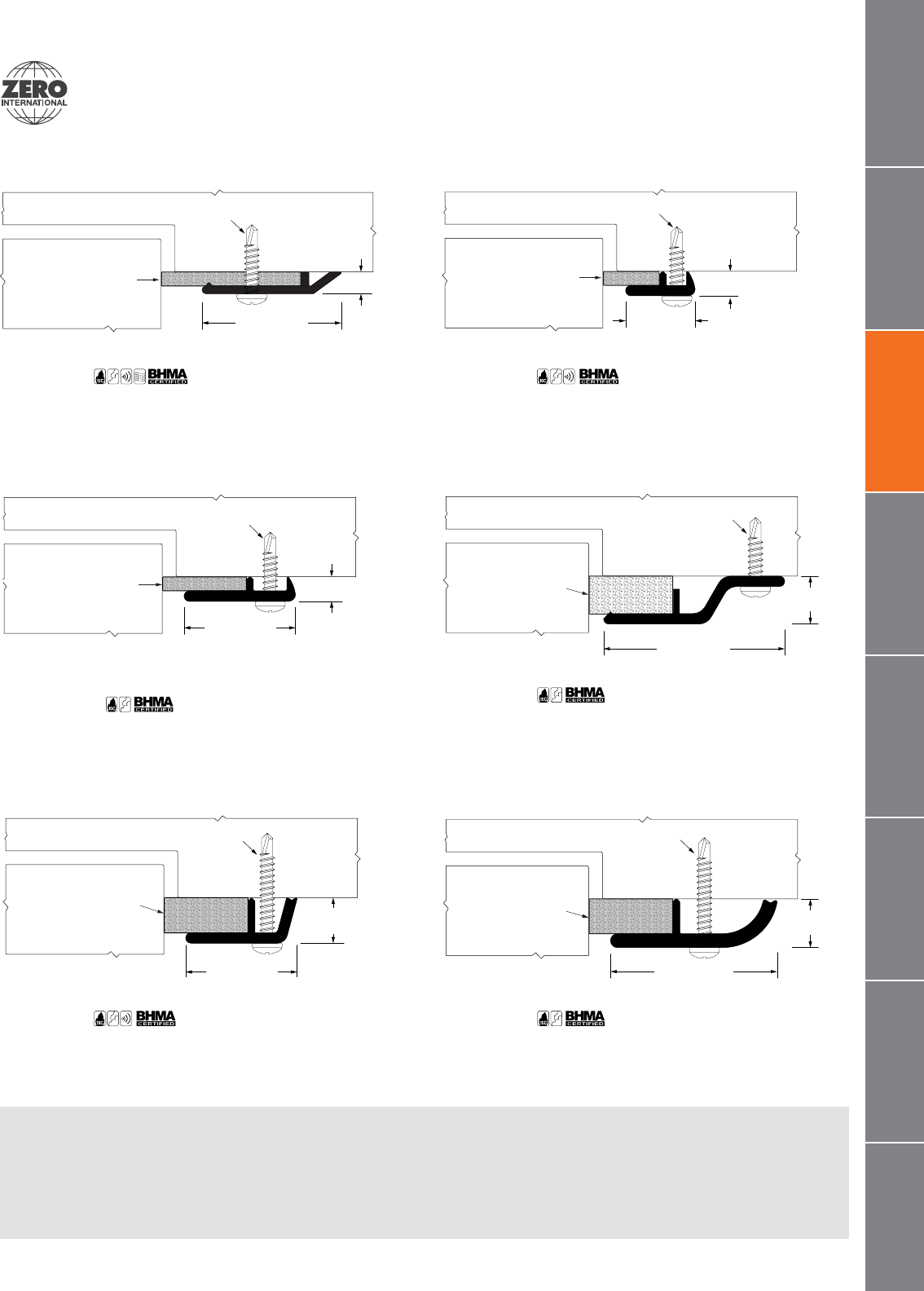

Door sweeps

339

Finishes:

AA, BK, D, G,

B, B-ORB

Options:

SEC

ANSI/BHMA:

339AA, 339BK, 339D, 339G R3B434

339B R1B434

Finishes:

A, BK,

D, G

Options:

SEC

ANSI/BHMA:

39A, 39BK, 39D, 39G R3B434

Solid

neoprene

.125"(3.2) x

1.375"(34.9)

.195"

(5.0)

.070"

(1.8)

1.250"

(31.8)

.500"

(12.7)

#6x1.00"(25.4)

PPHSDS

339W

Finishes:

AA, BK, D, G

B, B-ORB

Options:

SEC

ANSI/BHMA:

339WAA, 339WBK, 339WD, 339WG R3B434

339WB R1B434

Solid

neoprene

.125"(3.2) x

2.00"(50.8)

.219"

(5.6)

.094"

(2.4)

1.00"

(25.4)

1.440"

(36.6)

#6 x 1.00"(25.4) PPHSDS

339W

#6 x 1.00"(25.4) PPHSDS

Solid

neoprene

.125"(3.2) x

1.375"(34.9)

.219"

(5.6)

.094"

(2.4)

1.00"

(25.4)

.815"

(20.7)

339

539

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

539AA, 539BK, 539D, 539G R3B434

Solid

neoprene

.408

(10.4)

1.00"

(25.4)

1.00"

(25.4)

#6x1.00"(25.4)

PPHSDS

539

39W

Finishes:

A, BK,

D, G

Options:

SEC

ANSI/BHMA:

39WA, 39WBK,

39WD, 39WG R3B434

Solid

neoprene

.125"(3.2) x

2.00"(50.8)

#6 x 1.00"(25.4) PPHSDS

.195"

(5.0)

.070"

(1.8)

1.250"

(31.8)

1.111"

(28.2)

39W

328

Finishes:

AA, BK, D, G,

B, B-ORB

Options:

ZAG, S,

SEC

ANSI/BHMA:

328AA, 328BK, 328D, 328G R3B434

328B R1B434

Solid

neoprene

.219"

(5.6)

.094"

(2.4)

1.00"

(25.4)

.250"

(6.4)

#6 x 1.00"(25.4) PPHSDS

328

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 63

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

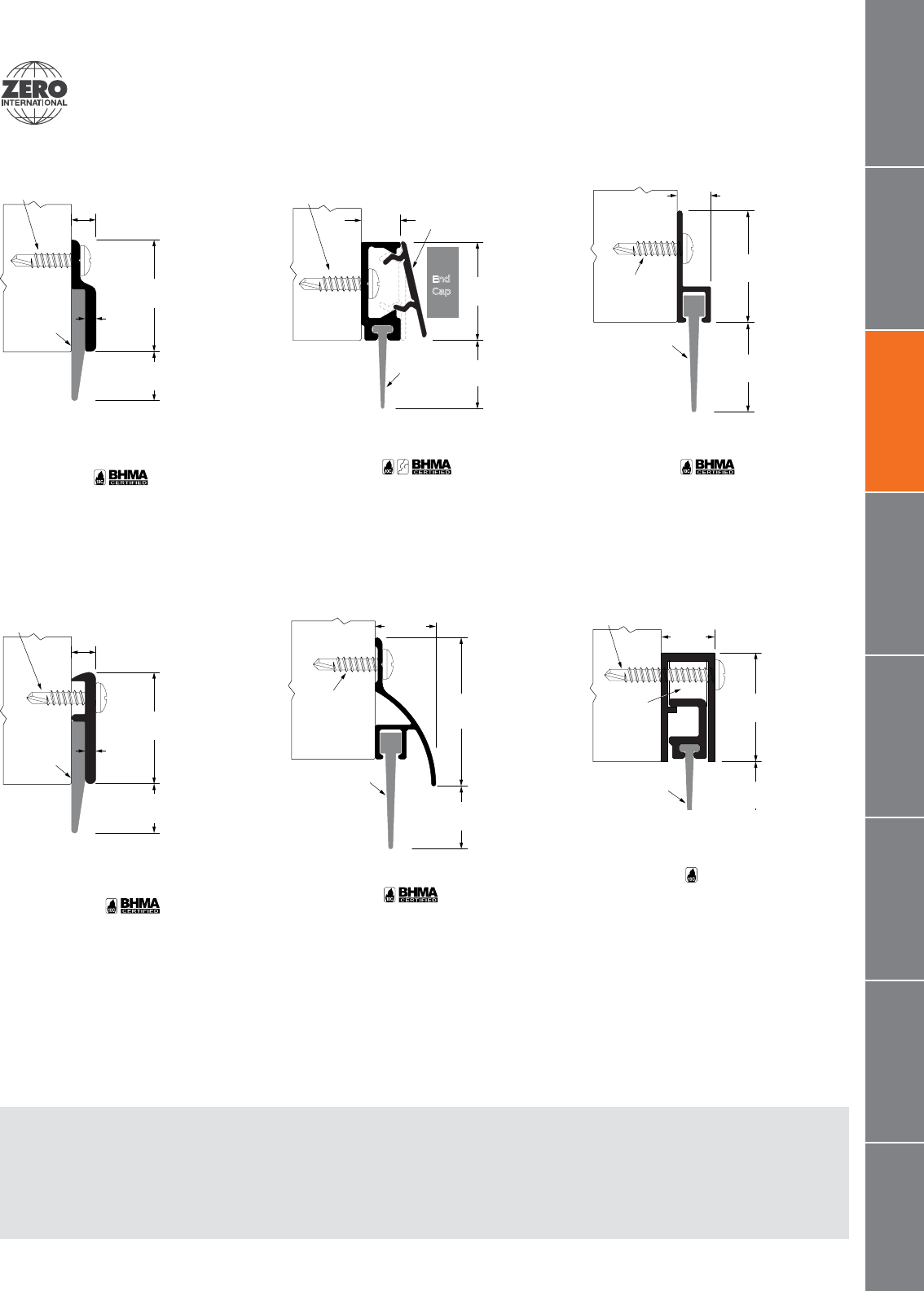

Door sweeps

50M

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

50MA, 50MAA,

50MBK, 50MD, 50MG R3B434

Beveled

neoprene

.125"(3.2) x

1.00"(25.4)

.219"

(5.6)

.094"

(2.4)

1.00"

(25.4)

.440"

(11.2)

#6 x 1.00"(25.4) PPHSDS

50M

8191

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

8191AA, 8191BK, 8191D, 8191G R3B434

Neoprene

lip

.300"

(7.6)

.813"

(20.7)

1.00"

(25.4)

#6 x 1.00"(25.4)

PPHSDS

8191

8197

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

8197AA, 8197BK, 8197D, 8197G R3B536

Neoprene

lip

.563"

(14.3)

.563"

(14.3)

1.375"

(34.9)

#6 x 1.00"(25.4)

PPHSDS

8197

477

Finishes:

AA, BK,

D, G

Options:

SEC,

End Cap

ANSI/BHMA:

477AA, 477BK, 477D, 477G R3B434

Specify End Cap option for a clean look on edges.

#6 x 1.00"(25.4) PPHSDS

.625"

(15.9)

.881"

(22.4)

.351"

(8.9)

Neoprene

lip

End

Cap

Snap-on

cover

477

329

Finishes:

AA, BK, D, G

B, B-ORB

Options:

SEC

ANSI/BHMA:

329AA, 329BK, 329D, 329G R3B434

329B R1B434

Beveled

neoprene

.125"(3.2) x

1.00"(25.4)

.219"

(5.6)

.094"

(2.4)

1.00"

(25.4)

.440"

(11.2)

#6 x 1.00"(25.4) PPHSDS

329

571

Finishes:

AA, BK,

D, G

Options:

SEC

Spring

#6 x 1.00"(25.4) PPHSDS

625"

(15.

00"

(25.

.480"

(12.2)

Neoprene

lip

571

See Perimeter seals Accessories & options page for details.

64 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

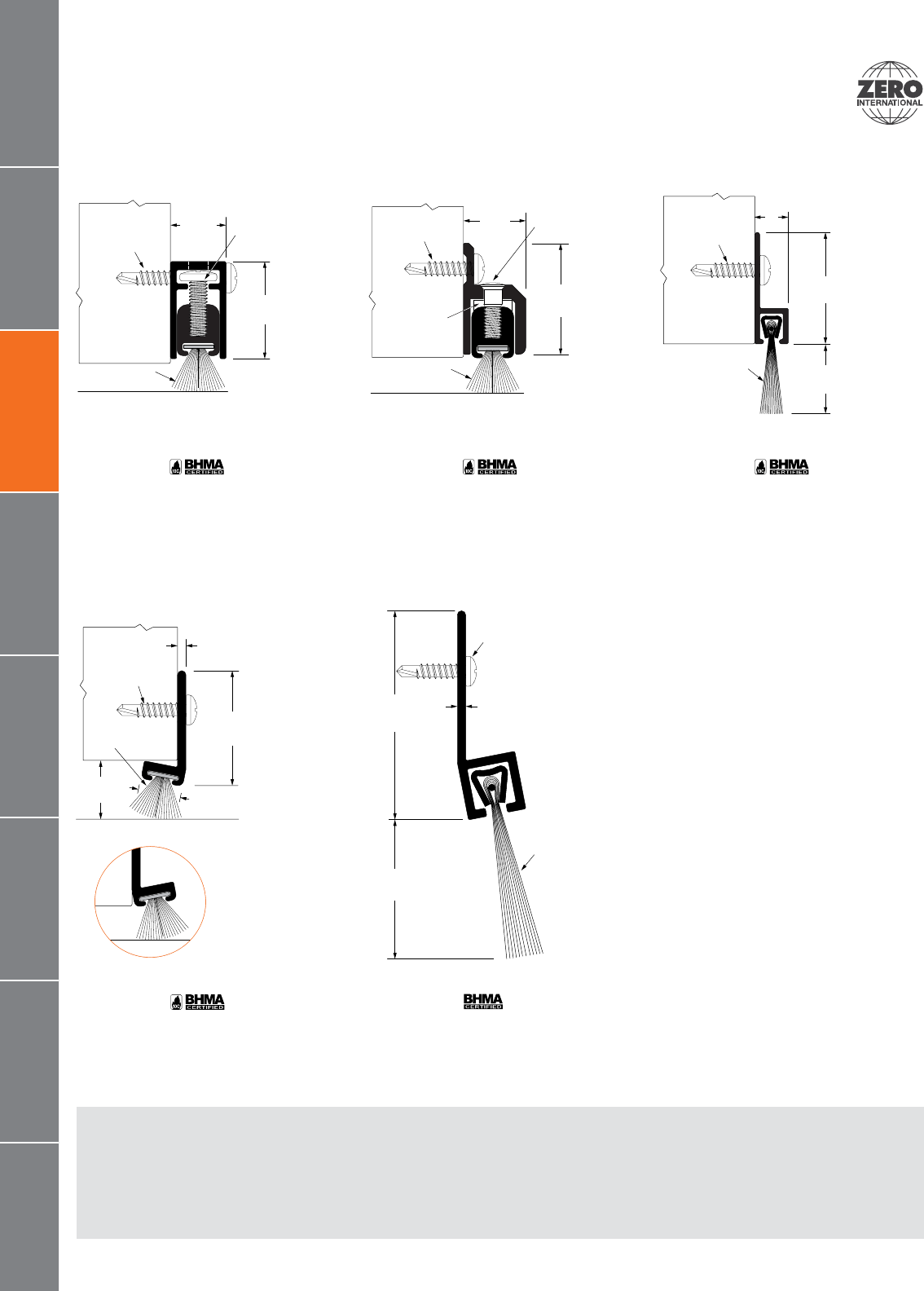

Door sweeps

871

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

871AA, 871BK, 871D, 871G R3F434

Adjustable

Pile with

ﬁn seal

871

Unit has adjusting

screws approx.

10" on center.

Max. adjusment

.250"(6.4)

.875"

(22.2)

#6 x 1.00"(25.4)

PPHSDS

.500"

(12.7)

Finishes:

A, BK,

D, G

Options:

PSA, S,

SEC

ANSI/BHMA:

98A, 98BK, 98D, 98G R3F436

Pile with ﬁn seal

.075"

(1.9)

1.00"

(25.4)

#6 x 1.00"(25.4)

PPHSDS

.380"

(9.7)

.500"

(12.7)

255

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

255AA, 255BK, 255D, 255G R3F434

Adjustable

Spring

Pile with

ﬁn seal

255

Adjusting

screw

1.00"

(24.5)

.561"

(14.2)

#6 x 1.00"(25.4)

PPHSDS

8192

Finishes:

AA, BK,

D, G

Options:

PSA, SEC

ANSI/BHMA:

8192AA, 8192BK, 8192D, 8192G R3A436

Nylon brush

.300"

(7.6)

.625"

(15.9)

1.00"

(25.4)

#6 x 1.00"(25.4)

PPHSDS

8192

Finishes:

A, BK,

D, G

Options:

SEC

ANSI/BHMA:

96A, 96BK, 96D, 96G R3A436

Suitable for mixed-use commercial, hospitality,

multi-family, as well as sliding barn doors.

Nylon brush

.075"

(1.9)

1.250"

(31.8)

1.875"

(47.6)

#6 x 1.00"(25.4)

PPHSDS

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 65

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

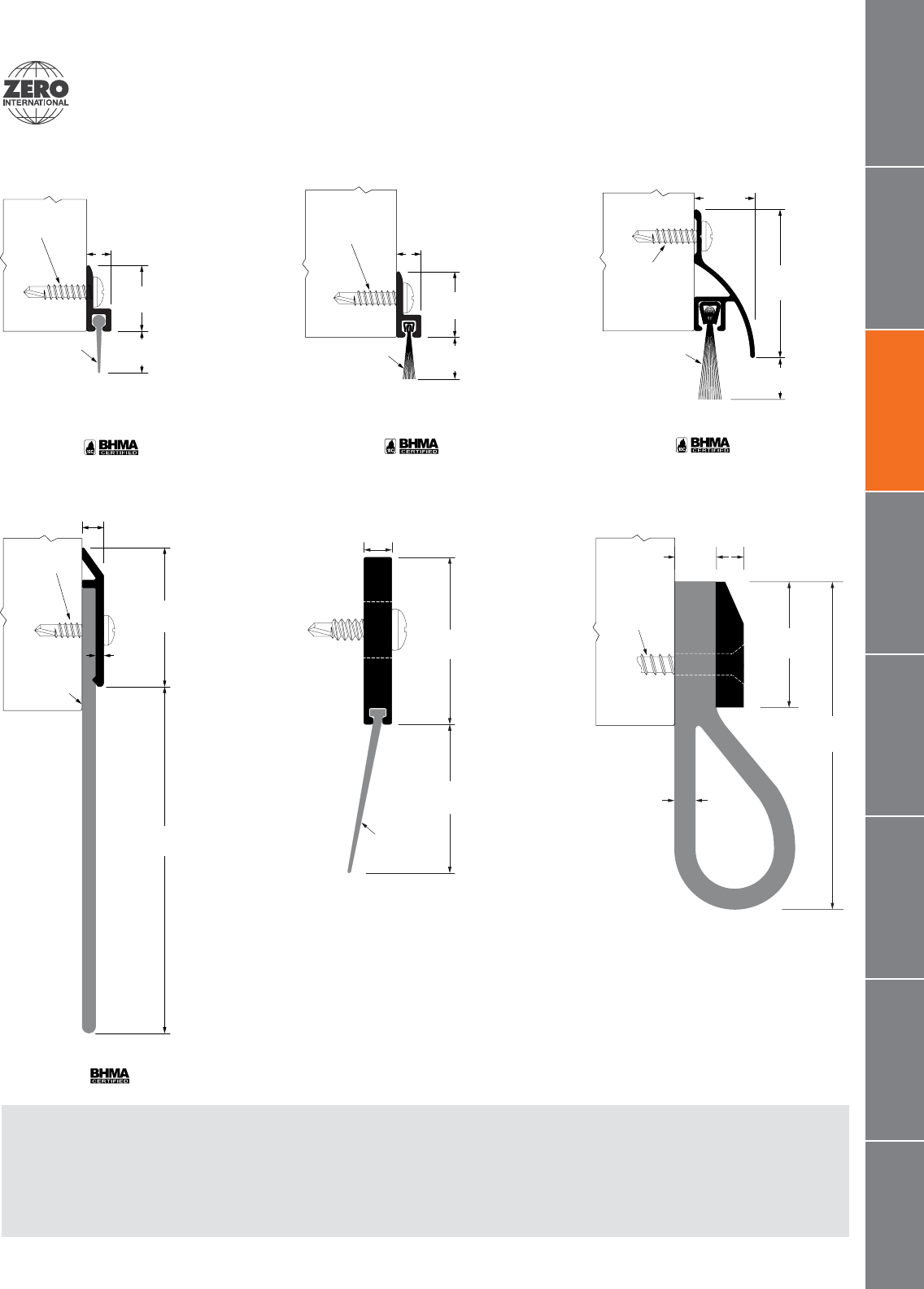

Door sweeps

8198

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

8198AA, 8198BK, 8198D, 8199G R3A536

Surface-mounted with rain drip.

Nylon brush

.563"

(14.3)

1.375"

(34.9)

#6 x 1.00"(25.4)

PPHSDS

8198

.375"

(9.5)

639W

Finishes:

A, BK,

D, G

Options:

SEC

ANSI/BHMA:

639WA, 639WAA, 639WBK, 639WD, 639WG R3B434

Solid

neoprene

.125"(3.2) x

4.00"(101.6)

.195"

(5.0)

.070"

(1.8)

1.250"

(31.8)

3.00"

(76.2)

#6 x 1.00"

(25.4)

PPHSDS

639W

Finishes:

AA, BK,

D, G

Options:

SEC

Suitable for heavy-duty overhead door

Neoprene

1.500"

(38.1)

.250"

(6.4)

1.362"

(34.6)

8194

Finishes:

AA, BK,

D, G

Options:

PSA,

SEC

ANSI/BHMA:

8194AA, 8194BK, 8194D, 8194G R3B434

Neoprene

lip

.590"

(14.9)

.375"

(9.5)

.220"

(5.6)

#6 x 1.00"(25.4)

PPHSDS

8194

Finishes:

A, BK,

D, G

Door sweep for industrial applications. 3/16" thick

oil-resistant neoprene extrusion (Class II, Grade 60)

.250"

(6.4)

1.125"

(28.6)

3.00"

(76.2)

.187"(4.7)

Neoprene

.375"

(9.5)

#10x1.50”(38.1)

FPHSMS

8193

Finishes:

AA, BK,

D, G

Options:

PSA, S,

SEC

ANSI/BHMA:

8193AA, 8193BK, 8193D, 8193G R3A436

#6 x 1.00"(25.4)

PPHSDS

Nylon brush

8193

.590"

(14.9)

.375"

(9.5)

.220"

(5.6)

See Perimeter seals Accessories & options page for details.

66 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

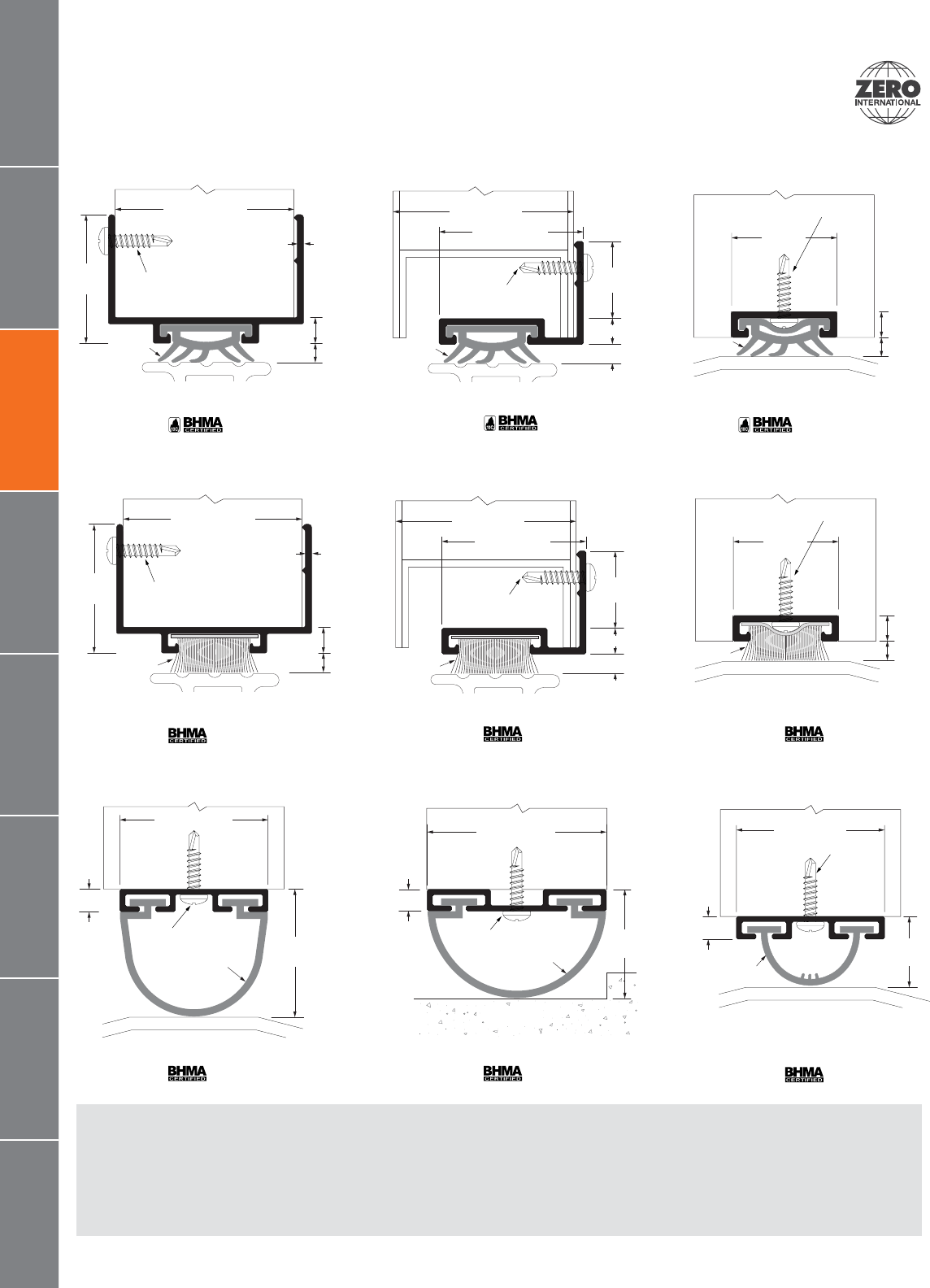

Door shoes

111

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

111AA, 111BK, 111D, 111G R3B414

452

Finishes:

Options:

SEC

ANSI/BHMA:

452A R3B414

For overhead doors. Supplied unassembled for ease of installation.

Finishes:

Options:

SEC

ANSI/BHMA:

52A R3B414

Supplied unassembled for ease of installation.

253

Finishes:

ANSI/BHMA:

253A R3B424

Supplied unassembled for ease of installation.

254

Finishes:

Options:

SEC

ANSI/BHMA:

254A R3F426

Supplied unassembled for ease of installation.

.250"

(6.4)

.187"

(4.7)

111

Solid

neoprene

#6 x 1.00"(25.4) PPHSDS

.062"(1.6)

1.750"(44.5)

1.250"

(31.8)

110

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

110AA, 110BK, 110D, 110G R3F416

Poly pile

#6 x 1.00"(25.4) PPHSDS

.062"(1.6)

1.750"(44.5)

1.250"

(31.8)

110

.250"

(6.4)

.187"

(4.7)

154

Finishes:

A, BK,

D, G

Options:

SEC

ANSI/BHMA:

154A, 154BK, 154D, 154G R3F416

Poly pile

#6 x 1.00"(25.4) PPHSDS

1.750"(44.5)

1.400"(35.6)

.750"

(19.1)

154

.250"(6.4)

.187"(4.7)

#6 x 1.00"(25.4) PPHSDS

1.024"

(26.0)

.250"

(6.4)

.187"

(4.7)

Poly pile

254

153

Finishes:

A, BK,

D, G

Options:

SEC

ANSI/BHMA:

153A, 153BK, 153D, 153G R3B414

.750"

(19.1)

153

.250"(6.4)

.187"(4.7)

Solid

neoprene

#6 x 1.00"(25.4) PPHSDS

1.750"(44.5)

1.400"(35.6)

Solid

neoprene

253

#6 x 1.00"(25.4) PPHSDS

1.024"

(26.0)

.250"

(6.4)

.187"

(4.7)

452

Solid

neoprene

#6 x 1.00"(25.4) PPHSDS

.219"

(5.6)

1.438"(36.5)

1.250"

(31.8)

Finishes:

Options:

SEC

ANSI/BHMA:

72A R3B414

For overhead doors. Supplied unassembled for ease of installation.

Concrete

#6 x 1.00"(25.4) PPHSDS

.208"

(5.3)

1.739"(44.2)

1.063"

(27.0)

Solid

neoprene

Solid

neoprene

(Reversible)

#6 x 1.00"(25.4) PPHSDS

.219"

(5.6)

1.438"(36.5)

.688"

(17.5)

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 67

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

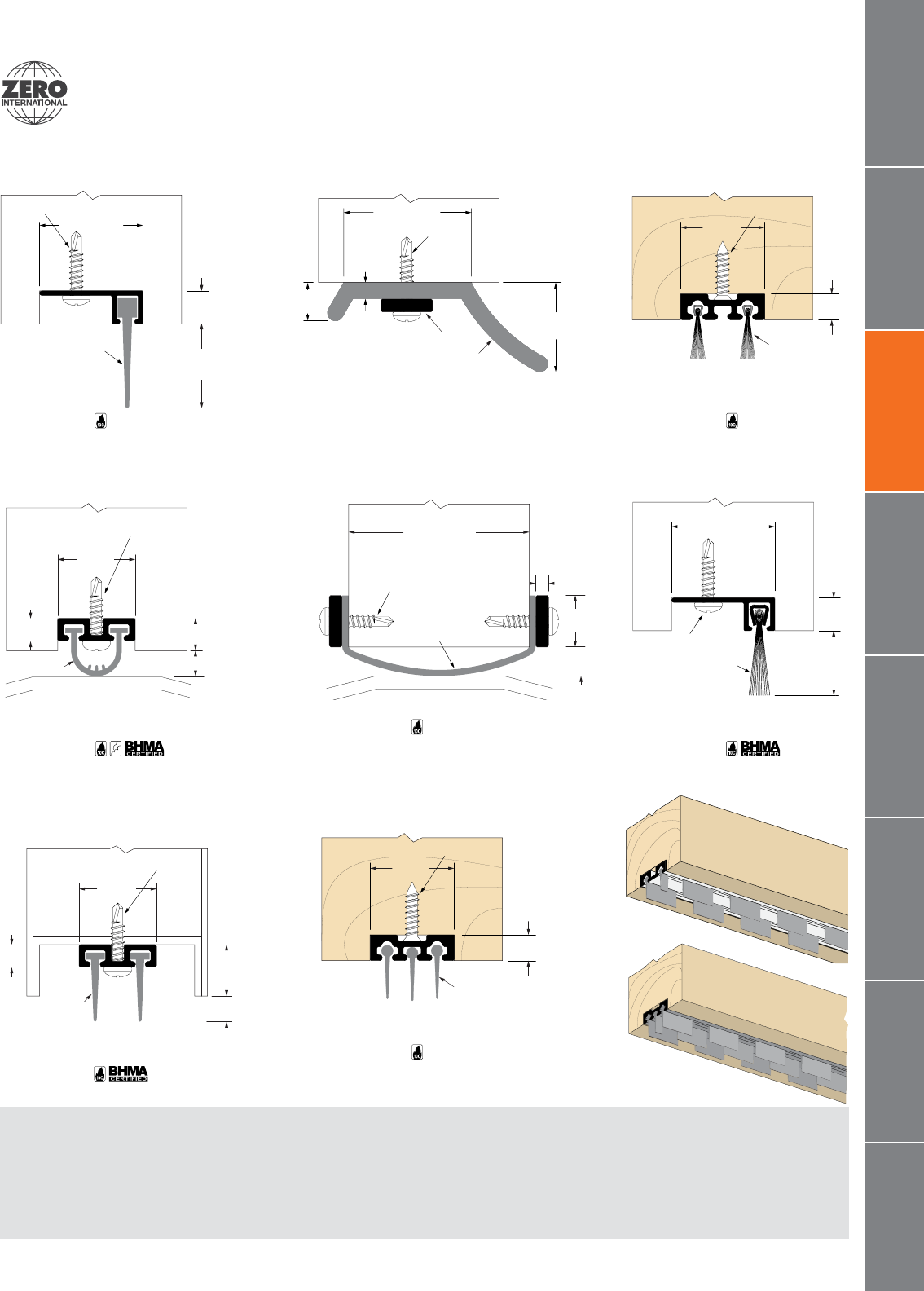

Door shoes

8151

Finishes:

Options:

SEC

Neoprene lip

#6 x 1.00"(25.4) PPHSDS

1.00"(25.4)

.319"

(8.1)

.813"

(20.6)

8151

8049R

Finishes:

Options:

SEC

Solid neoprene

Aluminum

8049R

.375"

(9.5)

.156"

(4.0)

.875"

(22.2)

1.250"(31.8)

#6 x 1.00"(25.4) PPHSDS

3544

Finishes:

Options:

SEC

3544

.240"

(6.1)

.782"

(19.9)

Nylon brush

#6 x 1.00"(25.4) FPHSMS

381A-FLO

3546A-FLO

381A-FLO

3546A-FLO

381

Finishes:

Options:

FLO, SEC

ANSI/BHMA:

381A R3B424

For metal or wood doors

381

.750"

(19.1)

.500"

(12.7)

.250"

(6.4)

Neoprene

lip

#6 x 1.00"(25.4) PPHSDS

.218"

(5.5)

3546

Finishes:

Options:

FLO, SEC

Mortised. Supplied unassembled for ease of installation.

.240"

(6.1)

.782"

(19.9)

3546

Solid

neoprene

#6 x 1.00"(25.4) FPHSMS

Finishes:

Options:

SEC

ANSI/BHMA:

53A, 53BK, 53D, 53G R3B424

Supplied unassembled for ease of installation.

Solid neoprene

(Reversible)

.218"

(5.5)

.750"

(19.1)

.313"

(8.0)

.250"

(6.4)

#6 x 1.00"(25.4) PPHSDS

511

Finishes:

A, BK,

D, G

Options:

SEC

1/16" 5" wide

Flexible rubber

511

Adjustable

or any door size

#6 x 1.00"(25.4) PPHSDS

.125"

(3.2)

.500"

(12.7)

1.750"(44.5)

8149

Finishes:

Options:

SEC

ANSI/BHMA:

8149AA R3A426

Nylon brush

8149

#6 x 1.

00"(25.4) PPHSDS

1.00"(25.4)

.319"

(8.1)

.625"

(15.9)

See Perimeter seals Accessories & options page for details.

68 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

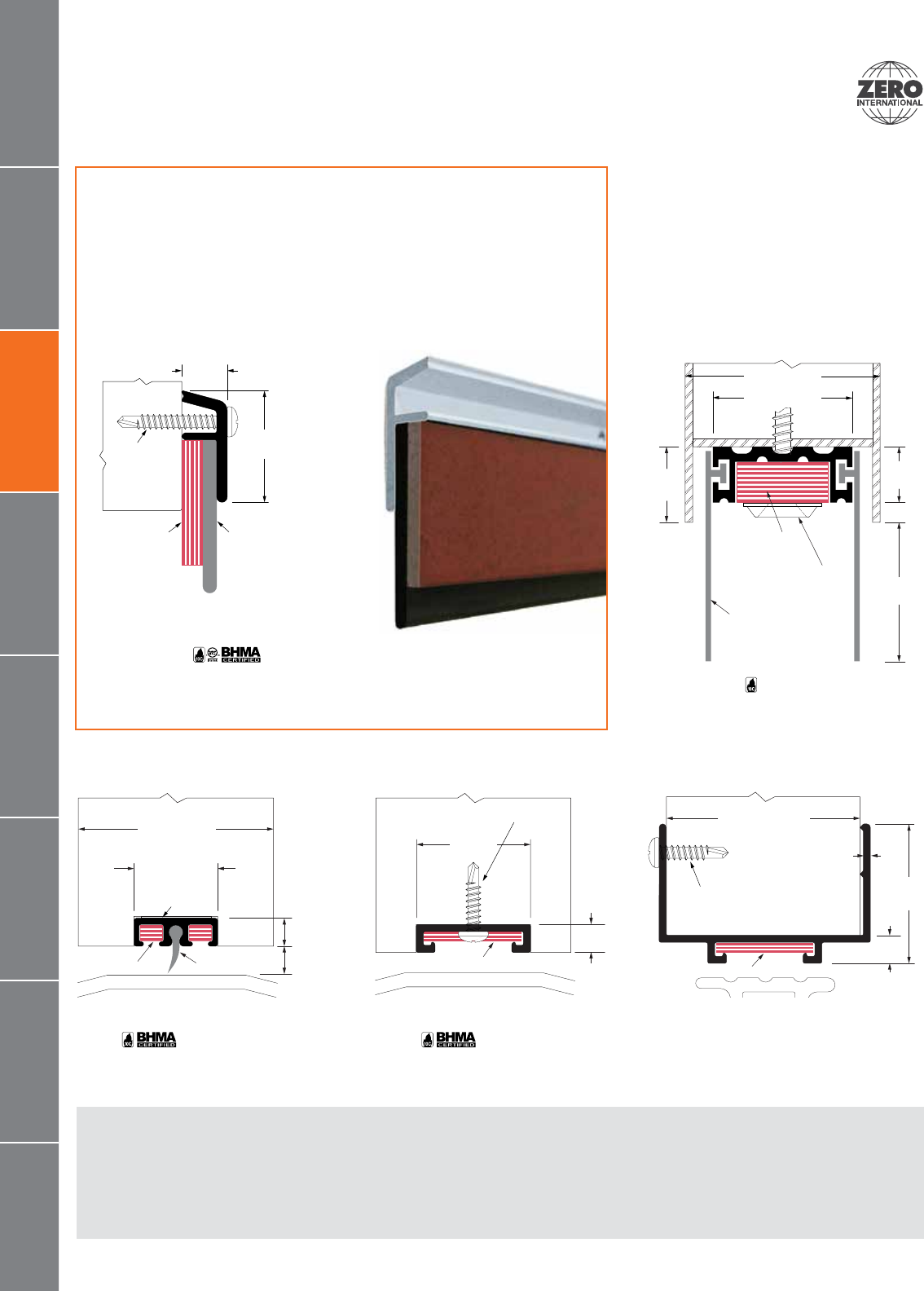

Intumescent door sweeps & shoes

Gap solutions- restore lost ﬁre rating

Maximum 0.75" (12.7mm) clearances allowed at the bottom of ﬁre-

rated doors do not leave much room for error. Fire ratings lost when

installation or alignment problems cause larger clearances can be

restored using these intumescent solutions, without the costs of

structural changes or door replacement.

339FS

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

339FS-AA, 339FS-BK, 339FS-D, 339FS-G R3R434

Intumescent door sweep

Restore for ﬁre rating on 20 minute ﬁre-rated swinging ﬂush wood door. For

use on doors with maximum undercut of 1.250".

ITS-listed to positive pressure UL10C.

FS3003

Intumescent

.408

(10.4)

1.00"

(25.4)

#6x1.00"(25.4)

PPHSDS

339FS

Solid

neoprene

.125"(3.2) x

1.375"(34.9)

59FS

Finishes:

ANSI/BHMA:

59FS-A R3R424

FS3003

Intumescent

59FS

1.750"(44.5)

.750"(19.1)

.250"

(6.4)

.250"

(6.4)

Solid

neoprene

Door

PSA

253FS

Finishes:

ANSI/BHMA:

253FS-A R3P424

Supplied unassembled for ease of installation.

253FS

#6 x 1.00"(25.4) PPHSDS

1.024"

(26.0)

.250"

(6.4)

FS3003 Intumescent

111FS

Finishes:

AA, BK,

D, G

Options:

SEC

111FS

FS3003 Intumescent

#6 x 1.00"(25.4) PPHSDS

.062"(1.6)

1.750"(44.5)

1.250"

(31.8)

.250"

(6.4)

Door

521FS

Finishes:

Options:

SEC

Intumescent door shoe, mortised. Supplied unassembled for ease of

installation.

1.250"

(31.8)

.500"

(12.7)

50"

(19.1)

521FS

1.250” (31.8)

1.750"(44.5)

#10 x 1.50"(38.1) FPHSMS

with ﬂanged washer

FS4004

Intumescent

Self-extinguishing

silicone

39FSA

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 69

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Note:

Verify frame manufacturer is approved to use applied stop.

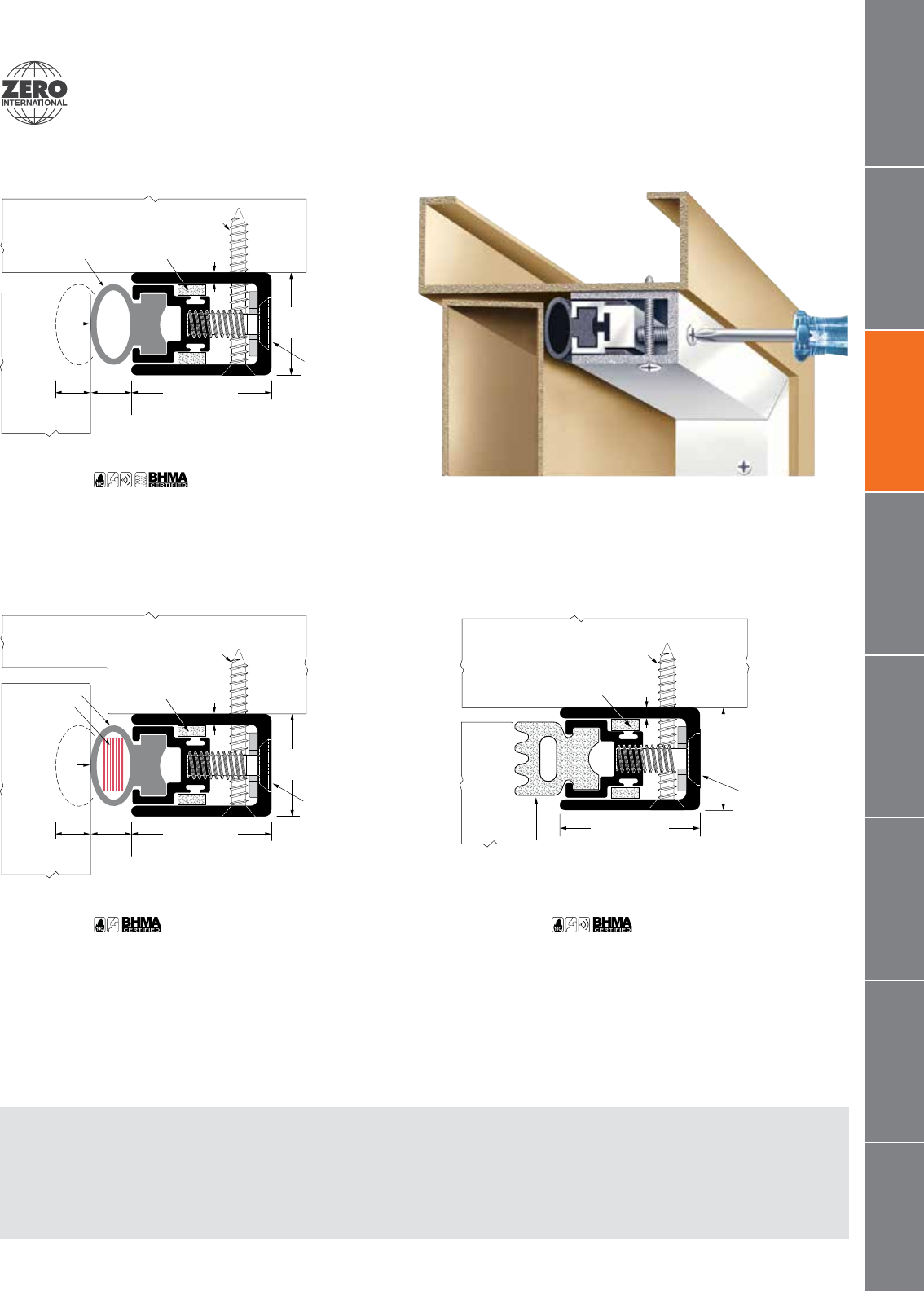

Adjustable sealing systems – jamb-applied

770 used on cased opening frame with mitered corners, used as a stop.

770

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

770AA, 770BK, 770D, 770G R3B254

This model is supplied with mitered corners.

20 min as a stop. 180 min when applied to stop.

770FS

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

770FS-AA, 770FS-BK, 770FS-D, 770FS-G R3R264

This model is supplied with mitered corners. 180 min. ﬁre rating for metal doors when applied on

a certiﬁed steel frame with no cased opening.

170

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

170AA, 170BK, 170D, 170G R3C254

This model is supplied with mitered corners. 20 minutes as a stop. 180 min when applied to stop.

770

#8 x 1.50"(38.1) FPHSMS

.093"

(2.4)

Solid

neoprene

Sponge

neoprene

.914"

(23.2)

Stainless steel

adjusting screw

11.813" o.C.

Adjustable

range .310"(7.9)

.310"(7.9)

Adj. range

1.250"(31.8)

.375"

(9.5)

CASED FRAME

770FS

#8x1.50"(38.1) FPHSMS

.093"

(2.4)

Solid neoprene Sponge

neoprene

.914"

(23.2)

Stainless steel

adjusting screw

11.813" o.C.

Adjustable

range .310"(7.9)

.310"(7.9)

Adj. range

1.250"(31.8)

.375"

(9.5)

FS3003

Intumescent

FRAME

170

Sponge

neoprene

Closed cell sponge neoprene

CASED FRAME

#8x1.50"(38.1) FPHSMS

1.250"(31.8)

Stainless steel

adjusting screw

11.813" o.C.

Adjustable

range .310"(7.9)

.914"

(23.2)

.093"

(2.4)

See Perimeter seals Accessories & options page for details.

70 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Note:

Finishes: SP = Steel Primed, STST=Stainless Steel.

Verify frame manufacturer is approved to use applied stop.

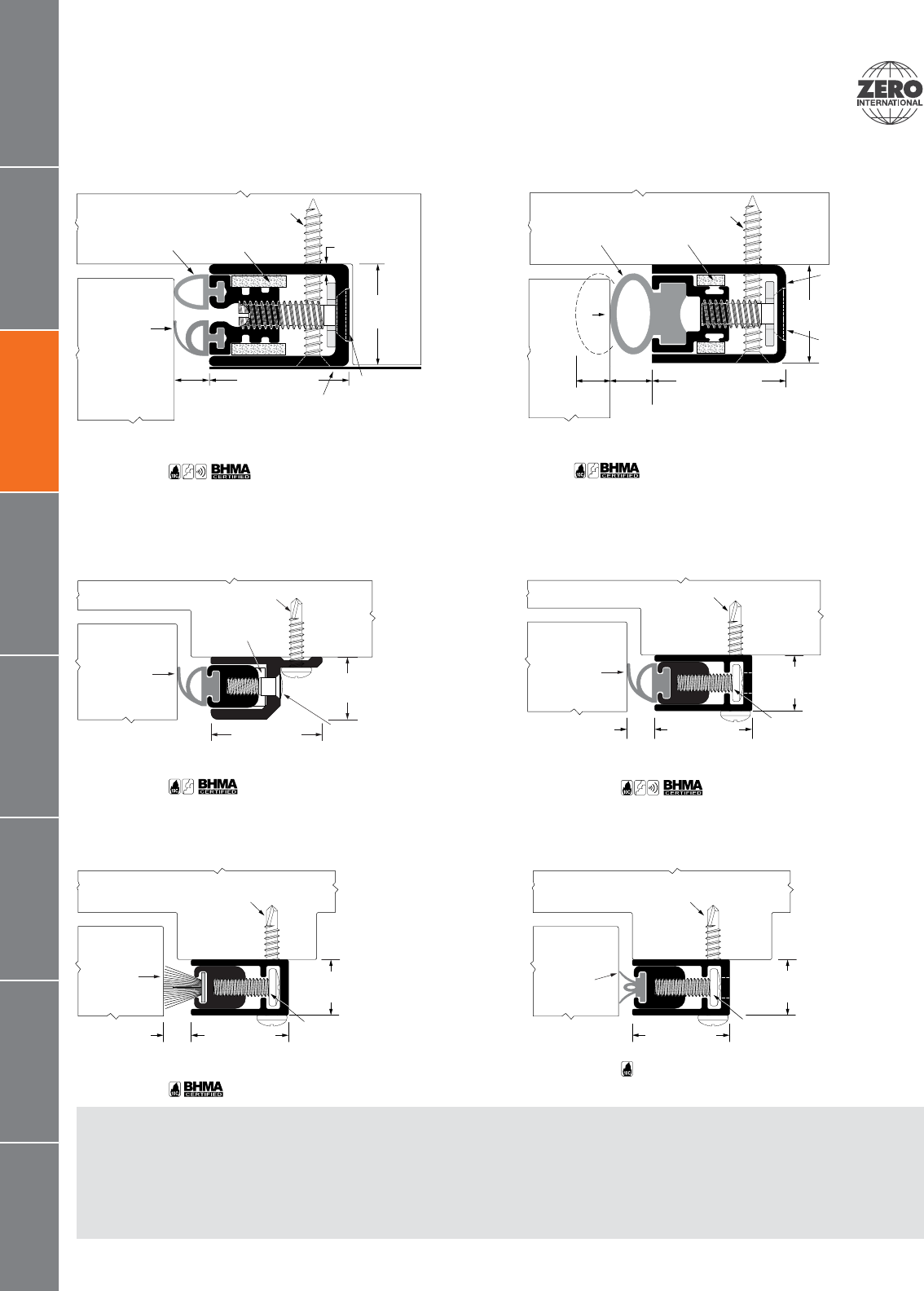

Adjustable sealing systems – jamb-applied

712

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

712AA, 712BK, 712D, 712G R3E264

Adjustable and spring loaded. Extruded Bulb/Finger for double-sealing protection.

870

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

870AA, 870BK, 870D, 870G R3E254

Extruded Bulb/Finger for double-sealing protection.

7770

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

7770AA, 7770BK, 7770D, 7770G R3B264

This model is supplied with mitered corners. Extruded Bulb/Finger for double-sealing protection.

20 minute as a stop, 180 min when applied to stop.

#8x1.50"(38.1) FPHSMS

FRAME

Sponge neoprene

Solid neoprene

Stainless steel

adjusting screw

11.813" O.C.

Adjustable range

.310"(7.9)

Stainless steel plate

cover with PSA

(Optional, by others)

1.250"(31.8)

.914"

(23.2)

.093"

(2.4)

.250"

(6.4)

7770

Solid

neoprene

770SP / 770STST

Options:

S, SEC

ANSI/BHMA:

770STST R0B264

This model is supplied with mitered corners. 90 min. ﬁre rating for certiﬁed wood and metal doors

and frames when applied as a stop.

Postitive Pressure Listed as a stop for 16 gauge steel cased opening up to 90 minutes on

single and pair doors. 180 minutes when applied to a stop.

770SP

770STST

Sponge neoprene

14 Gauge

.075"(1.9)Steel

Housing

Stainless steel

adjusting screw

11.813" O.C.

Adjustable range

.310"(7.9)

1.200"(30.5)

Solid neoprene

.310"(7.9)

Adj. range

.375"

(9.5)

.878"

(22.3)

#8x1.50"(38.1) FPHSMS

CASED FRAME

1.00"(25.4)

Steel spring

Silicone

Adjusting screws approx.

10" on center. Max.

adjustment range: 310"(7.9)

.561"

(14.2)

712

#6 x 1.00"(25.4) PPHSDS #6 x 1.00"(25.4) PPHSDS

Adjusting screws

approx. 10" on center.

.875"(22.2)

.500"

(12.7)

.250"(6.4)

870

Silicone

873

Finishes:

AA, BK,

D, G

Options:

SEC

871

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

871AA, 871BK, 871D, 871G R3F265

#6 x 1.00"(25.4) PPHSDS

Adjusting screws approx.

10" on center. Max

adjustment range .250"(6.4)

.875"(22.2)

.500"

(12.7)

.250"(6.4)

Pile with

ﬁn seal

871

Silicone

seal

873

#6 x 1.00"(25.4) PPHSDS

Unit has adjusting screws

approx. 10" on center.

.875"(22.2)

.500"

(12.7)

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 71

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

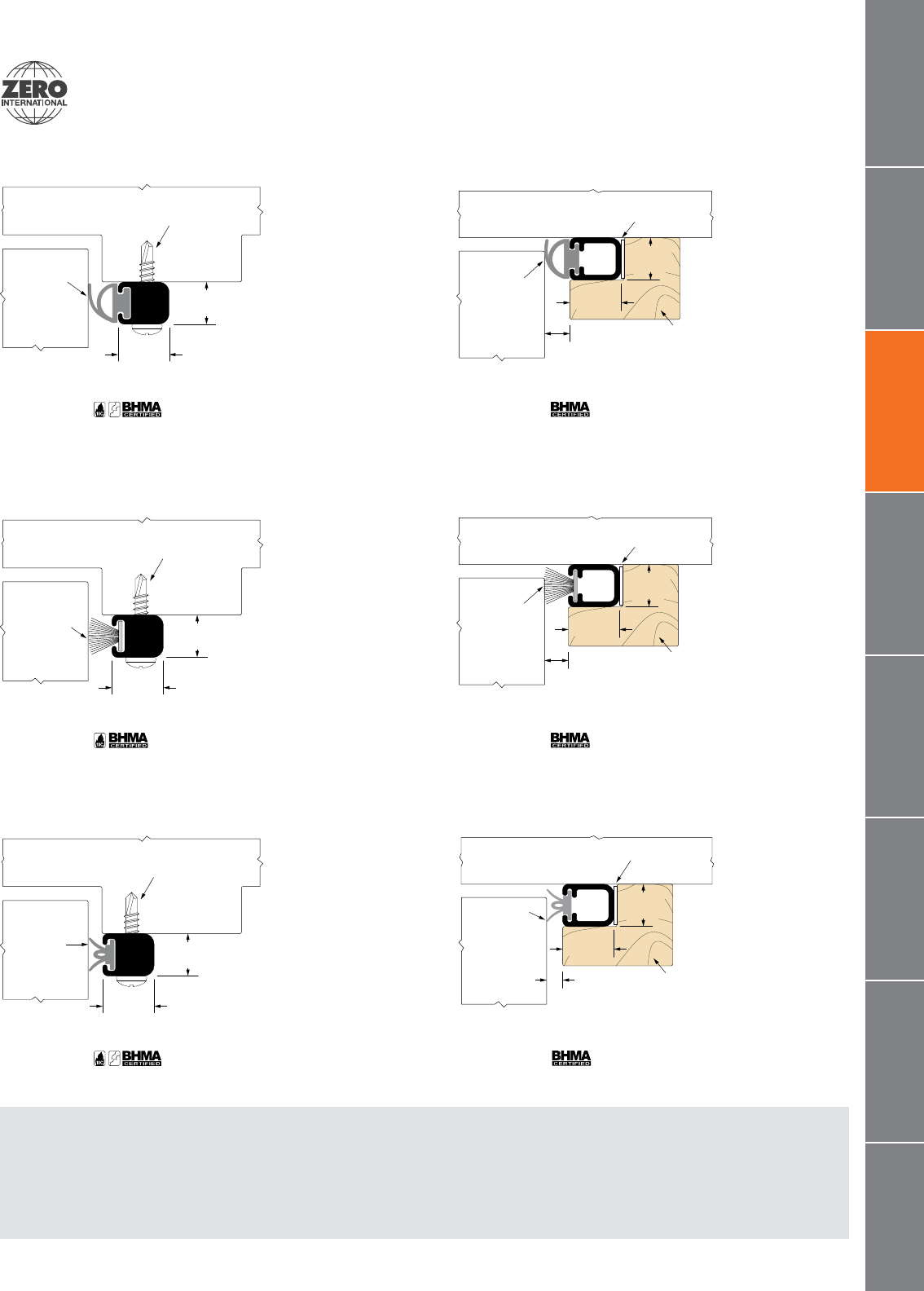

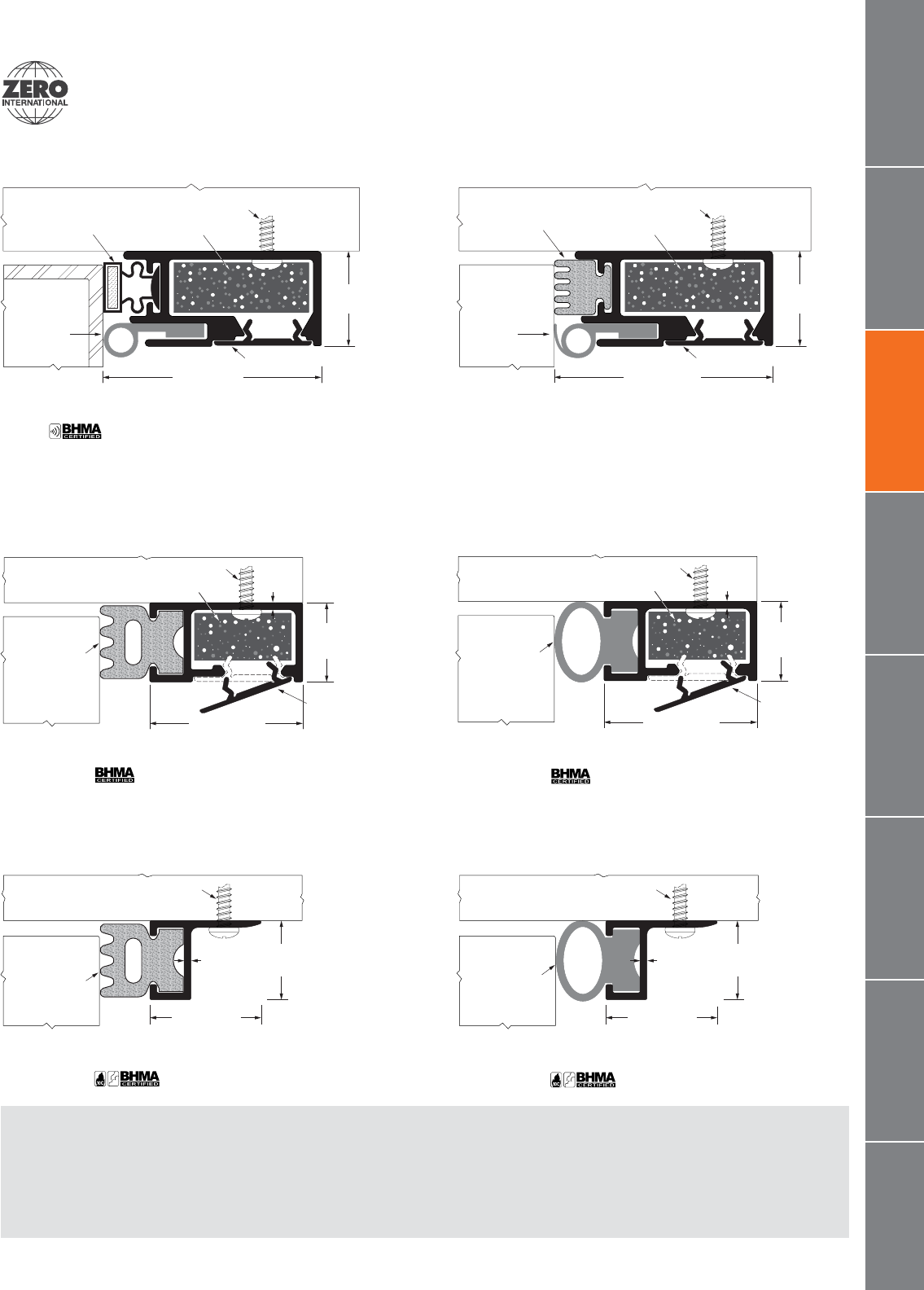

Head and jamb gasketing

3708

Finishes:

AA, BK,

D, G

ANSI/BHMA:

3708AA R3L154

Magnetic head & jamb gasketing. For use with metal interior doors only. Available to order

as engineering special.

470

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

470AA, 470BK, 470D, 470G R3C154

270

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

270A, 270BK, 270D, 270G R3C154

3709

Finishes:

AA, BK,

D, G

Options:

S, SEC

Extruded Bulb/Finger for double-sealing protection.

472

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

472AA, 472BK, 472D, 472G R3B154

272

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

272A, 272BK, 272D, 272G R3B154

#6 x 1.00"(25.4) PPHSDS

.848"

(21.6)

2.00"(50.8)

Sound energy

absorber

Magnet

Solid

Neoprene

Snap-on cover

3708

.848"

(21.6)

2.00"(50.8)

Sound energy

absorber

Closed cell

sponge

neoprene

Solid

neoprene

Snap-on cover

3709

#6 x 1.00"(25.4) PPHSDS

Closed cell

sponge

neoprene

#6 x 1.00"(25.4) PPHSDS

.711"

(18.1)

1.375"(34.9)

.062"

(1.6)

Snap-on

cover

Sound energy absorber

470

#6 x 1.00"(25.4) PPHSDS

.711"

(18.1)

1.375"(34.9)

.062"

(1.6)

Solid

neoprene

Snap-on

cover

472

Sound energy absorber

#6 x 1.00"(25.4) PPHSDS

.062"

(1.6)

.711"

(18.1)

Closed cell

sponge

neoprene

1.00"(25.4)

270

#6 x 1.00"(25.4) PPHSDS

.062"

(1.6)

.711"

(18.1)

1.00"(25.4)

Solid

neoprene

272

See Perimeter seals Accessories & options page for details.

72 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

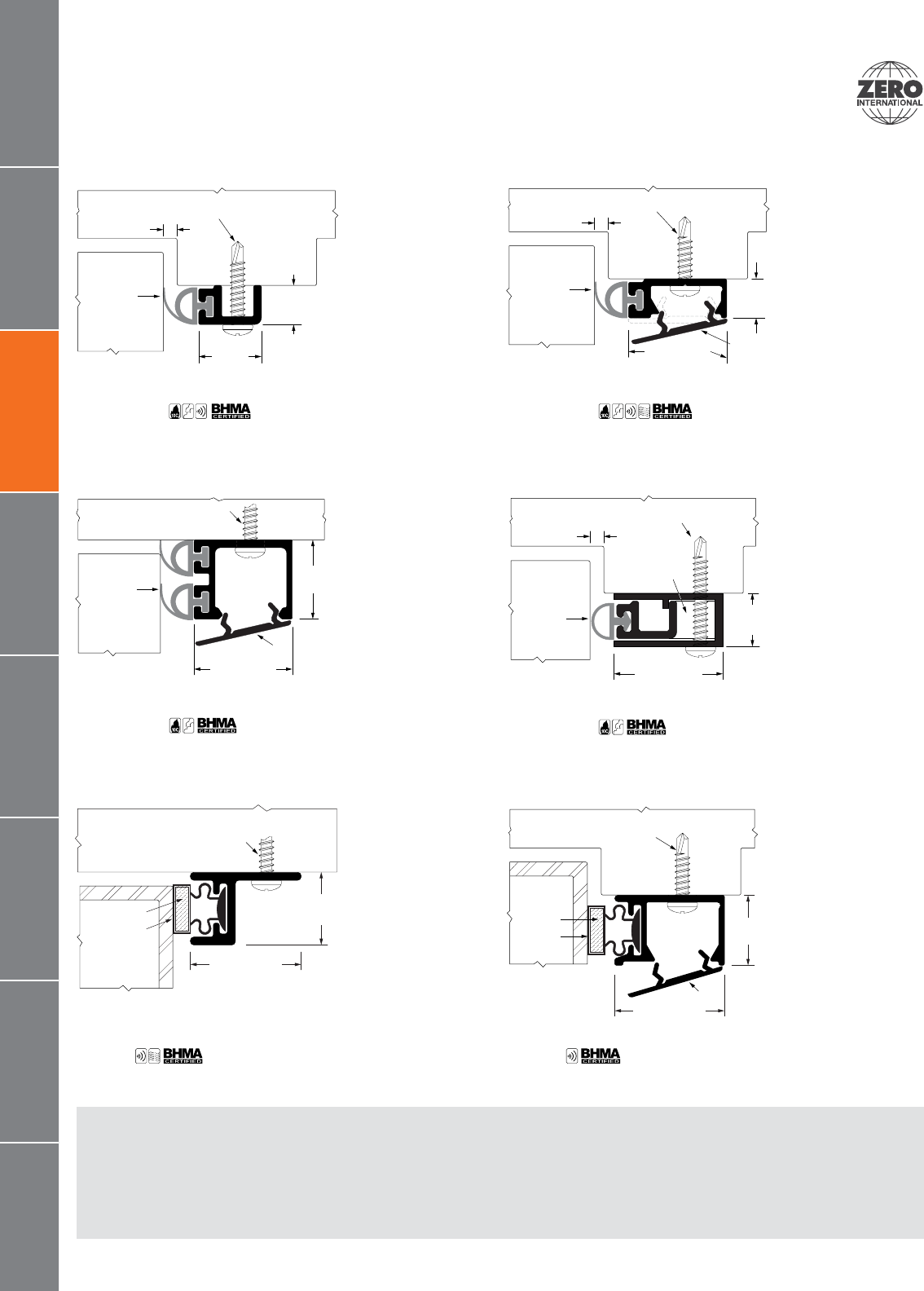

Head and jamb gasketing

485

Finishes:

AA, BK,

D, G

Options:

ZAG, S,

SEC

ANSI/BHMA:

485AA, 485BK, 485D, 485G R3B164

ZAG option for mental health applications includes security screws.

Extruded Bulb/Finger for double-sealing protection.

478

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

478AA, 478BK, 478D, 478G R3B154

Extruded Bulb/Finger for double-sealing protection. Channel may

be used for low-voltage wiring, subject to local building codes.

475

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

475AA, 475BK, 475D, 475G R3B164

Extruded Bulb/Finger for double-sealing protection. Channel may

be used for low-voltage wiring, subject to local building codes.

570

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

570AA, 570BK, 570D, 570G R3E264

485

#6 x 1.00"(25.4) PPHSDS

.563"

(14.3)

.351"

(8.9)

.125"(3.2)

Solid

neoprene

#6 x 1.00"(25.4) PPHSDS

.125"(3.2)

.881"(22.4)

.391"

(9.9)

Snap-on

cover

475

Solid

neoprene

.711"

(18.1)

Snap-on cover

478478

.881"(22.4)

#6 x 1.00"(25.4) PPHSDS

Solid

neoprene

Spring loaded

1.00"(25.4)

.480"

(12.2)

570

#6 x 1.00"(25.4) PPHSDS

.125"(3.2)

Silicone

370

Finishes:

A, BK,

D, G

ANSI/BHMA:

370A, 370BK, 370D, 370G R3L155

Magnetic head & jamb gasketing For use with interior metal doors only.

Available to order as engineering special.

#6 x 1.00"(25.4) PPHSDS

.656"

(16.7)

Magnet

370

Vinyl

Shown here as stop.

1.00"(25.4)

375

Finishes:

A, BK,

D, G

ANSI/BHMA:

375A, 375BK, 375D, 375G R3L155

Magnetic Head & Jamb Gasketing For use with interior metal doors only.

Available to order as engineering special.

#6 x 1.00"(25.4) PPHSDS

.629"

(16.0)

Magnet

375

Vinyl

9.84"(25.0)

Snap-on cover

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 73

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Head and jamb gasketing

139

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

139A, 139BK, 139D, 139G R3C164

314

Finishes:

AA, BK, D, G,

B, B-ORB

Options:

S, SEC

ANSI/BHMA:

314AA, 314BK, 314D, 314G R3C164

314B R1C164

318

Finishes:

AA, BK,

D, G

Options:

ZAG, S,

SEC

ANSI/BHMA:

318AA, 318BK, 318D, 318G R3C164

ZAG option for mental health applications includes security screws.

312

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

312A, 312BK, 312D, 312G R3C164

140

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

140A, 140BK, 140D, 140G R3C164

322

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

322A, 322BK, 322D, 322G R3C164

#6 x 1.00"(25.4) PPHSDS

139

1.250"(31.8)

.195"

(5.0)

Closed cell

sponge neoprene

.125"(3.2) x 1.250"(31.8)

312

#6 x 1.00"(25.4) PPHSDS

.625"(15.9)

.219"

(5.6)

Closed cell

sponge neoprene

.125"(3.2) x .500"(12.7)

#6 x 1.00"(25.4) PPHSDS

314

1.00"(25.4)

.219"

(5.6)

Closed cell

sponge neoprene

.125"(3.2) x .750"(19.1)

140

#6 x 1.00"(25.4) PPHSDS

1.625"(41.2)

.430"

(10.9)

Closed cell

sponge neoprene

.375"(9.5) x .750"(19.1)

#6 x 1.00"(25.4) PPHSDS

318

1.00"(25.4)

.408"

(10.4)

Closed cell

sponge neoprene

.375"(9.5) x .750"(19.1)

322

#6 x 1.00"(25.4) PPHSDS

1.500"(38.1)

.437"

(11.1)

Closed cell

sponge neoprene

.375"(9.5) x .750"(19.1)

See Perimeter seals Accessories & options page for details.

74 • Zero • Door sealing systems • www.zerointernational.com

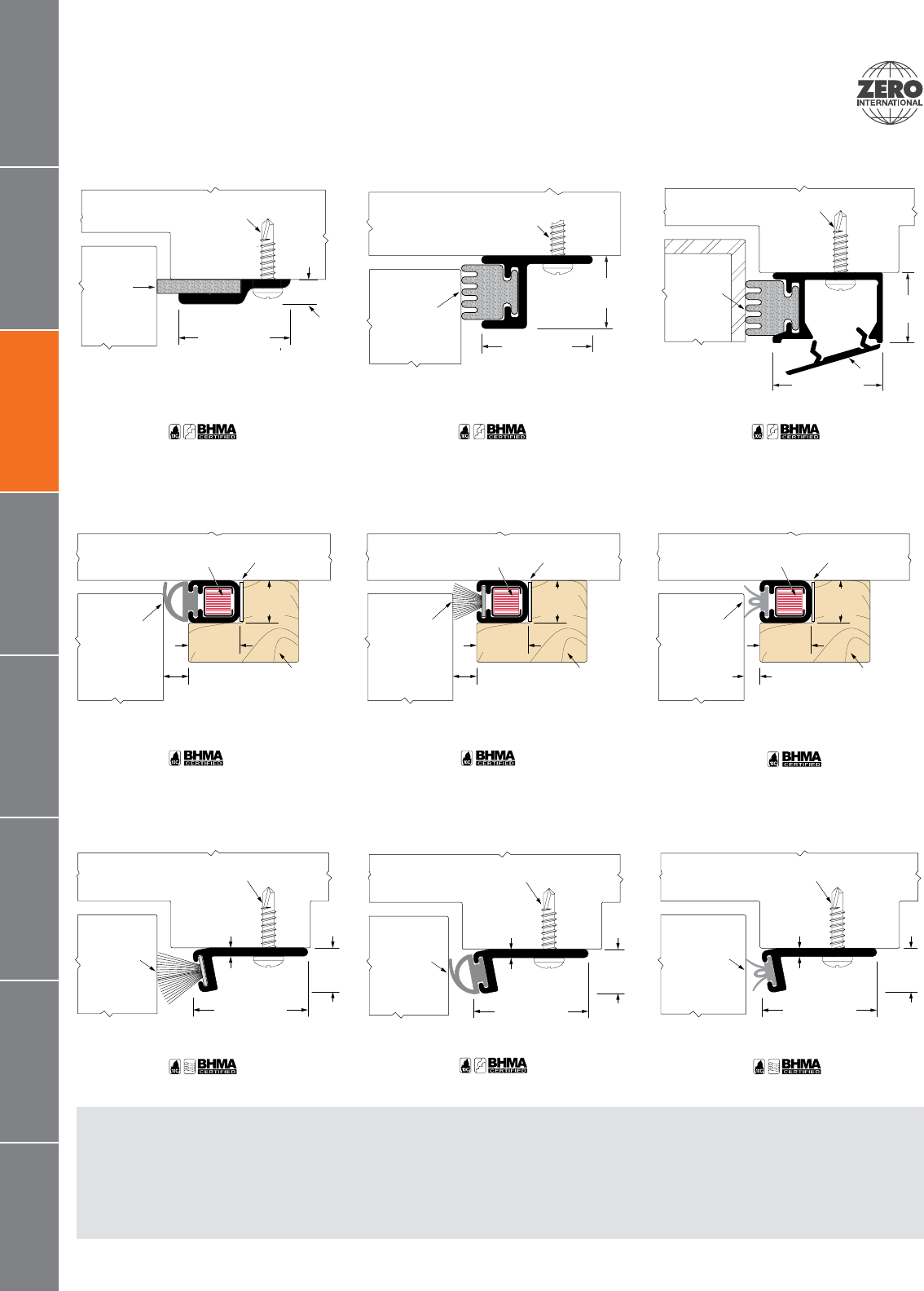

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Head and jamb gasketing

Finishes:

A, BK,

D, G

Options:

ZAG, S,

SEC

ANSI/BHMA:

99A, 99BK, 99D, 99G R3E164

.075"

(1.9)

.395"

(10.0)

#6 x 1.00"(25.4) PPHSDS

Silicone

1.00"(25.4)

#6 x 1.00"(25.4) PPHSDS

.629"

(16.0)

376

9.84"(25.0)

Sponge

neoprene

Snap-on cover

376

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

376AA, 376BK, 376D, 376G R3C164

Channel may be used for low-voltage wiring, subject to local

building codes.

5832FS

Finishes:

AA, BK,

D, G

Options:

ANSI/BHMA:

5832FS-AA, 5832FS-BK,

5832FS-D, 5832FS-G R3V164

Supplied standard with PSA.

PSA

.460"

(11.7)

.380"

(9.7)

.187"

(4.8)

REF

Poly pile

Molding by others

5832FS

FS3003

Intumescent

58FS

Finishes:

AA, BK,

D, G

Options:

ANSI/BHMA:

58FS-AA, 58FS-BK,

58FS-D, 58FS-G R3V164

For applications with very small clearances between door and

frame. Supplied standard with PSA.

PSA

.460"

(11.7)

.380"

(9.7)

.125"

(3.2)

REF

Silicone

Molding by others

For very small clearances between door & frame

58FS

FS3003

Intumescent

Finishes:

A, BK,

D, G

Options:

PSA, S,

SEC

ANSI/BHMA:

98A, 98BK, 98D, 98G R3F166

.075"

(1.9)

.395"

(10.0)

#6 x 1.00"(25.4) PPHSDS

Poly pile

with ﬁn

1.00"(25.4)

100

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

100A, 100BK, 100D, 100G R3E164

For applications with very small clearances between door

and frame.

For very small clearances between door & frame

.075"

(1.9)

.395"

(10.0)

#6 x 1.00"(25.4) PPHSDS

Silicone

1.00"(25.4)

100

1370

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

1370A, 1370BK, 1370D, 1370G R3C154

#6 x 1.00"(25.4) PPHSDS

.656"

(16.7)

Sponge

neoprene

Shown here as stop.

1.00"(25.4)

1370

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

50AA, 50BK, 50D, 50G R3C164

#6 x 1.00"(25.4) PPHSDS

1.00"(25.4)

.219"

(5.6)

Closed cell

sponge

neoprene

.125"(3.2) x

.750"(19.1)

5831FS

Finishes:

AA, BK,

D, G

Options:

ANSI/BHMA:

5831FS-AA, 5831FS-BK,

5831FS-D, 5831FS-G R3U164

Supplied standard with PSA.

PSA

.460"

(11.7)

.380"

(9.7)

Silicone

.187"

(4.8)

REF

Molding by others

5831FS

FS3003

Intumescent

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 75

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Head and jamb gasketing

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

31AA, 31BK, 31D, 31G R3E164

Extruded Bulb/Finger for double-sealing protection.

5833

Finishes:

AA, BK,

D, G

Options:

ANSI/BHMA:

5833AA, 5833BK, 5833D, 5833G R3E1644

For applications with very small clearances between door and frame.

Supplied standard with PSA.

#6 x 1.00"(25.4) PPHSDS

.460"

(11.7)

.380"

(9.7)

Silicone

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

32AA, 32BK, 32D, 32G R3F166

#6 x 1.00"(25.4) PPHSDS

Poly pile

.460"

(11.7)

.380"

(9.7)

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

33AA, 33BK, 33D, 33G R3E164

For applications with very small clearances between door and frame.

#6 x 1.00"(25.4) PPHSDS

Silicone .380"

(9.7)

.460"

(11.7)

5831

Finishes:

AA, BK,

D, G

Options:

ANSI/BHMA:

5831AA, 5831BK, 5831D, 5831G R3E164

Extruded Bulb/Finger for double-sealing protection.

Supplied standard with PSA.

5831

.460"

(11.7)

.380"

(9.7)

Silicone

.187"

(4.8)

REF

Molding by others

PSA

5832

Finishes:

AA, BK,

D, G

Options:

ANSI/BHMA:

5832AA, 5832BK, 5832D, 5832G R3F166

Supplied standard with PSA.

5832

PSA

.460"

(11.7)

.380"

(9.7)

.187"

(4.8)

REF

Poly pile

Molding by others

PSA

.460"

(11.7)

.380"

(9.7)

.125"

(3.2)

REF

Silicone

Molding by others

For very small clearances between door & frame

5833

See Perimeter seals Accessories & options page for details.

76 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Head and jamb gasketing

429

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

429AA, 429BK, 429D, 429G R3E164

Gasketing protection for closer bracket or door coordinator.

302FS

Finishes:

AA, BK, D, G

B, B-ORB

Options:

S, SEC

ANSI/BHMA:

302FS-AA, 302FS-BK, 302FS-D, 302FS-G R3R164

302FS-B R1R164

302FS

#6 x 1.00"(25.4) PPHSDS

1.00"(25.4)

.219"

(5.6)

Solid neoprene

Intumescent

328FS

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

328FS-AA, 328FS-BK, 328FS-D, 328FS-G R3R164

#6 x 1.00"(25.4) PPHSDS

1.00"(25.4)

.408"

(10.4)

Solid neoprene

Intumescent

328FS

Silicone

429

1.500"(38.1)

.250"

(6.4)

.250"

(6.4)

#10x.750”(19.1)

PPHSDS

326

Finishes:

AA, BK, D, G,

B, B-ORB

Options:

ZAG, S,

SEC

ANSI/BHMA:

326AA, 326BK, 326D, 326G R3B164

326B R1B164

Extruded Bulb/Finger for double-sealing protection.

#6 x 1.00"(25.4) PPHSDS

326

1.00"(25.4)

.219"

(5.6)

Solid neoprene

328

Finishes:

AA, BK, D, G,

B, B-ORB

Options:

ZAG, S,

SEC

ANSI/BHMA:

328AA, 328BK, 328D, 328G R3B164

328B R1B164

ZAG option for mental health applications includes security screws

328

#6 x 1.00"(25.4) PPHSDS

1.00"(25.4)

.219"

(5.6)

Solid neoprene

8305

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

8305AA, 8305BK, 8305D, 8306G R3A166

8305

Nylon brush

.500"

(12.7)

.279"

(7.1)

#6 x 1.00"(25.4) PPHSDS

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 77

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Head and jamb gasketing

8302

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

8302AA, 8302BK, 8302D, 8302G R3B164

8302

Solid

neoprene .590"

(14.9)

.220"

(5.6)

#6 x 1.00"(25.4) PPHSDS

8193

Finishes:

AA, BK,

D, G

Options:

PSA, S,

SEC

ANSI/BHMA:

8193AA, 8193BK, 8193D, 8193G R3A166

8193

.590"

(14.9)

.220"

(5.6)

#6 x 1.00"(25.4) PPHSDS

Nylon brush

8303

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

8303AA, 8303BK, 8303D, 8303G R3E164

8303

Silicone

.590"

(14.9)

.250"

(6.4)

.220"

(5.6)

#6 x 1.00"(25.4) PPHSDS

.125"(3.2)

8877

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

8877AA, 8877BK, 8877D, 8877G R3B164

8877

Solid

neoprene

.625"

(15.9)

.220"

(5.6)

#6 x 1.00"(25.4) PPHSDS

Snap-on cover

Black EPDM rubber

8878

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

8878AA, 8878BK, 8878D, 8878G R3E164

8878

Silicone

.625"

(15.9)

.250"

(6.4)

.220"

(5.6)

#6 x 1.00"(25.4) PPHSDS

.125"(3.2)

Snap-on cover

Black EPDM rubber

8879

Finishes:

AA, BK,

D, G

Options:

PSA, S,

SEC

ANSI/BHMA:

8879AA, 8879BK, 8879D, 8879G R3A166

8879

Nylon brush

.625"

(15.9)

.220"

(5.6)

#6 x 1.00"(25.4) PPHSDS

Snap-on cover

Black EPDM rubber

See Perimeter seals Accessories & options page for details.

78 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Note:

Follow NPFA 80 requirements for ﬁre door clearances.

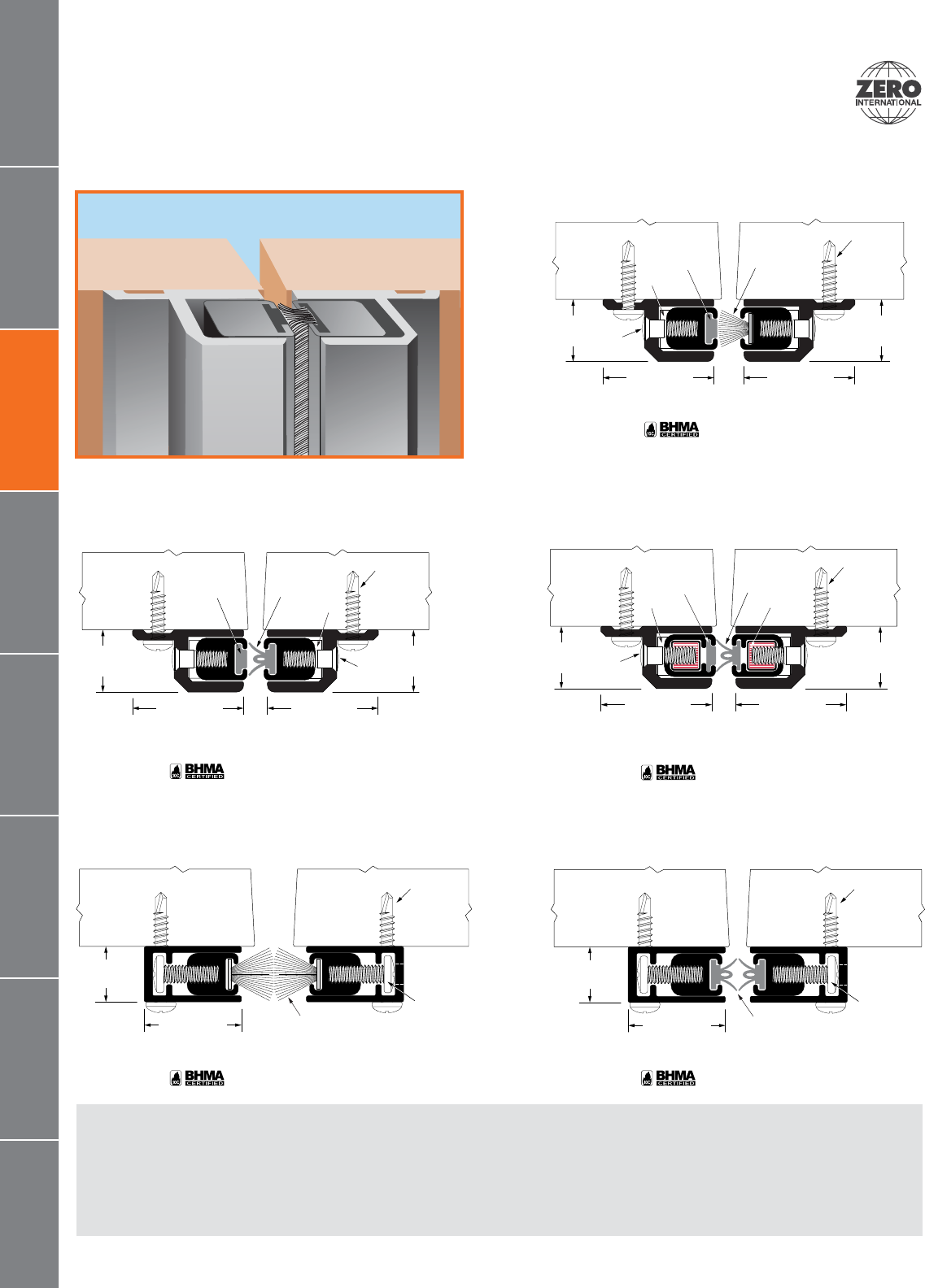

Adjustable surface-mounted meeting stiles for beveled doors

Meeting stiles

55 155

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

55AA/155AA, 55BK/155BK, 55D/155D, 55G/155G R3F836

Fire-rated as a set--both components required. Order components separately.

55 555

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

55AA/555AA, 55BK/555BK, 55D/555D, 55G/555G

R3E834

Fire-rated as a set--both components required. Order components separately.

55FS 555FS

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

55FS-AA/555FS-AA, 55FS-BK/555FS-BK,

55FS-D/555FS-D, 55FS-G/555FS-G R3U834

Fire-rated as a set--both components required. Order components separately.

55AA 155AA

Pile insert

Adjusting

screw

1.00"(24.5)

.561"

(14.2)

#6 x 1.00"(25.4) PPHSDS

EPDM rubber

Spring

1.00"(24.5)

55 155

.561"

(14.2)

Silicone

Adjusting

screw

1.00"(24.5)

#6 x 1.00"(25.4) PPHSDS

.561"

(14.2)

Spring

1.00"(24.5)

55 555

EPDM rubber

.561"

(14.2)

EPDM rubber Silicone

1.00"(24.5)

#6 x 1.00"(25.4) PPHSDS

.561"

(14.2)

Spring

1.00"(24.5)

Adjusting

screw

55FS 555FS

.561"

(14.2)

Intumescent

873

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

873AA, 873BK, 873D, 873G R3E734

#6 x 1.00"(25.4) PPHSDS

Unit has adjusting

screws approx. 10"

on center.

.875"(22.2)

.500"

(12.7)

Silicone seal

873

871

Finishes:

AA, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

871AA, 871BK, 871D, 871G R3F735

#6 x 1.00"(25.4) PPHSDS

Unit has adjusting

screws approx. 10"

on center.

.875"(22.2)

.500"

(12.7)

Pile with ﬁn seal

871

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 79

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Note:

Follow NPFA 80 requirements for ﬁre door clearances.

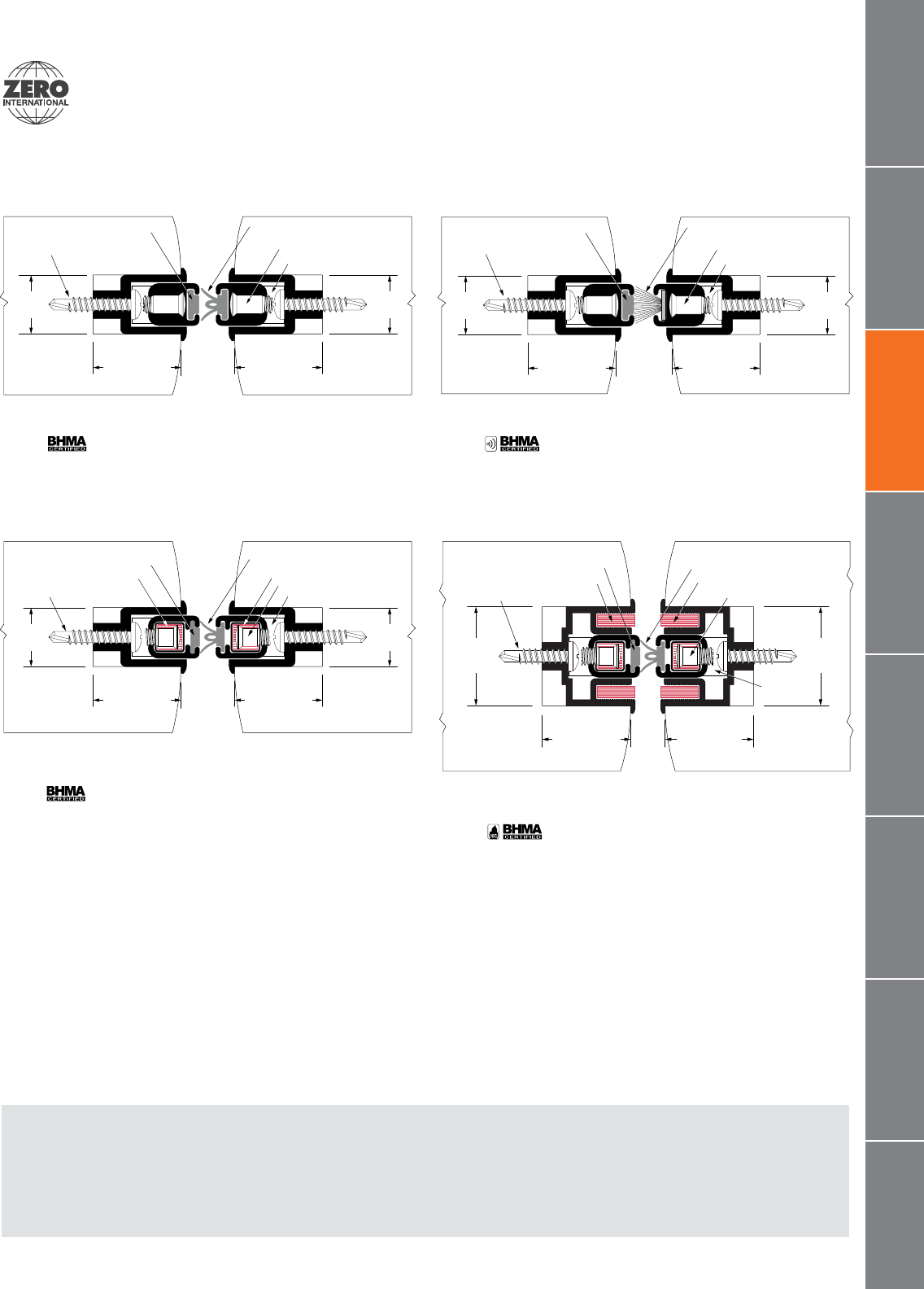

Meeting stiles

Adjustable mortised meeting stiles for bull-nosed doors

56FS 557FS

Finishes:

AA, BK,

D, G

ANSI/BHMA:

56FS-AA/ 557FS-AA, 56FS-BK/ 557FS-BK,

56FS-D/ 557FS-D, 56FS-G/ 557FS-G R3U824

Order components separately.

557FS

56FS

.530"

(13.5)

.790"(20.1).790"(20.1)

Adjusting Screw

Spring

Silicone

Intumescent

EPDM rubber

Min.

.312"

(7.9)

.530"

(13.5)

Intumescent

#6 x 1.00"(25.4) PPHSDS

3056FS 3557FS

Finishes:

AA, BK,

D, G

ANSI/BHMA:

3056FS-AA/ 3557FS-AA, 3056FS-BK/ 3557FS-BK,

3056FS-D/ 3557FS-D, 3056FS-G/ 3557FS-G R3U824

Fire-rated as a set--both components required. Order components separately.

3557FS

3056FS

.890"

(22.6)

.795"(20.2)

Min.

.200"

(5.1)

Adjusting Screw

Spring

IntumescentIntumescent

Silicone

.795"(20.2)

.890"

(22.6)

EPDM rubber

#6 x 1.00"(25.4) PPHSDS

56 557

Finishes:

AA, BK,

D, G

ANSI/BHMA:

56AA/557AA, 56BK/557BK, 56D/557D, 56G/557G R3E824

Order components separately.

56 156

Finishes:

AA, BK,

D, G

ANSI/BHMA:

56AA/156AA, 56BK/156BK, 56D/156D, 56G/156G R3F825

Order components separately.

.530"

(13.5)

.790"(20.1)

.530"

(13.5)

Min.

.312"(7.9)

.790"(20.1)

56 557

Adjusting Screw

Spring

Silicone EPDM rubber

#6 x 1.00"(25.4) PPHSDS

15656

.530"

(13.5)

.790"(20.1).790"(20.1)

Adjusting Screw

Spring

Pile insert EPDM rubber

.530"

(13.5)

Min.

.312"

(7.9)

#6 x 1.00"(25.4) PPHSDS

See Perimeter seals Accessories & options page for details.

80 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

For stile applications order two of each model, or mix and

match models if desired.

Follow NFPA-80 requirements for ﬁre door clearances.

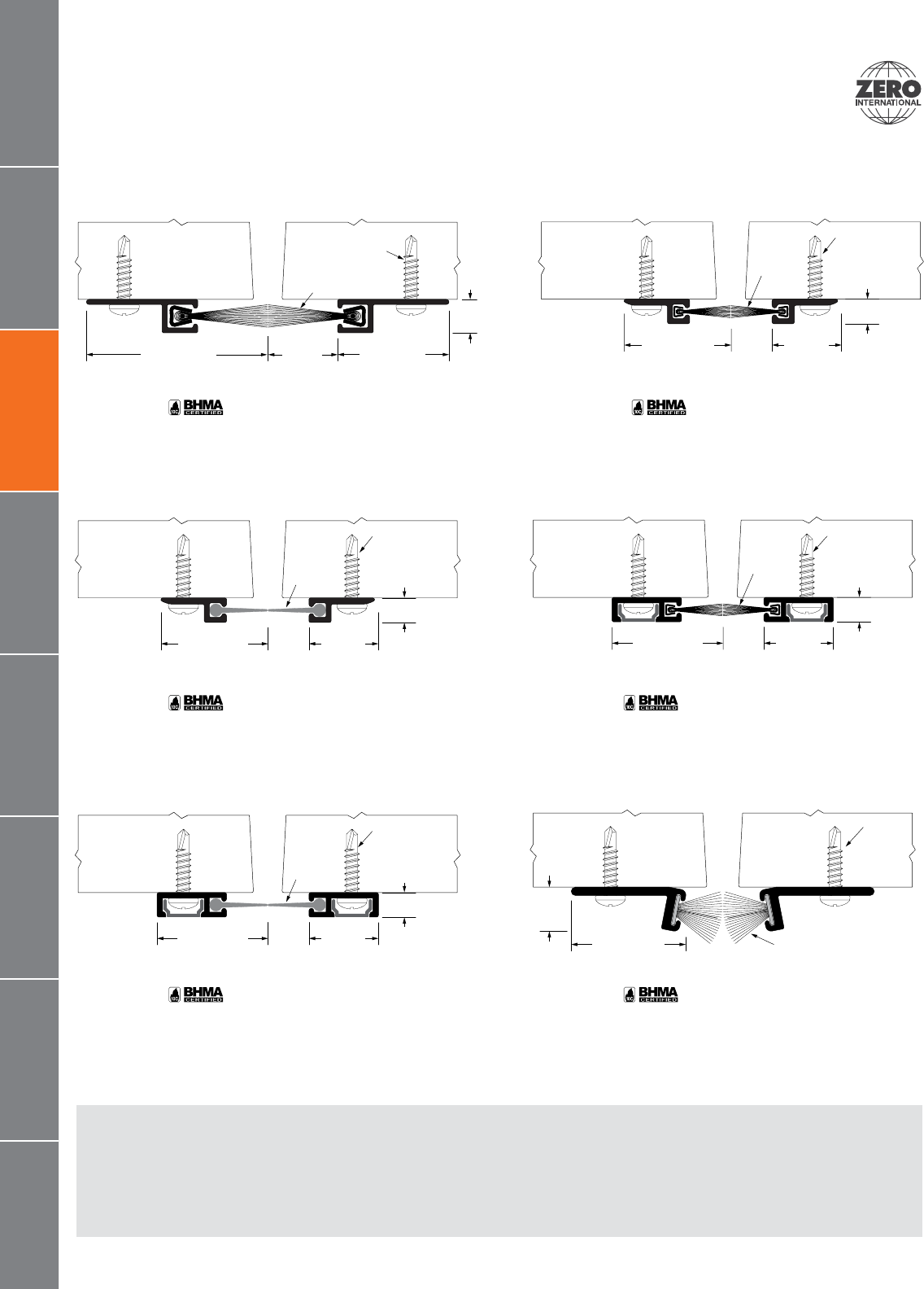

Meeting stiles

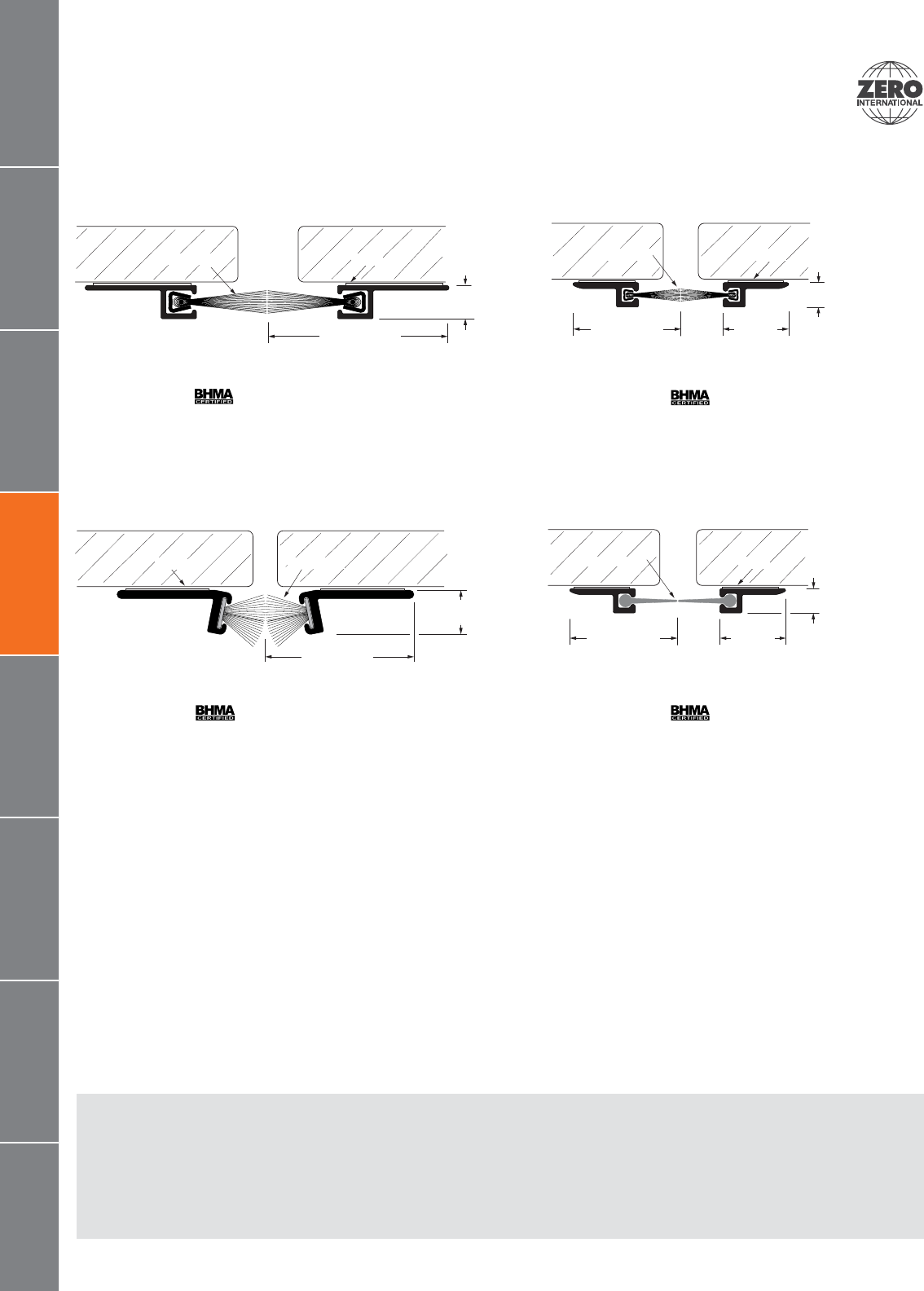

Surface-mounted meeting stiles for beveled doors, both doors active

Finishes:

A, BK, D, G

Options:

PSA, S,

SEC

ANSI/BHMA:

98A, 98BK, 98D, 98G R3F735

.395"

(10.0)

1.00"(25.4)

#6 x 1.00"(25.4) PPHSDS

Poly pile with ﬁn

8879

Finishes:

AA, BK,

D, G

Options:

PSA, S,

SEC

ANSI/BHMA:

8879AA, 8879BK, 8879D, 8879G R3A735

Nylon

brush

.625"

(15.9)

.220"

(5.6)

#6 x 1.00"(25.4)

PPHSDS

1.00"(25.4) .375"

(9.5)

8879

8193

Finishes:

AA, BK,

D, G

Options:

PSA,

SEC

ANSI/BHMA:

8192AA, 8192BK, 8192D, 8192G R3A735

8192

Finishes:

AA, BK,

D, G

Options:

PSA,

SEC

ANSI/BHMA:

8192AA, 8192BK, 8192D, 8192G R3A735

8194

Finishes:

AA, BK,

D, G

Options:

PSA,

SEC

ANSI/BHMA:

8192AA, 8192BK, 8192D, 8192G R3A735

8195

Finishes:

AA, BK,

D, G

Options:

PSA, SEC

ANSI/BHMA:

8195AA, 8195BK, 8195D, 8195G R3B734

Neoprene

lip

.625"

(15.9)

.220"

(5.6)

1.00"(25.4) .375"

(9.5)

8195

#6 x 1.00"(25.4)

PPHSDS

1.625"(41.3)

Nylon brush

.300"

(7.6)

.625"

(15.9) 1.00"(25.4)

#6 x 1.00"(25.4)

PPHSDS

8192

Nylon brush

.625"

(15.9)

.220"

(5.6)

#6 x 1.00"(25.4) PPHSDS

.965"(24.5) .375"

(9.5)

8193

Neoprene lip

.590"

(15.0)

.220"

(5.6)

#6 x 1.00"(25.4) PPHSDS

.965"(24.5) .375"

(9.5)

8194

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 81

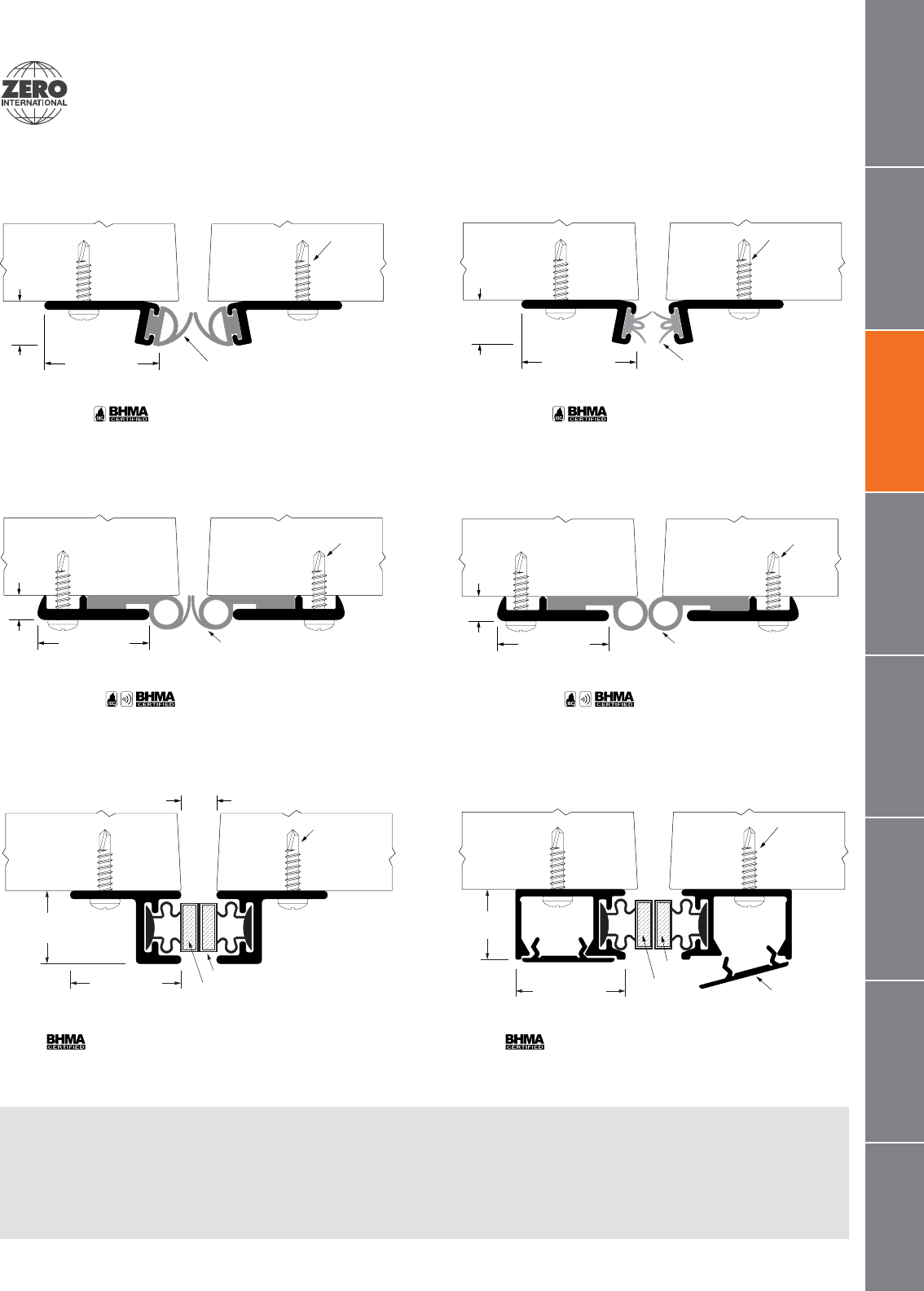

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Note:

For stile applications order two of each model, or mix and

match models if desired.

Follow NFPA-80 requirements for ﬁre door clearances.

Meeting stiles

100

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

100A, 100BK, 100D, 100G R3E734

.395"

(10.0)

1.00"(25.4)

#6 x 1.00"(25.4) PPHSDS

Silicone seal

100

Finishes:

A, BK,

D, G

Options:

ZAG, S,

SEC

ANSI/BHMA:

99A, 99BK, 99D, 99G R3E735

.395"

(10.0)

1.00"(25.4)

#6 x 1.00"(25.4) PPHSDS

Silicone seal

Surface-mounted meeting stiles for beveled doors, both doors active (cont.)

326

Finishes:

AA, BK, D, G,

B, B-ORB

Options:

ZAG, S,

SEC

ANSI/BHMA:

326AA, 326BK, 326D, 326G R3B735

#6 x 1.00"(25.4) PPHSDS

1.00"(25.4) Solid neoprene

.219"

(5.6)

326

328

Finishes:

AA, BK, D, G,

B, B-ORB

Options:

ZAG, S,

SEC

ANSI/BHMA:

328AA, 328BK, 328D, 328G R3B735

328

1.00"(25.4)

.219"

(5.6)

#6 x 1.00"(25.4) PPHSDS

Solid neoprene

370

Finishes:

AA, BK,

D, G

ANSI/BHMA:

370AA, 370BK, 370D, 370G R3L734

Magnetic meeting stiles for use with metal interior doors only.

Available to order as engineering special.

#6 x 1.00"(25.4) PPHSDS

Magnet

Vinyl

.656"

(16.7)

1.00"(25.4)

320"

(8.1)

Min.

370

375

Finishes:

AA, BK,

D, G

ANSI/BHMA:

375AA, 375BK, 375D, 375G R3L734

Magnetic meeting stiles for use with metal interior doors only.

Available to order as engineering special.

#6 x 1.00"(25.4) PPHSDS

Magnet

375

Vinyl

Snap-on cover

.629"

(16.0)

.984"(25.0)

See Perimeter seals Accessories & options page for details.

82 • Zero • Door sealing systems • www.zerointernational.com

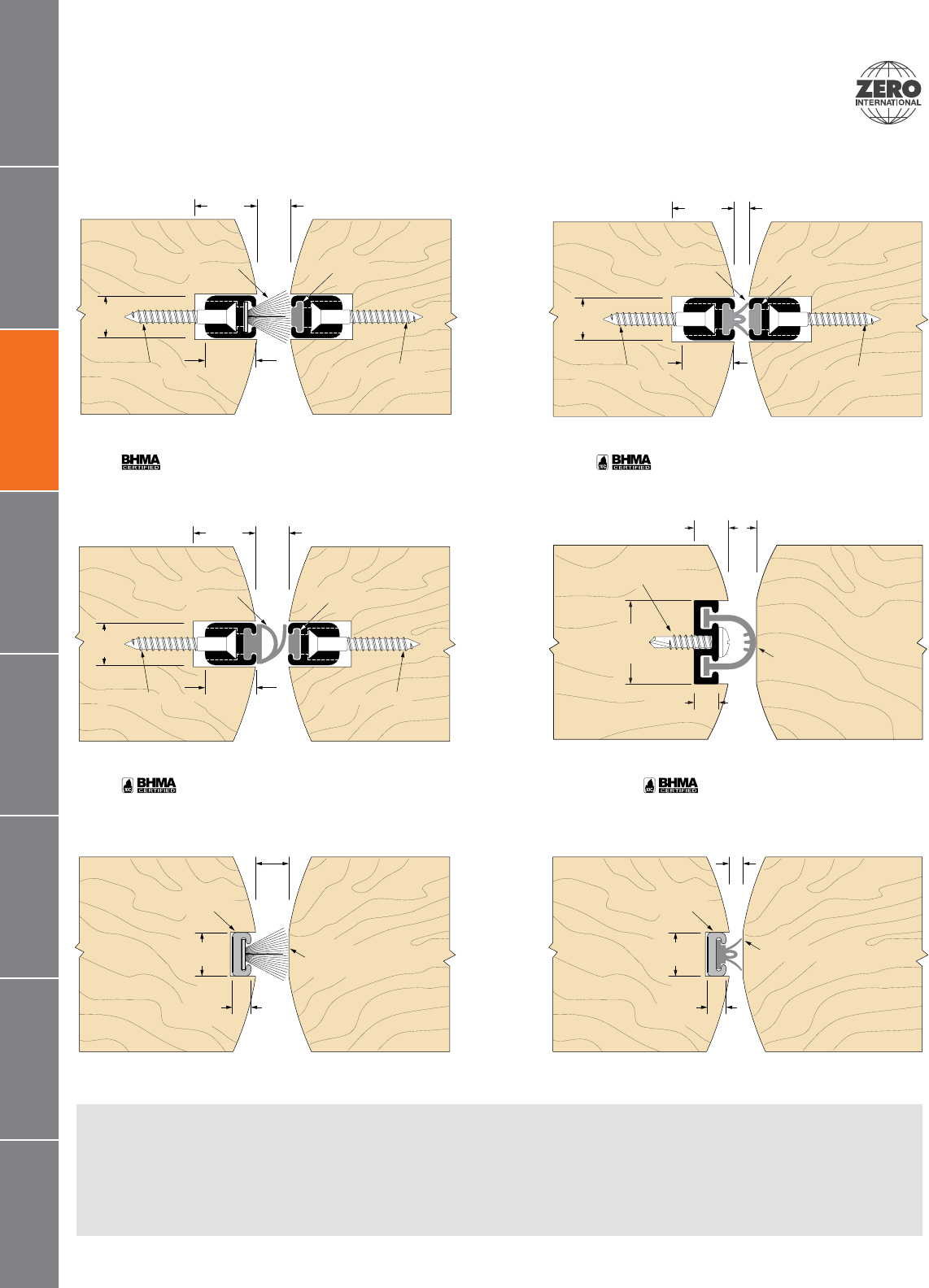

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Note:

Follow NFPA-80 requirements for ﬁre door clearances.

Meeting stiles

Mortised meeting stiles for bull-nosed doors, both doors active

34 38

Finishes:

AA, BK,

D, G

ANSI/BHMA:

34AA, 34BK, 34D, 34G R3F825

Order components separately.

36 38

Finishes:

AA, BK,

D, G

ANSI/BHMA:

36AA, 36BK, 36D, 36G R3E824

Order components separately.

398V

Finishes:

Solid PVC-brown. Supplied standard with PSA

35 38

Finishes:

AA, BK,

D, G

ANSI/BHMA:

35AA, 35BK, 35D, 35G R3E824

Order components separately.

Finishes:

Options:

SEC

ANSI/BHMA:

53A R3B724

399V

Finishes:

Solid PVC-brown. Supplied standard with PSA

.380"

(9.7)

.460"

(11.7)

.250"

(6.3)

.560"

(14.2)

36 38

EPDM rubberSilicone seal

#6x1"(25.4) FPHWS #6x1"(25.4) FPHWS

Solid neoprene

.750"

(19.1)

.313"

(8.0)

.250"

(6.4)

#6 x 1.00"(25.4) PPHSDS

.218"

(5.5)

.380"

(9.7)

398V

.160"

(9.7)

PVC with PSA

Pile with ﬁn seal

.300"

(7.6)

.380"

(9.7)

399V

.160"

(9.7)

PVC with PSA

Silicone seal

.125"

(3.2)

.380"

(9.7)

.460"

(11.7)

Pile with ﬁn seal

.300"

(7.6)

.560"

(14.2)

#6x1"(25.4) FPHWS

EPDM rubber

#6x1"(25.4) FPHWS

.380"

(9.7)

.460"

(11.7)

.125"

(3.2)

.560"

(14.2)

35 38

#6x1"(25.4) FPHWS#6x1"(25.4) FPHWS

Silicone seal EPDM rubber

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 83

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Note:

See Ives catalog for door coordinators.

Follow NFPA-80 requirements for ﬁre door clearances.

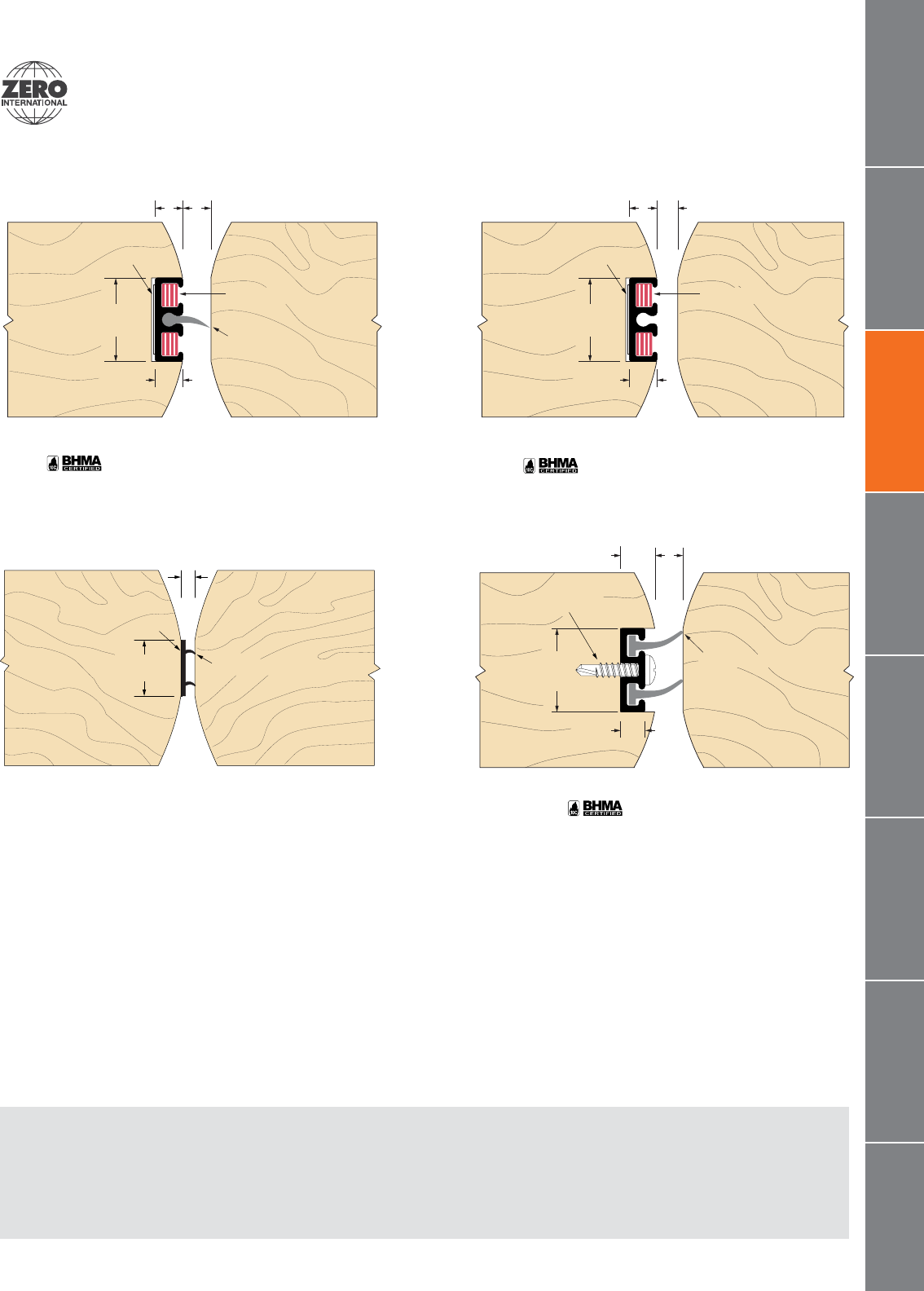

Meeting stiles

Mortised meeting stiles for bull-nosed doors, both doors active. (cont.)

8217S

Finishes:

S-BK

Black silicone

Very low proﬁle, for door pairs with very small clearance. Also suitable for glass doors.

Supplied standard with PSA.

381

Finishes:

Options:

FLO, SEC

ANSI/BHMA:

381A R3B724

.500"

(12.7)

8217

PSA

Silicone lip

.125"

(3.2)

.750"

(19.1)

.313"

(8.0)

.250"

(6.4)

#6 x 1.00"(25.4) PPHSDS

.218"

(5.5)

381

Neoprene lip

59FS

Finishes:

ANSI/BHMA:

59FS-A R3R724

Supplied standard with PSA.

159FS

Finishes:

ANSI/BHMA:

159FS-A R3P7246

Supplied standard with PSA.

Intumescent

.750"

(19.1)

.250"

(6.4)

.250"

(6.4)

.250"

(6.4)

59FS

PSA

Solid

neoprene

FS3003

Intumescent

.750"

(19.1)

.250"

(6.4)

.125"

(3.2)

.250"

(6.4)

159FS

PSA

See Perimeter seals Accessories & options page for details.

84 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Anti-ligature gasketing

S Order as a set

NH No holes

NRGC Rubber not assembled, no glue or no crimp on seal

SEC Security screws

Note:

See Ives catalog for door coordinators.

Finishes: SP = Steel Primed, STST=Stainless Steel.

Follow NFPA 80 requirements for ﬁre door clearances.

Meeting stiles

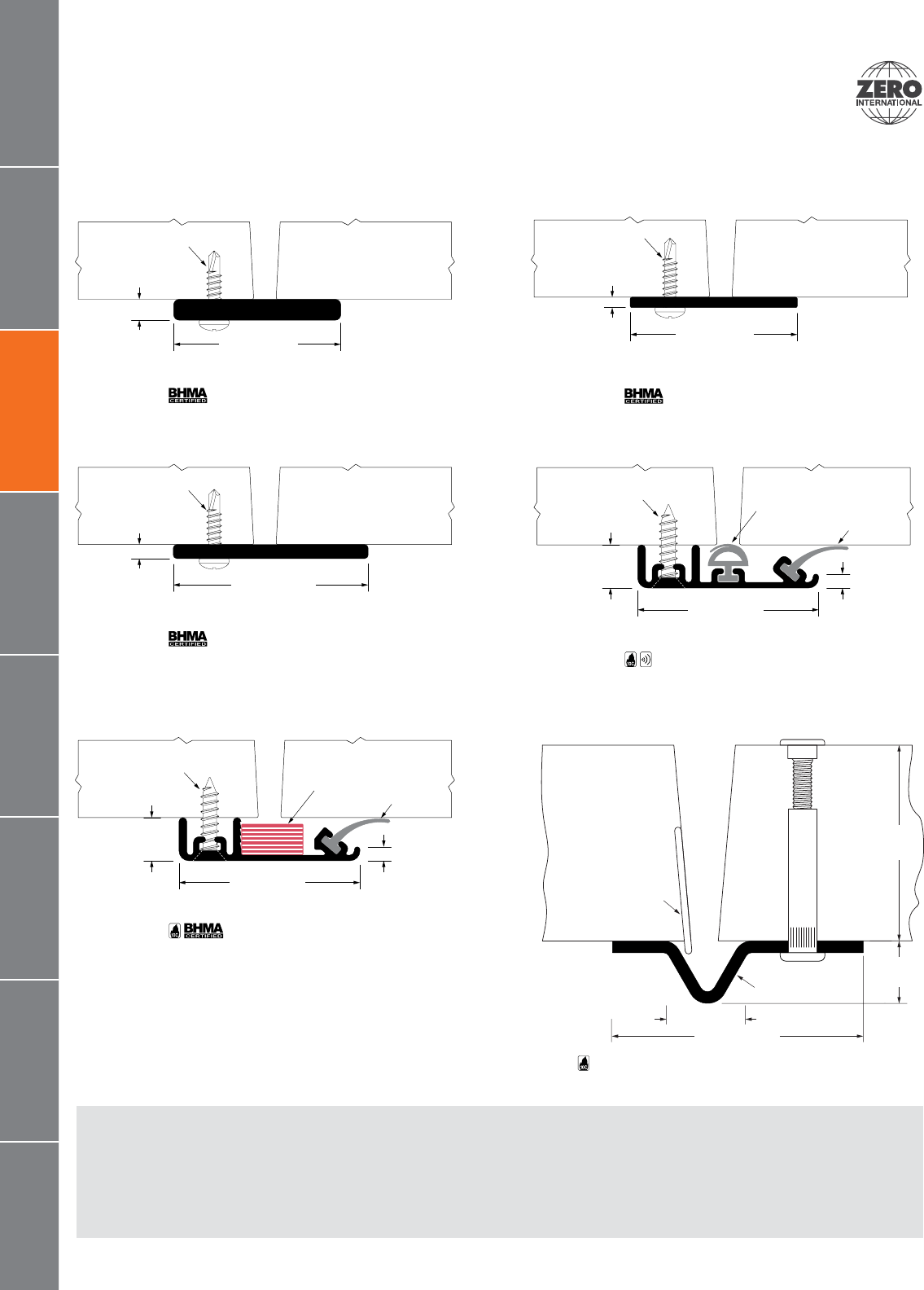

Astragals — One door active or coordinating doors

383FS

Finishes:

AA, BK, D,

Options:

SEC

ANSI/BHMA:

383FS-AA, 383FS-BK, 383FS-D, 383FS-G R3B634

90 minute max ﬁre rating

Finishes:

SP, STST

905

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

905AA, 905BK, 905D, 905G R3Y636

Finishes:

AA, BK, D,

Options:

SEC

ANSI/BHMA:

47AA, 47BK, 47D, 47G R3Y636

383

Finishes:

AA, BK,

D, G

Options:

SEC

ANSI/BHMA:

383AA, 383BK, 383D, 383G R3B634

90 minute max ﬁre rating

Finishes:

STST

Options:

SEC

ANSI/BHMA:

44STST R5Y636

Stainless steel ﬁnish only.

#6 x 1.00"(25.4) PPHSDS

905

.187"(4.7)

1.500"(38.1)

#6 x 1.00"(25.4) PPHSDS

.093"(2.4)

1.500"(38.1)

#6 x 1.00"(25.4) PPHSDS

.125"(3.2)

1.750" (44.5)

383

#8 x .750"(19.1) FPHSMS

1.625"(41.3)

.387"

(9.8)

Neoprene

.125"

(3.2)

Neoprene lip

383FS

#8 x .750"(19.1) FPHSMS

1.625"

(41.3)

.387"

(9.8)

Intumescent

.125"

(3.2)

Neoprene lip

Security astragal

2.250"(57.2)

.795"(20.2)

.531"

(13.5)

1.750"

(44.5)

Strike plate

by others

Active

Door

1/4-20x1"(25.4)

Thru bolt

Steel prime or

Stainless steel

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 85

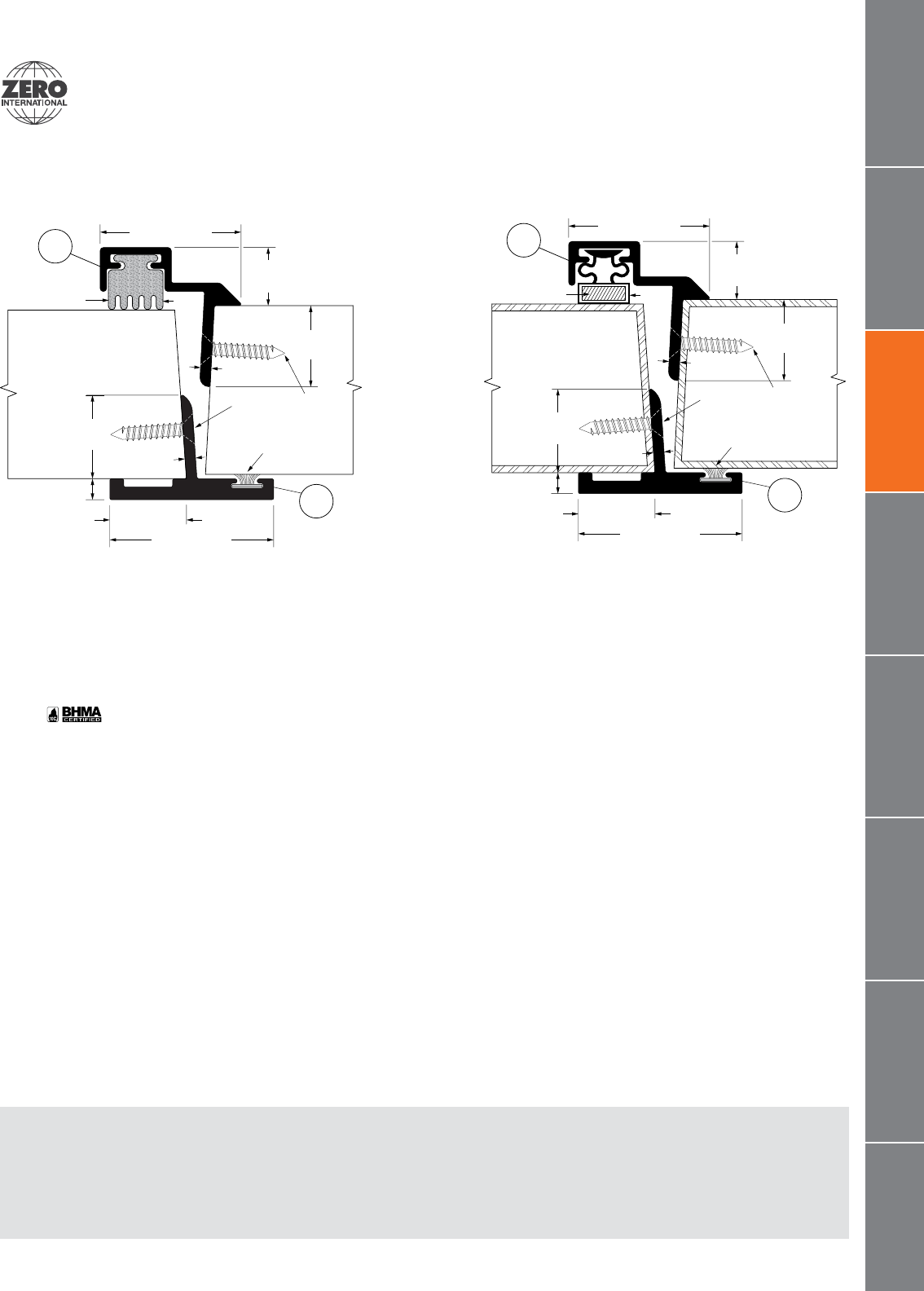

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Note:

See Ives catalog for door coordinators.

Meeting stiles

Astragals — One door active or coordinating doors (cont.)

Finishes:

AA, BK,

D, G

ANSI/BHMA:

40AA, 40BK, 40D, 40G R3L635

Magnetic astragal, inswing. For use on interior metal doors only. Available to order as

engineering special.

Finishes:

AA, BK,

D, G

ANSI/BHMA:

41AA, 41BK, 41D, 41G R3F636

40/41

Pile brush

Vinyl

Magnet

.749"

(19.0)

.188"(4.8)

.094"(2.4)

#6x.750"(19.1)FPHSMS

.094"(2.4)

.729"

(18.5)

1.265"

(32.1)

.521"

(13.2)

1.470"(37.3)

.688"(17.5)

1840/41

Pile brush

Vinyl

Sponge

neoprene

1840

.749"

(19.0)

.188"(4.8)

.094"(2.4)

#6x.750"(19.1)FPHSMS

1.470"(37.3)

.688"(17.5)

.094"(2.4)

.729"

(18.5)

1.265"

(32.1)

.521"

(13.2)

Aluminum or wood door

1840

Finishes:

AA, BK,

D, G

ANSI/BHMA:

1840AA, 1840BK, 1840D, 1840G R3C635

Astragal, inswing.

See Perimeter seals Accessories & options page for details.

86 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Note:

See Ives catalog for door coordinators.

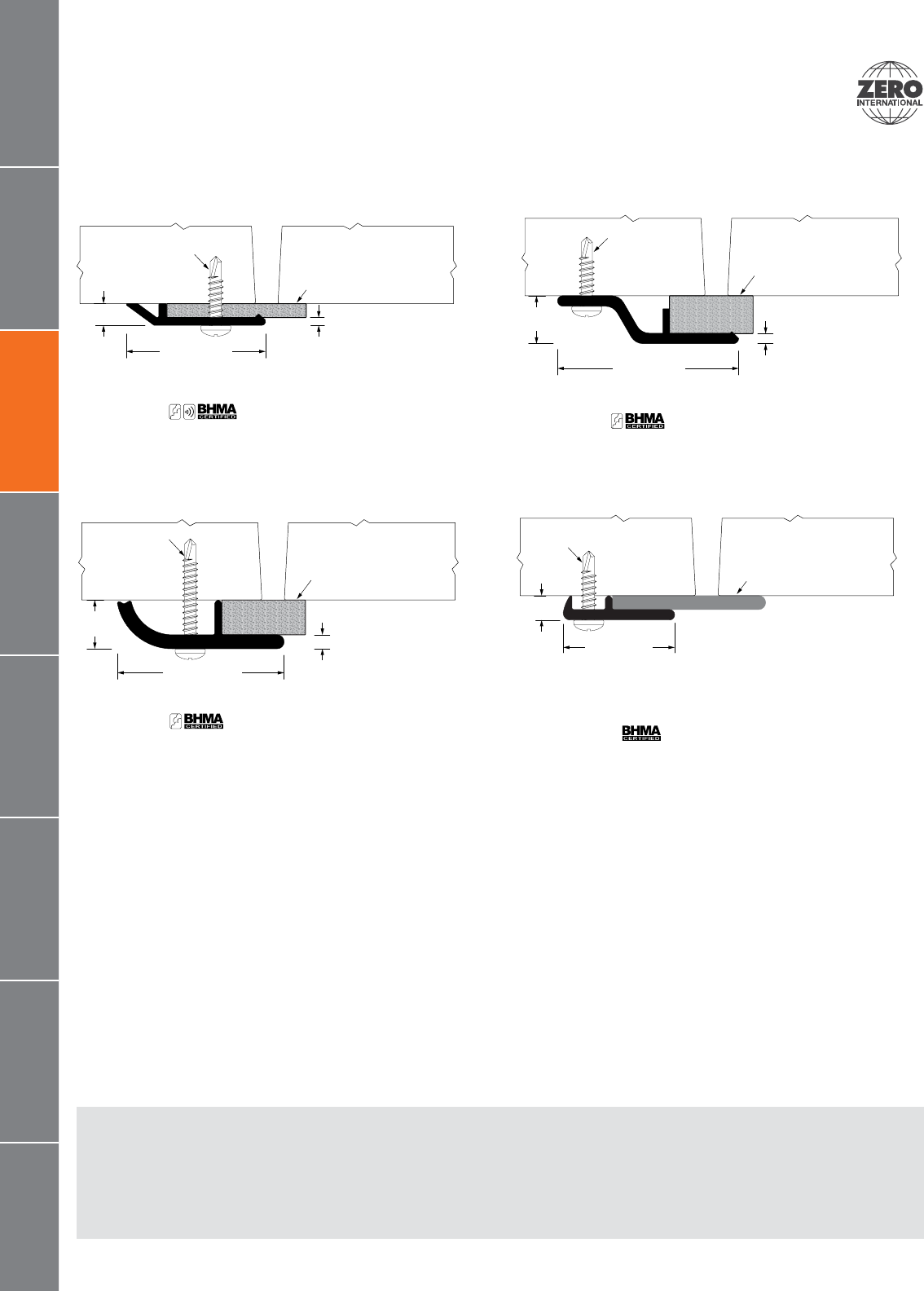

Meeting stiles

Astragals — One door active or coordinating doors (cont.)

322

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

322A, 322BK, 322D, 322G R3C164 R3C634

322

#6 x 1.00"(25.4) PPHSDS

1.500"(38.1)

.437"

(11.1)

Closed cell

sponge neoprene

.375"(9.5) x .750"(19.1)

.125"

(3.2)

339

Finishes:

AA, BK, D, G,

B, B-ORB

Options:

SEC

ANSI/BHMA:

339AA, 339BK, 339D, 339G R3B634

339B R1B634

#6 x 1.00"(25.4) PPHSDS

Solid neoprene

.125"(3.2) x 1.375"(34.9)

.219"

(5.6)

1.00"(25.4)

339

140

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

140A, 140BK, 140D, 140G R3C634

#6 x 1.00"(25.4) PPHSDS

1.625"(41.2)

.430"

(10.9)

Closed cell

sponge neoprene

.375"(9.5) x .750"(19.1)

.094"

(2.4)

140

139

Finishes:

A, BK,

D, G

Options:

S, SEC

ANSI/BHMA:

139A, 139BK, 139D, 139G R3C634

1.250"(31.8)

.195"

(5.0)

Closed cell

sponge neoprene

.125"(3.2) x 1.250"(31.8)

.070"

(1.8)

#6 x 1.00"(25.4) PPHSDS

139

See Perimeter seals Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 87

Perimeter seals

Finishes:

A Aluminum mill ﬁnish

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

B Bronze, architectural mill ﬁnish

B-ORB Oil-rubbed aged bronze

Options:

FLO Air ﬂow/ sound block

PSA Pressure-sensitive adhesive

ZAG Ligature resistant gasketing

S Order as a set

SEC Security screws

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Note:

Specialized solutions

Door closer mounting brackets

These mounting brackets can be used to protect gasketing when installed with an LCN® door closer or with products supplied

by other manufacturers. See the table below to determine which bracket model to use with a chosen gasketing model.

328SPB 870SPB 770SPB

328SPB

Finishes:

Steel-prime painted

Door closer mounting bracket 6" (152.4) long

328SPB

oor closer by other

1.375"(34.9)

.125"

(3.2)

#12 x 1.25"(31.8) FPHSDS

.625"

(15.9)

.500"

(12.7)

Door

870SPB

Finishes:

Steel-prime painted

Door closer mounting bracket 6" (152.4) long

870SPB

oor closer by others

.875"

(22.2)

.187"

(4.7)

1.438"(36.5)

.750"

(19.1)

#12 x 1.25"(31.8) FPHSDS

Door

Compatible gasketing for door closer brackets

328SPB 870SPB 770SPB

Height Width Height Width Height Width

.500" 1.375" .750" 1.438" 1.156" 1.313"

31, 32, 33, 50, 58FS, 98, 99, 100, 139, 312,

314, 326, 328, 475, 485, 5831, 5831FS, 5832,

5832FS, 5833, 8193, 8302, 8303, 8305,

8306, 8877, 8878, 8879

270, 272, 318, 322, 370, 375, 376, 470, 472,

478, 712, 870, 871, 873, 1370

170, 770, 3708, 3709, 770FS, 770SP,

770STST, 7770

770SPB

Finishes:

Steel-prime painted

Door closer mounting bracket 6" (152.4) long

770SPB

1.313"

1.156"

(29.4)

170, 770, 7770

Door

#12 x 1.25"(31.8) FPHSDS

.938"

(23.8)

.187"

(4.7)

oor c

oser

y ot

88 • Zero • Door sealing systems • www.zerointernational.com

Perimeter seals

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Notes

Weatherstripping

Door sealing systems

90 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Weatherstripping

Index

Accessories & options

Finishes/Options ..........................................................................................................92

Kerf frame weatherstripping

8810S ...............................................................................................................................94

8800S .............................................................................................................................94

8052N ..............................................................................................................................94

8812S ...............................................................................................................................94

8841R ...............................................................................................................................94

8004N .............................................................................................................................94

8043N ..............................................................................................................................95

8048S ..............................................................................................................................95

8054S ..............................................................................................................................95

8055S ..............................................................................................................................95

8056S ..............................................................................................................................95

8053Q ..............................................................................................................................95

Self-adhesive weatherstripping

Solid neoprene and silicone seals

188S/188FS/188BIO .................................................................................................. 96

8144S/8144FS .............................................................................................................. 96

8042S ............................................................................................................................. 96

488S/488FS/488BIO ................................................................................................ 96

8145S .............................................................................................................................. 96

824N ................................................................................................................................96

8216S ............................................................................................................................... 97

117S .................................................................................................................................... 97

8150S ............................................................................................................................... 97

Closed cell sponge neoprene seals

8172N ................................................................................................................................97

8770N ............................................................................................................................... 97

312N .................................................................................................................................. 97

8780N .............................................................................................................................. 97

139N .................................................................................................................................. 97

826N ................................................................................................................................. 97

926N ................................................................................................................................. 97

318N .................................................................................................................................. 97

3708N .............................................................................................................................. 97

2070N ............................................................................................................................. 98

810N ................................................................................................................................98

811N .................................................................................................................................. 98

812N ................................................................................................................................. 98

813N ................................................................................................................................. 98

Pile brush seals

137P .................................................................................................................................. 98

8136P .............................................................................................................................. 98

34P ................................................................................................................................... 98

Weatherstripping for doors and windows

Cushion-spring seals for wood doors and frames

18 ...................................................................................................................................... 99

19 ...................................................................................................................................... 99

19W .................................................................................................................................. 99

118 ..................................................................................................................................... 99

119 ..................................................................................................................................... 99

119W ................................................................................................................................. 99

Jamb seals for double-hung wood windows

4 ........................................................................................................................................ 99

5 ........................................................................................................................................ 99

400 .................................................................................................................................. 99

500 .................................................................................................................................. 99

4000 ............................................................................................................................... 99

5000 ............................................................................................................................... 99

PSA Weatherstripping for glass doors

PVC glass edge protection for swinging and sliding doors

135 ...................................................................................................................................100

136 ...................................................................................................................................100

Poly pile seals with PVC and polycarbonate housings – for swinging and sliding

doors

137....................................................................................................................................100

138 ...................................................................................................................................100

8136 ................................................................................................................................100

8137 .................................................................................................................................100

8138 ................................................................................................................................100

Edge protection for glass sliding doors

135/137 ............................................................................................................................101

136/138 ...........................................................................................................................101

137P .................................................................................................................................. 101

9137 ..................................................................................................................................101

9131 ..................................................................................................................................101

Astragals for swinging doors

133 ....................................................................................................................................101

134 ....................................................................................................................................101

Glass door meeting stiles—surface mounted self-adhesive, both doors active

8192 ................................................................................................................................102

8193 ................................................................................................................................102

98 .................................................................................................................................... 102

8194 ................................................................................................................................102

www.zerointernational.com • Door sealing systems • Zero • 91

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

PSA

188

8144

PSA

8810

Zero offers a comprehensive selection of kerf seals and

pressure-sensitive adhesive (PSA) rubber seals in a variety of materials.

With a broad portfolio, Zero offers solutions for a variety of challenging applications.

Zero’s unique proﬁles and versatile shapes deliver the best performance for common

sealing challenges.

Metal weatherstripping enables speciﬁers to optimize sealing solutions for a wide

range of door and double-hung window applications.

Glass door weatherstripping includes solutions for sliding and swinging glass doors.

Special features, such as state of the art adhesive, set Zero apart. Our PSA products are

constructed using the highest-quality self-adhesives for superior adhesion even when

the surface is contaminated with oil. Making them perfect for applications where budget

or installation factors favor the use of PSA gasketing. Thoughtful engineering and design

details include a subtle indentation in the extruded proﬁle of Zero tear drop seals that

enhances the wrap of the rubber for a tighter seal.

A variety of material options are available to customize a solution for the speciﬁc

needs of your application.

Silicone rubber can handle many applications including those with

temperature extremes (S)

Neoprene rubber a versatile material for heavy duty applications (N)

Intumescent for ﬁre and smoke protection (FS)

BioWall rubber with anti-microbial inhibitor for infection control (BIO)

EPDM rubber excellent for outdoor use (R)

Vinyl Covered Foam (Q)

188 88108144

Designed for durability and optimal performance

Weatherstripping Introduction

High quality

self adhesive

Strong initial adhesion

Long term holding

power

Holds well even on

contaminated surfaces

Most Zero weather-

stripping products use

best-in-class 3M 9495LE

adhesive tape.

See Weatherstripping Accessories & options page for details.

92 • Zero • Door sealing systems • www.zerointernational.com

Weatherstripping

Finishes:

BK Black

BR Brown

CL Clear

GY Gray

WH White

B Architectural mill ﬁnish bronze

Z Mill ﬁnish Zinc

Options:

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Fasteners

Weatherstripping is supplied with the appropriate fasteners and quantities needed

for installation based on order length. Use the part numbers below for ordering

additional screws.

For hollow metal doors

#4 x 5/16" wafer-head drive screws

used for installation on metal doors

For wood doors

#16 x 7/8" weatherstrip nails used

for installation on wood doors

Models Category Part number Finish Details

4, 5, 18, 19, 19W,

23, 400, 500,

4000, 5000

Metal

weatherstripping

47253928 B, Z 10 Nails #16 x 7/8" and 10

Waferhead drive screws #4 x

5/16"

Accessories & options

Pressure-sensitive adhesive (PSA)

Many weatherstipping products are supplied standard with a high quality 3M adhesive.

PSA is also available as an option on other models. See proﬁle for information on

standard or optional PSA.

Ligature-resistant gasketing (ZAG)

This patented ligature-resistant option prevents unintended usage of the gasketing,

including harming oneself or others. When ZAG is speciﬁed, the rubber is scored before

insertion into the aluminum extrusion. This allows the seal to function as intended, but

it will now break apart if removal is attempted or any weight is placed on the seal.

Options

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Finishes

Black

Brown

Clear

Gray

White

Bronze, Architectural

Mill Finish

Zinc Mill Finish

188-ZAG

318N-ZAG

See Weatherstripping Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 93

Finishes:

BK Black

BR Brown

CL Clear

GY Gray

WH White

B Architectural mill ﬁnish bronze

Z Mill ﬁnish Zinc

Options:

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Weatherstripping How to order

Weatherstripping order guide

How to order

Model Finish Length Options

188S BK 17

Models

Example

19W

188S

318N

4000

824N

Finishes*

B - Architectural mill ﬁnish Bronze

BK - Black

BR - Brown

CL - Clear

GY - Gray

WH - White

Z - Mill ﬁnish Zinc

*See proﬁle for ﬁnish options.

Length

For all lengths, specify feet desired US std. measure.

Example common Weatherstripping rolls:

17 - 17' roll for std. 3070 door

18 - 18' roll

19 - 19' roll

20 - 20' roll for std. double door

25 - for double doors to 8' wide x 8' high

Options

PSA - Pressure sensitive adhesive, standard on some models

ZAG - Ligature-resistant

See Weatherstripping Accessories & options page for details.

94 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

BK Black

BR Brown

CL Clear

GY Gray

WH White

B Architectural mill ﬁnish bronze

Z Mill ﬁnish Zinc

Options:

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Note:

See door manufacturer speciﬁcations for minimum required

clearance between door and frame. Most models shown are available

in neoprene (N) or silcone (S). Both materials are self-extinguishing

and non-staining.

Weatherstripping

Kerf frame weatherstripping

8810 8880 8052

8810S

Finishes:

BK, WH

ANSI/BHMA:

8810S R0E186

8841R

Finishes:

ANSI/BHMA:

8841R R0J186

EPDM rubber.

8810

.250"

(6.4)

.250"

(6.4)

.187"

(4.7)

.500"

(12.7)

8812S

Finishes:

BK, WH

8812

.250"

(6.4)

.250"

(6.4)

.125"

(3.2)

.625"

(15.9)

8004N

Finishes:

ANSI/BHMA:

8004N R0B186

8004

.125"

(3.2)

.375"

(9.5)

.250"

(6.4)

.150"

(3.8)

8800S

Finishes:

BK, WH

ANSI/BHMA:

8800S R0E186

8800

.125"

(3.2)

.562"

(14.3)

.250"

(6.4)

8841

.312"

(7.9)

.125"

(3.2)

.438"

(11.1)

8052N

Finishes:

ANSI/BHMA:

8052N R0C186

Closed cell sponge neoprene rubber.

8052

.375"

(9.5)

.125"

(3.2)

See Weatherstripping Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 95

Weatherstripping

Finishes:

BK Black

BR Brown

CL Clear

GY Gray

WH White

B Architectural mill ﬁnish bronze

Z Mill ﬁnish Zinc

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Options:

PSA Pressure-sensitive adhesive

ZAG Anti-ligature gasketing

Note:

See door manufacturer speciﬁcations for minimum required clearance

between door and frame. Most models shown are available in neoprene

(N) or silcone (S). Both materials are self-extinguishing and non-staining.

Kerf frame weatherstripping

8043N

Finishes:

ANSI/BHMA:

8043N R0B186

8055S

Finishes:

BK, WH

ANSI/BHMA:

8055S R0E186

8048S

Finishes:

ANSI/BHMA:

8048S R0E186

8056S

Finishes:

ANSI/BHMA:

8056S R0E186

8054S

Finishes:

BK, WH

ANSI/BHMA:

8054S R0E186

8053Q

Finishes:

BR, WH

ANSI/BHMA:

8053Q R0Y186

Vinyl-covered foam.

8043

.750"

(19.1)

.125"

(3.2)

.375"

(9.5)

8048

.125"

(3.2)

.375"

(9.5)

.250"

(6.4)

8054

.250"

(6.4)

.250"

(6.4)

.125"

(3.2)

8055

.250"

(6.4)

.375"

(9.5)

.125"

(3.2)

8056

.438"

(11.1)

.125"

(3.2)

.313"

(8.0)

8053Q

.125"

(3.2)

.490"

(12.5)

.390"

(9.9)

REF.

.573"

(14.6)

REF.

See Weatherstripping Accessories & options page for details.

96 • Zero • Door sealing systems • www.zerointernational.com

Weatherstripping

Finishes:

BK Black

BR Brown

CL Clear

GY Gray

WH White

B Architectural mill ﬁnish bronze

Z Mill ﬁnish Zinc

Options:

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Self-adhesive weatherstripping

188S/188FS/188BIO

Material/ Finishes:

S: BK, BR, CL, GY, WH

FS: BK

BIO: BR

Options:

ZAG

ANSI/BHMA:

188S R0E151

188FS R0U154

S: PSA standard. 20-minute ﬁre rating.

FS: Intumescent rubber for ﬁre and smoke protection.

PSA standard. 45-minute ﬁre rating.

BIO: BioWall antimicrobial rubber. PSA standard.

488S/488FS/488BIO

Material/ Finishes:

S: BK, BR, CL, GY, WH

FS: BK

BIO: BR

Options:

ZAG

ANSI/BHMA:

488S R0E154

488FS R0U154

S: PSA standard.

FS: Intumescent rubber for ﬁre and smoke protection.

PSA standard.

BIO: BioWall antimicrobial rubber. PSA standard.

Solid neoprene and silicone seals

188 /488 8144 8042

PSA

.500"

(12.7)

.250"

(6.4)

188

PSA

.375"

(9.5)

.187"

(4.8)

488

8144S/8144FS

Finishes:

S: BK, WH

FS: BK

Options:

ZAG

ANSI/BHMA:

8144S R0E154

8144FS R0U154

S: PSA standard.

FS: Intumescent rubber for ﬁre and smoke protection.

PSA standard.

8144

.437"

(11.1)

.437"

(11.1)

PSA

8042S

Finishes:

Options:

ZAG

ANSI/BHMA:

8042S R0E154

PSA standard.

8042

.437"

(11.1)

.200"

(5.1)

PSA

8145S

Finishes:

Options:

ZAG

PSA standard.

PSA

.600"

(15.2)

.250"

(6.4)

8145

824N

Finishes:

Options:

ZAG

ANSI/BHMA:

824N R0B154

PSA standard.

PSA

.219"

(5.6)

.425"

(10.8)

824

See Weatherstripping Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 97

Weatherstripping

Finishes:

BK Black

BR Brown

CL Clear

GY Gray

WH White

B Architectural mill ﬁnish bronze

Z Mill ﬁnish Zinc

Options:

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Self-adhesive weatherstripping

Solid neoprene and silicone seals (cont.)

8172N

Finishes:

Options:

ZAG

ANSI/BHMA:

8172N R0C155

PSA standard.

8780N

Finishes:

Options:

PSA, ZAG

ANSI/BHMA:

8780N R0C155

Mullion seal

926N

Finishes:

Options:

PSA, ZAG

ANSI/BHMA:

926N R0C155

PSA standard.

139N

Finishes:

Options:

PSA, ZAG

318N

Finishes:

Options:

PSA, ZAG

826N

Finishes:

Options:

ZAG

ANSI/BHMA:

826N R0C155

PSA standard.

3708N

Finishes:

Options:

PSA, ZAG

8770N

Finishes:

Options:

ZAG

ANSI/BHMA:

8770N R0C155

PSA standard.

312N

Finishes:

Options:

ZAG

ANSI/BHMA:

312N R0C155

PSA standard.

8216S

Finishes:

Options:

ZAG

PSA standard.

PSA

.234"

(5.9)

.500"

(12.7)

8216

117S

Finishes:

Options:

ZAG

ANSI/BHMA:

117S R0E154

PSA standard.

117

.400"

(10.2)

PSA

8150S

Finishes:

Options:

ZAG

PSA standard.

8150

.500"

(12.7)

.375"

(9.5)

PSA

Closed cell sponge neoprene seals

.125"

(3.2)

.250"

(6.4)

PSA

8172N

.125"

(3.2)

PSA

.500"(12.7)

8770N

.185"

(4.7)

PSA

.500"

(12.7)

312N

.094"

(2.4)

1.00"(25.4)

PSA (optional)

8780N

.125"

(3.2)

1.250"(31.8)

139N

PSA (optional)

.125"

(3.2)

.375"

(9.5)

PSA

826N

.185"

(4.7)

.375"

(9.5)

PSA

926N

318N

.375"

(9.5)

.750"(19.1)

PSA (optional)

3708N

.400"

(10.2)

1.00"(25.4)

PSA (optional)

See Weatherstripping Accessories & options page for details.

98 • Zero • Door sealing systems • www.zerointernational.com

Weatherstripping

Finishes:

BK Black

BR Brown

CL Clear

GY Gray

WH White

B Architectural mill ﬁnish bronze

Z Mill ﬁnish Zinc

Options:

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Self-adhesive weatherstripping

Closed cell sponge neoprene seals (cont.)

Pile brush seals

812N

Finishes:

Options:

ZAG

PSA standard.

137P

Finishes:

BK, GY

Also suitable for glass door application -- see Specialized

Solutions. PSA standard.

813N

Finishes:

Options:

ZAG

PSA standard.

8136P

Finishes:

PSA

1.00"

(25.4)

.500"(12.7)

812N

PSA

1.250"

(31.8)

.625"(15.9)

813N

137P

.270"

(6.9)

.220"

(5.6)

34P

Finishes:

BK, GY

Options:

PSA

34P

PSA

(optional)

.270"

(6.9)

.400"

(10.2)

2070N

Finishes:

810N

Finishes:

Options:

ZAG

PSA standard.

811N

Finishes:

Options:

ZAG

PSA standard.

2070N

.375"

(9.5)

.250"

(6.4)

.250"

(6.4)

PSA

.625"

(15.9)

.625"(15.9)

810N

PSA

.750"

(19.1)

.625"(15.9)

811N

8136P

.300"

(7.6)

.188"

(4.8)

See Weatherstripping Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 99

Weatherstripping

Finishes:

BK Black

BR Brown

CL Clear

GY Gray

WH White

B Architectural mill ﬁnish bronze

Z Mill ﬁnish Zinc

Options:

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Note:

PSA models use highest-quality foam-based, double-sided tape.

Weatherstripping for doors and windows

Cushion-spring seals for wood doors and frames

Jamb seals for double-hung wood windows

Finishes:

ANSI/BHMA:

18B R1K155

34 gauge bronze spring.

Finishes:

B, Z

400

Finishes:

B, Z

500

Finishes:

B, Z

.500"

(12.7)

118

Finishes:

ANSI/BHMA:

118B R1K155

34 gauge bronze spring. PSA Standard.

118

.500"

(12.7)

PSA

Finishes:

ANSI/BHMA:

19B R1K155

34 gauge bronze spring.

.750"(19.1)

119

Finishes:

ANSI/BHMA:

119B R1K155

34 gauge bronze spring. PSA Standard.

PSA

119

.750"(19.1)

19W

Finishes:

ANSI/BHMA:

19WB R1K155

34 gauge bronze spring.

19W

1.125"(28.6)

119W

Finishes:

ANSI/BHMA:

119WB R1K155

34 gauge bronze spring. PSA Standard.

PSA

119W

1.125"(28.6)

JAMB SECTION

Upper sash Lower sash

1.750"

(44.5)

.390"

(9.9)

Finishes:

B, Z

2.00"

(50.8)

.390"

(9.9)

400

1.750"

(44.5)

.390"

(9.9)

2.125"(54.0)

500

.390"

(9.9)

4000

Finishes:

B, Z

4000

1.750"(44.5)

.390"

(9.9)

5000

Finishes:

B, Z

2.00"

(50.8)

5000

.390"

(9.9)

See Weatherstripping Accessories & options page for details.

100 • Zero • Door sealing systems • www.zerointernational.com

Weatherstripping

Finishes:

BK Black

BR Brown

CL Clear

GY Gray

WH White

B Architectural mill ﬁnish bronze

Z Mill ﬁnish Zinc

Options:

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

PSA Weatherstripping for glass doors

135

Finishes:

ANSI/BHMA:

135 R0Y716

For .450" to .500" (12.4mm) doors. PSA standard.

136

Finishes:

ANSI/BHMA:

136 R0Y716

For .665" to .750" (19.1mm) doors. PSA standard.

PVC glass edge protection for swinging and sliding doors

PVC

.500"

(12.7)

.645"

(16.4)

PSA

PVC

136

.750"

(19.1)

PSA

.645"

(16.4)

Poly pile seals with PVC and polycarbonate housings

– for swinging and sliding doors

137

Finishes:

ANSI/BHMA:

135 R0F716

For .450" to .500" (12.4mm) doors. Clear housing with gray pile brush. PSA standard.

138

Finishes:

ANSI/BHMA:

138 R0F716

For .655" to .750" (19.1mm) doors. Clear housing with gray pile brush. PSA standard.

PVC

137

.500"

(12.7)

PSA

.645"

(16.4)

.250"

(6.4) PVC

.750"

(19.1)

PSA PSA

.250"

(6.4)

.645"

(16.4)

8137

Finishes:

ANSI/BHMA:

8137 R0F716

For .425" to .472" (12mm) thick doors. Clear housing

with gray pile brush. PSA standard.

8137

.472"

(12.0)

.526"

(13.4)

.312"

(8.0)

PSA

8138

Finishes:

ANSI/BHMA:

8138 R0F716

For .535" to .590" (15mm) thick doors. Clear housing

with gray pile brush. PSA standard.

8138

PSA

.526"

(13.4)

.312"

(8.0)

.590"

(15.0)

8136

Finishes:

ANSI/BHMA:

8136 R0F716

For .325" to .394" (10mm) thick doors. Clear housing

with gray pile brush.PSA standard.

.526"

(13.4)

.312"

(8.0)

PSA

.394"

(10.0)

For long door pulls see IVES catalog

See Weatherstripping Accessories & options page for details.

www.zerointernational.com • Door sealing systems • Zero • 101

Weatherstripping

Finishes:

BK Black

BR Brown

CL Clear

GY Gray

WH White

B Architectural mill ﬁnish bronze

Z Mill ﬁnish Zinc

Options:

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

PSA Weatherstripping for glass doors

Astragals for swinging doors

133

Finishes:

PVC housing with black nylon brush. PSA standard. Min door

gap .125", max door gap .250"

133

PVC Nylon brush

PSA

.750"(19.1)

.300"

(7.6)

.500"

(12.7)

134

Finishes:

ANSI/BHMA:

134 R0B716

PVC housing with neoprene seal. PSA standard. Min door

gap .125", max door gap .250"

134

PVC Neoprene

.750"(19.1)

.300"

(7.6)

.500"

(12.7)

PSA

135/137

PVC housing and poly pile brush seal for .500" (12.4mm) doors. PSA standard.

137P

Finishes:

BK, GY

Poly pile brush seal for .500" (12.4mm) doors.

PSA standard.

9137

Finishes:

ANSI/BHMA:

9137 R0E716

For .500" (12.4mm) doors. Application with #9131 PVC bumper.

PSA standard. Min door gap .500", max door gap 1" when used

without bumper or 1.2" when used with 9131 bumper.

9131

Finishes:

PVC bumper, PSA standard.

136/138

PVC housing with neoprene seal. PSA standard. Min door gap .250", max door gap .340"

Edge protection for glass sliding doors

135 137

PSA

PVC

PSA .500"

(12.7)

.645"(16.4) .645"(16.4)

PVC

138136

.750"

(19.1)

PSAPSA

.645"(16.4) .645"(16.4)

.250"

(6.4)

137P

Pile brush

.500"

(12.7)

.250"

(6.4)

PSA

9137

PVC

.500"

(12.7)

1.00"

(25.4)

1.00"(25.4)

.078"(2.0)

Opaque

grey silicone

.906"(23.0)

overall height

PSA

PVC bumper

(optional)

9131

.188"

(4.8)

.750"(19.1)

PVC

PSA

See Weatherstripping Accessories & options page for details.

102 • Zero • Door sealing systems • www.zerointernational.com

Weatherstripping

Options:

PSA Pressure-sensitive adhesive

ZAG Ligature-resistant gasketing

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized

PSA Weatherstripping for glass doors

Note:

PSA models use highest-quality foam-based, double-sided tape.

Glass door meeting stiles—surface mounted self-adhesive, both doors active

8192

Finishes:

AA, BK, D, G

Options:

PSA

ANSI/BHMA:

8192AA-PSA, 8192BK-PSA, 8192D-PSA, 8192G-PSA R3A735

Min door gap .375", max door gap 1"

Finishes:

A, BK, D, G

Options:

PSA

ANSI/BHMA:

98AA-PSA, 98BK-PSA, 98D-PSA, 98G-PSA R3F735

Min door gap .250", max door gap .625"

8193

Finishes:

AA, BK, D, G

Options:

PSA

ANSI/BHMA:

8193AA-PSA, 8193BK-PSA, 8193D-PSA, 8193G-PSA R3A735

Min door gap .250", max door gap .700"

8194

Finishes:

AA, BK, D, G

Options:

PSA

ANSI/BHMA:

8194AA-PSA, 8194BK-PSA, 8194D-PSA, 8194G-PSA R3B735

Min door gap .250", max door gap .700"

8192 PSA

Nylon brush PSA

1.625"(41.3)

.300"

(7.6)

8193 PSA

.220"

(5.6)

.965"(24.5) .375"

(9.5)

.590"

(15.0)

Nylon brush PSA

8194 PSA

.220"

(5.6)

.965"(24.5) .375"

(9.5)

.590"

(15.0)

Neoprene lip PSA

98 PSA

1.313"(33.4)

.394"

(10.0)

Pile with ﬁn

PSA

Solutions

and specialty

products

Door sealing systems

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Solutions and specialty products

104 • Zero • Door sealing systems • www.zerointernational.com

Index

Intumescent solutions

Category G and Category H seals ......................................................................... 107

188FS ............................................................................................................................. 107

488FS ............................................................................................................................ 107

8144FS ........................................................................................................................... 107

3062500PSA............................................................................................................... 107

3062750PSA ............................................................................................................... 107

30621000PSA ............................................................................................................. 107

30621750PSA .............................................................................................................. 107

3125500PSA ................................................................................................................ 107

3125750PSA ................................................................................................................. 107

31251000PSA .............................................................................................................. 107

3250750PSA ................................................................................................................ 107

32501000PSA ............................................................................................................. 107

Intumescent automatic door bottoms

364FS .............................................................................................................................108

365FS .............................................................................................................................108

Sound control solutions

Sound trap 52 STC sealing system.........................................................................110

Sound trap 49 STC sealing system ........................................................................110

Sound trap system JD6S ............................................................................................ 111

8880 ................................................................................................................................112

1050R Structural silencing tape ...............................................................................112

ZAG

328 ZAG .......................................................................................................................... 114

188 ZAG .......................................................................................................................... 114

485 ZAG ......................................................................................................................... 114

99 ZAG ............................................................................................................................ 114

318 ZAG........................................................................................................................... 114

Cam li full mortise hinges

Z950 ................................................................................................................................115

Z955 ................................................................................................................................115

Z953 ................................................................................................................................115

Z9500 ............................................................................................................................. 115

Finger guards

51....................................................................................................................................... 116

951 .................................................................................................................................... 116

72 ...................................................................................................................................... 116

971 Bio .............................................................................................................................117

972 Bio .............................................................................................................................117

973 Bio .............................................................................................................................117

974 Bio .............................................................................................................................117

ADA Access systems - safety products

8452 Wheelchair accessible shower threshold .................................................. 118

System ADA 1000 ....................................................................................................... 118

Flood barrier shield

2070 (Inside mount) .................................................................................................. 119

2070 (Outside mount)............................................................................................... 119

Sliding and pocket doors

Gasketing for sliding and pocket doors ................................................................ 120

Gasketing for latching pocket doors ..................................................................... 120

Seal for mullion application

8780N ............................................................................................................................ 120

Heavy-duty overhead doors

95 ......................................................................................................................................121

96 ......................................................................................................................................121

93 ......................................................................................................................................121

8047R ..............................................................................................................................121

Hurricane protection wind-driven water inﬁltration (Dade County Florida)

Option 1 - Water rated ................................................................................................122

Option 2 ..........................................................................................................................122

“Safe haven” room gasketing and areas of rescue assistance

Option 1 ...........................................................................................................................122

Option 2 ..........................................................................................................................122

Typical gasketing applications

Typical gasketing for exterior inswing door .........................................................123

Typical gasketing for residential .............................................................................123

Typical gasketing for exterior outswing door ......................................................123

Cold weather solution ................................................................................................123

Hotel gasketing solutions

Interior entry doors - option 1 .................................................................................. 124

Communicating doors - new construction ......................................................... 124

Interior entry doors - option 2 ................................................................................. 124

Communicating doors- aermarket ..................................................................... 124

Air control systems ...................................................................................................125

Replacement rubber reference chart ................................................................ 126

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

www.zerointernational.com • Door sealing systems • Zero • 105

Solutions and specialty products Introduction

Zero solutions

When presented with a challenging application, turn to Zero for solutions

designed to perform together for optimal results.

Piecing a solution together across multiple

product and manufacturers adds time,

complexity and risk. Instead, Zero offers proven

solutions for a variety of applications, including:

sound control, ﬁre and smoke seals, ﬂood

barriers to ADA access systems and more.

Fire and smoke seal: When a positive

pressure rating is needed, turn to Zero

intumescent seals that are self-extinguishing

and ﬂame retardant

Sound control: For single and pairs of doors,

Zero offers STC rated sound traps to improve

the acoustical performance of your facility

ADA access: For accessible openings Zero

offers ADA access systems that minimize

opening and closing force and meet ADA

threshold height requirements

Flood barrier: Zero’s solution for ﬂood prone areas protects from water ingress with a shield that

blocks incoming ﬂood waters

For your piece of mind, look to Zero for time proven specialty solutions designed to work together.

Zero’s commitment to quality and reliability ensure, that at critical moments, the systems you

depend on to protect your building and its occupants will perform as intended.

106 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Solutions and specialty products

Intumescent solutions

Positive pressure ﬁre solutions for doors

ZERO’s many years of leadership and innovations in

developing ﬁre and smoke seals for international and

U.S. positive pressure code requirements have

produced top-quality components and engineered

gasketing systems that meet the highest standards

of design and life safely. Our expertise in intumescent

technology provides special value for the entire

building team spanning a wide range of ﬁre

protection applications.

Zero’s positive pressure seals are tested and listed

according to U.S. listing agencies’ classiﬁcations for

Category G edge sealing systems and Category H

smoke and dra control systems. (See listing at right

for category deﬁnitions.) Category G edge seals are

required for use on Category B wood core doors.

Category H smoke seals are required for all positive-

pressure doors carrying “S” labels.

Our inutmescent material is used in OEM Category A

doors to eliminate the need for add-on seals to

achieve positive-pressure ratings. Smoke seals may

still be required.

Products tested for ﬁre and smoke are identiﬁed in

our catalog by these symbols:

U.S. Positive pressure testing deﬁnition of listing categories

CATEGORY A

Doors - No additional edge-sealing system required

This category includes doors that do not require the use of

any intumescent in either the frame or the door. It also

includes doors evaluated with intumescent incorporated into

the edge of the door by the manufacturer. Category A doors

are eligible to bear the “S” label for Smoke & Dra Control

assemblies if a listed Category H “Smoke & Dra Control

Gasket” has been applied to the assembly.

CATEGORY B

Doors - Additional edge-sealing system required

This category includes doors that require add-on intumescent

sealing systems either surface-applied or built into the frame

in order to meet positive-pressure ﬁre test requirements.

Category B doors are eligible to bear the “S” label for Smoke &

Dra Control assemblies if a listed Category H “Smoke & Dra

Gasket” has been applied to the assembly.

CATEGORY G

Edge-sealing systems

This category includes systems that are surface-applied

(such as kerf applied, adhesive backed or mechanically

attached) to frames or doors. It includes meeting edge seals

for use in pair and double-egress assemblies.

CATEGORY H

Smoke and dra control gasketing

This category includes gasket systems that are surface-

applied (such as kerf applied, adhesive backed or

mechanically attached) to frames or doors. It includes

gasketing for the meeting edge for use in pair and double-

egress assemblies.

NOTE: This category covers gasket systems that have been evaluated for use in positive-

pressure-rated assemblies but do not “provide” an edge-sealing system to the opening (see

Category G).

Smoke-ratedFire-rated

Testing and compliance

U.S. International

UL 10B Standard for ﬁre tests of door assemblies CAN/ULC-S104-10 Canadian standard method for ﬁre tests

of door assemblies.

UL 10C Standard for positive pressure ﬁre tests

of door assemblies

International Standards

Organization

ISO 3008 2007

Fire-resistance tests - door and shutter

assemblies

UL 1784 Standard for air leakage tests of door

assemblies and other opening

protectives.

British standard institute

BS 476-PART 22 1987

Methods for determination of the ﬁre

resistance of non-load bearing elements

of construction

IBC 2018 International building code British standard institute

BS 476-PART 31 1983

Methods for measuring smoke penetration

through doorsets and shutter assemblies

NFPA 105 Standard for the installation of smoke

door assemblies

BS EN 1634 Fire-resistance tests for door and shutter

assemblies

NFPA 252 Standard methods of ﬁre tests of door

assemblies

Building and regulatory test

Australia / New Zealand AS

1530.4

Fire resistance test

www.zerointernational.com • Door sealing systems • Zero • 107

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Solutions and specialty products

Intumescent solutions

Head & jamb FS3003 intumescent seals

Intumescent ﬁre seals for use where smoke and dra control is not required. Can be mortised into

wood doors or frames, or into edge strips. Wide range of choices tested to positive pressure

standards, including UL 10C and BS 476-Part 22 1987.

Available in black color. Supplied in 8 feet (2.4m) coil.

188FS

Finishes:

Options:

ZAG

ANSI/BHMA:

188FS-PSA-BK R0U154

Intumescent rubber for ﬁre and smoke protection.

PSA standard. 45-minute ﬁre rating.

PSA

.500"

(12.7)

.250"

(6.4)

188

488FS

Finishes:

Options:

ZAG

ANSI/BHMA:

488FS-PSA-BK R0U154

Intumescent rubber for ﬁre and smoke protection.

PSA standard.

PSA

.375"

(9.5)

.187"

(4.8)

488

8144FS

Finishes:

Options:

ZAG

ANSI/BHMA:

8144FS-BK R0U154

Intumescent rubber for ﬁre and smoke protection. PSA standard.

8144

.437"

(11.1)

.437"

(11.1)

PSA

188 /488 8144

Category G and Category H seals

Our extruded, surface-applied ﬁre and smoke seals are engineered

for improved performance and shelf life. These self-extinguishing,

ﬂame-retardant seals are formulated with a proprietary chemistry

using silicone and intumescent.

3062500PSA

Provides 30 minutes ﬁre resistance.

Two parallel seals can provide 60 minutes

ﬁre resistance in hardwood constructions.

3125500PSA

Suitable for sowood constructions or where the gap

between the door and the frame is greater than usual.

3062750PSA 30621000PSA

30621750PSA

3062500PSA

.062"

(1.6)

.500"

(12.7)

PSA

3125750PSA

Provides 60 minutes ﬁre resistance.

Can be notched to ﬁt around hinges.

32501000PSA

3062750PSA

.062"

(1.6)

.750"

(19.1)

PSA

30621000PSA

.062"

(1.6)

1.00"

(25.4)

PSA

30621750PSA

.062"

(1.6)

1.750"(44.5)

PSA

3125500PSA

.125"

(3.2)

.500"

(12.7)

PSA

3125750PSA

.125"

(3.2)

.750"

(19.1)

PSA

32501000PSA

.250"

(6.4)

1.00"

(25.4)

PSA

31251000PSA

Larger seal helps control door distortion. May also be

used between the door frame and masonry.

3250750PSA

31251000PSA

.125"

(3.2)

1.00"(25.4)

PSA

3250750PSA

.250"

(6.4)

.750"

(19.1)

PSA

108 • Zero • Door sealing systems • www.zerointernational.com

Solutions and specialty products

364FS

Finishes:

Options:

Z49, PL

ANSI/BHMA:

364FS-AA R3B324

Mortised. Intumescent ﬁre protection.

365FS

Finishes:

AA, BK,

D, G

Options:

LK, PL, SEC

ANSI/BHMA:

365FS-AA, 365FS-BK,

365FS-D, 355FS-G R3B334

Surface-mounted application. Intumescent ﬁre protection.

.371"

(9.4)

1.575"

(40.0)

.924"(23.5)

364FS

Max. Drop

.500"(12.7)

#6 x .750"(19.1) PPHSDS

.075"

(1.9)

Zero

quiet

seal

Intumescent

365FS

Neoprene

Max. Drop

.500"(12.7)

Intumescent

.083"

(2.2)

1.901"

(48.3)

.916"(23.3)

#8 x 1.500"(38.1) TPHSMS

Zero

quiet

seal

Finishes:

AA Clear Anodized Aluminum

BK Black Anodized Aluminum

D Dark Bronze Anodized Aluminum

G Gold Anodized Aluminum

Options:

Z49 Removable end cap

PL Pull out

SEC Torx security screws

LK Locking key

Intumescent technology &

ﬁrestopping solutions

Intumescent automatic door bottoms

Intumescent material deﬁnitions and physical properties

FS3003 FS4004

Activation Temperature 350°F (176°C) 550°F (288°C)

Expansion volume 16-18 X 80 X

Expansion pressure 27 PSI (.0187 N/mm ) 131 PSI (.09 N/mm )

Multi or controlled directional √ √

Stability aer expansion Very good Poor

Char So & ﬂuffy Fluffy

Flame-resistant √ √

Moisture-resistant √ √

Chemically inert /paintable √ √

Non-carcinogenic √ √

Long-life (no deterioration) √ √

Odor-free √ √

Color – standard Black Red

Speciﬁcations:

Stock Sizes: Thickness .062"(1.6), .125"(3.2), .250"(6.4)

Width .375"(9.5), .500"(12.7), .750"(19.1), 1.00"(25.4), 1.75"(44.5), 2.00"(50.8)

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

www.zerointernational.com • Door sealing systems • Zero • 109

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Solutions and specialty products

Sound control solutions

ZERO's SOUND TRAP sound control systems are solving

sound problems in all types of facilities—including

performing arts centers, recording studios, commercial

oces, hospitals, schools, churches, hotels and

apartment buildings, as well as industrial plants,

embassies and government buildings.

Adjustable gasketing: key to our success

Nobody does sound control better than ZERO. Our

sound seals and systems are built to withstand the

stress of the installation process and perform reliably.

We use advanced technology to master two critical

challenges: creating an effective sound barrier at the

perimeter of the door AND preventing gaps in that

barrier for the life of the assembly.

Gaps in sound barriers are a major problem because

sound travels through any opening with very little loss.

While the amount of air ﬂowing through a gap increases

in proportion with the size of the gap, the size of the gap

in a sound barrier does not matter. A small hole

transmits almost as much sound as a much larger gap.

Proven solutions for sealing the gaps

Our featured SOUND TRAP gasketing systems can satisfy a

wide range of commercial and industrial sound-control

applications for single swinging doors – as well as provide

privacy behind double doors for typical oce applications.

Because of this phenomenon, any unsealed gaps

effectively cancel out the noise reduction beneﬁts of

even the highest-rated sound doors. To be effective,

acoustical door assemblies require gasketing that

provides a complete, uninterrupted and air-tight seal

around head, jamb and sill. If all sides of the door are not

sealed, the gasketing used will provide little or no

sound-control value.

Imperfect alignment is a common cause of gaps even in

newly installed gasketing. Problems can also surface

later on as buildings shi and settle and doors cycle

through changes in temperature and humidity. ZERO

solves the problem eciently with adjustable gasketing.

Models such as the 770 adjustable jamb-applied

gasket are designed to perform consistently over time.

When clearances increase, a few turns of a screwdriver is

all it takes to restore a sound-tight seal.

AIR FLOW AIR FLOW

SOUND WAVES

Sound transmission class (STC) table

STC Performance Description

50 - 60 Excellent Loud sounds heard faintly or not at all.

40 - 50 Very Good Loud speech heard faintly but not

understood.

35 - 40 Good Loud speech heard but hardly intelligible.

30 - 35 Fair Loud speech understood fairly well.

25 - 30 Poor Normal speech understood easily and

distinctly.

20 - 25 Very Poor Low speech audible.

Sound Transmission Class (STC) ratings indicate the ability to prevent the transfer of sound

from one area to another. For example, 12 inches of reinforced concrete would be rated at 56

STC, while 1/4" plate glass is 26 STC.

Zero sound trap systems high level rating

Gasketing

system Head & jamb Threshold

Door

bottom

STC

Rating

STC 1 3708 &119WB 564B 367 53 STC

STC 2 770 & 119WB 564B 367 52 STC

STC 3 770 & 119WB 656B 367 51 STC

STC 4 170 & 119WB 564B 367 51 STC

STC 5 485 & 119WB 565B 361 49 STC

STC 6 870 & 119WB 564B 365 49 STC

All systems tested with STC 55 Doors (rated as panels).

The integrity of the system, properly installed, is essential to its sound

rating. ZERO guarantees the performance of SOUND TRAP systems in

rated assemblies provided that other manufacturers’ gasketing products

are not combined with ZERO components.

110 • Zero • Door sealing systems • www.zerointernational.com

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Solutions and specialty products

Sound control solutions - single door

Sound trap 49 STC sealing system

SOUND TRAP 49 STC rated systems for single doors

feature several alternative head and jamb seals

designed for use with frame stops. The 49 STC value

they provide means that loud speech will be heard only

faintly and cannot be understood on the opposite side

of the door. That level of acoustic performance provides

very good sound control suitable for a variety of

applications ranging from busy schools to multi-family

residential buildings and any settings requiring private

conversations, such as doctors’ oces, counseling

centers and churches. A metal frame with a stop is

recommended.

Sound trap 52 STC sealing system

Our SOUND TRAP 52 STC rated systems are designed for

use with sound-rated single metal doors with a cased-

opening frame. They provide an STC 52 rating when properly

ﬁtted with STC 55 or higher acoustical doors. That level of

sound control means loud sounds will be heard only faintly,

or not at all, on the opposite side of the door, which satisﬁes

the typical needs of recording studios and performance

halls. It is also suitable for oce buildings and other

commercial facilities that need to mute very loud noise

originating from outside, such as the sound of aircra

overhead or heavy trac nearby, as well as interior

equipment noise. A metal frame without a stop is

recommended in order to use the Model #770 adjustable

head and jamb seal, which is an important component in

this system.

Neoprene

Trapped air

Z950

Cam Hinge

119W

770

367

564

367

770

119WB

Z950

119WB

Z950

Cam Hinge

Head and Jamb Seal

Threshold

55 STC Rated Door

Automatic

Door Bottom

Surface-Mounted

Z950

Cam Hinge

Z950

Double

neoprene seal

Solid

neoprene

Sponge

neoprene

119W

Product Code: STC 2

Neoprene

Trapped air

Silicone seal

870

119W

Product Code: STC 6

365

564

365

870

119WB

Ives 5BB1

119WB

Head and Jamb Seal

564

Threshold

Automatic

Door Bottom

Surface-Mounted

Ives 5BB1

119W

55 STC Rated Door

Ives 5BB1

www.zerointernational.com • Door sealing systems • Zero • 111

Solutions and specialty products

Sound control solutions - pairs systems

770

41 362

JD6S

Automatic

door bottom

Exterior security

astragal

Interior magnetic

astragal

Ives - Continuous

hinge

Head & jamb seal

52 STC Rated Door

112XY

770

362

112XY

383

#8 x .750"(19.1) FPHSMS

1.625"(41.3)

.387"

(9.8)

Neoprene

.125"

(3.2)

Neoprene lip

Sound trap system JD6S

Pairs of doors pose additional challenges for sound control because there

are more openings to seal. The need for a meeting stile means there will

always be relatively more sound leakage through pair assemblies than with

single doors. Properly ﬁtted with STC 52 or higher acoustical doors, ZERO's

SOUND TRAP-PAIRS system for metal doors achieves an oce-friendly

estimated STC rating of 41 with an optimal conﬁguration that balances

those limitations with appropriate, cost-effective technology.

362

770

362

770

41 40 770

Elevation from push side of door

112X

12XY

Product code: JD6S

Alternative seal option to 40/41

For a pairs conﬁguration with suitable wood

doors, you need Model #383 astragals for the

meeting stile. #383 provides three sets of seals

to block sound: the neoprene bulb with extra

“lip” of neoprene in the primary seal at the

meeting edge, plus another neoprene “ﬁnger” for

added sound cushioning against the active door.

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

112 • Zero • Door sealing systems • www.zerointernational.com

Solutions and specialty products

Finishes:

AA Clear Anodized Aluminum

BK Black Anodized Aluminum

D Dark Bronze Anodized Aluminum

G Gold Anodized Aluminum

Sound control solutions

8880 - Vision Lite for doors, walls and acoustical windows

To increase sound rating for doors, walls and acoustical

windows of any thickness. Used with 1/4” thick glass.

(Glass sold separately.) Aluminum extrusion frame with

concealed screws. Supplied with factory mitered corners.

8880

Finishes:

AA, BK, D, G

1050R

Finishes:

Grey

8880

.625"

(15.9)

1.00"

(24.5)

.250"

(6.4)

Laminated

glass

1/4"

APPLICATION ON DOOR

Surface mounted.

5/8" Snap-on cover

8780N

Rubber extrusion

Exposed Glass

2" smaller than order size

Actual Glass Size

1 1/4" smaller than order size

Order Size (Overall Size)

WALL /

DOOR

(Wood or

Metal)

APPLICATION ON WINDOW

Surface mounted on any edge of window

frames.

WALL

1/4"

Existing

glass

1/4"

1/2"

Structural acoustics - ﬂoors and walls

Sound-damping materials and products used to

isolate or insulate structural elements in ﬂoors and

walls perform a vital role in reducing vibrations to

minimize sound transmission.

Structural silencing tape 1050R

Extruded low-density, high-elasticity

neoprene rubber, self-adhesive one side.

Absorbs and dampens vibrations.

Designed for application to ﬂoor joists

and wall studs and install as usual.

Supplied in 75-foot coils.

JOIST

SOUND INSULATION

(by others)

SUBFLOOR

1050R

SILENCING TAPE

APPLICATION ON FLOOR JOISTS

SOUND

INSULATION

(by others)

SOUND-RATED

WALL

1050R

SILENCING TAPE

STUD

APPLICATION ON WALL STUDS

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

.125"

(3.2)

1.500"(38.1)

PSA

1050R

www.zerointernational.com • Door sealing systems • Zero • 113

Solutions and specialty products

565

361

770

Sound control systems

ZERO has designed and tested its systems against air, light, smoke, ﬁre and sound to demonstrate the effectiveness of

these products and materials. By specifying a complete “Control System,” you are assured that the components installed

for head, jamb and sill will perform properly together. All tests were performed in accordance with nationally accepted

standards by independent laboratories.

Applications

All types of openings with a sound-reduction requirement, including:

High-performance sound blocking, such as recording and broadcast studios, theaters and concert halls, commercial

industrial factories.

Privacy and security needs, such as doctors’ oces, corporate oces, school counseling oces, embassies and military.

Sound - single doors

System no. Door rating Type of door Head & jamb Door bottom Threshold STC

STC1 55 Metal 3708 + 119WB 367 564B 53

STC2 55 Metal 770 + 119WB 367 564B 52

STC3 55 Metal 770 + 119WB 367 656B 51

STC4 55 Metal 170 + 119WB 367 564B 51

STC5 55 Metal 485 + 119WB 361 565B 49

1T 52 Metal 770 367 564A 47

2T 52 Metal 870 361 565 44

2U 52 Metal 485 361 565 44

1R 51 Metal 770 361 565 44

4R 51 Metal 370 361 565 43

5S 52 Metal 328 361 565 42

5T 52 Metal 312 351 564 42

SU299 38 Wood 188S None 564A 37

TR298 35 Wood 8144FS 253 1685R 35

LG302 36 Wood 188S 369 None 35

Sound - double doors

System no. Door rating Type of door Head & jamb Door bottom Meeting stiles STC

RM1 48 Metal 770 367 383/139/118B 47

JD6S Metal 770 362 40 41

JD8S Metal 475 362 156/56 36

AT4 37 Metal 188/119WB 564 383 36

AT5 37 Metal 485/119WB 564 383 35

AT7 37 Metal 485/119WB 839/544 383 35

System 1R

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

114 • Zero • Door sealing systems • www.zerointernational.com

Solutions and specialty products

Finishes:

BIO Antibacterial rubber white color

A Aluminum Mill Finish

AA Clear Anodized Aluminum

B Bronze

BK Black Anodized Aluminum

D Dark Bronze Anodized Aluminum

Options:

ZAG Ligature-Resistant

G Gold Anodized

S-BK Silicone, Black

S-BR Silicone, Brown

S-CL Silicone, Clear

S-GY Silicone, Gray

S-WH Silicone, White

Specialty head and jamb protection

Ligature-resistant gasketing (ZAG option)

Zero offers a ligature-resistant option to prevent gasketing from being used for unintended

purposes, including harming self or others. The rubber in our patented ligature-resistant

gasketing is scored before insertion into aluminum extrusions. This allows the seal to still

function normally for its speciﬁed purpose, but it will now break apart if removed from the

housing or if any weight is placed on the seal.

Applications for ligature-resistant gasketing include correctional facilities and mental

health facilities.

Gasketing ordered with this patented feature is installed as usual, with no special handling

required. In addition to the applications shown below, the ligature-resistant option can be

supplied on request with most other Zero gasketing. To order, add ZAG to the part number. All

products with the ZAG option are supplied standard with Torx security screws for added security.

Applications

Correctional facilities, hospitals, psychiatric and mental health facilities.

Typ.

328 ZAG

1.00"(25.4)

.219"

(5.6)

Solid neoprene

#6 x 1.00"(25.4) PSTSMS

328 ZAG

Finishes:

AA, B, BK,

D, G

188 ZAG

Finishes:

BK, BR, CL, GY,

WH, FS, BIO

PSA

.500"

(12.7)

.250"

(6.4)

188 ZAG

485 ZAG

Finishes:

A, BK, D, G

485 ZAG

#6 x 1.00"(25.4) PSTSMS

.563"

(14.3)

.351"

(8.9)

.125"(3.2)

Solid

neoprene

99 ZAG

Finishes:

A, BK, D, G

#6 x 1.00"(25.4) PSTSMS

.075"

(1.9)

.395"

(10.0)

Silicone

1.00"(25.4)

99 ZAG

318 ZAG

Finishes:

AA, BK, D, G

#6 x 1.00"(25.4) PSTSMS

1.00"(25.4)

.408"

(10.4)

Closed cell

sponge neoprene

.375"(9.5) x .750"(19.1)

318 ZAG

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

www.zerointernational.com • Door sealing systems • Zero • 115

Solutions and specialty products

Cam li full mortise hinges

Cam li full mortise hinges

Mortise-type cam hinges for use with

sound-insulating doors utilizing acoustical

seals. The cam action greatly improves the

sealing characteristics along the door

perimeter, liing and lowering the door with

the swing.

Available for right or le-hand swinging

doors. Cam li hinges will not bind door

closures when doors are hung within

accepted industry standards. (Tested

with LCN 4041 Series original).

Finish: STST630 (US32D).

Part # Door rating

(1 1/2 pairs)

Screw size (metal doors) Li (180° opening)

Z955 Up to 200 lbs. 12-24 x 3/4" UC 3/16"

Z953 Up to 300 lbs. 12-24 x 3/4" 1/4"

Z950 Up to 500 lbs. 12-24 x 3/4" 5/16"

Z9500 Up to 900 lbs. 5/16-18 x 3/4" 5/16"

7250ST

12-24 x 3/4"

7255ST

12-24 x 3/4" UC

7252ST

5/16-18 x 3/4"

7251ST

12 x 1 1/4" SMS

Hinge: Stainless Steel US304

Pin: Stainless Steel 420 J2

Type: Mortise/ Handed - specify right or le hand

Clearance: Minimum clearance at head of frame is 3/16". For doors greater than 1-3/4"

clearance is 1/4”

Finish: 630 (US32D)

Note: For Z950 and Z9500 screws must be engaged no less than .350” in ASTM

A-36 steel reinforcement

Z950

Finishes:

STST

Options:

L- Le Hand

R- Right Hand

Z950

ZERO

4.500"(114.3)

.250"

(6.4)

Ø 1.00"(25.4)

5.00"

(127.0)

Z950 L

Z953

Finishes:

STST

Options:

L- Le Hand

R- Right Hand

ZERO

4.500"(114.3)

.180"

(4.6)

5.00"

(127.0)

Ø .734"(18.6)

Z953

Z953 L

Z9500

Finishes:

STST

Options:

L- Le Hand

R- Right Hand

Z9500

ZERO

5.00"

(127.0)

4.500"(114.3)

.250"

(6.4)

Ø 1.00"(25.4)

Z9500 L

Z955 L

Z955

Finishes:

STST

Options:

L- Le Hand

R- Right Hand

ZERO

4.500"(114.3)

4.500"

(114.3)

.134"

(3.4)

Ø .560"(14.2)

Z955

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

Solutions and specialty products

116 • Zero • Door sealing systems • www.zerointernational.com

Finishes:

A Aluminum Mill Finish

BK Black Anodized Aluminum

D Dark Bronze Anodized Aluminum

G Gold Anodized Aluminum

Options:

SEC Torx security screws

Finger guards

951

DOOR

FRAME

Drawing not to scale

Butt hinge

1/16"(1.6)

Flexible rubber 5”(127) wide

Aluminum

.125"(3.2) x .500"(12.7)

#6 x1.00"(25.4)SMS

Aluminum

.125"(3.2) x .500"(12.7)

.125"

(3.2)

1.00"

(25.4)

1.500"

(38.1)

1.500"

(38.1)

1/16"(1.6)

Flexible rubber

Finger guards

Hand and ﬁnger protection for heavy-duty industrial applications,

child care, school safety, hospitals, and workplaces.

A commercial-quality, maintenance-free product. Aluminum and

ﬂexible rubber available in grey color.

51A-90 (6.5" wide) For door opening up to 90°

51A-180 (8.5" wide) For door opening up to 180°

951 Cover for mortise type hinges

2.125"(54.0)

Solid

neoprene

Solid

neoprene

1.750"

(44.5)

Finishes:

A, BK, D, G

Options:

SEC

Opening degree:

90, 180

Finishes:

Options:

SEC

951

Finishes:

A, BK, D, G

Options:

SEC

DOOR

FRAME

Continuous

hinge

#6 x1.00"(25.4)SMS

Aluminum

.125"(3.2) x .500"(12.7)

.125"

(3.2)

1.00"

(25.4)

1/16"(1.5)

Flexible rubber

Drawing not to scale

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Solutions and specialty products

www.zerointernational.com • Door sealing systems • Zero • 117

Finishes:

A Aluminum Mill Finish

BK Black Anodized Aluminum

D Dark Bronze Anodized Aluminum

G Gold Anodized Aluminum

Options:

SEC Torx security screws

Finger guards

971 / 972 Bio

Finishes:

A, BK, D, G

Options:

SEC

Opening Degree:

90, 180

973 / 974 Bio

Finishes:

A, BK, D, G

Options:

SEC

Opening Degree:

90, 180

BioWall™ antibacterial gasketing

Zero developed BioWall™ antibacterial rubber in response to rising hygienic

standards and increasing demand for practical, antimicrobial applications

in many facilities. Applications range from hospitals, nursing homes and

doctors’ oces, to veterinary facilities, to schools. Wherever minimizing

microbial exposures is crucial to occupant and visitor well-being, BioWall

can help maintain a sanitary work environment.

Breakthrough technology. This non-toxic rubber inhibits and suppresses

microbial growth and reproduction. It was formulated using revolutionary,

non-toxic infusion technology, combined with proprietary extrusion

technology, natural antimicrobial ingredients, and breakthrough synthetics.

It provides long-lasting defense against bacteria, fungi, molds and other

microorganisms.

Durable. Our technology provides natural resistance to abrasion, washing,

and exposure to UV radiation and various chemicals. Zero BioWall

antibacterial gasketing is designed to withstand surface wear and tear to

maintain long-lasting antimicrobial protection.

BioWall ﬁnger protection

Antibacterial hand and ﬁnger protection for child care facilities, hospitals and nursing homes, doctors’ oces, and other

locations requiring highest standards of hygiene.

Available in two versions. Mountings in models #973 and #974 are concealed with additional BioWall rubber for

aesthetics and enhanced antibacterial protection.

972

971

1.250"

(31.8)

Drawing not to scale

DOOR

FRAME

Antibacterial rubber

White color

7.75" W

Antibacterial rubber

White color 4" W

#6 x1.00"(25.4)

PPHSMS

.590"

(15.0)

.220"

(5.6)

(25.4) 1"

(25.4)

#6 x1.00"(25.4)

PPHSMS

973

DOOR

FRAME

1.250"

(31.8)

Antibacterial rubber

White color

7.75" W

Antibacterial rubber

White color 4" W

awing not to scale

Snap-on cover

EPDM rubber, brown

.625"

(15.9)

.220"

(5.6)

(25.4) 1"

(25.4)

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

118 • Zero • Door sealing systems • www.zerointernational.com

Solutions and specialty products

Finishes:

A Aluminum Mill Finish

AA Clear Anodized

BK Black Anodized Aluminum

D Dark Bronze Anodized Aluminum

G Gold Anodized Aluminum

ADA Access systems - safety products

ZERO's ADA Access Systems help solve the challenge of

meeting the American Disability Act Requirements for

access into public buildings. The components work together

to minimize required door-opening and closing force and to

meet threshold height requirements, and fully satisfy the

ANSI, ADA standards.

American National Standard Institute (ANSI),

American With Disabilities Act (ADA),

ICC/ANSI A117.1-217

Requirements are as follows:

1) Fire doors shall have the minimum opening force

allowable by the appropriate administrative authority.

Other doors:

(a) Interior hinged doors : 5 lbf (22.2N)

(b) Sliding or folding doors : 5 lbf (22.2N)

These forces do not apply to the force required to retract

latch bolts or disengage other devices that may hold the

door in a closed position.

2) Thresholds at doorways shall be 1/2" (13 mm) high

maximum for other types of doors. Changes in level of

1/4" (6mm) high maximum shall be permitted to be

vertical. Changes in level between 1/4” (6mm) high

minimum and 1/2” (13mm) high maximum shall be

beveled with a slope not steeper than 1:2.

“Light spring” “LS” automatic door bottoms

for ADA approved doors

350LS, 351LS, 364LS, 365LS, 366LS “LS” models require

lower operating force. “LS” models are suitable for both

sliding doors and swinging doors. Outside dimensions are

unchanged from standard products.

Test door: 36" X 84" x 1-3/4"

Test results: Opening

force (lbs.)

Closing

force (lbs.)

Test 1 475 Head and Jamb 1.75 7.90

Test 2 475 Head and Jamb

365LS Automatic Door Bottom

1.90 9.05

Test 3 Closing force with no seals - 6.75

#475 and #365LS 1.9 lbs. opening force

365LS

Automatic

door bottom

475

Head

and jamb

475 and 365LS - 1.9 lbs opening force

1.750"(44.5)

.278"

(7.1)

1.00"

(25.4)

#10x1.5"(38.1) FPHSMS

Wheel compresses

rubber for access

EPDM

rubber

8452 Wheelchair accessible

shower threshold

Designed for use when a shower must be accessible to a

wheelchair. The rubber gasket keeps water in while allowing

the wheel to pass over easily.

Finishes:

A, BK, D, G

System ADA 1000

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

www.zerointernational.com • Door sealing systems • Zero • 119

Solutions and specialty products

Flood barrier shield

Flood barrier shield for doors helps safeguard building contents

This removable barrier answers pleas from builders for help in protecting doors and

building contents from water ingress in ﬂood-prone areas. When water from heavy

rain accumulates, the Flood barrier shield effectively blocks up to a foot or more of

ﬂood waters from permeating door or window openings.

Available in 10, 12, 20, 24, 30 and 36 inch high barriers (other sizes available upon

request), the lightweight aluminum shield requires no tools for insertion into

premounted vertical channels attached to either the door frame or adjacent

walls. Widths up to 36" standard. Widths greater than 36" available as an

engineering special.

The unit complies with guidelines of the Federal Emergency Management

Agency (FEMA) and Federal Insurance Administration (FIA) for use on doors in

ﬂood-prone areas.

The key to the shield’s impermeability is the use of closed cell sponge (CCS)

neoprene rubber engineered by Zero to ensure a water-tight seal. The rubber lines

the aluminum channel brackets and the bottom of the shield. The neoprene also

compensates for gaps at the threshold.

Note: Aluminum panel insert is supplied 7/16" shorter than order width

Neoprene rubber seal in channel.

Neoprene rubber seal lines bottom of panel.

Panel slides down into bracket

when needed and forms a tight seal.

Tightening knobs.

Stock panel heights from 10” to 36”

(custom sizes available).

Aluminum panel is custom-sized

to ﬁt door/window width.

Optional saddle

if sill not clean or smooth.

Mounting holes available

Channel brackets

mount to frame or wall.

Handle Cutout

1/4” Marine-grade aluminum panel.

for inside or outside installation.

2070 (Inside mount)

Installation option - inside mount

Installation option - outside mount

2070 (Outside mount)

Installation option - outside mount

DOOR

W" (ORDER SIZE)

2070 - Inside mount

DOOR

JAMB

DOOR

JAMB

ref.

Rubber CCS

neoprene

with skin .250"

(6.4)

1.250"

(31.8)

.914"

(23.2)

SECTION

A-A

Flood barrier shield for doors

2070A - 10 10" High

2070A - 20 20" High

2070A - 24 24" High

2070A - 30 30" High

2070A - 36 36" High

Each ﬂood barrier shield is custom fabricated.

Specify exact width needed and installation option required.

H" (ORDER SIZE)

304

(Optional)

clearance

.437"(11.1)

.250"

(6.4)

.914"

(23.2)

SECTION

B-B

Outside mount

DOOR

2070 - Outside mount

Rubber CCS

neoprene

with skin

.250"

(6.4)

1.250"

(31.8)

DOOR

JAMB

DOOR

JAMB

W" (ORDER SIZE)

.914"

(23.2)

ref.

SECTION

A-A

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

120 • Zero • Door sealing systems • www.zerointernational.com

Solutions and specialty products

Sliding and pocket doors

Gasketing for Sliding and Pocket Doors

154

7350

DOOR

7350

154154

For head and

non-locking side

of jamb

Applied on lock

side of jamb

Gasketing for sliding and pocket doors Gasketing for latching pocket doors

8780N

1.125"

(28.6)

DOOR

MULLION

PSA

8780N

.094"

(2.4)

1.00"(25.4)

PSA

8780N

Seal for mullion application

The new 8780 is a closed cell sponge neoprene strip 1" (25.4)

wide x 3/32" (2.4) thick with self-adhesive tape for mounting

directly to the face of the mullion at point of contact with

closed doors.

DOOR

381

7350

627

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

www.zerointernational.com • Door sealing systems • Zero • 121

Gasketing for latching pocket doors

Solutions and specialty products

Heavy-duty overhead doors

Non-latching door

Gasketing for non-latching doors

Sill

Head

Jamb Section

Sill

Head

Jamb Section

Nylon brush

.075"

(1.9)

1.250"

(31.8)

1.875"

(47.6)

#6 x 1.00"(25.4)

PPHSDS

Neoprene

1.500"

(38.1)

.250"

(6.4)

1.362"

(34.6)

Intermediate stiles

.250"

(6.4)

1.125"(28.6)

3.00"(76.2)

.187"(4.7)

Neoprene

.375"

(9.5)

#10x1.50”(38.1)

FPHSMS

3/16" thick extreme temperature neoprene looped as shown

(Government speciﬁcation R-6855, Class II, Grade 40.)

8047R

For overhead doors

Intermediate Stiles

Max 2.00"(50.8)

8047R

1.250"(31.8)

DOOR

Neoprene .875"

(22.2)

.375"

(9.5) .156"

(4.0)

Auto door bottom

Light spring

570

360LS

Gasketing for Non-Latching Doors

DOOR FRAME

CONCEALED

DOOR CLOSER

(By others)

Perimeter seal

DOOR

Spring loaded

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

122 • Zero • Door sealing systems • www.zerointernational.com

Hurricane protection wind-driven water inﬁltration

(Dade County Florida)

475

142

566

328

139

188

DOOR

Direction of

Water

Option 1- Water Rated

Threshold

Perimeter seal

Perimeter seals

Door sweep

Rain drip

INTERIOREXTERIOR

CaulkCaulk

Option 2

8144

DOOR

Direction of

Water

Threshold

Perimeter seals

NOTE

Perimeter seals options:

188, 117, 8150

Threshold options:

566, 568

INTERIOREXTERIOR

INTERIOR

EXTERIOR

Active Active

328

Meeting stiles - for double doors

Z955

119WB

475

564

119WB

321

Option 1

564

DOOR

Z955

119WB

321

475

Threshold

Perimeter seal

Auto door bottom

Hinge

870

Option 2

564

DOOR

Z955

119WB

321

Threshold

Perimeter seal

Adjustable

Auto door bottom

Hinge

“Safe haven” room gasketing and areas of rescue assistance

Air inﬁltration - 110 MPH (165KM/H) Wind velocity - air leakage 0.56 CFM (2.8CMH)

Evaluated in accordance with ASTM E28 Evaluated in accordance with ASTM E283

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

www.zerointernational.com • Door sealing systems • Zero • 123

Solutions and specialty productsSolutions and specialty products

Ty p ical ga s ketin g a pp lic atio ns

Typical gasketing for exterior inswing door

Typical gasketing for exterior outswing door

Typical gasketing for residential

Cold weather solution

Stainless steel sleeve anchor

INSIDEOUTSIDE

475

DOOR

366

655

226

141

141 End Cap

Typical Gasketing for Exterior Inswing Door

Threshold

Rain drip

Perimeter seals

Auto door bottom

Typical Gasketing for Residential

351

175

5BB1

8150

INSIDEOUTSIDE

8878

Interlocking threshold

Perimeter seal

IVES

Architectural hinge

Perimeter seal

Self adhesive

Auto door bottom

5BB1

IVES

Architectural hinge

Stainless steel sleeve anchor

361

475

INSIDE OUTSIDE

142

144

Typical Gasketing for Exterior Outswing Door

DOOR

655

226

Threshold

Perimeter seal

Auto door bottom

Rain drip

Typical Gasketing for Cold Weather

525

5BB1

INSIDEOUTSIDE

Thermal break threshold

IVES

Architectural hinge

5BB1

IVES

Architectural hinge

475

Perimeter seal

365

Auto door bottom

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

124 • Zero • Door sealing systems • www.zerointernational.com

Solutions and specialty products

Hotel gasketing solutions

Interior entry doors - option 1 Communicating doors - new construction

Communicating doors- aermarketInterior entry doors - option 2

381A-FLO

DOOR

1682

Carpet

FRAME

8150S

1.750"

(44.5)

Threshold

Neoprene lip

381A-FLO

Door shoe-FLO option

Perimeter seal

364

DOOR

FRAME

678

81458145

364

1.750"

(44.5)

1.750"

(44.5)

DOOR

Threshold

Automatic door bottom

Perimeter seal

364

DOOR

1685R

Carpet

FRAME

188S

Note : For ﬁre doors use model 1682A

Note:

For head & jamb

gasketing options use

model 8878 or 8144.

Use both for higher

STC rating.

1.750"

(44.5)

Threshold

Automatic door bottom

Perimeter seal

HALLWAY

381A-FLO

DOOR

1685R

Carpet

Padding

FRAME

8150S

Note : For ﬁre doors use model 1682A

1.750"

(44.5)

Threshold

Neoprene lip

381A-FLO

Door shoe-FLO option

Perimeter seal

Interior Entry Door

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

www.zerointernational.com • Door sealing systems • Zero • 125

Solutions and specialty products

Air control systems

Air inﬁltration for smoke doors, outside doors, air lock doors, air tight doors.

361

328

164

328

System E

475

565

System Z-1

365

Air ﬂow pressure applied to a door as listed per testing standards:

.10 inches of water 24.90Pa 15 Miles/Hr

.30 inches of water 76.00Pa 25 Miles/Hr

.60 inches of water 150Pa 35 Miles/Hr

1.23 inches of water 306Pa 50 Miles/Hr

2.76 inches of water 688Pa 75 Miles/Hr

4.92 inches of water 1223Pa 100 Miles/Hr

Pressure Rate Standard Leakage Rate

.10 inches of water NFPA 105, UL 1784, IBC 715.4.3.1 STD 3.0 CFM= 16.95 CMH/LM

Pressure Rate

Standard

Leakage RateSystem# Part#

.30 inches of water K No gasketing 11.36 CFM= 64.18 CMH/LM

.30 inches of water Z-1 475+565+365 .02 CFM= .11 CMH/LM

.30 inches of water D* 328/326 +164+154 .07 CFM= .39 CMH/LM

.30 inches of water A* 328/326 +565+361 .03 CFM= .17 CMH/LM

.30 inches of water B 770+565+361 .04 CFM= .22 CMH/LM

.30 inches of water Z-2 370+565+365 .07 CFM= .39 CMH/LM

.30 inches of water E 328+164+361 .17 CFM= .96 CMH/LM

.30 inches of water F 318+564+351 .25 CFM= 1.41 CMH/LM

.30 inches of water SM-11 8144+8770+355 .27 CFM= 1.52 CMH/LM

.30 inches of water G 312+565+351 .35 CFM= 1.97 CMH/LM

.60 inches of water SM-12 475+565+365 .04 CFM= .22 CMH/LM

.60 inches of water SM-14 328+565+361 .06 CFM= .33 CMH/LM

.60 inches of water SM-16 770+565+361 .07 CFM= .39 CMH/LM

.60 inches of water SM-17 370+565+365 .08 CFM= .45 CMH/LM

.60 inches of water SM-18* 328/326+164+361 .25 CFM= 1.41 CMH/LM

1.2 inches of water SM-19* 328/326+565+361 .09 CFM= .51 CMH/LM

1.23 inches of water SM-20 770+565+361 .11 CFM= .62 CMH/LM

1.23 inches of water Z-3 370+565+365 .16 CFM= .90 CMH/LM

1.23 inches of water SM-21* 328/326 +164+361 .38 CFM= 2.15 CMH/LM

1.23 inches of water SM-22 8144+8770+355 .64 CFM= 3.62 CMH/LM

2.76 inches of water SM-23 8144+8770+355 1.39 CFM= 7.85 CMH/LM

4.92 inches of water SM-24 475+564+119WB .56 CFM= 2.82 CMH/LM

CMH / LMC = Cubic meter per hour / Linear meter of crack.

*328 used for hinge side, 326 for head and lock side.

Smoke and dra control

Fire door assemblies shall also meet the NFPA 105 requirements for a smoke and dra control door

assembly tested in accordance with UL 1784. The air leakage rate of the door assembly shall not

exceed 3.0 cubic feet per minute per square foot [0.01524 m3/(sq m2)] of door opening at 0.10 inch

(24.9 Pa) of water for both the ambient temperature and elevated temperature tests. Installation of

smoke doors shall be in accordance with NFPA 105.

Conclusions and observations

1) To comply with NFPA 105 and/or any of the standards that refer to air/smoke inﬁltration rates, door seals must be speciﬁed and installed.

In general a door will not pass the smoke test without gasketing.

2) The higher the air pressure differential, the better the quality of the gasketing is needed.

3) Adjustable gasketing facilitates installation and allows adjustment when needed for consistent performance over time.

4) Hospitals are designed with the idea of keeping patients in their rooms in case of ﬁre. In a room that measures 10 x 10 x 9 feet with a

3 x 7 foot door, the room will be 100% ﬁlled with smoke from smoke-ﬁlled corridors in 15 minutes if the door only complies with the

UL 1784/ NFPA 105 maximum leakage standard 3.0 CFM. If the leakage rate is reduced to .02 CFM using smoke control systems, it

will take 37 hours for smoke to ﬁll that same room.

5) Although fast, ecient evacuation is the goal in school ﬁres, prudent design should provide adequate smoke protection exceeding

15 minutes for students who might remain trapped in fully engaged ﬁre zones.

System E

System Z-1

Appendix Specialty

applications Sound control Intumescent Weatherstripping Perimeter seals Automatic door

bottoms Thresholds

126 • Zero • Door sealing systems • www.zerointernational.com

Solutions and specialty products

Replacement rubber reference chart

Rubber part number Compatible models

1370N 376, 1840, 1370, 3709

139N 139

153N 111, 153, 253

312N 312

314N 50, 314

3150N 55, 55FS, 56, 56FS, 3056FS, 38

318N 140, 318, 322

320N 320, 321, 323

326N 326, 3709

328N 328, 3708

3365N 365, 365, 366, 367, 368, 369

363N 170, 270, 360, 361, 362, 470

365N 272, 472, 770

3676N 2673, 2676, 3672, 3673, 3674, 3675, 3676

367N 367, 368, 369

383N 381, 383, 477

486N 73, 383, 475, 478, 485, 560, 563, 564, 566, 568, 3831, 7338, 7770

521S-BK 521FS

52N 52

539N 539

53N 53, 853, 3551

570S-BK 65, 355, 570

572N 265, 267, 524, 525, 526, 565, 561, 627, 628, 8729

5813S-BK 99, 5831

59N 59FS

72N 72, 452

7770N 7770

8194N 134, 3546, 8194, 8195

8197N 8151, 8191, 8197

8303S-BK 429, 8303, 8878

8353N 350, 351, 352, 7350

8452N 8452

8557S-B 33, 35, 100, 58FS, 399, 555, 557, 873, 3557, 5833

870S-BK 31, 36, 712, 870, 5831FS

9137S-CL 9137

www.zerointernational.com • Door sealing systems • Zero • 127

Appendix

Specialty

applications

Sound controlIntumescentWeatherstrippingPerimeter seals

Automatic door

bottoms

Thresholds

Door sealing systems

Part number index

4 ...................................................99

5 ...................................................99

11.................................................. 60

15...................................................18

18 .................................................99

19 .................................................99

19W .............................................99

23 .................................................. 12

25 ...........................................60, 12

31 .................................................. 75

32 ................................................. 75

33 ................................................. 75

34 ................................................82

34P ..............................................98

35 .................................................82

36 ................................................82

38 ................................................82

39 ................................................62

39FSA.........................................68

39W ............................................62

40 ................................................85

40/41 ..........................................85

41 .................................................85

43.................................................84

44 ................................................84

47 .................................................84

48 ................................................29

49 ................................................29

49 STC ...................................... 110

50 ................................................ 74

50M.............................................63

51................................................. 116

52 .................................................66

52 STC ....................................... 110

53 ...........................................67, 82

55................................................. 78

55FS ........................................... 78

56 ................................................ 79

56FS ........................................... 79

58FS ........................................... 74

59FS ....................................68, 83

63 .................................................14

64 .................................................14

65 ................................................ 22

68 ................................................29

69 ................................................29

70.................................................34

72 ......................................... 66, 116

73 ................................................. 34

76 .................................................34

80 ................................................34

84R .............................................29

93 .........................................65, 121

95 ................................................65

95A .............................................121

96 ................................................64

96A .............................................121

98 ......................... 64, 74, 80, 102

99 .......................................... 74, 81

99 ZAG ...................................... 114

100 ........................................ 74, 81

102 ...............................................20

103 ...............................................20

104...............................................20

105 ...............................................28

106 ..............................................28

107 ...............................................28

110 ................................................66

111 .................................................66

111FS ............................................68

117S .............................................. 97

118 ................................................99

118 ZAG ..................................... 114

119 ................................................99

119W ............................................99

133 .............................................. 101

134 .............................................. 101

135 ..................................... 100, 101

135/137 ...................................... 101

136 ..................................... 100, 101

136/138 ..................................... 101

137......................................100, 101

137P .....................................98, 101

138 ..................................... 100, 101

139 ........................................73, 86

139N ............................................ 97

140........................................73, 86

141 ..................................60, 46, 47

142 .............................................. 60

144 .............................................. 60

153 ...............................................66

154 ...............................................66

155 ............................................... 78

156 ............................................... 79

159FS ..........................................83

164 ................................................16

168...............................................29

170 ...............................................69

175 ...............................................34

188BIO .......................................96

188FS .........................................96

188S ............................................96

188S/188FS/188BIO .............96

221 .................................................11

222 ................................................11

223 ................................................11

224 ................................................11

226 ................................................ 11

232 .............................................. 32

233 ....................................... 32, 33

234 .............................................. 33

235 .............................................. 32

236 ....................................... 32, 33

237 ............................................... 33

238 .............................................. 33

253 ..............................................66

253FS .........................................68

254 ..............................................66

255 ..............................................64

259R ........................................... 33

265 .............................................. 22

267 .............................................. 22

268 .............................................. 29

269 ..............................................28

270 ............................................... 71

272 ................................................ 71

302FS ......................................... 76

304 ...............................................18

312 ............................................... 73

312N ............................................ 97

314 ............................................... 73

318 ............................................... 73

318N ............................................ 97

318 ZAG..................................... 114

320 ....................................... 46, 52

321 ........................................46, 52

322 .......................................73, 86

323 .............................................. 52

326 ........................................ 76, 81

328 ................................. 62, 76, 81

328FS ......................................... 76

328SPB ...................................... 87

328 ZAG .................................... 114

329 ..............................................63

339 .......................................62, 86

339FS .........................................68

339W ..........................................62

350 ...............................................51

351 .........................................46, 51

352 ...............................................51

355 ............................................... 51

360.......................................46, 49

361 ........................................46, 49

362 ..............................................49

364 ..............................................49

364FS ................................ 53, 108

365 ..............................................49

365FS ................................ 53, 108

366 ..............................................49

367 ..............................................50

368 ..............................................50

369 ..............................................50

370 ........................................ 72, 81

375......................................... 72, 81

376 .............................................. 74

381 .........................................67, 83

383 ..............................................84

383FS .........................................84

398V ...........................................82

399V ...........................................82

400 .............................................99

429 .............................................. 76

452 ..............................................66

469..............................................28

470 ............................................... 71

472................................................ 71

475 ...............................................72

477 ...............................................63

478 ...............................................72

485 ...............................................72

485 ZAG ................................... 114

488BIO ......................................96

488FS ............................... 96, 107

488S ...........................................96

488S/488FS/488BIO ...........96

500 .............................................99

511 ................................................ 67

521FS ..........................................68

522 ..............................................26

523 ...............................................19

524 ...............................................19

525 .............................................. 25

526 .............................................. 25

539 ..............................................62

544 ...............................................14

545 ...............................................14

545B ............................................14

546 ...............................................14

547 ...............................................15

548 ............................................... 15

555 .............................................. 78

555FS ......................................... 78

557 .............................................. 79

557FS ......................................... 79

560 ............................................. 22

561 ............................................... 23

563 .............................................. 23

564 ............................................... 21

565 .............................................. 23

566 ............................................... 21

567 ............................................... 21

568............................................... 21

570 ...............................................72

571 ...............................................63

600CP .......................................39

601CP .........................................39

622 ...............................................19

623 ...............................................19

624 .............................................. 24

625 .............................................. 24

626 .............................................. 24

627 ...............................................19

628 ...............................................19

639W .........................................65

643 ..............................................26

647 ............................................... 17

653 ............................................... 15

654 ............................................... 15

655 ...............................................16

656 ...............................................16

657 ........................................ 17, 40

663 .............................................. 22

664 ..............................................15

671 ...............................................29

672 ...............................................27

673 ...............................................27

674 ...............................................27

675 ...............................................27

676 ...............................................27

678 ..............................................28

712................................................70

770 ..............................................69

770FS .........................................69

770SP .........................................70

770SPB ...................................... 87

770STST ....................................70

810N ...........................................98

811N .............................................98

812N ............................................98

813N ............................................98

824N ...........................................96

826N ........................................... 97

870 .............................................. 70

870SPB ..................................... 87

871 ................................. 64, 70, 78

873 ....................................... 70, 78

905 .............................................84

926N ........................................... 97

951 .............................................. 116

971 ...............................................117

971 / 972 Bio .............................117

972 ..............................................117

973 ..............................................117

973 / 974 Bio ............................117

974 ..............................................117

1050R .........................................112

1370 ............................................. 74

1545 .............................................18

1545B ...........................................18

1673 ..............................................18

1674 ..............................................18

1675 ..............................................18

1682 ............................................26

1682B .........................................26

1684 ............................................26

1685R .........................................26

1686R .........................................26

1840 ............................................85

1840/41 ......................................85

2070 .......................................... 119

2070N ........................................98

2361............................................. 32

2673 ............................................. 31

2676 ............................................. 31

3056FS ...................................... 79

3544 ........................................... 67

3546 ........................................... 67

3551 ..............................................51

3552 .............................................51

3557FS ....................................... 79

3672 ............................................30

3673 ............................................30

3674 ............................................. 31

3675 ............................................. 31

3676 ............................................. 31

3708 ............................................ 71

3708N ........................................ 97

3709 ............................................ 71

4000 ..........................................99

5000 ..........................................99

5831 ............................................ 75

5831FS ....................................... 74

5832 ........................................... 75

5832FS ...................................... 74

5833 ........................................... 75

6570 ............................................ 17

6575 ...................................... 17, 40

6710 ............................................28

7000 ........................................... 35

7332 ............................................ 35

7334 ......................................35, 37

7335 ......................................36, 37

7336 ............................................36

7337 ............................................36

7338 ............................................ 37

7338/7334 ................................ 37

7338/7335 ................................ 37

7350............................................ 53

7770 ............................................70

8004N .......................................94

8042S ........................................96

8043N ........................................95

8047R ........................................121

8048S ........................................95

8049R ........................................ 67

8052N ........................................94

8053Q ........................................95

8054S ........................................95

8055S ........................................95

8056S ........................................95

8136 ..........................................100

8136P .........................................98

8137 ...........................................100

8138 ..........................................100

8144FS .............................. 96, 107

8144S .........................................96

8144S/8144FS .........................96

8145S .........................................96

8149 ............................................ 67

8150S ......................................... 97

8151 ............................................. 67

8172N .......................................... 97

8191 .............................................63

8192 ............................64, 80, 102

8193 ......................65, 77, 80, 102

8194 ............................65, 80, 102

8195 ........................................... 80

8197 ............................................63

8198 ............................................65

8216S ......................................... 97

8217S ..........................................83

8302 ............................................77

8303 ............................................77

8305 ........................................... 76

8452 ................................... 38, 118

8655 ............................................16

8724 ............................................ 24

8726 ............................................ 24

8729 ............................................ 25

8770N ......................................... 97

8780N ................................97, 120

8800S .......................................94

8810S .........................................94

8812S .........................................94

8841R .........................................94

8877 .............................................77

8878 ............................................77

8879 .....................................77, 80

8880 ..........................................112

9131 ............................................ 101

9137 ............................................ 101

3062500PSA..........................107

3062750PSA ..........................107

3125500PSA ...........................107

3125750PSA ............................107

3250750PSA ...........................107

30621000PSA ........................107

30621750PSA .........................107

31251000PSA .........................107

32501000PSA ........................107

ADA 1000 ................................. 118

JD6S ........................................... 111

Z950 .......................................... 115

Z953 .......................................... 115

Z955 .......................................... 115

Z9500 ....................................... 115

012255, Rev. 09/18

www.allegion.com/us

Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading

brands like CISA®

, Interﬂex®

, LCN®

, Schlage®

, SimonsVoss®

and Von Duprin®

Focusing on security around the door and adjacent areas, Allegion produces

a range of solutions for homes, businesses, schools and other institutions.

Allegion is a $2 billion company, with products sold in almost 130 countries.

For more, visit www.allegion.com.

About Allegion

Zero Full Line Catalog 2018 112255

Navigation menu

Versions of this User Manual:

Views

Navigation
