Zhaotian Electronic Technology Z1 Mini Projector User Manual

Shenzhen Zhaotian Electronic Technology Co., Ltd Mini Projector Users Manual

Users Manual

Mini Projector
MANUAL Model：Z1
V1.0
Description&Warranty Card
Customer's name：﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍
Contact phone： ﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍
Customer's address：﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍
Model of machine：﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍
Date of puchase：﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍
S/N：﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍﹍
Warranty clause
1：The warranty provisions apply to the host and accessories products.
2：Product after-sales service commitment：
★ Since the purchase within 15 days of the performance failure occurs,
can choose free replacement or repair.
★ Within 12 months from the date of purchase performance failure, can
enjoy free warranty service.
3：The following circumstances (but not limited to the following) are not
within the scope of the warranty:
★ Beyond the warranty period.
★ Can not provide the warranty card or purchase bills of sale.
★ Unauthorized, unauthorized repair or disassemble disassemble.
★ The appearance of wear and damage, dirt is not in the scope of free
warranty.
★ The unexpected factors lead to product damage, such as input voltage,
high temperature water, mechanical damage, breaking, brush machine
(except the official package), root system, etc.
★ Product failure or damage caused by force majeure (fire, flood,
lightning);
4：For products beyond the warranty period, can provide paid maintenance
services.
5：The interpretation right of the above warranty is owned by the company.
6：Warranty period: one year
Contact phone：4008733909

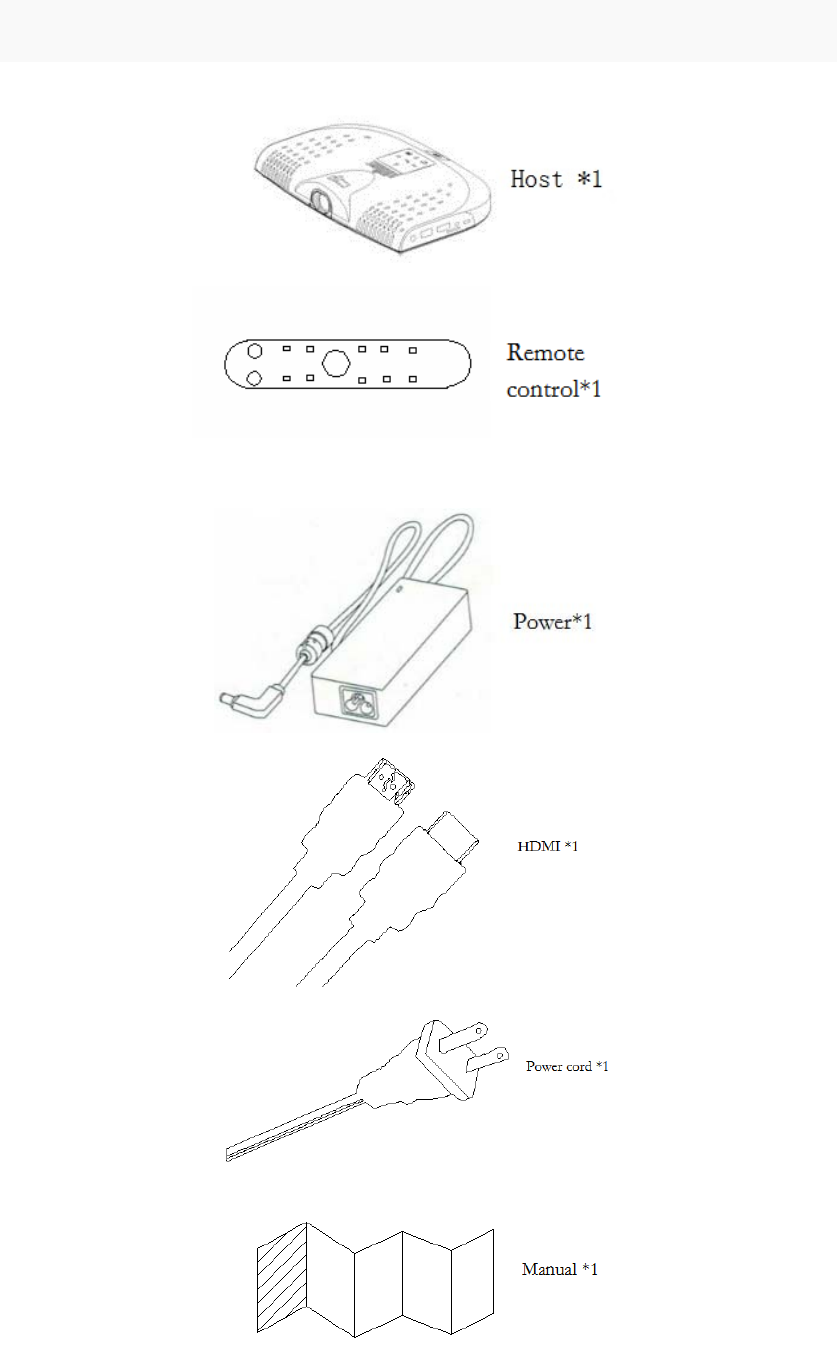

Bill of materials
Operation  manual

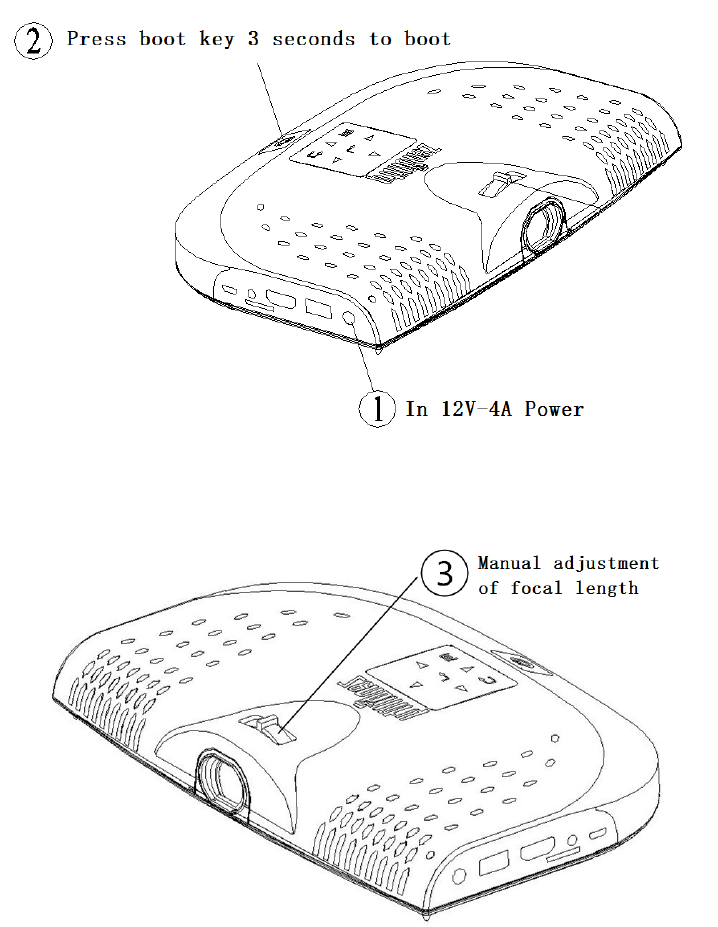

1.Powerconnection
Usingthismachineadapter,plugintothehostDCpowersupplyhole.
2.Focus
Manually toggle button, focus, clear picture.

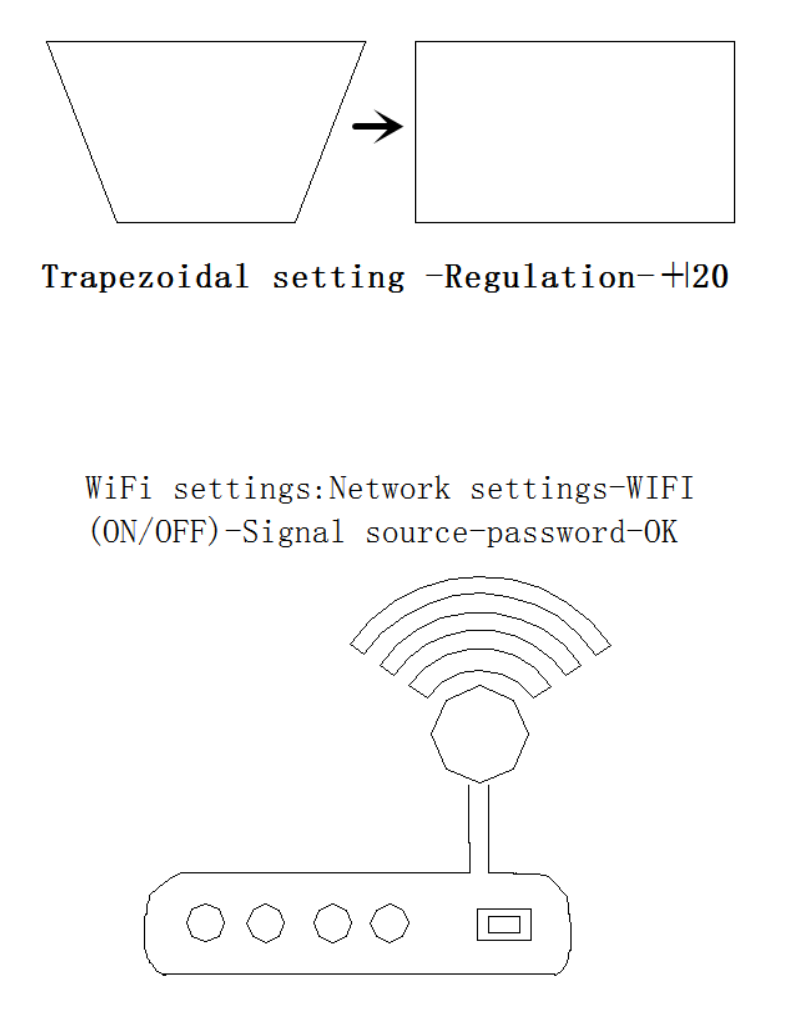

3.keystonecorrection
In the projection setting, the trapezoidal correction can be carried out for the
adjustment of the 20 angles.
4.Networksettings
networksettings-SelectWiFisignalsource-EntertheWiFipassword.

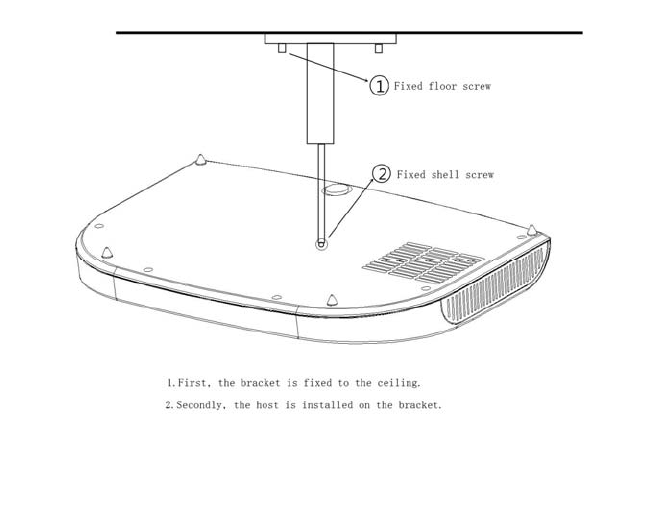

5.Hangupaguide
Projectionsetting- ScreenRotation- Front projection.
ShenzhenZhaotianElectronicTechnologyCo.,Ltd
Address:BaoanDistrictXixiangShenzhenAvenue288
URL：www.weitoule.com
Warmtip:alltheinformationtotheactualperformanceofthequasi,micro
votetoretainthefinalinterpretationoftheright.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
