Dahua Dome Wi-Fi Camera Quick Start Guide
Dahua Dome Wi-Fi Camera
Quick Start Guide
Version 1.0.0
ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.
Dahua Dome Wi-Fi Camera Quick Start Guide
2

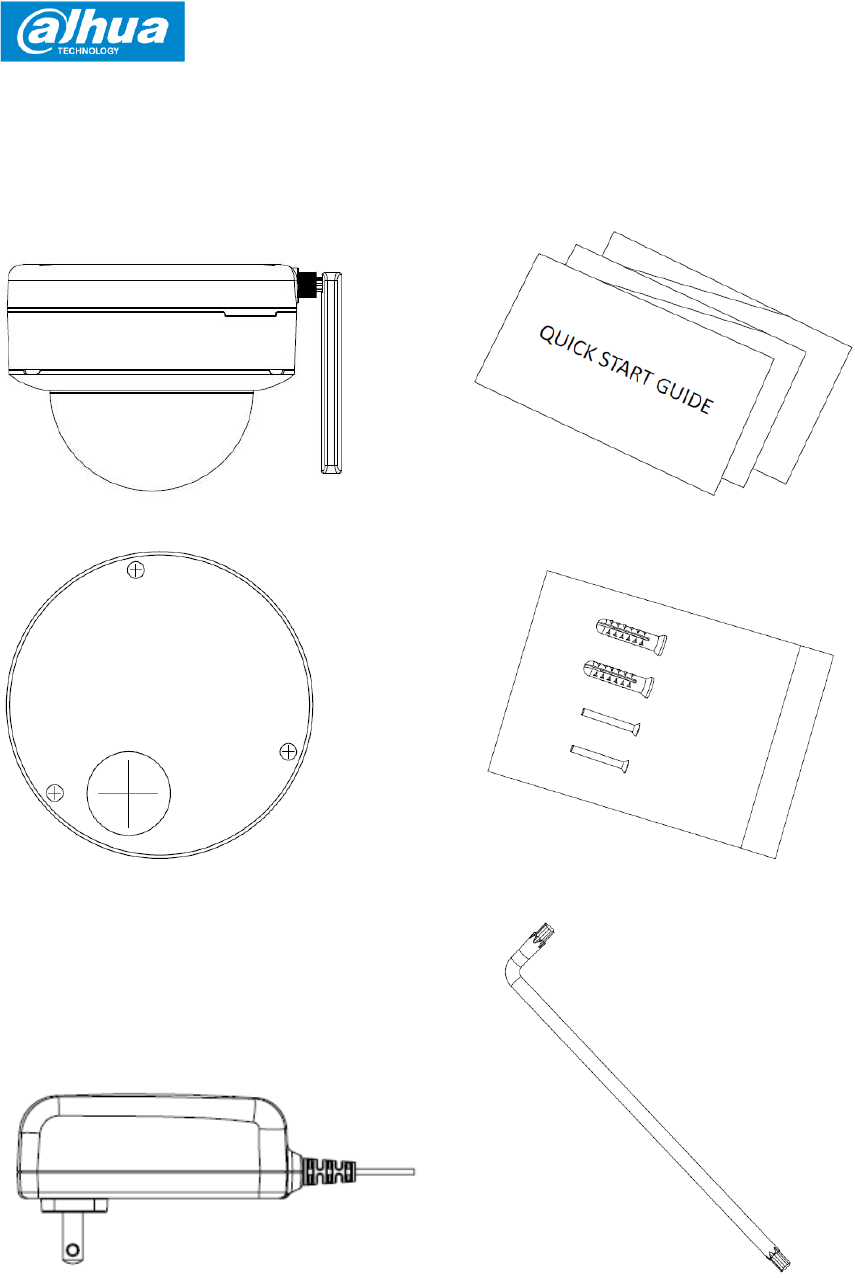

1 Packing List
Device × 1 QSG ×1
Installation Position Map ×1 Screw Package ×1
Power Adapter ×1 Wrench ×1
Dahua Dome Wi-Fi Camera Quick Start Guide
3

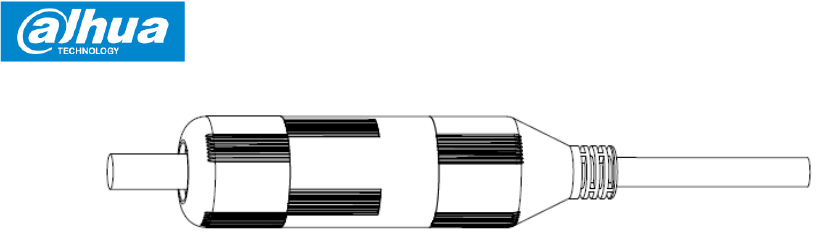

Waterproof Connector× 1
Dahua Dome Wi-Fi Camera Quick Start Guide
4

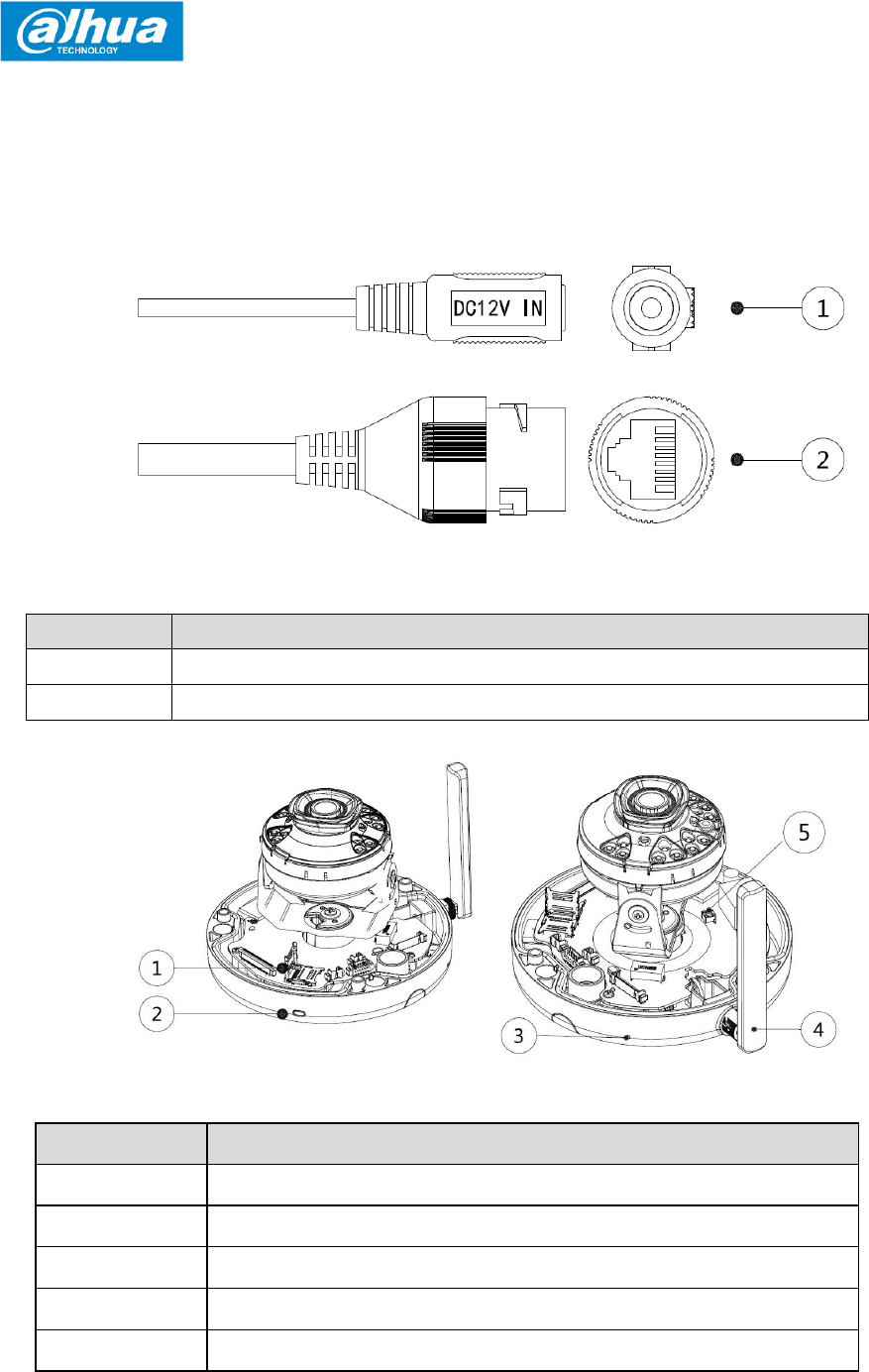

2 Product Appearance
Please refer to Figure 2-1 for the device port.
Figure 2-1
Please refer to the following table for more details about each port.
SN
Name
Power port
Network port
Table 2-1
Figure 2-2
Please refer to the following table for more details about each component.
Table 2-2
SN
Name
①
SD card slot
②
Indicator light
③
MIC
④
Antenna
⑤
WPS/Reset
Dahua Dome Wi-Fi Camera Quick Start Guide
5
Note
For reset, long press for 8 seconds and then the light off; For WPS (Wi-Fi Protected
Setup), one quick press.
Please refer to the following table for more details about status of indicator light.
Indicator light status
Device status
Red light stably on
Booting
Green light slow flashing
Booting completed, await Wi-Fi config,
enter smart config status;
Green light quick flashing
WPS connecting (The device is trying to
connect to Wi-Fi via WPS)
Green light stably on
Wi-Fi connection succeeded, operate
normally.
Red and green lights flash alternately
Device upgrade
Red light slow flashing
Network disconnection
Red light quick flashing
Device fail to boot up; SD card does not
work
Figure 2-3
Dahua Dome Wi-Fi Camera Quick Start Guide
6
3 Operation by Easy4ip App
Step 1 Power on your camera with power adapter.
Step 2 Connect your smartphone to your Wi-Fi network, scan “Easy4ip” QR on the
packing box, download and install “Easy4ip” APP.

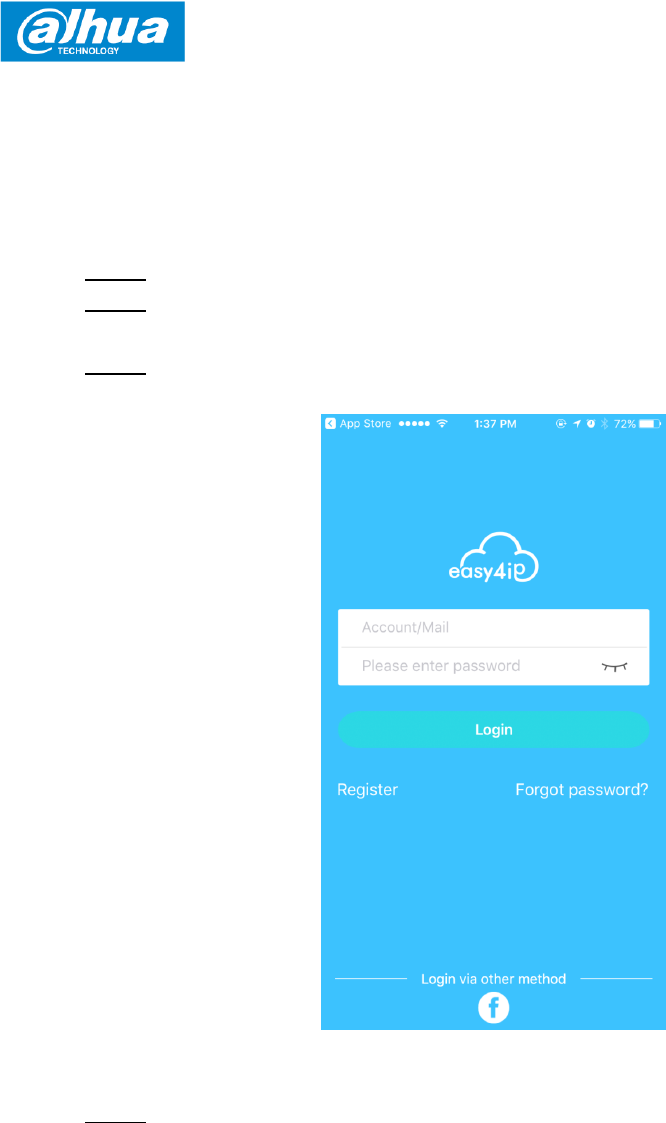

Step 3 Open Easy4ip APP (take iOS version as an example), see Figure 3-1. Please
register an account for first use.
Figure 3-1

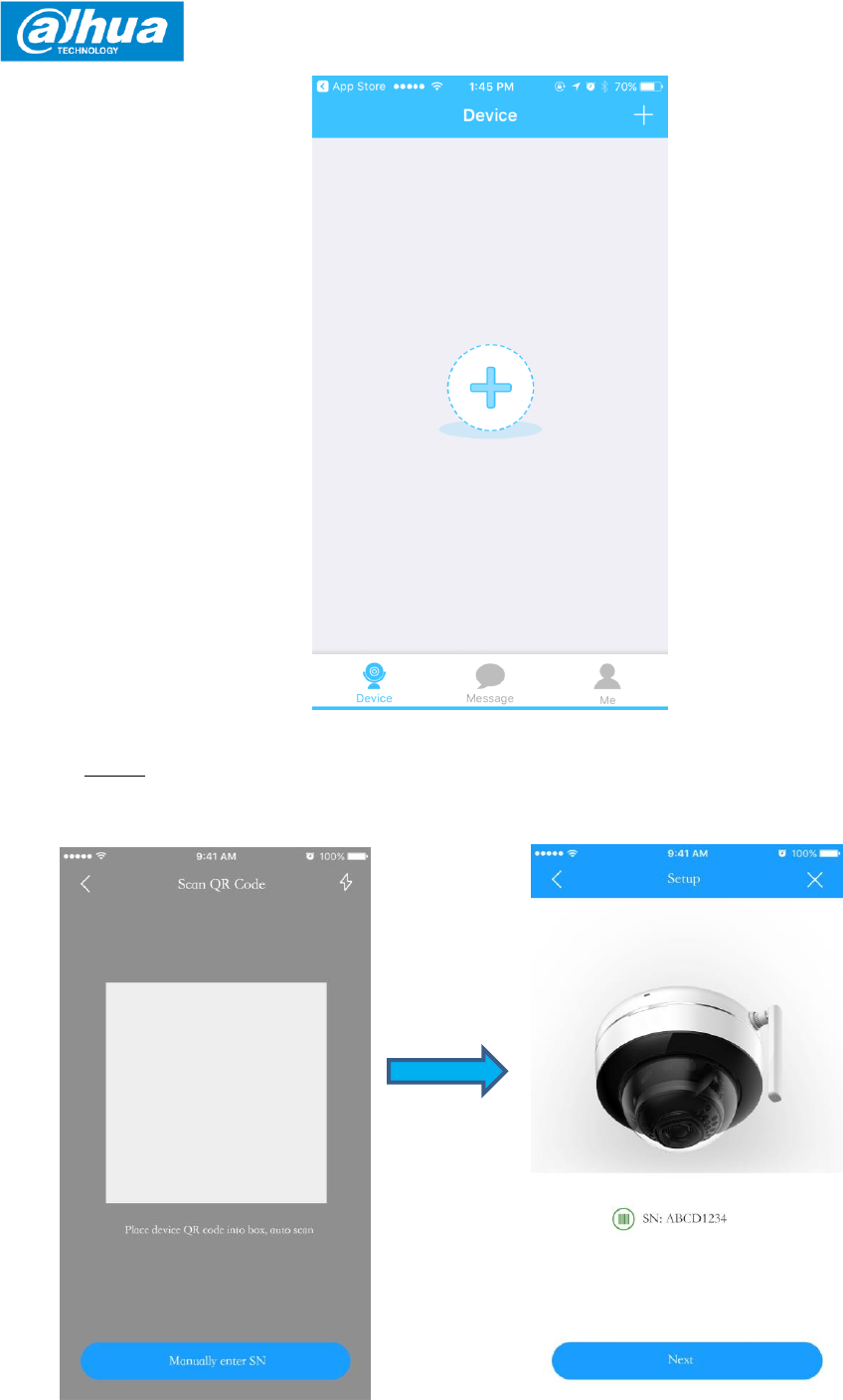

Step 4 Please tap “+” to add new devices after you login your account.
Dahua Dome Wi-Fi Camera Quick Start Guide
7
Figure 3-2
Step 5 Scan the QR code on the back of the camera to get the SN, you can also tap
“Manually enter the SN” and manually input the SN number on the next page.
Then tap “Next”.
Figure 3-3
Dahua Dome Wi-Fi Camera Quick Start Guide
8

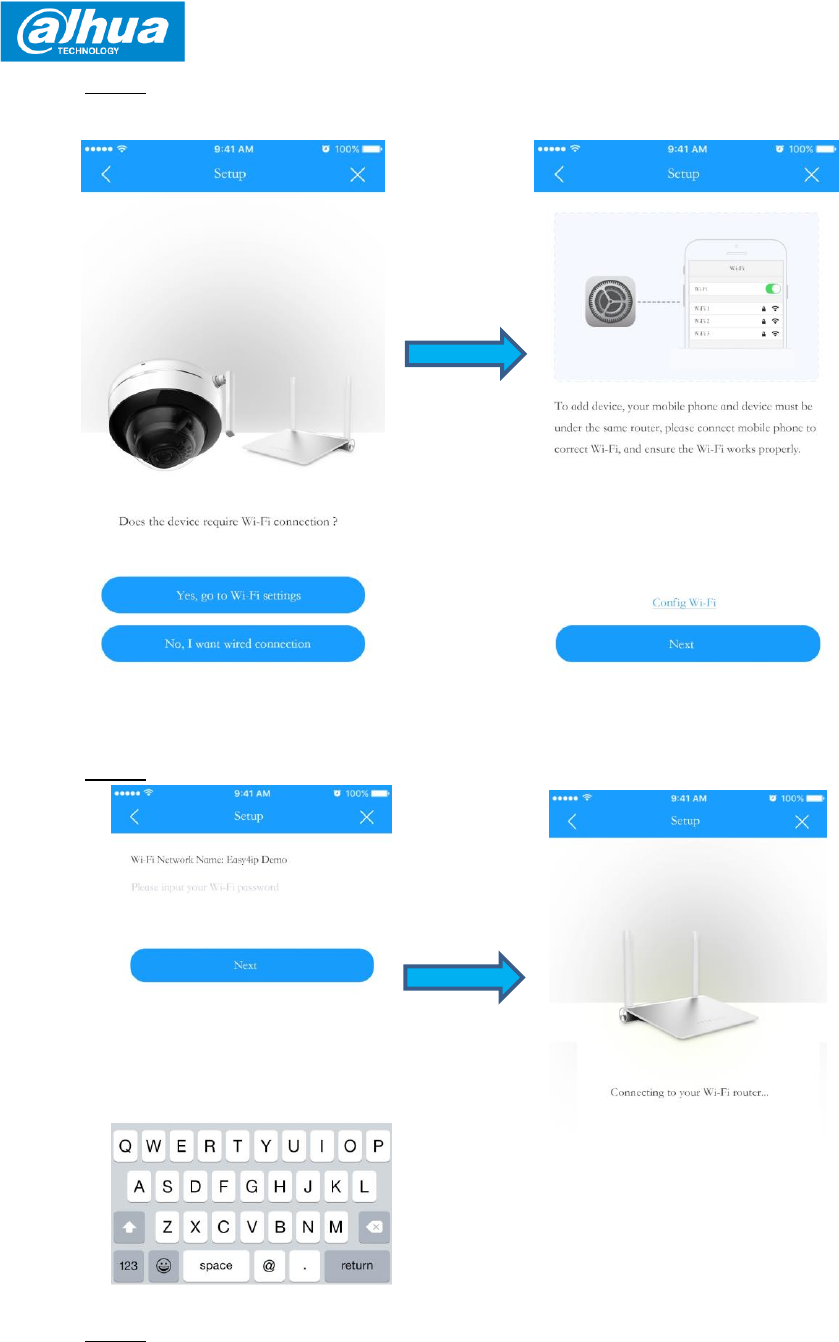

Step 6 Select “Yes, go to Wi-Fi settings” and make sure your smartphone is
connected to the same Wi-Fi, then tap “Next”.
Figure 3-4
Step 7 Fill in the password of your Wi-Fi, then tap “Next”.
Figure 3-5

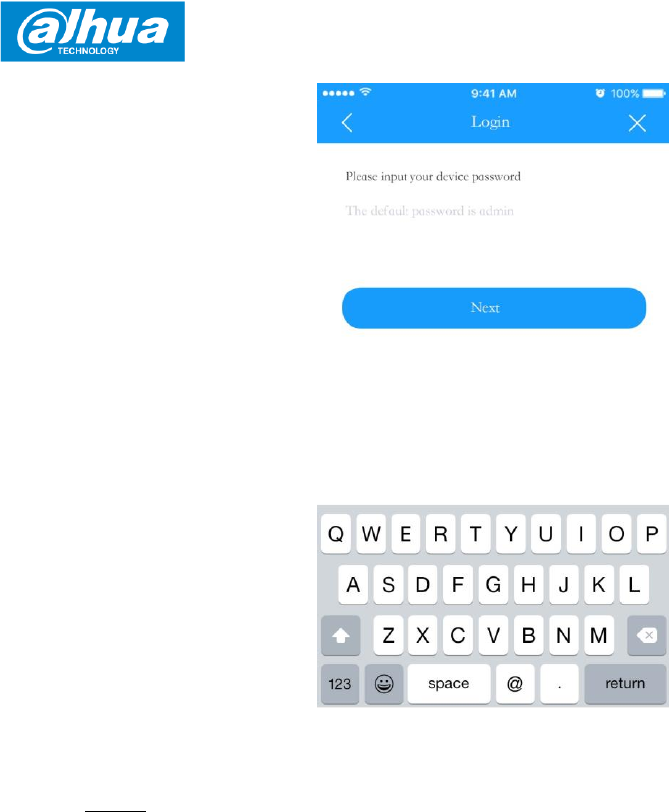

Step 8 Input your device password, the default password is “admin”.
Dahua Dome Wi-Fi Camera Quick Start Guide
9
Figure 3-6

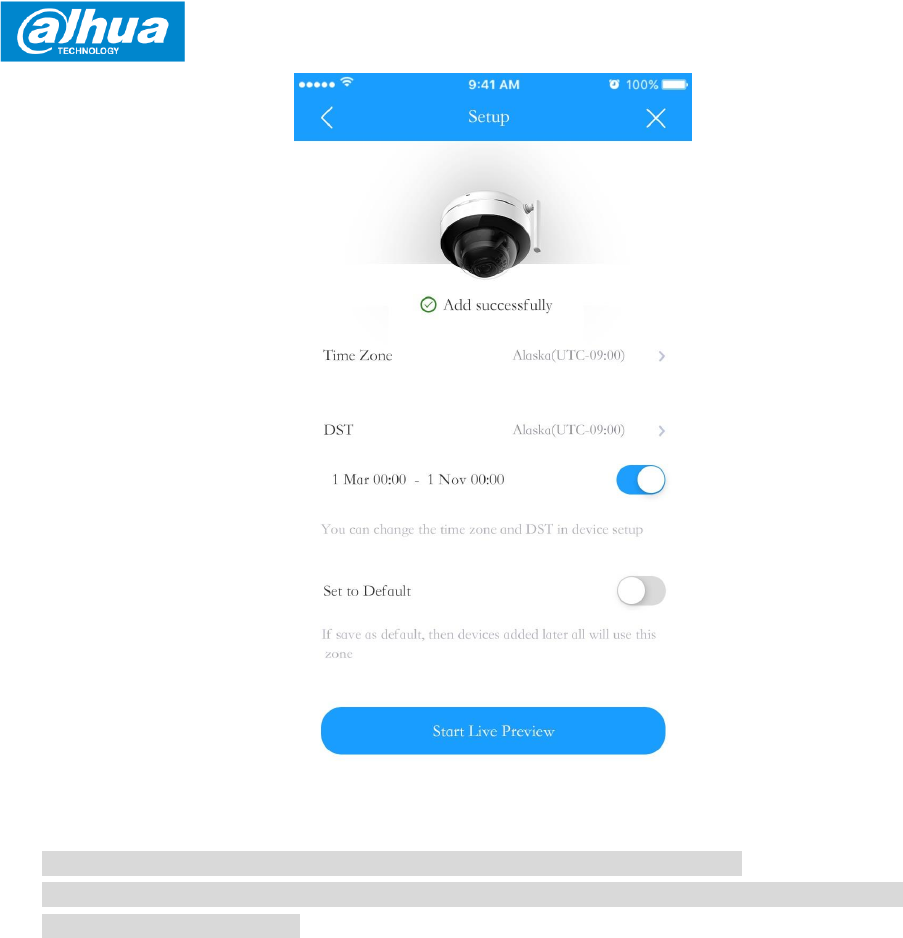

Step 9 Your camera is successfully added. You can set up your time zone and start
preview.
Dahua Dome Wi-Fi Camera Quick Start Guide
10
Figure 3-7
Note
If you have more cameras, please follow steps 4-9 to add them one by one.
If you want to change the Wi-Fi signal, please reset the camera to factory default and repeat
steps 4-9 to add the device.
Dahua Dome Wi-Fi Camera Quick Start Guide
11
4 Device Installation
Note
Please make sure the installation surface can min support the 3X weight of the camera
and the bracket.
Figure 4-1
Step 1 Use inner hex wrench in the accessories bag to open dome enclosure by
unfastening locking screws on enclosure.
Step 2 Please take out the installation position map in the accessories bag, and then
paste it on the ceiling or the wall according to your monitor area requirements.
Step 3 Find cross signs on the map, and dig three expansion bolts holes on the
installation surface and then insert three expansion bolts in the holes. Secure
these three bolts firmly.
Note
If user pulls out cable from top of installation surface, you must dig an exit hole on
installation surface according to the installation position map.
If user pulls out cable from side of cable channel, it must go through the U-shape
channel on dome pedestal, and take out cable from the side exit hole on pedestal.
Step 4 Adjust the device installation pedestal to the proper position and then pull cable
through the exit hole on Installation surface. Make direction of TOP sign same
as it on installation position map. Line up the three screw holes in the device
pedestal to the three plastic expansion bolt holes in the installation position. Put
Dahua Dome Wi-Fi Camera Quick Start Guide
12
the three self-tapping screws in the three plastic expansion bolts firmly. Fix
dome body on installation surface.
Step 5 Hold both sides of the rotation bracket bottom with hands, rotate horizontally
along the axis, and adjust lens horizontal direction to designated position. Hold
the LED decoration cover with hand, rotate along the vertical direction, adjust
the lens vertical direction to designated position; it is okay to loosen the fix
screws on both sides of the bracket first if it is too tight to adjust (just make it
loose, do not take it down), then adjust the lens, tighten the fix screws after
adjustment. Hold the LED decoration cover with hands, rotate horizontally along
the axis, and adjust the lens image to designated position. Range of lens:
vertical (0°～+64°), horizontal (0°～+355°), image rotation direction (0°～
+355°).
Note
When it rotates to 64° vertically, please pay attention to the image rotation direction in\
order to avoid the outer cover blocking IR light and influencing IR effect.
Disclaimer
This quick start guide is for reference only. Minor difference might be found in user
interface.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their
respective owners.
Please visit our website or contact your local service engineer for more information.
If there is any uncertainty or controversy, please refer to our final explanation.
Dahua Dome Wi-Fi Camera Quick Start Guide
13
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Attention that changes or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Note: This product has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
product generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this product does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum distance 20cm
between the radiator and your body
