Zhejiang Dahua Vision Technology HDBWABCDE-WXY IP Camera User Manual
Zhejiang Dahua Vision Technology Co., Ltd IP Camera
User Manual
Dahua HD IR Vandal Proof Network Dome Camera
User’s Manual
Version 1.2.1
Zhejiang Dahua Technology CO., LTD.
i
Welcome
Thank you for purchasing our Network camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
![](/img.php?id=2545868&img=bg3.png)
ii
Important Safeguards and Warnings
1 Electrical safety
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction)
Please note: Do not connect two power supplying sources to the device at the same time; it may
result in device damage! The product must be grounded to reduce the risk of electronic shock.
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2 Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3 Installation
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4 Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted repair.
5 Environment
This series network camera should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical component damage.
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the camera.
Thunder-proof device is recommended to be adopted to better prevent thunder.
The grounding studs of the product are recommended to be grounded to further enhance the reliability
of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the power cable before you begin daily maintenance
work.
![](/img.php?id=2545868&img=bg4.png)
iii
Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens
surface.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device.
Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.
Dome enclosure is the optical component, do not touch the enclosure when you are installing the
device or clean the enclosure when you are doing maintenance work. Please use professional optical
clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result
in poor IR effect of camera with IR function.
7. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name Amount
Network Camera Unit 1
Quick Start Guide 1
Installation Accessories Bag 1
CD 1
![](/img.php?id=2545868&img=bg5.png)
iv
Table of Contents
.............................................................................................................. 1
................................................................................................................... 1
.................................................................................................................... 1
........................................................................................................... 2
................................................................................................................................. 4
............................................................................................................. 4
..................................................................................... 4
................................................................................................................. 7
...................................................................................................... 7
4

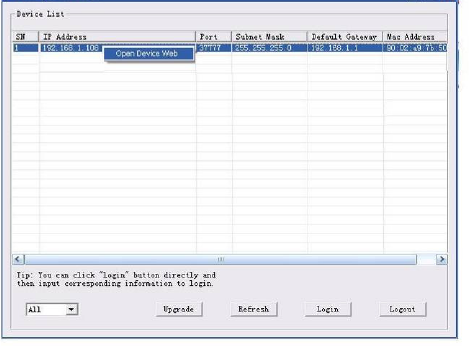

Quick Configuration Tool .................................................................................................... 10
4.1
Overview ................................................................................................................. 10
4.2
Operation ................................................................................................................ 10
5
Web Operation..................................................................................................................... 12
5.1
Network Connection............................................................................................... 12
5.2
Login and Main Interface....................................................................................... 12
....................................................................................................................................... 14
............................................................. 15
![](/img.php?id=2545868&img=bg6.png)
1
1
11
1 General Introduction
General Introduction General Introduction
General Introduction
1.1
1.11.1
1.1 Overview
Overview Overview
Overview
This series network camera integrates the traditional camera and network video technology. It adopts
video data collection, transmission together. It can connect to the network directly without any auxiliary
device.
This series network camera uses standard H.264 video compression technology, which maximally
guarantees the video quality.
It supports the IR night vision function. In the night environments, the device can use the IR light to
highlight the object which is suitable for the surveillance function in the low illumination environments.
The waterproof design conforms to the IP 66 level. It has the sound waterproof function suitable for
use in the outdoor environments.
It can be used alone or used in a network area. When it is used lonely, you can connect it to the
network and then use a network client-end. Due to its multiple functions and various uses, this series
network camera is widely used in many environments such office, bank, road monitor and etc.
1.2
1.21.2
1.2 Feature
FeatureFeature
Features
ss
s
User
Management
Different user rights for each group, one user belongs to one group.
The user right shall not exceed the group right.
Storage
Function
Support central server backup function in accordance with your configuration
and setup in alarm or schedule setting
Support record via Web and the recorded file are storage in the client-end
PC.
Support network storage function such as FTP.
Alarm
Function
Real-time respond to external on-off alarm input, and video detect as user
pre-defined activation setup and generate corresponding message in screen
and audio prompt(allow user to pre-record audio file)
Real-time video detect: motion detect, camera masking.
Alarm occurs when network is abnormal.
Network
Monitor
Network camera supports one-channel video data transmit to network
terminal and then decode. Delaying time is within 270ms (network bandwidth
support needed)
Max supports 20 connections.
Adopt the following video transmission protocol: HTTP, TCP, UDP,
MULTICAST, RTP/RTCP, RTSP and etc.
Support web access.
Network
Management
Realize network camera configuration and management via Ethernet.
Support device management via web or client-end.
Support abundant network protocol.
Power
External power adapter DC 12V.
Support PoE.
Warning
Do not connect these two power supplying sources to the device at the
same time; it may result in device damage!
Assistant
Function
Log function
Support system resource information and running status real-time display.
Day/Night mode auto switch.
Support picture parameter setup such as electronic shutter and gain setup.
![](/img.php?id=2545868&img=bg7.png)
2
Support motion detect.
Backlight compensation: screen auto split to realize backlight compensation
to adjust the bright.
Support video watermark function to avoid vicious video modification.
Built-in IR light. Support IR night vision.
1.3
1.31.3
1.3 Specification
SpecificationSpecification
Specifications
ss
s
Please refer to the following sheet for network camera performance specification.
Model
Parameter IPC-HDBW1000E-W DH-IPC-HDBW1200E-W
Main Processor High performance DSP
OS Embedded LINUX
System
Resources
Support real-time network, local record, and remote operation at the
same time.
User Interface Remote operation interface such as WEB, DSS, PSS
System
System Status Bit stream statistics, log, and software version.
Image Sensor 1/4-inch CMOS 1/3-inch CMOS
Pixel 1280(H)*720 V 2048(H)*1536 V
Day/night Support day/night mode switch
Gain Control Fixed/Auto
White Balance Manual/Auto
BLC Off/BLC/WDR (1-100 adjustable)/HLC(anti-flicker is outdoor and is valid
only when exposure mode is auto with range 1-100)
Electronic
Shutter
Manual/Auto
It ranges from 1/3 to 1/10000
Video
Compression
Standard
H.264/H.264B/MJPEG H.264/H.264B/H.264H/MJPEG
PAL:
Main stream (1280*720@25fps),
extra stream (704*576@25fps)
PAL:
Main stream
(1920*1080@25fps),
extra stream
(704*576@25fps)
Video Frame
Rate NTSC:
Main stream (1280*720@30fps),
extra stream (704*480@30fps)
NTSC:
Main stream (1920*1080@30fps),
extra stream (704*480@30fps)
Video Bit Rate
H.264: 16Kbps-8192Kbps
adjustable.
MJPEG adjustable and bit rate is
adjustable.
Support customized setup
H.264H: 16Kbps-8192Kbps
adjustable
MJPEG adjustable and bit rate is
adjustable.
Support customized setup
Video Flip Support mirror.
Support flip function.
Snapshot Max 1f/s snapshot. File extension name is JPEG.
Privacy Mask Supports max 4 privacy mask zones
Video
Adjustment Support parameter adjustment such as bright, contrast.
Video
Information Channel title, time title, motion detect, camera masking.
Lens 2.8mm, 3.6mm, 6mm. Fixed focus.
Video Parameter
Lens Interface M12. Lens is the default accessories
![](/img.php?id=2545868&img=bg8.png)
3
Motion Detect
396 (18*22) detection zones; sensitivity level ranges from 0 to 100; area
threshold ranges from 0 to 100.
Activation event: video storage, image snapshot, log, email SMTP and
etc.
Video
Video Loss
Activation event: video storage, image snapshot, log, email SMTP and
etc.
Record
Record Priority
Manual >Video detect>Schedule
Wire Network 1-ch Enthernet port, 10/100 Base-T Ethernet
Wireless
Network IEEE802.11a/b/g/n built-in antenna
Network Protocol
Standard
HTTP,TCP/IP,IPv4/IPv6,ARP,IGMP,ICMP,RTSP,RTP,UDP,SMTP,FTP,
DHCP,DNS,DDNS,PPPoE,UpnP,NTP,Bonjour,SNMP
Remote
Operation Monitor, system setup, log information, maintenance , upgrade and etc
Network
Access Protocol Support international, ONVIF
Reset
Built-in RESET button
AUX
Interface
WPS WI-FI one key connection
Power
DC12V
Power
Consumption 4.8W MAX 6.1W MAX
Working
Temperature -30 ~+50
Working
Humidify 95%
Dimensions(mm) ¢110×81
Weight 385g (Excluding box)
General Parameter
Installation Ceiling and wall mount
![](/img.php?id=2545868&img=bg9.png)
4
2
22
2 Structure
Structure Structure
Structure
2.1
2.12.1
2.1 Com
ComCom
Component
ponentponent
ponents
ss
s

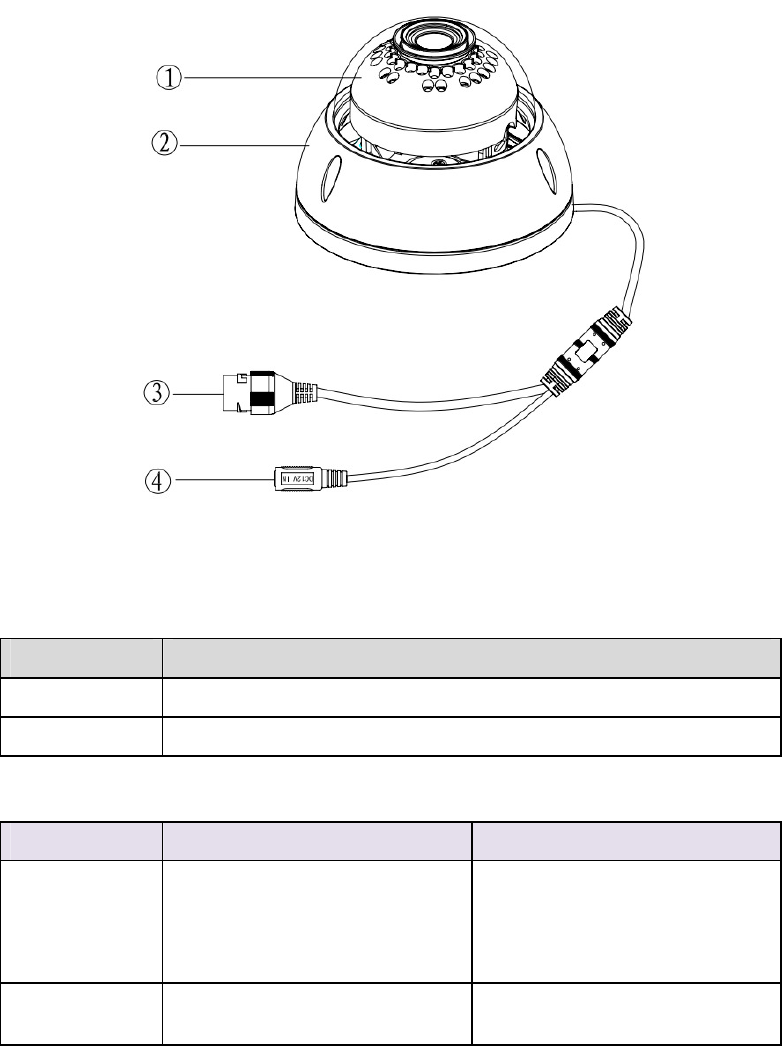

You can refer to the following figure for component structure. See Figure 2-1
.
Figure 2-1 Component structure
Please refer to the following sheet for detailed information.
2.2
2.22.2
2.2 Framework and Dimension
Framework and DimensionFramework and Dimension
Framework and Dimension

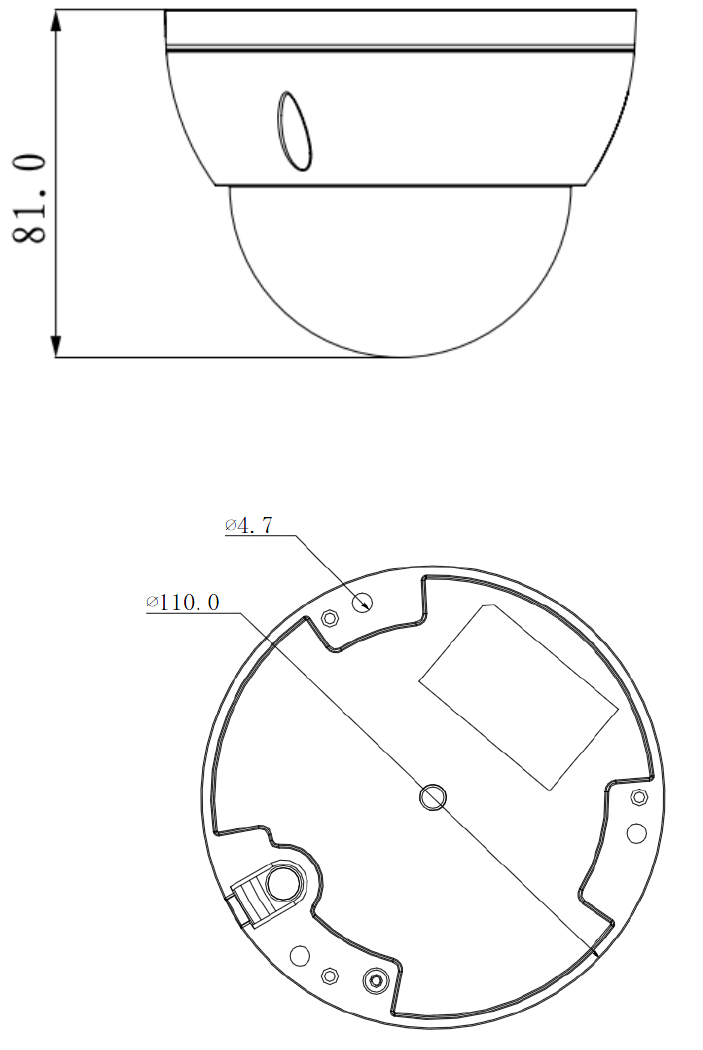

Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2 to
Figure 2-4
Component Component Name
Component 1 Dome body
Component 2 Dome enclosure
Port Port Name Note
Port 3 Dome enclosure
Network data in/out and PoE.
Note:
Some devices do not
support PoE.
Port 4 Power input port Connect to DC 12V power, input
power.
![](/img.php?id=2545868&img=bga.png)
5
Figure 2-2 Dimension illustration (1)
Figure 2-3 Dimension illustration (2)
![](/img.php?id=2545868&img=bgb.png)
6
Figure 2-4 Dimension illustration (3)
![](/img.php?id=2545868&img=bgc.png)
7
3
33
3 Device Installation
Device Installation Device Installation
Device Installation
3.1
3.13.1
3.1 Installation Steps
Installation Steps Installation Steps
Installation Steps
Important
Before the installation, please make sure the installation environments can at least support 3x
weight of the camera.
Please follow the steps listed below to install the device. Please refer to Figure 3-1 for reference.
Step 1
Use inner hex wrench in the accessories bag to open dome enclosure by unfastening three inner hex
screws on enclosure.
Step 2
Please take the installation position map in the accessories bag, and then paste it on the ceiling or the
wall according to your monitor area requirements.
Step 3
Find cross signs on the map, and dig three plastic expansion bolts holes in the installation surface and
then insert three expansion bolts in the holes. Secure these three bolts firmly.
Note:
If use pulls out cable from top of installation surface, you must dig a exit hole on installation
surface according to the installation position map.
If user pulls out cable from side of cable channel, it must go through the U-shape channel on
dome pedestal, and take out cable from the side exit hole on pedestal.
Step 4
Adjust the device installation pedestal to the proper position and then pull cable through the exit hole
on Installation surface. Make direction of TOP sign same as it on installation position map. Line up the
three screw holes in the device pedestal to the three plastic expansion bolt holes in the installation
position. Put the three self-tapping screws in the three plastic expansion bolts firmly. Fix dome body on
installation surface.
Step 5
Hold bottom of bracket with hand, horizontally rotate bracket, adjusting lens direction to designated
position. Loosen one M2 screw on LED decoration cover (loosen only, do not take it down), hold the
decoration cover with hand, making lens rotate vertically. Adjust vertical direction of lens to appropriate
angle, and fasten the M2 screw. Range of lens: vertical (0 +65 ), horizontal (0 +355 ). See
Figure 3-2.
![](/img.php?id=2545868&img=bgd.png)
8

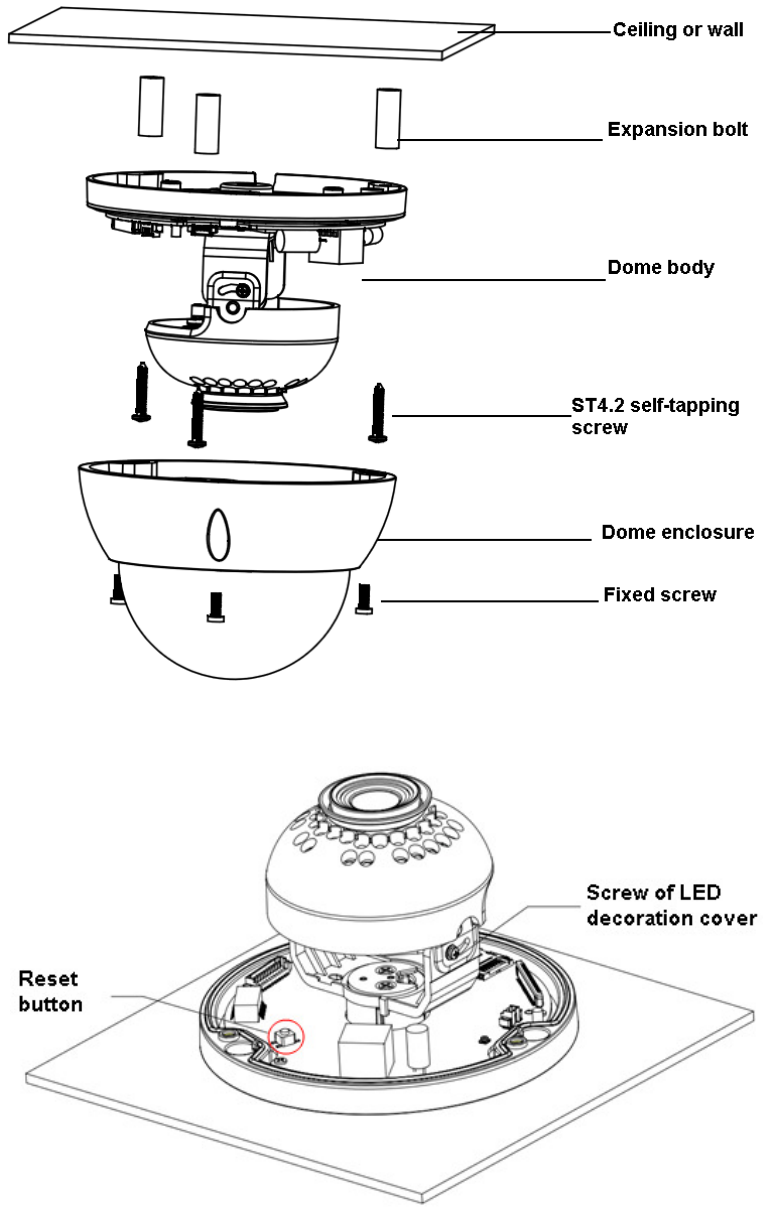

Figure 3-1 Device installation illustration 1
Figure 3-2 Device installation illustration 2
![](/img.php?id=2545868&img=bge.png)
9
Note:
When you need to reset the device, press the “Reset” button in Figure 3-2 for 10 seconds while
connecting device to power.
When you need to use WPS function, press the “Reset” button in Figure 3-2 for 1 to 2 seconds while
connecting device to power, then press WPS button on the router. Generally the device can be
connected to corresponding router within 1 minute (supported by some series products).
Step 6
Take dome enclosure, put it back on the camera properly regarding to screw and hole, and fasten the
three inner hex screws with wrench.
![](/img.php?id=2545868&img=bgf.png)
10
4 Quick Configuration Tool
4.1 Overview
Quick configuration tool can search current IP address, modify IP address. At the same time, you can
use it to upgrade the device.
Please note the tool only applies to the IP addresses in the same segment.
4.2 Operation
Double click the “ConfigTools.exe” icon, you can see an interface. In the device list interface, you can
view device IP address, port number, subnet mask, default gateway, MAC address and etc.
Select one IP address and then right click mouse, you can see an interface is shown as in figure 4-1
Select the “Open Device Web” item; you can go to the corresponding web login interface.
Figure 4-2 Search interface
If you want to modify the device IP address without logging in the device web interface, you can go to
the configuration tool main interface to set.
In the configuration tool search interface (Figure 4-2), please select a device IP address and then
double click it to open the login interface. Or you can select an IP address and then click the Login
button to go to the login interface. See Figure 4-3.
In Figure 4-3, you can view device IP address, user name, password and port. Please modify the
corresponding information to login.
Please note the port information here shall be identical with the port value you set in TCP port in Web
Network interface. Otherwise, you cannot login the device.
If you are using device background upgrade port 3800 to login, other setups are all invalid.
![](/img.php?id=2545868&img=bg10.png)
11
Figure 4-3 Login prompt
After you logged in, the configuration tool main interface is shown as below. See Figure 4-4.
Figure 4-4 Main interface
For detailed information and operation instruction of the quick configuration tool, please refer
to the Quick Configuration Tool User’s Manual included in the resources CD.
![](/img.php?id=2545868&img=bg11.png)
12
5 Web Operation
This series network camera products support the Web access and management via PC.
Web includes several modules: Monitor channel preview, system configuration, alarm and etc.
5.1 Network Connection
Please follow the steps listed below for network connection.
Make sure the network camera has connected to the network properly.
Please set the IP address, subnet mask and gateway of the PC and the network camera
respectively. Network camera default IP address is 192.168.1.108. Subnet mask is 255.255.255.0.
Gateway is 192.168.1.1
Use order ping ***.***.***.***(* network camera address) to check connection is OK or not.
5.2 Login and Main Interface

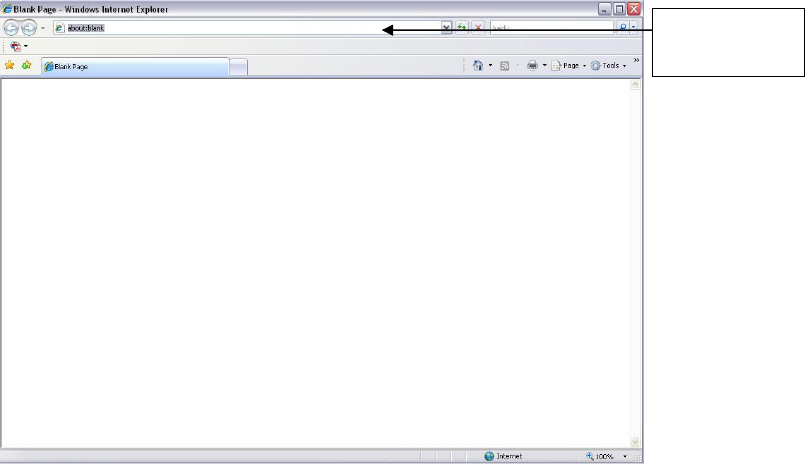

Open IE and input network camera address in the address bar. See Figure 5- 1.
Figure 5- 1 IP address
The login interface is shown as below. See Figure 5- 2.
Please input your user name and password.
Default factory name is admin and password is admin.
Note: For security reasons, please modify your password after you first login.
Input your IP
address
here
![](/img.php?id=2545868&img=bg12.png)
13

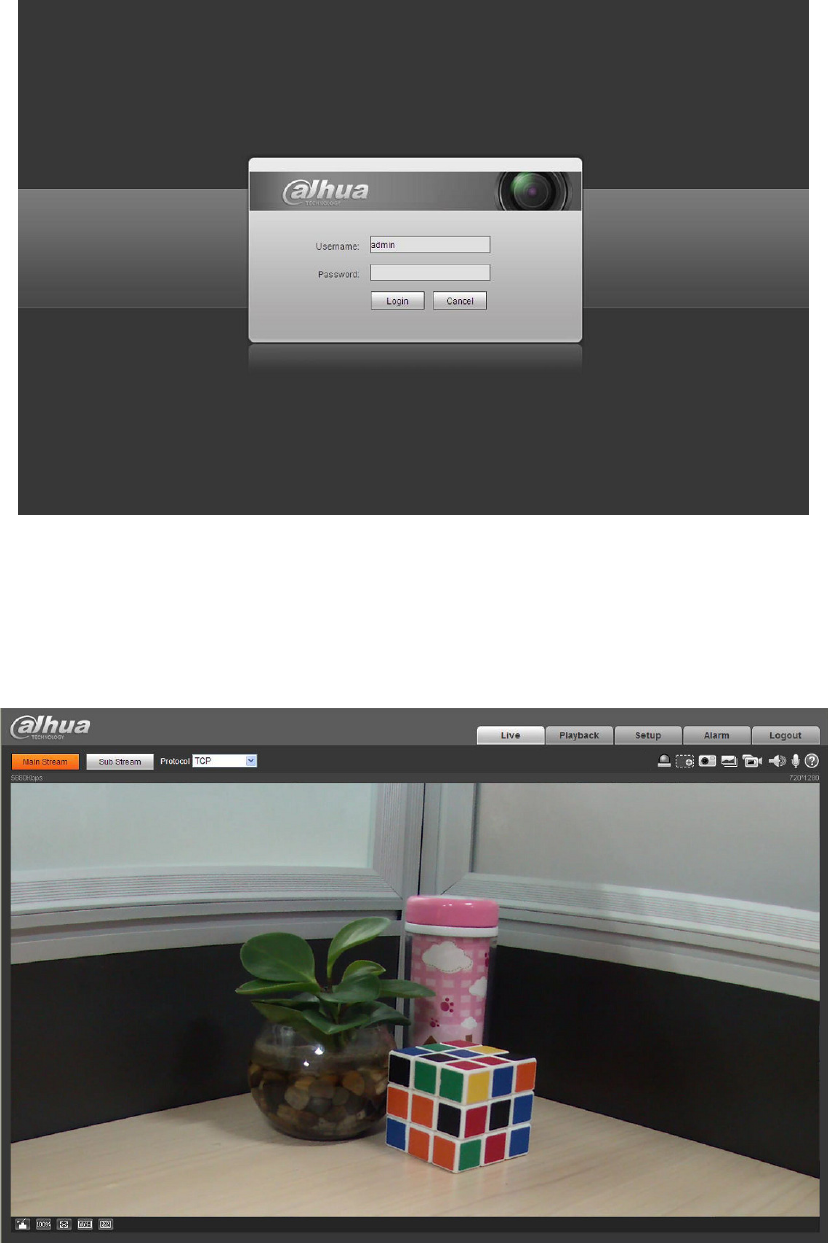

Figure 5- 2 Web login
After you successfully logged in, please install WEB plug-in unit. Please refer to the Web Operation
Manual included in the resource CD for detailed operation instruction.
See Figure 5- 3.
Figure 5- 3 Web monitoring window
![](/img.php?id=2545868&img=bg13.png)
14
6
66
6 FAQ
FAQFAQ
FAQ
Bug
I can not boot up
the device or
operate properly.
Please click RESET button for at least 10 seconds to restore factory
default setup.
I can not upgrade
the device via
network.
When network upgrade operation failed, you can use port 3800 to
continue upgrade.
I can not login the
client-end or the
WEB.
For Windows OS 98 or Windows ME user, if you can not install the
client-end or can not view after the installation. We recommend the
win2000sp4 OS or install the client-end of the low version.
The Active X control is blocked.
The display card version shall be dx8.1 or higher.
Network connection error occurred.
Invalid network setup.
Invalid user name or password.
I can not play the
download file.
There is no player.
There is no DX8.1 or higher.
For the MEDIA PLAYER, there shall be Div X503Bundle.exe plugin
if you play the .AVI file.
For Windows XP user, you need to install the plugin
DivX503Bundle.exe and ffdsho-2004 1012.exe.
To guarantee
setup update
After you modified the important setup, please reboot the device via
the software to make sure the setup has been updated to the
storage medium.
Power adapter The general power adapter can work ranging from 0 to 40 . The
device may result in unstable power supply when the temperature
exceeds the working temperature.
Please replace an industry-level power adapter if you are using in
the harsh environments.
![](/img.php?id=2545868&img=bg14.png)
15
Appendix
Appendix Appendix
Appendix Toxic or Hazardous Materials or Elements
Toxic or Hazardous Materials or ElementsToxic or Hazardous Materials or Elements
Toxic or Hazardous Materials or Elements
Toxic or Hazardous Materials or Elements
Component
Name Pb Hg Cd Cr VI PBB PBDE
Circuit Board
Component ○ ○ ○ ○ ○ ○
Device Case ○ ○ ○ ○ ○ ○
Wire and Cable ○ ○ ○ ○ ○ ○
Packing
Components ○ ○ ○ ○ ○ ○
Accessories ○ ○ ○ ○ ○ ○
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the
parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous
materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. During the
environmental-friendly use period (EFUP) period, the toxic or hazardous substance or elements
contained in products will not leak or mutate so that the use of these (substances or elements) will not
result in any severe environmental pollution, any bodily injury or damage to any assets. The consumer
is not authorized to process such kind of substances or elements, please return to the corresponding
local authorities to process according to your local government statutes.
Note
This user’s manual is for reference only. Slight difference may be found in user interface.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their respective
owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website for more information.
Zhejiang Dahua Technology CO., LTD.
Address No.1199 Bin’an Road, Binjiang District, Hangzhou, PRC.
Postcode: 310053
Tel: +86-571-87688883
Fax: +86-571-87688815
Email:overseas@dahuatech.com
Website: www.dahuatech.com
16
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
IEEE 802.11b or 802.11g or 802.11n(HT20) operation of this product in the U.S. is
firmware-limited to Channel 1 through 11. IEEE 802.11n(HT40) operation of this product
in the U.S. is firmware-limited to Channel 3 through 9.
