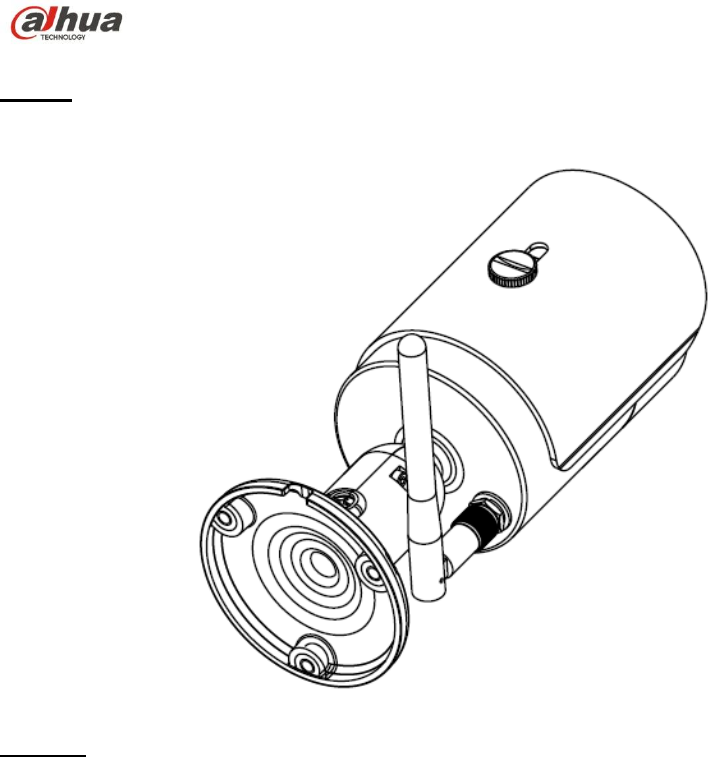

Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
Dahua HD Mini IR Waterproof Fixed Network Camera
Quick Start Guide
Version 1.0.0
Dahua Technology CO., LTD
![](/img.php?id=2606153&img=bg2.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
i
Welcome
Thank you for purchasing our Network camera!
This user’s manual is designed to be a reference tool for your system.
Please read the following safeguard and warnings carefully before you use this series product!
Please keep this user’s manual well for future reference!
Important Safeguards and Warnings
1.Electrical safety
All installation and operation here should conform to your local electrical safety codes.
Please check if the power supply is correct before operating the device.
The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC, DC5V or AC24V in the IEC60950-1. (Power supply requirement is
subject to the device label).
Please install easy-to-use device for power off before installing wiring, which is for emergent power off
when necessary.
Please prevent the line cord from being trampled or pressed, especially the plug, power socket and the
junction from the device.
Note: Do not connect these two power supplying sources to the device at the same time; it may
result in device damage!
We assume no liability or responsibility for all the fires or electrical shock caused by improper handling
or installation.
We are not liable for any problems caused by unauthorized modification or attempted repair.
2.Environment
Please don’t aim the device at strong light (such as lighting, sunlight and so on) to focus; otherwise it
may cause overexposure (It is not the device malfunction), which will affect the longevity of CCD or
CMOS.
Please transport, use and store the device within the range of allowed humidity and temperature.
Please don’t keep the device in a place which is wet, dusty, extremely hot, and extremely cold and with
strong electromagnetic radiation or unstable lighting.
Please do not allow water and other liquid falling into the camera in case that the internal components
are damaged.
Please do not allow rain or damp to the indoor device in case fire or lightning may occur.
Please keep the sound ventilation in case of heat accumulation.
Please pack the device with standard factory packaging or material with same quality when transporting
the device.
Heavy stress, violent vibration or water splash are not allowed during transportation, storage and
installation.
3. Operation and Daily Maintenance
![](/img.php?id=2606153&img=bg3.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
ii
Please do not touch the heat dissipation component of the device directly in order to avoid scald.
Please do not dismantle the device; there is no component which can be fixed by users themselves in
the machine. It may cause water leakage or bad image for the device due to unprofessional dismantling.
It is recommended to use the device with thunder proof device in order to improve thunder proof effect.
The grounding holes of the product are recommended to be grounded to further enhance the reliability
of the camera.
Do not touch the CCD (CMOS) optic component directly. You can use the blower to clean the dust or
dirt on the lens surface. Please use a dry cloth wetted by alcohol to wipe away the dust gently if it is
necessary to clean.
Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to
dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the
device. Don’t use volatile solvent like alcohol, benzene, thinner and etc or strong detergent with
abrasiveness, otherwise it will damage the surface coating or reduce the working performance of the
device.
Dome cover is an optical device, please don’t touch or wipe cover surface directly during installation
and use, please refer to the following methods to deal with once dirt is found:
Stained with dirt
Use oil-free soft brush or hair dries to remove it gently.
Stained with grease or fingerprint
Use soft cloth to wipe the water drop or oil gently to make it dry, then use oil-free cotton cloth or paper
soaked with alcohol or detergent to wipe from the lens center to outward. It is ok to change the cloth
and wipe several times if it is not clean enough.
Warning
Please use the standard accessories provided by manufacturer and make sure the device is installed
and fixed by professional engineers.
Please prevent the device surface from the radiation of laser beam when using laser beam device.
Please do not provide two or more power supply modes for the device, otherwise it may cause damage
to the device.
Statement
Please refer to the actual product for more details; the manual is just for reference.
The manual will be regularly upgraded according to the product update; the upgraded content will be
added in the manual without prior announcement.
Please contact the supplier or customer service if there is any problem occurred when using the device.
Please contact the customer service for the latest procedure and supplementary documentation.
There may be deviation between the actual value of some data and the value provided in the manual
due to the reasons such as the real environment is not stable and so on. Please refer to the company’s
final explanation if there is any doubt or dispute.
The company is not liable for any loss caused by the operation which is not followed by the manual.
![](/img.php?id=2606153&img=bg4.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
iii
Note:
Please refer to the disk for more details, check and download corresponding user’s manual and tool.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
Accessory Name
Amount
Network Camera Unit
1
Quick Start Guide
1
Installation Accessories Bag
1
CD
1
![](/img.php?id=2606153&img=bg5.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
iv
Table of Contents
1 Framework ................................................................................................................................... 1
1.1 Device External Cable ................................................................................................. 1
1.2 Framework and Dimension ......................................................................................... 2
2 Device Installation ...................................................................................................................... 4
3 Network Configuration ............................................................................................................... 7
3.1 Modify IP Address ........................................................................................................ 7
3.2 Login WEB Interface .................................................................................................... 9
![](/img.php?id=2606153&img=bg6.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
1
1 Framework

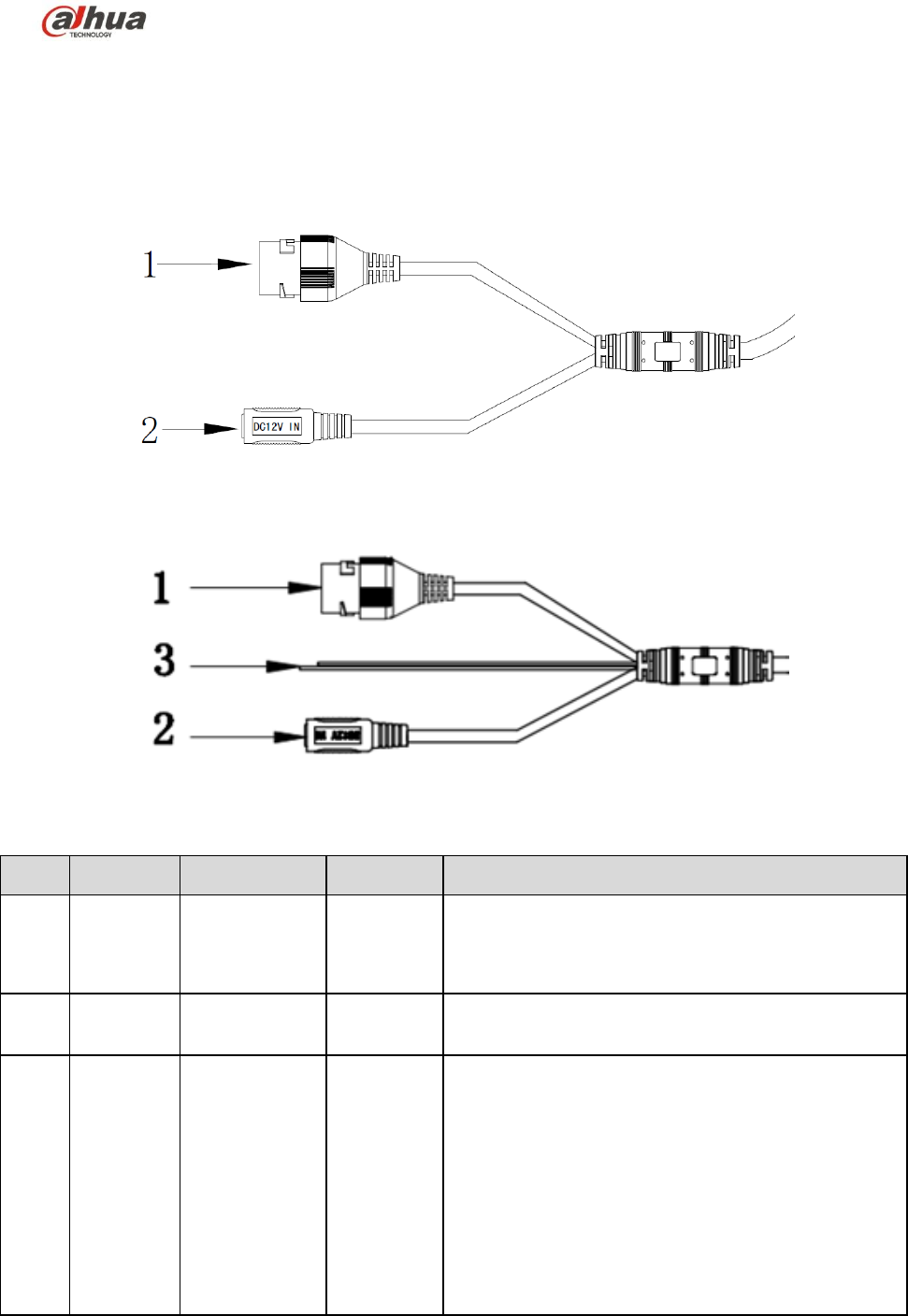

1.1 Device External Cable
You can refer to the following figure for cable information. See Figure 1-1.
Figure 1-1 Cable
Figure 1-2 Cable
Please refer to the following sheet for detailed information.
SN
Port
Port name
Connector
Function description
1
LAN
Network port
Ethernet
port
Connect to standard Ethernet cable.
Note:
Some devices do not support PoE power supply.
2
DC 12V
Power input
port
-
Power port. Input DC 12V.
3
Reset
WPS/Reset
port
/
WPS/Hardware reset wire
Press the WPS button of router, keep the Reset
wire short circuit for 1-2 seconds, generally the
device can be connected to corresponding router
within 1 minute.
Keep the Reset wire short circuit for more than 5
seconds when the device is under normal working
condition, then the system configuration
information can be restored to default setting.
(Supported by WIFI devices)
![](/img.php?id=2606153&img=bg7.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
2

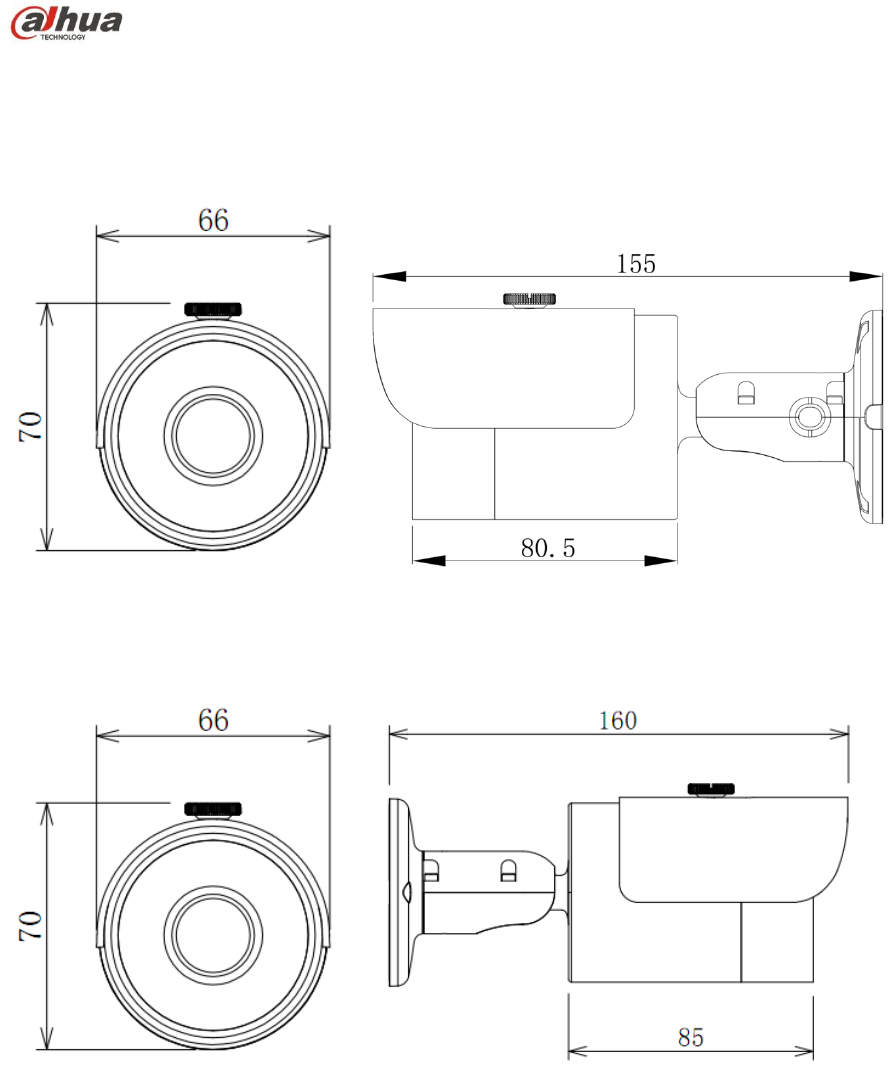

1.2 Framework and Dimension
The following figures are for reference only, which are used to know the device dimension,
please refer to the following figures according to the actual device.
Figure 1-3
Figure 1-4
![](/img.php?id=2606153&img=bg8.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
3

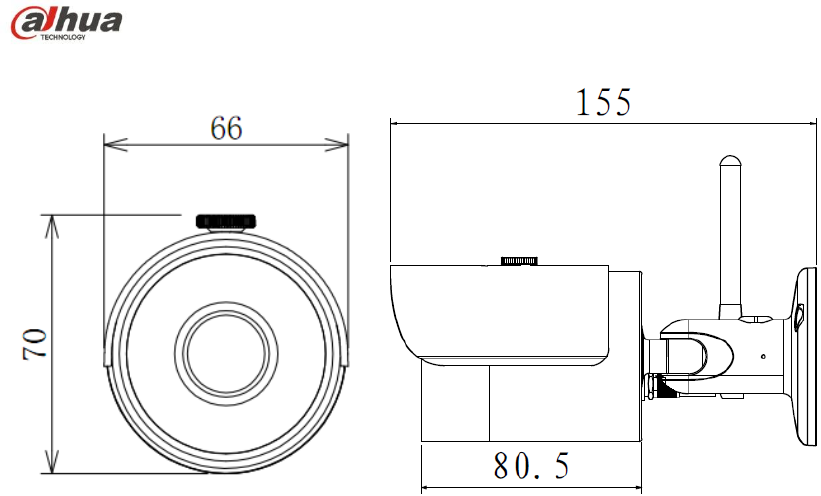

Figure 1-5
![](/img.php?id=2606153&img=bg9.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
4
2 Device Installation
Important
Please make sure the installation surface can min support the 3X weight of the camera
and the bracket.

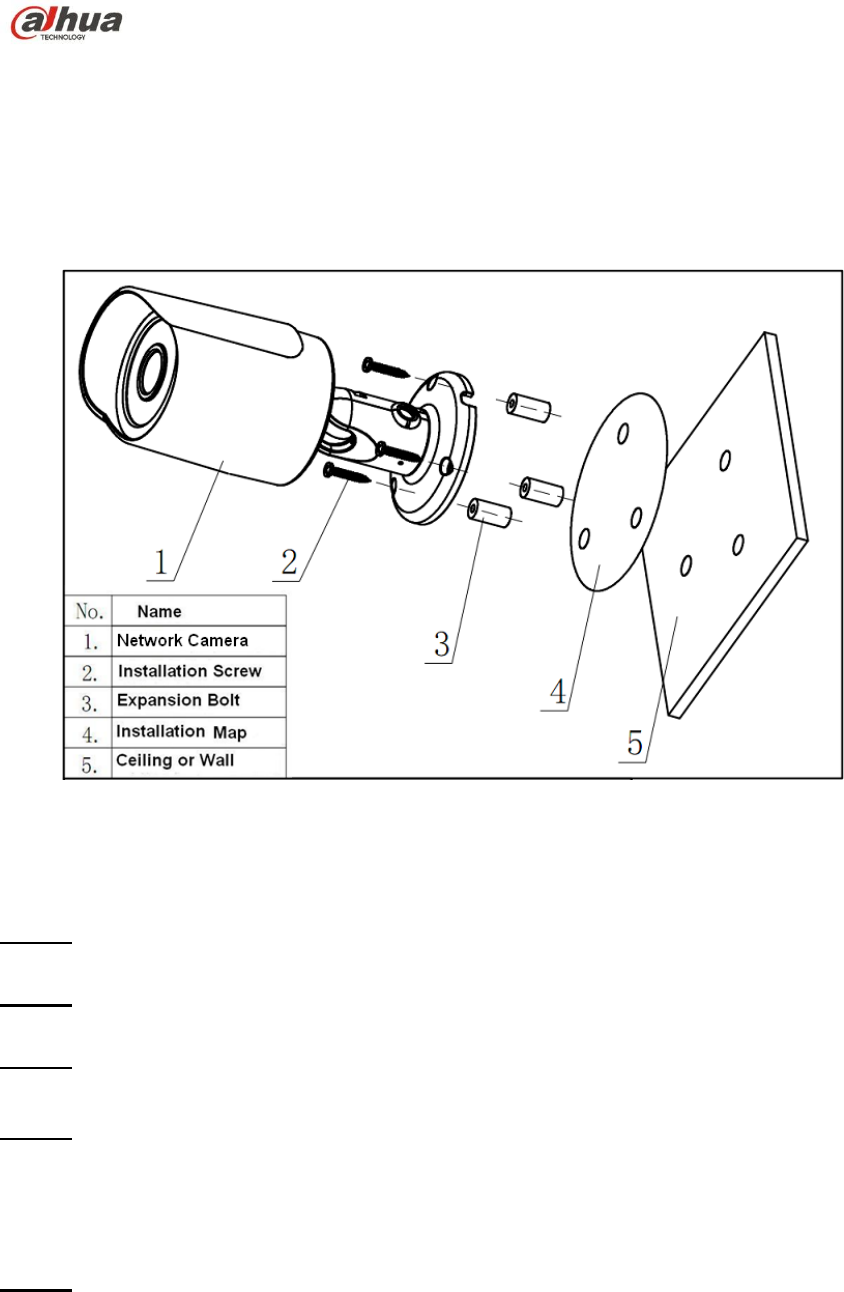

Figure 2-1 Device installation 1
Please see Figure 2-1 and Figure 2-2.
Step 1
Stick installation map to designated surface where you will install the device (wall or ceiling).
Step 2
Dig a hole according to position of hole on installation map.
Step 3
Open accessories bag, take out expansion bolt and insert it into the hole you just dug.
Step 4
Open accessories bag, take out screws. Tighten the 4 screws to fix the device on the installation
surface (wall or ceiling). You can move device sunshade back and forth. When you have fixed
the device, you must tighten screws on sunshade.
Step 5
Plug external wiring of the device properly.
![](/img.php?id=2606153&img=bga.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
5

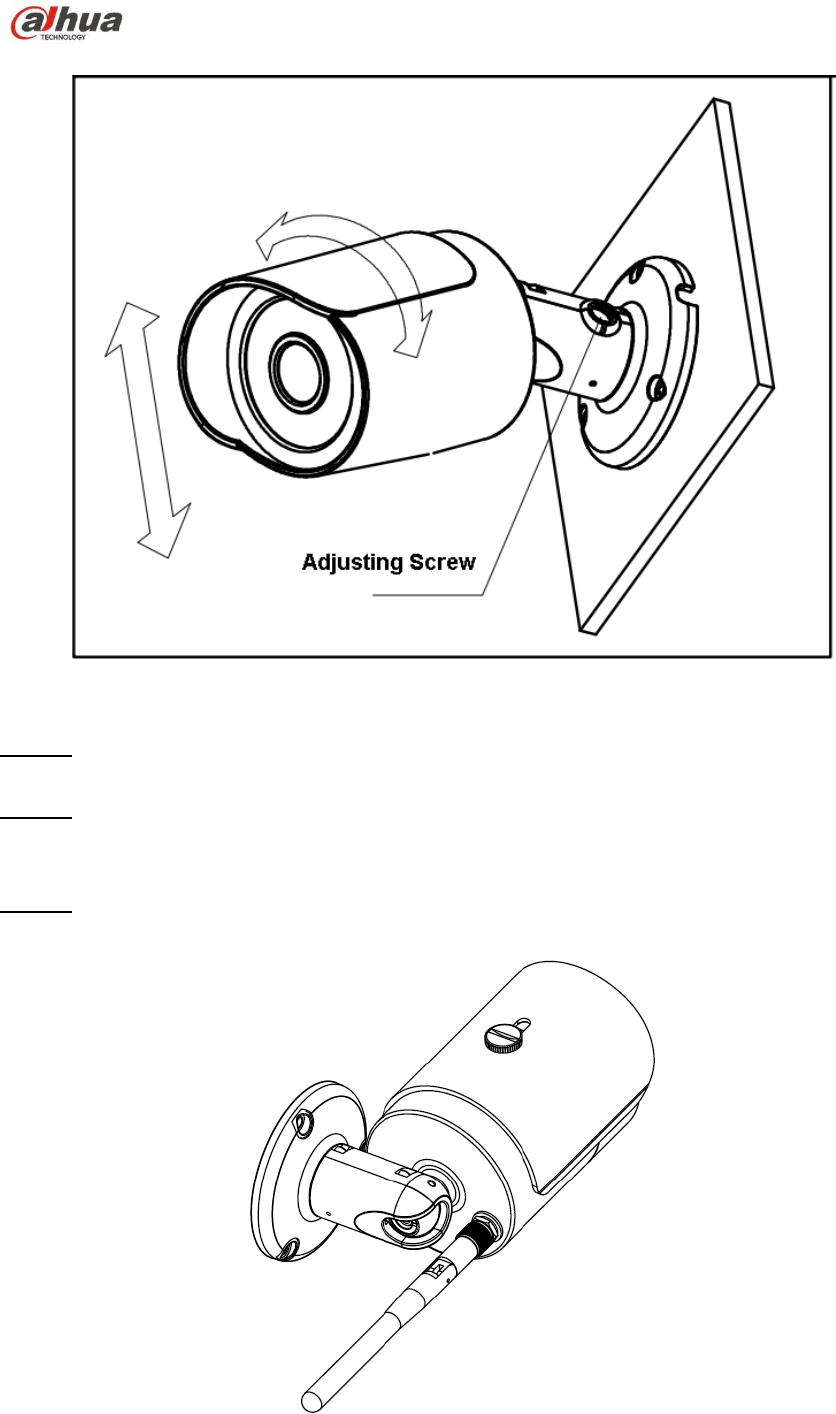

Figure 2-2 Device installation 2
Step 6
Use cross head screw-driver (in accessories bag) to loosen adjusting screw.
Step 7
Adjust the device in all possible directions, and set its monitoring direction according to the
requirements.
Step 8
Use cross head screw-driver to tighten the adjusting screws.
Figure 2-3
![](/img.php?id=2606153&img=bgb.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
6
Step 9
First rotate the bracket to one side, and then aim the end of thread of WIFI antenna in the
accessories bag at the copper nut on the bottom of the back cylinder.
Figure 2-4
Step 10
Then bend the antenna in the way shown in Figure 2-4, move the bracket back to the original
location.
Note: Step 9 and step 10 are applied to WIFI device.
![](/img.php?id=2606153&img=bgc.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
7
3 Network Configuration
The IP address of all the cameras is the same when leaving factory (default IP192.168.1.108), in
order to make the camera get access to the network smoothly, please plan the useable IP
segment reasonably according to the actual network environment.
3.1 Modify IP Address
IP address can be acquired and modified through quick configuration tool for the cameras which
are accessed via wired network, it needs to connect wired network to configure wireless
parameters before using wireless network cameras. In this chapter, it will introduce the approach
of modifying IP address via “Quick Configuration Tool”; also you can modify the IP address in the
network parameters of the WEB interface, please refer to the document in the disk << WEB
Operation Manual>> for more details.
Note:
Currently the quick configuration tool only supports the cameras which apply to the same
network segment with computer IP address.
Step 1 Double click the “ConfigTools.exe” and open the quick configuration tool.
Step 2 Double click the device to be configured, the system will pop out the “Login” dialog box.
Enter the IP address, user name, password and port number of the camera, and click
“Confirm”.
Note:
The default user name and password are admin and admin respectively, the default of port is
37777. See Figure 3-1 for more details.
![](/img.php?id=2606153&img=bgd.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
8

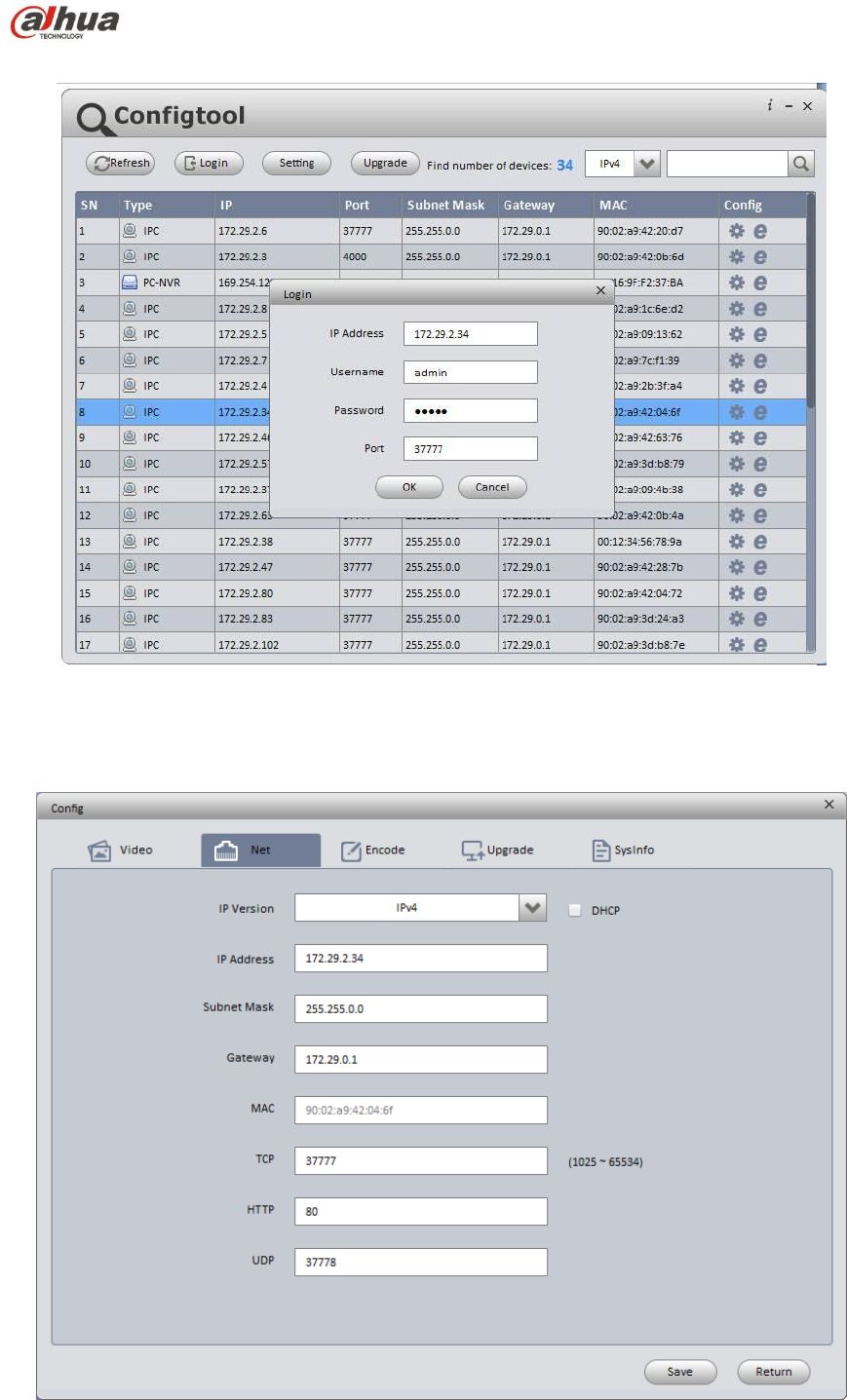

Figure 3-1
Step 3 Modify the camera IP address on the “Net” interface, click “Save” to finish modification.
See Figure 3-2 for more details.
Figure 3-2
![](/img.php?id=2606153&img=bge.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
9
3.2 Login WEB Interface
Note:
Different devices may have different WEB interfaces, the figures below are just for reference,
please refer to the document <<WEB Operation Manual>> in the disk and the actual interface for
more details
Step 1 Open IE and input the modified camera IP address in the address bar.
Step 2 The login interface is shown below, please input your user name and password (Default
user name is admin and password is admin respectively), click “login”.
See Figure 3-3 for more details.

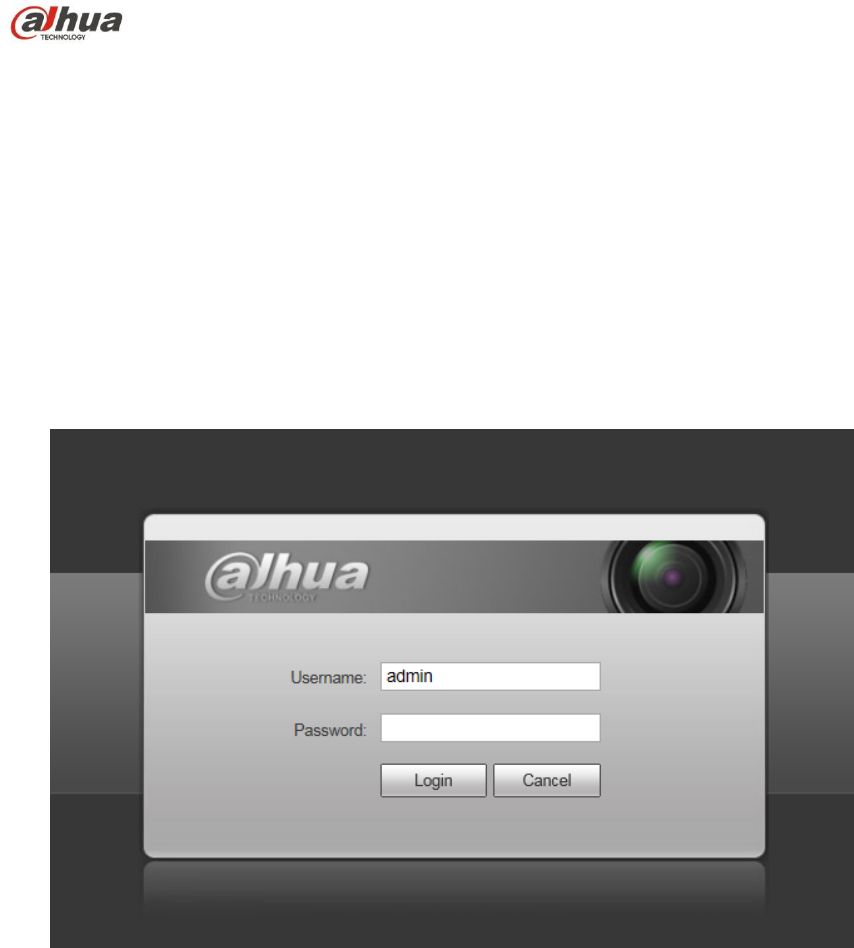

Figure 3-3
Step 3 Install controls according to the system prompt; see Figure 3-4 for the WEB main
interface. Please modify the administrator password as soon as possible after you successfully
logged in.
![](/img.php?id=2606153&img=bgf.png)
Dahua HD Mini IR Waterproof Fixed Network Camera Quick Start Guide
10

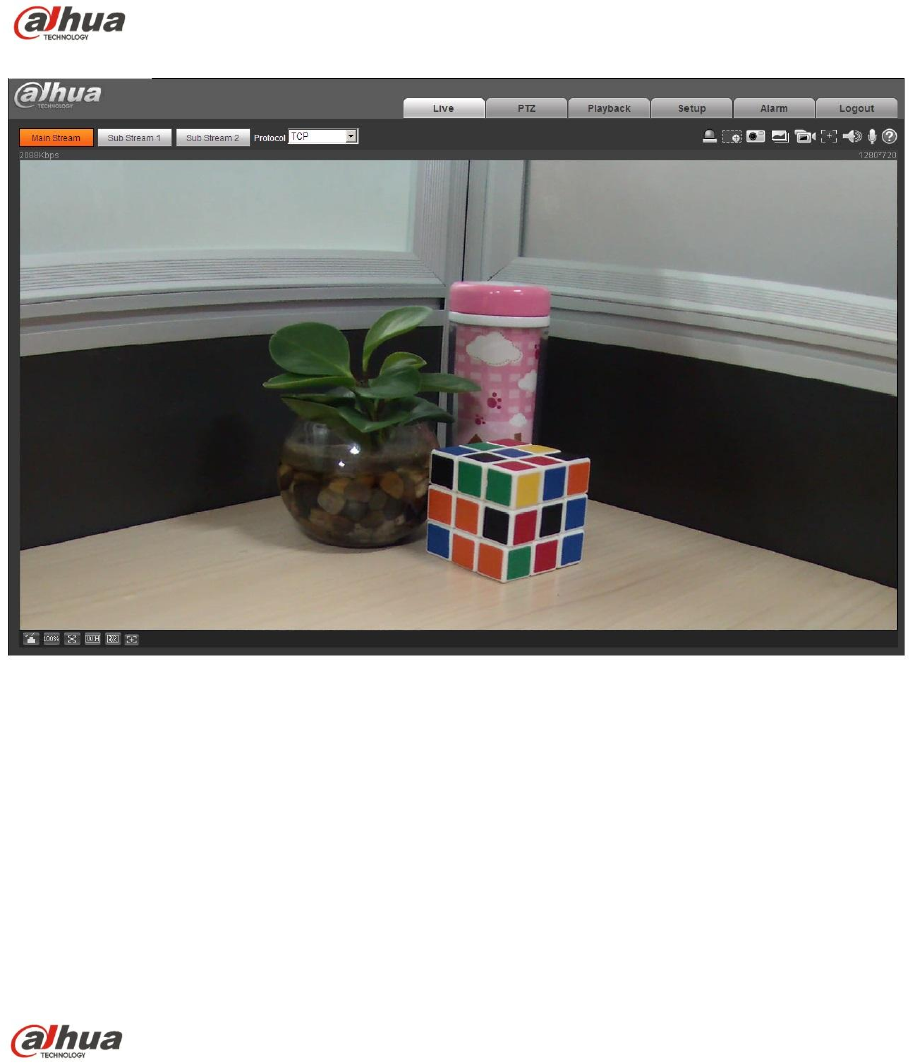

Figure 3-4
Note:
This quick start guide is for reference only. Slight difference may be found in user
interface.
All the designs and software here are subject to change without prior written notice.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website or contact your local service engineer for more information.
Dahua Technology Co., Ltd
Address:No.1199 Bin’an Road, Binjiang District, Hangzhou, PRC.
Postcode: 310053
Tel: +86-571-87688883
Fax: +86-571-87688815
Email:overseas@dahuatech.com
Website: www.dahuatech.com
FCC Compliance Statement
2. The users manual or instruction manual for an intentional or unintentional radiator
shall caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment. In
cases where the manual is provided only in a form other than paper, such as on a
computer disk or over the Internet, the information required by this section may be
included in the manual in that alternative form, provided the user can reasonably be
expected to have the capability to access information in that form.
4. RF exposure warning
This equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
3. (b) For a Class B digital device or peripheral, the instructions furnished the user shall
include the following or similar statement, placed in a prominent location in the text of the
manual:
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
