Zhejiang Hanshow Technology M3N Electronic shelf label with NFC & 2.4G function User Manual

Zhejiang Hanshow Technology Co., Ltd. Electronic shelf label with NFC & 2.4G function

user manual

Zhejiang Hanshow Technology Co., Ltd.
Website: www.hanshows.com
1
User Manual
Electronic shelf label
Stellar-M3N@
FCC ID:2AHB5-M3N
General Description
Hanshow Electronic Shelf Labels are custom made for all kinds of retailers such as malls,
hypermarkets, 3C stores, convenience stores and pharmacies. It is different from the
traditional paper price labels;ESL can be remotely controlled and updated anytime and
anywhere via RF technology. TheESL system also synchronizes retailers existing database,
which ensures the consistency between labels and counters. This is the key to successful O2O
(Online to Offline) business.
Hanshow Brings You
Direct & AccurateSalesInformation
Smart Pricing Management
Simple Pricing Update Process
Convenience Stores
Supermarkets
3C Stores
Pharmacies
Malls
Hypermarkets
G-MALL
Zhejiang Hanshow Technology Co., Ltd.
Website: www.hanshows.com
2

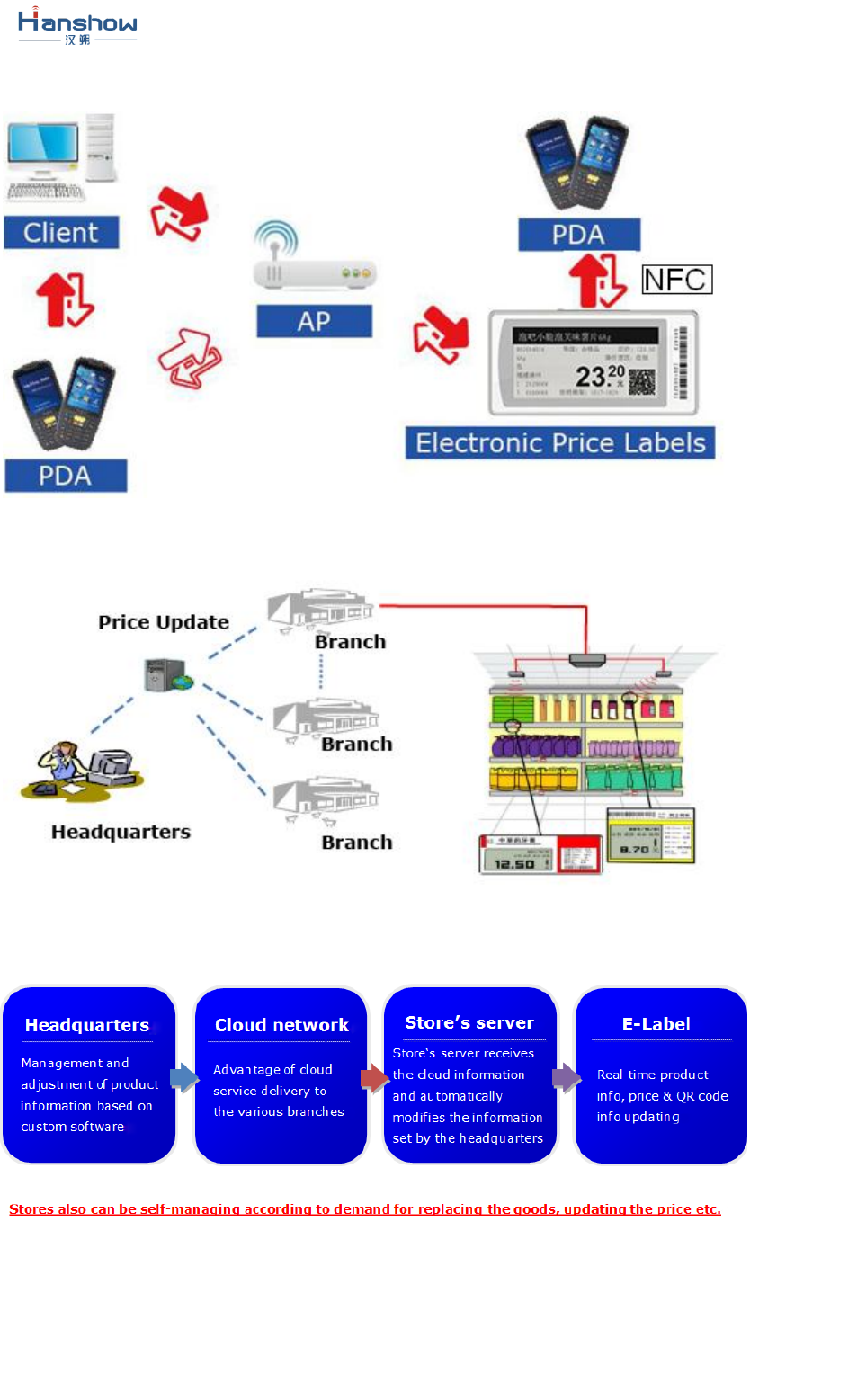

System Map
Pricing Management Process
Zhejiang Hanshow Technology Co., Ltd.
Website: www.hanshows.com
3

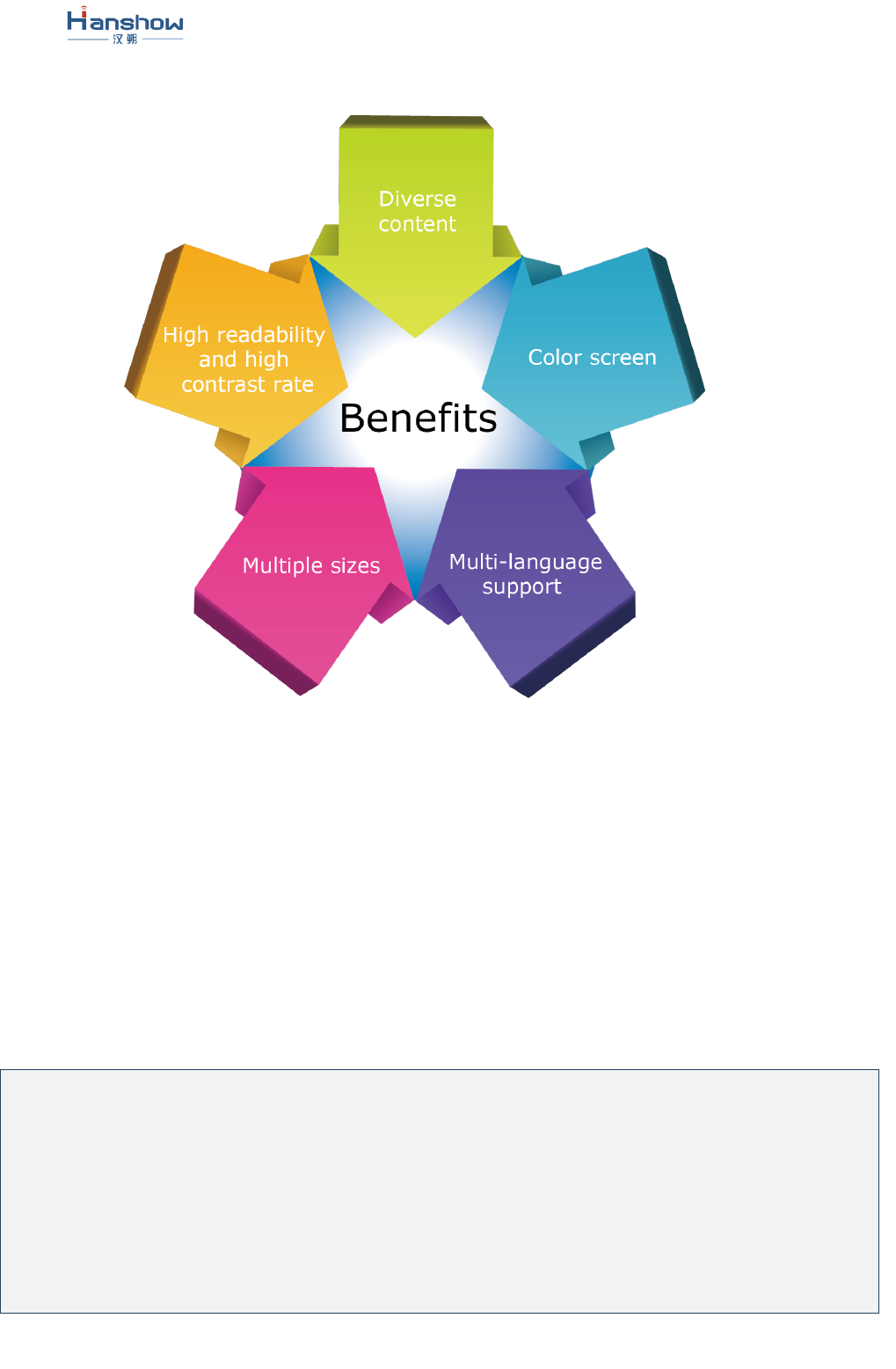

Benefits
1. Dot-matrix e-paper screen - high readability and high contrast rate.
2. Diverse content text, digits, pictures, barcode and RQ code.
3. Color screen.
4. Multiple sizes.
5. Supports multiple languages. Currently it supports Chinese and English, other languages
can be custom made.
6. Real time price update. 10,000 updates per hour, 99.99% successful.
7. 360 degree signal transmission. Anti-interference.
8. Simple installation with antitheft function.
9. Simple installation with NFC function.
10. Product life span is 5 years.
Zhejiang Hanshow Technology Co., Ltd.
Website: www.hanshows.com
4
Technical Parameters
Model
Stellar-M3N@
Battery
2*CR2450
Dimension (H*W*T mm)
70*35*13.2
Replaceable Battery
Yes
Display (H*W mm)
57*23.7
Battery Life
5 years
Weight
36g
Low Power Warning
Yes
RF Parameters
Data Rate
500Kbps Max
Modulation
GFSK(2.4G), ASK(NFC)
Quantity of Channels
157(2.4G), 1(NFC)
Channel Separation
500KHz(2.4G)
Display Parameters
Display
E-Paper
/
Dot-Matrix
Screen Size (H*W mm)
57*23.7
Color Screen
Customized
Multiple Pages
Customized
Sales Sign
Yes
Other Specification
Antitheft Installation
Holder
Yes
Transmission
2.4G Wireless,
NFC
Antitheft Technology
Custom
Updating Speed
10,000 Messages
Per Hour
Two-way Communication
Yes
Update Stability
Error Rate is less
than 0.0000001
Environment
Storage Temperature
0-30 degree
Operating
Temperature
0-30 degree
Zhejiang Hanshow Technology Co., Ltd.
Website: www.hanshows.com
5
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept anyinterference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
