Zhejiang Hanshow Technology STELLARS Electronic shelf label User Manual
Zhejiang Hanshow Technology Co., Ltd. Electronic shelf label
User Manual
Zhejiang Hanshow Technology Co., Ltd.
User Manual
Electronic shelf label
Stellar S
General Description
Hanshow Electronic Shelf Labels are custom made for all kinds of retailers such as malls,
hypermarkets, 3C stores, convenience stores and pharmacies. It is different from the
traditional paper price labels; ESL can be remotely controlled and updated anytime and
anywhere via RF technology. The ESL system also synchronizes retailers’ existing database,
which ensures the consistency between labels and counters. This is the key to successful O2O
(Online to Offline) business.
Hanshow Brings You
Direct & Accurate“Sales”Information
Smart “Pricing Management”
Simple “Pricing Update” Process
Convenience Stores
Supermarkets
3C Stores
Pharmacies
Malls
Hypermarkets
Website: www.hanshows.com 1
Zhejiang Hanshow Technology Co., Ltd.

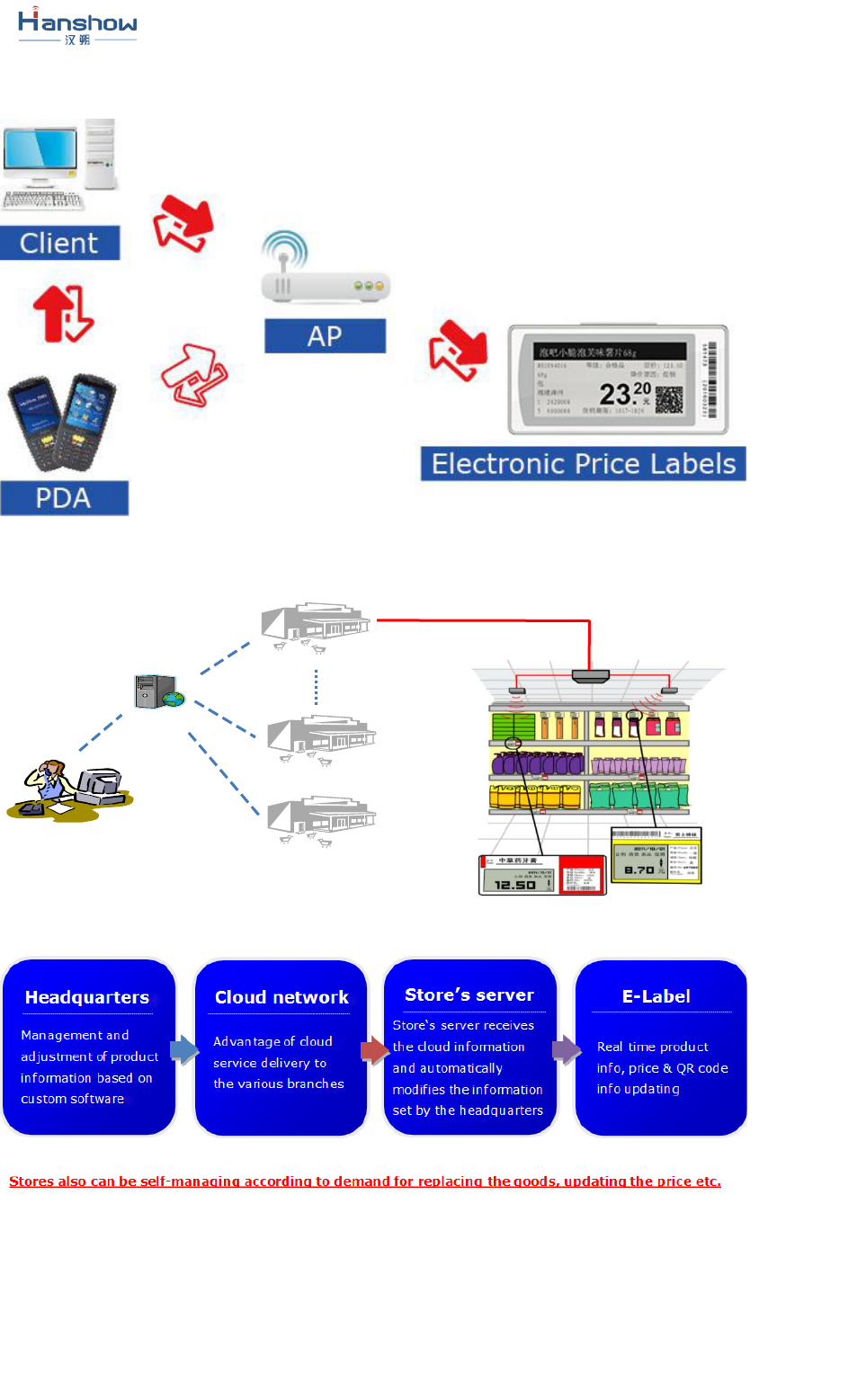

System Map
Pricing Management Process
Branch
Headquarters
Price Update
Branch
Branch
Website: www.hanshows.com 2
Zhejiang Hanshow Technology Co., Ltd.
Benefits
1. Dot-matrix e-paper screen - high readability and high contrast rate.
2. Diverse content – text, digits, pictures, barcode and RQ code.
3. Color screen.
4. Multiple sizes.
5. Supports multiple languages. Currently it supports Chinese and English, other languages
can be custom made.
6. Real time price update. 10,000 updates per hour, 99.99% successful.
7. 360 degree signal transmission. Anti-interference.
8. Simple installation with antitheft function.
9. Product life span is 5 years.
Fastprice update enables more frequent promotion activities
, which increases
retailers’ profit margin.
Pricing history in database is fundamental for data analysis, which provides
references for future pricing strategies.
Smarter pricing planning and shelf management.
Big label delivers strong messages to consumers.
Save labor and operation costs.
Website: www.hanshows.com 3
Zhejiang Hanshow Technology Co., Ltd.
Stellar -S\S3
Technical Parameters
Model Stellar -S\S3 Battery 1*CR2450
Dimension (H*W*T mm) 48*35*12.8 Replaceable Battery Yes
Display (H*W mm) 27.6*27.6 Battery Life 5 years
Weight 22g Low Power Warning Yes
RF Parameters
Data Rate 500Kbps
Modulation GFSK
Quantity of Channels 79
Channel Separation 1MHz
Display Parameters
Display E-Paper / Dot-Matrix
Screen Size (H*W mm) 27.6*27.6 Color Screen Customized
Multiple Pages Customized “Sales” Sign Yes
Other Specification
Antitheft Installation
Holder
Yes Transmission 2.4G Wireless
Antitheft Technology Custom Updating Speed 10,000 Messages
Per Hour
Two-way Communication Yes Update Stability
Error Rate is less
than 0.0000001
Environment
Storage Temperature 0-40 degree Operating
Temperature
0-40 degree
Website: www.hanshows.com 4
Zhejiang Hanshow Technology Co., Ltd.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment。
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC ID: 2AHB5-STELLARS
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Website: www.hanshows.com 5
