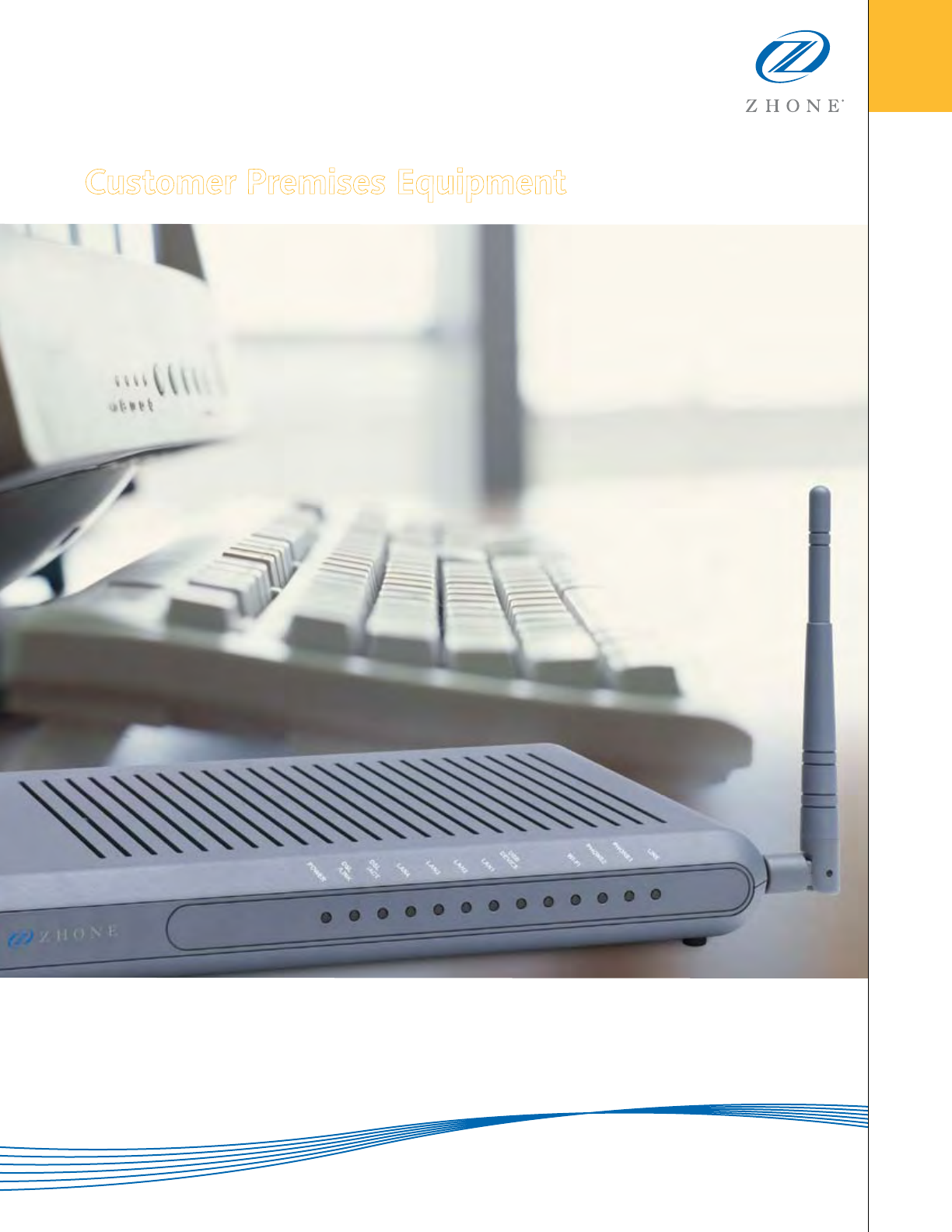

Customer Premises Equipment Product Guide
Quality choices to meet every service need
Access for a Converging World
ZHONE TECHNOLOGIES CPE PRODUCTS GUIDE
2/3
Broadband CPE, designed for every service need. As an essential part of oering
the highest performance, most comprehensive access solutions in the industry today,
Zhone provides a broad family of residential and business broadband Customer
Premises Equipment (CPE) products to complement its multi-service access platform
capabilities.
With more than 15 years of experience and a proven track record in CPE through
our acquisition of Paradyne Networks in 2005, Zhone carries forward the tradition
of excellence in delivering quality, features, choices and value.

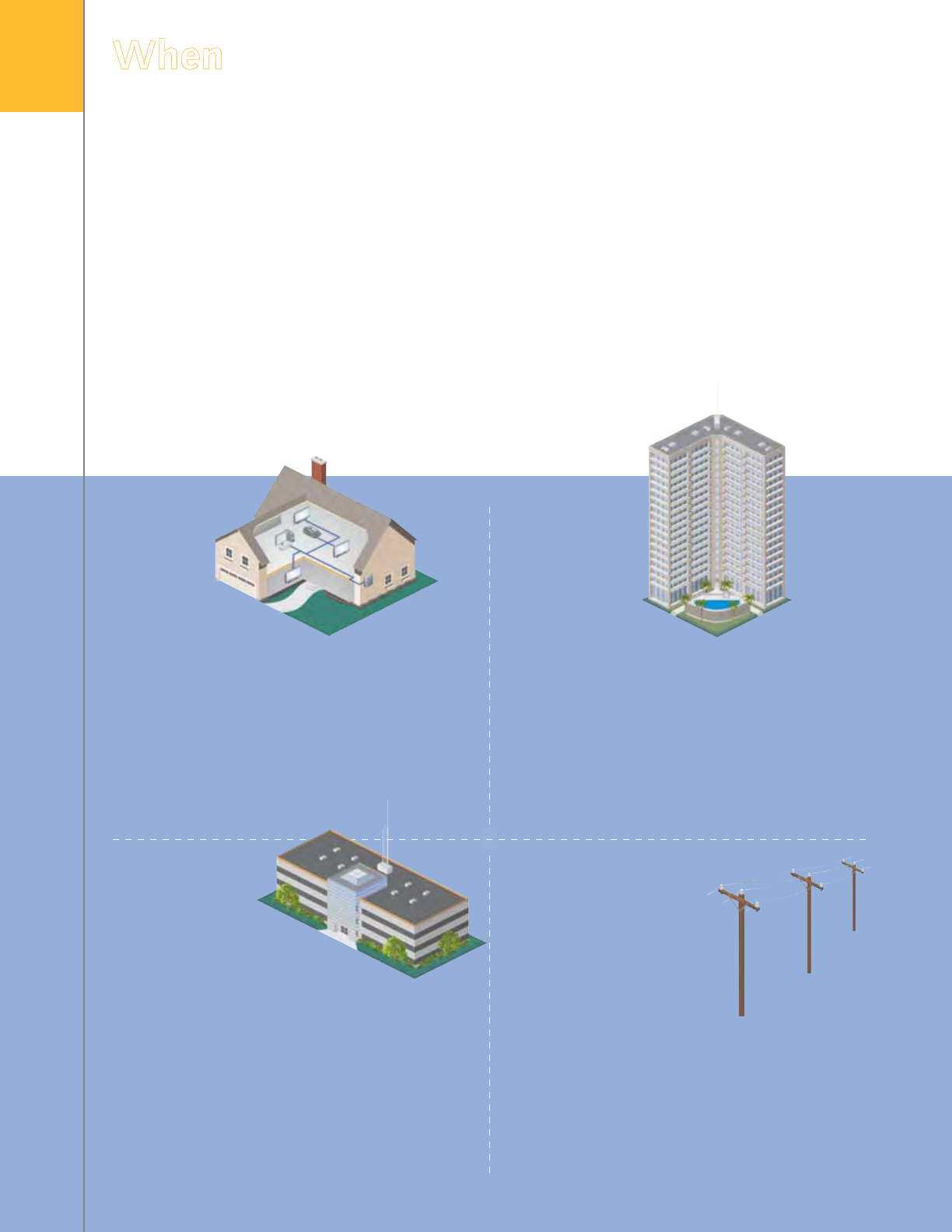

When Experience Counts
Business Services
Zhone provides G.SHDSL business routers
along with 5.7 Mbps SHDSL.bis modems
to service business needs for high-band-
width symmetrical SME and SMB data
services.
Hospitality
Zhone’s family of ADSL2+ and ADSL2+
WiFi Modems are ideal for in-room and
‘hot spot’ areas. Zhone offers complete
hospitality packages, including lters and
secure mounting brackets specically for
the hospitality market.
Rural and Outer
Suburban Broadband
With Zhone’s reach DSL
broadband data services can be extended
40,000 ft/12 Km or more from the Central
Ofce. Combined with Zhone’s ReachDSL
line cards for MALC and DSLAM’s, service
providers have a solution for the hard-to-
serve rural and outer suburban customers.
Triple Play
Zhone multi-port and WiFi ADSL2+ and
VDSL2 Modems are triple play proven for
IPTV enabled services. New ADSL2+ Triple
Play IAD and bonding models offer a wide
array of options and features.
PAGE HEADNG _ SEC TION _ 3
ACCESS FOR A CONVERGING WORLD

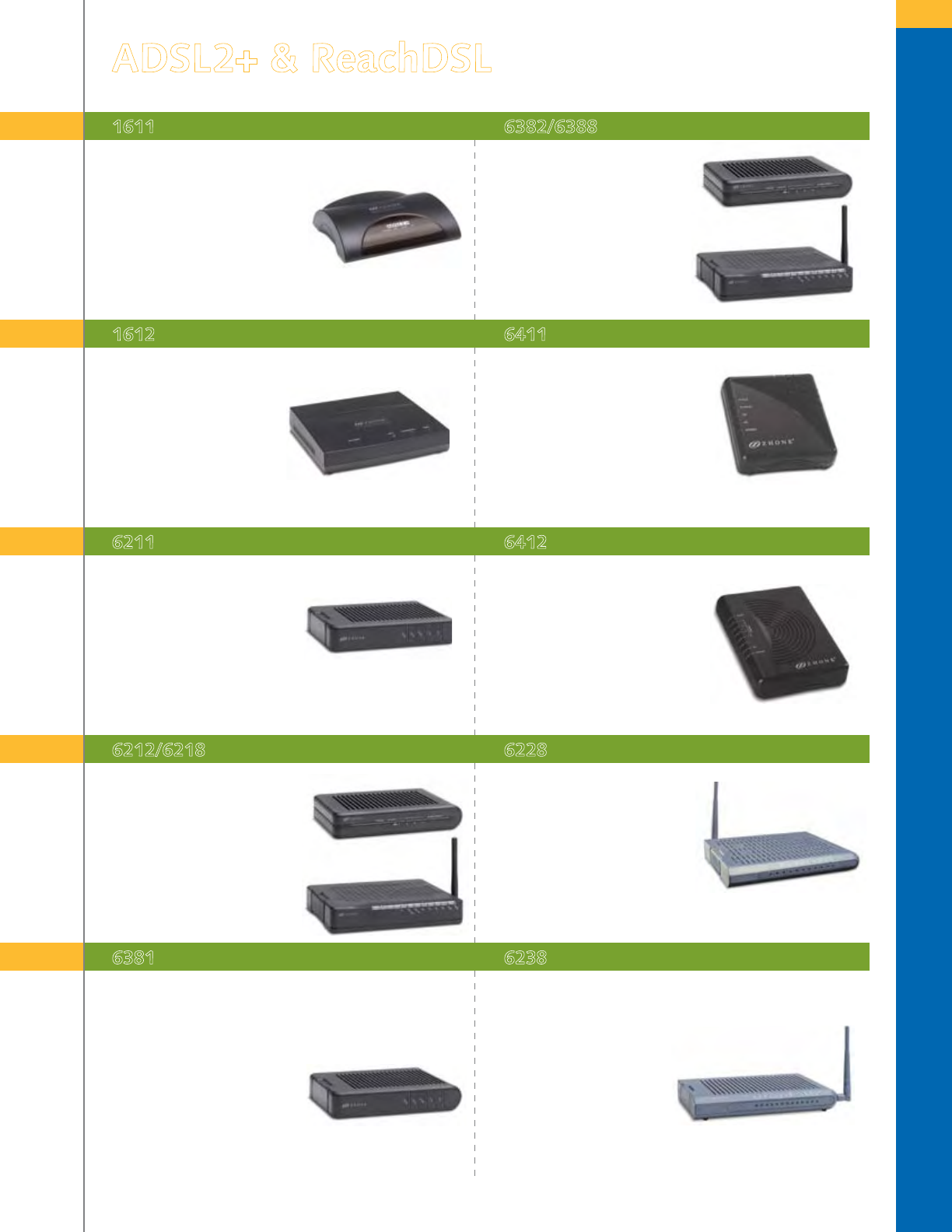

ADSL 2+ & RE ACHDSL CPE PRODUC TS
n
4 Ethernet ports
n
Embedded web UI
n
Bridge or router
n
IGMP support
n
Integrated telephone filter
n
802.11 b/g wireless
n
Single USB port
n
Embedded web UI
n
IGMP support
n
4 Ethernet ports
n
2 FXS & 1 FXO ports (voice)
n
SIP voice gateway
n
Lifeline support
n
Bridge or router
n
Integrated telephone filter
n
802.11 b/g wireless
1611 ADSL2+ 1-port Broadcom chipset 6382/6388 ReachDSL TI chipset
n
4 Ethernet ports
n
Embedded web UI
n
Bridge or router
n
DHCP server/relay
n
Auto-connect feature
n
Firewall
n
Single Ethernet port
n
Embedded web UI
n
IGMP support
n
Single USB port
n
Bridge or router
n
NAT
n
Integrated telephone filter
n
Single Ethernet port
n
Embedded web UI
n
USB single port
n
Bridge or router
n
DHCP server/relay
n
Integrated telephone filter
n
Firewall
n
4 Ethernet ports
n
Embedded web UI
n
Bridge or router
n
IGMP support
n
NAT
n
Integrated telephone filter
n
802.11 b/g wireless (6218)
6211 ADSL2+ 1-port Broadcom chipset 6412 ADSL2+ 4-port Conexant chipset
n
4 Ethernet ports
n
Embedded web UI
n
Bridge or router
n
IGMP support
n
802.11 b/g wireless (6218)
6212/6218 ADSL2+ Broadcom chipset 6228 ADSL2+ bonded Broadcom chipset
n
Single Ethernet port
n
Embedded web UI
n
Single USB port
n
Bridge or router
n
Integrated telephone filter
n
DELT testing
n
Auto-detect performance
n
802.11 b/g wireless (6388)
6381 ReachDSL TI chipset 6238 ADSL2+ WiFi IAD Broadcom chipset
ADSL2+ & ReachDSL CPE Products
n
Single Ethernet port
n
Embedded web UI
n
Bridge or router
n
DHCP server/relay
n
Auto-connect feature
n
PPPoE/PPPoA redirect
n
4 Ethernet ports
n
Embedded web UI
n
Bridge or router
n
Integrated telephone filter
n
DELT testing
n
Auto-detect performance
n
802.11 b/g wireless (6388)
1612 ADSL2+ 4-port Broadcom chipset 6411 ADSL2+ 1-port Conexant chipset
ZHONE TECHNOLOGIES CPE PRODUCTS GUIDE

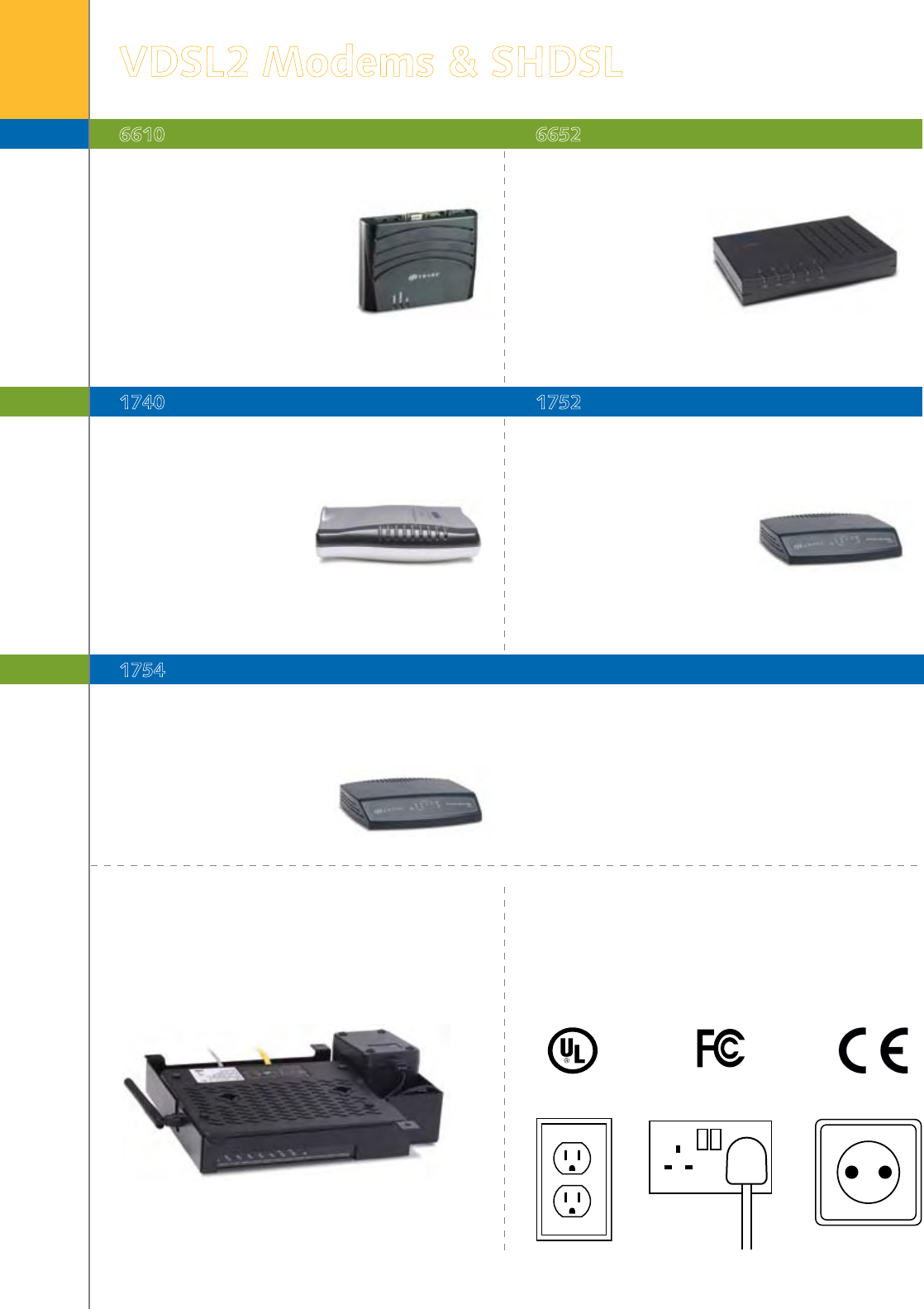

VDSL2 Modems & SHDSL Business Routers
n
G.993.2 VDSL2 standard
n
Embedded web UI
n
Speeds up to 100 Mbps
n
Bridged mode only
n
Single Ethernet port
n
G.993.2 VDSL2 standard
n
Speeds up to 100 Mbps
n
PPP over ATM/Ethernet
n
Console port
n
Bridged mode only
n
Integrated telephone filter
6610 VDSL2 1-port Conexant chipset 6652 VDSL2 4-port Ikanos chipset
n 4 Ethernet ports
n Embedded web UI
n 2/4 pair G.SHDSL (G.991.2)
n Bonded 2/4 pair
n SHDSL VPN
n PPPoE support
n DHCP/NAT
n Firewall Bridge/router
n 4 Ethernet ports
n Embedded web UI
n 5.7 Mbps SHDSL.bis
n G.991.2.2-2003 extended rate
n Bonds 2 pairs
n Bridge or router
n Bookend or DSLAM-CPE
1740 SHDSL Business 1752 SHDSL.bis 2 pair
1754 SHDSL.bis 4 pair
Zhone hospitality security
bracket for modems
Mounts under desk or on headboard to prevent
theft. Provides security for both modem and
power supply.
Designed for use around the world
Zhone’s broadband CPE products meet safety and
regulatory certifications around the world. Most
models are available with power supply order options
for use in countries worldwide.
n 4 Ethernet ports
n Embedded web UI
n 5.7 Mbps SHDSL.bis
n G.991.2.2-2003 extended rate
n Bonds 4 pairs
n Bridge or router
n Back-to-back or DSLAM-CPE
4/5
PAGE HEADNG _ SEC TION _ 3
ACCESS FOR A CONVERGING WORLD
Branding Options
Zhone oers full customization options for our CPE
products, giving service providers the opportunity to
deliver a branded, pre-configured product to their
subscribers right out of the box.
Customization options include:
n Private labeling on the CPE and shipping box
n Custom factory default configuration
n Bundled external filters and cabling
n Custom user documentation and installation CDs
CPE Quick Reference Guide
Model DSL Tech. Chip Annex
Ethernet
ports USB ports
Phone
lter Tr-069 IGMP DELT
Bridge/
Router
NAT/
DHCP WiFi
1611 ADSL+ Broadcom A, L, M 1 0 •Bridging
Routing •
1612 ADSL2+ Broadcom A, L, M 4 0 •Bridging
Routing •
6211 ADSL2+ Broadcom A, B, L, M 1 1 • • • • Bridging
Routing •
6212 ADSL2+ Broadcom A, L, M 4 0 •••Bridging
Routing •
6218 ADSL2+ Broadcom A, L, M 4 0 •••Bridging
Routing •802.11
b/g
6381 Reach/
ADSL2+ TI A 1 1 • • Bridging
Routing •
6382 Reach/
ADSL2+ TI A 4 0 • • • Bridging
Routing •
6388 Reach/
ADSL2+ TI A 4 0 • • • Bridging
Routing •802.11
b/g
6411 ADSL2+ Conexant A, L, M 1 1 • • • Bridging
Routing •
6412 ADSL2+ Conexant A, L, M 4 0 • • • Bridging
Routing •
6228 Bonded
ADSL2+ Broadcom A, L, M
G.Bond 4 0 • • • • Bridging
Routing •802.11
b/g
6238 ADSL2+ Broadcom A, L, M 4 1 • • • • Bridging
Routing •802.11
b/g
6610 VDSL2 Conexant G.993.2 1 0 • • Bridging
6652 VDSL2 Ikanos G.993.2 4 0 •Bridging •
1740 SHDSL Conexant G.993.2
bond 4 0 •Bridging
Routing •
1752 SHDSL.bis Inneon Bond 4
pairs 4 0 Bridging
Routing •
1754 SHDSL.bis Inneon Bond 4
pairs 4 0 Bridging
Routing •
VDSL 2 MODEM S & SHDSL BUSINESS ROUTER S
ZHONE TECHNOLOGIES CPE PRODUCTS GUIDE
6/7

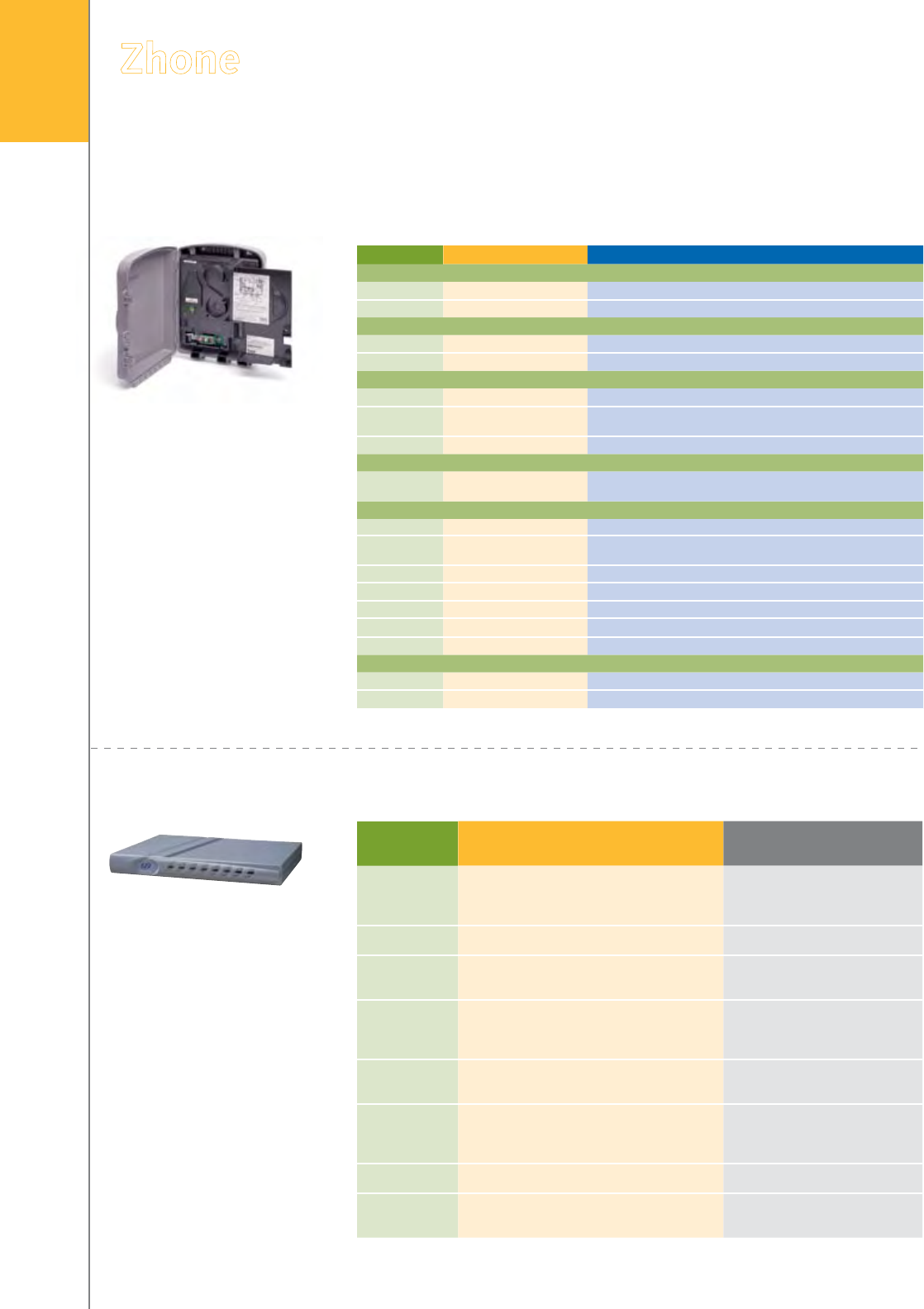

In addition to xDSL modems, Zhone provides complete ranges of CPE for FTTx
and EFM applications.
Zhone FTTx & EFM CPE Solutions
zNID ONT Model Reference Chart
Model 2110 2210 2211 4110 4111 4210 4211 4212 4213 7310
Type
GPON ••••••• ••
Active E. • •
Location
Outdoor •••••••
Indoor •••
Application
Residential ••••••••••
Residential
Gateway ••••
Business • •
Power
Battery Backup
Support •••••••••
Interfaces
Fast Ethernet 44 3333
Gigabit
Ethernet 1 2 2 1
Voice 224422228
T1/E1 2
RF Coax 1 1 1 1
HPNAv3 Coax • •
HPNAv3 Phone • •
Management
SNMP/TR-069 ••••
OMCI • • • • • •
Zhone oers a range of
indoor and outdoor zNID
ONTs with choices of inter-
faces and options for both
residential and business
applications.
Ethernet Access Devices (EADs)
3300
Series
3000
Series
2200
Series
2100
Series TNE SNE ENE
WAN
Interface
SHDSL.bis
5.7 Mbps
SHDSL.bis
5.7 Mbps
DS3
45 Mbps
SHDSL.bis
5.7 Mbps
T1
1.544 Mbps
SHDSL
2.3 Mbps
E1
2.048 Mbps
WAN Ports 4 or 8 1, 2 or 4 1 or 2 1 or 2 1, 2, 4
or 8 1, 2 or 4 1, 2, 4
or 8
Bandwidth
(at max ports)
Up to
45.6 Mbps
Up to
22.8 Mbps
Up to
90 Mbps
Up to
11.4 Mbps
Up to
12 Mbps
Up to
9.2 Mbps
Up to
16 Mbps
Loop Bonding
802.3ah
EFM
N2N
802.3ah
EFM N2N N2N N2N N2N N2N
LAN Interfaces
10 / 100 Base-T 4 4 4 1 or 2 1 (1 / 2 port)
4 (4 / 8 port) 11 (1 / 2 port)
4 (4 / 8 port)
Management 802.3ah
inband
CLI, Web,
SNMP
CLI, Web,
SNMP
CLI, Web,
SNMP
CLI, Web,
SNMP
(4 / 8 port)
Unmanaged
CLI, Web,
SNMP
(4 / 8 port)
QoS 802.1p 802.1p 802.1p 802.1p 802.1p 802.1p
Layer 2
Layer 3
Bridging
Routing
Bridging
L3 aware
Bridging
L3 aware
Bridging
L3 aware
Bridging
L3 aware
Bridging Bridging
L3 aware
EtherXtend EADs
n 1– 8 pair T1/E1 and
SHDSL.bis copper bonding
n Up to 45 Mbps bonded
bandwidth
n Bookend or Aggregation
application
n 1– 4 Ethernet LAN
interface options
For more information about Zhone and its products, please visit the Zhone Web site at
www.zhone.com or e-mail info@zhone.com
Zhone, the Zhone logo, and all Zhone product names are trademarks of Zhone Technologies, Inc. Other brand and
product names are trademarks of their respective holders. Specications, products, and/or product names are all
subject to change without notice. Copyright 2008 Zhone Technologies, Inc. All rights reserved.
