ZhongWang Electronic ZT-803T Wireless A/V Color Camera (2.4G), transmitter User Manual 414255

Shenzhen ZhongWang Electronic Co., Ltd. Wireless A/V Color Camera (2.4G), transmitter 414255

users manual

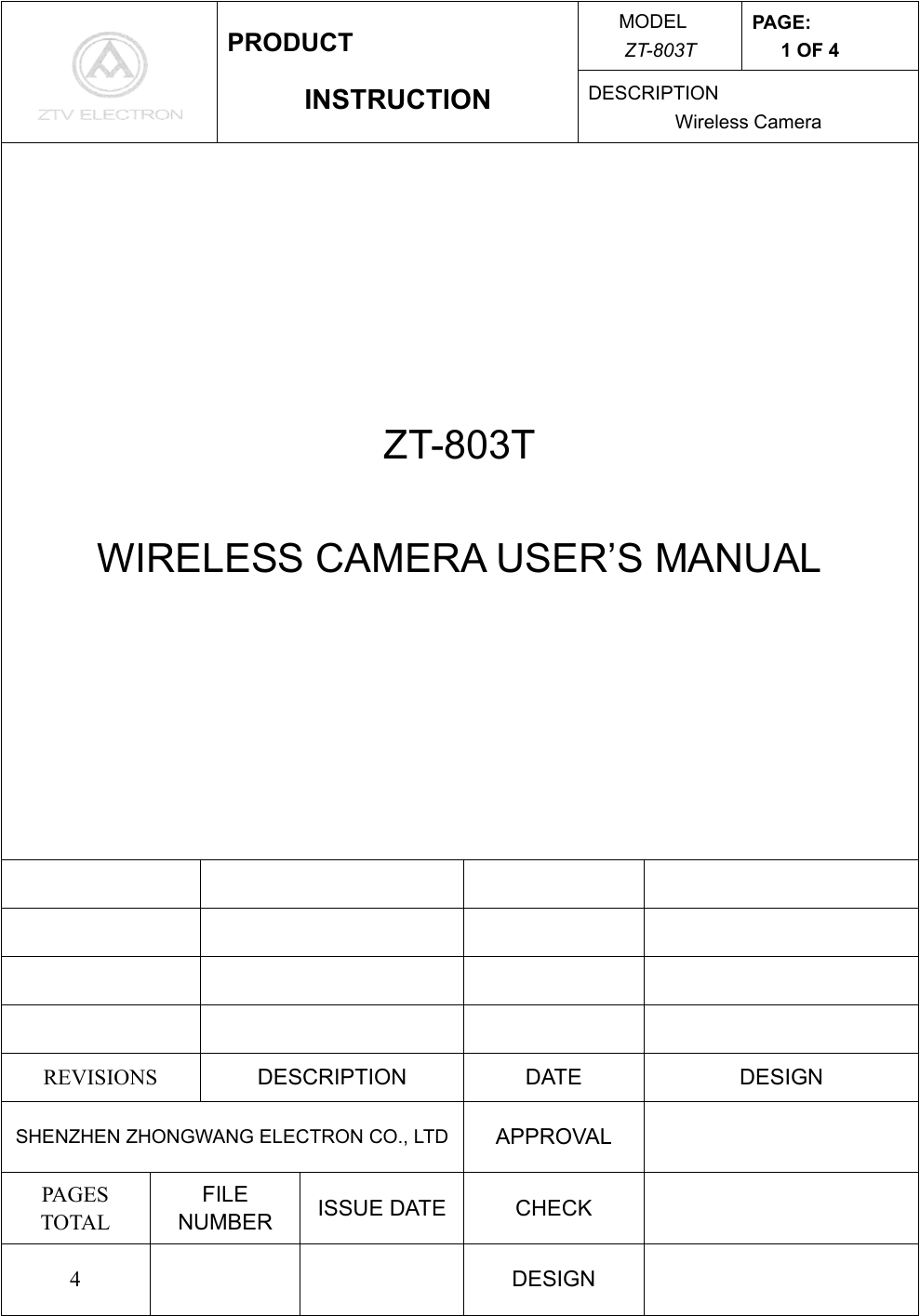

MODEL ZT-803T PAGE: 1 OF 4 PRODUCT INSTRUCTION DESCRIPTION Wireless Camera ZT-803T WIRELESS CAMERA USER’S MANUAL REVISIONS DESCRIPTION DATE DESIGN SHENZHEN ZHONGWANG ELECTRON CO., LTD APPROVAL PAGES TOTAL FILE NUMBER ISSUE DATE CHECK 4 DESIGN

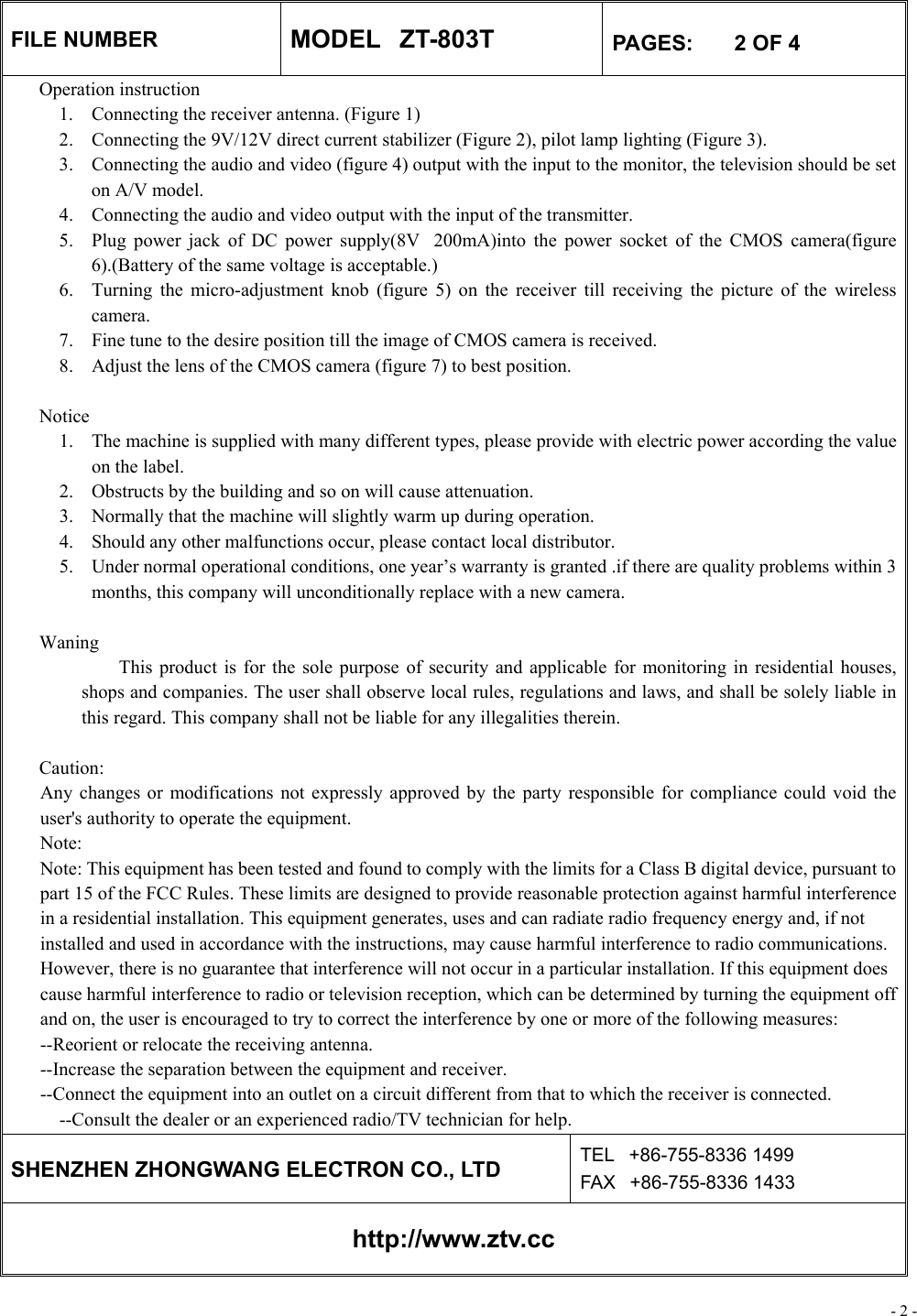

- 2 - FILE NUMBER MODELZT-803T PAGES: 2 OF 4 Operation instruction 1. Connecting the receiver antenna. (Figure 1) 2. Connecting the 9V/12V direct current stabilizer (Figure 2), pilot lamp lighting (Figure 3). 3. Connecting the audio and video (figure 4) output with the input to the monitor, the television should be set on A/V model. 4. Connecting the audio and video output with the input of the transmitter. 5. Plug power jack of DC power supply(8V200mA)into the power socket of the CMOS camera(figure 6).(Battery of the same voltage is acceptable.) 6. Turning the micro-adjustment knob (figure 5) on the receiver till receiving the picture of the wireless camera. 7. Fine tune to the desire position till the image of CMOS camera is received. 8. Adjust the lens of the CMOS camera (figure 7) to best position. Notice 1. The machine is supplied with many different types, please provide with electric power according the value on the label. 2. Obstructs by the building and so on will cause attenuation. 3. Normally that the machine will slightly warm up during operation. 4. Should any other malfunctions occur, please contact local distributor. 5. Under normal operational conditions, one year’s warranty is granted .if there are quality problems within 3 months, this company will unconditionally replace with a new camera. Waning This product is for the sole purpose of security and applicable for monitoring in residential houses, shops and companies. The user shall observe local rules, regulations and laws, and shall be solely liable in this regard. This company shall not be liable for any illegalities therein. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. SHENZHEN ZHONGWANG ELECTRON CO., LTD TEL+86-755-8336 1499 FAX+86-755-8336 1433 http://www.ztv.cc
- 3 - FILE NUMBER MODELZT-803T PAGES: 3 OF 4 Technical Data ITEM TYPE Transmission Frequency 2.414~2.468GHz 4cH Electric power: DC 8V Video input: 1.0VP-P(MAX) Power consumption current 80mA Audio input: 2VP-P(Max.) Effective range(no obstacles) 30m CMOS IMAGE SENSOR 1/3-inch CMOS Image Sensor CMOS TOTAL PIXELS 628*582 SYNC SYSTEM INTEMAL MINIMUM ILLUMINATION 1 Lµx F1.2 5600°K RESOLUTION 330TV Line Mode: AWB (Zero color rolling) WHITE BALANCE Range:3200~10000°K GAIN CONTROL AGC S/N RATIO 48dB(Min)/60dB(TYP)(AGC OFF) ELECTRONIC SHUTTER 1/60~1/15,000sec CAMMA CORRECTION 0.45 OPERATION TEMPERATURE -20~60 OPERATION HUMIDITY 85%RH SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL+86-755-8336 1499 FAX+86-755-8336 1433 http://www.ztv.cc FILE NUMBER MODELZT-803T PAGES: 4 OF 4

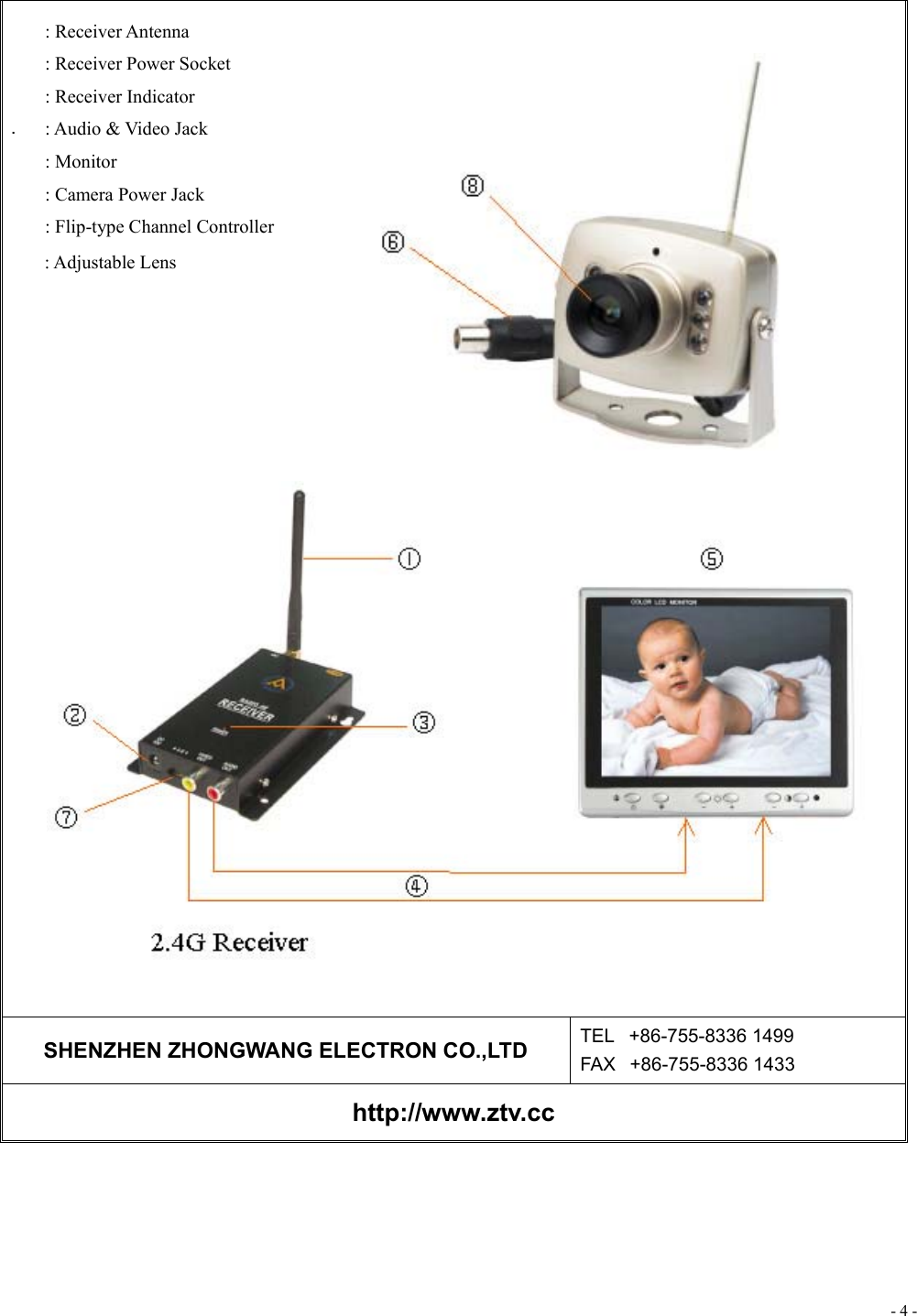

- 4 - . SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL+86-755-8336 1499 FAX+86-755-8336 1433 http://www.ztv.cc : Receiver Antenna : Receiver Power Socket : Receiver Indicator : Audio & Video Jack : Monitor : Camera Power Jack : Flip-type Channel Controller : Adjustable Lens
