ZhongWang Electronic ZT-830T 2.4GHz Wireless Camera User Manual
Shenzhen ZhongWang Electronic Co., Ltd. 2.4GHz Wireless Camera Users Manual
User Manual
MODEL：
ZT-830T
PAGE:
1 OF 4
PRODUCT
INSTRUCTION DESCRIPTION
Wireless Camera
ZT-830T
WIRELESS CAMERA USER’S MANUAL
REVISIONS DESCRIPTION DATE DESIGN
SHENZHEN ZHONGWANG ELECTRON CO., LTD
APPROVAL
PAGES
TOTAL
FILE
NUMBER ISSUE DATE CHECK
4 DESIGN
FILE NUMBER：
MODEL：ZT-830T PAGES: 2 OF 4

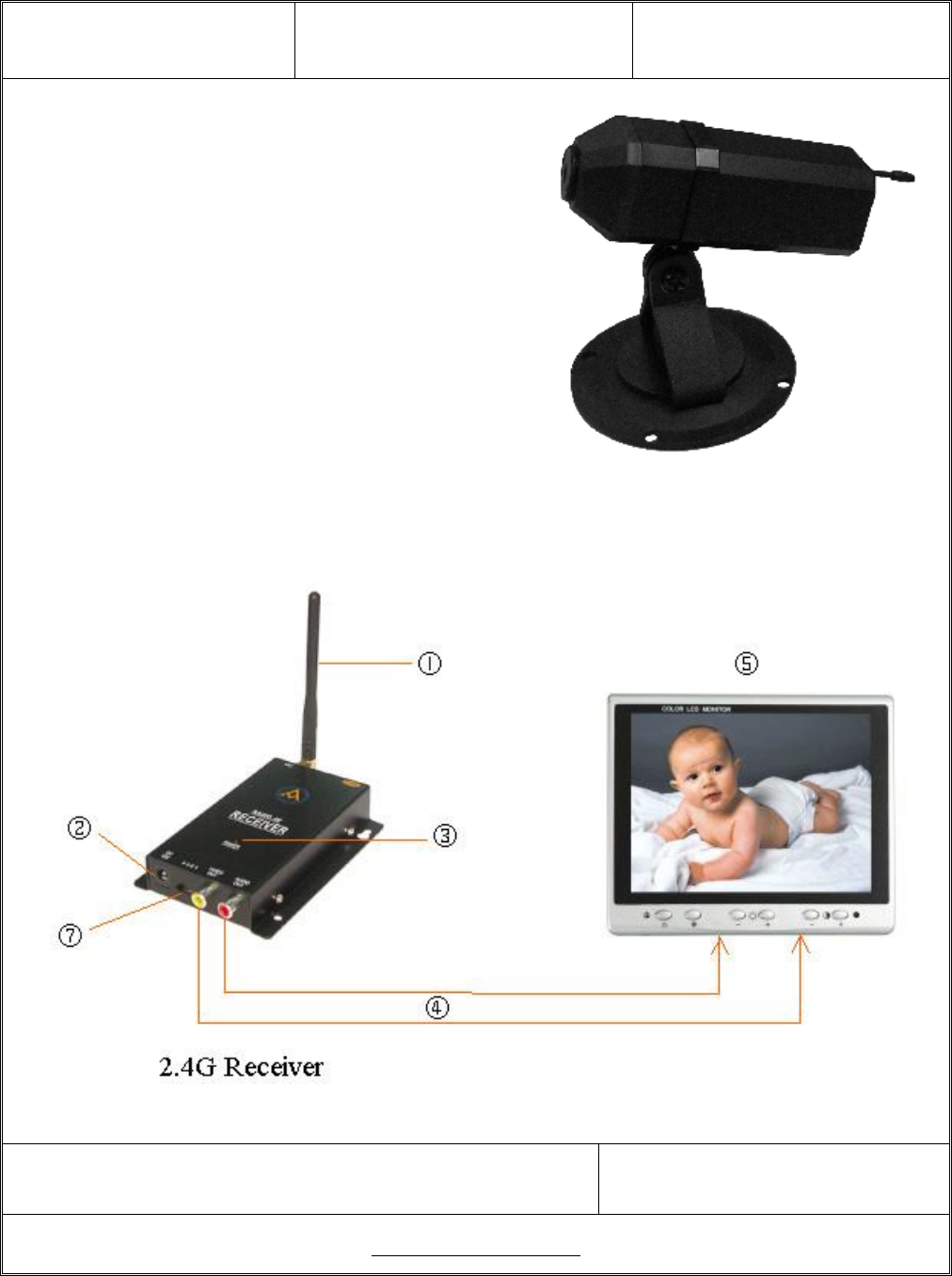

Operation instruction
1. Connecting the receiver antenna. (Figure 1)
2. Connecting the 9V/12V direct current stabilizer (Figure 2), pilot lamp lighting (Figure 3).
3. Connecting the audio and video (figure 4) output with the input to the monitor, the television
should be set on A/V model.
4. Connecting the audio and video output with the input of the transmitter.
5. Plug power jack of DC power supply(8V ，300mA)into the power socket of the CMOS
camera(figure 6).(Battery of the same voltage is acceptable.)
6. Turning the micro-adjustment knob (figure 5) on the receiver till receiving the picture of the
wireless camera.
7. Fine tune to the desire position till the image of CMOS camera is received.
8. Adjust the lens of the CMOS camera (figure 7) to best position.
Notice
1. The machine is supplied with many different types, please provide with electric power according
the value on the label.
2. Obstructs by the building and so on will cause attenuation.
3. Normally that the machine will slightly warm up during operation.
4. Should any other malfunctions occur, please contact local distributor.
5. Under normal operational conditions, one year’s warranty is granted .if there are quality problems
within 3 months, this company will unconditionally replace with a new camera.
6. Please power down when charge.
Waning
This product is for the sole purpose of security and applicable for monitoring in
residential houses, shops and companies. The user shall observe local rules, regulations and laws,
and shall be solely liable in this regard. This company shall not be liable for any illegalities therein
SHENZHEN ZHONGWANG ELECTRON CO., LTD TEL：+86-755-8336 1499
FAX：+86-755-8336 1433
http://www.ztv.cc
FCC Information
This device complies with part 15 of the FCC Rules, Operation
is subject to the following two conditions: (1)This device
may not cause harmful interference, and (2) This device must accept any interference
received, including interference that
may cause undesired operation.
CAUTION: Changes or modifications not expre
ssly approved by Summer infant may void the users authority to operate this
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of
the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference
will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
l Reorient or relocate the receiving antenna
l Increase the separation between the equipment and the receiver
l Consult the dealer or an experienced radio / TV technician for help.
FILE NUMBER： MODEL：ZT-830T PAGES: 3 OF 4
Technical Data
ITEM TYPE
Transmission
Frequency 2.414~2.468GHz 4cH
Electric power: DC 5V
Output power <10mW
Video input: 1.0VP-P(MAX)
Power consumption current 80mA
Audio input: 2VP-P(Max.)
Effective range (no obstacles) 30m
CMOS
IMAGE SENSOR 1/3-inch CMOS Image Sensor
CMOS TOTAL PIXELS 628*582
SYNC SYSTEM INTEMAL
MINIMUM ILLUMINATION 1 Lμx F1.2 5600°K
RESOLUTION 330TV Line
Mode: AWB (Zero color rolling)
WHITE BALANCE
Range:3200~10000°K
GAIN CONTROL AGC
S/N RATIO 48dB(Min)/60dB(TYP)(AGC OFF)
ELECTRONIC SHUTTER 1/60~1/15,000sec
CAMMA CORRECTION 0.45
OPERATION TEMPERATURE -20℃~60℃
OPERATION HUMIDITY 85%RH
SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499
FAX：+86-755-8336 1433
http://www.ztv.cc
