ZhongWang Electronic ZT-906T 2.4GHz Wireless Camera User Manual

Shenzhen ZhongWang Electronic Co., Ltd. 2.4GHz Wireless Camera Users Manual

User Manual

MODEL：
ZT-906T
PAGE:
1 OF 4
PRODUCT
INSTRUCTION DESCRIPTION
Wireless Camera
ZT-906T
WIRELESS CAMERA USER’S MANUAL
REVISIONS DESCRIPTION DATE DESIGN
SHENZHEN ZHONGWANG ELECTRON CO., LTD
APPROVAL
PAGES
TOTAL
FILE
NUMBER ISSUE DATE CHECK
4 DESIGN
- 2 -
FILE NUMBER： MODEL：ZT-906T PAGES: 2 OF 4
Operation instruction
1. Connecting the receiver antenna. (Figure 1)
2. Connecting the 12V adapter (Figure 2), open up the switch(Figure 5),LED indicator lights up
(ch1),Press the Key-press(Figure 8), LED indicator（ch1、ch2、ch3、ch4） lights up in proper order。
3. Connecting the audio and video (figure 4) output with the input to the monitor, the television
should be set on A/V model.
4. Connecting the audio and video output with the input of the transmitter.
5. Plug power jack of DC power supply(12V ，500mA)into the power socket of the CCD
camera(figure 6).(Battery of the same voltage is acceptable.)
6. Turning the micro-adjustment knob (figure 5)on the receiver till receiving the picture of the
wireless camera.
7. Fine tune to the desire position till the image of CMOS camera is received.
8. Adjust the lens of the CMOS camera (figure 7) to best position.
Notice
1. The machine is supplied with many different types, please provide with electric power according
the value on the label.
2. Obstructs by the building and so in will cause attenuation.
3. Normally that the machine will slightly warm up during operation.
4. Should any other malfunctions occur, please contact local distributor.
5. Under normal operational conditions, one year’s warranty is granted .if there are quality problems
within 3 months, this company will unconditionally replace with a new camera.
Waning
This product is for the sole purpose of security and applicable for monitoring in residential houses, shop
sand companies the users shall observe local rules, regulations and laws, and shall be solely
liable in this regard, this company shall not be liable for any illegalities therein.
SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499
FAX：+86-755-8336 1433
http://www.ztv.cc
FCC Information
This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions: (1)Thi
s device
may not cause harmful interference, and (2) This device must accept any interference
received, including interference that
may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by Summer infant may void the users
authority to operate this
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of
the FCC Rules.
These limits are designed to provide reasonable protection against harmful int
erference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference
will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to corre
more of the following measures:
l Reorient or relocate the receiving antenna
l Increase the separation between the equipment and the receiver
l Consult the dealer or an experienced radio / TV technician for help.
- 3 -
FILE NUMBER： MODEL：ZT-906T PAGES: 3 OF 4
Technical data
ITEM TYPE
Transmission
Frequency 2.414~2.468GHz 4cH
Electric power: DC 12V
Output power 0±3dBm
Video input: 1.0VP-P(MAX)
Power consumption current 180mA
Audio input: 2VP-P(Max.)
Effective range (no obstacles) 30m
CCD
IMAGE SENSOR 1/4 (Sharp CCD)
CCD Pixel Pitch 7.2 (H) × 4.7 (V)
SYNC SYSTEM INTENAL
Minimum illumination <2(IR OFF)/0(IR ON)
Horizontal Resolution 420TV Line
Mode: AWB(Zero color rolling)
WHITE BALANCE
Range:3200~10000°K
GAIN CONTROL AGC
S/N RATIO 40dB
ELECTRONIC SHUTTER 1/50-1/100000 sec
GAMMA CORRECTION 0.45
OPERATION TEMPERATURE -20℃~50℃
OPERATION HUMIDITY 15%~85%RH
SHENZHEN ZHONGWANG ELECTRON
CO.,LTD
TEL：+86-755-8336 1499
FAX：+86-755-8336 1433
http://www.ztv.cc
- 4 -
FILE NUMBER： MODEL：ZT-906T PAGES: 4 OF 4
.
SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499
FAX：+86-755-8336 1433
http://www.ztv.cc
TV
DC
12V
①
②
③
④

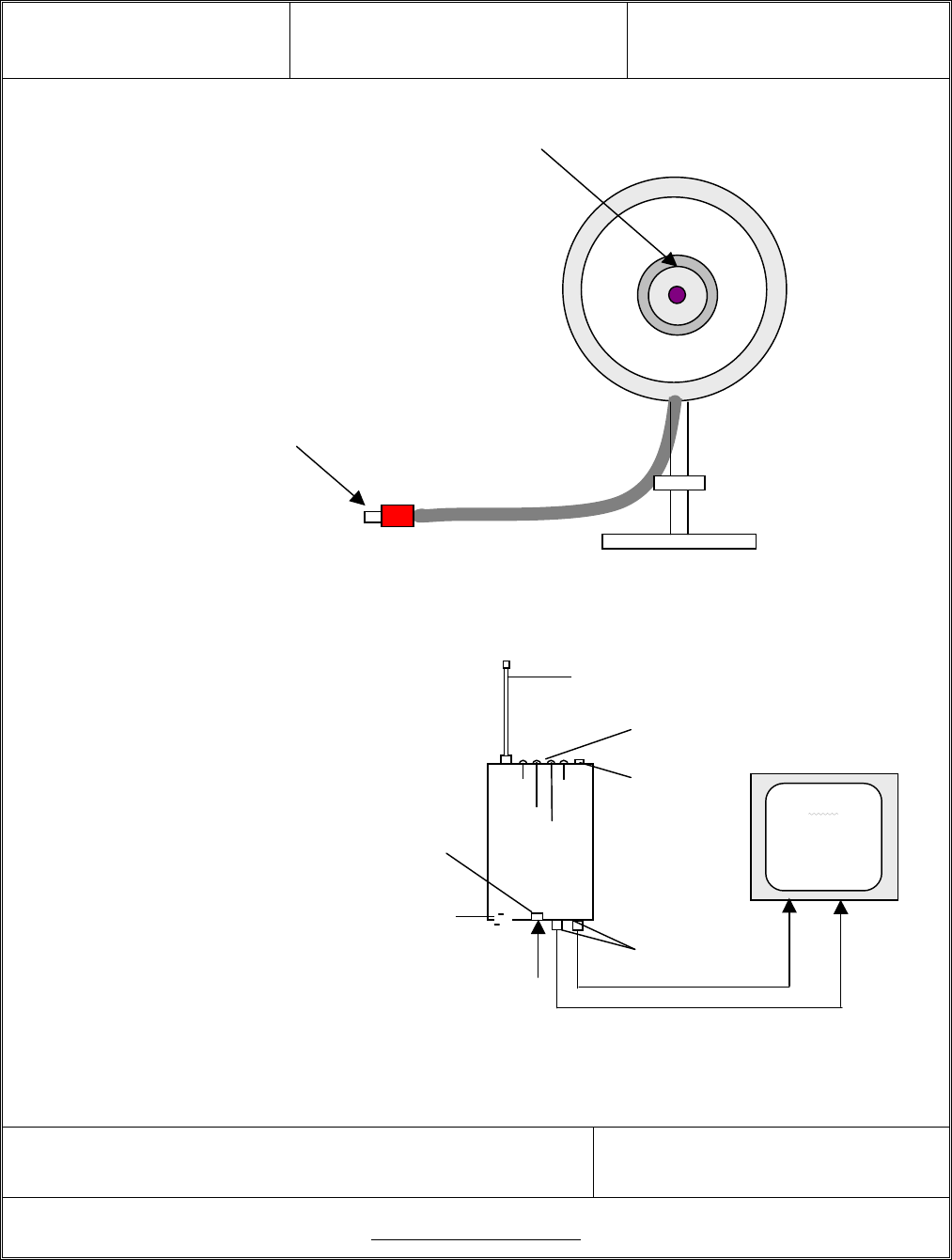

2.4G Receiver
⑤
①: Antenna
②: Power Jack
③: Flash LED(ch1、ch2、ch3、ch4)
④: Video and Audio Jack
⑤: Switch
⑥: Camera Power Line
⑦: Lens of camera
⑧ Key-press
Audio
Video
⑥
⑦
⑧
Ch4
Ch3
Ch2
Ch1
